On the Use of Feature Descriptors on Raw Image Data

Alina Trifan and Ant

onio J. R. Neves

Universidade de Aveiro, IEETA/DETI - IRIS Laboratory, Aveiro, Portugal

Keywords:

Bayer Pattern, Raw Data, Feature Detectors and Descriptors, Image Processing.

Abstract:

Local feature descriptors and detectors have been widely used in computer vision in the last years for solving

object detection and recognition tasks. Research efforts have been focused on reducing the complexity of

these descriptors and improving their accuracy. However, these descriptors have not been tested until now on

raw image data. This paper presents a study on the use of two of the most known and used feature descriptors,

SURF and SIFT, directly on raw CFA images acquired by a digital camera. We are interested in understanding

if the number and quality of the keypoints obtained from a raw image are comparable to the ones obtained

in the grayscale images, which are normally used by these transforms. The results that we present show that

the number and positions of the keypoints obtained from grayscale images are similar to the ones obtained

from CFA images and furthermore to the ones obtained from grayscale images that resulted directly from the

interpolation of a CFA image.

1 INTRODUCTION

Feature extraction has been studied intensively in the

last years within the computer vision community.

With the introduction of algorithms like Speeded Up

Robust Features - SURF (H. Bay et al., 2008) and

Scale Invariant Feature Transform - SIFT (Lowe,

2004), generic objects at different scales or orienta-

tions can be successfully detected in images. These

two algorithms are considered to be optimal but the

price paid for a good object detection is a computa-

tional time of the orders of minutes.

Most modern digital cameras allow the acquisition

of images as raw data, that have a pixel distribution

following the Bayer pattern (Bayer, 1976). A Bayer

ﬁlter mosaic is a type of Color Filter Array (CFA) for

arranging RGB color ﬁlters on a square grid of pho-

tosensors. The ﬁlter pattern is 50% green, 25% red

and 25% blue, usually called BGGR, RGBG, GRGB,

RGGB, etc. depending on the position of the ﬁlters.

For display purposes and better human visual-

ization, interpolating or demosaicing algorithms are

used, that convert the raw image to a certain color

space, like RGB, YUV or HSV (Kimmel, 1999). This

is a digital image processing technique used to recon-

struct a full color image from the incomplete color

samples output from an image sensor overlaid with

a CFA. Most modern digital cameras acquire images

using a single image sensor overlaid with a CFA,

so demosaicing is part of the processing pipeline re-

quired to render these images into a viewable format.

However, in most of them, images in a raw format

can be retrieved, allowing the user to demosaic them

using software, rather than using the cameras built-in

ﬁrmware.

A recent study (Neves and Trifan, 2015) shows

that there are several advantages in using CFA images

for colored object detection, mainly in what concerns

speeding up the processing time and the reduction of

the delay between perception and action. This is due

to two reasons: dealing with a reduced volume of

data (a single channel image instead of a three chan-

nel one) improves the speed of the image transmis-

sion between the camera and the computer; less time

is taken by the processing pipeline since demosaic-

ing is not performed. Moreover, it has been shown in

the same study that the performance of colored object

detection algorithms is not affected when processing

directly the CFA images.

In this paper we are interested in ﬁnding out if the

same applies for algorithms used for generic object

detection. By using feature descriptors and detectors

such as SURF or SIFT directly on the raw CFA im-

ages, the demosaicing step is not necessary. This re-

duces the complexity of an object detection system.

Feature descriptors and detectors such as SURF or

SIFT are normally applied to intensity images, which

are single channel grayscale images obtained from the

full RGB images by applying a transformation that

relates the intensity of a pixel with its color. In this

Trifan, A. and Neves, A.

On the Use of Feature Descriptors on Raw Image Data.

DOI: 10.5220/0005756506550662

In Proceedings of the 5th Inter national Conference on Pattern Recognition Applications and Methods (ICPRAM 2016), pages 655-662

ISBN: 978-989-758-173-1

655

paper we quantify and qualify the keypoints obtained

using the two mentioned feature descriptors when ap-

plied directly on CFA images and, for comparison,

when applied to a grayscale image which has been

obtained directly from a CFA one, based on the algo-

rithm presented in Section 3.

The experimental results presented in this paper

show that the number of keypoints obtained in the

two types of images referred above are similar to the

ones obtained in the intensity images and are located

in similar positions. Comparing the obtained descrip-

tors for each keypoint using the FLANN algorithm,

we noticed that there are a considerable amount of

them that have a match in the intensity image, mainly

in the regions of the image with more detail, as desir-

able. We conclude that feature descriptors and detec-

tors can be used with success directly in CFA images.

As far as we know, no previous study on this matter

has been presented before.

This paper is structured in 5 sections, ﬁrst of them

being this Introduction. An overview of the feature

descriptors used in this study is presented in Sec-

tion 2. Section 3 details the particularities of a Color

Filter Array (CFA) image and presents the methods

used for obtaining an intensity grayscale image from

a CFA image. Experimental results of the use of the

SIFT and SURF detectors on grayscale images, CFA

images and grayscale images obtained directly from

CFA images are presented in Section 4. Finally, sec-

tion 5 draws the ﬁnal remarks, followed by the ac-

knowledgement of the institutions that supported this

work.

2 FEATURE DESCRIPTORS AND

DETECTORS

Scale-invariant feature transform (Lowe, 2004) is a

popular algorithm for the detection and description of

local features in an image. The SIFT descriptor is in-

variant to translations, rotations and scaling transfor-

mations in the image domain. It is robust to moder-

ate perspective transformations and illumination vari-

ations. The SIFT algorithm operates in a stack of

gray-scale images with increasing blur, obtained by

the convolution of the initial image with a variable-

scale Gaussian. A differential operator is applied in

the scale-space, and candidate keypoints are obtained

by extracting the extrema of this differential.

A SIFT keypoint is a selected image region with

an associated descriptor. Their descriptors are stored

in a vector that contains the information necessary to

classify a keypoint. It is possible to obtain features,

highly distinctive, useful in the matching process. In

order to achieve rotation invariance, each keypoint is

assigned a magnitude and an orientation, thus making

this algorithm highly robust.

Speeded Up Robust Feature (H. Bay et al., 2008)

is a fast and robust algorithm for local, similarity in-

variant representation and comparison. Similarly to

the SIFT approach, SURF is a detector and descriptor

of local scale and rotation-invariant image features.

The SURF method uses integral images in the convo-

lution process, which speeds up the processing. Initial

images are convolved with box ﬁlters at several differ-

ent discrete size. To select interest point candidates,

the local maxima of a Hessian matrix is computed and

a quadratic interpolation is used to reﬁne the location

of candidate keypoints. Contrast signs of the interest

point are stored to construct the keypoint descriptor.

Finally, the dominant orientation of each keypoint is

estimated and the descriptor is computed.

SURF keypoints are assigned a scale and a rota-

tion invariance in order to achieve distinctive features

in an image. The SURF descriptor is an improvement

of SIFT with respect to the processing time taken. In-

tegral images associated with the Laplacian of Gaus-

sian approximation represent an ingenious construc-

tion to speed up the convolution operation.

Features from Accelerated Segment Test -

FAST (Rosten and Drummond, 2006) is a more recent

algorithm proposed originally for identifying corners

in an image. This algorithm is an attempt to solve

a common problem, the one of real-time processing,

with applications in robotics. Unlike SIFT and SURF,

FAST algorithm only detects corners/keypoints and

does not produce descriptors. This detector can be

used with other descriptors to detect keypoints.

The BRIEF (Calonder et al., 2010) algorithm was

the ﬁrst binary descriptor published, based on simple

intensity difference tests. BRIEF takes only the infor-

mation at single pixels location to build the descrip-

tor. In order to improve its sensitiveness to noise, the

image is ﬁrst smoothed by a Gaussian ﬁlter. This is

done by picking pairs of pixels around the keypoint,

according to a random or non-random sampling pat-

tern, and then comparing the two intensities.

Although these algorithms are of great interest

within the Computer Vision research community,

their use has not been tested so far on raw image

data. A very recent work (Larabi and Setitra, 2015)

presents a preliminary study on their use on binary

images. In this paper we provide results on the use

of SURF and SIFT descriptors on CFA images, ac-

quired by a digital camera. Nowadays modern dig-

ital cameras allow the acquisition of images as raw

data, that have a pixel distribution following the Bayer

pattern (Bayer, 1976). This work focuses on SURF

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

656

and SIFT descriptors since even though they are more

complex, they are the most reliable in terms of accu-

racy and invariance to scale and rotation (Miksik and

Mikolajczyk, 2012).

3 BAYER IMAGES

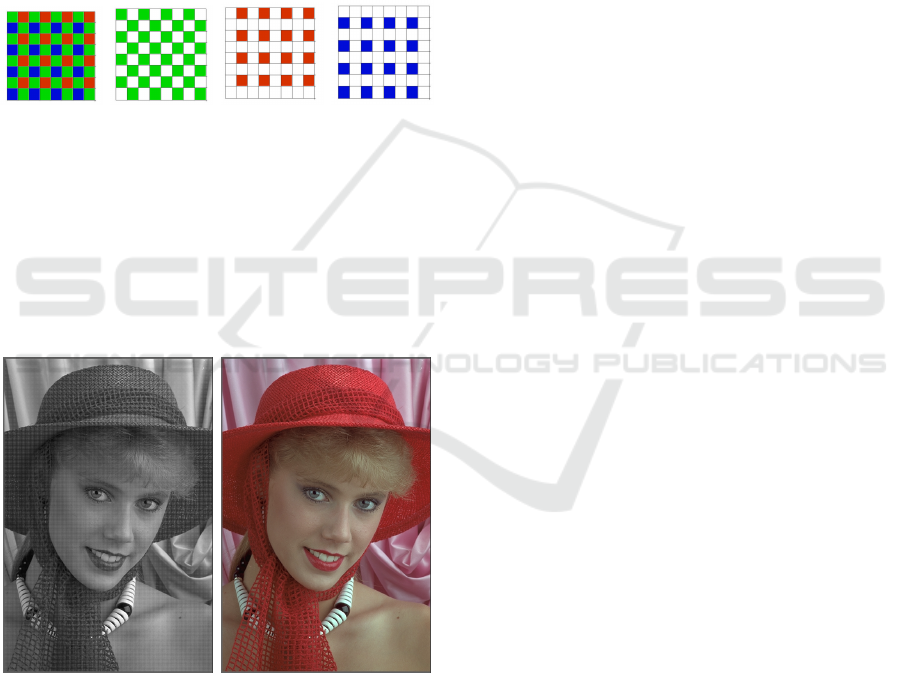

Fig. 1 shows a typical Bayer arrangement of color ﬁl-

ters. As it can be seen, the green information has dou-

ble the size of the red or blue information. This is due

as an attempt to mimic the physiology of the human

eye, which is more sensitive to green light.

Figure 1: Bayer arrangement of color ﬁlters.

To obtain a full-color image, various demosaicing

algorithms can be used to interpolate a set of com-

plete red, green, and blue values for each pixel. These

algorithms make use of the surrounding pixels of the

corresponding colors to estimate the values for a par-

ticular pixel. In Fig. 2 we can see an example of a

CFA image and the corresponding RGB image ob-

tained after demosaicing.

Figure 2: On the left an example of a CFA image. On the

right, the obtained RGB image after demosaicing.

In this paper we provide experimental results re-

garding the use of feature descriptors like SIFT and

SURF directly on CFA images. Moreover, for com-

parison, we provide experimental results using inten-

sity grayscale images obtained directly from the CFA

images. To do that, we consider the neighbor informa-

tion of red, green and blue to calculate the intensity

information of each pixel without any interpolation.

The algorithm for transforming a CFA image into a

grayscale image, considering the Bayer conﬁguration

presented in Fig. 1, works as follows:

Input: CFA image (image)

Output: grayscale image (y)

/* For all the pixels in the Bayer image */

for(p = 0 ; p < image.cols * image.rows ; p++)

{

row = p / image.cols;

col = p \% image.cols;

if(row \% 2 == 0) /* even rows */

{

if(col \% 2 == 0) /* even columns */

{

r = image[p];

g = image[p + 1];

b = image[p + image.cols + 1];

}

else

{

g = image.ptr[p];

r = image.ptr[p - 1];

b = image.ptr[p + image.cols];

}

else /* odd rows */

{

if(col \% 2 == 0) /* even columns */

{

g = image.ptr[p];

r = image.ptr[p - image.cols];

b = image.ptr[p + 1];

}

else /* odd columns */

{

g = image.ptr[p - 1];

r = image.ptr[p - image.cols - 1];

b = image.ptr[p];

}

/* Grayscale pixel */

y[p] = 0.299 * r + 0.587 * g + 0.114 * b;

}

Fig. 3 shows an example of the application of the

previous algorithm. Visually, the image obtained rep-

resents the light intensity on each pixel without noise.

For comparison, in Fig. 4 we present the grayscale

version obtained from the full RGB image and the

corresponding difference image. The difference im-

age shows the absolute differences between this im-

age and the one obtained directly from the CFA im-

age. The most considerable differences are in the pix-

els where there are edges, as expected, since in more

ﬂat regions the interpolation process usually does not

introduce new color information.

On the Use of Feature Descriptors on Raw Image Data

657

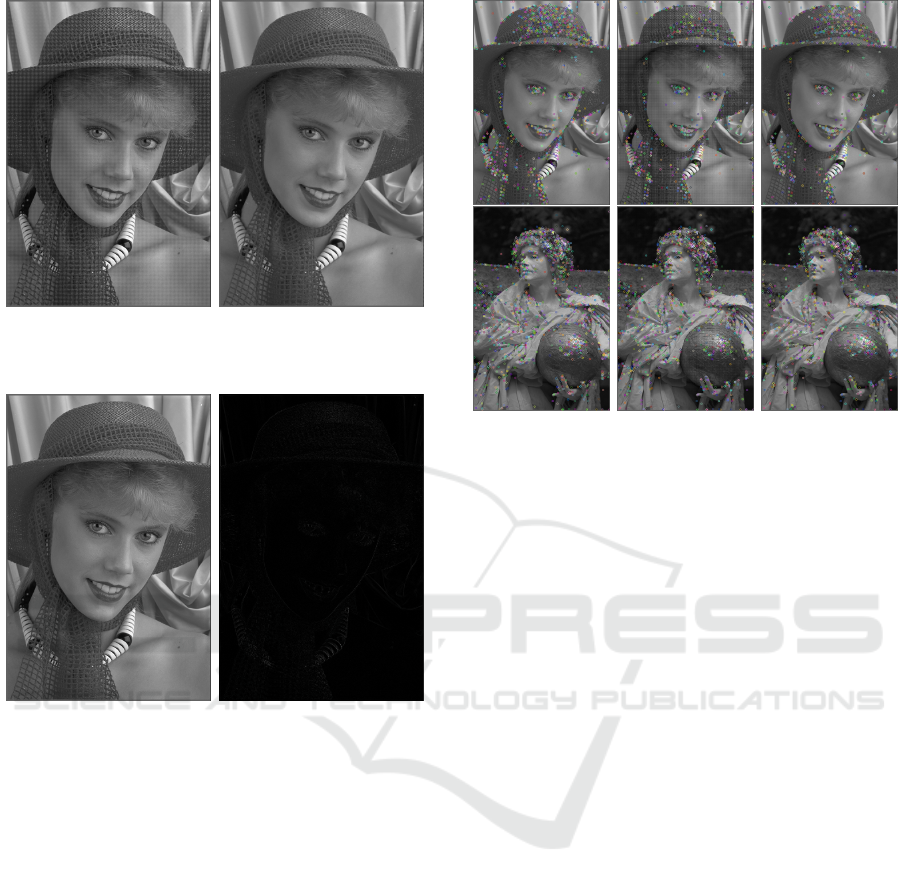

Figure 3: On the left an example of a CFA image. On the

right, the obtained grayscale image using directly the CFA

image.

Figure 4: On the left, the grayscale image obtained from

the full RGB image. On the right, the difference between

the image on the left and the grayscale image obtained from

the CFA image presented in Fig. 3.

4 EXPERIMENTAL RESULTS

In order to quantify and qualify the keypoints ob-

tained using SIFT and SURF feature descriptors when

applied directly on CFA images and, for comparison,

when applied to a grayscale image obtained directly

from the CFA ones, we used the SIFT and SURF im-

plementation provided by the OpenCV library.

In order to perform the experiments reported in

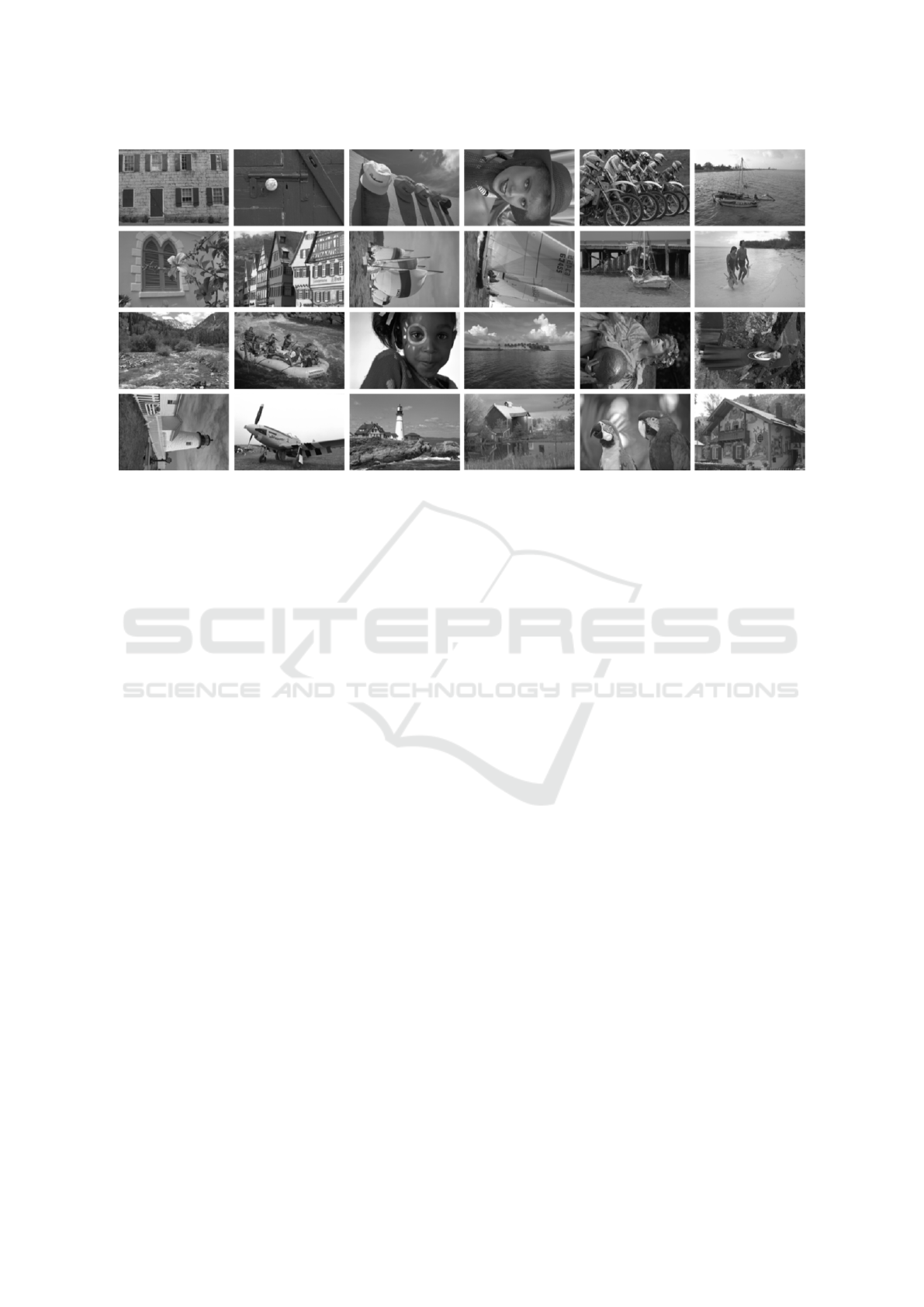

this paper, twenty-four 24-bit color images from the

well known Kodak image set (kod, ) of size 512 ×768

each, as shown in Fig. 15, were sub-sampled accord-

ing to the Bayer pattern presented in Fig. 1 to form

a set of 8-bit testing raw Bayer images. We obtained

a set of 8-bit intensity grayscale images obtained di-

rectly from the RGB original images and another 8-

bit intensity grayscale images obtained directly from

the CFA images using the algorithm described in Sec-

Figure 5: SIFT keypoints for images 04 (ﬁrst row) and 07

(sencond row) of the Kodak set. The complete results can

be found in http://sweet.ua.pt/an/FullResults.zip.

tion 3. Figure 5 shows the keypoints detected for im-

age 04 of the used dataset, using SIFT. The results

presented on the left have been obtained using the

grayscale image. The keypoints of the central image

have been obtained by applying the SIFT transform

directly on the CFA image. The image on the right

is the grayscale image that has been obtained directly

from the CFA one.

Figure 6 shows the keypoints detected for im-

age 04 of the used dataset, using SURF. The results

presented on the left have been obtained using the

grayscale image of the dataset. The keypoints of

the central image have been obtained by applying the

SURF transform directly on the CFA image. The im-

age on the right is the grayscale image that has been

obtained directly from the CFA one.

The results presented in these images show that

the number and position of the keypoints are sim-

ilar between gray, CFA and grayscale images ob-

tained from the CFA ones. Moreover, Table 1 and

Table 2 present detailed experimental results regard-

ing the number of keypoints obtained using the SIFT

and SURF algorithms when applied to the intensity

grayscale image obtained from the full RGB image,

when applied to the CFA image and when applied to

the grayscale image obtained from the CFA image.

To measure the quality of the obtained descrip-

tors, we compared the descriptors obtained for the

keypoints in the CFA images and for the ones in

grayscale images obtained from CFA images, with the

ones in intensity grayscale images obtained from the

full RGB images. This comparison was based on the

FLANN matching algorithm (Muja and Lowe, 2009).

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

658

Figure 6: SURF Keypoints for for images 04 (ﬁrst row) and

07 (sencond row) of the kodak set. The complete results can

be found in http://sweet.ua.pt/an/FullResults.zip.

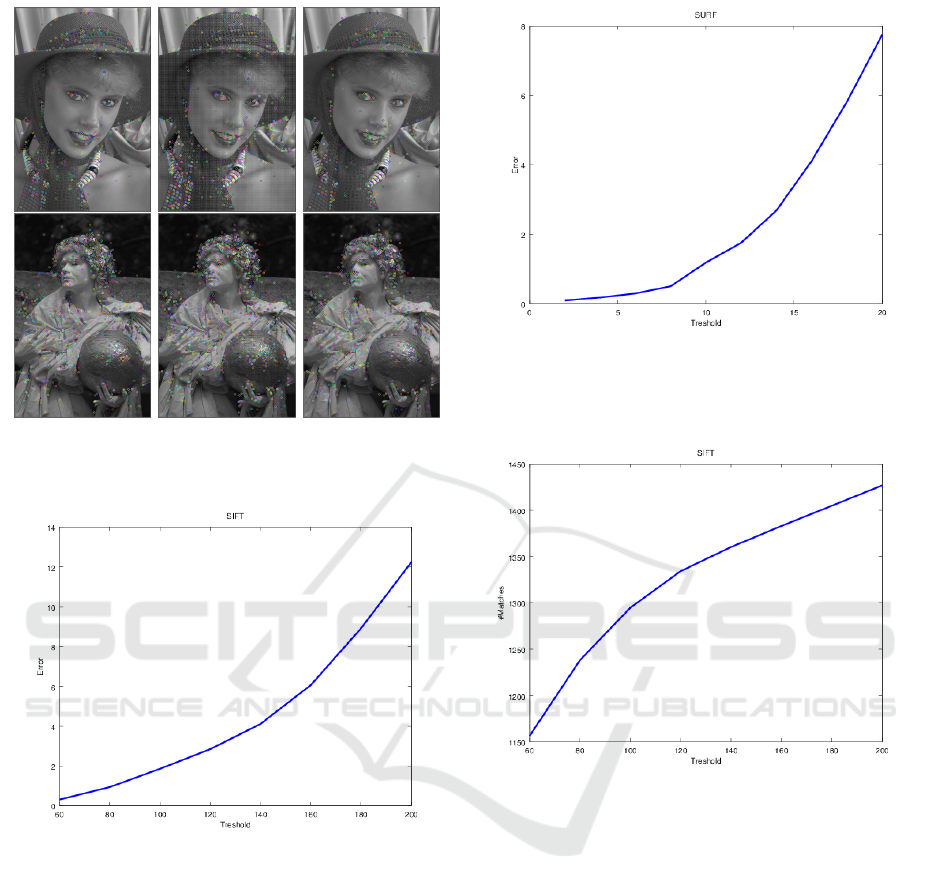

Figure 7: Average error between the position of the SIFT

keypoints in the CFA image and the position of the SIFT

keypoints in the grayscale image. Different threshold values

of the FLANN matching algorithm have been used.

FLANN is an algorithm for performing fast approx-

imate nearest neighbor searches in high dimensional

spaces. It contains a collection of algorithms found

to work best for nearest neighbor search and a system

for automatically choosing the best algorithm and op-

timum parameters depending on the dataset.

Experimental results presented in Table 1 and Ta-

ble 2 show the number of matches for each pair of

images. We can observe that there is a considerable

number of matches below a low error. We considered

an error of 0.08 for the SURF algorithm for all the

images and an error of 100 for the SIFT algorithm.

In Fig. 7 and Fig. 8 we can see the average error

in the position of the keypoints in the CFA image and

Figure 8: Average error between the position of the SURF

keypoints in the CFA image and the position of the SURF

keypoints in the grayscale image. Different threshold values

of the FLANN matching algorithm have been used.

Figure 9: Number of SIFT keypoints in the CFA image that

corresponds to SIFT keypoints in the grayscale image. Dif-

ferent threshold values of the FLANN matching algorithm

have been used.

the position of the keypoints in the grayscale image

for both algorithms. The average error was obtained

for all the 24 images of the dataset.

The threshold for the error between matches has

an effect on the number of matches, as presented in

Fig. 9 and Fig. 10. If necessary in a speciﬁc applica-

tion, we can improve the number of matches and the

error in their position adjusting this threshold.

Figure 11 shows the matches obtained using the

FLANN matcher between the SURF keypoints found

in intensity image 04 of the used dataset and the

corresponding CFA image. Figure 12 shows the

matches obtained using the FLANN matcher between

the SURF keypoints found in intensity image 04 of

the used dataset and the grayscale obtained from the

CFA image. It can be observed that the position of

On the Use of Feature Descriptors on Raw Image Data

659

Table 1: Table containing information about the number

of keypoints obtained using the SIFT algorithm when ap-

plied to the grayscale image obtained from the full RGB

image (column “#kG”), when applied to the CFA image

(column “#kB”) and when applied to the grascale image

obtained from the CFA image (column “#kGB”). This table

also shows the number of keypoints in the CFA image that

corresponds to keypoints in the grayscale image using the

FLANN algorithm (column “#mB”) and the number key-

oints in the grayscale image obtained from the CFA image

that corresponds to keypoints in the grayscale image.

Img #kG #kB #mB #kGB #mGB

1 3199 2737 2094 2915 840

2 547 277 191 411 141

3 957 647 471 668 317

4 1465 815 619 891 372

5 4052 3605 2755 3217 1374

6 2118 1725 1279 1831 576

7 1899 1506 1149 1441 821

8 3603 3274 2703 2927 1207

9 1393 1259 1018 971 489

10 1355 1246 998 968 510

11 1637 1405 1044 1324 556

12 648 574 414 450 203

13 4187 3366 2481 3569 1072

14 3012 2522 1913 2308 956

15 935 664 524 526 266

16 1307 1063 811 980 378

17 1412 1303 1023 1092 615

18 4027 2633 1999 2652 1017

19 1531 1093 826 1060 444

20 890 713 521 688 261

21 2590 2199 1709 2099 844

22 1932 1334 952 1253 469

23 727 570 419 491 266

24 3084 2611 1866 2262 839

matches are mainly in relevant parts of the images,

enough to describe the object of interest.

Figure 13 shows the matches obtained using the

FLANN matcher between the SIFT keypoints found

in intensity image 04 of the used dataset and the cor-

responding CFA image. Figure 14 shows the matches

obtained using the FLANN matcher between the SIFT

keypoints found in intensity image 04 of the used

dataset and the grayscale obtained from the CFA im-

age. It can be observed that the position of matches

are mainly in relevant parts of the images, enough to

describe the object of interest.

Table 2: Table containing information about the number

of keypoints obtained using the SURF algorithm when ap-

plied to the grayscale image obtained from the full RGB im-

age (column “#kG”), when applied to the CFA image (col-

umn “#kB”) and when applied to the grascale image ob-

tained from the CFA image (column “#kGB”). This table

also shows the number of keypoints in the CFA image that

corresponds to keypoints in the grayscale image using the

FLANN algorithm (column “#mB”) and the number key-

oints in the grayscale image obtained from the CFA image

that corresponds to keypoints in the grayscale image.

Img #kG #kB #mB #kGB #mGB

1 2819 3846 1117 2526 747

2 246 415 50 247 81

3 455 786 135 447 269

4 537 979 185 515 216

5 2650 3844 1175 2634 983

6 1268 1908 443 1102 357

7 1193 2440 513 1172 587

8 3336 4270 1900 2921 804

9 885 1237 538 846 415

10 788 1077 464 775 366

11 1238 1839 525 1145 476

12 493 969 284 488 256

13 2669 4134 905 2393 700

14 1850 2659 585 1760 710

15 515 863 306 569 270

16 529 900 270 474 226

17 1019 1426 616 1011 529

18 1804 2522 498 1659 535

19 1198 2406 537 1069 386

20 674 1258 356 710 313

21 1623 1258 356 1494 586

22 1000 2021 214 888 289

23 476 853 171 476 234

24 1909 2729 812 1772 613

5 CONCLUSIONS

We have presented in this paper a study on the ap-

plication of two of the most used feature descriptors,

SURF and SIFT, on raw CFA images. The results that

we presented prove that it is possible to use these de-

scriptors directly on CFA images, discarding thus the

need of interpolating a raw image into a full RGB

one prior to processing it. We have presented com-

parative results of the use of the two transforms on

intensity grayscale images obtained from full RGB

images, CFA images and intensity grayscale images

obtained from raw CFA images by direct conversion.

This study is an important contribution for the Com-

puter Vision community since it proves that generic

object detection can be done directly on raw images

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

660

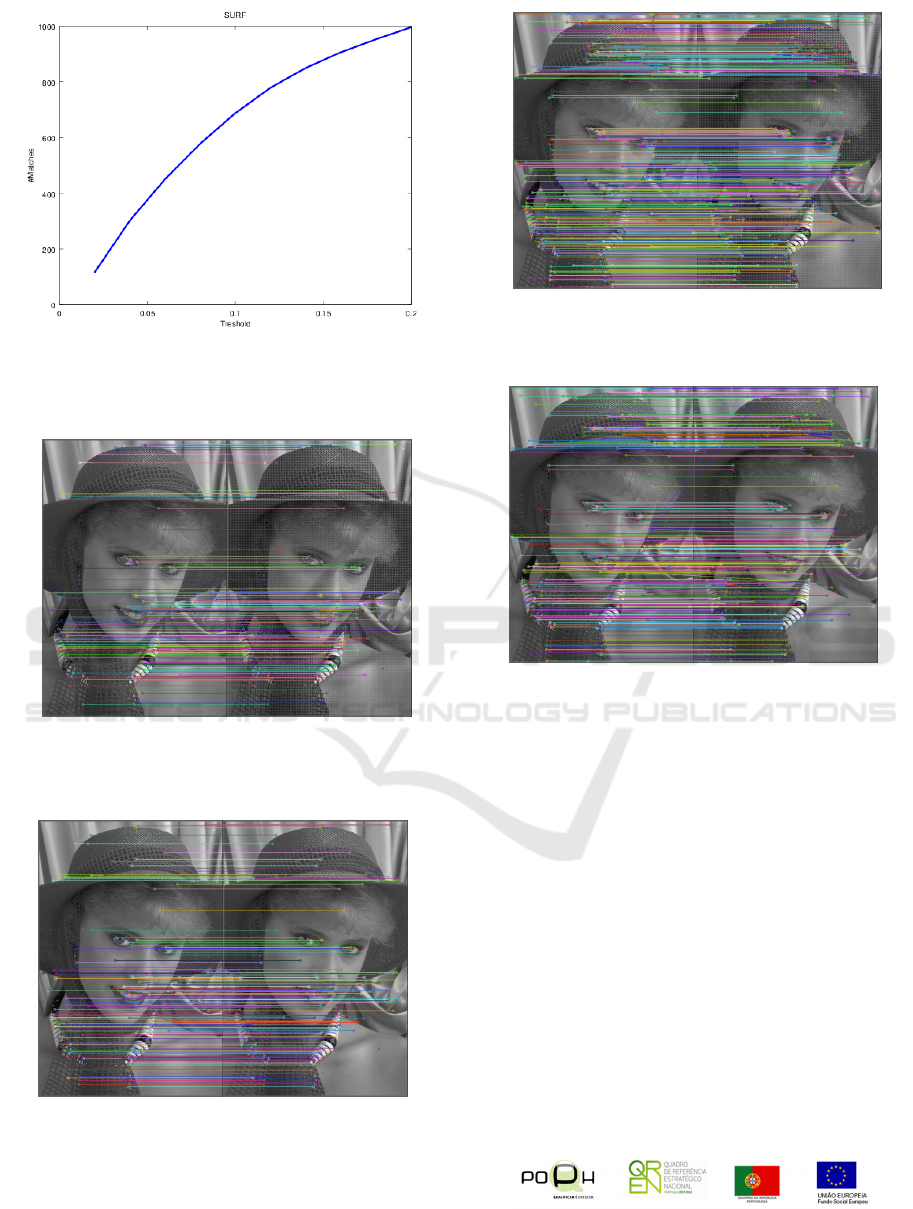

Figure 10: Number of SURF keypoints in the CFA image

that corresponds to SURF keypoints in the grayscale image.

Different threshold values of the FLANN matching algo-

rithm have been used.

Figure 11: Match SURF Keypoints for image 04 of the Ko-

dak set (on the left) using FLANN algorithm considering

the CFA image (on the right). The complete results can be

found in http://sweet.ua.pt/an/FullResults.zip.

Figure 12: Match SURF Keypoints for image 04 of the

Kodak set (on the left) using FLANN algorithm con-

sidering the grayscale obtained from the CFA image

(on the right). The complete results can be found in

http://sweet.ua.pt/an/FullResults.zip.

and the demosaicing of these images is no longer a

compulsory step in an image processing pipeline.

Figure 13: Match SIFT Keypoints for image 04 of the Ko-

dak set using FLANN algorithm. The complete results can

be found in http://sweet.ua.pt/an/FullResults.zip.

Figure 14: Match SIFT Keypoints for image 04 of the Ko-

dak set using FLANN algorithm. The complete results can

be found in http://sweet.ua.pt/an/FullResults.zip.

Future work directions will focus on the use of

these descriptors directly on the raw data for object

detection. For this, a more detailed study on the

threshold and parameters involved by the matching

algorithm will be conducted.

ACKNOWLEDGEMENTS

This work was developed in the Institute of Electronic

and Telematic Engineering of University of Aveiro

and was partially supported by FEDER through

the Operational Program Competitiveness Factors -

COMPETE FCOMP-01-0124-FEDER-022682 (FCT

reference PEst-C/EEI/UI0127/2011) and by National

On the Use of Feature Descriptors on Raw Image Data

661

Figure 15: Grayscale version of the Twenty-four digital color images from the kodak set (refers as image 1 to image 24, from

top-to-bottom and left-to-right).

Funds through FCT - Foundation for Science and

Technology in a context of a PhD Grant (FCT ref-

erence SFRH/BD/85855/2012).

REFERENCES

Kodak image set. http://r0k.us/graphics/kodak/. Accessed:

2015-10-5.

Bayer, B. (1976). Color imaging array. US Patent

3,971,065.

Calonder, M., Lepetit, V., Strecha, C., and Fua, P. (2010).

BRIEF: Binary Robust Independent Elementary Fea-

tures. 11th European Conference on Computer Vision

(ECCV), Heraklion, Crete. LNCS Springer.

H. Bay, A. E., Tuytelaars, T., and Gool, L. V. (2008).

Speeded-Up Robust Features (SURF). Computer Vi-

sion and Image Understanding, 110(3):346–359.

Kimmel, R. (1999). Demosaicing: image reconstruction

from color ccd samples. IMAGE PROCESSING, IEEE

TRANSACTIONS ON.

Larabi, S. and Setitra, I. (2015). A study on discrimination

of sift feature applied to binary shapes. In Proc. of EC-

COMAS Thematic Conferences on Computational Vi-

sion and Medical Image Processing VIP 2015, Santa

Cruz de Tenerife, Spain, pages 295–301. Taylor and

Francis.

Lowe, D. G. (2004). Distinctive image features from scale-

invariant keypoints. International Journal of Com-

puter Vision, 60(2):91–110.

Miksik, O. and Mikolajczyk, K. (2012). Evaluation of local

detectors and descriptors for fast feature matching. In

ICPR, pages 2681–2684. IEEE.

Muja, M. and Lowe, D. G. (2009). Fast approximate near-

est neighbors with automatic algorithm conﬁguration.

International Conference on Computer Vision Theory

and Applications (VISAPP), pages 331–340.

Neves, A. and Trifan, A. (2015). Time-constrained de-

tection of colored objects on raw bayer data. In

Proc. of ECCOMAS Thematic Conferences on Com-

putational Vision and Medical Image Processing VIP

2015, Santa Cruz de Tenerife, Spain, pages 288–294.

Taylor and Francis.

Rosten, E. and Drummond, T. (2006). Machine learning for

high speed corner detection. 9th European Conference

on Computer Vision (ECCV), 1:430–443.

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

662
