Mixins and Extenders for Modular Metamodel Customisation

dan Živkovi

c and Dimitris Karagiannis

Faculty of Computer Science, University of Vienna, Vienna, Austria

Keywords:

Metamodelling, Metamodel Composition, Metamodel Customisation, Metamodelling Tools.

Abstract:

Metamodelling is a practical yet rigorous formalism for modelling language deﬁnition with a metamodel being

its pivotal engineering artifact. A multitude of domain-speciﬁc modelling languages (DSML) are engineered

to cover various modelling domains. Metamodels of such languages evolve over time by introducing changes

and extensions and are further customised to suite project-speciﬁc needs. While majority of DSML develop-

ment techniques provide concepts for creating metamodels from scratch, composition concepts for metamodel

customisation beyond class inheritance are sought towards more ﬂexibility and reuse. In this paper, we in-

troduce a modular approach for metamodel customisation based on the idea of mixins and extenders. While

mixins allow for deﬁning self-contained metamodel modules for reuse, extenders enable non-intrusive compo-

sition of such reusable modules on top of existing metamodels. We show how this approach can be applied in a

metamodelling tool such as ADOxx and demonstrate its usefulness by customising the BPMN language. The

beneﬁt of the modular metamodel customisation is twofold. On the language engineering level, our approach

signiﬁcantly promotes reuse, ﬂexibility and overall efﬁciency in language deﬁnition and customisation. On

the modelling level, the approach leverages engineering ﬂexibility to provide custom modelling languages that

better suits enterprise modelling needs.

1 INTRODUCTION

Model-based engineering approaches encourage the

usage of modelling languages to analyse, design and

develop increasingly complex systems and software.

A multitude of standard and domain-speciﬁc lan-

guages are being engineered to cover various mod-

elling domains. Independently of an application do-

main, modelling languages, like other software deliv-

erables, evolve over time. New versions are released

that introduce various changes and extensions (com-

pare UML versions from 1.0 to 2.4.1 or BPMN ver-

sions from 1.0 to 2.0.2). Furthermore, released lan-

guage versions are further adapted and customised

to suite problem and project-speciﬁc needs. For ex-

ample, a company may adopt BPMN 2.0 (OMG,

2013) as a standard for business process modelling,

but it further requires company-speciﬁc extensions for

process-based risk management. Such customisation

may involve introduction of additional risk-related

properties to existing language entities, creation of

new entities or even integration with proprietary lan-

guages to build a custom hybrid solution. Ideally,

such custom extensions should be portable to the up-

coming version of the base language. The evolv-

ing nature of languages, the need for customised lan-

guages and the complexity that arises when combin-

ing evolution and customisation phenomena together,

call for systematic, ﬂexible and modular approaches

for language design and customisation.

Metamodelling has been recognised as a practi-

cal yet rigorous formalism for modelling language de-

velopment. In metamodel-based approaches, a meta-

model is used to deﬁne the abstract syntax of the

language. As a pivotal element in language deﬁni-

tion, metamodel deﬁnes language concepts for which

precise semantics and one or more concrete syntaxes

may be deﬁned (Selic, 2011). Nowadays, a multi-

tude of mature metamodelling languages exist such

as the standard MOF (OMG, 2014), or tool-speciﬁc

meta-languages such as Eclipse EMF Ecore (Stein-

berg et al., 2008), MetaEdit+ GOPPRR (Kelly et al.,

1996), ADOxx Meta

-Model (Junginger et al., 2000;

Kühn, 2010), or GME MetaGME (Ledeczi et al.,

2001). In metamodelling languages, we may dis-

tinguish between core and supporting metamodelling

capabilities. Core constructs are used to deﬁne fun-

damental elements of a metamodel. Constructs such

as class, property or reference are examples of core

constructs as they contribute to the core expressive

power of a metamodelling language. Complemen-

tary, supporting constructs contribute to the efﬁciency

Živkovi

c, S. and Karagiannis, D.

Mixins and Extenders for Modular Metamodel Customisation.

In Proceedings of the 18th International Conference on Enterprise Information Systems (ICEIS 2016) - Volume 1, pages 259-270

ISBN: 978-989-758-187-8

259

Table 1: Overview of core and supporting capabilities of selected metamodelling languages.

Capability ADOxx Meta

Model

EMF Ecore GME MetaGME MetaEdit+ GOP-

PRR

MOF 2.0

Core capabilities

Class Class EClass Atom Object Type Class

Attribute Attribute EProperty Attribute Property Property

Relation Relation Class EReference Connection Relationship Association

Relation End Endpoint - Connection Role Role, Port Property

Model Type Model Type,

Mode

EPackage Model, Aspect,

Role

Graph Type Package

Supporting capabilities

Modularisation Library, Frag-

ment

Package Project Graph Type Package, Proﬁle

Extensional

Composition

Single In-

heritance,

Aggregation

Multiple Inheri-

tance

Multiple Imple-

mentation Inher-

itance, Interface

Inheritance

Single Inheri-

tance, Inclusion

Multiple Inher-

itance, Package

Merge, Stereo-

type, Extension,

Tag

of metamodelling. They provide support for better

structuring of metamodel artefacts and promote reuse

of core metamodel artefacts. Modularisation con-

structs such as packages that are used to encapsulate

metamodel elements, or composition constructs such

as class inheritance which enables reuse of structural

features of classes, are examples of such constructs.

While comprehensive support for the core meta-

modelling concepts is common to all metamodelling

languages, the opposite is true for the supporting

metamodelling constructs (see Table 1). Here, a

positive exception, however, is the metamodelling

standard MOF. Through the common UML2 infras-

tructure, MOF provides a set of mature mechanisms

for metamodel customisation and incremental meta-

model reﬁnement such as the Proﬁle mechanism and

the packageMerge. Nevertheless, proﬁles have been,

until now, exclusively used to reﬁne only metamod-

els based on UML. In (Langer et al., 2012) the idea

of UML proﬁles has been applied to Ecore, in or-

der to enable proﬁles more broadly for DSMLs. Fur-

thermore, while the package merge supports modu-

lar and incremental metamodel customisation, it op-

erates on the level of packages and relies on the name-

based element matching to apply merge, which is not

always a desired approach for metamodel composi-

tion and customisation. Finally, the inheritance, in

some of its forms as a single, multiple, interface or

implementation-like, is supported by all metamod-

elling languages. Inheritance is most widely used

technique for metamodel composition and customisa-

tion. However, while reusability of structural features

by subclassing is one of the main advantages of in-

heritance, it may, at the same time, be its major draw-

back. Sublcassing as a way to extend a parent class

with additional structural features may often end in

complex class hierarchies and over-engineered meta-

models. Furthermore, extending a class by subclass-

ing may in some cases not be possible (single inheri-

tance restriction, “sealed” base classes) or not desired

(the base class is already in use, i.e. instances exist

that would require tool recompilation and model mi-

gration).

Modular, incremental development has been one

of the major drivers for the shaping of object-orient

programming languages (OOPL). Single and multi-

ple inheritance, mixins, traits, extension methods and

templates in OOPLs are some of the key mechanisms

that boost efﬁciency and ﬂexibility in programming.

In this paper, inspired by some of the known

extensibility concepts from OOPLs, we introduce a

modular approach for metamodel customisation. In

particular, the approach introduces the notions of mix-

ins and extenders with appropriate composition oper-

ators that complement existing techniques for meta-

model composition and customisation. Mixins allow

for deﬁning reusable self-contained metamodel exten-

sions that can be combined by arbitrary modules with-

out the creation of multiple class hierarchies. On the

other hand, extensions allow for non-intrusive injec-

tion of custom metamodel extensions on top of ex-

isting metamodels eliminating the need for creating

derived types. This way, with mixins we increase

the overall potential for reuse in metamodelling be-

yond inheritance, whereas with extensions, we con-

tribute to greater ﬂexibility when extending metamod-

els. The paper is structured as follows. In Section 2,

we introduce a running example related to the cus-

tomisation of the BPMN metamodel. In Section 3,

after we’ve revisited the limitations of inheritance, we

introduce Mixins and Extenders and two new meta-

model composition operators, Mixin Inclusion and

Extension. Section 4 elaborates on the application

of the approach based on the ADOxx metamodelling

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

260

Figure 1: Customisation of the BPMN metamodel using reusable RM and DM modules.

language. In Section 5 we discuss the related work.

Finally, Section 6 concludes the paper.

2 RUNNING EXAMPLE:

CUSTOMISATION OF BPMN

Let us consider the previously mentioned example

of metamodel customisation, in which, the industry

standard business process modelling language BPMN

2.0 is extended by a business-oriented extension for

process-based risk management (RM) and by a pro-

cess simulation extension (PS) for business process

simulation (Herbst et al., 1997). The necessity of ex-

tending the BPMN with further business aspects for

enterprise modelling and analysis has been discussed

in (Rausch et al., 2011).

Let us suppose we follow a modular approach to

metamodel development, where metamodels are en-

capsulated into reusable, stand-alone modules, focus-

ing on single aspects and concerns. In that case, we

will have three metamodel modules, BPMN, RM and

PS as depicted in Figure 1. In module BPMN, the

class Task is the central entity for modelling busi-

ness process ﬂows, which we aim at extending with

other related concepts. In module RM, the class Risk

is used to model company risks. A risk may be as-

signed to various business entities, which is repre-

sented by the abstract class RiskHolder. In the PS

module, the abstract class SimulationActivity repre-

sents an abstract activity containing attributes Time

and Costs necessary to run the process simulation al-

gorithm. Note that this is a very simpliﬁed view of

the simulation aspect. Such activity may have an as-

signed performer (Performer) that executes the activ-

ity during the simulation. Our goal is to customise

BPMN in a way that the task becomes connectable to

risks, and that it contains simulation features. In other

words, we want from class Task to have characteris-

tics of both classes, RiskHolder and SimulationActiv-

ity. Furthermore, metamodel composition should be

non-intrusive, i.e. both BPMN as well as RM and

PS modules must not be modiﬁed. In addition, no

new derived entities should be deﬁned, in order to re-

tain the compatibility with existing mechanisms and

model bases.

3 METAMODEL COMPOSITION

BASED ON MIXINS AND

EXTENDERS

In this section, we ﬁrst discuss current limitations of

the inheritance in metamodelling languages based on

the running example, since inheritance, in some of its

variants, is commonly supported composition mech-

anism by all metamodelling languages (see Table 1).

Afterwards, we introduce the concepts of Mixin and

Extension, two new metamodel composition opera-

tors for ﬂexible, modular metamodel customisation.

3.1 Inheritance is Not Enough

In a nutshell, the intention of inheritance is to reuse

structural features of classes such as properties and

references by creating parent-child class hierarchies.

Mixins and Extenders for Modular Metamodel Customisation

261

A subclass inherits all features of either one super

class (single inheritance) or of more than one super

class (multiple inheritance). While metamodelling

languages such as Ecore, MetaGME and MOF sup-

port multiple inheritance, languages such as ADOxx

and GOPPRR are restricted to single inheritance.

Multiple inheritance has been discussed controver-

sially since its introduction in programming lan-

guages (Bracha, 1992), as well as, more recently, in

metamodelling (Selic, 2011). Multiple inheritance

is criticised for an increased unanticipated complex-

ity and ambiguity in class design, allowing for anti-

patterns such as “diamond inheritance problem” and

over-generalisation.

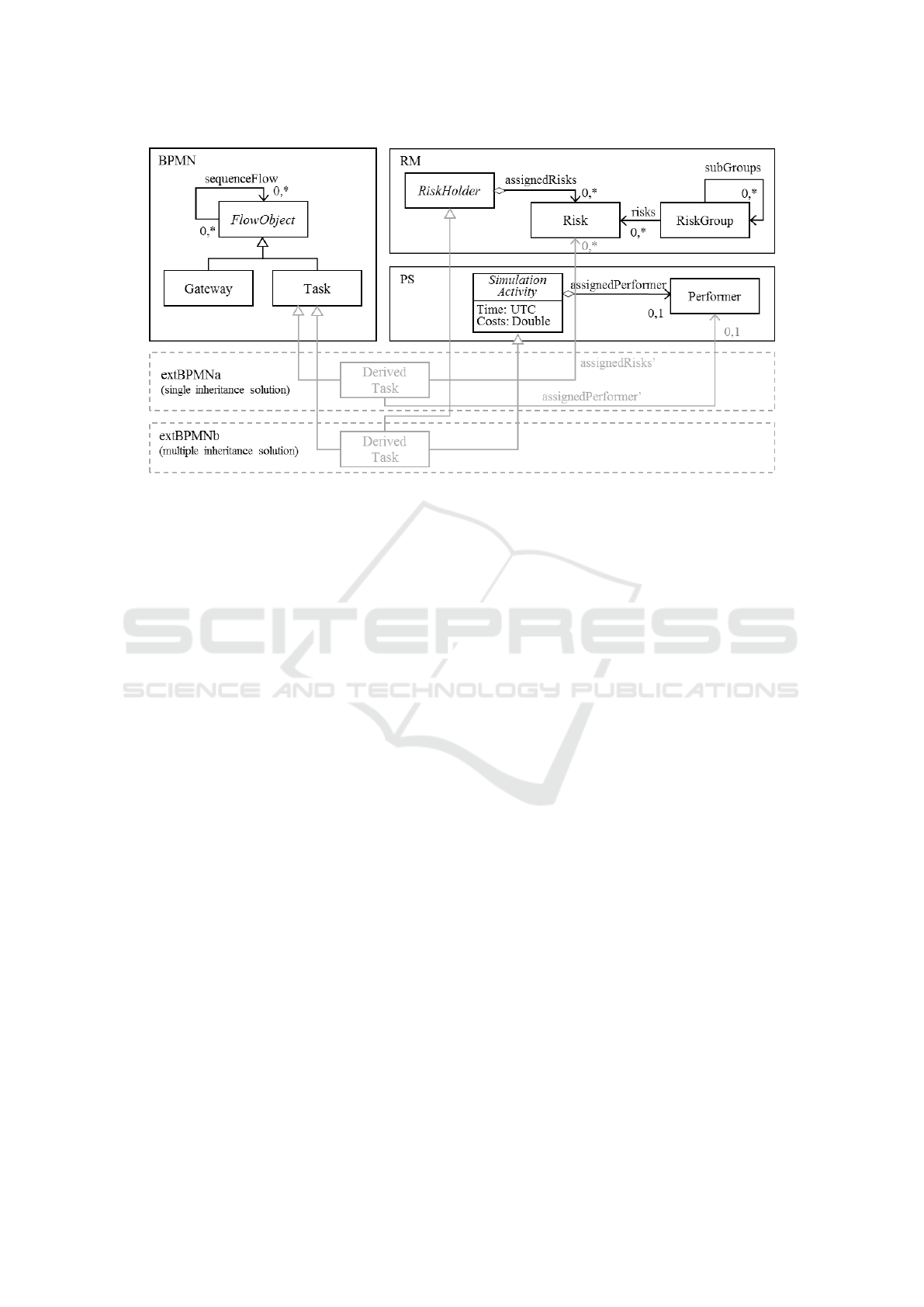

Figure 1 illustrates how both single and multiple

inheritance can be applied to extend the BPMN mod-

ule with RM and DM modules. We summarise ma-

jor deﬁciencies in the context of customisation in two

categories, singleness and subclass imperative.

Singleness. Given the single inheritance restric-

tion by a metamodelling language, we introduce new

extension module extBPMNa which contains one de-

rived class DerivedTask as a subclass of Task from

module BPMN. Since multiple inheritance is not al-

lowed, we cannot inherit additionally from classes

RiskHolder and SimulationActivity, but need to de-

ﬁne two new references assignedRisks’ and assigned-

Performer’ to classes Risk and Performer and to re-

model properties from the class SimulationActivity

such that the class DerivedTask includes the seman-

tics of classes Risk and Performer. Obviously, this

approach is not ﬂexible enough as it doesn’t allow

for reuse of additional structural features other than

those that are inherited from the single super class. If

a metamodelling language allows for multiple inher-

itance, the class DerivedTask in module extBPMNb

may specialise the class Task and also inherit from

the abstract classes RiskHolder and SimulationActiv-

ity to accompany all required features. This solution

appears to be more elegant, as it allows for reuse by

inheritance from multiple superclasses.

Subclass imperative. Although multiple inheri-

tance overcomes the problems of singleness, in both

inheritance-based solutions, however, we are forced

to introduce an explicit derived type in order to extend

a class without directly modifying it. In our case, the

class DerivedTask inherits in both cases from the class

Task and must be used if extended process modelling

with risks and simulation is desired. This kind of cus-

tomising by subclassing may be an undesirable when

applying metamodel customisation. It forces the in-

troduction of a new modelling class in the language,

even though, conceptually, only an adaptation of an

existing class was required. Furthermore, as an effect

of a new derived type, both functionality and models

conforming to the base BPMN metamodel have to be

upgraded to the new metamodel version, i.e. the in-

stances of class Task need to be converted to the sub-

class DerivedTask, in order to apply the extension. We

call this problem the subclass imperative deﬁciency.

3.2 Mixin-based Metamodel

Composition

In order to mitigate the singleness problem of inher-

itance and complex and potentially ambiguous mul-

tiple inheritance hierarchies, while increasing the po-

tential of reuse, we propose the usage of mixins in

metamodelling. Adopting the general idea of mixin-

based inheritance (Bracha and Cook, 1990) in meta-

model composition, mixins are said to allow for the

deﬁnition of independent metamodel element parts

(Mixins) that may be reused, i.e. mixed, by other el-

ements. Mixins usually bundle some common set of

features that may be shared among other metamodel

elements. To allow for the mixin-based metamodel

composition, a parent element, a mixin metamodel el-

ement and a mixin inclusion composition operator are

needed.

• Parent element. A parent element in the mixin

composition may be any element of a compound

type, i.e. an element that contains other elements.

For instance, a class is a compound metaclass that

may contain structural features such as properties

and references.

• Mixin element. A mixin element is a compound

element type that contains features to be shared

among other elements. We deﬁne mixin element

as a non-instantiable, abstract element, in order to

denote its pure supporting metamodelling capa-

bility. The mixin element must be of the same

type as the base element. For example, an ab-

stract element of type Class may be deﬁned that

contains a set of common properties and/or refer-

ences that may be shared between various other

classes. In our case, appropriate candidates for

mixin classes are RiskHolder and SimulationAc-

tivity.

• Mixin inclusion. Mixin inclusion operator is a re-

lation that takes a parent element and a mixin el-

ement as an input, and includes (“mixes in”) the

child elements of the mixin element to the par-

ent element. A parent element may mix in many

mixin elements. In turn, a mixin element may

be reused by arbitrary parent elements. Hence,

mixin operator allows for an increased ﬂexibility

in appending features to an element without dis-

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

262

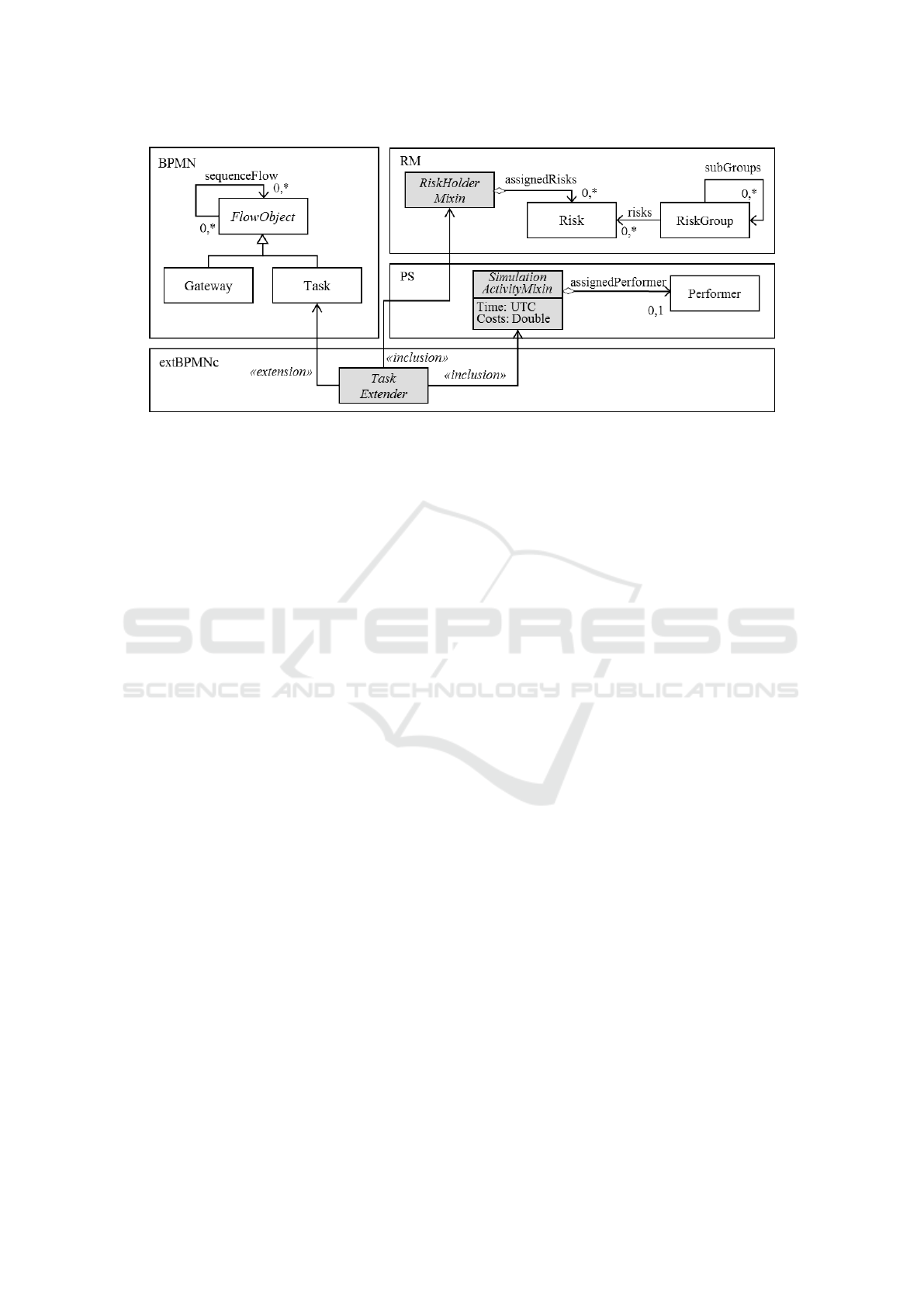

Figure 2: Metamodel customisation based on mixin inclusion and extension composition operators.

tracting the inheritance hierarchy. On the other

side, it enables the deﬁnition of self-contained as-

pectual modules which can be ﬂexibly combined,

thus fostering reuse and clear separation of con-

cerns. In our example, the class DerivedTask may

now include mixin classes RiskHolder and Simu-

lationActivity, in order to obtain their features.

3.3 Extension-based Metamodel

Composition

While mixins solve the problem of inheritance sin-

gleness and complex inheritance hierarchies, mixins

do not tackle the issue of the subclass imperative,

when it comes to extending an already existing base

metamodel. We still need to create a derived type,

when extending the very base element (in our exam-

ple, class Task). In order to address this issue, we

introduce the concept of extension and extender-like

elements. The extenders may be thought of as in-

verse mixins. They allow for extensively injecting the

features into a parent element without creating a de-

rived element. The extension mimics the semantics of

the inheritance, however without a need for a derived

type.

The extension-based metamodel composition

picks up on the initial idea of invasive software com-

position (Aßmann, 2003), in which program frag-

ments such as methods and properties may invasively

be injected into existing program code by operating

on their implicit interfaces using transformative tech-

niques. However, instead of intrusively changing the

code, we introduce a native metamodelling language

operator that allows to add features to an existing el-

ement without the need to modify it. Applied on

metamodels, implicit interfaces allow for controlled

variation points where metamodel elements may be

extended. An implicit interface represents an exten-

sion point of a metamodel element, which is implic-

itly deﬁned by the inherent semantics of the underly-

ing metamodelling language. Each element type may

have different implicit interfaces. For example, im-

plicit interfaces of the metaclass Class are its struc-

tural feature sets. Using the extension operator, an-

other element may access such an implicit interface

and extend that particular class by injecting e.g. addi-

tional member attributes or references. Implicit inter-

faces are crucial in metamodel customisation, where

extensional composition should take place on previ-

ously not explicitly deﬁned extension points, or on

non-modiﬁable elements. To combine elements based

on extension, a base element, an extender element and

an extension operator are required.

• Base element. A base element may be any com-

pound metamodel element, for which at least one

implicit interface exists. For example, it doesn’t

make sense to extend elements such as attribute

types that do not aggregate other elements and

features. In our case, the base element is the class

Task.

• Extender element. An extender element is a com-

pound element, that holds extensions that should

be injected to the base element. Since it is a pure

supporting metamodelling construct, it is a non-

instantiable, abstract element. In addition, the ex-

tender element must be of the same type as the

base element. This is required to implicitly con-

strain only extensions that are possible for that

speciﬁc element type.

• Extension composition operator. Extension op-

erator is a relation that takes a base element and

an extender element as input and extends the base

element by injecting extensions based on well-

deﬁned implicit interfaces. Like in inheritance,

Mixins and Extenders for Modular Metamodel Customisation

263

but inversely, the structural features of the exten-

der element are propagated to the base element

without any syntactic modiﬁcation of the base el-

ement. An extender element may extend many

base elements. In turn, a base element may be ex-

tended by arbitrary extender elements. Hence, the

extension operator diminishes the necessity of the

subclassing imperative, since base elements may

be extended via direct feature injection.

Figure 2 illustrates the revisited customisation of

the BPMN module now using the mixin inclusion and

extension operators. The modules RM and PS be-

come self-contained, reusable “mixin" modules, hav-

ing classes RiskHolderMixin and SimulationActivi-

tyMixin as their central mixin elements. Instead of

having the explicit derived class DerivedTask, the ex-

tension module extBPMNc deﬁnes the extender class

TaskExtender, which, on the one side, includes the

mixin classes, and, on the other side, extends the class

Task by injecting its structural features, that of mixins.

Mixin and extension operators, when used in combi-

nation, allow for ﬂexible, non-intrusive, and modu-

lar metamodel customisation by composition. While

mixins can be used to deﬁne self-contained, reusable

modules applicable for arbitrary metamodels, exten-

ders play the role of the composition glue logic, i.e.

they allow for injecting mixins into existing meta-

model fragments.

4 APPLICATION IN ADOxx

This section elaborates on the application of the in-

troduced metamodel composition concepts within the

metamodelling language of the metamodelling tool

ADOxx (Junginger et al., 2000; Kühn, 2010; OMI-

Lab, 2015). Even though the concepts introduced

in the following are deﬁned considering the charac-

teristics of ADOxx metamodelling language, we be-

lieve that ideas presented may be translated to other

metamodelling languages due to comparable meta-

modelling expressiveness (see Section 1, Table 1).

4.1 ADOxx Metamodelling Language

ADOxx Meta

-Model is the meta-metamodel of

ADOxx. In the following, we explain its main con-

cepts that will serve as a basis for the further dis-

cussion regarding the introduced compositional ex-

tensions. Figure 3 illustrates the ADOxx meta-

metamodel. In ADOxx, all metamodel constructs

are identiﬁed by IDs and names. This is repre-

sented by the top-level abstract metaclass AObject and

its subclass ANamedObject. Further, various meta-

constructs in ADOxx may have attributes. The meta-

class AttributeDeﬁnition represent an attribute con-

struct that may have a default value, a set of con-

straints and may be of some simple or complex at-

tribute type. Attributable constructs are generalised

by an abstract metaclass AObjectWithAttributes. A

ALibrary is an attributable construct which consists

of model types and implicitly of other constructs such

as classes and relations. As such, a library represents

a bundle of different diagram types. To deﬁne dia-

gram types, the concept of model type is used. A

AModelType is an attributable construct that typiﬁes

models and consists of classes and relations. In ad-

dition, a model type may have AModes, which fur-

ther subset a model type with respect to available

classes and relations. A AClassDeﬁnition is an ab-

stract metaclass that can hold attributes, and can be

contained by model types. Class deﬁnitions may be

classes or relations. A AClass is the central meta-

modelling construct used to specify entities of a mod-

elling language. ADOxx supports single inheritance

for classes. The construct ARelationClass connects

classes and/or model types. A relation class con-

nects to other elements indirectly using the concept

of endpoint deﬁnition. An AEndpointDeﬁnition al-

lows classes and model types to be target types of

a relation. The number of endpoints deﬁnes the ar-

ity of the relation, however ADOxx restricts relations

to be binary. To be directed, a relation must have

at least one endpoint of type From and one of type

To. Hence, an endpoint speciﬁes which elements may

participate in the relation and how (multiplicity). Fur-

thermore, ADOxx features an additional reuse mech-

anism by aggregation to increase the support for intra-

level reuse. Reuse by aggregation is a Cartesian prod-

uct aggregation function, such that any allowed child

element may be aggregated by any allowed parent el-

ement. For example, a globally deﬁned attribute deﬁ-

nition may be reused by any attributable element and

vice versa. Similarly, classes and relations may be

reused by model types and modes, endpoints by rela-

tions etc. Finally, the central modularisation construct

for encapsulating metamodel elements into reusable,

modular units is a AFragment. A fragment may con-

tain owned or imported elements. Owned elements

are existential members of that fragment. Imported

elements are those referenced from other fragments.

Imported elements contribute to inter-fragment reuse

and provide a basis for the application of arbitrary

composition operators.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

264

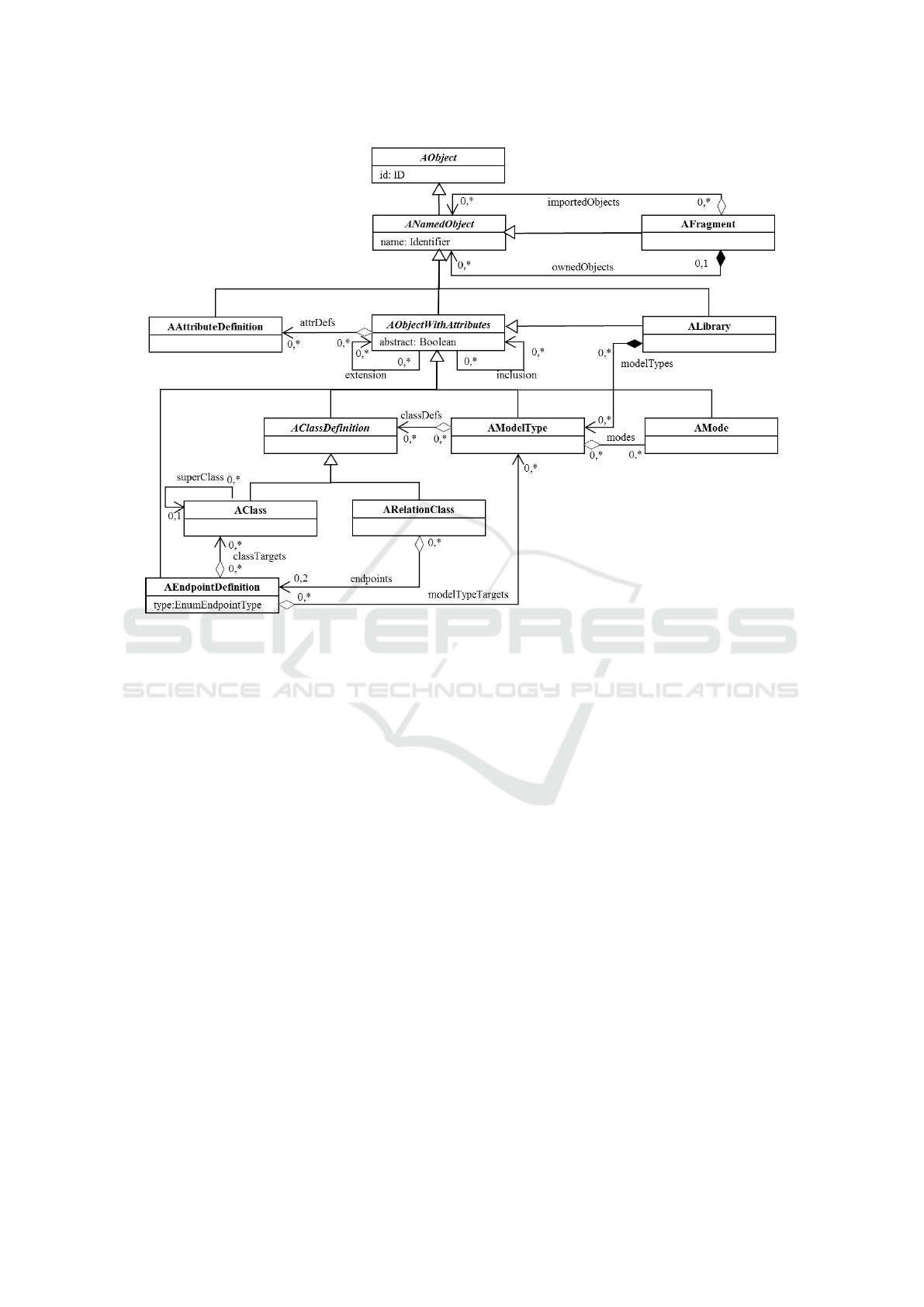

Figure 3: Meta-metamodel of ADOxx featuring Mixins and Extensions.

4.2 Mixins and Extenders in ADOxx

While introducing the idea of mixins and extenders

for metamodelling in Section 3, we also deﬁned on

which type of metamodelling constructs mixin inclu-

sion and extension composition operators can be ap-

plied. In particular, we deﬁned what the parent ele-

ment, the base element, as well as, what the mixin and

the extender elements may be. For all elements ap-

plies that they must be of the compound type, i.e. that

they must contain an extensible set of child elements.

Furthermore, mixin and extender elements must be

abstract elements. Therefore, in ADOxx we deﬁne

both mixin inclusion and extension operator as rela-

tionships on the most general level of attributable con-

structs, i.e. at the metaclass AObjectWithAttributes

(see Figure 3). By saying that an attributable con-

struct may mixin and/or extend another attributable

construct, we allow for the application of these oper-

ators for all compound subtypes such as the class, the

model type, the relation class, the endpoint, and the

library. This is desirable as all of the compound ele-

ments have at least attributes as child elements and, in

addition, other contained elements, too. For example,

an endpoint has attributes, and a set of target classes

or target model types. However, there is a number of

constraints that need to be obeyed. In the following,

we mention the most important ones:

• Constraint 1: Same type mixin composition.

Mixin inclusion relationship can only connect el-

ements of the same metatype. For example, a

class can mix in another class, but cannot mix in

a model type.

• Constraint 2: Same type extension composition.

Extension relationship can only connect elements

of the same metatype. For example, a model type

can extend another model type, but cannot extend

a class.

• Constraint 3: Abstract mixin element. The target

element of the mixin inclusion relationship must

be declared as abstract.

• Constraint 4: Abstract extender element. The

source element of the extension relationship must

be declared as abstract.

• Constraint 5: Acyclic mixin dependency. The

mixin element cannot mix in itself, neither di-

rectly nor indirectly.

• Constraint 6: Acyclic extender dependency. The

extender element cannot extend itself, neither di-

rectly nor indirectly.

Mixins and Extenders for Modular Metamodel Customisation

265

• Constraint 7: Acyclic mixin/extender depen-

dency. A parent element cannot mix in a mixin

element, if it at the same time extends it, neither

directly nor indirectly.

The semantics of both operators are common for

each instantiable compound metaclass (class, relation

class, endpoint deﬁnition, model type, mode, library),

with regard to inclusion and extension of attributes.

Moreover, the semantics of the inclusion operator is

very similar to the inheritance of attributes, whereas

for extension, it acts as a kind of inverse inheritance

of attributes. Hence, in ADOxx, we implement the

semantics for mixin inclusion and extension relation-

ship based on the following deﬁnitions. First, we

introduce the common semantics for all metaclasses

that are attributable elements (all subclasses of the

metaclass AObjectWithAttributes).

• Deﬁnition 1: Inclusion of Objects with Attributes.

Given the parent element E p with the set of at-

tributes Sp, and the mixin element Em with a set

of attributes Sm, E p includes Em by aggregating

all attributes of Sm into Sp.

• Deﬁnition 2: Extension of Objects with At-

tributes. Given the base element Eb with the set of

attributes Sb, and the extender element Ee with a

set of attributes Se, Ee extends Eb by aggregating

all attributes of Se into Sb.

However, since each metaclass (subclass of ob-

jects with attributes) has a different compound struc-

ture, i.e. the set of containable structural features on

which the operators are applied, the semantics of op-

erators vary for each such metaclass. For example,

model type mixin inclusion aggregates all classes of

a model type to the parent model type. Inversely, a

model type extender inserts all its class members into

the base model type. Since listing of all additional

deﬁnitions for each construct would exceed the lim-

its of the underlying work, we focus only on those

elements which, as we will see, we also use in our

running example - classes and endpoint deﬁnitions.

While for classes no further structural containment

exists, for the endpoint we deﬁne mixin inclusion and

extension as follows:

• Deﬁnition 3: Inclusion of Endpoint Deﬁnitions.

Given the parent endpoint EPp with the set of tar-

get classes Sc

and the set of target model types

, and the endpoint mixin EPm with a set of

target classes Sc

and the set of target model types

, EPp includes EPm by aggregating all target

classes of Sc

into Sc

and all target model types

of Sm

into Sm

• Deﬁnition 4: Extension of Endpoint Deﬁnitions.

Given the base endpoint EPb with the set of target

classes Sc

and the set of target model types Sm

and the endpoint extender EPe with the set of tar-

get classes Sc

and the set of target model types

, EPe extends EPb by aggregating all target

classes of Sc

into Sc

and all target model types

of Sm

into Sm

Finally, both inclusion and extension relationships

are applied transitively.

4.3 Applying Mixins and Extenders

In the following, we revisit the running example from

Section 2 and the conceptual solution from Section 3,

in order to exemplify the application of mixins and

extenders in ADOxx. Figure 4 illustrates the revis-

ited solution. We now apply ADOxx metaclasses to

implement metamodel fragments BPMN, RM, PS and

extBPMNc. In doing so, we use UML stereotypes

to denote corresponding metaclasses from ADOxx.

Note that we explicitly model cross-package relation-

ships, instead of re-modelling the imported classes, in

order to save the space in the diagram. We deﬁne the

abstract class TaskExtender, which, on the one side,

includes the mixin class SimulationActivityMixin, and

on the other side, extends the class Task by insert-

ing the structural features (that of the included mixin).

Note that in ADOxx, only attributes Time and Costs

will be propagated as the only member features of

the class SimulationActivityMixin. Since relations be-

tween classes in ADOxx are deﬁned over endpoints as

ﬁrst-order constructs, a relation of a class is syntacti-

cally not an inherent feature of that class. Instead, a

class is a target, a structural feature of a relation end-

point. Hence, to extend the class Task with the rela-

tion AssignedPerformer, we deﬁne the endpoint ex-

tender FromAPExtender, which, on the one side, tar-

gets the class Task, and on the other side, extends the

corresponding endpoint FromAP of the relation As-

signedPerformer. Similarly, we deﬁne the endpoint

extender FromARExtender for the endpoint FromAR

of the relation AssignedRisks, in order to allow for

tasks to connect to performers. As a result of com-

position, the class Task contains both risk-related and

simulation features.

4.4 Application Evaluation

One may argue that introduced concepts such as mix-

ins, extenders and, in general, modular thinking, al-

though powerful, bring an additional level of com-

plexity in metamodelling. While this argument is true

for a one-time metamodel customisation project, the

true beneﬁt of modular customisation with mixins and

extenders becomes visible with repeated use. In order

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

266

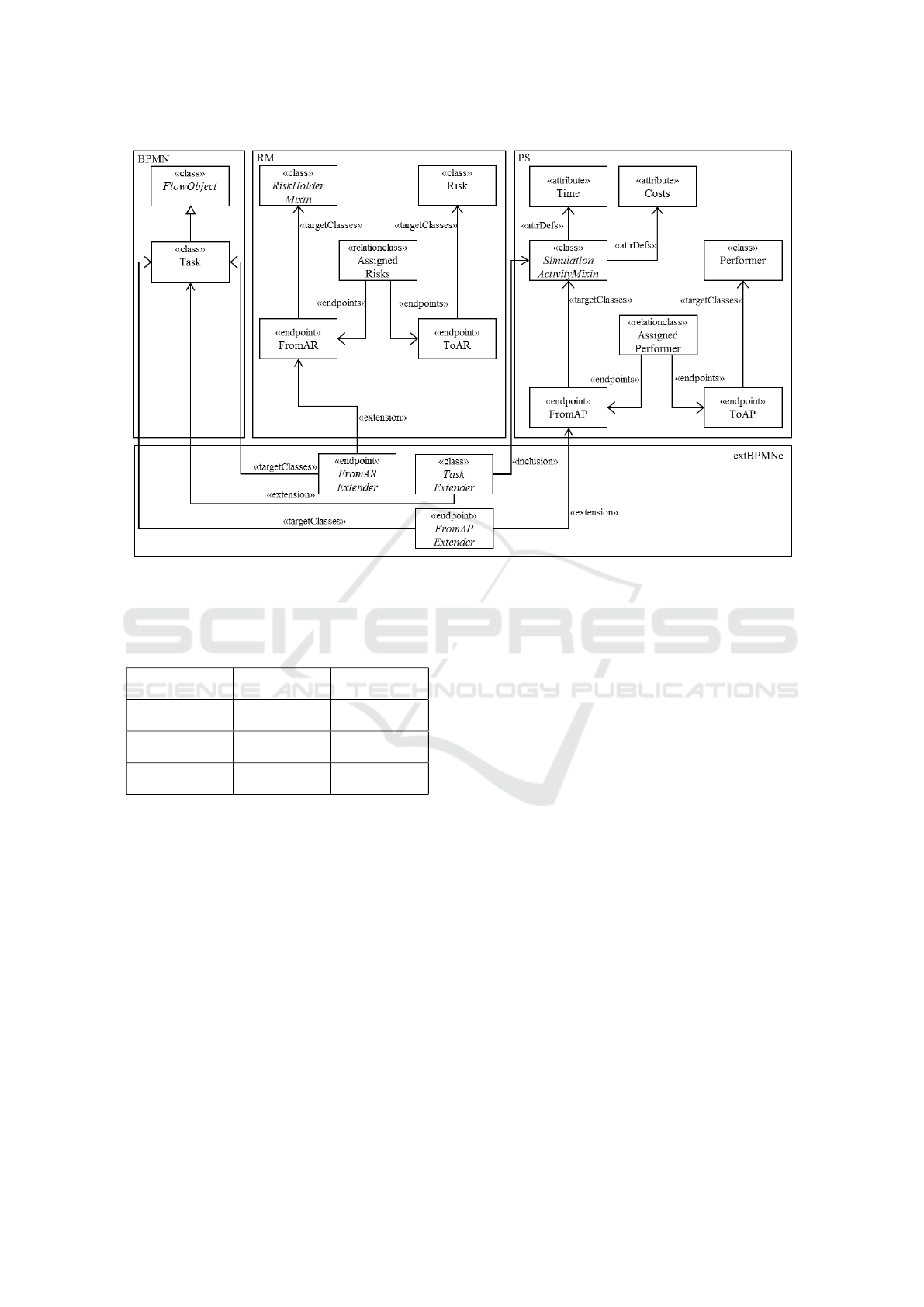

Figure 4: Application of mixin inclusion and extension composition operators in ADOxx.

Table 2: Comparison of customisation effort with basic

metamodelling constructs and with mixins and extenders

for modular metamodel customisation (estimation in story

points (SP)).

Customisation

effort

Basic ADOxx

constructs

Mixins and

Extenders

Initial customi-

sation

3 SP 3.5 SP

Migration of

customisation

2 SP 0.5 SP

Reuse of cus-

tomisation

2 SP 0.5 SP

to evaluate this thesis, we conducted a survey among

experienced ADOxx language and metamodel engi-

neers. As part of the survey, we asked engineers to

provide two effort estimations for the sample meta-

model customisation project from the introduced run-

ning example. Given the introduction of the new

modular customisation concepts in ADOxx, they pro-

vided effort estimations to conduct the work 1) based

on basic metamodelling constructs, 2) based on new

modular metamodel customisation constructs. The

following customising tasks have been considered: 1)

initial (from scratch) customisation, 2) migration of

the customisation to a new base metamodel version,

3) reuse of customisation for another metamodel. The

results are summarised in the Table 2.

As expected, the initial customisation effort es-

timation in average was slightly higher when using

new constructs (mixins and extenders). This was ex-

plained by the fact, that this kind of customisation

required upfront design in modules for future reuse.

However, the estimated effort for the migration was

signiﬁcantly lower when using mixins and extenders.

This was mainly due to the fact that the extension

could be ported as a mixin module to the new version

and injected via extenders without needing to migrate

data (refer to the subclassing imperative issue of in-

heritance). Regarding the reuse of customisation in

another project, the effort was clearly lower, since the

mixin extension module could be reused as-is, with

the only effort of deﬁning new extender class.

5 RELATED WORK

In the area of programming languages, the idea of

mixins has been around for years. The term was

coined in the language Flavors (Moon, 1986), how-

ever, mixins have been initially deﬁned as a for-

mal language construct for language CLOS (Bracha

and Cook, 1990). Mixins found usage in OOPLs

such as Smalltalk (Bracha and Griswold, 1996), and

Scala (Odersky et al., 2004). GPLs such as C++, that

do not support mixins natively, aim at emulating the

behaviour of mixins based on parameterised inheri-

tance and template classes (Smaragdakis and Batory,

2001). Similarly, in (Ancona et al., 2000) an exten-

Mixins and Extenders for Modular Metamodel Customisation

267

sion for Java has been proposed called Jam, to al-

low for mixin-based class composition. As for ex-

tensions, the initial idea of an Extend operator that

injects program code fragments into an existing pro-

gram code at implicit interfaces was proposed in (Aß-

mann, 2003) as a part of the broader approach of in-

vasive software composition. Similar approach to ex-

tend existing types exists in C#, in which so-called

Extension Methods allow for injecting methods into

an existing base type without the need to create a new

derived type, recompile, or otherwise modify the base

type (MSDN, 2015).

In modelling language engineering, several tech-

niques for metamodel and DSML composition have

been proposed (Vallecillo, 2010). We focus on those

that allow for metamodel customisation beyond in-

heritance. UML 2 provides the proﬁle mechanism

for metamodel customising, particularly applicable

for UML 2 family of languages. In UML Proﬁles,

selected concepts of the UML metamodel may be

extended using stereotypes. With UML 2, proﬁles

have been improved from a lightweight customisa-

tion approach to a sound mechanism for both meta-

model customisation and for the design of new lan-

guages (Selic, 2007). In the current UML version

2.4.1 (OMG, 2011), the concept of the Stereotype

is a full metaclass that specialises the Class concept

and extends it through the explicit association Exten-

sion. As a subclass of the Class, a stereotype may

own properties that extend the base class. Further-

more, stereotypes allow for the creation of new as-

sociations between stereotypes and other metamodel

elements. The notion of a stereotype is comparable

to our extender element, and the extension associa-

tion with our extension operator. However, instead

of introducing a separate metaclass for it, we add ex-

tensibility capability to the corresponding metaclass

itself, with the only constraint that such extender ele-

ment must be abstract. Hence, our extender element

is simply a supporting metamodelling construct that

extends an existing element while not being instan-

tiable on the model-level. Since the extension occurs

in design and compile time, no further model-level

mechanisms are required to correlate the instances of

a stereotype with instances of a base element. Al-

though, it is claimed that proﬁles are made generic

and compatible for any MOF-based language (Selic,

2007; OMG, 2011), to our best knowledge, we are not

aware of any other proﬁle applications than those for

UML.

In (Langer et al., 2012), the idea of proﬁles is ap-

plied on Ecore, however, not on the meta-metamodel

level but on the metamodel level through metalevel

lifting. The so-called EMF Proﬁles help to customise

arbitrary DSMLs that are based on EMF Ecore. Since

the same idea of UML Proﬁles is applied, similari-

ties and differences to our approach apply as men-

tioned before for UML proﬁles. Furthermore, two

additional mechanisms are added that increase proﬁle

reuse, Generic Proﬁles and Meta Proﬁles. Generic

proﬁles are based on generic types. This is inher-

ently supported in our approach through the usage of

abstract elements when deﬁning mixin and extender

modules. Meta Proﬁles aim at applying extensions to

the constructs of the meta-metalevel, such that exten-

sions are applicable for all DSMLs. This is an inter-

esting approach for massive extensions, we do not yet

support.

In (Braun and Esswein, 2015) a similar idea

of adapting the UML Stereotype concept towards a

mechanism for generic metamodel extensions, how-

ever only on the conceptual level, is proposed. Un-

like in (Langer et al., 2012) and similar to our ap-

proach, the authors, propose an extension on the

meta-metamodel level, with an application focus on

enterprise modelling languages. As in the UML/MOF

stereotype mechanism, the stereotype construct is de-

ﬁned as a separate metaclass, however not only for

the Class construct, but multiplied for each metaclass

type (model type, property etc.). Each stereotype con-

struct has a limited set of extension possibilities. In

our approach, we fully reuse existing metaclasses as

abstract constructs to capture extensions, and, instead,

deﬁne precise extension semantics on the extension

operator.

Another metamodel extensibility concept com-

mon to UML and MOF is the PackageMerge. Pack-

age merge is used to merge elements and the content

of two packages. As noted in (Selic, 2011), pack-

age merge allows for incremental metamodel reﬁne-

ment, because one can deﬁne an extending element

(increment) with the same name as the base element,

add additional properties to it and merge it with the

base. The semantics of the package merge is sim-

ilar to that of generalisation, with a difference that

the derived element has the same name as the base.

In comparison to our work, package merge has sim-

ilarities to both mixin and extension. However, the

difference is that we do not rely on name match-

ing algorithm but on explicit relationships deﬁned by

language engineer, which contributes to an increased

soundness in metamodel composition. Furthermore,

both mixins and extensions are applied on the level of

metamodel elements to allow for a ﬁne-grained and

precise extension deﬁnition, whereas package merge

operates on the level of packages, which potentially

opens the door for uncontrolled reuse and the need for

metamodel pruning techniques such as Package Un-

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

268

merge (Fondement, Frédéric and Muller, Pierre-Alain

and Thiry, Laurent and Wittmann, Brice and Forestier,

Germain, 2013). Another MOF extensibility capabil-

ity is the Extension, a lightweight approach to anno-

tate existing metamodel elements with Tags that, how-

ever, solely represent simple name-value pairs.

Apart from the mainstream metamodelling ap-

proaches, in (de Lara and Guerra, 2013), generic pro-

gramming techniques such as concepts, templates and

mixin layers are applied for metamodelling in order

to increase the support for abstraction, modularity,

reusability and extensibility of (meta)models and cor-

responding model management operations. Focusing

on the usage of mixins, mixin layers rely on templat-

ing technique that allows for deﬁning templated meta-

model extensions (mixin layers), that can be applied

on metamodels that conform to template parameters.

The basic idea is to use the parameterised inheritance

to realise a generic mixin. The “instantiation” of the

template binds the mixin layer to a concrete meta-

model that is the subject to extension and that con-

forms to the structure deﬁned by the parameter type

(concept). While the authors introduce templates and

template instantiation to realise generic mixins and

their application, we rely on the abstract metaclasses,

and mixin and extension operators. Instead of ap-

plying the parameterised inheritance to achieve the

ﬂexibility of mixin applications, we deﬁne extenders

that insert mixins into arbitrary elements. However,

we believe that the two approaches are complemen-

tary. While acknowledging the power of templates for

specifying the generic concepts that promote abstrac-

tion, modularity and reuse, our mixin inclusion, and,

in particular, extension operator may be applied on the

level of templates to allow for mixing and extending

of template deﬁnitions themselves.

Finally, in (Jézéquel et al., 2013) an approach to

design domain-speciﬁc languages based on multiple

meta-languages within the Kermeta language work-

bench is proposed. The composition operators aspect

and require are introduced that allow for the compo-

sition of language elements such as abstract syntax,

static semantics, and behavioral semantics. Inspired

from the open class concept, the aspect allows to re-

open a previously created class and to add features.

In what it does, the aspect is similar to our extension

operator. Differently to our approach, the focus is on

modular composition of language concerns, whereas

we concentrate on the pivotal language aspect, the

metamodel. The authors state that the modularisation

does not apply for the metamodel aspect (for which

deﬁnition the EMOF is used).

6 CONCLUSIONS

This work represents a contribution to the ﬁeld of

metamodel composition and customisation, in the

context of metamodel-based modelling language en-

gineering. Our approach is based on the notions of

Mixins and Extenders and appropriate composition

operators, that allow for ﬂexible, modular metamodel

customisation. Mixin and extension-based meta-

model composition facilitate reuse and contribute to

more ﬂexibility and overall efﬁciency in metamodel

deﬁnition. Mixins allow for the creation of reusable

aspectual metamodel element extensions that can be

combined by arbitrary metamodel elements using the

mixin inclusion operator. Furthermore, the extension

operator allows for the injection of structural features

into otherwise non-modiﬁable base metamodel ele-

ments in a non-intrusive way by relying on their im-

plicit interfaces. While mixin inclusion complements

single inheritance, and, at the same time, represents

a lightweight alternative to multiple inheritance, ex-

tension resolves the issue of subclass imperative, an

important issue in metamodel customisation. We il-

lustrated the usefulness of the approach based on a

running example of the simpliﬁed BPMN metamodel

customisation. We also elaborated on the applica-

tion of our approach within the metamodelling tool

ADOxx. Although we explained the syntax and se-

mantics of the operators based on ADOxx, the con-

cepts may be mapped to other metamodelling lan-

guages and tools, as well.

In this work, we focused primarily on the meta-

model as a pivotal part of language deﬁnition. A part

of our future work at OMILab

will focus on in-

vestigating how modular approach based on mixins

and extensions may be applied on the composition of

other language elements such notation and semantics.

Furthermore, with an increased usage of mixins and

extenders in metamodel composition, we will work

on identifying common patterns for modular meta-

model engineering.

REFERENCES

Ancona, D., Lagorio, G., and Zucca, E. (2000). Jam-

a Smooth Extension of Java with Mixins. In

ECOOP 2000

UObject-Oriented Programming, pages

154–178. Springer.

Aßmann, U. (2003). Invasive Software Composition.

Springer.

Bracha, G. (1992). The Programming Language Jigsaw:

http://omilab.org

Mixins and Extenders for Modular Metamodel Customisation

269

Mixins, Modularity and Multiple Inheritance. PhD

thesis, The University of Utah.

Bracha, G. and Cook, W. (1990). Mixin-based inheritance.

In ACM SIGPLAN Notices, volume 25, pages 303–

311. ACM.

Bracha, G. and Griswold, D. (1996). Extending Smalltalk

with Mixins. In Workshop on Extending Smalltalk.

Braun, R. and Esswein, W. (2015). Designing Dialects

of Enterprise Modeling Languages with the Proﬁling

Technique. In 19th IEEE International Enterprise

Distributed Object Computing Conference, EDOC

2015, Adelaide, Australia, September 21-25, 2015,

pages 60–67.

de Lara, J. and Guerra, E. (2013). From Types to Type Re-

quirements: Genericity for Model-Driven Engineer-

ing. Software & Systems Modeling, 12(3):453–474.

Fondement, Frédéric and Muller, Pierre-Alain and Thiry,

Laurent and Wittmann, Brice and Forestier, Germain

(2013). Big Metamodels are Evil. In Model-Driven

Engineering Languages and Systems, pages 138–153.

Springer.

Herbst, J., Junginger, S., and Kühn, H. (1997). Simulation

in Financial Services with the Business Process Man-

agement System ADONIS. In Proceedings of the 9th

European Simulation Symposium.

Jézéquel, J.-M., Combemale, B., Barais, O., Monperrus,

M., and Fouquet, F. (2013). Mashup of Metalan-

guages and its Implementation in the Kermeta Lan-

guage Workbench. Software & Systems Modeling,

pages 1–16.

Junginger, S., Kühn, H., Strobl, R., and Karagiannis, D.

(2000). Ein Geschäftsprozessmanagement-Werkzeug

der nächsten Generation - ADONIS: Konzeption und

Anwendungen. Wirtschaftsinformatik, 42(5):392–

401.

Kelly, S., Lyytinen, K., and Rossi, M. (1996). Metaedit+ a

Fully Conﬁgurable Multi-User and Multi-Tool CASE

and CAME Environment. In Advanced Information

Systems Engineering, pages 1–21. Springer.

Kühn, H. (2010). The ADOxx Metamodelling Plat-

form. In Workshop on Methods as Plug-Ins for Meta-

Modelling, Klagenfurt, Austria.

Langer, P., Wieland, K., Wimmer, M., Cabot, J., et al.

(2012). EMF Proﬁles: A Lightweight Extension Ap-

proach for EMF Models. Journal of Object Technol-

ogy, 11(1):1–29.

Ledeczi, A., Maroti, M., Bakay, A., Karsai, G., Garrett,

J., Thomason, C., Nordstrom, G., Sprinkle, J., and

Volgyesi, P. (2001). The Generic Modeling Environ-

ment. In Workshop on Intelligent Signal Processing,

Budapest, Hungary, volume 17.

Moon, D. A. (1986). Object-oriented programming with

Flavors. In ACM Sigplan Notices, volume 21, pages

1–8. ACM.

MSDN (2015). Extension Methods (C# Program-

ming Guide). https://msdn.microsoft.com/en-

us//library/bb383977.aspx.

Odersky, M., Altherr, P., Cremet, V., Emir, B., Maneth, S.,

Micheloud, S., Mihaylov, N., Schinz, M., Stenman,

E., and Zenger, M. (2004). An overview of the Scala

programming language. Technical report, EPFL.

OMG (2011). UML 2.4.1 Infrastructure

Speciﬁcation. http://www.omg.org/

spec/UML/2.4.1/Infrastructure/PDF/.

OMG (2013). Business Process Model

and Notation (BPMN) Version 2.0.2.

http://www.omg.org/spec/BPMN/2.0.2/PDF.

OMG (2014). Meta Object Facility (MOF) Version 2.4.2.

http://www.omg.org/spec/MOF/2.4.2/.

OMILab (2015). ADOxx Metamodelling Platform.

http://www.adoxx.org.

Rausch, T., Kuehn, H., Murzek, M., and Brennan, T. (2011).

Making BPMN 2.0 Fit for Full Business Use. BPMN

2.0 Handbook Second Edition, page 189.

Selic, B. (2007). A Systematic Approach to Domain-

speciﬁc Language Design using UML. In Object and

Component-Oriented Real-Time Distributed Comput-

ing, 2007. 10th IEEE International Symposium on,

pages 2–9. IEEE.

Selic, B. (2011). The Theory and Practice of Modeling Lan-

guage Design for Model-Based Software Engineering

- A Personal Perspective. In Generative and Trans-

formational Techniques in Software Engineering III,

pages 290–321. Springer.

Smaragdakis, Y. and Batory, D. (2001). Mixin-

based Programming in C++. In Generative and

Component-based Software Engineering, pages 164–

178. Springer.

Steinberg, D., Budinsky, F., Merks, E., and Paternostro, M.

(2008). EMF: Eclipse Modeling Framework. Pearson

Education.

Vallecillo, A. (2010). On the Combination of Domain Spe-

ciﬁc Modeling Languages. In Proceedings of Euro-

pean Conference on Modelling Foundations and Ap-

plications, 2010. (ECMFA 2010), volume 6138 of

LNCS, pages 305–320. Springer.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

270
