DSaaS

A Cloud Service for Persistent Data Structures

Pierre Bernard le Roux

, Steve Kroon

1,2

and Willem Bester

Computer Science, Stellenbosch University, Stellenbosch, South Africa

CSIR/SU Centre for Artiﬁcial Intelligence Research, Stellenbosch, South Africa

Keywords:

DaaS, SaaS, Cloud Computing, Persistent Data Structure, Version Control System, Hash-Array Mapped Trie.

Abstract:

In an attempt to tackle shortcomings of current approaches to collaborating on the development of structured

data sets, we present a prototype platform that allows users to share and collaborate on the development of data

structures via a web application, or by using language bindings or an API. Using techniques from the theory

of persistent linked data structures, the resulting platform delivers automatically version-controlled map and

graph abstract data types as a web service. The core of the system is provided by a Hash Array Mapped Trie

(HAMT) which is made conﬂuently persistent by path-copying. The system aims to make efﬁcient use of

storage, and to have consistent access and update times regardless of the version being accessed or modiﬁed.

1 INTRODUCTION

Collaboration on structured data can be difﬁcult,

time-consuming, and frustrating. For structured data

sets, this usually involves creating multiple copies of

the data and using primitive forms of versioning on

the data set, such as keeping copies of various ver-

sions on multiple computers with different names in

different directories. These approaches often lead to

unnecessary duplication, inconsistencies and inaccu-

racies in the data.

A more sophisticated approach is to use a Ver-

sion Control System (VCS). While this can allevi-

ate some of the problems sketched above, most VCSs

are designed to version control text documents and

source code, where the lines in a ﬁle constitute the

units between which deltas—differences in content—

are calculated. Using source code VCSs for other

data works relatively well when the data can be repre-

sented efﬁciently in tabular form, such as the comma-

separated values (CSV) format understood by many

data analysis applications (Pollock, 2015). However,

in other cases navigating the trade-offbetween storing

large ﬁles and the time impact of resolving long delta

chains is non-trivial for large data sets (Bhattacherjee

et al., 2015).

1.1 System Overview

Web-based data services allow developers to read and

write data from a central, shared data service. The

core values of these services are that they allow mul-

tiple clients to concurrently access and modify the

data from anywhere. A developer can then write

a network application—for example, a mobile or a

browser-based application—that accesses and modi-

ﬁes these data structures.

The prototype system we introduce here, referred

to as DSaaS

(from “Data Structures as a Service”),

attempts to address the shortcomings of traditional

structured data collaboration techniques by providing

a platform for users to share data structures, and to

collaborate on their development and maintenance.

By using techniques from the theory of persistent

linked data structures, the platform delivers automati-

cally version-controlled abstract data types in a man-

ner similar to a web-based data service.

In particular, DSaaS currently provides access to

cloud-based map (i.e., symbol table) and directed

graph data structures. The map structure was cho-

sen because it is the foundational data structure for

some languages, such as objects in JavaScript (Kan-

tor, 2015) and dictionaries in Python (Python, 2015),

and can be used to implement the array and directed

DSaaS can be accessed at http://cs.sun.ac.za/

∼kroon/dsaas.

Roux, P., Kroon, S. and Bester, W.

DSaaS - A Cloud Service for Persistent Data Structures.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 1, pages 37-48

ISBN: 978-989-758-182-3

graph abstract data types. The directed graph data

structure was developed as a proof of concept of

adding a new data structure to the system by leverag-

ing the map implementation, and facilitates a number

of other linked structures which are special cases of

graphs. DSaaS users can create and share data struc-

tures, and can view and modify any previous version

of any of their data structures via the web interface or

language bindings—currently, a prototype Java lan-

guage binding is provided. Language bindings aim to

facilitate interaction with the data structures stored in

the system by enabling existing code to make use of

the service with only minimal changes relative to pre-

vious use of language-speciﬁc data structures. Both

the web interface and the language bindings access

most of the functionality of the DSaaS system via a

RESTful API (Fielding, 2000), which developers can

also use directly.

1.2 Use Cases

DSaaS aims at ﬁne-grained version control for struc-

tured data sets. Below, we outline a few potential ap-

plication areas that could beneﬁt from such a system.

Note that some of these applications could be enabled

using a VCS, but as discussed earlier, such solutions

are not ideal.

First, the approach used in DSaaS enables scien-

tiﬁc studies to enhance reproducibility by reporting

the exact version of data used for an experiment or

computation, by providing intermediate results after

various processing or preprocessing steps, and by al-

lowing veriﬁcation of a computation by investigating

the development of data structures used during its ex-

ecution. The latter can be viewed as an audit trail for

a computation.

The same audit trail perspective highlights poten-

tial uses in teaching programming and debugging.

DSaaS could be used to illustrate how data structures

function by replaying the evolution of a data struc-

ture as various operations are performed on it. Simi-

larly, it could be used as a debugging tool, since it has

the ability to visualize the data structure as it evolves

during use. A beneﬁt of this approach is that debug-

ging could be performed ofﬂine, without the use of

watches and breakpoints to interrupt the code execu-

tion.

Since the API and language bindings allow DSaaS

data structures to be used in session-based inter-

preters, such as the IPython interpreter (P´erez and

Granger, 2007), these data structures can be conve-

niently shared and accessed from multiple interpreters

in multiple languages, without the usual developer’s

overhead of serializing and deserializing, or parsing.

1.3 Paper Outline

Section 2 primarily introduces important terminology

and concepts necessary to understand the system im-

plementation. The general architecture of the system

is discussed in Section 3, after which Section 4 de-

tails selected technical aspects of its operation. A

major challenge for DSaaS is providing efﬁcient ac-

cess to and modiﬁcation of all historical versions of

a data structure while making efﬁcient use of stor-

age. We thus present some preliminary experimental

results in Section 5, illustrating the system’s current

performance and comparing it to another system with

similar aims. An appendix outlines some system fea-

tures and capabilities outside the main scope of the

paper for the interested reader. Note that a project re-

port (le Roux, 2015) contains expanded discussions

of various aspects of DSaaS presented in this paper.

2 BACKGROUND

This section begins by discussing our system’s place

in the landscape of cloud services. Thereafter the

core ideas of persistent data structures are introduced,

including an overview of path-copying, a classical

technique for obtaining persistence of data structures.

Finally, we introduce the Hash Array Mapped Trie

(HAMT), the key data structure used in our imple-

mentation.

2.1 Cloud Service Models

DSaaS combines the Data as a Service (DaaS) and

Software as a Service (SaaS) cloud service mod-

els. It provides DaaS since the data structures it

manages are stored and maintained by the service,

while it provides SaaS because of the service’s web-

based mechanisms for manipulating the data struc-

tures. In this sense, it is somewhat similar to the

GitHub (GitHub, 2015) and Bitbucket (Bitbucket,

2015) services. However, a notable difference is that

while these services allow centralised editing of the

source code, it is not the dominant approach for do-

ing so. In contrast, DSaaS maintains the data struc-

tures centrally, with updates performed via the web

interface and the API.

Other services combining the DaaS and SaaS

models are collaborative document editing services,

such as the ofﬁce suite component of Google

Drive (Google, 2015), where users can share, view,

and collaborate on documents from multiple devices.

This is almost exactly the type of service DSaaS aims

to provide, except that the objects stored are data

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

structures rather than speciﬁc document types. Be-

sides that, most collaborative document editing ser-

vices primarily offer partial persistence of documents,

while DSaaS provides conﬂuent persistence of data

structures; see Section 2.2.

The Dat project (Ogden, 2015b) provides version

control for data sets, but with an architectural ap-

proach different to the client–server model we em-

ploy. The similarities are the ﬁne-grained access con-

trol and a dedicated API for managing the data.

2.2 Persistent Data Structures

We next discuss the idea of persistence for data struc-

tures, its various forms, and a technique of persist-

ing pointer-based data. Persistent data structures

have found use in many applications such as func-

tional programming languages, computational geom-

etry, pattern matching, etc. (Straka, 2013). The ter-

minology we use below is based on (Driscoll et al.,

1986).

A data structure that does not provide access

to its history is called an ephemeral data structure.

Ephemeral data structures are changed in-place as

updates occur, and only the most recent version is

ever available. Local library data structure imple-

mentations, such as those in the Java Collections

Framework (Watt and Brown, 2001), are typically

ephemeral.

In contrast, a persistent data structure is a data

structure that provides access to different versions

of a similar (in the sense of expected operations)

ephemeral data structure. For example, a persistent

map data structure provides access to different ver-

sions of a map data structure. When the data structure

is created, it stores only an empty initial version. Sub-

sequent updates lead to new versions of the underly-

ing ephemeral data structure, all of which are stored

implicitly in the persistent data structure. These per-

sistent data structures play a central role in functional

programming languages because they provide an efﬁ-

cient approach to implementing immutability.

2.2.1 Forms of Persistence

There are various forms of persistence:

Partial Persistence permits queries on all the ver-

sions, but only allows modiﬁcations to the most

recent version. The version history then forms a

sequence of versions, ordered with respect to tem-

poral evolution.

Full Persistence allows queries of and modiﬁcations

to all previous versions of the data structure. With

full persistence the version history forms a tree

′

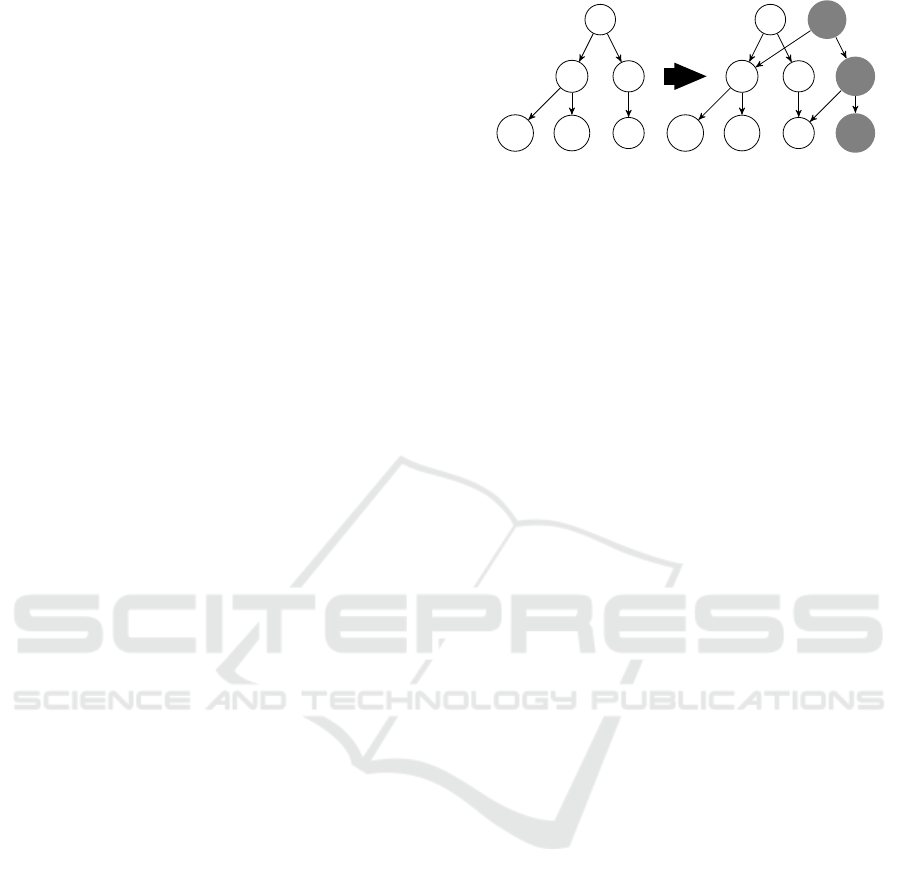

Figure 1: An example of path-copying in a pointer-based

tree structure. To add a new node f as a child of node c, a

new version is created that can access the new nodes while

still referencing elements from the old version which re-

main unchanged.

where any path from the root to a leaf is ordered

by temporal evolution.

Conﬂuently Persistence data structures are fully

persistent and also support a merge operation that

allows two previous versions of the data structure

to be combined to create a new version of the data

structure. Here the version history forms a di-

rected acyclic graph (DAG).

Our approach in DSaaS was to develop a conﬂu-

ently persistent map data structure, and use it to im-

plement a conﬂuently persistent directed graph data

structure. This means that the entire development his-

tory of multiple versions of each data structure is al-

ways available, and these versions can be merged to

create new versions. This allows multiple users to

work on the same data structure concurrently.

2.2.2 Path-copying

Path-copying (Driscoll et al., 1986) is a technique for

persisting pointer-based data structures based on the

insight that an update of such a data structure will

typically only affect a small subset of the nodes in

the structure. The path-copying method is thus able

to maintain both the original and new versions of the

data structure by duplicating only the affected nodes.

When a node is duplicated in a new version, all nodes

referencing the previous node must also be modiﬁed

to reference the new version. Typically, this leads to

the creation of paths of duplicated nodes, hence the

name of the technique. An example where a new node

is added to a tree is illustrated in Figure 1. As can be

seen in the ﬁgure, a new root r

′

and another new node

′

are created when the node f is added. These allow

the developer to access the original version of the data

structure from root r and the new version from root r

′

2.3 Hash Array Mapped Trie (HAMT)

An HAMT is an implementation of the map data type

that allows fast retrieval of key–value pairs while us-

ing memory efﬁciently (Bagwell, 2001). Given a

DSaaS - A Cloud Service for Persistent Data Structures

...001001

Bitmap

Reference Array

...101000

)

) (k

)

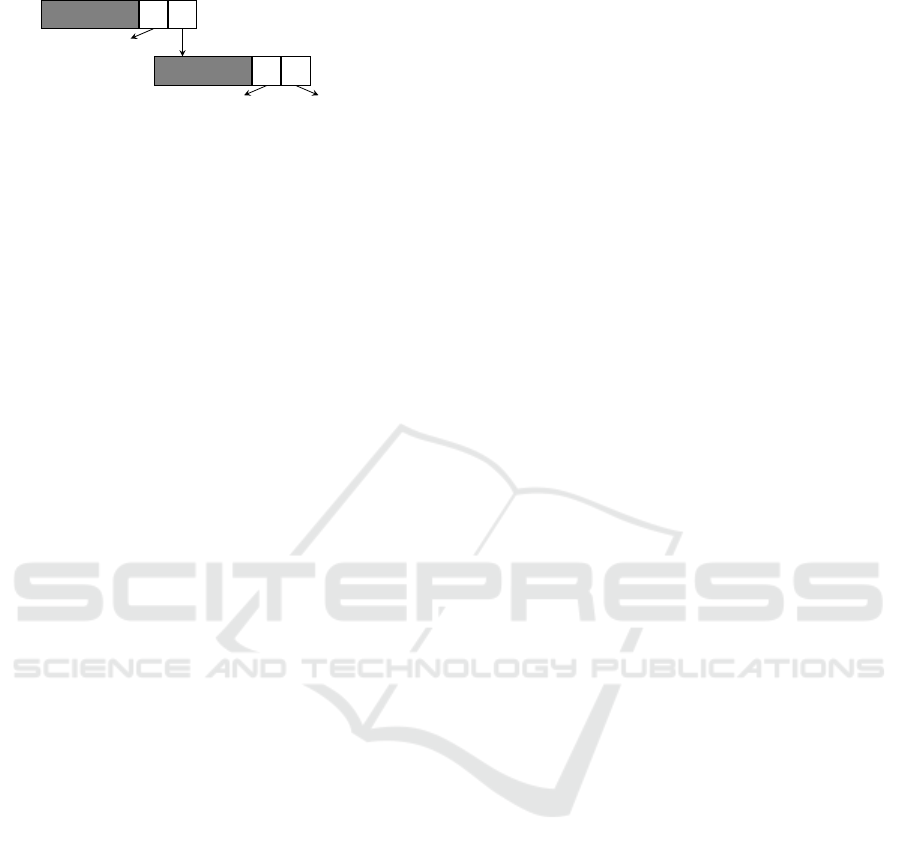

Figure 2: An example of an HAMT. The grey blocks repre-

sent the bitmaps, and the white cells represent the array of

references to key–value pairs stored in this trie.

key–value pair (k, v), the HAMT applies a hash func-

tion h to k, and stores the resulting hash h(k) as an

entry in a compressed trie structure, with the value

associated with that h(k) being the original key–value

pair (k, v). To enable use of a trie structure, the hash

h(k) must be represented as a sequence of characters

from some alphabet. This is done in a straightforward

manner by chunking h(k) into groups of 5 bits. The

HAMT then uses a bitmap in each node to indicate

which children are non-null, while the non-null refer-

ences are stored in a resizable array. These array ele-

ments either refer to other HAMT nodes or directly to

key-value pairs. We illustrate some of these aspects

in the example below—for more information on the

HAMT, see (Bagwell, 2001).

Example 1. Figure 2 gives an example of a two-node

HAMT storing three key–value pairs. For each node,

the bitmap shows the lower-order bits and the ele-

ments of the reference array corresponding to the set

bits. For accessing the HAMT, we chunk the output

of the hash function h from left to right, but positions

in the bitmap are numbered from right to left.

Assume h(k

) has

00000

as its ﬁrst ﬁve bits, and

therefore, the numeric value of the ﬁrst ﬁve bits is 0.

Therefore, to retrieve v

, one must check if position 0

in the bitmap (i.e., the rightmost position) is set, and

calculate the number of lower-order bits (i.e., bits to

the right of the position) set in the bitmap to identify

which element of the reference array to access. In

the ﬁgure, position 0 is set, and the number of lower-

order bits set is 0, so that the key–value pair (k

)

is stored at position 0 in the reference array.

Now, assume h(k

) starts with

00011 00011

, and

h(k

) with

00011 00101

. To retrieve v

, one ﬁrst

checks whether position 3—the binary value of the

ﬁrst ﬁve bits of h(k

)—in the root node’s bitmap

is set, and then one again calculates the number of

lower-order bits set to ﬁnd the position of (k

) in

the reference array. In the ﬁgure there is only one

lower-order bit set; therefore the search for v

contin-

ues to the node referenced in the root’s reference array

at position 1. This node is queried in a similar way,

but using the next ﬁve bits of h(k

) to discover that

the bit for position 5 is set, and only one lower-order

bit is set, so that (k

) can be found at the second

element of the reference array.

Since the HAMT is essentially a tree structure, it

can be converted into a persistent data structure by

path-copying. This is an essential component of the

current DSaaS system.

3 ARCHITECTURE

DSaaS incorporates both client- and server-side soft-

ware. The server provides both static content (mainly

client-side software) and dynamic content to the user.

Client-side software includes a client-side web ap-

plication, as well as language bindings that connect

to the server via the API service. All static content

is available over HTTP, and the dynamic content is

available through both HTTP and web-sockets. The

dynamic content is handled by the API service, which

provides access to all the system features.

When a browser visits the base DSaaS URL, the

web application is downloaded. The web applica-

tion then uses the API service to communicate further

with the server. Third-party systems can also com-

municate with the API service by either using the lan-

guage bindings, making their own HTTP calls to the

API service, or by implementing their own integration

layer to connect with the provided socket.

The next subsection discusses the client tools

available for accessing the service, focusing on the

Java language binding. Thereafter, the components of

the API service are considered.

3.1 Client Tools

The client tools currently included in the system are

the browser-based client application and the Java lan-

guage bindings. The browser-based client application

allows users to share, inspect and manage the con-

tents and properties of data structures to which they

have access. The application, which follows a design

inspired by the Flux architecture (Facebook, 2015),

is served from a static HTTP server and consists of a

combination of JavaScript, HTML, and CSS ﬁles.

While many operations can be performed via the

client application in principle, it is impractical to

use the browser for many updates to large-scale data

structures. Thus it is desirable to provide a more

automated mechanism for interacting with the data

structures in DSaaS. As a proof of concept, a proto-

type language binding has been implemented for Java.

This language binding is essentially a wrapper around

the HTTP and web-socket protocols that allows the

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

API Service

Key-Value

Database

Document

Database

API Module

General

User

Map

Graph

Data Structure Module

Version History

Versioned Trie

Versioned Graph

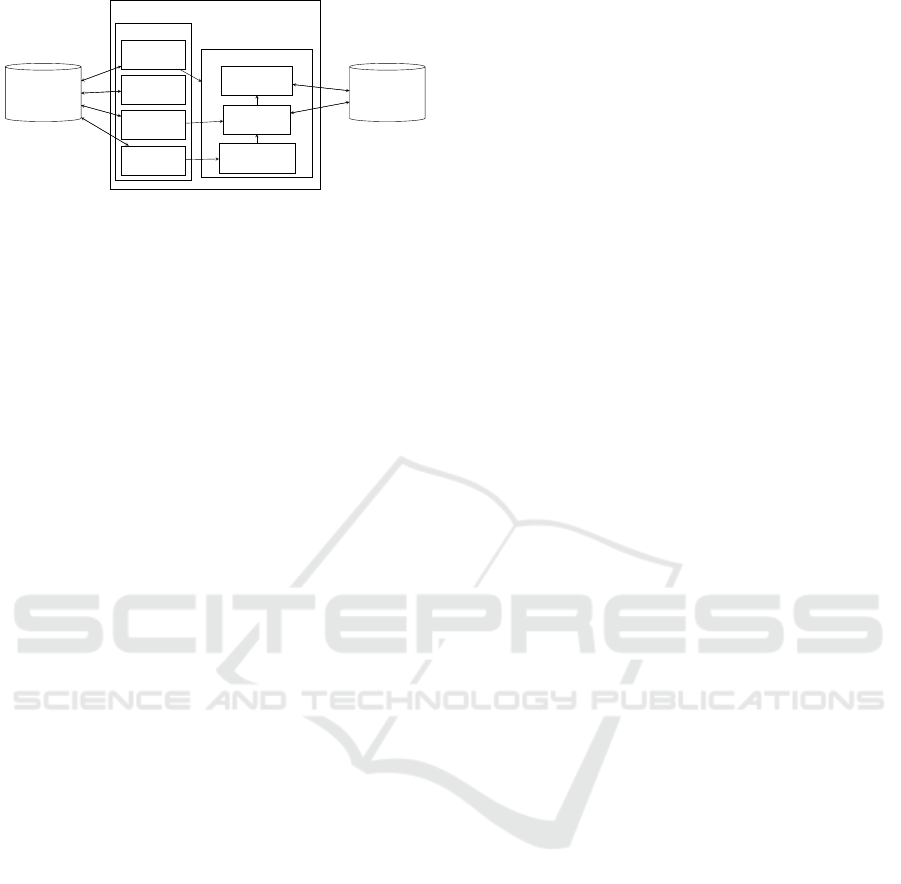

Figure 3: Data communication between the components of

the API service and data stores.

data structure updates and query calls to be processed

as a Java application runs.

The aim of language bindings for the service is

to provide access to the service with the least possi-

ble effort from a developer’s perspective. With this

approach, the developers need only initially specify

which data structures and versions they wish to use—

this process is similar to checking out a version in a

Git repository in that it establishes the base version

to which future operations are applied. Once this has

been done, the binding encapsulates the data struc-

ture in a class exposing an API consistent with that

language’s traditional libraries for manipulating and

querying the data structure; in this way, the checked-

out version appears to the developer to be an instance

of the regular (ephemeral) data type.

For example, the Java DSaaS language binding

exposes the map data structure in a class implement-

ing the

java.util.Map

interface. For the directed

graph, there is no standard Java interface, and there-

fore, we deﬁned a suitable interface.

The language binding library automatically

fetches data from the service as the local system needs

it. Lazy local caching of portions of the data structure

is performed to improve performance.

3.2 API Service

We now consider in more detail the architecture of the

API service used by the browser-based client applica-

tion and library bindings. Figure 3 shows the com-

ponents of the API service, which are grouped into

an API module and a data structure module, each of

which is discussed below.

3.2.1 API Module

All operations and features supported by the data

structures are accessed through API requests. Thus all

HTTP requests that interact with the data structures,

as well as user management requests, are handled by

the API module. This module is also responsible for

maintaining a consistent representation of the data on

the client by using web-sockets (Fette and Melnikov,

2011).

The API module consists of multiple handlers.

There are general, graph, map, and user handlers

for the different request types and socket subscrip-

tions. Each handler is responsible for validating and

responding to requests, logging API calls, and keep-

ing track of analytics. The user handler interacts di-

rectly with the document database (discussed in Sec-

tion 3.2.3), whereas most other handlers interact with

both the document database and the data structure

module. The general handler also has the responsi-

bility of pushing real-time version history updates to

subscribed clients via web-sockets.

3.2.2 Data Structure Module

The data structure module consists of versioned trie,

versioned graph, and version history submodules.

The versioned trie, based on a persistent HAMT

obtained using path-copying, is the underlying struc-

ture for exposing a conﬂuently persistent map data

structure to the API. This map implementation pro-

vides the usual operations of inserting, replacing, or

removing a key–value pair, retrieving the value asso-

ciated with a given key, and retrieving a collection of

values, keys, or key–value pairs. The operations for

retrieving collections have additional functionality for

retrieving a range of elements, as opposed to retriev-

ing all elements in one request. All these operations

operate on a speciﬁc version of the data structure, and

return either the requested information, or in the case

of an update, an identiﬁer for a new version of the data

structure.

Similarly the versioned graph—which is imple-

mented using the versioned trie as a symbol table to

represent the nodes and the edges of the graph—is the

underlying structure for exposing a conﬂuently per-

sistent directed graph structure to the API. This di-

rected graph data type provides a decorated graph by

allowing the storage of additional data as attributes

of nodes and edges. Typical graph operations, such

as adding and removing a node or an edge, updating

a node’s or an edge’s attributes, and retrieving a col-

lection of nodes or edges, are available, and again,

operate on a speciﬁc version of the data structure.

Finally, the version history is used for recording

the relationships between the various versions of each

data structure and is implemented as a directed acyclic

graph. The version history also serves as a visual aid

in the web application, helping the user to navigate

the potentially complex connections between versions

that may arise during use of the data structures.

DSaaS - A Cloud Service for Persistent Data Structures

3.2.3 Databases

The primary database used by DSaaS is a NoSQL

key–value data store. For the prototype, Lev-

elDB (Google, 2015) is used because it is a fast

database, and stores keys and values as strings. This

makes it easy to store the JSON representation of the

data structures.

The reason a key–value store is used is that the

database should be fast, highly scalable, and as close

as possible to having a distributed array. This makes

translating the data structures from in-memory data

structures to stored data structures less complex. Tra-

ditional relational databases are unnecessary, provid-

ing superﬂuous functionality.

For the metadata and user data, greater querying

functionality is required to simplify the design; here a

traditional relational database works well. MongoDB

(Membrey et al., 2010) was used as a document store

for storing data related to the user management, data

structure metadata, and logs.

4 TECHNICAL DETAILS

The two most essential components of DSaaS are the

versioned trie and the version history modules. These

are vital to the system’s performance, because they

provide the underlying data structure and operations

necessary for the versioning and storage of the data.

Our versioned trie implementation is inspired by

the Clojure implementation of a persistent HAMT

data structure which is used as its core functional

map data structure (Clojure, 2015). As in Clojure,

we use path-copying for obtaining persistence of the

HAMT. Our implementation differs from a straight-

forward Javascript port of the implementation used by

Clojure in a number of ways: (a) it is implemented to

work on storage instead of directly in memory; (b)

it adds a merge operation that allows combining two

versions to provide conﬂuent persistence; (c) it identi-

ﬁes transpositions of the same data structure (instead

of viewing the same trie obtained through a different

sequence of operations as different); and (d) it keeps

references to the various versions in a navigable graph

structure explicitly by means of the version history

module instead of doing so implicitly. These differ-

ences are discussed in more detail below. We end the

section with a discussion of how the versioned graph

is built using the versioned trie, and considerations for

adding new data structures to DSaaS.

Note that while other NoSQL databases might be more

suitable for large-scale deployment, our current interest is

purely in the feasibility of the approach.

4.1 Moving to Storage

Modifying the original HAMT implementation to a

storage-based implementation was done by writing

the data to storage as they are created and only fetch-

ing the necessary values from storage when they are

needed. By employing a key–value store, this process

was fairly straightforward, although it required giv-

ing unique identiﬁers for all objects stored in the key–

value store. The identiﬁers used were either hashes of

key–valuepairs for leaf nodes or a uniquely generated

identiﬁer for internal nodes.

4.2 Merging

The system also provides a three-way merge opera-

tion (Santos, 2013) for automatically combining two

different versions, avoiding tedious manual applica-

tion of the primitive data structure operations to one

of the versions to create a combination of the two ver-

sions.

The result of the merge operation can be described

as follows. Given two versions L and L

′

, sharing a

common ancestor K, a set of updates K L was ap-

plied to K to create L; similarly, K L

′

was applied

to K to create L

′

. To merge L into L

′

, the set of updates

K L must be applied to L

′

. However, this may lead

to merge conﬂicts, for example, if L and L

′

both con-

tain the same key, not originally in K, with different

values.

DSaas deals with conﬂicts arising from the opera-

tion merge(L,L

′

), merging L into L

′

, by giving prece-

dence to the data in the ﬁrst argument L, which is

called the principal version—that is, the data in L

overrides the data in L

′

(and K). Note that this means

the merge operation is not symmetric in its arguments

in the presence of merge conﬂicts.

Example 2. An illustration of the merge process is

given in Figure 4, where the map records different

versions of a food order for a restaurant customer:

Map versions B and C are both derived from a com-

mon ancestor version A. The restaurant software

now requests a merge of these two versions. Rel-

ative to the common ancestor A of versions B and

C, it is evident that, to create version B, the value

for the key Food was changed from “Burger” to

“Pizza”, whereas to obtain version C, the key–value

pair (Drink, “Soda”) was removed and the key–value

pair (Extra, “Cheese”) was added (i.e., these are the

This merge operation differs considerably from that

proposed in the original literature on conﬂuent persis-

tence (Kaplan, 1995), however: in particular, while their

proposed operation allowed generating data structures with

size exponential in the number of operations, ours does not.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

Version A

Name John

Food Burger

Drink Soda

Version B

Name John

Food Pizza

Drink Soda

Version C

Name John

Food Burger

Extra Cheese

Version D

Name John

Food Steak

Drink Soda

Version E

Name John

Food Pizza

Extra Cheese

Version F

Name John

Food Pizza

Extra Cheese

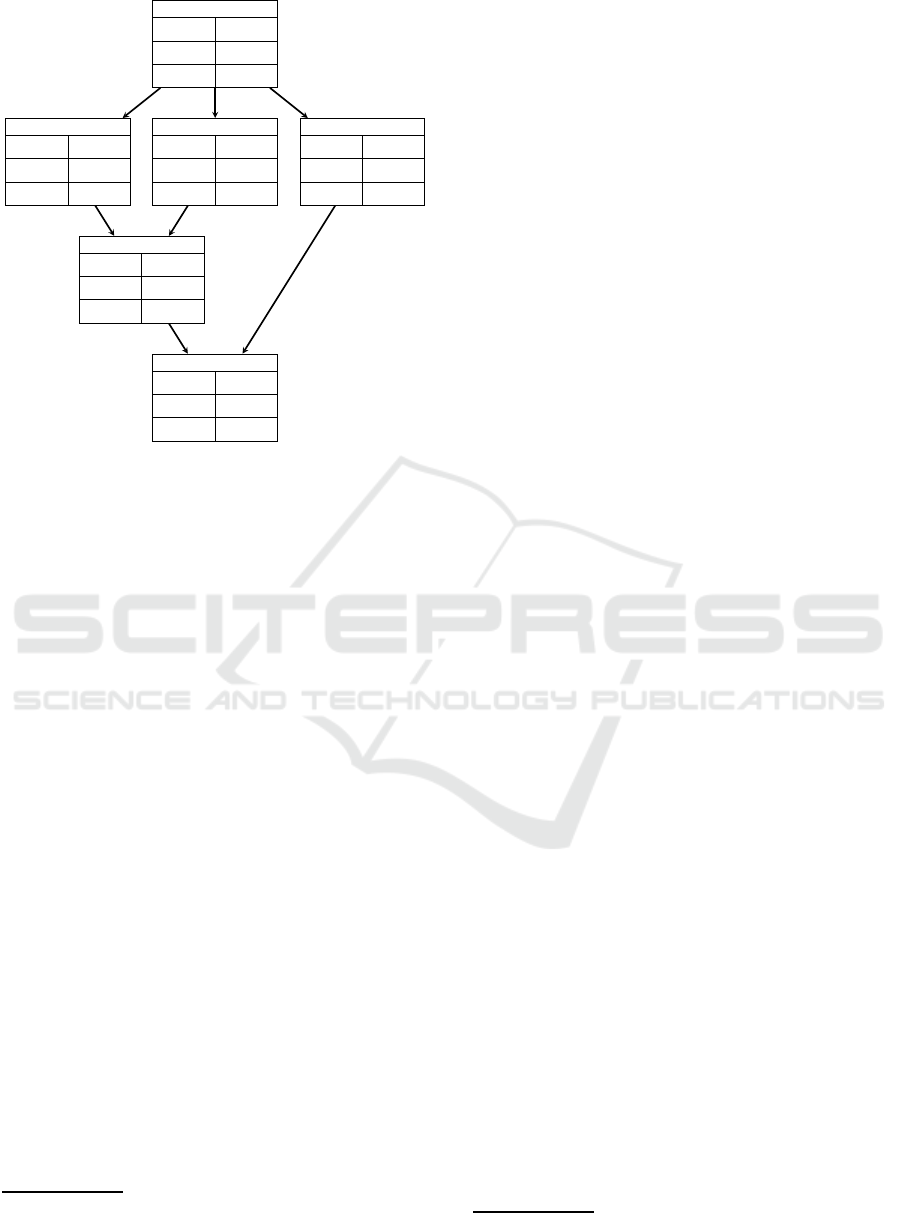

Figure 4: An example of the three-way merge used in

DSaaS. To merge versions B and C, the changes made since

the common ancestor version A are taken into account. A

merge involving versions D and E involves a conﬂict, and

the result depends on which version is considered the prin-

cipal version.

changes in A C). The ﬁnal merged version E takes

all these changes into account. Since there are no con-

ﬂicts between the edits, the result will be the same re-

gardless of whether B is merged into C, or vice versa.

Example 3. Map version D is derived from version

A by changing the key–value pair (Food, “Burger”) to

(Food, “Steak”). A merge involving versions D and

version E features a conﬂict, as the value of Food

is different in the two maps, and both differ from

the value of Food for their common ancestor ver-

sion A. This conﬂict is automatically resolved by us-

ing the value from the principal version: merging D

into E via merge(D,E) will result in the key–value

pair (Food, “Steak”) being stored in the merge result,

while merging E into D (as illustrated in Figure 4)

will maintain the key–value pair (Food, “Pizza”) in

the result.

The implementation of merge(L,L

′

) involves ﬁrst

ﬁnding a nearest common ancestor K of L and L

′

, and

then following a recursive merge process on the three

tries representing these three map versions. A nearest

common ancestor K of L and L

′

is a common ancestor

that minimizes the sum of the shortest path lengths

from K to L and from K to L

′

The process starts by

making a duplicate of the root node at version L

′

—this

In general L and L

′

may have multiple nearest common

ancestors, and which one is chosen may subtly inﬂuence the

merge result in some cases.

is the entry point to the trie version after the merge

is completed. The system then applies the following

rules for each of the 32 possible bit positions p in the

bitmap of the HAMT nodes for the three versions.

1. (BASE) If p is set only in the bitmap of the node

of L, then the subtrie correspondingto the position

is added to the newly created trie version and p is

set.

2. (BASE) If p is not set in the bitmap of the node of

L, but is set in the bitmaps of the corresponding

nodes of both K and L

′

, and these both reference

the same child node for p, then the subtrie corre-

sponding to that child node’s subtree is removed

from the newly created trie version, and p is unset.

3. When p is set for two or more of K, L, and L

′

there is the potential for a conﬂict. A conﬂict

arises when the child corresponding to p in the

different trie versions differ. If the child refer-

ences are the same, no conﬂict arises, and the sec-

ond base case resolves any issues for position p.

Otherwise:

(a) (RECURSE) If all the non-null child references

refer to HAMT nodes, a recursive merge call is

performed on the subtries corresponding to p in

each trie version to construct a new subtrie for

use in the new trie version, and to set (or unset

if the new subtrie is null) p.

(b) (BASE) Various intricate cases must be dealt

with carefully to resolve conﬂicts when one

or more of the non-null child references refers

to a key–value pair. Depending on the case,

this may involve adding (or removing) the key-

value pair to (or from) a corresponding sub-

trie, merging key–valuepairs into a new HAMT

node, or overwriting the value associated with

the key in the new trie version.

4.2.1 Differencing

When dealing with multiple versions of a data struc-

ture, it is also natural to ask what the difference be-

tween two versions is. Therefore, DSaaS provides a

query operation to obtain the difference between ver-

sions of a data structure in a human-readable format:

As with classical text ﬁle differencing utilities, the

query output shows which key–value pairs must be

added to or removed from one version to obtain the

other.

The implementation of the difference operation

between two versions follows a procedure similar to

Note that in this case, one of the three subtries may be

null.

DSaaS - A Cloud Service for Persistent Data Structures

the merge operation, except that the operations re-

quired to transform one version into the other are

recorded and combined into an output string.

4.3 Transpositions

The original HAMT will give different version iden-

tiﬁers and use space for multiple versions with the

exact same contents if they were created in different

ways. We therefore adapted Zobrist hashing (Zobrist,

1970) for identifying transpositions. Zobrist hashing

is a probabilistic hashing technique which is designed

to incrementally build hashes and is commonly used

in game tree search (Marsland, 1986). This is done by

generating a random bitstring for each new key-value

pair added to the trie. This random bitstring is then

bitwise XOR’ed with the current version identiﬁer to

produce the new version identiﬁer. If a key–value pair

is subsequently removed, its bitstring is once again

bitwise XOR’ed with the current version identiﬁer to

produce the new version identiﬁer. Since the bitwise

XOR is its own inverse, adding a key–value pair and

removing it directly afterwards from an initial version

leads to the same version identiﬁer as the initial ver-

sion. This simple example illustrates the general prin-

ciple: the version identiﬁer will depend on the con-

tent of the version, and not on the path followed to

obtain it. There is a risk of hash collisions with this

scheme where two tries with different contents are as-

signed the same version identiﬁer. However, this risk

can be made vanishingly small by using sufﬁciently

long random bit-strings (albeit at the cost of increased

computation requirements)—our implementationcur-

rently uses bit-strings of length 64.

4.4 Version History

In order to allow access to previous versions of the

trie, access pointers to previous versions are stored

in nodes of a separate directed graph structure. The

graph itself represents the relationships between the

various versions, where the nodes represent versions,

and edges represent updates to the data structure. For

the map, these updates could be insertion, replace-

ment, or removal of a key–value pair, or a merge op-

eration. This graph structure is explicitly stored in

LevelDB, where every key is a version identiﬁer for

a node and the value is a list of the version identiﬁers

for the node’s edge destinations. DSaaS can thus pro-

vide an access map of the various versions of the data

structure to the developer by presenting the version

history graph in a navigable format. By having each

user operate in their own namespace provided by the

system, each data structure of each user can be given

its own individual version history.

For classical conﬂuent persistence, the graph rep-

resenting the relationship between various versions is

a directed acyclic graph; however, due to our detec-

tion of transpositions, the possibility of cycles in the

graph arises. This is an interesting technical challenge

for future work; however our current approach is to

discard any edge whose addition to the version his-

tory would create a cycle.

4.5 Versioned Graph

DSaaS provides a versioned graph which employs the

versioned trie to provide a single symbol table for rep-

resenting both the nodes and edges of the graph. In

the case of the versioned graph, typical operations in-

clude adding or removing a node or an edge, or merg-

ing two graph versions. These operations generally

require multiple map operations to complete. While

the intermediate versions of the symbol table during

such an operation are perfectly valid maps, they are

not generally consistent with a corresponding graph

version. Thus, to achieve a suitable granularity for

versioning new core data types, certain lower-level

operations should effectively be grouped into trans-

actions.

The directed graph provides a proof of con-

cept of this approach, grouping the map operations

used when performing a graph operation into a sin-

gle transaction, which then generates a single new

directed graph version corresponding to the single

graph API call. Merging and differencing of ver-

sioned graphs is almost identical to the processes for

versioned tries, due to the use of the versioned trie as

a symbol table for storing the graph nodes and edges.

As a further example, in the context of a binary

search tree (BST), deleting a value from the BST

should be equivalent to creating one new version.

However, if the BST were implemented using a di-

rected graph representation, then the deletion requires

a number of changes to the underlying graph struc-

ture, which without such transactioning would result

in multiple intermediate graph versions being created

which do not represent valid BSTs.

5 EVALUATION

To benchmark the core of our prototype, we ran

some simple tests comparing execution time of the

DSaaS versioned trie and the Dat core library (Ogden,

2015a). We also tested the storage usage of our core

operations. Finally, we evaluated the Java language

binding by comparing access to a local machine and

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

2000 4000 6000 8000 10000 12000 14000 16000

Running Time (seconds)

Number of Key-Value Pair Insertions

DSaaS vs Dat

DSaaS Get

Dat Get

DSaaS Put

Dat Put

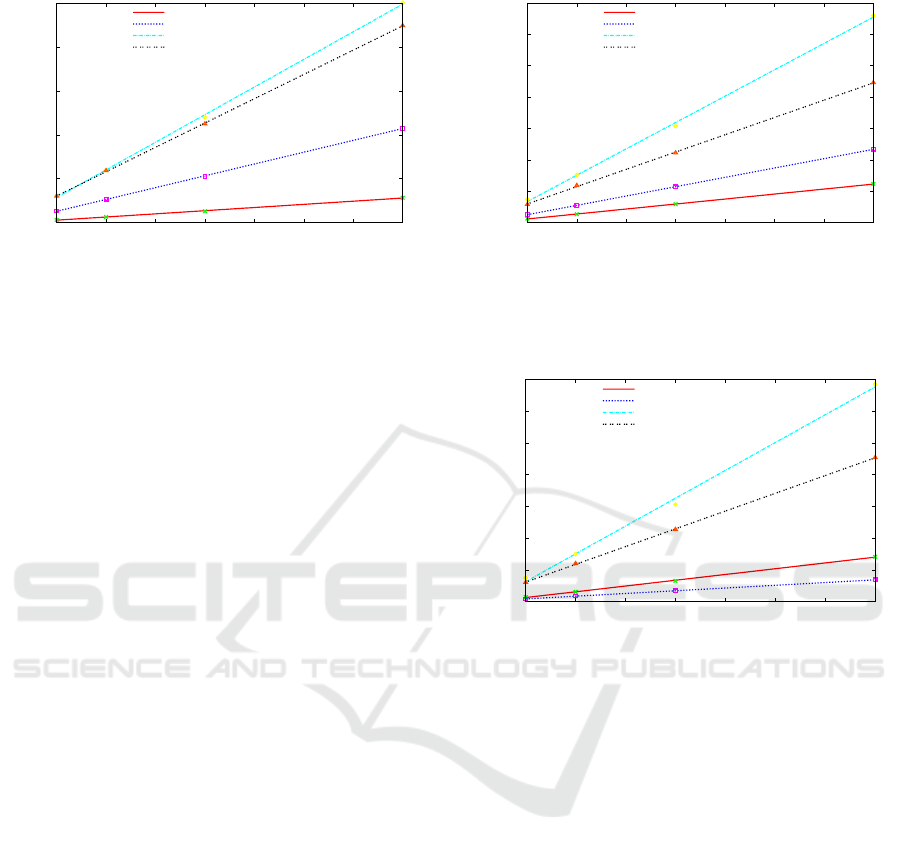

Figure 5: Running times for inserting batches of key-value

pairs using the same key with different values and retrieving

the values from different versions at the end.

to a remote server in terms of latency and throughput.

The experiments were run on an Acer Aspire 5750

containing a Core i7 processor, 8GB RAM and 500

GB Seagate Momentus 5400 rpm hard drive.

5.1 Execution Time

The following tests were run on the local machine.

The ﬁrst test used the core libraries to insert 2 000,

4 000, 8000, and 16000 unique randomstrings in turn

as values for a ﬁxed key into a versioned map pro-

vided by the two systems. Each insertion replaced the

existing value, and resulted in a new version; after-

wards, the value associated with the key was retrieved

for each version.

Figure 5 plots the running times in seconds against

the number of insertions: Insertion times on Dat are

somewhat better than on DSaaS for a larger number

of iterations, whereas retrieval times are faster on the

DSaaS platform than on Dat. This is likely due to

DSaaS doing a single operation to retrieve a key–

value pair from a speciﬁed version, as opposed to Dat

having to perform two operations: First, Dat retrieves

the version (this operation is called a checkout) and

then it queries the key–valuepair for the retrieved ver-

sion.

The next test was similar, except randomly gen-

erated keys and values were used instead of a single

ﬁxed key. Retrieval of a key was performed at the ver-

sion it was inserted. Figure 6 plots the results: DSaaS

is slightly slower than in the previous experiment, but

is still faster than Dat during retrieval from different

versions, presumably for the same reason as above.

The ﬁnal test differed from the second test in that

each key–value pair was retrieved from the ﬁnal ver-

sion after all the key–value pairs had been added.

From Figure 7, it is evident that the retrieval and in-

sertion times are very similar, and that Dat outper-

2000 4000 6000 8000 10000 12000 14000 16000

Running Time (seconds)

Number of Random Key-Value Pair Insertions

DSaaS vs Dat

DSaaS Get

Dat Get

DSaaS Put

Dat Put

Figure 6: Running times for inserting different batches of

random key-value pairs, and then retrieving the values from

different versions.

2000 4000 6000 8000 10000 12000 14000 16000

Running Time (seconds)

Number of Random Key-Value Pair Insertions

DSaaS vs Dat

DSaaS Get

Dat Get

DSaaS Put

Dat Put

Figure 7: Running times for inserting batches of different

random keys and values, and retrieving batches of values

from the ﬁnal version.

forms DSaaS when it does not have the extra penalty

of checking out a new version before each retrieval.

Therefore, DSaaS is better for manipulating and

accessing various versions—there is no penalty asso-

ciated with retrieving multiple versions. This is im-

portant for DSaaS, as multiple users may be manipu-

lating or accessing the same data structure simultane-

ously and requiring each user to ﬁrst checkout a ver-

sion would add an unnecessary time penalty.

5.2 Storage Usage

5.2.1 Insertion

The storage usage of the versioned trie was evalu-

ated by sequentially inserting batches of sizes 500,

1000, 2 000, 4 000, 8 000 and 16 000 from a data set

of 165995 payment records made by the County of

Denver (County of Denver, 2015), in each case result-

ing in a linear version history of length corresponding

to the number of the elements inserted. For the ex-

DSaaS - A Cloud Service for Persistent Data Structures

-5

0 2000 4000 6000 8000 10000 12000 14000 16000

Size (MB)

Batch Size

Versioned Trie Size Experiments

Size On Disk

Size from DB

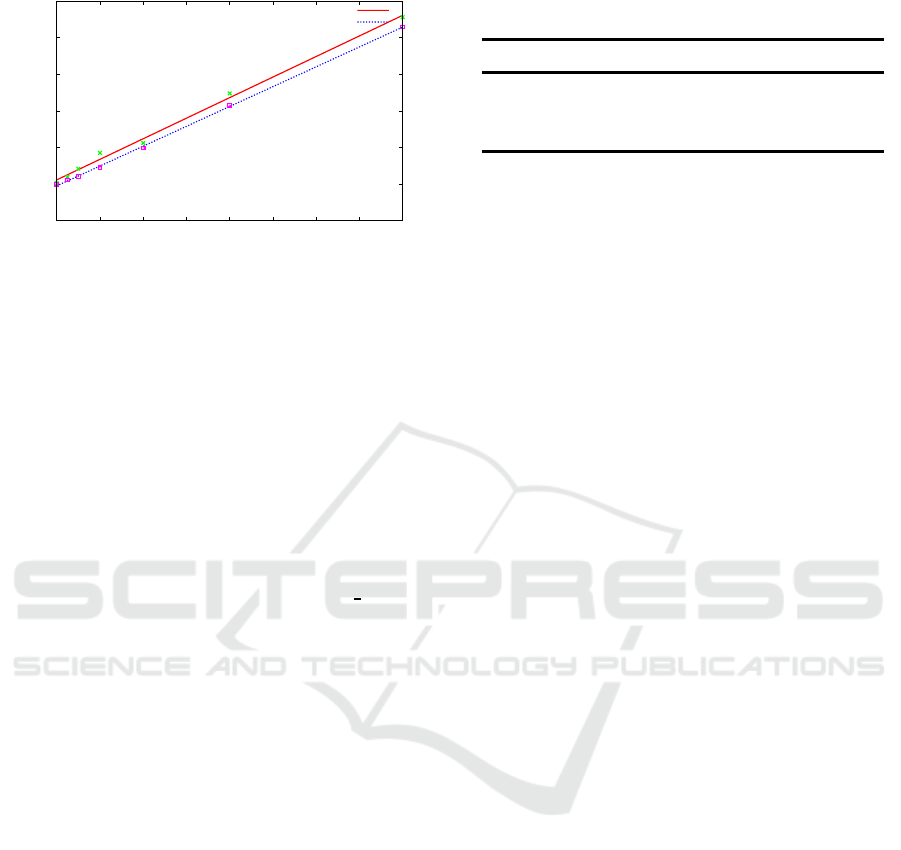

Figure 8: Storage usage when inserting batches of real-life

information into the versioned trie.

periment, the RowID was used as key, and the payee,

funding source, city, and amount were serialized into

a JSON string for use as the corresponding value.

A small program was built using the Java library

binding for sending the experimental data to a local

server. Before inserting each sequence, the directory

containing the database for all the data structures and

version data was cleared. Thereafter, the data struc-

ture was created through the web interface and the

Java program was executed. For each batch size, the

size of the database was found by using LevelDB’s

approximateSize()

, and the size of the

db data

di-

rectory was determined by the Linux command-line

utility program

Figure 8 plots the data and a least squares linear

ﬁt for each storage metric. As expected, we obtain al-

most exactly linear growth (R

= 0.99), with the slope

indicating that everykey–value pair inserted increases

the disk storage used by approximately 1.3 KiB. Since

the average size of a key–value pair in this data set

is 107 bytes, the system can thus store the full his-

tory of the structure with roughly a 12-fold increase

in storage over only storing an ephemeral version in

this case.

5.2.2 Removal

The effect of removal on storage usage was tested by

ﬁrst inserting elements and then, starting at the last

version, removing all the elements again. This was

done in batches of sizes: 500, 1000, 2 000, 4 000,

8 000, and 16000 from the data set.

Data storage size increases linearly when remov-

ing data; again we give a reminder that we are pre-

serving the entire history as it changes. In this case,

the least squares linear ﬁt (R

= 0.99) indicates that

a single removal adds approximately 1KiB of data.

Therefore, bearing in mind that the key–value pairs

used have an average size of 107 bytes, remember-

Table 1: The latency (in ms) for the put operation using

the library binding to connect to a remote server and the

localhost, and using JavaScript to test it on the core system.

Approach Latency (ms)

Remote Server (Library Binding) 206

Localhost (Library Binding) 8

Core (JavaScript) 2

ing a removal in the version history costs the storage

equivalent of 10 data items in the ephemeral structure.

5.2.3 Merging

Next we attempted to evaluate the impact of the merge

operation on the storage required by the system. This

involved adding k distinct elements from the initial

version, where k proceeds over the sequence 500,

1000, 2000, 4000, 8000, and 16000. This was done

in two batches—both batches have unique elements—

creating two ﬁnal version identiﬁers. The merge oper-

ation was then applied to the two distinct ﬁnal version

identiﬁers, with storage measured before and after the

application of the operation, and the change in data

structure size was recorded for each k.

A linear relationship (R

= 0.99) between the

batch size and the increase in storage was found. The

increase in storage was, however, smaller than rein-

serting the items added during the merge: Merging

16000 with 16000 unique elements results in an in-

crease in size of approximately 650KB, equivalent to

approximately 6000 items.

5.3 Latency and Throughput

The Java library binding was used to send requests

to a remote server as well as the localhost in an ef-

fort to measure the latency and throughput of each

request. In addition, the same operations were exe-

cuted using JavaScript to interface directly with the

core versioned trie. The results are summarized in

Table 1. We observe a decrease in performance of

roughly an order of magnitude by employing the API

service, and another order of magnitude by routing

the requests over the network. Addressing these per-

formance degradations will be crucial to making this

system more attractive for practical use.

6 CONCLUSION

This prototype is a step in the direction of a new

service-oriented architecture for enabling collabora-

tion on data structures. We developed a modiﬁed im-

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

plementation of the HAMT data structure to ﬁt our

needs for a conﬂuently persistent map, and used the

map to implement a conﬂuently persistent directed

graph. We then exposed these data structures, with

additional operations such as merging, differencing

and forking, through an API of a web service than can

be accessed by any web-enabled front-end or through

a library binding.

This prototype can be improved in many ways;

the main focus should be on increasing the system’s

speed and making it more storage-efﬁcient. One op-

tion is experimenting with different implementations

for the core versioned map data structures to iden-

tify the fastest and most efﬁcient implementation. For

example, instead of an HAMT, a fully persistent B-

tree (Brodal et al., 2012) or Stratiﬁed B-Tree (Twigg

et al., 2011) could be considered. Another important

task is reducing the latency of the system—this can

be tackled by looking into various ways of optimizing

the library binding, such as using sockets, better local

caching and sending batch requests.

On the front-end, the system can be improved by

adding more data structures; adding better security by

using HTTP(s) and encryption; and improving front-

end performance by maintaining the front-end data in

a data structure similar to the back-end.

ACKNOWLEDGEMENTS

The ﬁnancial assistance of the National Research

Foundation (NRF) towards this research is hereby ac-

knowledged. Opinions expressed and conclusions ar-

rived at, are those of the author and are not neces-

sarily to be attributed to the NRF. The ﬁnancial and

spatial assistance of the Naspers Media Lab is hereby

acknowledged.

REFERENCES

Bagwell, P. (2001). Ideal hash trees. Technical report.

http://infoscience.epﬂ.ch/record/64398/ﬁles/idealhas

htrees.pdf [Accessed: 2015-11-07].

Bhattacherjee, S., Chavan, A., Huang, S., Deshpande, A.,

and Parameswaran, A. (2015). Principles of dataset

versioning: Exploring the recreation/storage tradeoff.

In 41st International Conference on Very Large Data

Bases, volume 8, pages 1346–1357, Kohala Coast,

Hawaii.

Bitbucket (2015). Git and mercurial code management for

your team. https://bitbucket.org/ [Accessed: 2015-08-

29].

Brodal, G. S., Sioutas, S., Tsakalidis, K., and Tsichlas, K.

(2012). Fully persistent B-trees. In Proc. 23rd An-

nual ACM-SIAM Symposium on Discrete Algorithms,

pages 602–614.

Clojure (2015). Clojure Source Code of the Persistent-

HashMap.java. https://github.com/clojure/ clo-

jure/blob/master/src/jvm/clojure/lang/Persistent

HashMap.java [Accessed: 2015-11-09].

County of Denver (2015). Denver Open Data Catalog:

Checkbook. http://data.denvergov.org/dataset/city-

and -county-of-denver-checkbook [Accessed: 2015-

10-01].

Driscoll, J. R., Sarnak, N., Sleator, D. D., and Tarjan, R. E.

(1986). Making data structures persistent. In Pro-

ceedings of the Eighteenth Annual ACM Symposium

on Theory of Computing, pages 109–121. ACM.

Facebook (2015). Flux. https://facebook.github

.io/ﬂux/docs/overview.html [Accessed: 2015-05-19].

Fette, I. and Melnikov, A. (2011). The WebSocket

Protocol. RFC 6455 (The WebSocket Protocol).

http://tools.ietf.org/html/rfc6455 [Accessed: 2015-

08-01].

Fielding, R. T. (2000). Architectural styles and the design

of network-based software architectures. PhD thesis,

University of California, Irvine.

GitHub (2015). Github – where software is built.

https://github.com/ [Accessed: 2015-08-29].

Google (2015). Google drive – cloud storage and

ﬁle backup for photos, docs and more. https://

www.google.com/drive/ [Accessed: 2015-08-29].

Google (2015). LevelDB. http://leveldb.org/ [Accessed:

2015-05-20].

Kantor, I. (2015). Objects JavaScript Tutorial. http://java

script.info/tutorial/objects [Accessed: 2015-08-30].

Kaplan, H. (1995). Persistent data structures. In Mehta, D.

and Sahni, S., editors, Handbook of Data Structures

and Applications. CRC Press.

le Roux, P. B. (2015). DSaaS: A Cloud Service for

Persistent Data Structures. Honours project report,

Stellenbosch University Computer Science Division.

http://cs.sun.ac.za/∼kroon/dsaas/docs/dsaas

report.pdf

[Accessed: 2016-02-15].

Marsland, T. A. (1986). A review of game-tree pruning.

ICCA Journal, 9(1):3–19.

Membrey, P., Plugge, E., and Hawkins, D. (2010). The

Deﬁnitive Guide to MongoDB: the NoSQL Database

for Cloud and Desktop Computing. Apress.

Ogden, M. (2015a). maxogden/dat-core. https://github

.com/maxogden/dat-core [Accessed: 2015-08-13].

Ogden, M. (2015b). Versioned Data, Collaborated.

http://dat-data.com/ [Accessed: 2015-08-13].

P´erez, F. and Granger, B. E. (2007). IPython: a system for

interactive scientiﬁc computing. Computing in Sci-

ence and Engineering, 9(3):21–29.

Pollock, R. (2015). Git and GitHub for data.

http://blog.okfn.org/2013/07/02/git-and-github-

for-data/ [Accessed: 2015-08-30].

Python (2015). Built-in Types – Python 2.7.10

documentation. https://docs.python.org/2/library/std

types.html♯mapping-types-dict [Accessed: 2015-08-

30].

DSaaS - A Cloud Service for Persistent Data Structures

Santos, P. (2013). Three-Way Merge.

http://www.drdobbs.com/tools/three-way-merging-

a-look-under-the-hood/240164902 [Accessed:

2016-02-11].

Straka, M. (2013). Functional Data Structures and Algo-

rithms. PhD thesis, Computer Science Institute of

Charles University, Prague.

Twigg, A., Byde, A., Milos, G., Moreton, T., Wilkes, J., and

Wilkie, T. (2011). Stratiﬁed B-trees and Versioned

Dictionaries. In Proceedings of the 3rd USENIX Con-

ference on Hot Topics in Storage and File Systems,

HotStorage, volume 11, pages 10–10.

Watt, D. A. and Brown, D. (2001). Java Collections: an

Introduction to Abstract Data Types, Data Structures

and Algorithms. John Wiley & Sons, Inc.

Zobrist, A. L. (1970). A new hashing method with applica-

tion for game playing. ICCA Journal, 13(2):69–73.

APPENDIX

This appendix discusses a number of additional as-

pects of the DSaaS system potentially of interest to

the reader, but not central to the main paper.

Access Control

Since DSaaS is a web application providing a service

to multiple users, it is imperative to ensure users are

only granted access to data at a level corresponding to

the permissions allocated to them.

Registration and authentication for the system is

currently handled using Google’s single sign-on au-

thentication service, with each user selecting a unique

namespace during registration. Each data structure

is allocated to its creator’s namespace, and the data

structure is also given a unique identiﬁer, as speci-

ﬁed by the creator, within the namespace. This makes

it possible to identify a data structure unambiguously

by its namespace and data structure identiﬁer.

Various access levels—none, read, read/write, and

administration—specify the actions any given user

can perform on a particular data structure. The cre-

ator of a data structure automatically has administra-

tor access, whereas other users have none by default.

An administrator of a data structure may modify the

access level of other users—the common usage of

granting new users read or stronger access is called

sharing—and also has access to modify selected prop-

erties of the data structure.

To facilitate wider sharing beyond the ﬁne-grained

mechanism above, two special users are deﬁned.

The special user “registered” represents all registered

users of the system. Since the system can also be used

without registration, the special user “public”, which

represents all users of the system—including casual,

unregistered visitors—is also deﬁned.

Data Freedom

A forking feature is provided to enable duplication

of data structures. Forking creates a virtual copy of

a data structure. The virtual copy mechanism used

saves space by duplicating the version history of the

data structure, without duplicating the underlying per-

sistent data structure. Since each version stored by

the versioned trie is immutable, the developer of the

forked version can carry on applying updates and the

original trie will not be inﬂuenced.

Pull requests and changes—which allow the

changes made to a forked data structure to be incor-

porated into the original— could be added as future

improvements.

Besides forking, a user may wish to extract a

data structure from the system for ofﬂine storage or

use. Alternatively, a user may wish to import a pre-

viously exported data structure, or even import data

from other sources. To facilitate this, DSaaS provides

an export operation which allows users to download

a JSON-formatted version of a data structure and its

history. Such a ﬁle can also be imported into the sys-

tem; however, importing data in other formats is not

yet supported. Note that exporting and re-importing

a data structure is essentially the same as completely

duplicating (not forking) the data structure.

REPRODUCIBILITY

The prototype DSaaS system is open source, and all

code is available at https://bitbucket.org/dsaas/. The

code repositories include code for the client applica-

tion, the server, and the language bindings, as well as

testing code and code used for performing the experi-

ments in this paper—note that in all cases the reposi-

tory version used for experiments is tagged as “closer-

article”.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science
