Modeling Variability in Software Process with EPF Composer and

SMartySPEM: An Empirical Qualitative Study

Jaime W. Dias and Edson OliveiraJr

Informatics Department, State University of Maring

a, Maring

a-PR, Brazil

Keywords:

Annotative Approach, Compositional Approach, Eclipse Process Framework, Empirical Qualitative Study,

SMartySPEM, Variability.

Abstract:

Nowadays, organizations are increasingly seeking to customize their software processes according to the mar-

ket needs and projects experiences. Therefore, a systematic way to achieve such an objective is the Software

Process Line (SPrL) technique, in which each member is a customized software process derived from a set

of similarities and variabilities of process elements. Compositional and annotative approaches are most refer-

enced for variability management. In this sense, the objective of this paper is to present a comparison between

compositional and annotative approaches targeting variability representation capabilities from the point of

view of practitioners and academic experts. The Eclipse Process Framework by means of the EPF Composer

tool represents compositional approach, whereas SMartySPEM represents the annotative approach. The ob-

tained results provided initial evidence that the annotative approach (SMartySPEM) takes advantage over the

compositional approach (EPF).

1 INTRODUCTION

Software development companies need to quickly de-

velop software with quality, which makes them adopt

software reuse techniques (Aleixo et al., 2013). Such

a reuse aims at improving productivity, reducing cod-

ing effort and increasing quality as the software has

been already veriﬁed and validated.

The current scenario of competitiveness has led

software companies to seek solutions beyond soft-

ware reuse in order to reduce time-to-market and in-

crease return on investment (ROI). Thus, software de-

velopment projects need to be tailored according to

the needs of a company and its development domain

(Garcia-Borgonon et al., 2014). Therefore, the Soft-

ware Process Line (SPrL) technique (Rombach, 2005)

is an alternative for process customization based on

similar and variable process elements. Such ele-

ments can be deﬁned based on the concept of variabil-

ity, from the Software Product Line (SPL) technique

(Linden et al., 2007).

Currently, there are several tools and languages

for software process modeling (Garcia-Borgonon

et al., 2014), as well as approaches that guide such

modeling, as for instance, compositional, annotative,

transformational and model-driven (K

astner, 2010;

astner et al., 2008; K

astner and Apel, 2008). Each

approach is used in speciﬁc ways to represent vari-

ability among process elements (Aleixo et al., 2013).

Therefore, this work presents a qualitative empiri-

cal study comparing the compositional approach, rep-

resented by the Eclipse Process Framework (EPF)

and its Composer tool, and the annotative approach,

represented by the SMartySPEM (OliveiraJr et al.,

2013) approach for variability representation in soft-

ware process elements.

2 BACKGROUND

This section presents essential concepts of soft-

ware process lines, variability and the OpenUP-based

SPrL, used in our qualitative study.

2.1 Software Processes and Process

Lines

A software process can be deﬁned as a set of tech-

niques and technologies to support, evaluate and im-

prove software development activities. The need to

specifying software processes arises from the fact that

the products quality can be directly inﬂuenced by the

process adopted for their productions (Chemuturi and

Dias, J. and OliveiraJr, E.

Modeling Variability in Software Process with EPF Composer and SMartySPEM: An Empirical Qualitative Study.

In Proceedings of the 18th International Conference on Enterprise Information Systems (ICEIS 2016) - Volume 1, pages 283-293

ISBN: 978-989-758-187-8

283

Cagley, 2010). The ISO/IEC 15504 standard (ISO,

2012) deﬁnes a process as a set of activities that are

interrelated or interacting to transforming inputs into

outputs. This set of activities serves as a guide for

those who will be responsible for the process execu-

tion and monitoring.

A software development process has four basic

steps (Sommerville, 2015): speciﬁcation of the soft-

ware features and premises for its development; de-

sign for constructing the software according to its

speciﬁcations; validation to ensure that the software

meets the users needs; and evolution in order to ac-

commodate prospective necessary modiﬁcations.

Modeling of such steps are essential for a com-

plete understanding of the process (Garcia-Borgonon

et al., 2014). Basic elements and concepts are essen-

tial for software process modeling: Role, which de-

scribes how people act in the process and their respon-

sibilities; Task, which is an action performed by a role

for executing or monitoring a project; Activity, which

is a set of tasks that lead to produce/consume one or

more controlled quality artifacts; Artifact, which rep-

resents the result of a task; and Process, which is an

organized collection of activities.

Basic elements of a software process are essen-

tial to enable process tailoring and customization,

which is currently an important research topic from

the academic and industrial point of view (Mart

ınez-

Ruiz et al., 2012; Kalus and Kuhrmann, 2013; Car-

valho et al., 2014). Therefore, the term Software Pro-

cess Line (SPrL), proposed by Rombach (Rombach,

2005), has been considered in the last years, sug-

gesting the adoption of important concepts from soft-

ware product lines, such as similarities and variabil-

ities. An SPrL provides techniques and mechanisms

for modeling existing similarities and variabilities in a

family of software processes, as well as the derivation

of customized software processes that meet the spe-

ciﬁc needs of a given software development project

(Rombach, 2005; Aleixo et al., 2011).

SPrLs may contain variation points, which are

process elements that can be instantiated in differ-

ent ways. For each variation point there are vari-

ant elements, which can be selected to resolve a spe-

ciﬁc variation point (OliveiraJr et al., 2013). Fig-

ure 1 illustrates an excerpt of an SPrL, in which

the similar (mandatory) part is composed of the role

Developer and two tasks: Design the solution

and Implement solution. Such a ﬁgure also il-

lustrates two variabilities: (i) the inclusion of devel-

oper tests practices (Implement developer tests

and Run developer tests), and (ii) the inclusion of

integration and creating of a build (Integrate and

create build). This excerpt can generate four dis-

tinct process instances: (i) with common elements

only by discarding the variabilities, keeping manda-

tory process elements, (ii) only resolving the variabil-

ity concerned with Developer test, (iii) only re-

solving the variability concerned with Integration

continues, and (iv) resolving both variabilities con-

sidering all the elements.

2.2 The OpenUP-based SPrL

The OpenUP process complies with the principles of

the Agile Software Development Manifest, thus it can

be taken as an agile version of the Uniﬁed Process

(UP), meeting UP good practices. OpenUP is an itera-

tive and incremental approach, with no speciﬁc tools.

Several activities of the OpenUP are optional,

however, it does not deﬁne which elements of the pro-

cesses vary from the SPrL point of view. Thus, in the

work of (Aleixo et al., 2011), Aleixo et al. presents

excerpts of the OpenUP modeled as an SPrL, deﬁning

similar features and variabilities. To do so, three real

research and development projects based on OpenUP

in addition to experienced practitioners were involved

in the deﬁnition of such an SPrL. The ﬁrst project

dealt with the development of a software system to

audit telephone networks, the second project involved

the development of a module of a distributed system

and the third project involved the implementation of

an integrated academic and administrative manage-

ment. As a result of this analysis it was identiﬁed 586

features, from which: 273 mandatory features, 239

optional features and 74 alternative features.

3 VARIABILITY MODELING IN

SPRL WITH COMPOSITIONAL

AND ANNOTATIVE

APPROACHES

The success of an SPrL depends on the accuracy of

its variability management activity (Rombach, 2005).

Thus, such a management is a key requirement in the

development of SPrLs to provide support to speciﬁca-

tion, implementation, variability resolution and cus-

tomized processes generation. Variability manage-

ment deﬁnes how common and variable artifacts are

represented and treated in order to generate process

instances from an SPrL.

There are different approaches and techniques for

variability management in the literature. They can

be classiﬁed as (Galster et al., 2013): compositional,

annotative, transformational, and model-driven. This

study concerns on compositional and annotative ap-

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

284

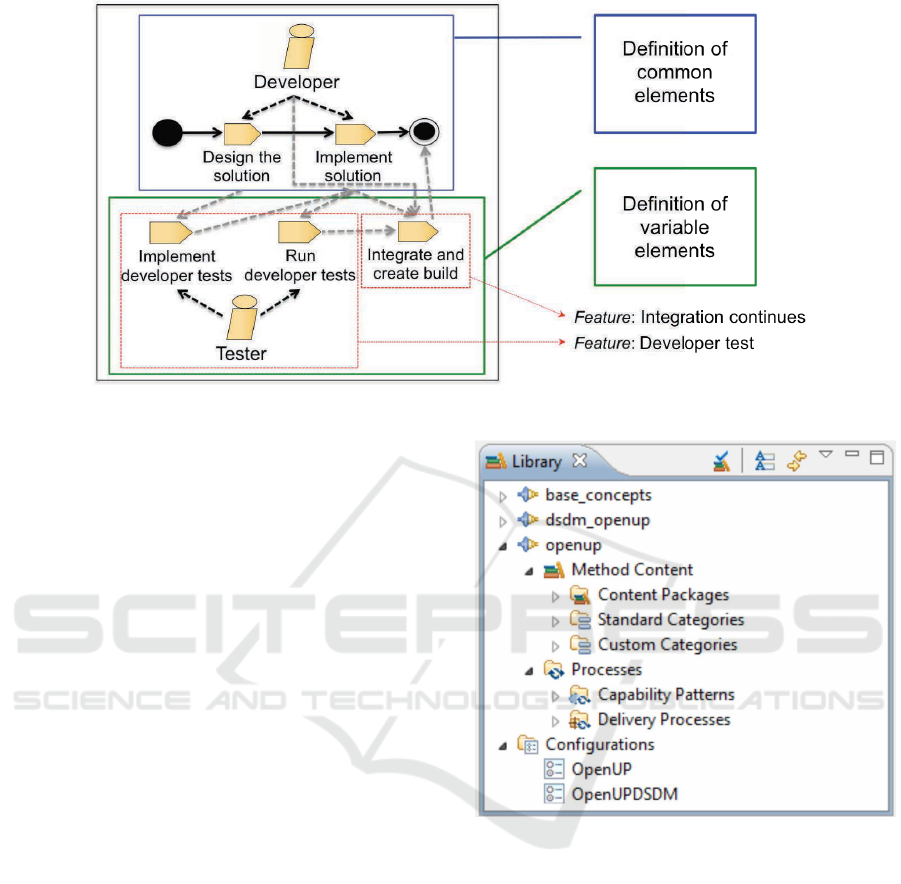

Figure 1: Excerpt of an SPrL (Aleixo et al., 2013).

proaches as they are highly referenced in the litera-

ture.

3.1 Compositional Approach

The compositional approach supports modularity of

physical features, thus generation of products occurs

by means of selecting and composing modules that

implement features of desired products (Galster et al.,

2013). Therefore, development techniques are high-

lighted: Feature-Oriented Programming (FOP) (Lee

and Kang, 2013) and Aspect-Oriented Programming

(AOP) (Kiczales et al., 1997). FOP provides support

to the similarities and variabilities be modularized and

each feature implemented in a distinct module. Such

a module is an increment in the functionality of a base

system (step-wise reﬁnement).

An example of software process modeling using

the compositional approach is the Eclipse Process

Framework (EPF), which allows editing, conﬁguring

and publishing of software processes. EPF persists

process information according to the Uniﬁed Method

Architecture (UMA) meta-model, developed based on

the SPEM 1.0. Subsequently, UMA inspired the cre-

ation of the SPEM 2.0.

Figure 2 presents the EPF framework main parts

using the EPF Composer, a process modeling tool

based on the EPF framework, as follows:

• Method Content: standardizes representation and

manages reusable component libraries. It deﬁnes

roles, tasks, work products and their relationships;

• Process: determines the sequence of phases, iter-

ations and activities, and deﬁnes when tasks are

performed;

Figure 2: EPF Excerpt Illustrating Method Content, Pro-

cess, Plug-ins and Conﬁgurations using the EPF Composer

Tool.

• Plug-ins: represent a set of Method Content and

process packages, allowing process customiza-

tion;

• Conﬁgurations: selects a subset of Method Con-

tents to form a speciﬁc process by publishing it in

HTML or exporting it to MS Project or XML.

The EPF framework allows representing artifacts

variability in order to control the evolution and reuse

of software processes. There are four possible types

of variability in EPF, which are:

• Contributes - contributing (variability) element

adds to a base element;

• Replaces - replacing (variability) element replaces

parts of the base element;

Modeling Variability in Software Process with EPF Composer and SMartySPEM: An Empirical Qualitative Study

285

• Extends - extending (variability) element inherits

characteristics of the base element. The base ele-

ment is unchanged; and

• Extends-Replaces - combines the effects of ex-

tends and replaces variability, allowing one to se-

lectively replace speciﬁc attributes and relation-

ships of the base element. Extending-replacing

(variability) element replaces values in the base

element that have been redeﬁned in the extending-

replacing element.

3.2 Annotative Approach

The annotative approach provides the use of prepro-

cessor directives to annotate code snippets associated

with a particular feature (K

astner et al., 2008). The C

and C++ languages already support preprocessor di-

rectives. Products generation occurs by deﬁning the

value of the symbolic constant of pre-processing di-

rectives associated with selected features, before pre-

building, in order to deﬁne the presence of the features

snippets selected in the generated product. Just as in

Java annotations, which provide the option of using

metadata over code that can be later interpreted by

a compiler or pre-compiler that performs predeﬁned

tasks. Another way of annotation is the UML stereo-

types that add semantics to existing elements with no

changes in their meta-model.

Stereotype-based Management of Variability for

the SPEM meta-model (SMartySPEM) (OliveiraJr

et al., 2013) is an approach that provides the separa-

tion of elements and their management by using a vi-

sual annotation that associates notes and stereotypes

to each type of process elements variability.

The SMartySPEM approach aims at supporting

the identiﬁcation and representation of variability

in processes elements modeled with SPEM. To do

so, SMartySPEM introduces the proﬁling mecha-

nism based on the SMarty approach (OliveiraJr et al.,

2010) for representing variability in SPEM modeled

elements with speciﬁc stereotypes. SMartySPEM

is composed of a UML 2.0 compliant proﬁle, the

SMartySPEMProﬁle, with the following stereotypes

(OliveiraJr et al., 2013):

• variability - represents the concept of vari-

ability (UML note);

• variationPoint - represents the concept of

variation point (VP icon), in which a variable pro-

cess element provides a set of choices for cus-

tomizing a software process;

• mandatory - represents compulsory pro-

cess elements (MDT icon), present in every cus-

tomized software process;

• optional - represents an optional variant;

• alternative OR - represents inclusive vari-

ants (OR icon) to resolve a variation point;

• alternative XOR - represents mutually ex-

clusive variants (XOR icon) to resolve a variation

point;

• mutex - represents mutual exclusion con-

straint (dependency relationship) among variants;

and

• requires - represents that a given variant re-

quires the presence of another variant (depen-

dency relationship).

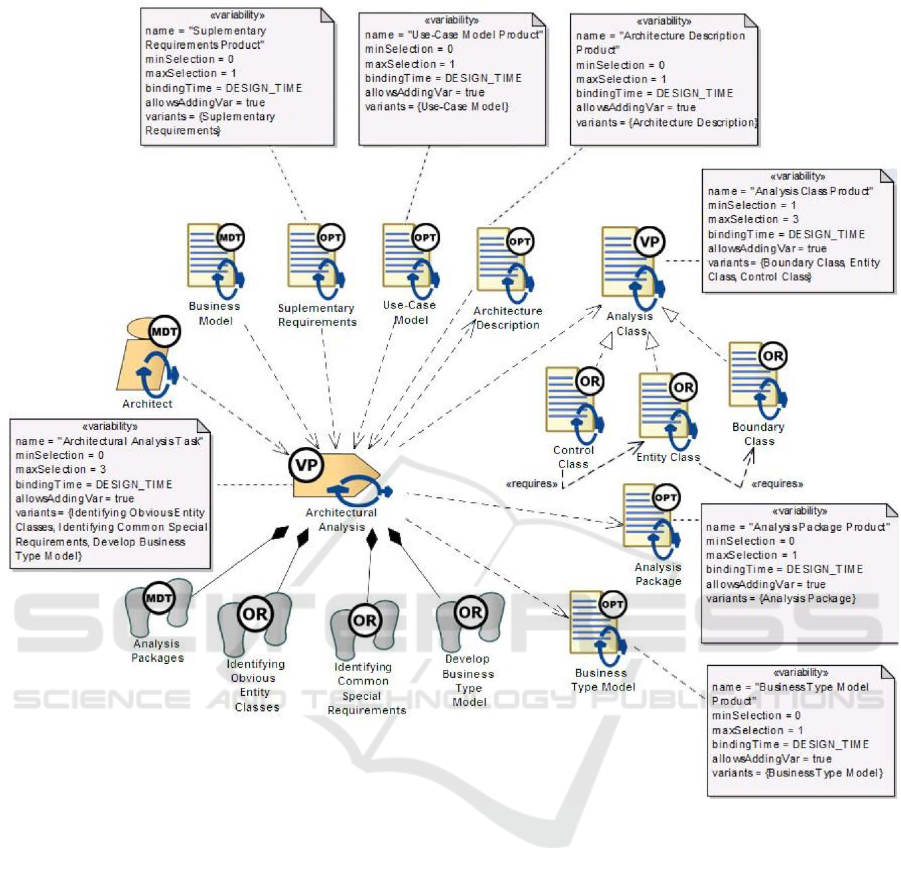

Figure 3 presents an excerpt of an

Architectural Analysis activity modeled

according to SMartySPEM. It contains the vari-

ation point Analysis Class with three related

inclusive variants: Control Class, Entity

Class and Boundary Class. Another variation

point is Architectural Analysis with three

variants: Identifying Common and Special

Requirements, Identifying Obvious Entity

Classes and Develop Business Type Model.

Architect is a mandatory element for performing

the Architectural Analysis activity. There are

optional variants, such as, Use-Case Model and

Architecture Description, which may or may

not be present in derived processes (OliveiraJr et al.,

2013).

4 EPF COMPOSER VS.

SMartySPEM: A QUALITATIVE

STUDY

This study aims at comparing compositional and

annotative approaches represented, respectively, by

EPF Composer and SMartySPEM. The comparison

criteria to be adopted were proposed in the works

astner, 2010; K

astner et al., 2008; K

astner and

Apel, 2008), namely: modularity, traceability, error

detection, granularity, adoption and systematic vari-

ability management. These criteria were also used in

the qualitative study of Aleixo et al. (Aleixo et al.,

2012).

The criterion of modularity aims at analyzing

the modularization degree of processes elements as-

sociated with speciﬁc features, enabling a better un-

derstanding and facilitating the maintenance and evo-

lution of SPrLs. Traceability allows one to analyze

how difﬁcult is viewing and mapping of all process

elements along with their associated features. The

error detection criterion analyzes how efﬁcient is

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

286

Figure 3: An Excerpt of Architectural Analysis Modeled with SMartySPEM (OliveiraJr et al., 2013).

an approach for identifying cohesion errors in the def-

inition of an SPrL and its elements, as well as its

derived processes. Granularity evaluates the ap-

proach support for representing variability in coarse

and ﬁne granularity, considering the division of the

process in small or large parties. The adoption crite-

rion discusses the difﬁculty of adopting an approach,

analyzing necessary pre-knowledge to be taken to ap-

plying such an approach. Systematic variability

management analyzes the mechanisms provided by an

approach for specifying variability.

4.1 Objective

The aim of this study is to obtain experts’ feedback

with regard to the criteria for each approach. Then,

compare such approaches in order to be able to draw

initial evidence based on each criterion.

4.2 Planning

As study object we used the OpenUP-based SPrL

from Section 2.2. As such an SPrL is too large

with hundreds of features, we chose only the

Requirements Specification feature.

Participants were given eight documents: a study

consent stating the conﬁdentiality of the responses;

a characterization questionnaire to measure the par-

ticipant’s experience; a document with main con-

cepts of SPrL; a document about the compositional

approach using the EPF framework; a document

about the annotative approach using SMartySPEM; a

document with the modeling of the Requirements

Specification feature in EPF (Figure 4); and a

Modeling Variability in Software Process with EPF Composer and SMartySPEM: An Empirical Qualitative Study

287

document with the modeling of the Requirements

Specification feature in SMartySPEM (Figure 5).

After the trainning session, each participant was given

two questionnaires containing six questions. Each

question with regard to each criterion for each ap-

proach. Then, participants should answer the follow-

ing questions, replacing TYPE OF APPROACH with

“Compositional” or “Annotative”:

1. The modularity criterion measures the quan-

tity of modules (groups of process elements)

necessary for representing an SPrL, thus is

it possible to measure the modularity of the

TYPE OF APPROACH approach?

2. The traceability criterion allows analyzing the

visualization and mapping difﬁculty of all pro-

cess elements along with their features, thus is

it possible to visualize the traceability of the

TYPE

OF APPROACH approach?

3. The error detection criterion analyzes how ef-

ﬁcient is an approach to identify cohesion errors

in the deﬁnition of an SPrL and its elements,

as well as the derived processes from the SPrL.

Is it possible to detect cohesion errors in the

TYPE OF APPROACH approach?

4. The granularity criterion aims at evaluating the

approach support for representing variability in

coarse and ﬁne granularities (level of abstraction),

thus considering the process division in small or

large parts, is it possible to evaluate the granular-

ity at the TYPE OF APPROACH approach?

5. The adoption criterion discusses the difﬁculty

of adopting an approach, analyzing the amount

of previous knowledge for applying an approach,

thus have you experienced any difﬁculties for

understanding the TYPE OF APPROACH ap-

proach?

6. The systematic variability management

analyzes the provided mechanisms of an ap-

proach for specifying variability. Do you consider

sufﬁcient the variability mechanisms of the

TYPE OF APPROACH approach?

Participants of this study were carefully selected

based on their experience with software process. In

average, each participant had ten years of experience

working with software processes. Thus, twelve par-

ticipants were invited for this study, from which one

participant was invited for a pilot study for evaluat-

ing our instrumentation, thus his/her results were dis-

carded. Amongst the participants are researchers and

practitioners from the State University of Maring

(UEM), Federal University of S

ao Carlos (UFSCar),

Federal Technological University of Paran

a (UTFPR)

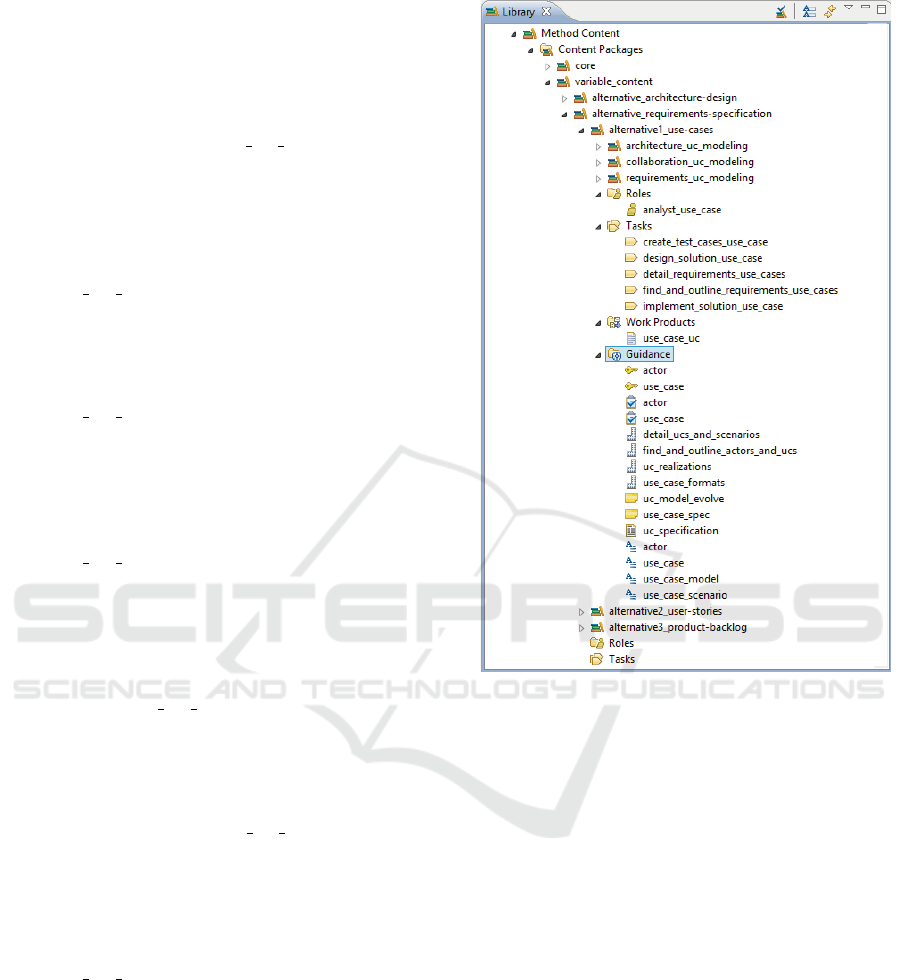

Figure 4: The OpenUP-based SPrL Requirements Speciﬁ-

cation Using the EPF Composer.

and University of York, all of them with masters or

Ph.D.

The realization of a pilot study led us to changes in

the study planning as, for instance, in the study dura-

tion time. At ﬁrst, we distributed all the materials and

asked the pilot study participant to answer the two sets

of six questions. This whole process took about two

hours and forty minutes, making the participant tired

and bored. Thus, we decided two divide it into two

parts, each part in different days: the ﬁrst one involv-

ing only one of the approaches and the second one the

other approach. Therefore, each part of the study took

no longer than 50 minutes.

Another necessary change based on the pilot

project results was removing the uniformity criterion

that aimed at assessing the technology or indepen-

dent meta-model. As the two approaches depend on

speciﬁc tools (EPF Composer and a UML Tool), we

understand that such a criterion could be a potential

threat to our study as the participants do not have

enough experience with these tools, especially EPF

Composer.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

288

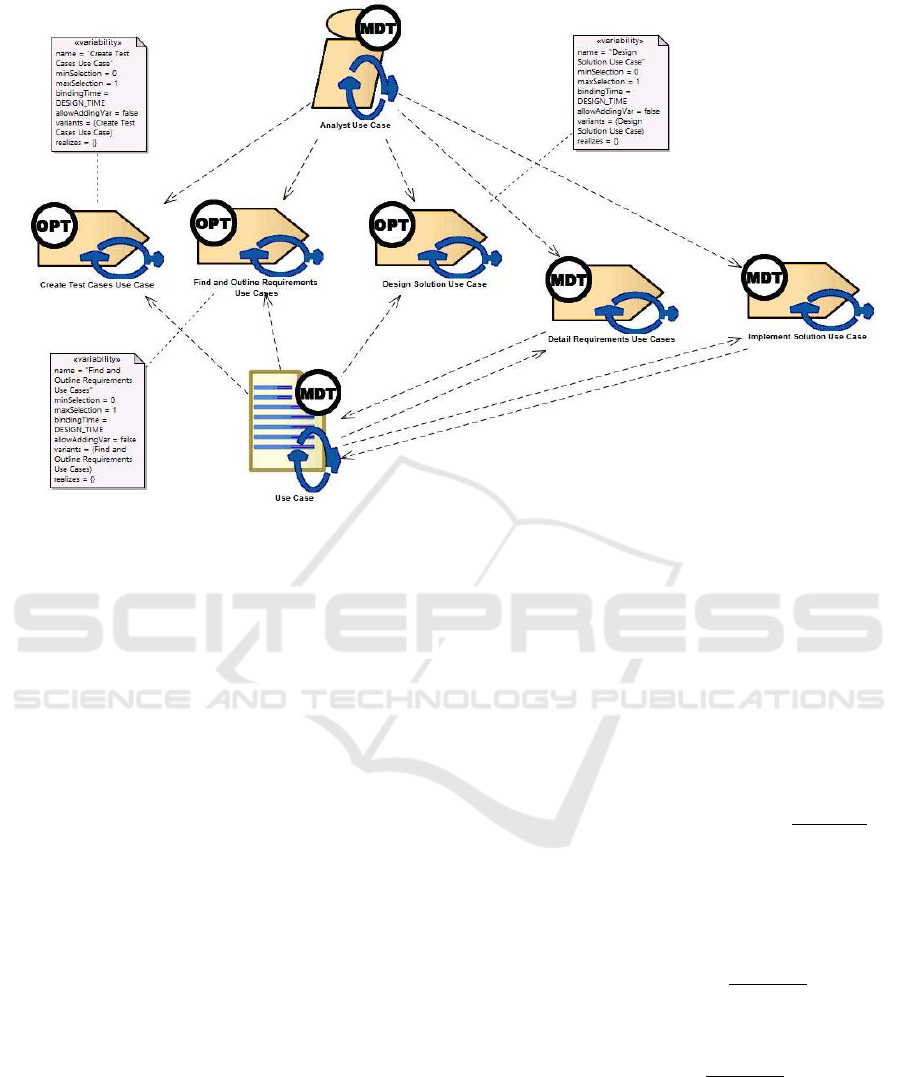

Figure 5: The OpenUP-based SPrL Requirements Speciﬁcation According to SMartySPEM.

For reducing the threats to validity of the study, for

each participant we changed the order of the evaluated

approach. Then, ﬁve participants ﬁrstly received the

annotative approach (SMartySPEM), whereas six par-

ticipants ﬁrstly received the compositional approach

(EPF Composer).

Responses from the experts were qualitatively

analyzed using Grounded Theory (GT) procedures

(Corbin and Strauss, 2008). The GT approach is

based on coding concepts. Coding allows one to as-

sign codes or labels for text snippets (Open Coding),

which can be grouped and classiﬁed (Axial Coding)

according to an idea expressed in order to elucidate

a given phenomenon (Corbin and Strauss, 2008). As

a result, such codings enabled the creation of a con-

ceptual model. During the encoding process two cat-

egories were created “Feasible Criteria” and “Non-

Feasible Criteria”, thus grouping answers with re-

spect to each criterion. An assistance tool for qual-

itative analysis was used, named Dedoose. Such a

tool allows one to import a spreadsheet with results,

then creating codings in speciﬁc excerpts of the an-

swers. The created codings can relate to one another

in a signiﬁcant level. Then, after creating all codings

one can produce graphical representations, such as,

charts with different results visualizations.

4.3 Results

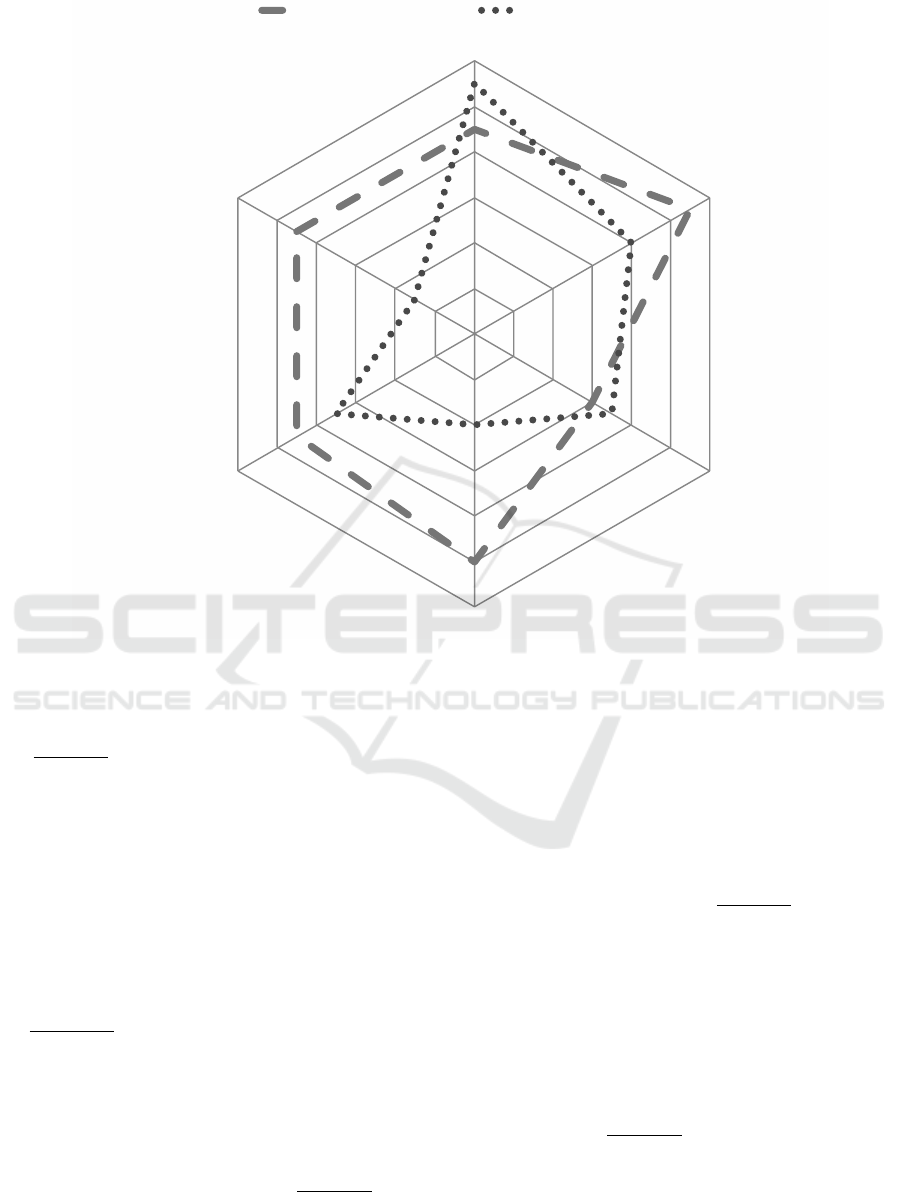

Figure 6 presents the results of this study as a com-

parison of the answers for each criterion of EPF

Composer and SMatySPEM. The more centralized

the line is (red or blue) in the chart the worse is

the evaluation of a given criterion. As a result, the

compositional approach was better evaluated for cri-

teria Modularity and Error Detection, whereas

the annotative approach was better evaluated for cri-

teria Traceability, Granularity, Adoption and

Systematic Variability Management.

Modularity in the annotative approach obtained

nine positive evaluations, for example, expert #3 an-

swered that “...it is possible to measure such a modu-

larity, as well as presenting the relationship between

process elements in a module. Such a view contributes

to the comprehension of what happens in each process

module and, consequently, enables better understand-

ing the tasks of a given derived process...”. However,

it took two negative answers. Expert #5 stated that

“...SMartySPEM does not appear to enable an effec-

tive organization of the process elements of an SPrL.

It is possible to establish the relations, but not dis-

tribute them so efﬁciently...”. Expert #4 answered that

“...as the process model grows, measuring modular-

ity becomes more complex as it depends on the vi-

sualization (annotations) of all process elements in a

diagram...”. In fact, for large SPrLs, visualization of

the modules is jeopardized due to the amount of el-

ements and annotations in a same diagram. On the

other hand, the compositional approach took 100% of

positive answers as it allows grouping the SPrL com-

Modeling Variability in Software Process with EPF Composer and SMartySPEM: An Empirical Qualitative Study

289

!"#$%&'()*

+'&,-&.(%()*

/''"'01-)-,)("2

3'&2$%&'()*

4#"5)("2

6*7)-8&)(,09&'(&.(%()*0

!&2&:-8-2)

422")&)(;-0 455'"&,< ="85"7()("2&%0 455'"&,<

Figure 6: Spider Chart for Evaluating Compositional and Annotative Approaches based on the Deﬁned Criteria.

ponents in hierarchical packages, with a better visu-

alization of the modules as, for instance, reported by

the expert #5 “...EPF Composer is able to encapsu-

late the compositional elements in a satisfactory way.

The use of plugins, method contents and conﬁgura-

tions enables reusing such modules in an agile and

intuitive way...”.

The error detection criterion was not satisfactory

for both compositional and annotative approaches, as

none of them provides veriﬁcation activities. How-

ever, the compositional approach took a subtle ad-

vantage as the EPF Composer checks models at spe-

ciﬁc process publication (derivation) time as stated

by expert #11 “...it has some kind of support mech-

anisms for error detection. Some ﬁlters, as in the

association with variabilities avoid wrong contri-

butions/replacements/extensions of incompatible pro-

cess elements...”. On the other hand, in the annota-

tive approach, as it is an UML extension and it allows

the relationship among several different elements, it

is difﬁcult to detect errors, as said by expert #8

“...Be-

cause there is no automation of the approach, the

only way to detect errors would be based on reviews

and in-depth analysis comparing the process model-

ing with the description of the SPrLs elements...”.

Traceability obtained all the positive ratings for

the annotative approach as it has a very visual ap-

peal, facilitating the identiﬁcation and traceability

among process elements, as well as the realizes

meta-attribute of the stereotypes variability and

variationPoint, which represents a collection of

low-level models that realizes a given variability. An

example is the statement from expert #8 ”...traceabil-

ity is perceived by means of dependencies among

process elements, as well as the realizes meta-

attribute from variabilities or optional and variation

point elements...”. For the compositional approach

eight positive answers were given as such an approach

allows relationships among process elements. How-

ever, various negative aspects were pointed out as the

difﬁculty of graphically visualization of the relations

between elements, and hiding of variability elements

as stated by the expert #5 ”...The user accessing the

published process, in html format, generated by the

EPF Composer can not visualize inherited packages

and conﬁgurations of a given element, when its vari-

ability allows such a visualization...”.

The granularity criterion had much more positive

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

290

evaluations for the annotative approach than the com-

positional due to the possibility of modeling differ-

ent types of diagrams representing different abstrac-

tion levels of SPrLs. For instance, ﬂow of activities

with Activity elements for coarse-grained granularity

and diagram description of a process with activities

as ﬁne-grained granularity. We can observe these ex-

amples from the expert #2 answer excerpt as follows:

“...the annotative approach clearly presents two lev-

els of abstraction encompassing both ﬁne and coarse-

grained granularity, as the Activity process element

provides such an abstraction. Abstraction levels al-

low and facilitate the visualization of the whole pro-

cess, as well as make it easier identifying the vari-

ation of each of the process elements in lower-level

abstraction levels...”. In the compositional approach

this criterion obtained seven negative evaluations, be-

cause of the approach consider only one low abstrac-

tion level, not allowing a wide view of the SPrL. Ex-

amples of this characteristic are the expert #5 answer

“...the compositional approach has ﬁne-grained gran-

ularity as the EPF Composer is aimed at conﬁguring

all aspects of the process by structuring it in detail...”

and the expert #1

answer “...There is no higher ab-

straction level in order to compare variabilities of an

SPrL...”.

The adoption criterion obtained nine positive eval-

uations for the annotative approach against seven for

the compositional approach. We understand that this

is straightforwardly related to the inﬂuence that the

annotative approach because of the UML standard no-

tation as we can see in the statements of expert #4

“...the level of difﬁculty on applying the approach

is low...”, expert #10 “...I had no difﬁculty at under-

standing the approach as the number of elements to be

learned for adopting the approach is not very large. I

would adopt the approach without much effort...” and

expert #11 “...I believe that the difﬁculty of adopting

this approach is low, as its stereotypes, comments and

elements are quite similar to UML representations...”.

On the other hand, in the compositional approach, be-

havior complexity and use of variability types inﬂu-

ences the adoption of such an approach, as well as

difﬁculties in using the EPF Composer tool to manip-

ulate the SPrL elements, as reported by the expert #2

“...I had difﬁculties mainly in the elements that deﬁne

variability. Also, such a tool needs extra effort on cre-

ating and maintaining process elements...”.

For systematic variability management the

compositional approach was highly unsatisfactory,

according to the experts evaluation, because of its

variability mechanisms, because of the visualization

of the applied variabilities to process elements. In

addition, the experts judged that the four variabil-

ity types are not enough. It can be noted in the

expert #10 statement “...as I have knowledge of other

approaches for variability representation in software

product lines, I understand that different variabil-

ity mechanisms could be added to the EPF Com-

poser. Thus, I judge such a set of mechanisms insufﬁ-

cient...”, and in the statement of the expert #9 “...some

new mechanisms of variability types are necessary

as, once there is the extend mechanism, it must ex-

ist include, mandatory and optional mechanisms...”.

In the annotative approach variability mechanisms

had more positive evaluations as such an approach

has speciﬁc stereotypes for representing variability

of each process element type. Exemplary statements

excerpts from experts are: expert #1 stated that “...I

believe the variability mechanisms are sufﬁcient as

stereotypes allow the speciﬁcation of different vari-

ability types...”; expert #3 said “...I understand the

SMartySPEM variability mechanisms are sufﬁcient

to signiﬁcantly demonstrate the types of relation-

ships between a variation point and variants...”; and

expert #10 said “...I consider the variability mecha-

nisms adequate for representing mandatory, alterna-

tive and optional elements. Furthermore, the mech-

anisms allow clearly visualize where variation points

and variants take place in a non-ambiguous basis for

those who use process models...”.

4.4 Validity Evaluation

Results validity evaluation is an essential issue of em-

pirical studies (Wohlin et al., 2000). We discuss the

main threats relevant to our study, as follows:

Internal Validity. Tasks performed by experts

were conducted in a similar manner except the order

of the application of the study objects and question-

naires, which were random. Experts were trained on

the basics of SPrLS and variability in compositional

and annotative approaches using EPF Composer and

SMartySPEM. We reduced the fatigue effects allow-

ing the experts to answer the questionnaires in at most

ﬁfteen days;

External Validity. Features related to Require-

ment Speciﬁcation of the OpenUP-based SPrL were

used during both the training sessions and the empiri-

cal study. This could jeopardize the external validity,

thus we tried to use original and technical documents

of the OpenUP;

Conclusion Validity. The major threat to con-

clusion is related to the sample size, eleven experts.

However, prior knowledge of such experts is signiﬁ-

cant. Therefore, we understand that for a qualitative

study in which grounded theory procedures, such as

Coding, were established eleven experts is a satisfac-

Modeling Variability in Software Process with EPF Composer and SMartySPEM: An Empirical Qualitative Study

291

tory number;

Contruct Validity. This study was planned based

on a pilot project carried out for evaluating the instru-

mentation and its duration time for the application of

questionnaire. Although the knowledge level required

on software process and variability is essential, partic-

ipants presented a high level of expertise.

5 RELATED WORK

Compositional and annotative integration and/or com-

parative studies have been carried out in the litera-

ture for several different domains, such as embed-

ded systems and software product lines (K

astner and

Apel, 2008; Ferreira Filho et al., 2013; Behringer,

2014). For software process lines or process tailor-

ing/customization there is a lack of such a study type.

The study of Aleixo et al. (Aleixo et al., 012a) is

the most direct related work to ours in the literature,

in which they empirically compare variability capa-

bilities in compositional and annotative approaches

for SPrL based on EPF Composer and GenArch-P.

GenArch-P is a model-driven approach to managing

and customizing software process variabilities pro-

posed in (Aleixo et al., 2010). The comparison is

based on the same criteria adopted in our study, ex-

cept that we discarded the uniformity criterion. As in

our study, Aleixo et al. come up with better results for

the annotative approach.

6 CONCLUSION

This paper presented an empirical qualitative study

comparing the representation of variability in com-

positional and annotative approaches. Such a study

provided, although initial, evidence that the anno-

tative approach, in this study represented by SMar-

tySPEM, has more advantages over the compositional

approach, represented by EPF Composer. Although

the criteria of modularity and detection errors had

lower results in the annotative approach, they might

be improved by using UML packages for modularity

and applying inspection activities for error detection

such as in (Geraldi et al., 2015).

As future work, we intend to plan and conduct

empirical quantitative studies in order to compare our

annotative approach, the SMartySPEM, to other com-

positional and annotative approaches. In addition, we

are working on the establishment of a Scrum-based

SPrL by taking real projects experience from indus-

try as well as practitioners as Scrum Masters exper-

tise as there is no real SPrL available in the literature

for carrying out empirical studies and evaluating our

SPrL-related theories and tools.

As a potential future work, we are considering

studying the granularity criterion on the speciﬁcation

of lower-level software process activities, such as, in

business process models, allowing one to customize

the steps of the activities as, for instance, in multite-

nancy architectures of Software as a System (SaaS).

ACKNOWLEDGEMENTS

The authors would like to thank Masters and Ph.D.

lecturers an practitioners experts for attending this

study and for their valuable contribution on assessing

the compositional and annotative approaches.

REFERENCES

Aleixo, F., Freire, M., Santos, W., and Kulesza, U. (2010).

A Model-driven Approach to Managing and Cus-

tomizing Software Process Variabilities. In Interna-

tional Conference on Enterprise Information Systems,

pages 92–100. SCITEPRESS.

Aleixo, F. A., Freire, M., Alencar, D., Campos, E., and

Kulesza, U. (2012a). A Comparative Study of Com-

positional and Annotative Modelling Approaches for

Software Process Lines. In Brazilian Symposium on

Software Engineering, pages 51–60.

Aleixo, F. A., Freire, M. A., Santos, W. C., and Kulesza,

U. (2011). Automating the Variability Manage-

ment, Customization and Deployment of Software

Processes: a Model-Driven Approach. In Filipe, J. and

Cordeiro, J., editors, Enterprise Information Systems,

volume 73 of Lecture Notes in Business Information

Processing, pages 372–387. Springer Berlin Heidel-

berg.

Aleixo, F. A., Kulesza, U., Freire, M. A., da Costa, D. A.,

and Neto, E. C. (2012). Modularizing software pro-

cess lines using model-driven approaches - a compar-

ative study. In International Conference on Enterprise

Information Systems, pages 120–125. SCITEPRESS.

Aleixo, F. A., Kulesza, U., and OliveiraJr, E. (2013). Mod-

eling Variabilities from Software Process Lines with

Compositional and Annotative Techniques: a Quanti-

tative Study. In International Conference on Product-

Focused Software Development and Process Improve-

ment, pages 153–168.

Behringer, B. (2014). Integrating Approaches for Fea-

ture Implementation. In ACM SIGSOFT International

Symposium on Foundations of Software Engineering,

pages 775–778, New York, NY, USA. ACM.

Carvalho, D. D., Chagas, L. F., Lima, A. M., and Reis, C. A.

(2014). Software Process Lines: A Systematic Lit-

erature Review. In Mitasiunas, A., Rout, T., OCon-

nor, R., and Dorling, A., editors, Software Process

Improvement and Capability Determination, volume

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

292

477 of Communications in Computer and Information

Science, pages 118–130. Springer International Pub-

lishing.

Chemuturi, M. K. and Cagley, T. M. (2010). Mastering

Software Project Management: Best Practices, Tools

and Techniques. J. Ross Publishing, Inc.

Corbin, J. M. and Strauss, A. L. (2008). Basics of Qualita-

tive Research: Techniques and Procedures for Devel-

oping Grounded Theory. Sage Publications, Inc.

Ferreira Filho, J. a. B., Barais, O., Acher, M., Baudry, B.,

and Le Noir, J. (2013). Generating Counterexam-

ples of Model-based Software Product Lines: An Ex-

ploratory Study. In International Software Product

Line Conference, pages 72–81, New York, NY, USA.

ACM.

Galster, M., Weyns, D., Tofan, D., Michalik, B., and Avge-

riou, P. (2013). Variability in Software Systems A

Systematic Literature Review,. IEEE Transactions on

Software Engineering, pages 81–90.

Garcia-Borgonon, L., Barcelona, M. A., Garcia-Garcia,

J. A., Alba, M., and Escalona, M. J. (2014). Soft-

ware Process Modeling Languages: a Systematic Lit-

erature Review. Information and Software Technol-

ogy, 56(2):103–116.

Geraldi, R. T., OliveiraJr, E., Conte, T. U., and Steinmacher,

I. F. (2015). Checklist-based Inspection of SMarty

Variability Models: Proposal and Empirical Feasibil-

ity Study. In International Conference on Enterprise

Information Systems, pages 268–275. SCITEPRESS.

ISO (2012). ISO/IEC 15504-5:2012 Information technol-

ogy – Process Assessment – Part 5: An Exemplar

Software Life Cycle Process.

Kalus, G. and Kuhrmann, M. (2013). Criteria for Software

Process Tailoring: A Systematic Review. In Interna-

tional Conference on Software and System Process,

pages 171–180, New York, NY, USA. ACM.

astner, C. (2010). Virtual Separation of Concerns: To-

ward Preprocessors 2.0. PhD thesis, Otto von Guer-

icke University Magdeburg.

astner, C. and Apel, S. (2008). Integrating Compositional

and Annotative Approaches for Product Line Engi-

neering. In Workshop on Modularization, Composi-

tion and Generative Techniques for Product Line En-

gineering, pages 35–40.

astner, C., Apel, S., and Kuhlemann, M. (2008). Gran-

ularity in Software Product Lines. In International

Conference on Software Engineering, pages 311–320.

Kiczales, G., Lamping, J., Mendhekar, A., Maeda, C.,

Lopes, C., Loingtier, J.-M., and Irwin, J. (1997).

Aspect-Oriented Programming. In European Confer-

ence on Object-Oriented Programming, pages 220–

242. Springer Berlin Heidelberg.

Lee, H. and Kang, K. C. (2013). A Design Feature-based

Approach to Deriving Program Code from Features:

A Step Towards Feature-oriented Software Develop-

ment. In International Workshop on Variability Mod-

elling of Software-intensive Systems, pages 1–6, New

York, NY, USA. ACM.

Linden, F. J. v. d., Schmid, K., and Rommes, E. (2007).

Software Product Lines in Action: The Best Indus-

trial Practice in Product Line Engineering. Springer-

Verlag New York, Inc., Secaucus, NJ, USA.

Mart

ınez-Ruiz, T., M

unch, J., Garc

ıa, F., and Piattini, M.

(2012). Requirements and Constructors for Tailoring

Software Processes: a Systematic Literature Review.

Software Quality Control, 20(1):229–260.

OliveiraJr, E., Gimenes, I. M. S., and Maldonado, J. C.

(2010). Systematic Management of Variability in

UML-based Software Product Lines. Journal of Uni-

versal Computer Science, 16:2374–2393.

OliveiraJr, E., Pazin, M. G., Gimenes, I. M. S., Kulesza,

U., and Aleixo, F. A. (2013). SMartySPEM: a SPEM-

based Approach for Variability Management in Soft-

ware Process Lines. In International Conference on

Product-Focused Software Development and Process

Improvement, pages 169–183. Springer Berlin Heidel-

berg.

Rombach, D. (2005). Integrated Software Process and

Product Lines. In International Conference on Uni-

fying the Software Process Spectrum, pages 83–90.

Springer-Verlag Berlin.

Sommerville, I. (2015). Software Engineering. Pearson, 10

edition.

Wohlin, C., Runeson, P., H

ost, M., Ohlsson, M. C., Reg-

nell, B., and Wessl

en, A. (2000). Experimentation in

Software Engineering: an Introduction. Kluwer Aca-

demic Publishers, Norwell, MA, USA.

Modeling Variability in Software Process with EPF Composer and SMartySPEM: An Empirical Qualitative Study

293
