Extended Change Identification System

Parimala N.

and Vinay Gautam

School of Computer & Systems Sciences, Jawaharlal Nehru University, New Delhi 110067, India

Chandigarh Engineering College, Landran, Mohali, Punjab 140307, India

Keywords: Multi-version Metadata, Metadata, Ontology, Data Warehouse.

Abstract: Schema evolution leads to multiple versions of the data warehouse schema. We address the issue of whether

the information required by the decision maker is present in some version of the data warehouse or not by

checking all the versions for the existence or the absence of the required information. The user specifies the

sought information using business terms. We build Delta Ontology which captures the ontology information

in terms of mapping between business terms and schema terms. The Delta Ontology is built for the

modifications to the schema as it evolves. We propose an algorithm to search for the information in the

latest version of E-Metadata and the Delta Ontology. Our algorithm lists all the versions where the

information is available giving precedence to finding the information in a single version over across

versions. The decision maker is also informed if the information is totally missing.

1 INTRODUCTION

We are looking at the definition of the warehouse

per se and analyzing its adequacies to meet the needs

of the user. If the current data warehouse does not

meet the needs of the user then it implies that there

is a gap between the information content of the

warehouse and the information that is needed by the

decision maker. Further, the latest warehouse

schema could have evolved over time. That is, there

could be changes made to the schema more than

once. It is possible that the information sought by

the user, which is absent in the current schema,

existed in some earlier version of the schema and

has been subsequently deleted. If it is possible to

trace the changes, then this trace can help the user in

analyzing the manner in which the gap has arisen.

Consider an example of an Insurance Schema

represented as a star schema shown in Figure 1. The

Multi-dimensional schema has Policy_holder,

Policy, Claim and Time as dimensions. Policy

Revenue is the fact with Premium_dollar and

Coverage_period as measures. Let the schema in

Figure 1 be the latest version, version3. Let us

assume that an attribute Holder_gender was present

in version 1 and was subsequently deleted. It is,

therefore, not present in version2 and version3.

Consider the case where it is needed to get “the

revenue that was generated gender wise for each

city”. If we look at the latest version of the schema

as given in Figure 1,we see that ‘revenue’ is defined

as premium_dollar and there is no dimensional

attribute ‘gender’ in version3. However, the

attribute, ‘gender’, was defined as Holder_gender in

the earlier versions. Further, the attribute ‘city’ is

part of the attribute Holder_address. In other words,

three things can be observed.

1. The decision maker is expressing the information

using business terms which are not the same as

schema terms.

2. The information may not be directly represented.

In the above example, the attribute city is not

directly represented but is part of the attribute

address. Different cases arise when information

is not directly represented. These have to be

identified.

3. The sought information could be missing.

Information could be missing either because it is

not defined in the latest version and existed in an

earlier version since the schema has evolved over

time or because it is altogether absent.

We briefly outline the solutions to the problems

listed above.

1. Ontology is defined consisting of business as

well as schema terms and a mapping between

these. The schema terms of all the schema

versions are grouped into two groups – the terms

N., P. and Gautam, V.

Extended Change Identiﬁcation System.

In Proceedings of the 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering (ENASE 2016), pages 51-58

ISBN: 978-989-758-189-2



that have remained constant across versions and

those that have participated in the evolution.

Delta Ontology (DO) has ontology entries for the

changed schema terms across versions.

2. A set of rules are defined to identify the form in

which the information is present in the latest

version or existed in the earlier versions.

3. The third issue is addressed by checking whether

the information existed in any earlier definition

of the schema.

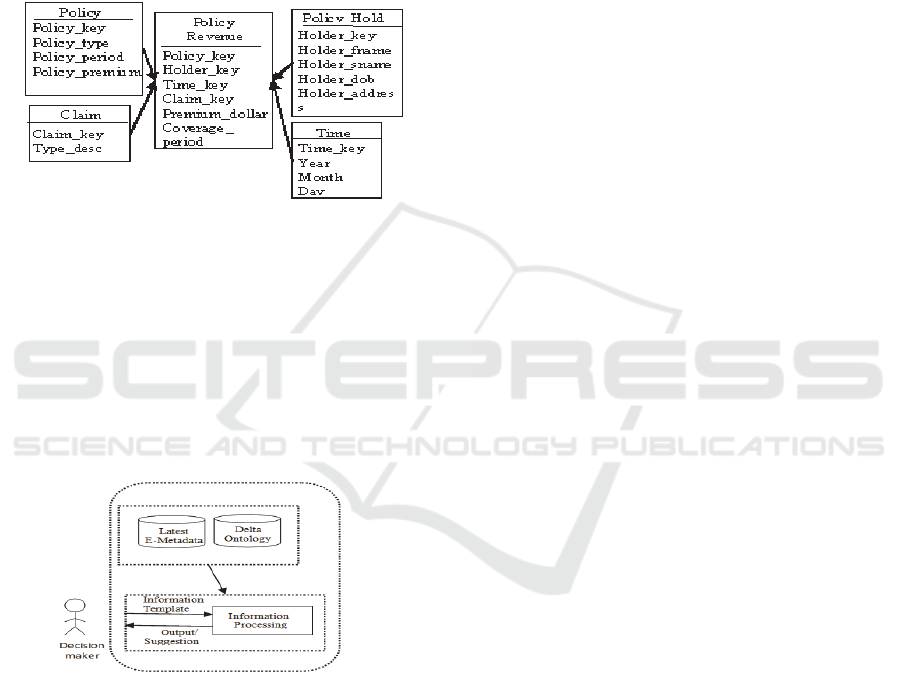

Figure 1: Insurance Warehouse Schema.

Our system, known as the eXtended Change

Identification System (X-CIS), is shown in Figure 2.

First, we build the DO. Next, the Information

Processing component searches for the terms

specified by the user across schemata. The

ontological entries for the constant terms are

available in the latest version of E-Metadata (section

2.2). Thus, instead of a blind search across versions,

we search in the latest E-Metadata and DO.

Figure 2: X-CIS Architecture.

The contribution of the paper is three fold:

Firstly, we show the manner in which Delta

Ontology is built. Secondly, we propose Delta Scan

Algorithm (DSA) to search for the requested

information across data warehouse versions. Thirdly,

we identify the forms in which the requested terms

are present.

1.1 Related Work

Conventional approaches for the management of

changes to a multidimensional schema and the

contents (which is the data warehouse) can be

broadly classified into two categories namely,

schema evolution where the changes are made to the

multidimensional structure without retaining the

existing definition (Blaschka et al., 1999; Kaas et al.,

2004; Bebel et al., 2006) and version extension,

where all the versions are maintained (Body et al.,

2002; Shazad et al., 2005; Golfarelli, 2006).The

evolution in a data warehouse schema affects the

data warehouse metadata as described in (Vaduva

and Dittrich, 2001; Pan, 2010).

Different versions of data warehouse metadata

have been maintained and queried for different

purposes. In (Wrembel and Bębel, 2007) the user is

informed about the missing attributes in a query by

means of meta-information that is attached to the

result. The user is also informed about the changes

in the structure. In (Leja et al., 2010) the query

language, MVDWQL, supports two types of queries,

namely content queries and metadata queries

through a GUI. Multiple version data can be queried

using the former. The history of evolution can be

sought by executing a metadata query. A set of

traces which relate multidimensional elements and

data sources is maintained in (Maté and Trujillo,

2014). With the help of these traces, changes to the

schema when data sources change are easily

incorporated. In all these systems, the user queries

are restricted to using schema terms.

In this paper, we explore the schema definitions

in the different versions and the history of changes

to find the versions where the information sought by

the user is present. The user's need is expressed

using business terms. Towards this, we build delta

ontology using the changes reflected in the multi

version metadata. Our work is different in that the

information sought by the user is expressed in

business terms and not warehouse schema names.

Secondly, we do not query multiple metadata

versions but build Delta Ontology which records

only the changes.

The rest of the paper is organized as follows.

Definitions are given in section 2.In section 3, the

creation of Delta Ontology is explained. The X-CIS

architecture is explained in section 4. Section 5 is

the concluding section.

2 DEFINITIONS

In this section, we define the terms used in this

paper.

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering



2.1 Analysis Component

The information needed by the decision maker is as

given in (Parimala and Gautam, 2010). It is

expressed using two terms ‘what’ and ‘how’ where

a)‘what’ or “what is to be analyzed" describes the

data to be analyzed. It refers to the measures which

represents the factual data.

b)‘how’ describes the business perspective under

which data analysis is to be performed. It specifies

the dimensional attributes along which the measure

is to be analyzed.

2.2 E-Metadata

E-Metadata consists of the technical metadata of the

data warehouse schema and the ontology as defined

in (Parimala and Gautam, 2011). The technical

metadata is extracted from the metadata of a

warehouse schema. The ontology for the terms in the

technical metadata is built using the WordNet.

Figure 3 shows the partial E-Metadata entry for

Policy_Holder. The entry says, for example, that

customer is a synonym of Policy_Holder.

<Dimension-3-Policy_Holder>

<Synset-of-Dimension-3>Syn-

customer</Synset-of-Dimension-3>

<Term-of-Dimension-3>Meronyms-</Term-

of-Dimension-3>

<Hierarchy-of-Dimension-3>Hiper-Enter

Hypernym of Policy_Holder</Hierarchy-

of-Dimension-3>

</Dimension-3-Policy_Holder>

Figure 3: E-Metadata Entry.

3 DELTA ONTOLOGY

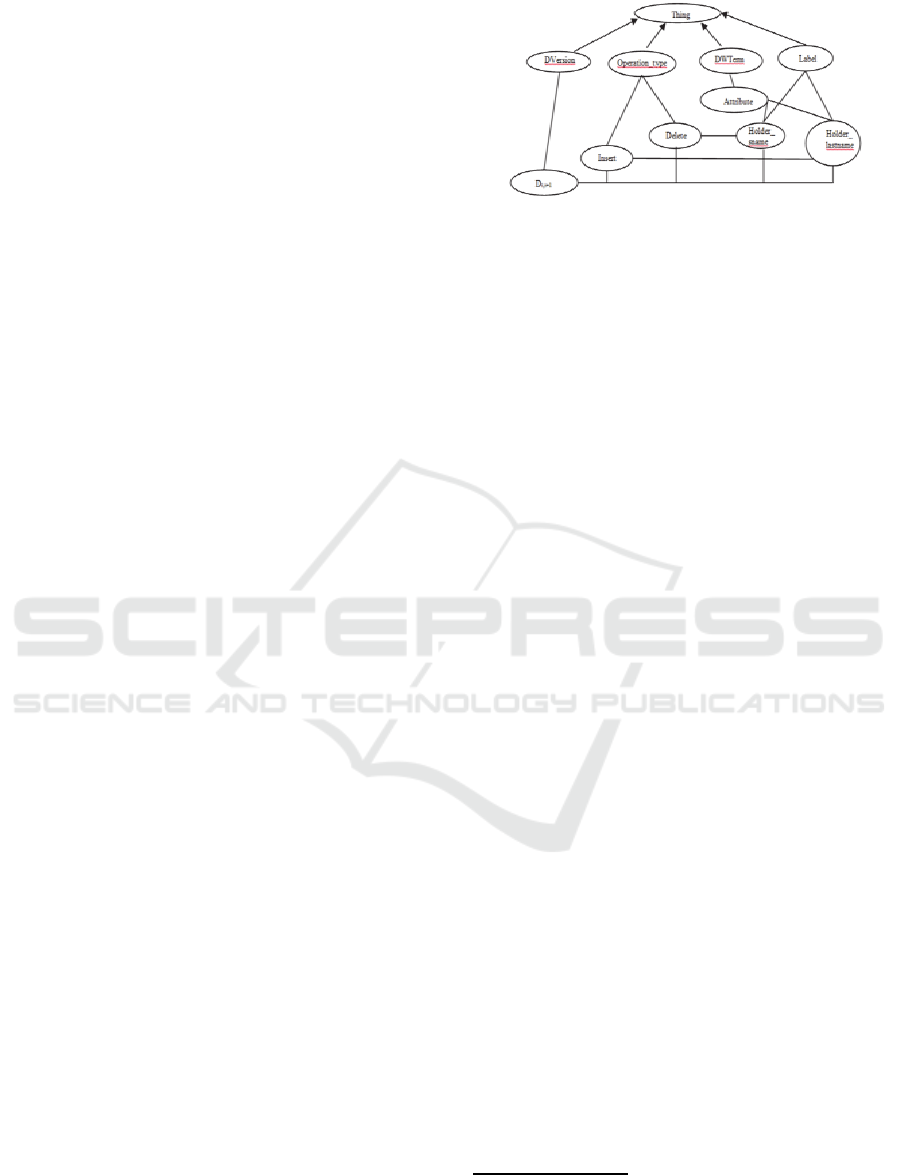

Delta Ontology (DO) is expressed using OWL. DO

has six ontology classes which are DVersion,

Operation_type, DWTerm, Label, Synset and Term.

DVersion contains the version of a delta file.

Corresponding to each term of an entry in the delta

file (as shown above) we define three classes namely

Operation_type, DWTerm and Label. In addition,

two new classes Synset and Term are introduced

where Synset class denotes the domain terms which

have the same sense as the terms in Label class and

Merset class denotes meronyms of terms in the

Label class.

The relation between the classes in the ontology

is represented as OWL Property. Relations in DO

show the associations between the classes. These

relations are Oper_DWT, Oper_Label, Label_DWT,

Label_Synset ,Label_Merset and DVersion_Oper.

Oper_DWT is a relation between the classes

Operation_type and DWTerm which shows whether

a DWTerm is added or deleted. The rest of the

relations are self explanatory.

3.1 Delta Ontology Development

We create a repository of the changes that have

taken place. As brought out in (Pan, 2010; Saddad et

al., 2008), the changes that the user can make to the

technical metadata schema are insertion, deletion

and renaming of any of a dimension, a dimensional

attribute and a fact attribute.

A new version of the technical metadata reflects

the changes to the data warehouse schema. The

Delta file, D

i,i+1

, shows the difference between

technical metadata version i, TM

and technical

metadata version i+1,TM

i+1

(Gautam and Parimala,

2012). The Delta Ontology is built by extracting the

information from the delta file. The changes can be

addition, deletion or renaming of schema names. In

the new version of the technical metadata, the newly

added elements are inserted; the deleted ones are not

reflected. As far as rename is concerned the new

name is added to the new version and the old name

exists in the previous version. Thus, an entry in the

delta file is of the form:

<Operation_type DWTerm = Label [DWTerm =

Label2]>

Here, Operation_type is one of insertion, deletion or

rename. It reflects the operation used to perform the

movement from one version to the next. DWTerm is

either a Fact, Dimension, Measure or Dimension

Attribute. Label is a term from a warehouse schema

such as city, policy etc. As an example of an entry

consider

Example 1: <Insert Attribute=’Quarter’>

which says that the attribute ‘Quarter' has been

inserted.

The optional specification, ‘DWTerm = Label2’,

is valid only when Operation_type is Rename. For

e.g. the following entry in the delta file shows that

‘Holder_sname’ is renamed as ‘Holder_lastname'.

Example 2: <Rename Attribute =

”Holder_sname” Attribute=”Holder_lastname”>

The Delta Ontology Development Process

(DODP) starts by creating an instance of DVersion.

The instance contains the version of the delta file

Extended Change Identiﬁcation System



i,i+1

. Next, Java API is used to extract the terms,

referred to as a ‘token’, from the delta file D

i,i+1

In the next step, the base class for each ‘token’,

from among the DO classes (section 4), is identified.

The following rules are used to identify the base

class for a given token.



R1: If (token = Operation_type) then

“Base Concept of token is

Operation_type”

R2: If (token = DWTerm) then “Base

Concept of token is the DWTerm”

R3: If (token = Label) then “Base

Concept of token is the Label”.

The token itself, is added as an instance of the base

class to which it belongs. If the ‘Operation_type’ is

‘Rename, then it is treated as if the old Label is

deleted and the new Label has been inserted.

Therefore, the system will create two instances of

Operation_type which are ‘Delete’ and ‘Insert’.

Consider Example 1. The extraction process will

extract three tokens namely Insert, Attribute and

Quarter. The token ‘Insert’ is added as an instance

of Operation_type’, ‘Attribute’ as an instance of

‘DWTerm’ class and ‘Quarter' as an instance of

‘Label’ class. In Example 2, both

‘Holder_sname'and ‘Holder_lastname’ become

instances of Label class. Since the operation is

rename, two instances of Operation_type’, ‘Insert’

and ‘Delete’ are created.

Subsequently, the domain concepts are added

using WordNet. In this step, the WordNet is used to

extract terms (Synnonym and Meronyms) for the

tokens belonging to the class ‘label.’ Synonyms are

words with similar meaning and meronyms show

partof relationship of a token with WordNet terms.

The synonyms are added as instances of Synset; the

meronyms are added as instances of Term in the

DO.

The above information can be added provided

the token is found in the WordNet (Canas et al.,

2003; Miller and Hristea, 2006; Miller, 1995). If the

token is not found in the WordNet, then the Data

Warehouse Administrator (DWA) is asked to

specify an equivalent term which can be found in the

WordNet. The approach of asking for an equivalent

term was prompted by studying different example

schemas. (http://merc.tv/img/Figure./ Adventure

WorksDW2008.pdf, http://www.information-

management-architect.com /star-schema .html). The

schema term CalenderYear has no entry in

WordNet. However, the word Year is present in

WordNet. If the DWA can specify, Year as an

equivalent term then it enhances the ontology.

Figure 4: Delta Ontology after Updates.

Next, the relations between the instances are

established. All the instances created above are

linked to their respective classes. All the instances

are also linked to the DVersion instance. Further, all

the instances of the Label class are linked to the

corresponding instance of Operation_type. Figure 4

shows DO for Example 2.

4 X-CIS ARCHITECTURE

Once the Delta Ontology is built, eXtended Change

Identification System (X-CIS) identifies the form

and the versions where the requested terms are

present. The X-CIS architecture is shown in Figure

2. The input to the system is 'what' and 'how' terms

specified as the analysis component. X-CIS uses the

latest version of E-Metadata and DO to search for

the information. The output of the system is either

the versions where the data is available or a

suggestion for a change in the warehouse schema, if

the term is absent.

The manner in which E-metadata is searched is

as given in (Parimala and Gautam, 2010). Here, we

explain the Delta Scan Algorithm (DSA) which

looks for the terms in the DO. Before explaining

DSA, the guidelines for identifying the forms in

which the terms may appear is given.

4.1 Forms of Terms

The existence of an analysis component term in the

DO has two aspects to it. The first is whether the

term is directly or indirectly available. The second is

the version where it is available since the search

spans across versions. We consider each of these in

turn before explaining the order in which the result

is presented to the user.

Directly Available

If the ‘what’ term is defined as a measure in the E-

Metadata, we say that it is directly available. The

corresponding statement is

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering



WS1: is a measure

Similarly, the ‘how’ term is directly defined if it

is the name of a dimensional attribute. The

corresponding statement is

HS1: is a name of an attribute of a dimension.

Indirectly Available

If a term is not directly available, then, it may be

defined in the schema but not as expected or it may

be an ontological equivalent. In these cases, we say

that the term is indirectly available. The different

ways in which ‘what’ can be indirectly available is

as follows:

WS2: is a synonym of a measure

WS3: is the name of the fact table.

WS4: is a dimension name.

WS5: is a name of an attribute of a dimension.

The different ways in which ‘how’ is indirectly

available is as follows:

HS2: is a synonym of a dimension attribute.

HS3: is a meronym of a dimension attribute.

HS4: is a dimension name.

HS5: is a fact.

HS6: is a fact attribute (measure).

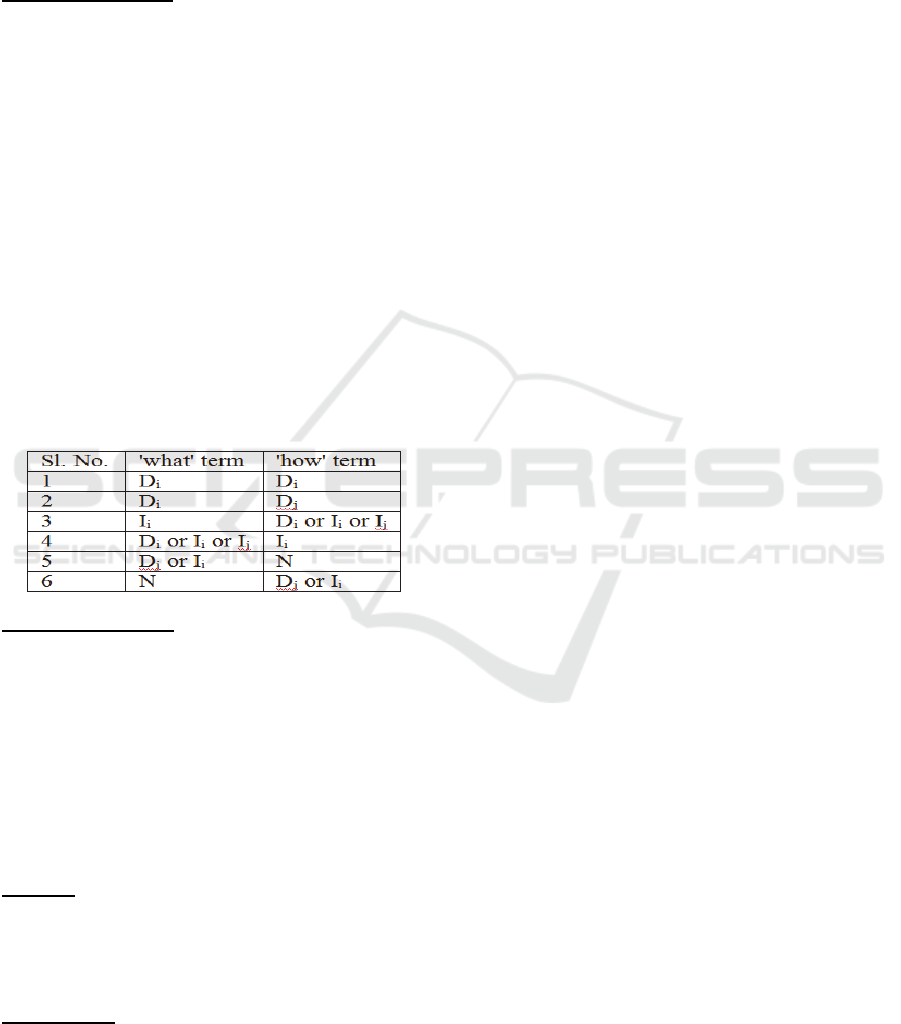

Table 1: Result Options

Version Possibilities

Consider, now, the second aspect of finding the

‘what’ and ‘how’ terms across versions. Both the

terms may be defined in the same version, either

directly or indirectly or they me be defined in

different versions, again directly or indirectly. Table

1 shows these different possibilities. If the 'what' or

the ‘how’ term is directly available in version i then

it is denoted as D

; ID

implies that the term is

indirectly available in version i. N says that the term

is not available.

Message

The result of searching a ‘what’ term is expressed as

= ‘what term is available as WS

in version i’

and that of ‘how’ term is HS

= ‘ how term is

available as HS

in version i’.

Result Order

When a term is available in more than one version,

instead of just listing the versions, we order the

result based on our belief that users would prefer to

find ‘what’ and ‘how’ in the same version to finding

‘what’ and ‘how’ across versions. This is because if

the information is found in the same version then the

user can query the corresponding data warehouse.

X-CIS will display the information according to the

preference order given below.

Preference 1: Both are directly available in the same

version (Sl. No. 1 of Table 1).

Preference 2: Both are directly available across

versions (Sl. No. 2 of Table 1).

Preference 3: Same or across versions, one of them

is directly available (Sl. No. 3 and 4 of Table 1).

Preference 4: One of them is available either directly

or indirectly and the other is not available (Sl. No. 5

and 6 of Table 1.)

If the information is not available in any version (Sl.

No. 7 of Table 1), then we suggest that changes may

have to be made to the current version.

4.2 Delta Scan Algorithm

Let V

,…,V

be the E-Metadata versions with

as the latest version. DSA has two parts. The first

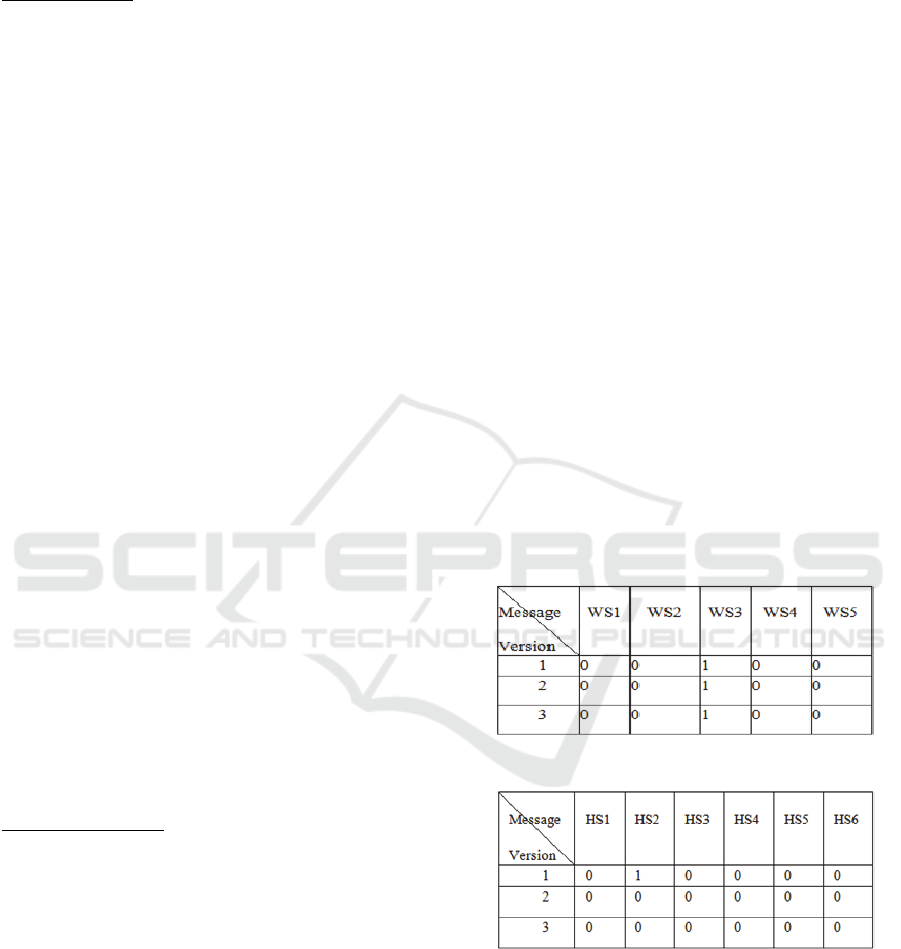

is the creation of the two matrices WAvail and

HAvail. The second is to scan the matrices and

inform the user about the evolution.

In the rules given below, IsEqual( ) is a Boolean

function which compares two terms and returns true

if they refer to the same term; otherwise it returns

false (Parimala and Gautam, 2010).

The rules given below set the values in the

matrices WAvail and HAvail. The entries in Delta

Ontology for a ‘what’ or a ‘how’ term specify the

operation(Insert or Delete ) which created the term

which is an instance of the Label class. The

operation is linked to an instance of DVersion. If the

operation is Insert, then it is available in the higher

version; if it is Delete, then the term is available in

the lower version. The version instance is of the

form D

i,i+1

. Thus, if the operation is Insert, then it

implies that the term is now available in the schema

version i+1. On the other hand, if the operation is

Delete, then it means that the term was available in

schema version i. In the former case, (i+1)th row of

the matrices is set to 1 and ith row in the latter case.

Consider, next, the columns. A column in WAvail is

set depending on the considerations of a match

between ‘what’ term and other schema terms as

given in section. Similar considerations for the

‘how’ term determine which column of HAvail is set

to 1. If any rule fires, then the remaining rules are

skipped.

Extended Change Identiﬁcation System



4.2.1 Matrix Creation

Rules for ‘what’

1) If the ‘what’ term is an instance of

‘Label’ class and related version

DVersion = i,i+1 then

IsEqual(‘what’,‘Fact_Attribute’)then

If Operation_type =‘Insert’ then

setWAvail[i+1,1] to 1

If Operation_type =‘Delete’ then

setWAvail[i,1] to 1

If IsEqual(‘what’,‘Fact’) then

If Operation_type =‘Insert’ then

setWAvail[i+1,3] to 1

If Operation_type =‘Delete’ then

setWAvail[i,3] to 1

If IsEqual(‘what’,‘Dimension’) then

setWAvail[i+1,4] to 1

If Operation_type =‘Insert’ then

setWAvail[i+1,4] to 1

If Operation_type =‘Delete’ then

setWAvail[i,4] to 1

If IsEqual(‘what’,’Dim_Attribute’)

then

If Operation_type =‘Insert’ then

setWAvail[i+1,5] to 1

If Operation_type =‘Delete’ then

setWAvail[i,5] to 1

2) If the ‘what’ term is an instance of

‘Synset’ class then the related

instance of ‘Label’ is picked up. If

related version DVersion = i,i+1

then

If IsEqual(‘related Label

instance’, ‘Fact_Attribute’) then

If Operation_type =‘Insert’ then

setWAvail[i+1,2] to 1

If Operation_type =‘Delete’ then

setWAvail[i,2] to 1

Rules for ’how’

1) If the ‘how’ term is an instance of

‘Label’ class and related version

DVersion = i,i+1 then

If IsEqual(‘how’, ‘Dim_Attribute)

then

If Operation_type =‘Insert’ then

setHAvail[i+1,1] to 1

If Operation_type =‘Delete’ then

setWAvail[i,1] to 1

If IsEqual (‘how’,’Dimension’) then

If Operation_type =‘Insert’ then

setWAvail[i+1,4] to 1

If Operation_type =‘Delete’ then

setWAvail[i,4] to 1

If IsEqual (‘how’,’Fact’) then

If Operation_type =‘Insert’ then

setWAvail[i+1,5] to 1

If Operation_type =‘Delete’ then

setWAvail[i,5] to 1

If IsEqual (‘how’, ’Fact_Attribute’

then

If Operation_type =‘Insert’ then

setWAvail[i+1,6] to 1

If Operation_type =‘Delete’ then

setWAvail[i,6] to 1

2) If the ‘how’ term is an instance of

‘Synset’ class then the related

instance of ‘Label’ is picked up. If

related version DVersion = i,i+1

then

If IsEqual (‘related Label

instance’, ‘Fact_Attribute’) then

If Operation_type =‘Insert’ then

setWAvail[i+1,2] to 1

If Operation_type =‘Delete’ then

setWAvail[i,2] to 1

As an example, let us say that the user wants to

analyze ‘Revenue’ ('what') along ‘gender' ('how'). As

given in section 1, ‘Revenue’ is a synonym of the

measure Premiun_dollars which is available in all

the three versions of the schema. 'gender' as

'Holder_gender' was available only in version 1. The

resulting matrices are shown below.

Table 2: WAvail Matrix.

Table 3: HAvail Matrix.

4.2.2 Response

Using the matrices built in the previous section, it is

possible to inform the user about ‘what’ and ‘how’

terms. Recall that in section 3, we showed that the

result is of the form WS

or HS

. The mapping

between the result and the matrices is given below:

The matrices are repeatedly scanned to list the

result in terms of preferences.

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering



Preference1 :If WAvail[i,1]=1 and

HAwail[i,1]=1 then message is WS

and

, 1≤i≤ n

Preference2 :If WAvail[i,1]=1 and

HAwail[j,1]=1 then message is WS

and

1≤i≤n, 1≤j≤ n, i് j

Preference3 :If WAvail[i,1]=1 and

HAwail[i,k]=1 then message is WS

and

,1≤i≤n, 2≤k≤6

If WAvail[i,k]=1 and HAwail[i,1]=1

then message is WS

and HS

,1≤i≤n,

2≤k≤5

Preference4 :If matrices WAvailand

HAvail are all zeroes then the message

is ‘what’ term and 'how' ‘are not

available’

If matrix WAvail is all zeroes and if

HAvail[i,k]=1 for 1≤k≤5 then the

message is ‘what’ term ‘is not

available’ and HS

1≤i≤n

If matrix HAvail is all zeroes and and

if WAvail[i,k]=1 for 1≤k≤6 then the

message is ‘how’ term ‘is not

available’ andWS

1≤i≤n

4.2.3 Time Complexity of DSA

DSA algorithm scans and compares the attributes of

the latest E-Metadata version and the DO entries

once. The number of comparisons is the number of

attributes in the latest E-Metadata (say m) + no. of

entries in the Delta Ontology (say k). Therefore,

complexity= O (m+k)

In order to analyze the complexity, we compare it

with the complexity of an algorithm in the absence

of DO. In this case, an algorithm to find ‘what’ and

‘how’ terms, would have to scan and compare each

attribute of each and every version of E-Metadata.

Therefore,

Complexity = average no. of attributes in a E-

Metadata version (m) * number of E-Metadata

versions (n)

= O (m*n)

Let us analyze n and k.

Case1: If k is very large and is equal (n-1)*m then

the complexity of DSA is the same as complete scan

algorithm.

Case 2: If k << (n-1)*m then the complexity DSA is

much lower.

Case 1 will occur if the number of changes is as high

as the E-Metadata itself. This is a highly unlikely

scenario. Case 2 will occur most of the time.

It must be noted that in both the cases matrices

have to be built to give the complete picture to the

user and further, the time taken to scan the matrices

would be the same for both the algorithms.

5 CONCLUSION

The aim is to find whether the multiple warehouse

versions cater to the needs of the business user. The

needs are expressed using ‘what’ and ‘how’ terms.

These may be business terms and not necessarily

schema terms. We have built Delta Ontology to

capture the mapping between business terms and

schema terms. The Delta Ontology itself is built

using the differences in the metadata of the

warehouse schema as it undergoes changes. All the

versions where the terms are available is picked up

and listed according to the preference order.

Java is used for building the prototype of the

system and SQL Server 2005 is used as back end

tool to store metadata of the warehouse.

It may be argued that special data structures for

sparse matrices can be used to store the contents of

WAvail and HAvail. Since the matrices are not very

large the time taken to scan them is not very high.

As far as populating them is concerned, DSA is

better in terms of time complexity than complete

scan of all versions.

It may be noted that we have not defined a query

language to query multi versions of the metadata.

Query language is appropriate when different ad hoc

queries are to be framed. In our case, we search only

for ‘what’ and ‘how’ terms. Therefore, an

appropriate GUI is built to accept these terms.

In our system, it is possible for the user to know

whether the missing information in the current

schema was available in an earlier version or not.

This, we believe, will help the user decide whether

or not to change the current data warehouse schema.

It is, also, possible to see whether earlier versions

were more in tune to the decision maker’s needs. It

will also give a feedback on the evolution of the

schema vis-a-vis it satisfying query needs.

REFERENCES

Bebel, B., Królikowski, Z. and Wrembel, R., 2006.

Managing evolution of data warehouses by means of

nested transactions. In Advances in Information

Systems (pp. 119-128). Springer Berlin Heidelberg.

Blaschka, M., Sapia, C. and Höfling, G., 1999. On schema

evolution in multidimensional databases. In Data

Warehousing and Knowledge Discovery(pp. 153-164).

Springer Berlin Heidelberg.

Body, M., Miquel, M., Bédard, Y. and Tchounikine, A.,

2003, March. Handling evolutions in multidimensional

structures. In Data Engineering, 2003. Proceedings.

19th International Conference on (pp. 581-591).

IEEE.

Extended Change Identiﬁcation System



Cañas, A.J., Valerio, A., Lalinde-Pulido, J., Carvalho, M.

and Arguedas, M., 2003, October. Using WordNet for

word sense disambiguation to support concept map

construction. In String Processing and Information

Retrieval(pp. 350-359). Springer Berlin Heidelberg.

Gautam, V. and Parimala, N., 2012. E-Metadata

versioning system for data warehouse schema.

International Journal of Metadata, Semantics and

Ontologies, 7(2), pp.101-113.

Golfarelli, M., Lechtenbörger, J., Rizzi, S. and Vossen, G.,

2006. Schema versioning in data warehouses:

Enabling cross-version querying via schema

augmentation. Data & Knowledge Engineering, 59(2),

pp.435-459.

Kaas, C., Pedersen, T.B. and Rasmussen, B., 2004.

Schema evolution for stars and snowflakes. In

Proceedings of the Sixth International Conference on

Enterprise Information Systems.

Leja, W., Wrembel, R. and Ziembicki, R., 2009. On

Querying Data and Metadata in Multiversion Data

Warehouse. Data Warehousing Design and Advanced

Engineering Applications: Methods for Complex

Construction: Methods for Complex Construction,

p.206.

Maté, A. and Trujillo, J., 2014. Tracing conceptual

models' evolution in data warehouses by using the

model driven architecture. Computer Standards &

Interfaces, 36(5), pp.831-843.

Miller, G.A., 1995. WordNet: a lexical database for

English. Communications of the ACM, 38(11), pp.39-

41.

Miller, G.A. and Hristea, F., 2006. WordNet nouns:

Classes and instances. Computational linguistics,

32(1), pp.1-3.

Pan, D., 2010. Metadata version management for DW 2.0

environment'.Journal of Convergence Information

Technology, 5(3).

Parimala, N. and Gautam, V., 2010. CIS: Change

Identification System. In KEOD (pp. 347-350).

Parimala, N. and Gautam, V., 2011. Extended Metadata

for Data Warehouse Schema. In ENASE (pp. 254-259).

Saddad, E., El-Bastawissy, A., Rafea, M. and Hegazy, O.,

2008, March. Multiversion queries in

multidimensional structures. In Proceedings of the 6th

International Conference on Informatics and Systems

(INFOS'08).

Serra, I. and Girardi, R., 2011. A process for extracting

non-taxonomic relationships of ontologies from

text. Intelligent Information Management, 3, 119.

Shahzad, M.K., Nasir, J.A. and Pasha, M.A., 2005. CEV-

DW: Creation and Evolution of Versions in Data

Warehouse. Asian Journal of Information Technology,

4(10), pp.910-917.

Vaduva, A. and Dittrich, K.R., 2001. Metadata

management for data warehousing: between vision and

reality. In Database Engineering and Applications,

2001 International Symposium on. (pp. 129-135).

IEEE.

Wrembel, R. and Bębel, B., 2007. Metadata management

in a multiversion data warehouse. In Journal on data

semantics VIII (pp. 118-157). Springer Berlin

Heidelberg.

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering
