A Part based Modeling Approach for Invoice Parsing

Enes Aslan

, Tugrul Karakaya

1, 2

, Ethem Unver

and Yusuf Sinan Akgul

Dept. of Computer Eng., Gebze Technical University, GIT Vision Lab, Kocaeli, Turkey

R&D Dept., Kuveyt Turk Participation Bank, Kocaeli, Turkey

Keywords: Invoice Processing, Part based Modeling, Page Segmentation, Document Analysis, Information Extraction.

Abstract: Automated invoice processing and information extraction has attracted remarkable interest from business and

academic circles. Invoice processing is a very critical and costly operation for participation banks because

credit authorization process must be linked with the real trade activity via invoices. The classical invoice

processing systems first assign the invoices to an invoice class but any error in document class decision will

cause the invoice parsing to be invalid. This paper proposes a new invoice class-free-parsing method that uses

a two-phase structure. The first phase uses individual invoice part detectors and the second phase employs an

efficient part-based modeling approach. At the first phase, we employ different methods such as SVM,

maximum entropy and HOG to produce candidates for the various types of invoice parts. At the second phase,

the basic idea is to parse an invoice by parts arranged in a deformable composition similar to face or human

body detection from digital images. The main advantage of the part-based modeling (PBM) approach is that

this system can handle any type of invoice, a crucial functionality for business processes at participation

banks. The proposed system is tested with real invoices and experimental results confirm the effectiveness of

the proposed approach.

1 INTRODUCTION

Extraction of financial data from digital images of

documents, which is very popular among academic

(Cesarini, Francesconi, Gori, Marinai, Sheng and

Soda, 1997) and business (Comay, 2014) worlds, is a

very critical and costly operation for participation

banks. Participation bank credit operations are mostly

cost-plus profit financing transactions (Hardy, 2012),

(Khan, 2010). Proof of purchase is required for these

transactions and invoices are required as a purchase

evidence (Kuwait Finance House, 2015). Although

electronic invoices are getting more popular, many

smaller businesses still issue paper based invoices. In

addition, it is still a common practice to keep paper

copies of these electronic documents. Kuveyt Turk

participation bank manually processes around 1000

invoices per day each of which takes 6 minutes to

complete. Therefore, automatic invoice processing

would offer a number of advantages such as less

labor, faster response time, and higher reliability.

According to a survey it costs 9 Euros to process per

invoice (Klein et al., 2004). Similarly, it is predicted

that a reliably automated invoice processing

application will save Kuveyt Turk 3250 man-day for

each year.

Invoices are one of the most unstructured

financial document types due to their variations on

the issuing company, product type, transaction type,

etc. If the main structure of the invoice is already

known, then parsing of these documents becomes

easier. As a result, most of the studies focus on

classifying invoices or extracting information

depending on previously known invoices types.

(Sorio et al., 2010) uses an SVM based classifier to

find new classes which are not known before. A new

invoice is either assigned to an existing class or a new

class is created. Image level features are utilized to

match the given invoice with the previously known

invoice types while ignoring smaller differences, such

as stamps and signatures.

Another group of invoice processing systems are

rule based. smartFIX (Klein et al., 2004) is such a

system that classifies documents using extraction

rules which are either specific to issuer or generic for

all types of documents (Forcher et al., 2012). For

known and new document type classification,

smartFIX uses CBR (similar to (Hamza et al., 2007))

392

Aslan, E., Karakaya, T., Unver, E. and AKGUL, Y.

A Part based Modeling Approach for Invoice Parsing.

DOI: 10.5220/0005777803900397

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 3: VISAPP, pages 392-399

ISBN: 978-989-758-175-5

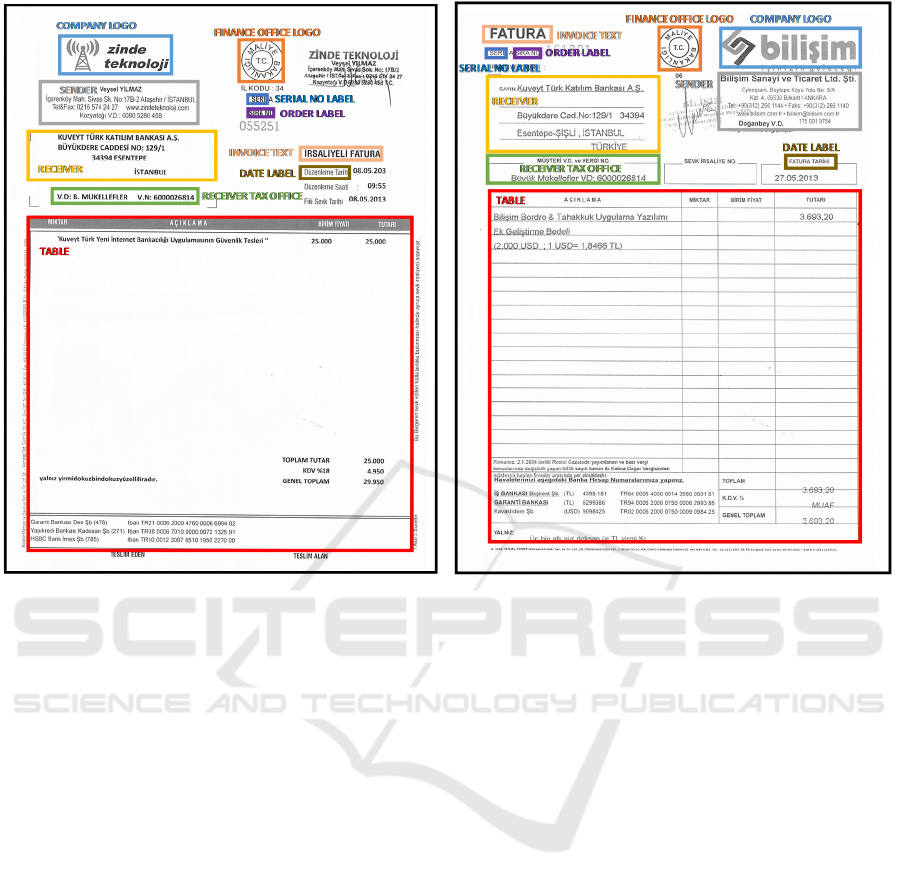

Figure 1: Two sample invoices with marked parts (colored rectangles). Note the variations of the part positions.

to extract information from unknown invoices using

the most similar document class.

Generally, the invoice processing systems of the

literature assume that there are classes of documents.

Once the document class is decided then the parsing

of the invoice becomes trivial. As a result, the

decision on the document class label is the critical

point of the whole process. Any errors in the

document class decision will cause the invoice

parsing to be invalid. For practical applications, the

number of invoice classes are usually very high,

which makes the class decision problem even more

error prone. The tasks of keeping the classes and

dynamically adding new ones to the system makes the

whole process very complicated and difficult to

maintain. Furthermore, it is a very demanding task to

maintain rule based systems which use rules to make

classification and parsing decisions.

This paper proposes a new invoice parsing

method that eliminates invoice classes. We view the

invoice documents as a single generic class. We

model the invoice parsing task as a generic object

detection process, such as face or human body

detection from digital images. The variation of human

body geometry, the skin color, clothing, body

articulation, and the camera position makes the

people detection problem very difficult. Parsing of

invoices is not very different. Finding the invoice

parts of senders, dates, articles, tax numbers (See

Figure 1 for all the invoice parts) to process an invoice

is similar to finding hands, faces, and arms in an

image to detect body shape because for both cases

these parts change in appearance and relative

positions.

Computer vision community has been effectively

employing Part Based Modeling (PBM) (Fischler and

Elschlager, 1973), (Felzenszwalb and Huttenlocher,

2005) to address the above problem of object

detection. PBM assumes that objects are composed of

different parts arranged in a deformable

configuration. Each part is individually detected and

the candidates for each part are later combined under

the deformable object model trained on an image set.

We propose to employ the same idea with novel

modifications for invoice parsing. The candidate

positions of individual invoice parts are first detected

and these candidates are combined under a

deformable model optimization framework. This

approach eliminates many problems about document

classes listed above such as document class decisions,

class layouts, high number of classes, and adding new

classes dynamically. Furthermore, since PBM trains

its model on an image data set, it does not need any

complicated maintenance tasks.

A Part based Modeling Approach for Invoice Parsing

393

Figure 2: The main architecture of the system.

We previously applied the idea of part based

modeling to the invoice parsing problem (Aslan,

Karakaya, Unver and Akgul, 2015). This work

employs two new part based model optimization

methods for the invoice parsing. Rest of this paper is

organized as follows. Section 2 introduces the

proposed two level invoice parsing method. Section 3

gives details about the validation work and finally we

provide concluding remarks in Section 4.

2 THE INVOICE PARSING

FRAMEWORK

The proposed system has a two phase architecture

(See Figure 2). The first phase of the system models

each invoice part as a separate part appearance

detection problem. Each part detection module runs

on a given invoice and returns the candidate part

positions along with the scores for the positions. Note

that this phase of the system does not consider any

information about the absolute or relative positions of

the parts. It only uses the image appearance

information of the parts. The second phase of the

system uses the candidate positions and scores of the

first phase to decide final positions of each invoice

part. This phase uses the PBM optimization

framework to decide the final invoice part positions.

PBM uses training information about how the part

positions might change with respect to each other and

with respect to the invoice itself.

2.1 Part Appearance Models

The individual appearance models of each invoice

part might be different. We have four different

appearance models. The first appearance model uses

the TF-IDF vectors (Salton and McGill, 1983) of the

OCR results from the invoice images. The OCR

engines return groups of words along with their

enclosing rectangles from the invoice images. We

calculate the TF-IDF vectors for each group of words

and run 7 different maximum entropy classifiers

(Berger, Pietra and Pietra, 1996) for 7 invoice parts

(sender, receiver, date, serial label, order label,

invoice date, and receiver tax office). The scores from

these classifiers are fed to the PBM phase of the

system.

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

394

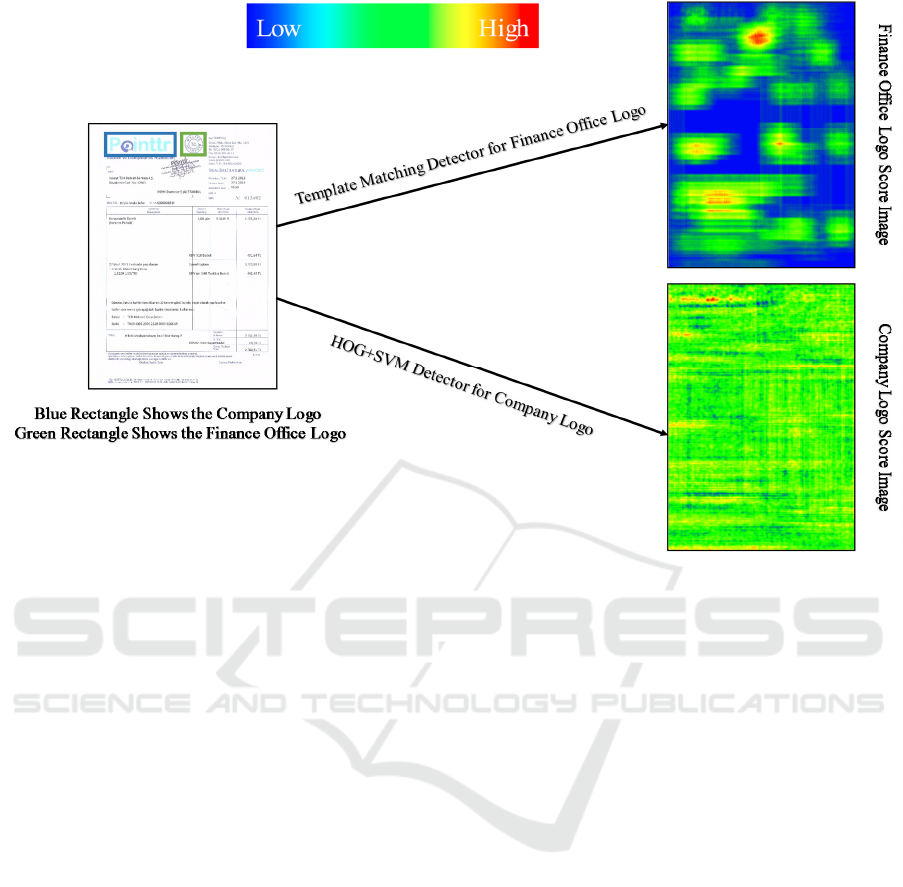

Figure 3: Finance and company logo detectors score images.

The second appearance model is for the finance

office logo, which legally has to appear exactly the

same for all invoices. Although parsing the finance

logo positions is not needed as the final result, their

positions would greatly help in finding the position of

other useful invoice parts at the PBM optimization

phase. We use standard image template matching

algorithm (Tanimoto, 1981) for the finance logo

model. The third appearance model is for the

company logo part of the invoice. Unlike the finance

office logo, the company logo part can have very

different appearances depending on the issuing

company of the invoice. For this appearance model,

we use a popular object detection algorithm (Dalal,

Triggs, 2005) that employs Histograms of Oriented

Gradient (HOG) vectors with SVM classifiers.

The last appearance model is for the content table,

which is very large and has its own internal structure

(column headers, rows, etc.). We developed a

specialized feature fusion based table detector for the

invoices (Unal, Unver, Karakaya and Akgul, 2015).

This detector returns a number of candidate table

areas along with their scores.

2.2 Part based Model (PBM)

Framework

The second phase of the system (PBM) is very

generic. This module is used to choose the best

configuration of the candidate invoice parts generated

by the part appearance models. A PBM can be

expressed by a graph G=(V,E) where the vertices V =

,…,p

} represent the invoice parts. Each part p

represents a rectangular area on the invoice, p

=(x

, y

, h

), where x

, y

represent the position of the part,

and w

, h

represent the size of the part. There is an

edge (p

, p

) ∈ E between each part pairs of the

invoice. A configuration of the parts on an invoice is

shown by F={p

,…,p

}, where n is the number of

parts on the invoice. PBM defines an energy function

for a given configuration F, and finding a

configuration that minimizes this function is called

invoice parsing. The energy of a particular

configuration of parts (invoice layout) is strongly

related with parts’ individual location and how well

the relative location of the parts are positioned. More

information about PBM can be found at (P. F.

Felzenszwalb and D. P. Huttenlocher, 2005).

For a given configuration F on an invoice I, we

define the PBM energy function as

(,) =  







(





)



∑













,













, (1)

where S

is the normalized appearance model

score function for part i, R

is the geometric relation

function between parts p

and p

. The α and β values

A Part based Modeling Approach for Invoice Parsing

395

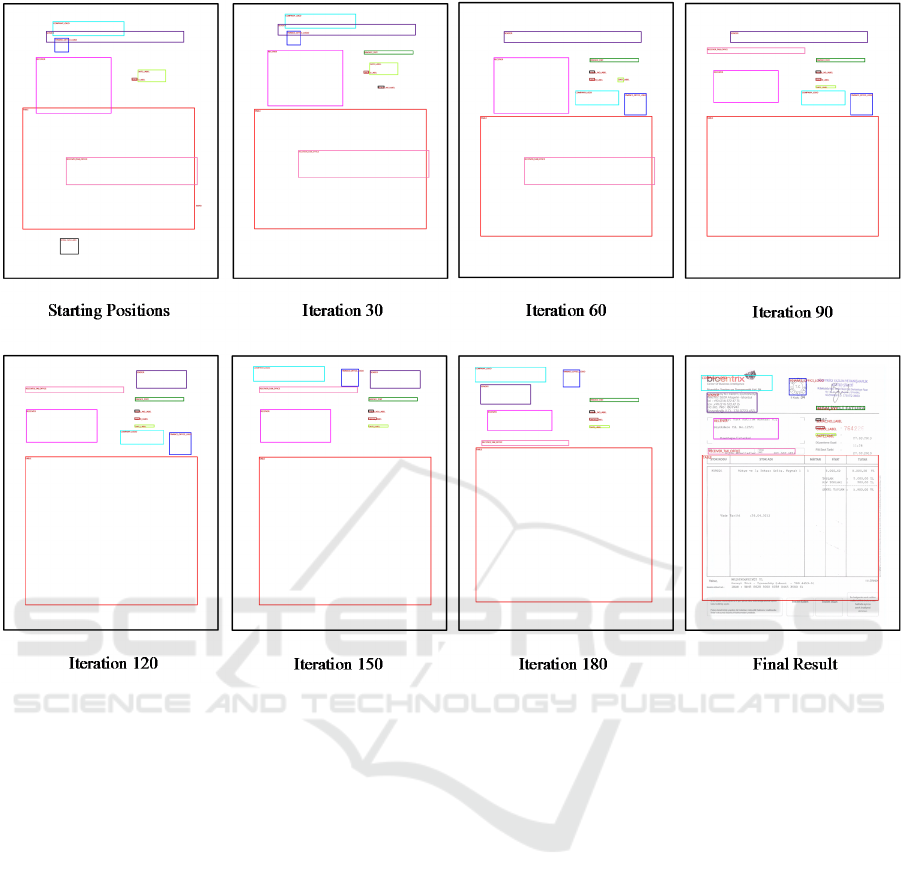

Figure 4: Invoice layout at each optimization step.

are weights. The parse of a given invoice can be

estimated by

argmin



(,), (2)

The function R estimates the similarity of the

relative positions of a given part pair to the learned

geometric relations between these pairs. We use a

Gaussian Mixture Model (GMM) to represent the

geometric relation between part pairs.





∏

















(



,



), (3)

where each 





represents the individual relations

between parts i and j. We use the normalized

differences between the part widths (





), heights

(





), x positions (





) and y positions (





) in the form

GMM expressions as











,



=

∑

∅







(



,Σ



), (4)

where M is the number Gaussians in the GMM, ∅

are the weight parameters, µ and ∑ are the means and

covariances, respectively.

Our employment of the PBM is different from the

typical PBM framework because typically PBM uses

the same type of detector for each part while we

employ most suitable detector type in order to fit the

needs of the application.

2.3 PBM Optimization

We used three different optimization methods: local,

sequential, and genetic. The local optimization, finds

the best position for each part independently. Since it

does not consider the part position dependencies, it

runs faster than the other optimization methods.

However, the accuracy performance of this method

would be lower than the other methods. Figure 3,

shows the heat maps generated by the two invoice

part finders on a sample invoice. After producing

such heat maps, the final positions of the parts are

determined by using the heat map of the

corresponding detector.

For the sequential optimization, each element of F

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

396

is first assigned a random candidate position from the

appearance model scores. The Equation (2) is

optimized by changing the configuration F parts one

by one starting from the parts that have better

appearance models such as table and finance logo.

This process continues until there is no improvement

in the results. Note that during the optimization we

penalize parts that overlap. This is a hard constraint

that should be satisfied by all parsed invoices.

At the beginning of genetic optimization (Figure

2) four starting part combinations (



,





,





,





) are

selected from candidates by “Random Candidate

Selector”. Then we apply PBM to each of those part

combinations to find four new PBM optimized

invoice part combinations (





,





,





,





). Two

of the combinations that have higher energies are

eliminated. By crossing two remaining combinations

four new combinations are created

(





,





,





,





). We use these combinations as

starting part combinations to re-apply whole process

from the beginning. This process continues while the

best score of current combinations is lower than

previous combination. Otherwise, the lowest PBM

scored combination is selected as final combination.

Figure 4 shows a sample run of the proposed

genetic algorithm on an invoice. The initial positions

of the invoice parts start from random positions and

at each iteration, they move to a new positon. At the

end of the iterations, each part finds its final position.

2.4 System Training

Our system needs training for both Part Appearance

Model phase and Part Based Model phase. The

annotated invoice images are taken as inputs to both

phases. The appearance scores for each part are also

input to the PBM phase so we first have to train the

appearance models. The learned parameters for the

appearance models include the SVM parameters for

the logo model and the maximum entropy parameters.

The positive and negative window samples are

chosen depending on the machine learning algorithm.

For the logo detection, the positive training windows

are the company logo regions of the invoices and the

negative training windows are the most likely

confusion zones for the logos such as the finance

office logo, company signature area, etc. We

determined most of the negative window locations by

running the detectors on the invoice image set used

for the training.

For the text areas (maximum entropy detectors),

we need only positive window areas. OCR engines

produce many erroneous recognition results so the

TF-IDF vectors have high amounts of noise. In order

to deal with this problem, we use edit distance metric

to measure the distance between the words from OCR

engine and regular dictionary words. In other words,

we run a specialized spell checker for the invoice

documents.

The learned parameters for the PBM include the

GMM parameters of the R functions that define

geometric relations between the invoice parts. The

main parameters learned are the means and

covariances of Equation (3).

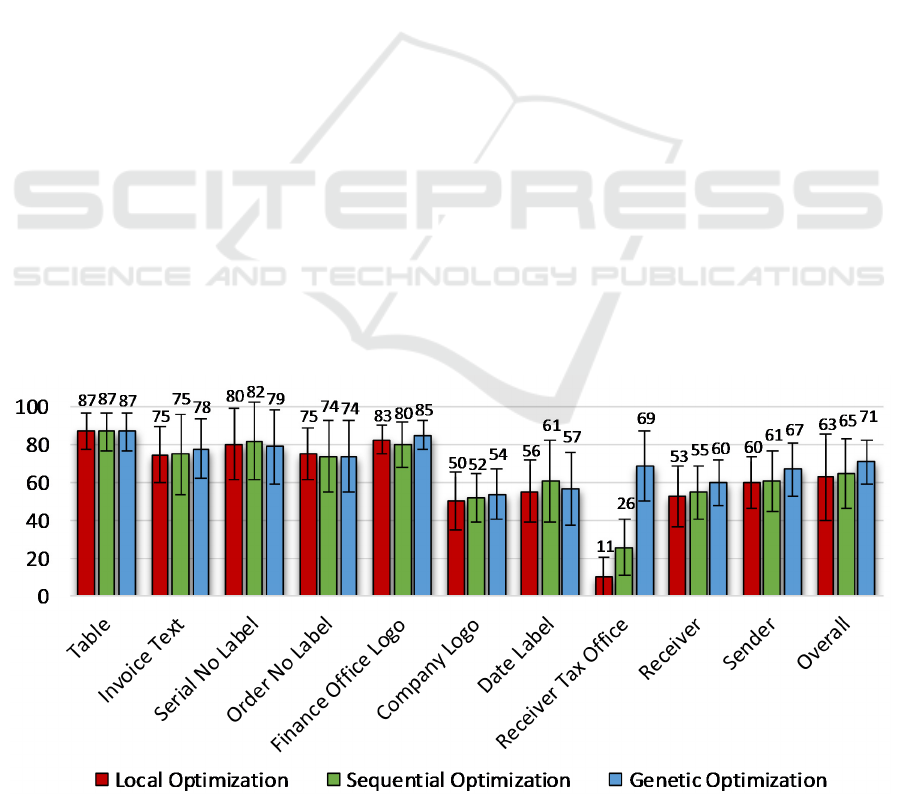

Figure 5: Means and standard deviations of intersections of sequential and genetic optimization results and real fields.

A Part based Modeling Approach for Invoice Parsing

397

3 EXPERIMENTS

For the system verification, we did not use standard

English invoice sets because our application is

specialized to Turkish banking and invoicing system.

However, we built a representative set of invoices on

which we show our results.

We performed a number of experiments to

validate the proposed system. In all the experiments

we used the same weigh parameters for Equation (1)

(β



=1, 



=1). In addition, we kept the training and

the testing invoice sets completely different to avoid

any memorization problems of machine learning

algorithms. The training set includes about 320

invoices and the test set includes 80 invoices. The

invoices in the test set are all from different issuer

companies so that can be considered as 80 distinct

classes. For the OCR engine, we used a commercial

product with the same parameter set.

For the performance metric we use Part Match

Scores (PMS) that returns the amount of matching

between a detected part and the annotated part.





∗()



(





)



(





)

(5)





∗()



(





)



(





)

(6)

where 



is the detected part, 



is the annotated part.

IA means Intersection Area between 



and



. PMS

is used for graphic-based parts (company logo etc.)

and PMS

is for text-based parts (receiver etc.). NoW

calculates the Number of Words in the given area.

The genetic based algorithm performs mostly

better than the sequential method. For some of the

invoice parts, it improves the results considerably

(e.g., tax office field), while the results for some fields

are slightly worse (e.g., data label)

Although genetic optimization method is four

times slower than the sequential optimization, it

produces an overall performance around 6% better as

shown in Figure 5. Note that the local optimization

results are mostly worse than the other methods as

expected. Note also that these results are comparable

to state of the of art commercial invoice processing

products that use known invoice classes, which

makes our system very promising.

4 CONCLUSIONS

We presented a novel method for invoice parsing. The

proposed method does not use any invoice classes and

each invoice is considered as a new case. We

employed ideas from Part Based Modeling

approaches of general object detection to handle the

high variations between the invoices. The proposed

method can be extended with new part detectors

conveniently without modifying the main

optimization framework. The experiments performed

on the real invoice data show the applicability of the

method for the real life employment. For the future

work, we plan to use a more sophisticated

optimization methods and augment the text field

detectors with image based features to handle OCR

engine problems.

ACKNOWLEDGEMENTS

This work is supported by TUBITAK TEYDEB

project number 3130882.

REFERENCES

L. Hardy, "The Evolution of Participation Banking in

Turkey." Al Nakhlah Online Journal of Soutwest Asia

and Islamic Civilization (2012).

F. Khan, "How ‘Islamic’is Islamic banking?" Journal of

Economic Behavior & Organization 76.3 (2010),

pp.805-820.

"Payment of Supplier’s Due Amounts." Kuwait Finance

House. Kuwait Finance House. Web. 26 Jan. 2015.

<http://www.kfh.com/en/commercial/murabahaa/pay

ment-of-suppliers-due-amounts.aspx>.

E. Sorio, A. Bartoli, G. Davanzo, & E. Medvet, (2010,

September). Open world classification of printed

invoices. In Proceedings of the 10th ACM symposium

on Document engineering (pp. 187-190). ACM.

H. Hamza, Y. Belaïd, & A. Belaïd, (2007). Case-based

reasoning for invoice analysis and recognition. In Case-

Based Reasoning Research and Development (pp. 404-

418). Springer Berlin Heidelberg.

B. Klein, A. R. Dengel, & A. Fordan, (2004). smartFIX: An

adaptive system for document analysis and

understanding. In Reading and Learning (pp. 166-186).

Springer Berlin Heidelberg.

M. A. Fischler, & R. A. Elschlager, The representation and

matching of pictorial structures. IEEE Transactions on

Computers, 22(1) (1973), 67-92.

P. F. Felzenszwalb, D. P. Huttenlocher. "Pictorial structures

for object recognition." International Journal of

Computer Vision 61.1 (2005): 55-79.

B. Forcher, S. Agne, A. Dengel, M. Gillmann, & T. Roth-

Berghofer, "Towards understandable explanations for

document analysis systems." Document Analysis

Systems (DAS), 2012 10th IAPR International

Workshop on. IEEE, 2012.

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

398

B. Klein, S. Agne, and A. Dengel. "Results of a study on

invoice-reading systems in Germany." Document

Analysis Systems VI. Springer Berlin Heidelberg, 2004.

451-462.

F. Cesarini, E. Francesconi, M. Gori, S. Marinai, J. Q.

Sheng, G. Soda, "Rectangle labelling for an invoice

understanding system." Document Analysis and

Recognition, 1997., Proceedings of the Fourth

International Conference on. Vol. 1. IEEE, 1997.

G. Salton, & M. J. McGill, (1983). Introduction to modern

information retrieval.

A. L. Berger, V. J. D. Pietra, and S. A. D. Pietra. "A

maximum entropy approach to natural language

processing." Computational linguistics 22.1 (1996): 39-

71.

S. L. Tanimoto, "Template matching in pyramids."

Computer Graphics and Image Processing 16, no. 4

(1981): 356-369.

N. Dalal, B. Triggs, "Histograms of oriented gradients for

human detection." In Computer Vision and Pattern

Recognition, 2005. CVPR 2005. IEEE Computer

Society Conference on, vol. 1, pp. 886-893. IEEE, 2005.

O. Comay, "Form data extraction without customization."

U.S. Patent No. 8,660,294. 25 Feb. 2014.

U. S. Unal, E. Unver, T. Karakaya, Y. S. Akgul, “Invoice

Content Table Detection and Analysis with Feature

Fusion”, Signal Processing and Communications

Applications 2015.

E. Aslan, T. Karakaya, E. Unver, Y. S. Akgul, “An

Optimization Approach For Invoice Image Analysis”,

Signal Processing and Communications Applications

2015.

A Part based Modeling Approach for Invoice Parsing

399
