Beyond Nagios

Design of a Cloud Monitoring System

Augusto Ciuffoletti

Universit

a di Pisa, Dept. of Computer Science, Pisa, Italy

Keywords:

Resource Monitoring, On-demand Monitoring, Cloud Computing, Open Cloud Computing Interface (OCCI),

Containers, REST Paradigm, WebSocket.

Abstract:

The paper describes a monitoring system specially designed for cloud infrastructures. The features that are

relevant for such distributed application are -) scalability, that allows utilization in systems of thousands of

nodes, -) ﬂexibility, to be customized for a large number of applications, -) openness, to allow the coexistence

of user and administration monitoring. We take as a starting point the Nagios monitoring system, that has

been successfully used for Grid monitoring and is still used for clouds. We analyze its shortcomings when

applied to cloud monitoring, and propose a new monitoring system, that we call Rocmon, that sums up Nagios

experience with a cloud perspective. Like Nagios, Rocmon is plugin-oriented to be ﬂexible. To be fully inter-

operable and long-living, it uses standard tools: the OGF OCCI for the conﬁguration interface, the REST

paradigm to take advantage of Web tools, and HTML5 WebSockets for data transfers. The design is checked

with an open source Ruby implementation featuring the most relevant aspects.

1 INTRODUCTION

Monitoring a large distributed infrastructure is a chal-

lenging task whose shape kept changing during the

last two decades. Considering its evolution in scien-

tiﬁc and academic environments, it moved from the

monitoring of a computer room with a few tens of

administered workstations, to the Grid-era character-

ized by a signiﬁcant increase of the available cores

and the delivery of the resources to geographically

remote users, to the present, represented by a geo-

graphically distributed system offering computing re-

sources as services: the cloud. The task associated to

the monitoring infrastructure changed accordingly.

During the server room era, the complexity of

monitoring is concentrated on the local network,

which is in fact the main critical resource. Trafﬁc

shaping and management depend on network moni-

toring: consider for instance the NWS (Wolski et al.,

1999) as a borderline tool, somewhat evocative of the

successive Grid era. The access to the monitoring sys-

tem is through logs and a dashboard displaying the

state of the system

The Grid era is characterized by an increased in-

terest for the network performance, WAN included,

together with the ability to detect the presence of

problems and request assistance, or enact compen-

sative actions. Such ability is extended to all sorts of

resources, typically including also storage and com-

puting facilities. The Globus Grid Monitoring Archi-

tecture (Tierney et al., 2002) is a good representative

of these tools, and we record the emergence of the

Nagios system (Josephsen, 2007) as a successful tool

in this category: the Nagios system is able to inspect

host and storage facilities on a routine basis, and to

run customized tests. Nagios contains an answer to

the demand of ﬂexibility arising from the growing di-

versity of monitored resources: the probe that runs the

monitoring code is independent from the core appli-

cation, that has the role of controlling the probes using

a protocol based on widely deployed standard. A con-

ﬁguration ﬁle controls the execution of the plug-ins.

The advent of cloud infrastructures has marked

another step in complexity and ﬂexibility. Due to the

size of the system and to the pervasive use of virtu-

alization, the monitoring system is necessarily cou-

pled with management functions that dynamically op-

timize the performance of the system. Most of this ac-

tivity has a local scope, so that the monitoring data is

mostly consumed locally. Locality must be exploited,

since the quantity of monitoring data that is generated

makes a problem. Further ﬂexibility is needed since

the user is one of the destinations of the monitoring

activity, as indicated by the NIST deﬁnition of cloud

Ciuffoletti, A.

Beyond Nagios - Design of a Cloud Monitoring System.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 2, pages 363-370

ISBN: 978-989-758-182-3

363

computing (Mell and Grance, 2011). This is justiﬁed

since the user wants to check that the service quality

corresponds to the expectation, though this demand

does not exhaust the possible uses of monitoring data.

These features call for a new design approach that:

• addresses the decomposition of the monitoring

infrastructure into sub-systems, appointing the

monitoring tasks to components on a subsystem

basis;

• delivers the monitoring data ﬂexibly, without stor-

ing information that may be consumed or deliv-

ered to the user, and selecting the storage depend-

ing on prospective utilization;

• provides the user with an interface for the con-

ﬁguration of the monitoring activity, instead of a

conﬁguration ﬁle.

Cloud providers are gradually improving their of-

fer of resource monitoring tools: a review is in (Ciuf-

foletti, 2016c). Here we focus on Nagios, an open

source project.

As a well conceived and robust product, Nagios

is presently a cornerstone of the EGI cloud infras-

tructure, a coordinated effort to federate the scientiﬁc

grids in Europe into a unique service provider. But it

does not ﬁt the above proﬁle: in this paper we want

to start from the successful experience of Nagios to

describe a monitoring framework that overcomes its

limits in the direction described above. Among the

key features of Nagios that we want to preserve are:

• plugin oriented software architecture, to adapt the

monitoring infrastructure to changing needs and

resources without the need to alter the core appli-

cation;

• utilization of standard tools and paradigms to take

advantage of continuous improvements of long

living tools and libraries

But we introduce in our design:

• a modular and agile architecture that envisions a

distributed control of the monitoring activity

• the extension of the plugin-oriented paradigm to

the utilization and the delivery of the monitoring

data

• the provision of an API to control the architecture

and the activity of the monitoring infrastructure,

that needs to be open to the user, but under the

control of the provider.

The paper is organized as follows. One section

is dedicated to an analysis of the Nagios monitoring

system, distinguishing features and limits when used

as a cloud monitoring application. In section 3 we

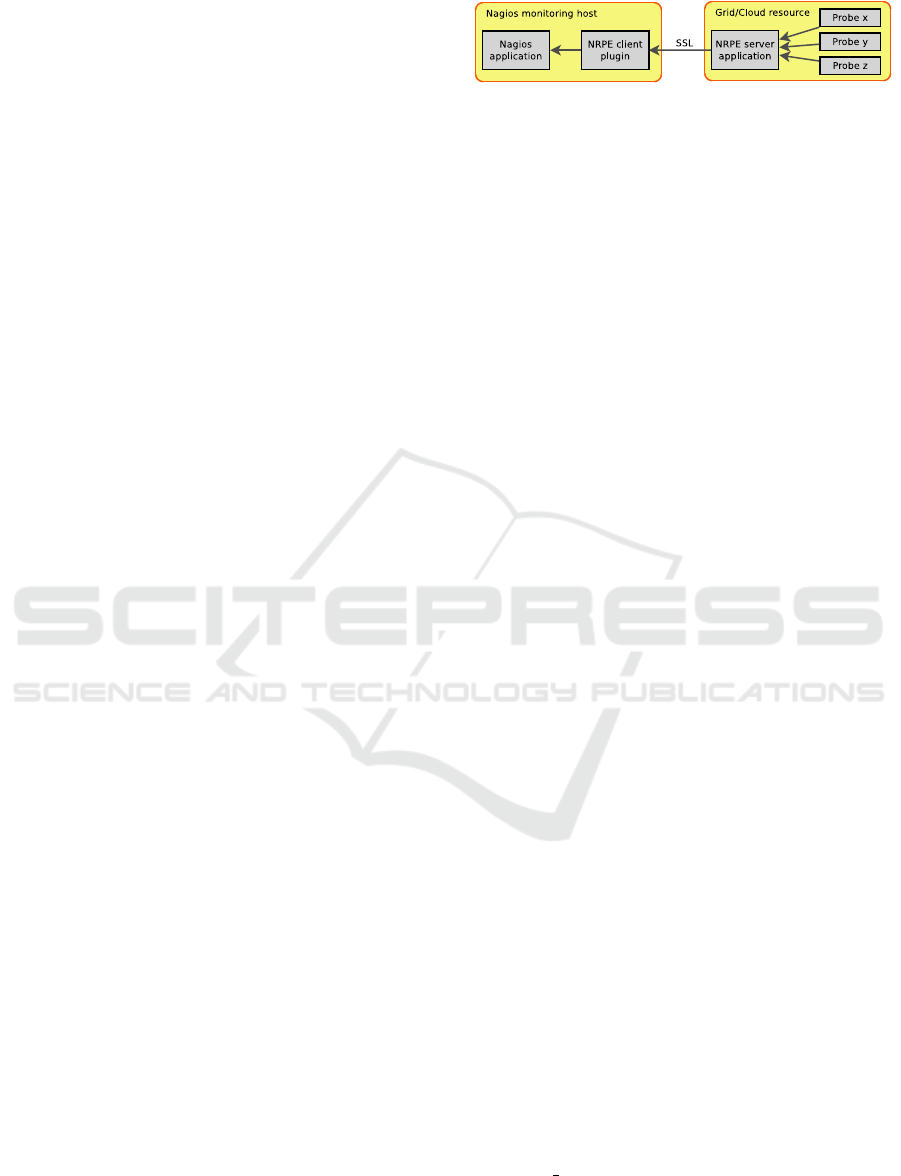

Figure 1: The design of the NRPE plugin: arrows indicate

direction of monitoring data ﬂow.

introduce Rocmon, our proposal, ﬁrst describing its

principles of operation, next its REST interface, and

ﬁnally its features compared with Nagios, also explor-

ing the transition from Nagios to Rocmon. Finally, we

document a running prototype of Rocmon, primarily

designed for demo and proof of concept purposes: it is

written in Ruby and based on Docker microservices.

2 Nagios

Nagios is a powerful tool-set that has been extensively

used for monitoring Grid infrastructures. It has also

been adopted to support the monitoring of the EGI

federation of clouds.

Nagios architecture is deeply inﬂuenced by a sep-

aration of concerns approach that distinguishes the

monitoring infrastructure from the probes that mon-

itor the resources. The rationale behind this approach

is that the probes evolve rapidly and depend on local

requirements and goals, while the components of the

monitoring infrastructure are designed to meet many

use cases and are more stable in time.

This approach brought to the design of a plugin

oriented framework: the basic building blocks are

containers hosting speciﬁc or custom functionalities

that are added as plugins.

The best example of such attitude is represented

by the Nagios Remote Plugin Executor (NRPE), a

client/server add-on (see ﬁgure 1). The server mod-

ule is installed on remote hosts and is controlled by

the central monitoring agent, hosting the client mod-

ule. The NRPE server gives remote access to a num-

ber of probes that are designed to perform software

and hardware checks on the remote host. The moni-

toring agent controls the execution of remote plugins

hosted by NRPE servers, and acquires data with a se-

cure connection using a standard protocol, SSL.

The NRPE architecture joins the stability given by

the use of a standard protocol and by the centralized

development of the NRPE modules with the ﬂexibility

of the plugin mechanism, that enables the continuous

introduction and improvement of plugins. Currently

the Check mk drop-in module is a popular alternative

to NRPE.

However, the Nagios architecture suffers for the

presence of a centralized monitoring agent, that is ex-

OCCI 2016 - Special Session on Experiences with OCCI

364

posed to become a bottleneck in large deployments.

To amend this problem the NDOUtils add-on has

been implemented: it allows several Nagios servers to

exchange and share information through a database.

Such option alleviates, but does not solve, the pres-

ence of a bottleneck on the monitoring agent. Another

option is given by the Mod Gearman add-on, which

ofﬂoads checks to peripheral worker systems, so to

increase the performance in terms of a better latency.

In Nagios the monitoring agent is conﬁgured by

the system administrator that writes up a conﬁgura-

tion ﬁle that controls the activity of the Monitoring

Agent, possibly with the help of a graphical wizard

(like NConf). The presence of a conﬁguration ﬁle,

however, tackles the agility of the whole system.

To cope with these issues the Nagios team is cur-

rently working at a seamless replacement of the orig-

inal product. The ﬁrst release of the Naemon project

was on February 2015.

3 Rocmon

Starting from the user interface, the Rocmon moni-

toring system adopts an extension of the Open Cloud

Computing Interface (OCCI), an API deﬁned in the

framework of the OGF. The OCCI-monitoring exten-

sion allows the user to deﬁne and request as a service

the deployment of a monitoring infrastructure cover-

ing the resources obtained from the cloud provider.

The Open Cloud Computing Interface (OCCI)

(Edmonds et al., 2012) is a standard API for the de-

scription of cloud resources. This interface plays a

fundamental role in a cloud computing architecture,

since it deﬁnes how the user submits its requests and

obtains feedback. The existence of a standard for this

interface is of paramount importance for interoper-

ability, and must be at the same time simple, to be

easely understood by the user, and ﬂexible, to allow

extension and customization.

The OCCI API follows the REST paradigm

(Fielding and Taylor, 2002), an API design paradigm

that afﬁrms the effectiveness of the HTTP proto-

col and extracts general API design principles from

the lessons learned from the successful diffusion of

the HTTP protocol. In a nutshell, it uses URIs

for addressing entities, functions are limited to the

four main HTTP verbs applied by the client to the

server, interactions are stateless, and responses may

be cached. Expandability is based on a code-on-

demand feature.

The key features of the OCCI protocol are expand-

ability and simplicity. These properties are introduced

by leveraging a protocol layering mechanism based

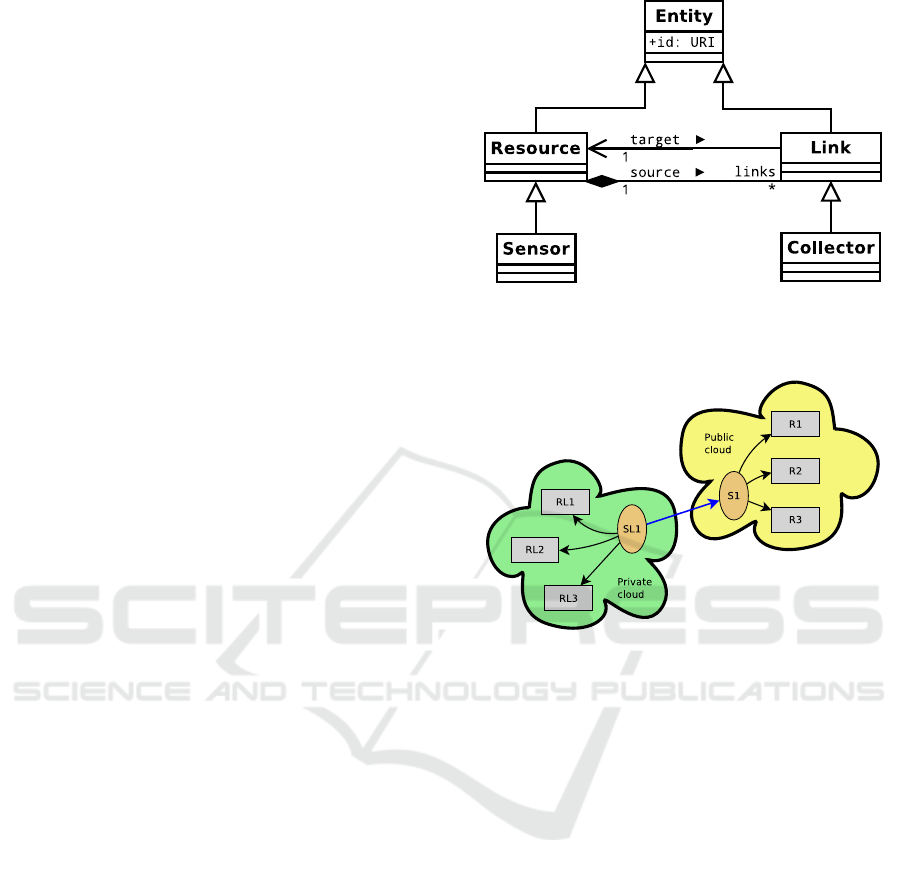

Figure 2: The simpliﬁed UML diagram including the core

OCCI classes (Resource and Link) and those in the monitor-

ing extension (Sensor and Collector).

Figure 3: Monitoring an hybrid cloud.

on extensions, that are based on the core OCCI spec-

iﬁcation (OGF, 2011), a vanilla speciﬁcation that in-

troduces two basic entities, the OCCI resource and

the OCCI link, that represents a relationship between

OCCI resources. Rocmon is based on the OCCI mon-

itoring extension (Ciuffoletti, 2016c), that introduces

two entity sub-types: the sensor — an OCCI resource

— and the collector — an OCCI link. A simpliﬁed

diagram is in ﬁgure 2

The monitoring infrastructure is made of sensors

that manage the monitoring information coming from

probes that monitor cloud resources. The association

between a sensor and the monitored resource is ren-

dered with a collector, a link in OCCI terminology. In

Figure 3 each arrow represents the monitoring activity

implemented by a collector.

Since sensors are themselves considered as OCCI

resources, the abstract model allows a sensor to re-

ceive information from another sensor, thus allowing

the implementation of arbitrarily complex monitoring

networks. For instance, in ﬁgure 3 we see the sim-

ple case, yet relevant in practice, of a hybrid cloud:

the sensor in the private cloud receives data from the

public cloud across the collector represented by the

Beyond Nagios - Design of a Cloud Monitoring System

365

blue arrow. This can be useful, for instance, to trans-

parently inform users about the performance of their

resources, independently from the cloud they are al-

located to, or to control task out-sourcing.

The operation of the sensor is controlled by time

and periodical: therefore a sensor may generate asyn-

chronous events, like an alarm, but it is not meant to

receive and manage them. In fact sensor and collector

attributes only deﬁne the timing of their operation.

This is because Rocmon, in analogy with Nagios,

does not go into the detail of the speciﬁc function-

alities: in a sense, sensor and collector are abstract

classes, whose deﬁnition must be ﬁnalized when they

are instantiated. We envision three types of plugins,

mixins in OCCI terminology, that can be associated

with sensor and collector instances to ﬁnalize their

deﬁnition:

metric - that roughly correspond to Nagios NRPE

probes, are collector mixins that implement re-

source monitoring,

aggregator - are sensor plugins that receive and pro-

cess monitoring data,

publisher - are sensor plugins that deliver the mon-

itoring data outside the monitoring infrastructure,

for instance storing it in a database

When the user deﬁnes a component of the monitor-

ing infrastructure, the OCCI API allows to indicate

the mixins that ﬁnalize the description of an abstract

component.

The control of the two software components of our

design, the sensor and the probe represented by the

collector edge, is based on the REST paradigm, thus

extending to the back-end interface the paradigm that

is applied to the user-interface.

So that we have three interfaces, including the

OCCI-monitoring user interface, that follow the

REST paradigm. Since the user interface is exhaus-

tively deﬁned in the OCCI core document (OGF,

2011) we focus on the other two: the one that is of-

fered by the sensor to conﬁgure its monitoring activ-

ity, and the one that is implemented by a generic mon-

itored resource that is reached by a collector. These

APIs are accessed by a cloud management function-

ality, and not directly by the user.

3.1 The Sensor Interface

The interface is summarized in table 1.

The GET method is primarily used to open a Web-

Socket (second row in Table 1): this kind of request

comes from the probe that is activated by the sen-

sor, and that returns the monitoring data to the sen-

sor itself. In this way there is a strict control over

Table 1: HTTP methods implemented by a sensor.

VERB PATH FUNCTION

GET / return OCCI de-

scription

GET / open WebSocket

POST / deﬁne or update

POST /collector/< id > attach a collector

DELETE / delete this sensor

Table 2: HTTP methods implemented by a generic re-

source.

VERB PATH FUNCTION

GET / return OCCI de-

scription

POST /collector/< id > attach a collector

DELETE / delete this re-

source

the clients that are allowed to open a WebSocket. In

absence of the WebSocket Connection: upgrade

header ﬁeld, the GET method returns the description

of the sensor resource.

The POST request (third row in table) passes to

the sensor the description of its operation: its tim-

ing, described by the native attributes, and the speciﬁc

operation described by the aggregator and publisher

mixins: in listing 1 we see an example of the content

of such a request.

The POST operation is also useful to activate a

collector thread (fourth row in table) that connects the

sensor with another sensor. It is the handle needed

to build networks of sensors, and a special case of a

collector edge interface, discussed below.

3.2 The Collector Edge Interface

The generic resource exposes an HTTP server that

supports the REST protocol. The interface is sum-

marized in table 2.

The GET method is used to obtain the description

of the resource: this is useful to tune the conﬁguration

of the metric mixin, that may depend on physical and

software speciﬁcations of the resource.

The POST request activates a collector thread that

connects the resource with a sensor: the JSON de-

scription contains its timing, described by the native

attributes, and the speciﬁc operation described by the

metric mixins: in listing 2 we see an example of the

content of such a request.

In ﬁgure 4 we see a minimal deployment consist-

ing of a web server, that implements the user inter-

face that controls the monitoring infrastructure, one

sensor and a generic resource. Each of them expose

OCCI 2016 - Special Session on Experiences with OCCI

366

Listing 1: JSON description of a sensor.

1 {

2 " id ": " s01 " ,

3 " ki nd ": " h ttp :/ / sc hem as . ogf . org / occ i / m on it or in g # se n so r " ,

4 " m i xi ns ": [

5 " ht tp :// e xam pl e . co m / oc ci / mo ni to ri ng / p ub li sh e r # S e nd UD P " ,

6 " ht tp :// e xam pl e . co m / oc ci / mo ni to ri ng / a gg re ga to r # E WMA " ,

7 " ht tp :// e xam pl e . co m / oc ci / mo ni to ri ng / p ub li sh e r # Log "

8 ],

9 " a tt ri bu te s ": {

10 " oc ci ": { " se n so r ": { " pe r io d ": 3 } } ,

11 " com ": { " e xam pl e ": { " o cci ": { " m on it or in g " : {

12 " S end UD P " : {" ho st na m e ": " l o ca lh os t " , " p o rt ": "8 888" , " in p ut ": " c "} ,

13 " EW MA " : {" g ain ": 16 ," i ns tr e a m ": " a " ," o ut st r e a m ": " c "} ,

14 " Log " : {" f il e na me ": "/ tmp / s01 . l og " ," in _ms g ": " b "}

15 } } } } } ,

16 " li nks ": []

17 }

Listing 2: JSON description of a collector.

1 {

2 " id ": " c01 " ,

3 " ki nd ": " h ttp :// s ch em as . ogf . o rg / o c ci / mo ni to ri ng # c ol le ct or " ,

4 " m i xi ns ": [

5 " ht tp :// e xam pl e . co m / oc ci / mo ni to ri ng / m etr ic # C PU Pe r c e n t " ,

6 " ht tp :// e xam pl e . co m / oc ci / mo ni to ri ng / m etr ic # I sR ea ch ab le "

7 ],

8 " a tt ri bu te s ": {

9 " oc ci ": { " co ll ec to r ": { " pe r io d ": 3 } } ,

10 " com ": { " e xam pl e ": { " o cci ": { " m on it or in g " : {

11 " C PU Pe rc en t " : {" o u t ": " a "} ,

12 " I sR ea ch ab le " : { " h os tn am e ": "1 92 . 16 8. 5.2 " , " ma xd el ay ": 1000 , " out ": " b " }

13 } } } } } ,

14 " a cti on s ": [] ,

15 " t a rg et ":" s0 1 ",

16 " s o ur ce ":" g0 1 "

17 }

a web server that accepts the requests from the cloud

management server.

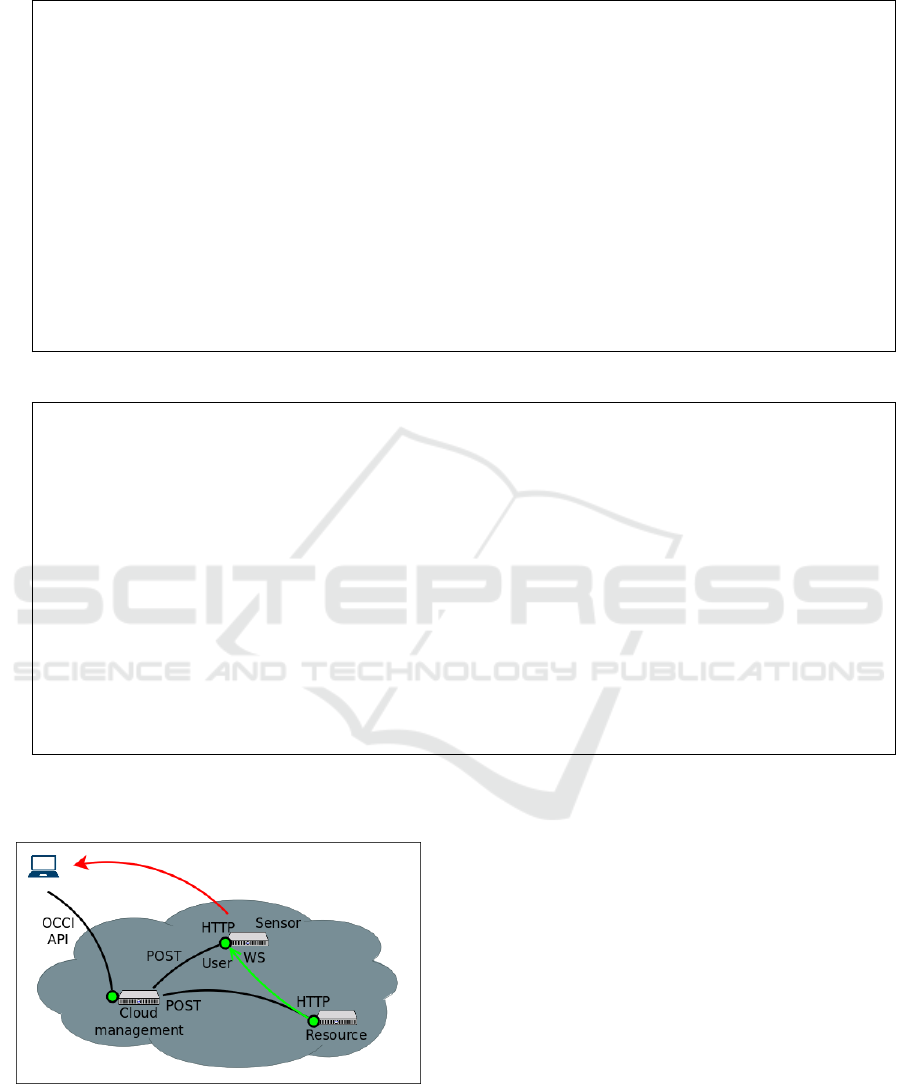

Figure 4: A simple example showing the monitoring of a

Resource by a Sensor.

3.3 The WebSocket

A WebSocket is opened on the sensor under request

of a thread that represents the resource-side edge of

the collector, and is used to transfer the monitoring

data.

A unique HTTP port is therefore shared by all the

resources connected to a given sensor: this signiﬁ-

cantly improves the scalability of the Rocmon design.

3.4 What’s New in Rocmon

The design of the Rocmon monitoring infrastructure

copes with the issues that we have identiﬁed in Na-

gios with an architecture that is scalable, ﬂexible and

open to the user. At the same time we consider Nagios

probes as a valuable legacy, and therefore we want to

be able to reuse them. Now we explain how the above

features are implemented.

The Rocmon design scales well, since it considers

a multiplicity of interconnected sensor components.

This opens the way to the application of distributed

Beyond Nagios - Design of a Cloud Monitoring System

367

techniques to manage large clouds: for instance hier-

archical layering of sensors, as shown in ﬁgure 3, and

monitoring domain splitting, as explained below.

The Rocmon design extends the ﬂexibility of the

Nagios plugin approach to all aspects of monitoring:

namely, the processing of monitoring data and their

delivery. This is obtained by introducing two distin-

guished types of mixins that are speciﬁc for the sen-

sor. Using such mixins it is possible, for instance, to

aggregate a large stream to ﬁlter relevant data, to hide

sensitive data before passing over, to trigger actions

when certain patterns show up. All these functionali-

ties are provided under the control of the cloud man-

agement, although it is not excluded (per the OCCI

core standard) that the user implements and uploads

custom mixins.

Being plug-in oriented, the Rocmon design is

ready to reuse the plugin probes already implemented

for Nagios: the typical Nagios plugin has a clean SSL

oriented interface, which should be adapted to use the

HTTP API to control the plugin. Data delivery should

be converted to use the WebSocket interface instead

of the SSL. To meet security constraints, a practical

design uses the secure versions for the HTTP proto-

col and the WebSocket.

New sensors can be dynamically added to the in-

frastructure, since their activity can be associated to a

Virtual Machine (VM), and a given resource can mod-

ify the running probes with a POST request: there-

fore the monitoring activity can be dynamically mod-

iﬁed in response to a change in the environment, like

a workload increment.

Such ﬂexibility fosters the possibility to open to

the user the control of the monitoring activity. In case

the same infrastructure is used for administration and

user monitoring, a mechanism to allow user access to

a restricted number of mixins is a preliminary step on

this way, which can be obtained at the OCCI interface

level. More important is the ability to dynamically

instantiate new sensors according with user demand:

this is indeed possible since, as noted above, a sensor

can be implemented using a VM. The monitored re-

source will route distinct data towards the WebSocket

on the user sensor, and on a admin sensor, so to im-

plement distinct monitoring domains.

The Rocmon design can be approached also to

other OCCI-based monitoring systems. In (Ven-

ticinque et al., 2012) the authors sketch a prelim-

inary model for the speciﬁcation and the monitor-

ing of a SLA. The proposal does not explore how

such model might be implemented in practice. In

(Mohamed et al., 2013) the authors layout a detailed

model for monitoring and reconﬁguration of cloud re-

sources. The model is quite complex, and is speciﬁc

for a closed loop, with reconﬁguration that follows

monitoring. Although the authors do not cover the

implementation of their model, it is conceivable that

the Rocmon system might contribute with the mon-

itoring part. In (Ciuffoletti, 2015a) we have shown

a basic Java implementation of our monitoring sys-

tem, based on TCP connections — instead of REST

interfaces and WebSockets — and without the mech-

anisms for resource creation.

4 A Rocmon PROTOTYPE

IMPLEMENTATION

To verify the feasibility and the complexity of the

above design we have implemented a prototype show-

ing its relevant features. An example that illustrates

an elementary deployment is in ﬁgure 4. Green cir-

cles represent HTTP ports: the user interacts with the

cloud manager with the OCCI API, the cloud man-

ager submits POST requests to the Sensor and the

Resource. The Resource opens a Web Socket (WS)

to the Sensor and sends raw monitoring data. The

Sensor delivers metrics to the user.

In our prototype we have only the essential oper-

ation of the OCCI API user interface on the upfront

server: we implement a PUT method, limited to the

request of a sensor, collector or compute entity. After

receiving such a request the OCCI server (labeled as

Cloud management in ﬁgure 4) either instantiates the

requested resource, or conﬁgures the requested link.

Since the implementation is oriented to experiments,

we have adopted the Docker technology, so that a sen-

sor or compute entity correspond to a Docker con-

tainer with the requested features. Since containers

have a light footprint, it is possible to assemble quite

complex experiments, depending on the capacity of

the physical host.

4.1 Software Structure

The prototype is implemented using the Ruby lan-

guage: the Sinatra framework is used for the HTTP

servers, together with the websocket-client-simple li-

brary for client-side WebSocket management. The

software of the sensor and of the compute contain-

ers is built around the Sinatra web server, and the im-

plementation of the POST method is the cornerstone.

The API methods on the compute and sensor Docker

are those listed in table 1 and 2.

The sensor container receives with the POST re-

quest the internal timing conﬁguration and the lay-

out of the mixins: which of the available ones is

OCCI 2016 - Special Session on Experiences with OCCI

368

Listing 3: Code snippet: the run method of the Aggregator:EWMA mixin . Check table 1 for the identiﬁers.

1 def run ()

2 data =nil

3 begin

4 gain = @ ag g r e g a to r_ ha sh [: g ain ] # extracts the gain parameter

5 loop do

6 data = g et C h a n n el By Na me (" in s tr ea m " ). pop # waits from input from the instream channel

7 ou t pu t || = d a ta

8 ou t pu t = (( o u tpu t * ( g ain -1))+ da t a )/ g ain # computes the exponentially

9 # weighted moving average

10 data = g et C h a n n el By Na me (" ou ts t re am " ). pus h ( dat a ) # send data to the next stage through

11 # the outstream channel

12 end

13 rescue E xc ep t io n = > e

14 puts " Pr ob l em s dur ing the run of a p ub l is he r : #{ e. m es s ag e } "

15 puts e . b ac k tr ac e . i nsp ect

16 end

17 end

Listing 4: Code snippet: the dynamic load of a mixin type/name in Sensor’s code.

1 begin

2 re q ui re " ./ # { t ype }/ #{ nam e } " # the module is dynamically loaded using its

3 # name and type, as found in the OCCI

4 # description

5 pl u gi n = M odu le . co ns t_ g et ( na me ) # returns a constant which is an instance

6 # of a Class with the given name,

7 # i.e. the plugin class

8 puts " L a un ch #{ t ype } # { n a me } "

9 t= Th rea d . ne w { # instantiates in a new Thread

10 pl u gi n . new ( senso r , a ttr ibu t es , s y n cC ha nn el s ) . run # and runs the plugin in it

11 }

12 pl u gi ns [ nam e ]= t

13 rescue Exc ep t io n = > e

14 puts " P ro b le ms w ith . /#{ ty p e } /#{ na me }: #{ e . me ss a ge } "

15 end

used, and how they are interconnected. The con-

nection among internal mixins is implemented with

queues data structures, that are included in the na-

tive thread Ruby library: they implement thread-safe

FIFO queues and are intended for producer-consumer

communication patterns. The mixin hierarchy is im-

plemented using class inheritance: an abstract su-

perclass Aggregator implements the basic methods,

while the functionality of the mixin is described in

a subclass. The same happens for Publishers.

The concrete mixins typically contain a run

method that implements the core functionality of the

mixin: starting from loading the operational parame-

ters from the OCCI description, and proceeding with

a loop that iterates the read from input queues when

new data arrive, the processing of the data and its for-

warding to the output queues. See a commented code

snippet in Listing 3.

The loading of mixin code is dynamic, and uses

the reﬂection capabilities of the Ruby language. In

Listing 4 we show the code used for the dynamic load-

ing of the sensor mixins.

The GET method on the sensor is primarily used

to open the WebSocket that implements the sensor-

side edge of the collector: the operation of the Web-

Socket is described in Listing 5.

The other end of the collector is conﬁgured with

a POST on the resource that runs the probe: the op-

eration is similar to that of the POST method on the

sensor, and consists of the dynamic loading and in-

stantiation of probe threads. Each collector edge runs

in a thread, so that a resource can be the target of sev-

eral collectors.

Thanks to the Ruby expressive power, it turns out

that the code is extremely compact: a few tens of code

lines for each of the relevant threads. In the present

revision, the sensor application is implemented with

71 Ruby lines, the collector thread needs 37 lines, and

the collector edge 27.

The prototype is available on bitbucket (Ciuffo-

letti, 2015c). Follow the instructions to build the VMs

and run a minimal monitoring in a system similar to

the one in ﬁgure 4 that uses the OCCI descriptions in

table 1 and 2. The package contains a few mixins that

can be used for demo purposes. Thanks to its modular

structure, it is possible and easy to implement and ex-

periment new mixins and more complex topologies.

Beyond Nagios - Design of a Cloud Monitoring System

369

Listing 5: Code snippet: WebSocket operation in the sensor.

1 re q ue st . w e bs oc ke t do | w s | # the sensor processes the upgrade request

2 ws . o nop en do

3 p uts " C ol le c to r c on ne ct ed "

4 end

5 ws . o nm es s ag e do | msg | # a new message is received

6 h = JSO N . p a rse ( msg ) # parse the message

7 h . eac h do | chan n el , dat a | # process each <channel,data> pair ...

8 put s " de l iv er #{ da t a } to c ha n ne l #{ c ha nn e l } "

9 s y n c C h a n ne ls [: c ha n ne ls ][ ch an n el . t o _s ym ]. p ush ( d ata ) # ...and route the data

10 end

11 end

12 ws . o nc l os e do

13 p uts " C ol le c to r d i s c o n n e c te d "

14 end

15 end

5 CONCLUSIONS

The Nagios monitoring system is a powerful

tool that had a fundamental role in the man-

agement of scientiﬁc Grids, and it is presently

adopted by main cloud projects, like the EGI

http://www.egi.euhttp://www.egi.eu. However, its de-

sign is deeply inﬂuenced by the original utilization

in Grid infrastructures, and shows its limits when the

complexity of the system scales up to a federation of

cloud providers.

In this paper we start from a study of Nagios to

understand its limits, and proceed with the design

of a new monitoring architecture to overcome them.

Shortly, our proposal aims at a scalable monitor-

ing infrastructure, ﬂexible to accommodate provider’s

needs, and open to accept user requests. At the same

time, we try to keep a conservative approach, consid-

ering that Nagios plugins are a valuable legacy that

should be, as far as possible, reused. From the Nagios

project we also inherit the attention for standards, and

a preference for simple and effective tools.

In this paper we present the basic concepts and a

prototype: in the future we aim at tests in challenging

use cases.

REFERENCES

Ciuffoletti, A. (2015a). Automated deployment of a

microservice-based monitoring infrastructure. In Pro-

ceedings of HOLACONF - Cloud Forward: From Dis-

tributed to Complete Computing, page 10.

Ciuffoletti, A. (2016c). Application level inter-

face for a cloud monitoring service. Com-

puter Standards and Interfaces, 46(2016),

http://dx.doi.org/10.1016/j.csi.2016.01.001.

Ciuffoletti, A. (2015c). Rocmon - OCCI com-

pliant monitoring system in Ruby. https://

augusto ciuffoletti@bitbucket.org/augusto ciuffoletti/

rocmon.git. (git repository).

Edmonds, A., Metsch, T., Papaspyrou, A., and Richardson,

A. (2012). Toward an open cloud standard. IEEE In-

ternet and Computing, 16(4):15–25.

Fielding, R. T. and Taylor, R. N. (2002). Principled design

of the modern web architecture. ACM Trans. Internet

Technol., 2(2):115–150.

Josephsen, D. (2007). Building a Monitoring Infrastructure

with Nagios. Prentice Hall PTR, Upper Saddle River,

NJ, USA.

Mell, P. and Grance, T. (2011). The NIST deﬁnition of

cloud computing. Technical Report Special Publica-

tion 800-145, US Department of Commerce.

Mohamed, M., Belaid, D., and Tata, S. (2013). Moni-

toring and reconﬁguration for OCCI resources. In

Cloud Computing Technology and Science (Cloud-

Com), 2013 IEEE 5th International Conference on,

volume 1, pages 539–546.

OGF (2011). Open Cloud Computing Interface - Core.

Open Grid Forum. Available from www.ogf.org. A

revised version dated 2013 is available in the project

repository.

Tierney, B., Aydt, R., Gunter, D., Smith, W., Swany, M.,

Taylor, V., and Wolski, R. (2002). A grid monitoring

architecture. GWD-I (Informational).

Venticinque, S., Amato, A., and Martino, B. D. (2012). An

OCCI compliant interface for IaaS provisioning and

monitoring. In Leymann, F., Ivanov, I., van Sinderen,

M., and Shan, T., editors, CLOSER, pages 163–166.

SciTePress.

Wolski, R., Spring, N. T., and Hayes, J. (1999). The net-

work weather service: A distributed resource perfor-

mance forecasting service for metacomputing. Future

Gener. Comput. Syst., 15(5-6):757–768.

OCCI 2016 - Special Session on Experiences with OCCI

370
