Enabling GPU Virtualization in Cloud Environments

Sergio Iserte, Francisco J. Clemente-Castell

o, Adri

an Castell

Rafael Mayo and Enrique S. Quintana-Ort

Department of Computer Science and Engineering, Universitat Jaume I, Castell

o de la Plana, Spain

Keywords:

Cloud Computing, GPU Virtualization, Amazon Web Services (AWS), OpenStack, Resource Management.

Abstract:

The use of accelerators, such as graphics processing units (GPUs), to reduce the execution time of compute-

intensive applications has become popular during the past few years. These devices increment the compu-

tational power of a node thanks to their parallel architecture. This trend has led cloud service providers as

Amazon or middlewares such as OpenStack to add virtual machines (VMs) including GPUs to their facilities

instances. To fulﬁll these needs, the guest hosts must be equipped with GPUs which, unfortunately, will be

barely utilized if a non GPU-enabled VM is running in the host. The solution presented in this work is based

on GPU virtualization and shareability in order to reach an equilibrium between service supply and the ap-

plications’ demand of accelerators. Concretely, we propose to decouple real GPUs from the nodes by using

the virtualization technology rCUDA. With this software conﬁguration, GPUs can be accessed from any VM

avoiding the need of placing a physical GPUs in each guest host. Moreover, we study the viability of this

approach using a public cloud service conﬁguration, and we develop a module for OpenStack in order to add

support for the virtualized devices and the logic to manage them. The results demonstrate this is a viable

conﬁguration which adds ﬂexibility to current and well-known cloud solutions.

1 INTRODUCTION

Nowadays, many cloud vendors have started of-

fering virtual machines (VMs) with graphics pro-

cessing units (GPUs) in order to provide GPGPU

(general-purpose GPU) computation services. A

few relevant examples include Amazon Web Ser-

vices (AWS)

, Penguin Computing

, Softlayer

and

Microsoft Azure

. In the public scope, one of the

most popular cloud vendors is AWS, which offers

a wide range of preconﬁgured instances ready to be

launched. Alternatively, owning the proper infrastruc-

ture, a private cloud can be deployed using a speciﬁc

middleware such as OpenStack

or Opennebula

Unfortunately, sharing GPU resources among

multiple VMs in cloud environments is more com-

plex than in physical servers. On one hand, instances

in public clouds are not easily customizable. On

https://aws.amazon.com

http://www.penguincomputing.com

http://www.softlayer.com

https://azure.microsoft.com

https://www.openstack.org

http://opennebula.org

the other, although the instances in a private cloud

can be customized in many aspects, when referring

to GPUs the number of options is reduced. As a

result, neither vendors nor tools offer GPGPU ser-

vices. Remote virtualization has been recently pro-

posed to deal with the low-usage problem. Some rel-

evant examples include rCUDA (Pe

na, 2013), DS-

CUDA (Kawai et al., 2012), gVirtus (Giunta et al.,

2010), vCUDA (Shi et al., 2012), VOCL (Xiao et al.,

2012), and SnuCL (Kim et al., 2012). Roughly

speaking these virtualization frameworks enable clus-

ter conﬁgurations with fewer GPUs than nodes. The

goal is that GPU-equipped nodes act as GPGPU

servers, yielding a GPU-sharing solution that poten-

tially achieves a higher overall utilization of the ac-

celerators in the system.

The main goals of this work are to study current

cloud solutions in an HPC GPU-enabled scenario, and

to analyze and improve them by adding ﬂexibility via

GPU virtualization. In order to reach this goal, we

select rCUDA, a virtualization tool that is possibly the

more complete and up-to-date for NVIDIA GPUs.

The rest of the paper is structured as follows. In

Section 2 we introduce the technologies used in this

work; Section 3 summarizes related work; the effort

Iserte, S., Clemente-Castelló, F., Castelló, A., Mayo, R. and Quintana-Ortí, E.

Enabling GPU Virtualization in Cloud Environments.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 2, pages 249-256

ISBN: 978-989-758-182-3

249

to use AWS is explained in Section 4; while the work

with Openstack is described in Section 5; ﬁnally, Sec-

tion 6 summarizes the advances and Section 7 outlines

the next steps of this research.

2 BACKGROUND

2.1 The rCUDA Framework

rCUDA (Pe

na et al., 2014) is a middleware that en-

ables transparent access to any NVIDIA GPU de-

vice present in a cluster from all compute nodes.

The GPUs can also be shared among nodes, and a

single node can use all the graphic accelerators as

if they were local. rCUDA is structured following

a client-server distributed architecture and its client

exposes the same interface as the regular NVIDIA

CUDA 6.5 release (NVIDIA Corp., ).With this mid-

dleware, applications are not aware that they are ex-

ecuted on top of a virtualization layer. To deal

with new GPU programming models, rCUDA has

been recently extended to accommodate directive-

based models such as OmpSs (Castell

o et al., 2015a)

and OpenACC (Castell

o et al., 2015b). The inte-

gration of remote GPGPU virtualization with global

resource schedulers such as SLURM (Iserte et al.,

2014) completes this appealing technology, making

accelerator-enabled clusters more ﬂexible and energy-

efﬁcient (Castell

o et al., 2014).

2.2 Amazon Web Services

AWS (Amazon Web Services, 2015) is a public cloud

computing provider, composed of several services,

such as cloud-based computation, storage and other

functionality, that enables organizations and/or indi-

viduals to deploy services and applications on de-

mand. These services replace company-owned local

IT infrastructure and provide agility and instant elas-

ticity matching perfectly with enterprise software re-

quirements.

From the point of view of HPC, AWS offers high

performance facilities via instances equipped with

GPUs and high performance network interconnec-

tion.

2.3 OpenStack

OpenStack (OpenStack Foundation, 2015) is a cloud

operating system (OS) that provides Infrastructure as

a Service (IaaS). OpenStack controls large pools of

compute, storage, and networking resources through-

out a datacenter. All these resources are managed

through a dashboard or an API that gives administra-

tors control while empowering their users to provision

resources through a web interface or a command-line

interface. OpenStack supports most recent hypervi-

sors and handles provisioning and life-cycle manage-

ment of VMs. The OpenStack architecture offers ﬂex-

ibility to create a custom cloud, with no proprietary

hardware or software requirements, and the ability to

integrate with legacy systems and third party tech-

nologies.

From the HPC perspective, OpenStack offers high

performance virtual machine conﬁgurations with dif-

ferent hardware architectures. Even though in Open-

Stack it is possible to work with GPUs, the Nova

project does not support this architecture yet.

3 STATE-OF-THE-ART

Our solutions to the deﬁciencies exposed in the pre-

vious section relies on GPU virtualization, sharing

resources in order to attain a fair balance between

supply and demand. While several efforts with the

same goal have been initiated in the past, as exposed

next, none of them is as ambitious as ours. The work

in (Younge et al., 2013) allows the VM managed by

the Xen hypervisor to access the GPUs in a physical

node, but with this solution a node cannot use more

GPUs than those locally hosted, and an idle GPU

cannot be shared with other nodes. The solution

presented by gVirtus (Giunta et al., 2010) virtualizes

GPUs and makes them accessible for any VM in the

cluster. However, this kind of virtualization strongly

depends on the hypervisor, and so does its perfor-

mance. Similar solution is presented in gCloud (Diab

et al., 2013). While this solution is not yet integrated

in a Cloud Computing Manager, its main drawback

is that the application’s code must be modiﬁed in or-

der to run in the virtual-GPU environment. A run-

time component to provide abstraction and sharing of

GPUs is presented in (Becchi et al., 2012), which al-

lows scheduling policies to isolate and share GPUs in

a cluster for a set of applications. The work intro-

duced in (Jun et al., 2014) is more mature; however,

it is only focused on compute-intensive HPC applica-

tions.

Our proposal goes further, not only bringing solu-

tions for all kind of HPC applications, but also aiming

to boost ﬂexibility in the use of GPUs.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

250

4 GPGPU SHARE SERVICE WITH

AWS

4.1 Current Features

4.1.1 Instances

An instance is a pre-conﬁgured VM focused on an

speciﬁc target. Among the large list of instances of-

fered by AWS, we can ﬁnd specialized versions for

general-purpose (T2, M4 and M3); computer science

(C4 and C3); memory (R3); storage (I2 and D2) and

GPU capable (G2). Each type of instance has its own

purpose and cost (price). Moreover, each type offers

a different number of CPUs as well as network in-

terconnection, which can be: low, medium, high or

10Gb. For our study, we worked in the AWS avail-

ability zone US EAST (N. VIRGINIA). The instances

available in that case present the features reported in

Table 1.

Table 1: Shown HPC instances available in US EAST (N.

VIRGINIA) in June 2015.

Name vCPUs Memory Network GPUs Price

c3.2xlarge 8 15 GiB High 0 $ 0.42

c3.8xlarge 32 60 GiB 10 Gb 0 $ 1.68

g2.2xlarge 8 15 GiB High 1 $ 0.65

g2.8xlarge 32 60 GiB 10 Gb 4 $ 2.6

For the following experiments, we select C3 fam-

ily instances, which are not equipped with GPUs, as

clients; whereas instances of the G2 family will act as

GPU-enabled servers.

4.1.2 Networking

Table 1 shows that each instance integrates a different

network. As the bandwidth is critical when GPU vir-

tualization is applied, we ﬁrst perform a simple test to

verify the real network bandwidth.

Table 2: IPERF results between selected instances.

Server Client Network Bandwidth

g2.8xlarge c3.2xlarge High 1 Gb/s

g2.8xlarge c3.8xlarge 10Gb 7.5 Gb/s

g2.8xlarge g2.2xlarge High 1 Gb/s

g2.8xlarge g2.8xlarge 10Gb 7.5 Gb/s

To evaluate the actual bandwidth, we executed the

IPERF

tool between the instances described in Ta-

http://iperf.fr/

ble 1, with the results shown in Table 2. From this

experiment, we can derive that network “High” cor-

responds to a 1 Gb interconnect while “10 Gb” has

a real bandwidth of 7.5 Gb/s. Moreover, it seems

that the bandwidth of the instances equipped with

a “High” interconnection network is constrained by

software to 1 Gb/s since the theoretical and real band-

width match perfectly. The real gap between sus-

tained and theoretical bandwidth can be observed

with the 10 Gb interconnection, which reaches up to

7.5 Gb/s.

4.1.3 GPUs

An instance relies on a VM that runs on a real

node with its own virtualized components. Therefore

AWS can leverage a virtualization framework to of-

fer GPU services to all the instances. Although the

nvidia-smi command indicates that the GPUs in-

stalled are NVIDIA GRID K520, we need to verify

that these are non-virtualized devices. For this pur-

pose, we execute the NVIDIA SDK bandwidthtest.

As shown in Table 3, the bandwidth achieved in this

test is higher than the network bandwidth, which sug-

gests that the accelerator is an actual GPU.

Table 3: Results of bandwidthtest transferring 32MB us-

ing pageable memory in a local GPU.

Name Data Movement Bandwidth

g2.2xlarge Host to Device 3,004 MB/s

g2.2xlarge Device to Host 2,809 MB/s

g2.8xlarge Host to Device 2,814 MB/s

g2.8xlarge Device to Host 3,182 MB/s

4.2 Testbed Scenarios

All scenarios are based on the maximum number of

instances that a user can freely select without sub-

mitting a formal request. In particular, the maximum

number for “g2.2xlarge” is 5; for “g2.8xlarge” it is 2.

Ant the instances operate the RHEL 7.1 64-bit OS and

version 6.5 of CUDA. We design three conﬁguration

scenarios for our tests:

• Scenario A (Figure 1(a)) shows a common con-

ﬁguration in GPU-accelerated clusters, with each

node populated with a single GPU. Here, a node

can access 5 GPUs using the “High” network.

• Scenario B (Figure 1(b)) is composed of 2 server

nodes, equipped with 4 GPUs each, and a GPU-

less client. This scenario includes a 10Gb net-

work, and the client can execute the application

using up to 8 GPUs.

Enabling GPU Virtualization in Cloud Environments

251

• Scenario C (Figure 1(c)) combines scenarios A

and B. A single client, using a 1Gb network inter-

connection, can leverage 13 GPUs as if they were

local.

Once the scenarios are conﬁgured from the point

of view of hardware, the rCUDA middleware needs

to be installed in order to add the required ﬂexibil-

ity to the system. The rCUDA server is executed in

the server nodes and the rCUDA libraries are invoked

from the node that acts as client.

In order to evaluate the network bandwidth us-

ing a remote GPU, we re-applied NVIDIA SDK

bandwidthtest. Table 4 exposes that the bandwidth

is limited by the network.

Table 4: Results of bandwidthtest transferring 32MB us-

ing pageable memory in a remote GPU using rCUDA.

Scenario Data Movement Network Bandwidth

A Host-to-Device High 127 MB/s

A Device-to-Host High 126 MB/s

B Host-to-Device 10 Gb 858 MB/s

B Device-to-Host 10 Gb 843 MB/s

4.3 Experimental Results

The ﬁrst application is MonteCarloMultiGPU, from

the NVIDIA SDK, a code that is compute bound (its

execution barely involves memory operations). This

was launched with the default conﬁguration, “scal-

ing=weak”, which adjusts the size of the problem de-

pending on the number of accelerators. Figure 2 de-

picts the options per second calculated by the appli-

cation running on the scenarios in Figure 1 as well as

using local GPUs. For clarity, we have removed the

results observed for Scenario B as they are exactly the

same as those obtained from Scenario C with up to 8

GPUs. In this particular case, rCUDA (remote GPUs)

outperforms CUDA (local GPUs) because the former

loads the libraries when the daemon is started (Pe

na,

2013). With rCUDA we can observe differences in

the results between both scenarios. Here, Scenario

A can increase the throughput because the GPUs do

not share the PCI bus with other devices as each node

only is equipped with one GPU. On the other hand,

when the 4-GPU instances (“g2.8xlarge”) are added

(Scenario C), the PCI bus constrains the communica-

tion bandwidth, hurting the scalability.

The second application, LAMMPS

, is a classi-

cal molecular dynamics simulator that can be applied

at the atomic, meso, or continuum scale. From the

http://lammps.sandia.gov

implementation perspective, this multi-process appli-

cation employs at least one GPU to host its processes,

but can beneﬁt from the presence of multiple GPUs.

Figure 3(a) shows that, for this application, the use

of remote GPUs does not offer any advantage over

the original CUDA. Furthermore, for the execution

on remote GPUs, the difference between both net-

works is small, although, the results observed with the

“High” network are worse than those obtained with

the “10 Gb” network. In execution of LAMMPS on

a larger problem (see Figure 3(b)), CUDA still per-

forms better, but the interesting point is the execu-

tion time when using remote GPUs. These are almost

the same even with different networks, which indi-

cates that the transfers turn the interconnection net-

work into a bottleneck. For this type of application,

enlarging the problem size compensates the negative

effect of a slower network.

4.4 Discussion

The previous experiments reveal that the AWS GPU-

instances are not appropriate for HPC because nei-

ther the network nor the accelerators are powerful

enough to deliver high performance when running

compute-intensive parallel applications. As (Pe

na,

2013) demonstrates, network and device types are

critical factors to performance. In other words, AWS

is more oriented toward offering a general-purpose

service than to provide high performance. Also, AWS

fails in offering ﬂexibility as it enforces the user to

choose between a basic instance with a GPU and a

powerful instance with 4 GPUs. Table 1 shows that

the resources of the “g2.8xlarge” are quadrupled, but

so is the cost per hour. Therefore, in the case of

having other necessities (instances type), using GPU

virtualization technology we could in principle at-

tach an accelerator to any type of instance. Further-

more, reducing the budget spent in cloud services is

possible by customizing the resources of the avail-

able instances. For example, we can work on an

instance with 2 GPUs for only $ 1.3 by launching

2 “g2.2xlarge” and using remote GPUs, avoiding to

pay the double for features that we do not need in

“g2.8xlarge”. In terms of GPU-shareability, AWS re-

serves GPU-capable physical machines which will be

waiting for a GPU-instance request. Investing in ex-

pensive accelerators to keep them in a standby state is

counter-productive. It makes more sense to dedicate

less devices, accessible from any machine, resulting

in a higher utilization rate.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

252

1 Gb

1 GPU

(a) 5 remote GPUs over 1GbE.

4 GPUs

10 Gb

(b) 8 remote GPUs over 10GbE.

1 Gb

4 GPUs

1 GPU

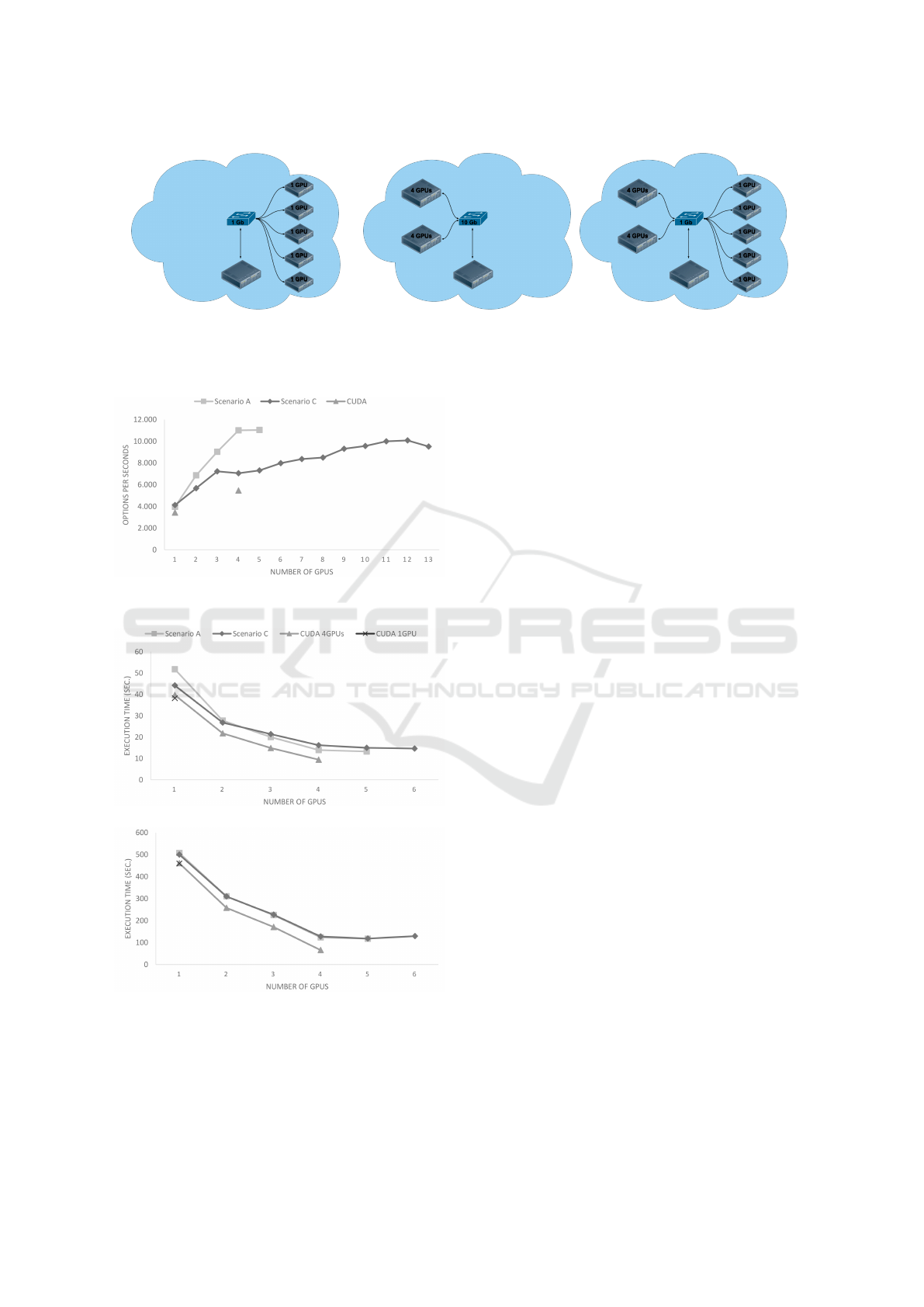

Figure 1: Conﬁgurations where an AWS instance, acting as a client, employs several remote GPUs.

Figure 2: NVIDIA SDK MonteCarloMultiGPU execution

using local (CUDA) and remote (Scenarios A and C) GPUs.

(a) Run size = 100.

(b) Run size = 2000.

Figure 3: Execution time of LAMMPS.

5 GPGPU SHARED SERVICE IN

OPENSTACK

5.1 Managing Remote GPUs with

OpenStack

The main idea is to evolve from the original Open-

Stack architecture (see Figure 4(a)) to a solution

where a new shared service, responsible for the GPU

accelerators, becomes integrated into the architecture

(see Figure 4(b)). This new service brings more ﬂexi-

bility when managing GPUs and new working modes

for GPGPU computation in the Cloud. As illustrated

in Figure 5, we alter the original OpenStack Dash-

board with a new parser, which splits the HTTP query

in order to make use of both the GPGPU API for

GPU-related operations, and the Nova API for the rest

of the computations. The new GPGPU Service grants

access to GPUs in a VM, but also allows the creation

of “GPU-pools”, consisting of a set of independent

GPUs (logically disattached from the nodes) that can

be assigned to one or more VMs.

Thanks to the modular approach of the GPGPU

Service, the Nova Project does not need to be modi-

ﬁed, and the tool can be easily ported to other Cloud

Computing solutions.

5.2 Working Modes

The developed module allows users to set up any of

the scenarios displayed in Figure 6. The users are

given two conﬁguration options to decide whether a

physical GPU will be completely reserved for an in-

stance (ﬁrst column) or the instance will address a

partition of the GPU as if it were a real device (second

column). We refer to this as the “mode”, with possible

values being: “exclusive” or “shared”. Let us assume

there are 4 GPU devices in the cluster (independently

of where they were hosted). An example of these sce-

narios is shown in Figure 6. There, in the “exclusive”

Enabling GPU Virtualization in Cloud Environments

253

(a) Version Icehouse

(b) With GPGPU module

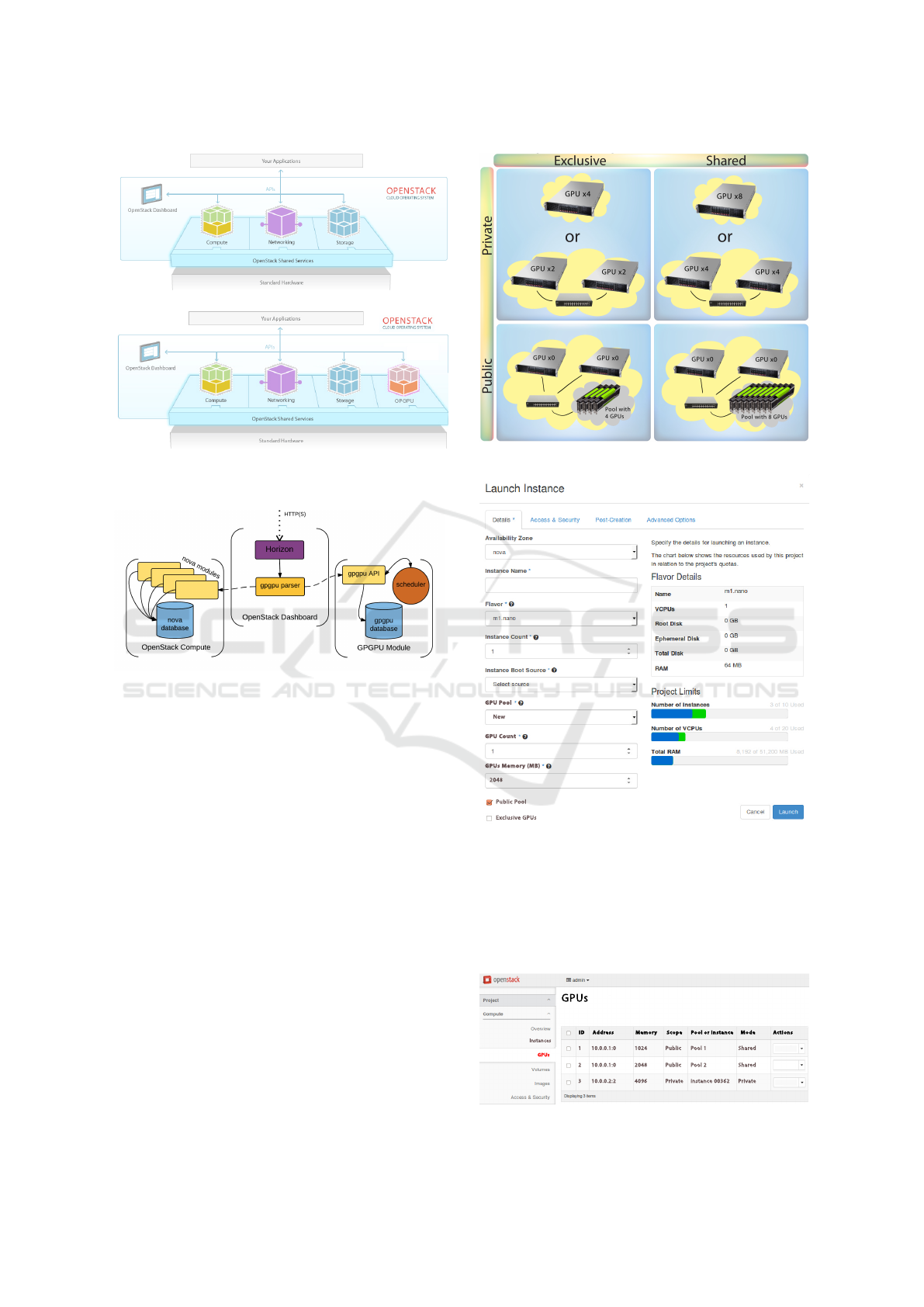

Figure 4: OpenStack Architecture.

Figure 5: Internal Communication among modules.

mode the instance monopolizes all the GPUs; while

in the “shared” mode, the GPUs are partitioned. As a

result of sharing the GPU memory, the instance will

be able to work with up to 8 GPUs, provided that each

partition can be addressed as an independent GPU.

Moreover, the users are also responsible for de-

ciding whether a GPU (or a pool) will be assigned to

other instances. This behavior is refereed as “scope”,

and it determines that a group of instances is logically

connected to a pool of GPUs. Working with the “pub-

lic” scope (bottom row of Figure 6) implies that the

GPUs of a pool can be used simultaneously by all the

instances linked to it. Again, the GPU pool can be

composed of “exclusive” or “shared” GPUs.

5.3 User Interface

In order to deal with the new features, several modi-

ﬁcations have been planned in the OpenStack Dash-

board, they have not been implemented yet, though.

First of all, the Instance Launch Panel should be ex-

tended with a new ﬁeld, where the user could assign

an existing GPU pool, create a new one, or keep the

Figure 6: Examples of working modes.

GPU Pool

New

GPU Count

GPUs Memory (MB)

2048

Public Pool

Exclusive GPUs

Figure 7: Launching Instances and assigning GPUs.

instance without accelerators of this kind. When the

option “New GPU Pool” is chosen, ﬁelds for the pool

conﬁguration would appear (see Figure 7). Further-

more, a new panel with the existent GPUs displays all

the information related to GPUs (see Figure 8).

Instances

GPUs

1 10.0.0.1:0 1024 Public Pool 1 Shared

2 10.0.0.1:0 2048 Public Pool 2 Shared

3 10.0.0.2:2 4096 Private instance 00362 Private

ID Address Memory Scope Pool or Instance Mode Actions

Figure 8: GPU Information Panel.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

254

5.4 Experimental Results

Following tests were executed on 2 sets of nodes us-

ing a 1Gb Ethernet network. All the nodes composed

by an Intel Xeon E7420 quadcore processor, at 2.13

GHz, and 16 GB DDR2 RAM at 667 MHz.

The ﬁrst set, in charge of providing the cloud envi-

ronment, consisted of 3 nodes. To deploy an IaaS, we

used OpenStack Icehouse version, and QEMU/KVM

0.12.1 as the hypervisor. A fully-featured Open-

Stack deployment requires at least three nodes: a con-

troller manages the compute nodes where the VMs

are hosted; a network node manages the logic virtual

network for the VMs, and one or more compute nodes

run the hypervisor and VMs.

The second set, composed of 4 nodes, were aux-

iliary servers with a Tesla C1060 GPU each. The OS

was a Centos 6.6; the GPUs used CUDA 6.5; and

rCUDA v5.0 as GPU virtualization framework.

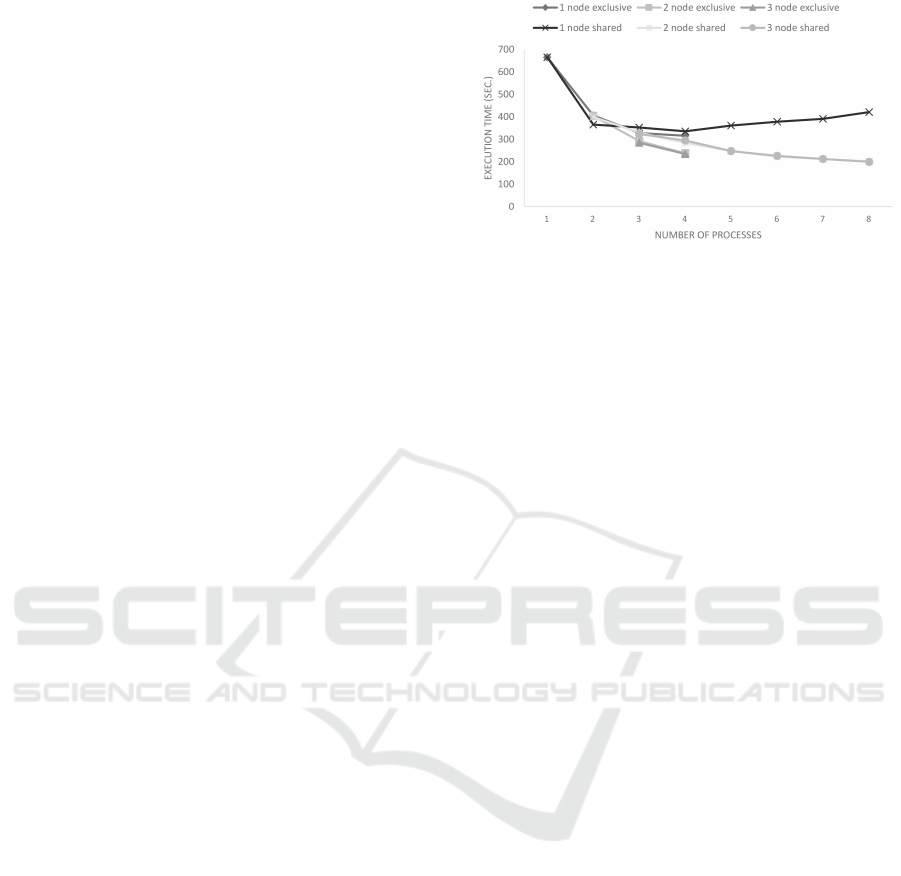

We have designed 6 different set-ups which can

be divided into 2 groups: exclusive and shared GPUs.

The exclusive mode provides, at most, 4 accelerators.

The number of available GPU in shared mode will de-

pend on the partition size. In this case, we halved the

GPU memory, resulting 8 partitions that can be ad-

dressed as independent GPUs. For each group, we de-

ployed virtual clusters of 1, 2 and 3 nodes, where the

application processes were executed. The instances

were launched with the OpenStack predeﬁned ﬂa-

vor m1.medium, which determines a conﬁguration of

VMs consisting of 2 cores and 4 GB of memory.

MCUDA-MEME (Liu et al., 2010) was the appli-

cation selected to test the set-ups. Thus is an MPI

software, where each process must have access to

a GPU. Therefore, the number of GPUs determines

the maximum number of processes we can launch.

Figure 9 compares the execution time of the appli-

cation with different conﬁgurations over different se-

tups. We used up to 3 nodes to spread the processes

and launched up to 8 processes (only 4 in exclusive

mode), one per remote GPU. We can ﬁrst observe that

the performance is higher with more than one node,

because the trafﬁc network is distributed among the

nodes. In addition, the shortest execution time is ob-

tained by both modes (exclusive and shared) when

running their maximum number of processes with

more than one node. This seems to imply that it is not

worth to scale (increase) the number of resources, be-

cause the performance growth rate is barely increas-

ing. Although, the time is lower when the GPUs are

shared, the setup cannot take advantage of an increase

in the number of devices.

Figure 9: Scalability results of MCUDAMEME with a dif-

ferent number of MPI processes.

5.5 Discussion

The network interconnect restricts the performance of

our executions. The analysis in (Pe

na, 2013) reveals

that improving the network infrastructure can make a

big different for GPU virtualization.

The most remarkable achievement is the wide

range of possible conﬁgurations and the ﬂexibility to

adapt a system to ﬁt the user requirements. In addi-

tion, with this virtualization technology, the requests

for GPU devices can be fulﬁlled with small invest-

ment in infrastructure and maintenance. Energy can

be saved not only thanks to the remote access and

the ability to emulate several GPUs using only a few

real ones, but also by consolidating the accelerators

in a single machine (when possible), or turning down

nodes when their GPUs are idle.

6 CONCLUSIONS

We have presented a complete study of the possibil-

ities offered by AWS when it comes to GPUs. The

constraints imposed by this service motivated us to

deploy our own private cloud, in order to gain ﬂexibil-

ity when dealing with these accelerators. For this pur-

pose, we have introduced an extension of OpenStack

which can be easily exploited to create GPU-instances

as well as manage the physical GPUs to better proﬁt.

As we expected, due to the limited bandwidth of

the interconnects used in the experimentation, the per-

formances observed for the GPU virtualized scenarios

in the tests were quite low. On the other hand, we

have created new operation modes that open interest-

ing new ways to leverage GPUs in situations where

having access to a GPU is more important than hav-

ing a powerful GPU to boost the performance.

Enabling GPU Virtualization in Cloud Environments

255

7 FUTURE WORK

The ﬁrst item in the list of pending work is an up-

grade of the network to an interconnect that is more

prone to HPC. In particular, porting the setup and the

tests to an infrastructure with an Inﬁniband network

will shed light on the viability of this kind of solu-

tions. Similar reasons, motivate us to try other Cloud

vendors which better support for HPC. Looking for

situations where performance is less important than

ﬂexibility will drive us to explore alternative tools to

easily deploy GPU-programming computer labs.

Finally, an interesting future work is to design new

strategies in order to decide where a remote GPUs is

created and assigned to a physical device Concretely,

to innovate scheduling policies can enhance the ﬂexi-

bility offered by the GPGPU module for OpenStack.

ACKNOWLEDGEMENTS

The authors would like to thank the IT members of

the department Gustavo Edo and Vicente Roca for

their help. This research was supported by Universitat

Jaume I research project (P11B2013-21); and project

TIN2014-53495-R from MINECO and FEDER. The

initial version of rCUDA was jointly developed by

Universitat Polit

ecnica de Val

encia (UPV) and Uni-

versitat Jaume I de Castell

on until year 2010. This

initial development was later split into two branches.

Part of the UPV version was used in this paper

and it was supported by Generalitat Valenciana un-

der Grants PROMETEO 2008/060 and Prometeo II

2013/009.

REFERENCES

Amazon Web Services (2015). Amazon web services.

http://aws.amazon.com. Accessed: 2015-10.

Becchi, M., Sajjapongse, K., Graves, I., Procter, A., Ravi,

V., and Chakradhar, S. (2012). A virtual memory

based runtime to support multi-tenancy in clusters

with GPUs. In 21st Int. symp. on High-Performance

Parallel and Distributed Computing.

Castell

o, A., Duato, J., Mayo, R., Pe

na, A. J., Quintana-

Ort

ı, E. S., Roca, V., and Silla, F. (2014). On the use

of remote GPUs and low-power processors for the ac-

celeration of scientiﬁc applications. In The Fourth Int.

Conf. on Smart Grids, Green Communications and IT

Energy-aware Technologies, pages 57–62, France.

Castell

o, A., Mayo, R., Planas, J., and Quintana-Ort

ı, E. S.

(2015a). Exploiting task-parallelism on GPU clusters

via OmpSs and rCUDA virtualization. In I IEEE Int.

Workshop on Reengineering for Parallelism in Het-

erogeneous Parallel Platforms, Helsinki (Finland).

Castell

o, A., Pe

na, A. J., Mayo, R., Balaji, P., and Quintana-

Ort

ı, E. S. (2015b). Exploring the suitability of re-

mote GPGPU virtualization for the OpenACC pro-

gramming model using rCUDA. In IEEE Int. Con-

ference on Cluster Computing, Chicago, IL (USA).

Diab, K. M., Raﬁque, M. M., and Hefeeda, M. (2013). Dy-

namic sharing of GPUs in cloud systems. In Parallel

and Distributed Processing Symp. Workshops & PhD

Forum, 2013 IEEE 27th International.

Giunta, G., Montella, R., Agrillo, G., and Coviello, G.

(2010). A GPGPU transparent virtualization compo-

nent for high performance computing clouds. In Euro-

Par, Parallel Processing, pages 379–391. Springer.

Iserte, S., Castell

o, A., Mayo, R., Quintana-Ort

ı, E. S.,

Rea

no, C., Prades, J., Silla, F., and Duato, J. (2014).

SLURM support for remote GPU virtualization: Im-

plementation and performance study. In Int. Sym-

posium on Computer Architecture and High Perfor-

mance Computing, Paris, France.

Jun, T. J., Van Quoc Dung, M. H. Y., Kim, D., Cho, H.,

and Hahm, J. (2014). GPGPU enabled HPC cloud

platform based on OpenStack.

Kawai, A., Yasuoka, K., Yoshikawa, K., and Narumi, T.

(2012). Distributed-shared CUDA: Virtualization of

large-scale GPU systems for programmability and re-

liability. In The Fourth Int. Conf. on Future Computa-

tional Technologies and Applications, pages 7–12.

Kim, J., Seo, S., Lee, J., Nah, J., Jo, G., and Lee, J.

(2012). SnuCL: an OpenCL framework for hetero-

geneous CPU/GPU clusters. In Int. Conf. on Super-

computing (ICS).

Liu, Y., Schmidt, B., Liu, W., and Maskell, D. L. (2010).

CUDA-MEME: Accelerating motif discovery in bio-

logical sequences using CUDA-enabled graphics pro-

cessing units. Pattern Recognition Letters, 31(14).

NVIDIA Corp. CUDA API Reference Manual Version 6.5.

OpenStack Foundation (2015). OpenStack.

http://www.openstack.org. Accessed: 2015-10.

na, A. J. (2013). Virtualization of accelerators in high

performance clusters. PhD thesis, Universitat Jaume

I, Castellon, Spain.

na, A. J., Rea

no, C., Silla, F., Mayo, R., Quintana-Ort

ı,

E. S., and Duato, J. (2014). A complete and efﬁcient

CUDA-sharing solution for HPC clusters. Parallel

Computer, 40(10).

Shi, L., Chen, H., Sun, J., and Li, K. (2012). vCUDA:

GPU-accelerated high-performance computing in vir-

tual machines. IEEE Trans. on Comput., 61(6).

Xiao, S., Balaji, P., Zhu, Q., Thakur, R., Coghlan, S., Lin,

H., Wen, G., Hong, J., and Feng, W. (2012). VOCL:

An optimized environment for transparent virtualiza-

tion of graphics processing units. In Innovative Paral-

lel Computing. IEEE.

Younge, A. J., Walters, J. P., Crago, S., and Fox, G. C.

(2013). Enabling high performance computing in

cloud infrastructure using virtualized GPUs.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

256
