Performance of Interest Point Descriptors

on Hyperspectral Images

Przemysław Głomb and Michał Cholewa

Institute of Theoretical and Applied Informatics, Polish Academy of Sciences,

Bałtycka 5, 44-100 Gliwice, Poland

Keywords:

Hyperspectral Images, Interest Point Descriptors, SIFT, SURF, ORB, BRISK.

Abstract:

Interest point descriptors (e.g. Scale Invariant Feature Transform, SIFT or Speeded-Up Robust Features,

SURF) are often used both for classic image processing tasks (e.g. mosaic generation) or higher level machine

learning tasks (e.g. segmentation or classiﬁcation). Hyperspectral images are recently gaining popularity as

a potent data source for scene analysis, material identiﬁcation, anomaly detection or process state estimation.

The structure of hyperspectral images is much more complex than traditional color or monochrome images,

as they comprise of a large number of bands, each corresponding to a narrow range of frequencies. Because

of varying image properties across bands, the application of interest point descriptors to them is not straight-

forward. To the best of our knowledge, there has been, to date, no study of performance of interest point

descriptors on hyperspectral images that simultaneously integrate a number of methods and use a dataset with

signiﬁcant geometric transformations. Here, we study four popular methods (SIFT, SURF, BRISK, ORB) ap-

plied to complex scene recorded from several viewpoints. We presents experimental results by observing how

well the methods estimate the 3D cameras’ positions, which we propose as a general performance measure.

1 INTRODUCTION

Computer vision applications such as image regis-

tration, stereo matching, object and texture recogni-

tion, image retrieval, robot simultaneous location and

mapping (SLAM) require working with images of

the same scene that were taken at different locations

and times. Changes in geometry, scene composition,

lighting, sensors used to capture images introduce de-

formations in pixel structure that require specialized

algorithms to process. A successful and established

approach for this is to use local features (Mikolajczyk

and Schmid, 2005; Moreels and Perona, 2007): locate

image points with unique characteristics of local pixel

neighbourhood, generate their signature descriptors,

then match those descriptors across different images.

As descriptors are engineered to be robust to potential

degradations (Lowe, 2004; Bay et al., 2008) (afﬁne

transformations, change of geometry,noise, light etc.)

the result should be a match of local areas in two im-

ages with high degree of certainty. This match forms

the base of subsequent processing, which could be de-

tecting the presence of certain objects in images or es-

timating the geometric transformation between them,

e.g. a homography.

Hyperspectral images combine the spatial dimen-

sion of traditional photography with spectral dimen-

sion of spectrographs. The recorded spectral data is

the result of an interaction of light with surfaces of

objects in the scene, thus can be used to identify the

materials much more reliably than RGB information.

Because of the physical properties of this recording

setting, the images from each band (each being es-

sentially a monochromaticbitmap) differin properties

(Mukherjee et al., 2009): amount and characteristics

of noise, level of blur, more or less pronounced fea-

tures (e.g. edges) at given spatial position.

Since their introduction, the local interest point

descriptors have been subject of numerous

applica-

tions and comparisons studies. Various techniques

are used for their computation, including Difference

of Gaussians (DoG) ﬁlter and image gradients (Lowe,

2004), Haar-like features from integral images (Bay

et al., 2008) or local intensity comparisons (Leuteneg-

ger et al., 2011; Rublee et al., 2011). High dimen-

sional descriptors have been shown to be more ro-

bust to geometric transformations than region corre-

As of 2015, the paper introducing one of the most pop-

ular methods (SIFT descriptor) has already over 30K cita-

tions (source: Google Scholar).

200

Głomb, P. and Cholewa, M.

Performance of Interest Point Descriptors on Hyperspectral Images.

DOI: 10.5220/0005785001980203

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 3: VISAPP, pages 200-205

ISBN: 978-989-758-175-5

lation (Mikolajczyk and Schmid, 2005). Their per-

formance is consistent across different experimental

settings (Moreels and Perona, 2007). At the same

time, while there have been extensions to multispec-

tral images (see e.g. (Brown and Susstrunk, 2011)),

the studies performed on hyperspectral images have

been comparatively limited. Hyperspectral images

substantially differ from RGB or monochromeimages

because of, among else, much larger data size, vary-

ing performance of sensor of different frequencies,

complex statistical relationships between recorded

spectra, variation in data resulting from push-broom

recording scheme, and varying noise across frequency

spectrum (Mukherjee et al., 2009; Vakalopoulou and

Karantzalos, 2014). While they can be reduced to

monochrome images (that could be a simple input

to classical interest point algorithms), that conver-

sion is not trivial and could lose structural information

(Dorado-Munoz et al., 2012). Most approaches in hy-

perspectral domain are based on the SIFT algorithm:

as classiﬁcation support (Xu et al., 2008), algorithm

extension (Mukherjee et al., 2009; Dorado-Munoz

et al., 2012), aligning image strips for change detec-

tion (Ringaby et al., 2010) or optimizing parameters

for hyperspectral image matching (Sima and Buckley,

2013). A different approach is taken in (Vakalopoulou

and Karantzalos, 2014), where SIFT and SURF are

combined in working with spectral bands groups.

We identify two important practical shortcom-

ings of current studies. One is the lack of in-

cluding a signiﬁcant geometric deformations in the

test data set–currently used images differ by time

of acquisition and selected afﬁne parameters only

(translation (Mukherjee et al., 2009; Ringaby et al.,

2010; Dorado-Munoz et al., 2012; Vakalopoulou

and Karantzalos, 2014) and scale (Dorado-Munoz

et al., 2012)), obtained by down-looking satellite or

plane-mounted camera. The only exception is (Sima

and Buckley, 2013), where tripod-acquired geologi-

cal data show some geometric deformations. The sec-

ond problem is the lack of comparing side-by-side the

performance of different methods. The focus is com-

monly on only one method, even at veriﬁcation stage

(Xu et al., 2008; Mukherjee et al., 2009; Ringaby

et al., 2010; Dorado-Munoz et al., 2012; Sima and

Buckley, 2013). The one exception is (Vakalopoulou

and Karantzalos, 2014), where SIFT and SURF are

compared.

Our focus in this paper is the investigation of

performance of interest point descriptors on hyper-

spectral images of a 3D scene. We make two novel

contributions: ﬁrst, we compare four separate de-

scriptor algorithms: SIFT (Lowe, 2004), SURF (Bay

et al., 2008), ORB (Rublee et al., 2011) and BRISK

(Leutenegger et al., 2011); second, we use a specially

prepared dataset of scene of mixed natural and man-

made objects, imagined from different view points.

Our experimental setting is as follows: we use the in-

terest point algorithms to detect and match points in

two images, then evaluate them based on quality of

estimation of relative 3D camera positions.

This paper is organized as follows: next section

presents the experimental setting. The results are

presented in the third section, and the last section

presents discussion and concluding remarks.

2 METHODS

Data Set. To compare the descriptors, we use a spe-

cially prepared data set that allows to test image pro-

cessing methods on images with signiﬁcant geometric

deformations, resulting from hyperspectral imagining

a 3D scene with total viewpoint change of about 45

To our best knowledge, this is the ﬁrst dataset of such

kind.

We use a scene (cf. Figure 1) containing both nat-

ural and artiﬁcial fruits of several categories. This

produces images rich in structure in both visual and

NIR spectral ranges (in the former, color based edges

are the strongest, in the latter, neighborhoods of

materials of different types). The scene also con-

tains checkerboard-type markers for calibration and

ground-truth estimation, and Munsell grey panel for

light calibration. The scene is lighted with multi point

halogen light, supported by UV lamp (Omnilux CFL

UV 25W with color temperature 6000 UV K). Images

are recorded with Surface Optics SOC-710VP 375-

1045 nm camera from ﬁve points. The angle steps

are at ≈ 11

intervals, this choice is based on analy-

sis of (Moreels and Perona, 2007), where it has been

observed that viewpoint change of more than at 30

drastically reduces the feature matching effectiveness.

Descriptors. For comparison, we select four de-

scriptors: SIFT (Lowe, 2004) and SURF (Bay et al.,

2008) because of their popularity and reported good

performance; and ORB (Rublee et al., 2011) and

BRISK (Leutenegger et al., 2011), proposed as alter-

native descriptors with good time efﬁciency. We used

the implementations available in the OpenCV library

(Bradski, 2000). For matching, we use ratio ﬁltering

(Lowe, 2004): we only consider points for which the

ratio of distance to ﬁrst and to second nearest neigh-

bour is lower than r

= 0.8, thus excluding points that

could be well matched to several locations.

The dataset will be made available on-line, link re-

moved for anonymization purposes.

Performance of Interest Point Descriptors on Hyperspectral Images

201

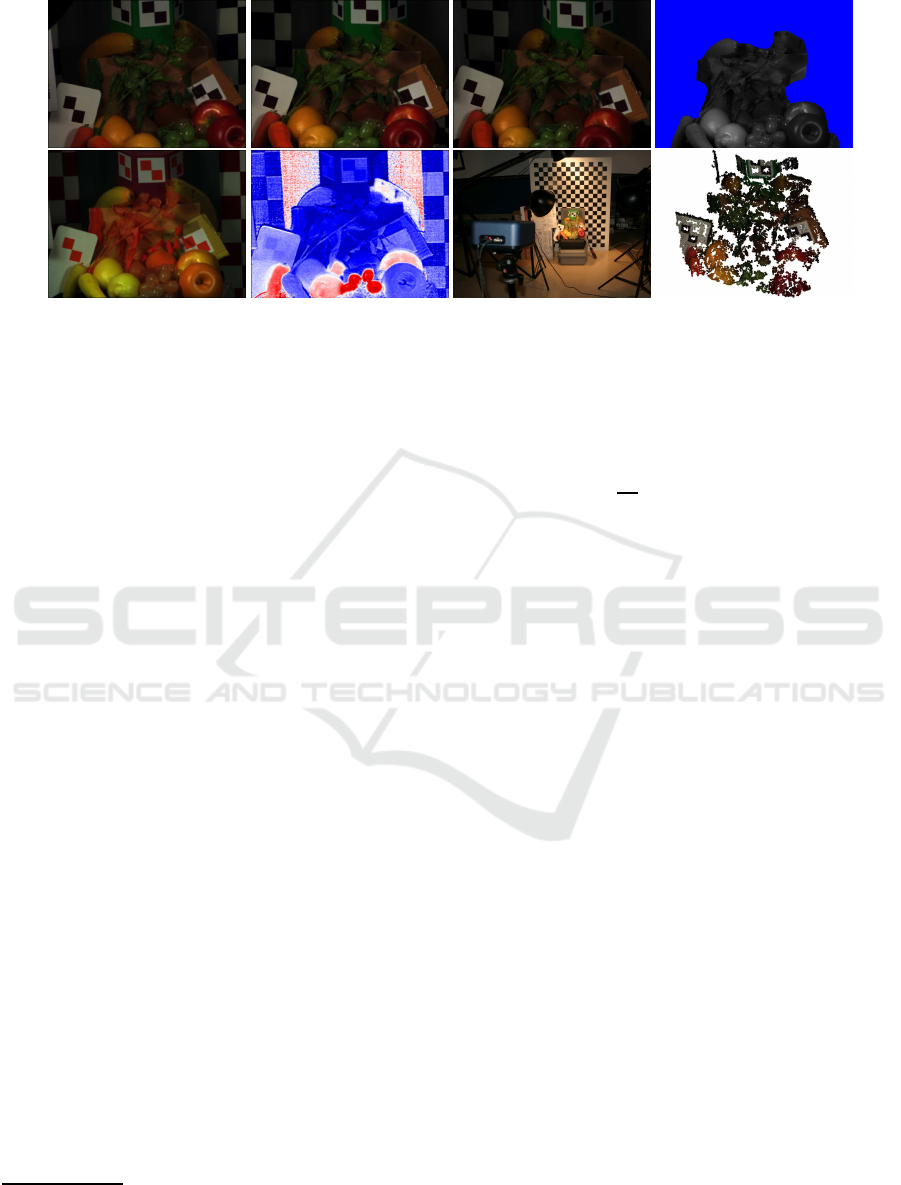

Figure 1: Renderings of the scene used in the experiment. Top row: color RGB renderings from three separate angles and the

mask used for removing calibration markers. Bottom row: false color NIR (Near Infrared), 1000nm bands, acquisition setting

(one of camera locations) and an example 3D point cloud computed from matched keypoints. Note the easy separation of

artiﬁcial (plastic) and natural (food) objects on the 1000nm band image, which is much more difﬁcult on visual band range.

Experiment. While there exist a number of dif-

ferent methods that are used for evaluating descrip-

tor performance (see e.g.(Mikolajczyk and Schmid,

2005; Moreels and Perona, 2007)) we argue that in

most practical applications, one is interested either in

extracting 3D scene parameters, or in object recogni-

tion. We focus on the former problem, as it usually

has more general (less application speciﬁc) formula-

tion. Also, the quality of 3D estimation veriﬁes de-

scriptors’ sensitivity to actual scene information over

acquisition conditions. The 3D scene estimation from

uncalibrated images is recently becoming a popular

application of image processing methods. It involves

recovering sparse or dense scene 3D point cloud and

camera parameters, from a sequence of images in pro-

cess called Structure From Motion (SFM). For this

task, technique of Bundle Adjustment (see e.g. (Wu

et al., 2011)) is often selected.

We propose a simple evaluation scheme, which

measures the relative error of estimating 3D camera

position. We argue that while individual measures

(e.g. repeatability, stability) are important for quali-

tative assessment of algorithms performance, the ﬁ-

nal application result is very often of key importance.

In case of 3D reconstruction, the quality can be mea-

sured on how well the scene parameters are estimated,

e.g. with reference to ground truth data. Camera posi-

tions are a good benchmark because their precise esti-

mation leads to high quality of the scene point cloud,

and at the same time the position error in 3D is simple

and intuitive. As the scene parameters are estimated

up to a translation and scale factor, the error of cam-

era estimation may be misleading in some cases

, we

Initial experiments suggested that distortion in relative

position estimation is a better quality predictor of the ﬁnal

point cloud than absolute position.

propose a performance measure based on error of rel-

ative camera position estimation:

ε =

∑

(i, j),i6= j

−

′

(1)

where

= ~c

−~c

is the true, and

′

= ~c

′

−~c

′

esti-

mated distance between positions of cameras i and j;

is the number of camera pairs combinations.

We estimate the true positions–ground truth for

the experiments–using semi-automatic point selection

(user assisted with automatic reﬁnement) from cali-

bration markers, inspired and in part similar to ear-

lier work on descriptor comparison (Mikolajczyk and

Schmid, 2005; Moreels and Perona, 2007).

For given range of bands from hyperspectral im-

ages and parametrized descriptor algorithm, we pro-

ceed as follows:

1. Locate interest points and compute descriptors

separately in each image. Only the scene data is

used; calibration markers are masked out (see Fig-

ure 1).

2. For each pair of images, descriptor matches are

computed using Euclidean or Hamming norm (de-

pending on descriptor algorithm) and ﬁltered us-

ing neigborhood ratio r

= 0.8.

3. Matched interest points are input to the SFM algo-

rithm, where 3D scene parameters are estimated.

Relative camera positions are measured, and com-

pared with estimated ground truth.

We use VisualSFM (Wu, 2011) software for 3D

scene estimation, as it was easy to integrate with ex-

periment suite and was found to perform well in the

initial tests. The experiments are performed sepa-

rately for different groups of bands (UV, visual, near

infrared range).

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

202

Table 1: Performance of interest point descriptors, as measured with relative camera position estimation. Columns

denote results for given spectral range, rows descriptor algorithms with set parameters (see text). Errors are given

as percentage of a camera model estimated (related to number of cameras identiﬁed) and mean of their relative

errors of cameras’ distances measurement (brackets). ‘–’ denotes that camera model estimation did not converge,

in most cases because lack of enough stable feature correspondences.

VIS

VIS-B

VIS-G

VIS-R

NIR

NIR-1

NIR-2

NIR-3

SIFT-A 100% (1.15) – 100% (0.39) 100% (0.49) – 100% (0.37) – 10% (2.32)

SIFT-B

100% (1.93) 60% (1.91) 100% (0.45) 60% (2.33) 10% (0.47) 100% (1.22) 10% (0.71) 100% (0.66)

SIFT-C

60% (2.00) – 100% (1.04) 100% (3.95) – 100% (0.55) – 10% (2.13)

SURF-100

100% (1.50) 10% (0.47) 100% (0.71) 100% (0.58) 10% (1.00) 100% (2.97) – 100% (0.33)

SURF-300

30% (0.77) – 100% (0.48) 60% (7.80) – 30% (2.33) – 10% (2.35)

SURF-500

30% (2.60) – 60% (1.90) 100% (6.24) – 30% (0.63) – –

BRISK-5

10% (2.54) 10% (2.37) 10% (0.91) 10% (1.16) – 10% (2.22) – –

ORB

10% (2.41) – 10% (2.36) 10% (2.36) – – – –

Visual spectral ranges: all 400−700nm, bands 6−63; blue 400−500nm, bands 6− 24; green

500− 590nm, bands 25− 42; red 590− 700nm, bands 64− 82.

Near infrared ranges: all 700− 1050nm, bands 64− 127; sub-range 1 is 700− 800nm, bands 64− 82;

sub-range 2 is 800− 900nm, bands 82− 100; sub-range 3 is 900− 150nm, bands 101− 127.

3 RESULTS

Parameters. Interest point descriptor algorithms typ-

ically have a number of parameters, e.g. related

to sensitivity of the detector or type of description

generated. For SIFT method, we use the following

sets of parameters: original values as recommended

in (Lowe, 2004) (SIFT-A); modiﬁcation of σ =

1.0, contrastThreshold = 0.02,edgeThreshold = 10

based on results of (Sima and Buckley, 2013) (SIFT-

B); and modiﬁcation of σ = 1.0 as proposed in

(Vakalopoulou and Karantzalos, 2014) as more sensi-

tive version (SIFT-C). For SURF method, we observe

that the main parameter inﬂuencing the result is the

Hessian threshold h; implementation (Bradski, 2000)

uses default h = 100 and recommends h ∈ (300, 500),

following that we deﬁne three sets of parameters de-

noted as SURF-100, -300, -500. For BRISK method,

we use the threshold parameter t; proposed value of

t = 30 has been observed to generate small number

of keypoints, so we introduce two other values t = 15

and t = 5 to increase sensitivity, ﬁnal sets are denoted

as BRISK-30, -15 and -5. For ORB method, we use

original recommended parameters (ORB-A), version

with FAST detector instead of Harris (ORB-F), and

version with increased patchSize and edgeThreshold

to p

= 51 (ORB-ps), to improve detection on noisy

bands.

As the SFM algorithm is probabilistic in nature,

it was run n = 10 times for each case and the best

model was selected–this correspond to typical usage

scenario.

Test Data. The resulting hyperspectral image set

comprises of ﬁve images of dimensions 696 × 520 ×

128, the last dimension corresponds to spectral range

375− 1045nm, with average spectral resolution close

to 5nm and 12 bits of precision. Spectral data at

each pixel is normalized to enhance contrast. For

input to descriptor algorithms, individual bands are

aggregated into groups: (partial) ultraviolet range,

375 − 400nm, bands 1 − 6 and four visual and four

near infrared ranges (see Table 1 notes). The objec-

tive is to reduce noise persistent in individual bands,

while retaining ability to observe performance on dif-

ferent parts of spectral range.

Camera Position Estimation Errors. The results

are presented in Table 1. As it can be expected, esti-

mation of 3D scene parameters from medium-to-low

resolution of hyperspectral camera is a challenging

task for all tested algorithms. In many cases (denoted

‘-’) the number of matched points was not enough

for parameter estimation. In other cases, only some

of cameras were properly identiﬁed–to signify this, a

percentage score was added to the error to show how

many relative camera positions could be processed.

Acceptability criteria could be formulated as score of

100% with error close to zero. We note that SIFT

and SURF outperform the BRISK and ORB methods,

with SIFT marginally ahead of SURF in the visual

ranges. Post experiment analysis suggests that per-

formance of ORB suffered because of low number of

detected points, while for BRISK it was high number

of similar matches.

Sensitivity to Spectral Range. Due to varying

degree of blur, noise, and changing scene spectral

characteristics with frequency, the responses of each

feature algorithm have a lot of variance. In particu-

lar the UV range, even with additional light, was too

noisy to produce estimates for any methods. Difﬁ-

cult range was also whole and middle of near infrared

Performance of Interest Point Descriptors on Hyperspectral Images

203

(NIR and NIR-2), which have a low contrast; how-

ever, when separated the NIR-1 and NIR-3 ranges are

reliable for estimation. This is expected as scene con-

tains both natural and man-made objects, thus their

materials’ reﬂectances differ in narrow sub-ranges of

the NIR range. Visual range performs best, especially

the VIS-G region, where contrast, sharpness and sig-

nal to noise ratio is at maximum. It is important to

note that the performance in different spectral ranges

is dependent on scene composition, but in general

similar performance can be observed in visual and se-

lected bands of the NIR range.

Sensitivity to Parameters. Standard SIFT-A pa-

rameters perform well, as expected, for visual range.

Increasing sensitivity improves estimation in the far

NIR-3 range, however it must be done with cau-

tion, as can be observed on results of SIFT-B and

-C. Both have been proposed as more sensitive and

hyperspectral-tuned versions, yet the C loses perfor-

mance in the visual range. For SURF, increased sen-

sitivity translates in general to better performance.

Similarly for BRISK, where only the -5 parameter

set was considered, as remaining produced too many

convergence errors. For ORB, modiﬁcations of rec-

ommended parameters (ORB-F, ORB-ps) did not pro-

duce improvement in performance.

4 DISCUSSION

Individual Method Performance. While the exact

numbers allow to create ranking list of methods, the

large variability suggests less strict categorization. It

seems that performance of SIFT and SURF is compa-

rable, and better than BRISK and ORB. For the lat-

ter two methods, the performance could be perhaps

improved by exhaustive parameter optimization com-

bined with image preprocessing. This may be im-

portant in practical applications, as ORB and espe-

cially BRISK are much faster than remaining meth-

ods, which can be of use as hyperspectral cameras

produce naturally high volume of data. Increased sen-

sitivity through parameter settings does seem to be a

good strategy; this is similar as reported in (Sima and

Buckley, 2013).

The Characteristics of Hyperspectral Images.

The complex properties of hyperspectral images have

large inﬂuence on method performance. While per-

band strategy can be effective in locating various sta-

ble features (e.g. color boundaries in VIS region

or material edges in NIR range), the change of im-

age properties makes the performance of methods un-

even. As for scene composition, there’s a known

effect of scene-dependent performance (cf. conclu-

sions in (Moreels and Perona, 2007)); the adaptation

of methods to characteristics of hyperspectral images

and inclusion of other types of objects will be the sub-

ject of further studies.

Relation to other Works. Our results are in gen-

eral agreement with analysis done for ‘regular’ im-

ages (Mikolajczyk and Schmid, 2005; Moreels and

Perona, 2007). In particular, we afﬁrm the per-

formance and robustness of the SIFT descriptor for

hyperspectral images. This supports the research

done on extending or applying SIFT to hyperspec-

tral images (Xu et al., 2008; Mukherjee et al., 2009;

Ringaby et al., 2010; Dorado-Munoz et al., 2012). We

note, however, that there’s a high chance of attain-

ing similar level of performance with the SURF algo-

rithm. With regards to (Vakalopoulou and Karantza-

los, 2014), we don’t see their level of error when

using standard SIFT or SURF parameters in the vi-

sual spectral range. On the contrary, this is the re-

gion where both methods perform quite well; this is

in fact expected, as bands in visual range are close to

grayscale images used to derive original parameters.

One possible reason for this difference could be some

unique properties of the capturing equipment or imag-

ined scenes used by (Vakalopoulou and Karantzalos,

2014). Our study is less investigative in the inter-

play of different parameters than (Sima and Buckley,

2013), as we have not one, but four different parame-

ter sets to analyze.

Conclusions. We’ve presented a performance

analysis of several interest point descriptor methods

as applied to hyperspectral images in a novel set-

ting. We show the SIFT and SURF both produce quite

good results across bands. Application of BRISK and

ORB, while faster, did not result in stable 3D estima-

tion from this type of images. For improving perfor-

mance of descriptors on hyperspectral data, we rec-

ommend increasing sensitivity through parameter set-

tings, and location of informative spectral ranges, e.g.

with prior knowledge or additional preprocessing.

ACKNOWLEDGEMENTS

This work has been supported by the project ‘Rep-

resentation of dynamic 3D scenes using the Atomic

Shapes Network model’ ﬁnanced by National Science

Centre, decision DEC-2011/03/D/ST6/03753.

REFERENCES

Bay, H., Ess, A., Tuytelaars, T., and Gool, L. V. (2008).

Speeded-up robust features (SURF). Computer Vision

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

204

and Image Understanding, 110(3):346 – 359. Simi-

larity Matching in Computer Vision and Multimedia.

Bradski, G. (2000). The OpenCV library. Dr. Dobb’s Jour-

nal of Software Tools.

Brown, M. and Susstrunk, S. (2011). Multi-spectral SIFT

for scene category recognition. In 2011 IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 177–184.

Dorado-Munoz, L., Velez-Reyes, M., Mukherjee, A., and

Roysam, B. (2012). A vector SIFT detector for in-

terest point detection in hyperspectral imagery. IEEE

Transactions on Geoscience and Remote Sensing,

50(11):4521–4533.

Leutenegger, S., Chli, M., and Siegwart, R. Y. (2011).

BRISK: Binary robust invariant scalable keypoints. In

Proceedings of the International Conference on Com-

puter Vision (ICCV).

Lowe, D. (2004). Distinctive image features from scale-

invariant keypoints. International Journal of Com-

puter Vision, 60(2):91–110.

Mikolajczyk, K. and Schmid, C. (2005). A perfor-

mance evaluation of local descriptors. IEEE Trans-

actions on Pattern Analysis and Machine Intelligence,

27(10):1615–1630.

Moreels, P. and Perona, P. (2007). Evaluation of features

detectors and descriptors based on 3d objects. Inter-

national Journal of Computer Vision, 73(3):263–284.

Mukherjee, A., Velez-Reyes, M., and Roysam, B. (2009).

Interest points for hyperspectral image data. IEEE

Transactions on Geoscience and Remote Sensing,

47(3):748–760.

Ringaby, E., Ahlberg, J., Wadstr¨omer, N., and Forss´en, P.-E.

(2010). Co-aligning aerial hyperspectral push-broom

strips for change detection. In Proc. SPIE, volume

7835, pages 78350Y–78350Y–7.

Rublee, E., Rabaud, V., Konolige, K., and Bradski, G.

(2011). ORB: an efﬁcient alternative to SIFT or

SURF. In Proceedings of the International Confer-

ence on Computer Vision (ICCV).

Sima, A. A. and Buckley, S. J. (2013). Optimizing SIFT

for matching of short wave infrared and visible wave-

length images. Remote Sensing, 5(5):2037–2056.

Vakalopoulou, M. and Karantzalos, K. (2014). Automatic

descriptor-based co-registration of frame hyperspec-

tral data. Remote Sensing, 6(4):3409–3426.

Wu, C. (2011). VisualSFM: A visual structure from motion

system. http://ccwu.me/vsfm/.

Wu, C., Agarwal, S., Curless, B., and Seitz, S. (2011). Mul-

ticore bundle adjustment. In Computer Vision and Pat-

tern Recognition (CVPR), 2011 IEEE Conference on,

pages 3057–3064.

Xu, Y., Hu, K., Tian, Y., and Peng, F. (2008). Classiﬁca-

tion of hyperspectral imagery using SIFT for spectral

matching. In 2008 Congress on Image and Signal Pro-

cessing, CISP ’08., volume 2, pages 704–708.

Performance of Interest Point Descriptors on Hyperspectral Images

205
