Quantifying the Speciﬁcity of Near-duplicate

Image Classiﬁcation Functions

Richard Connor

and Franco Alberto Cardillo

Department of Computer and Information Sciences, University of Strathclyde, Glasgow, G1 1XH, Scotland

Istituto di Scienza e Tecnologie dell’Informazione, Consiglio Nazionale delle Ricerche, Pisa, Italy

Keywords:

Near-duplicate Image Detection, Benchmark, Image Similarity Function, Speciﬁcity, Forensic Image Detec-

tion.

Abstract:

There are many published methods for detecting similar and near-duplicate images. Here, we consider their

use in the context of unsupervised near-duplicate detection, where the task is to ﬁnd a (relatively small) near-

duplicate intersection of two large candidate sets. Such scenarios are of particular importance in forensic

near-duplicate detection. The essential properties of a such a function are: performance, sensitivity, and

speciﬁcity. We show that, as collection sizes increase, then speciﬁcity becomes the most important of these,

as without very high speciﬁcity huge numbers of false positive matches will be identiﬁed. This makes even

very fast, highly sensitive methods completely useless. Until now, to our knowledge, no attempt has been

made to measure the speciﬁcity of near-duplicate ﬁnders, or even to compare them with each other. Recently,

a benchmark set of near-duplicate images has been established which allows such assessment by giving a

near-duplicate ground truth over a large general image collection. Using this we establish a methodology for

calculating speciﬁcity. A number of the most likely candidate functions are compared with each other and

accurate measurement of sensitivity vs. speciﬁcity are given. We believe these are the ﬁrst such ﬁgures be to

calculated for any such function.

1 INTRODUCTION

In forensic image detection, it is commonly required

to determine if one large image collection contains

images for which near-duplicates exist within another

large collection. For example, the UK National Crime

Agency has a collection of approximately 10

known

child abuse images. A media device seized from a

suspect may contain 10

images, but perhaps only 10

of these would be of child abuse and thus a subject for

prosecution. A knowledgeable suspect will have per-

formed minor visual editing of these images, making

them detectable only by near-duplicate ﬁnding func-

tions.

Finding images similar to one other, from within

a huge collection, is nowadays a (relatively) solved

problem, and has been shown to scale to up to col-

lections of well over 10

images. However almost

all such results are set in a human-guided search sce-

nario, where a single image is presented to the system

and a human is available to pick the best results from

those returned. Here we examine quite a different sce-

nario, where two moderately large collections are the

input, and the desired output is the set of images of

which near-duplicates exist across the two collections.

This causes new problems, due to the inherent squar-

ing: if both collections contain a relatively modest 10

images, then there are 10

pairs to consider, rather

more comparisons than required to compare a single

image against Google’s indexed image collection.

The performance issues can be handled by various

means, including using the obvious parallelisation in-

herent in the problem. In this article we concentrate

on a more subtle problem, that of the precision, or

speciﬁcity, of the classiﬁcation function. As there are

a really huge number of pairs of images to consider,

the speciﬁcity must be incredibly high to avoid very

large numbers of false positives. For example, speci-

ﬁcity of 1 −

would, in most contexts, give excel-

lent precision; but set in this example context would

give 10

false positives, impossible for any human to

check. This is greatly in contrast with human-guided

search, where speciﬁcity as low as 0.5 is quite accept-

able.

Finding near-duplicate images in this context re-

quires a classiﬁcation function; that is, a boolean sim-

Connor, R. and Cardillo, F.

Quantifying the Speciﬁcity of Near-duplicate Image Classiﬁcation Functions.

DOI: 10.5220/0005785406470654

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 4: VISAPP, pages 647-654

ISBN: 978-989-758-175-5

647

ilarity function s which allows the detection of the

near-duplicate intersection: from collections X and Y ,

the near-duplicate intersection is deﬁned as the set of

pairs {x, y ← X,Y , s(x, y)}. As similarity functions

are generally numeric, a decision must be made for

a threshold at which to apply the function, giving ac-

ceptable tradeoffs for sensitivity and speciﬁcity.

Speciﬁcity however is very difﬁcult to measure,

requiring as it does a very large collection with a

known ground truth. Such a collection has been es-

tablished for images in one context, in (Connor et al.,

2015; Connor, 2015), which gives a quantiﬁed esti-

mate of the near-duplicate ground truth for a collec-

tion of one million images. Using this collection, we

show a methodology for quantifying the speciﬁcity of

near-duplicate ﬁnders, and give results for some of the

most likely candidate functions.

2 BACKGROUND

Finding a pair of images, one of which has been cre-

ated by applying minor transformations to the other,

is not an easy problem. Such transformations, avail-

able in off-the-shelf image processing software, in-

clude changes to contrast, brightness, colour, texture,

and sharpness. It is easy for the human brain to see

that two such images are obviously the same modulo

such changes, but these are exactly the properties that

most similarity functions rely on for a mechanised

quantiﬁcation of similarity.

Implicitly, the context of testing for similarity

function performance is usually a human user search-

ing a very large collection for images that are most

similar to a given reference image. As such, efforts

tend to be concentrated on the performance and recall

of nearest-neighbour search, and success is generally

measured in terms of how many correct results can be

obtained from a huge collection within a short time.

Our context of interest is quite different however.

Increasing pressure is being put on Internet Service

Providers, social network and search engine providers

to ﬁlter image and video content that is being used il-

legally, for example the portrayal of child abuse or

content which is subject to copyright. Such content is

always subject to minor changes, for a number of rea-

sons but increasingly including deliberate attempts to

evade detection. Therefore near-duplicate rather than

duplicate detection is increasingly required.

In these and other contexts, the requirement is to

automatically search large numbers of images against

a reference collection which is also large, for exam-

ple 10

to 10

images or keyframes. When a pos-

sible near-duplicate is detected, the two images then

Figure 1: Very similar images, as determined by edge his-

tograms.

Figure 2: Very similar images, as determined by colour his-

tograms.

require to be tested by human inspection. Efﬁciency

and high-quality semantic matching are requirements,

but false positive detection becomes a much bigger is-

sue. As the number of comparisons required is huge,

and the majority of candidates have no match, false

positive detection must be an incredibly rare event.

Figures 1 and 2 show some perhaps surprising

motivating examples where very small distances have

been observed over very different images, as a result

of a very low false positive probability being applied

over a very large sample population. In both of these

cases, the image pairs shown have very small dis-

tances measured according to a particular similarity

function: that is, distances that were smaller than the

majority of true near-duplicate pairs. These examples

were found in a collection of 10

image pairs: such

coincidental matches are quite likely to occur even if

their probability is as low as 10

−12

The contribution of this paper is to show a way

of performing speciﬁcity measurement useful for this

context, and to give some early analysis of various

near-duplicate ﬁnding mechanisms.

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

648

3 RELATED WORK

We are not aware of any other work which attempts

to measure comparative sensitivity and speciﬁcity for

different image similarity functions. We believe one

reason for this is the lack of any large collection of im-

ages with a known ground truth of similarity, a lack

mentioned by various authors, for example: “We do

not have access to ground-truth data for our exper-

iments, since we are not aware of any large public

corpus in which near duplicate images have been an-

notated.” (Chum et al., 2007), and the same lack is

noted in (Jinda-Apiraksa et al., 2013). (Vonikakis

et al., 2014) note “ Although the target application of

this dataset is image retrieval, it was selected due to

the lack of other appropriate datasets [. ..]”.

There is also only a little work which objectively

compares different image similarity functions. Royo

(Ventura Royo, 2010) gives a comparison of differ-

ent MPEG-7 techniques for image search, however,

in common with most published work in this domain,

the notion of success is based on correct retrieval from

a relatively small collection of known images. Inter-

estingly, the author ﬁnds that MPEG-7 Colour Struc-

ture gives the best performance in this context, while

we ﬁnd it by far the worst of those tested. The main

point is that the issues addressed here are deﬁned by

the scale of the search, and comparative studies over

small collections of images do not give useful results.

Douze et al. (Won et al., 2002) compare the

GIST (Oliva and Torralba, 2001) image characterisa-

tion with a “bag-of-features” approach, and ﬁnd it su-

perior for near-duplicate images among other things.

They test over signiﬁcant sizes of image collection

by adding their ground truth of ‘similar’ images to

large ‘distractor’ sets, including MIR-Flickr. How-

ever they generate near-duplicate images from a rela-

tively small, chosen set, through programmed quality

loss and cropping, and also apply strong transforma-

tions which are not covered by our deﬁnition of near-

duplicate. The use of generated near-duplicate images

weakens the results, as for any known transformation

it is relatively straightforward to predict which simi-

larity functions will perform well.

Foo et al. (Foo et al., 2006) gave one of the ear-

liest treatments of the issue of near-duplicate image

ﬁnding as a subject in its own right, and deﬁned two

categories of near-duplicate images: IND and NIND.

IND images are “derived from the same digital source

after applying some transformations”, and NIND im-

ages “share the same scenes and objects”. Here we

concentrate primarily on the IND category which is

most appropriate for our deﬁned problem domain.

Our measurement of image similarity functions

for this purpose is based over the MIR-Flickr collec-

tion of one million images (Huiskes and Lew, 2008;

Huiskes et al., 2010). This dataset consists of one mil-

lion “interesting” images downloaded from the web-

site ﬂickr.com through its public API. The “interest-

ingness” of the images represents a score attributed

by the Flickr service by taking into account the com-

ments and the clickthroughs on the images. Since

the 1M images included in the dataset were not se-

lected with a speciﬁc task or set of criteria in mind,

they should represent a good benchmark for evalua-

tion of near duplicate detection algorithms on large

image datasets.

Using this collection, the Mir-Flickr Near Dupli-

cate (MFND) classiﬁcation (Connor et al., 2015; Con-

nor, 2015) identiﬁes three sets of clusters which occur

within the original set of one million images: dupli-

cate clusters, IND near-duplicate clusters, and NIND

near-duplicate clusters. The IND collection comprises

1,958 clusters containing a total of 4,071 images, the

majority of clusters containing only two elements.

Using population statistics, the authors have shown

that these are almost all of the IND pairs that exist

within the whole set. Based on three relatively inde-

pendent near-duplicate ﬁnding functions, an estimate

is made of the total number which exist, including

those not found. Furthermore, the standard error of

this estimate has also been established at under 0.02.

Therefore if an image is chosen randomly from out-

side these three clusters, there is a very low probabil-

ity that a near-duplicate will exist within the rest of

the collection. We have used this property in order

to establish the speciﬁcity measurements given in this

article.

There are many image similarity functions de-

scribed in the literature. In general, these can be clas-

siﬁed into those relying on global, and local, features.

Here we report only the class of global feature func-

tions, as we believe that these are most likely to be

suitable for our speciﬁc problem domain. This is a

questionable assumption that we are investigating fur-

ther, although backed up by results in (Won et al.,

2002) and (Chum et al., 2007). Table 1 summarises

the different characterisations studied.

In many cases a particular distance metric is spec-

iﬁed as a part of the published mechanism. For exam-

ple (Won et al., 2002) prescribes the use of L

(Man-

hattan) distance, and most assume that L

(Euclidean)

distance is the best measure of distance between char-

acterisations. However we have found these presump-

tions are most often wrong, certainly in this context,

and we have tested all characterisations over a number

of different metrics.

In some cases, optimisation mechanisms are bun-

Quantifying the Speciﬁcity of Near-duplicate Image Classiﬁcation Functions

649

Table 1: Image characterisations used.

Abbreviation Characterisation Reference

Cs MPEG-7 Colour Structures (Bober, 2001)

Csl MPEG-7 Colour Structure Layout (ISO-15938, )

Eh MPEG-7 Edge Histograms (Won et al., 2002)

Ghch Global Hierarchical Colour Histograms (Chum et al., 2007)

Gist GIST (Oliva and Torralba, 2001)

Ht MPEG-7 Heterogeneous Textures (Bober, 2001)

Phash Perceptual Hashing (Niu and Jiao, 2008)

dled with the extraction description, for example (Niu

and Jiao, 2008) extracts a bitmap for comparison

with Hamming distance, and (Chum et al., 2007)

uses locality-sensitive hashing techniques over the ex-

tracted representations. Rather than do this we main-

tain the original representations and apply general

metrics over them; optimisation techniques are best

treated separately.

Finally, three of these characterisations rely upon

the image colour palette; Cs very strongly, and Csl

and Ghch much less so, as despite their names the

most signiﬁcant information in these is extracted ac-

cording to pixel intensity rather than colour. How-

ever, results for Cs are very bad, and based on this

observation we repeated tests on Csl and Ghch using

only intensity, rather than colours. As they were in all

cases better, we report only these variants here. From

observation, many IND near-duplicate images in our

reference set have been produced by making changes

to the colour palette, which explains this observation.

4 DEFINITIONS AND CONTEXT

We assume that any near-duplicate ﬁnder is based on

a positive numeric function D over any two images.

Normally D will be a proper distance metric to allow

scaling of the search, but this is not an essential se-

mantic property.

To run an unsupervised search, it is necessary to

use D as a classiﬁcation function. To achieve this,

a distance threshold t must be chosen to be used in

conjunction with D to form a predicate function D

over image pairs, such that D

(x,y) = D(x,y) ≤ t.

The problem domain can then be characterised as

the requirement to ﬁnd the near-duplicate intersection

of two image sets X and Y , based on a concepual

near-duplicate relation ND, where this is deﬁned as

the set of pairs X ∩

Y where (x, y) ∈ X ∩

Y ⇐⇒

ND(x,y).

Normal deﬁnitions of sensitivity and speciﬁcity

for a threshold function D

can now be deﬁned as con-

ditional probabilities:

sens

= P (D

(x,y)),given (x,y) ∈ X ∩

spec

= P ((x,y) /∈ X ∩

Y ), given ¬D

(x,y)

In general, as the search threshold t is increased,

the sensitivity increases and the speciﬁcity decreases.

As the collections become larger, the speciﬁcity

becomes increasingly important. After execution of

the unsupervised process, the number of true positive

matches found will be

sens

· |X ∩

Y |

and the number of false positives will be

(1 − spec

) · |X| · |Y |

To put this into a realistic context, a typical situ-

ation for the detection of child abuse images from a

seized hard drive is

|X| = 10

,|Y | = 10

,|X ∩

Y | = 10

so apparently excellent ﬁgures of, for example,

sens

= 0.999,spec

= 0.999

leads to the detection of almost all the 10

true posi-

tives, but these will be impossible to ﬁnd among 10

false positives. In fact, in this scenario, the speciﬁcity

requires to be as high as 1 − 10

−9

before only around

half of the detected pairs will be true positives.

To investigate such probabilities requires analy-

sis over large image sets with known ground truths,

where the combination of very rare events and very

large populations can be quantiﬁed.

5 METHODOLOGY

The MFND benchmark set deﬁnes three sets of image

clusters, which are subsets of the one million images

in the MIR-Flickr set: one of identical, one of IND

and one of NIND images. Results here use the IND

set as this is more likely to be complete, however we

have run the tests reported here using both IND and

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

650

NIND sets and the outcomes are quantitatively indis-

tinguishable.

To measure the sensitivity of a given metric across

a range of thresholds, a set of pairs comprising the

ﬁrst two images from each cluster was used, giving a

set of 1,958 pairs of IND images. A histogram of the

distances is constructed, and a cumulative probability

density function constructed from this to give sensi-

tivity for each D

across the range of different t values

for each similarity function D.

To measure speciﬁcity of a given metric, a set of

5,000 images was randomly selected, ensuring that

none of these were in any of the IND, NIND, or du-

plicate clusters deﬁned by the benchmark collection.

It is thus a safe assumption that none of these im-

ages have a near-duplicate match within the collec-

tion. For each of these images, its nearest neighbour

from within the 1M collection, along with the distance

to this, was determined. Note that in principle this

requires 5 × 10

distance calculations, and metric in-

dexing techniques were used to achieve tractability.

As nearest neighbours are calculated, the small-

est of the nearest-neighbour distances is therefore the

smallest of approximately 5×10

distances measured

across the two sets. As this distance relates two

images which are not near-duplicates, this gives the

speciﬁcity of the function D

, where t is this small-

est distance, as 1 − (2 × 10

−10

) for these two sets of

images.

In measuring speciﬁcity we make the simplifying

assumption that, at least for the smallest few nearest

neighbours measured from the set, these distances are

the smallest from the whole set of potential distances;

that is, not allowing for a single image to have a sec-

ond neighbour which is a smaller absolute distance

than another’s nearest neighbour. This is likely to be

the case, but more importantly it also captures a more

useful ﬁgure for use in unsupervised detection sce-

narios, where a threshold-limited nearest neighbour

search will be conducted.

We calculate results in terms of a cumulative prob-

ability density function, therefore a threshold which

admits the ﬁve smallest nearest-neighbour distances,

i.e. a cumulative density of 0.001 over the 5,000 test

distances, corresponds to a speciﬁcity of 1 − 10

−9

The cdf value of 0.01 corresponds to a speciﬁcity

of 1 − 10

−8

which as explained earlier is around the

smallest useful threshold for our problem context:

when comparing 10

images against 10

, around 10

false positives would result, this number varying with

the product of the two collection sizes.

To give an example of this analysis, Figure 3

shows simple histograms giving the outcome of using

Manhattan distance over MPEG-7 edge histograms

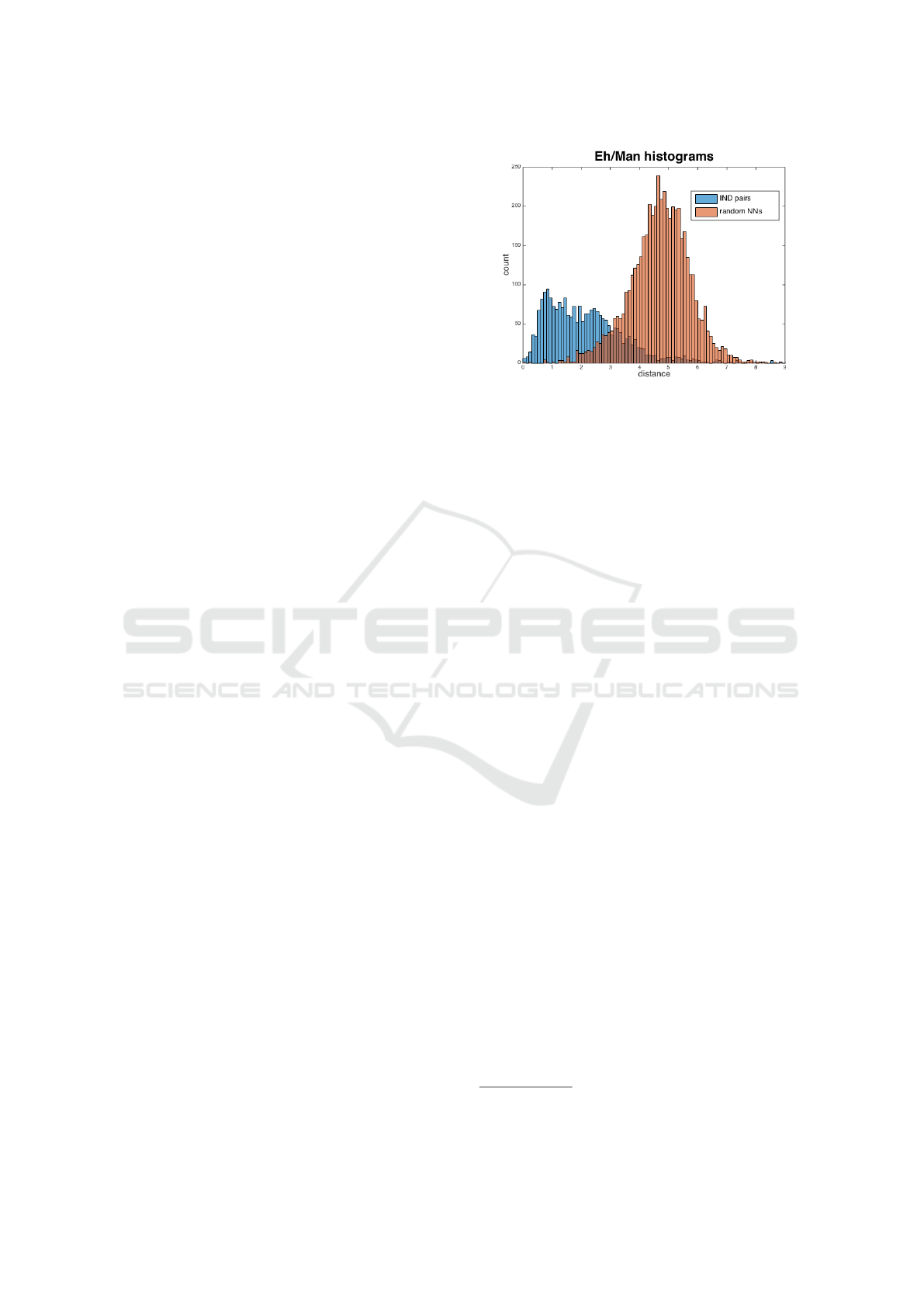

Figure 3: Eh/Man Histograms.

(Won et al., 2002). The histograms show the distribu-

tion of distances over (1) known IND near-duplicate

image pairs, and (2) 5,000 randomly selected images

and their nearest neighbours from within the set of 1M

images – this latter of course is shifted a long way to

the left of a histogram showing the distribution of dis-

tances of randomly selected image pairs.

As can be seen, there is signiﬁcant overlap be-

tween the histograms. Figure 4 shows the same data

displayed as the deduced cumulative probability den-

sity functions. From these, it can be seen that using

this function with a threshold of around 2 will give a

speciﬁcity of around 1 − (10

−8

) and a sensitivity of

around 0.5, but to achieve an order of magnitude im-

provement in speciﬁcity would allow a sensitivity of

only around 0.1.

In order to allow comparisons of the different

characterisation and metrics tested, these results are

shown plotted in ROC curves, to show the essen-

tial tradeoff between sensitivity and speciﬁcity as the

search threshold is increased. Figure 5 shows the

same data again plotted as ROC graphs, which is the

form we will use from now on to present results of the

different functions tested.

6 MEASUREMENTS

For each different characterisation shown in Table 1,

we have applied the following proper distance met-

rics: Manhattan distance, Euclidean distance, Cosine

distance

and, where possible, Structural Entropic

Distance (SED). There are of course many other po-

tential metrics which could be tested.

SED is the distance metric deﬁned in (Connor

et al., 2011) and reﬁned in (Connor and Moss, 2012)

The angle between the vectors rather than the comple-

ment of its cosine, which is not a proper metric

Quantifying the Speciﬁcity of Near-duplicate Image Classiﬁcation Functions

651

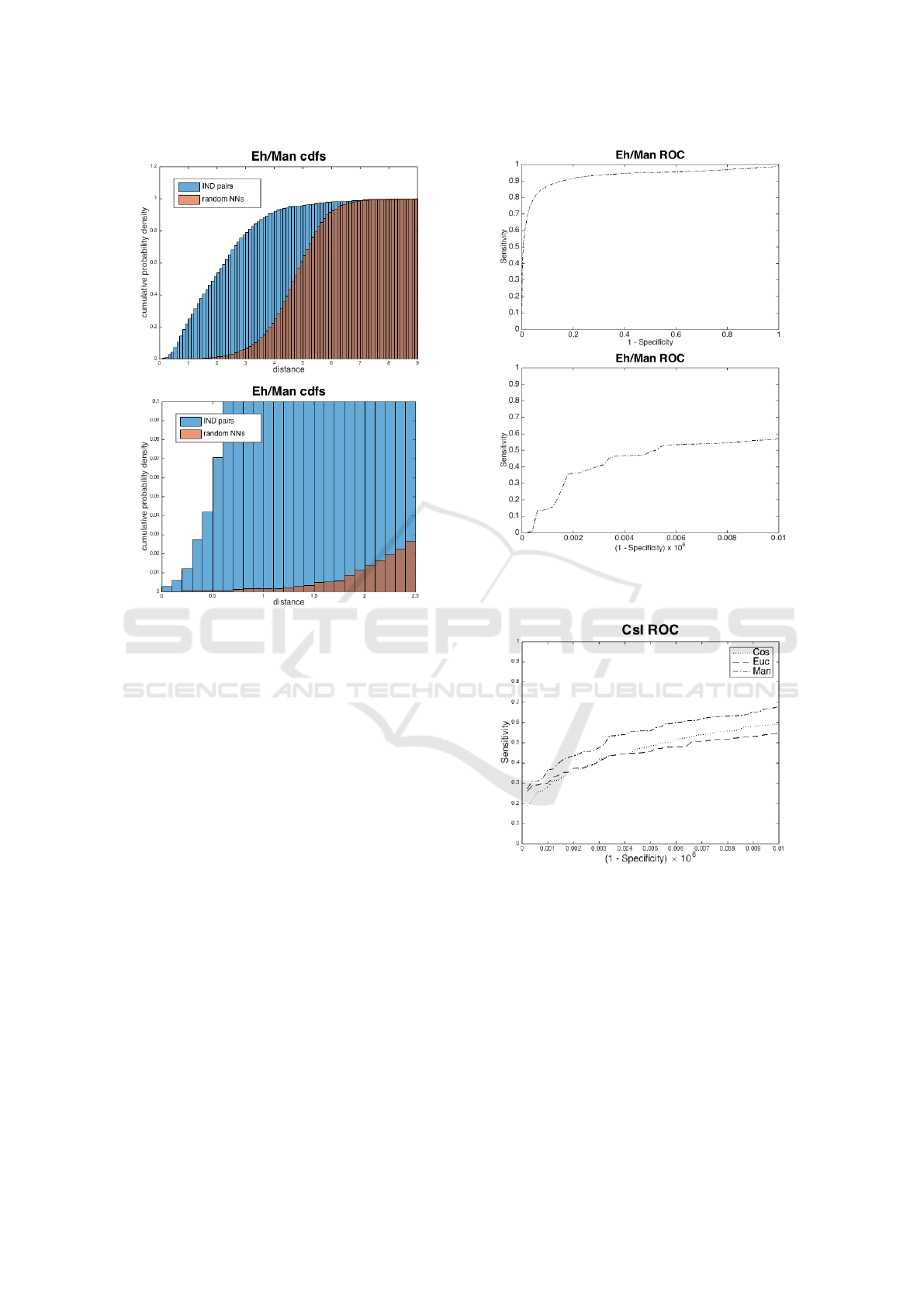

Figure 4: Eh/Man Cumulative Probability Density (the

lower graph is a magniﬁcation at the origin).

for use in general vector spaces. It is deﬁned over

probability distributions, and as such can only be ap-

plied to characterisations all of whose output val-

ues are positive - notably not including those deﬁned

by discrete cosine transform, namely Csl and Phash.

For all characterisations comprising only positive nu-

meric values, they are normalised to sum to 1 for this

purpose. SED gives the same ranking of outcomes

as the better-known Jensen-Shannon distance (Lin,

1991), but is used here as it has better efﬁciency prop-

erties for querying metric spaces in this context (Con-

nor and Moss, 2012); the qualitative results shown

here would be exactly the same for both metrics.

Finally it is important to stress that we have exam-

ined only the semantic properties of each image sim-

ilarity function, rather than their relative search efﬁ-

ciency which varies very widely, as does their extrac-

tion time. As mentioned earlier, there are many ways

of optimising both of these and an objective compari-

son of performance is not useful in simple terms.

7 RESULTS

Figures 6 to 11 show results over the same axes for

Figure 5: Eh/Man ROC graphs. The lower graph is the ex-

treme left-hand part of the upper, as required for this con-

text.

Figure 6: Csl ROC graph for three metrics.

six of the seven characterisations tested. In each case

the speciﬁcity range is restricted from 1 to 1 − 10

−8

as previously explained. As can be extrapolated from

these graphs, at this point the sensitivity improvement

given by a decrease in speciﬁcity becomes marginal.

The missing characterisation, MPEG-7 Colour

Structures, performs so badly it is not shown, achiev-

ing a sensitivity in this range of less than 0.02 with

any metric. The importance of measuring these over

very large collections is emphasised by the ﬁnding by

other authors that this is the best of the MPEG-7 char-

acterisations over small test collections.

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

652

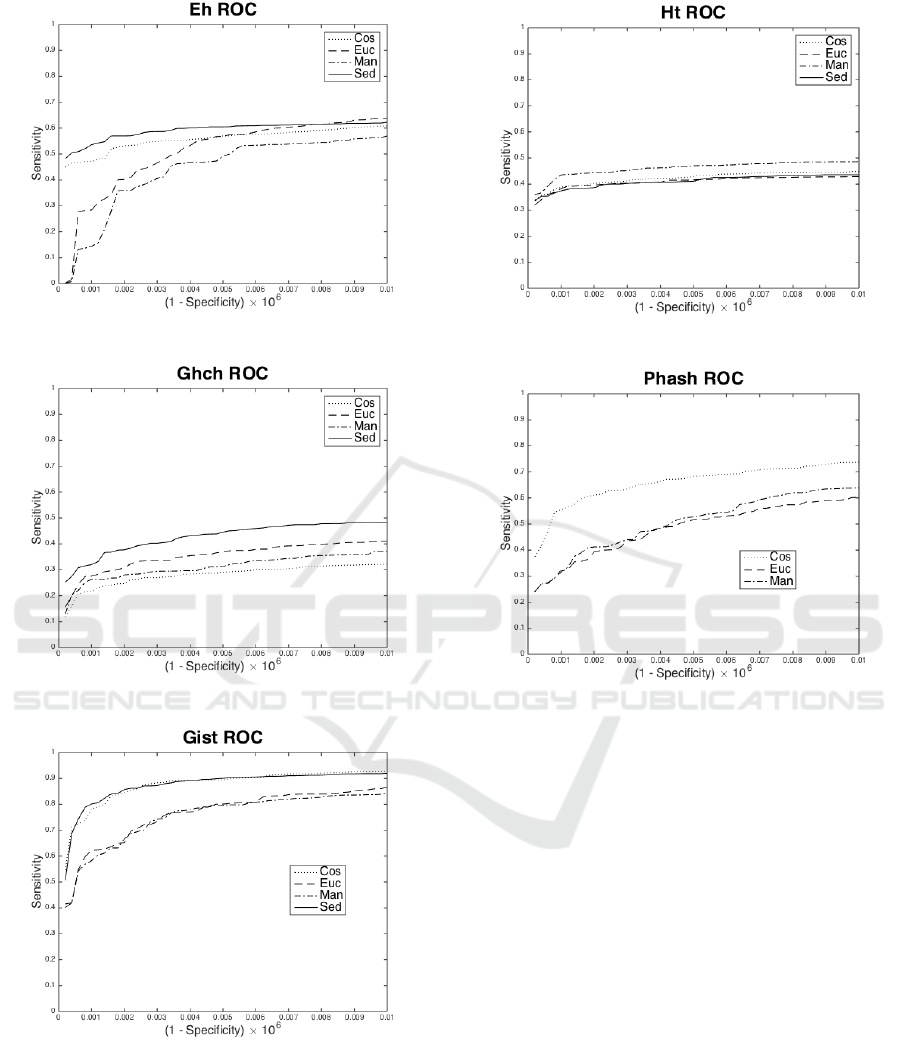

Figure 7: Eh ROC graph for four metrics.

Figure 8: Ghch ROC graph for four metrics.

Figure 9: Gist ROC graph for four metrics.

The result of these tests is clear from inspect-

ing the graphs: of the 22 methods tested for near-

duplicate classiﬁcation, the best compromise between

sensitivity and speciﬁcity is the use of Structural

Entropic Distance/Jensen-Shannon Distance over the

GIST image representations, which gives a sensitivity

of around 0.8 for a speciﬁcity as high as 1 − 10

−9

Figure 10: Ht ROC graph for four metrics.

Figure 11: Phash ROC graph for three metrics.

Applying this in the context of a scenario with

two collections each of 10

images, with a near-

duplicate intersection of 10

images, then querying at

the appropriate threshold will return 800 of the near-

duplicate image pairs, and 1,000 false positive pairs.

By comparison, for example, using perceptual hash-

ing with Euclidean distance will return 5,000 false

positive pairs for every 500 true pairs.

8 CONCLUSIONS

The main value of this work is to provide a re-usable

methodology by which different near-duplicate ﬁnd-

ers can be compared for speciﬁcity. The particular

value of our method is that it is based upon a large col-

lection of “naturally” selected images which happen

to contain near-duplicates, rather than a constructed

set. The resulting ground truth should not therefore

be biassed towards any particular function.

Validation of the results however is a further chal-

lenge, at least until such time as another large image

Quantifying the Speciﬁcity of Near-duplicate Image Classiﬁcation Functions

653

set with a near-duplicate ground truth is identiﬁed.

We are currently working with the CoPHiR collec-

tion (Bolettieri et al., 2009) (10

images) to establish

whether the ﬁgures produced here are consistent.

The variation among the different distance metrics

is a novel observation. Characterisations are normally

used with either L

or L

distance, whereas in the

majority of cases either Cosine or SED/JSD performs

best. These metrics give a closer match according to

the correlation of values within the characterisations,

rather than differences in their absolute magnitude.

However the differences among all the characterisa-

tions do not seem to suggest any general rules about

the best metric to use in different contexts, which re-

quires further investigation.

ACKNOWLEDGEMENTS

We would like to thank Richard Martin and Karina

Kubiak-Ossowska of the University of Strathclyde for

help with access to the ARCHIE-WeSt HPC facilities

necessary to achieve some of the analysis.

Franco Alberto Cardillo was supported by the Na-

tional Research Council of Italy (CNR) for a Short-

term Mobility Fellowship (STM), which funded a

stay at the University of Strathclyde in Glasgow (UK)

where part of this work was done.

Richard Connor was supported by a symmet-

ric National Research Council of Italy (CNR) for a

Short-term Mobility Fellowship (STM), no. 33313,

13/05/2015, which funded a stay at the Consiglio

Nazionale delle Ricerche, Pisa, where the work was

further progressed.

REFERENCES

Bober, M. (2001). Mpeg-7 visual shape descriptors. IEEE

Transactions on circuits and systems for video tech-

nology, 11(6):716–719.

Bolettieri, P., Esuli, A., Falchi, F., Lucchese, C., Perego,

R., Piccioli, T., and Rabitti, F. (2009). Cophir: a test

collection for content-based image retrieval. CoRR,

abs/0905.4627.

Chum, O., Philbin, J., Isard, M., and Zisserman, A. (2007).

Scalable near identical image and shot detection. In

Proceedings of the 6th ACM international conference

on Image and video retrieval, pages 549–556. ACM.

Connor, R. (2015). Mir-ﬂickr near-duplicate data. mir-

ﬂickr-near-duplicates.appspot.com.

Connor, R., Cardillo, F., MacKenzie-Leigh, S., and Moss,

R. (2015). Identiﬁcation of mir-ﬂickr near-duplicate

images. In 10th International Conference on Com-

puter Vision Theory and Applications.

Connor, R. and Moss, R. (2012). A multivariate correla-

tion distance for vector spaces. In Navarro, G. and

Pestov, V., editors, Similarity Search and Applica-

tions, volume 7404 of Lecture Notes in Computer Sci-

ence, pages 209–225. Springer Berlin Heidelberg.

Connor, R., Simeoni, F., Iakovos, M., and Moss, R. (2011).

A bounded distance metric for comparing tree struc-

ture. Inf. Syst., 36(4):748–764.

Foo, J., Sinha, R., and Zobel, J. (2006). Discovery of image

versions in large collections. In Cham, T.-J., Cai, J.,

Dorai, C., Rajan, D., Chua, T.-S., and Chia, L.-T., edi-

tors, Advances in Multimedia Modeling, volume 4352

of Lecture Notes in Computer Science, pages 433–

442. Springer Berlin Heidelberg.

Huiskes, M. J. and Lew, M. S. (2008). The MIR Flickr

retrieval evaluation. In MIR ’08: Proceedings of the

2008 ACM International Conference on Multimedia

Information Retrieval, New York, NY, USA. ACM.

Huiskes, M. J., Thomee, B., and Lew, M. S. (2010). New

trends and ideas in visual concept detection: The MIR

Flickr retrieval evaluation initiative. In MIR ’10: Pro-

ceedings of the 2010 ACM International Conference

on Multimedia Information Retrieval, pages 527–536,

New York, NY, USA. ACM.

ISO-15938. Mpeg-7 multimedia content description inter-

face.

Jinda-Apiraksa, A., Vonikakis, V., and Winkler, S. (2013).

California-nd: An annotated dataset for near-duplicate

detection in personal photo collections. In Quality of

Multimedia Experience (QoMEX), 2013 Fifth Interna-

tional Workshop on, pages 142–147. IEEE.

Lin, J. (1991). Divergence measures based on the shannon

entropy. Information Theory, IEEE Transactions on,

37(1):145–151.

Niu, X.-m. and Jiao, Y.-h. (2008). An overview of percep-

tual hashing. Acta Electronica Sinica, 36(7):1405–

1411.

Oliva, A. and Torralba, A. (2001). Modeling the shape

of the scene: A holistic representation of the spatial

envelope. International Journal of Computer Vision,

42(3):145–175.

Ventura Royo, C. (2010). Image-based query by example

using mpeg-7 visual descriptors.

Vonikakis, V., Jinda-Apiraksa, A., and Winkler, S. (2014).

Photocluster - a multi-clustering technique for near-

duplicate detection in personal photo collections. In

Proc. of the 9th International Conference on Com-

puter Vision Theory and Applications, pages 153–161.

Won, C. S., Park, D. K., and Park, S.-J. (2002). Efﬁcient use

of mpeg-7 edge histogram descriptor. Etri Journal,

24(1):23–30.

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

654
