Towards a Reference Architecture for Advanced Planning Systems

Melina Vidoni and Aldo Vecchietti

Ingar Instituto de Desarrollo y Diseño, CONICET-UTN, Avellaneda 3657, Santa Fe, Argentina

Keywords: 4+1 View Model, Advanced Planning Systems (APS), Functional Requirements, Reference Architecture.

Abstract: Advanced Planning Systems (APS) are important for production companies that seek the optimization of its

operations. However there are gaps between the companies’ needs and its implementation in the Enterprise

Systems, such as the lack of a commonly accepted definition, the short insight on its software architecture,

and the absence of Software Engineering (SE) approaches to this type of system. Consequently, it is

important to study APSs from a SE point of view. The motivation of this work is to present a Reference

Architecture for APS, providing a standard-based characterization and a framework to simplify the design,

development and implementation of APS. Therefore, two views are presented, which are based on the "4+1"

View Model endorsed by the international standard ISO/IEC 42010:2011; those Views are represented

using UML diagrams and they are described including variation points for a number of possible situations.

1 INTRODUCTION

Advanced Planning Systems (APS) are part of many

organizations and are linked to the Enterprise

Systems (ES) aiming to optimize raw materials,

inventory, production plans, etc., to improve the

economy of the company (Stadtler, 2005).

Some high-end ERP (Enterprise Resource

Planning) offer extra modules to perform APS

functionalities customized and adapted to each

business. Examples are SAP APO (Advanced

Planning and Optimization) (Stadtler, et al., 2012),

and Oracle ASCP (Advanced Supply Chain

Planning) (Oracle, 2015). However, on small and

medium enterprises the most common

implementation approach is an ad-hoc development,

performed inside the house or outsourced.

Thus, there is interest on a better understanding

of several issues related to the development of APS

(Zoryk-Schalla, et al., 2004), such as the lack of

standardization in associated concepts (Kallestrup, et

al., 2014; Aslan, et al., 2012; Hvolby & Steger-

Jensen, 2010), and the lack of SE approaches

(Henning, 2009; Framinan & Ruiz, 2010).

Recently, Vidoni and Vecchietti (2015) proposed

an APS characterization, by applying a SE approach,

and elicited Functional Requirements (FR) and

Quality Attributes (QA) from the academic literature

which is used to elaborate a Reference Model for the

Software Architecture (SwA) of an APS.

Still, a Reference Model is a starting point and

needs to be upgraded into a Reference Architecture

(RA) (Northrop, 2003). The latter are abstractions of

specific SwA for a given domain, and are used as

standardized frames or tools (Angelov, et al., 2012).

There are many researches about RA. Norta et al.

(2014) introduced one for Business-to-Business

systems, for research and industrial applications.

Pääkkönen et al. (2015) proposed a RA for big data

systems, based on the analysis of architectures

previously implemented. Behere, et al. (2013)

announced a RA for cooperative driving on modern

vehicles with a minimally invasive model. Finally,

Nguyen et al. (2011) developed a RA based on the

“4+1” View Model, to define agent-based systems.

This work proposes the first two views towards a

RA for the APS, based on the “4+1” View Model

(Kruchten, 1995), recommended by the international

standard ISO/IEC 42010:2011 (2011). The work is

based on the FR and the Reference Model proposed

in a previous work (Vidoni & Vecchietti, 2015). A

comparison of the FR with leading commercial

suites is summarized, to prove its applicability.

This paper is structured as follows. Section 2

introduces concepts and definitions, and Section 3

presents the FR elicited for APS, comparing them to

features of leading commercial suites. Section 4

introduces the RA concepts, standards and design

decisions, describing two views. Finally, Section 5

presents conclusions and related future works.

Vidoni, M. and Vecchietti, A.

Towards a Reference Architecture for Advanced Planning Systems.

In Proceedings of the 18th International Conference on Enterprise Information Systems (ICEIS 2016) - Volume 1, pages 433-440

ISBN: 978-989-758-187-8

433

2 CONCEPTS AND DEFINITIONS

A definition for APS is the one given by Stadtler

(2015), which states: “Although an Advanced

Planning System (APS) is separated into several

modules, effective information flows between these

modules should make it a coherent software suite.

Customizing these modules according to the specific

needs of a supply chain requires specific skills, e. g.

in systems and data modeling, data processing and

solution methods. APS do not substitute, but

supplement existing ERP”.

This paper will also use the concept of factory

planning (which includes several types of planning

mostly at short-term) and supply chain planning

(represents factory planning problems beyond the

company limits, at mid and long term time horizons)

introduced by (Fleischmann & Koberstein, 2015).

There are also other definitions considered:

 Enterprise Systems (ES), includes ERPs,

transactional systems and other information

systems that manages data in an organization

(Davenport & Brooks, 2004).

 Solving Approach (SA), an umbrella term that

refers to the advanced methods and technics

used to solve advanced planning problems.

Includes operations research, genetic

algorithms, game theory, and others.

 Optimization Point (OP) is a specific planning

problem solved through an APS.

 Model is a specific solution for an individual

factory planning problem, using any SA.

 Objective is what the model seeks to optimize.

3 FUNCTIONAL

REQUIREMENTS

Based on Software Engineering Body of Knowledge

(BKCASE Editorial Board, 2014), the Functional

Requirements of a system “[…] describe

qualitatively the system functions or tasks to be

performed in operation; FR defines what the system

must be able to do or perform”.

Since this is a high abstraction level definition,

there are no explicit stakeholders, and the hardware

to be used in the architecture is undefined.

Therefore, requirements were extracted from the

academic literature related to APS, where they are

usually presented as general statements and ideas.

Vidoni and Vecchietti (2015) introduced a list of

generic FR elicited from the academic literature, and

based on a number of international SE standards.

These FR are descripted on Table 1, where each row

represents a new requirement, with an ID code (first

column at the left) later used as reference.

However, these FR are generic, suitable for a

wide definition that can work as a frame (Angelov,

et al., 2008). Therefore, not all of them must be met

by each application of APS, because those specific

implementations are sub-sets, carefully selected for

those situations; new requirements can also be

added, because a software intensive system never

ceases to evolve and change.

Since leading proprietary suits are developed

through several iterations and continuously refined,

they implement many of the features characteristics

of APSs, contributing to the “best practices” idea of

leading ES. Therefore, by comparing the proposed

FR, it can be seen that there is a high level of

agreement, which supports their applicability, and

provides the fundaments to develop the RA.

The selected commercial applications are leaders

in the ERP market: APO (Advanced Planning and

Optimization) for SAP ERP (Stadtler, et al., 2012),

and ASCP (Advanced Supply Chain Planning) for

Oracle e-Business (Oracle, 2015). Both of them are

available as separated modules of their ES solutions,

and have available online documentation.

Evaluating SAP APO reveals a high match of the

application’s features to the FR. APO works with

two planning levels: Supply Network Planning

(SNP) is midterm/long term planning, while

Production Planning/Detailed Scheduling is short

term, similar to the factory and supply chain

planning concepts introduced before.

SNP module optimizes several OP, allowing

selecting the SA and model versioning, changes and

adaptation. Users can optimize while working on the

system in parallel; results are in friendly manner and

include historical data. As input data APO uses

demand planning, sales orders, and even ETO,

transferred from SAP ERP via the Core Interface;

the approved output data is also stored on the ERP,

while the other is kept on the APO’s own database.

APO checks consistency and bottlenecks, and

evaluates rescheduling (Stadtler, et al., 2012).

By studying Oracle e-Business ASCP features, it

is clear that this suite reinforces them, with a

different approach than SAP APO, considering

Usability as one of the main QA of the system.

ASCP allows several OP and models, with

management functions including many settings

Each model has available objectives, and

parameters management. Each planner (user) can

configure the interface, while the Planner

Workbench offers scenario comparison. ASCP uses

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

434

Table 1: Summary of Functional Requirements (Related to the System) for an APS (Vidoni and Vecchietti, 2015).

Code Requirement Requirement Description (Related to the System)

A Optimization

Point

Management

The system must have at least one Optimization Point, and there is no limit to how many

may optimize. The user must be able to select which Point to work with at any given time.

Each OP (which represents a planning problem) has at least one model that solves it.

B Models

Management

The system must allow the user to easily select the model to be used on each OP. If there is

more than one model, the APS should have a default, if nothing else was selected.

C Objectives

Management

The system allows the user to select the objective to use with each model. Each model

must have a default objective that will be used in case no other one was manually selected.

D Parameters

Settings

The system must offer a graphical way for the user to customize the parameters (changing

values, ranges and increments). In case no value was changed, it must use the defaults.

E Scenario

Generation

After the used input of the parameters, the APS must automatically generate each scenario,

showing progress to the user and allowing them to continue with other tasks.

F Scenario Storage The scenarios results must be automatically stored (in either success or failure/infeasibility

situations) on the APS database, to be later revised and studied by the human planner.

Results are only impacted on the ES once the user approves them.

G Scenario

Comparison

The system must offer a Graphical Interface (GUI) to compare scenario results and allow

the planner user to modify them. For successful cases the comparison should show charts,

graphics, statistics of resolution times, and so on. For unfeasible results, the showcased

information must help the planner to understand why the model turned unfeasible.

H Input Data The APS must automatically read the input data for each model from the ES.

I Consistency

Check

There must be an evaluation of the data entered on the system before running each model.

This checks the existence of needed resources, including availability of raw materials,

comparing Bills-of-Materials to current stock, machine states, and so on. If the check fails

it means that the solution was possibly unfeasible, and it must be informed to the planner.

J Output Data The system translates the results of the selected scenario to a format understood by the ES,

and stores it on it. This is only done when approved by the user.

K Log-in Function The APS restricts access to authorized-only personnel.

M Open/Saving

Results

The system should be able to open and show previous results with the same charts,

graphics and displays used before, during the comparison.

N Algorithm

Integration

An authorized user must be able to perform CRUD (Create, Read, Update, Delete) actions

for the components (models, objectives, parameters values) of each optimization point.

O Bottleneck

Detection

The system should check bottlenecks and under-loaded resources, with the aim of avoiding

proposing a planning that is not optimal regarding the use of resources. If any issue is

detected, it must be penalized and/or informed to the user, awaiting their input.

Q Rescheduling

Checking

After a deviation from the plans, the system should show whether the current jobs have to

be rescheduled. This should be decided by the human planner, or an automatized option.

any input data synchronized from any ES (forecasts

through an external module, sales orders and ETO

data), and allows deciding where to store the output

data. It also provides bottleneck detection (Oracle,

2015).

4 REFERENCE ARCHITECTURE

In SwA, Reference Model (RM) is a division of

functionalities with data flow between pieces,

working as a standard decomposition of a known

problem. Then, a RA is a RM mapped onto software

elements that cooperatively implement the FR, and

the data flows between them (Northrop, 2003).

An RA is presented with standardized diagrams

that describe it through a number of viewpoints,

fulfilling the needs of different stakeholders; these

abstract the detail of implementation, detailing

relations between components (Yonghua Zhou, et

al., 2004). However, their generic nature leads to

less defined contexts, increasing the design

complexity; consequently, it is a non-trivial matter,

surrounded by ambiguity (Angelov, et al., 2012).

The ISO/IEC 42010 (2011) standard enforces the

application of viewpoints to clarify different

approaches in a system description through a RA. In

particular, Annex B recommends the "4+1" View

Model (Kruchten, 1995), selected for this work. It

consists of four views (Logical, Development,

Process, Physical) and the "+1" represents

Scenarios, based on the FR. Since the model allows

the use of any standardized diagram, UML 2.x

(Object Management Group, 2013) is selected due to

its widespread use. Since there is no direct match

between diagrams and views, this work will follow

the associations presented in other papers (Nguyen,

Towards a Reference Architecture for Advanced Planning Systems

435

et al., 2011; Kontio, 2008).

Because this is a work in progress, only two

views are presented, with the documentation pattern

by Bachmann, et al. (2003): introduction with UML

diagram, a description of elements and relations, a

variability guide and an architectural background.

The latter adds variation points to allow variability

in the RA, to accomplish modifications in pre-

planned ways, adding changes during development

in specific study cases (Clements, et al., 2010).

4.1 Logical View

This view supports the FR, showing what the system

should provide as services to its users (Kruchten,

1995); the elements are “key abstractions"

manifested as objects, components or packages

(Northrop, 2003). This is the first view developed,

and is translated from the FR and RM of a previous

work (Vidoni & Vecchietti, 2015).

4.1.1 Primary View

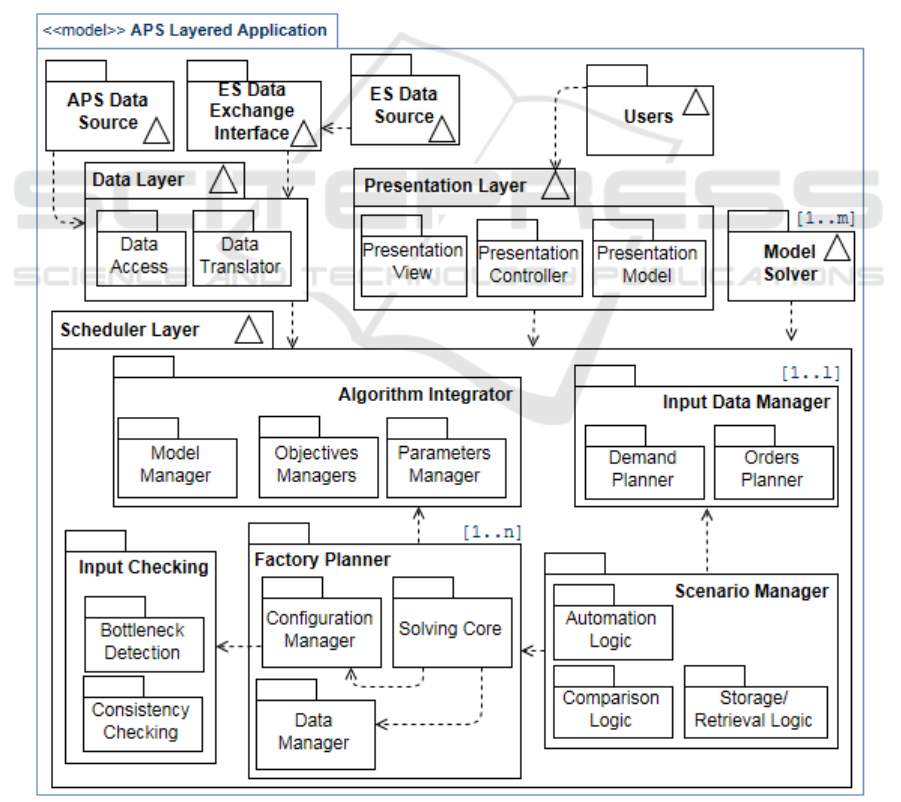

Fig. 1 presents the Logical View for the RA, using a

Model Diagram. This is an auxiliary UML structure

diagram that shows an abstraction or specific view

of a system, describing its architectural, logical or

behavioural aspects (Object Management Group,

2013). Model Diagrams uses Package Diagram

syntax, and represents logical aspects of the layered

APS system, and the actors that relate with it.

4.1.2 Architecture Background

Table 2 shows a match between the FR and the

blocks of the RM (Vidoni & Vecchietti, 2015), to

Figure 1: Model Diagram for the Logic View of the APS-RA.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

436

the packages of the Logic View. The FR are grouped

considering their relations, their need to interoperate,

or if they are part of a bigger workflow. Both

databases (APS’s and ES’s) are actors, along with

the Model System, which represents a variation

point. The Logic View has new packages, added in

order to clarify the sorting of the FR, providing more

helpful blocks to the view stakeholders.

For example, Scenario Manager represents many

FR (by code: F, G, M, and the automation of the

solving in ‘Scenario Generation’). It represents a

breakdown of the RM block ‘Scenario Manager’,

and is essential for an APS. Also, the RM Factory

Planning block (along with the FR coded as A, E

and N) translates to the new Factory Planner, which

is composed of: Solving Core, Data Manager and

Configuration Manager.

4.1.3 Element Catalogue

There are five actors: Users (human planers and

decision makers that use the APS), APS Data Source

(the APS database, mentioned on some FR), ES

Data Source (ES-DS, represents the ES database,

and is mentioned on a many FR), ES Data Exchange

Interface (ES-DEI, represents an optional interface

provided by the ES for database access) and Model

Solver (MS, represents external systems that solves

models of any SA, providing raw results).

A, example of ES-DEI is the Core Interface used

by SAP APO to exchange information with SAP

ERP (Stadtler, et al., 2012). Also, the cardinality

(1..) in indicates that there can be multiple

instances of this actor, and the amount is not directly

related to how many OP exists within the APS.

APS is composed of three main layers

(Presentation, Scheduler, Data) representing a

logical distribution of the code with a theoretical

base (Lothka, 2005). The layers can be arranged in

tiers, depending on implementation decisions -such

as infrastructure, users, geographic distribution, etc.-

(Microsoft Patterns & Practices Team, 2009) that are

outside the abstraction level for a RA.

The Presentation Layer includes Graphical User

Interface, and considers implementation specifics,

by showing an inner Model-View-Controller pattern.

Data Layer groups the database management logic

and translation, and relates to data sources actors,

either directly or through the ES-DEI.

The third layer is the APS core: Scheduler Layer.

The content is grouped on four packages, which

covers the main FR: Input Data Manager (main logic

to obtain input data: forecast through Demand

Planner, and MTO/ETO through Order Planner),

Input Checking (contains evaluation logic, including

the FR I and O), Factory Planner (core logic for each

OP to be solved; includes data translation,

outsourcing to MS, and point configuration),

Algorithm Integration (create/read/update/delete

functions for models and components), and Scenario

Manager (automation of scenario generation,

grouping requirements E, F, G).

4.1.4 Variability Guide

The actor ES-DEI is a variation point, because it

only exists if the ES offers an interface, or if it was

developed in the organization; the most complex

Table 2: Matching between elicited FR, original RM blocks, and current packages from the Logic View of the RA.

Functional Requirements Reference Model Blocks Logic View Packages

S: Database Use APS Database Control APS Data Source

K: Output Data

L: Information Exchange

ES Database Control Package: Data Access.

External Systems: ES-DS and ES-DEI

B: Models Management,

C: Objective Management

D: Parameters Setting

N: Algorithm Integration

Algorithm Integrator:

 Model Manager

 Objective Manager

 Parameters Manager

H: Input Data

L: Information Exchange

Demand Planning Input Data Manager:

 Demand Planner, Orders Planner

I: Consistency Check

O: Bottleneck Detection

Consistency Checking Input Checking:

 Consistency and Bottleneck Checking

E: Scenario Generation

F: Scenario Storage

G: Scenario Comparison

M: Open/Saving Results

Scenario Manager Scenario Manager:

 Storage/Retrieval Logic, Comparison Logic and

Automation Logic

A: Optimization Points Management

E: Scenario Generation

N: Algorithm Integration

Factory Planning Factory Planner

 Configuration/Data Manager, Data Manager and

Solving Core

Towards a Reference Architecture for Advanced Planning Systems

437

relation is included. Also, there can be multiple MS

actors when several SAs are used, or when models

need different solvers. Since specifics of the

connection and translation between MS and APS are

outside the boundaries of a RA, only an umbrella

actor is depicted on the view.

‘Input Data Manager’ represents another

variation. In the case of an MTS model, it uses

‘Demand Planner’, while a MTO/ETO connects to

‘Orders Planner’. How many instances or

implementations of this module are needed, depends

on the OP and their models. Also, ‘Demand Planner’

may manage more than one type of forecasts, and

‘Orders Planner’ may read multiple types of orders.

‘Demand Planner’ can also be an external system

(like in Oracle ASCP case) that must interoperate

with the APS. The APS-RA considers it as an

internal package, like it is on SAP APO.

4.2 Development View

This view focuses on the actual modules

organization, at the software environment, packaged

in sub-systems and components; it helps to allocate

FR and manage the project development (Kruchten,

1995). It shows the organization of modules,

libraries, subsystems, and development units,

mapping software to environment (Northrop, 2003).

4.2.1 Primary Presentation

Using UML, a Component Diagrams (Object

Management Group, 2013) represents the view,

which can denote either logical (e.g. business or

process modules) or physical elements (e.g. COM+

or .NET elements, etc.) (Fakhroutdinov, 2014).

Which type of component is used depends on the

required level of abstraction of the diagram.

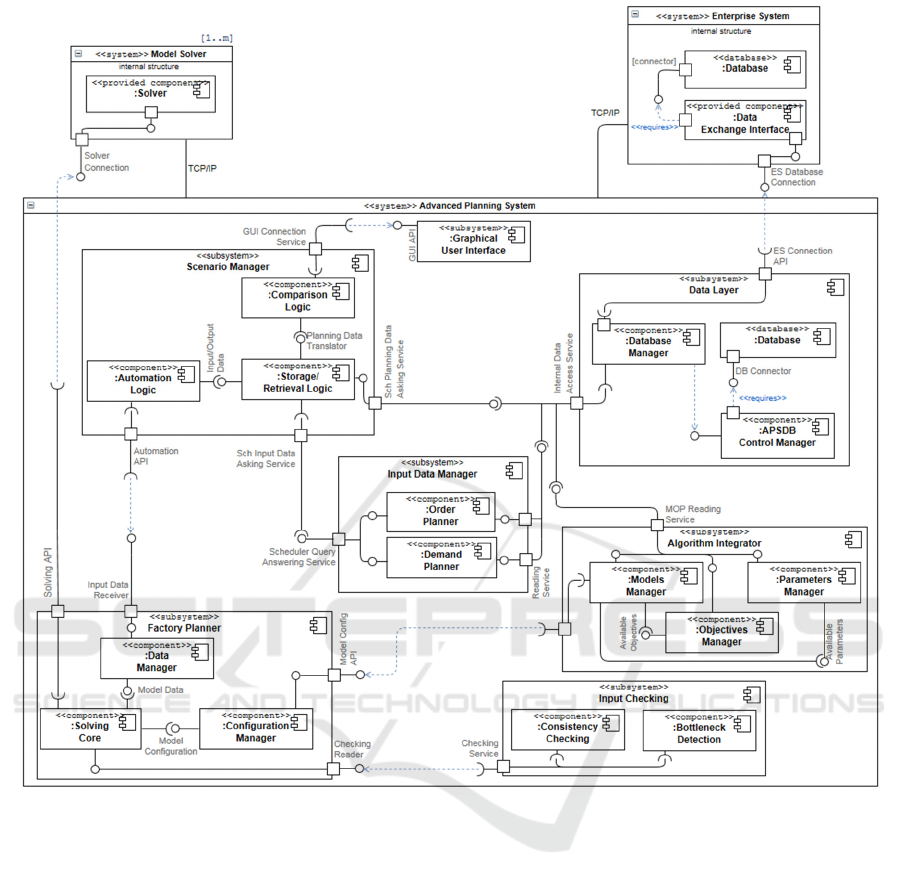

The Component Diagram of Fig. 2 represents

logical components, which may have different levels

abstraction. The external actors that interoperate

with the APS have been included as systems.

4.2.2 Element Catalogue

There are three systems that need to interoperate:

MS and ES represent ‘actors’ of the Logical View,

and they are specified in order to show how they

relate. However, since these actors may vary for

each specific SwA, they are also variation points.

The third system represents the APS itself. Both

Presentation and Data Layers are mapped to

subsystems, while the packages from the Scheduler

layer are now subsystems, in order to increase

readability, by avoiding adding more subsystems.

The connections to the ES and MS are made

usually using a TCP/IP protocol, regardless if it is

internet or intranet. While the connection is in the

diagram, its implementation may vary on each case.

It is important to note the match between both

views, because it displays their interrelation and

shows the representation of logic components.

Physical components are outside the scope of a RA

(Behere, et al., 2013), and are not presented.

Developers are the stakeholders for the view, and

thus, components are modular parts with

encapsulated content (Fakhroutdinov, 2014), that are

refined and modelled through the development life

cycle. Since a component may be manifested by

many artefacts, the current level of abstraction is

enough for the RA, leaving enough room to add

particular considerations for each concrete case.

4.2.3 Variability Guide

Since the ‘Model Solver’ represents the actor MS of

the Logic View, it has the same condition than

before, and more than one may exist; then, the

connection/translation with the APS may vary.

The internal components of ES are detailed,

because the existence of the ES-DEI component

depends on the organization. This variation point

can change the interoperation and communication

between with the APS, and must considered.

The subsystem that represents the User Interface

has a higher level of abstraction than in the Logic

View, because at the component level, the inner

components vary with some implementation

decisions (such as programming language, and type

of application -web, standalone, etc.).

Also, following previous decisions, ‘Demand

Planner’ is showcased as an inner component of the

‘Input Data Manager’ subsystem. Still, it can be an

external system, as it is on the Oracle ASCP case.

5 CONCLUSIONS

This paper presents work in progress towards a

Reference Architecture for an APS (APS-RA), based

on Functional Requirements previously elicited

through a study of the literature.

The FR are compared to the main features of

commercial leading suites (SAP APO and Oracle e-

Business ASCP), to validate the proposed

requirements, obtaining a good match between them.

The paper introduces the first two views of the APS-

RA, based on the "4+1" View Model, suggested by

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

438

Figure 2: Component Diagram for the Development View of the APS Reference Architecture.

the standard ISO/IEC 42010:2011 for SwA, and is

represented using UML 2.x diagrams. Only two

views are introduced due to space limitations.

This work offers the beginning of a framework to

support the implementation, helping to define and

clarify the functionality of each component. It adheres

to standardized SE methods, without adding load to

the development process. This increases the quality of

the development, providing the essential base for a

clean design with intrinsic relations between FR, QA

and the RA. It allows the project team to efficiently

and effectively asses the quality and extensiveness of

existing systems, guiding the modification and

adaptation of existing systems to new developments.

Several lines for future works exist, besides

completing the remaining views of the RA. The first

of them is using the Quality Attributes that were

previously elicited along with the FR to generate QA

Scenarios and supplement them with metrics and

indicators based on the international standard series

ISO/IEC 2500n "Quality Management Series". With

these, there is a third future work: evaluate the

commitment of the APS-RA with those QA, by

applying a Software Evaluation method, such as

ATAM (Architecture Trade-off Analysis Method).

A Final future work is to create a specific

implementation of a study case, applying real-case

data, and using the elements generated throughout

this works (FR, QA, and the APS-RA).

REFERENCES

Angelov, S., Grefen, P. & Greefhorst, D., 2012. A

Towards a Reference Architecture for Advanced Planning Systems

439

framework for analysis and design of software

reference architectures. Information and Software

Technology, 54(4), pp. 417-431.

Angelov, S., Trienekens, J. J. M. & Grefen, P., 2008.

Towards a Method for the Evaluation of Reference

Architectures: Experiences from a Case. Paphos,

Cyprus, Springer Berlin Heidelberg, pp. 225-240.

Aslan, B., Stevenson, M. & Hendry, L., 2012. Enterprise

Resource Planning systems: An assessment of

applicability to Make-To-Order companies.

Computers in Industry, 63(7), pp. 692-705.

Bachmann, F. et al., 2003. Chapter 9. Documenting

Software Architectures. In: Software Architecture in

Practice. 2nd ed. Boston, MA: Addison-Wesley.

Behere, S., Törngren, M. & Chen, D.-J., 2013. A reference

architecture for cooperative driving. Journal of

Systems Architecture, 59(10), pp. 1095-1112.

BKCASE Editorial Board, 2014. The Guide to the Systems

Engineering Body of Knowledge (SEBoK). 1.3 ed.

Hoboken, NJ: The Trustees of the Stevens Institute of

Technology.

Clements, P. et al., 2010. Chapter 9. Beyond the Basics..

In: Documenting Software Architectures. Views and

Beyond.. Second Edition ed. s.l.:Addison-Wesley, pp.

217-260.

Davenport, T. & Brooks, J., 2004. Enterprise Systems and

the Supply Chain. Journal of Enterprise Information

Management, 17(1), pp. 8 - 19.

Fakhroutdinov, K., 2014. UML 2.x Diagrams. [Online]

[Accessed 2015] Available at: http://www.uml-

diagrams.org/component-diagrams.html.

Fleischmann, B. & Koberstein, A., 2015. Chapter 6.

Strategic Network Design. In: H. Stadtler, C. Kilger &

H. Meyr, eds. Supply Chain Management and

Advanced Planning. Germany: Springer Berlin

Heidelberg, pp. 107-123.

Framinan, J. & Ruiz, R., 2010. Architecture of

manufacturing scheduling systems: Literature review

and an integrated proposal. European Journal of

Operational Research, 205(2), pp. 237-246.

Henning, G., 2009. Production Scheduling in the Process

Industries: Current Trends, Emerging Challenges and

Opportunities. Computer Aided Chemical

Engineering, Volume 27, pp. 23-28.

Hvolby, H.-H. & Steger-Jensen, K., 2010. Technical and

industrial issues of Advanced Planning and

Scheduling (APS) systems. Computers in Industry,

61(9), pp. 845-851.

ISO/IEC/IEEE, 2011. 42010:2011 - ISO/IEC/IEEE

Systems and software engineering -- Architecture

description. s.l.:IEEE Computer Society.

Kallestrup, K. B., Lynge, L. H., Akkerman, R. &

Oddsdottir, T. A., 2014. Decision support in

hierarchical planning systems: The case of

procurement planning in oil refining industries.

Decision Support Systems.

Kontio, M., 2008. Architectural manifesto: Adopting agile

development, Part 5, s.l.: s.n.

Kruchten, P., 1995. The 4+1 View Model of Architecture.

IEEE Software, 12(6), pp. 42-50.

Lothka, R., 2005. Should all apps be n-tier?. [Online]

[Accessed 12 2014] Available at:

http://lhotka.net/weblog/ShouldAllAppsBeNtier.aspx.

Microsoft Patterns & Practices Team, 2009. Microsoft®

Application Architecture Guide (Patterns &

Practices). 2nd ed. s.l.:O'Reilly.

Nguyen, D. et al., 2011. A Methodology for Developing

an Agent Systems Reference Architecture. In: Agent-

Oriented Software Engineering XI. s.l.:Springer Berlin

Heidelberg, pp. 177-188.

Norta, A., Grefen, P. & Narendra, N. C., 2014. A

reference architecture for managing dynamic inter-

organizational business processes. Data & Knowledge

Engineering, May, Volume 91, pp. 52-89.

Northrop, L., 2003. Chapter 2. What Is Software

Architecture?. In: Software Architecture in Practice.

2nd ed. Boston, MA: Addison-Wesley.

Object Management Group, 2013. OMG Unified Modeling

Language TM (OMG UML). 2.5 ed. s.l.:OMG.

Oracle, 2015. [Online] [Accessed 2015] Available at:

http://www.oracle.com/us/products/applications/ebusi

ness/scm/051323.html.

Pääkkönen, P. & Pakkala, D., 2015. Reference

Architecture and Classification of Technologies,

Products and Services for Big Data Systems. Big Data

Research, February, 2(4), pp. 166-186.

Stadtler, H., 2005. Supply chain management and

advanced planning––basics, overview and challenges.

European Journal of Operational Research, 163(3),

pp. 575-588.

Stadtler, H., 2015. Supply Chain Management: An

Overview. In: H. Stadtler, C. Kilger & H. Meyr, eds.

Supply Chain Management and Advanced Planning.

5th ed. University of Hohenheim: Springer Berlin

Heidelberg, pp. 3-28.

Stadtler, H. et al., 2012. Advanced Planning in Supply

Chains. Illustrating the Concepts Using an SAP®

APO Case Study. First Edition ed. Berlin: Springer-

Verlag Berlin Heidelberg.

Vidoni, M. & Vecchietti, A., 2015. A systemic approach

to define and characterize Advanced Planning Systems

(APS). Computers & Industrial Engineering, Volume

90, pp. 326-338.

Yonghua Zhou, Yuliu Chen & Huapu Lu, 2004. UML-

based systems integration modeling technique for the

design and development of intelligent transportation

management system. s.l., IEEE, pp. 6061-6066.

Zoryk-Schalla, A. J., Fransoo, J. C. & de Kok, T. G.,

2004. Modeling the planning process in advanced

planning systems. Information & Management, 42(1),

pp. 75-87.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

440
