3D Thermal Monitoring and Measurement using Smart-phone

and IR Thermal Sensor

Arindam Saha, Keshaw Dewangan and Ranjan Dasgupta

Innovation Lab, Tata Consultancy Services, Kolkata, India

Keywords: Thermal Inspection, Smart-phone Application, Sensor Fusion, 3D Measurement, Camera Calibration,

Multi-view Geometry, FLIR Thermal Attachment.

Abstract: Continuous and on the fly heat monitoring in industries like manufacturing and chemical is of compelling

research nowadays. The recent advancement in IR thermal sensors unfold the possibilities to fuse the

thermal information with other low cost sensor (like optical camera) to perform area or volumetric heat

measurement of any heated object. Recent development of affordable handheld mobile thermal sensor as a

smart-phone attachment by FLIR encouraged the researcher to develop thermal monitoring system as smart-

phone application. In pursuit of this goal we present a light weight system with a combination of optical and

thermal sensors to create a thermal dense 3D model along with area/volume measurement of the heated

zones using smart-phone. Our proposed pipeline captures RGB and thermal images simultaneously using

FLIR thermal attachment. Estimates the poses for RGB and depth images, 3D models are generated by

tracking the features from RGB images. Back-projection is used to colour the 3D points to represent both in

RGB as well as an estimated surface temperature. The final output of the system is the detected hot region

with area/volumetric measurement. Experimental results demonstrate that the cost effective system is

capable to measure hot areas accurately and usable in everyday life.

1 INTRODUCTION

Unobtrusive heat measurement and monitoring is

well accepted in manufacturing, chemical,

automobile, construction industries. Conventional

industrial thermal cameras are still not in affordable

range for everyday life usage. Conventional

thermography for energy measurement and non-

invasive assessments relies on 2D thermal images,

which have significant limitations like lack of

information on the shape and geometry or location

of the object of interest in the scene. So there is

growing interest on representing the environment in

3D which also integrates the temperature

information. The combined information will help to

detect the object of interest and volumetric

measurement precisely. Autonomous solution is in

high demand in the market, especially in industries

like manufacturing and chemical and also systems

which are usable in everyday life. FLIR lunched an

affordable thermal sensor (FLIR, 2014) as smart-

phone attachment which manifolds the possibility of

monitoring and verification of heated region using

such hand held mobile low cost sensors.

We present a cost effective 3D thermal mapping

system in contrast of conventional thermal camera

without compromising much of qualitative measure.

The system is capable of area or volumetric

measurement of heat in a continuous and non-

invasive way. The proposed system is consists of a

hand held smart-phone and a FLIR thermal

attachment. FLIR thermal attachment for smart-

phone is features enrich product within affordable

price compare to costly conventional thermal

sensors. FLIR thermal attachment comes with

160x120 thermal resolutions which are further

scaled up to VGA resolution using FLIR MSX

technology (FLIR, 2014) and it is capable to detect

temperatures between -20°C to 120°C with a

resolution of 0.1°C. Conventional thermal sensors

are more on to measure the heat accurately in a 2D

space. The proposed system is capable of generating

dense 3D model with thermal annotation for the

purpose of further processing and measurement

volumetric heat on the fly for everyday usage. The

system can be consider as a trade-off with more

accurate thermal camera where volumetric heat

measurement is more important compare to the

696

Saha, A., Dewangan, K. and Dasgupta, R.

3D Thermal Monitoring and Measurement using Smart-phone and IR Thermal Sensor.

DOI: 10.5220/0005786106940700

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 3: VISAPP, pages 696-702

ISBN: 978-989-758-175-5

accuracy of thermal measurement for example

sludge-heel formation inside in an oil tank. The

proposed system is sub set of much bigger concept

presented by P. Deshpande et al., (2015).

The major contributions are:

 Designing a hand-held light weight system for

continuous monitoring and measurement of

heated zone for everyday usage which can be

extend for various industries like oil refinery,

automobile industries etc.

 Creating smart-phone application for thermal

measurement using FLIR thermal attachment.

 Finding out the heated regions automatically and

measurement of heat area or volume accurately

in 3 dimensions.

Our entire framework exploits several state-of-the-

art algorithms for generating dense 3D environment

using IMU sensors. We present experimental results,

which prove that proposed system can be utilized in

wide range of scenarios. We also evaluate the

accuracy of the reconstruction by comparing with

the ground truth.

2 STATE OF THE ART

Several studies are performed to explore the

potential of 3D thermal mapping and volumetric

inspection. The studies are mostly focused on

monitoring building power consumption.

ThermalMapper (Borrmann et al., 2012) is a

well-known project which uses a terrestrial laser

scanner and thermal infrared camera on a wheel

robot. The thermal data is kept on projecting onto

the 3D model as soon as it is generated by laser

scanner. The final result from ThermalMapper is a

dense 3D point cloud which can be visualized in

both RGB and thermal. Volumetric heat

measurement and analysis is not part of the

presented system. There is significant cost and

mobility difference between the presented systems

with our proposed system due to the usage of a light

weight (approximately 78 grams) low cost FLIR

attachment with smart-phone.

In a recent work Vidas et al., (2013) represent a

3D thermal mapping to monitor building interiors

using Microsoft Kinect (Microsoft, 2010) and a

thermal camera. In computer vision and robotics, the

use of RGBD cameras like Microsoft Kinect

facilitates the development of techniques for highly-

detailed and spatially-extended reconstructions

(Meilland and Comport, 2013; Whelan et al., 2013).

Such costly and bulky coupled sensors are capable

of reconstructing in real-time (Newcombe et al.,

2011), but the use of structured light pattern make

the product usage limited within indoor environment

and short range measurements. The presented

system is limited to present 3 dimensional

environments with surface temperature annotation

and automatic heat measurement and analysis is out

of scope. The dimension, weight and operating

environment are the main drawbacks for kinect to be

used as a hand-held low cost system. Though active

depth sensors have many advantages, there are

certain scenario where passive RGB cameras are

preferred due to its low power consumption, outdoor

capable and form factor. This has motivated many

researchers to investigate methods for 3D

reconstruction using only passive cameras. So, the

stereo approaches are still very popular. There are

approaches where binocular vision is used for 3D

reconstruction in indoor environment for navigation

(Krishnan and Kollipara, 2014). The growing

interest of dense reconstruction gave attention in

multi-view stereo technique (Seitz et al., 2006;

Furukawa et al., 2010) where the computational

complexity prevents them to be used as low cost and

light weight system.

In a recent work (Pradeep et al., 2013) has

described a methodology for marker less tracking

and 3D reconstruction in scenes of smaller size

using RGB camera sensor. It tracks and re-localizes

the camera pose and allows for high quality 3D

model reconstruction using a webcam. (Pizzoli et al.,

2014) proposed a solution by adapting a

probabilistic approach in which depth map is

computed by combining Bayesian estimation and

convex optimization techniques. These

implementations are limited to a small scene

reconstruction. These kind of system paired with

another thermal camera would generate a clumsy

setup and mobility of the entire system would be

restricted.

In another work Saha et al., (2014) has presented

a system where smart-phone is used as capture

device and the entire reconstruction is performed in

a backend system. The mobility of the system is

main drawback for everyday usage.

Industrial thermal cameras are capable of

measuring the temperature accurately from a

specified distance and few costly cameras provide

dimension of the heated regions in 2 dimensions

with a user guided way. FLIR smart-phone thermal

attachment is also providing information in 2

dimensional spaces. Volumetric measurements are

limited due to 2 dimensions. The cost of thermal

cameras is another metric which restrict these

3D Thermal Monitoring and Measurement using Smart-phone and IR Thermal Sensor

697

products to be used only in industrial segment. FLIR

smart-phone thermal attachment brings the

opportunity to be used as house hold product for

everyday life usage due to the enormous cost

reduction, increase mobility for small dimensions

and weight and finally user friendly instead of

expensive or bulky thermal systems. Automatic

Volumetric measurement requires the heat analysis

on 3 dimensions, so there are limitations in state of

the art for an autonomous affordable system which

is capable of area or volumetric measurement of any

heated regions in everyday life. We present a smart-

phone based framework along with an implemented

application for the gap as discussed.

3 FRAMEWORK DESCRIPTION

The block diagram of the entire system is illustrated

in figure 1.

3.1 Data Acquisition

We used hand held smart-phone with FLIR thermal

attachment for entire data collection and processing.

Data collection starts from certain position

(according to requirement and camera field of view)

and we take this as origin of world coordinate

system for entire data collection and calculation. To

collect data, we use our two apps in parallel. One

app handles the entire image capturing called

OptoThermalFLIR App and another app called i-

POSE handles the task of recording the IMU data

with timestamp.

OptoThermalFLIR app captures optical and

thermal image simultaneously at each point and

saves with timestamp. i-POSE app runs in

background and records the IMU data

(accelerometer, magnetometer and gyroscope are

used) with timestamp at 200Hz. The timestamp

information helps us to map image frame with

position from where image has taken. The auto

capture of images is controlled using accelerometer

sensor. The noisy accelerometer data alone is

capable enough to determine the motion status of the

phone coarsely. The image capture is triggered only

if the smart-phone is detected in stationery condition

to avoid motion blur in images. Captured images and

pose information are further used for 3D thermal

mapping.

3.2 Camera Calibration

The cameras mounted on the FLIR thermal

attachment are used in our experiments. Pin-hole

camera model (Hartley et al., 2003) is used. The

internal calibration process is performed offline

using well known checker board methods as

described by Zhang (Zhang, 2000).

External calibration are derived from inertial and

IMU sensors as described by Bhowmick et al.,

(2014).

Optical and thermal cameras are apart with fixed

distance and they are parallel. So there is a fixed

translation between the cameras without any

rotation. So the external calibration for the thermal

image is derived by adding the fixed translation

vector with the calibration matrix of optical camera.

Figure 1: System Workflow.

3.3 Dense Correspondence Estimation

The dense stereo matching is vast and we refer to H.

Hirschmuller (Hirschmuller and Scharstein, 2009)

for a comparison of all existing methods. In fact,

there are few relevant works available on real-time,

Simultaneous RGB &

Thermal data capture

3D reconstruction

using RGB images

Superimpose thermal

information using

back projection

Generate camera

calibration matrix

using IMU sensors

Segment the heated region

from thermal 3D clou

Generate the contour of

all heated regions

Calculate the dimensions

from all heated regions

contours

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

698

dense reconstruction using a monocular moving

camera.

Motion estimation by means of optical flow is a

well-accepted and established methodology for

providing dense sampling in time. The predominant

way of estimating dense optical flow in today’s

computer vision literature is by an approach of

integrating rich descriptors into the variational

optical flow setting as described in T. Brox (Brox

and Malik, 2011). The main advantage of the

selected approach is the ability to produce better

results in a wide range of cases and also for large

displacement.

Large displacement optical flow is a variational

optimization technique which integrates discrete

point matches with continuous energy formulation.

The final goal is to find the global minima of the

energy and for that the initial guess of the solution

has to very close to the global minima. The entire

energy is globally minimized and the details of

minimization procedure are studied in T. Brox (Brox

and Malik, 2011).

The n-view point correspondence generation is

carried out using the GPU implementation as

described by N. Sundaram (Sundaram et al., 2010).

The point trajectories are generated between

consecutive frames from the captured images.

Optical flow has an effect of accumulating errors in

the flow vector. So, a long trajectory suffers from

this error and leading to a significant drift. Short

trajectories are almost free from the drift error, but

the triangulation process suffers due to small base

line measurements. Hence, we have chosen

consecutive frames that are having base line more

than 5 cm and the trajectory length chosen as less

than 8.

3.4 Outlier Estimation

Detecting outlier is a very primitive task before

doing any further processing with the available

information. Outlier detection process is very

straight forward and it follows the epipolar

constraints (Hartley et al., 2003) as shown in (4).

The main advantage of having accurate camera

calibration parameters helps us to generate an

accurate fundamental matrix using equation (1)

(Hartley et al., 2003).

FK′









(1)

Where F is the fundamental matrix between an

image pair, K and K′ correspond to the internal

calibration matrix of the image pair, R and t

represent the rotation matrix and translation vector

of second image with respect to first image.

Rotation matrix R



between camera pair i and j

can be obtained using equation (2) (Hartley et al.,

2003) where R



 and R



denotes the rotation matrix

of camera i and j respectively with respect to the

global coordinate system.



R







(2)

The translation vector t



between a camera pair i

and j is calculated using equation (3) where C



and C



denotes the absolute position for camera i and j

respectively.





R



C



C





(3)

The corresponding points x, x



 ideally should

follow the epipolar constraints as given in equation

(4) (Hartley et al., 2003) where F denotes the

Fundamental matrix. In reality, the value never

becomes zero rather it goes very close to zero. So,

any corresponding points in order to be considered

as inlier, the value should be below to a threshold.

Now, a particular threshold is not suitable for all

cases, so there is a requirement of defining a

dynamic threshold which can automatically be

adjusted depending upon the captured scene. The

threshold value is defined as dynamic and it gets

calculated based on percentage of rejection.

x′



Fx  0

(4)

Implemented optical flow algorithm is more error

prone towards the image boundaries. Centre of the

image is given higher weightage due to the sated

reason and pixels are placed near to the image

boundaries are removed as outlier.

3.5 3D Model Reconstruction

The 3D model generation is done in form of point

cloud. The 3D point cloud is created using

triangulation process. The approaches are quite

similar as described by Dewangan et al., (2015).

Each point is back projected onto the image plane to

calculate the back projection error. Any 3D point

with back projection error more than 2 pixels is

considered as outlier. The camera calibration

parameters from IMU sensors and dense point

correspondence from optical flow estimation

generates an accurate point cloud which does not

require any further optimization.

The whole scene reconstruction is done in an

incremental way. Images are divided into small sets

as mentioned above such that the trajectory length is

not more than 8 images. Each subset is merged after

triangulation to get the final reconstruction.

3D Thermal Monitoring and Measurement using Smart-phone and IR Thermal Sensor

699

3.6 Opto-thermal Mapping

Normally thermal cameras are required to calibrate

the intensity in regular interval for correction for a

gradual decrease in measured signal accuracy during

operation. These operations are known as NUCs

(Non-Uniformity Corrections). FLIR thermal

attachment is of similar type and required regular

calibration.

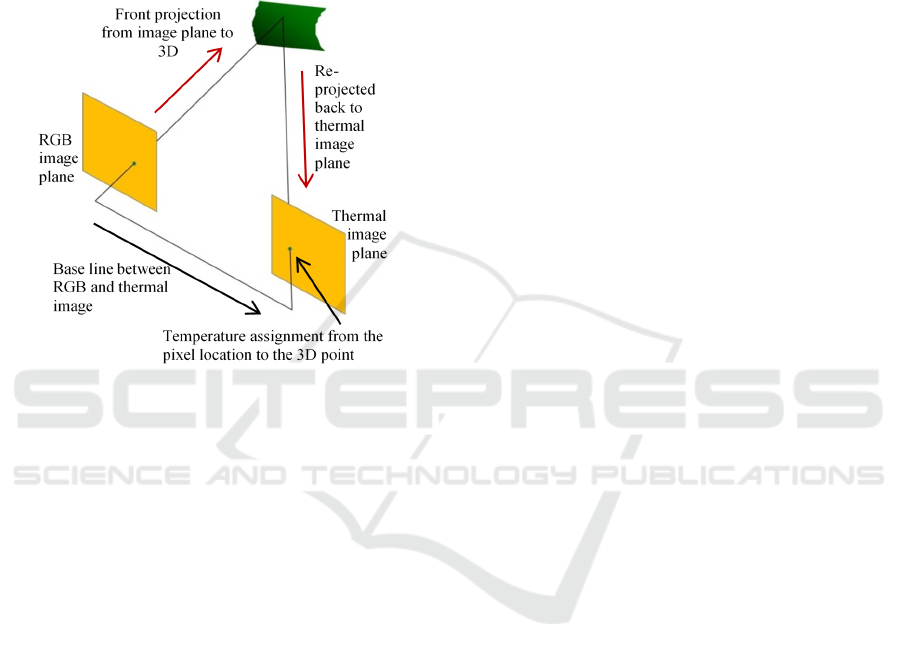

Figure 2: Temperature assignment in 3D model.

One of the great advantages of using FLIR is the

placement of optical and thermal camera; both the

sensors are very close and reproduce almost similar

views. If any 3D point is visible in a RGB image

almost all cases it is also visible in the corresponding

thermal image. We measure the displacement

between these two sensors and incorporate the

measurement into calibration. The thermal

annotation of every point is almost error free due to

very short base line between optical and thermal

camera.

Thermal information is assigned on the optical

3D point cloud by applying back projection. Each

3D point from the point cloud is back projected

using equation (5) (Hartley et al., 2003) to the

corresponding 2D thermal image plane to determine

the coordinate on the 2D thermal image plane and

determines the temperature from 2D coordinate

location of thermal image. The entire process is

explained in figure 2.

x

RX  

(5)

Where X and x represents the 3D and 2D point

respectively.

3.7 Heat Measurement

Thermal 3D point cloud is the representation of

thermal profile in 3D space. The visualization is

only the annotation of temperature in form of colour

as shown in figure 3. The temperature values are the

main differentiator in the entire 3D model. Heated

regions are segmented using the temperature profile.

All segmented point cloud are stored and analysed

separately. Point cloud library (PCL) is an open

source tool for cloud processing and this is been

extensively used in our implementation. Contour of

each segmented heat cloud is determined and the

area or volume is calculated from the contour.

4 RESULTS

4.1 Test Environment

Our test environment is iPhone 5s with FLIR

thermal attachment. The entire framework is

implemented and tested as an application.

The accuracy of the proposed system is entirely

depends on reconstruction accuracy which is intern

dependent on the output of the optical flow. We

have incorporated several precaution procedures to

make the system robust enough for daily usage. The

accuracy of the flow vector is less than a pixel and

so the estimated error is in few millimetre ranges for

bigger object like car as shown in the example of

figure 4. The presented system is probably the first

such mobile application as per our knowledge which

is capable of measuring area or volume of heat

automatically, so unable to benchmark with similar

application. Costly thermal cameras are used in

industries which are capable of measuring heated

area or volume with greater accuracy.

We have tested the application in normal lighting

condition in both indoor and outdoor situations and

found satisfactory result.

4.2 Outputs

We present two sample heat measurements in

different environment to demonstrate the usability.

Figure 3 shows a sample 3D thermal point cloud

of a mug containing hot water. The presence of

water is only detectable through thermal image. The

testing is performed using 11 images with two

iterations. The 3D thermal cloud shows the structure

of the mug along with the hot region. The idea is to

measure the volume of hot water present inside. The

mug is segmented by the knowledge of its

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

700

cylindrical shape. The segmentation finally is used

to detect the dimension of the mug. Mostly heated

region is extracted from the temperature and the

dimension is calculated from 3D structure.

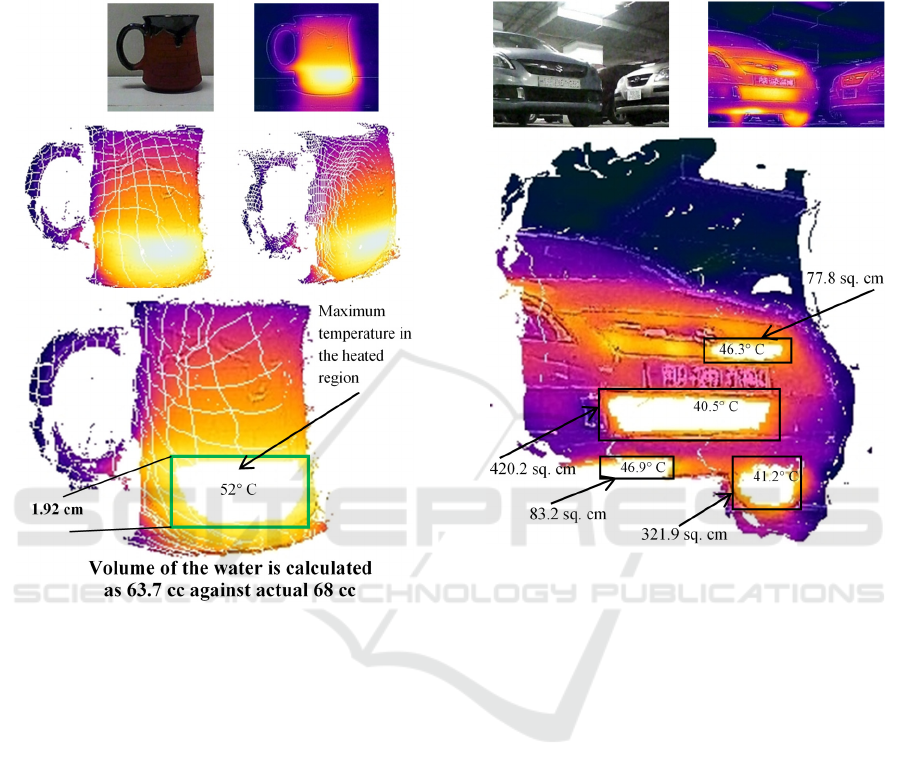

Figure 3: Volumetric Measurement: Top to bottom shows

the captured RGB and thermal image, segmented 3D

thermal model, detected dimension of the heated region

with maximum temperature.

Figure 4 represents thermal profile of a car just

after parking in an indoor parking lot. The

registration number plates on the images are

corrupted intentionally. Thermal profile on the

images shows the tires and engine inside the bonnet

is the hottest zones as expected. We have measured

the surface areas of the heated zones. Any

abnormality found in the area of the heated region

would eventually help automobile companies to

predict or understand the fault in the engine or any

other part of a car.

The presented samples show the capabilities to

perform a heated area or volumetric analysis in a

non-invasive way. Heat measurement is typically

depends on the heat flow inside the container and

type of material used for the container. We observe

the similar characteristics through our experimental

experiences. Thermo-flax is typically well known

for locking the heat inside the container for longer

time so the temperature gradient is not prominent or

distinct if we perform experiments with hot water

inside of a thermo-flax.

Figure 4: Area Measurement: Top to bottom: RGB and

thermal image, detected hot zones with covered area and

maximum temperature in each heated region on the

thermal 3D model.

4.3 Execution Time

Execution time is highly dependent on 3D

reconstruction time and number of images that are

used for testing. We could able to process a single

image roughly between 2 to 2.5 seconds. The

execution time for the samples presented in figure 3

and 4 are 23 seconds and 18 seconds respectively.

5 CONCLUSIONS

We presented an approach for dense 3D thermal

mapping for heat monitoring along with

area/volumetric heat measurement using smart-

phone and FLIR thermal attachment. 3D

reconstruction is performed with RGB image and

thermal overlapping on 3D model is done to create a

3D thermal structure. Heated regions are segmented

and structure of heated regions is analysed to

3D Thermal Monitoring and Measurement using Smart-phone and IR Thermal Sensor

701

calculate the contours. Area / volume of the heated

regions are calculated from the corresponding

contours. Our results show the capability of such

solution which can be applied in other domain for

any specific purpose. The main advantage of such a

system is that, it uses only passive sensors for

measurement, so it can be deployable in outdoor

environment. We also analysed computation time

and this shows the solution runs in near real-time.

The heated area or volume measurements with

closed container show different heat profile. The

heat flow also has a great effect on heat profile.

These types of works are considered as further

improvement of the entire system.

REFERENCES

http://www.flir.com.hk/flirone/

P. Deshpande, V. R. Reddy, A. Saha, K. Vaiapury, K.

Dewangan, R. Dasgupta, (2015). A Next Generation

Mobile Robot with Multi-mode Sense of 3D

Perception. IEEE International Conference on

Advanced Robotics (ICAR), pp. 382 - 387

DOI:10.1109/ICAR.2015.7251484

D. Borrmann, A. Nuchter, M. Dakulovic, I. Maurovic, I.

Petrovic, D. Osmankovic, and J. Velagic, (2012). The

project ThermalMapper thermal 3D mapping of indoor

environments for saving energy. In Proc. of the 10th

International IFAC Symposium on Robot Control

(SYROCO), vol. 10.

S. Vidas, P. Moghadam and M. Bosse, (2013). 3D thermal

mapping of building interiors using an RGB-D and

thermal camera. In Proc. of IEEE International

Conference on Robotics and Automation.

http://www.microsoft.com/en-us/kinectforwindows/

M. Meilland and A. Comport, (2013). Super-resolution 3D

Tracking and Mapping. In IEEE Intl. Conf. on

Robotics and Automation.

T. Whelan, H. Johannsson, M. Kaess, J. Leonard, and M.

J.B., (2013). Robust real-time visual odometry for

dense RGB-D mapping. In IEEE Intl. Conf. on

Robotics and Automation (ICRA).

R. A. Newcombe, A. J. Davison, S. Izadi, P. Kohli, O.

Hilliges, J. Shotton, D. Molyneaux, S. Hodges, D.

Kim, and A. Fitzgibbon, (2011). KinectFusion: Real-

time dense surface mapping and tracking. In Proc.

ISMAR.

A. B. Krishnan and J. Kollipara, (2014). Intelligent indoor

mobile robot navigation using stereo vision. Signal &

Image Processing: An International Journal (SIPIJ),

Vol.5, No.4.

A. Saha, B. Bhowmick and A. Sinha, (2014). A system for

near real-time 3D reconstruction from multi-view

using 4G enabled mobile. IEEE International

Conference on Mobile Services (MS), pp. 1-7,

doi:10.1109/MobServ.2014.10.

S. Seitz, B. Curless, J. Diebel, D. Scharstein, and R.

Szeliski, (2006). A comparison and evaluation of

multi-view stereo reconstruction algorithms. In Proc.

IEEE Conf. on Computer Vision and Pattern

Recognition.

Y. Furukawa and J. Ponce, (2010). Accurate, dense, and

robust multiview stereopsis. In Proc. IEEE Trans.

Pattern Anal. Machine Intell., vol. 32, no. 8, pp. 1362–

1376.

V. Pradeep, C. Rhemann, S. Izadi, C. Zach, M. Bleyer and

S. Bathiche, (2013). MonoFusion: Real-time 3D

reconstruction of small scenes with a single web

camera. The 13th IEEE International Symposium on

Mixed and Augmented Reality.

M. Pizzoli, C. Forster and D. Scaramuzza, (2003).

REMODE: Probabilistic, monocular dense

reconstruction in real time. In Proc. IEEE International

Conference on Robotics and Automation (ICRA).

R. Hartley and A. Zisserman, (2003). Multiple view

geometry in computer vision. ISBN 0-521-54051-8,

Cambridge University Press.

Z. Zhang., (2000). A flexible new technique for camera

calibration. IEEE Transactions on Pattern Analysis

and Machine Intelligence, 22(11):1330-1334.

B. Bhowmick, A. Mallik and A. Saha, (2014).

Mobiscan3D: A low cost framework for real time

dense 3d reconstruction on mobile devices. Iin Proc. of

The 11th IEEE International Conference on

Ubiquitous Intelligence and Computing.

H. Hirschmuller and D. Scharstein, (2009). Evaluation of

stereo matching costs on images with radiometric

differences. IEEE Trans. Pattern Anal. Machine Intell.,

vol. 31, no. 9.

T. Brox and J. Malik, (2011). Large displacement optical

flow: descriptor matching in variational motion

estimation. IEEE Transactions on Pattern Analysis and

Machine Intelligence, 33(3):500-513.

N. Sundaram, T. Brox and K. Keutzer, (2010). Dense

point trajectories by GPU-accelerated large

displacement optical flow. European Conference on

Computer Vision (ECCV), Crete, Greece, Springer,

LNCS.

K. Dewangan, A. Saha, K. Vaiapury, R. Dasgupta, (2015).

3D Environment Reconstruction using Mobile Robot

Platform & Monocular Vision. 9th International

Conference on Advanced Computing &

Communication Technologies (ICACCT).

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

702
