Watch Where You’re Going!

Pedestrian Tracking Via Head Pose

Sankha S. Mukherjee, Rolf H. Baxter and Neil M. Robertson

Visionlab, Institute of Signal Sensors and Systems, Schools of Engineering and Physical Sciences,

Heriot-Watt University, Edinburgh, U.K.

Keywords:

Deep Learning, Intentional Tracker.

Abstract:

In this paper we improve pedestrian tracking using robust, real-time human head pose estimation in low

resolution RGB data without any smoothing motion priors such as direction of motion. This paper presents

four principal novelties. First, we train a deep convolutional neural network (CNN) for head pose classiﬁcation

with data from various sources ranging from high to low resolution. Second, this classiﬁcation network is then

ﬁne-tuned on the continuous head pose manifold for regression based on a subset of the data. Third, we

attain state-of-art performance on public low resolution surveillance datasets. Finally, we present improved

tracking results using a Kalman ﬁlter based intentional tracker. The tracker fuses the instantaneous head pose

information in the motion model to improve tracking based on predicted future location. Our implementation

computes head pose for a head image in 1.2 milliseconds on commercial hardware, making it real-time and

highly scalable.

1 INTRODUCTION

Automatic gazing direction estimation has become an

important feature for the application of computer vi-

sion to surveillance and human behaviour inference

(Gesierich et al., 2008). Human head pose is the

most important factor in determining focus of atten-

tion (Langton et al., 2004) and provides important

information for group detection, gesture, interaction

detection, and scene understanding (Henderson and

Hollingworth, 1999).

There remains a signiﬁcant gap in the current

methods for unconstrained head pose estimation in

low resolution. This work addresses the need for

computing low-resolution gaze estimators without re-

liance on motion priors to smooth the estimate and

presents a demonstrably more robust method using

deep learning. In summary, the main scientiﬁc con-

tributions of this paper are: (a) Learning a convolu-

tional neural network for human head pose estima-

tion model in an abstract head space that can infer

parameters heads from low resolution, noisy inputs;

(b) Discriminating between head pose angles from

the input image without other prior information us-

ing multi-label discriminative training using various

loss functions; (c) We report state-of-the art results on

two publicly available datasets when compared to the

(previously) state-of-the-art approaches; (d) Using the

robust head pose estimation we report new tracking

results in an intentional tracking framework. Figure

1 demonstrates the output of our instantaneous head

pose estimator on a typical surveillance dataset.

1.1 Related Work

In visual surveillance the resolution of detected heads

can be very small so head pose is often estimated in

coarse discrete directional bins of the azimuthal an-

gle (Robertson and Reid, 2006). See for example the

eight classiﬁcation bins used in this paper in Figure 3.

Walking direction is then often used as a smoothing

prior (Benfold and Reid, 2008), which reduces mean

squared error, but also attenuates the pure informa-

tion content of the head pose signal. As shown in Fig

2, an analysis of gazing behaviour in several datasets

demonstrates that most people look where they are

going. However, the cases that are of more interest

are when people deviate from this behaviour (i.e. look

somewhere else), as this information could be useful

for anomaly detection or improving tracking (Baxter

et al., 2015).

To obtain an unbiased classiﬁer we, novelly, esti-

mate head pose from the image alone by learning to

represent human heads using a trained CNN. Blanz

et al. (Blanz and Vetter, 1999) use a generative mor-

phable 3D model of human faces in an abstract face-

Mukherjee, S., Baxter, R. and Robertson, N.

Watch Where You’re Going! - Pedestrian Tracking Via Head Pose.

DOI: 10.5220/0005786905730579

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 3: VISAPP, pages 575-581

ISBN: 978-989-758-175-5

575

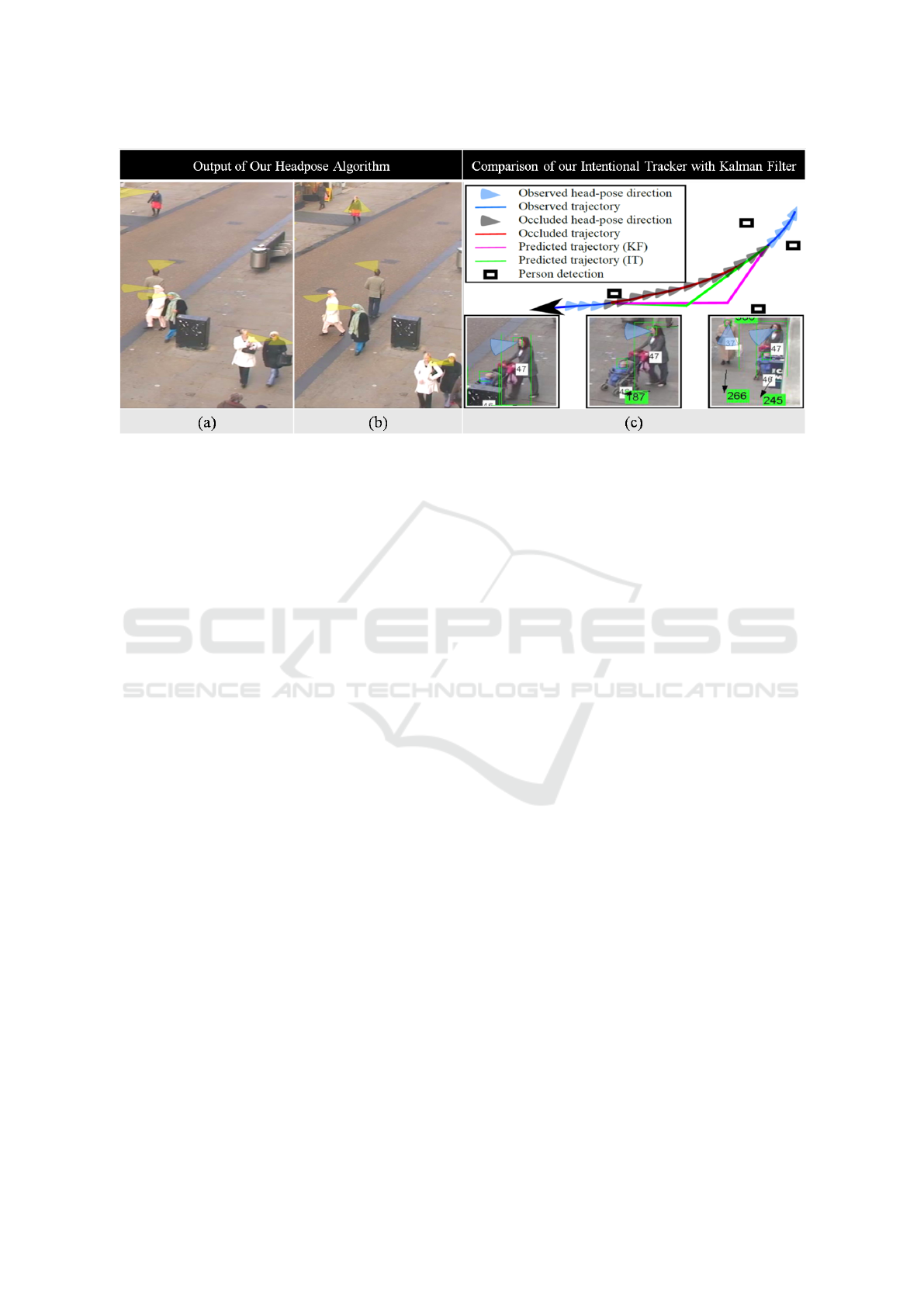

Figure 1: (a) and (b) show the example output of our system showing head pose estimation in the Oxford town centre

dataset(Benfold and Reid, 2011). (c) A real person trajectory/head pose behaviour and predicted trajectory using a Kalman

Filter (KF) and our intentional tracker (IT). Tracking failures can lead to target data association errors. (Bottom) Frames from

the Benfold dataset (Benfold and Reid, 2011) showing pedestrian head pose.

space that can generate human faces with different

shapes, colours and expressions. We learn a repre-

sentation that is valid for human heads under differ-

ent poses and is invariant to expressions, occlusions,

hair, hats, and glasses. CNNs (Szegedy et al., 2014)

have achieved state-of-the-performance in large la-

belled datasets such as the Imagenet.

The pioneering work on low resolution head pose

estimation by Robertson and Reid (Robertson and

Reid, 2006) used a detector based on template train-

ing to classify head poses in 8 directional bins. This

technique was extended to allow colour invariance

by Benfold et al. (Benfold and Reid, 2008), who

proposed a randomized fern classiﬁer for hair face

segmentation before template matching. A few non-

linear regression approaches such as Artiﬁcial Neural

Networks (Gourier et al., 2006; Stiefelhagen, 2004)

and high-dimensional manifold based approaches

(Balasubramanian et al., 2007; BenAbdelkader, 2010)

try to estimate the head poses in a continuous range.

These techniques however are more suited to high res-

olution human computer interaction cases where the

head is more or less constrained to near frontal poses.

Chen and Odobez (Cheng and Odobez, 2012) pro-

posed the state-of-the-art method for unconstrained

coupled head pose and body pose estimation in low

resolution surveillance videos. They used multi-level

HOG for the head and body pose features and ex-

tracted a feature vector for adaptive classiﬁcation us-

ing high dimensional kernel space methods. Coupling

of head pose with such priors results in a head pose

signal that is not very informative: these techniques

perform very well in the range indicated in Figure 2,

but perform poorly when the head pose is not aligned

to the priors. We stress this point because it is impor-

tant for the head pose estimation to provide robust in-

formation that can be further exploited (e.g. improv-

ing tracking, anomaly detection, group detection, be-

haviour analysis) and achieving this goal is what this

paper demonstrates.

Baxter et al. showed that by incorporating head

pose signal into a basic tracker this signiﬁcantly im-

proves tracking in presence of occlusions and/or bad

detections(Baxter et al., 2015). This method, also

known as intentional tracking, sees signiﬁcant perfor-

mance gains from having better head-pose estimation.

We propose a more robust head pose estimation com-

pared to their approach and achieve state-of-the-art in

intentional tracking.

2 DEEP LEARNING OF

LOW-RESOLUTION GAZING

ANGLES

In this paper we adapt the the output of any head de-

tector and normalize the heads to 256 × 256 as in-

put to our algorithm. These inputs are then used

to train a CNN. These models belong to a class of

fully supervised deep models that have proven to

be very successful in a wide variety of tasks. The

power of CNNs lie in the ability to learn multiple

levels of non linear transforms on the input data us-

ing labeled examples through gradient descent based

optimizations. The basic building blocks of CNNs

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

576

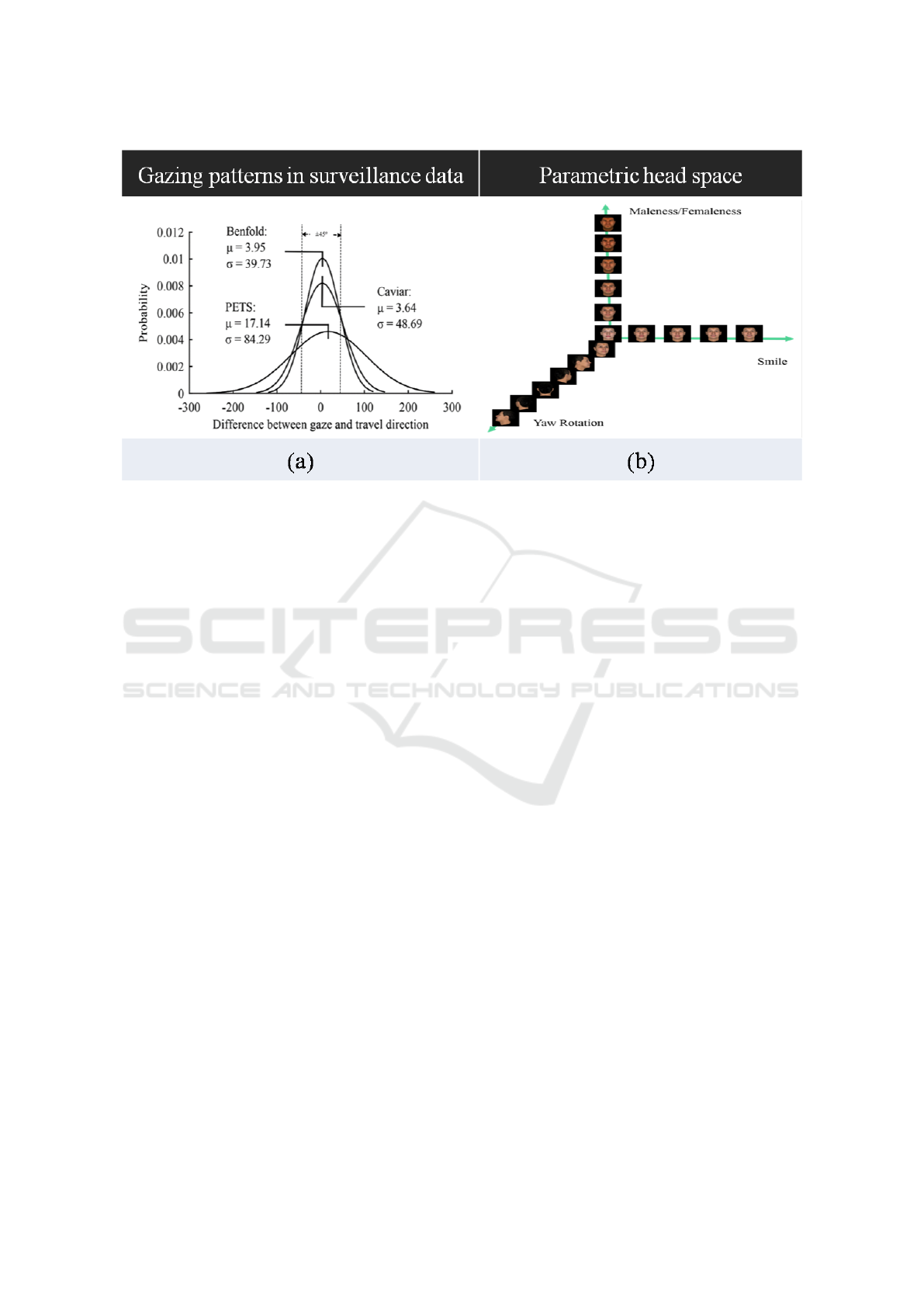

Figure 2: (a) Head pose deviation from walking direction as a Probability Density Function in various datasets (Baxter et al.,

2015) (b) The conceptual parametric human head space.

are fully parameterized (trainable) convolution ﬁl-

ter banks that convolve the input to give feature

maps, non-linearities (like sigmoid or Rectiﬁed Lin-

ear Units), pooling layers/downsampling layers (e.g.

max pooling, mean pooling etc.) that down-sample

the feature maps, and fully connected layers. CNNs

in particular through their multiple levels of convolu-

tion and pooling achieve a high degree of translation

invariance in their features. Recent studies from the

VGG group (Simonyan and Zisserman, 2014) have

shown that deeper models with smaller ﬁlters achieve

great expressive power in terms of learning power-

ful features from data in tasks like object recognition

on large scale datasets like the Imagenet (Ioffe and

Szegedy, 2015). As the model go deeper the num-

ber of weights/ parameters or the networks grow sig-

niﬁcantly. It then becomes imperative to use large

scale labelled training data to train these networks.

However one should note that the number of param-

eters in the convolution layers are orders of magni-

tude lower than the fully connected layer (Krizhevsky,

2014). Hence by having more convolution layers

helps alleviate the problem of this parameter explo-

sion while retaining the expressive properties on the

deep models. One such model is the recently intro-

duced Googlenet model (Szegedy et al., 2014).

We train a CNN on the RGB data based on this

architecture (Szegedy et al., 2014). This architec-

ture has the state-of-the-art results on the Imagenet

dataset (Ioffe and Szegedy, 2015). In our experiment

the same network also gave the best results on our

task. The advantage of this network lies in that it is

very deep but has a lot less parameters (around 5 mil-

lion) compared to other contemporary networks like

the VGG-16 (Simonyan and Zisserman, 2014) which

has more than 140 million parameters. This lets us

train the networks using considerably less training

data. We improved the network by changing the Rec-

tiﬁed Linear Unit non-linearities (RELU) with Para-

metric Rectiﬁed Linear Unit and their corresponding

weight initialisation introduced in (He et al., 2015).

The non-linearities are deﬁned as follows

RELU (x) =

(

x i f x > 0

0 i f x ≤ 0

, PRELU (x) =

(

x i f x > 0

mx i f x ≤ 0

(1)

where m, the slope in the negative x is a learn-able

free parameter.

The reason the PRELU activations are better than

their RELU counterpart lies in the fact that PRELU

activations have non zero outputs and non zero gradi-

ents in the negative values. This makes them easier to

propagate gradients for. Whereas in RELUs if the out-

put of a neuron becomes less than zero, its gradients

also vanish and it hampers learning through gradient

descent. The motivation for doing it is that this small

change, without increasing the number of parameters

of the network signiﬁcantly actually improves the ac-

curacy as shown in (He et al., 2015).

We also exploit the ability of CNNs to learn from

multiple types of labels for the same kind of under-

lying data to achieve a valid representation learnt on

the data. Since there are few explicit head-pose re-

gression datasets, we initialize the training of models

Watch Where You’re Going! - Pedestrian Tracking Via Head Pose

577

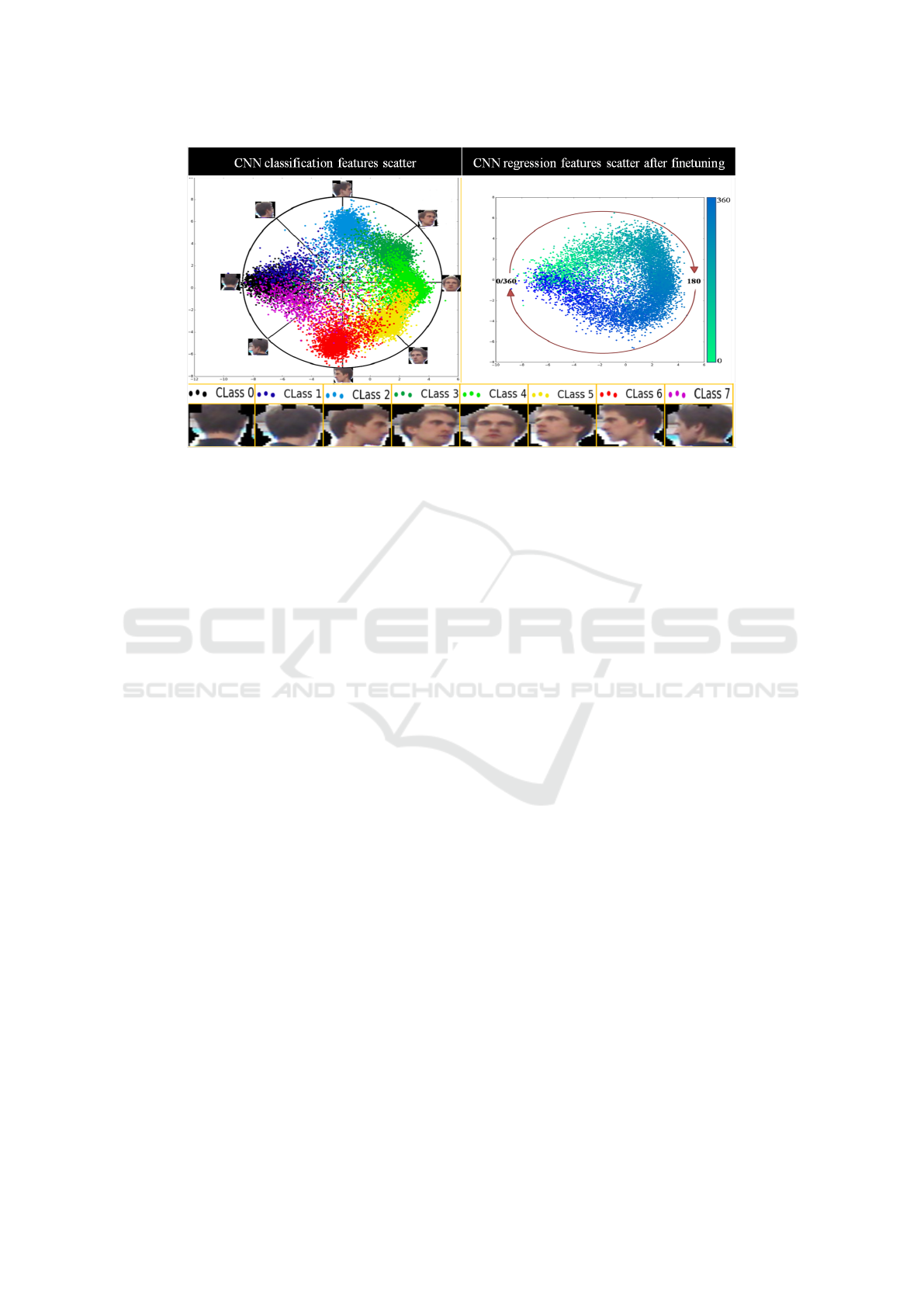

Figure 3: Linear Discriminant Analysis (LDA) projected scatter plot of: (a) The classiﬁcation network features; (b) The

network ﬁne-tuned on regression manifold with a colour map that spans the range 0-360 degrees. Interestingly, the features

maintain the latent circular head pose manifold.

with classiﬁcation into 8 head pose classes spanning

360 degrees. The representative head-pose classes are

shown in Figure 3. We learn an initial representation

that is then transferred to the regression network and

ﬁne tuned for regression. Figure 3 also shows how

the CNN features separate easily in only two dimen-

sions (it is in reality a much higher dimension feature

space).

For regression we expect to see a similar distribu-

tion that is more evenly spread out on the manifold

instead of forming clusters. Figure 3 shows the out-

put scatter plot of the ﬁrst two LDA components of

our ﬁne-tuned features on regression on our dataset.

3 INTEGRATING INTENTIONAL

PRIORS IN A KALMAN FILTER

The Regression output is then used as input to a

Kalman Filter (KF) based intentional tracking frame-

work that we now discuss. We fuse intentional priors

into the KF, ﬁrstly, by calculating the strength of the

prior, denoted ˆs

, using the absolute magnitude of the

deviations for the last 10 time steps (arbitrarily cho-

sen). This allows ˆs

to combine both the magnitude

and persistence of the prior signal. The signal strength

at time t is then calculated as follows (where θ

is the

head pose direction and θ

is the direction of travel):

ˆs

= |

∑

k=t−10

− θ

| (2)

Next, we weight the inﬂuence of the prior. Intu-

itively, the weight (α

) should increase in line with

the strength of the prior ˆs

. A sigmoid function ap-

plied to ˆs

is a simple and effective way to achieve

this. The sigmoid is parameterised by ρ and τ and

could be optimised for the scene to reﬂect the relia-

bility of the prior, where ρ adjusts the rate at which

the function moves from zero to one and τ adjusts the

’base-weight’ (weight given for zero strength). Rather

than optimising for any particular scene, we use val-

ues for ρ and τ that were empirically derived in (Bax-

ter et al., 2014).

= (1 + exp(−ρ(ˆs

− τ)))

−1

(3)

Having determined α

, the transition model (F

) is ad-

justed to reduce the inﬂuence of the target’s previous

motion. Denote F

t−1

as the motion model at time t −1

and γ

= 1 − α

. The motion model is then updated as

follows:







1 0 γ

0 1 0 γ

0 0 1 0

0 0 0 1







(4)

This has the effect of reducing the inﬂuence of ˙x and

˙y by a factor of γ

during the prediction step of the

algorithm. The inﬂuence of the intentional prior is

asserted using the control matrix B

= [α

dx,α

dy, α

dx,α

dy]

(5)

dx = d

cos(θ

),dy = d

sin(θ

) (6)

Where d

is the geometric distance travelled by the

target between t − 1 : t and θ

is the predicted travel

direction based on head pose angle θ

t−1

. Two ap-

proaches could be used for calculating d

: It could

be estimated from [ ˙x

t−1

, ˙y

t−1

], which is an estimate of

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

578

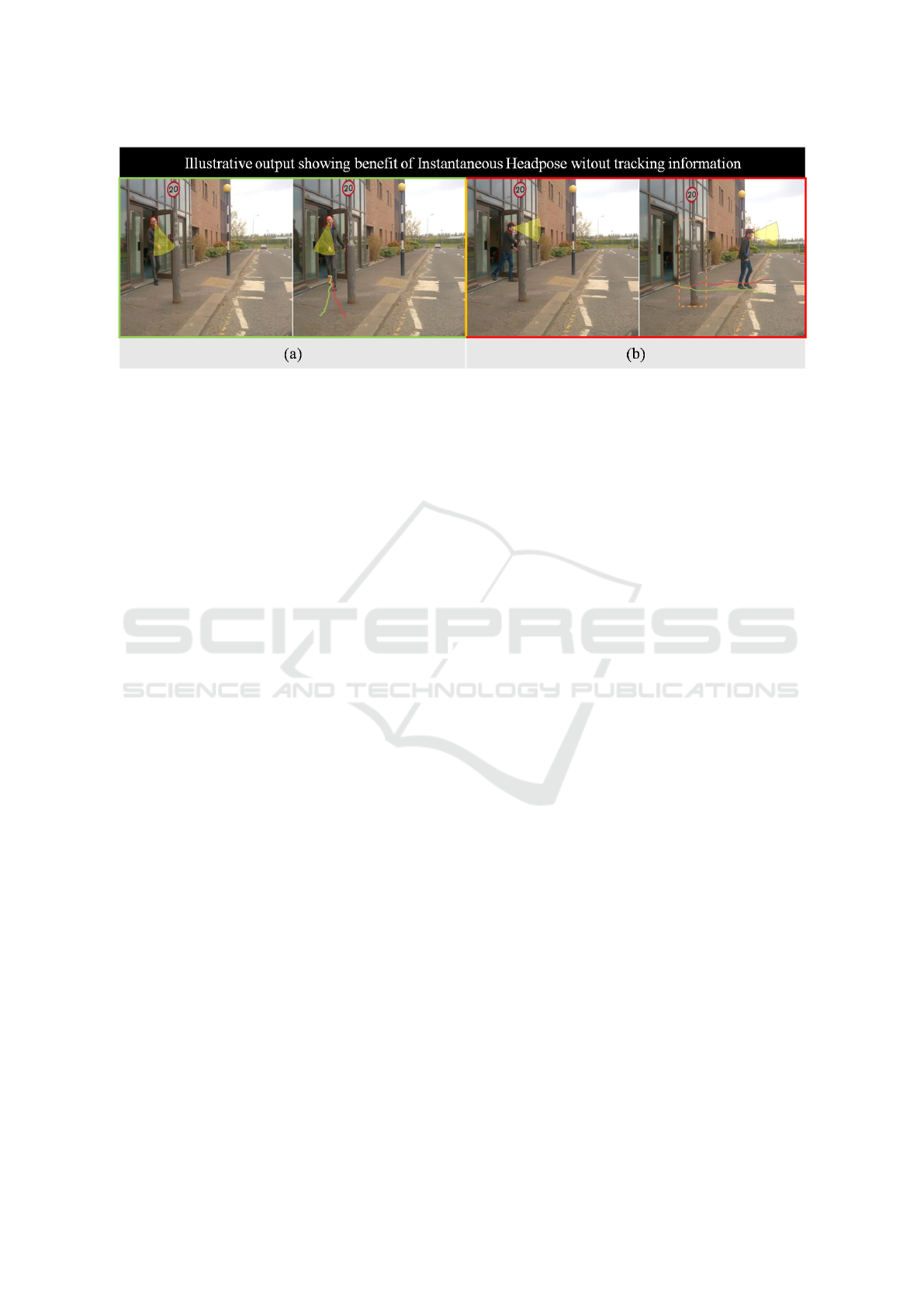

Figure 4: The beneﬁt of headpose as a prior is clearly illustrated when no prior tracking information is available. The Kalman

ﬁlter output is shown in red and the intentional tracker output is shown in green. We initialize the tracker with very few frames

and let the trackers evolve without further detection. (a) The person does not cross the road and his headpose at the instant

of exiting the door is very indicative. (b) Similarly for people who want to cross the road, the head pose information is again

very indicative of their intention. There is a region of occlusion that is shown in orange. The trajectories qualitatively show

the beneﬁt of the intentional tracker.

the target’s velocity given observations z

0:t

. Alterna-

tively, a smoothed velocity could be calculated from

[pos

t−k:t−1

, pos

t−k:t−1

], where 2 ≤ k ≤ t. In practice

the second approach was found to give better perfor-

mance using empirically derived k = 5.

Having ﬁnally deﬁned all of the components re-

quired to generate F

, the remainder of the KF algo-

rithm remains the same. Predictions are now based

on a target’s previous motion (with weight γ

) and the

intentional prior (with weight α

Furthermore, the instantaneous head pose prior

can be used to initialize tracking where no prior track-

ing information is available. This can be used to ap-

proximately predict pedestrian intent with a few time

steps. Figure 4 shows this scenario qualitatively. It

can be clearly seen that the estimated head pose for

people coming out of the door near the zebra crossing

can be very informative in predicting their intended

action.

4 EXPERIMENTS AND

VALIDATION

We use multiple datasets to train our system and we

validate our approach on two public datasets as dis-

cussed below. We have generated a dataset using the

Kinect and Kinect 2 sensors where we recorded 46

people (32 males, 14 females) freely moving around

with various head-poses in front of the sensor. To get

accurate head pose ground truth data we used a dis-

creet (actually hidden) wearable miniature X-BIMU

IMU sensor which provides the head orientation as a

quaternion. We then recorded each individual for one

minute moving in the ﬁeld of view with varying dis-

tance (2-8m). We annotated the head in each frame

and associated the IMU data with it in each frame.

We acquired around 1500 frames for each person giv-

ing a dataset of the order of 68000 training examples.

To maximise the training corpus, we gathered data

from multiple sources that had similar underlying dis-

tributions. Datasets annotated for unconstrained face

recognition, facial landmark detection, expression de-

tection all have facial data under various poses. The

different head pose datasets that we used are the Ox-

ford town centre dataset (Benfold and Reid, 2008),

the BIWI Kinect head-pose dataset (Fanelli et al.,

2013), the Caviar shopping centre dataset (htt, ), the

HIIT Head Orientation dataset along with the IDIAP

head-pose dataset (Tosato et al., 2013). It should be

highlighted that the different datasets have different

annotations; some of them have real-valued ground

truth, others have 6-8 classes spanning the 360

◦

. The

datasets also vary in resolution from very high (BIWI)

to very low (Caviar). For regression we use our, Biwi

and the Oxford datasets which have continuous labels.

4.1 Training

For training and validation we split the dataset in a

ratio of 70:30 randomly across several trial runs and

averaged the mean squared error. For training we used

a dropout rate of 20% on before every fully connected

layer. We jittered the input images by mirroring them

(with corresponding change in ground truth) scaling

the bounding box and cropping them with scales 0.75,

0.9, 1.5, 1.8, 2.0 , and 2.5. For all scales greater than

1, we also translated the images randomly by 20%

in both directions. This was done to improve scale

invariance along with mitigating the effects of badly

Watch Where You’re Going! - Pedestrian Tracking Via Head Pose

579

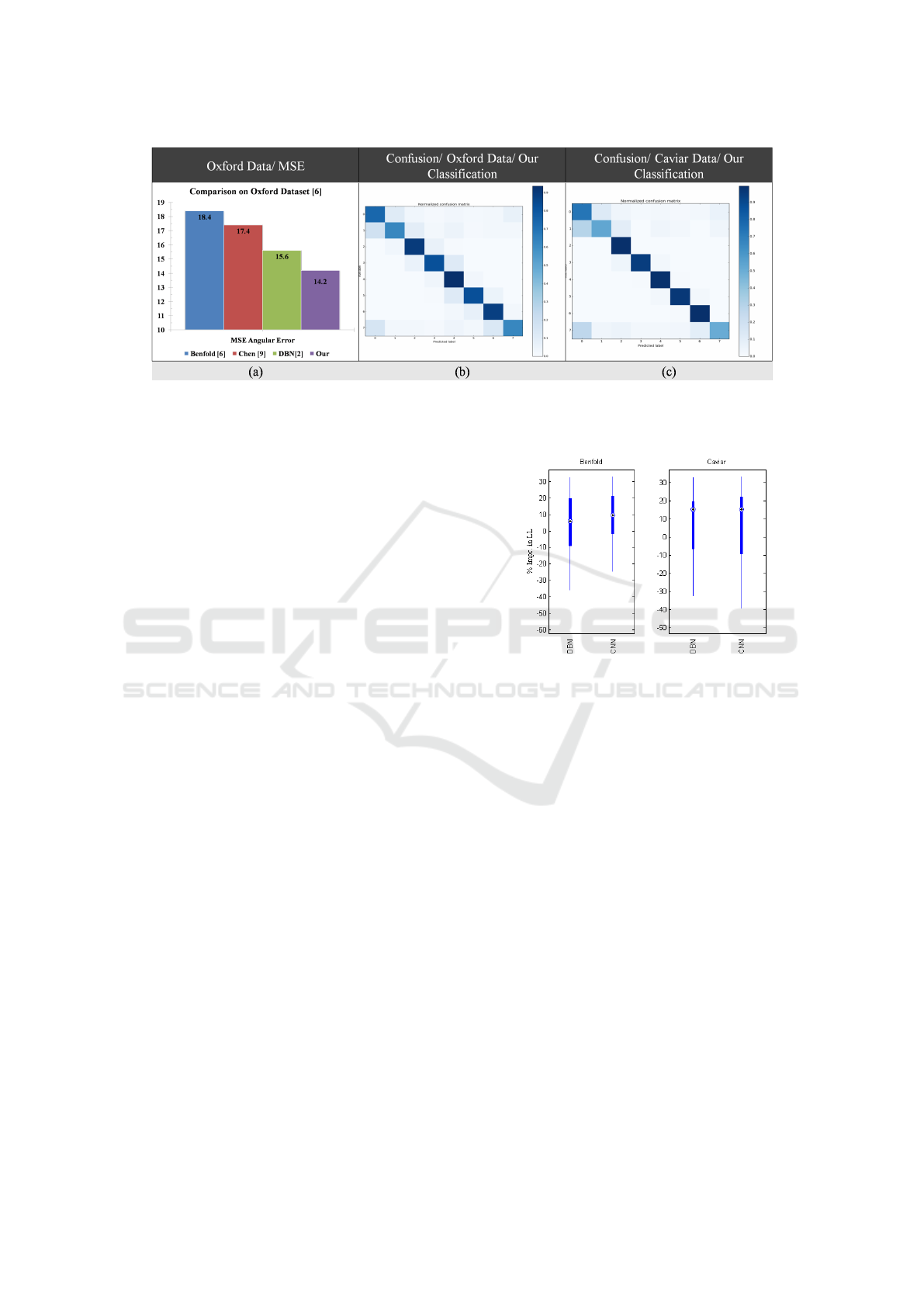

Figure 5: (a) The comparison of our method with the previous best results in terms of mean squared error on the Oxford

dataset(Benfold and Reid, 2011). The Confusion matrices showing the output of: (b) Our classiﬁcation method on the Oxford

town centre dataset; (c) Our classiﬁcation on the Caviar dataset.

aligned/ partially occluded head detections. We used

a modiﬁed version of the deep learning framework

Caffe (Jia et al., 2014) to train our network.

5 RESULTS

We ﬁrst validate our CNN based head pose estima-

tion approach on the surveillance datasets and then

show improved tracking results using the intentional

tracker.

5.1 Headpose Estimation Results

For the low resolution surveillance domain dataset,

we report our results on the Oxford and the Caviar

datasets. In these datasets we classify the head pose

into 8 equally spaced (45

◦

) angular bins as shown in

Figure 3. For comparison with (Cheng and Odobez,

2012) and Benfold (Benfold and Reid, 2011) we use

the Oxford dataset in which both have reported re-

sults. One consideration has to be made while com-

paring because (Cheng and Odobez, 2012) reported

the mean square error (MSE) which they derived from

a weighted combination of their 8 class classiﬁer out-

put multiplied with the bin angles as

∑

i=1

−→

where

is the classiﬁer output value for the class i and

−→

is the unit vector in that angular direction. Fig-

ure 5 shows the comparison between our method with

the previous state-of-the-art results. In terms of MSE

we have achieved the best published results. On the

Caviar dataset we achieve 91.2% classiﬁcation accu-

racy which to our knowledge is the best result on the

dataset. We also present the confusion matrices on

the Oxford and Caviar datasets based on our classiﬁ-

cation network, as shown in Figure 5. On the Ben-

fold dataset our 8 class classiﬁcation achieves 89.6%

Figure 6: Comparative improvement of our headpose esti-

mation based intentional tracking vs the method of (Baxter

et al., 2015).

accuracy, which again is the highest accuracy of any

technique.

5.2 Tracking Results

We report the cumulative log likelihood (CLL) as our

evaluation metric for direct comparison with (Bax-

ter et al., 2015). CLL is based on the measurement

innovation and is deﬁned as CLL

∑

k=1

and CLL

∑

k=1

. Improvement in CLL is:

CLL

/CLL

. CLL measures how well the inno-

vation covariance is modelled and is a useful metric

when MSE cannot be calculated. We use the same

values for the parameters.

As can be seen from Figure 6, the intentional

tracking performance is greatly improved by better

headpose estimation. On the Benfold dataset we

achieve a CLL median of 8.8% compared to the 5.9%

achieved by their headpose estimation method. Sim-

ilarly, on the Caviar dataset we achieve a CLL me-

dian of 16.02% compared to the 15.8% achieved by

the competing system. It should be noted that on

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

580

Caviar data, the head pose ground truth annotation

based tracker gives a median CLL improvement of

only 16.1% so there is very little room at the top.

However in both the datasets we achieve state-of-the-

art tracking performance.

6 CONCLUSION AND FUTURE

WORK

In this paper we presented a data-driven to low

resolution head pose estimation in the wild. We

achieved state-of-the-art results on two publicly avail-

able datasets. The model ﬁne tuned on head pose re-

gression was able to achieve state-of-the-art perfor-

mance on intentional tracking.

REFERENCES

Caviar dataset. http://homepages.inf.ed.ac.uk/rbf/CAVIAR/.

Balasubramanian, V., Ye, J., and Panchanathan, S. (2007).

Biased manifold embedding: a framework for person-

independent head pose estimation. In Proceeding of

the IEEE Conference on Computer Vision and Pat-

ternRecognition, pages 1–7.

Baxter, R., Leach, M., Mukherjee, S., and Robertson, N.

(2015). An adaptive motion model for person tracking

with instantaneous head-pose features. Signal Pro-

cessing Letters, IEEE, 22(5):578–582.

Baxter, R. H., Leach, M., and Robertson, N. M. (2014).

Tracking with Intent. In Sensor Signal Prcoessing for

Defence.

BenAbdelkader, C. (2010). Robust head pose estimation

using supervised manifold learning. In Proceeding of

the 11th European Conference on Computer Vision,

pages 518–531.

Benfold, B. and Reid, I. (2008). Colour invariant head pose

classiﬁcation in low resolution video. In Proceeding

of the British Machine Vision Conference.

Benfold, B. and Reid, I. (2011). Unsupervised learning of

a scene-speciﬁc coarse gaze estimator. In Computer

Vision (ICCV), 2011 IEEE International Conference

on, pages 2344–2351.

Blanz, V. and Vetter, T. (1999). A morphable model for

the synthesis of 3d faces. In Proceedings of the 26th

Annual Conference on Computer Graphics and Inter-

active Techniques, SIGGRAPH ’99, pages 187–194,

New York, NY, USA. ACM Press/Addison-Wesley

Publishing Co.

Cheng, C. and Odobez, J. (2012). We are not contortionists:

Coupled adaptive learning for head and body orien-

tation estimation in surveillance video. In Computer

Vision and Pattern Recognition (CVPR), 2012 IEEE

Conference on, pages 1554–1551.

Fanelli, G., Dantone, M., Gall, J., Fossati, A., and Van Gool,

L. (2013). Random forests for real time 3d face anal-

ysis. Int. J. Comput. Vision, 101(3):437–458.

Gesierich, B., Bruzzo, A., Ottoboni, G., and Finos, L.

(2008). Human gaze behaviour during action execu-

tion and observation. Acta Psychologica, 128(2):324

– 330.

Gourier, N., Maisonnasse, J., Hall, D., and Crowley, J.

(2006). Head pose estimation on low resolution im-

ages. In Proceeding of the 1st International Evalua-

tion Conference on Classiﬁcation of Events, Activities

and Relationships, pages 270–280.

He, K., Zhang, X., Ren, S., and Sun, J. (2015). Delving deep

into rectiﬁers: Surpassing human-level performance

on imagenet classiﬁcation.

Henderson, J. M. and Hollingworth, A. (1999). High-

level scene perception. Annual Review of Psychology,

50(1):243–271. PMID: 10074679.

Ioffe, S. and Szegedy, C. (2015). Batch normalization: Ac-

celerating deep network training by reducing internal

covariate shift. CoRR, abs/1502.03167.

Jia, Y., Shelhamer, E., Donahue, J., Karayev, S., Long, J.,

Girshick, R., Guadarrama, S., and Darrell, T. (2014).

Caffe: Convolutional architecture for fast feature em-

bedding. arXiv preprint arXiv:1408.5093.

Krizhevsky, A. (2014). One weird trick for parallelizing

convolutional neural networks. CoRR, abs/1404.5997.

Langton, S., Honeyman, H., and Tessler, E. (2004). The

inﬂuence of head contour and nose angle on the per-

ception of eye-gaze direction. Perception & Psy-

chophysics, 66(5):752–771.

Robertson, N. and Reid, I. (2006). Estimating gaze direc-

tion from low-resolution faces in video. In Proceeding

of the 9th European Conference on Computer Vision,

2006, volume 3952/2006, pages 402–415.

Simonyan, K. and Zisserman, A. (2014). Very deep convo-

lutional networks for large-scale image recognition.

Stiefelhagen, R. (2004). Estimating head pose with neural

network-results on the pointing04 icpr workshop eval-

uation data. In Proceedings of the ICPR Workshop on

Visual Observation of Deictic Gestures.

Szegedy, C., Liu, W., Jia, Y., Sermanet, P., Reed, S.,

Anguelov, D., Erhan, D., Vanhoucke, V., and Rabi-

novich, A. (2014). Going Deeper with Convolutions.

ArXiv e-prints.

Tosato, D., Spera, M., Cristani, M., and Murino, V.

(2013). Characterizing humans on riemannian man-

ifolds. IEEE Transactions on Pattern Analysis and

Machine Intelligence, 35(8):1972–1984.

Watch Where You’re Going! - Pedestrian Tracking Via Head Pose

581
