Spatio-temporal Center-symmetric Local Derivative Patterns for Objects

Detection in Video Surveillance

Marwa Jmal

1,2

, Wided Souidene

and Rabah Attia

SERCOM, Ecole Polytechnique de Tunisie, Universit

e de Carthage, B.P.743, 2078., La Marsa, Tunisia

Telnet Innovation Labs, Telnet Holding, Ariana, Tunisia

Keywords:

Local Derivative Patterns, Spatio-temporal Features, Background Modeling, Background Subtraction.

Abstract:

Nowadays, more attention is being focused on background subtraction methods regarding their importance in

many computer vision applications. Most of the proposed approaches are classiﬁed as pixel-based due to their

low complexity and processing speed. Other methods are considered as spatiotemporal-based as they consider

the surroundings of each analyzed pixel. In this context, we propose a new texture descriptor that is suitable

for this task. We beneﬁt from the advantages of local binary patterns variants to introduce a novel spatio-

temporal center-symmetric local derivative patterns (STCS-LDP). Several improvements and restrictions are

set in the neighboring pixels comparison level, to make the descriptor less sensitive to noise while maintaining

robustness to illumination changes. We also present a simple background subtraction algorithm which is based

on our STCS-LDP descriptor. Experiments on multiple video sequences proved that our method is efﬁcient

and produces comparable results to the state of the art.

1 INTRODUCTION

Ensuring humans’ security, either in public or pri-

vate spaces, is becoming a major priority for all na-

tions. This issue arises the need for video surveil-

lance systems which consist basically in objects de-

tection, objects tracking and behavior understanding

(Jain and Favorskaya, 2015). The most important task

in surveillance systems is moving objects detection.

Thus, a robust detection will highly increase the ef-

fectiveness of the surveillance.

For many decades, a signiﬁcant amount of research

in the computer vision ﬁeld has been devoted to the

task of objects detection. The most straightforward

technique employed in this context, is background

subtraction. In its simplest form, it aims to extract

the foreground which represents the relevant objects

that remain always in motion. Even though it seems

to be simple, this technique has to cope with differ-

ent challenges occurring from dynamic backgrounds

(waving trees, water fountains), illumination varia-

tions, camera jitter as well as other challenges that

are well depicted in (Bouwmans et al., 2010). To deal

with these situations, several works (Sobral and Va-

cavant, 2014; Shahbaz et al., 2015; Benezeth et al.,

2010) have been achieved. Although, some of them

focused on videos captured by freely moving camera

(Megrhi et al., 2015; Sheikh et al., 2009), the major-

ity of models conceived background subtraction ap-

proaches for videos captured by static cameras.

In order to detect sudden events, real-time process-

ing is a requirement in video surveillance systems.

This is behind the fact that most employed methods

in this ﬁeld are based on independent pixel-level mod-

els which are then integrated in a global background

model.

Color-based methods consist in dynamically compar-

ing pixel colors at different positions against a thresh-

old. These methods are very sensitive to illumination

changes in the scene. Some of them will not be de-

tected as they involve groups of pixels in which some

independent pixels may preserve an appearance sim-

ilar to the background. The remedy to this issue is

to formulate the problem in the feature space: instead

of employing pixels colors for comparison, features

in the current frame are compared with features in

the background model. Lately, Local Binary Pattern

(LBP) (Ojala et al., 2002) was adapted to the task

of background subtraction. It describes a pixel by a

series of bits basing on the gray intensity levels of

its surrounding neighbors. LBP was ﬁrst employed

by (Heikkil

a and Pietik

ainen, 2006) in this context.

It was proven that this descriptor is simple, invariant

to illumination and computationally effective. More-

Jmal, M., Souidene, W. and Attia, R.

Spatio-temporal Center-symmetric Local Derivative Patterns for Objects Detection in Video Surveillance.

DOI: 10.5220/0005787702150220

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 3: VISAPP, pages 217-222

ISBN: 978-989-758-175-5

217

over, representing LBP basing on histograms, makes

it invariant to translations. Since then, many attempts

to build robust descriptor were proposed. However,

most of them are either computationally expensive or

result in long histograms. In (Silva et al., 2015) a

comparison of these methods is provided.

In this paper, we propose a new feature descrip-

tor named STCS-LDP (Spatio-Temporal Center Sym-

metric Local Derivative Patterns) which is an opti-

mized and enhanced version of an LBP variant pro-

posed in (Xue et al., 2011). Our main improvements

lies in the neighboring pixels comparison level. To

validate STCS-LDP, we integrated it in a simple back-

ground subtraction process. Experimental results,

carried out on a subset of the CDNet dataset (Wang

et al., 2014), showed that the proposed descriptor is

robust to illumination changes and produces a short

descriptor. The remainder of the paper is organized as

follows: Section 2 presents the related works to pixel-

and LBP-based methods for background subtraction.

Section 3 provides a description of the proposed de-

scriptor. Experimental results are depicted in Section

4 while Section 5 draws some conclusions and per-

spectives.

2 LITERATURE REVIEW

In general, pixel-based background subtraction meth-

ods are simple and robust in several scenarios. Their

major drawback is the sensitivity to illumination

changes. In order to handle dynamic backgrounds,

more than one pixel value should be associated to the

background pixel model. In this context, parametric

and non-parametric background models like Gaussian

Mixture Model (GMM)(Stauffer and Grimson, 1999)

and Kernel Density Estimation (KDE)(Elgammal

et al., 2000) were proposed. They are well-known

methods on which countless variations and im-

provements are made, such as in (Zivkovic, 2004).

Other pixel-based methods, like VIBE (Barnich and

Van Droogenbroeck, 2011), PBAS (Hofmann et al.,

2012) and SuBSENCE (St-Charles et al., 2015), fo-

cused on selecting background samples randomly and

diffusion labelling instead of building a probability

distribution of the background of a pixel.

Ordinary pixel-based methods are based only on the

use of temporal correlation between pixel values

while ignoring the spatial relationship between them

where an important amount of information may be

lost. Subsequently, some methods attempted to for-

mulate the problem in feature space. Heikkila et

al (Heikkil

a and Pietik

ainen, 2006) are the ﬁrst to

adapt these features for dynamic background mod-

elling. However, the produced LBP operator is long

since it considers the ﬁrst-order gradient information

between pixel and its neighbors. Center-Symmetric

local binary Pattern (CS-LBP) (Heikkil

a et al., 2009)

is an extension for LBP where only the relation be-

tween center symmetric neighbor pairs is considered.

Although, it produces a shorter feature descriptor, it

does not carry enough information for background

modelling as it ignores the value of the center pixel.

A Local Binary Similarity Patterns (LBSP) descriptor

was proposed in (Bilodeau et al., 2013). Contrarily

to histogram based patterns, this descriptor is based

on absolute differences and is calculated within one

image and between two images. As a consequence,

LBSP succeeded to capture both texture and inten-

sity changes. In (Xue et al., 2011), the authors ap-

ply high-order local derivative pattern to produce a

center-symmetric local derivative pattern descriptor

to capture more local information. This descriptor is

then concatenated with CS-LBP to produce a shorter

descriptor with low complexity and robust foreground

detection. The disadvantage of this method, along

with texture based methods, is that it detects only

changes in texture while neglecting intensity values

which could bring useful information. Also, even

though, it is a concatenation of two short descriptors,

it is really time consuming. To solve the drawbacks of

both LBP and the descriptor presented in (Xue et al.,

2011), we propose a new feature descriptor that is bi-

nary and captures both changes in texture and inten-

sity.

3 METHODOLOGY

3.1 STCS-LDP

Binary feature descriptors are employed in back-

ground subtraction methods thanks to their speed, dis-

crimination, low complexity and invariance to illu-

mination. However, since LBP produce long feature

vectors and CS-LBP ignores the central pixel infor-

mation, Xue et al. (Xue et al., 2011) proposed the use

of local derivative patterns which are able to capture

more information in center-symmetric direction with-

out discarding the information brought by the central

pixel.

Figure 1 presents the diagrams of the three de-

scriptors (LBP, CS-LBP and CS-LDP) with eight

neighbors around the center i

. LBP encodes in

all eight direction to produce 8 bits binary sequence

while CS-LBP and CS-LDP pattern encode in four

directions and produce 4 bits sequence. The CS-LDP

descriptor at time t is computed as follows:

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

218

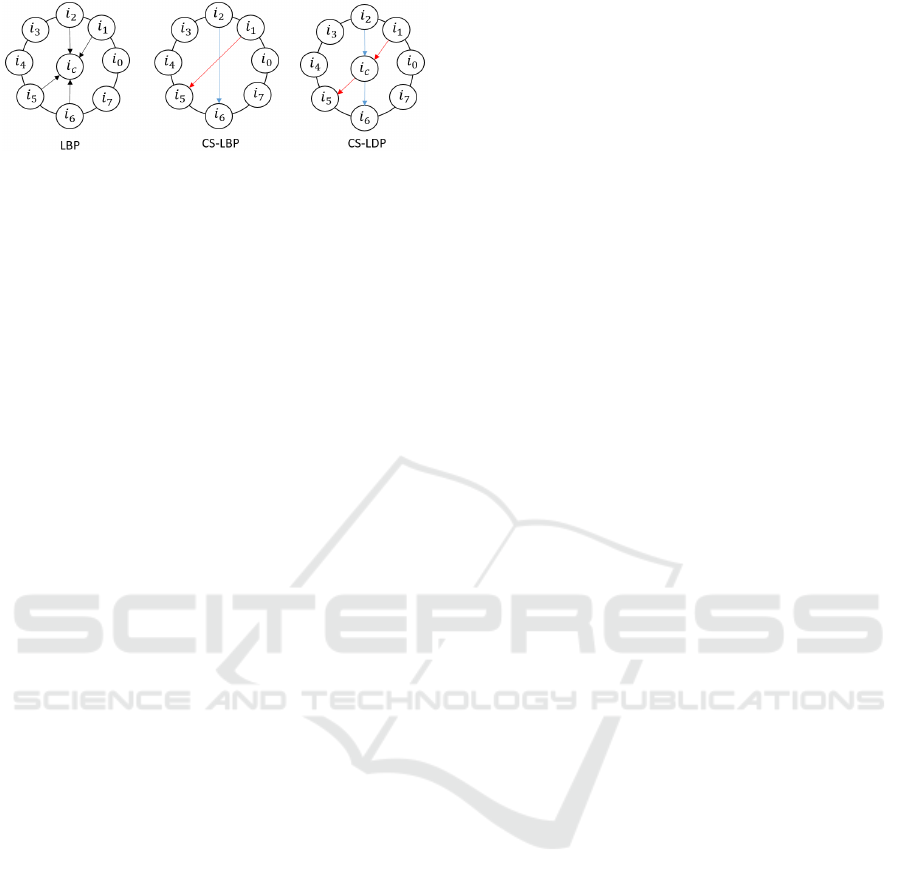

Figure 1: Example of LBP, CS-LBP and CS-LDP features

over eight neighbors.

CSLDP

R,N

t,c

) =

(N/2)−1

∑

p=0

f [(i

t,p

− i

t,c

) × (i

t,c

− i

t,p+N/2

)]2

(1)

where i

corresponds to the value of central pixel

); i

and i

p+N/2

are the values of neighborhood

pixels in center symmetric direction of N equally

spaced pixels on a circle R. The threshold function

f (.,.) is used to determine the type of local pattern

transition and is deﬁned as:

f (x

× x

) =



1 i f (x

× x

) ≤ 0

0 otherwise

(2)

However, because CS-LDP is computed based on

comparisons with a center pixel i

, change will not

be detected if the intensity of i

remains greater (or

smaller) than all neighbors i

after a change in a

scene. The solution here, is to employ a parameter T

as a threshold when computing the descriptor. This

parameter accounts for noise affecting i

(Eq 3).

f (x

× x

) =



1 i f (x

× x

) ≤ T

0 otherwise

(3)

Even though local features are proved to be very dis-

criminative, it is not guaranteed that they perform well

when applied to the task of background subtraction

where features are computed in every position in the

image. The solution to this problem is to compute

features (i) within an image to account for spatial in-

formation (Spatial CS-LDP) by selecting the center

pixel to be in the same region as the neighboring pix-

els, and (ii) between two images to account for tempo-

ral information (Temporal CS-LDP) by selecting the

center pixel to be in another region in the same image

or in another one. The region in which the descrip-

tor is computed should be small in order to capture

more discriminative information. Moreover, authors

in (Bilodeau et al., 2013) pointed the fact that features

should not be based strictly on comparisons in or-

der to handle the situation of large intensity changes.

Thus, using absolute difference allows detecting large

changes in intensity toward larger or smaller values.

Finally, replacing the threshold T

with a value that

is relative to the center pixel will improve the speci-

ﬁcity of the descriptor in high illumination variation

situations. In summary, the threshold function of the

STCS-LDP becomes:

f (x

× x

) =



1 i f |x

× x

| ≤ T

× i

0 otherwise

(4)

3.2 Background Subtraction with

STCS-LDP

The goal of this work, is to prove that local features

may produce better results in background subtraction

than methods based only on intensity. To study the

beneﬁts of our STCS-LDP, we propose a simple back-

ground subtraction method that focuses mainly on the

performance of the descriptor. Our method has no

update process. Each new frame is compared to a

background model constructed from F ﬁrst frames.

Within the ﬁrst F frames, we compute the feature de-

scriptor for each pixel using spatial CS-LDP (i

and i

are selected from the same image) and an histogram

is produced. A pixel is labelled as background, if its

histogram is repeated for at least B consecutive times.

The repetition is measured by the degree of similarity

between two consecutive histograms while the simi-

larity is measured in terms of histogram intersection

measure deﬁned as:

H(x

) =

∑

min(x

1,i

2,i

) (5)

where x

, x

are two normalized histograms and i is

the bin index of the histogram. It is also possible

to employ other distance measures such Chi-squared.

This measure its chosen regarding to its simplicity and

robustness as it explicitly discards features occurring

only once in one of the histograms. A user settable

threshold T

desc

is used to be compared with the simi-

larity value. The produced background model is an ar-

ray of Spatial CS-LDP histograms that once created,

it remains unchanged during the whole process.

In the foreground detection phase, the new frame is

represented with Temporal CS-LDP (the center is se-

lected from the current frame and the neighbors from

the background model). In this level, we propose an-

other improvement to the local features. In fact, in

some situations, the Spatial CS-LDP may not per-

form well in noisy regions due to the fact that the

center pixel of the foreground have the same value as

the center pixel in the background model. To correct

this problem and reduce the false negatives, a com-

parison of intensity values is also performed. In or-

der to keep computations simple, we use the L1 dis-

tance measure for intensities comparison. when deal-

ing with color images, per-channel comparisons are

performed. The whole method is depicted in Algo-

rithm 1. Note that int

(x,y,ch)

and desc

(x,y,ch)

are respec-

tively the color intensity of channel ch and the Spatial

Spatio-temporal Center-symmetric Local Derivative Patterns for Objects Detection in Video Surveillance

219

CS-LDP descriptor of the background model at posi-

tion (x,y), histDist refers to the intersection measure

and TCSLDP

(x,y,ch)

is the Temporal CS-LDP descrip-

tor at position (x,y).

Algorithm 1: Background Subtraction with STCS-LDP in

videos.

Require: Image frame Set

Ensure: Labelled frames

Create background model;

TotIntDist ← 0 ;

TotDesDist ← 0 ;

for x ← 0 : numCols do

for y ← 0 : numRows do

for ch ← 1 : numChannels do

intDist ← L1(int

(x,y,ch)

);

desDist ←

histDist(desc

(x,y,ch)

,TCSLDP

(x,y,ch)

);

TotIntDist ← TotIntDist + intDist;

TotDesDist ← TotDesDist + desDist;

end for

if (TotIntDist ≥ T

int

& TotDesDist ≤ T

desc

)

then

p(x,y) is foreground;

else

p(x,y) is background;

end if

end for

4 PERFORMANCE EVALUATION

We evaluate the use of STCS-LDP in background sub-

traction by means of the CDnet dataset (Wang et al.,

2014). Since our method does not include any update

process for the background model, we have tested

our background subtraction only on the baseline and

thermal video subsets (9 videos, 27149 frames). We

have used exactly the same metrics provided in (Wang

et al., 2014). Let TP the number of true positives, TN

the number of true negatives, FN the number of false

negatives, and FP the number of false positives. The

7 metrics used are:

1. Recall (Re): T P/(T P + FN)

2. Speciﬁcity (Sp): T N/(TN + FP)

3. False Positive Rate (FPR): FP/(FP + T N)

4. False Negative Rate (FNR): FN/(T N + FP)

5. Percentage of Wrong Classiﬁcations (PWC):

100 × (FN + FP)/(T P + FN + FP + T N)

6. Precision (Pr): T P/(T P + FP)

7. F measure: 2 × Pr × Re/(Pr + Re)

These metrics are provided with eval-

uation tools which are available online

(http://www.changedetection.net). The parame-

ters used for our method are:

• T

desc

= 30: threshold used to determine if an input

pixel matches the background model based on the

intersection measure,

• T

int

= 90: threshold used to determine if an input

pixel matches the background model based on the

L1 distance,

• T

= 8: the STCS-LDP descriptor threshold,

• F = 100: number of frames considered to build

the background model,

• B = 30: required number of similar histograms to

label a pixel as background.

We ﬁrst investigate the effect of T

and T

esc on

the subtraction results. Then, we compare the per-

formance of our STCS-LDP background subtraction

technique against some methods from the state of the

art.

4.1 Parameters Analysis

We investigated the effect of the parameters on the

performance of background subtraction. We made the

computation with T

desc

∈ [5,45] and T

∈ [1,20]. The

obtained results revealed that T

has more effect on

STCS-LDP performance than T

desc

. In fact, when T

is low, the descriptor models textures resulted from

small changes in intensity, thus it becomes more sen-

sitive to noise. If T

is moderate, textures of small de-

tails disappear. Histograms will be robust to noise, but

at the expense of detailed texture models. However,

if T

is high, detailed texture of important changes to-

tally disappear. For T

desc

, if it is low, any change in

texture or intensity will be detected, then the perfor-

mance of the descriptor will depend on the value of

. If T

desc

is high, only relevant textures of intensity

changes will be detected. Therefore, the value of T

more critical than T

desc

. T

should be set to be higher

than noise.

4.2 Comparison with the State of the

Art

To evaluate the use of our proposed descriptor in

background subtraction, we compared it with some

methods tested on the same dataset (Wang et al.,

2014). We selected some of both best and classical

methods (see Tables 1 and 2). Note that we didn’t

apply any morphological operations as preprocessing

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

220

Table 1: Results on Baseline Dataset (Wang et al., 2014).

Method Re Sp FPR FNR PWC Pr F-measure

SubSENCE(St-Charles et al., 2015) 0.952 0.9982 0.0018 0.0480 0.3574 0.9495 0.9503

STCS-LDP 0.843 0.9985 0.0014 0.156 0.6118 0.9455 0.8915

LBSP(Bilodeau et al., 2013) 0.806 0.9977 0.0023 0.0074 0.9168 0.9275 0.8623

Euclidean(Benezeth et al., 2010) 0.838 0.9955 0.0045 0.1615 1.026 0.872 0.9114

KDE(Elgammal et al., 2000) 0.747 0.9954 0.0046 0.2528 1.8058 0.7392 0.7998

GMM(Stauffer and Grimson, 1999) 0.586 0.9987 0.0013 0.4137 1.9381 0.7119 0.9532

Table 2: Results on Thermal Dataset (Wang et al., 2014).

Method Re Sp FPR FNR PWC Pr F-measure

SubSENCE(St-Charles et al., 2015) 0.8161 0.9908 0.0092 0.1839 2.0125 0.8328 0.8171

STCS-LDP 0.8354 0.9877 0.0123 0.1646 2.3626 0.8463 0.8408

LBSP(Bilodeau et al., 2013) 0.6535 0.9916 0.0083 0.0142 2.0774 0.7794 0.6924

Euclidean(Benezeth et al., 2010) 0.5111 0.9907 0.0093 0.4889 3.8516 0.6313 0.8877

KDE(Elgammal et al., 2000) 0.4147 0.9981 0.0019 0.5853 5.4152 0.4989 0.9164

GMM(Stauffer and Grimson, 1999) 0.3395 0.9993 0.0007 0.6605 4.8419 0.4767 0.9709

of the obtained results. Our method is characterized

by a low FNR, high precision, average PWC, aver-

age recall, and average FRR. It performs better than

the euclidean measure which is based only on pixel

colors. This proves that texture based features are

less sensitive to illumination changes. Compared to

the LBSP, STCS-LDP reached slightly better results

even though they use a larger descriptors (5 × 5)

than ours. This is due to the fact that local deriva-

tive patterns provide a robust descriptor even when

extracted over a small region. Although it combines

detections of both color and texture, the KDE method

was not very successful due to the failure of texture

in uniform regions where only individual pixel col-

ors may detect changes. In our method, we boost

texture comparison between histograms with intensity

comparison between pixel values. Finally, we believe

that STCSLDP performed really well on both datasets

even when compared to SubSENCE, one of the best

ranked methods. Contrarily to our simple method,

SubSENCE is based on pixel-level feedback loops to

dynamically adjust internal parameters without user

intervention.

5 CONCLUSION

In this work, we propose a new texture descriptor for

the purposes of background subtraction. The pro-

posed STCS-LDP may be adapted to slightly dynamic

situations as it can be computed spatially (in the same

frame) or temporally (between two frames). we pro-

posed some improvements in the neighboring pixels

comparison level to make the descriptor less sensi-

tive to noise while maintaining robustness to illumina-

tion changes. Moreover, we compared our descriptor

against some state of the art algorithms and showed

that it achieved comparable results. Future work will

be to bring more enhancements on the descriptor and

integrate it in more sophisticated background subtrac-

tor that is based on an update process to deal with

more complex situations.

ACKNOWLEDGEMENTS

This research and innovation work is carried out

within a MOBIDOC thesis funded by the European

Union under the PASRI project and administered by

the ANPR.

REFERENCES

Barnich, O. and Van Droogenbroeck, M. (2011). Vibe: A

universal background subtraction algorithm for video

sequences. Image Processing, IEEE Transactions on,

20(6):1709–1724.

Benezeth, Y., Jodoin, P.-M., Emile, B., Laurent, H., and

Rosenberger, C. (2010). Comparative study of back-

ground subtraction algorithms. Journal of Electronic

Imaging, 19(3):033003–033003.

Bilodeau, G.-A., Jodoin, J.-P., and Saunier, N. (2013).

Change detection in feature space using local binary

similarity patterns. In Computer and Robot Vision

(CRV), 2013 International Conference on, pages 106–

112. IEEE.

Bouwmans, T., El Baf, F., Vachon, B., et al. (2010). Statisti-

cal background modeling for foreground detection: A

survey. Handbook of Pattern Recognition and Com-

puter Vision, 4(2):181–189.

Spatio-temporal Center-symmetric Local Derivative Patterns for Objects Detection in Video Surveillance

221

Elgammal, A., Harwood, D., and Davis, L. (2000).

Non-parametric model for background subtraction.

In Computer VisionECCV 2000, pages 751–767.

Springer.

Heikkil

a, M. and Pietik

ainen, M. (2006). A texture-based

method for modeling the background and detecting

moving objects. Pattern Analysis and Machine Intel-

ligence, IEEE Transactions on, 28(4):657–662.

Heikkil

a, M., Pietik

ainen, M., and Schmid, C. (2009). De-

scription of interest regions with local binary patterns.

Pattern recognition, 42(3):425–436.

Hofmann, M., Tiefenbacher, P., and Rigoll, G. (2012).

Background segmentation with feedback: The pixel-

based adaptive segmenter. In Computer Vision and

Pattern Recognition Workshops (CVPRW), 2012 IEEE

Computer Society Conference on, pages 38–43. IEEE.

Jain, L. C. and Favorskaya, M. N. (2015). Practical matters

in computer vision. In Computer Vision in Control

Systems-2, pages 1–10. Springer.

Megrhi, S., Jmal, M., Beghdadi, A., and Mseddi, W. (2015).

Spatio-temporal action localization for human action

recognition in large dataset. In IS&T/SPIE Electronic

Imaging, pages 94070O–94070O. International Soci-

ety for Optics and Photonics.

Ojala, T., Pietik

ainen, M., and M

aenp

a, T. (2002). Mul-

tiresolution gray-scale and rotation invariant texture

classiﬁcation with local binary patterns. Pattern Anal-

ysis and Machine Intelligence, IEEE Transactions on,

24(7):971–987.

Shahbaz, A., Hariyono, J., and Jo, K.-H. (2015). Evalu-

ation of background subtraction algorithms for video

surveillance. In Frontiers of Computer Vision (FCV),

2015 21st Korea-Japan Joint Workshop on, pages 1–4.

IEEE.

Sheikh, Y., Javed, O., and Kanade, T. (2009). Background

subtraction for freely moving cameras. In Computer

Vision, 2009 IEEE 12th International Conference on,

pages 1219–1225. IEEE.

Silva, C., Bouwmans, T., and Fr

elicot, C. (2015). An

extended center-symmetric local binary pattern for

background modeling and subtraction in videos.

In International Joint Conference on Computer Vi-

sion,(VISAPP).

Sobral, A. and Vacavant, A. (2014). A comprehensive re-

view of background subtraction algorithms evaluated

with synthetic and real videos. Computer Vision and

Image Understanding, 122:4–21.

St-Charles, P.-L., Bilodeau, G.-A., and Bergevin, R. (2015).

Subsense: A universal change detection method with

local adaptive sensitivity. Image Processing, IEEE

Transactions on, 24(1):359–373.

Stauffer, C. and Grimson, W. E. L. (1999). Adaptive

background mixture models for real-time tracking.

In Computer Vision and Pattern Recognition, 1999.

IEEE Computer Society Conference on., volume 2.

IEEE.

Wang, Y., Jodoin, P.-M., Porikli, F., Konrad, J., Benezeth,

Y., and Ishwar, P. (2014). Cdnet 2014: An expanded

change detection benchmark dataset. In Computer Vi-

sion and Pattern Recognition Workshops (CVPRW),

2014 IEEE Conference on, pages 393–400. IEEE.

Xue, G., Song, L., Sun, J., and Wu, M. (2011). Hy-

brid center-symmetric local pattern for dynamic back-

ground subtraction. In Multimedia and Expo (ICME),

2011 IEEE International Conference on, pages 1–6.

IEEE.

Zivkovic, Z. (2004). Improved adaptive gaussian mixture

model for background subtraction. In Pattern Recog-

nition, 2004. ICPR 2004. Proceedings of the 17th In-

ternational Conference on, volume 2, pages 28–31.

IEEE.

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

222
