Evidence Collection in Cloud Provider Chains

Thomas R

ubsamen

, Christoph Reich

, Nathan Clarke

and Martin Knahl

Institute for Cloud Computing and IT Security, Furtwangen University, Robert-Gerwig-Platz 1, Furtwangen, Germany

Centre for Security, Communications and Network Research, Plymouth University, Portland Square, Plymouth, U.K.

Furtwangen University, Robert-Gerwig-Platz 1, Furtwangen, Germany

Keywords:

Cloud Computing, Audit, Federated Cloud, Security, Digital Evidence

Abstract:

With the increasing importance of cloud computing, compliance concerns get into the focus of businesses

more often. Furthermore, businesses still consider security and privacy related issues to be the most prominent

inhibitors for an even more widespread adoption of cloud computing services. Several frameworks try to ad-

dress these concerns by building comprehensive guidelines for security controls for the use of cloud services.

However, assurance of the correct and effective implementation of such controls is required by businesses

to attenuate the loss of control that is inherently associated with using cloud services. Giving this kind of

assurance is traditionally the task of audits and certiﬁcation. Cloud auditing becomes increasingly challeng-

ing for the auditor the more complex the cloud service provision chain becomes. There are many examples

for Software as a Service (SaaS) providers that do not own dedicated hardware anymore for operating their

services, but rely solely on other cloud providers of the lower layers, such as platform as a service (PaaS)

or infrastructure as a service (IaaS) providers. The collection of data (evidence) for the assessment of policy

compliance during a technical audit is aggravated the more complex the combination of cloud providers be-

comes. Nevertheless, the collection at all participating providers is required to assess policy compliance in the

whole chain. The main contribution of this paper is an analysis of potential ways of collecting evidence in an

automated way across cloud provider boundaries to facilitate cloud audits. Furthermore, a way of integrating

the most suitable approaches in the system for automated evidence collection and auditing is proposed.

1 INTRODUCTION

As cloud computing becomes more accepted by main-

stream businesses and replaces more and more on-

premise IT installations, compliance with regulation,

industry best-practices and customer requirements be-

comes increasingly important. The main inhibitor for

even more widespread adoption of cloud services still

remain security and privacy concerns of cloud cus-

tomers (Cloud Security Alliance, 2013). In Germany,

a preference for cloud providers that fall under Ger-

man jurisdiction and also run their own data centers

in Germany or at least inside the European Union

can be observed recently (Bitkom Research GmbH,

2015). This comes as no surprise when privacy vio-

lations that have become known to the general popu-

lation in recent years are considered (e.g., NSA and

Snowden revelations). A feasible way to assess and

ensure compliance of cloud services regularly is by

using audits. For any technical audit, information has

to be collected in order to assess compliance. This

automated process is called evidence collection in our

system. In our previous work on cloud auditing, the

focus was put on automating the three major parts of

an audit system, i) evidence collection and handling,

ii) evaluation against machine-readable policies and

iii) presentation of audit results (R

ubsamen and Re-

ich, 2013; R

ubsamen et al., 2013; R

ubsamen and Re-

ich, 2014; R

ubsamen et al., 2015).

Today, it is common to not only have a single

cloud provider to provision a service to its customers,

but multiple. The composition of multiple services

provided by different providers can already be ob-

served where Software as a Service (SaaS) providers

host their offering on top of the computing resources

provided by an Infrastructure as a Service (IaaS)

provider. For instance, Dropbox and Netﬂix both host

their services using Amazon’s infrastructure. These

composed services - they can be considered to form

a chain of cloud providers, therefore cloud provider

chain - can become very complex and opaque with

respect to the ﬂow of data between providers. Several

new challenges for the auditing of such cloud provider

chains can be identiﬁed, which will be discussed in

Rübsamen, T., Reich, C., Clarke, N. and Knahl, M.

Evidence Collection in Cloud Provider Chains.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 1, pages 59-70

ISBN: 978-989-758-182-3

this paper. The other major contribution of this paper

is a proposed solution to auditing of cloud provider

chains, which is an extension to our previous work in

this area.

This paper is structured as follows: in Section 2,

related research projects and industrial approaches are

discussed. Following that, in Section 3 the authors

elaborate on the deﬁnition and properties of cloud

provider chains and auditing. Afterwards, a discus-

sion of three different approaches to evidence collec-

tion for provider chain auditing in Section 4 is pre-

sented. In Section 5, the architectural integration of

the approaches in a system for automating cloud au-

dits is presented and evaluated for their effectiveness

using a ﬁctitious scenario. Section 6 concludes this

paper.

2 RELATED WORK

Standards and catalogues such as ISO27001 (ISO,

2005), Control Objectives for Information and Re-

lated Technology (COBIT) (Information Systems Au-

dit and Control Association, 2012) or NIST 800-

53 (National Institute of Standards and Technology),

2013) deﬁne information security controls. A major

part of these frameworks is auditing, both in regu-

lar auditing as an control itself and by using audits

to ensure the correct and effective implementation of

the controls. They are typically generic and target in-

formation systems in general and do not address the

speciﬁcs of cloud computing.

There are some extensions to the previous frame-

works such as the Cloud Controls Matrix (Cloud Se-

curity Alliance, 2014). It aims at the integration

of aspects from ISO and COBIT, and NIST’s more

cloud-focused security and privacy protection recom-

mendations 800-144 (National Institute of Standards

and Technology, 2011), as well as domain-speciﬁc

frameworks such as PCI-DSS (PCI Security Stan-

dards Council, 2015) or FedRAMP (U.S. General Ser-

vices Administration, 2014), into a common controls

framework for cloud computing that facilitates the

risk assessment of using cloud services. CSA’s Secu-

rity, Trust & Assurance Registry (Cloud Security Al-

liance, 2015) enables comparison of cloud providers

based on self-certiﬁcation of cloud providers using

the Cloud Controls Matrix. However, conducting au-

dits based on these standards is mostly a manual pro-

cess, still. Our proposed approach supports the au-

tomatic collection and evaluation of evidence based

on policies that may stem from these frameworks and

therefore could enable continuous certiﬁcation.

Monitoring systems provide similar functional-

ity to audit systems with respect to the collection

of data and synthesizing metrics that are compared

against deﬁned thresholds. There are several solu-

tions for IT monitoring such as Nagios (Nagios En-

terprises, LLC, 2014) or Ganglia (Ganglia, 2015) and

several big commercial solutions. However, they of-

ten have a very distinct heritage in data center, clus-

ter and grid monitoring and are therefore not neces-

sarily suitable for the cloud due its dynamic infras-

tructure and potential chaining of cloud providers.

More specialized monitoring systems such as Ama-

zon’s CloudWatch (Amazon Web Services, 2016) or

Rackspace’s monitoring (Rackspace, 2016) are nat-

urally proprietary and do not support chaining out-

side of the providers own set of services. The inte-

gration of an evidence collection system with such

widely used monitoring systems is of great impor-

tance, since they provide deep insight into cloud ser-

vices and therefore are considered valuable sources of

evidence.

Auditing and monitoring in cloud computing has

gained more momentum in recent years and a growing

number of research projects is addressing their unique

challenges. Povedano-Molina et al. (2013) propose

Distributed Architecture for Resource manaGement

and mOnitoring in cloudS (DARGOS) that enables

efﬁcient distributed monitoring of virtual resources

based on the publish/subscribe paradigm. They uti-

lize monitor agents to gather information for their

centralized collector node. Katsaros et al. (2012) de-

scribe a similar approach to cloud monitoring with

virtual machine units (VMU) that contain data collec-

tors (scripts). Their focus is on self-adaptation of the

monitoring system by adjusting monitoring intervals

and other parameters. While they introduce isolation

of tenants in cloud environments, they do not at this

stage show how their system would work in a multi-

provider scenario.

Massonet et al. (2011) propose an approach to

monitoring data location compliance in federated

cloud scenarios, where an infrastructure provider is

chained with a service provider (i.e., the service

provider uses resource provided by the infrastructure

provider). A key requirement of their approach is

the collaboration of both providers with respect to

collecting monitoring data. Infrastructure monitoring

data (from the IaaS provider) is shared with the ser-

vice provider (SaaS provider) that uses it to generate

audit trails. However, their main focus is to monitor

virtual execution environments (VEE) that ”are fully

isolated runtime modules that abstract away the phys-

ical characteristics of the resource“, which roughly

translates to virtual machines. The actual infrastruc-

ture layer is out of scope. Also, opposed to our ap-

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

proach, monitoring probes (data collectors) do not

have a way to be dynamically deployed where needed,

but rather are included in the VEE on deployment

time.

Kertesz et al. (2013) follow the idea of tightly inte-

grating monitoring into their management system for

federated clouds, inorder to facilitate provider selec-

tion on the basis of availability and reliability met-

rics. They introduce service monitoring by reusing

SALMonADA (Muller et al., 2012). Their approach

is geared towards provider decision making for state-

less services based on performance metrics and does

neither include protection mechanisms and dynamic

collector distribution that are required in a system for

evidence collection in the cloud.

Montes et al. (2013) introduce an important aspect

to cloud monitoring by also including the client-side

in the data collection in addition to the cloud provider.

However, they do not consider integrating third-party

cloud providers as well.

Xie and Gamble (2012, 2013); Xie et al. (2014)

describe an approach to inter-cloud auditing on the

web service level, where audit assets are requested

from a federated service.

3 COMPLEX CLOUD PROVIDER

CHAINS FOR SERVICE

PROVISION

While a lot of today’s cloud use cases only involve

one service provider for service provision, there are

also many cases where multiple providers are in-

volved. A prominent example is Dropbox that heav-

ily uses Amazon’s S3 and EC2 services to provide its

own SaaS offering (Tom Cook, 2015).

There are several terms for the concept of provider

chains such as federated cloud, inter-cloud and cloud

service composition. In this work these terms are used

synonymously. The concept of a provider chain is de-

ﬁned as follows:

1. At least two cloud providers (characterized by be-

ing either IaaS, PaaS or SaaS providers) are in-

volved in the provision of a service to a cloud con-

sumer (who can be an individual or business).

2. One of the cloud providers acts as a primary ser-

vice provider to the cloud consumer.

3. Subsequent cloud providers do not have a direct

relationship with the cloud consumer.

4. The primary service provider must be and the sub-

sequent providers can be cloud consumers them-

selves, if they use services provided by other

cloud providers.

5. The data handling policies agreed between the

cloud consumer and the primary service provider

must not be relaxed if data is processed by a sub-

sequent provider.

The terms cloud consumer and cloud customer are

used synonymously as well, while relying on the def-

inition of a cloud consumer and auditor provided by

NIST (Liu et al., 2011).

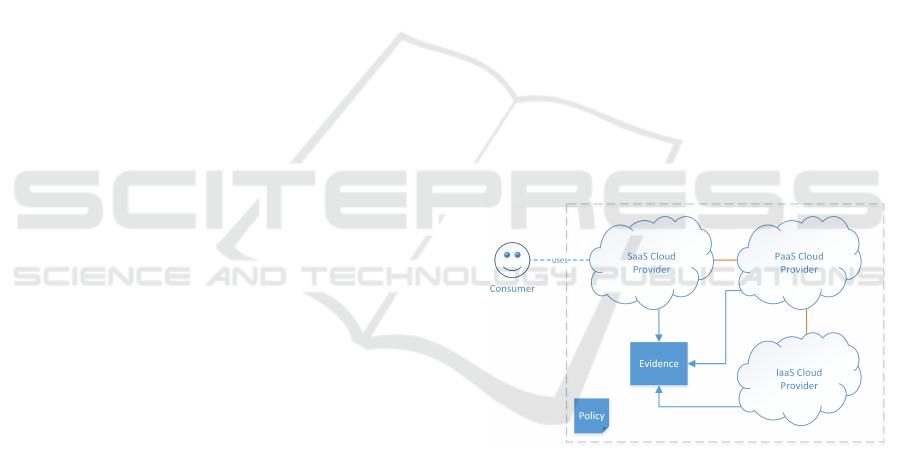

Figure 1 depicts a simpliﬁed scenario where three

cloud service providers are involved in provision-

ing of a seemingly single service to a cloud con-

sumer. The SaaS provider acts as the primary service

provider, while it uses the PaaS provider’s platform

for hosting its service. The PaaS provider in turn does

not have its own data center but uses resources pro-

vided by an IaaS provider.

The data handling policy applies to the whole

chain (depicted by the dashed rectangle in Figure 1).

Data handling policies thereby govern the treatment

of data such as data retention (the deletion of data

after a certain time), location (geographical restric-

tions) and security requirements (access control rules

and protection of systems that handle the data).

All cloud provider produce evidence of their cloud

operations.

Figure 1: Cloud Provider Chains for Service Provision.

3.1 Evidence of Compliance in Cloud

Provider Chains

At the core of any audit is evidence of compliance or

non-compliance that is being analyzed. The types of

evidence are closely linked to the type of audit (e.g.,

security audit, ﬁnancial audit etc.) and are - from a

technological perspective - especially diverse in the

cloud due to the heterogeneity of its subsystems, ar-

chitectures, layers and services. The notion of evi-

dence for cloud audits was discussed in our previous

work in more detail (R

ubsamen and Reich, 2013).

In general, we follow the deﬁnition of digital ev-

idence that is “information of probative value that

Evidence Collection in Cloud Provider Chains

is stored or transmitted in binary form” (Scientiﬁc

Working Groups on Digital Evidence and Imaging

Technology, 2015). This means, that the types of

evidence are diverse and include for example logs,

traces, ﬁles, monitoring and history data from cloud

management system like OpenStack’s Nova service.

Evidence collection at a single cloud provider is

already a complex task due to the diverse types of

evidence sources and sheer amount of potentially re-

quired data that is being produced continuously. In

a provider chain, these problems are intensiﬁed by

the introduction of administrative domains and the

lack of transparency regarding the number of involved

providers and their relationships.

Another problem that is introduced with the con-

cept of provider chains are changing regulatory do-

mains. In a single-provider scenario, there are typi-

cally only two regulatory domains to be considered:

i) the one that applies to the cloud consumer and

ii) the one that applies to the cloud provider. With

the addition of more cloud providers, the complexity

of achieving regulatory compliance increases tremen-

dously.

A simple example for such a case is the recent de-

cision of the European Court in 2015 to declare Safe

Harbor invalid, which leads to data transfers outside

the European Union that are only governed by Safe

Harbor to be invalid. In a provider chain, where a

European Cloud provider transfers data about Euro-

pean individuals to another provider in the US, reg-

ulatory compliance could have been lost overnight.

Here, it can be seen that regulatory domains can have

a tremendous impact on how a compliance audit may

have to look like, and on the type of evidence that may

need to be collected at the different providers.

As previously suggested, the third major chal-

lenge for evidence collection in cloud provider chains

is their inherent technological heterogeneity. APIs,

protocols and data formats differ by provider and typi-

cally cannot be integrated easily (e.g., providers offer-

ing proprietary APIs). There are some approaches to

homogenize some of the technologies, such as for ex-

ample CSA CloudTrust Protocol (Cloud Security Al-

liance, 2016) that aims to provide a well-deﬁned API

that enables cloud providers to export transparency-

enhancing information to auditors and cloud con-

sumers. In this approach, the technological hetero-

geneity on the architectural level of the system is ad-

dressed by ensuring ﬂexibility and extensibility and

enabling the easy development of adapters for differ-

ent evidence sources.

3.2 Audit Frameworks

Policy compliance assessment and validation is the

main goal of our audit system. Policies can be of var-

ious kinds, for instance, a data protection policy is

a typical tool used by cloud providers to frame their

data protection and handling practices. In such poli-

cies, limits and obligations that a provider has to ful-

ﬁll are deﬁned. Typically, these documents are not

machine-readable and are geared towards limiting li-

ability of the provider.

Additionally, there are well-known standards,

frameworks and industry best practices, which de-

ﬁne various aspects of how data handling and protec-

tion should be implemented in practice. Such frame-

works are for instance the well-known ISO27001 for

information security management in general, COBIT

for IT governance and CSA’s Cloud Controls Matrix

(CCM) (Cloud Security Alliance, 2014) for cloud-

speciﬁc risk assessment. However, requirements and

obligations stated by these frameworks are typically

not available in a machine-readable format. There are

approaches to making these requirements and obliga-

tions explicit in a machine-readable way, for example

Accountability Primelife Policy Language (Azraoui

et al., 2014) for deﬁning data protection and data

handling-related obligations for data processing in the

cloud.

Traditionally, policy compliance is evaluated us-

ing audits and asserted with a certiﬁcation of compli-

ance (e.g., ISO27001 compliance certiﬁcation). Typ-

ically, the intervals in which an audit is repeated are

quite long (often yearly or longer). In the meantime,

policy violations can potentially remain undetected

for extended periods of time. One of our main goals

is to address these periods of uncertainty by enabling

the continuous assessment of cloud operations with

respect to policy compliance. This is an important

step towards continuous certiﬁcation.

3.3 Auditing Cloud Provider Chains

According to NIST, a cloud auditor is deﬁned as

“A party that can conduct independent assessment of

cloud services, information system operations, perfor-

mance and security of the cloud implementation” (Liu

et al., 2011). In our proposed system, the auditor is

supported by a system for automated evidence collec-

tion and assessment. Evidence in the audit system is

any kind of information that is indicative of compli-

ance with policies or a violation of those. Typically,

evidence is collected at the auditee. In general, an au-

ditee is an organization that is being audited, which in

this paper, is always a cloud provider.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

Complex cloud service provision scenarios in-

troduce new challenges with respect to auditing.

While in a typical scenario, where there is one cloud

provider and one cloud consumer, policies can be

agreed upon relatively easily between the two, this is

not as easy in a provider chain. In fact, the cloud con-

sumer might not be aware of or even interested in the

fact that there is an unknown third-party that might

have access to his data as long as his expectations re-

garding the protection and processing of his data are

fulﬁlled. However, to assert compliance, the whole

chain of providers, including data ﬂows that are gov-

erned by the previously mentioned policies, have to

be considered. This means that an audit with respect

to a single policy rule may need to be split into several

smaller evidence collection and evaluation tasks that

are distributed among the providers.

For instance: assuming there is a restriction on

data retention put in place that states that certain types

of data (e.g., Personal Identiﬁable Information PII)

has to deleted by the provider after a certain ﬁxed

period of time and no copies may be left over. This

restriction can stem from regulatory framework such

as the European Data Protection Directive or sim-

ply preferences that were stated by the data subject,

whose data is being processed in the cloud. Such

requirements can be formulated and enforced in for

example the Accountability PrimeLife Policy Lan-

guage (A-PPL) and its enforcement engine (A-PPL-

E) Azraoui et al. (2015).

Auditing for compliance with such a policy re-

quires, on a higher level, the check for the implemen-

tation of appropriate mechanisms and controls at each

provider where the data itself or a copy thereof could

have been stored. On a lower-level, the correct en-

forcement of the data retention rule could be evalu-

ated in an audit by using evidence of data deletion

that is being collected from all the cloud providers. In

the overview depicted in Figure 1, that evidence could

comprise of:

• Data deletion enforcement events generated by

the service at the primary service provider as a

reaction to the retention period being reached,

• Database delete log events produced by a database

management system at the PaaS provider,

• And scan results on the IaaS level for data that

may be still available outside of the running ser-

vice in a backup subsystem provided by the IaaS

provider.

The importance of widening the scope of audits

in such dynamic scenarios is apparent, especially if at

the same time the depth of analysis is widened beyond

checking whether or not security and privacy controls

are put in place.

4 APPROACHES FOR

COLLECTING EVIDENCE IN

CLOUD PROVIDER CHAIN

AUDITS

There are several approaches available when it comes

to collecting evidence for audit purposes in a service

provider chain. These approaches differ in the follow-

ing aspects:

1. The level of control an auditor has over the extent

of the data that is being published, i.e. whether the

auditor is limited to information that a provider is

already providing or if he has more ﬁne-grained

control and access to a provider’s infrastructure.

2. Technical limitations imposed by the technolog-

ical environment, i.e. the extent to which cloud

providers have to implement additional evidence

collection mechanisms.

3. The expected willingness or acceptance to pro-

vide such mechanisms by the publishing service

provider, i.e. the potential disclosure of conﬁden-

tial provider information and required level of ac-

cess to the provider’s systems.

In the remainder of this chapter, three approaches

are described and rated by the above-mentioned fac-

tors.

The focus lies thereby on inspecting common

components at two exemplary cloud providers that

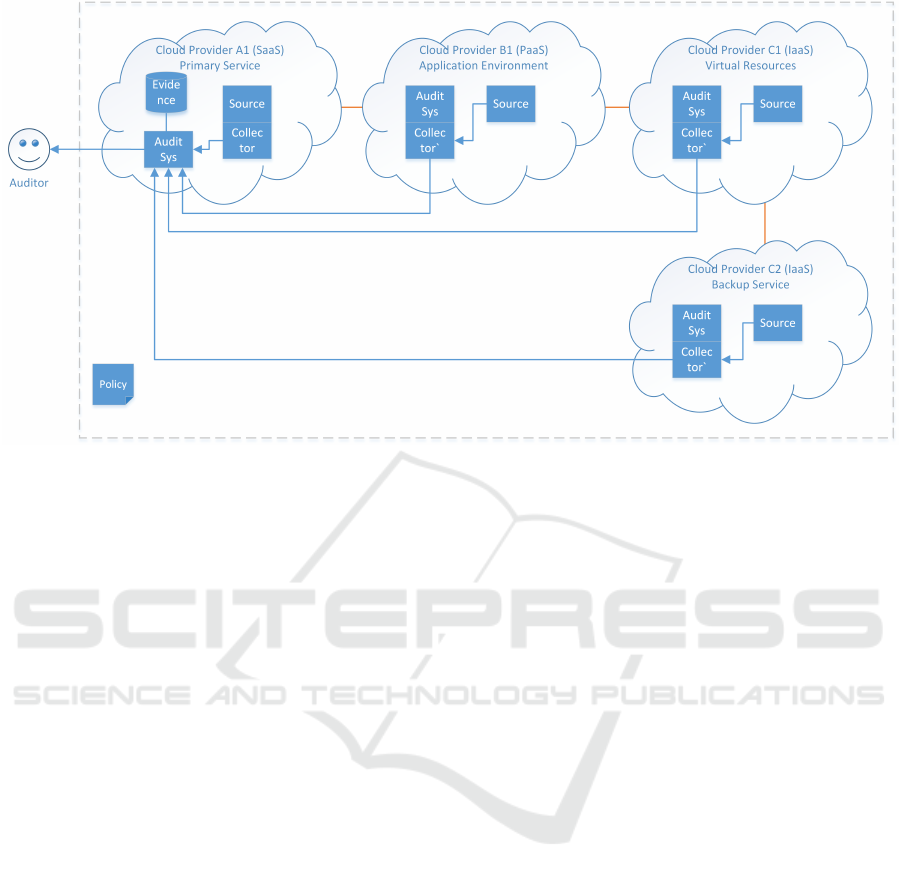

form a provider chain for the provision of a service.

These components are:

AuditSys. An audit system that enables automated,

policy-based collection of evidence as well as the

continuous and periodic evaluation of said evi-

dence during audits.

Collector. A component that enables the collection

of evidentiary data such as logs at various archi-

tectural layers of the cloud, while addressing the

heterogeneous nature of said evidence sources by

acting as an adapter.

Source. A location where evidence of cloud opera-

tions is generated.

Implementation details of these components are

discussed in our previous work. The following dis-

cussion focuses on the different approaches to extend

the system for cloud provider chains.

The ﬁrst approach focuses on reusing already

existing evidence sources by collecting via remote

Evidence Collection in Cloud Provider Chains

APIs of a cloud system. The second approach uses

provider-provisioned evidence collectors and the third

approach leverages the mobility of software agents (as

used in the prototype implementation of our system)

for evidence collection.

4.1 Remote API Evidence Collector

The ﬁrst approach for collecting evidence that is rele-

vant to automated auditing, leverages already existing

APIs in cloud ecosystems. Several cloud providers,

such as Amazon or Rackspace, already provide im-

proved transparency over their cloud operations by

providing their customers with access to proprietary

monitoring and logging APIs (see (Amazon Web Ser-

vices, 2016; Rackspace, 2016)). The extent to which

data is shared is typically limited to information that

is already produced by the clod provider’s system

(e.g., events in the cloud management system) and

restricted to information that immediately affects the

cloud customer (e.g., events that are directly linked to

a tenant).

Data such as logs that are generated by the under-

lying systems are very important sources of evidence,

since they expose a lot of information about the op-

eration of cloud services. A speciﬁc example of such

evidence are for instance: VM lifecycle events (cre-

ated, suspended, snapshotted etc.) including times-

tamp of the operation and who performed. This can

be requested from OpenStack’s Nova service via its

REST interface. The type of information is highly

dependent on the actual system, the granularity of the

produced logs and the scope of the provided APIs.

For instance, on the infrastructure level, there are log

events produced and shared that provide insight on

virtual resource lifecycle (e.g., start/stop events of vir-

tual machine).

Figure 2 depicts such a scenario. The AuditSys at

Cloud A operates a collector that implements the API

of the remote data source at Cloud B. It is conﬁgured

with the access credentials of Cloud A, thus enabling

the collector to request evidence from Cloud B. Fur-

thermore, since different services may provide differ-

ent APIs (e.g., OpenStack vs. OpenNebula API), the

collector is service-speciﬁc. For instance, a collec-

tor implements the data formats and protocols as de-

ﬁned in the OpenStack Nova API to collect evidence

about the images that are owned or otherwise associ-

ated with Cloud A as a customer of Cloud B.

4.1.1 Level of Auditor Control

a The amount of evidence that can be collected is

severely limited by the actual APIs that are provided

by a cloud provider. It is either: i) the evidence that

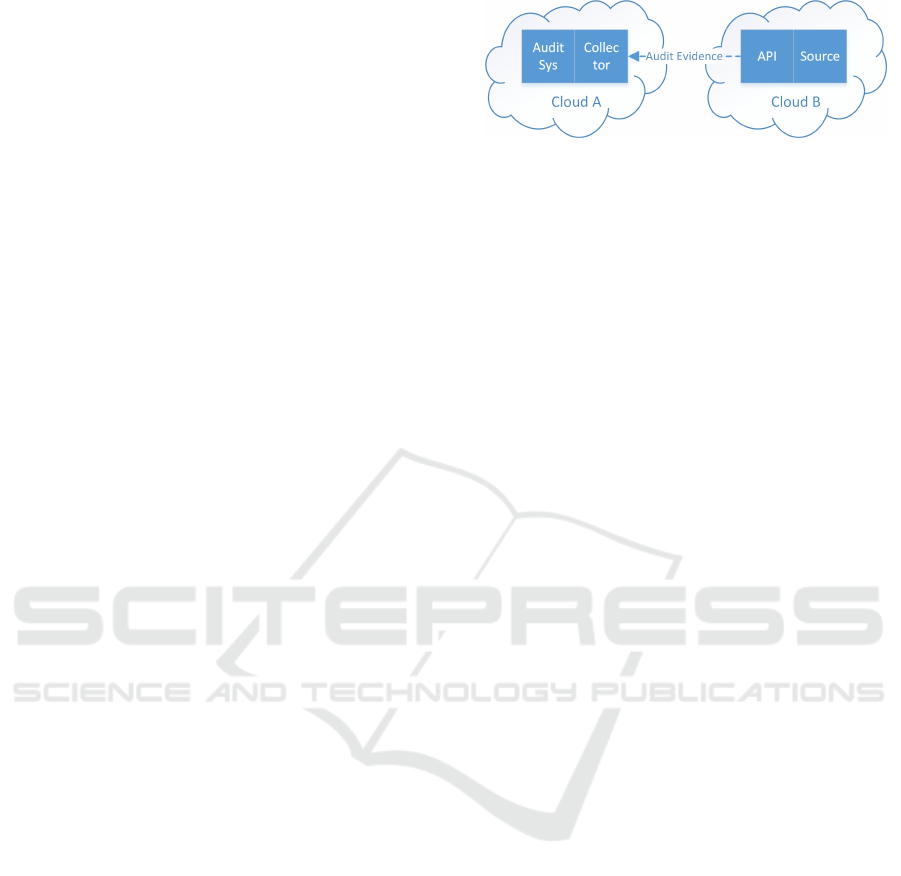

Figure 2: Remote API Evidence Collector.

an auditor is looking for is immediately available be-

cause the provider already monitors all relevant data

sources and makes that data accessible via the API or

ii) the data is not available. Since a lot of the cloud

provider’s systems expose remote APIs anyway, they

have to be considered. However, the completeness

of the exposed APIs and therefore the completeness

of the collected evidence is questionable due to the

aforementioned reasons.

If an auditee for some reason does not implement

or provide access to the audit system, an auditor may

still collect evidence to a limited degree using this ap-

proach.

4.1.2 Technical Limitations

If lower-level access to the providers infrastructure is

required to collect evidence (e.g., log events gener-

ated on the network layer or block storage-level ac-

cess to data), an auditor might not be able to gain ac-

cess to that information.

4.1.3 Acceptance

This approach poses some challenges with respect to

security, privacy and trust required by the auditee.

Since the auditee is already exposing the APIs pub-

licly, it can be expected that they will be used for au-

diting and monitoring purposes. The implementation

of security and privacy-preserving mechanisms on the

API-level is therefore assumed. However, the extent

to which such mechanisms are implemented highly

depends on the actual implementation of the APIs on

the provider side.

While this way of providing evidence to auditors

is likely to be accepted by cloud providers, it may be

too limited with respect to the extent to which evi-

dence can be collected at lower architectural levels.

4.2 Provider Provisioned Evidence

Collector

In this approach, the audit system still is the main

component for evidence collection. Here, all cloud

providers that are part of the service provision chain

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

are running a dedicated system for auditing. How-

ever, the instantiation and conﬁguration of the collec-

tor is delegated to the auditee. The auditee assumes

full control over the collector and merely grants the

auditor access to interact with the collector for evi-

dence collection.

The auditee (see Cloud B in Figure 3) provisions

evidence collectors and provides access to them to the

auditor. The auditor (who is using AuditSys at Cloud

A) conﬁgures evidence collection for the audit to con-

nect to the collectors at Cloud B.

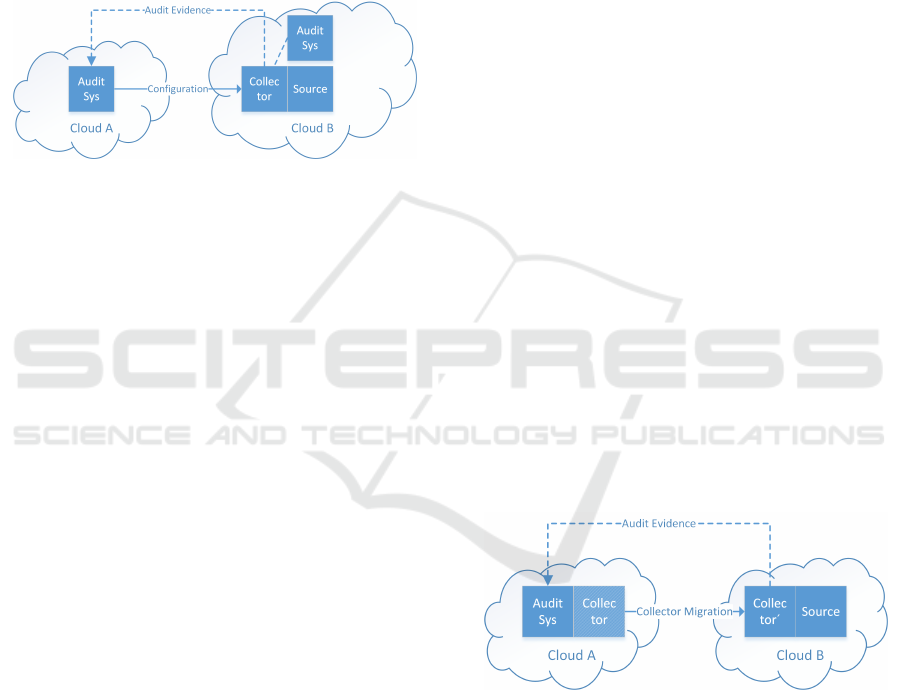

Figure 3: Provider-provisioned Evidence Collector.

4.2.1 Level of Auditor Control

The conﬁguration of the evidence collector can be ad-

justed by the auditor to a degree that is controlled by

the auditee (e.g., applying ﬁlters to logs). He is pro-

vided limited means to conﬁgure a collector but no

direct, low-level access such as freely migrating the

collector in the auditee’s infrastructure. At any time,

the auditee can disconnect, change or otherwise con-

trol the collector. An auditor may be put off by the

limitations posed by this approach, since he is effec-

tively giving up control over the central part of evi-

dence collection and is relying solely on the cooper-

ation of the auditee. For instance, simple tasks such

as reconﬁguring or restarting a collector may require

extensive interaction between the two audit systems

and potentially intervention by a human (e.g., an ad-

ministrator).

4.2.2 Technical Limitations

This approach is only limited by the availability of

collectors for evidence sources.

4.2.3 Acceptance

In this approach, the auditee retains full control over

the collector and the potential evidence that can be

collected by it. The auditor can take some inﬂu-

ence on the ﬁltering of data that is collected from the

evidence source and on general parameters, such as

whether evidence is pushed by or pulled from the col-

lector. Most of the baseline conﬁguration though, is

performed by the auditee (such as access restrictions

and deployment of the collector). The auditor’s abil-

ity to inﬂuence the collector is severely limited by the

restriction of interactions to a well-deﬁned set of con-

ﬁguration parameters and the evidence exchange pro-

tocol. This level of control that the auditee has over

the evidence collection process may have positive in-

ﬂuence on provider acceptance.

4.3 Mobile Evidence Collector

This approach is speciﬁc to a central characteristic of

software agent systems, which is the ability to mi-

grate over a network between runtime environments.

In this approach, the migration of evidence collectors

between separate instances of the audit system run-

ning at both Cloud A and B is proposed.

In our implementation, we opted for the

well-known Java Agent Development framework

(JADE) JADE (2014) for implementing collectors.

The migration of collectors between providers is

thereby performed by using JADE’s mobile agent ca-

pabilities.

As depicted in Figure 4, the auditor prepares the

required collector fully (i.e., agent instantiation and

conﬁguration) and then migrates the collector (shaded

box named Collector) to the auditee (Collector‘).

There, the collector gathers evidence that is sent back

to the auditor for evaluation. Generally however,

agents do not cross from one particular administrative

domain to another, but remain at one. In this case, the

collector crosses from Cloud A’s administrative do-

main to Cloud B. This may have signiﬁcant impact

on the acceptance of the approach.

Figure 4: Mobile Evidence Collector.

4.3.1 Level of Auditor Control

The auditor retains full control over the type of collec-

tor and its conﬁguration. The auditee may not in any

way change or otherwise inﬂuence the collector since

this could be deemed a potentially malicious manipu-

lation.

4.3.2 Technical Limitations

Since the auditor knows most about the actual con-

Evidence Collection in Cloud Provider Chains

ﬁguration required for a collector, it is logical to take

this approach and simply hand-over a fully prepared

collector to the auditee. However, this only works if

both run the same audit system, or the auditee at the

very least provides a runtime environment for the col-

lector. In any case, this approach offers the most com-

plete and most ﬂexible way of collecting evidence at

an auditee due to the comprehensive evidence collec-

tion capabilities.

4.3.3 Acceptance

The main problem with this approach is required

trust by the auditee. Since the collector that is be-

ing handed over to him by the auditor is in fact soft-

ware that the auditee is supposed to run on its in-

frastructure, several security, privacy and trust-related

issues associated with such cross-domain agent mo-

bility need to be addressed. Several security con-

trols need to be implemented in order to make cloud

providers consider the implementation of an audit

system including the proposed approach of using mo-

bile collectors.

The main security concerns of this approach stem

from the fact that the auditee is expected to execute

software on his infrastructure over which he does not

have any control. He cannot tell for certain whether or

not the agent is accessing only those evidence sources

which he expects it to.

Without any additional security measures, it can-

not be expected that any cloud provider is willing to

accept this approach. However, with the addition of

security measures such as ensuring authenticity of the

collector (e.g., using collector code reviews and code

signing) this approach becomes more feasible. The

discussion of such measures depends on the technol-

ogy used by the implementation and is out of scope

of this paper. Without any additional measures, it can

be assumed that this approach is only feasible, if the

auditor is completely trusted by the auditee. In that

case, this approach is very powerful and ﬂexible.

4.4 Round-up

All three approaches for evidence collection in

provider chains have their distinct advantages and dis-

advantages. Using remote API evidence collectors

is simple, quickly implemented, securely and readily

available, but severely limited regarding access to ev-

idence sources. Using provider-provisioned evidence

collectors is more powerful with respect to access to

evidence sources, but requires more effort in the con-

ﬁguration phase and leaves full control to the auditee.

Using mobile evidence collectors is the most ﬂexible

approach that allows broad access to evidence sources

at the auditee’s infrastructure and leaves full control

over the evidence collection to the auditor. There-

fore, a balance has to be struck between broad ac-

cess to evidence sources when using mobile collec-

tors (effectively having low-level access to logs and

other ﬁles for evidence collection) and more limited

access when using remote APIs (evidence limited to

what the system that exposes the API provides).

In the audit system, the use of remote APIs is inte-

grated due to its simplicity and mobile collectors due

to their ﬂexibility and powerfulness as the main ap-

proaches to evidence collection.

5 SCENARIO-BASED PROVIDER

CHAIN AUDITING

EVALUATION

In the previous Section 4, the approaches that can be

taken when collecting evidence for auditing purposes

in cloud provider chains were described. In this sec-

tion, it is demonstrated how to incorporate the feasi-

ble approaches into an extension of the proposed audit

system to enable automated, policy-driven auditing of

cloud provider chains. The focus is put on the Remote

API Evidence Collector and Mobile Evidence Collec-

tor approaches (see Section 4.1 and 4.3 respectively).

The approach is validated by discussing a ﬁctitious

use case.

5.1 Audit Agent System

In Figure 5, an example deployment of the automated

audit system is depicted. This deployment is not nec-

essarily representative of real-world cloud environ-

ments but used to highlight possible combinations of

services and data ﬂows that can happen in a multi-

cloud scenario. There are four cloud providers, which

are directly or indirectly involved in the service pro-

vision. The SaaS provider A1 uses the platform pro-

vided by a PaaS provider B1, who does not have its

own data center but uses computing resources pro-

vided by yet another IaaS provider C1. The IaaS

provider C2 provides a low-level backup as a service

solution that is used by provider C1. To enable au-

diting of the whole provider chain, each provider is

running its own instance of the audit system (Audit-

Sys, as described in Section 4).

5.2 Provider Chain Auditing Extension

The auditor that uses AuditSys at the primary ser-

vice provider A1 deﬁnes and conﬁgures continuous

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

audits based on data protection and handling policy

statements. Since these policy statements do not in-

clude any information about the service architecture,

the auditor introduces his knowledge about the cloud

deployment into the audit task, by deﬁning evidence

collection tasks that gather data on the PaaS and IaaS

layer and also at the primary service provider. An

audit task consists of collector, evaluator and notiﬁca-

tion agents. The type of evidence collection approach

that has to be taken (as described in Section 4) is also

deﬁned by the auditor.

In this scenario it is assumed that all providers

allow the auditor at A1 to collect evidence using

the mobile evidence collectors and that the infras-

tructure providers also provide the auditor with ac-

cess to their management system’s APIs. As previ-

ously mentioned, the auditor is assumed trustworthy

by all parties, which enables broad access to all cloud

providers. Additionally, it is assumed that all cloud

providers are acting in good faith and see the au-

dit process as an opportunity to transparently demon-

strate that they are acting in compliance with data

handling policies.

As depicted in Figure 5, the auditor uses A1’s Au-

ditSys to deﬁne and audit task based on the data han-

dling policy that is in effect. That task refers to the

data retention obligation that was described earlier in

Section 3.3. The retention time is deﬁned as 6 months

for every PII data record that is gathered about the

users of provider A1. If the retention time is reached,

the following delete process is executed as part of the

normal operation of the service A1 provides:

1. The delete event ﬁres at A1 due to max retention

time being reached and the event is propagated to

B1.

2. The data record is deleted from the database at B1.

3. The database is hosted on virtual machines pro-

vided by C1 and therefore does not require any

delete actions.

4. A backup of the B1’s database is available in C2’s

backup system and the delete action was not trig-

gered in C2.

As part of the delete event, the following evidence

is collected by the mobile evidence collectors as part

of building an evidence trail for compliance evalua-

tion at A1.

1. The data retention event is recorded as evidence

by the collector running at A1.

2. The delete action of the database is recorded as

evidence by the collector running at B1.

3. No evidence is recorded by the collector at C1

since there are no leftover copies such as virtual

machine snapshots available.

4. The backup’s meta-data such as creation times-

tamps are recorded as evidence by the collector

at C2.

The evidence from all collectors (A1, B1, C2) is

sent to the AuditSys at A1, where it is evaluated and a

policy compliance statement is generated for the au-

ditor. In this particular case, a policy violation is de-

tected, because the audit trail shows that the record

that should have been deleted is still available in a

backup at C2. Provider A1, and B1 acted compliant

by deleting the data, whereas C1 never stored a copy

outside of B1’s database.

5.3 Pre-processing and Intermediate

Results of Audit Evidence

Evaluation

The audit system uses a component at the AuditSys

that is responsible for storing evidence records that

are collected by the collector agents. Externally col-

lecting evidence and merging it at a central evidence

store that is only reachable via the network, can easily

become a bottle-neck in audit scenarios where either

a lot of evidence records are produced externally or

where the record size is big. This obviously has sig-

niﬁcant impact on the scalability of the whole system.

The problem can be addressed by making the ev-

idence store (which is just a specialized form of an

agent with a secure storage mechanism) distributable

and also by de-centralizing parts of the evidence eval-

uation process. There are generally two concepts:

1. Pre-processing: Pre-processing allows the evi-

dence collector agent to apply ﬁltering and other

types of evidence pre-processing. The goal is

to reduce the amount of collected evidence to a

manageable degree (without negatively impacting

the completeness of the audit trail) and to rea-

sonably reduce the amount of network operations

by grouping evidence records and storing them in

bulk. For example, by ﬁltering the raw data at the

evidence source for certain operations, subjects,

tenants, or time frames. Data that is not immedi-

ately required for the audit is ﬁltered out.

2. Intermediate Result Production: A second pre-

processing strategy is to move (parts of) the eval-

uation process near the collector. This means that

the collected evidence is already reduced to the

signiﬁcant portions that indicate partial compli-

ance or violation of policies. However, this strat-

egy requires speciﬁc audit task types (where an

audit result can be produced by combining several

intermediate results).

Evidence Collection in Cloud Provider Chains

Figure 5: Provider Chain Auditing Architecture.

The three concepts bring several implications with

them with respect to privacy and security.

Pre-processing can be considered a manipulation

of evidence. Therefore, the unaltered source upon

which the pre-processing happened should be pro-

tected to later be able to trace pre-processed evidence

back to its unaltered form.

Immediate result production effectively moves the

evaluation of evidence step of the audit into the do-

main of the auditee, where it would be easy for him

to manipulate the result. However, the same applies

to the collection of evidence as well where an audi-

tor can intentionally manipulate the evidence source

or the collector.

This case is not considered in the current iteration

of the system but it is assumed that cloud providers

(auditees) are acting in good faith. This assumption

can be justiﬁed by the potential increase in trans-

parency and the associated strengthening of trust in

the cloud provider that can mean a competitive ad-

vantage. On the other hand, intentional manipula-

tion of evidence or intermediate results can have dis-

astrous impact on a provider‘s credibility, reputation

and trustworthiness upon detection.

6 CONCLUSIONS

Cloud auditing is becoming increasingly important as

cloud adoption increases and compliance of data pro-

cessing is put into focus of the cloud consumer. The

key to making cloud audits a useful tool is the effec-

tiveness of collection process that is used to build the

basis for the evaluation of policy compliance or lack

thereof.

While there are many systems for monitoring

cloud providers (with varying level of completeness),

there are fewer systems that automate audit tasks

and even fewer still that enable continuous auditing,

which is a key enabler of continuous certiﬁcation. As

long as there is only one cloud provider involved in

service provisioning to the cloud consumer, monitor-

ing and auditing is relatively simple (with the above

mentioned restrictions). However, in more complex

scenarios where there are chains of providers (or fed-

erations of cloud providers), current approaches are

severely limited.

In this paper an extension to our previous work on

automating continuous cloud audits that enables the

collection of evidence across the boundaries of mul-

tiple cloud providers in a cloud provider chain was

presented. The concept of cloud provider chains and

three different approaches to evidence collection with

their advantages and disadvantages were discussed.

Furthermore, their implementation in an audit system

was presented and validated using a scenario-based

approach. It was shown how automated cloud audits

can be extended to scenarios, where more than one

cloud provider is involved in the service provision.

In the future, the analysis of the different ap-

proaches and their integration in our system will be

expanded in two main areas: i) expanding the secu-

rity mechanisms that are already present to account

for the notion of provider chains and ii) demonstrat-

ing the scalability and efﬁciency of the system.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

ACKNOWLEDGEMENTS

This work has been partly funded from the Euro-

pean Commission’s Seventh Framework Programme

(FP7/2007-2013), grant agreement 317550, Cloud

Accountability Project - http://www.a4cloud.eu/ -

(A4CLOUD).

REFERENCES

Amazon Web Services (2016). Amazon cloudwatch. https:

//aws.amazon.com/de/cloudwatch/.

Azraoui, M., Elkhiyaoui, K.,

Onen, M., Bernsmed, K.,

De Oliveira, A., and Sendor, J. (2015). A-ppl: An

accountability policy language. In Garcia-Alfaro, J.,

Herrera-Joancomart

ı, J., Lupu, E., Posegga, J., Aldini,

A., Martinelli, F., and Suri, N., editors, Data Privacy

Management, Autonomous Spontaneous Security, and

Security Assurance, volume 8872 of Lecture Notes in

Computer Science, pages 319–326. Springer Interna-

tional Publishing.

Azraoui, M., Elkhiyaoui, K.,

Onen, M., Bernsmed, K., San-

tana De Oliveira, A., and Sendor, J. (2014). A-PPL:

An accountability policy language. In DPM 2014,

9th International Workshop on Data Privacy Manage-

ment, September 10, 2014, Wroclaw, Poland, Wro-

claw, POLAND.

Bitkom Research GmbH (2015). Cloud Monitor

2015. https://www.kpmg.com/DE/de/Documents/

cloudmonitor%202015 copyright%20 sec neu.pdf.

Cloud Security Alliance (2013). Top threats to cloud com-

puting survey results update 2012. https://downloads.

cloudsecurityalliance.org/initiatives/top threats/

Top Threats Cloud Computing Survey 2012.pdf.

Cloud Security Alliance (2014). Cloud Controls Matrix.

https://cloudsecurityalliance.org/research/ccm/.

Cloud Security Alliance (2015). Security, Trust & Assur-

ance Registry. https://cloudsecurityalliance.org/star/.

Cloud Security Alliance (2016). Cloud Trust Protocol.

https://cloudsecurityalliance.org/research/ctp.

Ganglia (2015). Ganglia. http://ganglia.sourceforge.net/.

Information Systems Audit and Control Association (2012).

Control Objectives for Information and Related Tech-

nology (COBIT) 5. http://www.isaca.org/cobit/.

ISO (2005). ISO27001:2005. http://www.iso.org/iso/

catalogue detail?csnumber=42103.

JADE (2014). Java Agent DEvelopement framework. http:

//jade.tilab.com.

Katsaros, G., Kousiouris, G., Gogouvitis, S. V., Kyriazis,

D., Menychtas, A., and Varvarigou, T. (2012). A

self-adaptive hierarchical monitoring mechanism for

clouds. Journal of Systems and Software, 85(5):1029

– 1041.

Kertesz, A., Kecskemeti, G., Oriol, M., Kotcauer, P., Acs,

S., Rodr

ıguez, M., Merc

e, O., Marosi, A., Marco, J.,

and Franch, X. (2013). Enhancing federated cloud

management with an integrated service monitoring

approach. Journal of Grid Computing, 11(4):699–

720.

Liu, F., Tong, J., Mao, J., Bohn, R., Messina, J., Bad-

ger, L., and Leaf, D. (2011). Nist cloud computing

reference architecture. http://www.nist.gov/customcf/

get pdf.cfm?pub id=909505.

Massonet, P., Naqvi, S., Ponsard, C., Latanicki, J., Rochw-

erger, B., and Villari, M. (2011). A monitoring and

audit logging architecture for data location compli-

ance in federated cloud infrastructures. In Parallel

and Distributed Processing Workshops and Phd Fo-

rum (IPDPSW), 2011 IEEE International Symposium

on, pages 1510–1517.

Montes, J., S

anchez, A., Memishi, B., P

erez, M. S., and

Antoniu, G. (2013). Gmone: A complete approach to

cloud monitoring. Future Generation Computer Sys-

tems, 29(8):2026 – 2040.

Muller, C., Oriol, M., Rodriguez, M., Franch, X., Marco, J.,

Resinas, M., and Ruiz-Cortes, A. (2012). Salmonada:

A platform for monitoring and explaining violations

of ws-agreement-compliant documents. In Principles

of Engineering Service Oriented Systems (PESOS),

2012 ICSE Workshop on, pages 43–49.

Nagios Enterprises, LLC (2014). Nagios. http://www.

nagios.org/.

National Institute of Standards and Technology (2011).

Guidelines on security and privacy in public cloud

computing. http://csrc.nist.gov/publications/nistpubs/

800-144/SP800-144.pdf.

National Institute of Standards and Technology) (2013).

Security and privacy controls for federal information

systems and organizations. http://nvlpubs.nist.gov/

nistpubs/SpecialPublications/NIST.SP.800-53r4.pdf.

PCI Security Standards Council (2015). Payment Card

Industry Data Security Standard (PCI-DSS). https:

//www.pcisecuritystandards.org/.

Povedano-Molina, J., Lopez-Vega, J. M., Lopez-Soler,

J. M., Corradi, A., and Foschini, L. (2013). Dargos: A

highly adaptable and scalable monitoring architecture

for multi-tenant clouds. Future Generation Computer

Systems, 29(8):2041 – 2056.

Rackspace (2016). Rackspace cloud monitoring. http:

//www.rackspace.com/cloud/monitoring.

ubsamen, T., Pulls, T., and Reich, C. (2015). Secure

Evidence Collection and Storage for Cloud Account-

ability Audits. In CLOSER 2015 - Proceedings of

the 5th International Conference on Cloud Comput-

ing and Services Science, Lisbon, Portugal, May 20 -

22, 2015. SciTePress.

ubsamen, T. and Reich, C. (2013). Supporting cloud ac-

countability by collecting evidence using audit agents.

In Cloud Computing Technology and Science (Cloud-

Com), 2013 IEEE 5th International Conference on,

volume 1, pages 185–190.

ubsamen, T. and Reich, C. (2014). An Architecture

for Cloud Accountability Audits. In 1. Baden-

urttemberg Center of Applied Research Symposium

on Information and Communication Systems SInCom

2014.

Evidence Collection in Cloud Provider Chains

ubsamen, T., Reich, C., Wlodarczyk, T., and Rong, C.

(2013). Evidence for accountable cloud computing

services. http://dimacs.rutgers.edu/Workshops/TAFC/

TAFC\ a4cloud.pdf.

Scientiﬁc Working Groups on Digital Evidence and

Imaging Technology (2015). SWGDE and

SWGIT Digital & Multimedia Evidence Glos-

sary. https://www.swgde.org/documents/Current%

20Documents/2015-05-27%20SWGDE-SWGIT%

20Glossary%20v2.8.

Tom Cook (2015). Dropbox at AWS re:Invent

2014. https://blogs.dropbox.com/tech/2014/12/

aws-reinvent-2014/.

U.S. General Services Administration (2014). Federal Risk

and Authorization Program. http://www.fedramp.gov.

Xie, R. and Gamble, R. (2012). A tiered strategy for au-

diting in the cloud. In Cloud Computing (CLOUD),

2012 IEEE 5th International Conference on, pages

945–946.

Xie, R. and Gamble, R. (2013). An architecture for cross-

cloud auditing. In Proceedings of the Eighth Annual

Cyber Security and Information Intelligence Research

Workshop, CSIIRW ’13, pages 4:1–4:4, New York,

NY, USA. ACM.

Xie, R., Gamble, R., and Ahmed, N. (2014). Diagnosing

vulnerability patterns in cloud audit logs. In Han,

K. J., Choi, B.-Y., and Song, S., editors, High Perfor-

mance Cloud Auditing and Applications, pages 119–

146. Springer New York.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science
