Towards a Model Transformation Tool on the Top of

the OpenCL Framework

Tamás Fekete and Gergely Mezei

Budapest University of Technology and Economics, Budapest, Hungary

Keywords: Model Transformation, GPGPU, OpenCL, Pattern Matching, Graph Rewriting.

Abstract: Nowadays, applications must often handle a large amount of data and apply complex algorithms on it. It is a

promising and popular way to apply the computation in parallel in order to meet the performance

requirements. Since GPUs are designed to apply highly parallel computations efficiently, using CPU+GPU

heterogeneous architecture have gained an increasing popularity in computation intensive applications.

Model-driven development (MDE) is a widely used software development methodology in the software

industry. MDE is heavily building on model transformations in converting and processing the models. Graph

transformation-based model transformation is a popular technique in this field. It is based on isomorphic

subgraphs matching, which often require serious computing power. Currently, model transformation tools are

not capable of using the computation power of the GPUs. Our research goal is to create a general model

matching and later a model transformation solution, which can take the advantages of the computation power

of the GPUs. We are now focusing on pattern matching of the transformations. We would like to create a

general solution which is independent of the hardware vendor; therefore, our method is based on the OpenCL

framework. The novelty of this paper is a GPGPU-based pattern matching tool and some accelerating

techniques to achieve faster computation. In this paper we present an overview of the solution and test results

based on one of the biggest freely available movie database (IMDb). The main properties such as the

performance and the scalability are discussed. The applied architecture and the steps towards the final solution

are also included in the paper.

1 INTRODUCTION

Nowadays, software applications process and handle

a huge amount of data. Therefore, the execution of

complex algorithms on this data often becomes a

heavily time consuming operation. Using parallelized

algorithms is a promising way to improve the

performance of the applications. We need a hardware

device for this to supports massive parallelism. GPUs

seem a perfect candidate for this, since nowadays they

tend to have thousands of computations units for

parallel evaluation. The CPU+GPU heterogeneous

architecture have enough power source to develop

extremely fast algorithms. The processing power of

GPUs is already widely applied in several fields like

image or audio processing. This trend can be

extended to new domains as well.

On the market, numerous kinds of GPUs can be

found. Using a vendor, or model specific language

and framework would need a tremendous effort. To

avoid this, the OpenCL framework has been created

in 2009. OpenCL is a platform independent

framework which can be used to handle the most

widely used GPUs uniformly. OpenCL is an interface

defined by Khronos Group (Khronos Group’s

website, 2015) and each product vendor has its own

implementation. Although these implementations

differ from each other, the interface grants the

compatibility between the vendors.

Model-driven engineering (MDE) is a widely

applied software development methodology in the

software industry. Models are not only created for

presentation purposes, but they are transformed,

processed and often used directly or indirectly as the

basis of the code generation. Therefore, to find

efficient model transformation techniques is

important and challenging part of the MDE. Several

techniques exist, one of the most popular is the graph

rewriting-based transformation which is also referred

to as graph transformation. Graph transformation is

based on an NP complete problem (subgraph

isomorphism) and may need serious amount of time

depending on the size of the input model. A solution

Fekete, T. and Mezei, G.

Towards a Model Transformation Tool on the Top of the OpenCL Framework.

DOI: 10.5220/0005792903550360

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 355-360

ISBN: 978-989-758-168-7

355

for the performance issue can be to use the

aforementioned CPU+GPU architecture.

Our overall goal is to create a general model-

transformation tool using the computing power of

GPUs. The tool is referred to as the GPGPU-based

Engine for Model Processing (GEMP). We have done

several steps in creating GEMP (Fekete and Mezei,

2015). In that paper, we concluded that the usage of

the GPUs in graph transformation tools is a promising

direction. In this paper, we follow this path by

introducing a general, GPU-based solution for

pattern-matching.

The rest of the paper is organized as follows: In

Section 2, the features of the OpenCL framework are

collected and compared against other solutions.

Moreover, a short overview of model transformation

tools can also be found. In Section 3, the input domain

model is described which is used for illustrating the

non-functional properties of the GEMP. In Section 4,

an architectural overview is given. The following two

Sections pay attention to the data mapping to the

OpenCL framework and introduce the core

algorithms. In Section 7, the main properties of the

tool are discussed, namely the performance and the

scalability. Finally, in Section 8, we conclude and

give an outlook for the possible researching

directions.

2 RELATED WORK

There are several possibilities to realize

heterogeneous computation tasks, especially for

CPU+GPU based platforms. One of them is the usage

of the popular OpenCL framework. Another widely

applied way of accessing the GPUs is the usage of the

CUDA (CUDA’s website, 2015). It is necessary to

question which of them is better considering several

viewpoints such as performance, scalability, or the

difficulty of the integration. In a paper, (Veerasamy

et al., 2014), they introduced the usage of both the

CUDA and the OpenCL in deeper details, but they do

not give suggestion which is the better to integrate.

Both of them have their own advantages which

heavily depend on the actual problem that must be

solved. The main reason of using the OpenCL

framework over CUDA is that OpenCL can be used

by many hardware manufacturers realizing the

interfaces.

In a paper, (Yan et al., 2014), there are

benchmarks showing how the OpenCL framework

can be effectively used on different hardware

components. They compared several hardware

components like multi-core CPUs, AMD and

NVIDIA GPUs. They also considered the differences

between their and other existing results. They

measured the GFLOPS both on GPUs and CPUs and

collected their experiments in case of different kinds

of tasks.

The usage of the OpenCL framework is

challenging to those, who do not have experience in

hardware close programming. Probably this is the

main reason why there are so many libraries for

OpenCL and for other multi-platform environments.

In a paper, (Viñas et al., 2015), there is a discussion

about the extension of a Heterogeneous Library with

OpenCL; this modification provides easier access to

OpenCL framework. Significantly decreasing the

number of lines in the source code is achieved and

introduced in the paper.

There are many OpenCL-based graph libraries

and wrappers which can be used in realizing an

OpenCL-based model-transformation tool. Using

GPUs in a graph library is introduced by (Che et al.,

2014). In this paper, solutions of several popular

graph problems are modified to achieve the GPU-

based version of them. They also realized that

programming of the GPU can be difficult for a regular

programmer and the implementation of the graph

application can take a big effort. Therefore, they

created a library which is called BelRed. The software

building blocks are implemented on the top of the

OpenCL framework. The performance of the library

is represented on a case study. The main advantages

of the BelRed library are its portability and the fact

that the programmer does not need care of the kernel

code writing and hardware close working.

In a paper, (Xu et al., 2014), they introduce how

important and critic the graph processing components

nowadays are. The paper also focuses on the

algorithm mapping between the host and the GPU

which is the biggest challenge in the effective usage

of GPUs. They compiled 12 graph applications into

the GPU device, studied the performance and

suggested several approaches to accelerate the

performance of the GPU-based algorithms.

There are several papers and studies which collect

and classify the model transformation tools. In a

paper, (Jakumeit et al., 2014), there are tools which

are described, for example GREAT, IncQuery,

Fujaba, Groove, Henshin, MOLA and Viatra2. None

of these tools can use the power of the GPUs in model

processing. Our current research focuses on the

challenges to create a general purpose pattern

matching tool, namely the first step towards creating

a GPU-based model transformation engine. The

verification and validation of GEMP is applied on

two levels: (1) Low level functional properties are

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

356

tested using unit tests. (2) For testing and illustrating

the high level non-functional properties, a domain

model with a huge size of source is introduced.

3 INPUT DOMAIN MODEL

In this section, we introduce an input domain model

which is used to illustrate the non-functional

properties of GEMP, especially the performance and

the scalability. The internet movie database (IMDb’s

website, 2015) (IMDb) is used as the input data.

IMDb is the largest film and TV show related

database. It has approximately 3.3 million titles, 6.5

million personalities (actors, directors, etc.). From the

IMDb, a huge input model can be created. Several

interesting and complex patterns can be searched in

this database for testing purposes. In the current

research, a text file-based database is used which

contains information on several domain concepts, like

movies (subtitle, creation time, and rate), actors (with

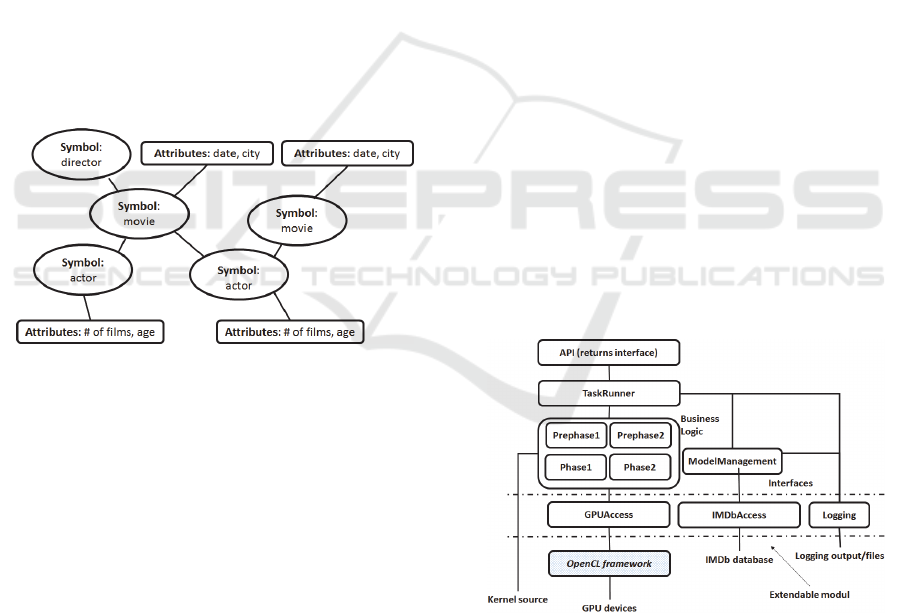

played film), and producers (with film). Figure 1

shows an example for a pattern to be searched.

Figure 1: Example for a pattern to be searched.

4 ARCHITECTURE

The OpenCL kernel source code must be written in

the C99 language (with some restrictions). The

language of GEMP is C++11. OpenCL versions are

backwards compatible. Since NVIDIA GPUs support

only OpenCL 1.2 version, we decided to use this

version in order to maximize hardware independency.

4.1 Component Model

Each component has a well separated functionality.

We used the interface oriented programming

paradigm to easily access the services of GEMP.

Most frequently used design patterns are the adapter

and the façade. For example, between the OpenCL

API and the base libraries of the tool, the

CGPUAccess component provides the connection

and it is implemented as an adapter, while

CTaskRunner is a façade. The domain model is

created in the CModelManagement component which

can be used for other domains. The most important

components of the framework are shown in Figure 2

and in the list below of it (with their key roles).

(1) CGPUAccess: It creates the main OpenCL

context and the command queue. Some objects are

delegated to other components which need access

to the GPU device. Inside of the component (2)

initializes the connection between the host and the

GPU device using the OpenCL API. At the same

time, this context stores each run-time object

provided by the OpenCL API.

(2) Business Logic (CPrephase1, CPrephase2,

CPhase1, CPhase2): This component realizes the

business logic (BL) of the tool. Each contained

inner components are easily exchangeable and

extendable. The BL uses the kernel source code

and responsible for the compiling process using

other components.

(3) CTaskRunner: The tasks are scheduled here. All

kinds of time scheduling tasks must happen in this

component.

(4) CLogging: It is responsible, not only for logging,

but provides the output models as well.

(5) IMDbAccess: It manages reading of the domain

model and provides the graph data to (6).

(6) CModelManagement: It is responsible for the

domain model creation. It can also create the input

graph and process the results.

Figure 2: The base component model with the most

important blocks.

4.2 Dynamic Behaviour and Testing

In the first place, GEMP provides interfaces to the

task evaluation and to the configuration. As soon as

the task is chosen, it is queued for execution. The

CModelManagement prepares the domain model for

Towards a Model Transformation Tool on the Top of the OpenCL Framework

357

the tasks. In the current case, the IMDb source is the

only one that can be processed. The CTaskRunner

manages the configuration according to the user

settings. Pattern matching is executed in two main

steps. In the first step, we search for topological

matches with the pattern. Nodes are represented by

their ID. At the second step, we use the topological

matching parts of the host model (the results of the

first step) and evaluate attribute constraints on them.

The reason for dividing the matching algorithm into

two steps is that copying all nodes of the host model

with all of their attributes to the GPU memory would

be inefficient. To use two steps, we can reduce the

amount of data to copy. Namely, we need to copy

attributes only for those nodes, which are part of a

topological matching structure.

During the implementation, according to the test-

driven development methodology (TDD) (Canfora et

al., 2006), a unit test is created right at the beginning

of the implementation. Test cases are created and the

expected results are calculated by hand. At every run

of the unit test, the framework compares the received

and the expected results in an automated way. A few

examples on the unit tests: (1) There are cases when

there is no result. Handling an empty result buffer

must not cause failure. (2) There are possible

scenarios when the results overlap. We must find each

of them at this time. (3) There are test cases for error

handling. We must be able to log information about

all unwanted events from inside and outside of the

kernel source.

5 DATA MAPPING

The model graph is represented as a hash table, where

the ID of the vertex and the list of their neighbours

are stored. The advantage of using a hash table is that

finding an element based on its ID requires O(1) time.

Although, by using hash table, a little bit more

memory is needed, the time is more important in the

current case. The result is stored in a different kind of

structure. There are two kinds of data which must be

mapped: At the first step of matching, (topological

check), graphs consist of numerical elements (IDs).

At the second step (attribute check), attributes are

represented by strings (they are serialized to strings).

In case of graph mapping, the graph is converted

as illustrated in Figure 3, in order to achieve the

required format (the passing of 2D arrays is not

allowed in case of OpenCL 1.2). The original, two

dimensional structure of the graph is mapped into two

one dimensional structures: (1) The first structure

contains the list of the neighbours one by one from

the first to the last vertex. (2) The second structure

contains the starting positions of the neighbour lists.

The second part is a helper structure to process the

first structure. Using this two arrays and the size of

the second array, all kinds of graph can be passed.

Advantages of this structure are the degree of

compression and the time of accessing elements in the

graph.

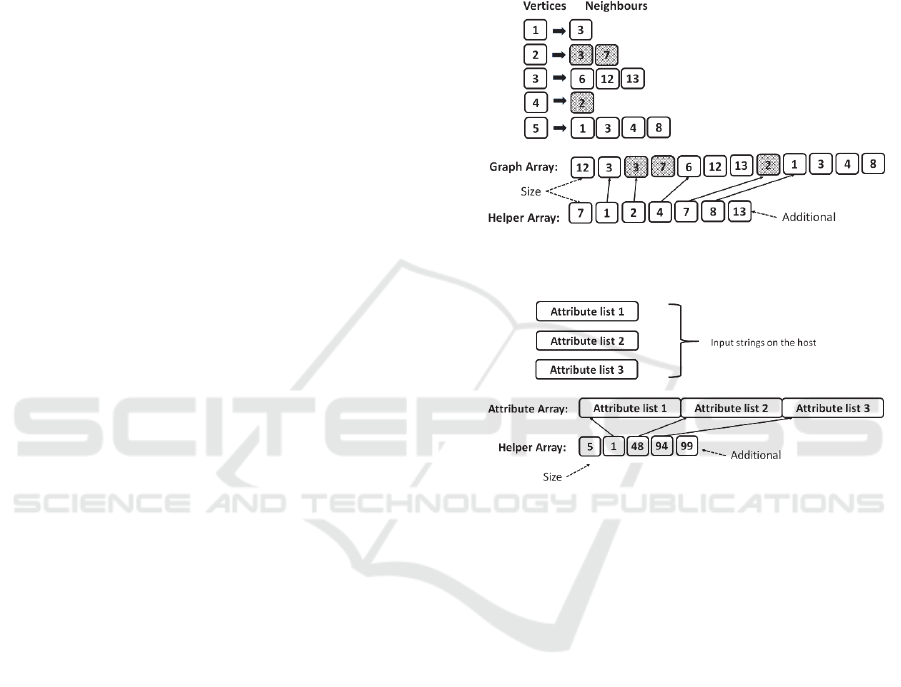

Figure 3: The input of the OpenCL kernel code must be a

one dimensional array.

Figure 4: Concatenate string to OpenCL kernel code.

In the second step, a different data structure is

needed. At this time, the OpenCL buffer must be big

enough for each attribute. To store the beginning of

the attributes, a helper array is used as well. Figure 4

shows this kind of mapping.

Considering the result buffer (output data from

the GPU), there is a common reserved space in the

GPU device global memory. Each thread can reserve

a part from it and fill it any time. As soon as the thread

cannot manage the reserving of memory for a new

result, buffer overflow is occurred and handled.

6 KERNEL SOURCE

There are several important viewpoints for creating

an effective kernel codes, one of them is the memory

management. There are four kinds of memory areas

in the OpenCL programming model: private, local,

global and the host side memory. Another viewpoint

is to choose the number of the working threads

(referred to as the local group number). Choosing the

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

358

right number depends on the hardware device and

therefore GEMP must recognize the GPU and

manage the configuration according to it. Similarly,

data types are important in case of different GPUs,

using unsigned positive numbers are not worse than

using other types and provide lots of values to store

bigger graphs. We measured several cases.

In the first kernel code, the size of the result (one

searched pattern) is known and must be filled. The

algorithm seeks for candidates for the actual place

and if it has been found, it tries to find the candidate

for the next place (Fig. 5). As soon as there is no

candidate left, the algorithm steps back and tries to

find another matching vertex for the last place. If the

algorithm reaches the first element or the element

after the last one, it ends (with failure, or success

respectively). The algorithm can be illustrated by a

state machine, which is studying the current state, and

makes a decision to accept it and step to the next state.

Searching does not go deeper in the graph than the

size of the pattern.

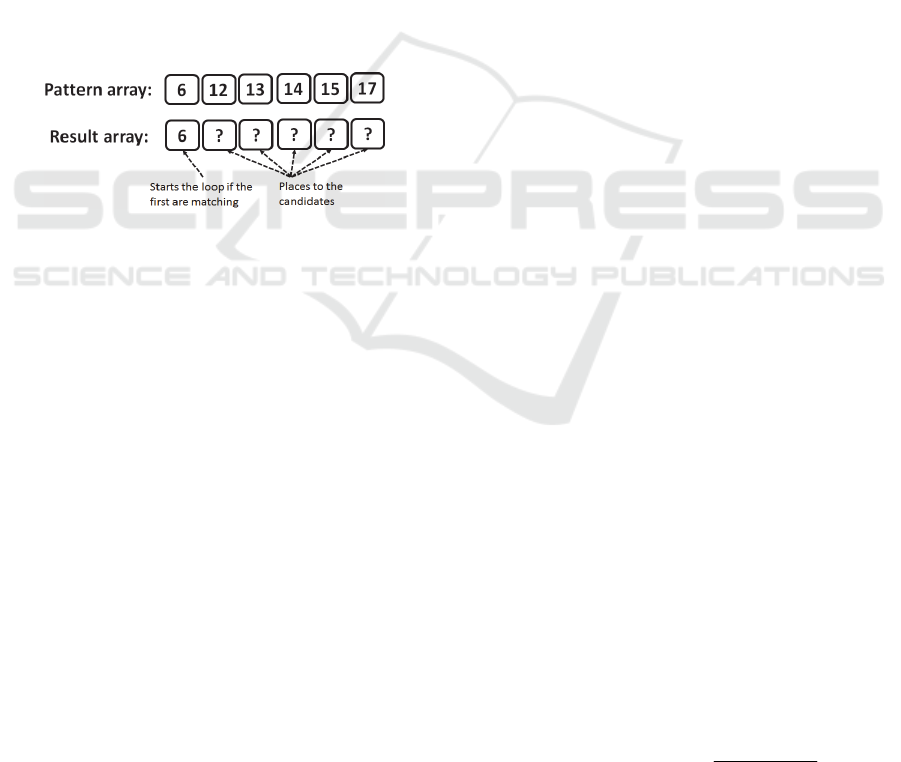

Figure 5: The task is to find matching result to the pattern.

In the second phase, the attributes (strings) of the

vertices must be passed to the GPU device. Only the

attributes of the result of the first phase are passed and

processed one-by-one. Each thread processes an

attribute (one vertex has one attribute). Processing

means to find the requested condition in the given

attribute. For instance we want to find each pattern

where 4 actors play in the same movie and the actor

has the name Jack, the pattern graph has four node in

the current case and each result find using the first

kernel. In the second step, only the attributes of the

results are copied and processed to find pattern where

the name attribute contains the Jack name.

7 PERFORMANCE AND

SCALABILITY

Both of the time and the memory consumption must

be monitored for studying the performance and the

scalability during the execution. The following time

measurement points are identified: (1) Reading the

input data. (2) Converting the data to OpenCL input

format. (3) Preparing the kernel code and copying the

data to the GPU device, managing the computation

and reading the result. (4) Processing and reading the

result. (5) Creating the string and other buffers to the

second phase. (6) Running the kernel of the second

phase. (7) Giving the result of the second phase.

Considering the memory usage, there are also

predefined points, when the size of the memory is

limited for testing purposes: (1) Allocating memory

to the input model. (2) Creating result buffer on the

GPU device. (3) Creating string input buffer on the

GPU device in the second phase.

7.1 Input Model

Both the first (topological match) and the second

(attribute checking) phase have to be able to deal with

large input graphs. GEMP divides the graphs

(generated from the IMDb database in the current

case) randomly and processes them in several rounds.

The missing results are processed on the host side

parallel to the GPU threads. According to our

measurements, the heavily divided graph results less

findings on the GPU device. Dividing of the input

graph is studied and measurements evaluated in a

earlier paper (Fekete and Mezei, 2015).

In this paper, we introduce one additional step in

the first kernel, namely using a pivot point in pattern

matching. We select the first vertex to match in the

pattern and find all candidates in the host model, thus

creating starting points for matching. Then, possible

starting points are counted and for each vertex, a

worker thread is started. This means that we can

significantly reduce the number of threads (all host

nodes vs. nodes matching the pivot point of the

pattern). We tested with several examples using the

IMDb database. We achieved more than 10%

performance increase in our test cases.

7.2 Result Buffer and Processing

If the optimal number of the worker threads is not

configured for one round (can be needed if the graph

cannot be processed in a single round), the

computation time can slow down. Considering this

kind of importance of the number of the worker

threads, there are three formulas developed in earlier

(Formula 1-3). If the kernel must be started too

frequently (buffer overflow or barely used buffer), the

performance is decreased.

fSizecurrentBuf

BuffSize

NuminitThreadumnewThreadN *

max

*

(1)

CNuminitThreadumnewThreadN *



(2)

Towards a Model Transformation Tool on the Top of the OpenCL Framework

359

zecurrBuffSi

BuffSize

max

(3)

The newThreadNum refers to the number of the

global worker threads that must be used in the

subsequent runs of the kernel code. The number of the

global worker threads used in the test measurement is

denoted by the initThreadNum. C can be any kind of

positive number, which increases or decreases the

speed of the buffer size changing. The maxBufferSize

and the currentBufferSize denote how many numbers

can be stored and the size of the buffer used in the

current round.

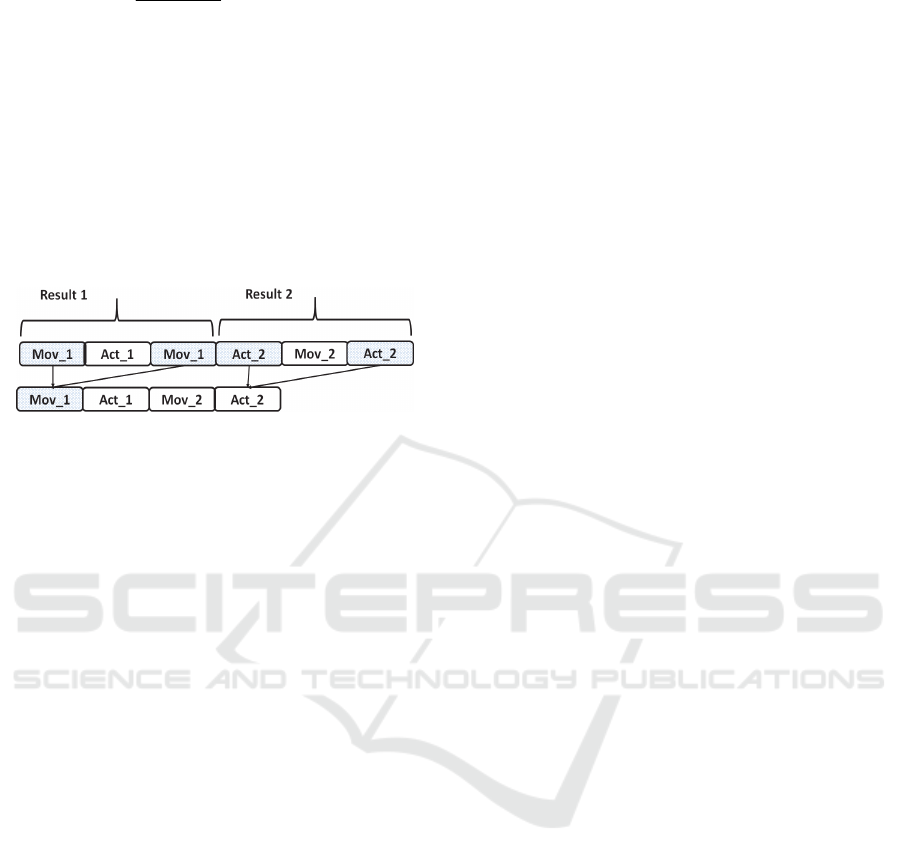

Figure 6: One attribute list can be appeared in more results.

One attribute can appear in several results and

copying all of them would be only the waste of the

power source. Instead, an attribute is copied only ones

which is illustrated in Figure 5. In this case an

additional helper structure is applied. The result of the

test measurement heavily depends on the input model

and the pattern to be searched. But in this case, we

also could achieve at least 10% performance gain.

8 CONCLUSIONS

In this paper, a general pattern matching tool (GEMP)

is presented based on our earlier studies and solutions.

The tool contains two main steps with optional pre-

processing steps. This two steps ensures that only the

mandatory attributes are copied to the GPU device

thus reducing time and memory. According to the

new architecture, the applied domain model is much

easier to be exchanged and all kinds of domain

models can be used. Users can access and configure

the tool using interface oriented techniques which

makes GEMP a user friendly and easily testable.

As the pattern matching part of the tool is now

complete, we are going to focus on graph-rewriting in

the future and we also need study how we can

integrate our tool into existing tools. Obviously,

managing graph-rewriting effectively on the GPU

device is not an easy task (consistency, performance,

memory management issues) and we will face several

challenges during the work. Some of them are already

known, e.g. which part of the graph is necessary to

copy to the GPU device and how is the update

applied? Studying and solving these points we can

achieve GPU-based model transformation tool with

full functionality. This is our new step besides

creating other case studies and apply more tests.

ACKNOWLEDGEMENTS

This work was partially supported by the TÁMOP-

4.2.1.D-15/1/KONV-2015-0008 project.

REFERENCES

CUDA website, viewed 30 October 2015.

www.nvidia.com.

E. Jakumeit, S. Buchwald, D. Wagelaar, L. Dan, A.

Hegedus, M. Herrmannsdorfer, T. Hornf, E. Kalnina, C.

Krause, K. Lano, M. Lepper, A. Rensink, L. Rose, S.

Watzoldt & S. Mazanek, 2014. A survey and

comparison of transformation tools based on the

transformation tool contest. Special issue on

Experimental Software Engineering in the Cloud.

G. Canfora, A. Cimitile, F. Garcia, M. Piattini & C. Aaron

Visaggio, 2006. Evaluating advantages of test driven

development: a controlled experiment with

professionals. ISESE '06 Proceedings of the 2006

ACM/IEEE international symposium on Empirical

software engineering, USA.

IMDb website, viewed 30 October 2015,

www.imdb.com/interfaces.

Khronos Group, viewed 30 October 2015,

www.khronos.org/opencl.

Q. Xu, H. Jeon & A. M., 2014. Graph processing on gpus:

Where are the bottlenecks?. Workload

Characterization (IISWC).

S. Che, B. M. Beckmann, S. K. Reinhardt, 2014. Belred:

Constructing gpgpu graph applications with software

building blocks. High Performance and Embedded

Computing (HPEC).

T. Fekete & G. Mezei, 2015. Creating a GPGPU-

accelerated framework for pattern matching using a

case study. Eurocon2015, Salamanca, Spain.

Veerasamy, Bala Dhandayuthapani & Nasira, G. M., 2014.

Exploring the contrast on GPGPU computing through

CUDA and OPENCL. Journal on Software

Engineering.

Viñas, Moiśes; Fraguela, Basilio B.; Bozkus, Zeki &

Andrade, Diego, 2015. Improving OpenCL

Programmability with the Heterogeneous Programming

Library. Procedia Computer Science, International

Conference On Computational Science, ICCS.

Yan, Xin; Shi, Xiaohua; Wang, Lina & Yang, Haiyan,

2014. An OpenCL micro-benchmark suite for GPUs

and CPUs. Journal of Supercomputing.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

360
