Verifying Geostatistical Travel Time Properties on Routing Networks

Renaud De Landtsheer and Christophe Ponsard

CETIC Research Centre, Gosselies, Belgium

Keywords:

Vehicle Routing, Geographic Information System, Speed Proﬁle, Turn Restrictions, Contraction Hierarchies,

Emergency Response.

Abstract:

Nowadays, many systems are increasingly relying on interconnected, geolocated, and mobile devices. In or-

der to cope with this, geographical information system (GIS) have evolved to precisely capture not only the

spatial characteristics of real world transportation networks but also temporal dimension, including the vari-

ability of travel duration related to trafﬁc jams. This paper explores the veriﬁcation of a number of interesting

spatiotemporal properties identiﬁed from a set of real world cases and expressed on enriched GIS data struc-

tures. It details our progress on developing efﬁcient algorithmic modules to verifying such properties. We

have applied our algorithms on the medical emergency infrastructures deployed in Belgium.

1 INTRODUCTION

The increasing deployment of interconnected and ge-

olocated mobile devices has triggered the design of

a new generation of Geographic Information Systems

(GIS) able to provide more ﬂexible and dynamic an-

swer to several real-world routing problems such as

the routing of vehicle ﬂeets or the dispatching of

emergency services. Such systems share the common

needs of having to cope with the synchronization of

several geographically distributed resources and spe-

ciﬁc requirements both of spatial and temporal nature.

For example for emergency medical care systems,

it is important to make sure all locations can be

reached within 10 minutes, 90 % of the cases. The

travel time can be affected by a number of external

factors that must be taken into account, such as known

structural trafﬁc jam, or crisis-speciﬁc scenarios such

as the unavailability of some road in the context of

a ﬂooding. A complete analysis of such factors are

reported by (Lin and Zito, 2005).

Geographic Information Systems (GIS) have

evolved a lot in terms of level of details, accuracy

but also ability to capture behavioural information

both of spatial (turn restrictions, vehicle restriction

w.r.t. height, width, weight,...) and temporal nature

(e.g. statistical speed proﬁles as illustrated in Fig-

ure 1). These improvements require more complex

algorithms to enable the design of innovative applica-

tions.

This paper presents our current achievements on

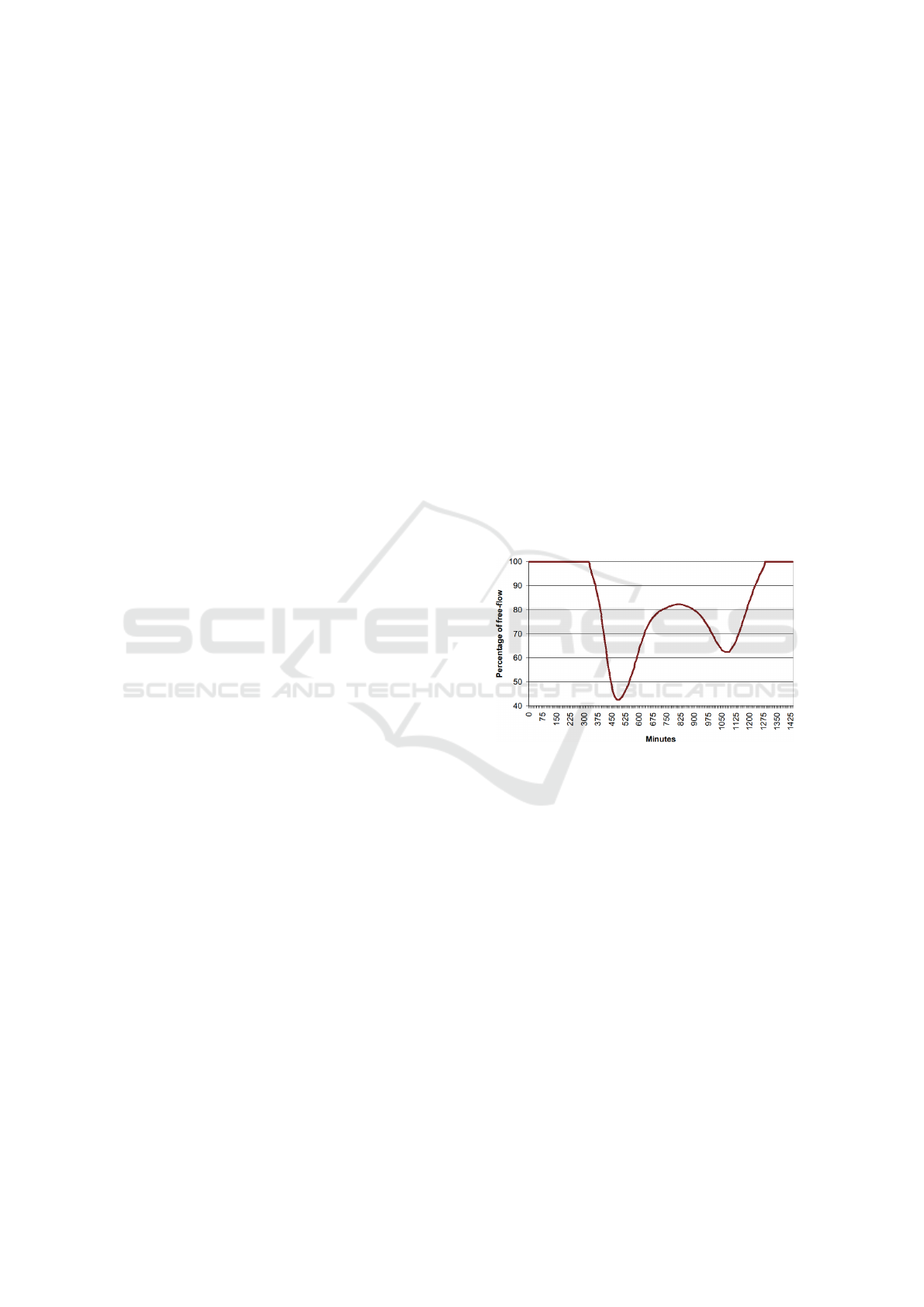

Figure 1: Typical speed proﬁle.

the veriﬁcation of spatiotemporal properties on such

feature-rich maps. Our goal is to benchmark a num-

ber of speciﬁc data structures and algorithms able to

efﬁciently verify those properties, especially tempo-

ral ones like worst case trip duration and computing

accurate isochrones around one or multiple geograph-

ical points. This work was mostly driven by concrete

industrial needs originating from a GIS company. It is

mainly addressing a design-time veriﬁcation perspec-

tive of geographically distributed infrastructure, with

the system being designed by experts possibly with

the guidance of optimization tools. Efﬁciency of such

veriﬁcation is important because we could not only

consider them at design phase, but also deploy them

in the system runtime in the future.

The addressed challenge is not in the discovery of

brand new algorithms but rather in the innovative and

efﬁcient combinations and adaptations of existing al-

gorithms able to cope with the targeted veriﬁcation.

396

Landtsheer, R. and Ponsard, C.

Verifying Geostatistical Travel Time Properties on Routing Networks.

DOI: 10.5220/0005794403960401

In Proceedings of 5th the International Conference on Operations Research and Enterprise Systems (ICORES 2016), pages 396-401

ISBN: 978-989-758-171-7

More precisely, we are addressing the following spa-

tial restrictions:

• one-way roads

• turn restrictions at crossing-points

• vehicle speciﬁc attributes like physical limit on

height, width, weight

• vehicle speciﬁc regulation like no trucks in city

centre, local trafﬁc roads only allowed at the start

or end of a trip

and the following temporal restrictions:

• speed limit on road segments

• speed proﬁles: speed can be lower than the free

ﬂow speed for various reasons such as trafﬁc jam,

trafﬁc lights, ...

• temporary closed road during known periods, an-

ticipated events or what-if scenarios like ﬂoods

This paper is structured as follows. Section 2

presents key algorithmic modules that we identiﬁed

and structured to answer our needs. Section 3 de-

scribes our implementation, based on an existing GIS

system. Section 4 reports our benchmarking of these

algorithms to compute a number of typical veriﬁca-

tion queries. Section 5 applies and discusses them on

a real emergency medical system. Section 6 presents

some related work. Finally Section 7 draws some

conclusions and identiﬁes further work.

2 BACKGROUND: KEY

ALGORITHMIC MODULES

This section presents the main algorithmic modules

adapted to cope with the spatial and temporal restric-

tions mentioned above. We will consider as starting

point that a road network is a graph where edges are

road and nodes are intersections. Edges are decorated

by some scalar information enabling to evaluate the

travel time (e.g. distance + maximum speed). Edges

are directed because the timing properties can differ

considering the direction (or even be absent in case of

one-way).

We also identify a collection of interesting al-

gorithm to support our goal. Such algorithms are

variants of Dijkstras shortest path algorithm (Dijk-

stra, 1959). Its principle is to perform a prioritized

breadth-ﬁrst exploration of the graph that grows the

minimal travel cost tree. It can be used both for

point to point search and for one-to-many exploration

while other more efﬁcient variants such as the A*

(Hart, 1968) are focusing on directed search, and are

restricted to point-to-point searches. A more com-

plete survey recent of recent advances in algorithms

for route planning in transportation networks is also

available in (Bast et al., 2014).

2.1 Contraction Hierarchies (CH)

The search performance of shortest path algorithms

can beneﬁt from large speedups by using multi-level

graph abstractions provided by contraction hierar-

chies (CH) (Geisberger et al., 2008). The multi-level

graph is computed once for all in a pre-processing

phase. Nodes are ordered by importance (or prior-

ity) using some heuristics. Shortcuts are introduced

from the least to the most important and the con-

tracted node is removed. This result in a new con-

tracted graph with less nodes and where connection

are faster routes. The process is iteratively repeated

until the whole graph is contracted and yields a num-

ber of layer that can be interpreted as network of ”sec-

ondary”, ”national”, or ”high-speed” (virtual) roads.

This phase can be very expensive both in space and

time and also produces a graph with signiﬁcantly

more edges.

Queries require special variants of Dijkstras al-

gorithm which proved extremely efﬁcient: on large

graphs, speed-up of several order of magnitudes (30-

100 faster) when compared to the non-CH query.

It is also possible to compute efﬁcient contrac-

tion hierarchies on time-dependent graph (Batz et al.,

2009). It is also possible deal with graphs with turn

costs (and thus the more speciﬁc case of turn restric-

tions) (Geisberger and Vetter, 2011).

2.2 Travel Time Functions (TTF) and

Related Operations

Road edges in recent maps can now be annotated with

cost function rather that scalar to capture speed pro-

ﬁles. Indeed, the speed on a road segment typically

varies with the time of the day, depending on the level

of congestion of the road segment. Such information

is gathered from statistical data over long periods and

classiﬁed over speciﬁc types of days (e.g. week days,

Saturdays, Sundays/public holidays). Speed proﬁles

are typically expressed as percentage of the nominal

road free ﬂow speed as show in Figure 1. They can

exhibit a variety of curves typically with speed reduc-

tions during high trafﬁc time resulting from recurring

structural congestions in network bottlenecks such as

town entrances.

At the level of the algorithms, the cost associated

to a segment is represented as a Travel Time Function

(TTF): for any possible start time on the segment, it

Verifying Geostatistical Travel Time Properties on Routing Networks

397

speciﬁes the estimated duration of the travel on the

segment. The TTF is the product of the speed proﬁle

by the free ﬂow speed. Based on this, forward and

backward path search can be implemented to com-

pute time speciﬁc paths respectively for given start

time and arrival time. However, in a veriﬁcation per-

spective, a more interesting operation is to compute

the best end-to-end travel time function and reason

independently of a given time. For Dijkstras algo-

rithm, two speciﬁc operations need to be efﬁciently

supported by the TTF algebra: (1) TTF composition

across two adjacent segments (taking into account the

time taken to cross the ﬁrst one) and (2) TTF minimi-

sation when updating a node. These operations are

illustrated in Figure 2.

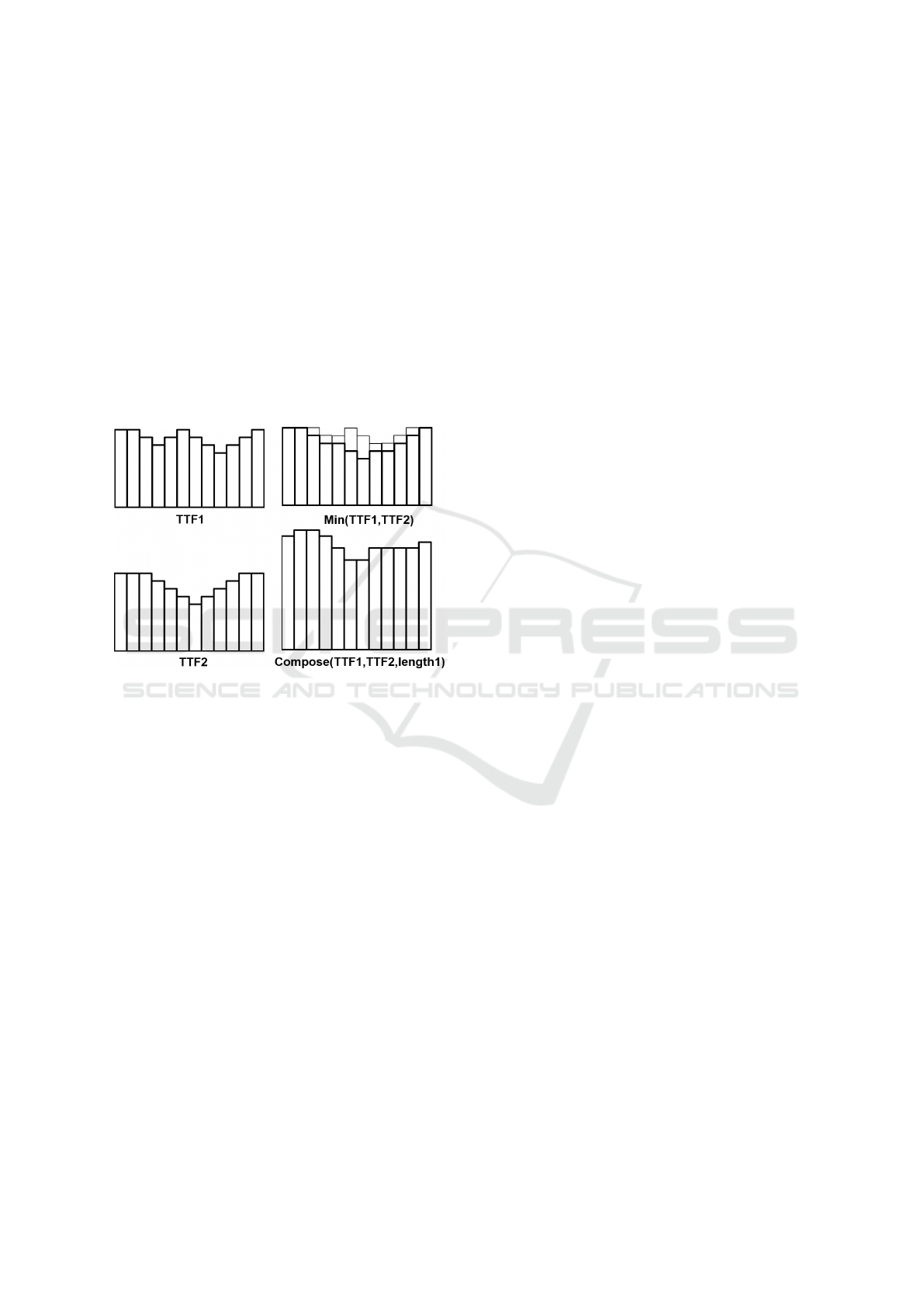

Figure 2: Travel time functions and related operators.

As the time complexity of proﬁle search is high,

the speciﬁc case of computing minimal and maximal

time is addressed by more efﬁcient algorithm comput-

ing min-max approximation of the resulting TTF. We

also used this simpliﬁed algorithm to prune the search

when implementing a precise TTF computation.

2.3 Dealing with Turn Restrictions (TR)

Turn restrictions can be represented either as an at-

tribute attached to each crossroad of the map, or

implicitly, by expanding each crossroad into several

nodes, representing the entrance points to it, so that

each allowed turn in the crossroad would be repre-

sented by a speciﬁc directed edge. The representation

of turn restriction in the GIS has a great impact on

the efﬁciency of the algorithms as well as the size of

the maps. Our choice to model them as attribute was

ﬁrst dictated by size considerations as unfolding turn

restrictions on the graph would result in an explosion

of the number of nodes and would result in maps of

unmanageable size. A similar conclusion was also re-

ported by (Byrd et al., 2015) who took this approach

at some point. The drawback is that all the algorithm

related to contraction hierarchies need to be modiﬁed

to cope with this additional attribute. Additionally,

turns need to be checked for restriction on incoming

and out-going edges, to that the whole reasoning be-

come edge-based rather than node-based, increasing

the complexity by O(d

) in the worst case where d

is the mean node degree. The degree of nodes tend

to increase dramatically during the contraction pro-

cess. However, as turn restrictions only affects a small

portion of nodes, efﬁcient solutions can be devised to

cope with them.

3 IMPLEMENTATION

For the implementation, we started from an exist-

ing Open-Source routing engine called GraphHopper

(Karich et al., 2015). It is among the few routing en-

gines supporting contraction hierarchies with OSRM

(OSRM Community, 2015) and Open Trip Planner

(Byrd et al., 2015). However, none are currently sup-

porting the discussed extensions, despite some on-

going work.

GraphHopper is implemented in Java and provides

an efﬁcient indexed storage representation to quickly

retrieve edges and nodes of the graph and their re-

lated attributes such as edge geometries. These stor-

ages were extended to capture speciﬁc temporal and

spatial edge attributes to cope with TTF and TR, re-

spectively. These storages can either be mapped in

memory for better performance or on kept disk for

larger maps.

We represent TTFs through histograms with a

constant number of slots. The composition is there-

fore approximate and can result in some computation

sensibility, i.e. different algorithms (typically with

and without CH) can produce different paths, how-

ever of near equivalent quality. This could be solved

by using more precise representations such as piece-

wise linear TTF but at the price of some performance

loss, and increase of storage size. Some algorithm

extensions are able to cope efﬁciently with such ex-

tensions (Batz et al., 2010). In order to efﬁciently

support min-max algorithms, min and max values are

pre-computed, and explicitly stored.

Four main algorithms were implemented, cover-

ing the main GIS goals:

• forward: fastest path query for a given start time

• backward: fastest path query for a given arrival

time

• proﬁle: end-to-end travel time function from start

point to destination point

ICORES 2016 - 5th International Conference on Operations Research and Enterprise Systems

398

• ﬂood: map coverage give a number of starting

points and travel duration

Those main algorithms rely on a number of soft-

ware modules described in the previous section and

that are efﬁciently shared across them forming a co-

herent global library, also easing future extensions.

Only the three ﬁrst functions are supporting contrac-

tions hierarchies.

4 BENCHMARKING

We benchmarked our algorithms both in CPU time

and memory consumption on a sample of 400 routes

(20 x 20 matrix between starting and arrival points)

located inside a Belgian map. This map includes

about 500.000 nodes, 640.000 edges with TTF, and

15.000 TR. For ﬂooding algorithms we only used the

40 start points. A CoreI7 laptop was used using in-

RAM storage with 1GB allocated JVM RAM. The

reported CPU times are average time on the whole

sample and are measured as user time. The RAM is

the maximal memory consumption on the whole test

run with a disk mapped storage for the map graph.

Table 1: Global Performances in CPU time and memory.

Algorithm (TTF+TR) Without CH With CH

Forward Search 420 ms / 732 MB 7 ms / 694 MB

Backward Search 485 ms / 707 MB 8 ms / 682 MB

Single Proﬁle Computation 1285 ms / 794 MB 31 ms / 738 MB

Single Min-Max Computation 572 ms / 315 MB N/A

Proﬁle ﬂooding (80% map) 28s / 1.7 GB N/A

Min-Max ﬂooding (80% map) 13s / 1.5 GB N/A

Table 1 shows the performance summary for typ-

ical usage of our algorithms. We could achieve

speedup factors of 60 w.r.t the non-CH version with

query times under 10ms. The speedup is also impor-

tant for proﬁle computation (40x) with computation

time about 30ms. This enables the production of the

large proﬁle matrix required for optimizing vehicle

routing in a few minutes. As expected, the compu-

tation of Min-Max are faster than the computation of

full proﬁle (about twice). The computation of ﬂood-

ing coverage is also very time-consuming. It grows

quickly with the number edges in the graph (the con-

traction of this algorithm was not considered). Look-

ing at the memory consumption, it is well kept under

control because all CH version require less RAM al-

though the graph are bigger in size (at least 2 times

more important: about 167MB for the non-contracted

map of Belgium and 355 for the contracted version).

When using TTF, backward algorithms are slower

than forward ones because TTFs are organized by en-

tering time on the segment, so that querying them by

time leaving the segment requires O(log(n)) queries.

Table 2: Impact of introducing TTF and TR support).

Algorithm GH TTF TTF+TR

Map contraction 2 min 7 min 26 min

Forward Search (NOCH) 40 ms 155 ms 420 ms

Forward Search (CH) 2 ms 4 ms 7 ms

Backward Search (NOCH) 40 ms 171 ms 485 ms

Backward Search (CH) 485 ms 7 ms 8 ms

Proﬁle Computation (NOCH) N/A 339 ms 1285 ms

Proﬁle Computation (CH) N/A 21 ms 31 ms

As expected, the run time degraded signiﬁcantly

when introducing TTF and then TR, compared to the

performance of the original GraphHopper algorithms

as shown in Table 2. However, the degradation is

lower in the CH version and is globally kept under

control. Finally, contraction time is also increasing

but within control. The main difﬁculty in the de-

sign was to avoid the explosion of the degree of the

node (and shortcuts) resulting in a large size, com-

pression time (possibly exhausting the machine) and

poor query speed-ups. The current result might how-

ever prevent the contraction of very large (continental

size) maps at the ﬁnest level of detail.

5 CASE STUDY: BELGIAN

EMERGENCY RESPONSE

SYSTEM

Our case study is the emergency medical care in Bel-

gium, it is an ambulance dispatching system similar

to the London Ambulance Service which has been ex-

tensively used in the literature (Finkelstein and Dow-

ell, 1996)(Letier and van Lamsweerde, 2004). Crit-

ical time and space elements in an intervention sce-

nario are summarized in Figure 3 (Moore, 2002).

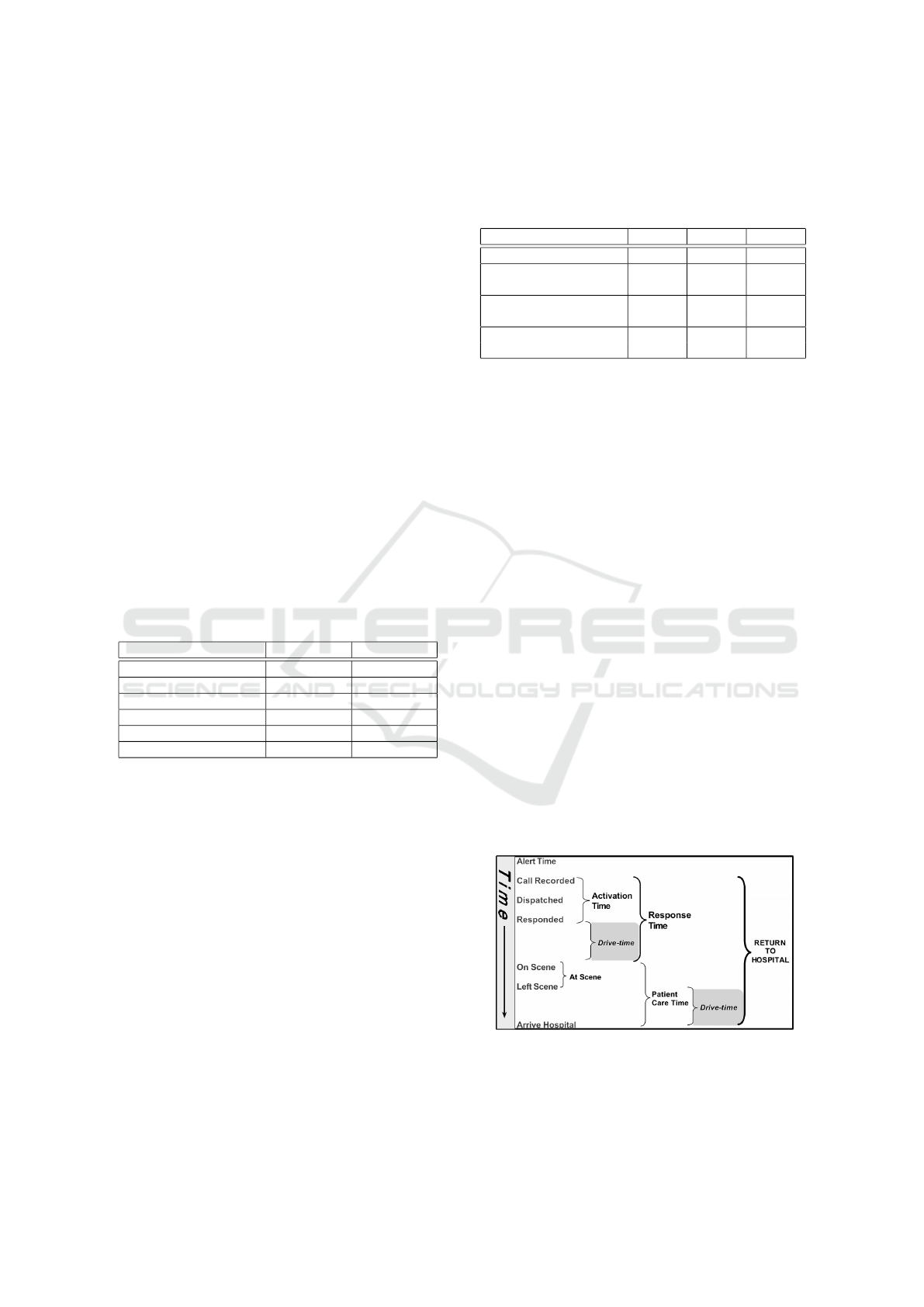

Figure 3: Critical time / space elements for intervention.

Two drive-time are present: from the allocated

ambulance dispatch point to the intervention scene

and, if patient conditions requires it, from the scene

Verifying Geostatistical Travel Time Properties on Routing Networks

399

to the most appropriate hospital. The belgian law put

speciﬁc requirements requiring that ”most of the pop-

ulation should be reachable by road within 10 minutes

at the maximal authorised speed, while the population

unreachable within 15 minutes should be as small as

possible” (Federal Public Service for Health, 2007).

We will focus here on this legal requirements.

The Belgian Emergency Care is composed of

370 departures points of different types which are

distributed across the country. Let’s call this set

SMUR:List[Location]. Let us also deﬁne some

GIS predicates such as within(l, a) which is true

when a location l is within a given geographical are

a. We can express the ﬁrst part of the above property

as follows:

∀l : Location·timeToReach(l, SMUR) ≤ 10minutes

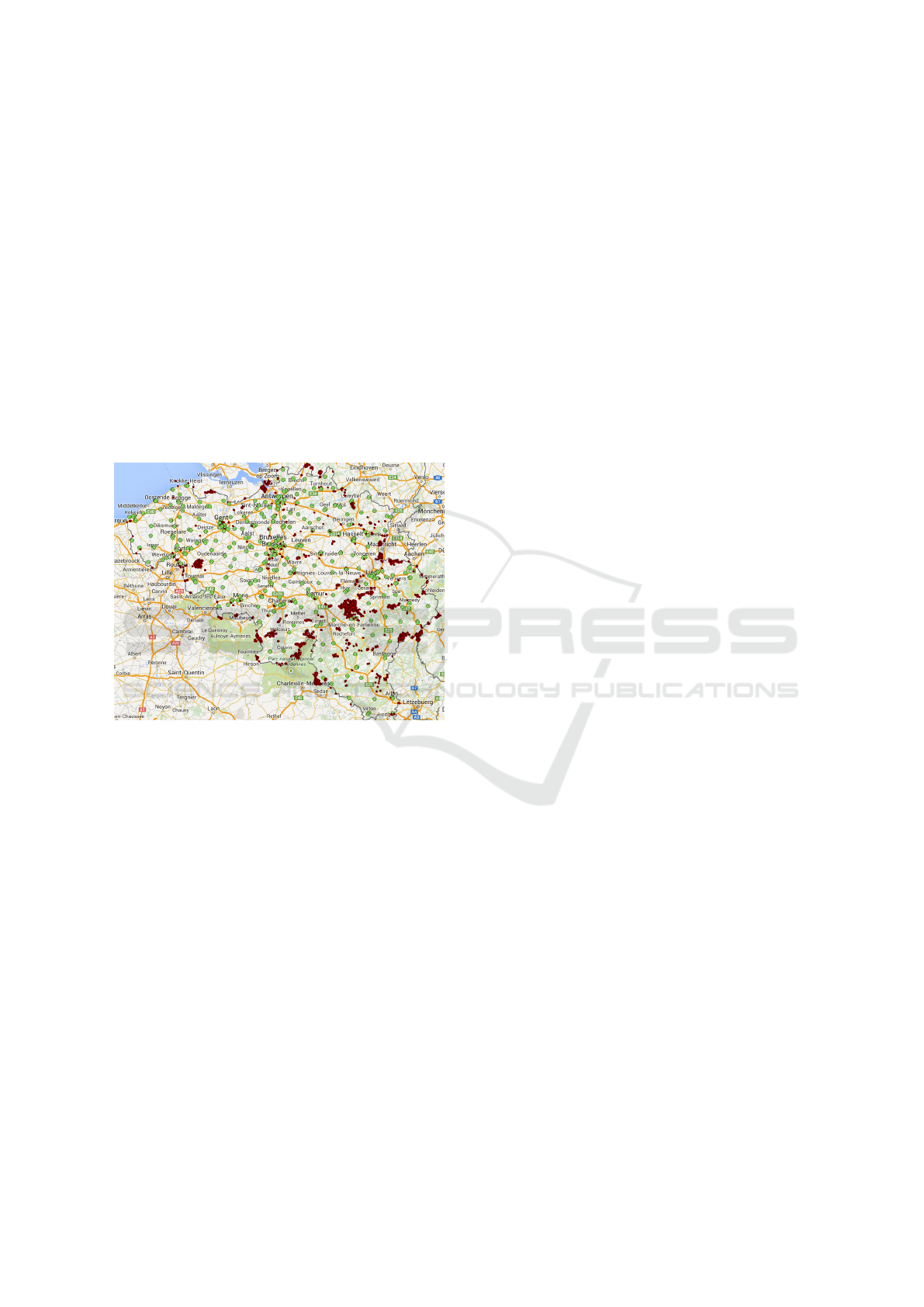

Figure 4: Map of emergency medical care coverage in Bel-

gium within 10 minutes.

The timeToReach is implemented using the Pro-

ﬁle on Map ﬂooding algorithm with simultaneous

search from all the SMUR locations. The search is

also bounded with the maximum time allowed by law.

The results is shows in Figure 4 in counter-example

form, i.e. locations not fulﬁlling the property are dis-

played on the map as dark dots while the SMUR lo-

cations are displayed in lighter pinned dots. The cov-

erage for 10 minutes is about 87 % of the nodes while

99 % are covered within 15 minutes. A closer analy-

sis of the map shows that SMUR location are indeed

at the centre of covered zones. Less covered areas

match less populated areas and are actually covered

by helicopter interventions. Uncovered zones around

the national border are also addressed by agreements

with emergency services of neighbouring countries,

with some extra dispatch transfer time to be taken into

account for these cases.

6 RELATED WORK AND

DISCUSSION

Distance oracles are succinct data structures encod-

ing shortest path information among a carefully se-

lected subset of pairs of vertices in a graph. The

encoding is done in such a way that the oracle can

efﬁciently answer shortest path queries for arbitrary

origin-destination pairs. The design of such ora-

cles for time dependent graphs has been described

in (Kontogiannis and Zaroliagis, 2014). In our work

we rely on contraction hierarchies (Geisberger et al.,

2008), which are considered as heuristics implement-

ing such oracles. Our works extends the heuristics

to efﬁciently cope with space restrictions by using a

position-based graph, and time dependencies through

a smart prioritization of the contraction as only a

small part of the network is decorated with time-

dependent information.

Dealing with large networks requires a lot of time

to contract the data, and the achieved query times

are sometimes not fast enough to compute large ma-

trixes required in applications like vehicle routing. A

solution reported in (Kieritz et al., 2010) is to use

distributed memory parallelization. On a medium

size network, 64 processes will cut down the pre-

processing duration by a factor 28 and the queries du-

ration by a factor 25. Globally 6 times more memory

is required but per processor there is a reduction by a

factor of 10.5. In our work we did not consider such

techniques to accelerate the contraction: we rather

improved the contraction and query procedures.

An extensive benchmarking has been conducted

in the context of transportation networks (Bast et al.,

2014). Such systems also have a strong time-

dependent dimension because they are heavily con-

strained by schedules. The benchmarks where con-

ducted on many algorithms that were implemented in

C++. Our implementation is in Java. Although the

domain, implementation and test environment are dif-

ferent, the results conﬁrm the good performance of

contraction hierarchies on large graphs.

A legitimate question is how representative are

travel times estimates. A study conducted for travel

times to hospital revealed that estimates were rather

close approximations to reported times (Haynes et al.,

2006), i.e. 50% of travel time estimates were within

ﬁve minutes of the time reported by respondents.

Compare to our target response time of 10 minutes, 5

minutes can seem huge. However the reported times

are not for emergencies and include parking times,

which can vary a lot. It also does not include sta-

tistical travel times while we do. We did not yet val-

idate against a database of measured response time

ICORES 2016 - 5th International Conference on Operations Research and Enterprise Systems

400

although our analysis shows coherent results.

7 CONCLUSION AND

PERSPECTIVES

This paper presented our on-going work in analysing

complex GIS-based systems involving complex spa-

tiotemporal constraints. We showed how map data

structures can capture constraints such as travel time

functions and turn restrictions. We then focused on

building a toolbox of efﬁcient algorithms. Coping

with the complexity induced by the extra graph con-

straints required non-trivial work. So far, the avail-

able modules were quite easy to deploy. They can be

enriched to deal with more restrictions such as truck

attributes which would enable richer veriﬁcations. A

language can also be designed to express constraints

in purely declarative form as illustrated the case study

and compile it using our emerging toolbox. In a larger

context, such requirements could be combined with

other temporal requirements and a mixed veriﬁcation

could be conducted at the system level, e.g. to show

that some global intervention time is guaranteed in all

possible scenarios. Finally, we can also incorporate

stochastic TTF, to be able to more easily manage re-

quirements with a more complex and accurate proba-

bilistic formulation.

ACKNOWLEDGEMENT

This work was ﬁnancially supported by the Walloon

Region by the REDIRNET project (nr 607768). We

thanks Market-IP for sharing their fully featured maps

and Raphael Michel for sharing his expertise on the

Belgian emergency medical care.

REFERENCES

Bast, H. et al. (2014). Route Planning in Transportation

Networks. Technical report, Microsoft Research.

Batz, G. V., Delling, D., Sanders, P., and Vetter, C. (2009).

Time-dependent contraction hierarchies. In in Proc.

11th Workshop on Algorithmic Engineering and Ex-

periments (ALENEX), pages 97–105. SIAM.

Batz, G. V., Geisberger, R., Neubauer, S., and Sanders, P.

(2010). Time-dependent contraction hierarchies and

approximation. In Experimental Algorithms, pages

166–177. Springer.

Byrd, A. et al. (2015). OpenTripPlanner. http://

www.opentripplanner.org.

Dijkstra, E. W. (1959). A note on two problems in connexion

with graphs, volume 1. Springer.

Federal Public Service for Health (2007). Vade-mecum for

Emergency Medical Aid (Law of July 8, 1964) for am-

bulance services and ambulance rescuers (in French).

Finkelstein, A. and Dowell, J. (1996). A comedy of er-

rors: The london ambulance service case study. In

Proc. of the 8th Int. Workshop on Software Speciﬁca-

tion and Design, IWSSD ’96, pages 2–, Washington,

DC, USA. IEEE Computer Society.

Geisberger, R., Sanders, P., Schultes, D., and Delling, D.

(2008). Contraction hierarchies: Faster and simpler

hierarchical routing in road networks. In McGeoch,

C. C., editor, WEA, volume 5038 of Lecture Notes in

Computer Science, pages 319–333. Springer.

Geisberger, R. and Vetter, C. (2011). Efﬁcient routing in

road networks with turn costs. In Experimental Al-

gorithms - 10th International Symposium, SEA 2011,

Kolimpari, Chania, Crete, Greece, May 5-7, 2011.

Proceedings, pages 100–111.

Hart, P. E. (1968). A Formal Basis for the Heuristic Deter-

mination of Minimum Cost Paths. IEEE Transactions

on Systems Science and Cybernetics, 4(2):100107.

Haynes, R., Jonesaa, A. P., Sauerzapf, V., and Zhao, H.

(2006). Validation of travel times to hospital estimated

by GIS. International Journal of Health Geographics,

5(40).

Karich, P. et al. (2015). GraphHopper Routing Library.

https://graphhopper.com.

Kieritz, T., Luxen, D., Sanders, P., and Vetter, C. (2010).

Distributed time-dependent contraction hierarchies. In

Experimental Algorithms, 9th Int. Symposium, SEA

2010, Ischia Island, Naples, Italy, May 20-22, pages

83–93.

Kontogiannis, S. C. and Zaroliagis, C. D. (2014). Distance

Oracles for Time-Dependent Networks. In Automata,

Languages, and Programming - 41st Int. Colloquium,

ICALP 2014, Copenhagen, Denmark, July 8-11, pages

713–725.

Letier, E. and van Lamsweerde, A. (2004). Reasoning about

partial goal satisfaction for requirements and design

engineering. SIGSOFT Softw. Eng. Notes, 29(6).

Lin, H. E. and Zito, R. (2005). A review of travel-time

prediction in transport and logistics. In In Proceedings

of the Eastern Asia Society for transportation studies,

volume 5, pages 1433–1448.

Moore, D. (2002). GIS in Emergency Planning, a spatial

analysis of ambulance services.

OSRM Community (2015). Open source routing machine.

http://project-osrm.org.

Verifying Geostatistical Travel Time Properties on Routing Networks

401
