Behavior Analysis based DNS Tunneling Detection and Classification

with Big Data Technologies

Bin Yu, Les Smith, Mark Threefoot and Femi Olumofin

CTO Office, Infoblox Inc., 3111 Coronado Dr, Santa Clara, California 95054, U.S.A.

Keywords: Behaviour Analysis, Time Series, Big Data Analytics, DNS Security, Data Exfiltration, Anomaly Detection,

Classification.

Abstract: Domain Name System (DNS) is ubiquitous in any network. DNS tunnelling is a technique to transfer data,

convey messages or conduct TCP activities over DNS protocol that is typically not blocked or watched by

security enforcement such as firewalls. As a technique, it can be utilized in many malicious ways which can

compromise the security of a network by the activities of data exfiltration, cyber-espionage, and command

and control. On the other side, it can also be used by legitimate users. The traditional methods may not be

able to distinguish between legitimate and malicious uses even if they can detect the DNS tunnelling

activities. We propose a behaviour analysis based method that can not only detect the DNS tunnelling, but

also classify the activities in order to catch and block the malicious tunnelling traffic. The proposed method

can achieve the scale of real-time detection on fast and large DNS data with the use of big data technologies

in offline training and online detection systems.

1 INTRODUCTION

Domain Name System (DNS) that mainly services a

domain name resolution to IP addresses on UDP is a

service ubiquitous in every network. Because DNS

is not intended for data transfer, people can overlook

it as a threat for malicious communications or for

data exfiltration. Most networks, public or private,

do not firewall DNS traffic which creates security

vulnerability. Tunnelling data over DNS or TCP

over DNS is a technique that can be used as a way to

circumvent access and security policies in firewalled

networks. A typical example is to illegally browse

the web through public hotspot while free service is

not provided. There are many free software tools

available for people of interest to setup a DNS

tunnelling system quickly. One of the most popular

tools is Iodine (Iodine). The fact that information

bypasses a network first line security mechanism

makes DNS tunnelling very attractive also in

contexts other than free web browsing. Such

examples include command and control and data

exfiltration in cyber-espionage attacks in which it is

fundamental for an attacker to have an available but

inconspicuous communication channel.

DNS tunnelling works by encapsulating data into

DNS packets. Typically, the tunnel client

encapsulates the data to be sent in a query for a

specific domain name. The DNS resolver treats the

tunnel traffic as a regular request by starting the

lookup process for the requested domain name,

possibly recursively consulting other DNS resolvers,

as shown in Figure 1. At the end of this operation,

the request is processed by the tunnel server. The

server retrieves the encapsulated data and responds

to DNS queries by enclosing tunnel data in the

answer section of the DNS response message.

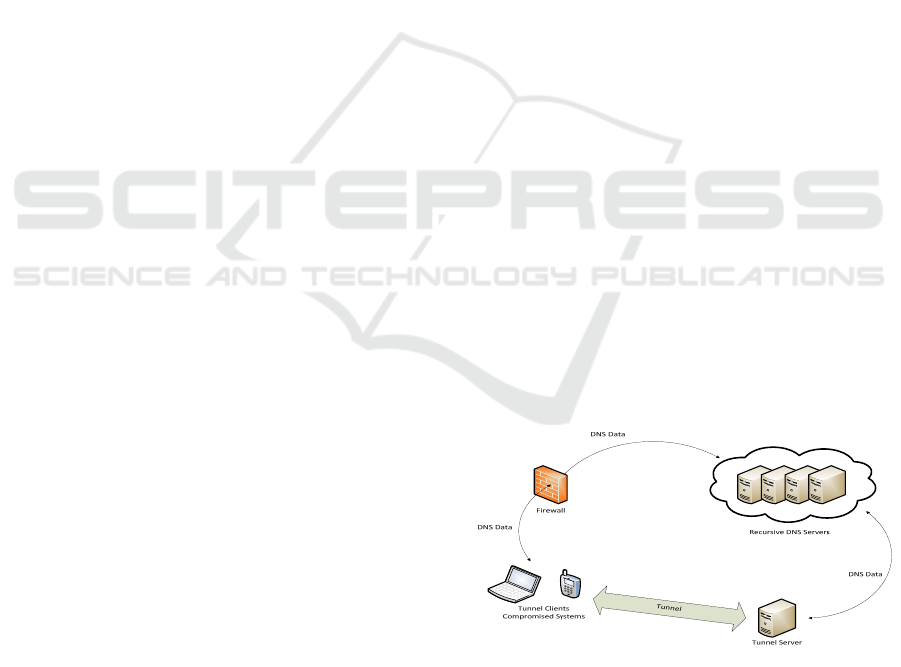

Figure 1: DNS tunnelling setup.

Although most DNS tunnelling techniques use

TXT type queries in DNS that can maximize the

payload in response packets, there are

implementations that make use of DNS query types

other than TXT such as A, AAAA, CNAME, NS,

284

Yu, B., Smith, L., Threefoot, M. and Olumoﬁn, F.

Behavior Analysis based DNS Tunneling Detection and Classiﬁcation with Big Data Technologies.

DOI: 10.5220/0005795002840290

In Proceedings of the International Conference on Internet of Things and Big Data (IoTBD 2016), pages 284-290

ISBN: 978-989-758-183-0

MX and so on. Our research shows that unlike

legitimate users that often use TXT, malicious users

tend to use other query types that are more difficult

in detection.

DNS tunnelling poses a significant threat and

there are methods to detect it. DNS tunnels can be

detected by analysing a single DNS payload based

on its fundament that the tunnel is used to convey

information. However, as a simple technique, DNS

tunnels are often used by legitimate users to transfer

short messages frequently. Single payload based

methods have less latency in detection but cannot

make an accurate classification between legitimate

and malicious activities. This paper describes a

novel approach based on behaviour analysis of DNS

traffic. In order to get this approach practical for a

real world deployment, it needs to overcome the

scalability problems brought up by behaviour

analysis or time series modelling. We will explain

the big data technologies used in the proposed

method in this paper.

2 DNS BASICS

DNS is a critical protocol and service used on the

internet. The most common use of DNS is to map

domain names to IP addresses. Users can enter a

domain name in the web browser. DNS is used to

perform a forward lookup to find one or more IP

addresses for that domain name. The user’s network

stack can then send http traffic to the destination IP

address. DNS is constantly being enhanced to

provide new capabilities.

DNS has over 30 record types with many of the

common ones being critical to core internet services.

The A record type maps a domain name to an IPv4

address. The AAAA record is used to map a domain

to an IPv6 address. The CNAME record type is used

to map a domain name to the canonical name. The

MX record type is used to define mail servers for a

domain. The NS record type is used to define

authoritative name servers for a domain. The PTR or

pointer record is commonly used to map an IP

address to its domain name. This is commonly

referred to as reverse lookup. The TXT record type

is used to return text data. This record type has been

leveraged for specific purposes such as Sender

Policy Framework (SPF) for anti-spam (Wong,

2006). The most commonly used types A and

AAAA have a population of 85% (Yu, 2014). One

of the special DNS types is TXT that is commonly

used in tunnelling applications. Its response contains

a larger payload of text messages.

DNS uses both UDP server port 53 and TCP

server port 53 for communications. Typically, UDP

is used, but TCP will be used for zone transfers or

with payloads over 512 bytes. There is also the

Extension Mechanisms for DNS (EDNS) (Vixie,

1999). If EDNS is supported by both hosts in a DNS

communication, then UDP payloads greater than 512

bytes can be used. EDNS is a feature that can be

leveraged to improve bandwidth for DNS tunnelling.

DNS is a hierarchical system in which each level

can be provided by another server with different

ownership. For the internet, there are 13 root DNS

servers labelled A through M. These are represented

by many more than 13 physical servers. With this

hierarchical system, a given domain owner can

define the authoritative servers for their domain.

This means that they are in control of the ultimate

destination host for DNS queries for their domain. In

a typical enterprise, endpoints do not make DNS

requests directly to the internet. They have internal

DNS servers that provide DNS services to an

endpoint. However, given that DNS will forward

their requests until the authoritative name server is

contacted, an attacker with access on an internal

endpoint can leverage the enterprise’s DNS

infrastructure for DNS tunnelling to a domain that

they control.

DNS performs caching. When DNS answers are

provided a time to live (TTL) is included. The

receiving intermediate server can use that value for

the amount of time to cache the results. Then if an

identical request comes in, the cached result can be

provided instead of performing another lookup.

A domain name consists of multiple sections

each is referred to be a label with the higher ones on

the right side and lower ones on the left side. The

whole string is called Fully Qualified Domain Name

(FQDN). Removing labels one by one from left to

right will yield a Nth level domain name, where N is

number of labels for most cases. When N=1, it’s

called Top Level Domain name (TLD) and N=2,

Second Level Domain name (SLD) and so on.

3 RELATED WORK

Some statistical approaches for detecting TCP-over-

DNS tunnels have been proposed. Web Tap

(Borders, 2004) detects anomalies by looking at

HTTP request regularity, inter-request delay,

bandwidth usage, and transaction size. In legitimate

DNS queries, those attributes have a wide

distribution. Crotti et al. approaches the problem

from the IP layer by finding inconsistencies in inter-

Behavior Analysis based DNS Tunneling Detection and Classiﬁcation with Big Data Technologies

285

arrival time, order, and size of the packets (Crotti,

2007, Crotti, 2008, Dusi, 2008). An artificial neural

network is used to detect tunnels with features: the

domain name, how many packets are sent to a

particular domain, the average length of packets to

that domain, the average number of distinct

characters in the sub-domain labels, and the distance

between sub-domain labels (Hind, 2009). Born and

Gustafson take the approach of detecting tunnels by

analysing unigram, bigram and trigram character

frequencies of domains in DNS queries and

responses based on some existing tunnelling

applications (Bom, 2010). It’s possible to be

bypassed by newly developed tunnelling tools.

Ellens et al. detect tunnels with use of net flow size

analysis (Ellens, 2013). While this method can

detect tunnels, it doesn’t distinguish legitimate and

malicious uses of tunnel.

Most traditional methods are based on single

payload detection. DNS traffic has very small

footprint which makes single payload based

detection difficult and even harder to distinguish

between legitimate and malicious tunnels.

4 DATA SOURCE

It’s important to get real world data for building a

high quality detection system. In this project, we

utilize DNS data collected from Internet Systems

Consortium/Security Information Exchange channel

202 (ISC). It is now spun off as part of Farsight

Security (Farsight). This data is collected through its

passive DNS technology from more than 100

contributors distributed worldwide. On average, it

receives more than 1.8 billion DNS queries per day

(It has increased to 17 billion per day when this

paper is finished). We have collected more than nine

month worth of data for this project. One caveat of

using Farsight data is that it doesn’t provide end user

IP addresses in addition to the DNS server IP due to

the sake of privacy protection. Therefore, the

detected tunnels are identified by DNS server IP

rather than the client IP that is behind the DNS

server. Figure 2 shows the percentage of each DNS

query type among the data collection. Among

various DNS query types, type A and AAAA

dominate by 85% while TXT is about 0.8% (Yu,

2014). For tunnelling detection, we will analyse

query names for outbound payload and resource

records for inbound payload. Except for TXT and

ANY query types that contain text resource records,

the inbound payloads for all the other query types

are extracted from FQDNs.

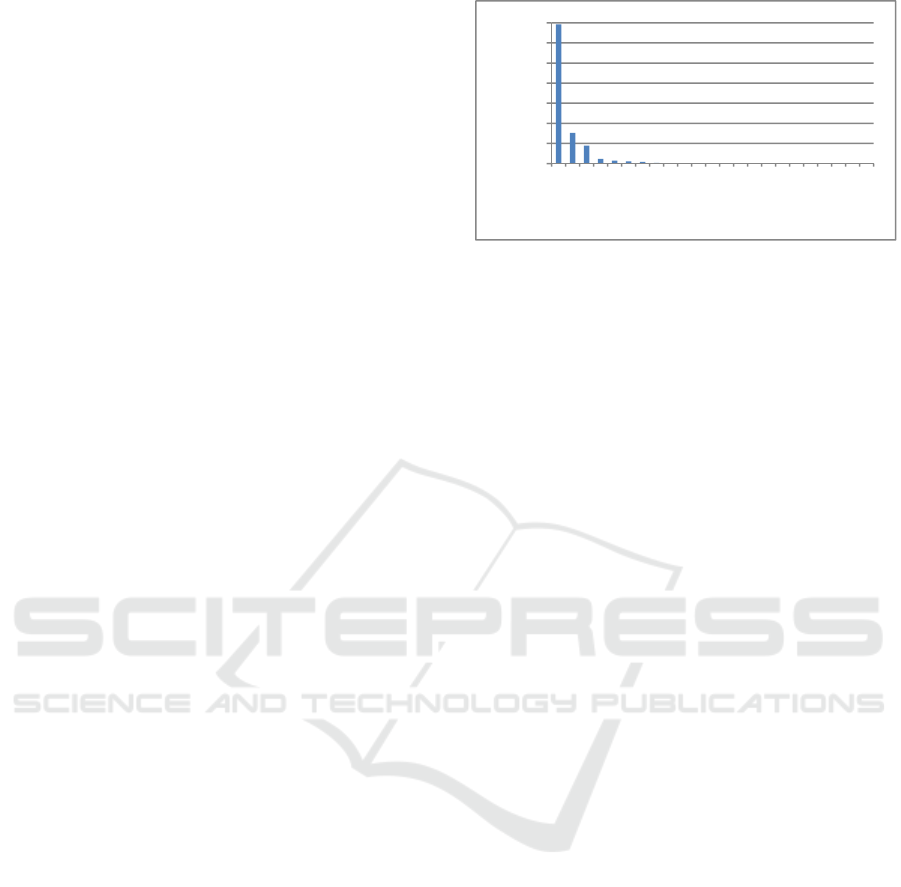

Figure 2: DNS query distribution by query type.

5 FEATURE EXTRACTION AND

SELECTION

The legitimate DNS traffic typically has very small

payload. That’s the reason many approaches detect

tunnels based on payload size (Farnham, 2013,

Ellens, 2013). However, when space and bandwidth

get cheaper, more and more legitimate users are

using longer domain names. Since the main

objective of the tunnelling technique is to convey

information via the tunnel in a way as efficient as

possible, the entropy metrics become good features.

On the other side, human readability of domain names

is a good indicator in tunnel detection (Bom, 2010).

5.1 Effective Payload

There are many types of DNS queries. A tunnel will

use query name to carry outbound payloads. The

inbound payloads are carried in many different ways

depending on the DNS resource record type. For

example, in TXT type, the payload is encoded in the

text. For many other types, such as A, AAAA, or

CNAME, the payload is carried in one or more

FQDNs. Unlike legitimate DNS queries that have

consistency in query and response, a malicious

tunnel tends to change the payload from message to

message. An effective payload is a string that is

extracted from its original with common prefix,

suffix and aligned middle segments removed so that

the real signal can stand out.

5.2 Common Features for Inbound and

Outbound

Several payload features common for both inbound

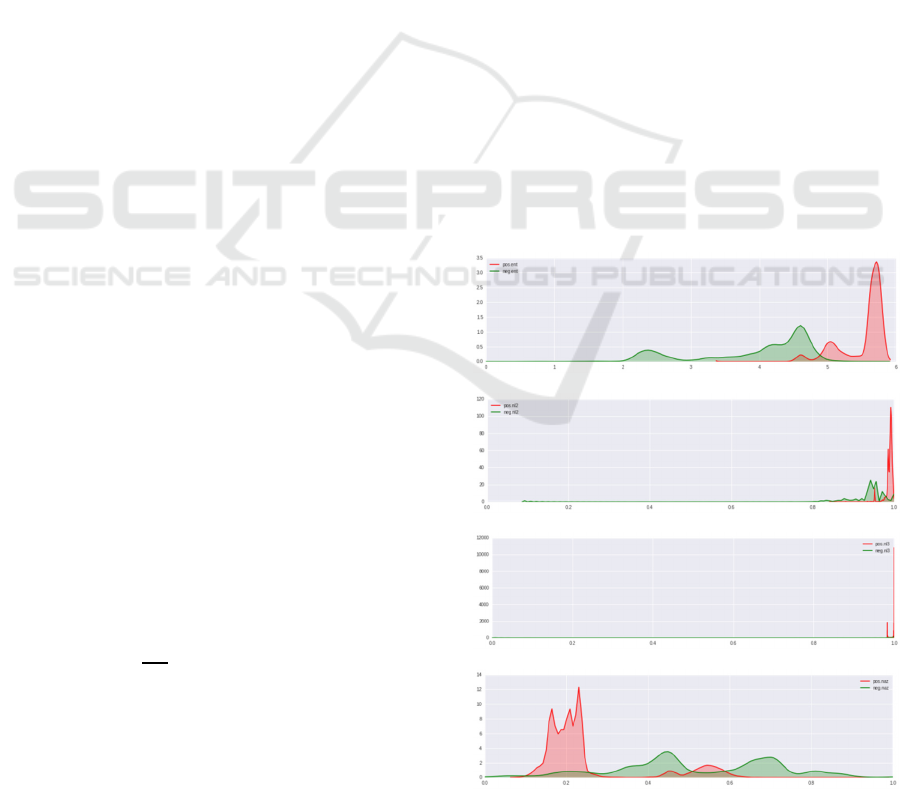

and outbound traffics are extracted. Figure 3

provides the feature analysis results for inbound

provides the feature analysis results for outbound

0,00%

10,00%

20,00%

30,00%

40,00%

50,00%

60,00%

70,00%

AAAA

PTR

SOA

SRV

TXT

ANY

SPF

CNAME

DLV

DNSKEY

NAPTR

NSEC3PARAM

RRSIG

X25

AFSDB

KEY

HINFO

IoTBD 2016 - International Conference on Internet of Things and Big Data

286

traffic as example where red and green curves are

for positive and negative samples, respectively.

Their details are described in following sections.

5.2.1 Entropy

According to information theory (Shannon, 1948),

entropy is a measurement to quantify the amount of

information on a payload. The major objective of a

tunnel is to convey as much information as possible

over a limited payload size. For single payloads, the

entropy features are calculated based on the

character distribution of the effective payload.

Given the distribution  of a character set







within a text string, its entropy is defined as

  ∑log.

A tunnel is assumed to maximize its bandwidth by

increasing the entropy of the data being tunnelled.

5.2.2 N-gram Features

In natural English words, the distributions of N-

grams are not uniformed that can be used to

distinguish them from non-natural English terms.

This feature is defined as the value in the 

percentile of the N-gram score distribution







|



from a text string, or

  







|



.







P can be empirically set to be between 40 to 55.

In order to generate N-gram scores, we built a lookup

table of N-gram and their frequencies from a set of N-

gram English words Google collected from large

amount of historical publications (Google). Based on

the experiments, we choose to use 2 and 3 grams to

have features named nl2 and nl3, respectively.

5.2.3 Lexical Features

In order to pass non text or binary data, a tunnel

tends to use some coding methods such as base 64

that introduces many non-human readable characters

that can be measured by the lexical features. For a

given text string , the lexical feature is defined as

  1





,



∈







,∈



5.2.4 Payload Size

There are two features for payload size. One is the

size of the effective payload len and the other is the

ratio between effective and original payloads reo.

5.2.5 Gini Index

Similar to entropy feature, Gini index is another way

to measure impurity of the data that is defined as

  1∑



.

However, unlike the entropy feature, Gini index

is a feature whose value is bounded within a range

between zero and one.

5.2.6 Classification Error

Another feature to measure the diversity of a data set

is called classification error. Like the Gini index

feature, the value of this feature is also bounded

between zero and one. The definition is as follows.

  1max.

5.2.7 Number of Labels

The last but not least feature is the number of

domain labels in an FQDN payload named as nlb to

differentiate legitimate and malicious payloads.

5.2.8 Encoding

The encoding feature enc is the output of a neural

network that takes all of the above features as input.

The classifiers are described in the next section.

(a)

(b)

(c)

(d)

Behavior Analysis based DNS Tunneling Detection and Classiﬁcation with Big Data Technologies

287

(e)

(f)

(g)

(h)

(i)

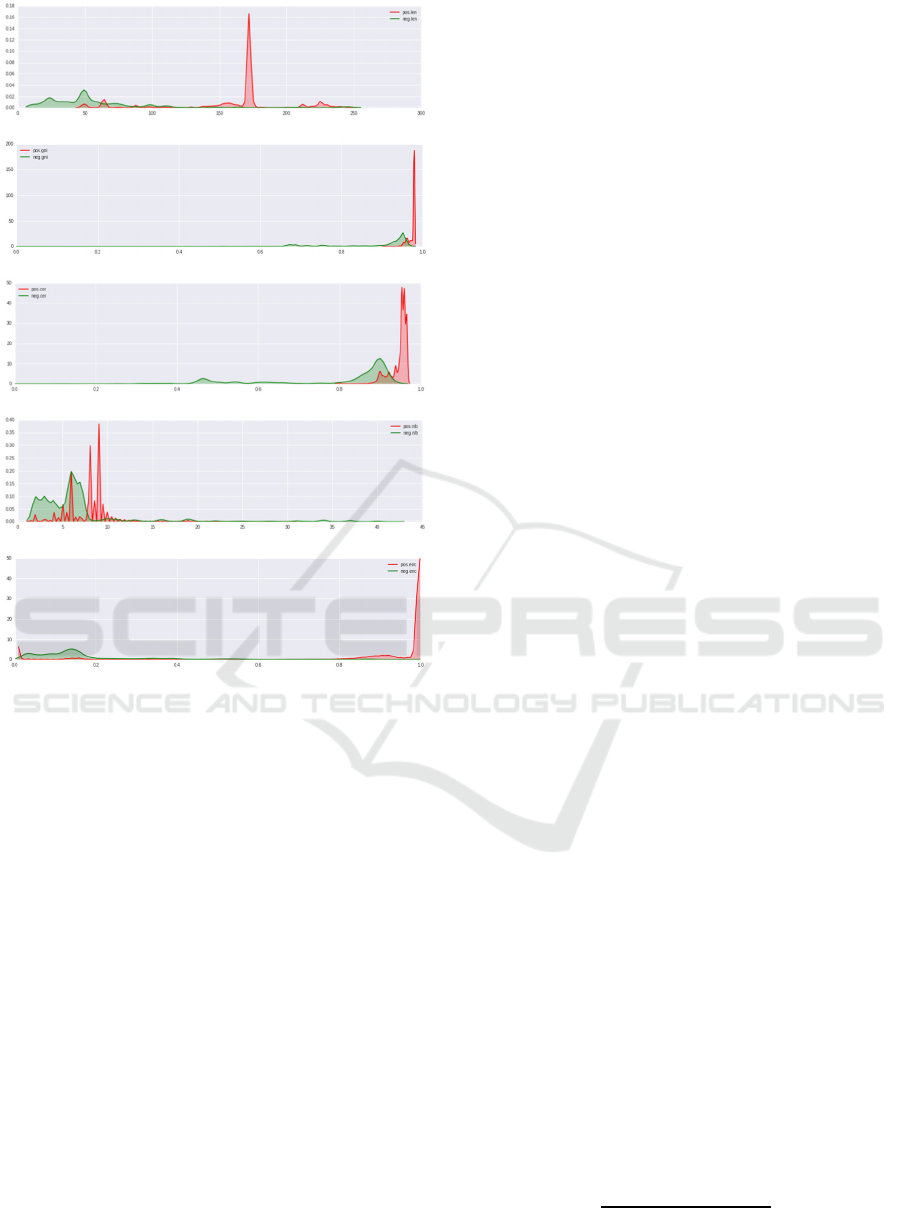

Figure 3: Feature analysis for outbound traffic. (a)

Entropy. (b) Bigram. (c) Trigram. (d) Lexical feature. (e)

Payload size. (f) Gini index. (g) Classification error. (h)

Number of domain labels. (i) Encoding classification.

5.3 Additional Inbound Features

For inbound messages that come from DNS

response, the TTL ttl of resource records and the

response delay delay are used as features based on

the rational that most of the legitimate DNS queries

tend to have longer TTL for reducing number of

queries by use of cache. On the other side, tunnelling

DNS messages involve extra process such as

encoding and decoding, encryption and decryption,

proxy and so on. That implies longer response time

than normal DNS traffic.

5.4 Time Series Features

The time series data is defined by tunnel ID. Since a

tunnel is defined by the requester IP address on one

end and the SLD on the other end, the tunnel ID is

composed of query IP address and SLD. The

requester IP address can be a resolver or DNS server

IP address and the internal client IP address

combined depending on the information availability.

The data points are inserted into an observation

cache (Yu, 2014) that has a TTL pre-set to remove

old data points from the series. It also has a capacity

pre-set for each series to remove old data points

when the number of points hit the capacity though

they haven’t passed the TTL criterion. This is to

guarantee the data freshness and reserve the storage

space so that it can be recycled. Applying the

payload features on to each of the messages within

the time series, a feature set that is denoted as a 2-

dimensional matrix



,

,

can be derived, where 

,

is the 

feature on the 

message for outbound or inbound payloads. The

time series based behavior features are the basic

statistics of individual features on the series that can

be denoted as





stat





,



where the  is the collection

,,,, to represent the

distribution of individual features across the time

series. In addition, the entropy values on effective

inbound and outbound payloads are calculated,

respectively, because of the fact that the payload of

legitimate traffic doesn’t change as much as the

malicious ones over the time series.

6 CLASSIFICATION

There are two tiers of classification. In the first tier,

the classification is targeted on identifying encoded

payload while the second tier is for tunnel detection.

6.1 Encoding Classification

Two neural network classifiers are designed and

trained to provide a score indicating if a payload is

full of encoded text for inbound and outbound

payloads, respectively. Each of the classifiers is

trained on millions of samples with truth labelled by

security experts and tested on independent sets of

samples, respectively. The classifiers have a single

hidden layer with four neurons and each uses a

logistic activation function defined as follows.

1



∑



















IoTBD 2016 - International Conference on Internet of Things and Big Data

288

where 



are inputs, 



are weights, and 



is the

bias for each neuron. To measure the accuracy of the

classifier training, the ROC curves are generated on

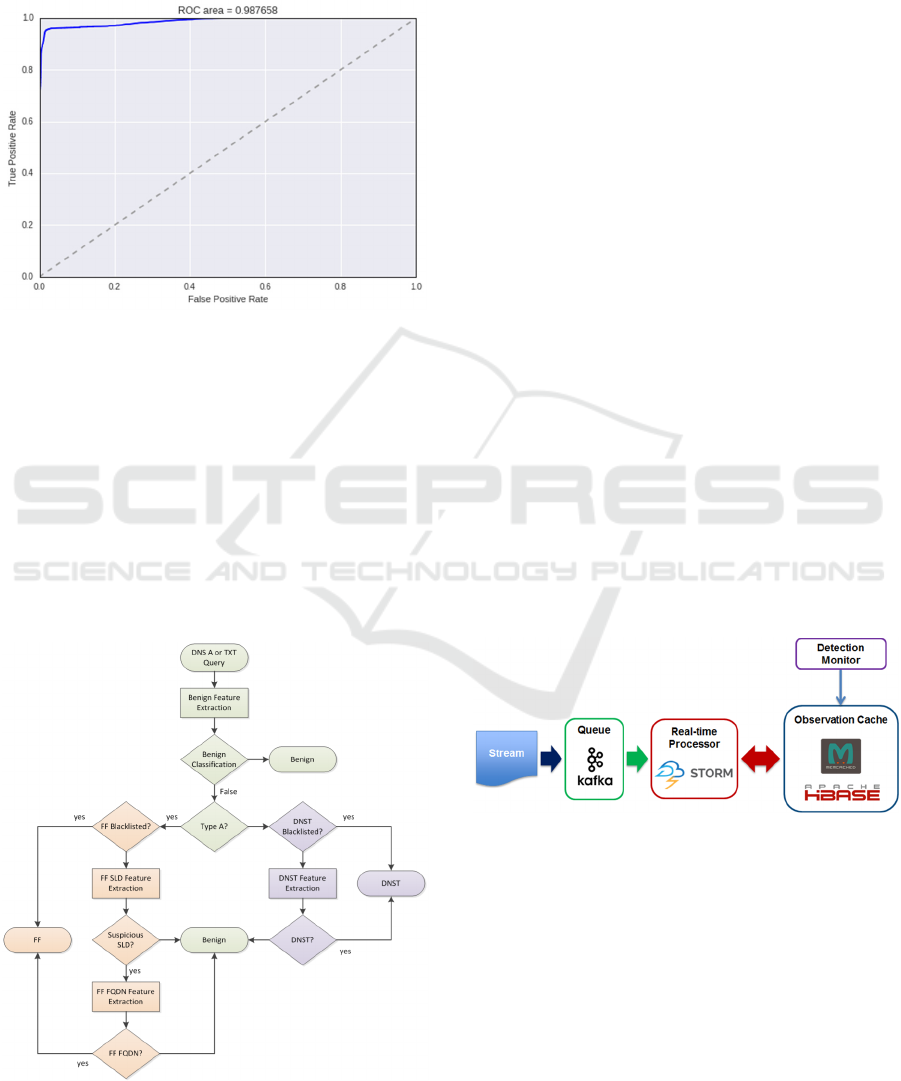

the independent test datasets. Figure 4 is the ROC

curve for outbound classifier.

Figure 4: ROC curve for outbound classifier.

6.2 DNS Tunnelling Behaviour

Classification

Among various advanced persistent threats, DNS

tunnelling is one of the most active and harmful

attacks that utilize DNS traffics, therefore, its

detection is included in the proposed online

detection system. The comprehensive detection

workflow is given in Figure 5 where the details of

the benign detection and fast flux detection modules

are discussed in (Yu, 2014).

Figure 5: DNS malware online detection workflow.

Data used in this paper is collected from Farsight

(Farsight) that receives passive DNS from a large

number of contributors worldwide, mainly in the US.

With some simple filtering logics such as DNS type,

payload size, series length, and whitelisting, a set of

candidates is extracted and reviewed by security

experts for truth labelling. About 2000 samples are

selected for training and testing a tree classifier that is

carefully tuned to minimize the false positive rate.

7 REAL-TIME DETECTION

SYSTEM

The classifiers that were trained in offline system

will be deployed in an online real-time detection

system (Yu, 2014) that is designated to deal with

fast and large streaming data. In an enterprise

deployment, the throughput can be up to 1-3 million

DNS queries per second. The throughput can reach

billion per second in a cloud based deployment.

Therefore, the horizontal scalability is one of the

most important factors in design.

As shown in Figure 6, the incoming stream is

processed in real-time with Storm or Spark

framework and inserted into the observation cache

along with the extracted features that are indexed by

requester IP address and SLD. The observation

cache has an in-memory layer and an on-disk layer

of which the use is dependent on the data size. The

detection can be triggered by event or scheduled by

interval to be cost effective.

Figure 6: Real-time detection system architecture.

8 RESULTS AND CONCLUSION

Nearly nine month DNS data collected from Farsight

from 2012 to 2013 at a rate of 1.8B/day is used in

the evaluation process. In total, 126K tunnels are

detected where a tunnel is defined as from one

unique source IP address to one unique destination

domain name. Table 1 shows the summery of the

tunnels detected. About 70% detected tunnels are

Behavior Analysis based DNS Tunneling Detection and Classiﬁcation with Big Data Technologies

289

classified into legitimate with review and cross

reference check that include many anti-virus

companies or CDN vendors. A tunnel with

significant payloads in query or response only is

categorized into outbound or inbound tunnel and

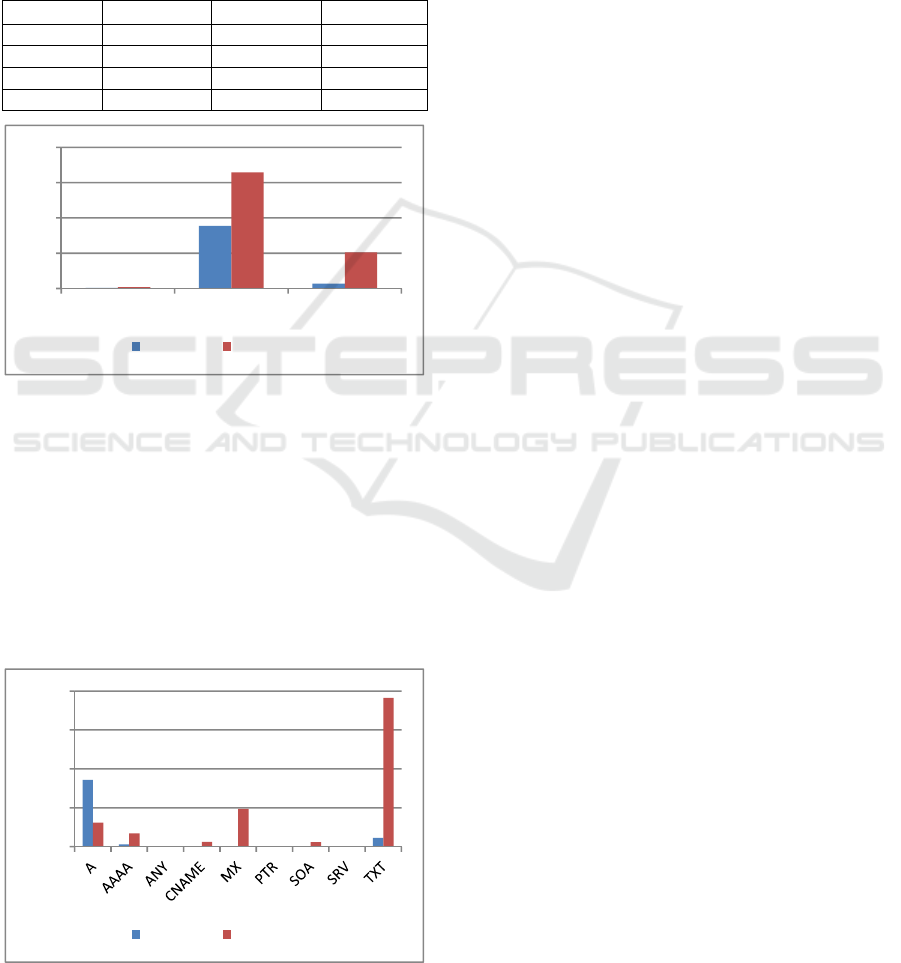

otherwise two-way tunnel. As illustrated in Figure 7,

majority falls into one-way tunnel and malicious

tunnels have a higher outbound to inbound ratio than

legitimate ones due to their data exfiltration nature.

Table 1: Detected tunnels.

Malicious Legitimate All

Two-way 356 869 1225

Outbound 35478 65820 101298

Inbound 2845 20504 23349

Total 38678 87193 125871

Figure 7: Tunnel distribution.

We also analysed the tunnel transaction activity

distribution over DNS query type and the result is

plotted in Figure 8, where a tunnel transition is

simply a DNS message. It shows malicious activities

tend to use type A while legitimate ones have higher

transaction rate on type TXT. This is understandable

that malicious tunnels want to hide their activities

from using TXT type that is designated for large

payload transactions and may be exanimated by

many traditional DNS tunnelling detection methods.

Figure 8: Tunnel transaction activities by DNS query type.

New data shows more and more malicious

tunnels are using small payloads. This makes

detection even harder and will be a future research

work.

REFERENCES

Iodine, http://code.kryo.se/iodine/.

Farnham, G., Atlasis, A., 2013. Detecting DNS tunneling,

SANS Institute InfoSec Reading Room.

Wong, M., 2006. Sender policy framework (SPF) for

authorizing use of domains in e-mail, version 1,

Retrieved from http://tools.ietf.org/html/rfc4408.

Yu, B., Smith, L., Threefoot, M., 2014. Semi-supervised

time series modeling for real-time flux domain

detection on passive DNS traffic, in the 10

International Conference on Data Mining and Machine

Learning, St. Petersburg, Russia, pp. 258-271.

Vixie, P., 1999. Extension mechanisms for DNS (EDNS0),

Retrieved from http://www.ietf.org/rfc/rfc2 671.txt.

Borders, K., Prakash, A., 2004. Web Tap: detecting covert

web traffic, in Proceedings of the 11

ACM

conference on Conputer and Communications

Security, New York, pp. 110-120.

Crotti, M., Dusi, M., Gringoli, F., Salgarelli, L., 2007.

Detecting HTTP tunnels with statistical mechanisms,

in IEEE International Conference on

Communications, pp. 6162-6168.

Crotti, M., Dusi, M., Gringoli, F., Salgarelli, L., 2008.

Detection of encrypted tunnels across network

boundaries, in Proceedings of the 43

IEEE

International Conference on Communications, Beijing

China, pp. 19-23.

Dusi, M., Gringoli, F., Salgarelli, L., 2008. A preliminary

look at the privacy of SSH tunnels, in Proceedings of

the 17

IEEE International Conference on Computer

Communications and Networks, St. Thomas, U.S.

Virgin Islands.

Hind, J., 2009. Catching DNS tunnels with AI, in

Proceedings of DefCon 17, Las Vegas, Nevada.

Born, K., Gustafson, D., 2010. Detecting DNS tunnels

using character frequency analysis, in Proceedings of

the 9

Annual Security Conference, Las Vegas, NV.

Ellens, W., Zuraniewski, P., Sperotto, A., Schotanus, H.,

Mandjes, M., Meeuwissen, E., 2013. Flow-based

detection of DNS tunnels, in Emerging Management

Mechanisms for the Future Internet, Lecture Notes in

Computer Science, Volume 7943, pp 124-135.

ISC, ISC Security Information Exchange: http://www.isc.

org/

Farsight, Farsight Security, Inc.: https://www.farsightsecu

rity.com/

Shannon, C., 1948. A Mathematical Theory of

Communication, Bell System Technical Journal, Vol.

27, pp. 379–423, 623–656.

Google, http://storage.googleapis.com/books/ngrams/book

s/datasetsv2.html.

0 K

20 K

40 K

60 K

80 K

Two-way Outbound Inbound

Malicious Legitimate

0 M

50 M

100 M

150 M

200 M

Malicious Legitimate

IoTBD 2016 - International Conference on Internet of Things and Big Data

290
