An Optimized Model for Files Storage Service in Cloud

Environments

Haythem Yahyaoui and Samir Moalla

Department of Computer science, University of Tunis el Manar, Tunis, Tunisia

Keywords: Cloud Computing, Data Centers, File Storage, File Redundancy, Virtual Data Center.

Abstract: Cloud computing represents nowadays a revolution in the distributed systems domain because of its several

services. One of the most used services in Cloud environments is file storage, which consist on uploading

files to the Cloud’s data center and using them at anytime from anywhere. Due to the highest number of

Cloud customers we risk to have a bad management of cloud’s data center such as losing space by files

redundancy which can be provided by uploading one file for several times by only one customer or the same

file by many customers. Such a problem is very frequent when we have a big number of customers. Many

studies have been done in this order, researchers propose many solutions and each one has its advantages

and disadvantages. In order to save space and minimize costs we propose an optimized model which

consists on deleting file redundancy before the duplication step in the data centers. Experimentally, during

the evaluation phase, our model will be compared with the some existing methods.

1 INTRODUCTION

File storage is one of the most used services in the

network, the appearing of some technologies such as

public and private Clouds, and Big data, increases

the growth of the stored data around the world (Xu

and Shi, 2013).

Storing customer’s file with the lowest cost is

one of the biggest challenges between providers that

offer such a service.

Cloud providers are thus studying new solutions

to minimize the costs of their services (Khanafer and

Puttaswamy, 2013). Indeed, there are many ways to

achieve that goal such as green data centers, which

consist on optimizing the energy consumption,

consequently minimizing the service’s cost

(Mansouri and Buyya, 2013).

However, such a way is based on the algorithm

optimization techniques and green power

consumption, but not on the storage process

optimization, and consequently, this method will be

unable to prevent a file redundancy and save space

in the data center.

Furthermore, we have to understand that there is

a strong relation between optimizing the data

center’s space and minimizing costs, a great

optimization gives us more free space, consequently

more customers.

In this paper, we focus on finding a solution for

the files redundancy in data centers, we propose an

automated model based on the generation of a

fingerprint for every file before the duplication

phase, and using it as a file identifier. Before the

duplication, the customer’s file will be passed

through a Redundancy Checker (RC), if the file

exists in the data center, the customer will be

notified that his file was stored succefully, if not, the

cutomer’s file will be stored and duplicated around

the different data centers. This solution allows Cloud

providers to save a free space around the data

centers by preventing the files redundancy. Our

model will be implemented in a virtual environment,

and its evaluation will be based on the needed

storage space results from data centers.

This paper is organized as follows, section 2

presents previous studies which focused on

optimizing cost and speed of the storage process, we

introduce our model in section 3, detailing each of

its steps, in section 4 we present an evaluation of our

model before we conclude the paper and discuss

future works in section 5.

2 RELATED WORKS

The problem of minimizing data storage cost in

cloud environments has been studied by many

researchers, considering different types of criteria

Yahyaoui, H. and Moalla, S.

An Optimized Model for Files Storage Service in Cloud Environments.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 1, pages 155-159

ISBN: 978-989-758-182-3

155

such as files security, availability of the storage

service (Bo and Hong, 2015), etc. In the following

sub part, we present some studies about customer

files management in clouds.

2.1 Current Techniques

The availability of the customer files is the

constraint that should be respected, to consider such

a constraint, Google File System (GFS) duplicate

customer’s data around multiple data centers in

order to make them available from any place

(Unuvar and Tantawi, 2015), besides if one of the

data centers breaks down, the others will ensure the

performance, including scalability, reliability, and

the availability of the stored files.

Currently, Google is using multiple GFS clusters,

the largest ones have about 1000 storage nodes, and

about 300TB of storage space (Feng and Meng,

2012).

In the case of Hadoop Distributed File System

(HDFS), the customer’s file is broken up into 64 MB

chunks, every chunk is replicated for three times

around the data centers (Kulkarni and Tracey, 2004).

Amazon Simple Storage Service (S3) makes

some snapshots to every data center in order to

ensure availability and security of customer’s file

(Ramgovind and Smith, 2010).

2.2 Limitations of Current Techniques

We studied above the most used techniques in the

term of file storage systems, such as GFS, HDFS

and S3, the providers of these techniques are the

dominants of the field of Cloud environments and

they have the biggest number of customers.

What we can distinguish from these methods is

that they have some common problems. In fact, if

there is a files redundancy in a data center used by

one of these providers, all of these methods will be

unable to prevent it and to save the storage space,

consequently, these methods have a limitation in

term of files management around the data centers.

3 PROPOSED MODEL

3.1 Problem Statement

Actually, the problem of files redundancy before the

duplication phase in Cloud environments is one of

the critical problems for providers, because it

represents a loss of storage space, this problem is

due to the increase of the number of customers

around the world, and the popularity of the storage

service.

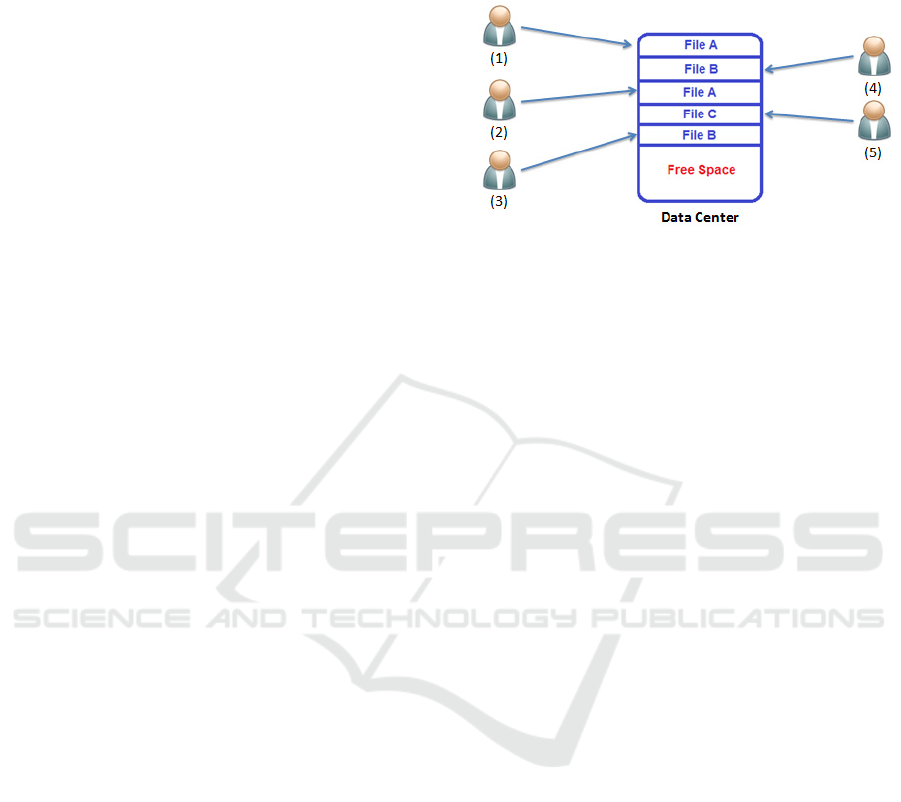

Figure 1: File Redundancy.

Figure 1 represents the redundant files in a data

center caused by different customers before the

duplication, we can distinguish that many users can

upload the same file to the Data Center (DC), and

consequently this scenario represents loss that can be

accumulated after the duplication.

Precisely, the duplication of a redundant file

represents a loss of storage space that can be

calculated by the following formula:

L = S x N x M (1)

The equation (1) represents the loss of the

storage space in the case of duplicating a redundant

file:

• S: the size of the redundant file.

• N: number of the redundancy.

• M: number of data centers used for the

duplication.

The optimal case here is to delete all the

redundant files before the duplication phase:

OC = M (2)

The equation (2) represents the Optimal Case

(OC), which is the duplication of only one file from

all the redundant files, and delete all the others.

In fact, the duplication phase insures the

performance, scalability, reliability, and the

availability of the stored files. Indeed, the

availability and security of the customer’s file are

constraints that should be taken into consideration

by Cloud providers, consequently, all the solution in

our context should respect these constraints.

3.2 Proposed Solution

Firstly, we have to mention that our solution will

take the place just before the duplication process,

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

156

because if it takes place after, it can ignore the

constraints of the security and the availability.

To obtain the optimal storage space in data

centers, we have to reject the file to store if it is

available in the data centers, in this order we have to

add a Redundancy Checker (RC) module.

Figure 2: File Storage Steps.

Figure 2 represents the addition of an RC, which

consists on comparing the customer’s file with the

existing stored files, the comparison is based on the

File’s Fingerprint (FFP), if there is a redundancy, the

RC module will react by deleting the file in question.

To make our solution more efficient, we will

calculate the FFP twice with different hash

functions. We have to mention that the FFP

comparison step will be executed only if the files to

compare have the same size.

Here is the algorithm of the redundancy checker:

Algorithm 1: RC Algorithm

input: fileA, fileB

output: redundancy= true OR redundancy= false

1 sizeA ← size(fileA);

2 sizeB ← size(fileB);

3 redundancy ← false;

4 if sizeA==sizeB

Then

5 SHA1_A ← SHA1(fileA);

6 SHA1_B ← SHA1(fileB);

7 If SHA1_A== SHA1_B

Then

8 MD5_A ← MD5(fileA);

9 MD5_B ← MD5(fileB);

10 If MD5_A== MD5_B

Then

11 Redundancy ← true;

Else

12 Redundancy ← false;

13 End

14 End

15 End

Algorithm 1 describes all the steps realized by

our RC, the FFP is calculated twice using SHA1 and

MD5 hash functions.

In the case when a same file is stored twice but

with different names, our model will leave just one

file and link it with the two names using a Virtual

Data Center (VDC), a such action will also be

executed in the case of n same files with n different

names.

Cloud environments are also characterized by the

transparency, every customer should feel that he is

alone in the platform, for that order we have to add a

VDC module.

Figure 3: Virtual Data Center.

Figure 3 represents the VDC and also the data

center after the redundancy checker step.

To summarize and clarify our solution we have

to present it by figure 4:

Figure 4: Proposed Solution.

An Optimized Model for Files Storage Service in Cloud Environments

157

Figure 4 represents the scenario when our

customer sends his file to the cloud platform, in this

case, the RC will intervene and make the decision to

store or to delete the file in question.

4 EVALUATION

During this phase, we will use a set of files in our

experimental tests. The evaluation will be based on

the performance of our model compared to the GFS

model.

The comparison will be based on the calculation

of the loss space obtained from each model, also we

have to mention that we will vary the values of S, N

and M in the order to obtain different results.

Starting by the calculation of the storage space

needed using GFS method and our proposed method

(MHY):

Table 1: Obtained results by the variation of N.

Tests N S M GFS MHY

1 2 1GB 4 8 4

2 3 1GB 4 12 4

3 4 1GB 4 16 4

Table 1 presents the obtained results from GFS

and MHY by the variation of the number of

redundancy, to facilitate this phase, we fixed the size

of files to 1GB.

Figure 5: Results by the variation of N.

Figure 5 represents the obtained results from

GFS and MHY by the variation of the number of

redundancy, what we can conclude from this figure

is that the space needed is proportional to N when

we use the GFS method, but in the case of MHY it

remains constant.

Table 2: Obtained results by the variation of M.

Tests N S M GFS MHY

1 2 1GB 4 8 4

2 2 1GB 5 10 5

3 2 1GB 6 12 6

Table 2 presents the obtained results from GFS and

MHY by the variation of the number of data centers

used for the duplication.

Figure 6: Results by the variation of M.

Figure 6 represents the obtained results from

GFS and MHY by the variation of the number of the

data centers used for duplication, what we can

conclude from this figure is that increasing the

number of data centers M, improves the availability

of the files but in the case of GFS it also increases

the loss space.

5 CONCLUSIONS

In this paper, we presented an optimized model for

file storage service in Cloud environments in order

to save storage space and minimize the storage’s

cost. Our model is based on the addition of an RC,

which consist on checking if there is a redundant file

in the data center just before the duplication. We

evaluated our model by comparing the obtained

results of the space needed to save a file to that

obtained by using the Google File System (GFS)

method and we found that our method is more

efficient in term of saving storage space in the data

centers.

We proved that a great management of the stored

files in the data center can minimize the service’s

cost and also make the difference between providers.

In term of future work, we will make some

modifications for our model in order to make it in

term of execution time, because if we test it with a

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

158

large set of files it is likely to generate some

problems.

REFERENCES

Xu, G. L. Z. G. and Shi, K. (2013). Expander code: A

scalable erasure-resilient code to keep up with data

growth in distributed storage. IEEE 32nd International

performance computing and communications

conference.

Khanafer, A. M. and Puttaswamy, K.P.N. (2013). The

constrained Ski-Rental problem and its application to

online cloud cost optimization. IEEE INFOCOM.

Mansouri, Y. A.N. and Buyya, R. (2013). Brokering

Algorithms for Optimizing the Availability and Cost

of Cloud Storage Services. IEEE 5th International

Conference on Cloud Computing Technology and

Science.

Bo, M. S. and Hong, J. (2015). Improving Storage

Availability in Cloud-of-Clouds with Hybrid

Redundant Data Distribution. IEEE International

Parallel and Distributed Processing Symposium.

Unuvar, M. S. Y.N. M.G. and Tantawi, A.N. (2015).

Selecting Optimum Cloud Availability Zones by

Learning User Satisfaction Levels. IEEE Transactions

on Services Computing.

Feng, Q. H. G. and Meng, D. (2012). Magicube: High

Reliability and Low Redundancy Storage Architecture

for Cloud Computing. IEEE 7th International

Conference on Networking, Architecture and Storage.

Kulkarni, P. F. J. and Tracey, J. M. (2004). Redundancy

Elimination Within Large Collections of Files. Annual

Technical Conference.

Ramgovind, S. M.M. and Smith, E. (2010). The

management of security in Cloud computing.

Information Security for South Africa.

An Optimized Model for Files Storage Service in Cloud Environments

159
