ImocaGen: A Model-based Code Generator for Embedded Systems

Tuning

Goulven Guillou and Jean-Philippe Babau

Lab-STICC/UMR 6285, UBO, UEB, 20 Avenue Le Gorgeu, 29200 Brest, France

Keywords:

Software Architecture, Code Generation, Control.

Abstract:

IMOCA is a model-based architecture model dedicated to embedded process control systems in disturbed

environment. These systems depend on various parameters which are difﬁcult to set because they are bound

to environment changes. In this paper we propose to extend IMOCA with the meta-model ImocaGen for

managing the aspects of the code generation. ImocaGen allows to target multiple platforms and different pro-

gramming languages, generates both embedded code as well as tuning and reconﬁguration tools, takes into

account different communication protocols and offers a mechanism for integrating handwritten code. This ap-

proach is tested on a basic control application for a NXT brick for which three generations are performed: the

ﬁrst one for a PC with an USB connection, the second one for an Android tablet with a Bluetooth connection

and the last one for a simulator in Java.

1 INTRODUCTION

Nowadays, embedded systems are increasingly used

in various domains like drones and environment mon-

itoring. They integrate a large set of hardware and

software components (sensors, actuators and con-

trol policies) and various technologies in various do-

mains (mechanics, electronics, hydraulics ...). Clas-

sicaly, the embedded code remains static, optimized

for a given platform, a speciﬁc application in a spe-

ciﬁc context. But, an unpredictable environment re-

quire large conﬁguration capacity for the system. In

uncertain environment, the application domain for

this paper, remote monitoring, and sometimes re-

mote control, has to be considered. A good exam-

ple of such system in a disturbed environment may be

an autonomous sailboat equipped with many sensors

(anemometer, wind vane, speedometer, inertial mo-

tion unit, GPS ...) and actuators (ram, winch ...) on

which the rudder and the sails are controlled.

At design time, remote monitoring and tuning is

used to evaluate solutions. At run-time, remote mon-

itoring and tuning is useful to ensure safety. At the

end, there is a strong need to provide tuning tools be-

cause the system depends both intrinsic mechanical

features and environment which are difﬁcult to model

and forecast. In this context, from high-level model,

a code generator has to address different platforms,

testing and tuning tools for quick and safe develop-

ment.

For code generation, the ﬁrst challenge is to target

several platforms, for embedded code and for remote

controlling device, several communication technolo-

gies (Bluetooth, Wi-Fi, USB ...) and protocols be-

tween an embedded system and its controlling device.

The second challenge is to generate tools for mon-

itoring, testing, tuning and reconﬁguring system pa-

rameters. In this paper a reconﬁgurable parameter is a

parameter for which its embedded value can be mod-

iﬁed online without the need to recompile the code.

Since a large amount of code is already available

(protocols, control laws, ﬁlters, drivers ...) and in or-

der to avoid code rewriting, the last challenge is to

facilitate the integration of domain speciﬁc code and

platform-speciﬁc libraries in the generated code.

To face these challenges, in this paper, we pro-

pose a model, called ImocaGen, for generating a code

from an IMOCA architecture model. If IMOCA is

dedicated to process control systems in uncertain en-

vironments, ImocaGen, for its part, is in charge of the

aspects of the code generation (embedded system, re-

mote control and tuning tools), considering the plat-

forms, the programming languages and the commu-

nication technologies. Through a delegation mech-

anism, ImocaGen also facilitates the integration of

legacy code and allows in this manner to deal with

various heterogeneous technologies.

The remainder of the paper is organized as fol-

lows. Section 2 presents works relative to code gener-

390

Guillou, G. and Babau, J-P.

ImocaGen: A Model-based Code Generator for Embedded Systems Tuning.

DOI: 10.5220/0005804103900396

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 390-396

ISBN: 978-989-758-168-7

ation, simulation and tuning of control systems. Sec-

tion 3 is dedicated to an overview of IMOCA and

ImocaGen models. Section 4 details the code genera-

tion principles in order to take into account platforms,

programming languages, remote control, tuning tools

and code integration. Section 5 shows an illustrative

application for which three generations are performed

for three different platforms. Finally, section 6 con-

cludes the paper and presents ongoing works.

2 RELATED WORK

Using based components approaches (Szyperski

et al., 2002) and MDE methods for mastering the soft-

ware complexity is quite classical. In the context of

embedded systems, the wide variety of available sen-

sors and actuators and the need to change or to up-

grade them to cope with the requirements of open-

ended environments forces to design multi-levels ar-

chitectures to abstract the hardware and ensure the

separation of concerns. Software requirements are

very similar in the world of robotics and tools for

deﬁning component-based architectures have been

proposed in this context like the middleware ROS

(Quigley et al., 2009) or the domain speciﬁc modeling

language (DSML) RobotML (Dhouib et al., 2012).

With these development environments, even if the ar-

chitecture is free (deliberative, reactive, hybrid ...),

the hardware abstraction remains limited, supporting

small hardware variability. The advantage of IMOCA

is to propose an architecture with a clear separation

between the data and the models of sensors/actuators

which ensures a high level hardware abstraction like

in SAIA (Sensors/Actuators Independent Architec-

ture) (DeAntoni and Babau, 2005).

In IMOCA, a ﬁnite state machine serves to de-

scribe the behavior of a control component. This

choice has been done for practical reasons and not

for the use of validation tools. For this perspective,

MontiArcAutomaton (Ringert et al., 2013) modeling

language or V

CMM (Alonso et al., 2010) offer this

kind of tools which allow to ensure that the imple-

mentation reﬁnes its speciﬁcation.

For the code generation, ORCCAD (Simon et al.,

1997) is a software environment dedicated to the de-

sign and the implementation of advanced robotics

control systems but allows only the generation of C++

code. BRICS

, through model transformation, gen-

erates component frameworks usable in particular by

ROS but does not generate directly embedded code.

For its part, MontiArcAutomaton is multi-platform

http://www.best-of-robotics.org/

and allows to generate Java code and Python code

whereas RobotML allows both to target a middleware

like ROS and to generate a simulator. ImocaGen gen-

erates both embedded C-like code for multiple plat-

forms, Java simulation tools and online tuning tools.

The use of simulation in embedded systems has

been spread for cost and risk reasons. For dynam-

ical systems, Simulink

is very popular and more-

over allows to set the simulation for optimization pur-

poses. Robotics dedicated middlewares like ROS,

Player (Collett et al., 2005) or MIRO (Utz et al., 2002)

integrates numerous libraries (physical engines, 3D li-

braries) for helping the designer to build simulated

environments. For the moment ImocaGen does not

integrate this kind of simulators but allows generating

basic tools for simulating, monitoring and testing the

application and also tuning tools for the setting at run

time.

3 MODELS

IMOCA (Guillou and Babau, 2013) is an architecture

model for process control systems using sensors, ac-

tuators and control laws. IMOCA is especially ded-

icated to uncertain and unpredictable environments.

Aerial drones, terrestrial or underwater vehicles are

good examples of these systems. For these applica-

tions the behavior of the system depends generally

on numerous parameters which need long and tedious

settings. IMOCA deals with data acquisition, con-

trol and adaptation according to the changes of the

environment. IMOCA allows to focus on a number of

parameters in order to tune the system. For its part,

ImocaGen concentrates on code generation and plate-

forms integration. ImocaGen allows to generate both

the embedded code for the controller and tuning tools.

The former is a server and the latter is a client and

they communicate each other by using a protocol and

a particular technology.

3.1 IMOCA: Model for Control

Data

Target Control

Real

Interpretation

Actuators

Sensors

Controller

Commands

environment

simulated

Data

Interpreter

Commands

Interpreter

Frames represent components, arrows describe data ﬂow

Figure 1: Principles of IMOCA approach.

IMOCA is based of three layers called Target,

Interpretation and Control (see ﬁgure 1).

http://fr.mathworks.com/products/simulink/

ImocaGen: A Model-based Code Generator for Embedded Systems Tuning

391

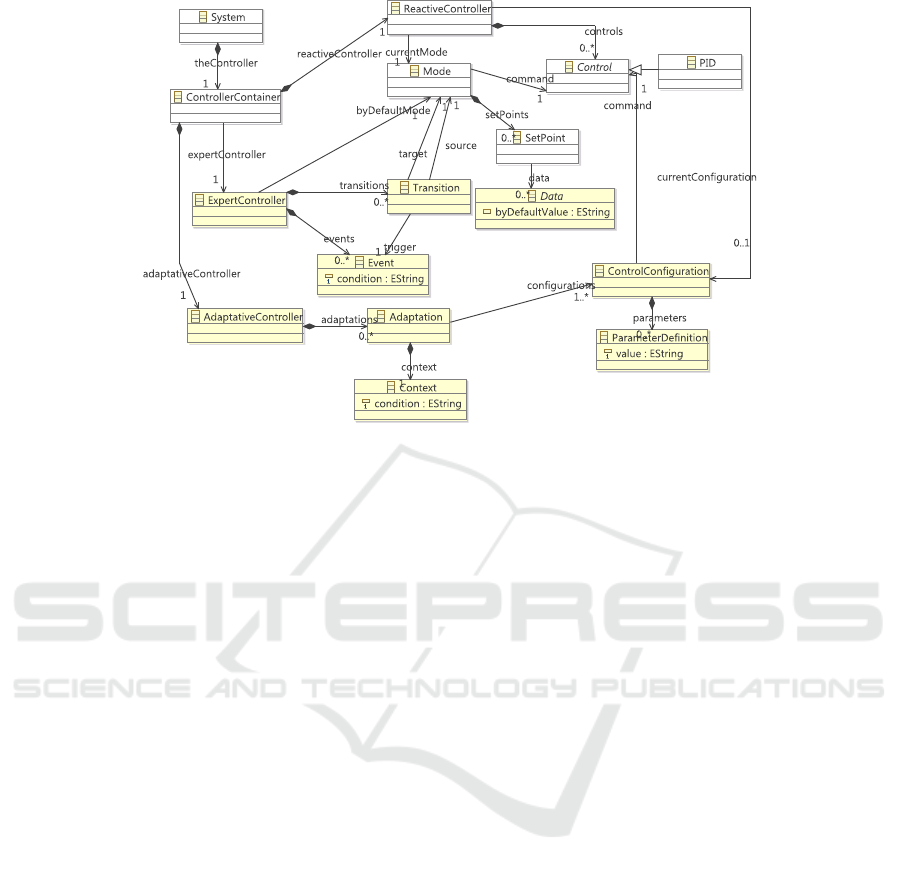

Figure 2: IMOCA view.

Target with its Actuators and Sensors is a

platform-speciﬁc model of Inputs/Outputs. Control

uses Data (a virtual view of the environment) to

compute Commands to act on the environment. The

Interpretation layer realizes the adaptation be-

tween the Target layer and the Control layer by

linking Sensors and Actuators on the one hand, and

Data and Commands on the other hand. In this way

Control and Target are independent like in SAIA

(DeAntoni and Babau, 2005) and this respects the

separation of concerns principle and allows the inde-

pendent development of speciﬁc sensors and actuators

technologies. This independence is important in the

context of embedded systems due to platforms evolu-

tions.

The Controller itself is composed of three sub-

controllers. The ReactiveController (see ﬁgure 2)

uses data to compute a command based on a control

law. The ExpertController is in charge of deﬁn-

ing the current control law. It is based on a ﬁnite

state automaton that manages running modes. Each

state is associated with a Mode which is itself asso-

ciated with a control law. A state change is linked

to a change of state of the environment, a Context.

Finally, an AdaptativeController adjusts different

parameters of the control law (typically the P, I and

D of a PID regulator) with respect to a look-up table

in which appear all the possible conﬁgurations of the

control laws. Based on this three collaborating sub-

controllers, the Controller allows to answer the fol-

lowing requirements: controlling the process with the

ReactiveController by applying an adapted con-

trol law thanks to the ExpertController, and ﬁ-

nally, adjusting the control laws with respect to the

context in order to keep a high quality of control with

the AdaptativeController.

IMOCA is useful for targeting different appli-

cation domains like the control of underwater and

terrestrial vehicles, sailing boats, ﬂying drones or

embedded scientiﬁc stations with various sensors

because the system is always controlled by the

ReactiveController at a frequency close to that

of the sensors, the control law is chosen by the

ExpertController which reacts to its environment

by switching from a law to another more adapted law

and the parameters of these laws can be adjusted ac-

cording to the environment features. These applica-

tions may use various platforms like arduino boards,

ARMadeus boards, Lego NXT bricks or mini PC with

various ﬁrmwares and operating systems. If IMOCA

serves for modeling of the control architecture of such

applications, it is not designed for generating code

and for facing the platforms heterogeneity. For this

purpose another model, called ImocaGen, is dedi-

cated to consider these aspects.

3.2 ImocaGen: Model for Code

Generation

The generated code depends on platforms, operating

systems, programming languages and communication

technologies. In order to avoid implementation de-

tails in IMOCA, the meta-model ImocaGen includes,

in addition of IMOCA itself, a model of technical as-

pects.

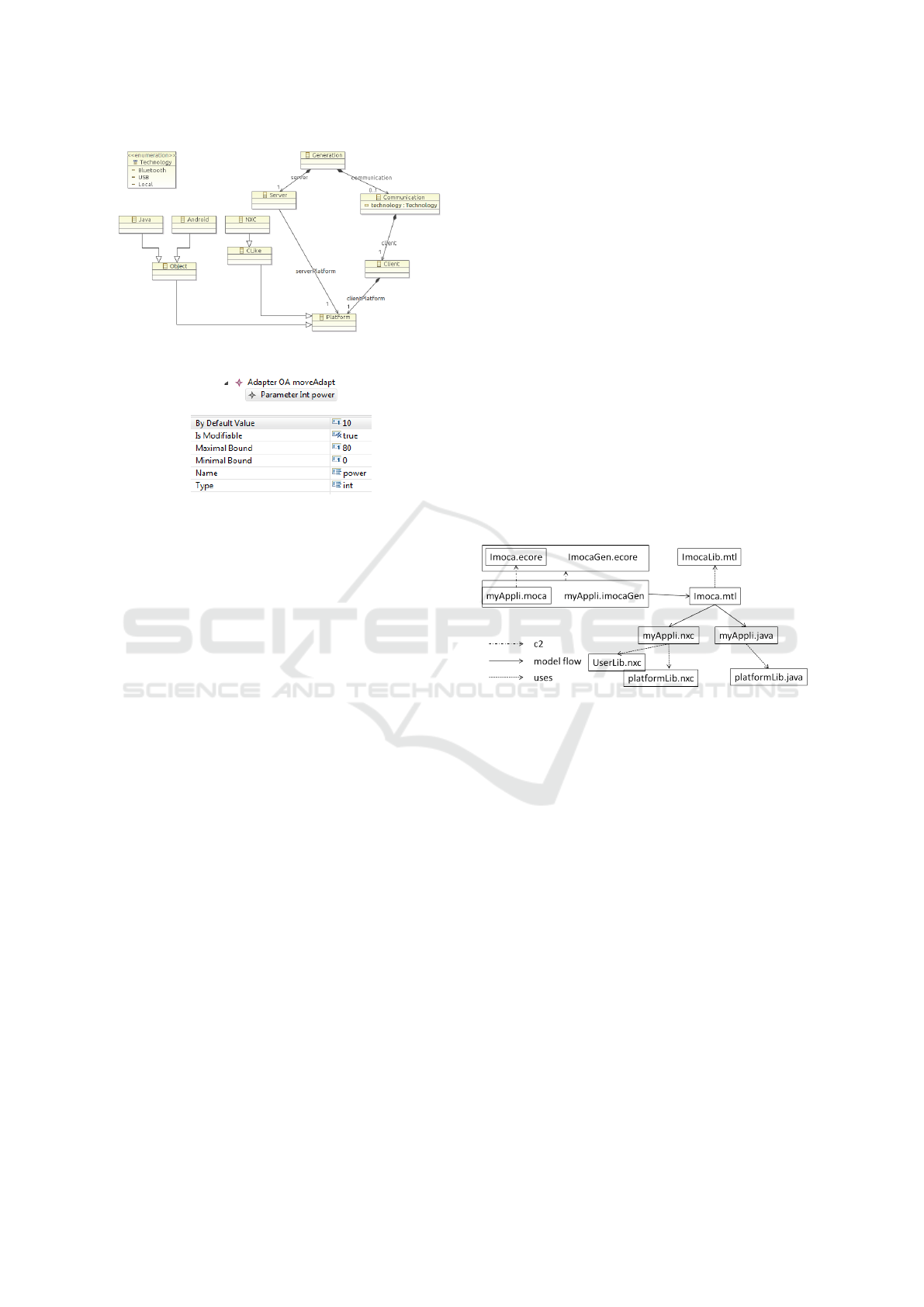

In the ImocaGen meta-model (see ﬁgure 3) the

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

392

Figure 3: ImocaGen meta-model.

Figure 4: Modiﬁable parameters.

control system is represented by the server (the em-

bedded system) and the client (the remote controller).

If a client exists, a communication protocol is de-

ﬁned with the help of different technologies like Blue-

tooth or USB. Platforms are mainly taken into account

through the supported programming languages. Two

main families are deﬁned, C-like languages and ob-

ject oriented languages, the former contains NXC (for

Not eXactly C) a high-level C-like programming lan-

guage for the Lego Mindstorms NXT and the latter

contains Android which is not a programming lan-

guage. For the generator, the interesting informa-

tion about Android is the usage of the virtual machine

Dalvik which allows to run Java code.

At architectural level, for a parameter, the prop-

erty IsModifiable allows to declare it reconﬁg-

urable. If an IMOCA parameter is reconﬁgurable,

ImocaGen deﬁnes a set of reconﬁguration features,

used for code generation, like minimal and maximal

bounds (see ﬁgure 4). If at least one reconﬁgurable

parameter exists, a client interface is generated to al-

low the tuning of the values of reconﬁgurable param-

eters. In the embedded code, a server task receives

the changes and modiﬁes online the corresponding

parameters. This interface is especially useful during

prototyping stage. Thus, the behavior of the system

can be tested without stopping or recompiling the ap-

plication (Navas et al., 2013).

4 CODE GENERATION

IMOCA and ImocaGen are designed with the

help of Ecore the core meta-model of EMF

(Eclipse Modeling Framework). It is impor-

tant to notice that Imoca.ecore is a part of

MyImocaGen.ecore. So MyAppli.Imoca is used to

initialize MyAppli.ImocaGen (see ﬁgure 5).

From this model, Acceleo modules

(ImocaGen.mtl) are used to generate code. Ac-

celeo is a code generator from the Eclipse Foundation

based on the model-to-text (M2T) transformation.

The generator produces both embedded C-like

code and Java code and more generally all the ﬁles

structure as well as the code which describes the

behavior of the application. The code generator is

modular, based on a code generation library called

LibImoca.mtl. The generated code allows to inte-

grate two kinds of legacy code: platform dependant

code (ImocaLib.nxc) and speciﬁc domain code

(UserLib.nxc).

Figure 5: Code generation process.

4.1 Platforms and Languages

Integration

In embedded system domain, the C language is used

classically for efﬁciency. Although the targeted plat-

forms support various programming languages thanks

to various IDE and compilers, most of them offer the

possibility of using a C-like language. However, ver-

sions of C are slightly different from one platform

to another. Therefore the generator is forced to use

a subset of C, the common part of different C vari-

ants for targeting different platforms. For the simula-

tor written in Java, the generator exploits the fact that

Java syntax and C syntax are close for factorizing as

much as possible their common part.

The generator is composed of three software lay-

ers. The ﬁrst layer is platform speciﬁc. It is in charge

of generating the ﬁles. Indeed, the set of ﬁles may

vary between the chosen programming languages. A

C project contains header and implementation ﬁles

whereas a Java project is organized in packages and

ImocaGen: A Model-based Code Generator for Embedded Systems Tuning

393

Figure 6: Communication protocol.

classes. For NXC only implementation ﬁles are gen-

erated. In C, data is a variable whereas, in Java, a data

is viewed as an object, an attribute with setters and

getters.

The second layer is a generic layer for generat-

ing all that is common to C and Java. The generated

algorithms (expert and adaptive controllers) are inde-

pendent of platforms and, therefore, are written in a

basic C, without pointers and speciﬁc C. This code

describes the structure and the behavior of the appli-

cation.

The last layer is platform speciﬁc and is in charge

of the syntax of the languages (declaration, function

calls, ...). In particular, it tries as much as possible

to factorize the common parts of imperative code and

object oriented code (through a parameter with speci-

ﬁes the type of the language) by exploiting some sim-

ilarities between C and Java.

4.2 Remote Control Integration

In the targeted application domain, interaction with

the embedded system is done through a wireless com-

munication. The code generation provides a graphical

user interface (GUI) and a communication protocol,

depending on the Client declaration. In the Imoca-

Gen meta-model (see ﬁgure 6) a Communication

contains a Protocol which deﬁnes all the technical

characteristics. The protocol deﬁnes how to estab-

lish the communication, how to stop it and how to

ensure the data correctness. It also deﬁnes frames,

messages format and parameters about the maximal

size of a packet and timeouts (to detect commu-

nication loss). The timeout aspect is modeled by

the ProtocolBadConnectionTimeout class in the

ImocaGen metamodel.

The code generation consists on instantiating a

generic protocol. The client sends frames (connec-

tion and requests) to the server periodically. Then it

waits for a response. If the client, resp. the server

has nothing to send, resp. to answer, it has to trans-

mit a null message. Then, as presented in ﬁgure 7,

timeout is used to detect connection loss. The con-

nection state information is available for both client

and server sides. The proposed protocol is well suited

Disconnected

Any message

CONNECT

Bad reception

Connected

States

No connection for t2 s

No connection for t1 s

Any message

DISCONNECT

Figure 7: The three states of the protocol BadConnection-

Timeout.

Figure 8: Remote control and parameters reconﬁguration.

to a system which evolves in a natural environment

where several events may disturbed communications.

Indeed, if necessary, ImocaGen may be extended to

model other kind of communication policies.

For each reconﬁgurable parameter, a

ParameterConfiguration (see ﬁgure 8) de-

tails all the necessary elements for deﬁning the

interaction policy: minimal, maximal and the step

between two consecutive values. The generation of

a dedicated widget is automatically performed for

each reconﬁgurable parameter. When a parameter

modiﬁcation is performed on remote side, it initiates

a client/server communication. Technically, an

identiﬁer (ID) is generated for each reconﬁgurable

parameter and allows to do the link between the client

and the server.

As for protocol, the remote client code is in fact

a parameterization of an existing generic code. For

example the InitServer primitive has two parame-

ters, the ﬁrst one deﬁnes the reception timeout and the

second one the disconnection timeout. The function

CreateMessage takes an ID as parameter for identi-

fying the request. The creation of a widget is based

on a name, an ID, a type (int, ﬂoat ...), a minimal, a

maximal and a step value.

From structural point of view, the generic code is

based on provided libraries fo each platform. The li-

brary interface is a facade to set the application de-

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

394

pendent characteristics, i.e. the name and the number

of widgets for the GUI. The implementation of the

library is based on two layers. The ﬁrst layer imple-

ments the behavior and is generic. The second layer

is platform dependent, encapsulating technologies de-

tails. GUI description, send/receive message primi-

tives belong to this layer.

4.3 Domain-speciﬁc Code Integration

The generated code is a wrapper for user code. The

user code integration ﬁnalizes the application. Al-

though Acceleo proposes speciﬁc mechanisms for

user code integration, in ImocaGen, the user code in-

tegration mechanism is based on the delegation pat-

tern (see ﬁgure 9) for a better independence between

user code and generated code. In the classiﬁcation

proposed in (Greifenberg et al., 2015), this type of

mechanism is merely called delegation.

UserLib calls

Delegator

handwritten code

UserLib

Delegate

UserLibInterface

generated code

creates

Figure 9: Delegation pattern.

A delegator performs speciﬁc function calls in

a normalized way. More precisely, a delegator in-

vokes methods which are declared in an interface im-

plemented by a delegate. Then the delegator del-

egates the task to a delegate. The method calls

are generated by the code generator. The interface

UserLibInterface gives all the signatures of func-

tions and is also generated by the generator. Fi-

nally, the user only has to provide an implementation

of the interface in the UserLib ﬁle while respecting

the given signatures. This approach, based on the

component-based paradigm, ensures a high-level of

encapsulation and a clear separation between gener-

ated and user code.

5 APPLICATION

In this section, we present a basic and illustrative ap-

plication in the NXT world: an arm equipped with a

gyrometer and a compass, controlled by a rotate mo-

tor (see ﬁgure 10). In an horizontal plane, the arm has

Figure 10: The NXT brick and the compass needle.

to indicate always the north even if the device moves:

the arm plays the role of a compass needle.

For controlling the arm we use a simple PID reg-

ulator:

θ = P(heading − 180)+ I

∑

e + D.gyr

where θ is the angle command of the motor, heading

the value provided by the compass, gyr the value of

the gyrometer and e the error between heading and

the desired direction. The error accumulation is cal-

culated over the last ten seconds. The setpoint is 180

in order to avoid the jump between 359 and 0, but if

the compass side of the arm points out the south, the

other side shows the north.

Finding out good values for P, I and D is generally

a long and tedious task, especially in a disturbed en-

vironment because physical models are generally far

to the reality and numerous phenomena are difﬁcult

to simulate and forecast. With ImocaGen, a GUI is

generated with a widget for each of these parameters

and a widget for the motor (to set its power). Using

the GUI helps on tuning the system.

For this application three kinds of communication

(local, USB and Bluetooth) have been tested by us-

ing ImocaGen. For local communication, a simulator

code is generated in Java. The simulator involves a

widget for each sensor in order to set the correspond-

ing value. Four sliders are generated, one for each

reconﬁgurable parameter: P, I, D and the power of the

motor. The simulator allows to watch the response

of the system to given inputs. It helps to test and

debug the application behavior. The user interface

platform library is based on the SWT library. Using

the USB communication allows to test the applica-

tion on the real embedded system (generation of NXC

code). The client platform is a PC and the generated

code for the GUI is the same as for local (Java code)

except that it does not simulate sensors. A widget

is generated for each reconﬁgurable parameter. For

the Bluetooth communication, the client platform is

an Android tablet. On the tablet, when the client is

ImocaGen: A Model-based Code Generator for Embedded Systems Tuning

395

launched, a conﬁguration ﬁle is needed for the GUI

initialization. Therefore the generator generates only

a ﬁle ConfigClient.java to store into the Android

application. Finally, thanks to the tuning tool, the pa-

rameters of the control application can be ﬁxed and

an embedded code can be generated.

6 CONCLUSION AND FUTURE

WORKS

The architecture model IMOCA is designed to

process control systems in disturbed environments

whereas ImocaGen, which includes IMOCA, is a

model of code generation for multiple platforms.

ImocaGen allows to generate both embedded C-like

code and tuning and control tools in Java. It also inte-

grates a communication model for managing the com-

munications between the control application and the

tools. The tools are useful to test the behavior of the

system and to allow system evaluation.

This work has several extensions. Other platforms

and domains are targeted thanks to the development

of speciﬁc libraries, as well as the evolution of the

ImocaGen meta-model. The quality and the efﬁciency

of the generated code is another challenge because of

the embedded platforms constraints. Integrating real-

time aspects is also an ongoing work.

REFERENCES

Alonso, D., Vicente-chicote, C., Ortiz, F., Pastor, J., and Al-

varez, B. (2010). V

cmm: a 3-view component meta-

model for model-driven robotic software develop-

ment. Journal of Software Engineering for Robotics,

1(1):3–17.

Collett, T. H., MacDonald, B. A., and Gerkey, B. P. (2005).

Player 2.0: Toward a practical robot programming

framework. In Proc. of the Australasian Conf. on

Robotics and Automation (ACRA), Sydney, Australia.

DeAntoni, J. and Babau, J.-P. (2005). A MDA-based ap-

proach for real time embedded systems simulation.

In Proceedings of the 9th IEEE International Sym-

posium on Distributed Simulation and Real-Time Ap-

plications, pages 257–264, Montreal. IEEE Computer

Society.

Dhouib, S., Kchir, S., Stinckwich, S., Ziadi, T., and Ziane,

M. (2012). RobotML, a Domain-Speciﬁc Language

to Design, Simulate and Deploy Robotic Applica-

tions. In Third international conference on Simula-

tion, Modeling, and Programming for Autonomous

Robots (SIMPAR’12), Lecture Notes In Computer

Sciences, pages 149–160, Tsukuba, Japan. Springer-

Verlag.

Greifenberg, T., H

olldobler, K., Kolassa, C., Look, M.,

Nazari, P. M. S., M

uller, K., P

erez, A. N., Plotnikov,

D., Reiss, D., Roth, A., Rumpe, B., Schindler, M.,

and Wortmann, A. (2015). A comparison of mecha-

nisms for integrating handwritten and generated code

for object-oriented programming languages. CoRR,

abs/1509.04498.

Guillou, G. and Babau, J. (2013). IMOCA : une architec-

ture base de modes de fonctionnement pour une ap-

plication de contrle dans un environnement incertain.

In 7

eme Conf

erence francophone sur les architectures

logicielles, Toulouse France.

Navas, J., Babau, J.-P., and Pulou, J. (2013). Reconcil-

ing run-time evolution and resource-constrained em-

bedded systems through a component-based develop-

ment framework. Science of Computer Programming,

8:1073–1098.

Quigley, M., Conley, K., Gerkey, B. P., Faust, J., Foote, T.,

Leibs, J., Wheeler, R., and Ng, A. Y. (2009). Ros: an

open-source robot operating system. In ICRA Work-

shop on Open Source Software.

Ringert, J. O., Rumpe, B., and Wortmann, A. (2013). Mon-

tiArcAutomaton : Modeling Architecture and Behav-

ior of Robotic Systems. In Workshops and Tutorials

: IEEE International Conference on Robotics and Au-

tomation (ICRA) : Karlsruhe, Germany, page 3 S.

Simon, D., Espiau, B., Kapellos, K., and Pissard-Gibollet,

R. (1997). ORCCAD: Software Engineering for

Real-time Robotics. A Technical Insight. Robotica,

15(1):111–115.

Szyperski, C., Gruntz, D., and Murer, S. (2002). Com-

ponent Software: Beyond Object-Oriented Program-

ming. ACM Press and Addison-Wesley, New York,

NY, 2 edition.

Utz, H., Sablatnog, S., Enderle, S., and Kraetzschmar, G.

(2002). Miro - middleware for mobile robot applica-

tions. Robotics and Automation, IEEE Transactions

on, 18(4):493–497.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

396
