From Architecture Modeling to Application Provisioning

for the Cloud by Combining UML and TOSCA

Alexander Bergmayr

, Uwe Breitenb

ucher

, Oliver Kopp

Manuel Wimmer

, Gerti Kappel

and Frank Leymann

Business Informatics Group, TU Wien, Wien, Austria

IAAS/IPVS, University of Stuttgart, Stuttgart, Germany

Keywords:

TOSCA, UML, Model-Driven Software Engineering, Cloud Computing, Cloud Modeling.

Abstract:

Recent efforts to standardize a deployment modeling language for cloud applications resulted in TOSCA. At

the same time, the software modeling standard UML supports architecture modeling from different viewpoints.

Combining these standards from cloud computing and software engineering would allow engineers to reﬁne

UML architectural models into TOSCA deployment models that enable automatic provisioning of cloud

applications. However, this reﬁnement task is currently carried out manually by recreating TOSCA models from

UML models because a conceptual mapping between the two languages as basis for an automated translation is

missing. In this paper, we exploit cloud modeling extensions to UML called CAML as the basis for our approach

CAML2TOSCA, which aims at bridging UML and TOSCA. The validation of our approach shows that UML

models can directly be injected into a TOSCA-based provisioning process. As current UML modeling tools

lack cloud-based reﬁnement support for deployment models, the added value of CAML2TOSCA is emphasized

because it provides the glue between architecture modeling and application provisioning.

1 INTRODUCTION

With the emergence of cloud computing, the effort

required for application provisioning has considerably

been reduced. Cloud services can be acquired on de-

mand (Leymann, 2011) via the Web without the need

to negotiate with the cloud provider (Armbrust et al.,

2010). The low upfront costs compared to a traditional

on-premise environment and the operational costs that

scale with the consumed cloud services are key incen-

tives for companies and engineers to deploy their ap-

plications on cloud environments. Several approaches

for application modeling and provisioning to the cloud

have been proposed (Bergmayr et al., 2014a). Stan-

dardizing the representation of cloud-based deploy-

ment models is addressed by TOSCA (OASIS, 2013b).

A deployment model may capture deployment artifacts

and targets as a topology and specify a plan how those

artifacts must be deployed on the targets by a provision-

ing engine. At the same time, the software modeling

standard UML supports architecture modeling from

different viewpoints, including the class, component,

and deployment viewpoint. Hence, it appears bene-

ﬁcial to combine standard modeling languages from

software engineering and cloud computing (Jamshidi

et al., 2013). This would allow engineers to reﬁne

UML architectural models into TOSCA deployment

models that enable automatic provisioning of cloud

applications by means of TOSCA-compliant contain-

ers. From an UML perspective this is beneﬁcial as it

allows the application provisioning for UML deploy-

ment models. On the other hand, TOSCA deployment

models can be considered in the light of UML, thereby

gaining insights into the components manifested by

deployed artifacts and how they are realized from a

ﬁne-grained structural or even behavioral viewpoint.

The deployment viewpoint is provided by both lan-

guages, which favors its use in a mapping process.

However, an effective conceptual mapping be-

tween UML and TOSCA as the basis for an automated

translation between the two languages is still miss-

ing. As a result, the translation is currently carried

out in a tedious manual step, which is only achiev-

able if engineers are familiar with the peculiarities

of both languages and capable to identify the corre-

spondences between them at both levels intensional

and extensional (K

uhne, 2006). While at the inten-

sional level common aspects of cloud environments

are captured in terms of types, they are instantiated at

the extensional level by assigning concrete values to

Bergmayr, A., Breitenbücher, U., Kopp, O., Wimmer, M., Kappel, G. and Leymann, F.

From Architecture Modeling to Application Provisioning for the Cloud by Combining UML and TOSCA.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 2, pages 97-108

ISBN: 978-989-758-182-3

their features. Moreover, due to the generic nature of

UML’s deployment language, it does not natively sup-

port cloud-based deployment models, which hampers

the translation between the two languages.

In this paper, we propose a fully automatic trans-

formation approach CAML2TOSCA which addresses

both the intensional and extensional level of deploy-

ment models. From a UML perspective, we exploit

cloud-speciﬁc extensions as a bridge between the two

languages. In previous work, we presented the Cloud

Application Modeling Language (CAML) (Bergmayr

et al., 2014c) as a lightweight extension to UML’s

deployment language. It provides intensional abstrac-

tions over cloud environments. This enables engineers

to create cloud-based deployment models directly in

UML and reﬁne them towards a target cloud environ-

ment. The reﬁnement task is required as a basis for

ultimately carrying out the application provisioning,

which is supported by TOSCA containers, such as

OpenTOSCA (Binz et al., 2013). Hence, CAML can

serve as the bridge between UML and TOSCA, where

CAML2TOSCA provides the glue between architecture

modeling and application provisioning.

The remainder of this paper is structured as follows.

We discuss the background of our work by introduc-

ing the metamodels of UML’s deployment language

including the CAML extensions and TOSCA in 2. In

3, we present an overview of CAML2TOSCA, intro-

duce both modeling levels intensional and extensional,

and discuss in detail the conceptual mapping between

UML and TOSCA. In 4, we validate our approach

by presenting a prototypical implementation of the

CAML2TOSCA transformer and demonstrating it in a

practical setting. The evaluation presented in 5 shows

the practical value of our approach for engineers as cur-

rent UML modeling tools are capable to adopt CAML.

Finally, in 6, we discuss related work before we con-

clude in 7.

2 BACKGROUND

To establish the basis for our work, we introduce

UML’s deployment modeling concepts and the cloud-

speciﬁc extensions to them we have developed in pre-

vious work (Bergmayr et al., 2014c). Thereafter, we

give an overview on TOSCA’s modeling concepts most

relevant for our work.

2.1 Cloud Extensions to UML

CAML aims at enabling engineers to create deploy-

ment models by common cloud modeling concepts

and to reﬁne them towards a target cloud environment.

Those concepts are captured by CAML’s cloud library,

whereas UML proﬁles are employed to support the

reﬁnement step. 1 gives an overview of UML’s meta-

model where the emphasis is placed on the deployment

viewpoint. The cloud-speciﬁc concepts provided by

CAML’s cloud library are instances of the generic de-

ployment modeling concepts standardized by UML.

They in turn are extended by environment-speciﬁc

modeling concepts that embody concrete cloud ser-

vices, e. g., an M1Medium compute service of the

Amazon AWS environment

. CAML provides UML

proﬁles dedicated to cloud environments. They are in-

tegrated into a common cloud proﬁle which currently

supports stereotypes for Amazon AWS/OpenStack,

Google cloud platform

, and Microsoft Azure

Even though the use of proﬁles for concrete cloud

environments in addition to a cloud library increases

the complexity of CAML from a language engineering

perspective. However, from an engineer’s perspective,

it allows them to reﬁne deployment models towards a

cloud environment (Ardagna et al., 2012) without di-

rect modiﬁcations to the base elements as stereotypes

are only associated to them. Moreover, this ﬂexible

typing mechanism shows its beneﬁt when changing the

reﬁnement, e.g., from an M1Medium compute service

to an M1Large one. It requires only to un-apply and

re-apply the stereotypes.

Turning the focus on the cloud library, it is built

around the concept of cloud service, which is consid-

ered as a virtual resource that is expected to be pro-

vided and managed by a cloud environment. Special-

izations of the cloud service concept capture common

cloud environment capabilities such as computational

capacity and data management. The former is embod-

ied by the compute service concept. The elastic nature

of a cloud environment is managed by dedicated scal-

ability strategies. For instance, compute services can

be automatically provisioned and released within a

certain boundary speciﬁed by the CAMLMultiplicity

(see cloud proﬁle). A storage service refers to the

data management capabilities of cloud environments.

It captures diverse solutions for structuring applica-

tion data (Fehling et al., 2014) and increasing their

availability by relaxing consistency (Vogels, 2009). To

represent relationships between cloud services, com-

munication channels are employed. They can also be

stereotyped, e. g., to express different forms of com-

munication via speciﬁc protocols.

2 shows how the cloud library and the cloud proﬁle

dedicated to Amazon AWS can be applied by means

of a simple deployment model. It consists of an au-

Amazon AWS: https://aws.amazon.com

https://cloud.google.com

https://azure.microsoft.com

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

CloudLibrary

CloudService

«Class»

ComputeService

«Node»

dataStructure:StructureKind

consistency:ConsistencyKind

ScalingKind

«Enumeration»

Auto

Manual

[*]

«CommunicationPath»

CommunicationChannel

channel

Source

channel

Target

StorageService

«ExecutionEnvironment»

«ModelLibrary» Cloud Library

ConsistencyKind

«Enumeration»

Strict

Eventual

StructureKind

«Enumeration»

Relational

KeyValue

scaling:ScalingKind

Node

Execution

Environment

Artifact

Deployment

Target

Deployment

DeployedArtifact

Dependency

[0..*]

deployment

deployedArtifact

[0..*]

Classifier

name:String [0..1]

isAbstract:Boolean = false

Coimmunication

Path

Association

classifier

[0..*]

Slot

ValueSpecification

value

[0..*]

[1..*] source

[1..*] target

UML Metamodel

Deployment

Specification

[0..*]

configuration

Enumeration

EnumerationLiteral

slot

[0..*]

ownedLiteral

[0..*]

instanceOf

CommonCloudProfile

AmazonProfile

M1Medium

«Stereotype»

instanceOf

«import»

Extension

Stereotype

CAMLElement

«Stereotype»

Element

RegionKind

«Enumeration»

CAMLMultiplicity

«Stereotype»

lower:Integer [1]

upper:String [1]

«extends»

ComputeService

«Stereotype»

region:RegionKind

M1Large

«Stereotype»

Instance

Specification

[0..*]

general

DynamoDB

«Stereotype»

StorageService

«Stereotype»

«extends»

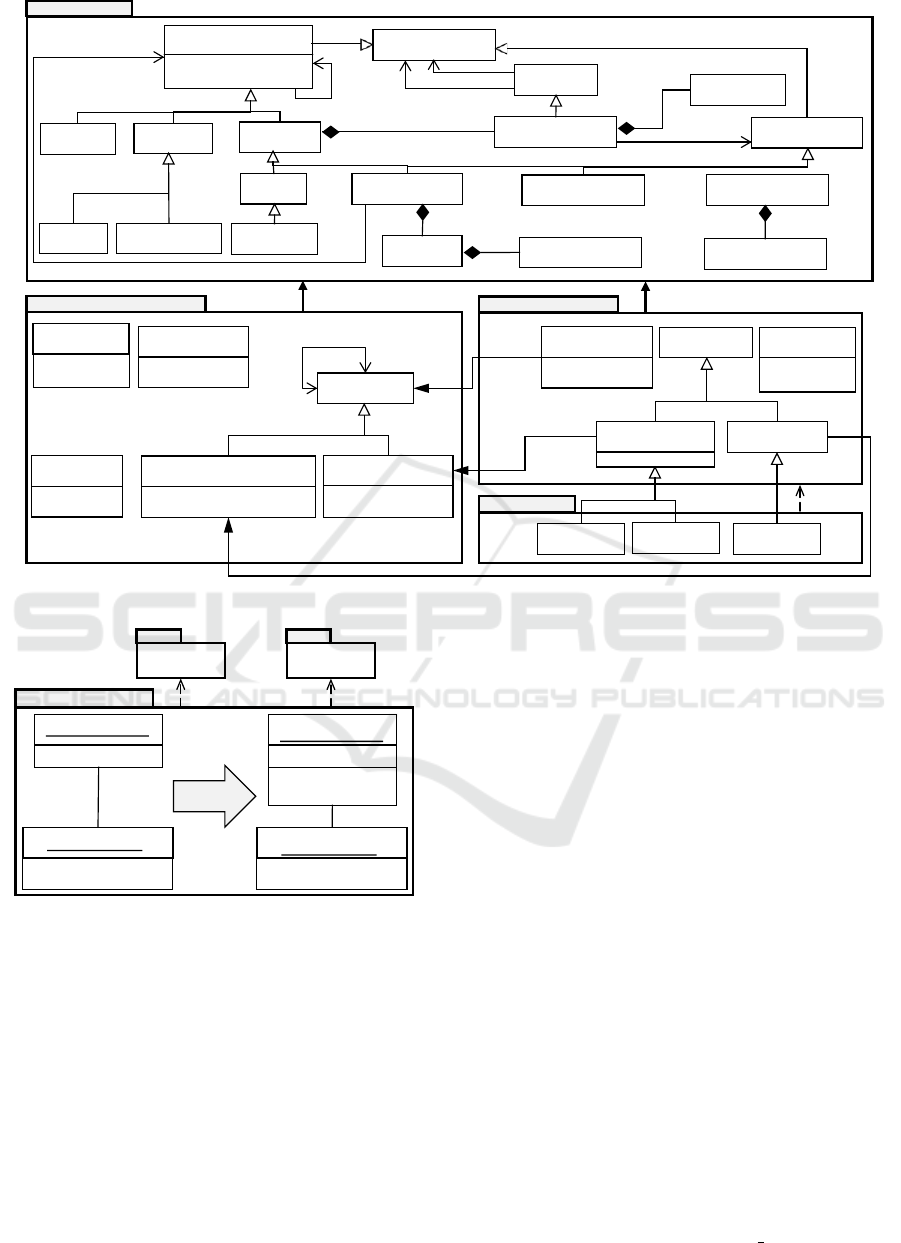

Figure 1: UML deployment concepts and CAML extensions (excerpt).

«M1Medium»

:ComputeService

dataStructure=KeyValue

consistency=Eventual

:StorageService

scaling:Auto

region=EU

«M1Medium»

«DynamoDB»

:ComputeService

dataStructure=Relational

consistency=Strict

:StorageService

scaling:Auto

Refinement

Deployment model

Cloud

Library

Amazon

Profile

«import»

«apply»

Figure 2: Example deployment model and its reﬁnement

towards the Amazon cloud environment.

tomatically scaled compute service that is connected

to a key-value storage service for managing data in

an eventually consistent way. Both cloud services are

reﬁned towards Amazon’s cloud environment. The

reﬁnement is accomplished by applying stereotypes

of the respective UML proﬁle. The modeled compute

service refers to Amazon’s “M1Medium” service of-

fering, whereas “DynamoDB” is used for the required

cloud storage capabilities.

2.2 TOSCA Metamodel

The main concepts of the TOSCA metamodel relevant

for our work are depicted in 3. We simpliﬁed some

constructs, where possible, for the sake of compre-

hension. For more details, we refer interested read-

ers to the TOSCA speciﬁcation (OASIS, 2013b) and

the primer (OASIS, 2013a). A compact overview of

TOSCA is given by Binz et al. (Binz et al., 2014).

TOSCA consists conceptually of two parts. The topol-

ogy template is used to describe the structure of cloud

applications, whereas a deployment plan is basically a

workﬂow model that can be invoked to execute certain

tasks, e. g., the provisioning of a compute service in-

stance.

Considering the topology template in more detail,

it is a directed graph that consists of node templates

and relationship templates. The former represents arti-

facts related to cloud applications and environments,

while the latter deﬁnes dependencies between those

artifacts, e. g., a PHP-based web application is hosted

on a web server which in turn is hosted on a compute

service. Both kinds of templates are typed. The type

of a node template is deﬁned by a node type, simi-

larly is a relationship type used to deﬁne the type of

a relationship template. The respective types can be

used to specify a properties deﬁnition and manage-

ment interfaces including operations with input and

output parameters. For example, a compute service

type may deﬁne a property “public address” and the

From Architecture Modeling to Application Provisioning for the Cloud by Combining UML and TOSCA

Definitions

ServiceTemplate

TopologyTemplate

NodeTemplate

Relationship

Template

Plan

[0..1]

type [1]

properties

name:String [0..1]

EntityTemplate

NodeType

RelationshipType

[0..1] validSource

[0..1] validTarget

abstract:Boolean [0..1]

name:String [1]

properties

Definition

[0..*]

EntityType

element:String [0..*]

type:String [0..*]

PropertiesDefinition

source

Element

target

Element

[0..1]

Operation

name:String [1]

input

Parameters

output

Parameters

name:String [1]

type:String [1]

Parameter

[0..*]

operations

[1..*]

derived

From

[0..1]

plans [0..*]

service

Templates

[0..*]

DeploymentArtifact

deployment

Artifacts

[0..*]

topology

Template

[1]

Interface

name:String [1]

interfaces [0..*]

name:String [1]

artifactType:String [1]

entityTemplates

[0..*]

entity

Types

[0..*]

element:String [0..*]

value:String [0..*]

Properties

minInstances:Integer [0..1]

maxInstances:Integer [0..1]

TOSCA Metamodel

ImplementationArtifact

operation

[0..1]

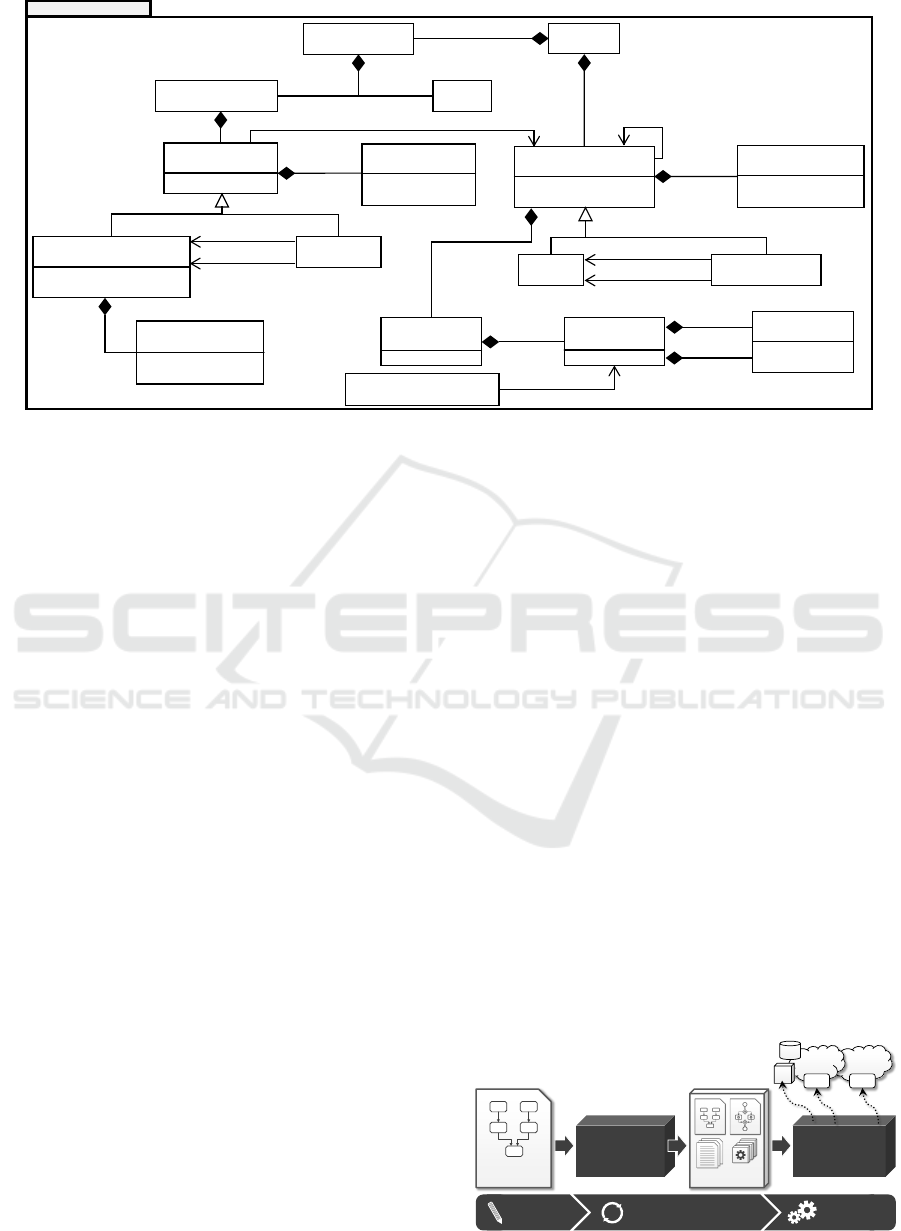

Figure 3: TOSCA metamodel (XML-based language (OASIS, 2013b)).

operations “start” and “shut down”. A template of this

type enables the conﬁguration of the public address

that is used to access the compute service instance and

provides the deﬁned operations to start the compute

service instance and shut it down. Generally, types

can inherit from each other, which fosters its reuse:

compute service types speciﬁc to a cloud environment,

e. g., Amazon EC2 compute services, may inherit from

a generic compute service type that provides common

properties and operations. An implementation artifact

is used to provide a concrete implementation for an

operation. In theory, any programming language can

be used to implement an operation. From a technical

perspective, a TOSCA runtime container must be ca-

pable to invoke the implementation of an operation.

Finally, a DeploymentArtifact refers to a concrete

implementation of a node template. For example, a

PHP-based web application is considered as a deploy-

ment artifact. Also, binaries of web server are deploy-

ment artifacts. They are required to actually install

it.

3 CAML2TOSCA

Bridging the gap between UML and TOSCA leverages

not only continuous modeling support for cloud ap-

plications but also allows engineers to carry out the

application provisioning. In this respect, the target of

the application provisioning is a cloud environment.

UML provides capabilities to model application archi-

tectures from different viewpoints. On the other hand,

TOSCA enables the provisioning, management, and

termination of cloud services and applications. In the

following, we give ﬁrst a high-level overview of the

underlying approach to combine UML and TOSCA.

Thereafter, we clarify how the intensional and ex-

tensional modeling levels introduced by UML and

TOSCA relate to each other as this is essential for

providing a useful mapping between them. Finally,

we propose an effective conceptual mapping between

UML and TOSCA where CAML takes the role of cap-

turing cloud-speciﬁc features from the perspective of

UML.

3.1 Overview

Considering the high-level overview presented in 4,

the entry point to the CAML2TOSCA approach is a

deployment model capturing the desired state of the

cloud application provisioning. Creating the deploy-

ment model is considered as part of architecture mod-

eling which usually includes to produce a variety of

models (or views on models), each of which address-

ing a concern from a certain viewpoint. In particular,

CAML deals with the class, component, and deploy-

ment viewpoint. A deployment model reﬁned towards

a target cloud environment is considered as input to

Architecture

modeling

TOSCA

tools

TOSCA

container

TOSCA CSAR

Application

provisioning

Topology generation &

plan orchestration

API

Cloud

provider B

API

Cloud

provider A

[HTTP]

[SSH]

CAML-based

deployment

Figure 4: Overview of the CAML2TOSCA approach.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

100

a tool chain capable to produce a standard-compliant

executable cloud service archive (CSAR). We collec-

tively refer to the set of tools comprised by this chain

as TOSCA tools. They allow engineers to automati-

cally generate a TOSCA-based representation consist-

ing of type deﬁnitions and the topology template that

corresponds to the injected UML deployment model

reﬁned by CAML. Based on those type deﬁnitions, the

implementations of management operations required

for the application provisioning are automatically in-

jected (Kopp et al., 2013). To enable their execution

in an appropriate order, a management plan is orches-

trated (Breitenb

ucher et al., 2014a). All the produced

artifacts by the TOSCA tools constitute the CSAR. It

can be executed by TOSCA-compliant runtime con-

tainers. The presented conceptual mapping between

UML and TOSCA provides the basis for automating

the generation of a typed TOSCA topology template

from a CAML-based deployment model.

3.2 Modeling Levels

Clarifying how the intensional and extensional level

introduced by UML and TOSCA relate to each other is

essential for realizing a conceptual mapping between

them. 5 depicts the core concepts of UML and TOSCA

to create intensional and extensional deployment mod-

els. While in UML the various sub-meta-classes of

classiﬁer are employed to model application architec-

tures from an intensional perspective, the correspond-

ing meta-class in TOSCA is type. For instance, the

compute service with the region property is consid-

ered as a concrete UML classiﬁer or TOSCA type,

respectively. At the extensional level, the meta-classes

instance speciﬁcation of UML and template of TOSCA

correspond to each other.

[1]

[*]

[1]

[*]

UML

metamodel

Entity of modeled

software system

[*]

[1]

[*]

Legend

…

Instance

Specification

Type

Template

TOSCA

metamodel

M1Medium

region : RegionKind

: M1Medium

scaling: Auto

region : EU

instance of

corresponds to

Stereotype

ComputeService

scaling : ScalingKind

ComputeService

scaling : ScalingKind

«Stereotype»

M1Medium

region : RegionKind

Classifier

«M1Medium»

region : EU

«M1Medium»

: ComputeService

scaling: Auto

Intensional

…

Extensional

Intensional

Extensional

Extension

Generalization

«apply»

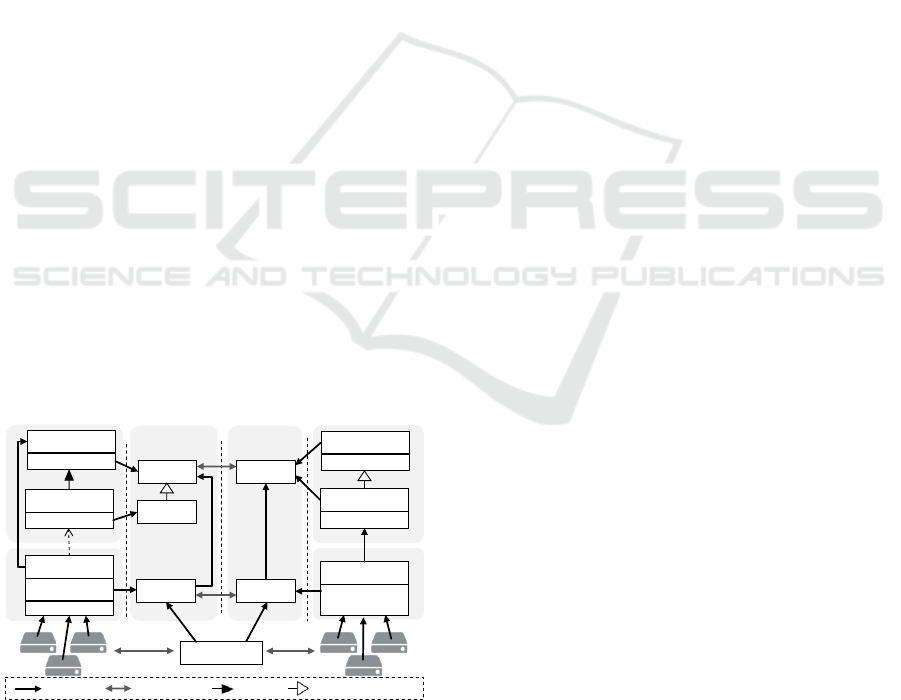

Figure 5: Comparison of TOSCA’s and UML’s intensional

level and extensional level.

Indeed, the stereotype applied to an instance spec-

iﬁcation needs to be taken into consideration to infer

the corresponding type of a produced template because

TOSCA does not directly support stereotypes. Still,

a stereotype can be considered as a type in TOSCA,

which inherits the properties of the base class extended

by the stereotype. For instance, the extension between

the “M1Medium” stereotype and the compute service

is represented as a generalization between the corre-

sponding TOSCA types. This solution implies that

a stereotyped artifact of an extensional deployment

model needs to be translated into a TOSCA template

that is typed by the type of the corresponding stereo-

type instead of its direct classiﬁer. As a result, the

stereotyped compute service instance at the exten-

sional level is represented as a TOSCA template of

type “M1Medium” instead of compute service.

Generally, elements modeled at the extensional

level are employed to designate elements of a (soft-

ware) system in the form of a one-to-one mapping

concerning their individual features (K

uhne, 2006).

Considering the instance of the “M1Medium” compute

service, it designates Amazon’s M1 medium compute

service located in the EU. Obviously, in the context of

deployment modeling, several compute services may

be comprised by a running cloud application, which

requires a multiplicity concept not only for elements

of intensional models but also for extensional models.

Regarding the former, a one-to-many or many-to-many

multiplicity is typically supported by default, i. e., it

is not explicitly deﬁned by engineers but integral part

of a metamodel. Multiplicities for elements at the ex-

tensional level determine the lower-bounds and upper-

bounds of real-world entities that are considered as

instances of these elements. This is useful for cloud

applications where cloud services are provisioned and

released on-demand. Clearly, to specify more sophisti-

cated custom rules that trigger the provisioning of new

cloud services or force to release them, dedicated lan-

guage support seems to be required (cf. e. g., (Kritikos

et al., 2014)).

3.3 Conceptual Mapping

The proposed conceptual mapping is generic in the

sense that any UML deployment model can be trans-

lated into a corresponding TOSCA model. As CAML

provides standard compliant extensions to UML in

terms of custom types, they can be considered as sup-

plementaries to UML’s metamodel. In this way, they

can be treated in the mapping process similar to UML

standard meta-classes.

Generally, concrete classiﬁers of CAML can be

represented as node types in TOSCA and their use at

the extensional level can be represented in terms of

node templates. A speciﬁc case are stereotypes which

require special treatment for inferring the type infor-

From Architecture Modeling to Application Provisioning for the Cloud by Combining UML and TOSCA

101

mation assigned to produced node templates.

Moreover, standard relationships of UML typically

applied for deployment modeling, i. e., deployment

and dependency are also addressed. They are usually

applied directly at the extensional level. As a result,

they are represented as instances of the correspond-

ing meta-classes at the extensional level instead of an

instance speciﬁcation. Both relationship types can cer-

tainly be stereotyped if additional features are required

or certain vocabularies with speciﬁc semantics need to

be introduced.

3.3.1 Intensional Level

The mapping presented in 1 acts as the basis to gen-

erate TOSCA type deﬁnitions. In fact, node types

can be generated from concrete classifers that con-

stitute CAML’s cloud library and proﬁles. Basically,

the signature of a classiﬁer including its name and

whether it is abstract or concrete can straightforwardly

be mapped to a node type. A property of a classiﬁer

can be mapped to a properties deﬁnition of the corre-

sponding node type. Similarly, an operation including

its input and output parameters can be mapped to an

operation of a node type and added to the exposed

management interface.

Regarding stereotypes, we need to distinguish

whether they extend a base class or inherit from an-

other stereotype. In the former case, the generated

node type specializes the corresponding node type of

the stereotype’s base class, whereas in the latter case,

it inherits from the node type of the super stereotype.

Finally, an association can be mapped to a relation-

Table 1: Mapping for intensional level.

UML/CAML TOSCA

uml:Model m

add Definitions d

uml:Classifier c

add NodeType nt if c.oclIsTypeOf(uml:Class)

nt.name = c.name

nt.abstract = c.isAbstract

nt.derivedFrom = -- obtain CAML base element if(c.oclIsTypeOf

(Stereotype) and c.extension.oclIsDefined())

else c.general

add PropertiesDefinition pd if c.attribute.notEmpty()

add Interface i if c.ownedOperation.notEmpty()

uml:Property p

for each uml:Property p in c.attribute

pd.element = -- create element definition from p.name

pd.type = -- create element type from p.type

uml:Operation uo

add Operation o for each uml:Operation uo

in c.ownedOperation

o.name = uo.name

add Parameter p for each uml:Parameter up in uo.ownedParamer

p.name = up.name

p.type = up.type

o.inputParameters = uo.ownedParameter where p.direction = in

o.outputParameters = uo.ownedParameter where p.direction = out

nt.interfaces.operations = o

uml:Association a

add NodeRelationship nr

nr.name = a.name

nr.validSource = a.memberEnd.at(1)

nr.validTarget = a.memberEnd.at(2)

ship type where the ﬁrst memberEnd of the association

corresponds to the validSource and the second to the

validTarget.

3.3.2 Extensional Level

The mapping presented in 2 provides the basis to gen-

erate a TOSCA topology template from a UML de-

ployment model reﬁned towards a cloud environment.

Thus, the emphasis is now placed on instance spec-

iﬁcations and the generation of corresponding node

templates and relationship templates from them. If a

stereotype is applied to an instance speciﬁcation the

inferred type refers to the node type of the stereotype

instead of the type assigned to the instance speciﬁca-

tion. Indeed, we need to consider the properties of

both the type assigned and the stereotype applied to

the instance speciﬁcation. If the assigned type refers

to an artifact, a TOSCA deployment artifact must be

created additionally. It describes the type of an artifact

that is actually deployed, e.g., a web application im-

plemented in PHP.

The deployment relationship in UML is directly

mapped to the predeﬁned TOSCA relationship tem-

plate ttl

:hosted on. Even though there is also a pre-

deﬁned TOSCA relationship template ttl:depends on

that ﬁts well to the dependency relationship in UML,

we need to consider the fact that a dependency may be

stereotyped to specialize its semantics. As a result, a

possibly applied stereotype determines on the type of

the produced relationship template.

4 VALIDATION

To validate the practical feasibility of our approach,

we implemented the CAML2TOSCA transformer on

top of Eclipse

and integrated it into the open-source

ecosystem OpenTOSCA, which supports modeling,

provisioning, and managing of TOSCA-based cloud

applications. In the following, we present the tool

chain leveraging architecture modeling and application

provisioning based on UML and TOSCA. Thereafter,

we introduce a detailed application scenario to validate

our approach in a real-life scenario.

4.1 Prototypical Implementation

We implemented a Java-based open-source prototype

of the CAML2TOSCA transformer

. It is grounded in

ttl: Tosca type library

Eclipse: http://www.eclipse.org

The open-source prototype is vailable at:

https://github.com/alexander-bergmayr/caml2tosca

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

102

Table 2: Mapping for extensional level.

UML/CAML TOSCA

uml:Model m

add Definitions d

add ServiceTemplate st

st.name = m.name

add TopologyTemplate tt

uml:InstanceSpecification is

switch(is.classifier.oclType())

case : uml:Classifier c using

rst = cs.getAppliedSubstereotype

(cpp:CAMLElement)

mst = cs.getAppliedStereotype

(cpp:CAMLMultiplicity)

add NodeTemplate nt

nt.name = is.name

nt.type = is.classifier if rst.oclIsUndefined()

else rst.name

nt.minInstances = is.getValue(mst, 'lower')

nt.maxInstances = is.getValue(mst, 'upper')

add Properties

add Element e, Value v for each uml:Slot sl

in is.slots

e = sl.definingFeature.name

v = sl.getValues()

add Element e, Value v for each uml:Property p

in rst.attribute

e = p.name

v = is.getValue(rst, p.name)

add DeploymentArtifact da if(c = uml:Artifact)

da.name = c.name

da.artifactType = -- obtain it from c.filename

case uml:Association a

using

rst = cc.getAppliedSubstereotype

(ccp:CAMLElement)

add RelationshipTemplate rt

rt.name = is.name

rt.type = is.classifier if rst.oclIsUndefined()

else rst.name

add Properties

add Element e, Value v for each uml:Property p

in rst.attribute

e = p.name

v = is.getValue(rst, p.name)

uml:Deployment d

add RelationshipTemplate rt

name = "HostedOn"

type = ttl:HostedOn

sourceElement = d.source

targetElement = d.target

uml:Dependency d

using

rst = cc.getAppliedSubstereotype

(ccp:CAMLElement)

add RelationshipTemplate rt

name = "DependsOn" if rst.oclIsUndefined()

else rst.name

type = ttl:DependsOn if rst.oclIsUndefined()

else rst.name

add Properties

add Element e, Value v for each uml:Property p

in rst.attribute

e = p.name

v = is.getValue(rst, p.name)

sourceElement = d.source

targetElement = s.target

the presented conceptual mapping between UML and

TOSCA (see 3.3). From a technical perspective, the

CAML2TOSCA model transformer comes as an Eclipse

plug-in where the conceptual mapping between UML

and TOSCA is implemented by means of the proven

model transformation language ATL

(Jouault et al.,

2008). To employ ATL, the source and target meta-

models must be available in a compatible format.

Metamodels represented by EMF’s

Ecore are di-

rectly supported by ATL. However, language deﬁni-

tions expressed in terms of an XML Schema are not

compatible with it. For that purpose, we automati-

cally reverse-engineered an Ecore-based representa-

tion from the XML-based metamodel of the TOSCA

standard (Neubauer et al., 2015). To produce an XML-

based representation of the TOSCA models generated

ATL: https://eclipse.org/atl

Ecore: https://eclipse.org/modeling/emf

by the CAML2TOSCA transformer, the standard seri-

alization mechanisms provided by EMF are exploited.

EMF provides dedicated model converters to trans-

late between the serialization formats used by Ecore

and XML Schema. We integrated the CAML2TOSCA

transformer into OpenTOSCA

as shown in 6. The

resulting system involves two kinds of users: (i) Ap-

plication engineers model their applications in UML,

which are then automatically provisioned to be used by

(ii) business users. To create the high-level architecture

of a cloud application including its desired deployment

on a cloud environment, engineers can employ the Pa-

pyrus Eclipse UML

modeling tool for which CAML

plug-ins are available. In a ﬁrst step, the deployment

model is reﬁned towards the selected target cloud en-

vironment by applying the CAML cloud proﬁle, see

. This ensures that a properly typed TOSCA-based

representation can be generated from a deployment

model created in UML and reﬁned by CAML. To sup-

port the application provisioning, the CAML deploy-

ment model is translated into a corresponding TOSCA

topology topology, see

. As the generated TOSCA

representation describes only the desired deployment

topology, executable artifacts for the actual application

provisioning are required, e. g., a script to install a web

server on a virtual machine or to conﬁgure a web appli-

cation. Those artifacts are automatically injected into

the TOSCA topology by Winery (Kopp et al., 2013),

which is part of OpenTOSCA to model TOSCA-based

cloud applications. Winery injects implementations

of all management operations required for the provi-

sioning by looking up the corresponding node types

and relationship types in a local repository and em-

bedding the required artifacts and type deﬁnitions into

the TOSCA topology, see

. To execute the required

operations, a BPEL-based deployment plan is auto-

matically generated (Breitenb

ucher et al., 2014a). It

orchestrates the operation implementations in an appro-

priate order, see

. The generated deployment plan,

topology template, and all required artifacts and type

deﬁnitions are packaged as portable CSAR. The Open-

TOSCA container consumes the CSAR for installing it.

The CSAR enables the container to provision the mod-

eled application. In fact, the generated deployment

plan is executed on a local workﬂow engine, see

As TOSCA allows implementations of management

operations using arbitrary technologies, operation im-

plementations that are not executed in the applica-

tion’s target cloud environment, e. g., local services

that wrap cloud environment APIs, are deployed on

a local

IA runtime (Implementation artifact runtime)

and bound to the deployment plan (Wettinger et al.,

OpenTOSCA: https://github.com/OpenTOSCA

Papyrus: https://eclipse.org/papyrus

From Architecture Modeling to Application Provisioning for the Cloud by Combining UML and TOSCA

103

Application

architecture

Plan generator

TOSCA

CSAR

Process

engine

runtime

Types &

Artifacts

Instantiation

request

Endpoint

e.g., URL

Business

users

Papyrus

Eclipse UML

Application

engineer

Vinothek

self-service portal

Winery

backend

OpenTOSCA

container

TOSCA

topology

template

CAML2TOSCA

transformer

CAML-based

deployment

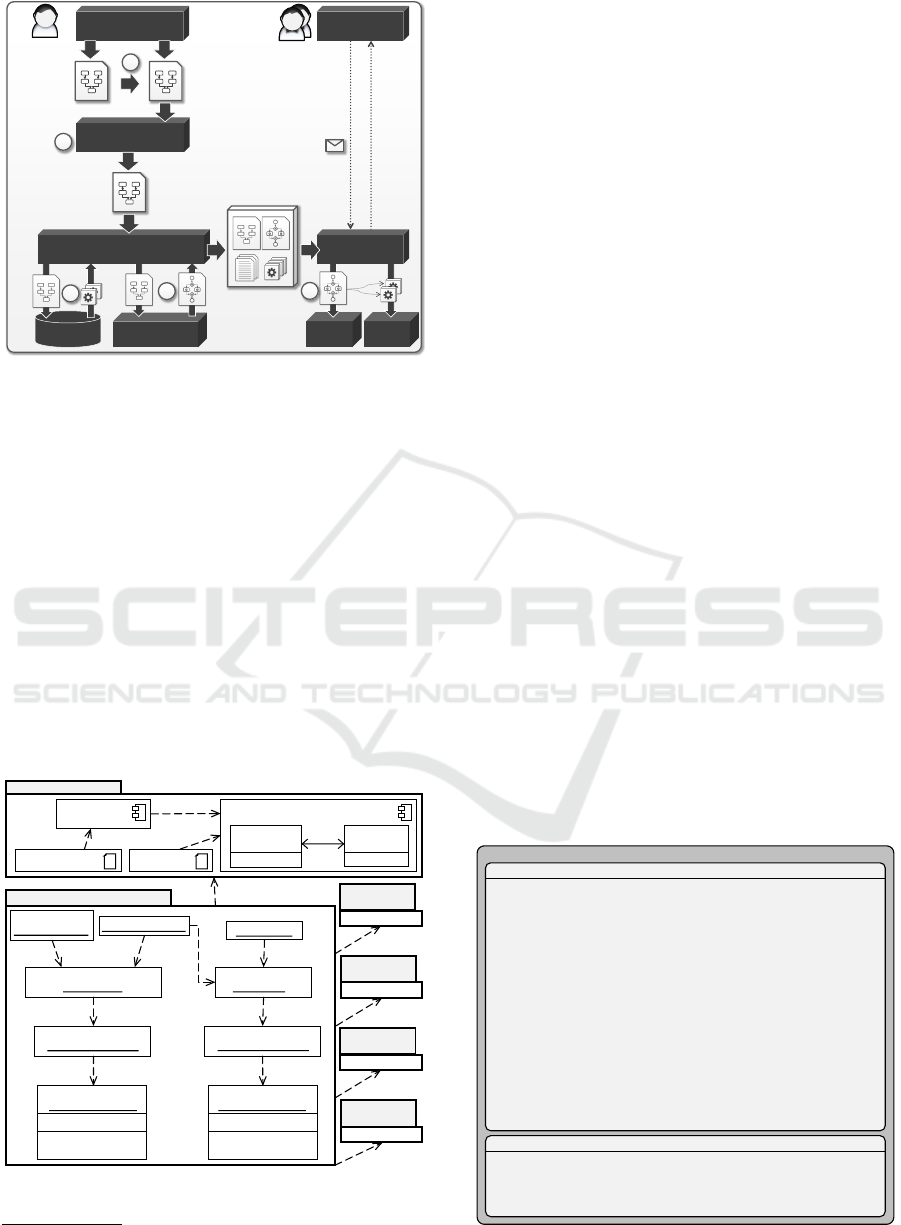

Figure 6: Tool chain for application modeling and provision-

ing to the cloud.

2014b, Wettinger et al., 2014a). Finally, business users

can trigger the provisioning of cloud applications via

the Vinothek (Breitenb

ucher et al., 2014b), which is a

self service portal that offers those applications.

4.2 CAML2TOSCA by Example

To demonstrate our approach, we refer to the Moodle

learning platform

, which is a LAMP-based appli-

cation. The CAML deployment model of Moodle is

shown in 7. It represents the application structure to-

gether with an excerpt of domain classes, the manifes-

tation of these components by deployable artifacts, and

a possible deployment of these artifacts on OpenStack.

«deploy»

OpenStack-based Deployment

«Profile»

CloudProfile

MoodleWeb

MoodleDomain

Course

- id:int

Module

- id:int

«component»

«class»

MoodleWebApp

«artifact»

«manifestation»

«use»

Moodle Components

MoodleDB

«artifact»

:WebServer

«ApacheHttp»

:MoodleWebApp

«deploy»

:ComputeService

«M1Medium»

region=EU

«deploy»

«M1Medium»

scaling=Auto

:OperatingSystem

«LinuxOS»

:DBServer

«MySql»

«deploy»

:MoodleDB

«deploy»

:ServerModule

«PHP»

«deploy»

«import»

«ModelLibrary»

CloudLibrary

«apply»

«import»

«ModelLibrary»

TypesLibrary

«import»

«Profile»

TypesProfile

«apply»

:ComputeService

«M1Medium»

region=EU

«M1Medium»

scaling=Auto

:OperatingSystem

«LinuxOS»

Figure 7: CAML deployment model for Moodle on Open-

Stack.

https://moodle.org

The depicted extensional deployment model con-

tains two components, MoodleWebApp and MoodleDB.

They are connected to a LAMP-based application stack

on top of two compute services: the ﬁrst compute ser-

vice hosts the business tier while the data tier is hosted

on the second one. Moreover, the two compute ser-

vices are reﬁned towards OpenStack. The stereotypes

are covered by CAML’s cloud proﬁle, where the base

elements to which they can be applied are captured

by the cloud library of CAML. It also covers a set

of base types to specify application stacks for cloud

deployment models.

The CAML deployment model is translated into

a functionally equivalent TOSCA topology template

by the CAML2TOSCA transformer. This topology is

enriched by Winery and packaged into a CSAR, which

can be consumed by the OpenTOSCA container. An

excerpt of the CSAR is depicted in 8. It shows the

deﬁnition of the “Apache Web Server” type assigned

to a template. Properties of the “Apache Web Server”

type are captured by an XML schema to support their

validation when they are used. To automatically pro-

vision the Moodle application, the used node types

and relationship types must be available in the model

repository of Winery for injecting the required pro-

visioning logic. We achieved this by semantically

aligning CAML’s cloud proﬁle with the respective

TOSCA types. The CAML deployment model can

thus be transformed into a corresponding TOSCA rep-

resentation without changing its overall semantics. As

a result, CAML deployment models can directly be

injected into a TOSCA-based provisioning process.

In addition, behavioral aspects, i. e., the implementa-

tions of operations required for the provisioning can

be embedded seamlessly without additional manual

effort when creating the CAML deployment model.

CSAR

Types

<xs:complexType name="tApacheWSProperties">

<xs:element default="80" name="httpdport" type="xs:int"/>

</xs:complexType>

<xs:element name="ApacheWSProperties" type="tApacheWSProperties"/>

Definitions

<ns2:ApacheWSProperties xmlns:ns2="..." xmlns="…">

</ns2:ApacheWSProperties>

</Properties>

</NodeTemplate>

</Interface>

</Interfaces>

</NodeType>

Figure 8: CSAR for Moodle on OpenStack.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

104

However, very speciﬁc stereotypes or TOSCA types,

respectively, may require further manual adaptation of

the produced TOSCA topology or deployment plan.

For example, a special script may need to be added

to the TOSCA topology in order to automatically es-

tablish a connection between two custom business

components.

5 EVALUATION

Today, several modeling tools support UML. The aim

of this study is to investigate on their methods for de-

ployment modeling in general and support for cloud-

based deployment targets in particular. We created the

deployment model of 7 in each of the selected tools

with the aim to answer the research question as fol-

lows.

: What are the methods of current UML modeling

tools to represent cloud-based deployment models and

what are the practical implications?

Our comparison criteria mainly address

(i)

the levels

at which deployment models are represented,

(ii)

the

support for multiplicities not only at type level but also

at instance level, and

(iii)

the offered possibilities to

reﬁne environment-independent deployment models

towards a selected cloud environment. Regarding the

second criterion, the support for multiplicities at the

instance level is not directly supported by the UML

standard. However, deﬁning them for modeled appli-

cation artifacts and cloud services appears to be of

particular importance. The multiplicities determine

the lower bounds of running application artifacts and

cloud services as well as their upper bounds since in

a highly scalable cloud environment (Vaquero et al.,

2011) they are provisioned as their demand increases

but also released once their demand decreases.

Comparison Criteria.

As deployment models are

speciﬁed by exploiting the intensional and extensional

level, the ﬁrst criterion refers exactly to the capability

of UML modeling tools to support both levels. The

second criterion is dedicated to the support of multi-

plicities at the extensional level because this seems of

particular interest for modeling cloud applications. Fi-

nally, to investigate the need of UML libraries and

UML proﬁles covering cloud-speciﬁc domain con-

cepts, the third criterion addresses the support of cur-

rent UML modeling tools for reﬁning deployment

models towards a target cloud environment.

−CC1 :

Is deployment modeling supported at both lev-

els intensional and extensional?

−CC2 :

Is the deﬁnition of multiplicities supported for

elements at the extensional level?

−CC3 :

Is the reﬁnement of deployment models to-

Table 3: Comparison results.

UML

Deployment Multiplicities

Cloud

Support

Modeling Tool

Intensional

level

Extensional

level

Intensional

level

Extensional

level Name Version

Altova UML 2015 supported

supported via

Object Diagram

supported

not

supported

support

ArgoUML 0.34 supported

directly

supported

not

supported

support

Enterprise Architect 9.3 supported

supported via

Object Diagram

supported supported

SOMF-

based

Magic Draw 18.0 supported

directly

supported

not

supported

support

Rational Software

Architect

8.5.1 supported

directly

supported

not

supported

partial

support

Papyrus 1.0.0 supported

supported via

Object Diagram

supported

not

supported

support

Visual Paradigm 12.1 supported

supported via

Object Diagram

supported

not

supported

support

wards a cloud environment supported?

Selected Tools.

The selected set of commercial

and open-source UML modeling tools that claim to

support deployment modeling are summarized in Ta-

ble 3.

Evaluation Procedure.

First, we ﬁrst imported the

deployment model of 7 including the required cloud

library and proﬁle into the modeling tools. Thereafter,

we evaluated the capabilities of the modeling tools of-

fered in the standard settings and explored the different

wizard conﬁgurations if supported.

Results.

The results of our study are summarized

in 3. All evaluated UML modeling tools support both

the intensional and extensional level to create deploy-

ment models. Support for the extensional level slightly

differs between the tools because some of them offer to

directly create instances of deployment artifacts, where

the respective instance speciﬁcation assigned with a

classiﬁer is generated automatically, i.e., without addi-

tional user interaction. Regarding multiplicities at the

extensional level, only Enterprise Architect supports

them by default. Most of the tools lack cloud-based re-

ﬁnement support for UML deployment models. Only

Rational Software Architect introduces a cloud node

concept which is resembled by CAML’s compute ser-

vice. This emphasizes the value of CAML not only to

leverage the reﬁnement of deployment models towards

a cloud environment but also as a bridge from UML to

TOSCA. Finally, even though this evaluation focuses

on UML, it is worth noting that Enterprise Architect

supports describing and analyzing cloud environment

topologies as part of the service-oriented modeling

framework (SOMF)

6 RELATED WORK

Several approaches introduce a considerable set of

cloud modeling concepts and propose tool sup-

SOMF: http://www.sparxsystems.com/somf

From Architecture Modeling to Application Provisioning for the Cloud by Combining UML and TOSCA

105

port to automate the application provisioning. The

Blueprint (Nguyen et al., 2011) approach describes

service-based applications by coarse-grained de-

ployment artifacts that are connected with con-

crete cloud services. Describing such cloud ser-

vices in an XML-based language is supported by

CloudML-UFPE (Gon

c¸

alves et al., 2011). Similarly,

Zephyrus (Cosmo et al., 2014) allows specifying ser-

vice types associated with constraints, e.g., the maxi-

mum number of replicas of an application component,

that are attempted to be satisﬁed when an extensional

deployment model is derived from an initial set of

types. Dependencies between them are expressed via

ports through which the derivation of possible deploy-

ment conﬁgurations can be automated. The notion of

ports is also exploited by CloudML (Ferry et al., 2013)

to specify cloud-oriented deployments. Both Zephyrus

and CloudML come with dedicated tools to automate

the software provisioning based on speciﬁed deploy-

ment models, which is also supported by the approach

of Holmes (Holmes, 2014) and StratusML (Hamdaqa

and Tahvildari, 2015). Creating deployment models is

addressed by CloudMIG (Frey and Hasselbring, 2011)

where the main focus is on migration scenarios to the

cloud. Migrating existing applications to the cloud is

also addressed by MOCCA (Leymann et al., 2011).

It allows the representation of the architecture and

deployment of existing applications. Moreover, it is

capable to derive an optimal clustering of architec-

tural elements and concrete implementation units that

are assigned to virtual resources of a cloud environ-

ment. They are described in the Open Virtualization

Format (DMTF, 2013) (OVF) to provide support for

the actual resource provisioning. OVF is extended by

RESERVOIR-ML (Chapman et al., 2012) with primi-

tives to describe applications in terms of components

and elasticity rules that control the virtual machine con-

ﬁgurations in an OpenNebula

cloud environment.

Modeling concepts of all these approaches are re-

ﬂected by our approach on a level of abstraction that

supports engineers in the design and deployment of

cloud applications. As a result, modeling concepts

required to, e. g., achieve the optimization of an appli-

cation deployment (cf. (Frey and Hasselbring, 2011)),

express elasticity rules (cf. (Chapman et al., 2012)), or

exploit workload models (cf. (Ferry et al., 2013,Ham-

daqa and Tahvildari, 2015)) are not completely cap-

tured by our approach. However, it enables deploy-

ment models to be speciﬁed in such a way that they

are seamlessly applicable on UML models usually cre-

ated throughout application modeling activities, e.g.,

class models to specify the realization of components,

because our approach is based on UML. Consequently,

OpenNebula: http://opennebula.org

well-connected model-based views on cloud applica-

tions from both perspectives environment-independent

as well as environment-speciﬁc are supported. The

reﬁnement of the former is supported by UML pro-

ﬁles in general (Bergmayr et al., 2014b) and CAML’s

cloud proﬁle in particular. Cloud-speciﬁc stereotypes

allow extensional deployment models to be reﬁned to-

wards a cloud environment without re-modeling of the

deployed artifacts as it is the case for existing cloud

modeling approaches. This additional ﬂexible typing

dimension and the beneﬁts of a multi-viewpoint lan-

guage exploited by our approach differentiates it from

existing approaches.

Cloud modeling support based on UML is pro-

posed by MULTICLAPP (Guill

en et al., 2013). It

presents a UML proﬁle for the purpose of represent-

ing applications components that are expected to be

deployed on a cloud environment. As MULTICLAPP

does not support reﬁning application components to-

wards cloud services provided by a certain cloud en-

vironment, our approach is different in the sense that

CAML’s cloud proﬁle is applied to achieve exactly this

environment-speciﬁc reﬁnement. Moreover, translat-

ing deployment models reﬁned towards a cloud envi-

ronment into TOSCA brings management support to

engineers as TOSCA-compliant containers enable au-

tomatic application provisioning based on extensional

deployment models.

7 CONCLUSION

Our proposed CAML2TOSCA approach bridges the

gap between UML and TOSCA. As a result, engineers

are capable to combine the capabilities of both lan-

guages where the deployment viewpoint is exploited

for realizing the conceptual mapping between them.

Cloud-speciﬁc extensions to UML called CAML are

exploited to accomplish the bridge towards TOSCA.

To automate the translation from UML to TOSCA,

we implemented the CAML2TOSCA transformer. It

is grounded in the presented conceptual mapping be-

tween the two languages and provides the necessary

glue to leverage a full-ﬂedged tool chain for architec-

ture modeling and application provisioning based on

UML and TOSCA. While the evaluation of our ap-

proach shows its practical value, several lines of future

work need to be investigated. We aim to realize a repos-

itory of common deployment types applicable to both

UML and TOSCA. Bi-directional transformations at

the intensional level can play a key role to synchronize

those types between UML and TOSCA and possibly

other languages, such as CloudML. Finally, provid-

ing simulation support for deployment models to sup-

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

106

port prediction about non-functional properties such

as costs and performance before the actual application

provisioning is carried out seems highly desirable. We

plan to explore how fUML (OMG, 2013) can be em-

ployed to provide behavioral semantics for CAML in

a similar way as it can be used to deﬁne behavioral se-

mantics of MOF-based metamodels (Mayerhofer et al.,

2013).

ACKNOWLEDGEMENTS

This work is co-funded by the EC, grant no. 317859

(ARTIST project), and the German government, grant

no. 03ET4018B (NEMAR project).

REFERENCES

Ardagna, D., Nitto, E. D., Casale, G., Petcu, D., Mohagheghi,

P., Mosser, S., Matthews, P., Gericke, A., Ballagny, C.,

D’Andria, F., Nechifor, C., and Sheridan, C. (2012).

MODAClouds: A Model-Driven Approach for the De-

sign and Execution of Applications on Multiple Clouds.

In MISE@ICSE.

Armbrust, M., Fox, A., Grifﬁth, R., Joseph, A. D., Katz,

R. H., Konwinski, A., Lee, G., Patterson, D. A., Rabkin,

A., Stoica, I., and Zaharia, M. (2010). A View of Cloud

Computing. Commun. ACM, 53(4).

Bergmayr, A. et al. (2014a). Cloud Modeling Languages by

Example. In SOCA.

Bergmayr, A. et al. (2014b). JUMP - From Java Annotations

to UML Proﬁles. In MODELS.

Bergmayr, A. et al. (2014c). UML-based Cloud Application

Modeling with Libraries, Proﬁles, and Templates. In

CloudMDE@MoDELS.

Binz, T. et al. (2013). OpenTOSCA – A Runtime for

TOSCA-based Cloud Applications. In ICSOC.

Binz, T. et al. (2014). TOSCA: Portable Automated De-

ployment and Management of Cloud Applications. In

Advanced Web Services. Springer.

Breitenb

ucher, U. et al. (2014a). Combining Declarative and

Imperative Cloud Application Provisioning based on

TOSCA. In IC2E.

Breitenb

ucher, U. et al. (2014b). Vinothek – A Self-Service

Portal for TOSCA. In ZEUS.

Chapman, C., Emmerich, W., M

arquez, F. G., Clayman, S.,

and Galis, A. (2012). Software Architecture Deﬁnition

for On-Demand Cloud Provisioning. Cluster Comput.,

15(2).

Cosmo, R. D., Lienhardt, M., Treinen, R., Zacchiroli, S.,

Zwolakowski, J., Eiche, A., and Agahi, A. (2014). Au-

tomated synthesis and deployment of cloud applica-

tions. In ASE.

DMTF (2013). DMTF, Open Virtualization Format (OVF).

Version 2.0.0.

Fehling, C. et al. (2014). Cloud Computing Patterns - Fun-

damentals to Design, Build, and Manage Cloud Appli-

cations. Springer.

Ferry, N., Rossini, A., Chauvel, F., Morin, B., and Solberg,

A. (2013). Towards Model-Driven Provisioning, De-

ployment, Monitoring, and Adaptation of Multi-cloud

Systems. In CLOUD.

Frey, S. and Hasselbring, W. (2011). The CloudMIG Ap-

proach: Model-Based Migration of Software Systems

to Cloud-Optimized Applications. Intl. J. Advances in

Software, 4(3&4).

Gon

c¸

alves, G. E., Endo, P. T., Santos, M. A., Sadok, D., Kel-

ner, J., Melander, B., and M

angs, J. (2011). CloudML:

An Integrated Language for Resource, Service and Re-

quest Description for D-Clouds. In CloudCom.

Guill

en, J., Miranda, J., Murillo, J. M., and Canal, C. (2013).

A UML Proﬁle for Modeling Multicloud Applications.

In ESOCC.

Hamdaqa, M. and Tahvildari, L. (2015). Stratus ML: A

Layered Cloud Modeling Framework. In IC2E.

Holmes, T. (2014). Automated Provisioning of Customized

Cloud Service Stacks using Domain-Speciﬁc Lan-

guages. In CloudMDE@MoDELS.

Jamshidi, P., Ahmad, A., and Pahl, C. (2013). Cloud Migra-

tion Research: A Systematic Review. IEEE T. Cloud

Computing, 1(2).

Jouault, F., Allilaire, F., B

ezivin, J., and Kurtev, I. (2008).

ATL: A model transformation tool. Sci. Comput. Pro-

gram., 72(1-2):31–39.

Kopp, O. et al. (2013). Winery – modeling tool for TOSCA-

based cloud applications. In ICSOC.

Kritikos, K., Domaschka, J., and Rossini, A. (2014). SRL: A

scalability rule language for multi-cloud environments.

In Proc. of Intl. Conf. on Cloud Computing Technology

and Science (CloudCom), pages 1–9.

uhne, T. (2006). Matters of (meta-)modeling. Software

and System Modeling, 5(4).

Leymann, F. (2011). Cloud Computing. it - Information

Technology, 53(4).

Leymann, F. et al. (2011). Moving Applications to the Cloud:

An Approach Based on Application Model Enrichment.

Int. J. Cooperative Inf. Syst., 20(3).

Mayerhofer, T., Langer, P., Wimmer, M., and Kappel, G.

(2013). xMOF: Executable DSMLs based on fUML.

In SLE.

Neubauer, P. et al. (2015). XMLText: From XML Schema

to Xtext. In SLE.

Nguyen, D. K., Lelli, F., Taher, Y., Parkin, M., Papazoglou,

M. P., and van den Heuvel, W. (2011). Blueprint Tem-

plate Support for Engineering Cloud-Based Services.

In ServiceWave.

OASIS (2013a). TOSCA Primer v1.0. http://docs.oasis-

open.org/tosca/tosca-primer/v1.0/tosca-primer-

v1.0.html.

OASIS (2013b). TOSCA v1.0. http://docs.oasis-

open.org/tosca/TOSCA/v1.0/os/TOSCA-v1.0-

os.html.

OMG (2013). Semantics of a Foundational Subset

for Executable UML Models (fUML), Version 1.1.

http://www.omg.org/spec/FUML/1.1.

From Architecture Modeling to Application Provisioning for the Cloud by Combining UML and TOSCA

107

Vaquero, L. M., Rodero-Merino, L., and Buyya, R. (2011).

Dynamically Scaling Applications in the Cloud. SIG-

COMM Comput. Commun. Rev., 41(1).

Vogels, W. (2009). Eventually Consistent. Commun. ACM,

52(1).

Wettinger, J. et al. (2014a). Streamlining Cloud Management

Automation by Unifying the Invocation of Scripts and

Services Based on TOSCA. IJOCI, 4(2).

Wettinger, J. et al. (2014b). Uniﬁed Invocation of Scripts

and Services for Provisioning, Deployment, and Man-

agement of Cloud Applications Based on TOSCA. In

CLOSER.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

108
