A Markovian-based Approach for Daily Living Activities

Recognition

Zaineb Liouane

, Tayeb Lemlouma

, Philippe Roose

, Fréderic Weis

and Hassani Messaoud

LARATSI, Monastir University, Ibn El Jazzar, Monastir, Tunisia

IRISA, Rennes1 University, Lannion, France

LIUPPA/T2i, Pau and the Adour Countries University, Anglet, France

IRISA, Rennes1 University, Rennes, France

Keywords: Smart Home, Elderly Person, Home by Room Activities Language, Hierarchical and Hidden Markov

Model, Activities, Scenarios, Prediction.

Abstract: Recognizing activities of daily living plays an important role in healthcare. It is necessary to use an adapted

model to simulate the human behavior in a domestic space to monitor the patient harmonically and to

intervene in the necessary time. In this paper we tackle this problem using the hierarchical hidden Markov

model for representing and recognizing complex indoor activities, we propose a new grammar “Home By

Room Activities language” to facilitate the complexity of human scenarios and hold us account to the

abnormal activities.

1 INTRODUCTION

Elderly people have difficulties with notions of

everyday life and are in a situation of dependency.

They have difficulties or inability to perform

redundant tasks as bathing, feeding; performs basic

actions (getting up, moving); communicate

(speaking, hearing).

The concept of smart home allows our seniors to

continue to live as possible, while remaining free at

home without changing their habits. Their own

home is important as they have they habits and

memories. Moreover, people live in a better health

(physical & psychological) at home instead of being

in old people’s home as well as it is much more

economic. This is why resources are currently

organizing to keep our seniors at home. Thanks to

new technologies, smart homes allow the

notification of abnormal situations like fall, malaise

or abnormal behavior and locate the person if (s) he

is outside his/her home/garden. The recognition and

the evaluation of human behavior, activities and

interactions with the objects in a smart home is still

an opened issue. In order to have the good, certain,

accurate and realistic results, it is necessary to

identify the efficient models and languages for the

recognition of the behavior.

To describe the human behavior we propose a

new grammar ”Home By Room Activities language

(HBRAL)” used to convert the real person scenario

to a simple and comprehensive scenario. The

principle of this grammar is to classify the activities

of the person by room type in order to facilitate the

recognition of normal and abnormal scenarios.

Thereafter we will use the Hidden Markov model to

predict the activities of elderly at home used our

grammar. It is a well known framework to deal with

uncertainty and dynamic data. Such model is often

used for action recognition. In order to be more

precise, we will use an extension called Hierarchical

hidden Markov model (HHMM); it is generally used

for modeling complex activities in order to gain a

precise recognition.

This model is a structured multi-level stochastic

process that can be visualized as a tree structured

variant of the HMM. It is suitable for the expression

of user action data and it can find the prediction

value about collected information and current

situation. In this paper, we use the HHMM

algorithm to obtain a reliable recognition person’s

activities. Thereafter, we calculate the likelihood

ratio of the HHMM model between the prediction

and the real activities. This paper is structured as

214

Liouane, Z., Lemlouma, T., Roose, P., Weis, F. and Messaoud, H.

A Markovian-based Approach for Daily Living Activities Recognition.

DOI: 10.5220/0005809502140219

In Proceedings of the 5th Inter national Confererence on Sensor Networks (SENSORNETS 2016), pages 214-219

ISBN: 978-989-758-169-4

follows: the next section presents the related works.

In Section 3, we define a model for the recognition

of scenarios and behaviors. In Section 4, we present

the results of the implementation and simulation of

our model. Finally, we present the estimation of our

model we finish with a conclusion.

2 RELATED WORK

The functional tasks in daily lives of old seniors are

divided into two parts, ADL’s and IADL’s (Msahli et

al., 2014) and (Lemlouma et al.,2013). The activities

of daily living (ADL) are the basic tasks of everyday

life, such as eating, bathing, dressing, walking,

toileting, and transferring.

The Instrumental activities of daily living

(IADL’s) are the activities that people do since they

are awake such as dressing homework, phone use,

etc. In this part we study the related work of the

language used to describe the ADL and IADL’s of

the elderly precisely the language used to predict

scenario of the person.

A recognition language is used to define a set of

scenario to recognize the behavior of the person.

Many researchers propose languages to recognize

the human behavior in a smart home. In (Neyatia et

al), authors propose a specific language: Human

Behavior Scenario Description Language (HBSDL)

to simulate the human dependency in a domestic

environment and to describe the scenario of the

human behavior during a large period of time. In

(Zhang et al., 2011), authors present an extended

grammar system SCFG (Stochastic Context-Free

Grammars) for complex visual event recognition. It

is based on rule induction and multithread parsing.

In (Aritoni et al., 2011), the authors define the Event

Recognition Language (ERL). It is a generative

language able to define most of the events in daily

life and especially the one interested in surveillance

applications.

3 PROPOSED MODEL

Our study focuses on a particular kind of the resident

that is elderly in order to provide them with required

help and assistance. The considered scenarios

includes: the person’s behavior, the interaction with

the system and surrounding objects and consider the

person’s degree of dependency. These scenarios will

consider the constraints and difficulties that can face

the resident is his daily life.

We define a scenario as the set of activities

performed by the elderly person. The considered

actions are those performed towards the system,

such as: Off, On, Alarm, Warning. It is necessary to

use an efficient model to recognize the scenario of

the elderly person.

The majority of previous works were based on

the Markov model as a model for the recognition of

old people’s activities in a smart home.

Unfortunately, these models focus on particular

events. For instance, (Singla et al., 2008) and (Kang

et al., 2010) focuses on the “preparing diner”

activity. Seen the good results obtained with the

Markov model used for the recognition of particular

activities, we choose to use it for the recognition of

the main activities achieved by the resident during a

day to take a generic and more developed solution.

In order to obtain a good result, we should focus on

the accuracy and precision of information to

intervene as early as possible in case of emergency.

3.1 The Hierarchical Markov Models

This paper tackles the problem of studying and

recognizing human activities of daily living (ADL),

which is an important research issue in building a

pervasive and smart environment. In dealing with

ADL, we argue that it is beneficial to exploit both

the inherent hierarchical organization of the

activities and their typical duration. The Hierarchical

Hidden Markov Model (HHMM) is an extension of

the hidden Markov model to include a hierarchy of

the hidden states for the recognition of complex

actions. This model consists a layered structure of

Markov Models (MM). On the top levels (the parent

level) each state activates another MM on the child

level. In this study we propose to use the HHMM, a

rich stochastic model that has recently been

extended to handle shared structures, for

representing and recognizing a set of complex

indoor activities.

The advantages of hierarchical recognition are:

Recognition of various levels of abstraction,

simplification of low-level models and response to

novel data by decreasing details. In this paper, we

apply the HHMM to predict and recognize the

behavior of people in a smart home network.

3.2 The Grammar Proposition

In this section, we propose to use a grammar to

recognize and simplify the complex activities; the

aim of this grammar is to classify the structure of the

person’s activities and to give meaning of used

A Markovian-based Approach for Daily Living Activities Recognition

215

model. The activity of daily living based on a set of

reaction between information, object and

environment in the “home”. We can consider that

each environment in the” home” has a specific

activity. Indeed, the home environment includes the

physical home structure and the place where the

activities are achieved (number of rooms, type of

rooms, etc.). For each room, we store data about:

type (Kitchen/Living-room/ Bedroom/etc), width,

length, height and a list of all the objects that exist in

the room. One makes many activities. Each activity

has its one environment in the ”home”. For example:

“the person cannot prepare a meal in the bedroom”,

“the person cannot sleep in the bathroom”, etc. In

order to simplify the recognition of activities, we

tailor each activity to the location where it is

performed. We consider a common home

architecture that consists of: Bedroom, Bathroom

(including toilets), Kitchen and Living room. In this

study, we propose to classify the activity of the

person by the room of home as shown in table 1, we

take consider the ADL and IADL activities.

The variables of the following algorithm are:

T.K: Usual time passed in kitchen, T.Bth : Usual

time passed in bathroom., T.Bed: Usual time passed

in bedroom., T.Lvr : Usual time passed in Living

Room. New.TK: New time passed in kitchen,

New.TBth: New time passed in bathroom.

New.TBed: New time passed in bedroom.

New.TLvr : New time passed in Living Room. Tic

and toc: predefined function to calculate the time

spent in each state.

Our grammar “Home By Room Activities

Language (HBRAL)” can be described using a

hierarchical hidden Markov model (HHMM).

Algorithm of HBRAL: The following algorithm

defines clearly the operation of our grammar:

Switch (type of room){

Case {Kitchen}

tic;

For (i=1; i<=T.K; i++)

{Activity=Activities-Kitchen;

Object=Object-Kitchen;}

New.T.K=toc;

break;

Case {Bathroom}

tic;

For (i=1; i<=T.Bth; i++)

{Activity=Activities-Bathroom;

Object=Object-Bathroom;}

New.T.Bth=toc;

break;

Case {Bedroom}

tic;

For (i=1; i<=T.Bed; i++)

{Activity=Activities-Bedroom;

Object=Object-Bedroom;}

New.T.Bed= toc;

break;

Case {Living room}

tic;

For (i=1; i<=T.Lvr; i++)

{Activity=Activities-Livingroom;

Object=Object-Living room;}

New.T.Lvr = toc;

break; }

Consequently we describe the HBARL using

HHMM to obtain a better result.

In this paper, we apply the HHMM with a shared

structure to predict and recognize the behaviors of

the inhabitant in a smart home network for the

elderly person.

The main and sub-activities are mapped into a

shared-structure HHMM, which has fourth levels.

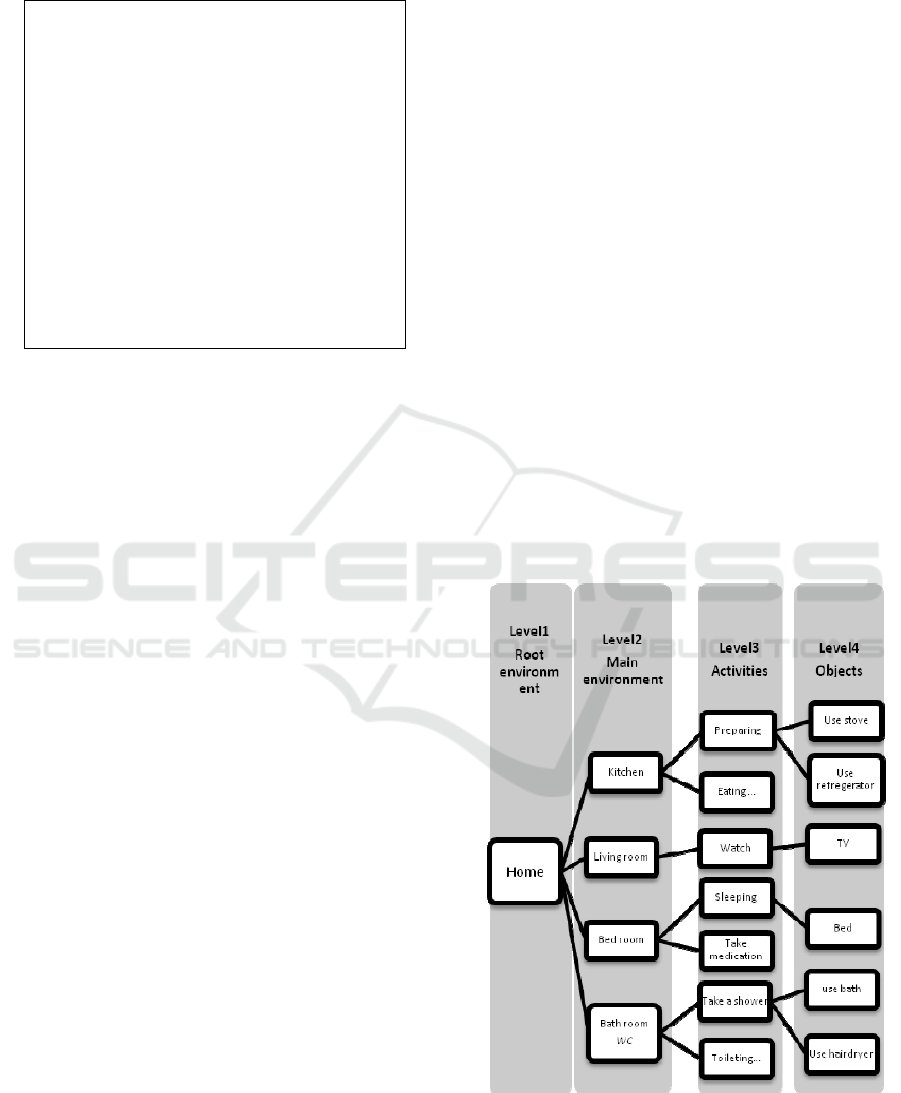

Figure 1 shows the architecture of the HHMM

model based on our grammar. We show the

relationship between levels. These relationships are

defined in a strict and mono-directional hierarchy:

from top to down. Always the lowest level depends

on the highest previous one. Each level contains the

elements of the same nature. For example, the

second level includes the set of possible places.

Level 1 is the root environment. Level 2 is the

main environment. Level 3 and 4 are the activities

and objects, respectively. All these levels have a

direct link between them, for example if the person

turn-on the TV, the following action will be -most

probably- watching TV. Consequently, we cannot

pass from level n to level n+2. These links allow us

to make a complete scenario starting with the kind of

place where the action is realized by the resident.

Concerning the “level 3”each activity can have from

1to n object(s) with n is the number of objects used

in this activity. The link between each object in the

same “level 4” is the <and>.

Table 1: Activity and objects classed by the room.

Kitchen

Bath

room

Bed

room

Living

room

Activities

preparing a

meal,

eating,

drinking,

using a stove,

washing

taking a

shower,

taking a

bath,

toileting

sleeping,

dressing,

reading a

book,

Watching a

TV, staying

in a bank,

read a

ournal book,

drink a

coffee,

Objects

Refrigerator

Coffee filter

Stove,

dishwasher,

etc.

Bath

Sink

Toilet,

etc.

Clothes

Radiator

Bed,

etc.

Radiator, etc.

SENSORNETS 2016 - 5th International Conference on Sensor Networks

216

Algorithm based on detection of abnormal

activities:

If ( New.T.K > PDT.K) then

{Printf(“alert abnormal

activity kitchen”);}

Else if( New.T.Bth > PDT.Bth)

then

{Printf(“alert abnormal

activity bathroom”);}

Else If ( New.T.Bed >

PDT.Bed) then

{Printf(“alert abnormal

activity bedroom”);}

Else If ( New.T.Lvr >

PDT.Lvr) then

{Printf(“alert abnormal

activity living room”);}end

Detection of abnormal activities: With our

grammar HBRAL we can easily identify the

abnormal activity precisely the unusual activities

concerning the location in home. The last algorithm

present the detection way of the abnormal activity.

With PDT: Possible Delay Time.

PDT=Usual time passed +30 minute (1)

We can notice that our algorithm helps the

supervised to detect the abnormal activities related

by the location.

The advantage of the HBRAL described by

HHMM:

Our proposed model (HBRAL+HHMM)

provides several advantage, first the principle of this

model is to describe the person scenario from more

general to more specific, The HBRAL based on

HHMM reduce the ambiguity and the redundancy

of data, additional decrease the search filed and

ensures easily the detection of abnormal concerned

the location.

4 SIMULATION, RESULTS AND

DISCUSSION

We propose to use the HBRAL grammar based on

hierarchical hidden Markov model (Section 3.1) to

recognize the activities of elderly. In this model,

each level is simulated as a simple hidden Markov

model following the normal law as a probability law

with a standard deviation in order to evaluate the

likelihood ratio of this model.

4.1 Implementation

We consider a piece of three rooms where each

room is equipped with several sensors (presence,

motion, etc.). The information provided by each

sensor allows to know about the activities and the

presence of the person. In our simulation, each

rooms is linked to specific activity. The simulation

period is five hours. We simulate these activities in a

random way. Each scenario has a specific set of

sensors regarding each room. In our case, we

simulate these scenarios during 5 hours: from 7:00

to 12:00 A.M. Each room contains a specific

scenario which contains from one to n activities.

Example: at 7:00 A.M. the person wakes up in the

bedroom, takes toileting at 7:10 in the bathroom. In

the kitchen, our resident prepares his lunch at 8:00.

Afterwards, he washes the dishes then go to the

living room to watch TV at 9:15. Later on, our

resident has entered the kitchen to prepare his meal

at 11:00 then he takes his medication in the bedroom

at 11:45.

This example contains three scenarios:

The

kitchen scenario: preparing lunch at 8:00;

Wash these dishes at 8.30; preparing meal at

11:00. The bedroom scenario: wakes up at

7:00; Take medication at 11.45. The living

room scenario: watch TV at 9.15.

Figure 1: The architecture of the HHMM.

In order to simulate the current model, it is

necessary to describe these parameters (N, A, B, Π)

A Markovian-based Approach for Daily Living Activities Recognition

217

where N is the number of state, A is the transition

matrix, B is the emission matrix and Π is the initial

matrix. The following matrices A, B and Π are row

stochastic, which means that each element is a

probability and the elements of each row sum to 1,

that is, each row is a probability distribution. In this

case, we implement our scenarios with the following

matrices.

Transition matrix: this matrix represents the

probabilities of the transition between the states

where each state represents a human scenario.

Scenario K Scenario L Scenario B

Scenario K 0.1 0.8 0.1

Scenario L 0.05 0.9 0.05

Scenario B 0.05 0.15 0.8

Initial matrix: This matrix represents the

probabilities of the initial state of our scenario.

Scenario K Scenario L Scenario B

Π 0.7 0.2 0.1

Emission matrix: contains the emission probabilities,

the probability to emit each observation for each

state.

Scenario K Scenario L Scenario B

B 0.1 0.7 0.2

4.2 Evaluations

We implemented the hidden Markov model using

the Matlab. We tested performances of this model

from the viewpoint of the recognition of behavior

and human activity. Figure 2 shows the hidden states

for each room (the first three curve) and the

observation of our model (the fourth curve). Each

targeted state has a specific scenario. The scenario

kitchen is the activities realized in the kitchen

according to exact times (the first curves), the

scenario Living room is the activities realized in the

kitchen according to exact times (the second curves),

the scenario Bathroom is the activities realized in the

kitchen according to exact times (the third curves).

The fourth curves show the observation of these

hidden states. Using the observation sequence O, the

activities of the person can be estimated as shown in

figure 2 using the transition matrix A and the initial

matrix Π. The fourth curve (Observation) shows the

prediction of the three scenarios this curve present

the evolution of the predicted hidden states that

represent the evolution of the scenario observation

over time; the observation O

is connected to the

hidden state Q

at the same time.

= h(Q

) + Vn (2)

With an additive noise V

independent Q

50 100 150 200 250 300

Scenario Living room

50 100 150 200 250 300

Scenario Kitchen

50 100 150 200 250 300

Scenario Bathroom

0 50 100 150 200 250 300

-20

Observation

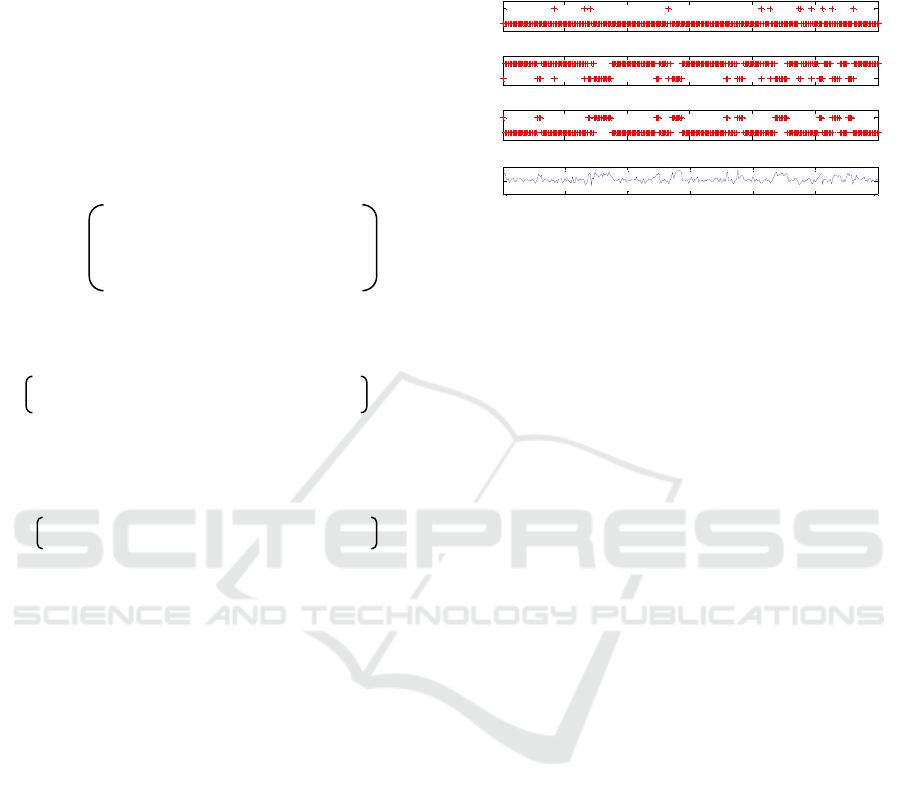

Figure 2: Hidden Markov Model: hidden state and

observation.

Let Ω be a hidden Markov model and O a

sequence of acoustic observations. The recognition

of this sequence is done by finding the Ω model that

maximizes the probability P (Ω | O) (probability that

Ω model generates a sequence of acoustic vectors

O). This probability is also called posterior

probability. Unfortunately, it is not possible to

directly compute the P (Ω | O) probability.

However, we can compute the probability that a

particular model could generate a certain sequence

of acoustic vectors O i.e. P (O | Ω).

5 ESTIMATION

In this section we estimate the three scenarios

(Scenario L, Scenario K, Scenario B) according to

the time. Figure 3 shows the estimation of the

hidden state” in this context the state is the

place/location of the person” for each room in (300

min) using the scenario L (Living-room scenario), K

(Kitchen) and B (Bath-room). Figure 3 shows the

estimation of hidden states in terms of each room;

each color represents the progress of each activity in

terms of time. From Figure 3 we noticed that every

activity runs independently.

5.1 Likelihood Measurements

To test the likelihood rate of obtained observation by

the Markov model must compare our result

"predicted" with the “real”; from this comparison we

can see the performance and the accuracy of our

detection model. From these results we can properly

assess the errors to know the likelihood rate and we

later conclude the efficiency of our results.

SENSORNETS 2016 - 5th International Conference on Sensor Networks

218

0 50 100 150 200 250 300

Scenario K

Scenario L

Scenario B

Time (mi nutes)

Scenarios room

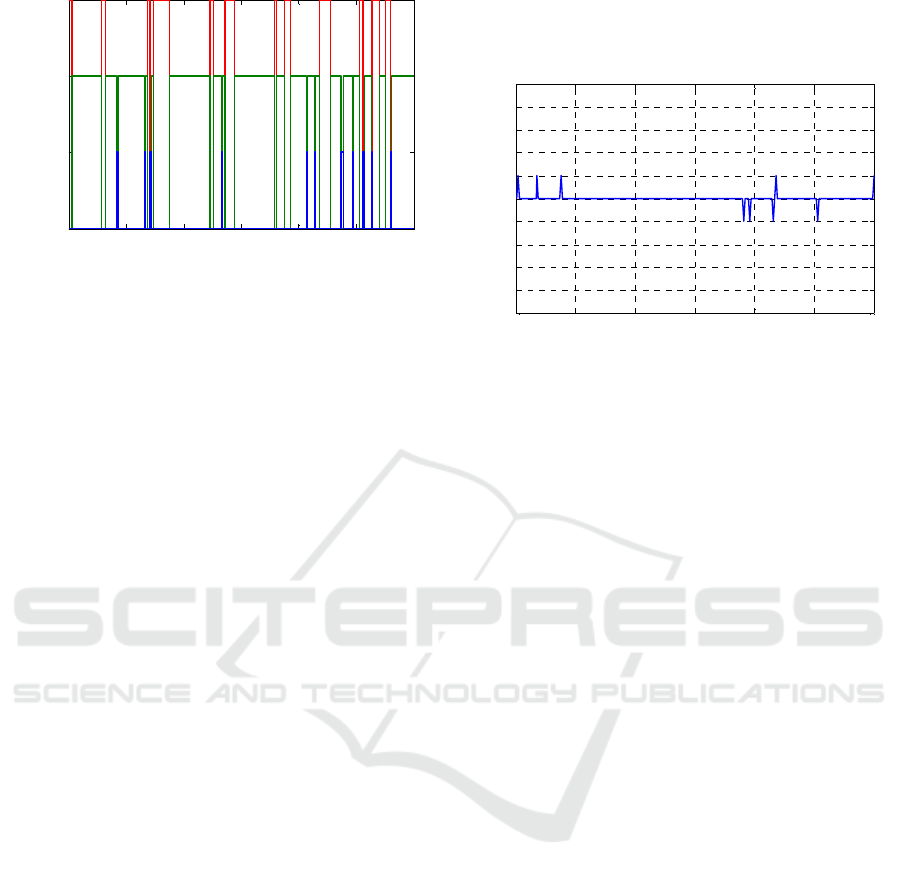

Figure 3: Hidden state estimation based on time.

5.2 Measures of Forecast Errors in the

Prediction of Activities

We can obtain a prediction result that is very similar

of our hidden state (real state). In this section, we

estimate the error rate of our observation.

Calculation of error: Since the forecasts are usually

false, a good forecast should also include a measure

of predictable error. The error can be calculated

using the difference between the prediction and the

actual event: Error = Actual event – Prediction.

Et = Rt - Pt (3)

Figure 4 presents the error of observation in

function of time. From Figure 4 we can see that the

error of the prediction does not exceed the range [-

1,1]. We noticed that for five hours the number of

found errors is 9 which means that our model

succeeds the prediction with only 3% of error.

6 CONCLUSIONS

In this work, we were interested in the events

recognition in smart environments for elderly and

dependent persons. Our objective was to identify

and experiment an efficient recognition model. We

evaluated the likelihood rate of the hidden Markov

model based on our grammar “Home By Room

Activities language” in a smart home with a

monitored person. Finally, we evaluated the efficient

of this model using Matlab-based simulation tool.

The results reveal that the proposed model is

efficient for activities recognition with an

observation error rate that is not very large

compared to our hidden states. In the next steps of

this work, we will explore the enrichment of our

approach by investigating the learning-based

systems (such as neural networks with a new

learning algorithm) in order to recognize the events

in a smart home and improve the learning phase

such by using the differential evolution algorithm

(Chengyao et al., 2015).

0 50 100 150 200 250 300

-5

-4

-3

-2

-1

Time (minutes)

Errors of observation

Figure 4: Error in function of time.

REFERENCES

Aritoni, O., Negru, V., 2011. Multi-Threading System for

Human Behavior Simulation based on Constraints

Propagation. IEEE 15th International Conference on

System Theory, Control and Computing.

Chengyao, S., Xun, H., and Qi, Z., 2015. Predicting Eye

Fixations on Webpage With an Ensemble of Early

Features and High-Level Representations from Deep

Network. IEEE Transactions.

Kang, W., Shin, D., 2010. Detecting and Predicting of

Abnormal Behavior Using Hierarchical Markov

Model in Smart Home Network. IEEE 17Th

International Conference on Industrial Engineering

and Engineering Management.

lemlouma, T., Laborie, S., and Roose, P., 2013. Toward a

Context-Aware and automatic evaluation of elderly

dependency in smart home and cities. IEEE 14th

International Symposium and Workshops on World of

Wireless, Mobile and Multimedia Networks.

Msahli, H., Lemlouma, T., and Magoni, D., 2014.

Analysis of dependency evaluation models for e-health

services. IEEE International conference on global

communication conference.

Nevatia, R., Zhao, T., and Hongeng, S., Hierarchical

language-based representation of events in video

streams. IEEE Conference on Computer.

Singla, G., Cook, D., and Schmitter, M., 2008.

Incorporating temporal reasoning into activity

recognition for smart home residents. Proceedings of

the AAAI workshop on spatial and temporal

reasoning.

Zhang, Z., Tan, T., Huang, K., and Senior., 2011. An

Extended Grammar System for Learning and

Recognizing Complex Visual Events. IEEE

transactions on pattern analysis and machine

intelligence.

A Markovian-based Approach for Daily Living Activities Recognition

219
