Orka: A New Technique to Proﬁle the Energy Usage of Android

Applications

Benjamin Westﬁeld

∗

and Anandha Gopalan

Department of Computing, Imperial College London, 180 Queens Gate, London SW7 2AZ, U.K.

Keywords:

Green Computing, Energy Proﬁling and Measurement, Energy Monitoring.

Abstract:

The ever increasing complexity of mobile devices has opened new, exciting possibilities to both designers of

applications and their end users. However, this technological improvement comes with an increase in power

consumption, a drain that battery technology has not managed to keep up with. Due to this, application de-

velopers are now facing a new optimisation challenge not present for traditional software: minimising energy

usage. Developers need guidance to help reduce energy usage while not compromising on the features of

their application. Despite research identifying areas of code consuming high energy, developers currently

don’t possess the necessary tools to make judgements on their application’s design based on this. This paper

presents Orka, a new tool that analyses an Android application and provides feedback on exactly where the

application is expanding energy, thus enabling developers to improve its energy-efﬁciency. Orka proﬁles an

application using user-deﬁned test cases, code injection techniques and bytecode analysis. Feedback provided

is the energy usage at the method level as well as any consumption due to hardware used. Moreover, to be

useful over the entire development life-cycle, this feedback is compared with feedback from previous versions

of the application so as to monitor and improve the energy usage.

1 MOTIVATION

Mobile technology has changed dramatically in re-

cent years. Devices can now display full 1080p real

time videos, are capable of running games with high

quality graphics, and contain enough sensors that they

can be used as full virtual reality headsets with little

extra hardware (Winchester, 2015).

Harnessing this potential, the application indus-

try is forecast to be worth $54.89 billion by 2020

(Chaudhari, 2015). Research has shown that energy

consumption of applications is of great concern to

users of mobile devices (Heikkinen et al., 2012; Wilke

et al., 2013). A glance at on-line repositories con-

ﬁrms this, with applications receiving lower ratings if

users perceive them as consuming more of their de-

vice’s battery (Jabbarvand et al., 2015). Due to this

change in consumer habits, power optimisation is im-

portant for developers. Previous research has focused

on time optimisation for software, as computers were

earlier connected to a constant power source. Mo-

bile application developers are now facing end-users

who require software to be optimised to use as little

∗

This work was done while this author was a student at

Imperial College London.

of the battery as possible, less they drain this ﬁnite re-

source. This paper was inspired by the perceived lack

of energy optimisation tools available to developers.

Tools exist to optimise efﬁciency but energy optimisa-

tion can be orthogonal in nature to time optimisation

(Bunse et al., 2009).

Research into Green Computing has started to

identify the areas of code that consume the most en-

ergy. These ﬁndings allow testing methods to be con-

structed in order to provide developers with exciting

new ways in which to optimise their code. However,

most of these are still tied to hardware or require the

understanding to interpret results from a multi-meter

to provide execution costs (as current systems do, and

which are discussed in Section 2). We believe that

all developers should be able to have access to their

code’s energy performance regardless of whether they

are professionals or coding on their own.

To address these issues, this paper introduces

Orka, a novel approach to providing energy usage

feedback to software developers. Orka provides feed-

back based on an application’s API usage, as well as

the energy usage of the app, down to the method level.

It is important that software energy usage not be dis-

associated from hardware energy usage, so Orka also

Westﬁeld, B. and Gopalan, A.

Orka: A New Technique to Proﬁle the Energy Usage of Android Applications.

In Proceedings of the 5th International Conference on Smart Cities and Green ICT Systems (SMARTGREENS 2016), pages 213-224

ISBN: 978-989-758-184-7

213

provides feedback on any energy consumption due to

hardware usage. To the authors’ knowledge, this is

the ﬁrst attempt to combine these two sources of en-

ergy usage. Previous research has focused on either

one or the other. Orka tests the app using a dynam-

ically created execution trace generated using a test

script provided by the application’s developer. Rather

than running on physical devices, Orka performs the

hardware analysis running on emulators. After run-

ning the application, Orka pulls the internal energy

usage estimations from the emulator to provide feed-

back based on the different components used. Orka

has been designed for applications on the Android

OS, which has grown to be the most widely used OS

for mobile technologies in the world (Rivera, 2015).

Despite the similarity, Orka is not a reference to

large aquatic mammals. Dalvik (the original Vir-

tual Machine used by Android OS) was named after

the Icelandic village that was home to the ancestors

of Dan Bornstein, the original developer of Dalvik.

Smali and Baksmali (two tools that form part of the

structure of Orka) were named after the Icelandic

words for assembler and disassembler. In continuing

with tradition, this system was also given an Icelandic

name, Orka - meaning energy.

The remainder of this paper is organised as fol-

lows: Section 2 outlines work related to this paper

while Section 3 gives an overview of the research

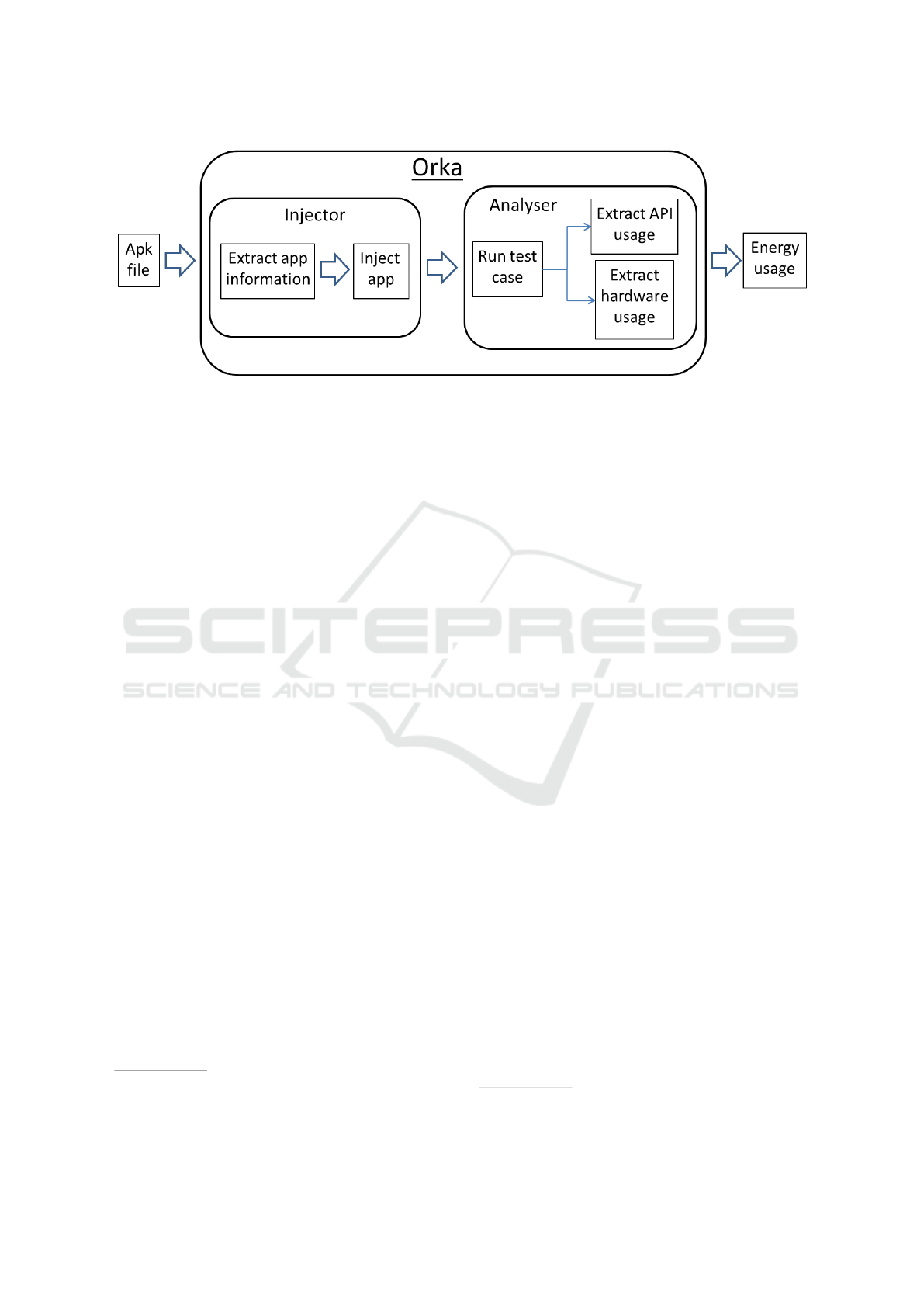

challenges encountered while building Orka. Sec-

tion 4 details the architecture of Orka, while Sec-

tion 5 describes its prototype implementation. Sec-

tion 6 provides an evaluation of Orka, while Section 7

lists some of the limitations of this work, and Section

8 concludes the paper and provides ideas for future

work.

2 RELATED WORK

Orka is not the ﬁrst attempt at providing feedback on

energy usage for Android applications. Cycle accu-

rate simulators (Brooks et al., 2000) can be used to

accurately simulate a processor’s cycle at an architec-

tural level. While effective, these have been labelled

as inefﬁcient (Hao et al., 2012). Hao and colleagues

(Hao et al., 2012) proposed a system, eCalc, to re-

place these. After creating an energy cost for each

instruction, the eCalc system analyses the bytecode

and each method was assigned a cost function. After

capturing the execution trace of the program, a num-

ber of tests were then executed on this and compared

to multi-meter readings.

Both eCalc and cycle accurate simulators suf-

fer from the same issue: they only focus on the

CPU. Other pieces of hardware are often more en-

ergy greedy than the CPU (Corral et al., 2013; Dong

and Zhong, 2012). Research has shown that lowering

the brightness of the screen can save up to 60% of an

application’s battery usage (Dong and Zhong, 2012).

This has been supported by further research (Corral

et al., 2013).

Elens, proposed by Hao and colleagues (Hao

et al., 2012), extends the model of bytecode proﬁling

further. This attempts to model the different energy

usage by network transfers by including a stack trace.

A call-graph is generated showing complete execu-

tion paths through each method. The stack size for

transmitted data is used to model the linear growth of

energy costs for network transmissions with the size

of data sent. Both Elens and eCalc compare their

models to actual measurements from a multi-meter.

This presents an issue of how to accurately tie mea-

sured energy back to speciﬁc methods due to the fact

that the Android operating system has asynchronous

power states (Pathak et al., 2012) and also due to the

phenomenon of ‘tail energy’ (Li et al., 2013), where

a program or routine can draw power beyond the end

of its execution. Both Elens and eCalc also require

users to use multi-meter readings to estimate energy,

and they were all run on specially developed hard-

ware. Neither of these are readily available to devel-

opers, thus limiting the use of these models. In order

for them to run correctly, each bytecode instruction

needs to be accounted for in terms of energy cost. To

do this, each instruction must be measured for each

hardware and operating system combination. A de-

veloper would need to create this for whichever en-

vironment they want the application to run on. It is

unlikely they would have the capacity to do this.

Orka is not the ﬁrst to leverage the ﬁndings of

Linares-Vasquez et al (Linares-V

asquez et al., 2014).

Jabbarvand et al (Jabbarvand et al., 2015) used these

to create their modelling device, EcoDroid. By as-

signing energy costs to nodes of a generated call-

graph, their system could estimate an application’s

energy consumption by API usage. They proposed

including static tests, rather than just dynamic tests to

ensure full coverage. Orka does not use static tests

as it provides feedback on a speciﬁc test case, rather

than attempting to provide a total code energy cost.

All models previously focused only on the energy

usage of software. As far as we are aware, no other

research has attempted to combine this with energy

costs owing to hardware usage. Computers, after all,

are just machines; all their different parts consume

electricity. Therefore a complete testing tool should

factor in both the drain due to software and that owing

to the hardware.

SMARTGREENS 2016 - 5th International Conference on Smart Cities and Green ICT Systems

214

3 RESEARCH CHALLENGES

In order to build Orka, the initial challenge encoun-

tered was to ﬁnd out a method to measure the energy

usage of the application’s code. The actual discharge

of the battery could not be measured as this would re-

quire physical hardware. Therefore, Orka would need

to estimate energy usage from identifying areas of the

source code with high energy costs. Linares-Vasquez

et al (Linares-V

asquez et al., 2014) found that the ma-

jority of energy in applications was spent calling the

Android Application Program Interface (API). In an

extensive study, they documented the energy usage of

these APIs. While the exact amount of energy usage

(in Joules) might differ between different hardware

combinations, it is reasonable to assume that these

costs would remain in the order of these ﬁndings. Us-

ing these ﬁndings, Orka assigns this cost to each API

call in the code. Orka is aware of ﬂow control, taking

into consideration that each call in the code could be

made multiple times, in a loop for example.

To analyse the application’s code, a number of dif-

ferent approaches were tried. Originally, we wanted

to use a non invasive method that did not modify

the source code. Xposed

is a module that modiﬁes

the script responsible for loading Zygote (the parent

process for all applications that run on Android) at

startup. Any interface added to this would be accessi-

ble from all other Android applications.

Other researchers (Jabbarvand et al., 2015) have

had some success using Xposed, however we could

not install it on emulated devices, an experience

shared by others in the Android development commu-

nity (XDADevelopers, 2014; StackOverﬂow, 2015).

This restriction on emulators also ruled out a series

of third party systems that could have been used for

analysis, so we decided to focus on ways to create

new logging methods.

When API calls are identiﬁed in the code, the sys-

tem needs to identify and tally the number of calls.

However, due to the twisting and dynamic nature of

the execution of code, performing static analysis on

an app’s code would not provide an accurate view of

the number of times each API is called, so a dynamic

analysis would be necessary. In order to achieve this,

we use Monkey Runner

, a user interface testing tool

for Android that simulates an end user interacting

with the app.

A method was needed to tally the calls to the API

during the execution of the app. As non-invasive

methods had been ruled out, methods needed to be

inserted to tally each API call. Orka achieves this

https://github.com/rovo89/XposedBridge/

http://developer.android.com/tools/help/monkey.html

by using an improved version of a key logger writ-

ten for a popular Android application (Casey, 2013).

The previously manual process had new logic inserted

to automatically inject new logging methods without

changing the underlying application (detailed below).

These added methods insert the API calls to the global

Android log, Logcat

Estimating hardware energy usage presents its

own pitfalls. Applications can draw power beyond

the end of their execution due to a phenomenon called

‘tail energy’(Li et al., 2013). The operating system

will keep hardware components turned on for a period

of time after an instruction to close. This allows it to

amortise startup costs and occurs even if the system is

idle. Another issue that can occur is with applications

holding a ‘wakelock’ that does not allow the proces-

sor to enter a lower power mode. Orka uses Dump-

sys

, a tool that provides details about the status of

the device’s hardware in order to counteract this. One

feature of this tool is the ability to view the contents

of BatteryStatsInfo.bin, the battery estimation used by

Android to populate the estimated battery usage func-

tions stored in the device’s settings menu. This is

populated as long as the device’s battery is not being

charged.

The algorithms that populate BatteryStatsInfo.bin

take into account that the end of a routine does not

mean a used component will power down instantly.

Using Dumpsys would, hence, solve the issues relat-

ing to tail energy. Furthermore, if another app runs

because of a wakelock held by a speciﬁed applica-

tion, then half the total energy usage of the second

application is assigned to the one holding the wake-

lock (Google, b).

4 ARCHITECTURE

The architecture of Orka is illustrated in Figure 1. The

system is divided into two separate modules: the in-

jector, which is responsible for drawing the required

information about the application from its .apk ﬁle,

then injecting logging methods after ever API call;

and the analyser, which runs the injected application

on an emulated device, then computes the total en-

ergy usage from the execution trace. The sequence of

steps followed by Orka (and detailed in the following

sections) are:

- Convert the .apk ﬁle into Smali ﬁles.

http://developer.android.com/tools/help/logcat.html

https://source.android.com/devices/tech/debug/

dumpsys.html

Orka: A New Technique to Proﬁle the Energy Usage of Android Applications

215

Figure 1: A system architecture overview of Orka.

- Inject logging functions into the code, and insert

logging class into root directory of application.

- Recompile the application and resign it so it will

run on device emulators.

- Load emulator and install the application on it.

- Run Monkey Runner script containing test execu-

tion.

- Extract Logcat ﬁles and hardware usage from

Dumpsys.

- Process Logcat data by summing the number of

API calls in each method and calculating the total

cost of these calls.

- Present results to the user.

Orka was developed to run on Linux and the deci-

sion was made to write the application in Python. This

is because the designed process was inherently proce-

dural, and would require a number of different scripts

to run (for example to pull data using the ADB).

4.1 Injector

The injector is responsible for injecting the app, and

for any task required to complete this. To facil-

itate code injection, the app’s .apk ﬁle is decom-

pressed into an intermediate representation called

Smali. Smali was developed to represent a human-

readable version of the app’s Dex code

. Orka uses

Apktool, a tool to further aid automating the transfor-

mation process into Smali

. Apktool was chosen as

extra media stored in the .apk hierarchy (required for

recompilation) would not be lost during decompres-

sion. Once decompiled, the output directory contains

all relevant ﬁles for the app, with the Smali repre-

sentation of the code located in its own sub-directory.

https://github.com/JesusFreke/smali

https://www.georgiecasey.com/2013/03/06/inserting-

keylogger-code-in-android-swiftkey-using-apktool/

Rather than prompt the user for the application name

to construct the path, the injector extracts this from

the application’s Android Manifest using command

line tools developed by Google

Any ﬁles that have been added to the directory will

be included in the application once re-compressed to

a .apk ﬁle. Leveraging this, Orka adds a Smali ﬁle

with the others thus making it part of the application’s

package. This means that it can be referenced abso-

lutely in the app’s source code. This is important as

foreign packages need to be loaded into a register in

order to be referenced. By adding the logging meth-

ods to the app’s package, it frees Orka from needing

to load this into a register to reference it (reducing

the number of changes to the underlying code). This

helps keep the the injected application as similar to

the original as possible, giving a truer picture of the

energy costs of running the original app.

4.1.1 Logging Methods

Orka’s logging interface contains two methods: one

to be called after entering a new method that extracts

the method’s name from the stack trace, and a sec-

ond that is passed an API name as a string constant

to log a call. The former does not require any inter-

ference with the application’s code as it uses the stack

trace. The latter requires a free register to be inserted

to the method as variables are passed by register refer-

ence (Google, a). The messages sent to Logcat have a

unique tag so that the analyser can easily extract these

later. These two methods are combined to create an

execution trace by logging when the application en-

ters a new method and then each call it makes to an

API. Storing the method name makes it possible to

attribute the API calls to the correct method.

https://developer.android.com/tools/building/

index.html

SMARTGREENS 2016 - 5th International Conference on Smart Cities and Green ICT Systems

216

4.1.2 Code Injection

Code injection is done by manipulating the Smali

code and expanding it by automating the process and

adding further logic to automate the analysis of the

code. While each Smali ﬁle is human-readable, it

has a uniform representation due to previously be-

ing bytecode. The injector leverages this by opening

each ﬁle in the Smali directory into a ﬁle stream, then

analysing each line. Its built-in logic will then react to

ﬁnding speciﬁc bytecode patterns. Each original line

of Smali is output (along with any injected code) into

new Smali ﬁles. Once inspected, the original ﬁle is

deleted, leaving only the injected ﬁles to be recom-

piled into the injected application. It should be noted

that this is not a destructive process. The original .apk

ﬁle is not edited in any way.

Each ﬁle of Smali represents a different Java class

ﬁle in the original source code, therefore containing

a number of methods. Each method is checked in-

dividually and independently of the others. The in-

jector pattern matches each line of the ﬁle checking

for a function signature - signifying the start of a new

method. On ﬁnding this, the injector checks to see

if the method’s signature matches that of a construc-

tor (method public constructor <init>), ignoring

the entire method on matching. After entering a new

method, Orka looks at the following lines until one of

two conditions are satisﬁed:

- An API call is found

- The end of method statement is found.

If there are no API calls found in the method, the

injector will not inject any code into that method, in-

stead reconstructing this unaltered in the output ﬁle.

This limits the interference with the source code to

when it is truly needed. If an API call is found, the in-

jector calls a seek function to revert to the start of the

method. Until the injector identiﬁes the end of this

method, it will now perform a number of behaviours

depending on what it identiﬁes in the source code.

4.1.3 Adding a Register

The Smali representation of Dex separates registers

into two types: locals and parameters. Locals repre-

sent both the local variables of a method as well as

storing any external classes used and the results of

calculations. The number of registers available to a

method is ﬁxed, being declared on entering a method.

This total is decided when the original Java code is

converted into Dex (Smali, 2015). Of these registers,

the registers numbered 0 to n-1 will contain all the

local registers, where n is the number of locals de-

clared. Parameters are always stored in the registers

after the last local register. These represent the ar-

guments passed to the method. Every method has

at least one parameter representing a pointer to that

method (*this). The total number of local registers is

explicitly declared in the Smali code, followed by a

declaration of the contents of each parameter register.

As per Section 3, the injector adds a register to store

the name of any API call. By increasing the number

of explicitly declared locals, a new register will be

added to the end of these (before the ﬁrst parameter).

The original locals declaration is then discarded with

the new declaration output.

Using a naive approach that does not take into ac-

count the number and type of registers would cause a

number of fatal bugs to be introduced to the app once

recompiled. Android was built with the assumption

that most methods will not have more than 16 reg-

isters (Google, a). As such bytecodes are separated

into groups depending on whether they can reference

a register whose number can be represented using 4

bits (the ﬁrst 16) or whether it’s number can only be

represented by using 8 bits (the ﬁrst 256) (Google, a).

This produces the following two issues:

• Added instructions must be able to reference the

inserted register. If the newly added register is

outside of the 4 bit address registers, then it cannot

be referenced using 4 bit address bytecodes.

• By increasing the number of locals by one, all pa-

rameters start one register higher than when they

were originally converted to bytecode. A param-

eter that was previously inside the 4 bit address

registers could be pushed out of them. The 4 bit

bytecodes that were used previously to reference

this would now cause the app to crash.

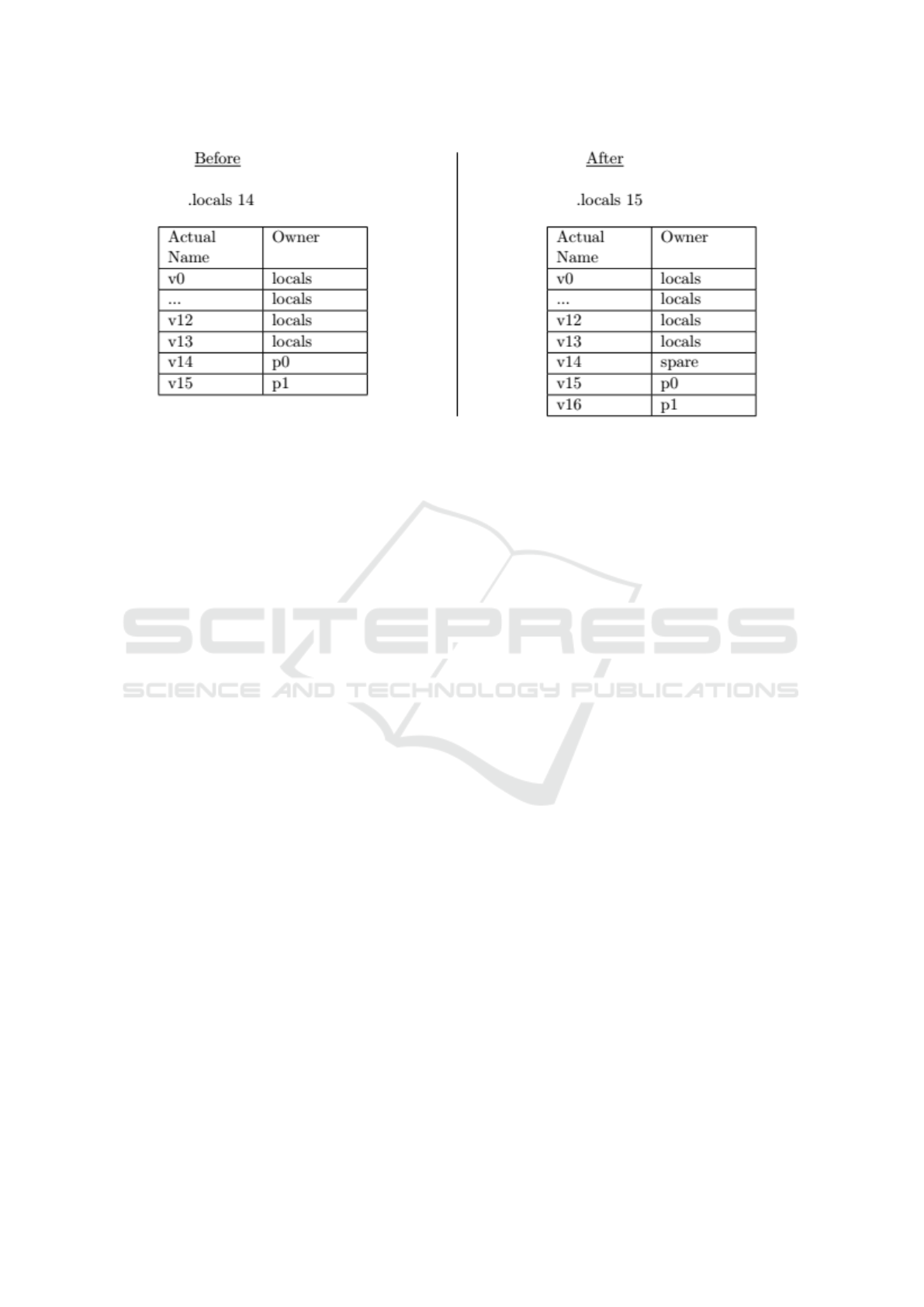

In Figure 2, adding an extra local register means

that p1 used to reference a 4 bit address register. In-

stead this now references an 8 bit address register so

must use the correct bytecodes to reﬂect this. Due to

the numerical overlap, bytecodes for registers with an

8 bit address can reference all of the ﬁrst 16 registers

(those covered by the 4 bit address bytecodes). Con-

sequently, when Orka inserts bytecodes it uses those

that can address registers with 8 bit addresses. This

way it can be sure the inserted bytecode will be able to

access the register. The second issue proved tougher

to solve.

It only presents itself in two situations:

- The sum of the registers used for parameters and

locals is greater than or equal to 16, and the num-

ber of local registers is less than 16.

- If the sum total of the locals and parameters is

15, and the last parameter stores a double or long

Orka: A New Technique to Proﬁle the Energy Usage of Android Applications

217

Figure 2: Demonstrating the effect of the bug in Orka, causing parameters to go beyond 4 bit address registers.

(both requiring two registers). Adding to the lo-

cals will push the second of the parameter’s two

registers out of the 4 bits address registers.

The injector resolves this issue with minimal in-

trusion into the code. After all of the declarations of

the parameters within the method, the injector inserts

instructions to move each back into their original reg-

ister. This returns the registers to their original states.

While a number of move statements are inserted, the

injector does not change the instructions used (from

4 bit to 8 bit addresses). These move statements are

only inserted if the injector detects a potential issue

with the registers (as detailed above), therefore only

changing the code if necessary.

Once converted to Smali, all parameters in a

method are referenced using their pX name. This re-

lates to the parameter number of the contents of the

original register number containing the parameter’s

data when entering the method. If the data is moved

to another register, the pX name would still refer to

the original register. Using Figure 2 as an example,

even if the contents of p0 is moved back to v14 and

p1 to v15, the labels p0 and p1 will always reference

registers v15 and v16 respectively.

The injector overcomes this by leveraging the

naming convention of the registers in Smali code. Ev-

ery register, no matter the contents, has an absolute

name that can reference it. This is always of the for-

mat vX , with X being a unique number (Smali, 2015).

The second scheme relates to registers that hold a pa-

rameter when the method begins. These can also be

referenced with pX format. All pX registers have a

vX reference that relates to them but not all vX regis-

ters have to have a pX . The pX names are static, and

will always relate to the register they pointed to at the

beginning of the method.

The injector creates a hash table to store each orig-

inal pX mapping for the parameters against its type.

It then uses this to calculate the required number of

registers for the parameters and therefore the correct

bytecode to move this (as different types require dif-

ferent bytecodes) (Google, a). Special consideration

is needed for the ﬁrst parameter, as this is not explic-

itly declared in the code. The injector maintains these

mappings in another hash table, also taking care, if a

parameter requires two registers, not to overwrite the

contents of the second with a later parameter. This

mapping hash table is needed as all references to pa-

rameters will use the pX name. As stated, this will

now face the incorrect register. To solve this, as the

injector parses each line of Smali code for a method, it

changes all references of pX to their new correspond-

ing vX name (using the mapping hash table).

A simple string matching algorithm was written to

aid with this. As all keys have the same ﬁrst character,

the algorithm searches for the ﬁrst occurrence of a ‘p’

in the line. Starting with the character after this, the

characters are appended to a substring until the next

non numeric character. As the substring contains all

of the following numeric characters, there can be no

mismatches (for example, p10 incorrectly matching

with p1). The substring is then checked to see if it is a

key in the mapping hash table. Positive matches have

these characters replaced in memory with the corre-

sponding mapping before being written to the output

ﬁles. If the ‘p’ is not followed by a number, this step

is ignored and the next instance of ‘p’ is searched for

instead. This means that, ‘p’s appearing in bytecodes

or method names are instantly discarded without hav-

ing to check the map. As this algorithm acts on each

line of the ﬁle, this should run with time complexity

O(n). However, it is extremely unlikely that the worst

case input (a string where every character matches)

SMARTGREENS 2016 - 5th International Conference on Smart Cities and Green ICT Systems

218

will occur due to the nature of the input. By searching

for just ‘p’ large chunks of the line should be skipped,

thus making the actual run time much faster.

4.1.4 Injection Logic

Having resolved all register issues, the injector will

parse each line to look for API calls. Following locals

and parameter declarations in Smali code is the ‘.Pro-

logue’ declaration. Adding Smali code after this is the

equivalent of adding a line to the source code. Specif-

ically, adding code after this means that the freshly

inserted code will be the ﬁrst operation run. As this is

the criteria for the methodLog method in the logging

class, the injector will insert a call to this here.

Different bytecodes are used to invoke different

types of methods (Google, a) and all of these begin

with ‘invoke-’. As the injector parses each line, it at-

tempts to match it to this. On succeeding, it passes

this to a function that checks if the called method is

an API. To invoke a method in Smali, the entire pack-

age name is passed in the instruction as well as the

method. This helps the VM identify the method to be

called (Ehringer, 2010). As all Android API’s belong

to the Android package, the injector checks if the in-

vocation references this package. Methods found to

be API calls have their name extracted from this. By

matching the package name, it frees Orka from the re-

quirement of keeping an up to date documentation of

the ever changing Android API names.

One line of source code does not necessarily relate

to one line of Smali as Smali is a lower-level interpre-

tation of the code. To cause as little interference with

the code as possible, the injector stores all API calls

in memory until its internal logic ﬁnds a safe place

in the underlying bytecode. Smali retains informa-

tion relating to the line numbers in the original source

code. When the injector ﬁnds these, it knows it can

safely insert methods to log all the API calls currently

in memory. Before this is written to the output ﬁle,

the injector inserts two new lines per API. The ﬁrst

adds the API name (a string) to the newly added reg-

ister. The second adds an invocation of the API logger

function, passing it the register containing the API’s

name. This is done for every item in the list (the cor-

responding list entry is then deleted). This behaviour

also occurs on ﬁnding statements corresponding to re-

turning a value or leaving a method. As all API calls

are tied to a method, they are logged before leaving it

less they be attributed to the incorrect routine.

Special consideration was given for ﬂow control

statements. The injector is designed to place logging

methods inside of loops, so that this is logged as many

times as the loop runs. Loops are represented in Smali

with a goto statement. The injector is designed to in-

sert logging methods on ﬁnding statements closing a

loop. Furthermore, the injector can correctly handle

nesting loops. The list of API calls is implemented as

a stack, being a list of lists. Orka maintains a pointer

to the index representing the top of the stack. This

is incremented on entering a new loop, pointing to

the index in the list where new found API invoca-

tions should be added. On ﬁnding the end of a loop,

the logging methods are inserted for all APIs in the

list at the top of the stack. This list is then cleared,

and the pointer is decreased, representing the top of

the list being popped off the stack. Any further API

call would then be added to the list now at the top of

the stack (until the corresponding end of the loop is

found).

Due to how Smali represents ‘if’ statements, the

outlined logic correctly handles these. The bytecodes

representing ‘if’ take the condition given in source

code and reverse it. Those that now pass this reverse

condition (failing the original) are ‘jumped’ over the

code relating to conditions that satisfy the equality.

The ﬂags which are jumped to are placed after a ‘.line’

statement in the Smali, so Orka will insert logging

methods before this.

When there are no more ﬁles to inject, the injec-

tor runs Apktool to recompile the application. It then

digitally signs this using Jarsigner - a tool that allows

digital signing of Java jar ﬁles, which can also sign

.apk ﬁles (Google, c). This is required to run an ap-

plication on an Android device (Google, c).

4.2 The Analyser

Once the app has been injected and recompiled, the

analyser takes over. It is responsible for generating

and analysing the results. First, it loads an emulated

version of a Nexus 7 (2013 model) and the injected

application is then installed on this.

During the course of development, we noted that

emulators are considered as ‘charging’ when they ini-

tially load. BatteryStatsInfo.bin will not populate its

data in this state as it only shows data since the last

charge. The analyser addresses this by running a bash

script that logs into the device via telnet and then

changes the power settings to discharging. This uses

Expect, a scripting language to script the response to

and from telnet. To help increase the speed of the

emulators, these are run as Kernel-based Virtual Ma-

chines (KVM). This moves the control of the hard-

ware resources used by virtual machines from soft-

ware to hardware, greatly improving the execution

time (Stylianou, 2013). As the majority of the anal-

yser’s execution time is spent loading and executing

applications on these, the decision was made to use

Orka: A New Technique to Proﬁle the Energy Usage of Android Applications

219

KVMs to speed up execution.

4.2.1 Monkey Runner Testing

With the injected application installed on the emula-

tor, the analyser loads the app and runs the user’s pro-

vided Monkey Runner script. As this is using an in-

jected version of the application, the data about API

usage is being output to Logcat. This tests the pro-

gramme for a scenario of the user’s own design; they

are free to use this tool for a variety of scenarios, from

average use cases to stress testing their applications.

This freedom will give Orka a greater ﬂexibility as a

testing tool. This does place the onus on the user to

write good tests. However, the users of Orka will be

developers who should be knowledgeable about test-

ing and know how to write tests for their own appli-

cations.

On completion of the Monkey Runner script, Log-

cat contains the execution trace from the test execu-

tion and BatteryStatInfo.bin will be populated with

the hardware costs. As all these have a unique tag,

the relevant logs that relate to this can be easily ac-

cessed and pulled from Logcat (using Google’s own

tools). The analyser then calls Dumpsys, saving the

human-readable output as a ﬁle, and then opens and

retrieves the relevant lines relating to estimated hard-

ware usage.

4.2.2 Handling the Data

Using the cost as per the ﬁndings of Linares-Vasquez

et al (Linares-V

asquez et al., 2014), the equation to

calculate software energy usage was:

∑

∈Program

(

∑

API

∈M

(API

× c)) (1)

with M being each method in the program, API rep-

resenting each API call made, and c being the energy

usage. Hardware costs are stored in a table within

the output from BatteryStatsInfo.bin. This provides a

breakdown of the total energy usage of the application

by component of the system, from which the analyser

pulls the values.

5 IMPLEMENTATION

PROTOTYPE

For the purpose of this research, Orka was deployed

as a web application. This method circumvented re-

strictions placed on the developer regarding operating

systems and hardware due to using KVMs. The web

application was written using Flask

, utilising Boot-

strap

for aesthetics. Developers would upload their

application and Monkey Runner script to Orka via

the website. This generates a usage request that was

added to a remote procedure call (RPC) queue. All

results were converted to a serialisable data format in

order to be transferred over via this queue.

Using the Pygal

module, the analyser generates

graphs to present the results to the developer. Pie-

charts are generated to show each method’s energy

usage as a percentage of the total usage as well as

the breakdown of the energy usage for each hard-

ware component used. An example of these using the

simple application (used to ﬁne tune Orka) which in-

volved just one button which called the API to dis-

play a ‘toast’ message is shown in Figure 3 (show-

ing breakdown with respect to methods in the appli-

cation’s code) and Figure 4 (showing breakdown in

terms of hardware components used).

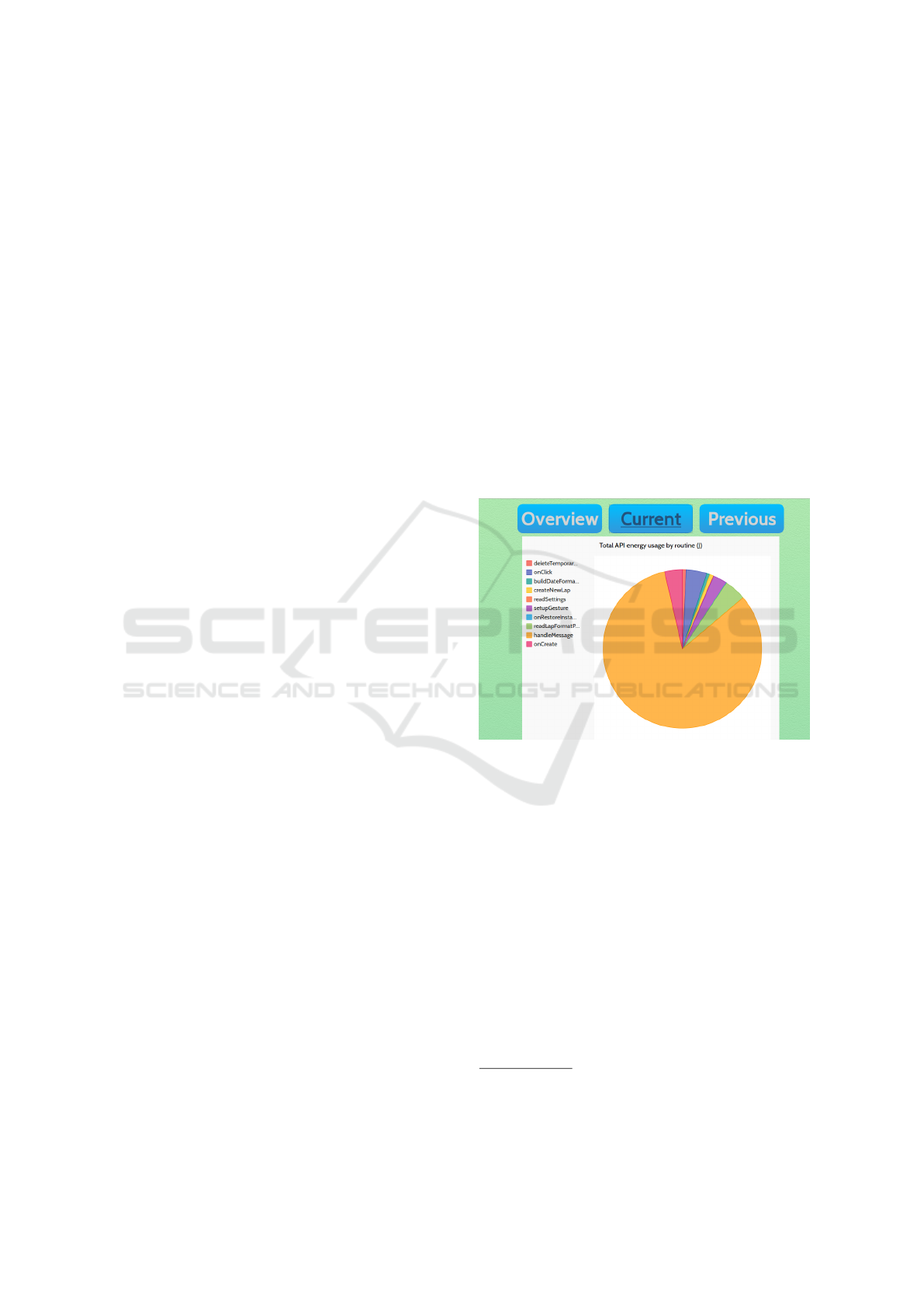

Figure 3: Screen-shot of Orka showing the breakdown by

method of the application’s energy usage.

Originally developers were also shown the total

usage in terms of Joules. Following user feedback,

these results were also presented in a manner that does

not require an understanding of electronics. As such,

Orka converts the total Joules used by a method into

how long it would power the device for the following

activities (shown in Figure 5), such as:

- Browsing the internet

- Watching a high deﬁnition video

- Playing a 3D game

Independent performance tests provided the num-

ber of hours each of these activities take to drain the

battery (Shimpi, 2013). The number of Joules used

http://ﬂask.pocoo.org/docs/0.10/

http://getbootstrap.com/

http://www.pygal.org/en/latest/

SMARTGREENS 2016 - 5th International Conference on Smart Cities and Green ICT Systems

220

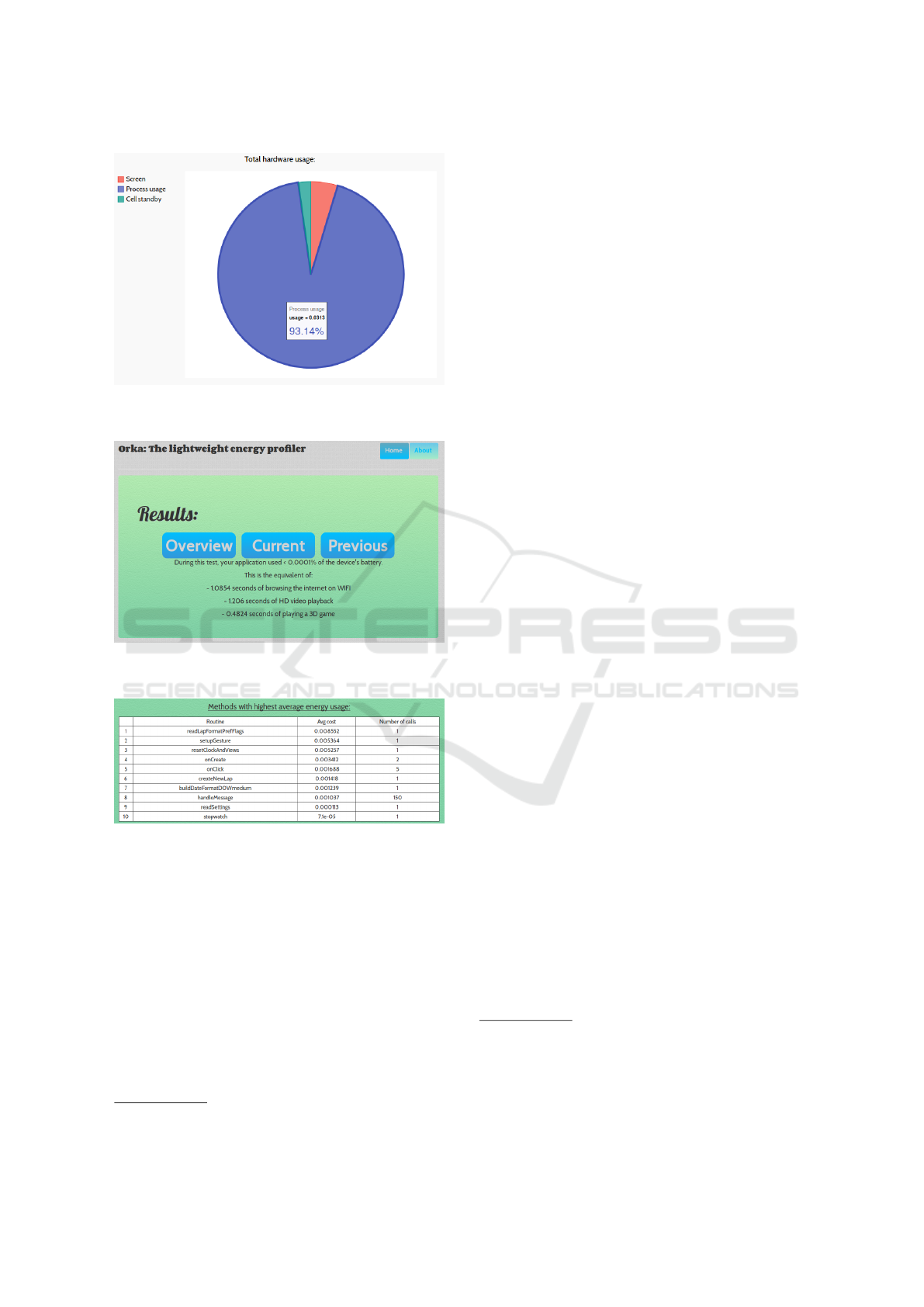

Figure 4: A pie-chart from an application’s results. It shows

the breakdown of energy consumption by components.

Figure 5: Screen-shot of Orka showing the test case’s en-

ergy usage in terms of other potential applications.

Figure 6: An example of the table showing the routines with

the highest energy usage (results from Anstop application).

by both the entire program and a breakdown of each

method is still presented to the developer, if they wish

to use this.

When extracting data from Logcat, the analyser

will maintain the number of times each method is

called. Based on this, developers are presented with a

table containing the ten routines with the highest av-

erage usage. This allows the analyser to highlight the

routines that most likely contain energy bugs, rather

than those with a low average usage cost but a high

number of calls. An example of this (using the Anstop

stopwatch application

) is given in Figure 6.

https://code.google.com/p/anstop

The analyser also has the facility to track energy

usage changes over different versions of the code.

Cookies stored within the browser contain the pre-

vious total energy cost of the program and the ten

methods with the highest energy usage. Developers

are presented with a graph plotting these against the

previous runs to allow comparison across versions.

These are indexed by application name, allowing de-

velopers to store results from different applications

yet only see those relevant to their current tests. This

is very useful for developers to track how the energy

usage of their application changes over the develop-

ment life-cycle and improve it as necessary.

6 EVALUATION

By using the ﬁndings of Linares-Vasquez et al

(Linares-V

asquez et al., 2014) and the Android OSs

own internal hardware usage estimations, Orka was

developed to provide new a new metric on which An-

droid developers can test their code. Using Orka, a

developer can have feedback on the energy consump-

tion of their code, in both raw data and by comparing

this to other uses of the device. These results are per-

sistent across their development cycle, allowing them

to see how changes to their code affect their appli-

cation. However, what sets Orka apart from other

energy proﬁling research and the systems currently

available

is its independence from hardware. Previ-

ous research has focused on measuring energy usage

with multi-meters attached to real devices (Hao et al.,

2012). While this project could not have been com-

pleted without their ﬁndings to act as foundations, this

research has decoupled the hardware by using emula-

tors. Additionally, this system has been deployed so

that it is not limited to users of speciﬁc software or

operating system. This research shows that tools can

be made to provide this feedback without requiring a

developer to purchase any equipment.

In regards to the testing of the application, one of

the goals was that tests should be valid and represen-

tative of real life, so Orka was tested using a variety

of applications, such as:

- Anstop, a stopwatch application

- Alarm Klock, an alarm clock

- Acrylic Paint, a painting application

https://developer.qualcomm.com/mobile-development/

increase-app-performance/trepn-proﬁler

https://code.google.com/p/anstop

https://f-droid.org/repository/browse/

?fdid=com.angrydoughnuts.android.alarmclock

https://github.com/valerio-bozzolan/AcrylicPaint

Orka: A New Technique to Proﬁle the Energy Usage of Android Applications

221

- Accordion, an accordion music program

These applications were all downloaded from F-

droid

. For each application, a Monkey Runner

script was written to run tests upon it. These applica-

tions were chosen as they represented a variety of dif-

ferent styles of applications and had different devel-

opers, the latter being an important issue as different

developers use different programming styles, and any

of these styles could have caused issues with Orka.

Applications were taken from F-droid rather than the

Google play store as they were all open source. Hav-

ing the source code was necessary to conﬁrm that

Orka was working correctly and for analysing prob-

lems in how its logic was treating the Smali code.

Being designed with the intention to be used by

developers, Orka’s website was tested by a few de-

velopers in order to get their feedback. Due to a de-

partmental security policy, Orka’s website could only

be accessed by those on the internal campus network.

This meant that all the testers were students of Impe-

rial College London, rather than opening the tool to a

worldwide beta testing by inviting members of online

development communities for feedback. The chosen

testers were all students in the Department of Com-

puting. The decision to use Computer Science stu-

dents was made since they would all have signiﬁcant

experience programming. This tool was designed to

be used by developers, so prior programming knowl-

edge was required to get meaningful feedback.

Initial user feedback was very positive. All those

surveyed liked the idea behind Orka and thought that

knowing energy usage of their code would be useful.

Most importantly, all said they would use such a tool.

Feedback was also positive towards the simple user

interface. Testers liked that it only required that they

upload their ﬁles, instead of having to conﬁgure the

settings of the tool for it to work.

Testers were presented with a choice between the

pie charts and animations to display energy usage

(such as having leaves falling from a tree depicting

the energy usage). The tester’s feedback was that they

preferred the scientiﬁc style of using pie charts and

also felt the animations could lead to ambiguity.

In order to ascertain whether Orka would work in

a real-life scenario, a simple proof of concept experi-

ment was carried out. The scenario chosen was that of

a developer who would build a simple Android appli-

cation and use Orka to measure its costs and use the

feedback to improve their application’s energy usage.

To measure the real costs of the application on the

device (to check whether the changes really worked),

https://github.com/billthefarmer/accordion

https://f-droid.org/

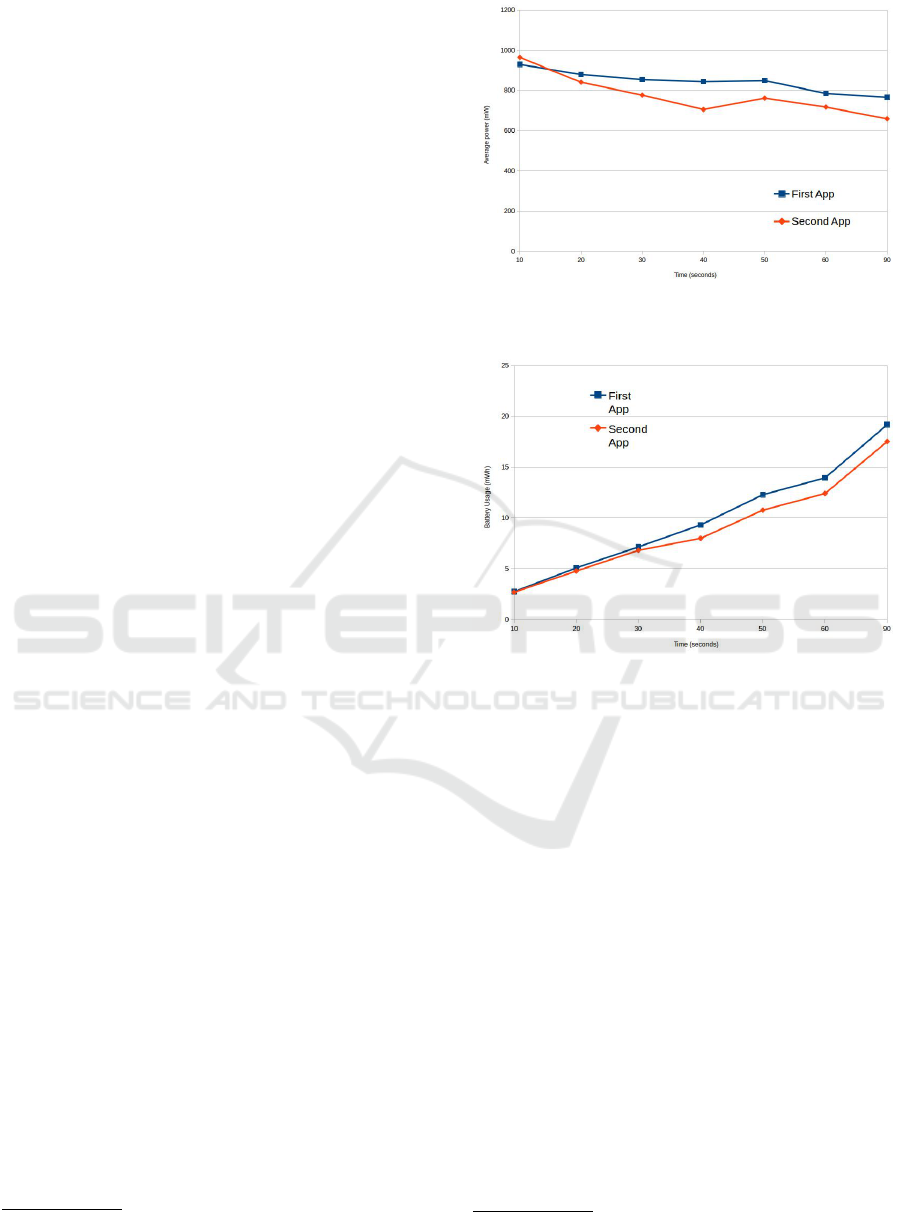

Figure 7: Average measured power consumption of the ap-

plications used for testing the proof on concept.

Figure 8: Measured energy use of the applications used for

testing the proof of concept.

we use Trepn

, a power proﬁling tool that measures

an Android application’s battery consumption.

Two simple test applications were written for this.

‘First App’ contained a ‘programming error’ in that

a routine meant to be called only once was inadver-

tently called within a loop. Orka measured the appli-

cations energy usage as 0.42193334J and highlighted

the higher than expected number of calls to this

method. Using this feedback, this error was corrected

by the developer in the ‘Second App’, which Orka

registered as having an energy usage of 0.008439J

(signiﬁcantly lesser).

To measure the real energy costs, both applica-

tions were installed onto a Sony Xperia Z1 smart-

phone (available at the time) and the actual energy

consumption was checked using Trepn. Even though

Orka ran on an emulator running Nexus 7, the infor-

mation provided (since it is likely the API costs will

be in the order of magnitude across different devices)

was useful to the developer so that they could reduce

https://developer.qualcomm.com/software/

trepn-power-proﬁler

SMARTGREENS 2016 - 5th International Conference on Smart Cities and Green ICT Systems

222

the energy costs of their application, as shown in Fig-

ures 7 (measuring actual power usage) and 8 (measur-

ing actual energy consumed).

7 LIMITATIONS

This approach has produced a trace of the energy us-

age of an application using tests as designed by the

developer of the application. Orka handles the instru-

mentation of the application, removing the need for

developers to learn any new skills to receive feedback.

However, as Orka is not making readings based of dis-

charge from the battery, this approach leads to estima-

tion based on values. As stated, this comes from the

ﬁndings of previously published research which have

been further used in other studies.

The approach used in this paper attempts to iden-

tify the areas of source code with the highest energy

usage. This approach does not attempt to accurately

estimate the energy usage of an application, but rather

to highlight potential trouble areas. This does lead to a

known error in the total estimation. This was deemed

acceptable as precise reading would require measur-

ing the usage on an actual device.

Due to the branching nature of computer pro-

grammes, a programme’s energy usage will change

depending on the input and its effect on the ﬂow of the

program. Orka has pushed the writing of tests onto

the developer of the application. This opens up the

system to those who might try to ‘game’ it by writing

tests that do not represent a typical usage of their ap-

plication. Such concerns can affect any software test-

ing that asks the developer to write their own tests.

By allowing this, developers have a greater ﬂexibility

in the types of tests that can be run on their software

(e.g. average use, stress testing).

By using code injection, extra code is being added

to the applications by Orka, which will in turn have

an effect on the application’s total energy cost. The

injected code calls an API, a process which is known

to be the most energy costly code. While this method

is not counted in the analysis of the energy cost of

the application, it is factored into the data taken from

Dumpsys and therefore in the breakdown by compo-

nents. The method of the Log API was chosen as it

had lower energy consumption than other log methods

(Linares-V

asquez et al., 2014). This also only affects

one part of the results.

Currently, Orka runs on the emulator running

Nexus 7 (the 2013 model) and the results produced

are a result of running it on this particular hardware.

An extension to Orka here would be to enable it to

perform this analysis on multiple different pieces of

hardware. The proof of concept could also certainly

be extended to include more complex applications.

8 CONCLUSIONS AND FUTURE

WORK

Mobile technology has improved by leaps and bounds

over the last few years, which has in turn led to a an

increase in new, exciting applications. However, with

this technological improvement comes an increase in

power consumption. Increasingly, users are aware of

this and hence, application developers need to ensure

that their applications expand minimal energy. In or-

der to achieve this, developers need tools to aid them

in optimising their application’s energy usage. This

paper introduced Orka, which attempts to bridge this

gap. Taking a developed Android application, Orka

injects code into this to track calls made to APIs.

This injected application is then run on an emula-

tor, removing the need for the developer to purchase

hardware. By running a speciﬁc test case written by

the developer, Orka creates an execution trace from

which the energy usage is calculated. Furthermore,

energy usage due to hardware use is also captured. In

this deployment, Orka was a web-based service, how-

ever in future iterations it could be a command-line

system in order to allow it to function on games.

Orka stands as a platform on which a number of

new research ideas could be formulated. It could be

expanded to test an application on emulators repre-

senting different pieces of hardware. Due to the dif-

ferent sizes and resolutions of devices, a mapping

would be needed to allow one Monkey Runner script

to run on many devices. Furthermore, Orka could be

expanded to allow developers to compare their ap-

plication’s performance to others of a similar cate-

gory. As such, future research could also try to iden-

tify behaviours that all category of applications need

to perform. These could be used to create a series

of standardised tests for different types of applica-

tions, which would help mitigate the problem of ma-

licious developers writing their own tests. This would

also help novice developers who are less familiar with

testing, as well as aiding more experience developers

trust the rankings of their applications.

REFERENCES

Brooks, D., Tiwari, V., and Martonosi, M. (2000). Wattch: a

framework for architectural-level power analysis and

optimizations, volume 28. ACM.

Orka: A New Technique to Proﬁle the Energy Usage of Android Applications

223

Bunse, C., H

opfner, H., Roychoudhury, S., and Mansour,

E. (2009). Choosing the “Best” Sorting Algorithm for

Optimal Energy Consumption. In ICSOFT (2), pages

199–206.

Casey, G. (2013). Inserting keylogger code in

Android SwiftKey using apktool. https://

www.georgiecasey.com/2013/03/06/inserting-

keylogger-code-in-android-swiftkey-using-apktool/.

Accessed: 2015-08-24.

Chaudhari, A. (2015). Mobile Applications Market

Expected to Reach US$ 54.89 Billion by 2020 Trans-

parency Market Research. http://globenewswire.com/

news-release/2015/02/19/707887/10120995/en/

Mobile-Applications-Market-Expected-to-Reach-

US-54-89-Billion-by-2020-Transparency-Market-

Research.html. Accessed: 2015-06-05.

Corral, L., Georgiev, A. B., Sillitti, A., and Succi, G. (2013).

A method for characterizing energy consumption in

Android smartphones. In Green and Sustainable Soft-

ware (GREENS), 2013 2nd International Workshop

on, pages 38–45. IEEE.

Dong, M. and Zhong, L. (2012). Chameleon: a color-

adaptive web browser for mobile OLED displays. Mo-

bile Computing, IEEE Transactions on, 11(5):724–

738.

Ehringer, D. (2010). The Dalvik Virtual Machine Architec-

ture. http://show.docjava.com/posterous/ﬁle/2012/12/

10222640-The Dalvik Virtual Machine.pdf. Ac-

cessed: 2015-08-24.

Google. Dalvik bytecode. https://source.android.com/

devices/tech/dalvik/dalvik-bytecode.html. Accessed:

2015-08-24.

Google. Keeping the Device Awake. http://developer.

android.com/training/scheduling/wakelock.html. Ac-

cessed: 2015-08-24.

Google. Signing Your Applications. https:// developer. an-

droid.com/ tools/ publishing/ app-signing.html. Ac-

cessed: 2015-08-24.

Hao, S., Li, D., Halfond, W. G., and Govindan, R. (2012).

Estimating Android applications’ CPU energy usage

via bytecode proﬁling. In Proceedings of the First In-

ternational Workshop on Green and Sustainable Soft-

ware, pages 1–7. IEEE Press.

Heikkinen, M. V., Nurminen, J. K., Smura, T., and

amm

ainen, H. (2012). Energy efﬁciency of mo-

bile handsets: Measuring user attitudes and behavior.

Telematics and Informatics, 29:387–399.

Jabbarvand, R., Sadeghi, A., Garcia, J., Malek, S., and Am-

mann, P. (2015). EcoDroid: An Approach for Energy-

Based Ranking of Android Apps. In Proceedings of

the 4th International Workshop on Green and Sustain-

able Software, pages 8–14. IEEE Press.

Li, D., Hao, S., Halfond, W. G., and Govindan, R. (2013).

Calculating source line level energy information for

android applications. In Proceedings of the 2013 In-

ternational Symposium on Software Testing and Anal-

ysis, pages 78–89. ACM.

Linares-V

asquez, M., Bavota, G., Bernal-C

ardenas, C.,

Oliveto, R., Di Penta, M., and Poshyvanyk, D. (2014).

Mining energy-greedy API usage patterns in Android

apps: an empirical study. In Proceedings of the 11th

Working Conference on Mining Software Reposito-

ries, pages 2–11. ACM.

Pathak, A., Hu, Y. C., and Zhang, M. (2012). Where is

the energy spent inside my app?: ﬁne grained energy

accounting on smartphones with eprof. In Proceed-

ings of the 7th ACM european conference on Com-

puter Systems, pages 29–42. ACM.

Rivera, J. (2015). Gartner Says Tablet Sales Continue to

Be Slow in 2015 . https://source.android.com/devices/

tech/power/index.html. Accessed: 2015-08-24.

Shimpi, A. (2013). The Nexus 7 (2013) Review - Platform

Power and Battery Life. http://www.anandtech.com/

show/7231/the-nexus-7-2013-review/2. Accessed:

2015-08-30.

Smali (2015). Registers. https://github.com/JesusFreke/

smali. Accessed: 2015-08-24.

StackOverﬂow (2015). How to use Xposed framework

on Android emulator. http://stackoverﬂow.com/

questions/18142924/how-to-use-xposed-framework-

on-android-emulator. Accessed: 2015-08-24.

Stylianou, C. (2013). Speeding Up the Android Emulator on

Intel Architecture. https://software.intel.com/en-us/

android/articles/speeding-up-the-android-emulator-

on-intel-architecture. Accessed: 2015-08-14.

Wilke, C., Richly, S., Gotz, S., Piechnick, C., and Aß-

mann, U. (2013). Energy consumption and efﬁciency

in mobile applications: A user feedback study. In

Green Computing and Communications (GreenCom),

2013 IEEE and Internet of Things (iThings/CPSCom),

IEEE International Conference on and IEEE Cy-

ber, Physical and Social Computing, pages 134–141.

IEEE.

Winchester, H. (2015). The best VR headsets. http://

www.wareable.com/headgear/the-best-ar-and-vr-

headsets. Accessed: 2015-06-05.

XDADevelopers (2014). Installing Xposed on the Android

Emulator. http://forum.xda-developers.com/xposed/

installing-xposed-android-emulator-t2794768. Ac-

cessed: 2015-08-24.

SMARTGREENS 2016 - 5th International Conference on Smart Cities and Green ICT Systems

224
