Adaptive Push-based Media Streaming in the Web

Luigi Lo Iacono and Silvia Santano Guill

Cologne University of Applied Sciences, Cologne, Germany

Keywords:

Adaptive Media Streaming, Push-based Streaming, Web, WebSocket.

Abstract:

Online media consumption is the main driving force for the recent growth of the Web. As especially real-

time media is becoming more and more accessible from a wide range of devices, with contrasting screen

resolutions, processing resources and network connectivity, a necessary requirement is providing users with

a seamless multimedia experience at the best possible quality, henceforth being able to adapt to the speciﬁc

device and network conditions.

This paper introduces a novel approach for adaptive media streaming in the Web. Despite the pervasive pull-

based designs based on HTTP, this paper builds upon a Web-native push-based approach by which both the

communication and processing overheads are reduced signiﬁcantly in comparison to the pull-based counter-

parts. In order to maintain these properties when enhancing the scheme by adaptation features, a server-side

monitoring and control needs to be developed as a consequence. Such an adaptive push-based media streaming

approach is introduced as main contribution of this work. Moreover, the obtained evaluation results provide

the evidence that with an adaptive push-based media delivery, on the one hand, an equivalent quality of ex-

perience can be provided at lower costs than by adopting pull-based media streaming. On the other hand, an

improved responsiveness in switching between quality levels can be obtained at no extra costs.

1 INTRODUCTION

In the early days of the Internet, video technologies

have been using speciﬁc streaming protocols such

as Real-Time Protocol (RTP) (Audio-Video Trans-

port Working Group, 1996) or Real-Time Streaming

Protocol (RTSP) (Schulzrinne et al., 1998). A cur-

rent trend is to deliver video content using HTTP-

based adaptive streaming instead, including Microsoft

Smooth Streaming (MSS) (Microsoft Corporation,

2015), Apple HTTP Live Streaming (HLS) (Pan-

tos, 2015), Adobe HTTP Dynamic Streaming

(HDS) (Adobe, 2013), and MPEG Dynamic Adap-

tive Streaming over HTTP (DASH) (ISO/IEC Moving

Picture Experts Group (MPEG), 2014). Reasons for

this broad adoption of HTTP as foundation for media

streaming include the reachable amount of potential

consumers through the Web, the cost efﬁcient deploy-

ment on standard HTTP servers and the exploitation

of available scalability infrastructures such as Content

Delivery Networks (CDN) (Held, 2010).

HTTP-based streaming protocols require that the

client periodically fetches sequential ﬁle-based media

chunks in order to retrieve and reconstruct the content.

This is especially true for live streaming settings. This

pull-based media distribution approach has strengths

in respect to scalability and fault-tolerance, since the

client is able to request chunks from different media

servers. On the other hand, it comes with system-

inherent costs due to the continuous request of me-

dia chunks. Moreover, the pull-based nature of me-

dia streaming over HTTP affects the way the adap-

tive change to media delivery conditions is performed.

The decision what quality level to choose for the next

media chunks needs to be taken on the client-side.

Thus, the media player application requires measur-

ing media delivery and rendering parameters for de-

termining e.g. the present network conditions. The

client then uses these observations for selecting a suit-

able quality level for the next media chunk to pull, i.

e. the best quality that still ensures a seamless and

smooth media playback. With regard to the adap-

tation a common procedure is to prepare the me-

dia content in distinct quality levels by encoding the

source media at different bitrates. The client is then

able to switch between these variations of the content.

This is commonly denoted as stream-switching. Al-

though having multiple versions of the same media

content implies much higher storage demands on the

server, an advantage is that the adaption does not re-

quire further processing during the transmission and

that this does not rely on any particular properties of

Iacono, L. and Guillén, S.

Adaptive Push-based Media Streaming in the Web.

In Proceedings of the 12th International Conference on Web Information Systems and Technologies (WEBIST 2016) - Volume 1, pages 121-129

ISBN: 978-989-758-186-1

121

the employed codec, thus being codec-agnostic. An-

other approach is based on scalable codecs such as

H264/MPEG-4 AVC (ISO/IEC Moving Picture Ex-

perts Group (MPEG), 2012). Such codecs support

spatial and temporal scalability enabling the adap-

tation of resolution and frame rate. The difference

to stream-switching is that the raw source media is

encoded only once. However, the drawback is that

it imposes some restrictions, such as the need for

specialized servers and the limited amount of avail-

able codecs. Transcoding-based approaches adapt

the video content to a speciﬁc bitrate on-the-ﬂy by

transcoding the raw content. Since this transcoding

needs to be performed for each client, the processing

load increases signiﬁcantly providing a limited scala-

bility.

The contribution of this paper is the introduction

of a novel adaptive media streaming approach for the

Web. In opposite to the currently available technolo-

gies and standards, the proposed scheme provides an

adaptive push-based media delivery. By pushing me-

dia segments from the server to the client, the over-

heads inherent to the pull-based counterparts can be

omitted completely (Lo Iacono and Santano Guill

en,

2014). As a consequence, the monitoring of qual-

ity of experience parameters and according decision-

making logic need to be present on the server-side.

This paper extends the approach introduced in (Lo Ia-

cono and Santano Guill

en, 2014) by adaptation capa-

bilities and evaluates various metrics in comparison

to the pull-based approaches. One major aspect that

has been investigated is the time required for switch-

ing between distinct quality levels. With the intro-

duced adaptive push-based media delivery approach

the usual trade-off between media segment length and

data expansion is mitigated. The remainder of this pa-

per is organized as follows: Section 2 gives a brief

review on the available related work in both commer-

cial products and algorithms proposed in the litera-

ture. Section 3 introduces the adaptive push-based

media streaming approach and describes a reference

implementation. Based on this functional prototype

the contributed approach is evaluated in Section 4.

The paper concludes in Section 5 by summarizing the

obtained ﬁndings and by discussing future work.

2 RELATED WORK

Related work can roughly be classiﬁed in solu-

tions used in commercial products and research

work from scientiﬁc publications. Microsoft Smooth

Streaming (MSS) (Microsoft Corporation, 2015) is

an extension of the Microsoft HTTP server IIS (In-

ternet Information Server) (Kenneth Schaefer, Jeff

Cochran, Scott Forsyth, Dennis Glendenning, Ben-

jamin Perkins, 2012) that enables HTTP-based media

streaming of H.264 (ISO/IEC Moving Picture Experts

Group (MPEG), 2012) video and AAC (ISO/IEC

Moving Picture Experts Group (MPEG), 2004) au-

dio to Silverlight and other clients. The video con-

tent is segmented into small chunks that are delivered

over HTTP. As transport format of the chunks, MSS

uses fragmented ISO MPEG-4 (ISO/IEC Moving Pic-

ture Experts Group (MPEG), 2012) ﬁles. To address

the unique chunks MSS uses time codes in the re-

quests and thus the client does not need to repeatedly

download a meta ﬁle containing the ﬁle names of the

chunks. Apple’s HTTP Live Streaming (HLS) (Pan-

tos, 2015) solution is currently an Internet Draft

at the Internet Engineering Task Force (IETF). As

MSS, HLS also enables the adaptive media stream-

ing of H.264 video and AAC audio. The HLS client

downloads a playlist containing the meta data for

the available media streams, which use MPEG-2 TS

(Transport Stream) (ISO/IEC Moving Picture Experts

Group (MPEG), 2013) as wire format. The me-

dia content is embedded into a Web page using the

HTML5 video element (Berjon et al., 2014), whose

source is the m3u8 manifest ﬁle, so that both the pars-

ing of the manifest and the download of the chunks

are handled by the browser. With less success re-

garding the adoption in the market, HTTP Dynamic

Streaming (HDS) (Adobe, 2013) is a similar solu-

tion from Adobe. Like MSS and HLS, HDS breaks

up video content into small chunks and delivers them

over HTTP. The client downloads a manifest ﬁle in bi-

nary format, the Flash Media Manifest (F4M), at the

beginning of the session and periodically during its

lifetime. As in MSS, segments are encoded as frag-

mented MP4 ﬁles that contain both audio and video

information in one ﬁle. It differs, however, from MSS

with respect to the use a single meta data ﬁle from

which the MPEG ﬁle container fragments are deter-

mined and then delivered. In this respect, HDS fol-

lows the principle used in HLS instead, which re-

quests and transmits individual chunks via a unique

name.

A current trend, in which consumers move from

desktop computers to smartphones, tablets, and other

specialized devices to consume real-time multime-

dia leads to the situation that these devices present

huge differences in terms of compatibility. Thus,

the delivery of media to any of these platforms re-

quires the support of a large number of streaming

protocols as well as media formats and codecs. To

address this issue, the MPEG standardization group

has developed a general standard for the delivery

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

122

of adaptive streaming media over HTTP with the

aim of harmonizing the various proprietary technolo-

gies. The so called Dynamic Adaptive Streaming

over HTTP (DASH) (ISO/IEC Moving Picture Ex-

perts Group (MPEG), 2014) allows standard-based

clients to retrieve content from any standard-based

Web server. Its principle is to provide formats that en-

able efﬁcient and high-quality delivery of streaming

services over the Web to provide very high user ex-

perience by providing a low start-up, no re-buffering

and trick modes. To accomplish this, it proposes the

reuse of existing technologies in relation to contain-

ers, codecs, DRM, etc. and the deployment on top

of Content Distribution Networks (CDN). It speciﬁes

the use of either MPEG-4 or MPEG-2 TS chunks and

an XML manifest ﬁle that lists the available chunks,

the so-called Media Presentation Description (MPD).

As an intermediate result it can be noted, that all ma-

jor commercial HTTP-based adaptive media stream-

ing solutions as well as the MPEG-DASH standard

make use of stream-switching together with the pull-

based delivery model.

A multitude of adaptation methods for determin-

ing network conditions and adjusting to them based

on various parameters and proposing different archi-

tectures can be found in the literature. Most of the

mechanisms are either client-based or require feed-

back from the client. (Kim et al., 2013), (Liu et al.,

2011), (Douga et al., 2014) and (Jiang et al., 2012)

belong to the ﬁrst category and present e.g. client-

based adaptation approaches based on the change be-

tween measured throughput over time, the throughput

measured based on the segment fetch time, the client-

side buffered video time or the harmonic mean of the

bandwidth estimation over the last 20 chunks respec-

tively. To the second category belong e.g. (Bouras

and Gkamas, 2005), (Jammeh et al., 2009), presenting

an architecture such that measurements are performed

by the receiver, which returns a feedback message to

the server. The ﬁrst one describes a network mon-

itoring module, which uses metrics such as packet

loss rate and delay jitter while the second proposes

a closed loop congestion controller based on fuzzy

logic utilizing packet inter-arrival times (packet dis-

persion) and its rate of change as inputs. Another

approach founded on the same principle of requiring

some sort of feedback from the client is followed by

(Balk et al., 2003) and (Papadimitriou and Tsaous-

sidis, 2007), which propose own developed protocols

on top of UDP and make use of the Round Trip Times

(RTT) of empty ACK messages from the client as

metric to estimate the network conditions.

Less common but more related to the present work

are approaches, which perform media stream adapta-

tion on the server-side solely. Such approaches can be

found e.g. in (De Cicco et al., 2011) and (Kuschnig

et al., 2010). Both adaptation mechanisms are com-

pletely server-side, i.e. measuring, estimation and ac-

tuation are carried out at the server and thus the con-

trol loop does not require any explicit feedback from

the client. (De Cicco et al., 2011) presents a quality

adaptation controller which takes as input the queue

length of the sender buffer placed at the server to se-

lect the video level. (Kuschnig et al., 2010) describes

an evaluation of different rate-adaptive streaming al-

gorithms for TCP. In this approach, the proposed

server-side adaptive streaming system makes use of

different metrics to estimate the network conditions,

such as the time spent for the transmission of a spe-

ciﬁc media block, the current congestion window and

the estimated RTT of the TCP connection.

3 ADAPTIVE PUSH-BASED

MEDIA STREAMING

The architecture of the proposed adaptive push-based

media streaming approach is shown in Figure 1. As

for the pull-based streaming protocols, it is based on

the provisioning of short media segments produced

in various quality levels. The distinguishing point of

the present contribution is that the stream-switching

decision is conducted on the server-side and that the

push-based media distribution model is deployed as

foundational concept. The main reason for this deci-

sion is to introduce a media streaming approach for

the Web with minimal overhead.

The proposed scheme is capable of detecting

the current data throughput rate for each established

client connection and delivering the best-most media

quality chosen from a set of provided quality levels.

The measurements as well as the adaptation process

occur on the server-side, reducing the amount of con-

trol and meta data to be exchanged between client and

server to a minimum. Actually this approach does not

require any feedback from the client to ascertain the

current available data throughput rate. Moreover, the

proposed approach is based on the media push model.

Thus, the server sends the available video segments to

all connected clients in playback order, without hav-

ing the client request each of them.

The low-overhead application-level WebSockets

protocol opens the path for implementing the push-

based approach for the Web (Lo Iacono and San-

tano Guill

en, 2014). A WebSocket is a permanent

bidirectional channel between a WebSocket client—

most commonly a Web browser—and a WebSocket

server through which the media segments can be

Adaptive Push-based Media Streaming in the Web

123

Measure current

throughput

Client

Media

Source

HTML5

Player

TCP buffer

Select

video quality

Video segments

Lowest

quality

Highest

quality

...

WebSocket

Adaptive push-based

media stream

MEDIA SERVER

WEB BROWSER

Figure 1: Adaptive push-based media delivery architecture.

pushed.

3.1 Server-side Components

As Figure 1 depicts, the media delivery process on the

server is carried out in distinct phases. The process

includes the in sequence retrieval of the segments, the

decision on how to schedule the content feeding to

the output buffer, the feedback from the own process

about the current throughput and the selection of the

appropriate quality level for the next segment to be

sent. The strategy followed by the server in terms of

chunk scheduling is immediate-sending, meaning that

the next chunk is sent as soon as it is available for

delivery as long as the output buffer is not full.

To the best of the authors’ knowledge, and fol-

lowing the encapsulation principles of the OSI ref-

erence model, there are no WebSocket libraries that

provide the mechanisms to provide higher-level lay-

ers with information about the underlying TCP con-

nection that allow recognizing at application level

the current status of the channel, such as the TCP

buffer state. They merely provide the means neces-

sary to handle the connection between both endpoints

at a very high level by simple asynchronous read and

write operations. In consequence, the server has been

developed using plain TCP sockets as base and im-

plementing an own version of the WebSocket proto-

col on top of it as communication means. The imple-

mentation in C# programming language is based on

blocking TCP methods that the classes TcpListener

and TcpClient .NET System.Net.Sockets names-

pace provide. By utilizing blocking methods, op-

posed to the majority of other implementations, the

buffer state can be estimated measuring sending times

based merely on TCP ACK feedback instead of on ex-

plicit messages from the client. This allows for calcu-

lating the current media throughput. The average of

this metric over the last sent segments is a good indi-

cator to assess how quickly the packets leave the TCP

buffer and thus is used to select next segment’s quality

level. The selection algorithm employed relies on the

essential requirement of ensuring correct playback at

the client, which implies taking the measured value

as threshold and selecting the highest quality media

bitrate below it.

To enable a maximum performance based on the

blocking TCP functions, it is mandatory to adjust the

buffer size on the sender side accordingly. The buffer

size might have a considerable effect on the quality

of the transmission when selected inappropiately. It

is enforced that this does not result too small in com-

parison with the average size of a segment, since this

would cause the application to react with a large la-

tency to network condition changes. On the other

side, the buffer size should also not be too large as

setting it larger than the segment size would cause

the content to be sent through too quickly leaving the

buffer very soon and having as a consequence that the

metrics would not be reliable.

3.2 Client-side Components

Although this adaptive push-based media streaming

approach follows in many aspects the MPEG-DASH

standard, yet standard DASH players are not ade-

quate to be used on the client side. The reason lies

in the fundamentally different delivery approach. The

player has been developed using the JavaScript Web-

Socket API (Hickson, 2012), the HTML5 Video ele-

ment for video rendering and the MediaSource Exten-

sions (Colwell et al., 2015) to feed the Video element

with the segmented content.

When new content is received, it is appended to a

processing queue from which they will be chained to

a playing buffer. In order to enable the video player to

perform a switch between streams of distinct quality,

the server provides the client with the initialization

segment i.e. meta data describing the media of the

new representation each time a switch occurs. This

meta data ﬁle is chained into the stream the same way

as every other segment. As the proposed push-based

media streaming approach is controlled completely

by the server, there is no need for a manifest ﬁle as

in other implementations, which have the purpose of

informing the client of the available content.

4 EVALUATION

An experimental evaluation has been conducted in or-

der to derive the properties of the proposed adaptive

push-based media streaming approach. The main ob-

jective is to evaluate how precisely and fast the sys-

tem is able to adapt to network changes as well as

how efﬁciently this can utilize the available connec-

tion. In addition, several different segment durations

have been investigated to assess what the segment

duration when generating adaptive streaming content

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

124

should be, on account of how the duration affects the

viewing quality in various aspects. This decision of-

ten comprises a trade-off between two characteristics:

the ﬂexibility when adapting to network changes and

the encoding efﬁciency, both desirable and unfortu-

nately going in opposite directions.

Previous work on this topic concludes that a good

recommendation for HTTP Adaptive Streaming is to

use a segment length between 2 and 3 or between 5

and 8 seconds, depending on whether persistent con-

nections are established or not. Well-known solu-

tions like Microsoft’s Smooth Streaming use 2 sec-

onds as default segment duration, since connection

details are updated every 2 seconds (Microsoft Cor-

poration, 2015), while Apple recommends up to 10

seconds on their HTTP Live Streaming solution (Ap-

ple Inc., 2014). The expectations are, however, that

when it comes to a low-overhead protocol such as the

adaptive push-based approach introduced in this pa-

per, a good compromise on the segment length can

be achieved and that this falls even lower as for those

over HTTP, leveraging its reduced header overhead

and its push abilities to get higher ﬂexibility on qual-

ity switching.

Having a long segment length, although favorable

to obtain higher encoding efﬁciency, may cause play-

back stalls when the Internet connection is changing

over time. There is another important disadvantage

of long segment lengths with major effects on live

streaming with regard to start-up latency, since the

longer the segment length is, the longer is the time

users need to wait for the ﬁrst picture to be received.

On the other hand, if the proposed approach were

used to send short segments the switches between

qualities would be faster and smoother. Thus, having

removed the downside of the overhead increase HTTP

protocol would produce when increasing the number

of requests using shorter chunks, the initial assump-

tion is that the proposed push-based approach would

beneﬁt of having a short segment duration.

4.1 Content Preparation

The video used for this experiment is the 10 minute

open movie Elephants Dream (Blender Foundation,

2006). Each video-set is composed of ﬁve different

quality levels, with the characteristics shown in Table

1. In total ten video-sets have been evaluated, pack-

etized in chunks of different segment lengths varying

between 0.5 and 20 seconds.

FFmpeg

has been used for transcoding and

mp4box

for MPEG-DASH packetizing. A key pa-

https://www.ffmpeg.org

https://gpac.wp.mines-telecom.fr/mp4box/

Table 1: Quality levels of video content for evaluation.

Quality Level

Resolution

Bitrate [kbps]

QL0

426x240

800

QL1

640x360

1200

QL2

854x480

1600

QL3

1280x720

2600

QL4

1920x1080

4000

rameter to consider in the transcoding process is the

GOP (Group Of Pictures), which governs how the dif-

ferent types of video frames are chained. An I-frame

is a picture that is coded independently of all other

pictures. P- and B-frames contain difference informa-

tion relative to previously decoded pictures. The GOP

has an inﬂuence on many aspects including the media

structure and playback. A very signiﬁcant one is re-

lated to media segmentation. A decoder or player is

not be able to play back a segment, which does not

start with an I-frame. Thus, it is not possible to split

the content into different segments at a point other

than an I-frame. The duration of all segments must be

equal in addition. Another relevant characteristic is

the seamless quality level switching. Since the player

can switch to the playback of a new representation

only from an I-frame, this type of frames must be lo-

cated on the same position in all of them to avoid time

jumps in the playback. The GOP length is henceforth

strongly related to the segment duration.

With these requirements in mind, the GoP has

been set to be self-contained (closed), meaning that

it starts with an I-frame, it is independent from

previous I-frames and it does not refer frames from

other GOPs. Moreover, the GOP length as well as the

key-frame interval has been set in way that just one

GOP is included in every segment, according to:

Frame rate [fps] * Segment duration [s]

The framerate has been set to 24 fps in ev-

ery case and the resolution is the only factor which

differ from one another, starting from 426x240 in the

lowest quality (QL0) to 1920x1080 in the highest

one (QL4), which gives as a result a video overall

bitrate of approximately 800, 1200, 1600, 2600

and 4000 kbps respectively, as listed in Table 1.

Afterwards, mp4box has been used to segment the

video in chunks of small duration and according to

DASH AVC 264 (DASH Industry Forum, 2015) for

ten different segment lengths (see Table 2).

Adaptive Push-based Media Streaming in the Web

125

4.2 Evaluation Results

The experimental evaluation results demonstrate how

the proposed approach performs compared to pull-

based counterparts based on HTTP. In addition, the

experiments support the initial assumptions regarding

the trade-off between the encoding efﬁciency and the

adaptation ﬂexibility, showing effects of the segment

length. The ﬁle size on hard disk each set requires is

used as metric to assess the encoding efﬁciency. The

size is affected because of how media content is struc-

tured, using different types of frames, i.e. I-, P- and

B-frames. The higher the amount of I-frames there

is, the larger the size will be, and this is very much

related to the segment length. For the investigated

content, this comparison is represented in form of a

bar graph in Figure 2 for each video set and the same

quality level, in this case the lowest quality (QL0) for

all. When reducing the segment length the size in-

creases considerably, resulting in a remarkable size

difference between the highest and the lowest length,

with around 1.3 GB and 1.53 GB, respectively. On

the other hand, the variation is negligible between a

segment length of 5 and one of 20 seconds.

11500000

12000000

12500000

13000000

13500000

14000000

14500000

15000000

15500000

0,5

Video size [Bytes]

Segment length [Seconds]

Figure 2: Total size of the video for each set of the same

representation.

The application level protocol used for the trans-

mission also introduces an overhead that adds to the

media size. It also depends on the number of seg-

ments. As mentioned previously, the use of HTTP

as application level transfer protocol produces a large

overhead for short segment durations, much higher

than that from WebSocket protocol for the same case.

The table in the appendix shows an approximation of

the average overhead that would be produced for each

video set and for each of the quality levels in case of

using HTTP, regarding the overhead generated by up-

dating the manifest ﬁle and the intrinsic overhead of

using HTTP for the media transmission in contrast

to the overhead of this push-based approach. The

results present very different results for each imple-

mentation, which may have a signiﬁcant impact on

resources needed and ultimately on the ﬁnal costs for

the transmission. For the worst case, i.e. using very

small chunks of 0.5 seconds, the sum of HTTP over-

head and the manifest overhead can be as high as

4.82 % of the total size for the lowest quality level,

compared to as slow as 0,0086 %, practically negli-

gible, for a WebSocket implementation. This differ-

ence lies in the amount of meta data that needs to be

sent, including request and response headers as well

as the manifest ﬁle necessary on HTTP-based adap-

tive streaming mechanisms, which in many imple-

mentations is updated every time before requesting a

new chunk for live streaming. The size of this ﬁle

varies for each stream. However, its average size is of

several KB. The percentage of overhead in relation to

the video size is always higher for lower qualities due

to the fact that higher quality videos occupy more size

in memory. Therefore, for the same segment length,

0.5 seconds, the overall HTTP and manifest overhead

would add up to 1.15 % of the total size for the best

quality in HD.

The architecture of the experimental setup con-

sists merely on the evaluation client and the media

server, which are connected through a local network,

to ensure that the bandwidth when no speciﬁc set-

tings apply is high, and a bandwidth shaper between

them. The bandwidth shaper controls the maximum

achievable bandwidth with the Linux trafﬁc control

system tc. The tests have been carried out creating

speciﬁc queuing disciplines with qdisc and a hierar-

chical token bucket htb applied to the speciﬁc inter-

face and port to limit the client download rate. The

video stream is sent over this link whose maximum

available throughput changes following the function

depicted in Figure 3, with a minimum value of 1000

kbps and maximum value of 4000 kbps with random

step variations that occur at multiples of t=50 seconds.

100 200 300 400 500 600 700

1,000

2,000

3,000

4,000

Time (s)

Bandwidth (kbps)

Figure 3: Data throughput shaping function.

Such scenarios with abrupt changes to the

throughput are commonly used to evaluate dynamic

system responses and observe how precise and how

quickly the controller is able to adapt the video level

to fast bandwidth variations. It has been employed

in previous research as the mentioned in Section 2

to evaluate the key features of the response of adap-

tive streaming controller. The same bandwidth shap-

ing function has been applied to all of the video-sets.

These differ in the total media size, which explains

why the total transmission of short segments video-

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

126

sets takes more time than for that of longer segments.

On the client side, the trafﬁc has been captured us-

ing Wireshark

to extract the variations of the chang-

ing throughput. These measurements have been com-

bined in a graph with the information the client ob-

tains about the quality level of each of the segments

received and the timestamp of the arrival. The con-

trast they show gives the pursued information to grasp

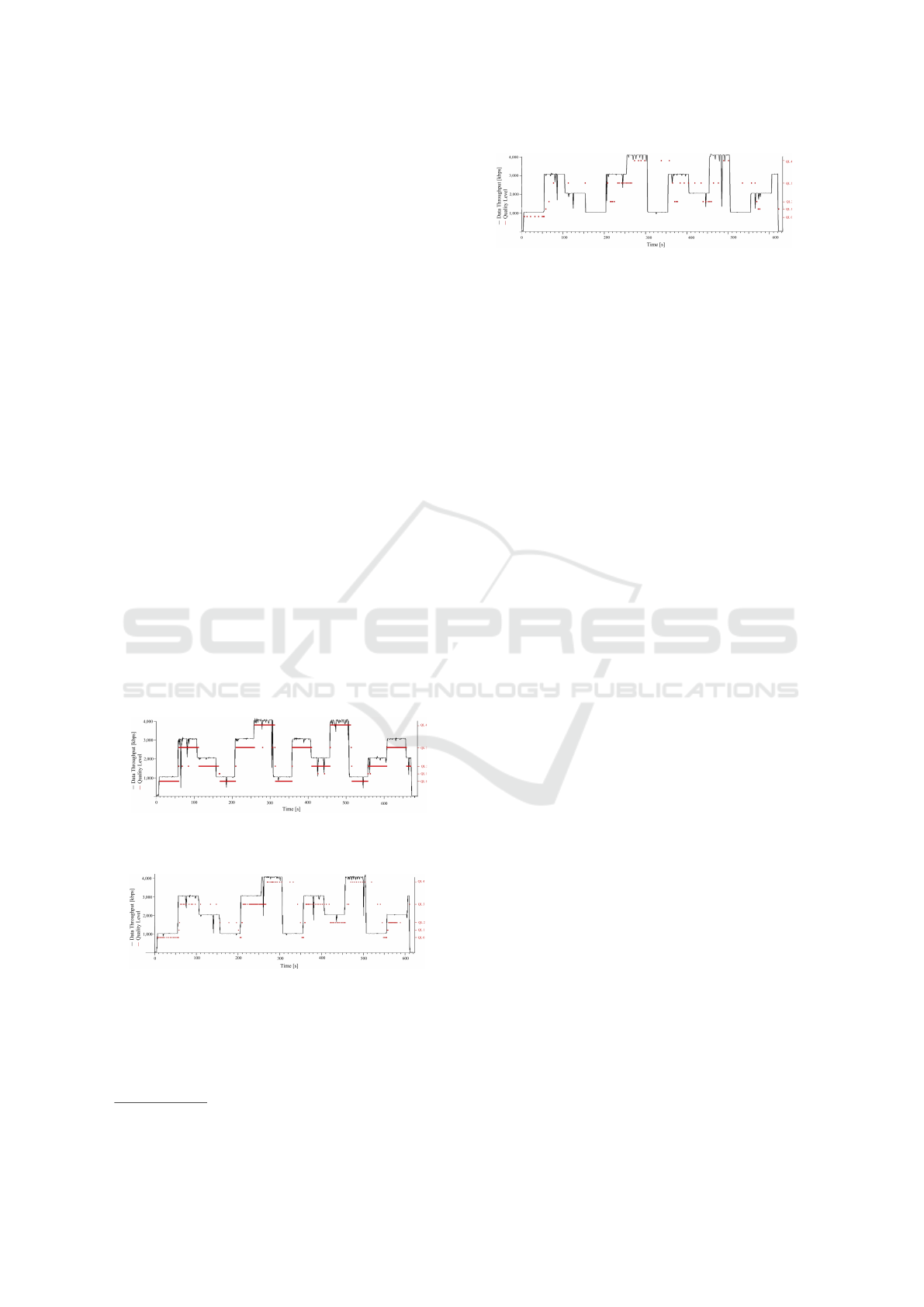

the response of the adaptive controller. Figures 4, 5

and 6 are composed of the measured throughput in

kbps for the application represented by a black line

and the quality level of the segments, where each seg-

ment is marked as a red spot at the point in time it was

received. Figure 4 shows how instant an implemen-

tation with short segments of 0.5 seconds each can

adapt to match the available bandwidth, which is less

than two seconds when the bandwidth increases and

from 10 to 15 seconds when the bandwidth decreases.

Figure 5 contains the results obtained by a scenario

with segments of a length of 4 seconds each. It gets

apparent that in comparison to the previous evalua-

tion scenario this shows a poor adaptiveness espe-

cially when the bandwidth goes down, causing stalls

in video playback as the bitrate of the quality level is

well over the available bandwidth. Figure 6 shows an

extreme case where the segment length is 10 seconds

and the system is not able to react in time to match

the available bandwidth. From a consumer viewpoint

this would result in unpleasant consequences, leading

to a very poor viewing experience caused by repetitive

stalls in the playback.

Figure 4: Stream-switching results for a segment length of

0.5 sec.

Figure 5: Stream-switching results for a segment length of

4 sec.

https://www.wireshark.org/

Figure 6: Stream-switching results for a segment length of

10 sec.

5 CONCLUSION

The achieved results from the conducted evaluations

show very favorable improvements when implement-

ing adaptive media streaming in the Web following

a pushed-based delivery model. This contribution is

based on the low-overhead WebSocket protocol lever-

aging its abilities for reducing communication over-

heads while eliminating the exchange of meta data in

particular. To further reduce the overhead, all adapta-

tion measures have been implemented on the server-

side, obsoleting otherwise required synchronization

communications. The performed evaluations also an-

alyze the effect of the segment length on an adap-

tive implementation to ascertain which length best

ﬁts. According to the obtained results, a trade-off

stemming out of the segment length. In respect to

the introduced adaptive push-based media streaming

approach this trade-off is lessened due to the gener-

ally low footprint of the protocol. The data expan-

sion coming with small segment lengths can be partly

compensated by the minimal protocol overhead. A

compromise lies in a segment length of around 1 sec-

ond, allowing for a responsive adaptation to network

changes while still increase the data volume only

moderately. Hence, when adopting the introduced

approach, one gets an additional degree of freedom

when designing adaptive Web-based media streaming

services. The design can either optimize for mini-

mal data expansion or for a maximal responsiveness

to changing conditions.

REFERENCES

Adobe (2013). Adobe HTTP Dynamic Streaming Speciﬁ-

cation.

http://wwwimages.adobe.com/content/dam/Adobe/en

/devnet/hds/pdfs/adobe-hds-speciﬁcation.pdf.

Balk, A., Maggiorini, D., Gerla, M., and Sanadidi, M. Y.

(2003). Adaptive mpeg-4 video streaming with band-

width estimation. In Proceedings of QoS-IP.

Berjon, R., Faulkner, S., Leithead, T., Navara, E. D.,

O’Connor, E., Pfeiffer, S., and Hickson, I.

(2014). HTML5 Video Element. Working

Adaptive Push-based Media Streaming in the Web

127

draft, W3C. http://www.w3.org/TR/2011/WD-html5-

20110113/video.html#video.

Bouras, C. and Gkamas, A. (2005). Performance of adap-

tive multimedia transmission: The case of unicast

technique. In INC 2005, Proceedings of the ﬁfth in-

ternational Network Conference 2005.

Colwell, A., Bateman, A., and Watson, M. (2015).

Media source extensions. Editor’s draft, W3C.

dvcs.w3.org/hg/html-media/raw-ﬁle/tip/media-

source/media-source.html.

De Cicco, L., Mascolo, S., and Palmisano, V. (2011).

Feedback control for adaptive live video streaming.

In MMSys’11 Proceedings of the ﬁrst annual ACM

SIGMM conference on Multimedia systems.

Douga, Y., Bourenanea, M., and Melloukb, A. (2014).

Adaptive video streaming using tcp factors control

with user parameters. In Procedia Computer Science,

Volume 34, pages 526–531.

Held, G. (2010). A Practical Guide to Content Delivery

Networks, ISBN: 1439835888, 9781439835883. CRC

Press, Inc., Boca Raton, FL, USA, 2nd edition.

Hickson, I. (2012). The web sockets api. Candidate recom-

mendation, W3C. www.w3.org/TR/websockets.

ISO/IEC Moving Picture Experts Group (MPEG) (2004).

Advanced Audio coding. International standard

iso/iec 13818-7, ISO/IEC.

Jammeh, E. A., Fleury, M., and Ghanbari, M. (2009). Rate-

adaptive video streaming through packet dispersion

feedback. In IET Communications, Volume 3, Issue 1,

Print ISSN 1751-8628, Online ISSN 1751-8636, pages

25 – 37.

Jiang, J., Sekar, V., and Zhang, H. (2012). Improving fair-

ness, efﬁciency, and stability in http-based adaptive

video streaming with festive. In CoNEXT’12, Inter-

national Conference on emerging Networking EXper-

iments and Technologies, pages 326–340.

Kim, Y., Shin, J., and Park, J. (2013). Design and imple-

mentation of a network-adaptive mechanism for http

video streaming. In ETRI Journal, Volume 35, Num-

ber 1.

Kuschnig, R., Koﬂer, I., and Hellwagner, H. (2010). An

evaluation of tcp-based rate-control algorithms for

adaptive internet streaming of h.264/svc. In MM-

Sys’10, Proceedings of the ﬁrst annual ACM SIGMM

conference on Multimedia systems, pages 157–168.

Liu, C., Bouazizi, I., and Gabbouj, M. (2011). Rate adap-

tation for adaptive http streaming. In MMSys’11, Pro-

ceedings of the ﬁrst annual ACM SIGMM conference

on Multimedia systems, pages 169–174.

Pantos, R. (2015). HTTP Live Streaming. Internet-Draft

draft-pantos-http-live-streaming-18, Internet Engi-

neering Task Force.

Papadimitriou, P. and Tsaoussidis, V. (2007). A rate con-

trol scheme for adaptive video streaming over the in-

ternet. In ICC’07, IEEE International Conference on

Communications, pages 616 – 621.

Audio-Video Transport Working Group (1996). Rtp: A

transport protocol for real-time applications. RFC

1889, IETF.

Blender Foundation (2006). Elephants dream.

http://orange.blender.org/.

DASH Industry Forum (2015). guidelines for im-

plementation: Dash-if interoperability points.

http://dashif.org/wp-content/uploads/2015/10/DASH-

IF-IOP-v3.1.pdf.

ISO/IEC Moving Picture Experts Group (MPEG) (2012).

ISO MPEG-4. International standard iso/iec 14496-

10 mpeg-4, ISO/IEC.

ISO/IEC Moving Picture Experts Group (MPEG) (2013).

ISO MPEG-TS. International standard iso/iec 13818-

1, ISO/IEC.

ISO/IEC Moving Picture Experts Group (MPEG) (2014).

Dynamic Adaptive Streaming over HTTP. Interna-

tional standard iso/iec 23009-1:2014, ISO/IEC.

Lo Iacono, L. and Santano Guill

en, S. (2014). Efﬁcient and

adaptive web-native live video streaming. In Inter-

national Journal on Advances in Internet Technology

vol. 7, no. 3 - 4, ISSN: 1942-2652, pages 232–242.

Apple Inc. (2014). HTTP Live Streaming Overview.

https://developer.apple.com/library/ios/documentation

/NetworkingInternet/Conceptual/StreamingMediaGui

de/StreamingMediaGuide.pdf#page=31.

Kenneth Schaefer, Jeff Cochran, Scott Forsyth, Dennis

Glendenning, Benjamin Perkins (2012). Professional

Microsoft IIS 8. Wrox.

Microsoft Corporation (2015). Smooth Streaming Speciﬁ-

cation.

http://download.microsoft.com/download/9/5/E/95EF

66AF-9026-4BB0-A41D-A4F81802D92C/[MS-

SSTR].pdf.

Schulzrinne, H., Rao, A., and Lanphier, R. (1998). Real

time streaming protocol (rtsp). RFC 2326, IETF.

www.tools.ietf.org/html/rfc2326.

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

128

APPENDIX: MEASUREMENT RESULTS

Media data

[%]

HTTP Ov.

[%]

Manifest Ov.

[%]

Media data

[%]

WS Ov.

[%]

Manifest Ov.

[%]

0.5 q0 95.18 0.65 4.17 99.9914 0.0086

0.0

q1 96.67 0.45 2.89 99.9940 0.0060

0.0

q2 97.53 0.33 2.14 99.9956 0.0044

0.0

q3 98.48 0.20 1.31 99.9973 0.0027

0.0

q4 98.84 0.15 1.00 99.9979 0.0021

0.0

1 q0 97.41 0.35 2.25 99.9954 0.0046

0.0

q1 98.17 0.25 1.59 99.9967 0.0033

0.0

q2 98.62 0.18 1.19 99.9975 0.0025

0.0

q3 99.15 0.11 0.74 99.9985 0.0015

0.0

q4 99.39 0.08 0.53 99.9989 0.0011

0.0

2 q0 98.64 0.18 1.18 99.9976 0.0024

0.0

q1 99.03 0.13 0.84 99.9983 0.0017

0.0

q2 99.26 0.10 0.64 99.9987 0.0013

0.0

q3 99.54 0.06 0.40 99.9992 0.0008

0.0

q4 99.68 0.04 0.27 99.9994 0.0006

0.0

3 q0 99.07 0.12 0.80 99.9983 0.0017

0.0

q1 99.33 0.09 0.58 99.9988 0.0012

0.0

q2 99.49 0.07 0.44 99.9991 0.0009

0.0

q3 99.68 0.04 0.28 99.9994 0.0006

0.0

q4 99.79 0.03 0.19 99.9996 0.0004

0.0

4 q0 99.29 0.09 0.61 99.9987 0.0013

0.0

q1 99.49 0.07 0.44 99.9991 0.0009

0.0

q2 99.61 0.05 0.34 99.9993 0.0007

0.0

q3 99.76 0.03 0.21 99.9996 0.0004

0.0

q4 99.84 0.02 0.14 99.9997 0.0003

0.0

5 q0 99.43 0.08 0.49 99.9990 0.0010

0.0

q1 99.59 0.06 0.36 99.9993 0.0007

0.0

q2 99.68 0.04 0.27 99.9994 0.0006

0.0

q3 99.80 0.03 0.17 99.9996 0.0004

0.0

q4 99.87 0.02 0.11 99.9998 0.0002

0.0

6 q0 99.52 0.06 0.41 99.9991 0.0009

0.0

q1 99.65 0.05 0.30 99.9994 0.0006

0.0

q2 99.73 0.04 0.23 99.9995 0.0005

0.0

q3 99.83 0.02 0.14 99.9997 0.0003

0.0

q4 99.89 0.01 0.10 99.9998 0.0002

0.0

10 q0 99.70 0.04 0.26 99.9995 0.0005

0.0

q1 99.78 0.03 0.19 99.9996 0.0004

0.0

q2 99.83 0.02 0.14 99.9997 0.0003

0.0

q3 99.90 0.01 0.09 99.9998 0.0002

0.0

q4 99.93 0.01 0.06 99.9999 0.0001

0.0

15 q0 99.79 0.03 0.18 99.9996 0.0004

0.0

q1 99.85 0.02 0.13 99.9997 0.0003

0.0

q2 99.89 0.02 0.10 99.9998 0.0002

0.0

q3 99.93 0.01 0.06 99.9999 0.0001

0.0

q4 99.95 0.01 0.04 99.9999 0.0001

0.0

20 q0 99.84 0.02 0.14 99.9997 0.0003

0.0

q1 99.88 0.02 0.10 99.9998 0.0002

0.0

q2 99.91 0.01 0.08 99.9998 0.0002

0.0

q3 99.94 0.01 0.05 99.9999 0.0001

0.0

q4 99.96 0.00 0.04 99.9999 0.0001

0.0

Adaptive pull-based streaming

Adaptive push-based streaming

Segment length

[s]

Quality

level

Table 2: Adaptive media streaming protocol overheads: Comparing MPEG-DASH with the proposed adaptive push-based

media streaming approach

Adaptive Push-based Media Streaming in the Web

129
