Ontology based Description of Analytic Methods for Electrophysiology

Jan

Stebet´ak

and Roman Moucek

Department of Computer Science and Engineering, University of West Bohemia, Univerzitni 8, Pilsen, Czech Republic

NTIS - New Technologies for the Information Society, University of West Bohemia, Univerzitni 8, Pilsen, Czech Republic

Keywords:

Neuroinformatics, Electroencephalography, Event-related Potentials, Analytic Methods, Metadata, Semantic

Web, Ontology.

Abstract:

The growing electrophysiology research leads to the collection of large amounts of experimental data and con-

sequently to the broader application, eventually development of analytic methods, algorithms, and workﬂows.

Then appropriate metadata deﬁnition and related data description is critical for long term storage and later

identiﬁcation of experimental data. Although a detailed description of electrophysiology data has not become

a commonly used procedure so far, publicly available and well described data have started to appear in profes-

sional journals. The next reasonable step is to shift attention to the analysis of electrophysiology data. Since

the analysis of this kind of data is rather complex, identiﬁcation and appropriate description of used methods,

algorithms and workﬂows would help reproducibility of the research in the ﬁeld. This description would also

allow developing automatic or semi-automatic systems for data analysis or constructing complex workﬂows

in a more user friendly way. Based on these assumptions authors present a custom ontology for description

of analytic methods and workﬂows in electrophysiology that is proposed to be discussed within the scientiﬁc

community.

1 INTRODUCTION

Our research group at the Universityof West Bohemia

in Pilsen specializes in the research of human brain

activity. We use the methods and techniques of elec-

troencephalography (EEG) and event-related poten-

tials (ERP). As the electrophysiology research grows,

larger amounts of data are collected and more com-

plex methods and workﬂows are used for data analy-

sis. Typically, electrophysiology workﬂows used in

our laboratory include preprocessing methods (e.g.

ﬁltering, baseline correction), signal processing meth-

ods (for example feature extraction methods, cluster-

ing and classiﬁcation methods), and postprocessing

(usually statistical) methods. To make the applica-

tion of complex analytic methods and workﬂows re-

producible, a need for identiﬁcation and sharing of

their appropriate descriptions arises. These descrip-

tions would also allow developing automatic or semi-

automatic systems for data analysis or constructing

complex workﬂows in a more user friendly way. Then

by deﬁning proper metadata structures for analytic

methods and workﬂows and by using suitable tech-

nologies for machine-processing the workﬂow sys-

tems can ensure the following procedures:

• to check the syntactic compatibility of the used

methods (the output of the previous method is

used as an input to the following method)

• to check the semantic compatibility of the used

methods (connection of methods has sense in

terms of their semantic usage within the process-

ing chain and also semantic compatibility of trans-

ferred parameters)

• to suggest, which method is suitable to be put next

into the workﬂow

In this paper, we present a deﬁnition of the meta-

data structure that describes the methods used in ana-

lytic processing of electrophysiology data in our lab-

oratory. This structure thus helps to identify the se-

mantic compatibility of the methods while construct-

ing workﬂows. The rest of this paper is organized

as follows: Section II describes the analytic methods

that we use for processing of electrophysiology data.

It also brieﬂy presents the Semantic web technolo-

gies and existing ontologies. Section III deals with

the metadata deﬁnition. The selection of a suitable

technologyis provided in Section IV and the proposed

ontology is presented in Section V. This section is fol-

lowed by conclusions and future work description.

420

Štebeták, J. and Moucek, R.

Ontology based Description of Analytic Methods for Electrophysiology.

DOI: 10.5220/0005814004200425

In Proceedings of the 9th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2016) - Volume 5: HEALTHINF, pages 420-425

ISBN: 978-989-758-170-0

2 STATE OF THE ART

This section brings an overview of existing ap-

proachesto description of analytic methods and work-

ﬂows. Then it introduces the analytic methods suit-

able for electrophysiology research that we use for

data analysis in our laboratory. Then the Semantic

web technologies are brieﬂy described.

2.1 Existing Approaches

The CARMEN Portal (Watson et al., 2007)

(Code Analysis, Repository & Modelling for e-

Neuroscience) developed by the British National

Node allows neuroscientists to save and share exper-

imental data and services. CARMEN provides stor-

age of services. There is a number of public services

available such as data ﬁlters, neural spike detection

and spike sorting methods. No formal semantics or

metadata structures are used for description of these

methods, they are described in a natural language.

The Galaxy project (Goecks et al., 2010);

(Blankenberg et al., 2010); (Giardine et al., 2005) is

an open source workﬂows engine. A registered user

is able to use methods and workﬂow tools provided

by this system. Galaxy is focused on genome analy-

sis; therefore, this system contains methods suitable

for genome analysis. The methods are well described

for the users with description of parameters and ex-

amples. It also includes OBI ontology (ontology for

biomedicalinvestigation)for formaldescription of se-

mantic restrictions.

The Wings is an open source workﬂows engine

(its source code is available at GitHub) and portal

based system downloadable and runnable on local

servers. The methods the engine works with are

described by ontologies (in the Resource Descrip-

tion Framework). This description includes deﬁni-

tion of semantic constraints such as allowed values,

input/output cardinality, range, etc. The main disad-

vantage is a small community of developers and an-

noying bugs (e.g. difﬁculty with adding a new method

into the Wings system) that we found while trying to

deploy the system on a server.

This overview shows that the formal description

of methods in terms of semantic constraints (e.g. al-

lowed values) exists. However, the proper description

of input/output parameters allowing semantic com-

parison of methods is still not satisfactorily solved.

Therefore, we propose description of methods that al-

lows such comparison in this paper.

2.2 Analytic Methods

In our laboratory we widely use the following sig-

nal preprocessing and processing methods: averag-

ing, FIR ﬁlters, Matching Pursuit, Discrete and Con-

tinuous Wavelet transform, Fast Fourier transform,

Hilbert-Huang transform, and various neural net-

works. This section brieﬂy describes the basic prin-

ciples of these algorithms since metadata deﬁnitions

that follow will be proposed just for these methods.

We admit that the methods described in this paper are

only a subset of a larger set of methods that can be

used in signal preprocessing and processing. This is

taken into account and the proposed design will allow

straightforward extension of metadata deﬁnitions.

Averaging (Sanei and Chambers, 2007) is a com-

mon method for highlighting ERP waveforms. Dur-

ing the averaging of the same kind of ERP waveforms,

the noise is reduced and the waveform is highlighted.

Since the background EEG has a higher amplitude

then ERP waveforms, the averaging technique high-

lights the waveforms and suppress the background

EEG (Vidal, 1977).

The Matching Pursuit method has been frequently

used for continuous EEG processing. It decomposes

any signal into a linear expansion of functions. At

each iteration, a waveform is chosen in order to best

match the signiﬁcant structures of the signal. Typ-

ically, this part is approximated by a Gabor atom,

which has the highest scalar product with the origi-

nal signal, and then it is subtracted from the signal.

This process is repeated until the whole signal is ap-

proximated by Gabor atoms with an acceptable er-

ror (Vareka, 2012). For displaying results we imple-

mented the time-frequency transformation known as

Wigner-Ville transformation (Quian, 2002). The in-

put of this transformation is the set of chosen atoms.

Wavelet Transformation (WT) (Ciniburk et al.,

2010) is a suitable method for analyzing and process-

ing non-stationary signals such as EEG. WT has a

good time and frequency localization, which is nec-

essary for ERP detection. For EEG signal processing

it is possible to use Continuous Wavelet Transforma-

tion or Discrete Wavelet Transformation. For visual-

ization of wavelet results, the scalogram (Figure 1) is

used.

Figure 1: Input signal and its scalogram. (Rondik, 2012).

Ontology based Description of Analytic Methods for Electrophysiology

421

The Fourier transform converts waveform data in

the time domain into the frequency domain. Since

artifacts usually have higher amplitude and basic fre-

quency than a normal ERP component, this technique

is useful for detecting artifacts within the EEG or ERP

signal.

Independent Component Analysis (ICA) (Hyvari-

nen et al., 2001) is a method for blind signal sep-

aration and signal deconvolution. In the EEG/ERP

domain, ICA can be used for artifact removal, ERPs

detection, and, generally speaking, for detection and

separation of every signal which is independent on

EEG activity.

The Hilbert-Huang transform (HHT) was de-

signed to analyze nonlinear and non-stationary signal.

This also includes detection of ERP waveforms that is

described in (Ciniburk, 2011).

2.3 Semantic Web Technologies

The Semantic Web is a layered architecture. The

ﬁrst layer is called Resource Description Frame-

work (RDF). RDF is a simple metadata representa-

tion framework using URIs to identify web-based re-

sources and a graph model for describing relation-

ships between resources. Web ontology language

(OWL) is a semantically richer language and provides

more complexconstraints on the types of resource and

their properties. OWL comes with a larger vocab-

ulary, greater machine interpretability and stronger

syntax than RDF.

There are substantial differences between clas-

sic object-oriented languages such as Java or C#

and Semantic Web technologies. The semantics of

classes and instances in RDF Schema is open-world

and description logics-based while object-oriented

type systems are closed-world and constraint-based

(A. Kalyanpur and Padget, 2002). The following

list brings main differences between OOP (Object

Oriented Programming) and Semantic web princi-

ples (Oren et al., 2007):

• class membership: in object-oriented languages,

an object is a member of exactly one class: its

membershi is ﬁxed and is deﬁned during the ob-

ject instantiation. In RDF Schema, a resource can

belong to multiple classes: its membership is not

ﬁxed but deﬁned by its rdf:type and the properties

that belong to the resource.

• class hierarchy: in object-oriented type systems,

classes can usually inherit from one superclass,

while in RDF Schema classes can inherit from

multiple superclasses.

• attribute vs. property: in the object-oriented

model, attributes are deﬁned locally inside their

class, can be used only by instances of that class,

and generally have single-typed values. In con-

trast, RDF properties are stand-alone entities that

can be used by any resource of any class and that

can have values of different types.

• structural inheritance: in object-oriented pro-

gramming, objects inherit their attributes from

their parent classes. In RDF Schema, since prop-

erties do not belong to a class, they are not inher-

ited. Instead, property domains are propagated,

but given their speciﬁc meaning indicating the

class membership of resources using that prop-

erty, domains propagate into the upwards direc-

tion of the class hierarchy.

• object conformance: in most object-oriented lan-

guages, the structure of instances must exactly

follow the deﬁnition of their classes, whereas in

RDF Schema, a class deﬁnition is not exhaus-

tive and does not constrain the structure of its in-

stances: any RDF resource can use any property.

• ﬂexibility: object-oriented systems usually do not

allow class deﬁnitions to evolve during runtime.

In contrast, RDF is designed for integration of het-

erogeneous data with varying structure from vary-

ing sources, where both schema and data evolve

during runtime.

The main advantage of Semantic Web technolo-

gies (e.g. RDF or OWL language) is the ability to

evolve during runtime. Since newly created or added

methods have to be well described, an extendable

metadata deﬁnition is necessary. Easy reusability of

classes and properties is also crucial, therefore the

Semantic Web concept and technologies were cho-

sen for description of the analytic methods described

above.

3 METADATA DEFINITION AND

ONTOLOGY DEVELOPMENT

Because there is no suitable description of the meth-

ods used in electrophysiology, we proposed their se-

mantic description by using a set of metadata. De-

scribing analytic methods at a more speciﬁc level for

workﬂow construction requires a detailed analysis of

the methods’ operations in terms of semantics of their

inputs and outputs.

The metadata identiﬁcation originated from our

experience with data analysis, expertise of co-workers

from cooperating institutions, books describing prin-

ciples of EEG/ERP design and data recording (e.g.

(Steven, 2005)), and numerous scientiﬁc papers de-

HEALTHINF 2016 - 9th International Conference on Health Informatics

422

scribing processing of EEG/ERP data. We deﬁned the

following metadata and their structure:

• Method - It describes a method including its name

and input/output types. It also includes deﬁnitions

of restrictions (e.g. name is a string).

• Input/Output- It describes input/outputtypes used

by analytic methods. It includes signal such as

EEG or ECG, and its restrictions (e.g. signal has

values of double), coefﬁcients from the Wavelet

transform, or atom provided by the Matching Pur-

suit method (the atom is composed of scale, fre-

quency, modulus, phase, and position represented

as double values).

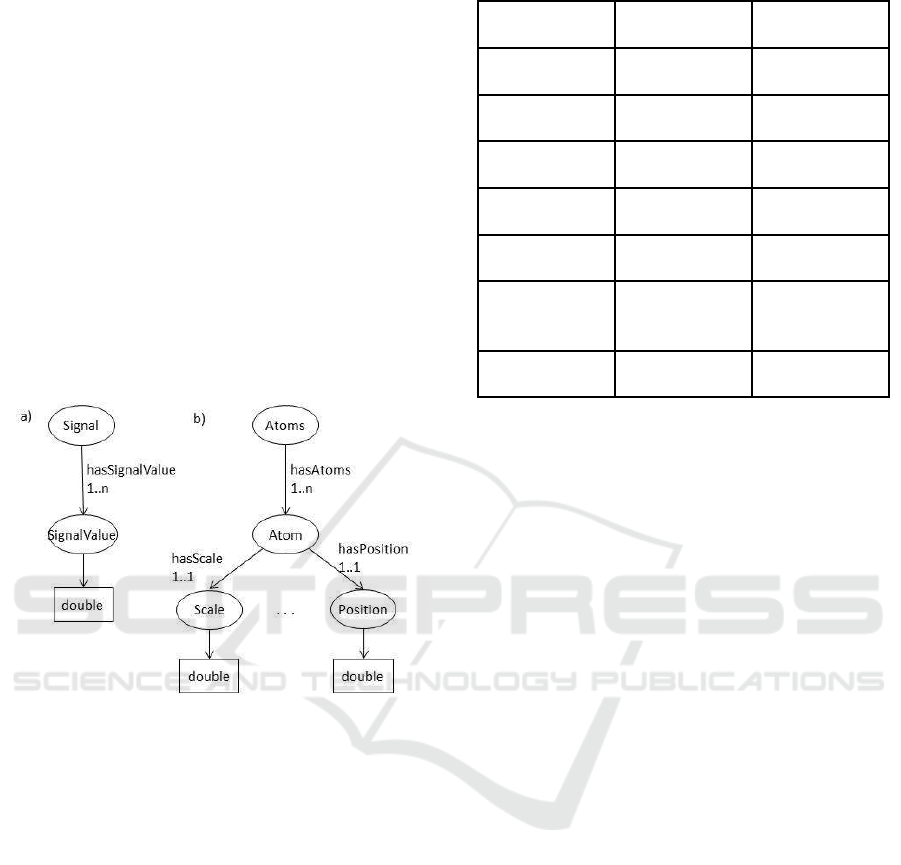

Figure 2 shows an example of the structure of in-

put/output types (Signal and Atom). The ovals repre-

sent elements and rectangles represents data types

Figure 2: a) Structure of Signal as an I/O type, b) Structure

of Atom.

Deﬁning metadata we continued with the devel-

opment of the ontology for analytic methods intro-

duced in Section 2.2. Table 1 brings an overview

of these methods enriched with input/output param-

eter(s) types.

For the ontology development we used Protege,

which is a free, open-source ontology editor and

framework for building intelligent systems. The fol-

lowing terms were deﬁned for the semantic group

method:

• Class Method and its named individuals (Detec-

tionOfEpochs, Averaging, CWT, DWT, FFT, Fas-

tICA, FIR, and MatchingPursuit)

• Class IOType representing general input/output

type (any class or individual)

We also deﬁned properties hasInput and hasOut-

put. The class Method is a domain class for these

properties and the class IOType deﬁnes their range.

The class IOType has the following subclasses:

Table 1: Overview of methods and parameters.

Method name Input parame-

ter(s)

Output pa-

rameter(s)

Detection of

epochs

EEG signal Set of de-

tected epochs

Fourier

Transform

EEG/ERP

signal

Detected fre-

quencies

Wavelet

Transform

EEG/ERP

signal

Computed co-

efﬁcients

Matching

Pursuit

EEG/ERP

signal

List of se-

lected atoms

ICA EEG/ERP

signal

ICA compo-

nents

Hilbert-

Huang Trans-

form

EEG/ERP

signal

Set of In-

trinsic Mode

Functions

Neural net-

work

Featured vec-

tor

Vector of

weights

• Class Signal (an example of this class is given

below) represents a set of values (signal ampli-

tudes) and individuals such as eegSignal, ecgSig-

nal, ...). Epoch, FilteredSignal, and Reconstruct-

edSignal are subclasses of this class. For these

classes we deﬁned an object property hasSignal-

Value, which range is the class SignalValue lead-

ing to a data property named Value with the de-

ﬁned type xsd:double.

• Class Coefﬁcient represents a generic type for a

coefﬁcient (for classes in this list that include co-

efﬁcients as their object properties). The coef-

ﬁcient value deﬁned as object property is of the

double value.

• Classes CWTCoefﬁcients and DWTCoefﬁcients

are computed coefﬁcients that represent the return

type of the methods Continuous Wavelet Trans-

form resp. Discrete Wavelet Transform.

• Class ComplexFrequency represents composi-

tion of RealFrequency and ImaginaryFrequency

classes. This type is typically used as an output

of time-frequency analytic methods such as Fast

Fourier Transform. It has two object properties:

hasRealValue and hasImaginaryValue. The prop-

erties range are RealValue class resp. Imaginary-

Value class.

• Class Atom represents the output type of the

Matching Pursuit method. It includes ﬁve coef-

ﬁcient types (classes Frequency, Scale, Modulus,

Position, and Phase) and ﬁve corresponding ob-

ject properties (hasScale, hasPosition, etc.).

Below an RDF example containing the class Sig-

nal, the object property hasSignalValue, and the data

property Value is shown.

Ontology based Description of Analytic Methods for Electrophysiology

423

<owl:Class rdf:about=

"http://www.semanticweb.org/eegMethods#Signal">

<rdfs:subClassOf>

<owl:Restriction>

<owl:onProperty rdf:resource=

"http://www.semanticweb.org/

eegMethods#hasSignalValue"/>

<owl:onClass rdf:resource=

"http://www.semanticweb.org/

eegMethods#SignalValue"/>

<owl:minQualifiedCardinality

rdf:datatype="&xsd;

nonNegativeInteger">1

</owl:minQualifiedCardinality>

</owl:Restriction>

</rdfs:subClassOf>

</owl:Class>

<owl:ObjectProperty rdf:about=

"http://www.semanticweb.org/

eegMethods#hasSignalValue">

<rdfs:domain rdf:resource=

"http://www.semanticweb.org/

eegMethods#ICAComponent"/>

<rdfs:domain rdf:resource=

"http://www.semanticweb.org/

eegMethods#Signal"/>

<rdfs:range rdf:resource=

"http://www.semanticweb.org/

eegMethods#SignalValue"/>

</owl:ObjectProperty>

<owl:DatatypeProperty rdf:about=

"http://www.semanticweb.org/eegMethods#Value">

<rdfs:domain rdf:resource=

"http://www.semanticweb.org/

eegMethods#CoefficientValue"/>

<rdfs:domain rdf:resource=

"http://www.semanticweb.org/ontologies/

eegMethods#SignalValue"/>

<rdfs:range rdf:resource="&xsd;double"/>

</owl:DatatypeProperty>

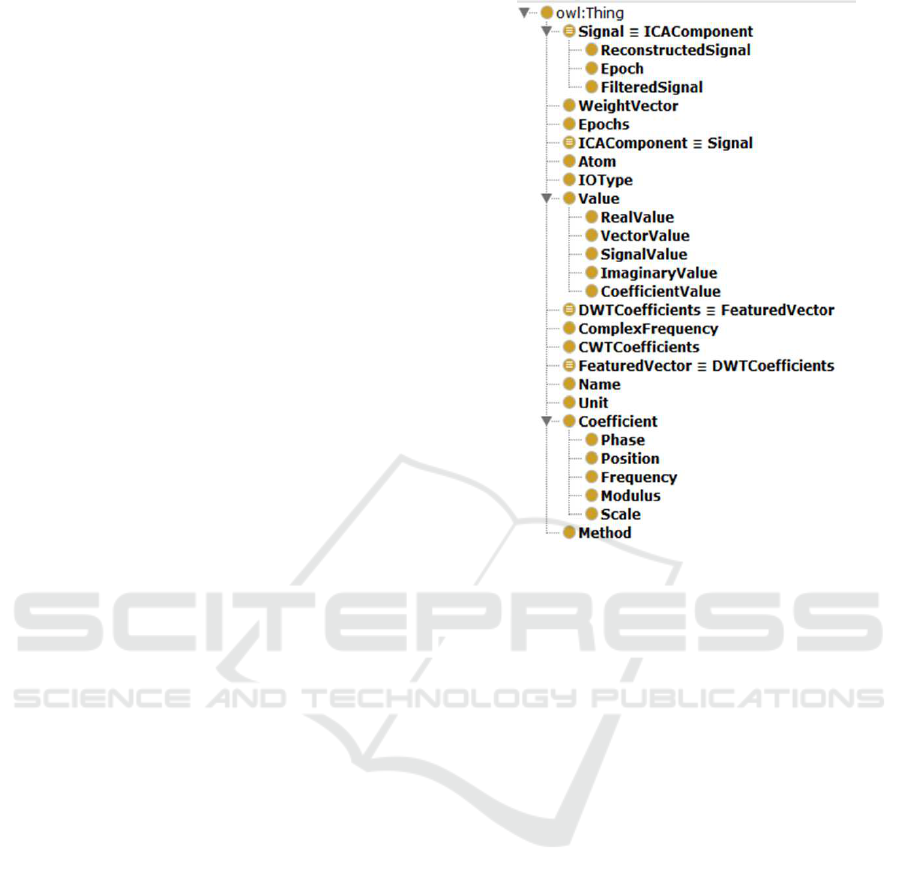

Figure 3 shows a tree of deﬁned classes provided by

the Protege.

The structure of the ontology including deﬁned

terms, equivalent classes, subclasses, and used prop-

erties is designed for semantic comparison of in-

put/output parameters. It is suitable for looking for

the semantic similarity between input/output parame-

ters of the consecutive methods. This will ensure the

semantic compatibility of methods while putting them

into a workﬂow.

4 CONCLUSIONS

This paper presents a subset of methods suitable for

EEG/ERP signal preprocessing and processing that

are used in our laboratory. The basic principles of

these methods as well as their use for ERP waveforms

Figure 3: Tree of classes in Protege.

detection or artifacts removal are brieﬂy described.

Since complex data analyses often require using mul-

tiple methods sequentially, it is crucial to ﬁnd suit-

able methods and reasonable workﬂows to achievethe

goal. Therefore, we deﬁned a set of metadata describ-

ing these analytic methods to help analyst to create

such a workﬂow correctly and with comparably lower

effort. Adding semantics to the methods in the form

of metadata thus allows analysts or better appropriate

software tools to check both syntactic and semantic

compatibility. Therefore we developed the ontology

that included a set of deﬁned metadata. This brings

an ability to develop an automatic or semi-automatic

workﬂow system in future.

The presented ontology is also easily extendable.

It allows reusing existing classes and properties as

well as deﬁning new classes and/or properties when

necessary.

4.1 Future Work

We will annotate the input/output parameters of the

methods used in our laboratory with the terms deﬁned

in the ontology. It allows us to ensure the compatibil-

ity of methods while constructing workﬂows. We also

plan to develop a workﬂow suggestion system based

on the presented ontology that will help users to ﬁnd

suitable methods while constructing workﬂows.

HEALTHINF 2016 - 9th International Conference on Health Informatics

424

ACKNOWLEDGEMENTS

The work was supported by the UWB grant SGS-

2013-039 Methods and Applications of Bio- and

Medical Informatics and by the European Regional

Development Fund (ERDF), Project ”NTIS - New

Technologies for Information Society”, European

Centre of Excellence, CZ.1.05/1.1.00/02.0090.

REFERENCES

A. Kalyanpur, D. Pastor, S. B. and Padget, J. (2002). Au-

tomatic mapping of owl ontologies into java. In Pro-

ceedings of the International Conference on Software

Engineering and Knowledge Engineering (SEKE).

Blankenberg, D., Kuster, G. V., Coraor, N., Ananda, G.,

Lazarus, R., Mangan, M., Nekrutenko, A., and Taylor,

J. (2010). Galaxy: A web-based genome analysis tool

for experimentalists. Current protocols in molecular

biology, pages 19–10.

Ciniburk, J. (2011). Hilbert-huang transform for erp detec-

tion. ph.d. thesis. Technical report, University of West

Bohemia, Department of Computer Science and Engi-

neering, Czech Republic.

Ciniburk, J., Moucek, R., Mautner, P., and Rondik, T.

(2010). Erp components detection using wavelet

transform and matching pursuit algorithm. In DCII,

Prague.

Giardine, B., Riemer, C., Hardison, R. C., Burhans, R., El-

nitski, L., Shah, P., Zhang, Y., Blankenberg, D., Al-

bert, I., Taylor, J., Miller, W. C., Kent, W. J., and

Nekrutenko, A. (2005). Galaxy: a platform for inter-

active large-scale genome analysis. Genome research,

15(10):1451–1455.

Goecks, J., Nekrutenko, A., Taylor, J., and Team, T. G.

(2010). Galaxy: a comprehensive approach for sup-

porting accessible, reproducible, and transparent com-

putational research in the life sciences. Genome Biol,

11(8):R86.

Hyvarinen, A., Karhunen, J., and Oja, E. (2001). Indepen-

dent component analysis. In Adaptive and Learning

Systems for Signal Processing, Prague.

Oren, E., Delbru, R., Gerke, S., Haller, A., and Decker, S.

(2007). Activerdf: object-oriented semantic web pro-

gramming. In WWW ’07: Proceedings of the 16th

international conference on World Wide Web, pages

817–824, New York, NY, USA.

Quian, S. (2002). Introduction to time-frequency and

wavelet transforms. Paris.

Rondik, T. (2012). Methods for detection of erp waveforms

in bci systems. state of the art and concept of ph.d.

thesis. Technical report, University of West Bohemia,

Department of Computer Science and Engineering.

Sanei, S. and Chambers, J. A. (2007). Eeg signal process-

ing. Chippenham (Wiltshire): Antony Rowe Ltd.

Steven, J. L. (2005). An Introduction to the Event-Related

Potential Technique (Cognitive Neuroscience). A

Bradford Book.

Vareka, L. (2012). Matching pursuit for p300-based brain

computer interfaces. Prague.

Vidal, J. J. (1977). Real-time detection of brain events in

eeg. In Proceedings of the IEEE, volume 65, pages

633–641.

Watson, P., Jackson, T., Pitsilis, G., Gibson, F., Austin, J.,

Fletcher, M., Liang, B., and Lord, P. (2007). The car-

men neuroscience server. In Proceedings of the UK

e-Science All hands Meeting, pages 135–141.

Ontology based Description of Analytic Methods for Electrophysiology

425
