Leveraging Use of Software-license-protected Applications in Clouds

Wolfgang Ziegler

, Hassan Rasheed

and Karl Catewicz

Fraunhofer Institute SCAI, Department of Bioinformatics, 53754 Sankt Augustin, Germany

Fraunhofer Institute FIT, User-Centered Computing Department, 53754 Sankt Augustin, Germany

Keywords:

Cloud Computing, Software, IPR.

Abstract:

Running software license-protected commercial applications in IaaS or PaaS Cloud environments is still an

issue that is not resolved in a satisfying way that beneﬁt both the independent software vendor (ISV) and its

customers. Due to the mandatory centralised control of license usage at application run-time, e.g. heartbeat

control by the license server running at the home site of a user, traditional software licensing practices are not

suitable especially when the distributed environment stretches across administrative domains. Although there

have been a few bilateral agreements between ISVs and Cloud providers in the past to allow customers of these

ISVs to run some of the ISVs license-protected applications in Clouds of certain providers a general solution

is still lacking. In this paper we present an approach for software licensing that allows location independent

use of software licenses both in form of delegation of already purchased on-site licenses to the Cloud and with

authorisations for individual application executions in the Cloud.

1 INTRODUCTION

Cloud computing starts fulﬁlling its promise to pro-

vide a more ﬂexible and cost-effective approach de-

livering infrastructure services than traditional IT ser-

vices. However, cost-effectiveness and ﬂexibility are

foiled when the Cloud customer starts using commer-

cial software on the acquired infrastructure resources

since both the licensing technology and the business

models of the independent software vendors (ISV)

are not in line with the Cloud computing paradigm.

Running software license-protected commercial ap-

plications in IaaS or PaaS Cloud environments is still

an issue that is not resolved in a satisfying way that

beneﬁt both the independent software vendor (ISV)

and its customers. The current technology and con-

tracts force the customer to restrict the use of license-

protected applications to internal private Clouds with-

out the possibility of Cloud bursting or the use of

multi-Clouds. The ISV on the other side is faced

with increased usage of its software under the same

yearly ﬂat rate. Although there have been a few bilat-

eral agreements between ISVs and Cloud providers

in the past (see Section 2) to allow customers of these

ISVs to run some of the ISVs’ license-protected ap-

plications in Clouds of certain providers a general so-

lution is still lacking. The objectives of the work de-

scribed in the following sections are facilitating the

use of license protected software in Clouds, increas-

ing the ﬂexibility of end-users to run their commercial

applications in the most suitable and/or less costly en-

vironment, protecting the IPR of the ISV, and laying

the foundations for new business models of ISVs by

providing a novel software licensing and license man-

agement technology that is designed for todays dis-

tributed computing infrastructures. The solution is

• facilitating the use of license protected software

in Clouds,

• increasing the ﬂexibility of end-users to run

their commercial applications in the most suitable

and/or less costly environment,

• protecting the IPR of the ISV,

• laying the foundations for new business models of

ISVs.

In this paper we present research and development

results from the European project OPTIMIS (OPTI-

MIS, 2013) and their application in the industrial do-

main through a number of experiments in the Euro-

pean project Fortissimo (Fortissimo, 2016). The work

in OPTIMIS was using the results of the European

project SmartLM (SmartLM, 2011) as a basis for de-

veloping software licensing and license management

for Cloud computing. The OPTIMIS results extend

the prototype for use in multi-Cloud environments,

Ziegler, W., Rasheed, H. and Catewicz, K.

Leveraging Use of Software-license-protected Applications in Clouds.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 2, pages 265-273

ISBN: 978-989-758-182-3

265

both in form of delegation of already purchased on-

site licenses to the Cloud and with authorisations for

individual application executions in the Cloud. The

approach supports both the traditional yearly ﬂat rate

licensing but also the pay-per-use approach, which is

more appropriate for agile Cloud usage.

The remainder of this article is organised as fol-

lows. Section 2 presents related work in the area of li-

cense management in Clouds, Section 3 describes the

basic technology upon which the OPTIMIS solution

was build upon. The developments in OPTIMIS are

described in Section 4. Section 5 presents the results

of the evaluation of the implementation in a commer-

cial Cloud infrastructure and Section 6 concludes the

paper.

2 RELATED WORK

So far, commercial software has been and still is

rarely used in Grids and public Clouds due to the lim-

itations both with respect to the license management

technology and the missing business models of the

independent software vendors (ISV) for using their

software in the Grid or the Cloud. Only in 2009

MathWorks has provided a technical solution (and a

business model) allowing to use their MATLAB suite

in the EGEE Grid environment (MATLAB, 2009).

However, this is a bilateral agreement only and has

so far no implications for using MathWorks software

in other Grids like the German D-Grid. Lately, IBM

launched a cooperation with Amazon allowing IBM’s

customers to use own software licenses for a lim-

ited number of applications under certain conditions

in the Amazon Elastic Compute Cloud (EC2), which

is extending BYOSL from the IBM Cloud to a pub-

lic Cloud. However, the use of the ”bring your own

software and license” (BYOSL) (BYOSL, 2013) op-

tion would have to be settled by IBM with each Cloud

provider where a user wants to deploy and use an

application. In addition to iBM’s BYOSL presented

above there are ﬁrst offerings of companies for Soft-

ware Digital Rights Management technologies to be

used in Clouds. Following we present approaches

of those three that together have a market share of

more than 80% (Sullivan, 2010): SafeNet, Flexera

and Wibu (in descending order of the individual mar-

ket share).

SafeNet as the market leader provides their prod-

uct Sentinel Cloud Service (Sentinel, 2014), which

is a framework for protecting software and data in

the Cloud. This software has been provided since

2011. Sentinel Cloud Services is software for licens-

ing and entitlement management delivered as a ser-

vice for cloud services. It is supporting vendors of

SaaS and PaaS service offerings. SafeNet Sentinel

Cloud Services provides an alternative to traditional

billing and payments services through its catalog-

driven licensing and entitlement management solu-

tion. The solution includes the ability to package

and re-package service offerings and pricing models,

the ability to control what aspects of a service a spe-

ciﬁc end user can access including the particular ac-

cess rights. In addition to the traditional approach of

a license server on-site with ﬁrewall ports opened to

control the application execution in the Cloud or a li-

cense server deployed in the Cloud, there is no spe-

ciﬁc support for IaaS. Drawbacks of these approaches

are the additional security risks having open ports for

bi-directional protocols and additional licenses liable

to pay costs needed for the deployed license server.

In 2010, Flexera announced they would provide

in 2011 Cloud-speciﬁc extensions to their product

FlexNet Licensing (FLEXERA, 2014). The basic idea

of the technology is binding the licensing process to

the hosting environment or to the underlying hard-

ware. The developments were made including coop-

eration with VMWare (vmware, 2014) and allow re-

placing the current binding of a license to a physical

server (where the license server is running) to a virtual

machine hosting the license server or the hardware the

virtual machine is running on. However, the informa-

tion on the Flexera web-site about the outcome of this

cooperation still are more than vague. From the Flex-

era web-site it is not evident as to whether or not the

development has achieved a mature state until today

as planned.

Wibu, the third company among the big three,

is a German SME providing solutions for protecting

intellectual properties ranging from software to me-

dia. While the initial focus of the company was on

dongle-based solutions, the company has extended its

technology to software-based protection mechanisms.

For Cloud environments, Wibu started research co-

operation with the Fraunhofer institute ITWM to in-

vestigate in a solution based on the (Dalheimer and

Pfreundt, 2009) license management (development

of Fraunhofer ITWM). The state of the joint project

S4Cloud is unclear as both partners don’t provide

more actual information other than a short article on

the Wibu web-pages and ITWM’s press release of

2010 (S4Cloud, 2015), (ITWM, 2010). The S4Cloud

approach is based on software tokens that include a

Hash of the input data of an application run. While

this is a similar approach as taken by SmartLM, the

major difference is that when the token is created, the

ISV of the license-protected applications have to be

contacted to get an online electronic authorisation. In

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

266

contrast, SmartLM does not need online authorisation

of the ISV for creating a token since the ISV already

authorised the license server of the licensee to act on

his behalf.

To the best of our knowledge little public research

has been focusing on licensing technology since the

new IT infrastructure paradigms - Grids, Clouds and

SOA - became serious extensions and replacements

of traditional IT infrastructures. Early approaches

like (Dong et al., 2005), (FU et al., 2007) and (Guofu

et al., 2006) propose front-ends to the FlexNet Li-

cense manager (FlexnetManager, 2015) providing

scheduling and reservation of licenses. However,

both approaches assume open ﬁrewall ports at run-

time to enable the communication between license

manager and application. (Dong et al., 2006) focusses

on maximisation of license usage and resource usage

in Grids. Like the previously mentioned approaches

open ﬁrewall ports at runtime are a prerequisite. Other

approaches like (Kwok and Lui, 2002) and (Liu et al.,

2007) stem from the P2P environment. The former

addressing licensing of music sharing while the sec-

ond one is more generally addressing content shar-

ing. However,both approaches grant unlimited access

or usage once a license has been issued and thus do

not support a business model useful for ISVs. (Kat-

saros et al., 2009) ﬁnally is proposing a license mech-

anism suitable for SOA environments. However, the

paper sketches the architecture and some possible in-

teractions but lacks an implementation and experi-

ments with real applications. Moreover, the approach

also assumes open ﬁrewall ports at runtime. Only re-

cently when these new paradigms gained ground in

productive environments where e.g. more commer-

cial simulation codes are used than in the e-Science

domain license technology came to the fore. In (Li

et al., 2008) the authors give an overview on current

licensing technologyand models and describe two ap-

proaches developed in European projects to overcome

the limitations. One of the presented approaches

breaks with the current technology and has been im-

plemented as prototype in the SmartLM project while

the second approach circumvents some of the limi-

tations imposed by the de-facto standard of software

licensing. In the European project BEinGRID an-

other approach was developed which allows the use

of existing licenses in Grid environments through tun-

nelling of the communication of the license server to

the application (Raekow et al., 2009). While techni-

cally feasible this approach raises a number of legal

issues since many license contracts prohibit the use

of a software license outside a company or outside a

certain radius from the company. Furthermore, this

approach is no longer maintained since the end of the

BEinGRID project.

As of today (and as far as can be judged from

the publications on the respective web-sites) the ap-

proaches of the major players in he ﬁeld of Soft-

ware Digital Rights Management are still requiring

network connectivity to the user’s site license server

during application execution in the Cloud, manual in-

teraction with the ISV and are not transparent for the

user. The SmartLM baseline technology for licensing

and license management extended in OPTIMIS over-

comes these limitations.

3 OPTIMIS LICENSE

MANAGEMENT BASELINE

TECHNOLOGY

The key for ﬂexible software licenses that can follow

applications into Clouds without the need to access

an on-site license server at runtime is the separation

of (1) authorisation for license usage and (2) autho-

risation for application execution. (1) is done at the

site of the user considering the local policies for us-

ing licenses, e.g. department quota. The result of a

successful authorisation is a reservation of a license

for a certain time and a software token, that contains

all information to allow the policy enforcement point

in the application to decide on the execution. (2) is

done later in the Cloud where the token is examined

when starting the application. The prototype solution

developed in the European project SmartLM imple-

mented this separation and provides a software to-

ken mechanism that contains all authorisation infor-

mation required by the application API to validate the

request for executing an application and forward the

license information to the applications policy enforce-

ment point in case of a successful validation of the

token.

While usually unreachability of license servers,

e.g. due to ﬁrewall rules, leads to applications abort-

ing during start-up the token provides off-line access

to licenses for authorising the execution of an appli-

cation in a Cloud beyond the administrative domain

of the site running the license server .

4 CLOUD

ENVIRONMENT-SPECIFIC

PROVISIONS

Figure 1 depicts the structure of a license token high-

lighting the different levels of protection against fraud

Leveraging Use of Software-license-protected Applications in Clouds

267

Application

Certiﬁcate of the ISV

Token

Authorisation

Certiﬁcate of the license server

(Tag SubjectPublicKey)

Certiﬁcate of the ISV

(Tag Signature)

The public key of this certiﬁcate

is used by the elasticLM system

to validate the signature of the

authorization

The public key of this certiﬁcate

is used by the elasticLM system

to validate the signature of the

token

Is used by the method

isTokenAuthorizedBy to verify

that the token was authorised

by a certain ISV

Figure 1: Structure of the license token.

though a chain of trust created with signatures of all

actors involved in the creation of a token. Besides this

internal protection the token may also contain a SHA-

2 hash of the input data needed to run the application.

This has binds the token to the input data and allows

execution of an application only with these input data.

As a result, the token can be copied but the copies can

never used with other data than the token was created

for.

In OPTIMIS additional approaches have been im-

plemented enhancing the SmartLM solution: (i) dy-

namic deployment of a trusted instance managing a

number of tokens for one or multiple applications

and for one or multiple users, and (ii) dynamic de-

ployment of a full license service with a subset of

the licenses available at the home organisation of the

user. The conﬁguration of the dynamically deployed

license service is also managed by the VM contex-

tualiser. The second approach is especially useful

when the same Cloud resources are used over a longer

period of time for running license protected applica-

tions. In the ﬁrst approach both the user and the con-

textualiser can be responsible for conﬁguring and de-

ploying the trusted instance for the respective network

environment and to transfer tokens.

4.1 Contextualisation

All necessary applications, tools and probably cor-

responding input data to be processed using Cloud

resources can be included in images prepared in ad-

vance for deployment in a IaaS Cloud. These im-

ages can be used multiple times in different environ-

ments. As a consequence, environment speciﬁc data,

like e.g. networking conﬁguration, security customi-

sation or software license information are not part of

these images and need to be inserted prior to deploy-

ment. As part of this contextualisation process in OP-

TIMIS also the necessary license tokens for execut-

ing a license-protected application are created dynam-

ically and inserted into the image (Armstrong et al.,

2011), hence, realising License as a Service (LaaS).

In case of multiple applications in a VM, e.g. for a

workﬂow, the VM contextualizer assures that all re-

quired licenses are in place when the applications start

up. No communication between the application and

the license server that issued the token is required at

runtime.

4.2 License Delegation

This approach is based on the license delegation de-

veloped in OPTIMIS and the deployment of a license

server as part of the contextualisation. It further re-

quires a trustworthy Cloud provider willing to pro-

vide an additional service for retrieving environment-

speciﬁc data in form of a hash value of this data. We

suggest using SHA-2, which we consider being safe

enough given the time constraints encoded in the to-

ken and the limited life-time of the delegated licenses

while the time requirements for this algorithm are

suitable for a user-steered on-line process. The trusted

instance is operating on tokens that are created before-

hand when it is known in advance which applications

will be used and which licenses are required. The

tokens can be prepared at the user’s premises. The

license server deployed on the IP’s Cloud infrastruc-

ture supports dynamic, on-the-ﬂy creation of tokens

that are needed for running the applications. See Fig-

ure 2 for the details of the splitting process. Since

the license server creating the tokens is running in the

Cloud environment, it may use the provider’s service

to get the hash of some environment-speciﬁc parame-

ters.

When creating the token the hash can be included

and be veriﬁed online when the token is processed in

the Cloud. The deployed license service (Server B) is

a copy of the license service that runs locally at the

premises of the user (Server A). This license service

is part of the VM so it can be deployed on the desig-

nated Cloud infrastructure together with the applica-

tions and data. However, the total number of licenses

and features initially procured from the ISV must re-

main the same when a license service is running in

the premises of the user and in the Cloud. To achieve

this, the licenses and features made available for the

license service in Server B in the Cloud are blocked

in Server A and cannot be used locally anymore. Fig-

ure 2 depicts the process of preparing a subset of the

licenses and features available at Server A to be added

to Server B in the Cloud (license delegation).

As shown above, the initial authorisation issued

by the ISV for Server A to install and use a license

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

268

ISV

Customer

License

Service

Signed

license,

features,

Authorisation

ISV authorisation for Server A,

signed licenseﬁle

Server A

Cloud

License

Service

Signed

license,

features,

Authorisation

Server B

ISV authorisation

embedded in Server A

authorisation for Server B,

signed licenseﬁle

issues Token

signed by Server B

Token

Server A authorisation:

ISV authorisation

- Server A

certiﬁcate

- ISV signature

Server B certiﬁcate

Server A signature

Figure 2: Process of license splitting.

procured from the ISV can be delegated by Server A

to Server B. This delegated authorisation includes the

authorisation of the ISV, the certiﬁcate of Server B

and is signed by Server A. Server B includes the au-

thorisation of Server A into each created token. This

allows the API to validate the entire chain of trust up

to the ISV when a token is processed. The authorisa-

tion for using the application is not rejected when the

chain is broken, i.e. when the token is not created by

Server B but by another copy of the license service

running on another server. Moreover, the API can

check at runtime whether the license and features con-

tained in the token are blocked for local use at Server

As an extension of this mechanism we consider

the Cloud provider offering a service that allows re-

trieving key parameters of the Cloud environment en-

coded in a SHA-2 hash key. The parameters should

be signiﬁcant for the respective environment and thus

deliver a distinct hash key per Cloud environment.

Some kind of standardized set of parameters should

possibly be deﬁned to achieve the goal of uniqueness

across different providers. A ﬁrst set of parameters to

start the evaluation included: Cloud provider’s name,

Cloud provider’s access point IP address, type of Vir-

tualisation Software, operating system, date/time un-

til the hash key is valid, some unique properties of the

hardware the VMs will be executed upon.

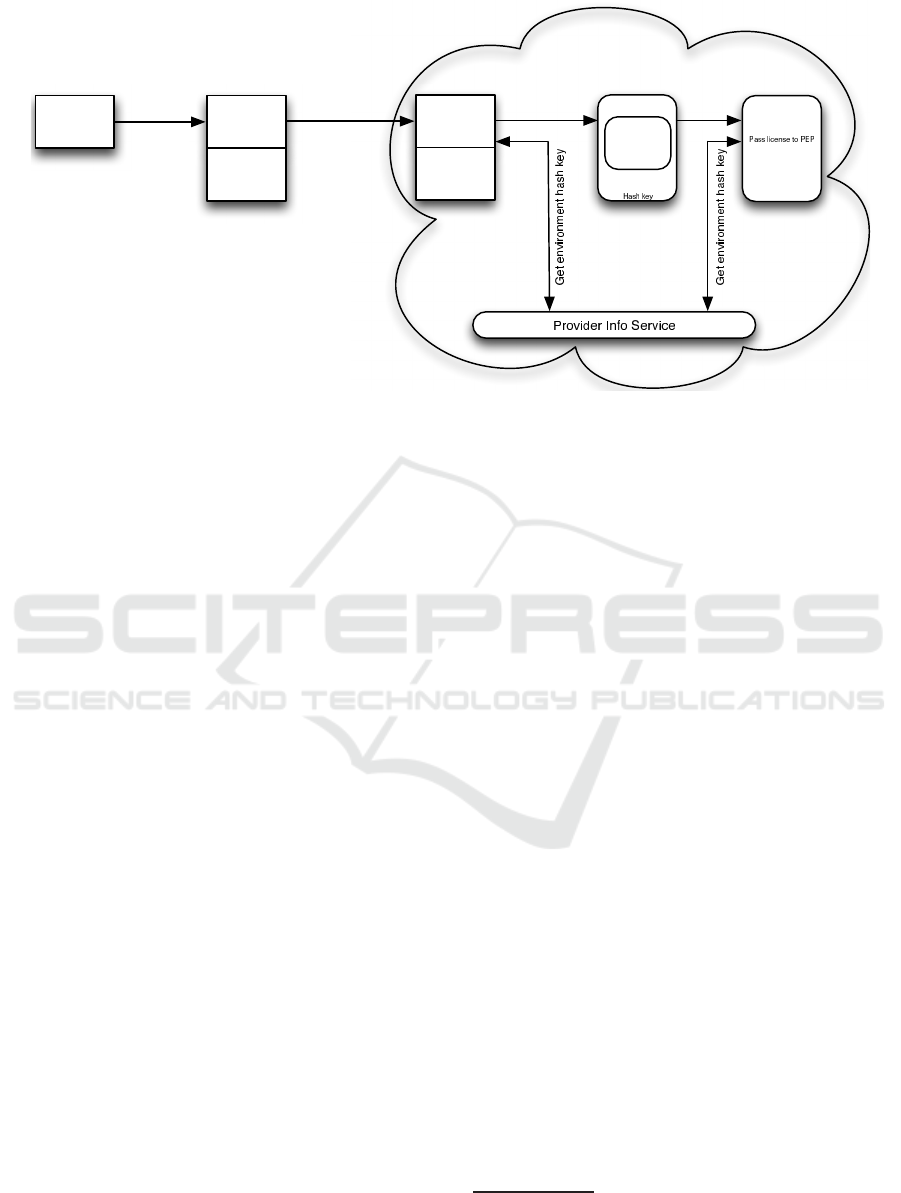

With this extension, the license delegation mech-

anism would look like the diagram depicted in Fig-

ure 3. The tokens created by the license server in

the Cloud contain the hash key of the local Cloud en-

vironment as additional information. When the ap-

plication starts executing, the API validates the to-

ken as usual. In addition, it also makes a call to

the provider’s information service to retrieve the hash

key. If the hash key matches the one in the token,

the API continues providing the license information

in the token to the policy enforcement point in the

application to grant or deny further execution of the

application.

Adding the hash key of the provider’s environment

adds additional protection against fraud. E.g. just

cloning the VM with the license server and running

it in a different Cloud environment is not easily pos-

sible. Of course, the level of desirable protection (and

the effort spent for achieving this) strongly depends

on the value that is to be protected. Also, the effort

put into breaching a mechanism depends on the value

that is protected by this mechanism. While this ap-

proach is able to increase the token protection against

fraud, it also limits the ﬂexibility that the usage of

Cloud resources may provide. Binding the token to

information retrieved from the execution environment

inhibits Cloud dynamics like Cloud bursting. In this

approach we would need a provider to cooperate and

implement the hash function. In contrast to the trusted

instance described before in section 4.2, the solution

depends on a third party the Cloud provider deliver-

ing the hash key and as such is not as easy/fast to

implement as the previously described approach.

Clearly, the ISV has to allow license delegation.

The ISV can do this implicitly through providing an

extended API that is able to validate the delegation

chain. Any non-enhanced API would reject the to-

kens that were created based on a delegated license.

In case the ISV does not allow license delegation an-

other possibility for providing multiple execution au-

thorisations in the Cloud is the Trusted Instance de-

scribed in the next section.

4.3 Trusted Instance

The rationale behind the trusted instance is twofold:

providing a secure container for tokens that in addi-

tion is able to communicate with the API (the applica-

tions policy decision point) and to deliver all informa-

tion to the API required to authorise a user’s request

to launch an application. As depicted in Figure 4 the

same mechanism for binding tokens to the respective

Cloud environment can be used as with license dele-

gation.

The trusted instance veriﬁes that the token is valid.

Additionally, depending on ﬁrewall restrictions, it

may provide a secure channel that can be used for

communication with the license server located at the

user’s premises (e.g. to verify the status of a token

prior and during the operation of the license-protected

application or to cancel a reservation). If renegotia-

tion of the license terms is allowed (which is deﬁned

Leveraging Use of Software-license-protected Applications in Clouds

269

ISV

Customer

License

Service

Signed

license,

features,

Authorisation

ISV authorisation

for Server A,

signed licenseﬁle

Server A

Cloud

License

Service

Signed

license,

features,

Authorisation

Server B

ISV authorisation

embedded in Server A

authorisation for Server B,

signed licenseﬁle

issues Token

signed by Server B

Token

Server A authorisation:

ISV authorisation

- Server A

certiﬁcate

- ISV signature

Server B certiﬁcate

Server A signature

Validate authorisations

Validate hash key

Figure 3: Process of the license delegation.

in the token) and the secure channel is available, rene-

gotiation of license terms could be started in case of

shortage of resources, e.g. time running out or ad-

ditional features needed due to the dynamic nature

of the application. The trusted instance is in a VM

that can be deployed in the Cloud together with the

application VM(s). The OPTIMIS contextualiser is

responsible for setting-up and conﬁguring the trusted

instance in the VM at deployment. This includes net-

work address conﬁguration, adding an initial set of

tokens, etc. The necessary contextualisation informa-

tion is provided in the service manifest, which is used

in OPTIMIS to allow a service provider or user to de-

scribe its requirements regarding the Cloud environ-

ment and the services provided by the infrastructure

provider.

The major beneﬁt of using a trusted instance is

that the token does not need to be accessible by the

applications API where it potentially may be accessed

by a malicious user to replicate it. Rather, the trusted

instance provides an assertion to the API, which in-

cludes the content of the token. Another beneﬁt in

terms of software development effort is that this ap-

proach does not require changes in the processing of

the authorisation in the API, because the only differ-

ence is the source of information, namely the trusted

instance instead of a local token ﬁle read by the API.

It only requires the implementation of a protocol that

retrieves the authorisation from the trusted instance.

Finally, multiple tokens can be generated in ad-

vance according to the requirements of the service to

be run in the Cloud and deployed with the trusted in-

stance during the contextualisation of the virtual ma-

chines for a service deployment. This reduces the

communication requirements during the service ex-

ecution time and re-contextualisation caused by miss-

ing tokens.

5 EVALUATION

Evaluation was organised in two phases. First, we

asked the commercial UK Cloud provider Flexiant

(a partner of the OPTIMIS project) to run a number

of test cases in their production infrastructure to test

and evaluate the implementation. The tests comprised

the license delegation (7 test cases), the trusted in-

stance (12 test cases). including integration tests and

tests that simulate users that on purpose or acciden-

tally messed around with license tokens. We also did

some measurements regarding the overhead in terms

of additional time needed (results are discussed be-

low). Second, the software was used in the Fortissimo

More.Cloud experiment

to realise a one-stop-shop

solution for simulations provided by an ISV. Here we

focused on the license delegation.

Summary of Results: The test cases passed with

the expected outcome with the exception of one inte-

gration test, which was only partly satisﬁed. The rea-

son for the failure was identiﬁed as an invalid conﬁg-

uration ﬁle which was ﬁxed afterwards. The License-

Token validation checks successfully passed. Mul-

tiple cycles of the test cases were performed, each

yielding similar results and little deviation to the test

case result pattern. Overall, the test all cases passed

as expected.

Main Routing Architecture Optimisation Research Ex-

periment. MORE is aimed at reducing weight and cost for

wiring systems for complex products such as aircraft.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

270

User

License

Service

Lsdl

Trusted

Instance

API

Cloud Info

Service

User

Author-

isation

Lsdl: Token request ﬁle

addToken

Token

Check User Authorizsation

- Select Token from Lsdl

- Get Execution Context

- Select Execution Authorization

Execution

Authorizsation

User

Authorizsation

Check User Authorisation

Validate & verﬁfy

Execution Authorization

Execution Context

Lsdl

Cloud Info Service URL

Validity

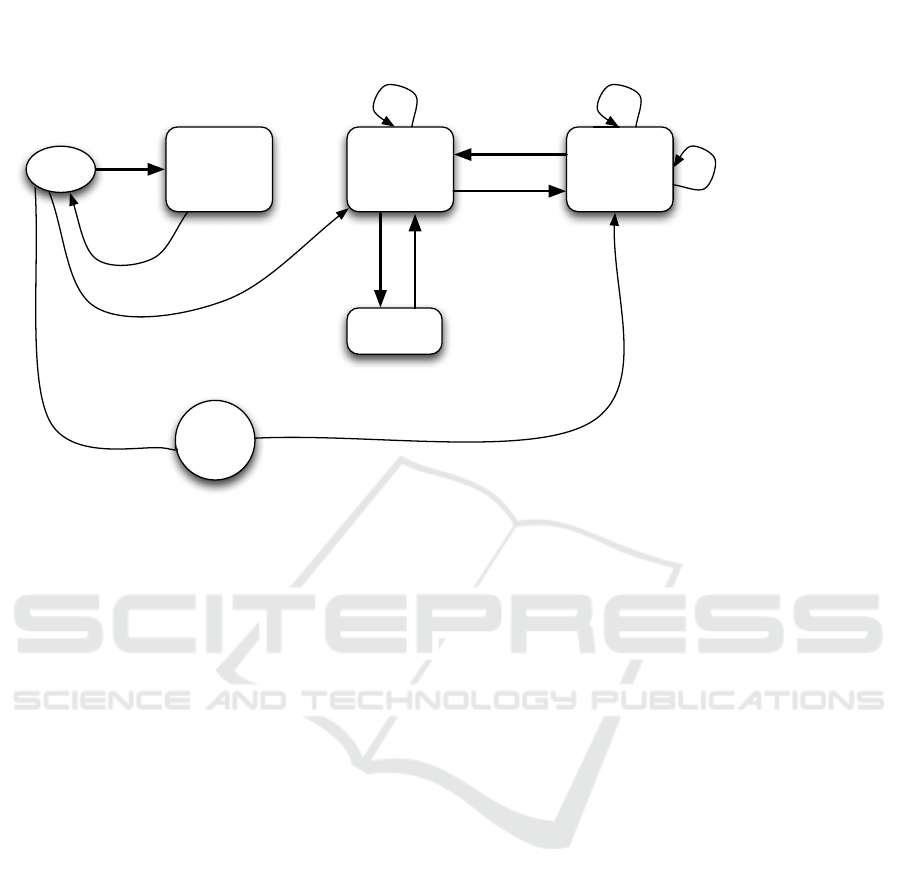

Figure 4: Deployment of the Trusted Instance in a Cloud.

Incurred Overhead: Adding license tokens to a

VM is part of the contextualisation process that hap-

pens anyway. Thus there is no additional overhead. If

multiple license tokens are required (i) or if license to-

kens need to be created dynamically depending on the

outcome of applications in a workﬂow (ii) then for (i)

a VM with a trusted instance needs to be deployed or

for (ii) a license needs to be split at the license server

running at the user’s site, included through contextu-

alisation into a VM with a license server that is then

deployed to the Cloud as any other VM. The overhead

is in the range of about 3-5 minutes which is negligi-

ble since is happens only once and many (short) jobs

can be run afterwards using the license or license to-

kens deployed.

Risk of Fraud: The use of a trusted CA for cre-

ating the required certiﬁcates is essential to avoid at-

tacks on the level of the signatures. Of course, once

the code responsible for evaluating the validity of a to-

ken (the policy decision point, PDP) in the API of the

application, or the policy enforcement point in the ap-

plication that used the outcome of the PDP is hacked

the application may be used without limitation just as

with any other software licensing solution.

6 CONCLUSION

In this paper we described the work on software li-

censes and software license management done in the

European OPTIMIS project which is now used in

the European project Fortissimo. We introduced the

baseline technology taken from the European project

SmartLM which developed a licensing solution for

Grids. Based on this baseline two extensions have

been developed and implemented in OPTIMIS: the li-

cense delegation and the trusted instance. These ex-

tensions allow execution of license-protected applica-

tions in the Cloud without reducing the level of pro-

tection of the ISVs IPR. Furthermore, the token based

license management allows new business models like

pay-per-use where each token can be used as a secure

off-line authorisation for running an application and

account for exactly this execution without the need

to have an on-line connection to the license server at

run-time.

As a next step towards commercialisation of elas-

ticLM (elasticLM, 2015) we used it in a produc-

tive environment for simulations of aircraft wirings

in the European funded project Fortissimo (Fortis-

simo, 2016). A one-stop-shop solution for ISVs has

been developed allowing an ISV to offer its SME

customers the a customised infrastructure needed for

simulations in a Cloud environment. The offering

Leveraging Use of Software-license-protected Applications in Clouds

271

is based on a pay-as-you-go model that requests the

SME only to pay for resources (including temporary

licenses) actually required to perform the simulation

work needed for its business. The solution developed

in Fortissimo includes access to the Cloud resources

determined by the size of the problem, access to the

simulation application deployed in the Cloud, and dy-

namic access to the necessary software licenses to

run the simulation application. Currently elasticLM

is used in another productive environment for simula-

tions of metal sheet forming processes in the automo-

tive industry within the Fortissimo project.

The experiments in Fortissimo have proved that li-

cense server can easily installed in a virtual machine,

furnished with the licenses required for running soft-

ware in a contextualisation step, and deployed into an

arbitrary Cloud infrastructure: public, private, hybrid.

The software framework will now be made available

for download in the Fortissimo marketplace (Fortis-

simoMarketplace, 2015) and later - based on the ex-

perience in the Fortissimo Marketplace - also in the

AWS Marketplace (AWSmarketplace, 2016).

ACKNOWLEDGEMENTS

Some of the work reported in this paper has been

funded by the European Commissions ICT pro-

gramme in the FP7 project SmartLM under grant

#216759 and in the FP7 project OPTIMIS under grant

#257115.

REFERENCES

Armstrong, D., Djemame, K., Nair, S., Tordsson, J., and

Ziegler, W. (2011). Towards a Contextualization So-

lution for Cloud Platform Services. In 2011 IEEE

3rd International Conference on Cloud Computing

Technology and Science (CloudCom), pages 328–331.

IEEE.

AWSmarketplace (2016). Amazon Webs Services market-

place. Website. Online at https://aws.amazon.com/

marketplace, visited 31 January 2016.

BYOSL (2013). IBM Licensing for Amazon Cloud web

site. Website. Online at http://www-01.ibm.com/

software/passportadvantage/eligible

public cloud

BYOSL policy.html, visited 10 November 2015.

Dalheimer, M. and Pfreundt, F.-J. (2009). GenLM: License

Management for Grid and Cloud Computing Envi-

ronments. In Proceedings of the CCGrid conference

2009.

Dong, X., Wang, Y., Zheng, F., Guo, H., Yang, S., and Wu,

W. (2005). Floating license sharing system in grid en-

vironment. In SKG, page 96.

Dong, X., Wang, Y., Zheng, F., Qin, Z., Guo, H., and Feng,

G. (2006). Key techniques of software sharing for on

demand service-oriented computing. In GPC, pages

557–566.

elasticLM (2015). elasticLM - License as a Service (LaaS) .

Website. Online at http://www.elasticlm.com, visited

10 November 2015.

FLEXERA (2014). FlexNet Licensing. Website. Online

at http://www.ﬂexerasoftware.com/products/ﬂexnet-

licensing.htm, visited 10 November 2015.

FlexnetManager (2015). Flexera web site. Website.

Online at http://www.ﬂexerasoftware.com/products/

ﬂexnet-manager.htm, visited 10 November 2015.

Fortissimo (2016). Fortissimo - Enabling European Small

and Medium Enterprises (SMEs) in the manufac-

turing sector to beneﬁt from high-performance dig-

ital simulation and modelling. Website. Online

at http://www.fortissimo-project.eu/index.html, vis-

ited 10 January 2016.

FortissimoMarketplace (2015). Fortissimo Market-

place. Website. Online at https://www.fortissimo-

marketplace.com/infopage/, visited 31 January 2016.

FU, W., XIAO, N., and LU, X. (2007). Sharing software

resources with ﬂoating license in grid environment.

In NPC ’07: Proceedings of the 2007 IFIP Inter-

national Conference on Network and Parallel Com-

puting Workshops, pages 288–294, Washington, DC,

USA. IEEE Computer Society.

Guofu, F., Yinfeng, W., Hua, G., and Xiaoshe, D. (2006).

Research on software license manager and sharing

system in grid. In GCCW ’06: Proceedings of the

Fifth International Conference on Grid and Cooper-

ative Computing Workshops, pages 35–38, Washing-

ton, DC, USA. IEEE Computer Society.

ITWM (2010). ITWM S4Cloud project. Website. On-

line at http://www.itwm.fraunhofer.de/presse-und-

publikationen/pressearchiv/pressearchiv-2010/04032010-

itwm-mit-wibu-systems-auf-der-cebit.html, visited 10

May 2015.

Katsaros, Gregory, A., Savvas, K., Dimosthenis, and Var-

varigou, T. (2009). Service Oriented License Pro-

viding. In Proceedings of IEEE International Con-

ference on Service-Oriented Computing and Applica-

tions (SOCA).

Kwok, S. H. and Lui, S. M. (2002). A license manage-

ment model for peer-to-peer music sharing. Interna-

tional Journal of Information Technology and Deci-

sion Making, 1(3):541–558.

Li, J., W¨adrich, O., and Ziegler, W. (2008). Towards sla-

based software licenses. pages 139–152.

Liu, Y., Yuan, C., and Zhong, Y. (2007). Implementing dig-

ital right management in p2p content sharing system.

In ICA3PP, pages 348–355.

MATLAB (2009). The MathWorks Enables MATLAB

Parallel Computing Tools to Run on the EGEE Grid.

Website. Online at http:// www.mathworks.com/

matlabcentral/ﬁleexchange/21426-enhancing-e-

infrastructures-with-advanced-technical-computing–

parallel-matlab%C2%AE-on-the-grid, visited 10

November 2015.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

272

OPTIMIS (2013). OPTIMIS - Optimised Infrastructure

Services. Website. Online at http://www.optimis-

project.eu, visited 10 November 2015.

Raekow, Y., Simmendinger, C., and Kr¨amer-Fuhrmann, O.

(2009). License management in grid and high per-

formance computing. Computer Science, Research +

Development, 23(3-4):275–281.

S4Cloud (2015). Wibu S4Cloud project. Website. On-

line at http://www.wibu.com/data-security-research/

s4cloud.html, visited 10 November 2015.

Sentinel (2014). SafeNet Sentinel Cloud Services. Web-

site. Online at http://www.safenet-inc.com/software-

monetization/sentinel-cloud-services-overview/, vis-

ited 10 November 2015.

SmartLM (2011). SmartLM - Grid-friendly software licens-

ing for location independent application execution .

Website. Online at http://www.smartlm.eu, visited 10

November 2015.

Sullivan, F. . (2010). World Software Digital Rights Man-

agement Market. Technical Report N671-70.

vmware (2014). Flexera-VMWare cooperation. Web-

site. Online at http://www.ﬂexerasoftware.com/

partners/licensing-entitlement-management-alliance-

partners.htm, visited 10 September 2015.

Leveraging Use of Software-license-protected Applications in Clouds

273
