To Kick or Not to Kick: An Affective Computing Question

Luca Casaburi

, Francesco Colace

, Carmine Di Gruttola

and Donato Di Stasi

SIMASlab, Università degli Studi di Salerno, Via Giovanni Paolo II, 132, Fisciano, Italy

DIIn, Università degli Studi di Salerno, Via Giovanni Paolo II, 132, Fisciano, Italy

Università Degli Studi di Salerno, Via Giovanni Paolo II, 132, Fisciano, Italy

Keywords: Affective Computing, Ekman Theory, Entertainment 2.0.

Abstract: With the Web 2.0 and its services, the users are able to express their own emotions through the production

and sharing of multimedia contents. In this context, we can interpret the flood of selfies that everyday

invades the web as the will to overcome the limits of the textual communication. Therefore, it becomes

particularly interesting the possibility to extract in an automatic way information about the emotional state

of the people present in the multimedia content. The knowledge of a person’s emotional state gives useful

information for the personalization of many online services. Some examples of the areas where such an

approach can be adopted are the services for the content recommendation, for the entertainment and for the

distance training. In this paper, the techniques of sentiment extraction from multimedia contents will be

applied to the sports world. In particular, the aim is to verify the possibility to predict the result of a penalty

kick analyzing the player’s face. The objective is to investigate the possibility to evaluate in real time the

psychic conditions of an athlete during a competition. The system has been tested on an opportunely built

dataset and the results are more than satisfying.

1 INTRODUCTION

Pasadena, 1994. Roberto Baggio is kicking a

decisive penalty. If he failed, Italy, Baggio’s team,

would lose the World Cup. He takes the ball and

goes towards the penalty spot. Arrigo Sacchi, Italy’s

coach, controls a little screen and runs to the player

right away. He stops him, says something and

changes him for another player who scores the

penalty kick! Italy can still win its fourth World

Cup! Who knows the history of football knows that

things will be different: Baggio failed that penalty

kick allowing the Brazil to win that world

championship. However, what it would have

happened if Italy’s coach had a tool to evaluate the

player’s psychophysical state. Maybe he would have

really made another player kick that penalty. Exactly

from this consideration, this research paper starts

with the aim to present a methodology for the

determination of a player’s emotional state

analyzing his/her face.

At the base of this analysis, the methodology

allows calculating the probability to realize a penalty

kick according to the detected emotional state. The

entire approach stays inside the wider and more

ambitious research line named ‘Affective

Computing’. With the Web 2.0 and its services, the

possibility to express yourself through multimedia

contents is one of the mainly used modality by the

network’s users. Therefore, it seems clear the

necessity to introduce some methodologies for the

extraction of a user’s emotional state by the analysis

of the multimedia contents where he/she is present.

The Affective Computing (Tao, 2005) is a specific

branch of the artificial intelligence that realizes

calculators able to recognize and express emotions.

The progresses gained in the field of the HCI

(Human Computer Interaction) have allowed the

development of information applications that more

and more take into account the users’ contexts of use

and permit an increasing interaction level (Amato,

2016). Nevertheless, the ‘traditional’ computer

science chooses a kind of interaction between man

and machine based on the reciprocal influence

between action and reaction (Colace, 2015). The

new frontiers of development of the information

products aim at the implementation of affective

machines that take into account the user’s reaction to

the system and that interact with them according to

their emotional state. The development of the

Casaburi, L., Colace, F., Gruttola, C. and Stasi, D.

To Kick or Not to Kick: An Affective Computing Question.

In Proceedings of the 18th International Conference on Enterprise Information Systems (ICEIS 2016) - Volume 2, pages 415-420

ISBN: 978-989-758-187-8

415

affective computing has four possible application

dimensions:

Emotional expression: it deals with the

realization of interface agents able to reproduce the

emotional expressions, thus communicate emotions

principally through the representation of digital

faces that mimic the main features of the human

emotional expression. The purpose of this kind of

interface is not that of equipping the machines with

emotionality but allowing the machines to attribute

emotions to the same interfaces.

Emotional recognition: the purpose of these

products of the affective computing is that of

recognizing the user’s emotional state to eventually

adapt to it, optimizing the tasks execution, with

regard to the influence that the emotional state

exercises on the human agent.

Emotional manipulation: this research line is

aimed at studying the ways in which it is possible to

influence the emotional state of the user in the

interaction with the machine (Affect interaction).

Emotional synthesis: this is the most complex

dimension of the affective computing to whom the

studies about the mind are oriented, with the purpose

of equipping a calculator with emotional

intelligence, thus making it able to ‘feel’ emotions.

The detection of the emotions starting from the

analysis of the facial expressions is particularly

interesting.

In general, the detection of affective states from

facial expressions in multimedia contents follows

two main approaches: the recognition of discrete

basic affects (by the adoption of a template matching

approach) or the recognition of affects by the

inference from movement of facial muscles

according to the Facial Action Coding System

(FACS) (Ekman, 1978). FACS classifies the facial

movements as Action Units (AUs) and describes the

facial expressions as a combination of AUs.

The first approach requires the execution of two

main steps: the face’s representation through

features (landmarks or filtered images) and the

classification of facial expressions. Many papers

deal with this approach (Chang, 2004) that shows

how to represent facial expressions in a space of

faces. In this case, the face is encoded as a landmark

(58 points) and the classification is performed

through a probabilistic recognition algorithm based

on the manifold subspace of aligned face

appearances.

Zhang et al. (Zhang, 1998) analyze the space of

facial expressions to compare two classification

systems: geometric-based (face is encoded by a

landmark) and Gabor-based (face is encoded by

Gabor features); the classification is performed with

a two-layer preceptor network. They show that the

best results are obtained with a network of 5-7

hidden preceptors to represent the space of

expression. In this way, the facial expression

analysis can be performed on static images (Elad,

2003) or video sequences (Deng, 2005).

Cohen et al. (Cohen, 2003) propose a new

architecture of HMM to segment and recognize

facial expressions and affects from video flow, while

Lee et al. (Lee, 2003) propose a method using

probabilistic manifold appearances. Wang et al.

(Wang, 2003) describe an automatic system that

performs face recognition and affects recognition in

grey-scale images of faces by making a

classification on a space of faces and facial

expressions. This system can learn and recognize if a

new face is in the image and which facial expression

is represented among basic affects. In (Deng, 2005)

it is shown how to choose the Gabor features with

PCA method and then LDA is used to identify the

basic affects.

To extract affective states from facial

expressions, the adoption of the Ekman Model is an

effective approach (Ekman, 1978) (Casaburi, 2015).

This model can infer six emotional states: happiness,

anger, sadness, disgust, fear and surprise. This

model has been enriched with the introduction of

further states such as attention, fatigue and pain.

The Ekman theory can be improved with the

introduction of the Facial Action Coding System

(FACS), a system to name human facial movements

by their appearance on the face. Movements of

individual facial muscles are encoded by the FACS

from slight different instant changes in facial

appearance. It is a common standard to

systematically categorize the physical expression of

emotions and is useful to psychologists and

animators. Due to subjectivity and time consumption

issues, the FACS has been established as a computed

automated system that detects faces in videos,

extracts the geometrical features of the faces, and

then produces temporal profiles of each facial

movement (Hamm, 2011).

The recognition of affects by the inference from

the movement of facial muscles according to the

FACS requires three steps: feature extraction, AUs

recognition and basic affect classification. Parts of

the face, such as eyebrows, eyes, nose and lips, are

analyzed and encoded in sets of points or as texture

features to detect AUs. Cohn et al. (Cohn, 2004)

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

416

introduce a method to detect the AUs starting from

eyebrows, classifying their movements as

spontaneous or voluntary by the use of a Relevance

Vector Machine approach. After the detection of the

AUs, it classifies their affective class by the

adoption of a probabilistic decision function.

The FACS approach has been adopted in the

automated Facial Image System (AFA) (Cohn,

2009) which analyzes videos in real-time to detect

the sentiments. In this case, the face is encoded with

a 2D mask that is used to interrogate a SVM to

detect the associated affect. El Kaliouby et al (El

Kaliouby, 2004) have developed a system that

analyzes real-time video streams to detect the

presence of one of the following moods: concordant,

discordant, focused, interested, thinking and unsure.

The face is encoded by 24 points and the distances

among these points are used as features to identify

different situations (open mouth, head movements,

position of the eyebrows). The expressions encoded

by the FACS are recognized by a chain of HMM for

each possible action and the computation of the

probability of each state is obtained by the use of a

Bayesian Network.

In this paper, we want to verify the possibility to

adopt a technique based on the affective computing

of FACS type to foresee the capability of an athlete

to successfully complete a certain activity. The goal

of this work is to try to apply the affective

computing and neural networks to sporting events,

especially in football. In particular, we have tried to

guess the outcome of the penalty kick by analyzing

the football players' face. In the next paragraph, the

system architecture of the proposed approach is

described. Then, the experimental campaign and the

obtained results are shown and some conclusions

close the paper.

2 SYSTEM ARCHITECTURE

As previously said, the purpose of this work is to

apply the affective computing and neural networks

to sporting events, especially in football, trying to

guess the result of the penalty kick analyzing the

football players' face.

The proposed framework consists of two main

modules:

• Analyzer: This module is responsible for

analyzing the video stream to obtain the

features of interest from the face and codify

them in the right format.

• Classifier: The classifier analyzes the

received input feature for each frame,

outputting the result of the prediction about

the outcome of the penalty kick recovered

in the video.

2.1 Analyzer Module

This module uses the framework of the analysis of

the face presented in the paper [10] for video

analysis in offline mode. This framework allows

extracting the action unit and affective state for each

face in the scene. The features of interest are

obtained for each frame of video stream and these

are inserted arrays called “Features Frame Vectors”.

These features are:

• the AU on the detected face: the AU

considered are AU1L / R, AU2L / R, AU4L

/ R, AU10, AU12L / R, AU15 L / R, AU20

L / R, AU24 L / R and AU26. The

measures have a value in the range [0; 1],

where 1 indicates the certainty that the AU

has occurred and 0 not occurred;

• the measurement of affectiveness: the

measured affective states are anger, disgust,

fear, happiness, sadness, surprise. These

measurements are normalized with a value

in the range [0,1].

2.2 Classifier Module

The classifier module consists primarily of a SOM

classifier with 22 inputs (AUs and affective state)

and two outputs:

• goal: the penalty kick was scored;

• no goal: the penalty kick was wrong.

The SOM classifier has been compared with a

feed-forward network and it has got the best result.

The results are shown in the section of

experimentation.

The SOM classifier is used to analyze the

features extracted from the analyzer for each frame

and the output is the label [goal / no goal]. This tag

is inserted into a vector called Tag Frames Vector.

The “goal” label is associated with the value 1 and

the “no goal” label is associated with the value -1. In

case no face is detected in the scene and so you

cannot classify the frame, it is labelled with the

value 0. This vector is then processed in the

following steps:

1) Division of the Features Frame Vector into

time windows. All time windows are

organized in a vector called “Time

To Kick or Not to Kick: An Affective Computing Question

417

Windows Vector” and an example is shown

in figure 1.

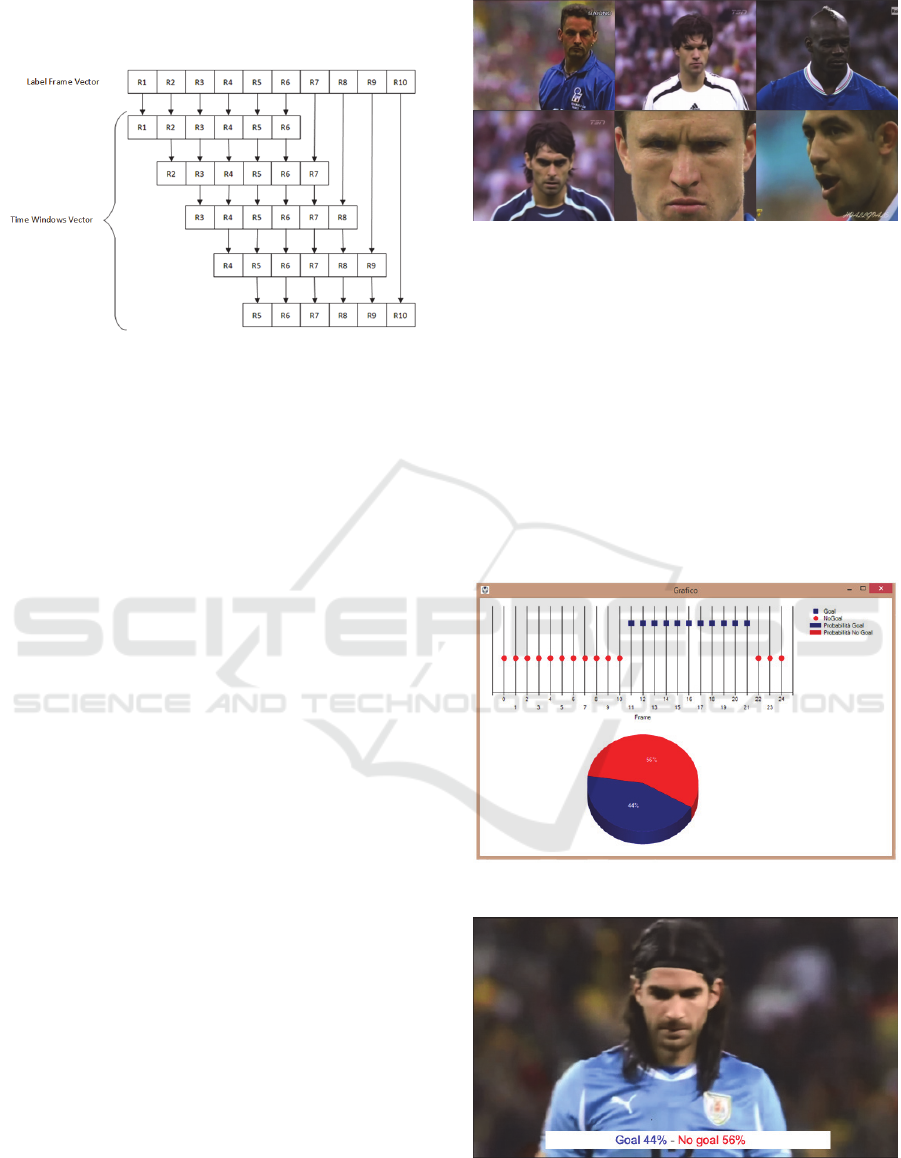

Figure 1: Example of Time Windows Vector.

2) Calculation of the arithmetic averages for

each time window. The arithmetic averages

are stored in a vector called Arithmetic

Vector.

3) Calculation of the weighted average from

the arithmetic vector. The weighted average

is calculated using the arithmetic means of

each time window and the weights are the

order of succession of the windows. The

result is given as input to the evaluator.

4) Evaluation of the weighted average. This

step returns:

• goal if the average is greater than ;

• no goal if the average is less than

‐;

• uncertain if the average is between 

and -.

The value of 

has been obtained considering it

maximizing the results. So, the best value has been

fixed as  = 0,2. The approach is depicted in figure

3 EXPERIMENTAL CAMPAIGN

AND OBTAINED RESULTS

For the testing phase, we have created a dataset. The

matches have been examined in a period ranging

from 1994 to 2014. The videos of the matches have

been taken from YouTube in different formats and

resolutions, preferring HD quality (figure 2).

Then the videos have been cut to take the face of

the player trying to find the frames from the moment

he places the ball to the point when he starts to run.

The videos have been cut in order to have only the

face of the player even if they are very short. In fact,

Figure 2: Frames extracted by the videos in the Dataset.

their duration is between 1 second up to a maximum

of 5 seconds.

The dataset consists of 80 videos with goal and

80 videos without goal, for a total of 160 videos. It

has been divided into two parts: the training-set

includes a total of 100 videos of which 50 are with

goal and the other 50 are without goal; the remaining

videos are used as test-set. In terms of percentage,

the 62.5% of videos is part of the training-set and the

remaining 37.5% is part of the test set.

In figure 3 the analys conducted frame by frame

and the final results given by the system.

Figure 3: The obtained results frame by frame.

Figure 4: The obtained result.

The results obtained from the test phase, using a

feed-forwarding network and a SOM classifier, are

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

418

reported in the table below. Videos are considered

waste if the result is uncertain.

Table 1: Results test of system with feed-forward and

SOM network.

Feed-forwarding Network SOM Classifier

Windows size = 6 Windows size = 6

Recall 0,194 Recall 0,647

Precision 0,406 Precision 0,543

Waste 0,143 Waste 0,131

Windows size = 8 Windows size = 8

Recall 0,206 Recall 0,647

Precision 0,412 Precision 0,537

Waste 0,131 Waste 0,119

Windows size = 10 Windows size = 10

Recall 0,214 Recall 0,652

Precision 0,441 Precision 0,536

Waste 0,125 Waste 0,106

The best results are obtained with a SOM

network with a time window of 10 frames, reporting

a recall of 65.2% and a precision of 53.6%.

If we consider discarded even the videos in

which the number of frames for the analysis of the

face is less than the time window, we obtain the

results shown in the following table, where we

Table 2: Results test with SOM network on the video with

the number of frames acceptable for the analysis of the

face.

SOM Classifier

Windows size = 6

Recall 0,726

Precision 0,584

Waste 0,263

Windows size = 8

Recall 0,722

Precision 0,549

Waste 0,325

Windows size = 10

Recall 0,731

Precision 0,567

Waste 0,363

consider only the SOM classifier.

In this case, the best result is obtained with an

acceptable number of rejects, with the classifier

SOM and the time window equal to 6 frames. The

recall is of 72.6% and the precision of 58.9%.

As the results show, the overall performances of

the system are not excellent. The reasons have to be

find above all in the scarce length of the considered

videos and in the difficulty to find and analyze the

faces. Even the typology of the shooting, typical of

the penalty kick, is particularly difficult to analyze

with the proposed approach. In any case, when the

system analyzes videos at least three seconds long,

the performances of the system improve with a value

for the recall of 0,878 and for the precision of 0,726.

Moreover, the choice of analyzing only the face

excludes other features, obtainable for example with

techniques of BLP, which can be used to determine

the outcome of the penalty kick.

4 CONCLUSIONS

In this paper, we have presented a methodology

based on the determination of the emotional state of

a person and the use of a neural network for the

prevision of the outcome of a penalty kick. The

technique, tested on a specifically built dataset, gives

enough satisfying results and indicates a possible

approach for the determination of the emotional state

of an athlete and a more efficient use of his/her

potentials. Possible future developments are the

application of the methodology to other sports in

addition to football and the introduction of BLP

techniques for determining the athlete’s emotional

state.

ACKNOWLEDGEMENTS

The research reported in this paper has been

supported by the Project Cultural Heritage

Information System (CHIS) PON03PE_00099_1

CUP E66J140000 70007 – D46J1400000 0007 and

the Databenc District.

REFERENCES

Tao, J., Tieniu, T., 2005, Affective Computing: A Review,

Affective Computing and Intelligent Interaction, LNCS

3784, Springer, pp. 981–995.

Ekman, P., Friesen, W., 1978, Facial Action Coding

To Kick or Not to Kick: An Affective Computing Question

419

System: A Technique for the Measurement of Facial

Movement, Consulting Psychologists Press.

Chang, Y., Changbo, Hu, Turk, M., 2004, Probabilistic

expression analysis on manifolds, In Proceedings of

the 2004 IEEE computer society conference on

Computer vision and pattern recognition, CVPR'04,

pp. 520-527.

Zhang, Z., Lyons, M., Schuster, M., Akamatsu, S., 1998,

Comparison Between Geometry-based and Gabor-

wavelets-based Facial Expression Recognition Using

Multi-layer Perceptron, Third IEEE Intel. Conf. On

Automatic Face and Gesture Recognition, pp. 454-459.

Elad, A., Kimmel, R., 2003, On bending invariant

signatures for surfaces, IEEE Trans. Pattern Analysis

and Machine Intelligence, Vol. 25, Issue: 10, pp.

1285–1295.

Deng, H., Jin, L., Zhen, L., Huang, J., 2005, A New Facial

Expression Recognition Method Based on Local

Gabor Filter Bank and PCA plus LDA, International

Journal of Information Technology, Vol. 11 No. 11,

pp. 86-96.

Cohen, I., Sebe, N., Garg, A., Chen, L.S., Huang, T.S.,

2003, Facial Expression Recognition From Video

Sequences: Temporal and Static Modeling, Computer

Vision and Image Understanding, pp. 160-187.

Lee, K., Ho, J., Yang, M.H., Kriegman, D., 2003,

Videobased Face Recognition Using Probabilistic

Appearance Manifolds, Conference on Computer

Vision and Pattern Recognition, pp. 313-320.

Wang, H., Ahuja, N., 2003, Facial Expression

Decomposition, Proceedings of the Ninth IEEE

International Conference on Computer Vision

(ICCV’03), vol.2, pp. 958-965.

Casaburi, L., Colace, F., De Santo, M., Greco, L., 2015,

Magic mirror in my hand, what is the sentiment in the

lens?”: An action unit based approach for mining

sentiments from multimedia contents, Journal of

Visual Languages & Computing, 27, pp. 19-28.

Hamm, J., Kohler, C. G., Gur, R. C., Verma, R., 2011,

Automated Facial Action Coding System for dynamic

analysis of facial expressions in neuropsychiatric

disorders, Journal of Neuroscience Methods 200 (2),

pp. 237–256.

Cohn, J. F., Reed, L. I., Ambadar, Z., Xiao, J., Moriyama

T., 2004, Automatic Analysis and Recognition of Brow

Actions and Head Motion in Spontaneous Facial

Behavior, IEEE International Conference on Systems,

Man and Cybernetics, pp. 610-616.

J. F. Cohn, J. F., Lucey, S., Saragih, J., Lucey, P., De la

Torre, F., 2009, Automated Facial Expression

Recognition System, IEEE International Carnahan

Conference on Security Technology, pp. 172-177.

El Kaliouby, R., Robinson P., 2004, Real-Time Inference

of Complex Mental States from Facial Expressions

and Head Gestures, In Proc. Int’l Conf. Computer

Vision & Pattern Recognition, pp. 181-200.

Amato, F., Colace, F., Greco, L., Moscato, V., Picariello,

A., 2016, Semantic processing of multimedia data for

e-government applications, J. Vis. Lang. Comput. 32:

pp. 35-41.

Colace, F., Casaburi, L., De Santo, M, Greco, L., 2015,

Sentiment detection in social networks and in

collaborative learning environments, Computers in

Human Behavior 51: pp. 1061-1067.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

420
