What is Software Architecture to Practitioners: A Survey

Mert Ozkaya

Department of Computer Engineering, Istanbul Kemerburgaz University, Istanbul, Turkey

Keywords:

Software Architectures, Survey, Architecture Description Languages, UML.

Abstract:

Software architecture has been proposed in the nineties as a high-level software design method for specifying

software systems in terms of components and their relation. Since then, software architectures have become an

indispensable part of software design. However, it remains dubious to what extent practitioners use software

architectures in their software design. To better understand this, we conduct a survey study among a number

of practitioners from both industry and academia and aim at understanding their level of knowledge and

experience in software architectures. Our survey consists of a questionnaire of 20 questions, presented in

four distinct sections. We run our survey on 50 participants, 11 of whom are from academia and the rest 39 are

from industry. As a result of our analysis, we reached the following conclusion: while software architecture is

highly crucial for practitioners given the nature of their software projects, practitioners’ knowledge on software

architectures is too limited. Practitioners use Uniﬁed Modelling Language (UML), which views software

architectures as a method of communicating system structures. However, other aspects such as architectural

analysis are equally crucial in detecting design errors and verifying software designs for quality properties.

1 INTRODUCTION

Software architecture (Perry and Wolf, 1992; Garlan

and Shaw, 1994; Clements et al., 2003) is a high-level

design activity, concerned with the successful compo-

sition of components into an entire system that meets

functional and non-functional requirements. It is at

the level of architectural design where low-level de-

tails of components are suppressed, and, their high-

level complex interactions via the component inter-

faces (i.e., the protocols of interactions) can be fo-

cused on and reasoned about. So, design problems,

e.g., the use of interface services in the wrong or-

der, can be identiﬁed early on at the stage of high-

level design. Indeed, problems due to incompatible

interfaces of inter-connected components are crucial,

which prevent the components from being composed

to a whole system and analysed for non-functional

properties, e.g., reliability and security.

Uniﬁed Modelling Language (UML) (Rumbaugh

et al., 1999) is the de facto language for visually spec-

ifying and designing software systems. UML sup-

ports both high-level and low-level designs, which

is widely used in specifying high-level software ar-

chitectures too. It offers a variety of diagrams, such

as class and component diagrams. Using these dia-

grams, systems can be speciﬁed as a composition of

components that are connected with each other via as-

sociation links (Ivers et al., 2004). However, UML

does not provide direct support for the ﬁrst-class spec-

iﬁcation of interaction protocols for the linked com-

ponents, which are crucial for reasoning about their

composition. Moreover, UML originally has very

weak formal semantics, which are open to different

interpretations and not easily formally analysed.

To specify software architectures precisely and

formally analyse their behaviours, designers can use

process algebraic formal methods, e.g., FSP (Magee

et al., 1997), CSP (Hoare, 1978), and π-calculus (Mil-

ner et al., 1992), or other formalisms, e.g., Z nota-

tion (Spivey, 1992), which are supported by analy-

sis tools. Using these tools, system behaviours can

be analysed exhaustively to detect safety issues, such

as deadlock, which prevent successful composition of

components. However, these formal methods have

mathematical notations that are based on mathemati-

cal proofs. So, their notations are considerably differ-

ent from the notations of widely used modelling lan-

guages (e.g., UML), and, thus, practitioners are likely

to ﬁnd formal methods unfamiliar.

Another alternative method for specifying soft-

ware architectures is the architecture description lan-

guages (ADLs), which have emerged in the nineties

and become one of most active areas of software en-

gineering (Vestal, 1993; Clements, 1996; Medvidovic

and Taylor, 2000; Fuxman, 2000; Woods and Hilliard,

Ozkaya, M.

What is Software Architecture to Practitioners: A Survey.

DOI: 10.5220/0005826006770686

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 677-686

ISBN: 978-989-758-168-7

677

2005). There are numerous ADLs developed so far,

e.g., Darwin (Magee and Kramer, 1996), UniCon

(Shaw et al., 1995), Wright (Allen and Garlan, 1997),

Rapide (Luckham, 1996), C2 (Taylor et al., 1996),

LEDA (Canal et al., 1999), AADL (Feiler et al.,

2006), SOFA (Plasil and Visnovsky, 2002), RADL

(Reussner et al., 2003), etc. Each ADL offers its own

architectural notation, but, they share basic notions,

e.g., components, interfaces, and connectors. Unlike

UML, ADLs allow designers to specify the architec-

tures of their systems precisely. Moreover, ADLs are

offered with various features depending on their scope

of interest. Some offer automatic code generation

for facilitating the implementation of the speciﬁed

systems. Some offer notations for specifying non-

functional properties of systems (e.g., reliability and

security), which can be communicated among stake-

holders and analysed via analysis tools. Some offer

notations based on formal methods (e.g., process al-

gebras (Bergstra, 2001)) for specifying the behaviours

of architectural elements and formally verifying them

using formal analysis tools, e.g., model checkers.

1.1 Survey on Software Architectures

As introduced above, there are many techniques for

specifying software architectures, and, each tech-

nique has its own advantages and disadvantages.

UML for instance are found easy to learn and use by

practitioners thanks to its visual notation set. How-

ever, UML originally does not have formally deﬁned

semantics, which may lead to imprecise speciﬁcations

that are interpreted differently. ADLs differ from

UML by their precise notations, which also let de-

signers perform further operations on their software

architectures such as automatic code generation, sim-

ulation, and formal analysis. However, ADLs are not

as widely-used as UML by practitioners, since ADLs

are based on formal methods to enable formal analy-

sis that make their learning curve steep too.

Given these software architecture design tech-

niques discussed above, one would hope that soft-

ware architecture must have already entered the main-

stream of practitioners and used by them as a high-

level design activity. However, it is not yet exactly

known whether practitioners are aware of these tech-

niques and use them in their software architecture

speciﬁcations. To better understand this, we conduct a

survey among a number of practitioners. Our main fo-

cus is to ﬁnd answers for the following research ques-

tions:

• what do practitioners understand from software

architectures?

• what do practitioners aim at achieving by speci-

fying software architectures and are they aware of

facilities such as architectural analysis?

We run a survey among 50 participants: 39 of them

are industrial experts and 11 of them are academics.

Our survey consists of 20 different questions, divided

up into 4 different sections. Each section includes a

set of questions for a particular concern, which are

given below.

1. The types of the projects conducted by practition-

ers

2. Practitioners’ understanding of software architec-

tures

3. Practitioners’ interest towards the beneﬁts of

specifying software architectures

4. Software architecture speciﬁcation techniques

used by practitioners

The ﬁrst survey section above aids in exploring

whether practitioners develop such software systems

in which specifying the software architectures brings

potential beneﬁts to the development. The second

section explores what software architecture means to

practitioners. By this, we particularly aim at under-

standing practitioners’ level of knowledge on soft-

ware architectures. The third section explores prac-

titioners’ level of interest towards software architec-

tures. More speciﬁcally, we attempt at understanding

here whether practitioners utilize from their software

architecture speciﬁcations, e.g., analysing them for

quality properties (e.g., reliability and performance)

and generating implementation code from them. The

last section explores the particular techniques that

practitioners prefer to use for specifying software ar-

chitectures.

2 RESEARCH METHODOLOGY

We run the survey in three subsequent stages. First,

we planned our survey, deciding on the types of par-

ticipants and the methods for participation. Second,

we designed our survey, deciding on the questions to

be asked to the participants. Lastly, we worked out

the analysis methods to be applied in analysing the

gathered survey data.

2.1 Planning our Survey

Our ﬁrst step was to identify the group of practition-

ers whom we will contact for requesting to ﬁll in our

survey. We focussed on two groups: industrial ex-

perts and academics who conduct research and devel-

opment in software engineering.In the rest of this sec-

tion, we introduce our survey plan, depicted in Figure

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

678

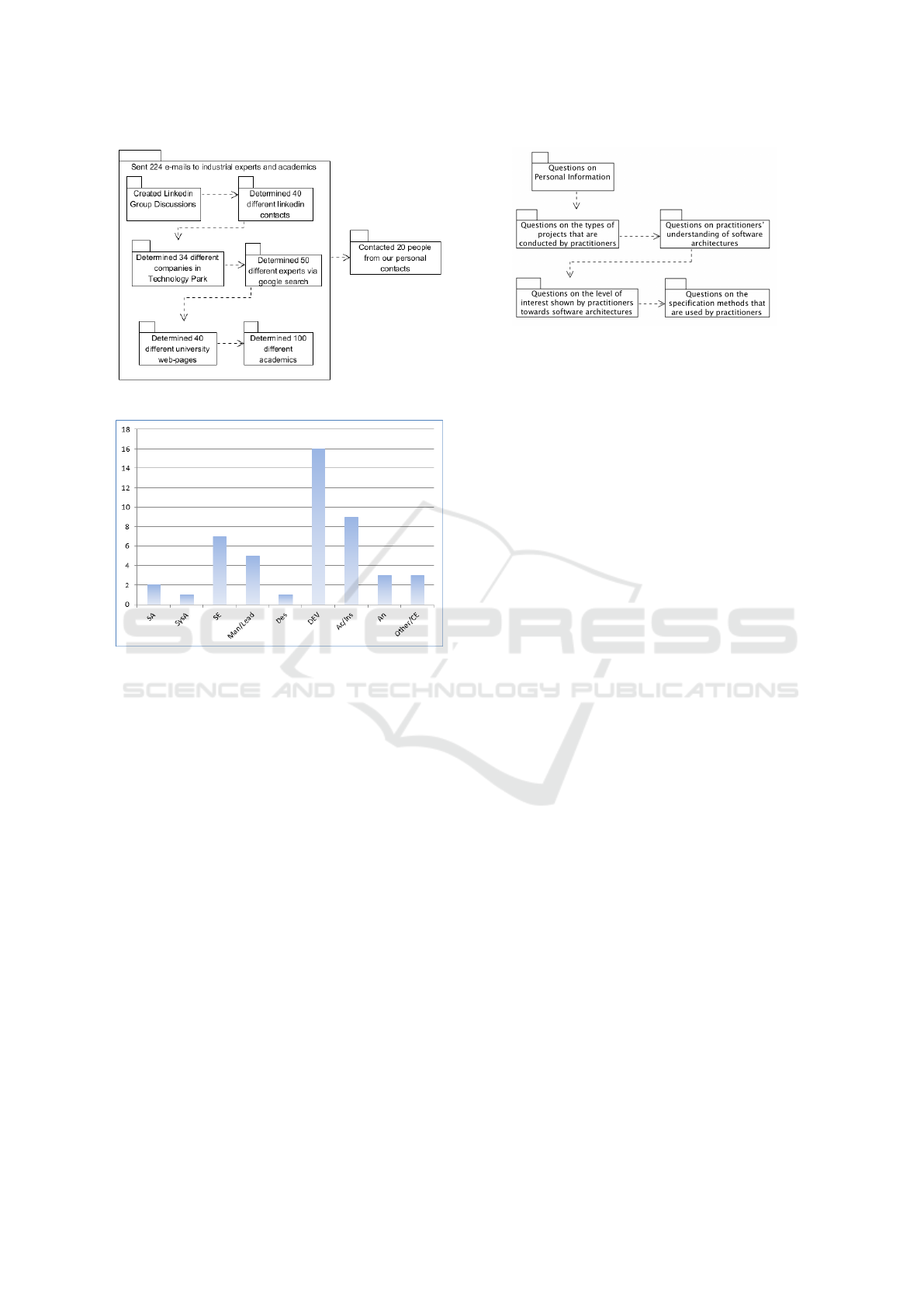

Figure 1: Survey Plan.

Figure 2: Participant roles in industry.

SA:Software Architect SysA: System Arc. SE: Soft Eng Man/lead:

Manager leader Des: Designer Dev: Developer Ac/Ins: Academics

and instructors in universities An: Analyst Other/Ce: Computer

engineer

Industrial Experts. We contacted a number of

experts in software industry via the following meth-

ods and requested them to ﬁll in our survey. The

role of the industrial experts who have participated

our survey are depicted in in Figure 2.

We initially used social media (e.g., linkedin)

so as to reach groups of relevant people. We deter-

mined 40 different contacts and got in touch with

them via linkedin’s e-mail service or by company

phone numbers (if available). We also went through

the web-sites of the technology parks that operate

in Turkey and identiﬁed the e-mail addresses or

telephone contacts of the software development com-

panies based in the technology parks. By doing so,

we got in touch with 34 different companies. Lastly,

we searched in google for the software development

companies that we have not encountered during our

linkedin and technology park searches. By doing so,

we determined 50 different experts and contacted

them either by e-mail or phone-call.

Figure 3: Survey Questions.

Academics. Besides industrial experts, we also

targeted at the academics who work for the computer

engineering (or computer science) department of uni-

versities. We identiﬁed the academics and their con-

tact details by browsing the university web-pages.

We browsed through 40 different universities in

Turkey and determined the e-mail addresses of the

academics from their personal web-pages. In total, we

sent e-mails to 100 different academics for requesting

their participation.

In conclusion, we sent 224 e-mails to industrial

experts and academics in total and got in touch with

many others indirectly via group announcements.

Currently, we have got 48 replies: 10 of them told

that they cannot ﬁll in our survey due to their com-

pany policy. The rest 38 accepted to ﬁll in our sur-

vey. Moreover, we also used our personal contacts

and contacted 20 people consisting of industrial ex-

perts and academics. We have got 12 replies, who

accepted to ﬁll in our survey.

2.2 Designing our Survey Questions

In this survey project, we aim at exploring to what

extent practitioners know about software architecture

and apply it in their software design. Therefore, we

structured and designed our survey questions in a way

that aids in understanding practitioners’ knowledge

and experience about software architectures. As de-

picted in ﬁgure 3, we proposed ﬁve different sections

in our survey, each consisting of a number of ques-

tions. Below, we discuss these survey sections and

the questions in each section.

2.2.1 Personal Information

This section is for gaining some personal information

about the participants so as to argue their answers

to the survey questions in a more sensible way. We

ask three questions in this section and try to learn (i)

whether the participant is an industrial expert or an

academic, (ii) the participant’s job position, and (iii)

What is Software Architecture to Practitioners: A Survey

679

the company or institution for which the participant

works.

2.2.2 The Kinds of Software Systems that are

Developed by Practitioners

In this section, we aim at understanding whether prac-

titioners are involved in the development of software

systems in which software architectural design could

facilitate the development. Initially, we try to learn

whether the participant has ever built a critical soft-

ware system whose failure may lead to catastrophic

results. As mentioned in Section 1, through ADLs, it

is possible to specify the architecture of such critical

systems and analyse their behaviours for quality is-

sues. Second, we ask to learn whether the participant

works in projects with multiple development teams

that can work concurrently. If so, specifying soft-

ware architectures will let teams work concurrently

on separate independent system components. Third,

we ask to learn whether the participant builds long-

lived projects that require constant maintenance ef-

fort. Specifying the architecture of systems in terms

of independent components will be very useful as one

can more easily understand the system functionali-

ties and modify them when needed. Lastly, we ask

whether the participants build families of systems,

such as client-server systems, which can be designed

effectively by using architectural styles.

2.2.3 Practitioners’ Understanding of Software

Architectures

In this section, we seek to understand how well partic-

ipants know about software architectures. We ﬁrstly

ask to learn what the participants think that soft-

ware architects do. The second question here is for

learning the participants’ thoughts on possible rea-

sons for specifying software architectures. In the last

three questions, we learn the participants’ research or

teaching background on software architectures.

2.2.4 The Level of Interest Shown by

Practitioners towards Software

Architectures

Besides understanding the participants’ level of

knowledge on software architectures, we also wish to

understand the participants’ level of interest on soft-

ware architectures. Firstly, we ask to learn if the par-

ticipants always consider the architecture speciﬁca-

tion of his/her software system while designing their

system. Secondly, we ask for the ADLs that the par-

ticipant is aware of (if any). Next, we ask when the

participants prefer to check the correctness of their

software and whether they know that architectural de-

sign of software systems can be veriﬁed for correct-

ness using architecture description languages. Lastly,

we ask the participants which method they follow in

implementing their software system and whether they

know that architectural designs can be translated into

implementation code by using architecture descrip-

tion languages.

2.2.5 The Speciﬁcation Methods that are used

by Practitioners

In this last section, we ask three different questions

to learn the tools/languages that the participants use

for specifying software architectures. Firstly, we ask

the participants which tool/language they use (if any).

Next, we ask them to state their observations on the

advantages and disadvantages of the tool/language (if

any).

2.3 Analysing Survey Responses

In this part, we describe how we aim at analysing the

data collected through the survey.

Survey Data Collection and Organisation. We

conduct our survey online via Google Forms. Google

Forms produces an Excel ﬁle, which is updated au-

tomatically upon each participant ﬁlling the survey.

The excel ﬁle includes a unique column for each sur-

vey question; and, a new row is added automatically

when a participant answered the survey questions.

Data Analysis. We aim at analysing the collected

(and organized) data in three ways.

Calculating the Response Rate: Firstly, we calcu-

late the response rate, which is the percentage of the

received response after contacting a particular num-

ber of participants. By doing so, we aim at determin-

ing the level of interest shown towards our survey and

taking some actions for improving the response rate,

especially if it is considerably low.

Calculating the Response Frequencies: For each

different section in the survey, we go through its ques-

tions one by one. We aim at analysing the responses

given to each question by calculating the percentage

of each answer. We create a table per question, which

consists of two rows and a single column. While in

the ﬁrst row we give the question itself, in the second

row we provide the respective analysis data for that

question obtained from the survey (i.e., the percent-

age of each possible answer for the question given by

the participants).

Computing the Cross-tabulations: Besides

analysing the questions individually, we are also

interested in revealing the relationships between

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

680

different questions (if any). Indeed, for some ques-

tions, the answers given to them may be understood

better and lead to more interesting conclusions if we

consider those answers together with the answer(s)

given by the same participants to another question(s).

For instance, while we wish to know the percentage

of the participants who use UML, we are more

interested in the participants who use UML and at the

same time look for easy to learn and use languages.

Coding: In our survey, some questions allow par-

ticipants to type their own responses as an alternative

to choosing from a pre-deﬁned list of responses. For

instance, when asking what software architects would

do in a software company, we also offer participants

the choice of writing their own view. However, par-

ticipants may choose to write their own view although

their view is very similar (if not the same) to one

of the pre-deﬁned choices. Therefore, we apply the

coding technique here, and, go through the responses

typed by the participants and re-format (and some-

times re-write) their answers so as to match them with

the closest pre-deﬁned choices.

3 MAIN FINDINGS AND

RESULTS

3.1 Practitioners Can Facilitate the

Development of their Systems

through Software Architectures

In Section 2.2.2, we introduced a set of questions for

understanding what kind of software systems that the

participants develop.

Table 1 in the Appendix page 9 gives the response

frequencies for each of the questions. According to

our survey results, 80% of the participants have re-

sponded "Yes" to at least one of the questions. That

is, every 8 participants out of 10 develop either (i)

critical systems, (ii) large systems with more than one

development teams, (iii) long-lived systems, or (iv)

families of systems/products. As already discussed in

Section 2.2.2, specifying the software architectures of

such systems could facilitate their development and

aid in detecting any design errors before they propa-

gate them in the implementation.

3.2 The Analysis of Software

Architectures is a New Concept to

Participants

In Section 2.2.3, we introduced the part of the survey

that includes a set of questions for determining how

well the participants know software architectures.

Table 2 in the Appendix page 9 gives the re-

sponse frequencies for each of the questions. Appar-

ently, 77% of the participants have already got in-

troduced with software architectures, who have ei-

ther taken/given courses on software architectures,

attended seminars/conferences, or done relevant re-

searches. However, many participants are still unfa-

miliar with the role of software architects, believing

that software architects just design the structure of

the system. They miss the point that one of the ma-

jor tasks that can do with software architectures is the

analysis of software architectures for quality issues,

e.g., reliability and performance. 87% of the par-

ticipants who have taken/given courses on software

architectures failed to choose the most complete an-

swer for Q1, i.e., "A software architect decomposes

a system into components, and then analyse these

components along with their interaction for quality

properties". This reveals that practitioners view soft-

ware architectures as a high-level design method for

specifying software systems in terms of components

and their relation. Their main intention in specifying

software architectures is to facilitate the understand-

ing and communication of large and complex soft-

ware systems by dividing them into smaller parts (i.e.,

components). The ability of analysing software ar-

chitectures for detecting design errors and quality is-

sues (e.g., performance and security) is ignored. Even

60% of the participants with the academic role are not

aware of analysing software architectures - they did

not provide the correct answer for Q1. So, this leads

to their students (or potential practitioners) who have

a narrow scope on software architectures.

3.3 Architecture Description Languages

(ADLs) are Shown Lack of Interest

by the Participants

In Section 2.2.4, we introduced the part of the survey

that includes a set of questions for understanding the

level of interest shown by the participants towards ar-

chitecture description languages.

Table 3 in the Appendix page 9 gives the response

frequencies for each of these questions. 68% of the

participants who consider software architectures in

their software design are not aware of any ADLs. This

What is Software Architecture to Practitioners: A Survey

681

means that most practitioners specify their software

architectures either using UML or box-line diagram

drawing tools. However, neither UML nor box-line

drawings helps in analysing software architectures for

design errors and quality properties

. Considering

that 85% of those participants are interested in check-

ing software correctness at design time, this is quite

concerning. Even among the participants both consid-

ering software architectures and aware of architecture

description languages, some still do not know of the

analysis capabilities of architecture description lan-

guages (33%). This is probably because they heard

about ADLs but have not used them for analysis pur-

poses.

According to the survey results, practitioners are

also interested in implementing their software sys-

tems in accordance with their software design (57%).

This is indeed facilitated through ADLs, which of-

fer automatic code generation from software architec-

tures. However, 60% of the participants who prefer to

implement their software design are unaware of the

code generation facilities of ADLs.

3.4 UML is Popular with its Low

Learning Curve and Visual

Notations, while Still Suffering from

the Lack of Support for

Architectural Analysis

In Section 2.2.5, we introduced the part of the sur-

vey that includes a set of questions for understanding

the techniques used by the participants for specifying

ADLs.

Table 4 in the Appendix page 9 gives the response

frequencies for each of the questions. According to

the survey results, 89% of the participants use UML

for specifying software architectures. 63% of the par-

ticipants who use UML look for software design tech-

niques that are easy to learn and use. Likewise, 75%

of the participants who use UML look for visual nota-

tions. This shows that UML is found popular thanks

to its low learning curve and comprehensive set of

visual notations. Moreover, 41% of the participants

who use UML wish that architectural analysis was

supported, which UML lacks in unfortunately.

Although there are some attempts towards extending

UML through UML proﬁles so as to support architectural

concepts (e.g., connectors) and analysis, UML does not

originally provide direct support for connectors and anal-

ysis of software architectures.

4 DISCUSSION

In this survey, we asked 20 different questions to 50

participants with the goal of ﬁnding answers for the

following two research questions: (i) what do prac-

titioners understand from software architectures? (ii)

what do practitioners aim at achieving by specifying

software architectures and are they aware of facilities

such as architectural analysis? Having discussed the

answers given to the survey questions in Section 3, we

observed that architectural design can be very helpful

for practitioners in their software development. How-

ever, practitioners suffer from the lack of knowledge

on software architectures and are not aware of poten-

tial beneﬁts of specifying software architectures such

as analysis of software architectures for quality prop-

erties. We attribute this to that practitioners mostly

use Uniﬁed Modeling Language (UML) that is not

powerful enough for understanding what one can do

with software architectures.

4.1 Lack of Knowledge on Software

Architectures

Software architecture is highly important for practi-

tioners due to the nature of the software systems that

practitioners develop. Despite that, very few prac-

titioners know exactly what software architecture is.

In their understanding, software architecture is just

a design method for specifying the structure of soft-

ware systems. However, very few are aware that soft-

ware architecture is also a method for analysing the

high level design of software systems for quality is-

sues, e.g., safety, performance, and reliability. Indeed,

specifying software architectures requires a consider-

able amount of effort; so, one should not use them

just for communication but also for determining de-

sign defects.

Many practitioners have not ever used ADLs,

sticking on UML. It is indeed the ADLs through

which practitioners can perform further operations on

their software architectures. There are various ADLs

offered for different domains such as embedded sys-

tems, distributed systems, and multi-agent systems.

Each ADL may also have different features, such

as automatic implementation code generation, anal-

ysis for quality properties, simulation of system be-

haviours, etc. For instance, Wright (Allen and Gar-

lan, 1997) is one of the most inspiring ADLs, which

allows designers to specify software architectures in

terms of components and connectors and then for-

mally analyse their behaviours. There are also ADLs

such as SOFA (Plasil and Visnovsky, 2002) that also

focus on generating implementation code.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

682

4.2 UML as the Most Popular Modeling

Language

As already mentioned, UML is the top choice of

most practitioners for specifying software architec-

tures. Apparently, this is due to UML found easy to

learn and use. Indeed, UML has been taught in many

universities for teaching software design and architec-

ture. Moreover, unlike ADLs, UML offers a compre-

hensive set of visual diagram types, making the de-

sign task simpler and more understandable.

While UML reduces the learning curve, its focus

is limited with architectural speciﬁcation. Issues such

as analysing software architecture speciﬁcations for

design errors or quality properties (e.g., performance

and reliability) are ignored in UML. According to the

survey results, many practitioners consider the anal-

ysis of software architectures as a crucial aspect of

software design. Indeed, they agree that a modelling

language that also enables analysis would be much

more preferable. While practitioners can analyse their

architectures using ADLs, ADLs are not found as fa-

miliar as UML due to their complex algebraic nota-

tions.

4.3 The Need for a Language that has

Low Learning Curve and Supports

Analysis

So, given the discussion above, if there was an archi-

tecture modeling language that supports (i) low learn-

ing curve, (ii) visual notation set, and (iii) architec-

tural analysis, practitioners would be very likely to

use that language. To this end, we currently work on

a new architecture description language called XCD

(Ozkaya and Kloukinas, 2014) that supports the above

mentioned features in one place. Unlike the standard

UML notation, XCD considers components and con-

nectors (i.e., interaction protocols) as ﬁrst-class ar-

chitectural elements. To reduce the learning curve,

unlike algebraic ADLs that are based on complex

process algebras, XCD is based on the well-known

Design-by-Contract approach (Meyer, 1992) and en-

ables the precise and contractual speciﬁcation of com-

ponents and interaction protocols. XCD supports the

analysis of software architectures in terms of its pre-

cise translation into the SPIN’s ProMeLa formal ver-

iﬁcation language (Holzmann, 2004), which is auto-

mated via a tool that we developed

. So, unlike UML,

in XCD designers can translate their contractual XCD

architectures into ProMeLa models automatically and

XCD’s website: https://sites.google.com/site/ozkayam

ert1/home/xcd

use the SPIN model checker to analyse their archi-

tectures for a number of properties, including dead-

lock, race-condition, wrong use of component ser-

vices, and completeness. Now, we have been improv-

ing XCD with a visual notation set and a drawing edi-

tor, through which practitioners will be able to specify

their XCD architectures visually and analyse them.

5 RELATED WORK

There have been many surveys conducted on soft-

ware architectures, e.g., (Woods and Hilliard, 2005;

Medvidovic and Taylor, 2000; Vestal, 1993; Fuxman,

2000). They shed light into what ADLs are basically

for and what practitioners can do with the ADLs that

may differ depending on the scope and the domain

of each ADL. These surveys are extremely helpful in

getting introduced with ADLs and their useful fea-

tures such as formal analysis for quality properties

and automatic code generation. However, it is not

possible to understand from these surveys whether

the current set of ADLs are successful in meeting the

needs of practitioners. Indeed, what practitioners care

most about may not be any of the features discussed in

these surveys. Moreover, ADLs are just one of aspect

of software architectures. There are other architec-

ture modelling approaches, such as UML, which are

outside the scope of these surveys. So, we are more

interested in understanding whether practitioners are

satisﬁed with the existing architecture modeling ap-

proaches and what features they look for in an archi-

tecture modeling approach.

Recently, another survey has been conducted by

Malavolta et al. (Malavolta et al., 2012). Unlike the

aforementioned surveys, Malavolta et al.’s survey fo-

cuses on determining what practitioners expect from

ADLs. Malavolta et al.’s survey sheds light into very

interesting results. For instance, they determined that

practitioners are not so interested in using ADLs, in-

stead using UML. This is due to the steep learning

curve required by the ADLs. Moreover, Malavolta et

al. also determines that formal analysis is one of the

main reasons of practitioners in specifying software

architectures. However, Malavolta et al.’s survey does

not help in understanding practitioners’ view of soft-

ware architectures, and their level of knowledge and

experience. Therefore, while one can understand why

practitioners stay away from ADLs, it may not be so

easy to understand what software architecture actu-

ally is to the practitioners.

What is Software Architecture to Practitioners: A Survey

683

6 ASSUMPTIONS AND VALIDITY

6.1 Sampling

In this survey study, we chose participants from both

industry and academia so as to reduce any biases to-

wards our work. Indeed, software architecture is not

only used by industrial experts but also academics

who can teach software architecture or do research

on it. We used convenience sampling in choosing the

participants for our survey. We determined the indus-

trial experts from a number of IT companies devel-

oping software systems in various ﬁelds such as avi-

ation, ﬁnance, telecommunication, and automation,

etc. Our choice of the IT companies were random

without paying any special attention to their proﬁle

or the industry ﬁeld in which they do their business.

Moreover, we determined the universities and the aca-

demics that we have contracted randomly too. The

only constraint on our choice of academics is for fo-

cussing on those who have teaching/research back-

ground on software engineering.

6.2 Survey Technique

We conducted our survey as a questionnaire, thus ex-

pecting participants to choose one (or multiple ones)

of the pre-deﬁned answers for a set of questions. To

get practitioners’ views in the most complete way

possible, we have also considered having interviews

with the participants on the survey questions. Unfor-

tunately, most practitioners were not willing to sep-

arate their times for that. Therefore, we instead de-

cided to include the "other" option in some questions

in which we believe participants may like to give their

own particular answers. Then, we applied the coding

technique to predict the most closest predeﬁned an-

swers to the participants’ own answers.

6.3 Threats To External Validity

Having analysed our survey results, we reached four

different ﬁndings, discussed in Section 3. These are

(i) practitioners can facilitate the development of their

systems through software architectures, (ii) the anal-

ysis of software architectures is a new concept to

participants, (iii) architecture description languages

(ADLs) are shown lack of interest by the participants,

and (iv) UML is popular with its low learning curve

and visual notations, while still suffering from the

lack of support for architectural analysis. However,

the above ﬁndings are based on our survey among 50

participants who have been chosen from the compa-

nies located in Turkey. Therefore, the ﬁndings herein

may not necessarily be generalized to the entire com-

munity of software engineering.

7 CONCLUSION

Software architecture has been one of the most crucial

topics in software engineering since the nineties. Var-

ious techniques have been developed to support the

speciﬁcation of software architectures, such as Uni-

ﬁed Modelling Language (UML) and architecture de-

scription languages (ADLs). However, it always re-

mains ambiguous what practitioners know about soft-

ware architecture and how they use it in their soft-

ware design. To understand this, we conducted a sur-

vey among 50 different practitioners, including both

industrial experts and academics. We asked 20 ques-

tions and analysed their answers by evaluating each

question individually and also the relations between

the questions. According to our analysis results, soft-

ware architecture has high potential in facilitating the

software development of practitioners. However, de-

spite that, practitioners are not familiar with soft-

ware architectures. They use software architectures

for specifying the structure of systems, but ignoring

other aspects such as the analysis of software archi-

tectures for design errors and quality properties. This

is because practitioners restrict their scope with UML,

which enables the visual – i.e.,friendly – speciﬁcation

of software architectures but does not provide direct

support for their analysis.

REFERENCES

Allen, R. and Garlan, D. (1997). A formal basis for architec-

tural connection. ACM Trans. Softw. Eng. Methodol.,

6(3):213–249.

Bergstra, J. A. (2001). Handbook of Process Algebra. El-

sevier Science Inc., New York, NY, USA.

Canal, C., Pimentel, E., and Troya, J. M. (1999). Speciﬁca-

tion and reﬁnement of dynamic software architectures.

In Donohoe, P., editor, WICSA, volume 140 of IFIP

Conference Proceedings, pages 107–126. Kluwer.

Clements, P. C. (1996). A survey of architecture descrip-

tion languages. In Proceedings of the 8th Interna-

tional Workshop on Software Speciﬁcation and De-

sign, IWSSD ’96, pages 16–, Washington, DC, USA.

IEEE Computer Society.

Clements, P. C., Garlan, D., Little, R., Nord, R. L., and

Stafford, J. A. (2003). Documenting software archi-

tectures: Views and beyond. In Clarke, L. A., Dillon,

L., and Tichy, W. F., editors, ICSE, pages 740–741.

IEEE Computer Society.

Feiler, P. H., Gluch, D. P., and Hudak, J. J. (2006). The Ar-

chitecture Analysis & Design Language (AADL): An

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

684

Introduction. Technical report, Software Engineering

Institute.

Fuxman, A. D. (2000). A survey of architecture description

languages. Technical Report CSRG-407, Department

of Computer Science,University of Toronto, Toronto,

Ontario, Canada M5S 3G4.

Garlan, D. and Shaw, M. (1994). An introduction to soft-

ware architecture. Technical report, Pittsburgh, PA,

USA.

Hoare, C. A. R. (1978). Communicating sequential pro-

cesses. Commun. ACM, 21(8):666–677.

Holzmann, G. J. (2004). The SPIN Model Checker - primer

and reference manual. Addison-Wesley.

Ivers, J., Clements, P., Garlan, D., Nord, R., Schmerl, B.,

and Silva, J. R. O. (2004). Documenting component

and connector views with UML 2.0. Technical Report

CMU/SEI-2004-TR-008, Software Engineering Insti-

tute (Carnegie Mellon University).

Luckham, D. C. (1996). Rapide: A language and toolset

for simulation of distributed systems by partial order-

ings of events. Technical report, Stanford University,

Stanford, CA, USA.

Magee, J. and Kramer, J. (1996). Dynamic structure in soft-

ware architectures. In SIGSOFT FSE, pages 3–14.

Magee, J., Kramer, J., and Giannakopoulou, D. (1997).

Analysing the behaviour of distributed software archi-

tectures: a case study. In FTDCS, pages 240–247.

IEEE Computer Society.

Malavolta, I., Lago, P., Muccini, H., Pelliccione, P., and

Tang, A. (2012). What industry needs from architec-

tural languages: A survey. IEEE Transactions on Soft-

ware Engineering, 99.

Medvidovic, N. and Taylor, R. N. (2000). A classiﬁcation

and comparison framework for software architecture

description languages. IEEE Trans. Software Eng.,

26(1):70–93.

Meyer, B. (1992). Applying “Design by Contract”. IEEE

Computer, 25(10):40–51.

Milner, R., Parrow, J., and Walker, D. (1992). A calculus of

mobile processes, i. Inf. Comput., 100(1):1–40.

Ozkaya, M. and Kloukinas, C. (2014). Design-by-

contract for reusable components and realizable ar-

chitectures. In Seinturier, L., de Almeida, E. S.,

and Carlson, J., editors, CBSE’14, Proceedings of

the 17th International ACM SIGSOFT Symposium

on Component-Based Software Engineering (part of

CompArch 2014), Marcq-en-Baroeul, Lille, France,

June 30 - July 4, 2014, pages 129–138. ACM.

Perry, D. E. and Wolf, A. L. (1992). Foundations for the

study of software architecture. SIGSOFT Softw. Eng.

Notes, 17(4):40–52.

Plasil, F. and Visnovsky, S. (2002). Behavior protocols

for software components. IEEE Trans. Software Eng.,

28(11):1056–1076.

Reussner, R., Poernomo, I., and Schmidt, H. (2003). Rea-

soning about Software Architectures with Contrac-

tually Speciﬁed Components. In Cechich, A., Piat-

tini, M., and Vallecillo, A., editors, Component-Based

Software Quality, volume 2693 of Lecture Notes in

Computer Science, page 287â

A¸S325. Springer Berlin

Heidelberg.

Rumbaugh, J. E., Jacobson, I., and Booch, G. (1999).

The uniﬁed modeling language reference manual.

Addison-Wesley-Longman.

Shaw, M., DeLine, R., Klein, D. V., Ross, T. L., Young,

D. M., and Zelesnik, G. (1995). Abstractions for soft-

ware architecture and tools to support them. IEEE

Trans. Software Eng., 21(4):314–335.

Spivey, J. M. (1992). Z Notation - a reference manual (2.

ed.). Prentice Hall International Series in Computer

Science. Prentice Hall.

Taylor, R. N., Medvidovic, N., Anderson, K. M., Jr., E.

J. W., Robbins, J. E., Nies, K. A., Oreizy, P., and

Dubrow, D. L. (1996). A component- and message-

based architectural style for gui software. IEEE Trans.

Software Eng., 22(6):390–406.

Vestal, S. (1993). A cursory overview and comparison of

four architecture description languages. Technical re-

port, Honeywell Technology Center.

Woods, E. and Hilliard, R. (2005). Architecture description

languages in practice session report. In Proceedings of

the 5th Working IEEE/IFIP Conference on Software

Architecture, WICSA ’05, pages 243–246, Washing-

ton, DC, USA. IEEE Computer Society.

APPENDIX

In the Appendix, you will ﬁnd a table for each sur-

vey section, in which the percentages of the responses

are shown for the questions of that section. Note

that we have not included the questions of the ﬁrst

section (i.e., Personal Information introduced in Sec-

tion 2.2.1) as the responses for those questions are not

discussed in Section 3 for ﬁnding an answer to the re-

search questions. Note also that for some questions,

the percentages are not integer values (e.g., 42.8). In

such cases, the nearest integer values are given (e.g.,

43 for 42.8).

What is Software Architecture to Practitioners: A Survey

685

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

686
