An Empirical Study of Two Software Product Line Tools

Kattiana Constantino, Juliana Alves Pereira, Juliana Padilha, Priscilla Vasconcelos

and Eduardo Figueiredo

Software Engineering Laboratory (LabSoft), Computer Science Department (DCC),

Federal University of Minas Gerais (UFMG), Belo Horizonte, MG, Brazil

Keywords: Software Product Lines, Variability Management, Feature Model, FeatureIDE, pure::variants.

Abstract: In the last decades, software product lines (SPL) have proven to be an efficient software development

technique in industries due its capability to increase quality and productivity and decrease cost and time-to-

market through extensive reuse of software artifacts. To achieve these benefits, tool support is fundamental

to guide industries during the SPL development life-cycle. However, many different SPL tools are available

nowadays and the adoption of the appropriate tool is a big challenge in industries. In order to support engineers

choosing a tool that best fits their needs, this paper presents the results of a controlled empirical study to assess

two Eclipse-based tools, namely FeatureIDE and pure::variants. This empirical study involved 84 students

who used and evaluated both tools. The main weakness we observe in both tools are the lack adequate

mechanisms for managing the variability, such as for product configuration. As a strength, we observe the

automated analysis and the feature model editor.

1 INTRODUCTION

Software Product Line (SPL) is a set of software systems

sharing a common, managed set of features that satisfies

the specific needs of a particular market segment (Pohl

et al., 2005). A feature represents an increment in

functionality relevant to some stakeholders. It may refer

to functional requirements (Jarzabek et al., 2003),

architecture decisions (Bernardo et al., 2002), or design

patterns (Prehofer, 2001). Feature models are used to

represent the common and variable features in SPL

(Czarneck and Eisenecker, 2000) (Kang et al., 1990). It

provides us with an abstract, concise, and explicit

representation of variability in software. Variability

aims to provide support to the product derivation in an

SPL (Metzger and Pohl, 2007). It refers to the ability of

an artifact to be configured, customized, extended, or

changed for use in a specific context.

The expected advantages in the adoption of SPL

are: large-scale productivity, decreased time to market

and product risk, and increased product quality

(Clements et al., 2002). However, the adoption of SPL

by industry depends of adequate tooling support.

Existing tools for SPL support the representation and

management of reusable artifacts. In fact, there are

many available options of SPL tools (Pereira et al.,

2015) (Simmonds et al., 2011) (Djebbi et al., 2007).

These tools are diverse with different strengths and

weaknesses. Therefore, choosing one tool that best

meets the SPL development goals is far from trivial.

After a literature review of SPL tools (Pereira et

al., 2015), this paper presents a comparative analysis

of two Eclipse-based SPL tools, namely FeatureIDE

(Thüm et al., 2014) and pure::variants (Beuche,

2003). We choose to focus our analysis on these tools

because they are integrated to the same development

environment, namely Eclipse, which makes the

comparison easier. FeatureIDE and pure::variants

also provide the key functionality of typical SPL tools,

such as to edit (create and update) a feature model, to

automatically analyze the feature model, to configure a

product, and to import/export the feature model.

The empirical study of this paper (Section 2)

involves 84 participants enrolled in Software

Engineering courses. Each participant used only one

tool: FeatureIDE or pure::variants. The experimental

tasks exercise different aspects of SPL development.

All participants also answered a questionnaire about

the functionalities they used. We focus on

quantitative and qualitative analyses of four typical

functionalities of SPL tools: Feature Model Edition,

Automated Feature Model Analysis, Product

Configuration, and Feature Model Import/Export.

Based on the analysis (Section 3), we observed

that the Feature Model Editor of FeatureIDE was

considered the easiest and most intuitive one. In

164

Constantino, K., Pereira, J., Padilha, J., Vasconcelos, P. and Figueiredo, E.

An Empirical Study of Two Software Product Line Tools.

In Proceedings of the 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering (ENASE 2016), pages 164-171

ISBN: 978-989-758-189-2

comparison, pure::variants achieved the best results

for the Import/Export functionalities. The overall

findings are that both SPL tools have issues related to

interfaces, lack of examples, tutorials, and limited

user guide. Section 1 presents some threats to the

study validity and Section 5 discusses related work.

Finally, Section 6 concludes this paper.

2 STUDY SETTINGS

The goal of this study is to investigate how two

Eclipse-based SPL tools, namely FeatureIDE and

pure::variants. support SPL development and

variability management.

2.1 Research Questions

We formulate three Research Questions (RQ)

focusing on aspects of the evaluation are as follows.

RQ1. What functionalities of SPL tools are hard and

easy to use? We investigated four functionalities: (i)

Feature Model Edition, (ii) Automated Feature Model

Analysis, (iii) Product Configuration, and (iv) Feature

Model Import/Export. We list a four-level ranking for

the degree of functionality difficulty.

RQ2. Does the background of developers impact on

the use of the SPL tools? With RQ2, we are willing to

investigate whether the background of developers can

impact on the results of this study.

RQ3. What are the strengths and weaknesses of

different SPL tools? In RQ3, we analyzed the tools

based on the study quantitative and qualitative data.

2.2 Software Product Line Tools

A previous systematic literature review (Pereira et al.,

2015) identified 41 tools for SPL development and

variability management. Based on this review, we used

the following exclusion criteria in order to choose the

two tools for this study. First, we excluded all tools

without enough examples available, tutorials, or user

guides to prepare the experimental material and

training session. After that, we excluded all prototype

tools from our study. In addition, we excluded all tools

unavailable for download and the commercial tool

without an evaluation version. Therefore, we have six

tools candidates for our empirical study: SPLOT,

FeatureIDE, pure::variants, FAMA, VariAmos, and

Odyssey. From the six candidate tools, we picked up

two tools which are seamlessly integrated with the

same development environment (Eclipse).

FeatureIDE (Thüm et al., 2014) and pure::variants

(Beuche, 2003) are mature, actively used (by industry

or academic researches) and accessible tools. These

tools are also well-known and cited in the SPL

literature (Bagheri and Ensan, 2014) (Simmonds et

al., 2011) (Djebbi et al., 2007). Furthermore, we

decided to focus only on 2 tools in order to make it

possible to conduct a deeper study even if we have

limitation of time and human resources. FeatureIDE

is an open-source tool integrated with several

programming languages and supports both aspect

oriented (Kiczales et al., 1997) and feature oriented

programming (Batory et al., 2004). On the other hand,

pure::variants is a commercial tool with an evaluation

version available. We used this evaluation version.

2.3 Background of the Participants

Participants involved in this study are 84 young

developers enrolled in courses related to Software

Engineering. They were organized in two replications

of this study, as follows: 42 participants worked with

FeatureIDE and 42 participants worked with

pure::variants. The participants were nicknamed as

follows: (i) F1 to F42 worked with FeatureIDE and

(iii) P1 to P42 worked with pure::variants. Each

participant used only one tool in the experiment,

either FeatureIDE or pure::variants. All participants

are graduated (M.Sc. and Ph.D students) or close to

graduate.

Before the experiment, we used a background

questionnaire. Figure 1 summarizes knowledge that

participants claimed to have in the background

questionnaire with respect to Object-Oriented

Programming (OOP), Unified Modeling Language

(UML), and Work Experience (WE). The bars show

the percentage of participants who claimed to have

knowledge high, medium, low, or none in OOP and

UML. For WE, the options were: more than 3 years,

1 to 3 years, up to 1 year, and never worked in

software development industry.

Answering the questionnaire is not compulsory,

but only 2 participants did not answer the

questionnaire about UML knowledge and 3

participants did not answer about WE. In summary,

we observe that about 71% of participants have

medium to high knowledge in OOP and 33% have

medium to high knowledge in UML. In addition,

about 40% have more than 1 year of work experience

in software development. Therefore, despite

heterogeneous backgrounds, participants have at least

the basic knowledge required to perform the

experimental tasks.

An Empirical Study of Two Software Product Line Tools

165

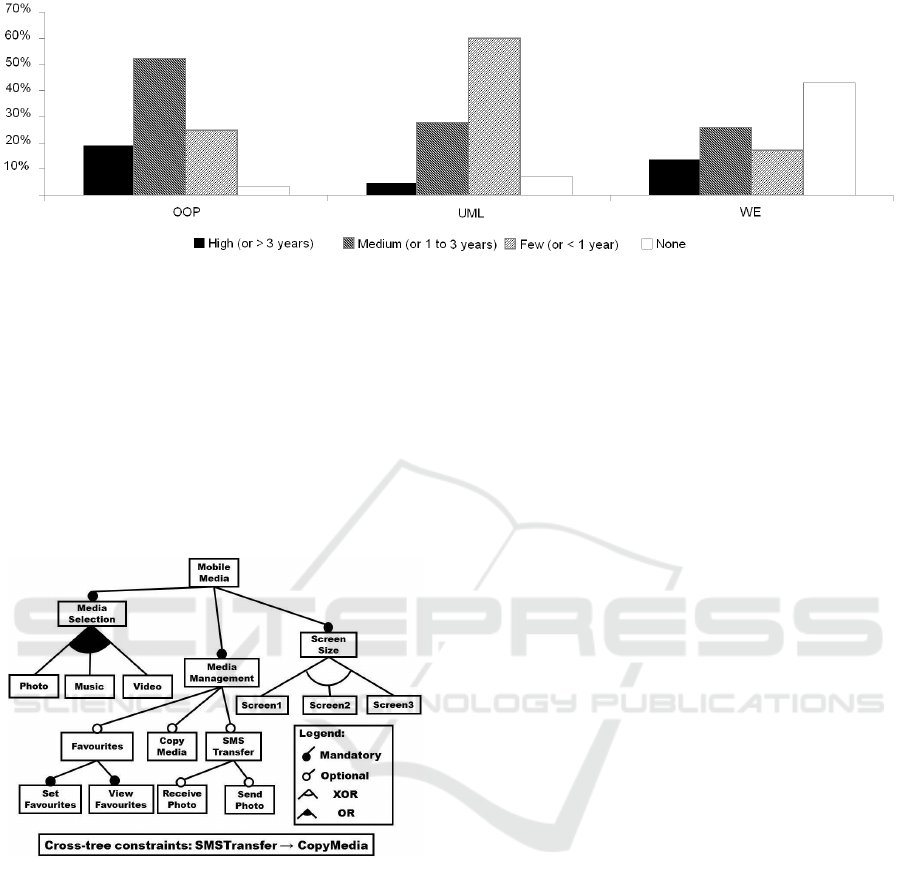

Figure 1: Background of participants in OOP, UML, and Work Experience (WE).

2.4 Target SPL Exemplar

In this empirical study, we used the same software

product line exemplar, called MobileMedia

(Figueiredo et al., 2008), in both replications.

MobileMedia is a SPL for applications with about 3

KLOC that manipulate photo, music, and video on

mobile devices, such as mobile phones. We also used

the same feature model to provide the same level of

difficulty in the carrying on tasks.

Figure 2: MobileMedia Feature Model.

Figure 2 presents a simplified view of the

MobileMedia feature model. This feature model

represents all possible product configurations in the

MobileMedia SPL. In Figure 2, there are mandatory

features, such as “Media Management”, and variable

features that allow the distinction between products in

the SPL, such as “Copy Media” (optional) and

“Screen Size” (alternative). In addition to features

and their relationships, feature models often contain

composition rules, known as cross-tree constraints,

such as “SMSTransfer -> CopyMedia” (it means that

the first feature requires the second one).

2.5 Training Session and Tasks

In order to balance knowledge of participants, we

conducted 1.5-hour training session to introduce

participants to the basic concepts of feature modeling,

SPL, and the analyzed tools. The same training

session by the same researcher to all participants. All

material about the course was available for all

participants. In addition, we have not restricted

participants of accessing (e.g., via Web browsers)

other information about the tools, such as tutorials

and user guide.

After the training session, we asked the

participants to perform some tasks using either

FeatureIDE or pure::variants. We performed a four-

functionality quantitative and qualitative analysis

with respect to common functionalities provided by

SPL tools as follows: Feature Model Edition,

Automated Feature Model Analysis, Product

Configuration, and Feature Model Import/Export.

Feature Model Edition includes creating, updating,

and adding constraints in the feature model

representation. Automated Feature Model Analysis

refers to counting the number of features, valid

configurations, etc. In the Product Configuration

task, a product should be specified by selecting or

deselecting features. Finally, the feature model

should be exported, as XML or CSV, and imported to

a new project (Feature Model Import/Export). After

performing the tasks, all participants answered a

questionnaire with open and closed questions. The

questionnaire is available in the project Web site

(http://homepages.dcc.ufmg.br/~kattiana/spl2tools/).

3 RESULTS AND ANALYSIS

This section reports and discusses data of this

empirical study.

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

166

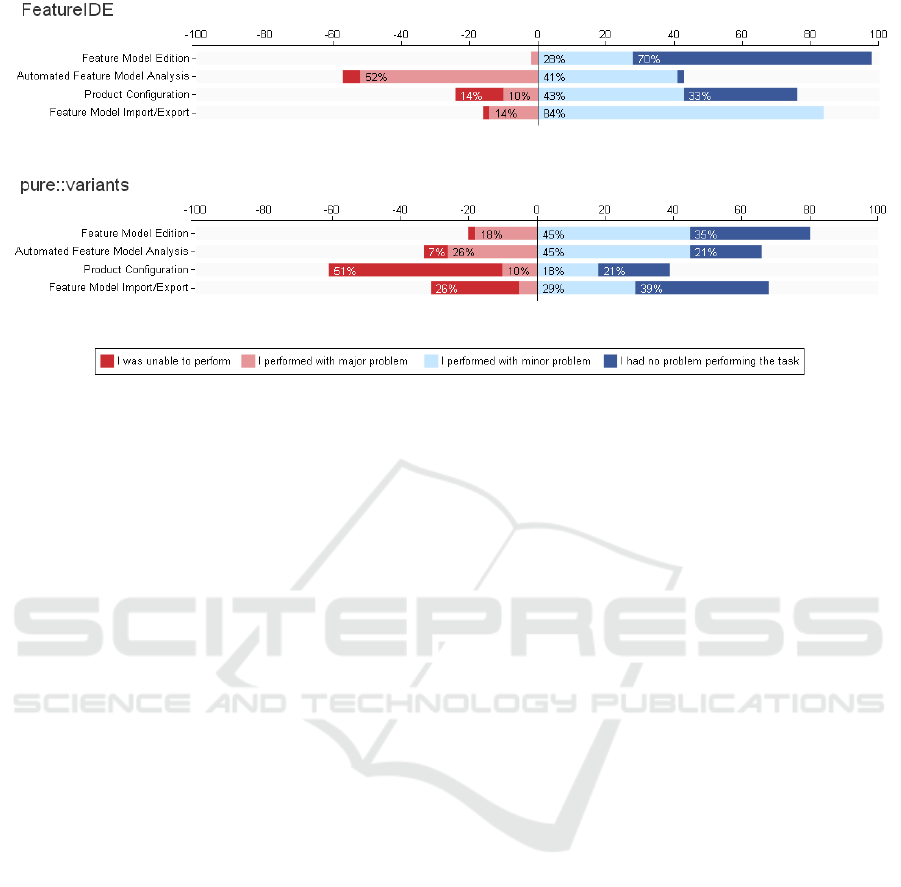

Figure 3: Percentage of problems reported by participants to complete their tasks.

3.1 Problems Faced by Developers

Our goal in this section is to analyze the level of

problems that developers may have to carry out tasks

in each analyzed tool. In other words, we aim to

answer the following research question.

RQ1. What Functionalities of SPL Tools are Hard

and Easy to Use?

For this evaluation, participants answered a

questionnaire with the following options for each

task: (i) I was unable to perform, (ii) I performed with

major problem, (iii) I performed with minor problem,

and (iv) I had no problem. Data presented in Figure 3

summarize the results grouped by functionality and

tool. We defined a Y-axis to quantify the cumulated

results, where the negative values mean “hard to use”

and positive values mean “easy to use” the respective

functionality. The general observation is that

participants had minor problems or no problem to

perform most tasks. Conclusions below were also

supported by qualitative feedback from the study

participants.

FeatureIDE. About 57% of the participants indicated

that they failed and had major problems to perform

the Automated Feature Model Analysis task. That is,

52% of participants had major problems and 5% were

unable to perform this task. Therefore, this

functionality was considered the hardest one to be

used by participants in FeatureIDE, as we see in

Figure 3. On the other hand, with respect to Feature

Model Edition, about 28% had minor problems and

70% had no problem to perform this task using

FeatureIDE. It seems a positive result for this tool

because only 2% (1 participant of 42) reported a

major problem to edit a feature model.

pure::variants. If in the one hand, the Product

Configuration functionality presented the worst result

for this tool. On the other side, the tool succeeds in

the other three functionalities (Feature Model Edition,

Automated Feature Model Analysis, and Feature

Model Import/Export). Both pure::variants and

FeatureIDE are plug-in of Eclipse and this fact could

be the reason why people had minor problems with

these tasks. Interestingly, however, participants found

it very hard to configure a product using

pure::variants. That is, Figure 3 shows the negative

ratio of Product Configuration in pure::variants is

bigger than in FeatureIDE, meaning that the

participants had more difficulties to perform this task

using pure::variants.

3.2 Background Influence

This section analyzes whether the background of

developers can impact on the use of the analyzed

tools. In other words, we aim to answer the following

research question.

RQ2. Does the Background of Developers Impact on

the Use of the SPL Tools?

In order to answer RQ2, we apply a 2

full

factorial design (Jain et al., 2010). For this

experiment, we have considered two factors (k=2),

namely the participants experience and the tool used.

To quantify the relative impact of each factor on the

participant effectiveness, we compute the percentage

of variation in the measured effectiveness to each

factor in isolation, as well as to the interaction of both

factors. The higher the percentage of variation

An Empirical Study of Two Software Product Line Tools

167

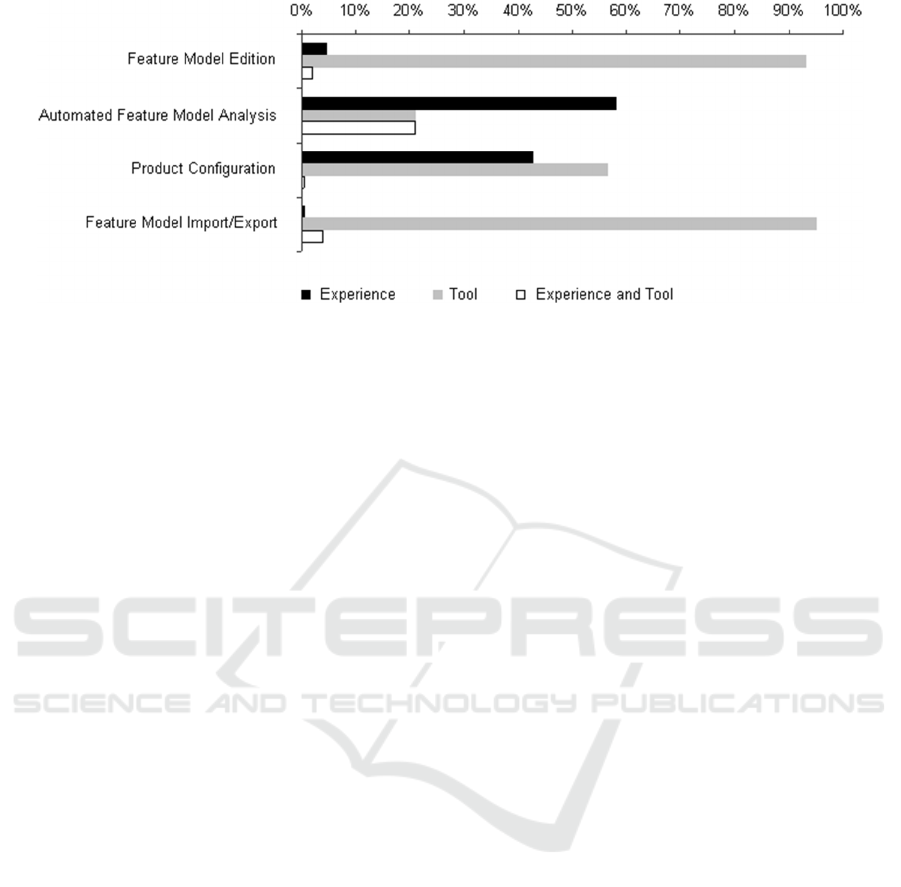

Figure 4: Background Influence by Factorial Design test.

explained by a factor, the more important it is to the

response variable (Jain et al., 2010).

We classified the participants by their level of

knowledge and work experience into two groups.

Group 1 (Strong Experience) includes 48% of the

participants that claimed to have high and medium

knowledge in OOP, UML, and more than 1 year of

work experience. Group 2 (Weak Experience)

includes 26% of the participants that answered few

and no knowledge in OOP, UML, and less than 1 year

of work experience. In this analysis, we excluded

participants that did not answer the experience

questionnaire and participants with mixed

experiences. For instance, a participant with good

knowledge in OPP, but less than one year of work

experience, was removed from this analysis.

In general, results show that the type of tool tends

to have a higher influence on the effectiveness. Figure

4 outlines that for three out of the four functionalities

namely, Feature Model Edition, Product

Configuration, and Feature Model Import/Export, the

type of tool used by the participants has the highest

influence on the effectiveness. For the Feature Model

Edition task, 96% of the total variation can be

attributed to the type of used tool, whereas only 5% is

due to participants experience and 2% can be

attributed to the interaction of these two factors. For

Product Configuration, 57% is attributed to the type

of tool, and 43% is due to participants experience.

Finally, for Feature Model Import/Export, 95% is

attributed to the type of tool, whereas only 1% is due

to participants experience and 4% is attributed to the

interaction of these two factors.

Therefore, for the Feature Model Edition and

Feature Model Import/Export tasks, both the

participants experience factor and the interaction

seem of little importance to the results. Indeed, the

results clearly show that the subjects who use the

FeatureIDE tool achieved the better results for these

tasks. One possible explanation is the complexity of

pure::variants. Additionally, even subjects who have

no experience tend to obtain a higher effectiveness

when they use FeatureIDE in these two tasks.

For Automated Feature Model Analysis, the

participants experience factor was more significant.

58% of the total variation is attributed to the

participants experience factor, and whereas only 21%

is due to the type of tool used and to the interaction of

these two factors. Therefore, the results for this task

clearly show that the subjects with strong experience

achieved the better results. One possible explanation

is the complexity of the terms used during the analysis

task, which require more knowledge from subjects.

3.3 Strengths and Weaknesses

Our goal in this section is to investigate some of the

strengths and weaknesses of FeatureIDE and

pure::variants. In other words, we aim to answer the

following research question.

RQ3. What are the Strengths and Weaknesses of

Different SPL Tools?

Figures 5 and 6 show diverging stacked bar chart

of the strengths and weaknesses of FeatureIDE and

pure::variants, respectively. In particular, we ask the

participants about the following items: (i) automatic

organization, (ii) automatic analysis, (iii) editor, (iv)

examples available, (v) hot keys, (vi) integration with

other tools, (vii) interface, (viii) persistence models,

(ix) product configuration, and (x) tutorials and users

guides. The percentages of participants who

considered the items as strengths are shown to the

right of the zero line. The percentages who considered

the items as weaknesses are shown to the left. These

items are sorted in alphabetical order in both figures.

Participants could also freely express about other

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

168

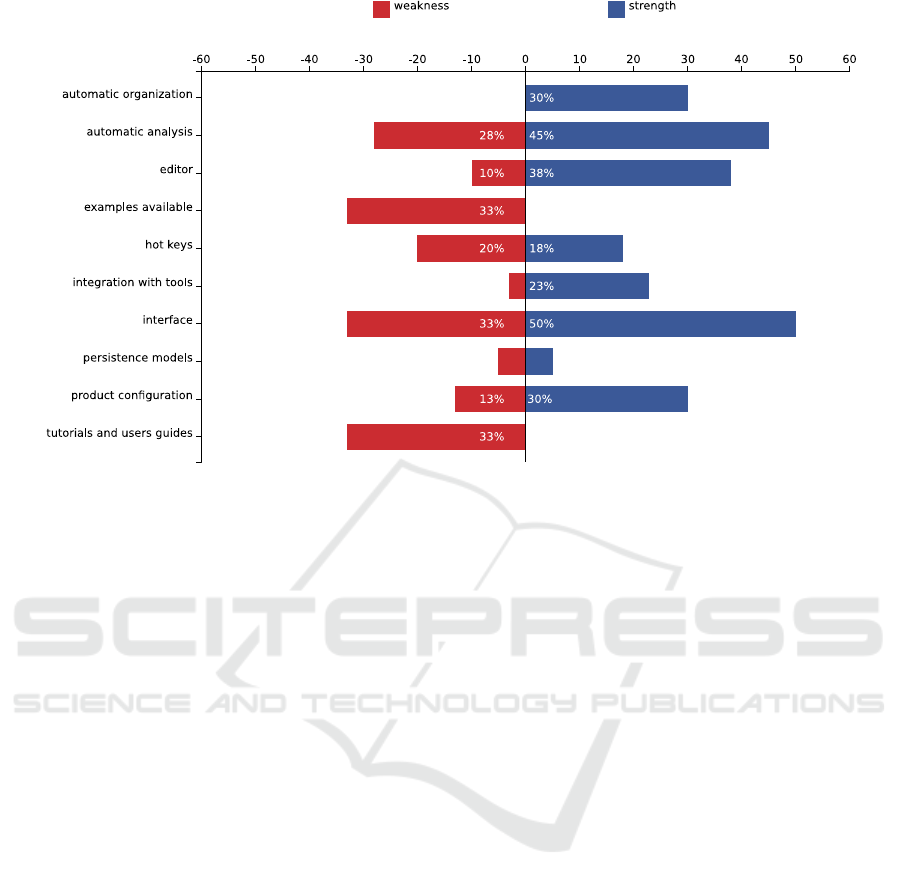

Figure 5: Strengths and weaknesses faced by participants during the tasks with FeatureIDE.

strengths or weaknesses they encountered during the

tasks.

FeatureIDE. Figure 5 shows that about 33% of

participants voted as weaknesses of FeatureIDE: the

examples available, interface, and tutorials and user

guides. Besides, 28% found the automatic analysis as

hard to use in FeatureIDE. However, the main

problem regards the navigation to find the related

menu for automatic analysis of the model. On the

other side, 50% of its participants found the interface

easy and intuitive, 45% found automatic analysis of

the models, and 38% editor of model as strengths of

FeatureIDE. Another strength pointed freely by

participants is the creating of constraints.

pure::variants. Figure 6 shows that for 49% of its

participants, the interface was voted as the biggest

weakness. Furthermore, about 46% and 38% of its

participants pointed examples available and, tutorial

and users guide as weaknesses, respectively. In

opposition, for 59% of its participants the automatic

analysis was considered as the biggest strength.

About 59% pointed editor as strength. Automatic

organization had 46% of the votes and, product

configuration was other positive points (35%).

Overall Results. Considering all participants, 40% of

them found the interface as the biggest weakness of

both tools. Further, 39% of participants indicated the

lack of examples available and 35% indicated the lack

of tutorial and user guide as weaknesses of both tools.

Note that, the interface may be impact on negative

results of relatively simple tasks, such as Product

Configuration, which the participant would select or

deselect the features of a feature model based on their

preferences. That is, about 14% of participants using

FeatureIDE and 51% of participants using

pure::variants failed to perform Product

Configuration task (see Figure 3). As a result, it is

recommended that SPL developers take into

consideration some aspects related to user experience

in order to improve the SPL tools. On the other hand,

52% of participants found the automatic analysis as

the biggest strengths and, 48% indicated the editor as

strengths of all two tools.

4 THREATS TO VALIDITY

A key issue when performing this kind of experiment

is the validity of the results. In this section, threats to

the validity are analyzed. We discuss the study

validity with respect to the four categories of validity

threats (Wohlin et al., 2012): construct validity,

internal validity, external validity, and conclusion

validity.

Construct validity can occur in formulating the

questionnaire in our experiment, although we have

discussed several times the experiment design. To

minimize social threats, we performed the experiment

in different institutions. With respect to internal

validity, a limitation of this study concerns the

absence of balancing the participants in groups

An Empirical Study of Two Software Product Line Tools

169

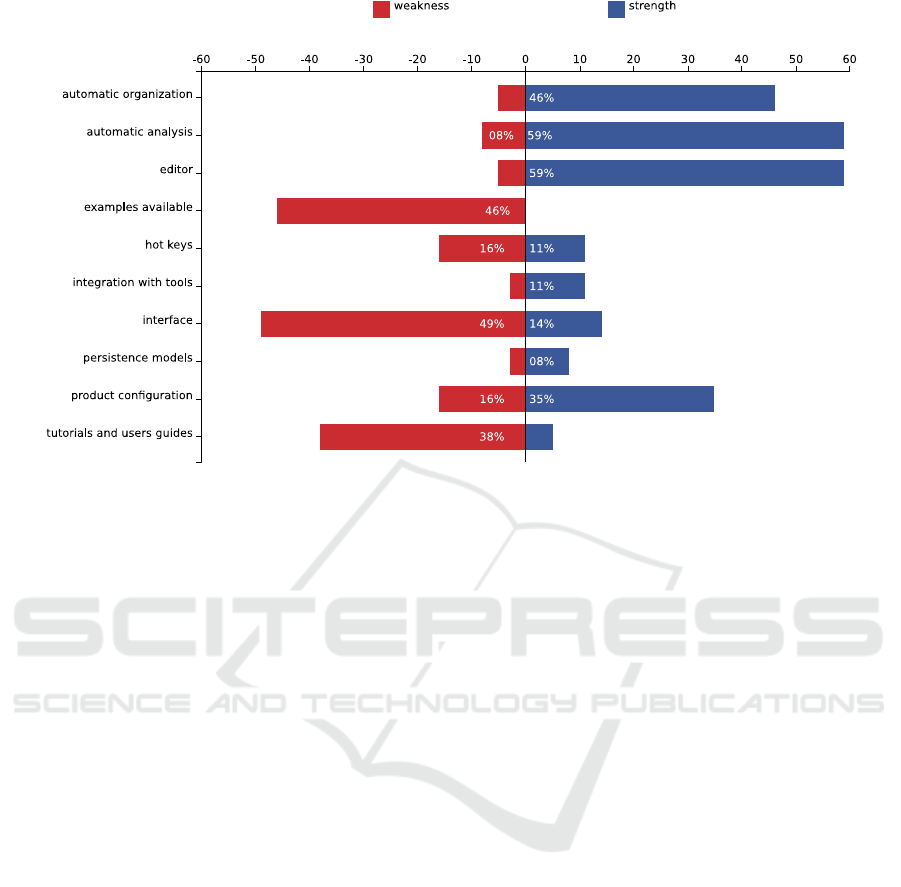

Figure 6: Strengths and weaknesses faced by participants during the tasks with pure::variants.

according to their knowledge. To minimize this

threat, we provide at least 1.5 hour training session to

introduce participants to the required knowledge.

A major external validity can be the selected tools

and participants. We choose two tools, among many

available ones, and we cannot guarantee that our

observations can be generalized to other tools.

Participants may not reflect the state of the practice

developers. In addition, the results could be another if

they were analyzed by other researchers (conclusion

validity). To minimize this threat, we discuss the

results data to make more reliable conclusions.

5 RELATED WORK

This section presents some previous empirical studies

about SPL tools. An evaluate study of some SPL

management tools (XFeature, pure::variants, and

RequiLine) was performed by Djebbi et al.,(2007) in

collaboration with a group of industries. In this

evaluation, pure::variant and RequiLine were the

tools that best satisfied the defined criteria.

Simmonds et al., (2011) also investigated several

tools, such as Clafer, EPF Composer, FaMa-OVM,

fmp, Hydra, SPLOT, VEdit, and XFeature. The tools

were evaluated based on the process they support.

However, their results focus more on the techniques

than on the tool support, while our empirical study is

based on experimental data. In addition, our empirical

study was conducted with two different tools

(FeatureIDE and pure::variants).

Pereira et al., (2013) performed a preliminary and

exploratory study that compares and analyzes two

feature modeling tools, namely FeatureIDE and

SPLOT, based on data from 56 participants that used

these two tools. Our empirical study involved other

84 new participants (no participant was the same of

the previous one). Therefore, this current study

expanded and deepened the previous one in several

ways. For instance, in addition to expand the data set

of participants, it includes one tool, pure::variants, in

the set of analyzed SPL tools. Moreover, the 84 new

participants performed different tasks to exercise

other aspects of SPL development.

6 FINAL REMARKS

SPL focuses on systematic reuse based on the

composition of artifacts and domain modeling.

FeatureIDE and pure::variants are tools to support

SPL variability management. This paper presents a

quantitatively and qualitatively analysis of these

tools. The results reported in this paper aim to support

software engineers to choose one of these tools for

variability management. Additionally, this study can

also be used by developers and maintainers of SPL

tools to improve them based on the issues reported.

Our conclusions indicate that the main issues

observed in the two SPL tools are related to their

interfaces, lack of examples available, tutorials, and

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

170

limited user guide. On the other hand, the most

mentioned strengths were automated analysis and

feature model editor. Our study does not aim to reveal

“the best tool” in all functionality. On the contrary,

the two analyzed tools have advantages and

drawbacks. As future work, this study can be

extended in further experiment replications. For

instance, other tools can be analyzed and compared

using the same (or similar) experiment design in order

to contribute to improve body of knowledge about

SPL tools.

ACKNOWLEDGEMENTS

This work was partially supported by CAPES, CNPq

(grant 485907/2013-5), and FAPEMIG (grant PPM-

00382-14).

REFERENCES

Bagheri, E., and Ensan, F. (2014). Dynamic decision

models for staged software product line configuration.

Requirements Engineering, 19(2), 187-212.

Batory, D., Sarvela, J. N., and Rauschmayer, A. (2004).

Scaling step-wise refinement. IEEE Transactions on

Software Engineering, 30(6), 355-371.

Bernardo, M., Ciancarini, P., and Donatiello, L. (2002).

Architecting families of software systems with process

algebras. ACM Transactions on Software Engineering

and Methodology (TOSEM), 11(4), 386-426.

Beuche, D. (2003). Variant management with

pure::variants. pure-systems GmbH.

Clements, P., and Northrop, L. (2002). Software product

lines: Practices and patterns. Addison-Wesley.

Czarnecki, K., and Eisenecker, U. (2000). Generative

programming: methods, tools, and applications.

Djebbi, O., Salinesi, C., and Fanmuy, G. (2007). Industry

survey of product lines management tools:

Requirements, qualities and open issues. In Int’l

Requirements Engineering Conference (RE), 301-306.

Figueiredo, E. et al. (2008). Evolving software product

lines with aspects. In International Conference on

Software Engineering (ICSE), 261-270.

Jain, R. et al. (2010). The Art of Computer Systems

Performance Analysis. John Wiley & Sons.

Jarzabek, S., Ong, W. C., and Zhang, H. (2003). Handling

variant requirements in domain modeling. Journal of

Systems and Software, 68(3), 171-182.

Kang, K. C. et al. (1990), Feature-Oriented Domain

Analysis (FODA) feasibility study. Carnegie-Mellon

University, Software Engineering Institute.

Kiczales, G. et al. (1997). Aspect-oriented programming,

220-242. European Conf. on OO Program. (ECOOP).

Machado, L., Pereira, J., Garcia, L., and Figueiredo, E.

(2014). SPLConfig: Product configuration in software

product line. In Brazilian Conference on Software

(CBSoft), Tools Session, 1-8.

Metzger, A., & Pohl, K. (2007). Variability management in

software product line engineering. In International

Conference on Software Engineering (ICSE), 186-187.

Pereira, J. et al. (2013). Software variability management:

An exploratory study with two feature modeling tools.

In Brazilian Symposium on Software Components,

Architectures and Reuse (SBCARS), 20-29.

Pereira, J. A., Constantino, K., and Figueiredo, E. (2015).

A systematic literature review of software product line

management tools. In International Conference on

Software Reuse (ICSR), 73-89.

Pohl, K., Böckle, G., and van der Linden, F. J. (2005).

Software product line engineering: foundations,

principles and techniques. Springer.

Prehofer, C. (2001). Feature-oriented programming: A new

way of object composition. Concurrency and

Computation Practice and Experience, 13(6), 465-501.

Simmonds, J., Bastarrica, M., Silvestre, L., and Quispe, A.

(2011). Analyzing methodologies and tools for

specifying variability in software processes.

Universidad de Chile, Santiago, Chile.

Thüm, T. et al. (2014). FeatureIDE: An extensible

framework for feature-oriented software development.

Science of Computer Programming, 79, 70-85.

Vale, G.; Albuquerque, D.; Figueiredo, E.; and Garcia, A.

(2015) Defining Metric Thresholds for Software

Product Lines: A Comparative Study. In International

Software Product Line Conference (SPLC), pp. 176-

185.

Wohlin, C. et al. (2012). Experimentation in software

engineering. Springer.

An Empirical Study of Two Software Product Line Tools

171
