Developing a RESTful API for a Web Accessibility Evaluation Tool

Cristian Timbi-Sisalima

, José R. Hilera

, Salvador Otón

and Paola Ingavelez

Grupo de Investigación en Inteligencia Artificial y Tecnologías de Asistencia,

Universidad Politécnica Salesiana, Cuenca, Ecuador

Departamento de Ciencias de la Computación, Universidad de Alcalá, Alcalá de Henares, Spain

Keywords: HCI, RESTful API, Testing, RESTful, WCAG, Web Accessibility, Enterprise Web Information System,

Web Service.

Abstract: Nowadays, the evaluation of the accessibility of Enterprise Web Information Systems is based on the Web

Content Accessibility Guidelines (WCAG 2.0), created by the World Wide Web Consortium (W3C) in 2008

and adopted in 2012 by the International Organization of Standardization (ISO) as ISO/IEC 40500 standard.

Web accessibility evaluation tools are software programs or online services that help developers determine

if web content meets the accessibility guidelines. This paper shows the extension of an existing online tool,

with the aim of exposing its functionality also as an Application Program Interface (API). The original tool

is used through a Web user interface, and this extension exposes functionality through web services based

on REST technology, so that developers can invoke them from their own applications for accessibility

testing.

1 INTRODUCTION

Web accessibility is the feature of a web application

or web page that determines how it can be used by

people with the widest possible range of capabilities.

The more accessible a website is, the greater the

variety of users who can use it, including those who

present some kind of disability. This would apply,

for example, to users with visual disabilities, such as

blindness, low vision or problems with color

perception. An accessible Web application would be

one that met requirements to ensure an adequate

level of contrast, or that there are always text

alternatives to visual information that can be

reproduced by assistive technologies (AT), such as

screen readers, used by blind or partially sighted

users.

To create accessible websites must apply the

paradigm of design for all, a concept that refers to

design websites in a universal way, so nobody is

excluded from use (Roig-Vila et al., 2014).

In 2008, the World Wide Web Consortium

(W3C) published the Web Content Accessibility

Guidelines (WCAG 2.0), adopted in 2012 by the

International Organization for Standardization

(ISO), as standard ISO/IEC 40500 (ISO, 2012). This

standard establishes the requirements to be met by a

Web application to be accessible (W3C, 2008).

WCAG is important, not only for being

converted into standard ISO, but also because many

countries have created laws based on this standard,

that establish that Enterprise Web Information

Systems of strategic companies (such as Banks,

energy firms, etc.), and public services offered

through the Web must be accessible (W3C, 2006).

WCAG 2.0 defines 61 accessibility success

criteria (requirements) to be satisfied by web

applications. The success criteria are grouped into

12 guidelines and 4 principles (Table 1). In addition,

three levels of conformance are established (A, AA

and AAA) for websites, depending on the success

criteria met. To get level A, 25 criteria have to be

met. To get level AA, besides the aforementioned,

13 more criteria have to be met. Level AAA is got

when all 61 criteria are met.

In order to provide guidance for web developers

and evaluators on meeting WCAG 2.0, the W3C has

published a series of documents to support this

standard. One of the most important includes

guidance in form of a list of useful techniques to

satisfy success criteria, and a repertory of common

failures and how to avoid them. For each technique

and failure, a repertory of code examples, resources,

and tests are offered (W3C, 2015).

Timbi-Sisalima, C., Hilera, J., Otón, S. and Ingavelez, P.

Developing a RESTful API for a Web Accessibility Evaluation Tool.

In Proceedings of the 18th International Conference on Enterprise Information Systems (ICEIS 2016) - Volume 2, pages 443-450

ISBN: 978-989-758-187-8

443

Table 1: Organization of WCAG 2.0.

Principles Guidelines

and Success Criteria (n)

1. Perceivable 1.1 Provide text alternatives (1).

1.2 Provide alternatives for time-

based media (9).

1.3 Create adaptable content (3).

1.4 Make content distinguishable

(9).

2. Operable 2.1 Make all functionality

available from a keyboard (3).

2.2 Provide users enough time to

read and use content (5).

2.3 Do not design content in a

way that cause seizures (2).

2.4 Provide ways to help users

navigate (10).

3. Understandable 3.1 Make text content readable

and understandable (6).

3.2 Make Web pages appear and

operate in predictable ways (5).

3.3 Help users avoid and correct

mistakes (6).

4. Robust 4.1 Maximize compatibility with

user agents (2).

There are available many web accessibility

evaluation tools in form of software programs or

online services that help determine if a Web site is

accessible (W3C, 2014). These tools can

significantly reduce the time and effort required to

carry out evaluations, and can assist developers in

preventing accessibility barriers, repairing

encountered barriers, and improving the overall

quality of Web sites. But not all success criteria can

be automatically evaluated, many of them need to be

evaluated manually. So, Web accessibility

evaluation tools can be useful to determine the

conformance of Web sites to accessibility checks

which can be executed automatically, and assist

reviewers in performing accessibility checks which

need to be evaluated manually.

In the following section of this paper, an online

evaluation tool developed at the Salesian

Polytechnic University of Ecuador (UPS) is

presented. In section 3, an extension of this tool to

expose their functionality through an Application

Program Interface (API) based on Web services is

described. Finally, in section 4 some conclusions

about the work carried out are discussed.

2 WEB ACCESSIBILITY

EVALUATION TOOL

As mentioned in previous section there are

accessibility evaluation tools that support WCAG

2.0 standard. These tools usually check compliance

with the success criteria using the techniques

suggested by the W3C. But not all techniques can be

checked automatically. Three types of techniques

can be considered:

 Programmable, or techniques which can be

determined automatically.

 Manual, whose verification is subjective and

requires a judgment of an expert.

 Mixed, or techniques which has a percentage of

manual checking and another that can be

supported automatically by software.

An evaluation tool in a basic way receives a

request for content to be analysed, usually by means

of a URL or HTML code, and then proceed to verify

compliance with WCAG techniques or similar rules,

and shows the result of verification of these

techniques. The W3C maintain a web page with

information and links to use many evaluation tools

(W3C, 2014).

Although not yet been included in the list

maintained by the W3C, the UPS has developed an

evaluation tool called OWA that is now available in

http://observatorioweb.ups.edu.ec. It is a supplement

to a project entitled Web Accessibility Observatory

Ecuador, working in coordination with the National

Council for Equal Ecuador Disabilities (CONADIS).

It is a tool that combines server technologies

Java JEE and JavaScript. Figure 1 shows the two

main modules of the software installed in the web

server.

Figure 1: Main server components of the evaluation tool.

The Front-End JEE module corresponds to the

Web application of the user interaction, in which

requests for analysis will be conducted and the

visual results of the evaluation are presented. This

component accesses to the entity relationship model

of WCAG 2.0 principles, guidelines, success criteria

and techniques and the database with the results of

the evaluations performed. The user interface is

accessible and responsive. Figure 2 shows the page

with the results of an evaluation that are offered in a

textual way, but also as a diagram with the

percentage of compliance of each WCAG 2.0

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

444

principle. This is a novelty compared to other

existing tools on the market.

Figure 2: Screenshot of evaluation results interface.

The Back-End PhantomJS module is responsible

for runtime analysing the success or failure of each

of the implemented techniques (57 techniques

implemented to date). For that it uses PhantomJS, a

headless WebKit scriptable with a JavaScript API

(Friesel, 2014). It has fast and native support for

DOM handling, JSON generation, and includes the

use of jQuery. The advantage of using this

framework is that it renders the web page generating

a DOM representation as the one handle by a web

browser. Accessibility evaluation is performed on

DOM and not on the HTML source code of the

page, which is necessary when a page includes

JavaScript code that is executed dynamically and

affects the structure of the page. There are other

tools on the market that carry out the evaluation on

the HTML and do not perform the evaluation of

dynamic web pages correctly.

Figure 3 shows code to check if the <input>

elements of the web page under evaluation meet the

technique “H44: Using label elements to associate

text labels with form controls”, associated with the

fulfillment of WCAG 2.0 success criteria 1.1.1,

1.3.1, 3.3.2 and 4.1.2 of WCAG 2.0, the disclosure

of which is shown in Table 2.

Figure 3: Server JavaScript code excerpt.

Table 2: Success Criteria associated with H44 technique.

Code Description

1.1.1 Non-text Content: All non-text content that

is presented to the user has a text alternative

that serves the equivalent purpose. (Level

1.3.1 Info and Relationships: Information,

structure, and relationships conveyed

through presentation can be

programmatically determined or are

available in text. (Level A)

3.3.2 Labels or Instructions: Labels or

instructions are provided when content

requires user input. (Level A)

4.1.2 Name, Role, Value: For all user interface

components (including but not limited to:

form elements, links and components

generated by scripts), the name and role can

be programmatically determined. (Level A)

As it can be seen in the code in figure 3, to assess

the technical, all <input> elements of the page are

processed, and it checks if they are associated with a

<label>. All using the rendered version of the page

as "this" object.

With a similar analysis per technique according

to the specification and supported in other

programming instructions along with PhantomJS,

the following data is returned in JSON format for

easy processing by the front-end module.

Code, identifier of the technique, e.g. H44.

Classification, to identify the type of result

obtained after analysis, may be:

• SUCCESS, if the technique has been

successfully verified by 100% and not required

for subsequent manual checking. Example: All

images have the ALT attribute defined.

• WARNING, or requires manual verification

success, if the technique has been

successfully verified but require a manual

check. Example: Detected images with empty

ALT attribute, verify that these images

correspond to decorative images and do not

contain information relevant to the user.

• ERROR, if the technique at the time of

verification has detected one or more faults.

Example: We have detected five picture that

has not defined an ALT attribute.

• DOES NOT APPLY, if the technique cannot

be verified on the content being assessed, it

does not contain HTML objects of analysis.

Example: No images have been detected in

the analysed website.

Success Factor, corresponding to the number of

elements that satisfy the check. Example: Five

images with ALT attribute defined.

Developing a RESTful API for a Web Accessibility Evaluation Tool

445

Error Factor, corresponding to the number of

elements that do not satisfy the verification.

Example: Three images does not contain the ALT

attribute defined.

Observation, analysis resulting informational

message about the evaluated content. Example: The

site has not been structured using headings (titles),

has not detected any title. In some cases the HTML

objects having the error, such as images that do not

present an ALT attribute will be included.

Recommendation Message, to reference or

guide to compliance with the technique. Example:

To facilitate navigation and understanding of overall

document structure should be structured using

headings properly nested (e.g., h1 followed by h2,

h2 followed by h2 or h3, h3 followed by h3 or h4,

etc.).

In order to develop the system's structure, we

have used the Java Enterprise Edition architecture.

Furthermore, the system was deployed through a

physical topology of the four layers described in

Figure 4.

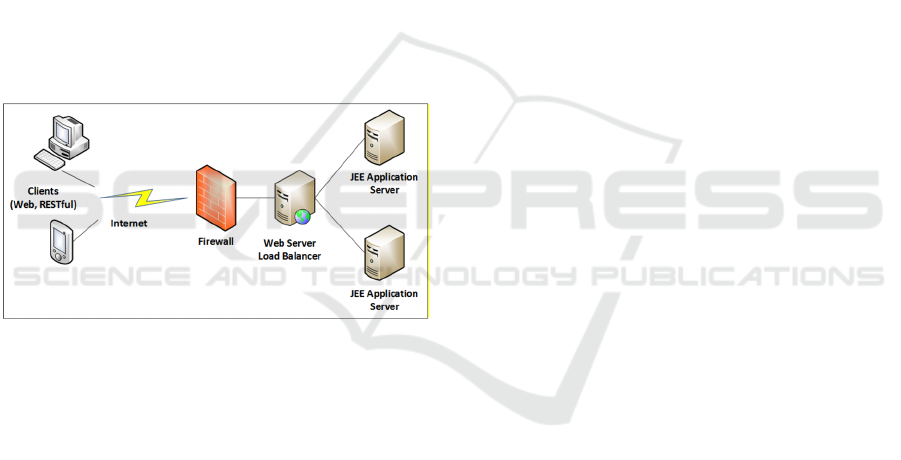

Figure 4: The physical topology of the business

information system.

Firewall: is in charge of controlling the different

connections coming from Internet to demilitarized

zone that contains the public access server. The

current implementation of the firewall is based on

the network layer and has the support of a system to

detect and prevent intruders. This detection system

analyzes several patterns on the network layer or

even in the application layer.

Web Server and Load Balancer: this

component has been configured as a web server that

uses data compression, and additionally, it is

responsible to translate the client requests to the

application (JEE) servers. The work distribution is

done according to the availability of each JEE

application's server, analyzing for that, the activities

that must be carried out at a specific moment.

JEE Application Servers: this layer contains

the required stack of technologies (in the web

profile) to generate the output of the system's front

end. Each of these servers contains a techniques

analyzer that is based on PhantomJS and JQuery. In

the same way, if the number of requests to use the

application increases, it is possible to increase the

number of applications server instances. On this

basis, the system is able to manage hardware errors

and guarantee the service continuity.

3 WEB SERVICES API

The scaling of applications, and in this case of

accessibility evaluation tools, can be done through

integration with other online evaluation tools. One

of the most appropriate technology for this are web

services. A Web service is a software system

designed to support interoperable machine-to-

machine interaction over a network. There are

mainly two ways of implementing Web services:

SOAP and REST. In this case, we have used REST

technology to develop a Web service API for the

evaluation tool (Pautasso et al., 2008).

A Web service API that adhere to the REST

architectural constraints is called RESTful API

(Mehta, 2014), and is defined including these

aspects:

 Base URL, such as http://observatorioweb.ups.

edu.ec/oaw/srv/wcag

 An Internet media type for the data. This is

often JSON but can be any other valid Internet

media type (e.g., XML)

 Standard HTTP methods (e.g., GET, PUT,

POST, or DELETE)

There is a low number of online web

accessibility evaluation tools that expose their

functionality through web services using RESTful

Web API technology.

Some of them: AChecker (http://achecker.ca/do

cumentation/web_service_api.php), Tenon (http://w

ww.tenon.io/documentation/), WAVE (http://wave.

webaim.org/api/).

The problem is that every tool is adding a web

API makes creating their own services, and input

and output parameters, being different in all cases.

Another problem is the format of the result.

AChecker, OWA y Tenon allow optionally specify

the format as an input parameter (HTML, XML,

JSON), while Tenon always returns the information

in JSON format.

To potentiate the presented tool, and can be used

from other potential applications, its functionality is

exposed through web services that return the result

of the evaluation in JSON and XML formats. It has

created a RESTful API consists of four web services

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

446

shown in the Table 3. To this it was added on the

logical architecture of the application a component

corresponding to the interface for external service

provision, which was implemented with the support

of the API JAX-RS (Java API for RESTful Web

Services), making up the layer for providing external

services and complementing the logical distribution

of the system and the prepared stack of Java

technologies (see Figure 5).

Figure 5: The logical topology of the business information

system (n-layers).

Table 3: Implemented Web services in a RESTful API.

Web service Description

json/techniques Receives the URL of a website, and

returns information, in JSON

format, about if it meets or not the

WCAG techniques implemented by

the tool.

xml/techniques Receives the URL of a website, and

returns information, in XML

format, about if it meets or not the

WCAG techniques implemented by

the tool.

json/compliance Receives the URL of a website, and

returns information, in JSON

format, about if it meets or not each

of the WCAG success criteria.

xml/compliance Receives the URL of a website, and

returns information, in XML

format, about if it meets or not each

of the WCAG success criteria.

Additionally, a data structure which supports a

clear and simple presentation of the results of the

evaluation was created (see Figure 6).

Figure 6: Data model for WCAG 2.0 accessibility

evaluation results.

Each service can be called via a HTTP GET

request, attaching the required input parameters. The

following sections present the details for this. In

order to simplify URL expression, in that sections

we use a variable named URL_BASE, whose real

value is http://observatorioweb.ups.edu.ec/oaw/srv

/wcag/.

3.1 Web Services: “Techniques”

These services allows to an external application,

consult only the techniques evaluated, and its

verification (success or failure). Two versions have

been created, depending on the format for the

results: JSON or XML.

In the case of this service, the HTTP GET

request URL are:

URL_BASE/json/techniques?<parameters>

URL_BASE/xml/techniques?<parameters>

The input parameters in both cases are the ones

described in Table 4.

Table 4: Input parameters for “Techniques” Web services.

Parameter Value space Description

url Valid URL URL of the website to be

evaluated.

key User

account key

Key obtain during user

registration. As a basic

security method.

(Enriquez et al, 2014)

[resolution] “WxH”

(Default:

1366x668)

Display resolution with

which the user want to

evaluate the site,

indicating width (W) and

height (H) in pixels.

Developing a RESTful API for a Web Accessibility Evaluation Tool

447

The result obtained when these services are

executed, is a JSON or XML data structure with the

main elements represented in Table 5.

Table 5: Output data of “Techniques” Web services.

Element Description

Date Date and time at which the request was

made.

Message Error message if unable to perform the

evaluation. Possible problems: incorrect

URL, invalid parameter format, incorrect

API_KEY, etc.

Result Dataset with information about the

evaluation performed.

Result: {

elements: {...},

image: "...",

techniques: [],

resolution: "...",

url: "..."

}

Every field of the result dataset has the meaning

indicated in Table 6.

Table 6: Fields of “Result” dataset generated by

“Techniques” Web services.

Field Description

elements Number of elements of each type

included in the page: forms, iframes,

images, links, links with image, tables,

and total of elements in the page.

image Link corresponding to a screenshot of the

page image as specified resolution.

techniques Verification results of each technique on

the website. Each technique includes:

Code, Title, Criticality (high, medium or

low, according to user groups, which is

reflected in a greater number of people

who cannot access the content if not

satisfies the technique), Classification

(success, warning, error and does not

apply as such resulted verification

technique on page), Successes (number of

hits or HTML elements that satisfy the

rule check), Errors (number of failures or

elements HTML which do not satisfy the

rule check), Observation (informative

message related to content analysis),

Recommendation (message reference or

guide the implementation of the

technique).

resolution Resolution that was assessed the

requested web page.

summary Statistical summary of the results of the

evaluation.

url URL of the website evaluated.

An example of use of “json/techniques” service

to evaluate the techniques for a real web page could

be as follows:

URL_BASE/json/techniques?

url=http://www.uah.es&key=a899ef4d-

714f-440b-a8c2-bc1cj6a42926

The result obtained is shown in Figure 7.

Figure 7: Output data of a real example.

3.2 Web Services: “Compliance”

These services allow to an external application,

consults the detailed evaluation of accessibility of a

website, depending on the success or failure of the

verification techniques associated to WCAG 2.0 and

grouped according to the set of principles, guidelines

and Success Criteria defined in WCAG 2.0. Two

versions have been created, depending on the format

for the results: JSON or XML.

In the case of these services, the HTTP GET

request URL are:

URL_BASE/json/compliance?<parameters>

URL_BASE/xml/compliance?<parameters>

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

448

The input parameters in both cases are the ones

described in Table 7.

Table 7: Input parameters for “Compliance” Web services.

Parameter Value space Description

url Valid URL URL of the website to

be evaluated.

API_KEY User account

key

Key obtain during user

registration. As a basic

security method.

[level] “A”

“AA”

“AAA”

Compliance level on

which the user want to

evaluate the site.

Default: “AAA”.

[resolution] “WxH” Display resolution with

which the user want to

evaluate the site,

indicating width (W)

and height (H) in

pixels. Default:

“1366x668”

The result obtained when these services are

executed, is a JSON or XML data structure with the

main element represented in Table 8.

Table 8: Output data of “Compliance” Web services.

Element Description

date Date and time at which the request was

made.

message Error message if unable to perform the

evaluation. Possible problems: incorrect

URL, incorrect parameter format, invalid

API_KEY, etc.

result Dataset with information about the

evaluation performed.

Result: {

elements: {...},

image: "...",

level: "...",

principles:[

guidelines:[

sc:[

techniques[ ]

]

resolution: "...",

summary: {...},

url: "..."

}

Every field of the result dataset has the meaning

indicated in Table 9.

Table 9: Fields of “Result” dataset generated by

“Compliance” Web services.

Field Description

elements The number of elements of each type

included in the page: forms, iframes,

images, links, links with image, tables,

and total of elements in the page.

image A link corresponding to a screenshot of

the page image as specified resolution.

level The compliance level used to evaluate the

webpage.

principles A set of guidelines used to perform the

evaluation. For each guideline is included

the following information: number or

code, title/name, description (according to

WCAG normative), and rules (a set of

rules used in the evaluation of the

guideline).

guidelines A set of rules used in the evaluation. For

each rule is included the following

information: identification number or

code, name/title, description (according to

WCAG normative), and criterions (a set

of rules to determine the success/no-

success).

success

criteria

A set of criteria to determine the

success/no-success during the evaluation.

For each criterion is included the

following information: number or code,

title/name, description (according to

WCAG normative), and techniques (a set

of techniques related with the criterion

that show the results of the verification

process of each technique).

techniques Same as in web services “Techniques”

(table 6)

resolution Resolution that was assessed the

requested web page.

summary Statistical summary of the results of the

evaluation.

url URL of the website evaluated.

An example of use of a “Complaint” service to

evaluate the level AAA of compliance of a web page

could be as follows:

URL_BASE/json/compliance?

url=http://www.uah.es&key=a899ef4d-

714f-440b-a8c2-bc1cj6a42926

4 CONCLUSIONS

Web Services enable integration between

applications regardless of language or platform used

in each. Thus, providing the possibility of

developing new tools or more complete systems,

Developing a RESTful API for a Web Accessibility Evaluation Tool

449

adding more than one potential application or

system.

If there were other Web services associated to

other accessibility evaluation tools, that allowed to

verify compliance of other techniques over four

techniques and common failures defined by the

W3C regarding compliance WCAG 2.0, it would be

easy to add these techniques to the 59 checked by

the developed tool, and this tool would have greater

compliance rate with respect to the technical

verification.

Subjectively this could translate into a greater

degree of confidence the outcome of the evaluation;

but always check and interpretation of the results by

an expert is required.

As future work is to increase the number of

techniques currently verified by the developed

system. In addition, it is working on the expansion

of the RESTful API, with new services that provide

extra functionality useful in different aspects of web

accessibility evaluation.

ACKNOWLEDGEMENTS

Thanks to “Web Accessibility Observatory Ecuador”

project, to ESVI-AL project of the European Union

ALFA Programme, and to the “Master on Software

Engineering for the Web” of the University of

Alcalá.

REFERENCES

Enríquez, R., & C, A. S., 2014. RESTful Java Web

Services Security. Packt Publishing Ltd.

Friesel, R., 2014. PhantomJS Cookbook. Packt Publishing

Ltd.

ISO, 2012. ISO/IEC 40500:2012, information technology -

- W3C web content accessibility guidelines (WCAG)

2.0. International Organization for Standardization.

Mehta, B., 2014. RESTful Java Patterns and Best

Practices. Packt Publishing Ltd.

Pautasso, C., Zimmermann, O., & Leymann, F. (2008).

Restful Web Services vs. «Big»’ Web Services:

Making the Right Architectural Decision. In

Proceedings of the 17th International Conference on

World Wide Web (pp. 805–814).

Roig-Vila, R., Ferrández, S., and Ferri-Miralles, I., 2014.

Assessment of Web Content Accessibility Levels in

Spanish Official Online Education Environments.

International Education Studies, 7(6), p31.

W3C, 2006. Policies Relating to Web Accessibility. World

Wide Web Consortium.

W3C, 2008. Web content accessibility guidelines (WCAG)

2.0. World Wide Web Consortium.

W3C, 2014. Web Accessibility Evaluation Tools List.

World Wide Web Consortium.

W3C, 2015. Techniques for WCAG 2.0. World Wide Web

Consortium.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

450
