Towards Visual Vocabulary and Ontology-based Image Retrieval System

Jalila Filali

, Hajer Baazaoui Zghal

and Jean Martinet

RIADI Laboratory , National School of Computer Science, University of Manouba, Tunis, Tunisia

CRIStAL Laboratory, University of Lille 1, Lille, France

Keywords:

Image Retrieval, Visual Vocabulary, Ontologies.

Abstract:

Several approaches have been introduced in image retrieval ﬁeld. However, many limitations, such as the

semantic gap, still exist. As our motivation is to improve image retrieval accuracy, this paper presents an

image retrieval system based on visual vocabulary and ontology. We propose, for every query image, to

build visual vocabulary and ontology based on images annotations. Image retrieval process is performed by

integrating both visual and semantic features and similarities.

1 INTRODUCTION

Several approaches have been introduced and applied

to image retrieval. In this context, two basic image re-

trieval approaches have been proposed in literature: 1)

content based image retrieval (CBIR) and 2) semantic

image indexing and retrieval (SIIR). In CBIR, at the

lowest level, images are extracted without using se-

mantic information describing their contents. In this

case, low-level features are used such as color, texture

and shape and some low-level descriptors are applied.

In SIIR, at the highest level, image retrieval is based

on techniques that allow representing an image with a

richer description than low-level descriptors.

Bag-of-visual-words model has ﬁrst been intro-

duced by (Sivic and Zisserman, 2003) in the case of

image and video retrieval. Usually, representing im-

ages by vectors of visual words is based on analo-

gies between text and image. Consequently, many

effective methods and algorithms inspired from text

IR have been applied to the vector of visual words in

order to achieve a better retrieval performance.

Nevertheless, it was shown that visual words are

not semantically meaningful because in clustering

step, these are gathered using only their appearance

similarity. So, two visually similar images are not

necessarily semantically similar. In order to address

these problems, several image retrieval approaches

based on ontologies have been proposed (Kurtz and

Rubin, 2014), (Allani et al., 2014). The goal is to

make images semantic content using annotation terms

that are attached to images. However, annotation

terms which are used to build ontology, do not guar-

antee a whole representation or description of images.

In this paper, our motivation is to integrate visual vo-

cabulary and ontologies in image retrieval process in

order to improve image retrieval accuracy. To perform

that, our system focuses on building visual vocabulary

and ontologies. During image retrieval process, visual

and semantic similarities are integrated.

The remainder of this paper is organized as fol-

lows. In section 2, we propose a review of classi-

cal image retrieval approaches as well as our motiva-

tions. In section 3, we detail our proposal. Section 4

presents our case study. Finally, discussion as well as

future works are presented in conclusion.

2 RELATED WORKS AND

MOTIVATIONS

In CBIR, bag-of-visual-words model has been widely

used for image retrieval, visual recognition, and im-

age classiﬁcation. Several works using this model

have been proposed to provide an efﬁcient visual

words in order to apply different image and video pro-

cessing tasks (Jurie and Triggs, 2005).

In this context, (Sivic and Zisserman, 2003) have

presented an approach of object retrieval based on

methods inspired from text retrieval. The goal of this

work is to retrieve key frames containing a particular

object with the ease, speed and accuracy with which

Google retrieves text documents containing particular

words.

In (Martinet, 2014), a study about visual vocab-

560

Filali, J., Zghal, H. and Martinet, J.

Towards Visual Vocabulary and Ontology-based Image Retrieval System.

DOI: 10.5220/0005832805600565

In Proceedings of the 8th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2016) - Volume 2, pages 560-565

ISBN: 978-989-758-172-4

ularies compared to text vocabularies has been pro-

posed in order to clarify conditions for applying text

techniques to visual words. To present this study, the

author described four methods for building a visual

vocabulary from two images collections (Caltech-

101 and Pascal) based on two low-level descriptors

(SIFT and SURF) combined with two clustering algo-

rithms :K-means and SOM (Self-Organizing Maps).

The experiments showed that visual words distribu-

tions highly depend the clustering method (Martinet,

2014).

In addition, ontologies based images retrieval ap-

proaches have been proposed in order to extract visual

information guided by its semantic content (Hyv

onen

et al., 2003) (Sarwara et al., 2013).

In (Kurtz and Rubin, 2014), a novel approach

based on semantic proximity of image content using

relationships has been proposed. This method is com-

posed of two steps: 1) annotation of query image by

semantic terms that are extracted from ontology and

construction of a term vector modeling this image,

and 2) comparison of this query image to the others

that are previously annotated using a computed dis-

tance between term vectors that are coupled with an

ontological measure.

In the context of image retrieval based on visual

words, when low-level features are extracted, result-

ing visual words are gathered using only their appear-

ance similarity in the clustering step. Consequently,

similar visual words do not guarantee semantic sim-

ilar meaning. That tends to reduce the retrieval ef-

fectiveness with respect to the user. Moreover, in in-

terest points detection step, many detectors can lose

some interest points and increase the vector quantiza-

tion noise. This can result in poor visual vocabulary

that decrease the search performance.

Our motivations are to build visual vocabulary and

ontologies based on images annotations in order to

enhance image retrieval accuracy. The goal is to in-

troduce an image retrieval system which aims to inte-

grate two image aspects: visual features and semantic

contents based on images annotations.

Our idea is to combine, during the image retrieval

process, similarity between visual words to semantic

similarity.

Moreover, the evaluation of our proposal is to

achieve two image retrieval strategies:

• A visual retrieval strategy based on visual similar-

ity between visuals words ;

• A strategy based on integrating both visual and

semantic similarities. In this case, semantic simi-

larity is based on concepts that are provided from

ontologies.

3 VISUAL VOCABULARY AND

ONTOLOGIES-BASED IMAGE

RETRIEVAL SYSTEM

In this section, we deﬁne our visual vocabulary and

ontologies-based image retrieval system architecture.

Our idea is to build visual vocabulary using low-level

features and building ontologies based on concepts

that are extracted from images annotations.

As depicted in Figure 1, our image retrieval sys-

tem is composed of two main phases (online phase

and ofﬂine phase). The ofﬂine phase, which corre-

sponds to the visual vocabulary and ontologies’ build-

ing phase, is composed of two steps: (1) building the

visual vocabulary and (2) building ontology. The on-

line phase, which corresponds to the image retrieval

phase, is composed of two steps: (1) query image pro-

cessing and (2) image retrieval.

In the next section, the different steps of our image

retrieval system will be detailed.

3.1 Ofﬂine Phase: Visual Vocabulary

and Ontologies’ Building

Our main idea is to develop an image retrieval system

based on building the visual vocabulary and ontolo-

gies.

3.1.1 Building the Visual Vocabulary

This step allows to generate visual vocabulary accord-

ing to three steps: interest points detection, comput-

ing descriptors and the clustering phase.

Interest Points Detection: In computer vision many

detectors of interest points are developed. In order to

produce effective vocabulary we have used the SIFT

detector to extract the local interest points because -

using this descriptor- a large number of interest points

can be extracted from images.

Computing Descriptors (or Feature Extraction):

This step consists in extracting features by comput-

ing SIFT descriptor for each point which is detected

in the previous step.

Clustering: This step consists in clustering local de-

scriptors which are computed in the previous step, the

goal is to represent each feature by the centroid of

the cluster it belongs. In our case, we have used the

K-means algorithm that is the most widely used clus-

tering algorithm for visual vocabulary generation.

Towards Visual Vocabulary and Ontology-based Image Retrieval System

561

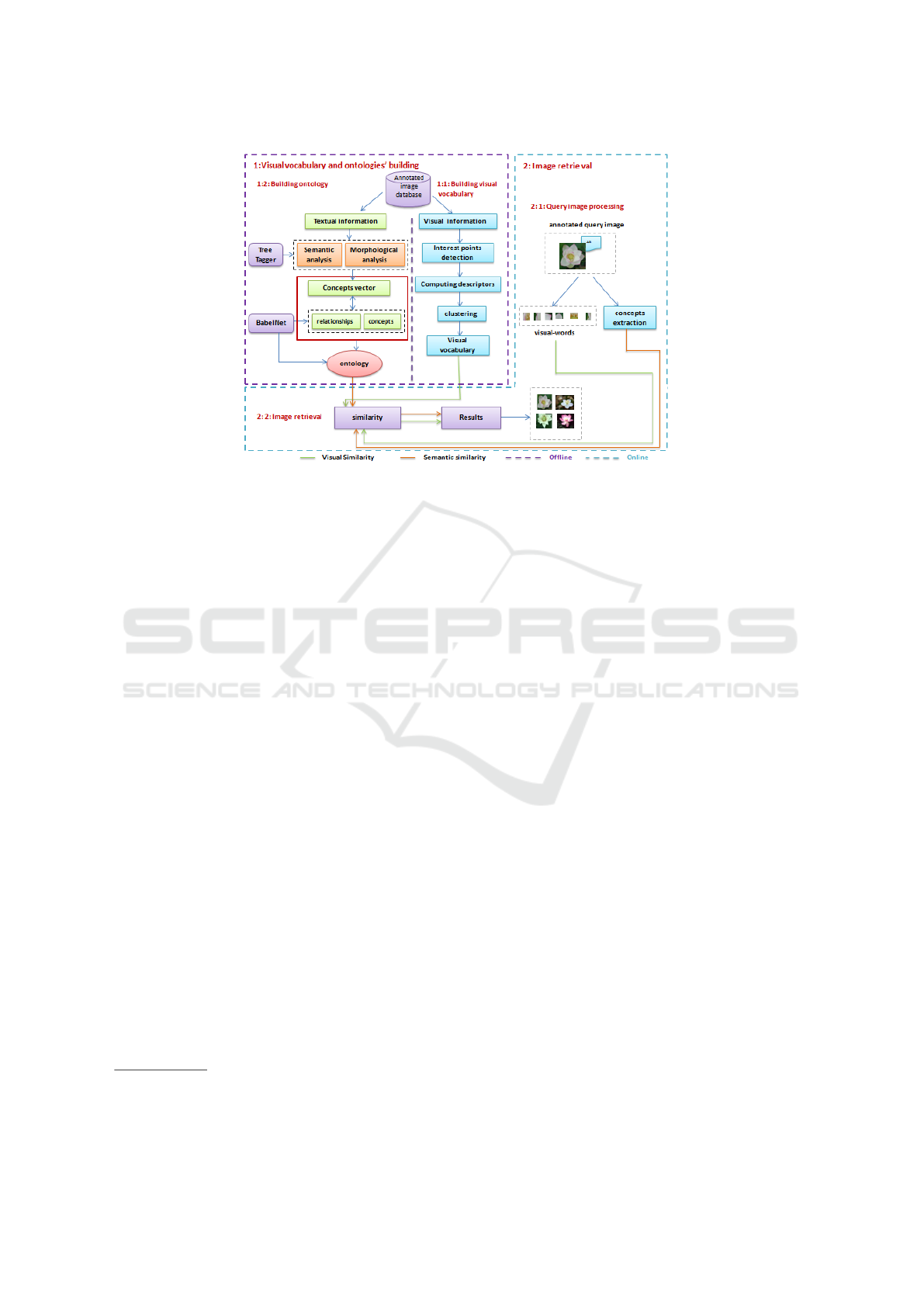

Figure 1: Image retrieval system : main phases and steps.

3.1.2 Building Ontology based on Annotation

Files

This process consists in extracting concepts and re-

lationships from annotation ﬁles in order to build the

ontology. To achieve this goal, a preprocessing step

is ﬁrstly need. Sub-steps are carried out by :1) ex-

tracting image textual information from their anno-

tation ﬁles; 2) performing a morphological and se-

mantic analysis in order to get the word’s lemmatized

form.

• Morphological analysis: it consists in recognizing

of the various forms of words using a lexicon (dic-

tionary, thesaurus). The lemmatisation allows the

transformation of a word to its canonical form or

lemma. In our case the lemmatisation of the an-

notation ﬁles content is ensured by TreeTagger

• Semantic analysis: After the lemmatisation, a ﬁl-

tering step is done. It consists in eliminating

empty words.

Then, we need to ﬁlter the lemmatized words:

only word is a noun, its lemmatized form is added

to a vector, this lemma considered as a concept. So,

we can detect all existing concepts appearing in an-

notation ﬁles. Finally, we obtain the results concepts

that are the input of ontology building process

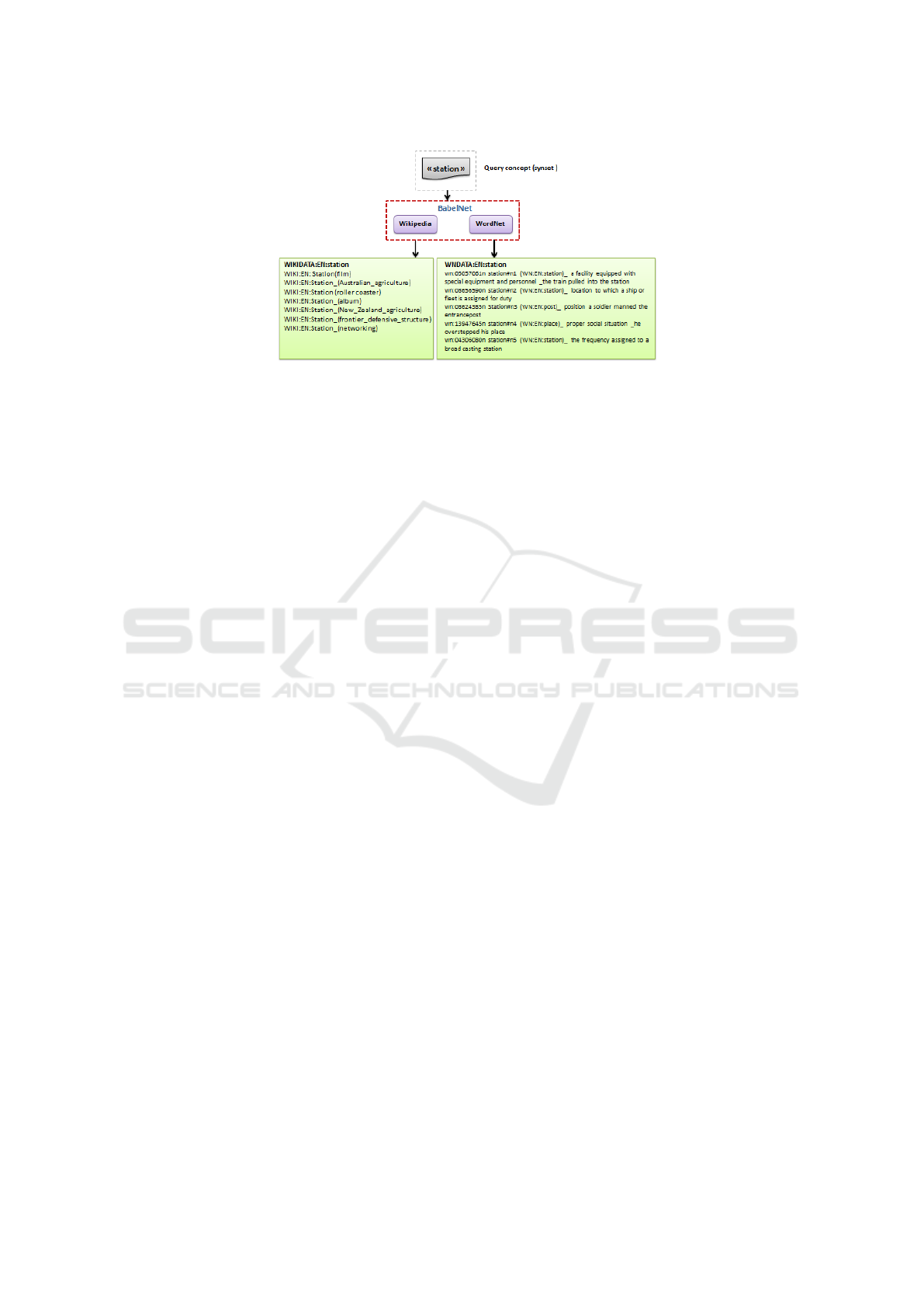

A lexical resource (BabelNet

) is integrated to

this step in order to extract concepts and semantic

relationships and to enrich our ontlogy. The BabelNet

http://www.cis.uni-muenchen.de/∼schmid/tools/

TreeTa gger/

http://babelnet.org/

that is organized in synsets, returns all the dif-

ferent meanings attached to words in English

language.

Let θ be the ontology which we will build, C

de-

note the original concepts which are extracted from

annotation, C

denote the concepts of the lexical re-

source that is used for extracting relationships, Rt and

Rn deﬁne taxonomic and non-taxonomic relationships

between concepts in C

. Also we denote SucN and

PreN the predecessor and successor concept of a cur-

rent concept in the hierarchical graph of the lexical

resource.

Let consider the sets:

= {C

,...,C

i+1

,...,C

},i = 1...n (1)

= {C

,...,C

j+1

,...,C

}, j = 1...m (2)

Rt(X,Y ) = {Rt

(X,Y ), ..., Rt

(X,Y )}, X 6= Y (3)

Rn(X,Y ) = {Rn

(X,Y ), ..., Rn

(X,Y )}, X 6= Y (4)

X = {C

},Y = {C

} (5)

The ontology building process is performed ac-

cording to the steps:

1) Initialize(θ): add all concepts of C

in (θ);

2) For each C

in C

and each C

in C

Find Rt(C

);

Find Rn(C

);

3) If(C

in C

) then update(θ):

Create Rt(C

);

Create Rn(C

) ;

4) If(C

not in C

) then update(θ):

Add C

in(θ);

Create Rt(C

,SucN (C

));

Create Rt(C

,PreN(C

));

ICAART 2016 - 8th International Conference on Agents and Artiﬁcial Intelligence

562

Create Rn(C

,SucN (C

));

Create Rn(C

,PreN(C

)).

Steps 3) and 4) are repeated until all concepts in

are treated and all relationships between them are

created.

3.2 Online Phase: Image Retrieval

The retrieval process is based on two steps: query im-

age processing and image retrieval.

3.2.1 Query Image Processing

The aim is to extract the visual information (resp.

concepts) from the query image (resp. annotation

ﬁle). So the query image is represented by a set of

visual words or a set of concepts.

3.2.2 Image Retrieval

This step depends on which retrieval strategy that is

applied. The retrieval image process can be carried

out according to the following strategies:

Visual Retrieval Strategy: In this case, the retrieval

is based on the visual similarity between visual words

of vocabulary and those that are extracted from the

query image. The similarity measures that are used in

our case will be deﬁned in the next section.

Strategy based on Combining Visual and Semantic

Similarities: This strategy is performed by combin-

ing both the visual and the semantic similarity in order

to improve relevance of retrieval results. The seman-

tic similarity measures that are used will be presented

in the next section.

3.3 Similarity Measures

In order to implement our image retrieval strategies,

the similarity measures are computed using visual and

semantic similarities.

3.3.1 Visual Similarity

In CBIR ﬁeld, some works used visual similarity

measures (Deselaers and Ferrari, 2011), (Cho et al.,

2011). Popular distance measures are used as met-

ric distances like euclidean distance, mahalanobis dis-

tance and cosine distance (Zhang and Lu, 2003) and

(Cho et al., 2011). In our context we used the eu-

clidean distance to compute similarity between visual

words.

VisualSim = d(q,r

) =

∑

j=1

( f

(q)) − f

))

(6)

where

• q : is the vector of query visual words;

• r

: is a reference visual word i from visual words

database;

• f

: is the jth feature;

• n : is the size of visual vocabulary.

3.3.2 Semantic Similarity

In ontology-based image retrieval, many semantic

similarity measures can be used. In this context,

many studies used semantic similarity measures in or-

der to increase the performance of semantic retrieval

(Hliaoutakis et al., 2006). In our context, semantic

similarity between concepts is computed according

to the following formula (Patwardhan and Pedersen,

2006):

SemanticSim(C

) = η(C

) =

||w

||.||w

(7)

where

• C : is the set of concepts related to the query im-

age.

• wC

: is the concept C

vector deﬁned in the words

space.

4 CASE STUDY

Our main contribution concerns the deﬁnition of a

retrieval system based on visual vocabulary and on-

tologies. Our case study is based on ImageCLEF

2008 data-set collection

characterized by its diver-

sity. This collection includes:

• 20000 pictures;

• Each image is associated with an annotation ﬁle

that describes its content.

Figure 2 illustrates the different steps with a speciﬁc

example related to the given query image. Let’s con-

sider a query image composed of the ”man”, three

”women”, two ”tables” and the ”train”. So, this image

represents different objects. Also, the query image is

described by its annotation ﬁle.

As depicted in Figure 2, the retrieval process is

based on two steps mainly image search. In the image

search that depends on the visual vocabulary, when a

query image is submitted, a visual vocabulary is gen-

erated (Figure 2 Step (7)). After that, visual similar-

ity measure is computed between each visual words

of request image and those that are built from image

http://www.imageclef.org/ImageCLEF2008

Towards Visual Vocabulary and Ontology-based Image Retrieval System

563

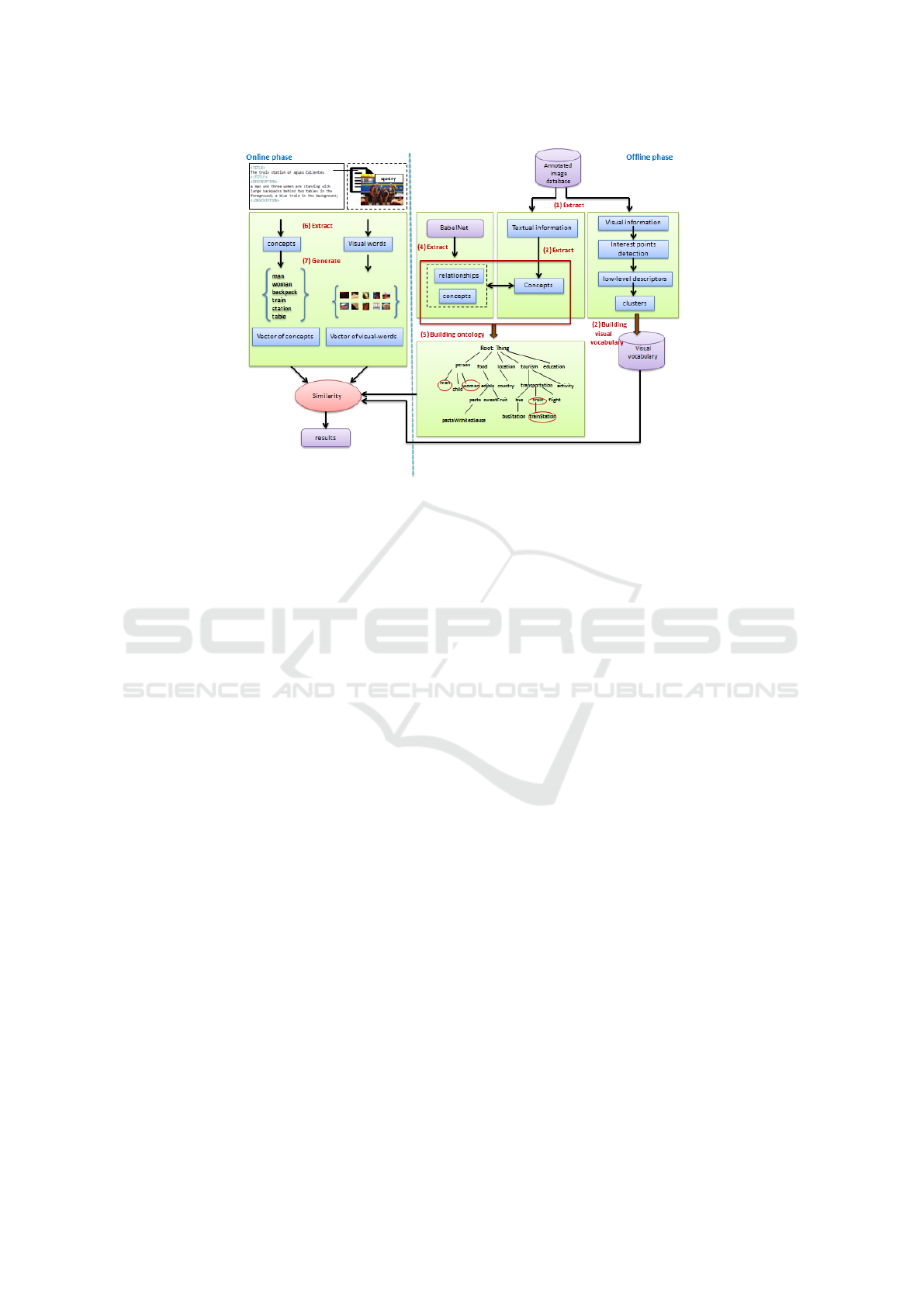

Figure 2: Case study: illustrated process for a given image query.

dataset, according to their similarity, the top ranked

images are outputs of the retrieval. In the strategy

that based on integrating ontology, visual retrieval is

combined to the semantic features based on concepts.

During the ofﬂine phase, visual and semantic image

features are built. This is done by two processes:

building the visual vocabulary (Figure 2 Step (2)) and

building ontology (Figure 2 Step (5)).

In order to extract concepts the ontology is built

based on the annotation ﬁles.

After that, the concepts set associated to all of the

image dataset is stored. In order to build our ontology,

ﬁrst, ontology must be initialized by adding concepts

to it. Next, using relations and hierarchy provided by

BabelNet, all taxonomic and non taxonomic relation-

ships related to each concept are extracted (Figure 2

Step (4)). Finally, relationships are added to our ini-

tial ontology and related concepts which are do not

exist in the initial concepts set, must be added in order

to enrich our ontology. For example, using BabelNet,

the synsets set that are related to concept ”station”

is returned, the results of this example are shown in

Figure 3. According to this example, concept ”train”

is found, so a semantic relationship between the two

concepts ”train” and ”station” is created and added.

As depicted in Figure 2, the two concepts are shown

in our ontology.

During the online phase, when our query image

is submitted to our system, concepts set composed of

”station”, ”train”, ”woman”, ”man”, ”backpack” and

”table” is extracted from its annotation ﬁle (Figure 2

Step (6)). Moreover, a set of visual words are ex-

tracted that describe low-level representation of this

query image. After that, visual words similarity is

computed, also, concepts similarity is computed be-

tween concepts that are extracted from the query im-

age and those which form our ontology. As depicted

in Figure 2, many concepts which represent semantic

content of this query image like ”station”, ”women”,

”man” and the ”train”, are shown clearly in our ontol-

ogy. In this case, three image retrieval strategies can

be done: 1) this strategy consists in ﬁrst, doing visual

search based on low-level features; second, keeping

the tops relevant images; then, applying the semantic

retrieval using ontology, 2) the second strategy begins

with the semantic retrieval, only images results are

then used for performing visual search , and 3) the

third strategy consists to do both visual and seman-

tic retrieval separately and the intersection of each set

of top retrieved images provides the research result of

our system.

On the contrary of classic approach based on vi-

sual vocabulary, integrating ontology and combining

visual retrieval to semantic features could improve re-

search performance by getting more coherent results

for given image request. Our novel system combines

two features aspects that are achieved by building vi-

sual vocabulary and ontologies. Integrating ontolo-

gies ensure high level semantic processing that inﬂu-

ences the research quality.

5 CONCLUSIONS

In this paper, we introduced our image retrieval sys-

tem based on building visual vocabulary and ontolo-

gies.Our proposed system is focused on two image as-

ICAART 2016 - 8th International Conference on Agents and Artiﬁcial Intelligence

564

Figure 3: Example: BabelNet results.

pects: visual and semantic features. During the ofﬂine

phase, visual vocabulary is built in order to describe

image database by their own visual content. More-

over, this phase can be performed by extracting con-

cepts and relationships between them from annotation

ﬁles in order to build ontologies that are then used in

retrieval process. The ontologies are enriched by the

concepts and relationships that are extracted from the

BabelNet’s lexical resource. The case study shows the

feasibility of our proposal.

In future works, we will evaluate our proposed

system. In order to achieve this goal, we will com-

pare retrieval results from our image retrieval strate-

gies based on combining both visual and semantic

similarities with the classical content based image re-

trieval based on visual vocabulary.

REFERENCES

Allani, O., Mellouli, N., Baazaoui-Zghal, H., Akdag, H.,

and Ben-Ghzala, H. (2014). A pattern-based system

for image retrieval. In The International Conference

on Knowledge Engineering and Ontology Develop-

ment.

Cho, H., Hadjiiski, L., Sahiner, B., and Helvie, M.

(2011). Similarity evaluation in a content-based im-

age retrieval (cbir) cadx system for characterization of

breast masses on ultrasound images. Medical Physics,

The International Journal of Medical Physics Reser-

ach and Practice.

Deselaers, T. and Ferrari, V. (2011). Visual and semantic

similarity in imagenet. In Computer Vision and Pat-

tern Recognition (CVPR), 2011 IEEE Conference on,

pages 1777–1784. IEEE.

Hliaoutakis, A., Varelas, G., Voutsakis, E., E.Petrakis, and

E.Milios (2006). Information retrieval by semantic

similarity. International Journal on Semantic Web and

Information Systems, 2:55–73.

Hyv

onen, E., Saarela, S., Samppa, Styrman, A., and

K.Viljanen (2003). Ontology-based image retrieval.

In WWW (Posters).

Jurie, F. and Triggs, B. (2005). Creating efﬁcient code-

books for visual recognition. In Computer Vision,

2005. ICCV 2005. Tenth IEEE International Confer-

ence on, volume 1, pages 604–610. IEEE.

Kurtz, C. and Rubin, D. (2014). Using ontological relation-

ships for comparing images describing by semantic

annotations. In EGC 2014, vol. RNTI-E-26, pp.609-

614, pages 609–614.

Martinet, J. (2014). From text vocabularies to visual vocab-

ularies: what basis? In 9e International Conference

on Computer Vision Theory and Applications (VIS-

APP),pp. 668-675, January 2014, Lisbon, Portugal.

Patwardhan, S. and Pedersen, T. (2006). Using wordnet-

based context vectors to estimate the semantic related-

ness of concepts. In EACL 2006 Workshop on Making

Sense of Sense: Bringing Computational Linguistics

and Psycholinguistics Together, pages 18.

Sarwara, S., Qayyuma, Z., and Majeedb, S. (2013). On-

tology based image retrieval framework using qualita-

tive semanticimage descriptions. In 17th International

Conference in Knowledge Based and Intelligent Infor-

mation and Engineering Systems -KES2013, page 285

294. Procedia Computer Science 22.

Sivic, J. and Zisserman, A. (2003). Video google: A text

retrieval approach to object matching in videos. In

Computer Vision, 2003. Proceedings. Ninth IEEE In-

ternational Conference on., pages 1470–1477. IEEE.

Zhang, D. and Lu, G. (2003). Evaluation of similarity mea-

surement for image retrieval. In Neural Networks and

Signal Processing, Proceedings of the 2003 Interna-

tional Conference on (Vol. 2, pp. 928-931). IEEE.

Towards Visual Vocabulary and Ontology-based Image Retrieval System

565
