Model-Driven Development Challenges and Solutions

Experiences with Domain-Specific Modelling in Industry

Juha-Pekka Tolvanen and Steven Kelly

MetaCase, Ylistönmäentie 31, FI–40500 Jyväskylä, Finland

Keywords: Model-Driven Development, Domain-Specific Modelling, Code Generators, Model Transformations,

Language Workbenches, Modelling Tools.

Abstract: Model-Driven Development is reported to succeed the best when modelling is based on domain-specific

languages. Despite significant benefits MDD has not been applied as widely as expected. Costly definition

of languages and related generators with tooling, their maintenance when the domain is not stable,

challenges in scalability, and collaboration are some reasons that several studies mention. We believe these

statements are justifiable but only when applying traditional programming tooling for modelling. Instead we

show with data from practice that many of the challenges reported can be solved when using tools built for

modelling in the first place.

1 INTRODUCTION

Model-Driven Development (MDD), using models

as the primary source when creating applications, is

at a watershed. While many create models for

communicating ideas and sketching solutions, the

use of models to generate code divides practitioners.

This is also visible in empirical research. For

example, Petre (2014) states that UML-based MDD

plays only a small role whereas Whittle et al. (2014)

indicate that use of model-driven engineering is

widespread. Clearly more empirical research on the

use of modelling is needed.

Part of the reason for the different data is looking

in different places. In our experience, MDD is less

applied in project-based development, such as

consulting, outsourced work, or IT as an internal

support function. In contrast, MDD is common in

product development, particularly in industries like

automotive, telecom or banking. Also in areas like

embedded architectures, testing, product lines or

safety related embedded products, models play a

major role. Some safety standards even expect a

model-driven approach.

We focus on modelling that is based on domain-

specific languages. Although we have acted as

providers of both General-Purpose Languages

(structured, object-oriented) and Domain-Specific

Modelling (DSM), experience has shown us that

DSM enables better MDD than general-purpose

modelling languages. This is in line with recent

studies like Whittle et al. (2014), who state: “The

companies who successfully applied model-driven

engineering largely did so by creating or using

languages specifically developed for their domain,

rather than using general-purpose languages such as

UML”.

The benefits of DSM do not come for free, as the

language abstractions and tools to automate

development need to be first developed and later

maintained. Research claims that it is costly and

hard to define modelling languages with tool

support; that domain-specific languages can be

created effectively only when the domain does not

change; and that MDD does not scale.

In this paper we present our experiences, partly

reported in cases over the last 25 years, first as

researchers and then in industry. Unsurprisingly,

most of our experience is with MetaEdit+. This

however proves interesting, as our experience with a

different tool indicates that some claims on MDD

challenges are not true for all tools. We feel that one

reason for our differing experience may be that the

tooling we have applied is not what is traditionally

expected — file-based tools built on top of

programming IDEs — but instead developed

specifically for DSML creation, and natively using a

repository rather than XML or text files.

We start by looking at the evidence for MDD

productivity gains and then discuss the cost factor:

Tolvanen, J-P. and Kelly, S.

Model-Driven Development Challenges and Solutions - Experiences with Domain-Speciﬁc Modelling in Industry.

DOI: 10.5220/0005833207110719

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 711-719

ISBN: 978-989-758-168-7

711

how much it takes to create industrial-strength DSM

languages, and if the cost varies with different tools.

This is then followed by analyzing the language

creation principles and supporting tooling: how

languages are defined collaboratively to gain

acceptance and better quality languages. We then

look at the scalability of the use of the language in

terms of large models and teams. Finally, we inspect

how tooling and practices support the ongoing

evolution of the DSM solutions, so that the gains in

productivity can be maintained.

2 PRODUCTIVITY INCREASES

Survey evidence has shown that not all MDD

approaches are alike. Here we will briefly consider

quantitative empirical evidence for three approaches:

UML, MDA, and DSM.

The evidence against a significant productivity

increase with UML is unequivocal. Estimates of the

effect on productivity of adding UML to coding vary

between –15% and +10%. Djidek et al. (2008) is one

of the more realistic studies, using professional

developers and reasonably large non-greenfield

tasks. Although some calculations in the study leave

something to be desired, the data was clear:

developing with UML and Java was 15% slower

than pure Java (Figure 1).

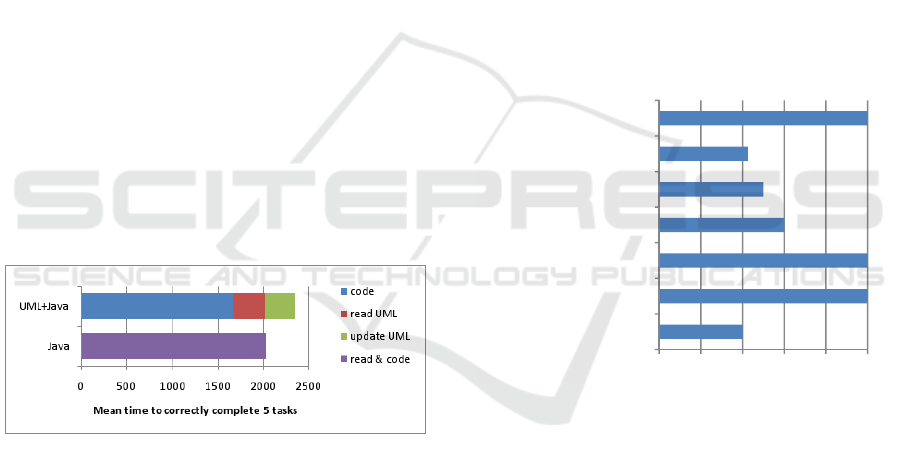

Figure 1: UML does not significantly improve developer

productivity.

Another candidate for an MDD approach is the

OMG’s MDA. Tool vendors’ own figures for

MDA’s productivity increase include +22% (Obeo,

2014) and +30% to +40% (OptimalJ, 2003). These

figures are based on code-generation approaches

with largely UML-based MDA tools. While better

than plain UML, these still do not represent the

paradigm shifting magnitude that the industry is

looking to obtain from MDD.

Domain-Specific Modelling predates UML, but

widespread use only began in the latter years of the

last century. Although any particular DSM language

will, by definition, have limited applicability, the

approach itself seems to suit a wide range of

domains. The literature provides numerous DSM

cases from various industries, such as industrial

automation, government acquisitions, automotive,

avionics, command and control systems, robotics,

secure networks, education, medical treatment, and

autonomous-vehicle development (Sprinkle et al.,

2009).

Although there are a number of DSM tools, to

our knowledge only MetaEdit+ has accumulated

quantitative evidence from a number of empirical

evaluations and experiments. Part of the explanation

may be its long history, wide use, and the research

background of the principals. Nokia (MetaCase,

2000), Panasonic (Safa, 2007), Polar (Kärnä et al.,

2009), Elektrobit (Puolitaival et al., 2011) and

Ouman (Puolitaival, 2011) all report significant

productivity improvements using DSM languages in

MetaEdit+ (Figure 2). The increased productivity on

tasks now handled by DSM ranged from 400% to

2000%, with most being in the range of 500–1000%.

Figure 2: Productivity gains reported with DSM.

This “5–10x productivity” result has taken on

something of a life of its own: while gratifyingly

consistent among MetaEdit+ users, it is also widely

quoted by others in support of their own DSM tools,

and sometimes even for completely different MDD

approaches. Given the absence of evidence for such

broader applicability, there is clearly a need for

further empirical research with other tools, and for

investigation of which elements in these MetaEdit+

cases contributed to the productivity increase. Cases

handled entirely by customers have been able to rule

out the possibility that the 5–10x is restricted to

languages made or guided by MetaCase consultants.

There remains the possibility that MetaEdit+

itself is a factor. If so, it seems plausible that the

effect would be more from the language definition

phase than the language use phase. One explanation

0% 200% 400% 600% 800% 1000%

Processcontrol

(Sadrieh&Bahri,2014)

Terminalnetworktesting

(Puolitaivaletal.2011)

Heartratemonitor

(Kärnäetal.2009)

CallProcessingServices

(Kelly&Tolvanen,2008)

Financialwebapplication

(Kelly&Tolvanen,2008)

TouchscreenUIapplications

(Safa2007)

MobilephoneUIapplications

(MetaCase,2000)

Domain

IndTrackMODELSWARD 2016 - MODELSWARD - Industrial Track

712

could be that a tool that makes language

development easier allows developers to concentrate

on making a better language.

3 DSL CREATION EFFORT

Creating DSLs is stated to be hard (Mernik et al.

2005) and to require time and resources – in

particular when creation of tooling support is

included (Mohagheghi et al. 2013). Unfortunately

the vast majority of the reports on modelling

language creation do not disclose much about the

effort. In conference talks some figures are given,

like 25 man-years for creating a commercial UML

tool (Ströbele, 2005), 3.5 man-years for creating

tooling for insurance product modelling (Warmer &

Bast, 2011), or 35 persons working on creating

modelling tools within a single company (Bordeleau,

2014). Few provide more detailed figures, or break

development effort down into different parts like

language, generators, tools etc.

Reasons for this lack of quantitative evidence

may include that companies implementing their

tooling do not want to share such figures, or that

they are not systematically collecting data on

resource use. Languages created by academics are

often not defined completely as they were not

intended to be deployed in practice: the focus was on

studying particular language features, tools or ideas

rather than making a full DSM solution.

Figure 3 illustrates DSM development effort for

various domains in industrial cases in which the

authors have been able to have access to the

development process. The actual language and

generator development with MetaEdit+, however,

has been done by the customer themselves, as has

the measurement of time taken.

Figure 3: Days to define modelling languages and code

generators along with tooling support in MetaEdit+.

These cases show that the effort for companies to

create their own DSLs and tool support need not be

as costly and time-consuming as many studies claim.

Our experience in other cases confirms that times of

5–15 man-days are normal with MetaEdit+.

Comparison of development effort remains hard

because the domains the DSM solutions address

vary for example in size, complexity, or detail; the

expertise of the development team can vary widely;

and different languages and tools are used to create

DSM solutions. These factors are hard to compare in

real-world empirical research – it is hard to find

cases in which multiple DSM solutions are created

for the same domain with comparable development

teams and the same tools. Comparison across

domains seems fruitless; comparison of low and

high experience teams would presumably be

obvious; comparison between tools seems useful.

An empirical study by El Kouhen et al. (2012)

indicates that tools have a large effect on the amount

of effort required to develop a language (Figure 4).

Implementing the same modelling language took 50

times longer with the slowest tool (GMF) than with

the fastest (MetaEdit+), and even the second fastest

tool was 10 times slower than the fastest.

Interestingly, this was despite the participants being

most familiar with Eclipse EMF / Ecore, on which

these slower tools and RSA were based.

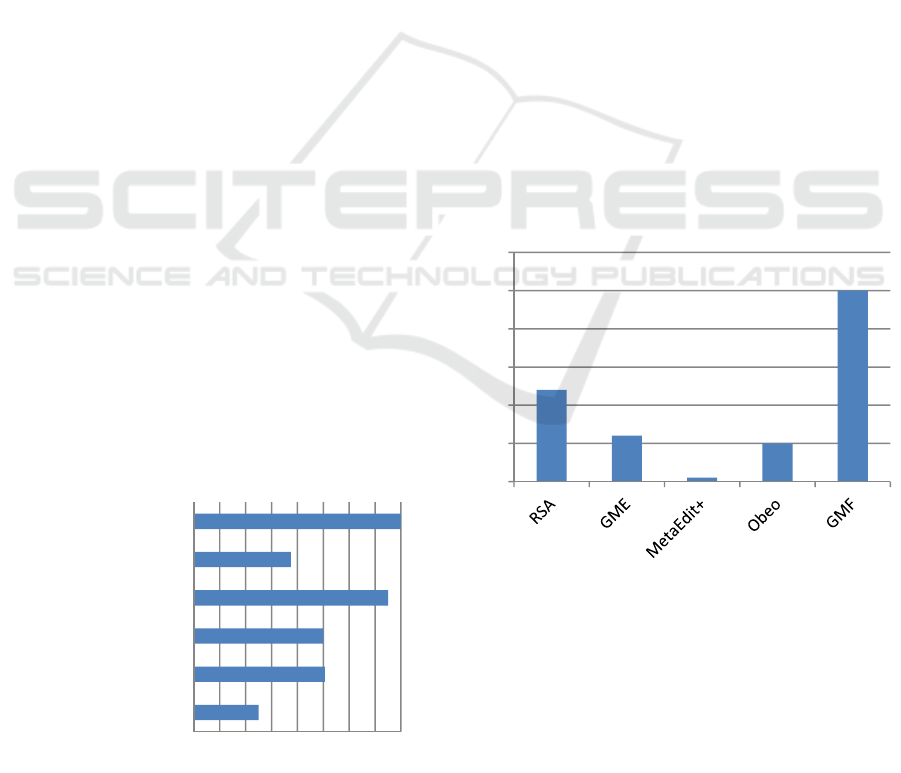

Figure 4: Effort to define the same BPMN language with

different tools.

The results were also in stark contrast to the

Eclipse researchers’ assessment of the five tools

before measurement. They graded each tool with a

subjectively assessed “efficiency” score, and the tool

with the worst “efficiency” turned out to be the

fastest, while the second best score turned out to be

the slowest. Similarly, in “task visibility” (a sub-

category of “usability”), the worst score was given

0246810121416

Bloodseparator

(Djukicetal.2014)

Warehouseautomation

(Preschernetal.2014)

Heatingremotecontrol

(Puolitaival2011)

Terminalnetworktesting

(Puolitaivaletal.2011)

Heartratemonitors

(Kärnäetal.2009)

TouchscreenUIapplications

(Safa2007)

Days

Domain

0,5

DaystoimplementBPMN

Model-Driven Development Challenges and Solutions - Experiences with Domain-Speciﬁc Modelling in Industry

713

again to the tool that turned out fastest, and the best

score to the slowest. It seems that factors considered

by Eclipse researchers to contribute to efficiency and

usability may actually be anti-patterns. Compounded

with the lack of quantitative empirical research by

the Eclipse community on DSM solution creation

times, this belief in anti-patterns could become self-

sustaining. In that sense it is a shame that the article

in question has not been published outside of its

organizational repository.

A possible explanation for the difference in

speed with different tools could be found by

applying DSM to itself. Unlike UML and its subset

used in Ecore, MetaEdit+’s GOPPRR is a domain-

specific language, designed from the ground up for

describing modelling languages. Kern et al. (2011)

compared six metamodelling languages, concluding

that in terms of power and expressiveness GOPPRR

> GME > DSL Tools > Ecore: the same order as the

productivity of the respective metamodelling tools

(taking the average of the three Ecore-based tools).

Another explanatory factor could be a good

match of language to tool. BPMN has a relatively

large number of graphical symbols, and MetaEdit+

was the only tool with a WYSIWYG graphical

symbol editor.

In addition to comparing tools, one can compare

approaches for defining languages, e.g. UML

profiles vs. metamodelling. In a case of railway

DSL, the size of static semantic rules with UML

profile and OCL was two times larger than when

been defined in native metamodelling language

GOPPRR (Mewes, 2009). While the length of the

definition (LOC) does not describe the effort for

creation and maintenance, it gives one figure to

estimate the effort.

We look forward to other case studies and

language creation reports indicating some data on

the development effort, size of the team, time used

etc. Establishing good metrics for collecting and

analysing the effort is challenging, particularly for

industrial cases. Ideally research would collect data

for different elements or phases of language creation

(abstract syntax, concrete syntax, static semantics,

tooling, etc.). However, even obtaining a single

figure is hard enough. For instance, Polar initially

planned to continue gathering empirical data of the

productivity increases, but soon stopped, as the

evidence of return on investment was so clear that

time spent investigating further was no longer

commercially justified. One potential source of good

empirical data with low additional effort could be

‘language workbench challenges’ (Kelly, 2013).

Some encouraging preliminary results have already

been achieved in this manner (Erdweg et al., 2013).

4 COLLABORATIVE

LANGUAGE ENGINEERING

The more esoteric the skills required to create a

language, the further that creation will be from the

people who will actually use the language. By

making language creation easier, a tool can

democratize the process of developing a DSM

solution. In our experience with MetaEdit+,

language engineers and language users are often at

least partly the same persons – in particular if the

domain addressed is small or within a single

company.

Another characteristic of industrial-scale use is

that a single language is often not enough: there

must be multiple integrated languages, which

requires collaboration among language engineers

too.

4.1 End-user Participation

Only a few tools have been implemented to support

collaborative language engineering (Rossi et al.

2004). These have focused on capturing and

discussing design rational related to the metamodel

(Oinas-Kukkonen, 1996) and emphasizing the role

of the end users in the language design process

(Izquierdo et al., 2013). While these features are

promising little has been reported on their use.

Instead it is common that language definition part

and language use part are separated into different

tools. This separation makes then hard, if not

impossible, collaboration during language

engineering and maintenance. Even worst case is

tools where the language definition is isolated into a

single file that one person can edit at a time. This

language definition is often then presented in a

format that is not easy to follow by language users –

if they can even access it. It also prevents any

reflection from language use back to the language

definition. For example to trace which parts of the

language, its elements and constraints, are been

used, which have been hard to use, not used, or users

have most difficulties to apply.

Since active participation and feedback from

users is also crucial during language engineering a

good way is to add such capabilities to the language

itself. Language may include concepts dedicated

directly to extract experiences, collect feedback, or

get requirements for improvements. For example, to

IndTrackMODELSWARD 2016 - MODELSWARD - Industrial Track

714

collect feedback from language users, in one case at

Panasonic a special ‘Joker’ concept was added to the

language to collect feedback from language users

(Safa, 2007). In another case, while implementing

automotive architecture DSL several persons and

organizations have been involved (Tolvanen et al.,

2014) the collaboration and feedback is gathered by

adding constructs for commenting and gathering

feedback to the language itself to be used by both

language engineers and language users. One main

benefit this “language-based” approach provides is

that the feedback is tightly related to the language

use and to the language specification.

Third and based on our experiences the most

powerful way for collaboration is using the language

while it is defined at the same time - agile in its

extreme. For example, with MetaEdit+ tool the

language can be defined and used at the same time

even in the same tool. This is not restricted to single

person only as with MetaEdit+ multi-user version

we have been working in cases where language is

formulated in group sessions: ten persons have been

using the newly provided language and provided

feedback on its capabilities. In parallel changes are

then implemented to the language and then

immediately tried out. This has provided several

benefits: errors in language definition are quickly

identified, changes can be made instantly, and ideas

can be demonstrated with concrete examples on the

model level. For most of us it is easier to see how

the language works in practice than comment the

metamodel. This approach brings also similar

benefits typical to participatory approaches:

language will have better quality, it improves its

acceptance, and it organizational introduction is

easier.

4.2 Collaboration within the Language

Engineering Teams

In industrial use companies usually have several

language engineers. On the one hand the

responsibility is often wanted to be shared to share

dependencies on few persons. On the other hand,

when several languages are used it is not even

realistic to expect that a single person handles them

all. In our experience it is not unusual even with a

single language to divide the work into different

parts for different people: one defines the

metamodel, another the generators, and a third tests

them. It is therefore natural to expect that language

engineering processes and tools would support

collaboration within the team.

Most modelling tools, however, focus on a single

language at a time. On metamodelling level,

languages like MOF do not even have a concept of

language so integrating then several ones is

challenging. Tool platforms that are built on the

basis of multiple languages and their language

integration, like MetaEdit+, MPS and Spoofax, solve

the integration already as in-built characteristic of

the tool (Cheng et al., 2015). MetaEdit+ for instance

enables several language engineers working on the

same language definition at the same time. Access

rights can be given to user accounts and security

level can be given to restrict the number of language

engineers per repository, per project there or per

individual type.

For example in the case of automotive embedded

systems, a language called EAST-ADL includes

over 20 different sub-languages each covering

different subdomains (architecture, safety, error

modelling, requirements, variability, hardware etc.).

A single person can hardly master them all along.

Instead the definition of the metamodel part was

initially divided among three language engineers –

each focusing on different sub-languages.

Integration of these languages then becomes easy as

common types among the languages form the “glue”

to integrate them. Yet this team was accompanied by

other language engineers focusing on implementing

generators for various targets. This speeded the

implementation, allows checking and verifying the

language definition early and testing the whole in

collaboration.

5 SCALABILITY

For several years, the MDD tooling in focus in the

majority of academic research articles has been

Eclipse EMF. This is in stark contrast with the lack

of articles reporting industrial-scale use of graphical

DSLs in EMF, in particular quantitative empirical

comparisons of scalability or productivity for

language use or creation in industry.

Research articles often cite scalability (e.g.

Gómez et al., 2015, Pagán & Molina, 2014) as an

area of EMF that needs improving before

widespread industrial adoption could be possible.

There are many articles focusing on such

improvements: Kolovos et al. (2013) provides an

overview. The scalability improvements can be

divided into two main areas: handling large models

with reasonable performance, and supporting

multiple simultaneous modellers working on the

same models.

Rather than dwell on the challenges of other

Model-Driven Development Challenges and Solutions - Experiences with Domain-Speciﬁc Modelling in Industry

715

tools, we shall briefly present here the ways in

which the architecture, design and implementation

of MetaEdit+ address scalability for large models

and large teams. As MetaEdit+ does not use the

XML files and diff+merge common in EMF, seeing

its different approach and results may be useful to

other tools.

5.1 Large Models

MetaEdit+ has been used industrially since 1995,

scaling to cases lasting decades with hundreds of

users and gigabytes of models. An object repository

is used to store both metamodels and models,

including both conceptual and representational

(abstract and concrete syntax) data for both. A

repository can consist of an unlimited number of

projects, each of which can hold over 4 billion

persistent objects. Models and metamodels can be

divided across projects, and reference others across

projects, as the users desire. The repository can be

used on a user’s hard disk in single user mode, or

from a server in multi-user mode.

When logging in, MetaEdit+ pre-loads an initial

subset of the repository based on the metamodel

structure. As further links are followed by the user

opening models, the necessary objects are loaded. If

memory is short (based on configurable parameters),

a portion of the objects are automatically flushed

from memory to make room to load others, allowing

work to proceed through more objects than would fit

into memory at one time.

As loaded objects are directly the objects of the

model, with no intermediate proxies, XML

representations, or other overhead, working with

them is equally fast for both large and small models.

Loading and saving read and write objects in binary

format on disk or over the network, but only needed

objects are read, and only changed objects are

written.

During generation, only changed output files are

written, allowing build tools to compile only those

(compilation is far slower than MetaEdit+

generation). This is completely automatic: there is

no need for generator developers to isolate

generators to limit a single output file to a single

input graph. Instead, MetaEdit+ caches generator

results and compares with output files already

existing on disk, only writing those files that have

changes. A generator can thus freely access any

information in any graph, and produce any part of

any output file. This allows the language to be made

to present the most relevant information together in

a graph, regardless of the requirements for

information distribution across the output files.

Together, these factors allow MetaEdit+ to work

with larger files faster than any other graphical DSM

tool. At the Language Workbench Challenge in

2014, the aim was to open a model with 2

objects.

(These were main objects with some further details

inside: similar to a Class or State in a UML model.)

MetaEdit+ demonstrated a repository with 2

objects, taking up over 5 GB on disk. Opening a

project of 2

graphs, each with 2

objects, took under

a second. Generating a full application of 360kB of

source code from a graph of 2

objects took 2.1

seconds. At that size, well beyond the common size

of 30–40 objects for a DSM graph, generation has

become O(N

): although MetaEdit+ was the fastest

of the graphical tools, there is always room for

improvement.

5.2 Large Teams

A company can have a single MetaEdit+ repository

or split their work into multiple repositories as they

desire, e.g. one per team, one per user, or one per

module. Where repositories are to be used by more

than one person, concurrent access is handled by the

MetaEdit+ multi-user server. Each persistent object

may have many simultaneous readers but only one

writer; the granularity of such locking is fine, down

to the level of a single property of an object. This is

in clear contrast to the approach of EMF, where the

level of granularity of simultaneous editing is the

XML file – a model or set of models. (Add-ons such

as CDO do not yet substantially change that picture:

as Kolovos et al. (2013) point out, CDO offers “no

mature support for conflict management and

merging,” “does not scale up as well as advertised,”

and “failed to load all test sets greater than

271MB.”)

By using a multi-user object repository,

MetaEdit+ is able to avoid the need for users to

make their own copy of a model while they work on

it, and to have to merge those changes back together.

The user can still choose when to release his changes

to others: until that point, they will see the latest

released version.

These long-lived ACID transactions and fine-

granularity locking have been found to work well for

design work. It appears that database usage in design

work is unlike normal database applications in a

number of respects (Welke, 1988). For instance, a

common database solution to a collection that will

be modified by many users is a B-tree. However,

that is fundamentally unsuited to the collection of

graphs held in a project. That collection will have

IndTrackMODELSWARD 2016 - MODELSWARD - Industrial Track

716

the most simultaneous changes at the start of a

project, when it is smallest and thus a B-tree’s

support for multiple modifiers would be at its worst.

This called for the creation of a novel kind of multi-

user data structure (Kelly, 1998), which has proven

to work well without a need for manual tuning. For

those who are interested, further details of the

repository implementation are available in that

article and in the MetaEdit+ manuals (MetaCase,

2014).

6 MAINTENANCE AND

LANGUAGE EVOLUTION

If the domain stays stable the language can be

defined once and frozen. This does not happen in

practice as domains always evolve, language users

learn new and better ways to specify systems that the

modelling language should support, and the initially

created languages are recognized to have some

unwanted features (Kelly & Pohjonen, 2009).

Perhaps more so than with GPL, a DSL must evolve,

and thus the models already created with it need to

evolve correspondingly.

So far the majority of research and tools have

focused on the initial phase of language creation,

rather than on the maintenance of the language and

the models made with it. For example, even the most

broad-coverage studies focusing on tools (Erdweg et

al, 2013; El Kouhen et al., 2012) do not address

maintenance. This is somewhat surprising given the

accepted software development wisdom that

maintenance is a far larger effort than the creation of

the first release.

In on our experience, the changes for any well-

piloted language are typically not fundamental ones

that change the nature of the language. Instead,

maintenance tasks involve changing some particular

language elements, renaming parts, adding new ones

and removing or sunsetting others. In the worst case,

when the domain the company addresses with the

products changes completely, the update of the DSL

part is not the major issue: it is more likely they will

consider creating a totally new language (see Section

3).

Unfortunately, in many tools even small changes

are fatal for the tooling. The authors are aware of

two automotive cases in which Eclipse-based tools

were used to define modelling editors for

AUTOSAR (an automotive related metamodel). In

both cases these tools were abandoned as work done

in previous AUTOSAR modeling editors could not

be opened with a newer AUTOSAR version. While

both of these cases were in the Eclipse Modelling

Platform, similar experiences are also reported in the

DSL tool developed on top of Visual Studio. Adding

Language Workbench capabilities on top of a

programming IDE seems to be hard. Perhaps this is

because IDE users are not used to expecting better

from support for traditional textual languages, where

changes to the language often require manual

updates to source code, or character-based

find/replace tools (France et al. 2013).

Industrial usage reveals unwanted practices

quickly. In MetaEdit, the predecessor of MetaEdit+,

changes to the metamodel often prevented opening

models from earlier versions: a commercially

untenable situation. It was then decided to analyse

language evolution cases and build automated

support for updating models to follow metamodel

changes. While this functionality is described

(MetaCase 2014) and available to download, we

give a few examples of typical maintenance tasks

that we have seen to occur in practice:

 Renaming of a language element is

automatically reflected to existing models: they

follow the new name. Also renaming in the

abstract syntax is automatically updated to the

concrete syntax and static semantics.

 Changed constraints are followed automatically

and shown for the language user when opening

them in the editors.

These model migrations to the new metamodel

happen automatically without the language

developer needing to do any additional work. The

hardest parts are then the changes that require

human intervention based on the metamodel

changes. For this kind of language refinement

situations the language engineer can inspect the

existing models to see possible consequences of the

metamodel update. This is important as typically a

change to one element in the metamodel has an

influence on other concepts.

To support human migration of the models the

language engineer can make checking reports and

model annotations that show which elements require

update. This way after each language version

release, language users can easily see which parts of

the model need to be updated along with possible

guidelines based on the new metamodel for doing

so.

One indication of the viability of the approach

taken in MetaEdit+ is that we are aware of

customers today using DSM languages and

generators which have been updated in a rapidly

changing domain and were originally developed in

Model-Driven Development Challenges and Solutions - Experiences with Domain-Speciﬁc Modelling in Industry

717

the mid 90’s: 20 years of DSL evolution. A good

topic for future research would be inspecting

DSM/DSL evolution cases with various tools,

languages and domains to identify which

maintenance approaches work better than others.

7 CONCLUSIONS

Two main claims are made around MDD: firstly,

that it can increase productivity to 500–1000%, and

secondly that creating a DSM language is costly and

difficult. Our research indicates that these claims are

true, but for disjoint data sets:

 UML-based MDD or MDA offers productivity

improvements of only up to 40%; 500%–

1000% productivity has only consistently been

reported in cases applying DSM in MetaEdit+.

 Creating an industrial-scale DSM language,

generators and editor consistently takes 5–15

days in MetaEdit+; independent experimental

evidence indicates that implementing the same

language in any other current tool takes 10–50

times longer, fitting the commonly reported

time of several months with Eclipse tooling.

These are strong statements, but backed up by

strong empirical evidence. We believe that there is

no reason why similar 500–1000% productivity

increases could not be achieved in other modelling

tools, if they were to implement the same DSM

languages as in MetaEdit+. Rather, the reason for

poor productivity in the resulting languages is that

the languages differ, with those in the other tools

being dragged down by the difficulty of language

creation in those tools. Reducing that difficulty

appears hard, at least if building on top of Eclipse

EMF and GMF.

Creation of DSM solutions that are productive in

use and address user needs is easier if languages and

generators can be created in close collaboration with

language users, and without having to think about

low-level details of the tooling implementation.

MetaEdit+ keeps language definition on a high level

of abstraction, and lets language users use the

modeling language at the same time as it is being

refined. Its ability to allow changes in the language

and reflect them automatically in existing models is

useful during both language creation and evolution.

Similarly, the scalability challenges of large models

and multiple concurrent modelers are easier to

address when models are not handled as text or

XML files but with a native multi-user repository.

We believe that the way forward is for

researchers to widen their scope beyond Eclipse,

despite its obvious attractions. Empirical researchers

should look to take today’s most effective tools into

industrial settings, and tool developers should

identify the differences between tools and

approaches that explain the order of magnitude

differences in results.

REFERENCES

Bordeleau, F., 2104. Papyrus and Open Source Modeling -

- Status, Strategy, and Plan. Presentation at Ericsson

Modeling Days, 4 November 2014, Kista, Sweden.

Cheng, B., Combemale, B., France, R., Jézéquel, J.-M.,

Rumpe, B., (eds), 2015. Globalizing Domain-Specific

Languages, Springer, LNCS 9400.

Djukić, V., Popović, A., Tolvanen, J.-P. 2014. Using

domain-specific modeling languages for medical

device development, Embedded.com.

Dzidek, W.J., Arisholm, E., Briand, L.C., 2008. A

Realistic Empirical Evaluation of the Costs and

Benefits of UML in Software Maintenance, IEEE

Transactions on Software Engineering, Vol 34 No 3,

May/June 2008.

El Kouhen, A., Dumoulin, C., Gérard, S., and Boulet, P.,

2012. Evaluation of Modelling Tools Adaptation.

CNRS HAL. http://hal.archives-ouvertes.fr/docs/00/70

/68/41/PDF/Evaluation_of_Modelling_Tools_Adaptati

on.pdf.

Erdweg, S., van der Storm, T., Völter, M., Boersma, M.,

Bosman, R., Cook, W., Gerritsen, A., Hulshout, A.,

Kelly, S., Loh, A., Konat, G., Molina, P., Palatnik, M.,

Pohjonen, R., Schindler, E., Schindler, K., Solmi, R.,

Vergu, V., Visser, E., van der Vlist, K., Wachsmuth,

G., van der Woning, J. 2013. The State of the Art in

Language Workbenches: Conclusions from the

Language Workbench Challenge. Software Language

Engineering, LNCS 8225, Springer, pp 197-217.

France, R., Rumpe, B., Schindler, M. 2013. Why it is so

hard to use models in software development:

observation. Software & Systems Modeling, Volume

12, Issue 4, pp. 665-668.

Gómez, A., Tisi, M., Sunyé, G., Cabot, J. (2015) Map-

Based Transparent Persistence for Very Large Models.

Fundamental Approaches to Software Engineering,

Springer, pp 19-34.

Izquierdo, J. L. C., Cabot, J., López-Fernández, J. J.,

Cuadrado, J. S., Guerra, E., & de Lara, J. 2013.

Engaging end-users in the collaborative development

of domain-specific modelling languages. Cooperative

Design, Visualization, and Engineering (pp. 101-110).

Springer Berlin Heidelberg.

Kelly, S. 1998. CASE Tool Support for Co-operative

Work in Information System Design. In Proceedings

of the IFIP TC8/WG8.1 Working Conference on

Information Systems in the WWW (pp. 49-69).

Kelly, S., 2013. Empirical Comparison of Language

Workbenches. In Proceedings of the 2013 ACM

Workshop on Domain-Specific Modeling (pp. 33–38).

IndTrackMODELSWARD 2016 - MODELSWARD - Industrial Track

718

Kelly, S., Tolvanen, J.-P., 2008. Domain-Specific

Modeling: Enabling Full Code Generation. Wiley.

Kern, H., Kühne, S., Hummel, A., 2011. Towards a

comparative analysis of meta-metamodels. In

DSM’11, Proceedings of the compilation of the co-

located workshops on DSM'11, TMC'11, AGERE!'11,

AOOPES'11, NEAT'11, VMIL'11, SPLASH '11

workshops, ACM.

Kolovos, D.S., Rose, L.M., Matragkas, N., Paige, R.F.,

Guerra, E., Cuadrado, J.S., De Lara, J., Ráth, I., Varró,

D., Tisi., M., Cabot, J. 2013. A Research Roadmap

Towards Achieving Scalability in Model Driven

Engineering. In Proceedings of the Workshop on

Scalability in Model Driven Engineering, ACM.

Kärnä, J., Tolvanen, J.-P, Kelly, S. 2009. Evaluating the

use of domain-specific modeling in practice.

Proceedings of the 9th OOPSLA workshop on

Domain-Specific Modeling.

Mernik, M., Heering, J., Sloane, A., 2005. When and How

to Develop Domain-Specific Languages, ACM

Computing Surveys, Vol. 37, No. 4, pp. 316–344.

Mewes, K., 2009. Domain-specific Modelling of Railway

Control Systems with Integrated Verification and

Validation, dissertation, University of Bremen.

MetaCase, 2000. Case Study: MetaEdit+ Revolutionized

the Way Nokia Develops Mobile Phone Software.

www.metacase.com/papers/MetaEdit_in_Nokia.pdf.

MetaCase, 2014. MetaEdit+ 5.1 Manuals.

http://www.metacase.com/support/51/manuals/

Mohagheghi, P., Gilani, W., Stefanescu, A., Fernandez,

M., Nordmoen, B., Fritzsche, M. 2011. Where does

model-driven engineering help? Experiences from

three industrial cases. Software & Systems Modeling,

Volume 12, Issue 3, pp. 619-639.

Obeo, 2014. “18%: The average cost reduction of a project

with the MDA approach”. web.archive.org/web/2014

0209081524/http://www.obeo.fr/pages/presentation/en.

Oinas-Kukkonen, H. 1996. Method rationale in method

engineering and use. Method Engineering (pp. 87-93).

Chapman & Hall.

OptimalJ, 2003. www.theserverside.com/news/1377283/

TheServerSide-Symposium-June-2003-Coverage.

Pagán, J. E., Molina, J. G. 2014. Querying large models

efficiently. Information and Soft-ware Technology

56(6), pp. 586–622.

Petre, M. 2014. “No shit” or “Oh, shit!”: responses to

observations on the use of UML in professional

practice, Software & Systems Modeling, Volume 13,

Issue 4, pp. 1225-1235.

Preschern, C., Kajtazovic, N., Kreiner, C. (2014).

Evaluation of Domain Modeling Decisions for two

identical Domain Specific Languages. International

Conference on Software Technology and Engineering,

Lecture Notes on Software Engineering (LNSE), Vol.

2, No.1.

Puolitaival, O.-P., 2011. Home automation DSL case,

Presentation at Code Generation Conference

(http://codegeneration.net/cg2011/).

Puolitaival, O.-P., Kanstrén, T., Rytky, V.-M, Saarela, A.

(2011) Utilizing Domain-Specific Modelling for

Software Testing, The 3rd International Conference

on Advances in System Testing and Validation

Lifecycle, October 23-29, 2011, Barcelona, Spain.

Rossi, M., Ramesh, B., Lyytinen, K., & Tolvanen, J. P.

2004. Managing evolutionary method engineering by

method rationale. Journal of the Association for

Information Systems, 5(9), 12.

Sadrieh, A., Bahri, P. 2014. Novel Domain-Specific

Language Framework for Controllability Analysis,

Computer Aided Chemical Engineering, Volume 33,

pp. 559–564.

Sadrieh, A., Bahri, P., 2014. Novel Domain-Specific

Language Framework for Controllability Analysis.

Computer Aided Chemical Engineering, Elsevier,

Volume 33, pp. 559-564.

Keywords: Domain-Specific Language; Maintainability;

Controllability analysis; CAPE.

Safa, L. 2007. The making of user-interface designer a

proprietary DSM tool. In 7th OOPSLA workshop on

domain-specific modelling (DSM).

Sprinkle, J., Mernik, M., Tolvanen, J-P., Spinellis, D.,

2009. What Kinds of Nails Need a Domain-Specific

Hammer? IEEE Software, July/Aug.

Ströbele, T., 2005. EclipseUML—UMLundEclipse,

presentation at OOP Conference, 24–28 January,

2005, Munich, Germany.

Tolvanen, J.-P., Luoma, J., Chen, D., -J. 2014. Reaping

the benefits of architectural modelling in embedded

design. Embedded, November.

Warmer, J., Bast, W. 2011. Developing an Insurance

Product Modeling Workbench. Presentation at Code

Generation Conference 2001, Cambridge, UK.

Welke, R.J., 1998. The CASE Repository: More than

another database application. In Proceedings of 1988

INTEC Symposium Systems Analysis and Design: A

Research Strategy, Atlanta, Georgia, Cotterman, W.W.

and J.A. Senn (eds.), Georgia State University.

Whittle, J.; Hutchinson, J.; Rouncefield, M., 2014. The

State of Practice in Model-Driven Engineering, IEEE

Software, vol.31, no.3, pp.79-85.

Model-Driven Development Challenges and Solutions - Experiences with Domain-Speciﬁc Modelling in Industry

719
