PBCP: A Process-based Bussiness Collaboration Platform

Shiping Chen

1,2,*

, Tsz Lam Chim

, Zhijie Li

, Bo Yan

, Hendra Wijaya

and Surya Nepal

Commonwealth Scientific and Industrial Research Organization (CSIRO) Data61, Sydney, Australia

School of Electrical and Information Engineering, The University of Sydney, Sydney, Australia

Keywords: Multi-party Collaboration, Business Process, Rule-based Business Engines, Event-driven Architecture.

Abstract: Business expertise becomes more specialized and focused, which leads to a large number of small and

medium enterprises (SME) to deliver a specific service in context of a business collaboration. This paper

presents such a process-based business collaboration platform to facility this kind of multi-party business

collaboration. The platform features with a process-oriented user interface, event-driven business process

backend, which makes it elegant and generic to be used for different multi-party collaboration applications.

1 INTRODUCTION

Business expertise becomes more specialized and

focused, which leads to a large number of small and

medium enterprises (SMEs) to deliver a specific

service, such as home loan brokers, solicitors and

building inspectors. On the other hand, some

businesses require multiple service providers to

work together to complete a complicated business

process. As a result, there is a strong demand for a

collaboration platform to facilitate such a multi-

party collaboration as an innovative online service,

Blaire Palmer (2014).

Most of web-based collaboration service are

either yellow-page-based simple information

repositories or complicated and expensive

enterprise-level CRM/ERP systems as Salesforce

(1999). We envision a simple, lightweight yet

capable secure collaboration platform that can attract

clients and SMEs to work together by following

natural business processes for dynamic business

collaborations Surya Nepal and Shiping Chen

(2011).

In this paper, we explore software architecture

and middleware technologies for building process-

based business collaboration platforms (PBCP) for

small and medium business. In particular, we

identify common functionalities and requirements

for building and operating process-based business

collaboration systems. A XPDL-based front UI

(User Interface) is designed and implemented by

reusing and extending the standard XML Process

Definition Language (XPDL) in Brunt, J. and K.

Swenson. (2006). A simple business engine

is implemented on top of jBPM v6.2.0 (2015).

2 REQUIREMENTS FROM

MOTIVATION EXAMPLE

We use the following real-world application

scenario as a motivation example to specify the

problem and capture the key functionalities and

requirements of this type of collaboration

applications.

2.1 Motivation Example

Alice wanted to spend $1,000,000 to buy house in

Sydney. First, she contacted a number of banks to

enquire their home loan interest rates. Then she

decided to borrow $800,000 from Bank-A (pay the

rest with her saving), because Bank-A’s home loan

interest is the lowest. She got a pre-approval of her

home loan application from Bank-A before her

property hunting.

Next Alice found out $1,000,000 property near

her workplace via a property agent. She put a $1000

deposit to secure the property. Then she hired a

solicitor to help the purchase. The solicitor reviewed

the sale contract, checked the property registration,

had Alice signed the contract, and exchanged the

contract with the vendors’ solicitor.

According to the local regulation, Alice has 12

days, also called cooling period, to terminate the

contract with reasonable reasons after signing the

Chen, S., Chim, T., Li, Z., Yan, B., Wijaya, H. and Nepal, S.

PBCP: A Process-based Bussiness Collaboration Platform.

In Proceedings of the 18th International Conference on Enterprise Information Systems (ICEIS 2016) - Volume 2, pages 575-582

ISBN: 978-989-758-187-8

575

Start Deposit Taken

Exchange

Contract

Cooling-Period

Timeout

Settlement End

Parties Involved

(Service Providers)

Vendors Agents Buyers Solicitors/Conveyancers Building/Pest Inspectors Banks

Documents/Artificers

Deposit

Signed

Contracts

Buildi ng

Inspection

Reports

Finance

Approval

Final

Settlement

Statements

Move-in

RemovalCleaner

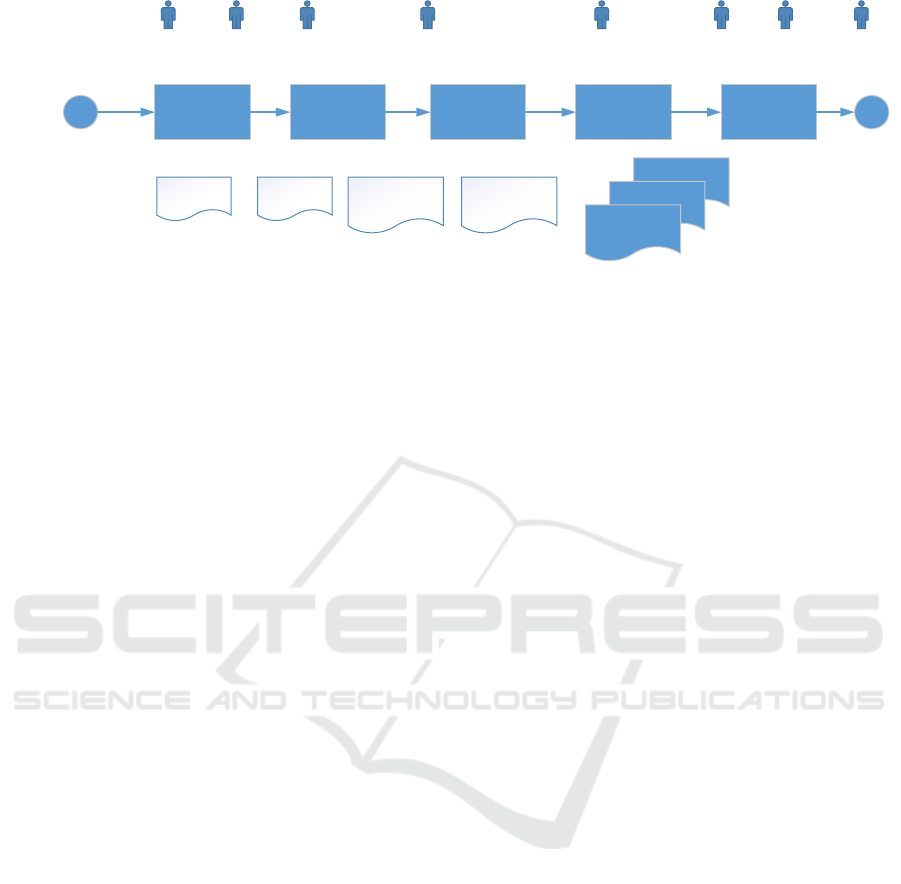

Figure 1: “Buying a property” as the motivating example.

contract. In practice, Alice would hire a property

specialist to conduct building and pest inspections to

ensure there were no major issues with the property.

At the same time, Alice had her home loan

application fully approved from Bank-A after the

property being valued.

Since nothing went wrong during the cooling

period, the contract entered to non-conditional stage,

in which both the buyer and vendors were preparing

for the final settlement of the deal, including booking

cleaning and removal services etc.

The whole business process of “buying a property”

is illustrated in Figure 1. And we can find a

considerable number of this class of multi-part

collaboration applications in our real life.

2.2 Functionalities vs. Requirements

Based on the above motivation example and the

other similar applications, we can capture the

following basic functionalities/features for this class

of multi-party business collaborations applications:

• A collaboration can be defined as a simple

business process.

• The multiple business entities can dynamically

participate in a particular business process.

• A participator can join in a collaborative

process via (but not limited to):

o Queuing

o Invitation

o Auction

o Recommendation

• The interaction between participators can be

either automatic machine-to-machine, or semi-

automatic human-two-machine, or completely

human-to-human.

• The collaborators can share some documents as

the collaboration is going on, such as

contracts, deposit receipts, building inspection

reports, etc.

To support the above features and functionalities

and consider the (performance and cost) overheads,

we identify three generic requirements for

middleware technologies of building and operating

the process-based collaboration systems as follows:

R1. A process-based generic frontend User

Interface, which drives the interaction between

end-users and the service providers and

visualizes the excitation of the whole business

process

R2. A lightweight business process engine that can

decouple the business rules/logics with the

engine execution.

R3. A secure database and/or file system to store

the collaboration process and data

In this paper, we address the top two

requirements and leave the last requirement as our

future work.

3 RELATED WORK

Workflow has been developed for decades ago. It is

used to describe the business procedure by utilizing

a series of tasks. Those tasks are also handled by

different roles in a business process. With the

development of the computer technology, the

workflow processes can be handled by the workflow

application which can automatically or semi-

automatically execute the task in a more efficient

way Xiao, Y., et al (2004). The Workflow

Management Coalition (WFMC) defined a basic

workflow reference model in 1994. It contains

composing, function and interface of the workflow

for further development in Xiao, Y., et al (2004).

For many organizations, the workflow models

have been widely used to deal with the collaborative

processes using heterogeneous workflow

middleware Armin Haller, M.M., et al. (2009). In

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

576

order to define a complex collaborative business

process, the internal and external workflow

processes should be aligned as a whole, which may

cause the low flexibility and interoperability

problems. Therefore, a new workflow approaches

which are the XML Process Definition Language

(XPDL) and Business Process Model and Notation

(BPMN) are created to develop the workflow

process model presented in Brunt, J. and K.

Swenson. (2006).

3.1 XML-based Business Process

Languages

Many XML-based business process languages have

been developed in the past two decades to address

all aspects of enterprise business process Xiao, Y., et

al (2004). It is with many working examples and the

acceptance from large commercial companies to use

these languages to tackle the workflow related

challenges Swenson, K. (2007). .Some of the most

popular languages include BPML (Business Process

Modelling Language) introduced by Business

Process Management Initiative, BPEL (BPEL4WS)

proposed by IBM, Microsoft and BEA, and also

XPDL (XML Process Definition Language)

developed by Workflow Management Coalition

Shapiro, R. (2002).

The comparison between these XML-based

languages has been presented by Shapiro, R. (2002).

In the article, he firstly identified and introduced

them and then clearly compared each of the

components of these languages side by side in a

table format. Within the comparison, the author has

summarized that each of the languages are targeting

to a slightly different user group. For BPML and

BPEL, they are mainly focusing on issues important

in defining web services, whereas XPDL focuses on

issues relevant to the distribution of work. He

supported his view by pointing out that activity

attribute in XPDL is capable of specifying the

resources and applications required to perform the

activity. This would be a slight advantage for XPDL

to be implemented in a collaboration system in

comparison to BPML and BPEL Tran, H., et al.

(2008). However, the author did not make any

further elaboration on the decision of languages

except stating their usages. Also it is important to

note that some of these languages have been evolved

and revised since the release of the paper in 2002,

especially for the mentioned language XPDL 1.0,

which current version XPDL 2.2 is now supporting

to present BPMN 1.x and 2.0 in XML file format as

well. Besides those changes, this article remains to

be a good reference for languages comparison. The

advantage of using XPDL over other languages can

also be seen in the presentation slides prepared by

Brunt, J. and K. Swenson. (2006), where it has

expressed that XPDL 2.0 is particularly good in

terms of extensibility. The language itself allows the

developers to handle and store vendor specific

features without affecting the compatibility. This can

also be seen and further described in XPDL version

2.2 process definition. Developers are allowed to use

“Extended Attributes” to extend the functionality of

this specification to meet individual product needs.

Other than the possibility to extend the language,

XPDL 2.0 and upwards is also capable to serialize

BPMN (Business Process Modelling Notation) to an

XML file, as stated in White, S.A. and S. BEYOND,

(2003). This functionality is important as BPMN is a

graphical notation representation of workflow

processes which allow business people easily to

understand and develop. In conjunction with that, a

lot of existing applications are developed to translate

from other XML processing languages to XPDL.

Yuan, P., et al. (2008) have successfully

demonstrated the possibility to develop a tool called

WFTXB to interpret files from BPEL to XPDL with

a good transformation result. The authors of the

article decided to analyse the structure of the two

languages and finding the similarity between them in

order to write the transformation algorithms in

pseudo-code.

XPDL is also one of the well accepted language

of choice compares to other XML process

languages. A lot of enterprises have chosen to use

this as their language as it is easier to understand.

And this is also presented in Yuan, P., et al. (2008)

and

to support this argument.

3.2 Business Process Model and

Notation (BPMN) Approach

In addition to business process representation,

BPMN also specifies how business processes should

be executed in a standard way. The popular BPMN-

based workflow engine is JBPM which is developed

by Red Hat. The JBPM provides mature business

process analysis. Following the JBPM engine,

companies can use internal business workflow editor

to design the specific workflow for their business.

However, using jBPM is seen like too big. It is

because jBPM has comprehensive description for

the business, which leads to the large size library. If

the project is designed to be a light weight system,

the large szie library will also cause the presure to

the system capacity and running budget.

PBCP: A Process-based Bussiness Collaboration Platform

577

3.3 Challenge vs Solutions

One of the biggest challenge to implement a

collaboration system for multi-parties business

process is to apply and design one single workflow

for everyone to be working on. This presents the

difficulty to abstract other business processes for the

current company within the workflow model. To get

around this issue, one could simply define the

business work flow process separately for different

users. But this will create two problems as Armin

Haller, M. M., et al. (2009) identified, choreography

interfaces need to be created and synchronised with

the workflow model manually, and the consistency

of choreography interfaces to the workflow model is

not guaranteed. Hence, this option is not feasible and

there should be a way to address this issue directly.

There are several researches done on this

specific topic over the years. Chebbi, Dustdar et al.

(2006) have presented their solution of this firstly by

allowing the clients define their own private

workflow process and then interconnect them to

present a whole holistic view for the large

collaboration system. This solution allows for partial

visibility of workflows and their resources to the

required users, and this is important to solve the

issue. The presented idea seems to be a good

solution if the system is too complicated to connect

in the first time or some of the components is not

available in the beginning. However, this algorithm

has not been deployed and tested as the time when

the paper is written. Another solution is presented

one year after the last one by Tran, H., et al. (2008).

In this proposed idea, it is a reversed concept of the

previous where this time it first accepts a large fully

developed workflow as an input, and then generates

executable views for each party as an output after

processing has been done. However, in this very

specific solution, only BPEL/WSDL language can

be used within the toolchain provided. It can be a

good solution and a reference to solve this very

specific issue if the chosen language is BPEL.

A similar approach is suggested with the use of

XPDL as input language by Armin Haller, M.M., et

al. (2009). Within the paper, the authors presented

the whole process of the separation of views into 3

main steps, XPDL to m3po, compaction rules

processing, and finally mapping the individual views

to an executable choreography interface model. By

performing these 3 steps, it can translate the large

XPDL workflow into separated executable code to

run in other machines. However, it is important to

note that the output of this approach is no longer in

XPDL format anymore. Also the performance of this

translated executable file or the extensibility

provided by XPDL should be examined before using

this approach.

In this paper, we also use XPDL as business

process representations between business process

design and tool and our collaboration system.

However, we use XPDL heavily for multiple

purposes in our design as follows:

• First, we use XPDL to represent the design of a

business process and its initial states.

• We use XPDL to interact with users to get

users’ inputs.

• Once getting use inputs, we use the XPDL as a

data container to carry the use inputs to send

back to the backend business engine.

• According to the pre-defined business logic, the

business engine would either conduct a set of

actions (e.g., send a number of emails) or

updating some states of the business process in

XPDL to send back to the frontend.

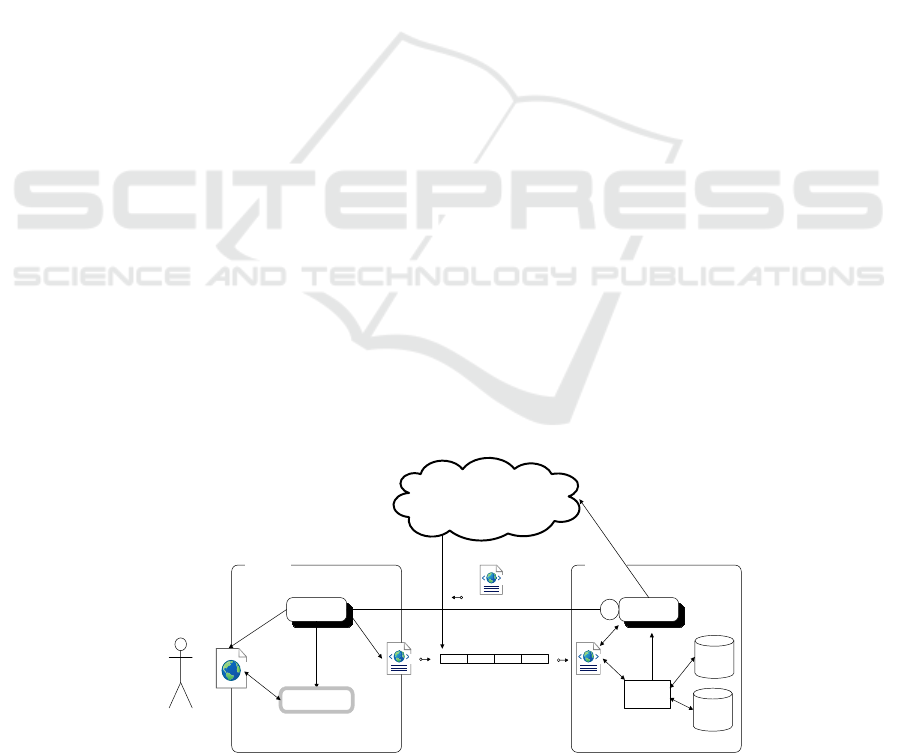

Figure 2: Overall architecture design of process based business collaboration platform.

Front-end Back-end

Function base

Data

XPDL parser

Massage queue

XPDL Interpreter

Pop-up state Handler

Workflow engine

Outer services

HTML

representation

XPDL workflow file

Mapping

Updated XPDL file API

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

578

4 PBCP ARACHECTURE DESIGN

The architecture of the system shown in Figure 2 is

an overview of the entire platform. It includes three

main components, front-end, back-end and outer

services, and also some connection mechanisms in

between each of these components.

4.1 Frontend UI

In the front-end, it is a simple model which proves

the possibility of using XPDL to display the content

in an interactive diagram format which combines

with the functionality of displaying and collecting

extra data. It is currently designed to show the

content within a webpage due to ease of

implementation, however, it is possible to use the

same concept and apply to the design of mobile

application as well. On the other hand, the back-end

is receiving the workflow language XPDL and

process it with its own design engine. On the far left

hand side, it represents all the modules within front-

end component, including HTML representation,

XPDL interpreter, and pop-up state handler. All of

these work together to form the front-end user

experience. XPDL interpreter is responsible to

interpret the useful information from the XML-

based file to readable objects for the front end

system, and vice versa to convert it back to XPDL

before it being transferred to the back-end system.

After the file is being interpreted, it sends the

information to HTML representation module.

In here, it takes advantage of existing library for

web application to render these information into an

interactive diagram with CSS and JavaScript.

Besides that, XPDL interpreter also passes state

details to the handler for rendering the information

as a separate pop-up window when the user clicks on

the diagram. All of these are powered by the web 2.0

technology mentioned in the previous “Background”

section. And finally, the pop-up state handler is one

of most important part of the front-end component.

Since the design of the collaboration platform is to

be generic, this part of the implementation is to

leave as much future design space for pop-up

window as possible, while still allowing the handler

to retrieve important information like form inputs at

the end. For the current design, the business process

can define both the pop-up window to be rendered

internally as view in the web application, or

dynamically retrieve the webpage externally with an

URL and replace part of the HTML code to submit

the result to the system.

4.2 Backend Business Process Engine

Back-end component is shown on the far right side

of Figure 2. The main module of the component is

workflow engine where it parses the XPDL file that

it receives or stores in the database and perform the

corresponding function as it matches up the rule

engine inside. There are various ways to perform

this task as suggested by previous people in their

related work. However, this is out of the scope of

this thesis as it focuses only on the front-end part of

the system. Besides the workflow engine, it also

contains database and function base to store all the

information that it receives from the front end and

also outer services. Once the back-end finishes

processing the data and performing the related task

in the workflow, it provides an API for others to

retrieve and get the latest business workflow status

from the system.

4.3 External Services

To allow the extensibility of the platform, the

designed solution is generic to any business process

workflows. Therefore, an outer services component

is drawn in Figure 2. This is to represent the

functions or actions provided by business partners to

be performed after the mapping of rules engine.

When these actions are finished performing, it

would then transfer back the back-end for further

processing and storing

4.4 Communication Channel

There are two main communication channels for the

entire platform, which are message queue and also

API. Both of them are provided by the back-end

server to send and retrieve XPDL file. Message

queue is chosen since the server requires buffer to

handle the requests in an organized manner while

not losing the data during the transfer. On the other

hand, API is chosen for front-end to retrieve data

since the time the customers go online can be

different. And API is good for that use to retrieve the

information stored in the system when it is needed.

5 PROTOTYPING AND TESTING

In this section, we provide technical details in

implementing the above design as a proof concept

prototype. We also evaluate this prototype in terms

of usefulness and performance.

PBCP: A Process-based Bussiness Collaboration Platform

579

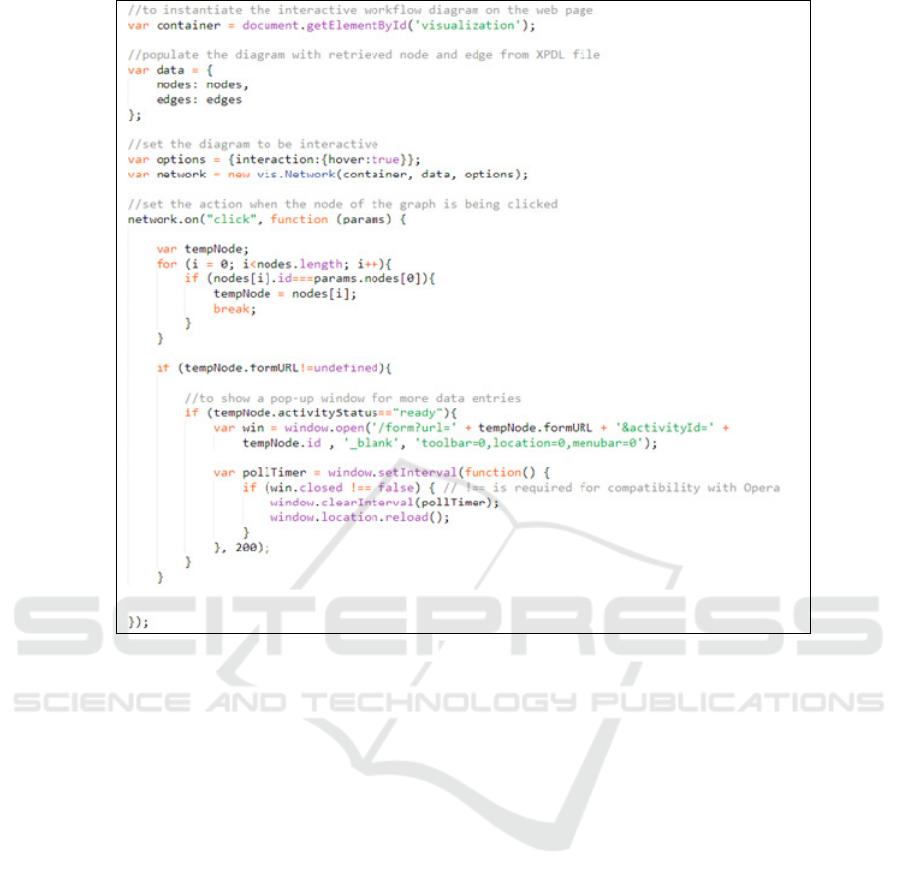

Figure 3: Interactive workflow diagram code in JavaScript.

5.1 Prototyping

XPDL Interpreter is one of the main controller

within the web application. The usage of the

interpreter is to retrieve XPDL file from the server

using API call, and process it and send towards both

view and other controller for controlling pop-up

window.

For the implementation of this module, the issue

of unable to read directly from the XPDL file needs

to be solved. For this challenge, an external library

called “xml2js” is used, to first convert the XML-

based language file to JavaScript object. It is then

possible for the controller to process this information

and retrieve the data inside. Due to the

interchangeability of XML and JavaScript object,

the integrity of the data in XPDL is preserved. And

vice versa, when the pop-up window has finished

collecting the data from the user, these information

will be injected back to the JavaScript object and

convert to XPDL file and send back to the server

using message queue.

During the interpretation process, the interpreter

is able to identify the selected components within

the XPDL file. These include activities, and external

attributes within the components. All of these

information will then be passed on to the controller.

Figure 3 shows the skeleton of the JavaScript

code to implement the interaction between users and

a business process. The JavaScript code first gathers

all the important information and create nodes and

edges to represent activities and associations in

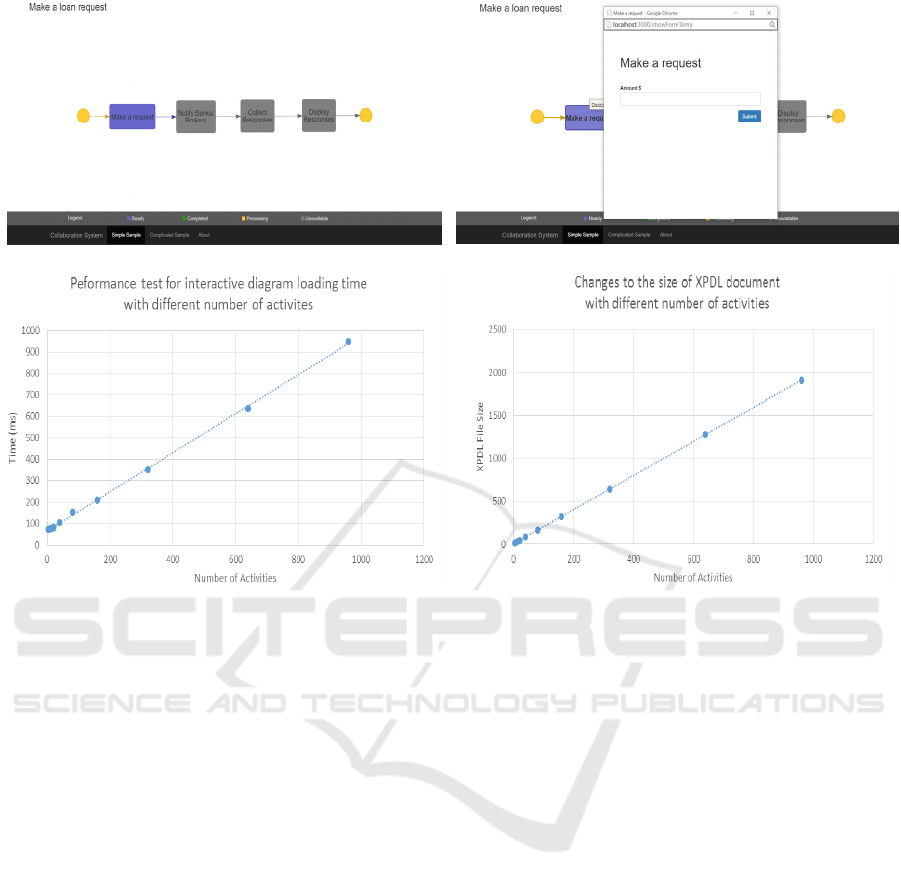

XPDL file as shown in Figure 4 (a). Then it

instantiates the diagram with these data and also

enables the diagram to be interactive with click

functionalities. When the corresponding activities

are being clicked, a pop up window will be showing

up and the controller of the pop-up window will be

run and render the information as shown in Figure 4

(b).

The backend was implemented using a RESTFul

web service (Tomcat v7.0), a message queue (

ActiveMQ v5.12.1), and a business process (JBMP

v6.2.0). When the RESTful web service serves as a

gateway to receive requests (e.g., XPDL), a generic

event process engine is implemented using JBMP to

process all event messages. A message queue is used

to store the requests from all parties (The frontend

web UI, as well as the outer services) and feed the

process engine.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

580

(a) A simple home loans business process (b) Interaction within an activity

Figure 4: Prototype UI and performance testing results.

5.2 Performance Testing

We also conduct some testing to evaluate the

performance and scalability of the XPDL render in

terms of message sizes and processing time. The

testing results are shown in Figure 4 (c) and (d). As

can be seen, both the size of the XPDL files and the

response time of processing these XPDL files are

reasonable as the number of activities in a business

process increases till 1000 activities, which is very

rarely in real life. This means our solution can scale

for most of business process-based collaboration

applications.

6 CONCLUSION

In this paper, we present a novel business process-

based collaboration platform. This work is well

motivated with real-world applications in context of

multi-party collaboration. We abstracted the

software architecture of this kind of systems as a

business process-based UI and a generic event

process engine. A design and implementation are

provided as a proof of concept. We demonstrated

and tested the prototype to show the usefulness and

scalability of our technology. We believe our

technologies can be easily reuse for different

collaboration applications with less efforts than

using classical web applications, due to our generic

software architecture abstraction.

REFERENCES

Blaire Palmer (2014) Collaborating with SMEs - Advice

and Recommendations for Large Enterprises, Whitw

Paper That People Thing

Salesforce (1999): www.salesforce.com/au

Surya Nepal and Shiping Chen (2011): Dynamic Business

Collaborations Through Contract Services. IJSSOE

2(4): 60-82

Xiao, Y., et al (2004) Research of Web services workflow

and its key technology based on XPDL. IEEE

International Conference on Systems, Man and

Cybernetics

Armin Haller, M. M., et al. (2009) Brahmanada Sapkota,

Manfred Hauswirth, From workflow models to

executableWeb service interfaces. 2009 IEEE

International Conference on Web Services

Xin, J., X. et al. (2007). The design and implementation of

XML-based workflow engine. in Software

PBCP: A Process-based Bussiness Collaboration Platform

581

Engineering, Artificial Intelligence, Networking, and

Parallel/Distributed Computing, 2007. SNPD 2007.

Eighth ACIS International Conference on. 2007

Swenson, K. (2007) The Tipping Point for XPDL,

http://social-biz.org/2007/03/19/the-tipping-point-for-

xpdl/.

Shapiro, R. (2002) A technical comparison of xpdl, bpml

and bpel4ws. Cape Visions

Brunt, J. and K. Swenson. (2006) XPDL 2.0 and BPMN

1.0 Tutorial. http://www.fujitsu.com/downloads/

INTSTG/webinars/Fujitsu-Interstage-XPDL-BPMN-

Webinar.pdf.

White, S. A. and S. BEYOND, (2003) XPDL and BPMN.

Workflow handbook: p. 221-238.

Yuan, P., et al. (2008) WFTXB: A Tool for Translating

between XPDL and BPEL. 10th IEEE International

Conference on High Performance Computing and

Communications, HPCC'08.

Chebbi, I., S. et al. (2006) The view-based approach to

dynamic inter-organizational workflow cooperation.

Data & Knowledge Engineering. 56(2): p. 139-173.

Tran, H., et al. (2008) View-Based Reverse Engineering

Approach for Enhancing Model Interoperability and

Reusability in Process-Driven SOAs. In: MEI, H. (ed.)

High Confidence Software Reuse in Large Systems.

Springer Berlin Heidelberg.

ActiveMQ v5.12.1 (2015): http://activemq.apache.org/

jBPM v6.2.0 (2015) open source: http://www.jbpm.org/

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

582
