A Reference Architecture for Mobile Crowdsensing Platforms

Herbertt B. M. Diniz, Emanoel C. G. F. Silva, Thomas C. C. Nogueira and Kiev Gama

Centro de Informatica, Universidade Federal de Pernambuco (CIn/UFPE), Av. Jorn. Anibal Fernandes, Recife, Brazil

Keywords:

Smart Cities, Complex Event Processing, Software Architecture, Crowdsensing.

Abstract:

Many software solutions today rely on systems that integrate and analyze city data gathered from different

sources (sensors and information systems) in real-time. Thanks to smartphones, citizens can act as smart

sensors collecting city data in what is being called mobile crowdsensing (MCS). The literature that explores

systems in that area, typically present high-level software architectures without much detail about their im-

plementation or feasibility. With the intention of offer a straightforward and easy-to-follow reference archi-

tecture, this paper presents an approach that employs off-the-shelves components for the construction of an

MCS platform for participatory sensing solutions in Smart Cities. We demonstrate an implementation of that

architecture in a speciﬁc domain.

1 INTRODUCTION

As a consequence of problems resulting from pop-

ulation growth in cities, many technologies are be-

ing used for urban monitoring (Odendaal, 2003), in-

ﬂuencing the way we are interacting with the urban

spaces that are becoming more chaotic, due to the

swelling population. Smart Cities (Naphade et al.,

2011) is a term that gained traction in academia, busi-

ness and government to describe cities that, on the

one hand, are increasingly composed and monitored

by pervasive and ubiquitous computing. Many soft-

ware systems in that context seek to integrating vari-

ous sources of information technologies (ICTs), tak-

ing into account a holistic view of the city and cen-

tralized monitoring and control to aid in supporting

decision making (Ganti et al., 2011).

These sources of ICTs form complex structures

(Nagel et al., 2014), and generate a large volume

of data, which present enormous challenges and op-

portunities, hindering the possibility to provide pro-

grams that integrate sensor information and that cap-

ture from the physical space, taking samples of what

is happening in real-time. It is necessary to integrate

easily data from different sources, and also consider

additional sources, such as people providing informa-

tion in a collaborative way.

The usage of FLOSS (Freely Licensed Open

Source Software) combined with COTS (Commercial

Off-The-Shelf ) allows the creation of cost-effective

solutions with little implementation effort. From a

business perspective, Gasperoni (Gasperoni, 2006)

elaborates on the use of FLOSS and COTS offering

numerous advantages, such as software quality and

speed of evolution.

However, when analyzing the literature on Smart

Cities, there is a lack of detailed information on

how these types software architectures implemented.

Even when looking into particular types of smart

cities (sub)systems, such as those focused on Mobile

Crowdsensing, there is only shallow evidence on soft-

ware design and almost absent evidence on the effec-

tive usage of FLOSS and COTS components in that

context.

Aiming to provide a reference architecture and

implementation of Mobile Crowdsensing platforms,

in this paper we present an approach using freely

available off-the-shelves components. The platform

was implemented together with an application in the

domain of urban mobility along with some experi-

ments were carried out to prove the feasibility of the

proposed approach.

The remainder of this paper organized as follows:

Section 2 discusses background and motivation for

our work; Section 3, presents an overview of the ref-

erence architecture; Section 4 brings details about the

architecture implementation in the urban mobility do-

main; Section 5 presents the tools and methods of the

tests in Section 6; Section 7 introduces results and dis-

cussions; Section 8, presents related work; and Sec-

tion 9 brings conclusions and future work.

600

Diniz, H., Silva, E., Nogueira, T. and Gama, K.

A Reference Architecture for Mobile Crowdsensing Platforms.

In Proceedings of the 18th International Conference on Enterprise Information Systems (ICEIS 2016) - Volume 2, pages 600-607

ISBN: 978-989-758-187-8

2 BACKGROUND

2.1 Smart Cities Software Architectures

It is important to have software architectures that can

use as reference models for those who want to put in

practice such types of integration scenarios in Smart

Cities. The work from Chourabi et al (Chourabi et al.,

2012), for instance, provides only a more strategic

and high-level perspective on smart cities as a whole.

Al-Hader and colleagues (Al-Hader et al., 2009) pro-

pose more details about Smart Cities Components Ar-

chitecture but remain shallow. Even when getting into

a more detailed literature survey about software ar-

chitectures for smart cities, da Silva and colleagues

(da Silva et al., 2013) were only capable of extract-

ing general requirements for such architectures. The

surveyed articles presented speculative or high-level

architecture drafts, with little or no evidence on how

such architectures implemented.

Many systems being developed including the peo-

ple as more participatory elements in the system and

the city, turning them into crowd sensors. Ganti and

colleagues (Ganti et al., 2011), for instance, present

only the general functioning of Mobile Crowdsensing

(MCS), although their main purpose is not focused on

software architecture. However, Guo et al (Guo et al.,

2014) propose different layers of architectures such

as data collection, transmission, and processing, but

do not give details on concrete architectures or how

to implement that. Cardone and colleagues (Cardone

et al., 2014a) bring one of the MCS architectures that

get into more detail, illustrating what component plat-

form to use but without concrete examples on which

components to use.

2.2 Crowdsensed Data Analysis

As pointed out by Erickson(Erickson, 2010), humans

can contribute to deeper qualitative knowledge, ana-

lyze vague or incomplete data and act in a way that

digital systems are often not capable. Mobile Crowd-

sensing (MCS) (Ganti et al., 2011), in turn, refers to

community sensing (e.g by people) for data collec-

tion, in which people act as sensors (crowd sensors).

Sherchan (Sherchan et al., 2012) considers two

categories of crowdsensing: personal and community

sensing. The former refers to the processing of data

from a single individual to beneﬁt this same individ-

ual with the result of processing of the data which it

has issued. In the case of community sensing (Ganti

et al., 2011) there are two distinct types of mod-

els: opportunistic sensing, which requires minimal

user involvement (e.g. automatic geolocation through

GPS), and participatory sensing, which requires the

active participation and direct provider of user data.

A major point in collecting that information in

real-time is how to generate application-level mean-

ingful events based on the collected data. Many

projects combine MCS and EDA (Event-driven Ar-

chitecture). In Etzion e Niblett (Etzion and Niblett,

2010), EDA is an architectural style in which one

or more software components responsive to receiv-

ing one or more notiﬁcation events. Complex Event

Processing (CEP) (Buchmann and Koldehofe, 2009)

iis one of the possible strategies for achieving EDA

in distributed systems. It helps to build scalable and

dynamic systems, allowing to analyze data (e.g. cor-

relation, ﬁltering, aggregation) in real-time.

2.3 Application Domain

One of the widely accepted visions of smart cities,

provided by Caragliu (Caragliu et al., 2011), men-

tions different axes in smart cities (smart economy;

smart mobility; a smart environment, smart people,

smart living and smart governance). There is an evi-

dent relationship between smart living and smart mo-

bility there is a continuous growth of infrastructure,

programs and policy interventions to promote bicy-

cling throughout the world (Pucher et al., 2010).

In the context of the work presented here, we are

motivated by a mobile application can help cyclists

on their daily trips. Although most applications in

that context are typically focused on route planning

(Gavin et al., 2011), our proposition is focused on

reporting users about dangerous spots on their route,

while they are moving. These places (e.g., accidents,

robbery, intense trafﬁc) are reported collaboratively

by the application users.

3 REFERENCE ARCHITECTURE

In the face of middleware solutions for smart cities

currently most commonly proposed, some character-

istics were taken into account in building our architec-

ture, to be treated in the most common form different

approaches. As an example, we can mention the sen-

sor connection usage using message queue services

for the integration of data sources of the asynchronous

and synchronous way using RESTful web services,

complex event processing for analysis of streams of

data in real-time and using human sensors through

Crowdsensing systems. To do this, we organized the

platform into components that can be easily found as

free off-the-shelves components, aiming to facilitate

and to simplify the implementation. The role of each

A Reference Architecture for Mobile Crowdsensing Platforms

601

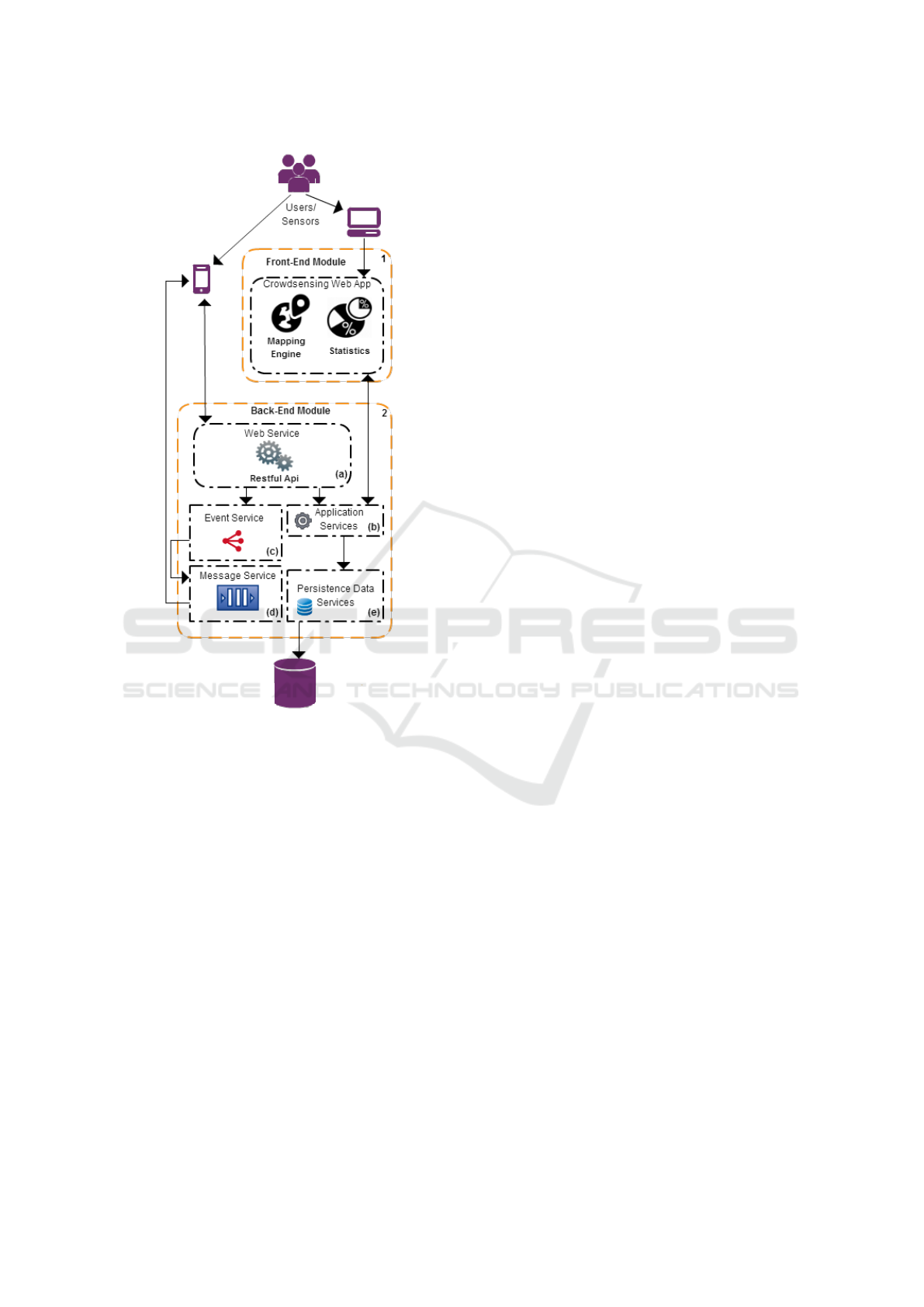

Figure 1: Reference Architecture for Mobile Crowdsensing.

component will be presented later in the description

of the platform architecture, which is built based on

these characteristics.

The platform architectural design is described in

two service modules: Front-End Module and Back-

End Module, as shown in Figure 1. In the Front

End Module (Figure 1 (1)), is the crowdsensing sys-

tem that can either be Web or Mobile. The Back-

End module (Figure 1 (2)) contains the RESTful

API services (Figure 1 (2.a)). It is responsible for

coordinating access to synchronous services of Re-

quest/Response and event processing service (Figure

1 (2.c)). That, in turn, accesses the services of the

asynchronous messaging service module in the model

Publish/Subscribe (Figure 1 (2.d))). Thus provid-

ing the transmission of real-time data and signaling

the connected clients, which allows establishing and

maintaining connections via socket and service inter-

faces allowing any device to send and receive data

to be processed and redistributed. This data is con-

trolled by the Services Manager of the application,

(Figure 1 (2.b))), which accesses through the persis-

tence ser-vice, the data persisted in the database (Fig-

ure 1 (2.e)).

The platform has two data entry services that

can be provided through crowdsensing system on the

Front-End module or the Web Service API in Back-

End Module.

4 IMPLEMENTATION

The system described here details a Crowdsensing ap-

proach, which has a Google Maps service, which al-

lows users in the form of human sensors view occur-

rences of points on the map with bookmarks, graphs

with statistics and the table with the detailed list oc-

currences of data. The proposed platform, the ap-

plication of crowdsensing is parameterized for vari-

ous domains offering the opportunity to create custom

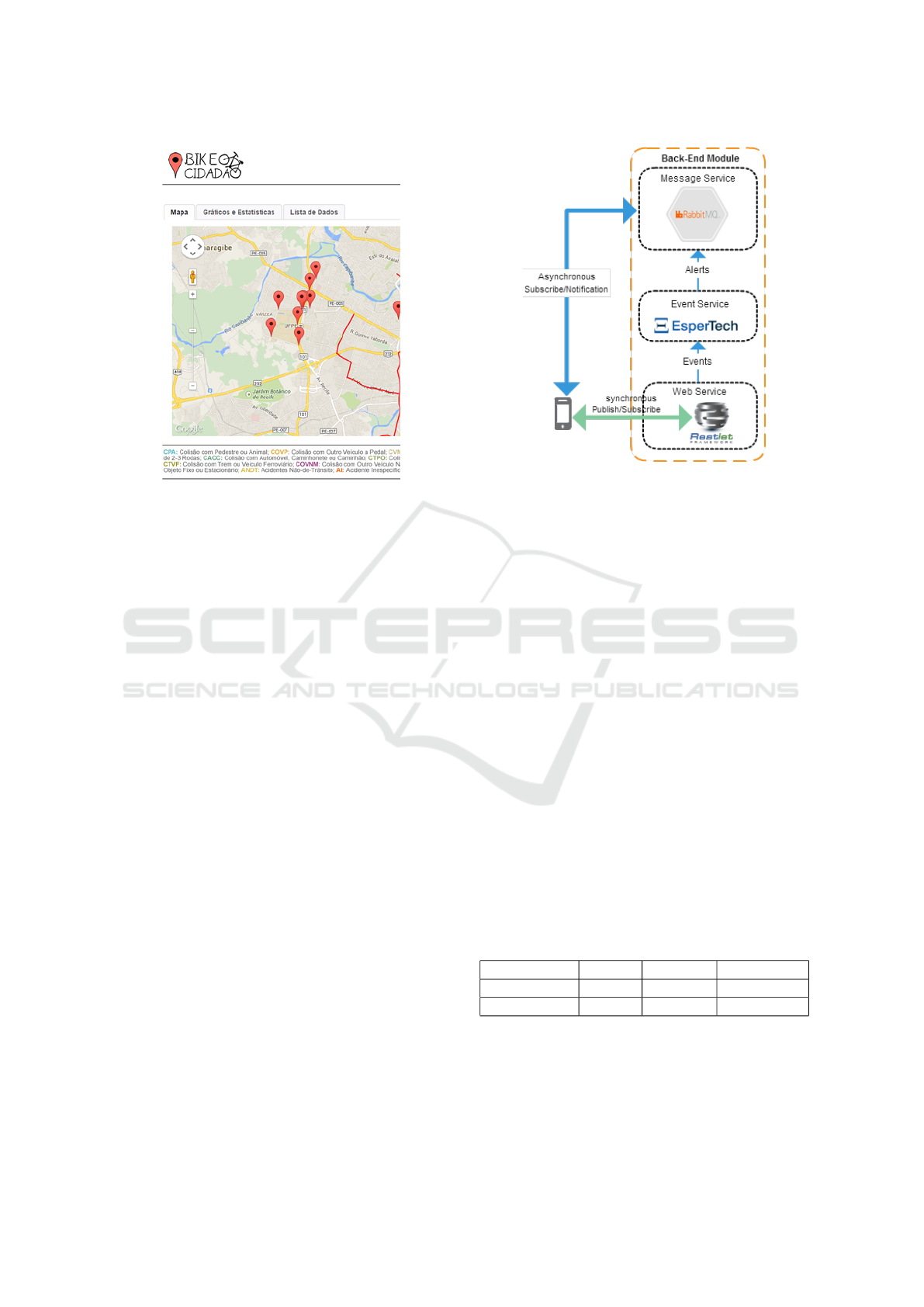

bookmark this, such as the map described in Figure 2,

with urban mobility domain data describing points of

trafﬁc accidents involving bicycles.

4.1 Front-end Module

The front-end module is comprised of two applica-

tions: a Web Application and an Android Mobile Ap-

plication. The Web Application has a dashboard with

charts and statistics showing the total occurrences, a

pie chart format showing statistics for each type of oc-

currence, and the list of events in a tabular format, in

addition to being can also report accidents as we can

see in Figure 2.

The Android application developed with the inten-

tion of consuming platform data and present context-

aware information. The application has a cyclist pro-

ﬁle with two basic features provided through the Web

Services Module data consumption. One such ser-

vice is the Crowdsensing Alert, where the application

sends its current GPS position and receives the infor-

mation of the distance between the cyclist and the ac-

cident points registered by the Crowdsensing system,

alerting to the cyclist that he is close to an accident

point and the other report problems with cyclists by

crowdsensing information with markers on the map.

A second proﬁle is the Driver Proﬁle that has a ser-

vice to the CEP Alert, which in real-time can be iden-

tiﬁed the nearest user who is using the application in

motor-vehicle mode, and be alerted to be more care-

ful, avoiding possible accidents with cyclists. CEP al-

lowed us to employ the concept of geofencing, which

is the capability of detecting user proximity to a given

geolocation (Cardone et al., 2014b).

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

602

Figure 2: Web view of the example crowdsensing system.

4.2 Back-end Module

The Web services model, shown in Figure 3, provides

data services in real-time via synchronous and asyn-

chronous requests. Synchronous requests are made

through a RESTful web service using the JSON for-

mat for data transmission. The requests are made

through the client data send requesting services pro-

vided by the Web Service via POST/GET that, in turn,

requests data persistence layer through conﬁgurable

functions. For example, there is a location service re-

turning the type of occurrence and the distance be-

tween a point latitude and longitude sent from a client

and the location of the nearest occurrence, point per-

sisted by the user through the Crowdsensing service.

As the requests come in, events are registered

in the FLOSS/COTS Esper CEP engine and alerts

are triggered for queues in the event processing ser-

vice the asynchronous model to be consumed by cus-

tomers. Thus, this model uses the Message Queue

service, to capture the CEP alert triggered asyn-

chronously, by capturing events and processing rules,

and provides services through the Restlet framework,

processing occurrences stored in the data layer.

The Web Services module provides location ser-

vices that can be parameterized by the functions and

customizations of CEP tool of rules, as well as allow-

ing the user to create new rules to be provided through

the FLOSS/COTS component RabbitMQ queuing

system service, the asynchronous model. A rule of

this model (illustrated by Listing 4.2) A rule of this

model is parameterized location, that allows trigger

alerts with distance, in real-time, the last two loca-

Figure 3: The Service Layer Model.

tion requests latitude and longitude points sent via the

REST service and inserted them in the message queue

to be consumed by registered users.

SELECT 6378137 * Math.sqrt(

Math.pow((Math.toRadians(cast(Vehicle.lat,

double)) - Math.toRadians(cast(

BikePosition.lat, double))), 2) +

Math.pow((Math.toRadians(cast(Vehicle.

lng, double)) - Math.toRadians(cast(

BikePosition.lng, double))), 2))

AS distance, bikePosition.imei,

bikePosition.lat, bikePosition.lng,

Vehicle.imei, Vehicle.lat, Vehicle.lng

FROM BikePosition.win:length(1)

AS bikePosition, Vehicle

ORDER BY distance ASC LIMIT 1

5 TEST ENVIRONMENT

This section discusses the materials and methods used

for proof of concept of the proposed platform. For test

running, we used two computers, whose conﬁguration

is described in Table 1.

Table 1: Setup of the machines used in the experiment.

- CPU Clock RAM

M.USER 2410M 2,3GHz DDR3 8GB

M.SERVER M380 2,53GHz DDR3 4GB

The computer named M.USER was used to simu-

late users and send status and requests to the platform.

The simulation of the requests was held in M.USER

using the performance testing tool JMeter v. 2.9. The

computer named M.SERVER was the one who hosted

A Reference Architecture for Mobile Crowdsensing Platforms

603

the platform, received and processed requests from

M.USER. Altogether there were two tests. The ﬁrst

test (hereafter referred to as T1) simulated only re-

quests where users were no more points by accident,

previously registered by Crowdsensing service. In the

second test (hereafter referred to as T2) in all requests,

users were in danger route, according to Crowdsens-

ing service, and were in collision zone with another

user. Section 6 will describe the result of each test.

We considered the nature of real-time data

transferred by the platform and the need to keep

up the geographic location of users. In the con-

ﬁguration of virtual users in JMeter the following

parameters deﬁned: Threads = 1000, Ramp-up =

2 and LoopCount = forever. So every 2 seconds

1000 virtual users send requests to the platform. In

each test in JMeter measure platform performance

receiving simultaneous requests from the 1000

virtual users for 15 minutes. The performance

monitored for the following metrics: Times Over

Time, Transactions per Second, Response Times

Percentiles, Time Graph. Requests of virtual users

were GET type and conﬁgured with the following pa-

rameters: Connect Timeout = 10000 (ms), Response

Timeout = 10000 (ms). The connection Path for

submission of requests follows the following format:

/project/rest/trace/[queue id]/[latitude]/[longitude]/,

for example: /project/rest/trace/[queue

id]/[latitude]/[longitude]/, for example:

/project/rest/trace/54321/-8.0552967

3777147/-34.951613545417786/.

Moreover, in M.SERVER a setting has been made

to deal with the large number of requests from virtual

users and reduce the cost for opening connections.

Through the library C3PO of Hibernate was set up a

pool of 1000 connections.

6 TEST RESULTS

In this section the results of the two tests are consoli-

dated. As presented before, the T1 test has simulated

a total of 1000 users sending their status to the server

and waiting for an answer on the status of the current

route. In this test, 100% of the users were in a secure

route, i.e., they did not have the Crowd-Sensing ser-

vice notiﬁcations. Therefore, no event was triggered

by the CEP service, and no message was added to the

userâ

Zs message queue in RabbitMQ. On the other

hand, the T2 test 100% of users were on a route that

had any notiﬁcation by CrowdSensing service. Thus,

each request, a CEP event was triggered, and a mes-

sage was added to the userâ

Zs message queue with

the description of the accident just ahead.

Thus, the T1 test has synchronous feature exclu-

sively. In this test through a RESTful web service pro-

vided by the platform the user sends your geographic

coordinates and only expects a JSON document with

the distance and characteristics of your nearest ac-

cident. In fact, no users in this test were in danger

route. The T2 test, in turn, has synchronous and asyn-

chronous features. In the synchronous connection test

T1, T2 test calculates the distance of the rider about

the closest vehicle. In the case both are below a toler-

able distance the event service ﬁred alerts in the mes-

sages queues of the cyclist and automobile. Thus,

both kept an asynchronous connection to the platform

to be notiﬁed of the proximity of another user.

6.1 Response Time

The aim of this metric was to check the average time

to respond to a request delay to get to the virtual

user. That is the time that starts when the request

is sent to the server and ended when the response is

completely received by the client. In JMeter is rep-

resented by the metric Times Over Time and Time

Graph. As expected, the overall response time T2

is greater than time T1. As illustrated in Figure 4,

the average response time for T1 was 3708,58 ms and

4660,02 ms for T2. Indeed, having 30 random sam-

ples of size 100, with the replacement of the mea-

sured response times, and considering a level of 95%

conﬁdence level, has an average range of 3604.47ms

the 3840.0ms response to the T1 test and 4509.861ms

4627.493ms for the T2 test.

Figure 4: Distribution of response times. Given the varia-

tion presented in measurements of time, their representation

was better detailed in a chart in the box. The black line, by

default, represents the median and the black square repre-

sents the average.

In contrast to T1, in T2 for the time dedicated the

execution of complex event processing module and

notiﬁcations in asynchronous connections with Rab-

bitMQ. Through the medium listed above, we can

calculate the time spent on these tasks is an average

of 951,44 ms. That is, this is the average time the

platform takes to receive a stream of geographic co-

ordinates, to calculate the distance from that for the

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

604

points of accidents, to verify whether this point is in a

danger zone, and ﬁnally trigger notiﬁcations in mes-

saging queue of RabbitMQ. To better understand the

response time, Figure 5 shows the percentile of re-

sponse times of each test. It can be seen that the aver-

age response time T1 is in the 79,0% percentile. That

is, 79,0% of the requests have a time less than or equal

to the average. Likewise, the average response time

T2 is on the 68,8% percentile (Figure 5), given by the

metric Response Times Percentiles.

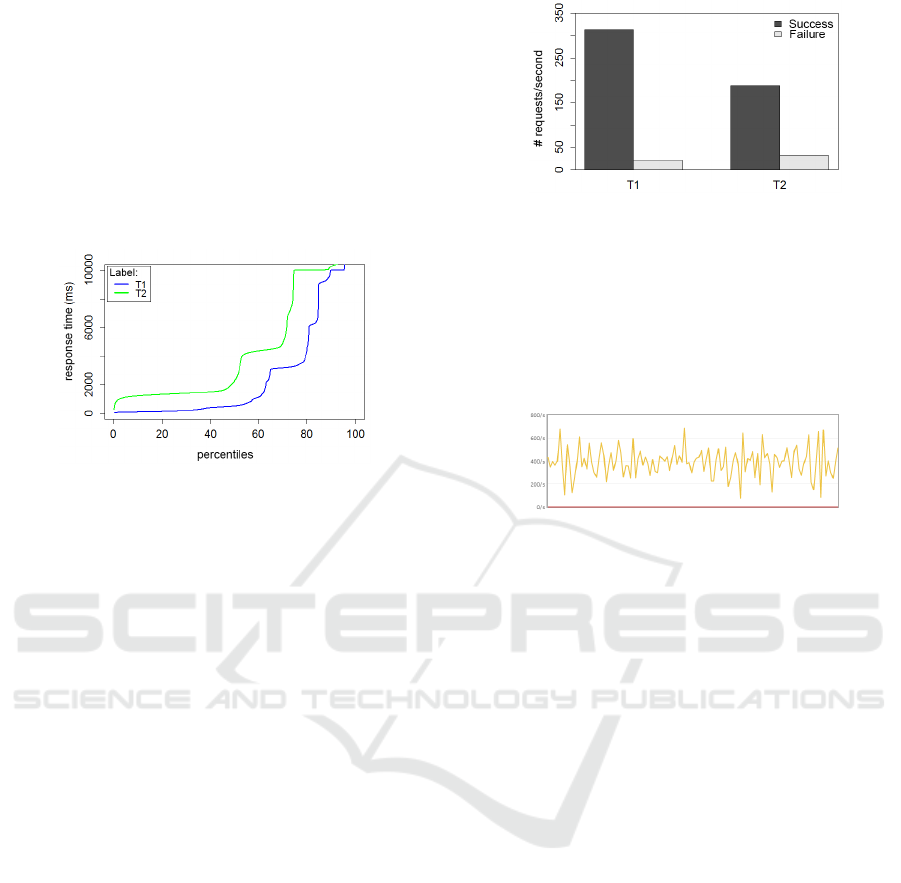

Figure 5: Percentile response time. The percentile values

increasingly ordering the sample in 100 parties. Thus, the

n-th percentile is the ﬁrst n% of the sample values.

6.2 Success and Fail Rate

The aim of this metric was to demonstrate the success

of behavior and failure in requests in T1 and T2 test.

As mentioned in Section 5, the JMeter requests were

conﬁgured with parameters Connect Timeout = 10000

(ms) e Response Timeout = 10000 (ms).That is, if a

connection delay more than ten seconds to open or

if the delayed request more than ten seconds to be an-

swered, this request was considered failure. In JMeter

is represented by the metric Transactions per Second.

Looking at Figure 6, it can be noted that T1 for

the test there was an average of 313,31 requests per

second successfully processed and 21.02 requests per

second failure. As for the T2 test, there was an av-

erage of 189.14 requests per second completed suc-

cessfully and 32.53 requests per second failure. In-

deed, as in Section 6, having 30 samples of size 100 of

the measured response times and considering a 95%

conﬁdence level, has an average range of 306,78 to

317,32 successful requests per second in the T1 test

and 186,93 to 191,29 to test T2. As for the failures,

the conﬁdence intervals are 19.77 to 21:34 failures re-

quests at test T1 and 31.22 to 33.28 for T2’s failures.

In the T2 test, for each request successfully an-

swered, two messages were sent to RabbitMQ, one

for the message queue of the cyclist and the other

on automobile message queue the RabbitMQ control

panel and monitor in real-time the activities of the

Message Queue service was accessesd through the

Figure 6: Success rate and failure in requests. The dark bars

represent the successful conclusion requests. The light bars

represent the failures requests.

server address localhost:15672/#/, you can ﬁnd.

In all they sent 350,307 messages to the RabbitMQ,

corresponding to an average of 389.23 messages per

second (see Figure 7). In fact, this rate is almost dou-

ble the amount of completed requests in T2.

Figure 7: Rate messages published in RabbitMQ queue per

second. The period illustrated corresponds to the last ten

minutes of test.

7 RESULTS AND DISCUSSIONS

As illustrated in Section 6, considering a total of 1000

simultaneous requests the platform had an average

time of 3708,58 ms response for the safe route (test

T1) and an average of 4660,02 ms for proximity no-

tiﬁcation with other users (test T2). Since, for T1,

79% of the requests have a time less than or equal to

T2 and the average, 68,9%. An average of 334.33 re-

quests per second to T1, only 6,28% of them were not

completed, and for an average of 221.67 requests per

second in T2, 14,67% were failures requests.

On a comparison of results obtained with real de-

mand requests, the BikePE project (BikePE, 2015),

from Recife, Brazil, was used as a parameter. In this

bike sharing initiative, 800 bikes are available for rent

at 80 stations around the metropolitan area of Recife.

According to that source, from Monday through Fri-

day there is an average demand of 1100 trips. That is,

although different contexts of applicability, and con-

sidering the performance data provided by the plat-

form, it can be seen that using only a computer with

domestic settings would be enough to meet such de-

mand using the solution proposed in this paper. More-

over, in case there are a greater demand requests, the

platform may be instantiated on different machines,

then offering the possibility of horizontal scale. So,

A Reference Architecture for Mobile Crowdsensing Platforms

605

to meet an ever increasing demand, it is not necessary

to improve the machineâ

Zs hardware hosting plat-

form. Indeed, platform instances can be replicated on

multiple machines with traditional settings and thus

obtain a higher scale at a lower cost.

As threats to validity, a 3G data network for com-

munication between virtual users and the platform has

been the fact of not having been used. However, as the

tests had the purpose of proving the possibility of de-

velopment platform, it was not necessary to network

latency test, for example. Thus, he preferred to opt

for simulation in a local wireless network.

8 RELATED WORK

This section presents a non-exhaustive list of plat-

forms employing similar approaches to ours and a

brief comparison with our proposal.

SOFIA (Filipponi et al., 2010) is a semantic inter-

operability platform between a selected set of appli-

cations and an ecosystem of interactive objects such

as sensors, actuators, and other embedded systems.

Their goal is to provide features for the building of

intelligent environments. The project addresses three

application areas representing different types of space

in terms of scale, applications and services: intelli-

gent personal spaces (e.g, cars), smart indoor spaces

(e.g, home and ofﬁce), and intelligent city spaces (e.g,

expanded infrastructure and facilities such as a sub-

way station, shopping and the like).

Trafﬁc Info (Farkas et al., 2014) is an application

based on crowdsensing that views public transport in-

formation of the city in a map in real-time. It is built

using publish/subscribe model to communicate pas-

senger who subscribed in the Trafﬁc Info, according

to their interest, for the trafﬁc information channels

dedicated to different public transport lines or stops.

They are informed live about the situation of public

transport, such as the actual position of the vehicles.

When passengers gather the real-time data, informa-

tion is updated in a map to reﬂect the trafﬁc situation.

CrowdOut (Aubry et al., 2014) is also a mobile

crowd sensing service for smart cities, which allows

users to report road safety problems that they expe-

rience in their urban environment (speeding, illegally

parked cars, trafﬁc signs and symbols, quality roads

and trafﬁc levels) and share this information with your

community. A user can specify the type of crime, take

a picture with your smartphone and add it to the re-

port to present it; it can also add a short comment to

describe the infraction more precisely. The service

also registers the GPS coordinates of the users, to in-

dicate the precise location of the offense occurred on

the road so they can be shown on a map in real-time.

Choi & Kang (Choi and Kang, 2014) propose a

platform on top of a mobile application developed in

HTML5, with location-based services (LBS) making

use of GPS, to ﬁnd points of interest. As a result,

we present a case of a mobile tool to aid foreigners

and Koreans in a complicated process of registration

purchase and alienation of real estate in South Korea.

By analyzing these solutions, our solution dif-

fers from SOFIA platform because it has a narrower

scope, aiming to offer the crowdsensing services. In

contrast, SOFIA addresses presented by the various

areas of applications. Nevertheless, we propose the

domain conﬁguration, contrasting this aspect with

TrackInfo platforms and the proposal presented by

Choi & Kang. The CrowdOut platform contrasts to

ours not having information resource alerts triggered

by complex event processing.

9 CONCLUSION

This paper presents the proposal and validation of a

architecture for a mobile crowdsensing platform that

takes advantage of free software and off-the-shelves

components. It meets and implements an effective

and simpliﬁed way a middleware platform for Smart

Cities solution. Among its features include: conﬁg-

urable for multiple domains, Complex Event Process-

ing use for analysis of real-time data streams, integra-

tion of data using RESTful services, message queue

and the utilization of human sensors (crowd sensors).

From the analysis results, we can conclude that

the platform behaved satisfactorily in the tests since

supported a load of similar requests the real demands,

considering the machine that hosted the platform had

the typical conﬁguration a home computer. Finally,

this study proves the concept that you can build a

middleware platform for smart cities, based on lo-

cation, using complex event processing, conﬁgurable

for multiple domains and capable of processing rules

developed by the users.

Currently, a similar architecture to the one that

is described in this paper is being developed, using

Storm as the main component, which is a distributed

computing system in real-time. We intend to make

experiments using the same conditions already car-

ried out in this paper so that in future work we can

make comparisons between the results obtained with

the two architectural approaches.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

606

ACKNOWLEDGEMENTS

This work was partially funded by the National

Counsel of Technological and Scientiﬁc Development

(CNPq Universal grant #485420/2013), the National

Institute of Science and Technology for Software En-

gineering (INES - CNPq grant #573964/2008-4) and

the Foundation for Science and Technology of Per-

nambuco (FACEPE).

REFERENCES

Al-Hader, M., Rodzi, A., Sharif, A. R., and Ahmad, N.

(2009). Smart city components architecture. In

Computational Intelligence, Modelling and Simula-

tion, 2009. CSSim’09. International Conference on,

pages 93–97. IEEE.

Aubry, E., Silverston, T., Lahmadi, A., and Festor, O.

(2014). Crowdout: A mobile crowdsourcing service

for road safety in digital cities. In Pervasive Com-

puting and Communications Workshops (PERCOM

Workshops), 2014 IEEE International Conference on,

pages 86–91. IEEE.

BikePE (2015). Bikepe. http://www.bikepe.com/. Accessed

in 2015-10-01.

Buchmann, A. and Koldehofe, B. (2009). Complex event

processing. it-Information Technology Methoden und

innovative Anwendungen der Informatik und Informa-

tionstechnik, 51(5):241–242.

Caragliu, A., Del Bo, C., and Nijkamp, P. (2011). Smart

cities in europe. Journal of urban technology,

18(2):65–82.

Cardone, G., Cirri, A., Corradi, A., and Foschini, L.

(2014a). The participact mobile crowd sensing liv-

ing lab: The testbed for smart cities. Communications

Magazine, IEEE, 52(10):78–85.

Cardone, G., Cirri, A., Corradi, A., Foschini, L., Ianniello,

R., and Montanari, R. (2014b). Crowdsensing in ur-

ban areas for city-scale mass gathering management:

Geofencing and activity recognition. Sensors Journal,

IEEE, 14(12):4185–4195.

Choi, M. and Kang, B.-T. (2014). Html5 platform indepen-

dent mobile application using location-based service.

Life Science Journal, 11(7).

Chourabi, H., Nam, T., Walker, S., Gil-Garcia, J. R., Mel-

louli, S., Nahon, K., Pardo, T., Scholl, H. J., et al.

(2012). Understanding smart cities: An integrative

framework. In System Science (HICSS), 2012 45th

Hawaii International Conference on, pages 2289–

2297. IEEE.

da Silva, W. M., Alvaro, A., Tomas, G. H., Afonso, R. A.,

Dias, K. L., and Garcia, V. C. (2013). Smart cities

software architectures: a survey. In Proceedings of the

28th Annual ACM Symposium on Applied Computing,

pages 1722–1727. ACM.

Erickson, T. (2010). Geocentric crowdsourcing and smarter

cities: Enabling urban intelligence in cities and re-

gions. In 1st Ubiquitous Crowdsourcing Workshop at

UbiComp.

Etzion, O. and Niblett, P. (2010). Event Processing in

Action. Manning Publications Co., Greenwich, CT,

USA, 1st edition.

Farkas, K., Nagy, A. Z., Tomás, T., and Szabo, R. (2014).

Participatory sensing based real-time public transport

information service. In Pervasive Computing and

Communications Workshops (PERCOM Workshops),

2014 IEEE International Conference on, pages 141–

144. IEEE.

Filipponi, L., Vitaletti, A., Landi, G., Memeo, V., Laura,

G., and Pucci, P. (2010). Smart city: An event driven

architecture for monitoring public spaces with hetero-

geneous sensors. In Sensor Technologies and Appli-

cations (SENSORCOMM), 2010 Fourth International

Conference on, pages 281–286. IEEE.

Ganti, R. K., Ye, F., and Lei, H. (2011). Mobile crowdsens-

ing: current state and future challenges. Communica-

tions Magazine, IEEE, 49(11):32–39.

Gasperoni, F. (2006). Floss, cots, and safety: A business

perspective. 3rd European Congress ERTS – Embed-

ded Real Time Software.

Gavin, M., Ghosh, B., Pakrashi, V., Barton, J., O’Flynn,

B., and Lawson, A. (2011). A cycle route planner

mobile-app for dublin city. In Irish Transportation

Research Network Conference (ITRN2011), 31 Aug-

1 Sep 2011, University College Cork, Cork, Ireland.

Irish Transportation Research Network.

Guo, B., Yu, Z., Zhou, X., and Zhang, D. (2014). From

participatory sensing to mobile crowd sensing. In

Pervasive Computing and Communications Work-

shops (PERCOM Workshops), 2014 IEEE Interna-

tional Conference on, pages 593–598. IEEE.

Nagel, T., Maitan, M., Duval, E., Moere, A. V., Klerkx, J.,

Kloeckl, K., and Ratti, C. (2014). Touching transport-

a case study on visualizing metropolitan public transit

on interactive tabletops. In Proceedings of the 2014

International Working Conference on Advanced Vi-

sual Interfaces, pages 281–288. ACM.

Naphade, M., Banavar, G., Harrison, C., Paraszczak, J., and

Morris, R. (2011). Smarter cities and their innovation

challenges. Computer, 44(6):32–39.

Odendaal, N. (2003). Information and communication

technology and local governance: understanding the

difference between cities in developed and emerging

economies. Computers, Environment and Urban Sys-

tems, 27(6):585–607.

Pucher, J., Dill, J., and Handy, S. (2010). Infrastructure,

programs, and policies to increase bicycling: an inter-

national review. Preventive medicine, 50:S106–S125.

Sherchan, W., Jayaraman, P. P., Krishnaswamy, S., Za-

slavsky, A., Loke, S., and Sinha, A. (2012). Using

on-the-move mining for mobile crowdsensing. In Mo-

bile Data Management (MDM), 2012 IEEE 13th In-

ternational Conference on, pages 115–124. IEEE.

A Reference Architecture for Mobile Crowdsensing Platforms

607
