Testing Multimodal Interactive Applications by Means of the TTT

Language

Le Thanh Long

, Nguyen Thanh Binh

and Ioannis Parissis

Department of Computing, Duy Tan University, 182 Nguyen Van Linh, Da Nang, Vietnam

Department of Computing, The University of Danang, University of Science and Technology,

54 Nguyen Luong Bang, Da Nang, Vietnam

Grenoble INP LCIS, Univ. Grenoble Alpes, F-26902 Valence, France

Keywords: Interactive Multimodal Applications, Test Modelling Language, CARE Properties.

Abstract: Developing interactive applications is a complex activity as they must deal with various kinds of human-

computer interactions. This is especially true when these interactions use multiple modalities (voice,

gesture…). As a result, thoroughly testing such applications is particularly important and requires more

effort than for traditional interactive applications. In this paper, we propose an approach for automating the

test generation of such multimodal applications. This approach is based on the definition of a new test

modelling language, TTT. Test models provided in TTT can be translated intest generators.TTT deals with a

well-known class of multimodality properties: the CARE properties. The whole approach is illustrated on a

case study.

1 INTRODUCTION

Interactive Multimodal Applications (IMA) support

communication with the user through different

modalities, such as voice or gesture. They have the

potential to greatly improve human-computer

interaction, because they can be more intuitive,

natural, efficient, and robust. Flexibility is obtained

when the user can use equivalent modalities for the

same tasks while robustness can result from the

integration of redundant or complementary inputs.

The CARE properties (Complementarity,

Assignment, Redundancy, Equivalence) can be used

as a measure to assess the usability of the

multimodal interaction (Coutaz et al., 1995).

Equivalence and Assignment represent the

availability and, respectively, the absence of choice

between multiple modalities for performing a task

while Complementarity and Redundancy express

relationships between modalities. The flexibility and

robustness of multimodal applications result in an

increasing complexity of the design, development

and testing. Therefore, ensuring their correctness

requires thorough validation.

Approaches based on formal specifications

automating the development and the validation

activities have been proposed to deal with this

complexity. They adapt existing formalisms to the

particular context of interactive applications.

Examples of such approaches are the Formal System

Modelling (FSM) analysis (Duke and Harrison,

1993), the Lotos Interactor Model (LIM) (Paternò

and Faconti, 1993), the Interactive Cooperative

Objects (ICO) (Palanque and Bastide, 1995) or

formal methods such as B (Aıt-Ameur and Kamel,

2004). Model-based testing methods focusing on the

specification of the user behaviour have also been

studied. For instance, the method presented in

(Richard et al., 1997) relies on the specification of a

finite state machine.

In (Ter Beek et al., 2009), Maurice H. terBeek et

al. propose stochastic modelling and model checking

to predict measures of the disruptive effects of

interruptions on user behaviour. The approach also

provides a way to compare the resilience of different

interaction techniques to the presence of external

interruptions that users need to handle. In (Palanque

et al., 2009), P. Palanque et al. presents an approach

for investigating in a predictive way potential

disruptive effects of interruptions on task

performance in a multitasking environment.

In (Kamel and Aït Ameur, 2007), N. Kamel et al.

propose a formal model allowing representing the

Long, L., Binh, N. and Parissis, I.

Testing Multimodal Interactive Applications by Means of the TTT Language.

DOI: 10.5220/0005842500230032

In Proceedings of the International Workshop on domAin speciﬁc Model-based AppRoaches to vEriﬁcaTion and validaTiOn (AMARETTO 2016), pages 23-32

ISBN: 978-989-758-166-3

input multimodal user interaction task and the

CARE usability properties. Once the multimodal

interaction task model is designed, the

corresponding property is checked using the SMV

(Symbolic Model Verifier) model-checker. They

also propose an approach for checking adaptability

properties of multimodal User Interfaces (UIs) for

systems used in dynamic environments like mobile

phones and PDAs (Kamel et al., 2008). The

approach is based on a formal description of both the

multimodal interaction and the property. The SMV

model-checking formal technique is used for the

verification process of the property. In (Mohand-

Oussaïd et al., 2015), L. Mohand-Oussaïd et al.

present a generic approach to design output

multimodal interfaces. This approach is based on a

formal model, composed of two other models:

semantic fission model for information

decomposition process and allocation model for

modalities and media allocation to composite

information. An Event-B formalization has been

proposed for the fission model and for allocation

model. This Event-B formalization extends the

generic model and supports the verification of some

relevant properties such as safety or liveness.

The synchronous approach has been proposed to

model and verify by model-checking some

properties of interactive applications (Madani et al.,

2005), but its applicability is limited to small pieces

of software.

In (Madani and Parissis, 2009), Laya Madani et

al. present a technique of test case generation for

testing CARE properties by means of a synchronous

approach. According to the proposed approach,

CARE properties are translated into an enhanced

version of the Lustre synchronous language. An

improved method presented in (Madani and Parissis,

2011) uses Task trees and a fusion model to perform

test data generation for interactive multimodal

applications. As an additional improvement to this

previous research work, we have recently proposed

an automatic test generation approach based on a

new test modelling language, TTT (Task Tree base

Test) (Le et al., 2014) The main new feature of the

TTT language is that it supports conditional

probability specifications, used to express advanced

operational profiles. Such conditional specifications

may depend on the history of the user actions. A test

generation engine makes it possible to produce test

data compliant with such a description. For this, user

actions are stored during the test execution.

In this paper, we extend the above mentioned

work in order to take into account multimodality.

The TTT language is extended to specify

multimodal events of IMA and CARE properties as

well as to check the validity of CARE properties.

Hence, multimodal test data can be automatically

generated from a TTT specification of IMA.

The paper is organized as follows: In Section 2,

we provide the necessary background. Section 3

presents the extension of theTTT language for

generating tests and checking the validity of CARE

properties. A case study is presented in Section 4.

2 BACKGROUND

2.1 Task Trees

Task trees are often used in the design of interactive

software applications (Paternò et al., 1997) to

hierarchically build task models. A well-known

notation for such task models is ConcurTaskTree

(CTT). CTT includes four kinds of tasks: User tasks

(no interaction with the application, just an internal

cognitive activity such as thinking about how to

solve a problem), application tasks (application

performance, such as generating the results of a

query, no interaction with the user), interaction tasks

(involving user actions with immediate feedback

from the application, such as editing a document)

and abstract tasks (tasks composed of other

subtasks). A CTT abstract task is composed of

subtasks connected by means of temporal operators,

for example, there is an enabling operator denoted

by >> which specifies that one task enables a second

one when it terminates.

A CTT model is mainly intended to help

designers to define interactive applications.

However, it has been shown that the same notation

can be also used to define test models describing the

interaction between the user and the application and

providing valuable information about the possible

user behaviour.

2.2 Finite State Machines

Finite State Machines (FSMs) are widely used to

model the behaviour of interactive applications. This

model includes the states, the actions and the

transitions presented by a state diagram (Madani

and Parissis, 2009). When an interactive application

is specified by a finite state machine, the states

represent an abstraction of the operating status of

interactive applications. The operations can be

repeated, so the states can also be repeated. Initial

state is a state that interactive applications begin to

be used. Final state is the state where the interactive

AMARETTO 2016 - International Workshop on domAin speciﬁc Model-based AppRoaches to vEriﬁcaTion and validaTiOn

application ends. Inputs are the user's tasks and

outputs are application tasks.

2.3 Multimodal Interaction: CARE

Properties

An interactive multimodal application uses at least

two modalities (keyboard, speech, mouse...) for a

given direction (input or output). Within a

multimodal application, modalities can be used

independently, but the availability of several

modalities naturally raises the issue of their

combined use (fusion of modalities). When talking

about test data generation, we are mainly concerned

with inputs, so in this paper we focus on multimodal

input interaction.

The combined use of modalities is constrained

by temporal constraints. It can be carried out

sequentially or concurrently (Coutaz et al., 1995)

within a Temporal Window (TW), that defines a

time interval. The modalities of a set M are used

concurrently if they are used at the same instant. The

modalities of a set M are used sequentially within

the TW, if there is at most one active modality at

every instant and if all the modalities in this set are

used within the TW. The concurrency and the

sequencing express a constraint on the interaction

space. The absence of a temporal constraint means

that the duration of the TW is infinite. The CARE

properties form an interesting set of relations that are

relevant when characterizing multimodal

applications. The Assignment implies that a single

modality is assigned to a task. The Equivalence of

modalities implies that the user can perform a task

using a modality chosen amongst a set of modalities.

The Complementarity denotes several modalities

that convey complementary chunks of information.

The complementary modalities must be used

simultaneously or sequentially within the same TW.

The Redundancy indicates that the same piece of

information is conveyed by several modalities.

Redundant modalities must also be used

simultaneously or sequentially within the same TW.

2.4 Operational Profiles

Operational profiles (Musa, 1993) provide

information about the effective usage of an

application. In particular, they can be used to guide

the test process. For the particular case of interactive

applications, operational profiles can be easily

defined by assigning occurrence probabilities to

some of the described behaviours. In (Madani and

Parissis, 2009), the CTT notation was extended with

occurrence probabilities to make possible to specify

operational profiles.

2.5 Generating Test Data for IMA

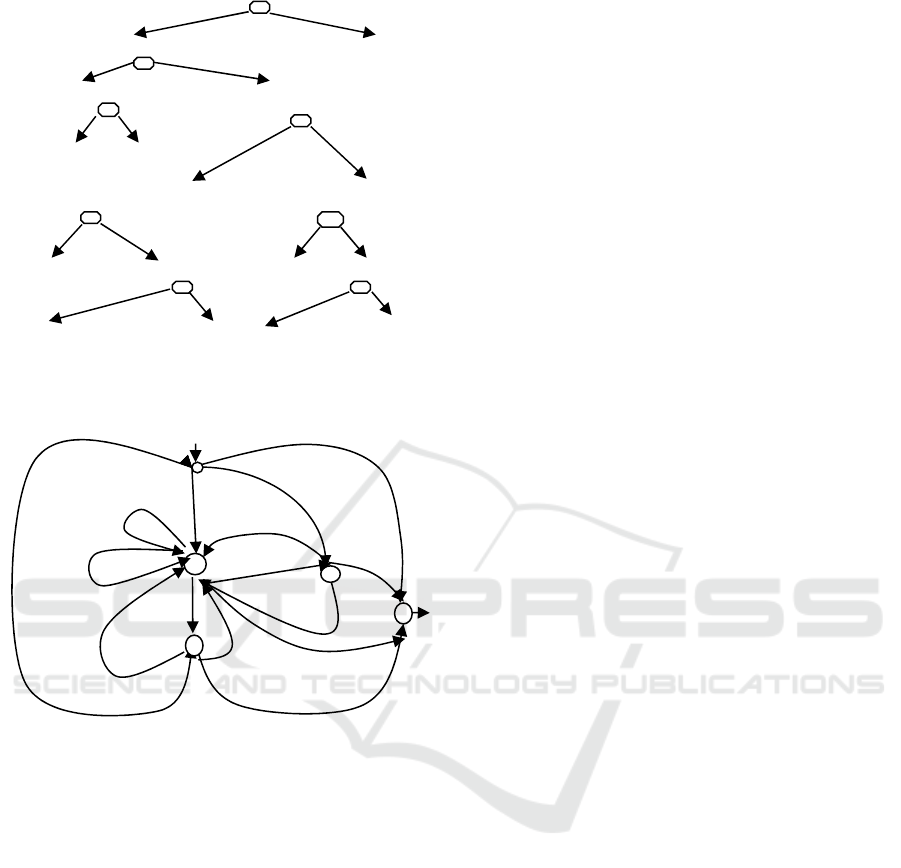

Task trees are used in the design of interactive

applications. To generate automatically the test data

from task trees, the task tree is translated into a

probabilistic finite state machine (PFSM).

It is assumed that the PFSM is simulated while

the interactive application under test is executed and

that inputs and outputs are exchanged between them

on-the-fly. During the simulation, assuming the

PFSM to be in a given state, an input is chosen

according to the probabilities of the outgoing

transitions of this state. The chosen input is then sent

to the interactive application, the resulting

application outputs are read and the next state

computed, and so on.

2.6 The Interactive Multimodal

Application Memo

The interactive application "Memo" (Madani and

Parissis, 2009) makes it possible to annotate

physical locations with digital stickers ("post it"-like

notes). Once a digital sticker has been set to a

physical location, it can be read/carried/removed by

other users. A Memo user is equipped with a GPS

and a magnetometer enabling the application to

compute his/her location and orientation. S/he is also

wearing a head mounted semi-transparent display

(HMD) enabling the fusion of computer data (the

digital notes) with the real environment. Memo

provides three main tasks: (1) orientation and

localization of the mobile user, so that the

application is able to display the visible notes

according to the current position and orientation of

the mobile user (2) manipulation of a note (get, set

and remove a note) and (3) exiting the application.

So, the mobile user can get a note and carry it while

moving. S/he can set a carried note to a specific

place or delete a visible or carried note.

Figure 1 shows an extended CTT for the Memo

application (interaction tasks are represented by

☺). To generate test data, the task tree is translated

into a PFSM. The PFSM is simulated while the

interactive application under test is executed and that

inputs and outputs are exchanged between them on-

the-fly. It is thus possible to describe abstract

interaction scenarios as task trees, and observe the

behaviour of the interactive application under test.

Figure 2 shows a PFSM example for the Memo

application.

Testing Multimodal Interactive Applications by Means of the TTT Language

Figure 1: Example of Task tree model.

Figure 2: FSM Example for the Memo application.

Figure 3 shows a fusion model for the Memo

application.

Tasks ( get, set, remove, move, turn, exit);

Modalities (Speech (get, set, remove),

Mouse(get, set, remove),

Keyboard(get, set, remove, move, turn, exit));

Equivalence ((Speech, Mouse, Keyboard),

(get, set, remove));

Assignment ((Keyboard), (move, turn, exit));

Figure 3: Example of fusion model.

2.7 Taking into Account Conditional

Probabilities

The above presented approach uses several

notations, inspired from existing modelling

languages, to build test models: a model of the

application behaviour (a task tree), a model of the

interactive tasks (FSM), operational profiles

(annotations on the task tree), and modality

specifications. The variety of notations makes the

modelling process hard. Moreover, operational

profiles cannot be defined using conditions

(however, an occurrence probability is often

assigned to an event according to a condition).

Therefore, we have proposed the test modelling

language TTT (Le et al., 2013) allowing to express:

− Scenarios for interactive applications.

− Conditional probability specifications for task

trees.

− The “traces” of the user actions and read-only

functions on these traces.

− Expected properties of the application.

The conditional probability specifications for task

trees must be defined in the test model. This means

that the TTT language is designed to allow the

definition of variables, for example, Cond = (X > 5),

where X is an application input or output variable.

Moreover, there are a lot of “rich” conditions that

need to be expressed, for example,

Cond=F(parameter)>5 where F is a function that

can return a float value.

2.7.1 The TTT Language

A basic structure of a TTT model consists of a

TESTCTT block and one or more FUNCTIONs.

TESTCTT is defined by a set of clauses and the

general form of a TESTCTT.

<tttmodel> ::= <testctt><function>+

<testctt_var><testctt_init><begin_end>

<testctt_name>::=TESTCTT<name>

<testctt_set> ::= sets <basic_type>+ ;

<testctt_var> ::= var<local_variable>+ ;

<testctt_init> ::= init<initial_state>+ ;

<begin_end> ::= begin <statement>+ end;

<statement>:=<beginend>|<invar_operator>|

<ctt_operator>|<sql_statement>|

<conditional_struct> |<iteration-statement>

<begin_end> ::= begin<statement>+ end;

We define the syntax for describing the CTT

operators, which take into account conditional

probabilities. The ctt_operators are used to create

tasks from conditional operational proﬁles where the

selection of the program inputs is performed with

respect to probabilities speciﬁed by the tester.

<ctt_operator> ::= <choice> | <concurrency> |

We save all the past actions of the users and

build functions on them. Functions are intended to

be part of the conditions. We use an SQL-like

language to update and search the data. We inherit

and reduce the following SQL statements:

Move/-0.45

µ/memoCarried 0.18

remove/

memoRemoved 0.18

remove/

memoRemoved 0.63

Move/-0.45

µ/memoCarried

0.18

µ/memoDisplayed

0.27

µ/ memo-

Displayed

0.27

get/memoTaken 0.72

set/memoSet0.27

exit

exit/-0.1

Turn/0.09

exit/-0.1

Memo

Use memo s

stem*

Exit

☺

Explore the ground []

(0.5,0.5)

Handle notes

Get []

(0.8,0.2)

remove Set []

(0.3,0.7)

remove

☺ ☺ ☺ ☺

[>( 0.1)

Move []

(0.8,0.2)

turn

☺ ☺

Handle a displayed Note []

(0.6, 0.4)

Handle a carried note

Memo Displayed >> Get or remove Memo carried >> Set or remove

AMARETTO 2016 - International Workshop on domAin speciﬁc Model-based AppRoaches to vEriﬁcaTion and validaTiOn

<sql_statement> ::= <create_table> | <alter_table> |

<drop_table> | <insert> | <delete> | <update>| <select>

2.7.2 Test Execution Environment

For the purpose of testing interactive applications,

we have built a testing environment (Le et al., 2014),

called TTTEST (TTT-based Test), in Figure 4.

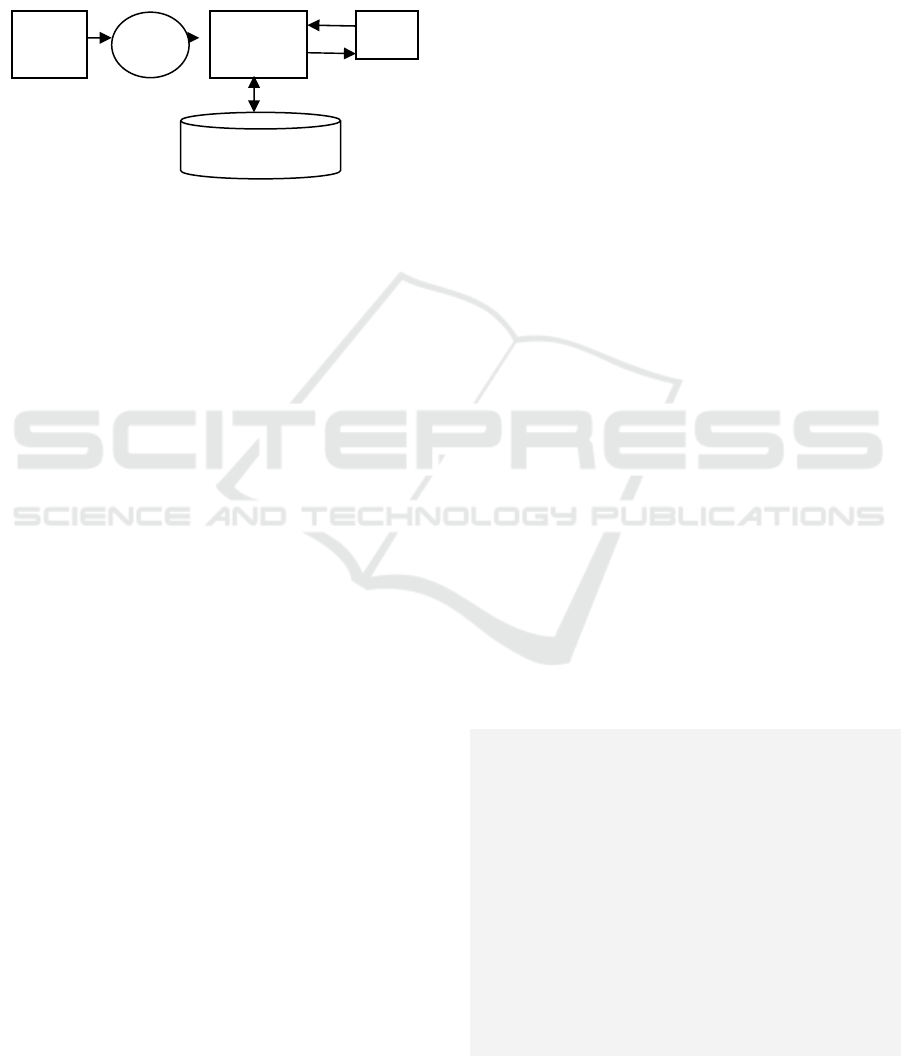

Figure 4: The TTTEST testing evironment.

The TTTEST testing environment consists of

four basic components: TESTCTT model specified

by TTT language, C program translated from

TESTCTT models, interactive multimodal

application under test, traces of the action user. The

TTTEST environment activities are described as

follows:

− Step 0: The TESTCTT model is translated

into a C program which is executed.

− Step 1: The C program produces output data

X from its internal state.

− Step 2: Output X is translated into input data

for IMA.

− Step 3: IMA receives and processes input X

and generates output Y.

− Step 4: Program C receives Y as input data,

updates internal state variable of the model

and returns to Step 1.

A TESTCTT model is specified withTTT

language. We translate a TESTCTT model into a C

program which implements the corresponding test

generator. The translation, the details of which are

presented in (Le et al., 2014), involves many

different steps. The simplest steps are lexical

substitutions; operators and keywords in TTT are

replaced by corresponding C operators and tokens.

The second level of translation involves syntactic

transformations. Certain constructs in TTT have

equivalent constructs in C, but with differing orders

of the tokens. The structures of high abstraction

level of CTT operators must be converted into

structures with more concrete level in the C

language. Finally, the SQL statements from the TTT

language are translated into equivalent C statements.

3 TAKING INTO ACCOUNT

MULTIMODALITY

While testing IMA, the number of input events may

increase dramatically. Indeed, each input can be

produced in several modalities so the number of

possible input event combinations can be much

bigger than in the case of single modalities.

Moreover, the fusion mechanism of IMA depends

on TWs within which the user event occurs. For

example, when two modalities are used in a

redundant way, the resulting events must be

combined only when they occur in the sameTW.

The above observations suggest that there are

two different issues when testing IMA: (1)

generating tests for multimodal events, (2) checking

the validity of the CARE properties. While the first

issue is strictly related to test generation, the second

one should be part of a test oracle. We propose to

extend the TTT language to deal with both issues, as

described in the following subsection.

3.1 Generating Tests for Multimodal

Events

To simulate user behaviours for IMA, we use a test

data generation technique based on conditional

operational profiles. We add the operator modalities

to the TTT language to generate tests for multimodal

events. The syntax of modalities operator is the

following:

<modalities>::=modalities (<expression-list>)

The tester can use modalities(E

, E

,…, E

,…,p

, cond

, p

,…,p

, cond

,…,p

), where i∈[1,n] E

are events, p

are

probabilities; cond

are conditions; and p

i,j

(i∈[1,n],

j∈[1,n]) are conditional probabilities. The semantics

of this operator is expressed as follows:

{ n is a random real number in [0,1]

n= rand(1)

if (Cond1== TRUE) {

if (n<= P

) E

= 1 else E

= 0;

if (n<= P

) E

= 1 else E

= 0;

…

if (n<= P

) E

= 1 else E

= 0;

}

elseif (Cond2== TRUE) {

if (n<= P

) E

= 1 else E

= 0;

if (n<= P

) E

= 1 else E

= 0;

…

if (n<= P

) E

= 1 else E

= 0;

}

else {

if (n<= P

) E

= 1 else E

= 0;

if (n<= P

) E

= 1 else E

= 0;

…

Output

Input

IMA TestCTT

Model

C program

Translation

Trace of user actions

Testing Multimodal Interactive Applications by Means of the TTT Language

if (n<= P

) E

= 1 else E

= 0;

}

Consider the following example:

Modalities (speech(Remove), mouse(Remove),

keyboard(Remove),0.5,0.5,0.5,note_nb()=0,0,

0,0,note_nb()>=5,0.5,0.9,0.7);

The events Speech(remove), Mouse(remove) and

Keyboard(remove) are generated along probabilities

0.5, 0.5, 0.5 respectively. If there is no note, the user

cannot remove, so probabilities are 0, 0, 0. But if

there are more than 5 notes, the user will use other

probabilities for these events. The events generated

are presented in Table 1.

Table 1: Events are generated by Modalities operator.

Time

sR mR kR Memo

…

Tak

…

In Table 1, we use the abbreviation sR, mR and

kR respectively for speech(Remove), mouse(Remove)

and keyboard(Remove). At the time 1, there is no

note in the Memo, the user do not use any event. But

at the time 3 when a note is visible (Set (Se)

occurred in the previous step) the user takes it (Tak)

by mouse(Remove) and keyboard(Remove).

3.2 Checking the Validity of CARE

Properties

3.2.1 Equivalence

Let M

, M

be two modalities. Let E

, E

be two

expressions along M

, M

respectively. Two

modalities M

, M

are equivalent with respect to task

T, if every task t

∈

T can be activated by E

or E

Equivalence admits a single input event to be

propagated. We add the operator

TestEquivalence(E

, T, tw) into TTT language

to check the validity of the Equivalence property.

The syntax of TestEquivalence operator is the

following:

<TestEquivalence>::=

TestEquivalence(<expr>,<expr>,<expr>,<expr>)

The tester can use TestEquivalence(E

, T,

tw) and the meaning of this operator is expressed as

follows:

1.begin

2. T1 = select distinct Tout from U_ACTIONS

where EM1= E

and time between(now()–tw)

and now()

;

3. T2 = select distinct Tout from U_ACTIONS

where EM2 = E

and time between(now()-tw)

and now()

;

4. if ((T == T1) and (T ==T2))

5. IsEquivalence= True

6. else begin

8. output(“E

and E

are not equivalent”);

9. stop program;

10.end

11.end

T1 and T2 are two tasks corresponding to two

events E1 and E2 in U_ACTIONS table (lines 2,3).

If task T1 is different from task T2, events E1 and

E2 are not equivalent (line 8). The program under

test will be stopped (line 9).

Table 2 shows an extract example of the

execution trace, the result of

TestEquivalence(speech, mouse, get, 7).

Table 2: The result of TestEquivalence.

Time Speech(get) Mouse(get) Tout TestEquivalence

get

Speech(get)=

Mouse(get)

It can be observed that when the user does

speech(get), Tout is equal to“get” in time 1. When

the user uses the mouse to choose "get" (mouse(get))

Tout is equal to“get” in time 3. So event speech(get)

is equivalent to event mouse(get).

3.2.2 Redundancy-Equivalence

If there are several input events, redundancy requires

the fusion process to choose one event among those

of all the available modalities. Equivalence admits a

single input event to be propagated.The

Redundancy-Equivalence input events which are

temporally close are merged and the associated

output task is enabled as soon as the required inputs

have been identified. The occurrence of one event of

every modality in the current TW is enough to

enable the output task. It is possible that several

events of the same modality occur in this window. In

that case, the task is computed according to the last

event of each modality.

We add operator

TestRedundant_EquivalenceEarly into TTT to test

the Redundancy-Equivalence of two events E

and

in early fusion strategies. The syntax of

TestRedundant_EquivalenceEarly operator is the

following:

<testRE>::= TestRedundant_EquivalenceEarly

(<expr>,<expr>,<expr>,<expr>)

AMARETTO 2016 - International Workshop on domAin speciﬁc Model-based AppRoaches to vEriﬁcaTion and validaTiOn

The tester can use TestRedundant_EquivalenceEarly

, E

, TaskTM1M2, tw) and the semantics of this

operator is as follows:

1.begin

2.T_out = select distinct Tout from

U_ACTIONS where((EM1 = E

)or (EM2 =E

))

and (time between(now() – tw)and now())

3.T_out_nb = select count(Tout) from

U_ACTIONS where((EM1 = E

)or(EM2 = E

))

and (time between(now() – tw)and now())

4.if((Tout_nb==1)and(T_out==taskTM1M2))then

5. output (“E

and E

are redundant -

equivalent”);

6.else

7. begin

8.output (“E

, E

are not redundant-

equivalent”);

9. stop program;

10.end

11.end

T_out is the task that is generated in Temporal

Window. Tout_nb is the number of tasks generated

from the event E

or E

(line 5). The Redundancy-

Equivalence property of two events E

and E

tested by condition (line 4): ((Tout_nb == 1) and

(T_out = taskTM1M2)). If there is only one task

generated in TW and T_out is the taskTM1M2, EM1

and EM2 are Redundant-Equivalence. Table 3 shows

an extract of the execution trace resulting from

TestRedundant_EquivalenceEarly (Speech_T,

Mouse_T, TaskTM1M2, 5) with Tw = 5.

Table 3: The result of TestRedundant_EquivalenceEarly.

Time E

Tout TESTRedundant_

EquivalenceEarly

Speech_Task

Speech_ Task

Mouse_Task

Mouse_ Task

Task

Speech_Task,

Mouse_Task are

Redundant-

Equivalence

3.2.3 Complementarity (C)

Let M

, M

be two modalities. Let E

, E

be two

expressions along M

, M

respectively. Two

modalities M

, M

are complementary with respect

to a set of Task T, if every task t

∈

T can be activated

by E

and E

M2.

and E

must occur in the same

TW, i.e.Abs((time(E

) – time(E

)) < Tw.

The complementary input events which are

temporally close are merged and the associated

output task is enabled as soon as the required inputs

have been identified. The occurrence of one event of

every modality in the current TW is enough to

enable the output task. It is possible that several

events of the same modality occur in this window. In

that case, the task is computed according to the last

event of each modality.

We add operator TestcomplementaryEarly (E

, TaskTM1M2, tw) into TTT language to test the

complementary of two events E

and E

. The

syntax of TestcomplementaryEarly operator is the

following:

<testcom>::=TestcomplementaryEarly(<expr>,

<expr>,<expr>,<expr>)

The tester can use TestcomplementaryEarly (E

, TaskTM1M2, tw) and the behavior of this

operator is as follows:

1.begin

2.EM1_out = select top 1 EM1 from U_ACTIONS

where(time between (now()–tw) and now ())

order by time desc

3.EM2_out = select top 1 EM2 from U_ACTIONS

where(time between (now()–tw) and now ())

order by time desc

4.T_out = select distinct Tout from

U_ACTIONS

5.if ((E

== EM1_out) and (E

== EM2_out)

and(T_out ==taskTM1M2)) then

6. output (“E

and E

are complementary”);

7.else

8. begin

9. output (“E

and E

are complementary”);

10. stop program;

11. end

12.end

EM1_out and EM2_out are the last events

occurred in the Temporal Window. T_out is the task

occurred in the Temporal Window. The

Complementarity of two events E

and E

is tested

by condition (line 5): ((E

== EM1_out) and (E

== EM2_out)and (T_out ==task)). If E

and E

are last events in TW and Tout is the taskTM1M2

then E

and E

are complementary. Table 4 shows

an extract example of the execution trace resulting

from TestComplementaryEarly (Speech_T1,

Mouse_T2, Task12, 5) with Tw = 5.

Table 4: The result of TestComplementaryEarly.

Time E

Tout TestComplemen_

taryEarly

Speech_T1

ouse_T2

TaskT12

Speech_T1,

Mouse_T2 are

complememtary

4 TESTING THE MEMO

APPLICATION

The TESTCTT model of Memo is built through four

steps: (1) selecting a test target; (2) designing

Testing Multimodal Interactive Applications by Means of the TTT Language

notations of activity in the model; (3) designing the

state variables and selecting data types for variables;

(4) writing test scripts for each activity. Figure 5

presents a part of this test model.

1. TESTCTT Memo;

2. VAR

3. q0, q1, q2, q3, q4 : bool;

4. T, Tout: char;

5. tw : integer;

6. begin

7. INIT (Tout=’D’)

8. do

9. begin

10. q0=(Tout<>'D' and Tout <> 'C' and T <>'o');

11. q1=(T=='o')or(Tout=='G'and T =='g') or

(Tout=='R'andT=='r')or(Tout=='S'and T=='s');

12. q2 = (Tout=='D');

13. q3 = (Tout=='C');

14. if (q0)

15. begin

16. T = Choice(‘o’,’’,0.5, note_nb()=0,1,

17. note_nb()>=5,0.1);

18. insert into U_ACTIONS(input) values(T);

19. end

20. if (q1)

21. begin

22. T = Choice((‘o’ ,’’,0.5, note_nb()=0,1,

23. note_nb()>=5,0.1);

24. insert into U_ACTIONS(input) values(T);

25. end

26. if (q2)

27. begin

28. T = choice('g' ,'r',0.8,note_nb()=0, 1,

note_nb()>=5,0.1);

29. if T =’g’

30. begin

31. tw=1;

32. do

33. begin

34. Modalities(Speech_get,Mouse_get,

35. 0.3,0.7,note_nb()=0 ,0,0,

36. note_nb()>=5,0.2,0.8);

37. Tout = call_Memo(T);

38. Insert into U_ACTIONS(M1,M2,input,

39. output)values(Speech_get,Mouse_get,T,

40. Tout);

41. Tw =tw+1;

42. end

43. while (tw<=3)

44. TestRedundantEquivalenceEarly_

45. (Speech, Mouse, get, 3)

46. end

47. else

48. begin

49. Tw=1;

50. do

51. begin

52. Modalities(Speech_remove,Mouse_remove,

53. 0.8,0.9,note_nb()=0,0,0,

54. note_nb()>=5,0.9,0.7);

55. Tout = call_Memo(T);

56. insert into U_ACTIONS(M1, M2,

input, output) values(Speech_remove,

Mouse_remove,T,Tout);

57. Tw=tw+1;

58. end

59. while (tw<=3);

60. TestRedundantEquivalenceEarly_

61. (Speech, Mouse, remove, 3);

62. end;

63. while (T<>’E’);

64. end

65. FUNCTION note_nb() returns (note_nb: int);

66. varget_nb, remove_nb :int;

67. begin

68. get_nb= select count(*) from U_ACTIONS where

input =”g”;

69. remove_nb= select count(*) from U_ACTIONS where

input =”r”;

70. note_nb= get_nb- remove_nb

71. end

Figure 5: The test model for Memo in TTT.

Based on the rules described in section 5, the

TESTCTT model is transformed into a C program.

After the translation is completed, the C program is

compiled and executed to generate test data.Table 5

shows an extract of the execution trace and the result

of TestRedundantEquivalenceEarly(lines 43,59).

Table 5: An extract of the execution trace and the result of

TestRedundantEquivalenceEarly.

Time E

TM1M2 Output

1 Move

_Displaye

2 Speech_get Get M_Taken

3 Mouse_get

4 Mouse_get

5 Move M_Display

6 Speech_remove Remove M_Remove

7 Mouse_remove Remove M_Remove

In line 1, the user moves and a note appeared

(M_Displayed). The test generator produces input

data Speech_get (choice between get or

remove in the state q2). In lines (2, 3, 4) because of

the redundancy mode, the user actions

Speech_get, Mouse_get are sent through the

Memo causing only one action Get and Memo

returns output M_Taken (line 2). The test generator

calculates and determines the application is in state

q1. In state q1, TESTCTT model generates input

data move (choice between move or "-" in the state

q1). When the user moves, a note appeared on the

Memo (M_Display) (line 5). The user removes

this note (lines 6,7). The user actions

Speech_remove, Mouse_remove are sent to

Memo causing two actions Remove and Memo

returns two outputs M_Remove. So

Mouse_remove, Speech_re–move are not

Redundant-Equivalent, therefore the C program

stops the Memo application and displays a message

“Mouse_remove and Speech_remove are not

Redundant-Equivalent”.

5 CONCLUSIONS

IMA are intuitive, natural, efficient, and robust. The

flexibility and robustness of multimodal applications

AMARETTO 2016 - International Workshop on domAin speciﬁc Model-based AppRoaches to vEriﬁcaTion and validaTiOn

are increasing the complexity of the design,

development and testing. We have built a new

modelling language TTT to test interactive

applications. For multimodal applications, we have

extended the TTT language to solve two problems:

generating test data and checking CARE properties.

We defined a new operator Modalities to generate

tests for multimodal events. The CARE properties

are tested by the TestEquivalence,

TestRedundant_EquivalenceEarly and

TestcomplementaryEarly operators.

REFERENCES

Cortier, A., D’Ausbourg, B., and Aıt-Ameur, Y., 2007.

Formal validation of java/swing user interfaces with

the event B method. In HCI (1), pages 1062–1071.

Dittmar, A., 2000. More precise descriptions of temporal

relations within task models. In Interactive

Applications: Design, Specification, and Verification,

7th International Workshop DSV-IS, Proceedings,

pages 151–168, Limerick, Ireland.

Bouchet, J., Madani, L., Nigay, L., Oriat, C. and Parissis,

I. 2007. Formal testing of multimodal interactive

systems. In EIS’2007 Engineering Interactive Systems,

Salamanca, Spain, 36-52.

D’Ausbourg, B., 1998. Using model checking for the

automatic validation of user interface systems. In

Design, Specification and Verification of Interactive

Systems’98, Proceedings of the Fifth International

Eurographics Workshop, pages 242–260, Abingdon,

United Kingdom.

Coutaz, J., Nigay, L., Salber, D., Blandford, A., May, J.

and Young, R. M. 1995. Four easy pieces for

assessing the usability of multimodal interaction: the

care properties. In INTERACT, 115-120. Chapman &

Hall.

Du Bousquet, L., Ouabdesselam, F., and Richier, J.-L.

1998. Expressing and implementing operational

profiles for reactive software validation. In 9th

International Symposium on Software Reliability

Engineering, Paderborn, Germany.

Duke, D. J. and Harrison, M. D., 1993. Abstract

interaction objects. Computer Graphics Forum,

12(3):25–36.

Paternò, F. and Faconti, G., 1993. On the use of LOTOS

to describe graphical interaction. In HCI’92:

Proceedings of the conference on People and

computers VII, pages 155–173, New York, NY, USA.

Cambridge University Press.

Bouchet, J., and Nigay, L., 2004. ICARE: a component-

based approach for the design and development of

multimodal interfaces. In Extended abstracts of the

2004 Conference on Human Factors in Computing

Systems, CHI 2004, pages 1325–1328, Vienna,

Austria, 24 - 29.

Le TL., Nguyen TB, Parissis I., 2013. A New Test

Modeling Language for Interactive Applications

Based on Task Trees, In Proceedings of the 4th

International symposium on information and

communication Technology, pp.285-293.

Le TL., Nguyen TB., Parissis, I., 2014. A solution of

generate test data for interactive applications, In

Proceedings of the 7th National Conference on

Fundamental and Applied Information Technology

Research (FAIR’7), pp.134-143.

Madani, L. and Parissis, I. 2009. Automatically testing

interactive applications using extended task trees. J.

Log. Algebr. Program., 78(6):454-471.

Madani, L., Oriat, C., Parissis, I., Bouchet, J., and Nigay,

L., 2005. Synchronous testing of multimodal systems:

An operational profile-based approach. In 16th

International Symposium on Software Reliability

Engineering (ISSRE 2005), pages 325–334, Chicago,

IL, USA, 8-11.

Madani, L. and Parissis, I., 2011. Automatically testing

interactive multimodal systems using task trees and

fusion models. In 6th international workshop on

Automation of software test (AST '11), Hawai, USA.

Du Bousquet, L., Ouabdesselam, F. , Richier, J.-L. and

Zuanon, N., 1999. Lutess: a specification driven

testing environment for synchronous software. In 21st

International Conference on Software Engineering,

pages 267-276. ACM Press.

Musa, J. 1993. Operational Proﬁles in Software-Reliability

Engineering. IEEE Software, 14–32.

Palanque P., Bastide R., 1995. Verification of Interactive

Software by Analysis of its Formal Specification.

INTERACT'95, Norway.

Richard K. Shehady and Daniel P. Siewiorek, 1997. A

method to automate user interface testing using

variable finite state machines. In FTCS ’97:

Proceedings of the 27th International Symposium on

Fault-Tolerant Computing (FTCS ’97), page 80,

Washington, DC, USA, 1997. IEEE Computer

Society.

Aıt-Ameur, Y. and Kamel, N., 2004. A generic formal

specification of fusion of modalities in a multimodal

HCI. In Rene Jacquart, editor, IFIP Congress Topical

Sessions, pages 415–420. Kluwer, 2004.

Ter Beek, M.H., Faconti, G.P. Massink, M., Palanque,

P.A. and Winckler, M., 2009. Resilience of Interaction

Techniques to Interrupts: A Formal Model-Based

Approach. In Human-Computer Interaction -

INTERACT 2009: Part I of the Proceedings of the

12th IFIP TC 13 International Conference on Human-

Computer Interaction (INTERACT'09), Uppsala,

Sweden (T. Gross et al., eds.), Lecture Notes in

Computer Science 5726, Springer, Berlin, 494-509.

Paternò, F., Mancini, C., and Meniconi, S., 1997.

ConcurTaskTrees: A Diagrammatic Notation for

Specifying Task Models. In Proceedings of the 6th

IFIP TC 13 International Conference on Human-

Computer Interaction (INTERACT'97), Sydney,

Australia (S. Howard, J. Hammond, and G. Lindgaard,

eds.), Chapman & Hall, Boca Raton, 362-369.

Testing Multimodal Interactive Applications by Means of the TTT Language

Palanque, P., Winckler, M., Ladry, J.-F., Ter Beek, M.H.,

Faconti, G., and Massink, M., 2009. A Formal

Approach Supporting the Comparative Predictive

Assessment of the Interruption-Tolerance of

Interactive Systems. In Proceedings of the ACM

SIGCHI Symposium on Engineering Interactive

Computing Systems (EICS'09), Pittsburgh, PA, USA

(G. Calvary, T.C.N. Graham, and P. Gray, eds.), ACM

Press, 211-220.

Kamel, N. and Aït Ameur, Y., 2007. A Formal Model for

CARE Usability Properties Verification in Multimodal

HCI. In Proceedings of the IEEE International

Conference on Pervasive Services (ICPS'07), Istanbul,

Turkey, IEEE Computer Society, 341-348.

Kamel, N., Aït Ameur, Y., Selouani, S.-A. and Hamam,

H., 2008. A formal model to handle the adaptability of

multimodal user interfaces. In Proceedings of the 1st

International ICST Conference on Ambient Media and

Systems (AMBI-SYS'08), Quebec, Canada (B. Liang

and R.M. Whitaker, eds.).

Mohand-Oussaïd, L., Aït-Sadoune, I., Aït Ameur, Y., and

Ahmed-Nacer, M., 2015. A formal model for output

multimodal HCI - An Event-B formalization.

Computing 97, 713-740.

AMARETTO 2016 - International Workshop on domAin speciﬁc Model-based AppRoaches to vEriﬁcaTion and validaTiOn
