Using Location-Labeling for Privacy Protection in Location-Based

Services

Dan Liao

1,2

, Hui Li

, Vishal Anand

, Victor Chang

, Gang Sun

and Hongfang Yu

Key Lab of Optical Fiber Sensing and Communications (Ministry of Education),

University of Electronic Science and Technology of China, Chengdu, China

Institute of Electronic and Information Engineering in Dongguan, UESTC, Dongguan, China

Department of Computer Science, The College at Brockport, State University of New York, Brockport, U.S.A.

Leeds Beckett University, Leeds, U.K.

Keywords: Location-Based Service (LBS), K-anonymity, Location Privacy, Location-Label, Sensitive Location.

Abstract: The developments in positioning and mobile communication technology have made applications that use

location-based services (LBS) increasingly popular. For privacy reasons and due to lack of trust in the LBS

provider, k-anonymity and l-diversity techniques have been widely used to preserve user privacy in

distributed LBS architectures. However, in reality, there exist scenarios where the user locations are

identical or similar/near each other. In such a scenario the k locations selected by k-anonymity technique are

the same and location privacy can be easily compromised or leaked. To address the issue of privacy

protection, in this paper, we propose the concept of location-labels to distinguish mobile user locations to

sensitive locations and ordinary locations. We design a location-label based (LLB) algorithm for protecting

location privacy while minimizing the query response time of LBS. We also evaluate the performance and

validate the correctness of the proposed algorithm through extensive simulations.

1 INTRODUCTION

Due to the development in positioning technology

and mobile communication technology, applications

of location -based services (LBS) (Li and Yiu, 2015)

have rapidly risen as more and more people make

use of these services. After receiving a LBS request

from a user, the LBS provider (LP) responds to the

request, according to the user location information

and the requested content. Although users enjoy the

conveniences of the services provided by the LBS

provider, there is a potential security risk of losing

their privacy. For example loss of privacy of

location or trajectory which may be leaked to other

parties).

Existing k-anonymity (Yang et al., 2013) and the

pseudo-ID technique (Bettini et al., 2007) are

effective techniques to protect user location privacy

in LBS. The authors in (Liu et al., 2014, Zhu et al.,

2013, Shao et al., 2014) provided solutions to solve

the problem of privacy preservation by using k-

anonymity. In this, when a user sends a query to the

LP, the user merges other k-1 user queries along

with their original request and submits the mixed

query to the LP. However, the LP can easily get user

requested contents when the requested contents of

the k users are similar to each other. Using data

analysis and mining the LP can infer more

information about users, such as common interests

and hobbies. To combat this deficiency, researchers

introduced the l-diversity concept (Niu et al., 2015,

Lu et al., 2014) to protect the requested contents (or

preference privacy (Lu et al., 2014)). In this method,

all LBS queries can be classified into different

categories (e.g., medical, traffic, entertainment, etc.)

according to their requested contents. The basic idea

of the l-diversity technique is to make LBS queries

of users different. Therefore, this property can

ensure that there exists at least l services in the k

LBS queries, where k ≥ l. The Privacy-preserving

framework for Local-Area Mobile social networks

(PLAM) (Lu et al., 2014) adopts k-anonymity and l-

diversity to protect location and preference privacy

of users. As shown in Figure 1(a), there exist 6 (i.e.,

k = 6) users who are distributed in different locations

requesting 3 (i.e., l = 3) services. Then the LP cannot

link a specific service/location to a specific user.

Thus, the PLAM method can protect the location

and preference privacy when the users’ locations are

different. However, consider the scenario in Figure

Liao, D., Li, H., Anand, V., Chang, V., Sun, G. and Yu, H.

Using Location-Labeling for Privacy Protection in Location-Based Services.

DOI: 10.5220/0005843402990306

In Proceedings of the International Conference on Internet of Things and Big Data (IoTBD 2016), pages 299-306

ISBN: 978-989-758-183-0

299

1(b) where the k users have the same location and

send requests together to the LP. Although the

PLAM can protect the preference privacy of users

with l-diversity technique, the LP can know that the

k users are in the same location and the location

privacy is leaked. Thus, PLAM cannot protect

location privacy when the users have the same

location, especially in some locations such as

supermarket, school and hospital where the

probability of selecting the same location with k-

anonymity technology is very high.

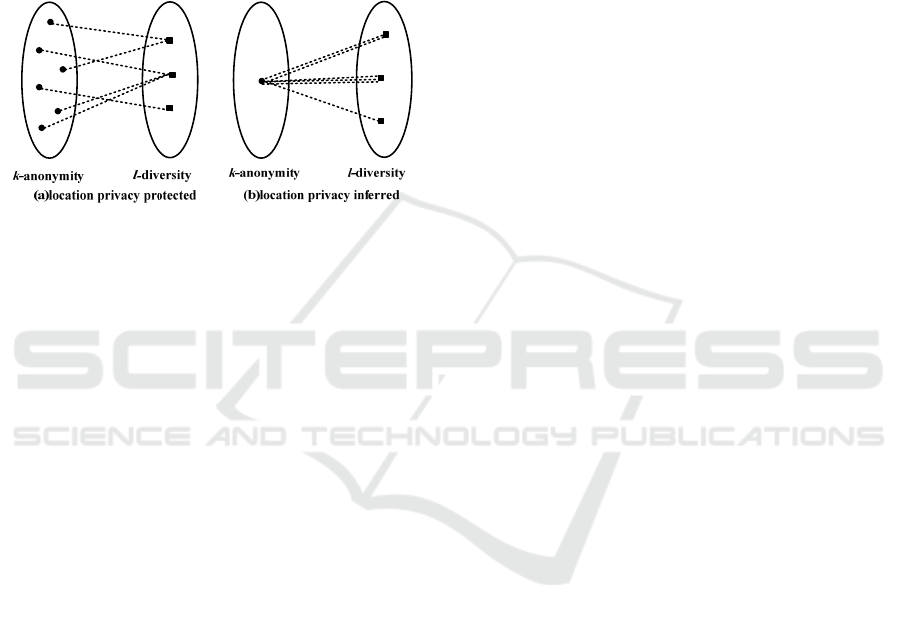

Figure 1: Same vs. different k locations.

Most existing solutions (e.g. k-anonymity (Yang

et al., 2013), l-diversity (Niu et al., 2015), (Lu et al.,

2014)) address the issue of privacy preservation in

LBS assuming that the user locations are different.

In this paper, we study the problem of privacy

protection in LBS for users within the same location.

We devise an algorithm based on location-label to

protect the location privacy, preference privacy and

trajectory privacy of users. The main contributions

of this paper are as follows:

 We propose the concept of location-labels that

classifies all locations into sensitive and ordinary

locations. Due to the large population density in

a sensitive location, the locations selected by k-

anonymity are much more identical than in

ordinary locations;

 We propose a location-label based algorithm

(called LLB) for privacy preservation for the

scenario where the locations of k users are

nearby, similar or identical;

 We propose three protocols including the request

aggregation protocol, the pseudo-ID exchange

protocol and the improved PLAM protocol in our

proposed algorithm, which help in reducing the

response time of the LBS system.

2 RELATED WORK

There are several studies on location-privacy, which

focus on the possible loss of location privacy during

the localization process. These localization

techniques in a LBS system are able to derive user

locations using anchor points (Uchiyama et al.,

2013). Since the localization algorithm takes anchor

points as input and outputs users’ location, location

of anchors and user’s location may be leaked to

others. Thus in order to efficiently protect user

location information during localization process, the

authors in (Li et al., 2014) proposed the PriWFL

algorithm, and the authors in (Shu et al., 2014)

studied the problem of multi-lateral privacy

preserving localization.

There are other studies that focus on protecting

user location privacy in LBS applications. In these

studies, the user locations are calculated by local

facilities, and two kinds of requests are considered:

single requests and continuous requests. For single

requests, the location privacy and preference privacy

need to be protected. Several strategies such as k-

anonymity (Niu et al., 2015), Mix Zones (Beresford

and Stajano, 2014), l-diversity (Niu et al., 2015), m-

unobservability (Chen et al., 2013) etc. have been

proposed to prevent the LBS provider from inferring

the users’ location or preference privacies. The

authors in (Niu et al., 2014) proposed the DLS

algorithm with the k-anonymity and l-diversity

properties for protecting location privacy and

preference privacy of users.

When a user sends continuous requests (i.e.

sending requests continuously for a period of time)

to the LP, the trajectory information of the user

needs to be protected. Feng et al. (Feng et al., 2012)

proposed an algorithm called VAvatar to protect

users’ locations and trajectories. Mohammed et al.

(Mohammed et al., 2009) proposed a Track False

Data method for the problem of protecting the

privacy of continuous requests, in which the users

send their fake location and track information to the

LBS provider, rather than their real trajectory data.

Wang et al. (Wang et al., 2012) proposed a

distributed query privacy preserving solution to

protect the trajectory privacy of user.

The existing studies mentioned above address the

problem of privacy preservation under the

assumption that users are distributed in different

locations. However, in reality there exists a situation

that multiple users may have the same location. In

this work, we investigate the problem of location

privacy preservation for users in the same location.

IoTBD 2016 - International Conference on Internet of Things and Big Data

300

3 PRELIMINARIES AND

PROBLEM SRATEMENT

In this section, we first introduce the basic concepts

and definitions. Then, we give the problem

description and LBS system model for the problem.

3.1 Preliminaries

1) Sensitive Locations and Ordinary Locations: All

locations can be classified into two categories:

sensitive locations and ordinary locations. Sensitive

locations typically have a dense population, which

includes hospitals, supermarkets, schools, etc. While

the ordinary locations are sparsely populated, such

as the locations on general roads.

Generally, there are some commonalities

between sensitive locations, for example, i) the

sensitive location is usually in a region with

developed traffic; ii) they are located in an area with

dense populations; iii) the users who gather in a

sensitive location have common characteristic(s).

For example, if the users are in a hospital (a

sensitive location), the possibility of that they are

patients or doctors is very high. Since the users in a

sensitive location have common characteristics (e.g.,

interests, needs), the request contents of these users

may be similar while using LBS. Thus we need to

protect the identity of users in these locations, and

do not need to pay much attention on protecting their

requested contents and the preference privacy. For

example, users who in hospital do not care whether

the attacker knows the requested information (e.g.,

health information), but they do know that their

identities cannot be inferred by the malicious

attacker. For an ordinary location, since it is just a

location on general roads, users are more concerned

about the location privacy and the preference

privacy that have not been leaked out. Figure 2

shows an example of partitioning of locations.

2) User Location: A user location is denoted by d (x,

y, label), where x and y represent the latitude and

longitude of a location, and label represents the

category of the location. For example, if a user is in

a sensitive location (e.g., hospital), the content of

label describes the information about the hospital. If

the user is in an ordinary location, the content of

label is null.

3) Service Category: We can classify user requests

into different service categories, according to the

services provided by the LBS system. For example,

some users query for entertainment information,

while others may query for dining or dating. We

store the various service categories in set

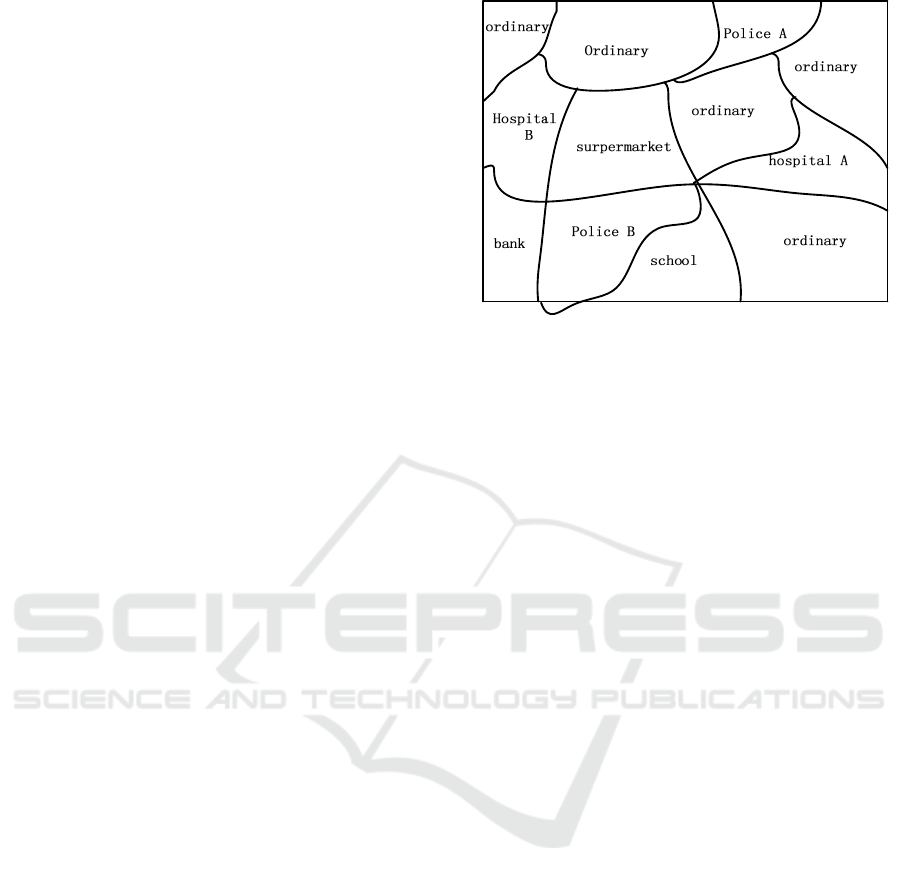

Figure 2: An example of the partition for locations.

Serve = {sc

, sc

,…, sc

}, where sc

denotes a

service provided by the LBS system. For sc

, we use

to denote whether a user is using the service. For

example, when s

=1, it means that a user is using the

service sc

4) Single Request Packet: The single request packet

is denoted by Rq

= {Pid

, d

, serve, R

, t}, where Pid

represents the user’s identity, d

denotes the user’s

location information, serve represents the service

category, and R

represents specific content of the

corresponding request. The time t is set to indicate

the tolerable response time for the LBS request of a

user.

5) Aggregated Packet: Before a user u

submitting a

request to the LP, he/she aggregates requests from

other users. User u

first broadcasts the aggregating

message to other users. If there are other k-1 users

agreeing to join with the user u

, they send their

single request packet to user u

, and user u

will

become the representative user for them. The

representative user merges the k users’ request

packets and forms the aggregated request packet,

denoted by Ag={P

list

, {d

, serve

, R

}, {d

, serve

},…,{d

, serve

, R

}}. Where the P

list

is a list of

identities of the k users and P

list

={Pid

, Pid

,…,

Pid

}. The k triples denote the requests of k users.

Each triple contains the location information d

, the

requested content R

, and the service category serve

of a user. Due to the randomness and uncertainty of

users, the k locations and the requested services

corresponding to the k users may be the same. Thus,

we have 1 ≤ |d| ≤ k and l ≤ |s| ≤ k, where d is the set

of locations of k users, |d| is the number of distinct

locations, s is the set of the requested service

categories of k users and |s| is the number of the

different requested service categories.

6) Bilinear Pairings: Similar to (Lu et al., 2014,

Liao and Hsiao, 2011), let G and G

be the cyclic

Using Location-Labeling for Privacy Protection in Location-Based Services

301

additive and multiplicative groups, both generated

based on the same prime order q. Suppose that p is

the generator of group G, Z

is the residual class ring

with modulo q and Z

is an invertible element set

relative to Z

. There exists a mapping e: G×G→G

that meets the following three conditions:

 Bilinear: For any two elements g

, g

∈G, a, b∈

, we have e(g

, g

) = e(g

, g

)

∈G

;

 Non-degenerated: There exists a P∈G such that

e(P, P) ≠ ρ, where the ρ is the unit-element of

group G.

 Computable: For any two elements g

, g

∈G,

we can compute e(g

, g

) via an efficient

computational technique.

We call the mapping e that meets the above three

conditions as bilinear pairings. By applying a

bilinear mapping on the supersingular elliptic curve,

we can obtain a Diffie-Hellman group. Assume that

the Diffie-Hellman group is G. The Computational

Diffie Hellman (CDH) problem is hard, the

Decisional Diffie Hellman problem (DDH) can be

easily solved. Based on the characteristic of the

bilinear pairings (Lu et al., 2014), we can calculate a

user’s PID and verify whether the PID is valid.

3.2 Problem Statement

Given the location label, a single requested packet

and Bilinear pairings, the problem is to protect

user’s location privacy and reduce the aggregating

time for k users in a distributed structure of LBS

system.

For preserving user privacy, we design a LBS

system, whose framework is shown in Figure 3,

which consists of three key components: User

Requests (USER), Pseudonym Identity Server

(PIDS), and LBS Provider (LP). In this paper, we

use a distributed LBS structure without involving a

trusted central anonymizer. The LP can operate in

accordance with relevant regulations and agreements

of the LBS system. But it does not rule out the

possibility that the LP is curious and desires to

deduce users’ location privacy, preference privacy

and trajectory privacy. Users communicate with one

another while following the system rules and

agreements. They cannot collude with each other to

infer other users’ privacy information, and they also

cannot collude with the LP.

1) PIDS Server Initialization: For a given secure

parameter k, the PIDS server generates a 5-tuple (q,

g, G, G

, e) about bilinear pairings, where q is a k-bit

prime number. Then the PIDS server initializes the

LBS system with a suitable symmetric encryption

PIDS

PID

request

USER

response

Figure 3: System model for privacy preserving.

algorithm enc(), pseudo-random function

f:{0,1}

→Z

and two hash functions H

{0,1}

→{0,1}

, H

: {0,1}

→G. In this work, we

assume that the PIDS server has held a public key

and a private key (Pk

pids

, Sk

pids

). Finally, the PIDS

server generates and publishes the system

parameters (q, g, G, G

, e, Pk

pids

, f, H

, H

, enc()).

2) User Registration: A user u

registers with the

PIDS server by sending registration message. After

receiving the registration message, the PIDS server

computes s=f(PK

pids

), and then computes user’s

pseudo-ID by using the value s and the symmetric

encryption algorithm enc(). The pseudo-ID is

represented by Pid

: Pid

=enc

||r

), where r

∈Z

Then the PIDS server calculates the corresponding

private key for user u

: Sk

(Pid

). Finally, the

PIDS server returns the Pid

and Sk

to the user u

After receiving Pid

and Sk

, the user u

can verify

whether they are correct by checking e(H

(Pid

pids

) =? e(Sk

, g). If they are equal, the Pid

and Sk

are valid. Otherwise, they are invalid and the user

will register into the PIDS server again.

3) Request Submission: If a user u

initiates a

request to the LBS provider, the LBS system would

employ the LLB algorithm (will be described in

Section IV) for protecting the user’s privacy. After

aggregating requests of users with k-anonymity and

l-diversity properties, the user u

becomes the

representative user, and repackages the k users’

request packets and gets an aggregated packet Ag.

Then the representative user sends the aggregated

packet to the LP. After receiving the aggregated

packet, the LP processes it and returns a list of

results to the k users. Users filter the results and find

the one that is consistent with their own request from

the list.

4 ALGORITHM DESIGN

In this section, we first propose three protocols

including request aggregation protocol, pseudo-ID

IoTBD 2016 - International Conference on Internet of Things and Big Data

302

exchange protocol and the improved Privacy-

preserving framework for Local-Area Mobile social

networks (PLAM) protocol. We then design the

location-label based (LLB) algorithm for efficiently

preserving the privacy of users.

4.1 The Request Aggregation Protocol

Without loss of generality, we assume that there is a

user u

who has not received any other queries from

other users and wants to launch a request to the LP.

Then the user u

will initiate request aggregating

message to aggregate with other k-1 user requests.

The detailed aggregating process is as follows.

User u

first broadcasts the request aggregating

message. We assume that user u

has received the

broadcast message. There are three scenarios where

user u

will ignore the broadcast message sent by

user u

: i) user u

has agreed to aggregate with other

user; ii) the time t is zero in the request packet of

user u

; iii) the user u

has sent aggregate request to

other users and there are more than k/2 users who

agree to join with user u

If user u

has neither sent aggregate request to

other users, nor has agreed to aggregate with other

users, and the time t is not zero, the user u

is an

ideal candidate for user u

. If less than k/2 users

agree to join with user u

(assume m (m≤k/2) users

have joined with user u

, and then the user u

agent user for the m users), the agent user u

will

respond to user u

that “m+1 users (including user u

and other m users who have joined with user u

)

agree to join”.

When user u

has received k-1 responses from

other users, u

informs the corresponding k-1 users

and collect their request packets. Then user u

repackages the packets from k users and get an

aggregated package Ag. If the aggregated package

Ag meets the l-diversity requirement, user u

becomes the representative user, who sends the

aggregated packet Ag to the LP. Otherwise, the

aggregated package Ag will be discarded and user u

informs the other k-1 users that their aggregation is

failed. Then all the k users reset the time t and

resubmit their requests.

4.2 The Pseudo-ID Exchange Protocol

We propose the pseudo-ID exchange protocol which

can efficiently protect user location privacy in single

query when the labels of users are the same and they

belong to the sensitive locations. The pseudo-ID

exchange protocol can also be used to protect user’s

trajectory privacy in continuous queries. Figure 4

shows three users u

, u

and u

who come from

different roads and gather in a sensitive location. If

the users exchange their identities with each other in

the sensitive location, the attacker cannot link a

specific identity to a specific user. Although the

locations are the same, the attacker is unable to

distinguish the users. Therefore, it can indirectly

protect users’ location privacy. As shown in Figure 4,

we can see that it can confuse the attacker who

cannot infer which trajectory belongs to which

specific user. So it can protect users’ trajectory

privacy. We introduce the process of exchanging

identity information between two users in the

following.

Sensitive

location

Uc ?

Ub ?

Ua ?

Figure 4: An example for exchanging PIDs.

Assume that there are two users u

and u

that

have the same sensitive location. Assume that the

two users exchange PIDs with the probability ρ. Due

to the symmetry, we only need to analyze how user

changes his identity information. After receiving

the Pid

and private key Sk

from the user u

, user u

re-verifies their identity by checking e(H

(Pid

pids

) =? e(Sk

, g). If they are equal, user u

will

modify their identity. User u

abandons his/her own

identity information about Pid

and Sk

. Then user u

regards the corresponding information about Pid

his/her own identity. The user u

does the same as

user u

. Finally, user u

and user u

successfully

finish the process of exchanging identities.

4.3 The Improved-PLAM Protocol

Lu et al., (Lu et al., 2014) proposed the PLAM

protocol for preserving location and preference

privacy in a distributed LBS system. With k-

anonymity and l-diversity techniques, the PLAM

protocol employed Privacy-preserving Request

Aggregation to unite with k users only considering

the case where users are in different locations.

However, their locations may be the same,

especially when they are in a sensitive location

causing a loss in privacy of their location. In this

work, we propose the improved PLAM protocol, for

the scenario when the users have same location.

First, the representative user compares the

Using Location-Labeling for Privacy Protection in Location-Based Services

303

information serve in the single packet requests of k

users. If there are at least l services between the k

users, it means the aggregated packet Ag meets the

requirements of l-diversity. Otherwise the

aggregated packet Ag is discarded and the

representative user informs the other k-1 users that

the aggregation is failed.

After ensuring that there are at least l services

using the LBS system, the representative user

compares the location information (x, y) of all k

users. If more than k/2 location information (x, y) are

the same, it is necessary to exchange the identities of

users who have the same locations by using the

pseudo-ID exchange protocol. Finally, the

representative user rearranges the aggregated packet

Ag and sends it to the LBS provider.

4.4 Location-Label Based Algorithm

The pseudo code of location-label based algorithm

(LLB) is shown as follows.

Algorithm 1: Location-Label Based (LLB) algorithm.

1: Broadcast the aggregation message;

2: Aggregate users’ requests by using

request aggregation protocol;

3: if (k users aggregated together)

4: Compare the k users’ location labels;

5: if (the locations are identical and

sensitive locations)

6: Exchange the users’ PIDs by using

pseudo-ID exchange protocol;

7: else if (the locations are identical

and ordinary locations)

8: Call the improved-PLAM protocol;

9: else if (the locations are different)

10: Call the improved-PLAM protocol;

11: end if

12: end if

User u

first aggregates with other k-1 users

through the request aggregation protocol. If there

are k-1 users who agree to send request to the LP

together with the user u

, the user u

is the

representative user for the k users. Then the

representative user will compare the k users’

location labels. There are three kinds of situations

based on the results of the comparison: i) The k

users location labels are the same and their locations

are sensitive locations, then we use the pseudo-ID

exchange protocol for the subsequent processing; ii)

The k users’ location labels are the same and their

locations are ordinary location, then we use the

improved-PLAM protocol for the subsequent

processing; iii) If location labels are different, the

representative user will use the improved PLAM

protocol for the subsequent processing.

5 SIMULATIONS AND

ANALYSIS

In this section, we first introduce the simulation

environment, and then give the simulation results of

the compared algorithms. Please produce your

figures electronically, and integrate them into your

document.

5.1 Simulation Environment

We use OPNET (https://www.opnet.com/) to

conduct our simulations, as OPNET can be used to

construct complex network topologies and in

sending or receiving messages. Assume that there is

a region A of size {1.5km×1.5km} with 10×100

locations. For simulating the locations we construct

a network consisting of 10 × 100 nodes and

randomly assign these nodes as sensitive and

ordinary location. For simulating the roads between

locations we then construct the network is fully

connected. In our experiments, we consider two

scenarios as follows.

Scenario-1: There are 100 users uniformly

distributed in region A. We assume that user u

in an

ordinary location sends a request to the LP. The rest

of the users randomly send their aggregation

messages. The PID exchange probability

is fixed at

0.5. To ensure the l-diversity, we set l = k/2.

Scenario-2: There are 100 users in region A, and

most of them are densely distributed in sensitive

locations, and only a few of them are distributed in

ordinary locations. We assume that user u

in a

sensitive location sends their request to the LP. The

rest of the conditions are the same as Scenario-1.

5.2 Simulation Results and Analysis

Figure 5 shows the simulation results for two

compared algorithms (PLAM algorithm (Lu et al.,

2014) and LLB algorithm) under Scenario-1. From

Figure 5(a) we can see that the request delay of our

proposed LLB algorithm is shorter than that of the

PLAM algorithm. Furthermore, for our LLB

algorithm, the request delay increases with the

parameter k when k < 20 and reduces a little when

20 ≤ k ≤ 30. However, the request delay goes up

again when k > 35. This is because that aggregating

more users needs more time. As there must be an

agent user who agrees to join the user u

when k ≥

20, the request delay slowly increases with the

growth of user number k in LLB algorithm whereas

quickly increases with the growth of user numbers k

in the PLAM algorithm.

IoTBD 2016 - International Conference on Internet of Things and Big Data

304

Figure 5(b) depicts the relationship between the

number of users and the probability of guessing or

identifying a user. From Figure 5(b), we can see that

both LLB algorithm and PLAM algorithm have the

same probability when k ≤ 15; and the LLB

algorithm has lower probability of guessing a user

compared to the PLAM algorithm when k ≥ 20.

Since some of the k users have the same locations

(larger k means more users have same locations),

and thus our LLB algorithm can better protect

location privacy of user compared to the PLAM

algorithm.

0 5 10 15 20 25 30 35 40 45

(a)

(b)

LLB algorithm

PLAM algorithm

The request delay (Seconds)

The number of users: k

0 5 10 15 20 25 30 35 40 45

0.00

0.03

0.06

0.09

0.12

0.15

0.18

0.21

LLB algorithm

PLAM algorithm

The probability of guessing user

The number of users: k

Figure 5: The simulation results for Scenario-1.

0 5 10 15 20 25 30 35 40 45

LLB algorithm

PLAM algorithm

The request delay (Seconds)

The number of users: k

0 5 10 15 20 25 30 35 40 45

0.00

0.03

0.06

0.09

0.12

0.15

0.18

0.21

0.24

(a)

(b)

LLB algorithm

PLAM algorithm

The probability of guessing user

The number of users: k

Figure 6: The simulation results for Scenario-2.

Figure 6 compares the LLB algorithm and

PLAM algorithm under Scenario-2. Figure 6(a)

shows the similar results as that in Figure 5(a). The

aggregating time of our proposed algorithm is

significantly smaller compared to that of the PLAM

algorithm when k >15. However, as user u

is in a

sensitive location in Scenario-2, the locations of k

users merged by user u

may be identical. Then the

proposed LLB algorithm exchanges the users IDs

through pseudo-ID exchange protocol and the

process of exchanging IDs is time consuming. Thus,

it is noticed that when the number of users is small,

e.g. k ≤ 10, the PLAM algorithm has lower request

delay. However, the overall performance of our

proposed algorithm is superior to the PLAM

algorithm in Scenario-2. Figure 6(b) shows that the

LLB algorithm has much lower probability of

leaking the privacy of a user compared to the PLAM

algorithm. Hence, it can more efficiently protect user

privacy. Compared to the Figure 5(b), the

probability of guessing a user with LLB algorithm is

lower in Scenario-2 than that in Scenario-1. This is

because when users have same locations, the LLB

algorithm employs pseudo-ID exchange protocol to

reduce the probability of guessing user.

5 10152025303540

The request delay (Seconds)

The number of users: k

Scenario-1

Scenario-2

Figure 7: Performance of LLB algorithm under different

scenarios.

Figure 7 shows the performance of the LLB

algorithm when user u

is in an ordinary location

(Scenario-1) and a sensitive location (in Scenario-2),

respectively. For a user in sensitive location, before

sending a request, the user aggregates with k-1 other

users. The k locations of users are very likely

identical and the LLB algorithm uses the pseudo-ID

exchange protocol for exchanging user identities. As

the process of exchanging identities is time

consuming, the request suffers a longer delay in

Scenario-2 than that in Scenario-1.

6 CONCLUSIONS

In this paper we study the problem of privacy

preservation for users have same location in a LBS

system. To protect the location privacy, preference

privacy and trajectory privacy of users in a

distributed structure of LBS system, we propose a

location-label based algorithm that includes three

key protocols: the user requests aggregation

protocol, the pseudo-ID exchange protocol and the

improved PLAM protocol. We conduct extensive

Using Location-Labeling for Privacy Protection in Location-Based Services

305

simulation experiments to evaluate the performance

of our algorithm. The simulation results show that

the proposed algorithm outperforms the existing

approach.

ACKNOWLEDGEMENTS

This research was partially supported by the

National Grand Fundamental Research 973 Program

of China under Grant (2013CB329103), Natural

Science Foundation of China grant (61271171,

61571098), China Postdoctoral Science Foundation

(2015M570778), Guangdong Science and

Technology Project (2012B090400031,

2012B090500003, 2012B091000163), and National

Development and Reform Commission Project.

REFERENCES

Li, Y., Yiu, M., 2015. Route-Saver: Leveraging Route

APIs for Accurate and Efficient Query Processing at

Location-Based Services. IEEE transactions on

knowledge and data engineering (TKDE).

Yang, D., Fang, X., Xue, G., 2013. Truthful incentive

mechanisms for k-anonymity location privacy. IEEE

INFOCOM.

Bettini, C., Mascetti, S., Wang, X., Jajodia, S., 2007.

Anonymity in location based services: Towards a

general framework. IEEE International Conference on

Mobile Data Management.

Niu, B., Li, Q., Zhu, X., Cao, G., Li, H., 2014. Achieving

K-anonymity in Privacy Aware Location Based

Services. IEEE INFOCOM.

Zhu, X., Chi, H., Niu. B., 2013. When k-anonymity meets

cache. IEEE GLOBECOM.

Shao, J., Lu, R., Lin, X., 2014. FINE: A Fine-Grained

Privacy-Preserving Location Based Service

Framework for Mobile Devices. IEEE INFOCOM.

Niu, B., Zhu, X., Li, W., et al, 2015. A Personalized Two-

Tier Cloaking Scheme for Privacy-Aware Location-

Based Services. IEEE International Conference on

Computing, Networking and Communications (ICNC).

Lu, R., Lin, X., Shi, Z., et al, 2014. PLAM: A Privacy-

Preserving Framework for Local-Area Mobile Social

Networks. IEEE INFOCOM.

Uchiyama, A., Fujii, S., Maeda, K., et al, 2013. UPL:

opportunistic localization in urban districts. IEEE

Transactions on Mobile Computing, 12(5).

Li, H., Sun, L., Zhu, H., et al, 2014. Achieving Privacy

Preservation in WiFi Fingerprint Based Localization.

IEEE INFOCOM.

Shu, T., Chen, Y., Yang, J., 2014. Multi-lateral Privacy-

Preserving Localization in Pervasive Environments.

IEEE INFOCOM.

Beresford, A., Stajano, F., 2014. Mix Zones: User Privacy

in Location-aware Services. IEEE Conference on

Pervasive Computing and Communications

Workshops.

Chen, Z., Hu, X., Ju, X., et al, 2013. LISA: location

information scrambler for privacy protection on

smartphones. IEEE Conference on Communica -tions

and Network Security.

Feng, Y., Liu, P., Zhang, J., 2012. A Mobile Terminal

Based Trajectory Preserving Strategy for Continuous

Querying LBS Users. IEEE International Conference

on Distributed Computing in Sensor Systems.

Mohammed, N., Fung, B., Debbabi, M., 2009. Walking in

the crowd, Anonymizing trajectory data for pattern

analysis. The 18th ACM Conference on Information

and Knowledge.

Wang, Y., Peng, J., He, L., et al. LBSs Privacy Preserving

for Continuous Query based on Semi-honest Third

Parties. IEEE International Perform -ance Computing

and Communications Conference.

Liao, Y., Hsiao, C., 2011. The improvement of ID-based

remote user authentication scheme using bilinear

pairings. IEEE International Conference on Consumer

Electronics, Communication and Networks.

Niu, B., Zhu, X., Li, Q., Chen, J., Li. H., 2015. A novel

attack to spatial cloaking schemes in location-based

services

. Future Generation Computer Systems.

OPNET. https://www.opnet.com/.

IoTBD 2016 - International Conference on Internet of Things and Big Data

306
