Toward a Real Time View-invariant 3D Action Recognition

Mounir Hammouche

, Enjie Ghorbel

, Anthony Fleury

and S

ebastien Ambellouis

1,2

Mines Douai, URIA, F-59508, Douai Cedex, France

Ifsttar, Cosys - Leost, F-59666, Villeneuve d’Ascq Cedex, France

Keywords:

Action Recognition, Human Interaction.

Abstract:

In this paper we propose a novel human action recognition method, robust to viewpoint variation, which com-

bines skeleton- and depth-based action recognition approaches. For this matter, we ﬁrst build several base

classiﬁers, to independently predict the action performed by a subject. Then, two efﬁcient combination strate-

gies, that take into account skeleton accuracy and human body orientation, are proposed. The ﬁrst is based on

fuzzy switcher where the second uses a combination between fuzzy switcher and aggregation. Moreover, we

introduce a new algorithm for the estimation of human body orientation. To perform the test we have created a

new Multiview 3D Action public dataset with three viewpoint angles (30°,0°,-30°). The experimental results

show that an efﬁcient combination strategy of base classiﬁers improves the accuracy and the computational

efﬁciency for human action recognition.

1 INTRODUCTION

Action recognition has been an active ﬁeld of research

in the last decades (Laptev and Lindeberg, 2003; Rah-

mani et al., 2014). It has a strong connection to many

ﬁelds such as smart surveillance, intelligent human-

robot interaction, and sociology (Peng et al., 2014).

The activities that have been studied include people

interactions, single or group of person(s) activities.

Moreover, human action recognition methods can be

divided into three categories that are RGB-, skeleton-

and depth-based methods (Wang et al., 2012b).

In RGB-based methods, research has focused on

learning directly from the colors of the image se-

quences. However, there are inner limitations of this

kind of information, e.g. it is sensitive to illumination

changes and background clutters. The accurate RGB-

based actions recognition still remains a challenging

task (Vemulapalli et al., 2014).

With the recent advances of depth cameras these

last years, such as Kinect, depth-based approaches

have received a greater attention. Depth-based meth-

ods have several advantages compared with RGB-

based ones. First, the depth cameras offers 3D map

information of the scene, which provides more dis-

cerning information to recognize actions. Secondly,

depth cameras can work in dark conditions (Xia and

Aggarwal, 2013). The advantages of depth cameras

also lead to a renewal interest in skeleton-based ac-

tion recognition, notably after the integration of the

robust skeleton estimation algorithm of Shotton et

al.(Shotton et al., 2011) in several software. This

algorithm makes the estimation of joints from depth

video sequence relatively easy, fast and accurate.

Depth-based action recognition approaches pro-

vide better results than skeleton-based approaches in

the presence of self-occlusion. However, these meth-

ods suffer from the lack of precision and are sensi-

tive to viewpoint variation. There are some view-

invariant methods based on the extraction of features

from pointclouds instead of depth images (Rahmani

et al., 2014), but these methods are time consuming

and not adapted for real-time applications.

The skeleton estimated from depth images is

widely accurate in laboratory settings. However in

real conditions, the situations are more complex: Self-

occlusion between body segments usually appears

and people are not often in front of the camera (Xia

and Aggarwal, 2013). These conditions cause difﬁ-

culties for recognition task (Oreifej and Liu, 2013).

The aim of this paper is to develop a novel

human action recognition technique, which com-

bines skeleton- and depth-based action recognition

approaches. Foremost, to deal with view-invariant is-

sue of depth-based action recognition, we propose a

novel method, robust to viewpoint variation and ap-

plicable in real-time. These methods are based on hu-

man body orientation and aggregation of several base

Hammouche, M., Ghorbel, E., Fleury, A. and Ambellouis, S.

Toward a Real Time View-invariant 3D Action Recognition.

DOI: 10.5220/0005843607450754

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 4: VISAPP, pages 745-754

ISBN: 978-989-758-175-5

745

classiﬁers. Furthermore, to combine the skeleton- and

depth-based classiﬁers, we study two strategies, the

ﬁrst being based on fuzzy switcher, and the second on

combination between fuzzy switcher and aggregation.

This paper is organized as follows: Section 2,

brieﬂy reviews the most relevant skeleton and depth

based human action recognition approaches; section 3

introduces a novel Multiview public dataset and pro-

vides duration and accuracy evaluations for various

state-of-the-art algorithms on our dataset; section 4

gives a description of our proposed method; Section 5

discusses the computational efﬁciency and the robust-

ness of combination methods to viewpoint variations.

Finally, conclusion is given in Section 6.

2 RELATED WORKS

The recent advances of RGB-D cameras have pro-

vided a new opportunity for skeleton estimation.

However, the extraction of human skeleton has be-

come relatively easier and more accurate (Shotton

et al., 2011), leading to a great attention for skeleton-

based action recognition approaches. These last

years, many researchers focused on developing novel

skeleton feature space to characterize human ges-

tures. In (Yang and Tian, 2012), Yang et al. used

the relative-joint positions representation as features

to characterize the different actions, classiﬁcation is

done using the Naive-Bayes nearest neighbor. Wang

et al. (Wang et al., 2012b) used the same relative-

joint position features but they focused on the tempo-

ral modeling of different actions using Fourier Tem-

poral Pyramid. Furthermore, to make the skeletal data

invariant to the location and orientation of the subject

in the scene, person-centric coordinate and normaliza-

tion of the skeleton were adopted by many researches

(Vemulapalli et al., 2014; Xia et al., 2012). These pro-

cesses improve the robustness of skeleton-based ac-

tion recognition to make them view invariant. Xia et

al. (Xia et al., 2012), introduced a view-independent

representation of the skeleton obtained by the orienta-

tions quantization of the body joints into histograms

with respect to the hip center reference. The tempo-

ral evolution of this method is modeled using Hidden

Markov Model (HMM). Vemulapalli et al. (Vemula-

palli et al., 2014), present a new skeletal representa-

tion that lies in the Lie group of Special Euclidean

group SE(3), describing the rotations and translations

between various body segments using 3D euclidean

geometric transformations. In order to simplify the

approach of classiﬁcation the authors project the ex-

tracted features using lie algebra. Then, they per-

form classiﬁcation using a combination of dynamic

time warping, Fourier temporal pyramid representa-

tion and linear Support Vector Machine (SVM).

Recently, depth-based action recognition has

made great progress. Wang et al. (Wang et al., 2012a),

utilize a sparse coding approach to encode the Ran-

dom Occupancy Pattern (ROP) features to recognize

the different actions. The ROP features is shown to

be robust to occlusion. The approach proposed in

(Yang et al., 2012) projects depth maps of action in-

stances into three orthogonal planes. To represent

the action, the authors use the Histogram of Oriented

Gradients (HOG) descriptor to characterize the Depth

Motion Maps (DMM), which is the accumulation of

motion energy through the entire sequences of each

projection. Due to its computational simplicity, the

same approach in (Yang et al., 2012) is adopted in

the work of (Chen et al., 2013), while the latter mod-

iﬁes the procedure to obtain DMMs without includ-

ing HOG descriptor. As a result, the computational

complexity of the feature extraction process is greatly

reduced. Similarly to (Yang et al., 2012), Oreifej et

al. (Oreifej and Liu, 2013) describe the depth se-

quence using a histogram that captures the distribu-

tion of the normal to the surface orientation in the 4D

space (HON4D), composed of time, depth, and spatial

coordinates. Ohn-Bar et al. (Ohn-Bar and Trivedi,

2013), propose a new descriptor for spatio-temporal

feature extraction from depth images called HOG

which they evaluated the extracted features in a bag-

of-words scheme using linear SVM.

Rather than the recent skeleton-based approaches

which are robust to viewpoint variation, the view-

invariance is still a major challenge for depth-based

action recognition. In fact, there are recently some

researches that make the depth-based more robust to

the view angle variation, such as the work of Hossein

et al. (Rahmani et al., 2014),they processed directly

the pointclouds of depth sequence using Histogram of

Oriented Principal Components (HOPC) descriptor,

which is robust to noise, viewpoint, scale and action

speed variations. However, the process of pointclouds

are very time consuming which makes this method so

far to be applicable in real-time.

A hybrid solution combining depth and skeleton

information is used in many research works. Most of

them use various depth descriptors around the joints

as features such as: (Wang et al., 2012b; Yang et al.,

2012), and (Ohn-Bar and Trivedi, 2013). Wang et

al., in (Wang et al., 2012b), use 3D joints position

and local occupancy patterns as features. Ohn-Bar

et al.(Ohn-Bar and Trivedi, 2013) propose to use the

HOG

descriptor around each joints instead of whole

depth pixels. Indeed, these methods are strongly de-

pendent on the accuracy of skeleton estimation, thus

VISION4HCI 2016 - Special Session on Computer VISION for Natural Human Computer Interaction

746

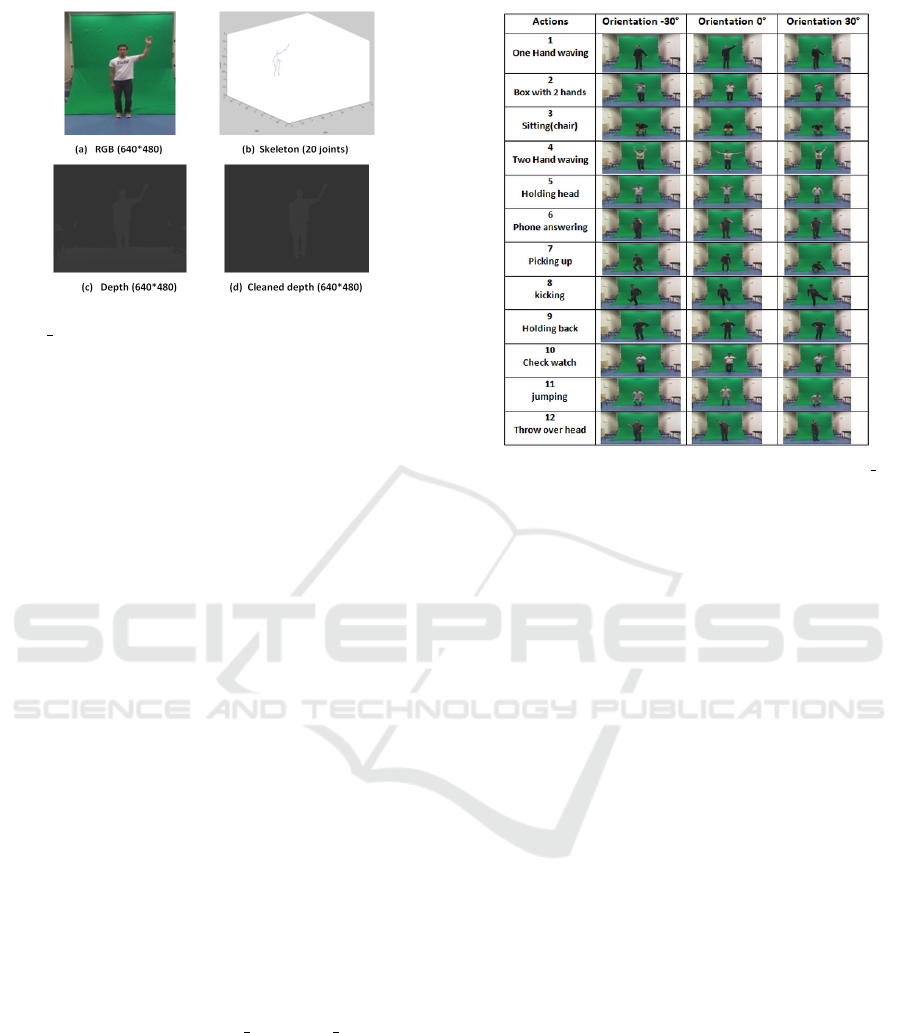

Figure 1: Snapshots of four information available in Mines-

Douai 3D dataset.

they do not make a substantial contribution in the

case of self-occlusions or when the skeleton estima-

tion failed.

3 BASE CLASSIFIER FOR

HUMAN ACTION

RECOGNITION

The goal of this section is to evaluate and analyze the

most relevant depth and skeleton base classiﬁers of

action recognition with respect to viewpoint variation,

to further show the contribution of combination meth-

ods to enhance the recognition accuracy and timing

performance.

3.1 Mines Douai Multiview 3D Dataset

Several 3D dataset have been created in the last years

for action recognition. However, most of them are

acquired from only one viewpoint angle which pre-

vent us from measuring the effect of person’s orien-

tation. Recently, Rahmani et al. (Rahmani et al.,

2014), created a multiview dataset but this dataset

is not well structured. Thus, the creation of new

publicly available multiview dataset to enhance the

study of view-invariant action recognition became a

necessary task. MinesDouai Multiview 3D dataset

contains four types of information (Figure 1): RGB,

depth, cleaned depth and human skeleton data, cap-

tured with only one kinect camera. For each acquisi-

tion, the subject performs the same action twice in

three orientations (30°,0°,-30°) in order to produce

the dissimilarity between the three viewpoint angles

even for the same subject.

This dataset includes 12 actions: one-hand wav-

ing, boxing, setting, two-hand waving, holding head,

phone answering, picking up, kicking, holding back,

Figure 2: Samples frames of Multiview MinesDouai 3D

dataset.

check watch, jumping, and throw over head. Each ac-

tion is performed by 8 actors. Figure 2 shows some

sample frames of our dataset captured from different

angles.

3.2 Skeleton-based Action Recognition

The extraction of a skeleton from depth information

was a big challenge in the last decades. Recently a ro-

bust skeleton estimation algorithm proposed by Shot-

ton et al. (Shotton et al., 2011) regenerates the inter-

est on skeleton-based action recognition. To study the

impact of viewpoint variation on the accuracy of ac-

tion recognition, we conducted our experimentation

with the most relevant state-of-the-art skeleton-based

approaches. Foremost, we started by Actionlet algo-

rithm (Wang et al., 2012b) and then we tested a four

alternative skeletal representations on our dataset us-

ing a combination of dynamic time warping, Fourier

Temporal Pyramid representation and linear SVM.

This algorithm pipeline is proposed by Vemulapalli

et al. (Vemulapalli et al., 2014). The four alterna-

tive skeletal representations tested on our dataset are:

Joint positions (JP), Pairwise relative positions of the

joints (RJP), Joint angles (JA), and Individual body

part locations (BPL).

To make the skeleton invariant to the orientation

and the location in the scene, Vemulapalli et al. (Vem-

ulapalli et al., 2014) pre-process this information with

the following operations:

• For scale-invariant: the authors consider person-

centric coordinate as reference and they apply the

Toward a Real Time View-invariant 3D Action Recognition

747

Figure 3: Six subgroups used for classiﬁcation.

normalization by taking one of the skeletons as

reference;

• For view-invariance: a rotation is applied to the

skeleton such that the vector from right hip to left

hip is parallel to the global x-axis.

For fair comparison between different skeleton repre-

sentations, we have used the same experimental set-

ting with all the representations. The obtained results

are summarized in Table 1.

3.3 Depth-based Action Recognition

The skeleton estimation from RGB-D image is accu-

rate under experimental settings, but the estimation of

the skeleton remains limited. As previously stated, it

has difﬁculties to correctly work in the presence of

self-occlusion between body segments and the esti-

mation completely fails, for instance, in video surveil-

lance when the body is not in front of the camera (Xia

and Aggarwal, 2013). Designing an efﬁcient depth

representation for action recognition can give better

results in these adverse conditions. After, reviewing

the most relevant state-of-the-art depth-based action

recognition approaches, we choose three algorithms:

DMM (Chen et al., 2013), HON4D (Oreifej and Liu,

2013), and HOG

(Ohn-Bar and Trivedi, 2013). This

selection is based on the recognition accuracy pre-

sented in their papers with different benchmarks, and

on execution time. We evaluated these three algo-

rithms on our dataset. The experimental results are

presented in Table 1.

3.4 Discussion and Evaluation of Base

Classiﬁers

In order to evaluate the various skeleton- and depth-

based classiﬁers, we have divided our dataset into 2

groups. Each group contains 4 subjects with three

orientations (2*3 subgroups) as shown in Figure 3. To

perform the test, one subgroup is used for training and

the other for testing. Table 1 summarizes the results.

The “same view test” refers to the average of accuracy

rates obtained when the train and test subgroupes are

from the same viewpoint angle. The “cross-view test”

refers to the case where train and test subgroups are

from different viewpoint angles. Table 1 also contains

execution duration for each algorithm.

Table 1: Comparison between the state-of-art results with

MinesDouai Multiview 3D Dataset (bold indicates highest

rate).

Cross Validation Test (4*4)

Duration (s)

Same View Cross-View

Depth

DMM 0.782 0.603

1.413

HON4D 0.893 0.766

19.21

HOG

0.878 0.742

3.083

Skel.

Actionlet 0.871 0.697

0.139

Joint Position (JP) 0.960 0.881

0.595

Relative Joints (RJP) 0.977 0.927

1.357

Joint Angles (JA) 0.913 0.721

2.016

SE3 Lie Algebra 0.967 0.883

1.212

Note that the depth-based algorithms are qui-

etly inaccurate in comparison with skeleton-based

ones and especially for cross-view tests. Moreover,

HON4D gives the best results in both same-view

and cross-view tests among depth-based approaches.

HOG

gives a very acceptable result compared with

DMM and with HON4D (there are only a difference

of 2%). To put things into perspective with this little

difference between HOG

and HON4D, it has to be

noted that the ﬁrst widely outperforms the second in

terms of computation time. These performances are

recorded using a PC with 2.53GHz Intel Xeon CPU

with 24 GB RAM (only 4GB was used).

The skeleton-based algorithms show high accu-

racy of recognition and robustness to viewpoint vari-

ations compared with depth-based approaches. The

Relative Joint Position (RJP) provides the best im-

provement on our dataset, achieving a maximum of

97.7% accuracy. The Actionlet algorithm (Wang

et al., 2012b) shows lower results in cross-view test.

The results of depth-based approaches in cross-

view tests show the limitations of these algorithms

to handle viewpoint variation. These results can be

explained by the fact that the appearance of each ac-

tion varies widely from one angle to the others. It

is then preferable to make various base classiﬁers

trained separately with different angles. The idea is to

predict the action of an unknown subject with the ap-

propriate base classiﬁer which corresponds to his/her

orientation.

Among several difﬁculties of skeleton-based ap-

proaches we can mention the lack of precision and

self-occlusions caused by body parts. Note that the re-

sults in Table 1 are achieved using skeleton informa-

tion acquired under experimental settings. To study

the effects of instability of skeleton estimation on the

performance of action recognition, we simulated self-

occlusion and instability of skeleton by adding noise

to some joints randomly (like in the realistic sce-

nario). Then we conducted the test using the Rela-

tive Joint Position representation (RJP), which gave

the best results with our dataset. We conducted the

VISION4HCI 2016 - Special Session on Computer VISION for Natural Human Computer Interaction

748

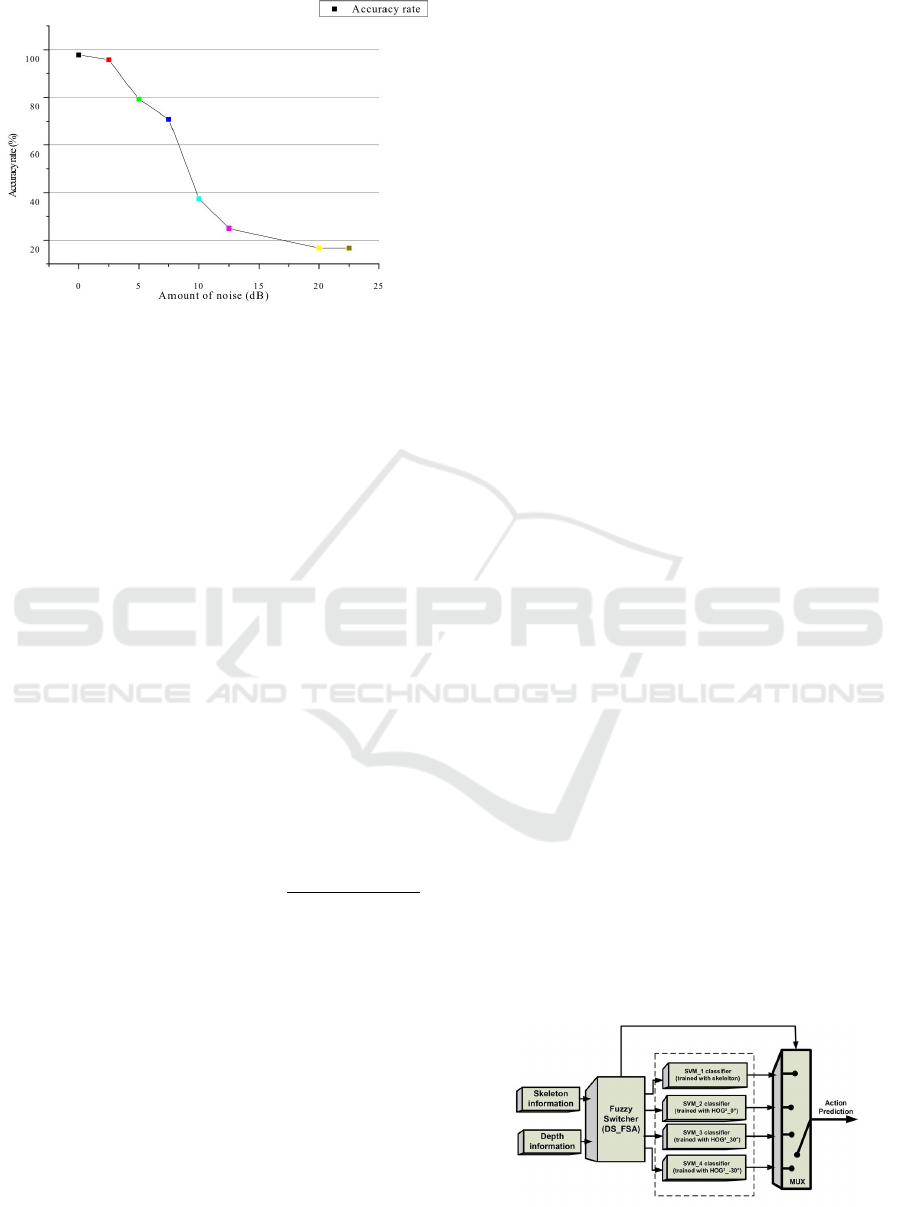

Figure 4: Recognition rate accuracy computed with respect

to the amount of noise variation.

experimentation by increasing iteratively the ampli-

tude of the noise up to 25 dB. The obtained results

are depicted in Figure 4. We can see clearly that the

accuracy of action recognition using skeleton-based

approach decreased rapidly when the amount of noise

is greater than 3dB.

Therefore, to make the action recognition more

robust, the skeleton instability should be considered

by switching to another source of information such

as depth which are more robust to self-occlusion.

One of the simplest and efﬁcient methods that can

be used to estimate the accuracy of the skeleton data

is the JointTrackingState information offered by Mat-

lab™(Matworks, MA, USA) Image Acquisition Tool-

box, which provides the extent of joint estimation ac-

curacy of each frame (conﬁdence index).

By computing the mean of conﬁdences indexes

of skeleton joints (Conf ) for a video sequence using

equation 1, we can deduce if the action recognition

using skeleton information is affected by the noise or

not.

SkeletonsJointsAccuracy =

∑

i=1

∑

j=1

con f (i, j)

n · p · max(con f )

(1)

s.t. n is the number of skeleton joints, p is the number

of frames in video sequence. max(conf) is the maxi-

mum reachable value for the conﬁdence index.

4 PROPOSED ALGORITHM

In this section, we describe our method for human ac-

tion recognition. In the ﬁrst step, four base classi-

ﬁers are used, one for skeleton-based approach and

three for depth-based approach, each one correspond-

ing to a different angle (i.e. 0°, 30°, -30°). These

base classiﬁers work in parallel to estimate the actions

performed by a subject using two different sources

of information (depth and skeleton). We could ex-

tend our algorithm to cover more than three orienta-

tions, by acquiring more samples. For depth-based

classiﬁers, we choose the human motion descriptor

HOG

, which is the fastest and that gave an accept-

able accuracy in same-view test, as seen previously.

For the Skeleton-based classiﬁer, we choose the Rel-

ative Joint Position representation which gave a high

accuracy. The second step of our proposed method

is the combination of these base classiﬁers outputs to

achieve more accurate action recognition. The details

of the introduced methods are highlighted in the fol-

lowing subsections.

4.1 Depth-skeleton Fuzzy Switcher

Algorithm (DSFSA)

To design the overall action recognition framework,

we must consider the skeleton instability and the hu-

man body orientation. A fusion algorithm that takes

into account the limitations of each base classiﬁer is

therefore necessary. We found that Fuzzy Switcher is

well suited for this task, as depicted in Figure 5. The

proposed DSFSA Algorithm is an expert rule-based

method for choosing the best base classiﬁer. Our al-

gorithm uses two inputs and one output, as shown in

Figure 6.

Here, the term “fuzzy switcher” refers to the pro-

cess of combining two sets of information to produce

a better output (Singhala et al., 2014). That is, we

need to use the skeleton information when all joints

(or at least most of them) are accurate. In the pres-

ence of self-occlusion, which may lead to degradation

of skeleton-based classiﬁers, we have to eliminate its

use temporally by switching to depth-based one. Fur-

thermore, as explained in the previous section, it is

more accurate to predict the actions of a subject with

the depth-based classiﬁer that corresponds to the sub-

ject orientation with respect to the camera. Thus, we

also switch between different depth-based classiﬁers

to produce better action recognition.

To describe the relationship between the input and

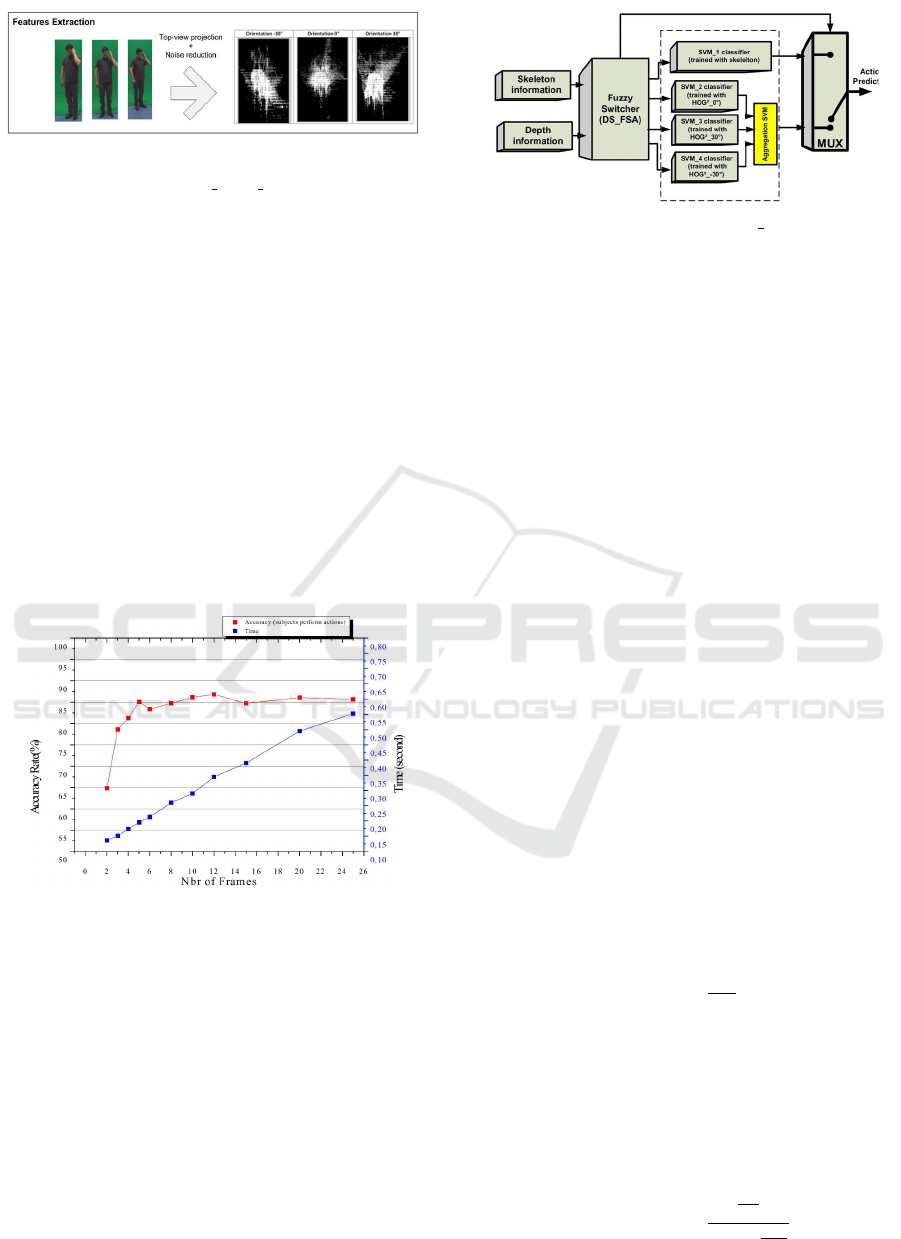

Figure 5: Overall architecture of the Depth-skeleton Fuzzy

Switcher Algorithm.

Toward a Real Time View-invariant 3D Action Recognition

749

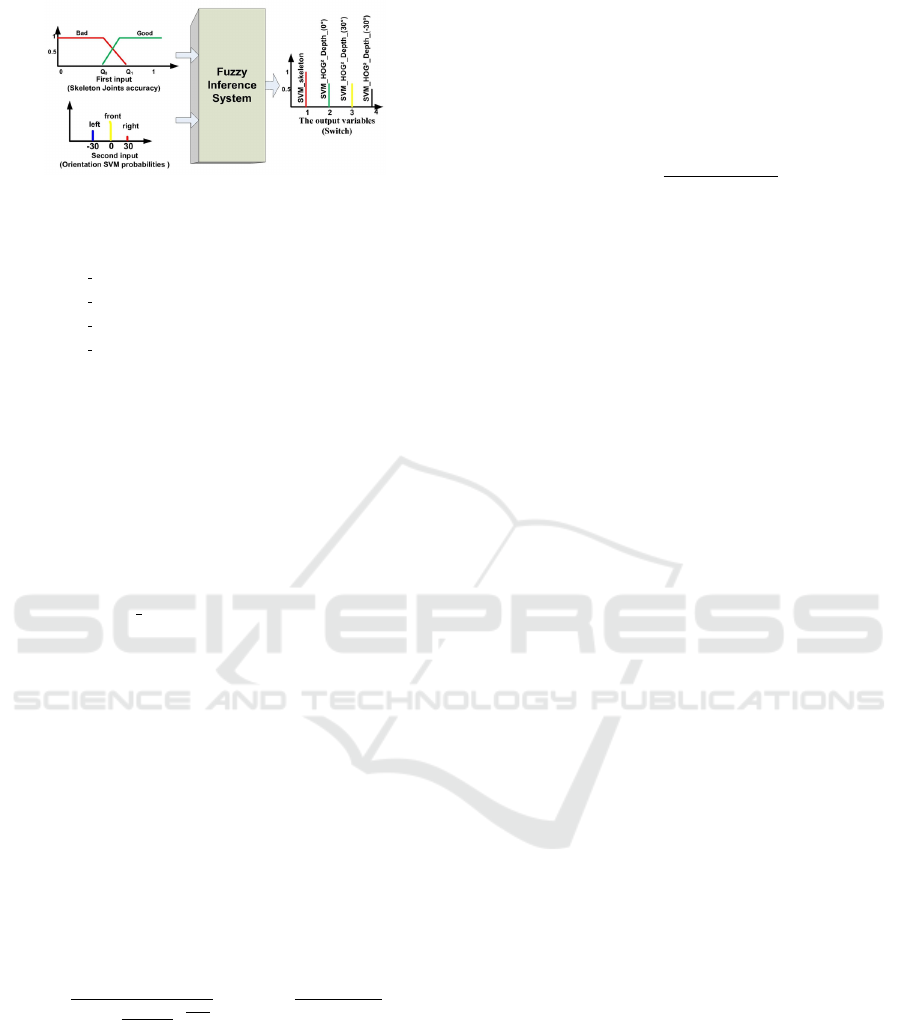

Figure 6: Architecture of the fuzzy logic system.

the output, the following set of rules is applied :











Skel. Acc. = Good =⇒ SW = SVM

Skel. Acc. = Bad ∧ Orient. = Front =⇒ SW = SVM

Skel. Acc. = Bad ∧ Orient. = Right =⇒ SW = SVM

Skel. Acc. = Bad ∧ Orient. = Left =⇒ SW = SVM

The fuzzy rules are directly derived from the two ba-

sic rules deﬁned at the beginning of this subsection

(related to skeleton accuracy and human body orien-

tation). In our case, the output of the fuzzy inference

system, SW (switch), is a dimensionless weighting

factor that emphasizes one of the four classiﬁer as the

best for this recognition.

As shown in the Figure 6, the skeleton joint accu-

racy input is represented by two membership func-

tions. The parameters (Q

, Q

) are estimated us-

ing the Fuzzy C mean (FCM) algorithm. FCM is a

method of clustering which provides the cluster cen-

ters and the degree of afﬁliation for each data point

(Dwi Ade Riandayani, 2014). This information can

be used to construct fuzzy inference system. Fuzzy

partitioning is accomplished by an iterative optimiza-

tion of the following objective function (Eq. 2),

∑

i=1

∑

j=1

i j

||x

− c

, 1 ≤ m < ∞ (2)

s.t. m is a real number greater than one, x

is the i

measured data, c

is the center of the cluster, and u

i j

is the membership’s degree of x

in cluster j. The up-

date of cluster centers c

and the membership u

i j

are

determined by equation 3.

i j

∑

k=1

(

||x

−c

||x

−c

)

m−1

, c

∑

i=1

i j

· x

∑

i=1

i j

(3)

When the condition max

i j

k+1

i j

− u

i j

| < ℑ is satis-

ﬁed the iteration will stop, where ℑ is the ending

criterion between [0,1], and k are the iteration steps.

This process converges to a local minimum of J

. In

our experimentation, we have set the ending criterion

ℑ = 1e − 5 and the number of iteration k=100. We

obtained the couple (Q

, Q

)=(0.356, 0.716).

Several popular methods for defuzziﬁcation exist

in the literature such as max-membership principle,

centroid method, weighted average method, center of

sums, etc. (Singhala et al., 2014). In our algorithm,

the output of the fuzzy inference system is a dimen-

sionless weighting factor. Therefore, the weighted av-

erage defuzziﬁcation technique is well suited, and is

given by the following algebraic expression (eq. 4):

Defuz =

∑

i=1

P[i] ·W[i]

∑

i=1

W [i]

(4)

where Defuz is the output of fuzzy inference system,

P[i] is the extremum value of i

h output membership

function and W is the weight of the i

h rule.

4.2 Estimation of Human Body

Orientation

To recognize the action of subjects with the appro-

priate base classiﬁer that corresponds to his/her ori-

entation, an accurate and robust orientation estimator

is required. In fact, it is a challenging task for many

researches, due to the wide variety of poses, actions

and body size which degrade the accuracy of esti-

mation. However, the existing methods in the liter-

ature are always based on gait cue considering that

the body orientation is nearly parallel to the moving

trend (Shinmura et al., 2015; Liu et al., 2013). Indeed,

for human-robot interaction usually the subjects are in

standing position and their actions or gestures are lim-

ited to the movement of some body’s segments, such

as check a watch. These kinds of actions make the

previous methods unable to handle the different body

orientations. To address these challenges, we propose

a new method based on a RGB-D sensor.

The proposed method is inspired from the work of

(Ozturk et al., 2009) in which they used RGB stream

of a camera mounted on the top of a roof. Then,

the combination of Shape Context and Scale-Invariant

Feature Transform (SIFT) features are used to esti-

mate the body orientation by matching the upper re-

gion of the body with predeﬁned shape templates.

In our method we used the depth data to cap-

ture the body orientation by projecting the depth of

each frame onto an orthogonal Cartesian planes (Yang

et al., 2012; Chen et al., 2013). Then, we calculated

Depth Map (DM) of top-view projection to character-

ize the orientation as shown in Figure 7. The DM is

obtained by accumulating the absolute difference be-

tween two consecutive depth images across n frames

of a video sequence as following (eq 5):

top

∑

i=a

|map

top

− map

i−1

top

| (5)

where i is the frame index, map

top

top-view projec-

tion of the i

frame, and [a, b] ∈ [2, n]

denote the ﬁrst

VISION4HCI 2016 - Special Session on Computer VISION for Natural Human Computer Interaction

750

Figure 7: Three examples of DMs generated from different

view-point samples of Mines douai 3D dataset.

and last frame indexes.

We have ﬁxed the same size of the DMs for all

samples. For training and testing feature sets, prin-

cipal component analysis (PCA) was used to reduce

the dimensionality in order to optimize computational

time.

To test the proposed algorithm, one half of the

samples of our dataset are used for training and the

other half for testing. An average recognition rate of

86.1% (248/288) was achieved. Figure 8 describes

the changes in the accuracy rate of orientation esti-

mation and the computing times, with respect to the

number of frames used to compute the DMs. When 2

frames were used to characterize the human body ori-

entation, the estimation was lower. When the number

of frames exceed 5, the estimation accuracy remains

around 85%.

Figure 8: Accuracy and timing performances computed

with respect to the number of frame variation.

4.3 Aggregation

Instead of using human body orientation as discrim-

inative criterion to switch between the three depth-

based classiﬁers, we propose another method of com-

bination based on outputs aggregation as shown in

Figure 9. Indeed, we only focus on the aggre-

gation of depth-based classiﬁers without including

the skeleton-based classiﬁer. On the one side, the

switched method based on the skeleton instability es-

timation (eq. 1) has shown its robustness. On the

other side, it is difﬁcult to know the variation of accu-

racy of skeleton-based classiﬁer due to its rapid degra-

Figure 9: Overall architecture of the DS FS Algorithm with

Aggregation strategy.

dation in the case of self-occlusion or when the es-

timation of the skeleton failed. The aggregation of

the three depth-based classiﬁers is based on the class

likelihood provided by each base-classiﬁer (SVMs).

The class likelihood information are obtained using

libsvm.

After training the three base-classiﬁers separately,

we consider two linear combination techniques: the

Majority Voting and the Investment.

4.3.1 Majority Voting (Kim et al., 2002)

It is the simplest method for combining various

SVMs. Let f

be the output of the k

SVM, C

be the

label of the j

class, and N

is the number of SVMs

whose decision is the j

class. The ﬁnal decision for

an input vector x is given by:

(x) = argmax

(6)

4.3.2 Investment

Rather than the voting approach that treats all depth-

based classiﬁers equally, investment technique aims

to infer reliability degree for each base-classiﬁer (Li

et al., 2015; Pasternack and Roth, 2010). In this ap-

proach the classiﬁers uniformly “invest” their reliabil-

ity through their claimed values (the class). The con-

ﬁdence in each claim increases proportionally with a

non-linear function G(x)= x

where g = 1.2 (eq 7),

B(v) =

∑

s∈S

1.2

(7)

where v is the class, S

is the set of depth-based clas-

siﬁers that provide this class, and |V

| is the number

of claims made by the classiﬁer s. The depth-based

classiﬁers trustworthiness is computed by the sum of

the conﬁdence in their decisions, weighted by the ra-

tio of trust previously contributed to each (relative to

the other base classiﬁers s

), as described in (eq 8).

∑

v∈V

B(v) ·

∑

∈S

(8)

Toward a Real Time View-invariant 3D Action Recognition

751

Table 2: Recognition rates for various test of depth-base-classiﬁers.

HOG

SVM

(0°) HOG

SVM

(30°) HOG

SVM

(-30°) Estimation of Orientation Fuzzy Switcher (only depth) Aggregation One SVM

Voting Invest

Test1

91.67 88.88 88.88 86.11% 97.22 97.22 97.22 97.22

Truth 100% 97.22

Test2

88.88 83.33 75 83.33% 88.88 86.11 91.67 91.67

Truth 100% 91.67

Test3

80.55 77.77 77.77 83.33% 91.67 86.11 91.67 91.67

Truth 100% 94.44

Test4

97.22 80.55 77.77 100% 97.22 94.44 100 97.22

Truth 100% 97.22

Mean

89.58 83.63 79.66 88.19 93.74 90.97 95.14 94.44

Truth 100% 95.14

5 EXPERIMENTAL RESULTS

In order to evaluate the performance of the proposed

methods, several tests were performed using fuzzy

switcher algorithm and the proposed methods of ag-

gregation (Majority Voting and Investment) on our

dataset. Firstly, we highlight the advantages of us-

ing various depth-based classiﬁers to reduce execu-

tion time and enhance accuracy of depth-based action

recognition. Then, we present the results of combina-

tion between depth and skeleton-based classiﬁers.

5.1 Combination of

Depth-base-classiﬁers

To show the advantages of combining various depth-

based classiﬁers in term of computation and accuracy

performances, we conducted the test with the pro-

posed fuzzy switcher algorithm using only the human

body orientation and the two methods of aggregation

without including skeleton-based classiﬁer.

Firstly, we train three SVMs (depth-based), sep-

arately, with 4 subjects in each viewpoint orienta-

tion. Then, we choose 4 unseen subjects that per-

form 12 actions with different viewpoint angles and

we test the three trained depth-based classiﬁers inde-

pendently. The results are presented in Table 2.

Secondly, we conduct the tests with fuzzy

switcher algorithm using subjects orientation angles.

When we use the real subjects orientation labels

(given by the ground truth), the average accuracy of

the recognition is 95.14%. This result decreases by

2% (to 93.74 %), when we use the estimated sub-

jects orientations provided by the proposed human

body orientation estimator. The estimator achieves

a 88.19% accuracy rate in this test. The recogni-

tion rates are also calculated using both aggregation

methods. The majority voting aggregation gives the

worst accuracy of 90.97%, among the other combina-

Table 3: Time Performances.

Algorithm Time consumption (sec.)

Skeleton-based classiﬁer (RJP) 1.357 (per video sequence)

Depth-based classiﬁer (HOG

) 3.083 (per video sequence)

Skeleton accuracy 0.006

Body-orientation Estimator (10 frames) 0.290

Fuzzy system 0.0181

Aggregation (investisment) 0.1312

Aggregation + vote 0.1067

tion techniques, whereas the Investment aggregation

gives the best results with rate of 95.14%.

Finally, we test another approach based on a single

SVM trained with the three orientations. The features

used for training and testing are the concatenation of

HOG

and DMs features. This concatenation gives

a good rate of accuracy as shown in Table 2. How-

ever, this methods takes a long time for training and

for testing compared with the previous approaches,

due to the large size of the features vectors and of the

training set.

Table 2 shows clearly that the combination of dif-

ferent base-classiﬁers enhances the accuracy. As far

as execution time is concerned (Table 3), the extrac-

tion of features from depth sequence using HOG

de-

scriptor takes only 0.1s/frame. For the whole recog-

nition pipeline, including extraction of features and

classiﬁcation, it reaches a maximum of 3s/sequence

for average of 35 frames. These results make the com-

bination approaches applicable in real-time, rather

than the previous view-invariant depth-based algo-

rithms that are more time consuming. Furthermore,

the fuzzy system and skeleton instability estimation

take less than 20 ms and the aggregation block takes

only 0.13s. These results conﬁrm the appropriateness

of our algorithm for real time applications.

VISION4HCI 2016 - Special Session on Computer VISION for Natural Human Computer Interaction

752

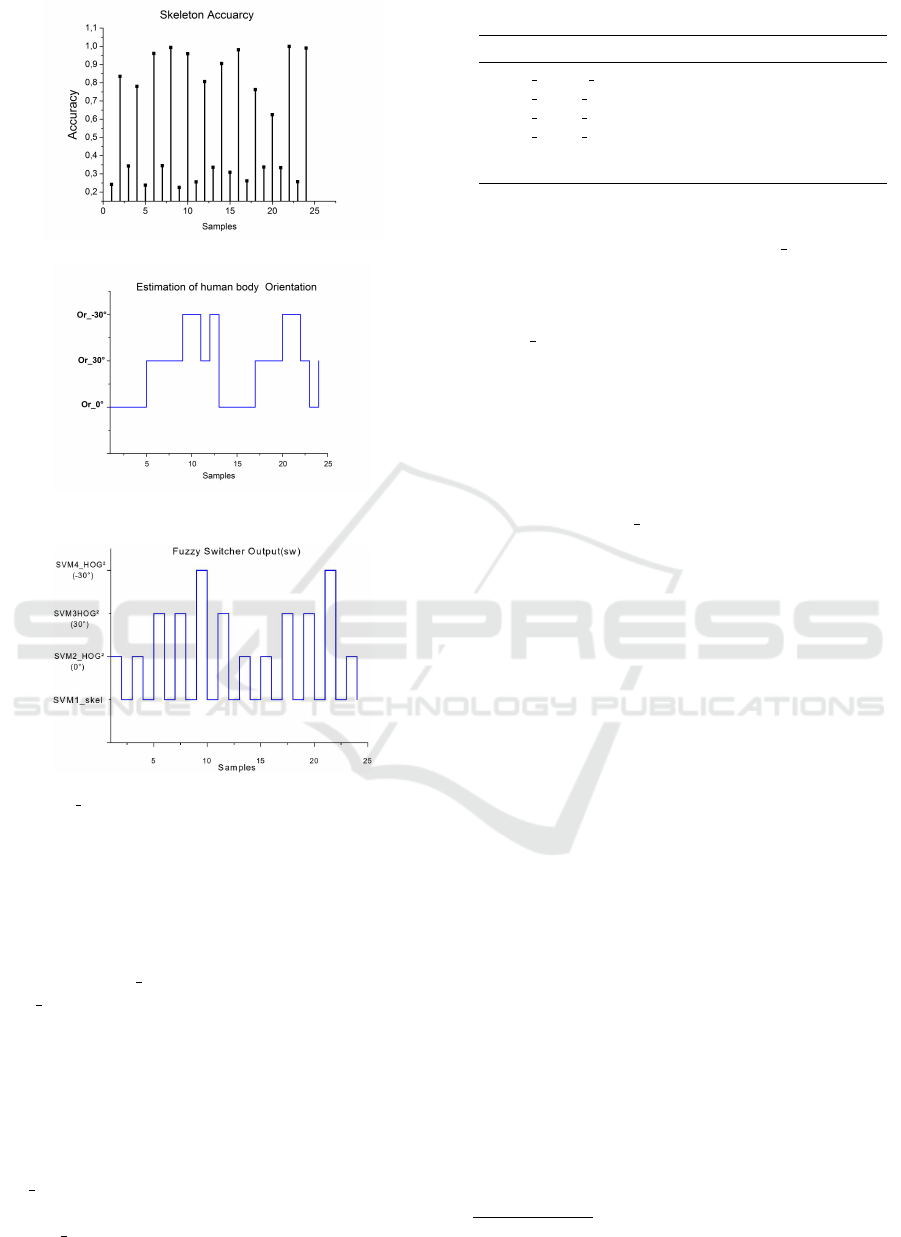

Figure 10: Variation of sketeleton accuracy estimation.

Figure 11: Estimation human body Oriention using DM al-

gorithm.

Figure 12: Output of Depth skeleton Fuzzy switcher Algo-

rithm (DS FSA) during testing.

5.2 Combination between Depth and

Skeleton-base-classiﬁers

In the second stage of our experimentation, we in-

cluded the skeleton information. We conducted our

test using Depth skeleton Fuzzy switcher Algorithm

(DS FSA). In the following, we present only the case

when the skeleton information are not accurate by

adding a Gaussian White noise of 5dB to half of the

testing samples alternatively (cf. Figure 10). Fur-

thermore, the viewpoint angles of testing samples are

taken randomly as shown on Figure 11.

Figure 12 shows the output of Fuzzy Inference

System. When the skeleton estimation is good the

FSA switch to the skeleton-based classiﬁer. In

the case of skeleton instability (skeletons are noisy),

the DS FSA detects this instability easily, and does

not use the skeleton information by switching to one

Table 4: Comparison with the different combinations.

Algorithm Accuracy

SVM

Skelton RJT (1/2 skeletons noisy 5dB) 79.17

SVM

HOG

0° 89.58

SVM

HOG

30° 83.63

SVM

HOG

-30° 79.66

Fuzzy + viewpoint estimation (Depth+Skelton) 95.83

Fuzzy + Aggregation (Investment) 97.91

of the three depth-based classiﬁers. Similarly, for the

other methods of aggregation, the DS FSA switches

to the output of aggregation block, as seen on Figure

9. The results are detailed in Table 4.

We tested two variants of combination methods

for DS FSA. On one hand, we included the subject

orientation angles provided by our proposed human

body orientation estimator. On the other hand, we ap-

plied the investment aggregation method. The results

show that the combination of depth and skeleton in-

formation notably enhances the accuracy. Moreover,

the use of investment aggregation provides the best

average accuracy of 97.91%. As result, the combina-

tion between the DS FSA and investment aggregation

is the most appropriate framework that provides the

best accuracy and timing performance.

6 CONCLUSION

In this paper we introduced a novel approach of com-

bining skeleton and depth information based on the

amalgamation of several base classiﬁers. Further-

more, we proposed a new method for the estimation

of human body orientation which is completely inde-

pendent of human gait direction. In order to perform

view dependency tests, we have created a new mul-

tiview public dataset

. The results showed that our

proposed method is robust to viewpoint variation and

skeleton accuracy degradation. Furthermore, due to

its computation time efﬁciency, it is suitable for real-

time application.

Future work includes the extension of our algo-

rithm to more than three viewpoint orientations. Since

it is not a trivial task to acquire sufﬁcient data for each

viewpoint angle, an efﬁcient solution can be used to

extend any 3D action dataset to different viewpoint

using point-clouds transformation.

Information to dowload the dataset can be found at:

http://ia.ur.mines-douai.fr/en/datasets/

Toward a Real Time View-invariant 3D Action Recognition

753

REFERENCES

Chen, C., Liu, K., and Kehtarnavaz, N. (2013). Real-

time human action recognition based on depth motion

maps. Journal of Real-Time Image Processing, pages

1–9.

Dwi Ade Riandayani, Ketut Gede Darma Putra, P. W. B.

(2014). Comparing fuzzy logic and fuzzy c-means

(fcm) on summarizing indonesian language docu-

ment. Journal of Theoretical and Applied Information

Technology, 59(3):718–724.

Kim, H.-C., Pang, S., Je, H.-M., Kim, D., and Bang, S.-Y.

(2002). Support vector machine ensemble with bag-

ging. In Pattern recognition with support vector ma-

chines, pages 397–408.

Laptev, I. and Lindeberg, T. (2003). Space-time interest

points. In Computer Vision, 2003. Proceedings. Ninth

IEEE International Conference on, pages 432–439.

Li, Y., Gao, J., Meng, C., Li, Q., Su, L., Zhao, B., Fan, W.,

and Han, J. (2015). A survey on truth discovery. arXiv

preprint arXiv:1505.02463.

Liu, W., Zhang, Y., Tang, S., Tang, J., Hong, R., and Li,

J. (2013). Accurate estimation of human body ori-

entation from rgb-d sensors. IEEE Transactions on

Cybernetics, 43(5):1442–1452.

Ohn-Bar, E. and Trivedi, M. (2013). Joint angles similar-

ities and hog2 for action recognition. In Computer

Vision and Pattern Recognition Workshops (CVPRW),

2013 IEEE Conference on, pages 465–470.

Oreifej, O. and Liu, Z. (2013). Hon4d: Histogram of ori-

ented 4d normals for activity recognition from depth

sequences. In Computer Vision and Pattern Recogni-

tion (CVPR), 2013 IEEE Conference on, pages 716–

723.

Ozturk, O., Yamasaki, T., and Aizawa, K. (2009). Tracking

of humans and estimation of body/head orientation

from top-view single camera for visual focus of atten-

tion analysis. In Computer Vision Workshops (ICCV

Workshops), 2009 IEEE 12th International Confer-

ence on, pages 1020–1027.

Pasternack, J. and Roth, D. (2010). Knowing what to

believe (when you already know something). In

Proceedings of the 23rd International Conference on

Computational Linguistics, pages 877–885.

Peng, X., Wang, L., Qiao, Y., and Peng, Q. (2014). A joint

evaluation of dictionary learning and feature encoding

for action recognition. In Pattern Recognition (ICPR),

2014 22nd International Conference on, pages 2607–

2612.

Rahmani, H., Mahmood, A., Q Huynh, D., and Mian, A.

(2014). Hopc: Histogram of oriented principal com-

ponents of 3d pointclouds for action recognition. In

Fleet, D., Pajdla, T., Schiele, B., and Tuytelaars, T.,

editors, Computer Vision ECCV 2014, volume 8690

of Lecture Notes in Computer Science, pages 742–

757.

Shinmura, F., Deguchi, D., Ide, I., Murase, H., and Fu-

jiyoshi, H. (2015). Estimation of human orientation

using coaxial rgb-depth images. In International Con-

ference on Computer Vision Theory and Applications

(VISAPP), pages 113–120.

Shotton, J., Fitzgibbon, A., Cook, M., Sharp, T., Finoc-

chio, M., Moore, R., Kipman, A., and Blake, A.

(2011). Real-time human pose recognition in parts

from single depth images. In Computer Vision and

Pattern Recognition (CVPR), 2011 IEEE Conference

on, pages 1297–1304.

Singhala, P., Shah, D. N., and Patel, B. (2014). Tempera-

ture control using fuzzy logic. International Journal

of Instrumentation and Control Systems, 4(1):110.

Vemulapalli, R., Arrate, F., and Chellappa, R. (2014). Hu-

man action recognition by representing 3D skeletons

as points in a lie group. In Computer Vision and Pat-

tern Recognition (CVPR), 2014 IEEE Conference on,

pages 588–595.

Wang, J., Liu, Z., Chorowski, J., Chen, Z., and Wu, Y.

(2012a). Robust 3d action recognition with random

occupancy patterns. In Computer vision–ECCV 2012,

pages 872–885.

Wang, J., Liu, Z., Wu, Y., and Yuan, J. (2012b). Mining

actionlet ensemble for action recognition with depth

cameras. In Computer Vision and Pattern Recogni-

tion (CVPR), 2012 IEEE Conference on, pages 1290–

1297.

Xia, L. and Aggarwal, J. (2013). Spatio-temporal depth

cuboid similarity feature for activity recognition us-

ing depth camera. In Computer Vision and Pat-

tern Recognition (CVPR), 2013 IEEE Conference on,

pages 2834–2841.

Xia, L., Chen, C.-C., and Aggarwal, J. (2012). View invari-

ant human action recognition using histograms of 3d

joints. In Computer Vision and Pattern Recognition

Workshops (CVPRW), 2012 IEEE Computer Society

Conference on, pages 20–27.

Yang, X. and Tian, Y. (2012). Eigenjoints-based action

recognition using naive-bayes-nearest-neighbor. In

Computer Vision and Pattern Recognition Workshops

(CVPRW), 2012 IEEE Computer Society Conference

on, pages 14–19.

Yang, X., Zhang, C., and Tian, Y. (2012). Recognizing ac-

tions using depth motion maps-based histograms of

oriented gradients. In Proc. of the 20th ACM interna-

tional conference on Multimedia, pages 1057–1060.

VISION4HCI 2016 - Special Session on Computer VISION for Natural Human Computer Interaction

754
