TASSA: A Testing as a Service Framework for Web Service

Compositions

Dessislava Petrova-Antonova

, Sylvia Ilieva

1,2

and Denitsa Manova

Depatment of Software Engineering, Sofia University “St. Kliment Ohridski”, Sofia, Bulgaria

Institute of Information and communication technologies, BAS, Sofia, Bulgaria

Rila Solutions, Sofia, Bulgaria

Keywords: Cloud Computing, Service-Oriented Architecture, Testing-as-a-Service, Web Services, Web Service

Compositions, WS-BPEL.

Abstract: Testing-as-a-Service (TaaS) is a new quality assurance model addressing the challenges of software testing

in the cloud. The missing access to the hardware or different software configurations as well as the difficulties

of building a test environment are examples for common problems in the testing process. This paper addresses

such problems by proposing a TaaS-enabled framework offering testing services on as-needed basis. The

framework, called Testing as a Service Software Architecture (TASSA), supports testing of web service

compositions described with Business Process Execution Language for Web Services (WS-BPEL). Its core

functionality includes fault injection and dependencies isolation of the application under test. It is

implemented as web services deployed on cloud infrastructure. In addition, the TASSA Graphical User

Interface (GUI) for test case design and execution is implemented as a plugin for Eclipse IDE. It could be

accessed from a local computer or used for building a cloud test lab on a virtual machine. Sample business

process from wine industry is used for proving the feasibility of TASSA framework.

1 INTRODUCTION

Nowadays, the cloud computing is one of the hot

topics in software development. It provides a new

way for building software applications known also as

Software-as-a-Service (SaaS). The challenges and

business opportunities that cloud computing brings

affect all different activities of software engineering,

including software testing. A new on-demand testing

model, called Testing-as-a-Service (TaaS) became

available.

In general, the software testing faces various

difficulties due to lack of time and testing experience,

limited resources and unclearly defined requirements

and testing criteria. But, the most significant

difficulties could appear before the beginning of the

testing itself. The missing access to the hardware or

different software configurations as well as building

a test environment are examples for common

problems surrounding the testing process of SaaS.

However, with the emergence of cloud computing,

the software testing gain new benefits represented by

the TaaS:

 Access to virtual environments providing a

variety software and hardware configurations;

 Possibility for deployment and/or usage

different testing environments;

 Availability of on-demand testing services

allowing testers to provision raw cloud

resources at run time, when and where needed;

 Availability of multi-tenant testing services

following given QoS requirements and Service

Level Agreements (SLAs);

 Reduced cost of testing due to pay-per-use

basis of testing services.

Following the current trends in software testing

provided by TaaS, this paper proposes a framework,

named TASSA, for testing web service compositions,

called Testing as a Service Software Architecture

(TASSA). The last three benefits are available in

TASSA framework by implementation of its core

functionality as cloud-based testing services.

Testing web service compositions is a challenging

task, since their implementation follows the Service-

Oriented Architecture (SOA). Although many

research efforts are focused on SOA testing in the past

few years, the following difficulties still remain

Petrova-Antonova, D., Ilieva, S. and Manova, D.

TASSA: A Testing as a Service Framework for Web Service Compositions.

DOI: 10.5220/0005844400330042

In Proceedings of the International Workshop on domAin speciﬁc Model-based AppRoaches to vEriﬁcaTion and validaTiOn (AMARETTO 2016), pages 33-42

ISBN: 978-989-758-166-3

unsolved:

 Distributed and heterogeneous nature of SOA

applications. Implementation of SOA

applications requires composition of web

services that are built and deployed on

heterogeneous platforms. These web services

are outside organization boundaries and are

hard to be tested since they are owned by

different stakeholders. Furthermore, they could

be unavailable for a given period of time or in

the worst case could be undeployed by their

provider. This in turn complicates the testing

due to the necessity of emulation of the missing

or unavailable web services. TASSA framework

addresses it through support of dependency

isolation and fault injection of software under

test from external web services.

 Lack of knowledge about testing artefacts.

When testing traditional applications the testers

rely heavily on their GUIs. However, SOA

testers miss such convenience since the web

services expose programming interfaces

defined with Web Service Description

Language (WSDL). In addition, they do not

have access to the design documents and source

code of the integrated software components,

which often decreases the testing efficiency.

Again, dependency isolation functionality of

TASSA framework addresses this challenge.

 Difficulties to reproduce testing environments.

Typically, SOA solutions integrate products

from different vendors following complex

technical specifications and standards. That is

why, it is difficult to test all software

configurations and varying load on SOA

infrastructure and underlying network. Thus,

high technical competence is required from the

testers and more attention on performance,

robustness and security testing is needed. The

Graphical User Interface (GUI) of TASSA

framework is fully integrated with Eclipse

Integrated Development Environment (IDE).

Thus, end-to-end testing environment for web

service compositions provided.

 Lack of full automation. Although various

approaches and tools for web service

composition testing have been proposed, most

of them provide partial solutions covering

single testing activities such as test path

analysis, test case generation, web service

emulation, fault injection, etc. However, in

order to perform efficient testing, it is

important to integrate all testing activities in a

common testing environment, which is the

TASSA framework case.

TASSA framework provides end-to-end testing

environment for web service compositions, described

with Business Process Execution Language for Web

Services (WS-BPEL) that takes the benefits of the

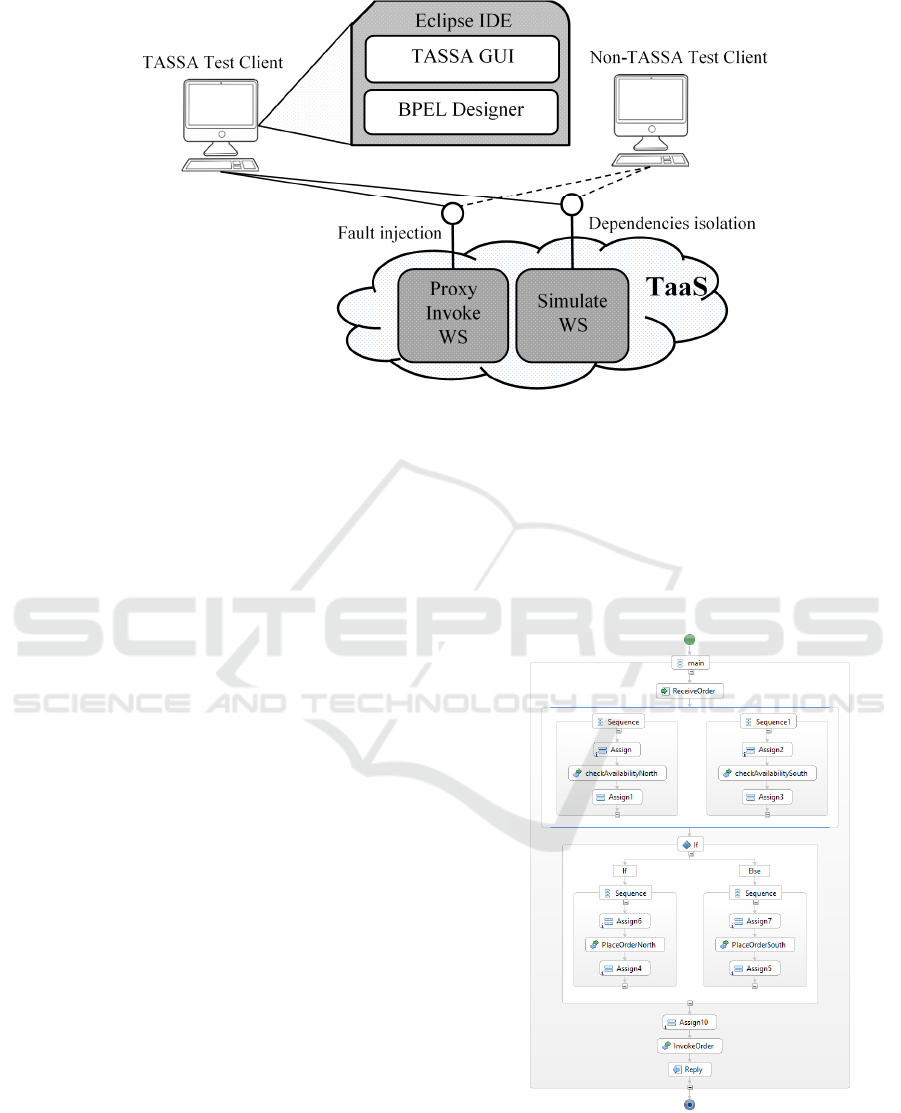

TaaS model. It consists of two main components:

 GUI for test case specification and execution

that is available as a plugin for Eclipse IDE;

 TaaS functionality for fault injection and

dependencies isolation that is available as web

services deployed on a cloud infrastructure.

The rest of the papers is organized as follows.

Section 2 outlines the related work. Section 3 is

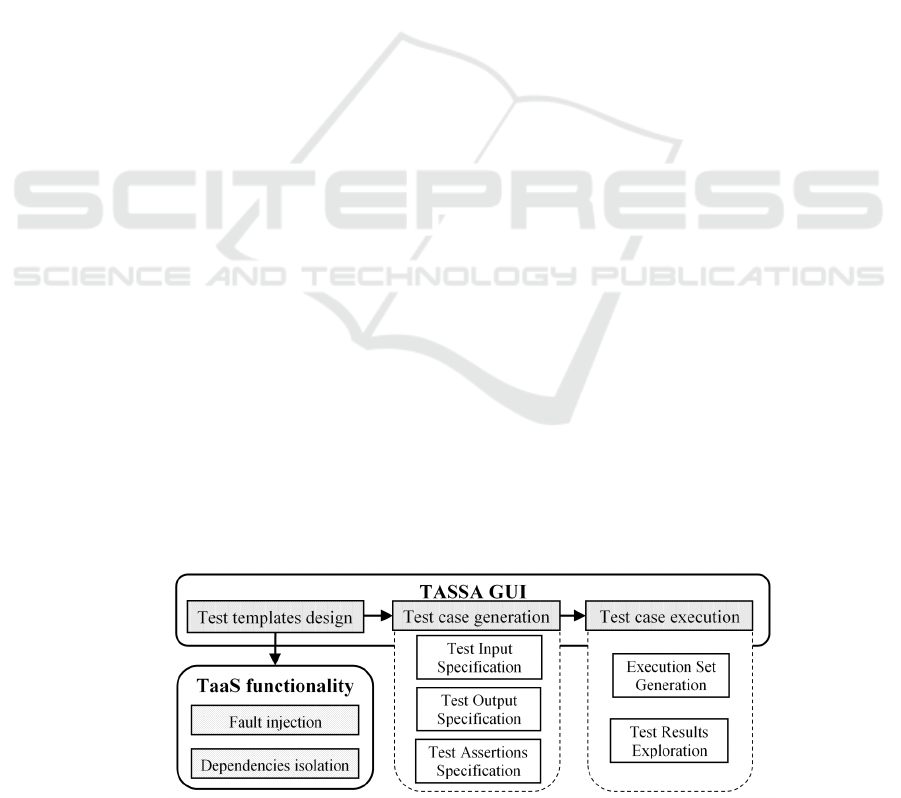

devoted to the architecture of TASSA framework.

Section 4 presents the implementation of the TaaS

functionality for fault injection and dependencies

isolation. Section 5 describes a case study of testing

sample business process with TASSA framework as

a proof of concept. Section 6 concludes the paper and

gives directions for future work.

2 RELATED WORK

The related work, presented in this section,

approaches and frameworks following TaaS concept.

An extensive overview of recently proposed

approaches and tools for functional, structural and

security testing of web services is presented in

(Bartolini et al., 2012). The authors of (Bucchiarone

et al., 2007) survey the current solutions for testing

web service compositions. The most work in these

surveys are focused on web service signatures,

namely WSDL descriptions (Bartolini et al., 2008;

Dong, 2009; Noikajana and Suwannasart, 2009; Bai

et al., 2005, Lopez et al., 20013; Masood et al.,

20013). However, WSDL interface does not provide

a semantic information for web services and a

behavioral description of them, which is important

when testing web service orchestrations. In contrast,

TASSA framework is focused on testing of web

service compositions, described with WS-BPEL.

This approach of SOA testing is adopted by several

works. In order to perform control and data flow

testing, the authors of (García-Fanjul et al., 2006)

propose the use of model checkers for test cases

generation from BPEL descriptions. Other

approaches (Hou et al., 2009; Yuan et al., 2006;

Karam et al., 2007; Li et al., 2008) focus on analysis

of test paths derived from graph models representing

the composition specification. In this direction, Yuan

et al. (2006) propose a graph-search based approach

transforming the BPEL into an extension of a control

flow graph and generating test data for each path by

AMARETTO 2016 - International Workshop on domAin speciﬁc Model-based AppRoaches to vEriﬁcaTion and validaTiOn

using constraint solvers. Other approaches, e.g. (Cao

et al., 2009), propose online testing algorithms for

web services composition using BPEL.

Currently, the TaaS benefits focusses the attention

of both industry and academic communities on

building cloud-based solutions for software testing.

Recently, а considerable number of definitions for

TaaS were proposed. Each of them emphasizes on

different TaaS perspectives. According to (Candea et

al, 2010) TaaS implies two ideas: first, providing

software testing as a web service that is competitive

and easily accessible, and second, performing

automated testing using the huge, elastic resources of

cloud infrastructure. TaaS is viewed as a cloud-based

service that automates the software testing in

(Parveen and Tilley, 2010). The migration of software

testing to the cloud is presented from the following

points of view – the characteristics of the software

under test and the type of testing performed on the

software. As pointed in (Yu et al., 2010) TaaS is “a

new model to provide testing capabilities to end

users”. A more thorough definition of TaaS is

provided in (Gao et al., 2013). On one hand, TaaS is

explained as a service model for software testing

available on-demand. On the other hand, TaaS is

described as a new business model for software

testing providing cost-sharing and cost-reduction due

to its pay-as-you-test abilities.

A framework of TaaS as a new model to improve

the efficiency of software testing is proposed in (Yu

et al., 2010, 2009). It consists of four layers: Test

Service Tenant and Contribution layer, Testing

Service Bus layer, Testing Service Composite layer,

and Testing Service Pool layer. The idea of the

framework is similar to the one of Universal

Description Discovery and Integration (UDDI)

registry. Its main functionality includes registering,

matching, reasoning, classifying and scheduling of

testing services in order to provide TaaS-based

service compositions to the end users. The authors of

(Zhu and Zhang, 2012) apply similar approach by

proposing a framework for collaborative testing of

web services. The framework uses various test

services that interoperate to complete the testing

tasks. They are registered, discovered, and invoked at

runtime in order to achieve testing on-the-fly with a

high degree of automation. Prescriptions for

implementation of TaaS strategy by the software

organizations are introduced in (Sathe and Kulkarni,

2013).

Although there are a number of recently published

research papers addressing TaaS issues, challenges,

and needs, there is a very few published papers

focusing on web service composition testing. In (Yan

et al., 2012) requirements for web service load testing

are identified and a WS-TaaS platform for such type

of testing is pro-posed. The platform is based on an

existing Cloud PaaS platform, called Ser-vice4All.

Unfortunately, it does not support testing of web

service compositions and its functionality is limited

to that provided by the Apache JMeter (2015). A

cloud platform for testing Service-Oriented

Architecture (SOA) orchestrations, called MIDAS, is

proposed in (Herbold et al., 2015). The MIDAS

platform adopts SOA paradigm, so all its

functionality is exposed as services deployed on a

cloud infrastructure. The supported types of testing

are functional testing, security testing and usage-

based testing. A limitation of the MIDAS platform is

that it allows testing of service interactions with

SOAP messages. The test methods require

specification of input models using UML-based

language, called MIDAS DSL. This is a drawback of

the MIDAS platform, since usually the SOA

orchestrations are described with languages such as

WS-BPEL, Business Process Modelling Notation

(BPMN) and Windows Workflow Foundation

(WWF).

There are several cloud-based commercial

platforms on the market providing TaaS. SOASTA

CloudTest (2015) and IBM Rational Performance

Tester (2015) are solutions for load and performance

testing. Sauce Labs is a platform for testing mobile

and web applications (2015). It allows testers to

create test manually or using Appium, Selenium or

JavaScript unit. Oracle provides a platform covering

the testing process end-to-end (2015). It automates

the provisioning of so called test labs, which includes

the application under test and the software tools for

functional and load testing. The most powerful

solution for cloud testing is provided by Parasoft

(2015). Their testing platform is designed to support

functional, performance, load and security testing of

all the protocols and technologies that make cloud-

based applications possible (HTTP/S, JMS, MQ,

ESB, PoX, JDBC, RMI, Tibco, SMTP, .NET WCF,

SOAP/WSDL, REST/WADL, etc.). In addition, the

behavior of dependent applications (third-party

services, mainframes, database, etc.) can be emulated

using Parasoft’s service virtualization.

The commercial cloud-based solutions presented

above are focused on building test labs mainly by

installing the currently provided testing tools on cloud

infrastructure. Most of them do not provide support

for testing of web service compositions, which is the

main purpose of TASSA framework. In addition,

TASSA framework follows SOA paradigm similar to

MIDAS platform and exposes its core functionality as

TASSA: A Testing as a Service Framework for Web Service Compositions

a web services deployed on the cloud. Its GUI could

be accessed from a local computer or used for

building a cloud test lab on a virtual machine.

3 ARCHITECTURE OF TASSA

FRAMEWORK

TASSA is a cloud-based framework for testing web

services orchestrations, de-scribed with WS-BPEL. It

reduces the testing effort by providing functionality

for automation and tracing of testing steps performed

during test project lifecycle.

The high level architecture of TASSA framework

is presented in Fig. 1. It consists of two main

components:

 Graphical User Interface (GUI) for test case

specification and execution;

 TaaS functionality for fault injection and

dependencies isolation.

The GUI provides functionality that is separated

in three layers: Test template design; Test case

generation; and Test case execution. It is

implemented as a plugin for Eclipse IDE.

At test template design layer a version of the

business process under test, called template, is created

by transformations over original *.bpel file. Two

types of transformations are supported:

 Isolation of activity – isolates the business

process from its external dependencies by

replacing one or more activities with such ones

that mimic their output.

 Fault injection – injects delays, errors, etc. in

the message exchange for a particular activity.

The isolation is performed through invocation of

appropriate operation of Simulate web service, while

the fault injection is provided by the ProxyInvoke web

service. Both web services are deployed on an

application server using Amazon EC2. Thus, the time

to obtain and boot a new server instances is reduced

allowing capacity to be scaled quickly as the

computing requirements change. The deployment

model of TASSA framework is shown in Fig. 2.

When a new test project is created a default read

only template, called Original, is generated. It holds

the original *.bpel file and all files from which its

deployment and execution depend on. It can be used

as a base for creation of new test templates or test

cases. When a new test template is created, a folder

structure is associated with it. It contains the

following items:

 Dependencies folder, which contains all files

the business process’s deployment and

execution depend on.

 deploy.xml file, which is the deployment

descriptor for the Apache ODE Server;

 *.tm file, which represents the created test

template and describes the actions, called steps,

that are applied to the business process;

 *.bpel file, which corresponds to a transformed

business process that will be used during test

execution.

At the next layer, the test cases are generated

automatically from the test tem-plates. The test

assertions can be specified manually by the tester in

two ways:

 Defining an XPath expression over a particular

business process’s variable that will be

evaluated during test case execution;

 Directly editing fields of particular business

process’s variable using provided XML editor.

The test assertions are useful in order to validate

the response messages re-turned by the partner web

services. They are stored in XML file with root

element, called ListOfAssertions. Each assertion

starts with Assert element that has three child

elements: variable, XPath and document

. The

variable element of the assertion keeps the name of

the business process’s variable for which the test

assertion is defined. The xPath element contains an

XPath expression, if such is defined. If the test

assertion is specified by directly editing of the

business process’s variable, the document element

is filled with the content of that variable.

Figure 1: Architecture of TASSA framework.

AMARETTO 2016 - International Workshop on domAin speciﬁc Model-based AppRoaches to vEriﬁcaTion and validaTiOn

Figure 2: Deployment model of TASSA framework.

The test cases need to be added to execution set in

order to be executed. The execution sets allow test

cases to be grouped for simultaneous execution. The

result from execution of each test case is stored in

XML document, which elements are following:

 testCaseName – name of the test case;

 request – request to the business process;

 response – response from the business process;

 executionTime – duration time of the test case;

 compareResult – test verdict: true, if the test is

passed, and false – otherwise;

 traceEnabled – indication for tracing ability

activation;

 activitiesPassed – activities that have been

called during BPEL process execution;

 asserts – test case assertions;

 executionDate – execution date.

4 CASE STUDY

This section presents a proof of concept of TASSA

framework through a case study using a business

process, called Grapes Order. The business process

serves by wine companies while deciding to buy

grapes.

4.1 Business Process under Test

The Grapes Order is a synchronous business process

that calls three partner web services, namely Grape

Producer North, Grape Producer South and Perform

Order. Its graphical view is shown in Fig. 3. It takes

as an input information about the grapes variety, the

quantity and the delivery address. Then the Grape

Producer North and Grape Producer South partner

web services are invoked in parallel flow to check the

price of the grapes. After that an order is placed in the

inventory with the cheaper grape, again using one of

the partner web services. Finally, Perform Order

partner web service finalizes the order by calculating

the total price and the expected delivery date.

Figure 3: Wine Producer Business Process.

4.2 Test Template Design

The test template includes a version of the business

TASSA: A Testing as a Service Framework for Web Service Compositions

processes described with the BPEL language and all

accompanied documents like WSDL descriptions,

XSD schemas, etc. Using TASSA framework it is

possible to transform the original BPEL file to isolate

the business process from its external dependencies

or to simulate faults. Each transformation actually

produces a valid BPEL file that imitates the behavior

of the initial one in testing conditions.

In order to test the business process workflow, the

dependencies from the partner web services need to

be removed. The Grapes Order business process has

three partner web services and five invokes to them.

At isolation an Invoke activity should be selected and

then substitution values should be specified. As a

result, the Simulate web service of TASSA

framework transforms the BPEL file so that the

partner web service invocation is removed. Fig. 4

shows the BPEL code of the invoke activity that calls

the checkAvailabilityNorth operation of Grape

Producer North partner web service, while Fig. 5

presents its transformation.

Figure 4: Original “checkAvailabilityNorth” activity.

Figure 5: Transformed “checkAvailabilityNorth” activity.

Similar transformations are performed regarding

checkAvailabilitySouth operation of Grape Producer

South, PlaceOrderNorth operation of Perform Order

partner web service, PlaceOrderSouth operation of

Perform Order partner web service and InvokeOrder

operation of Perform Order partner web service.

TASSA framework supports robustness testing

providing functionality for an-other transformation.

In such case the BPEL file is transformed so that the

call to a partner web service is replaced with a call to

a ProxyInvoke web service. Thus, the fault injection

is performed.

The Grapes order business process is injected with

four type of faults supported by TASSA framework.

The simulation of delay in the response from

Grape Producer South web service is performed by

replacement of corresponding Invoke activity with

two Assign activities and one new Invoke activity.

The first Assign activity provides configuration

information to the ProxyInvoke web service as

follows:

 Wait interval – an integer value that defines

the delay of message in seconds;

 Error factor – an integer value that that

defines the kind of error will be injected

(1÷100: insert random errors in the data, which

would possible break the XML structure; 0:

usually used with Wait interval to delay the

message; - 1: replace the original values in the

message; -2: interrupt the message)

 End point address – an end point address of

the partner web service;

 Activity variable – input variable of the

partner web service, which invocation is

injected with faults.

The second Assign activity copies the result from

invocation of ProxyInvoke web service to the output

variable of the partner web service, which invocation

is injected with faults. The Invoke activity calls

ProxyInvoke web service.

Similar transformations are performed regarding

Grape Producer North and Perform Order partner

web services.

Test templates created for the business process

under test are listed in Table 1.

TASSA framework also supports generation of

test templates from the existing one. Thus, a rollback

to the previous version of the business process under

test could be performed.

4.3 Test Case Definition

Test cases created with TASSA framework are in

correlation with test templates. Each test case is

linked to exactly one test template. It consists of test

in-put, expected output and assertions if any. During

test case execution the BPEL file from the test

template is deployed on the application server, the test

<bpel:invokename="checkAvailabilityNorth"

partnerLink="GrapeProducerNorth"

operation="checkAvailability"

portType="ns:GrapesProducerNorth"

inputVariable="GrapeProducerNorthRequest"

outputVariable="GrapeProducerNorthResponse">

</b

el:invoke>

<bpel:assign

name="AssignIsolate1checkAvail abilityNorth">

<bpel:copy>

<bpel:from>

<bpel:literalxml:space="preserve">

<Q1:checkAvailabilityRespo nseElement

xmlns:Q1="…"xmlns:xsi="…">

<Q1:isAvailable>true</Q1:isAvailable>

<Q1:Available_Quantity>1.0

</Q1:Available_Quantity>

<Q1:Price>13.4</Q1:Price>

<Q1:Delivery_Time>48</Q1:Delivery_Time>

</Q1:checkAvailabilityResponseElement>

</bpel:literal>

</bpel:from>

<bpel:topart="parameters"

variable

="GrapeProducerNorthResponse"/>

</bpel:copy>

el:assi

n>

AMARETTO 2016 - International Workshop on domAin speciﬁc Model-based AppRoaches to vEriﬁcaTion and validaTiOn

Table 1: Test templates (TT).

TT Description

TT1 Original business process without any

transformation

TTI1 Isolation of all partner web services

TTI2 Isolation of Perform Order partner web

service

TTI3 Isolation of Grape Produces North partner

web service

TTI4 Isolation of Grape Produces South partner

web service

TTF1 Simulation of small delay in the response

from partner web service

TTF2 Simulation of large delay in the response

from partner web service

TTF3 Simulation of missing partner web service

TTF4 Simulation of low level noise in the

response from partner web service

TTF5 Simulation of high level noise in the

response from partner web service

TTF6 Simulation of response with wrong data

from partner web service

input from the test case is sent as a request to the

business process, its response is compared to the

expected output and the assertions from the test case

are checked.

Actually, many test cases could be created from

the same test template. Thus, several requests with

different test inputs will be send to the same version

of the business process (deployed BPEL file). Using

this feature of TASSA framework a set of test cases

are created from the test templates described above.

Two test cases for the test templates that isolate

Grape Producer North and the Grape Producer South

web services are created (TCI1 and TCI2). They pro-

vide full path coverage of the business process since

both True and False branches of the If activity are

executed. The same test scenarios are designed when

the partner web services are available and their

operations are actually invoked (TC1 and TC2).

Several test cases with invalid data are also

created (negative test cases):

 TCN1 – send request with zero quantity;

 TCN2 – send request with quantity over

availability;

 TCN3 – send request with invalid grape type;

 TCN4 – send request with invalid quantity;

 TCN5 – send request with invalid delivery

type.

In order to perform robustness testing the

following test cases are defined using fault injection

features of TASSA framework:

 TCF1 – simulates a small wait interval;

 TCF2 – simulates a big wait interval;

 TCF3 – simulates missing partner web service;

 TCF4 – simulates low level noise in the

response from partner web service;

 TCF5 – simulates high level noise from partner

web service;

 TCF6 – simulates response from partner web

service with random data.

As it was already mentioned, TASSA testing

framework supports specification of test assertions,

namely XML assertions and XPath assertions. Fig. 6

shows a sample assertion defined for the response

from Perform Order partner web service.

Figure 6: GUI for writing an assertion.

XML Assertion compare the specified XML

message with the received one. In many cases,

especially when dynamic data such as IDs or Dates

are used, it is better to check only part of the XML

message. In such cases the XPath assertion is

recommended to be used.

4.4 Test Case Execution

Test cases are grouped in Execution sets. The

execution set is a list of test cases, which are executed

in the order specified in the list. The test cases in the

execution set can be logically grouped. For example

all negative test could be arranged in one execution

set and all tests performing isolation could be

arranged in other execution set. This feature of

TASSA framework is especially useful when it is

applied to test cases that should be executed in proper

order. For ex-ample, one may need to execute a test

which adds some quantity for a given item and then

to execute a test in which this item is sold. Similarly

to the test tem-plates, the test cases are reusable.

Single test case can be placed in more than one

execution set.

When execution sets are ready to run on the

application server, for each test case the results are

collected and the assertions are checked. The results

TASSA: A Testing as a Service Framework for Web Service Compositions

are written in log files that are grouped according to

the execution set they belong to.

Table 2 shows the results from execution of the

test cases when partner web services are isolated and

when partner web services are actually invoked and

the business process receives valid test data. Using

TASSA framework the isolation is performed in a

way that the business process acts in the same way as

when the real partner services are available and

called.

Table 2: Test cases showing isolation of partner web

services.

Test

Case

Input Expected

Output

Received

Output

TCI1 white,1,fast reserved,

north,48h

reserved,

north,48h

TCI2 red,2,normal reserved,

south,48h

reserved,

south,48h

TC1 white,1,fast reserved,

north,48h

reserved,

north,48h

TC2 red,2,normal reserved,

south,72h

reserved,

south,72h

Table 3 shows the results from execution of test

cases when the business process receives invalid data

(negative test cases). Usually a well formed business

process should catch exceptions and send proper

messages when incorrect action is performed. That is

why, an informative or error message is expected to

be received in case of testing with invalid values.

After performing the negative tests (those with

invalid test data) and checking the execution logs, it

was found that the business process does not catch

several exceptions.

Table 3: Test cases with invalid data.

Test

Case

Input Expected

Output

Received

Output

TCN1 white,0,fast informative

message

reserved,

north,48h

TCN2 red,99999,normal informative

message

log error

TCN3 123,1,fast informative

message

log error

TCN4 red,A,normal error

message

log error

TCN5 red,1,123 informative

message

log error

Table 4 shows the results from robustness testing

of the business process. Such testing suppose that the

system under test should not crash and respond with

error message, overcoming violations if it is possible.

The Grapes Order business process acts properly

in case of small delays of the response from a partner

Table 4: Test cases performing robustness testing.

Test

Case

Failure

Parameter

Expected

Output

Received

Output

TCF1 Wait=10s delayed

common

output

delayed

common

output

TCF2 Wait=20m Time elapsed Time

elapsed

TCF3 Interrupt error message error

message

TCF4 Noise

range=1%

log

error/common

output/

informative

msg

log error

TCF5 Noise

range=60%

log error log error

TCF6 Random informative

message/ error

output

common

output

web service. It returns an expected output with a

delay specified with the wait interval parameter of the

Proxy Invoke web service of the TASSA framework.

In case of long message delay from partner web

service, missing partner web service or noise in the

communication channel the business process crashes

and the server logs should be explored in order to fix

the problems. Test results obtained when random

invalid data is injected in the response form partner

web service show differences between the expected

and the received outputs. It is expected that when a

random invalid data is sent, the process should

respond with informative or error message. As Table

4 shows the business process accepts such data and

responds with a common output. Therefore,

additional fixtures should be done in the business

process.

5 CONCLUSIONS

The paper presents TASSA framework for testing

web service compositions de-scribed with WS-BPEL.

Its core functionality is implemented as web services

deployed on a cloud infrastructure. A case study over

a business process serving a wine company is used as

a proof of concept. It shows the usefulness and

benefits of TASSA framework as follows:

 Ability to test web service compositions even

if partner web services are unavailable or under

development through provided functionality

for dependency isolation;

 Ability to perform robustness testing through

AMARETTO 2016 - International Workshop on domAin speciﬁc Model-based AppRoaches to vEriﬁcaTion and validaTiOn

provided functionality for fault injection;

 Availability of on-demand testing services

allowing testers to provision raw cloud

resources at run time, when and where needed;

 Reduced cost of testing due to pay-per-use

basis of testing services;

 Shows SUT’s problems (bugs).

The future work includes application of TASSA

framework to testing more complex business

processes having tens partner web services. Its

performance and efficiency will be evaluated in

comparison with another automated testing tools as

well as manual testing. Additional functionality for

load testing and runtime monitoring is planned to be

implemented.

ACKNOWLEDGEMENTS

The authors acknowledge the financial support by the

Scientific Fund of Sofia University.

REFERENCES

Candea G., S. Bucur, Cristian Z, 2010. Automated Software

Testing as a Service (TaaS). In Proceedings of the 1st

ACM Symposium on Cloud Computing. pp. 155-160.

Parveen T., Tilley S., 2010. When to Migrate Software

Testing to the Cloud?. In Third International

Conference on Software Testing. Verification, and

Validation Workshops (ICSTW), pp.424-427.

Yu L., W. Tsai, X. Chen, L. Liu, Y. Zhao, L. Tang, Zhao

W., 2010. Testing as a Service over Cloud. In

Proceedings of the Fifth IEEE International

Symposium on Service Oriented Sys-tem Engineering.

pp. 181-188.

Gao J., X. Bai, Tsai W., 2013. Testing as a Service (TaaS)

on Clouds. In Proceedings of the Seventh IEEE

International Symposium on Service-Oriented System

Engineering. pp. 212-222.

Yu L., L. Zhang, Xiang H., Su Y., Zhao W., Zhu J., 2009.

A Framework of Testing as a Service. In Proceeding of

the Conference of Information System Management.

Sathe A., Kulkarni R., 2013. Study of testing as a service

(TaaS) – cost effective framework for TaaS in cloud

environment. In International Journal of Application or

Innovation in Engineering & Management (IJAIEM),

Volume 2, Issue 5, pp.239-243.

Yan M, Sun H., Wang X., Liu X., 2012. Building a TaaS

Platform for Web Service Load Testing. In Proceeding

of the IEEE International Conference on Cluster

Computing. pp. 576-579.

Apache JMeter, http://jmeter.apache.org/, last accessed on

11.06.2015.

Herbold S. et al., 2015. The MIDAS Cloud Platform for

Testing SOA Applications. In Proceedings of the IEEE

8th International Conference on Software Testing,

Verification and Validation (ICST), pp. 1-8.

SOASTA CloudTest, https://www.soasta.com/wp-

content/uploads/2015/05/CT-Data-Sheet.pdf, last

accessed on 12.06.2015.

SOASTA CloudTest, https://saucelabs.com/downloads/

one_pager_sales_sheet.pdf, last accessed on

12.06.2015.

IBM Rational Performance Tester, https://www.ibm.com/

developerworks/cloud/library/cl-loadtest-softlayer-trs/,

last ac-cessed on 12.06.2015.

Oracle Testing as a Service, http://www.oracle.com/

technetwork/oem/cloud-mgmt/ds-oracletesting-as-a-

service-1905796.pdf, last accessed on 12.06.2015.

Parasoft Cloud Testing, http://www.parasoft.com/

capability/cloud-testing/, last accessed on 12.06.2015.

Amazon EC2, http://aws.amazon.com/ec2/, last accessed

on 18.06.2015.

Bartolini, C., Bertolino, A., Lonetti, F. and Marchetti, E.,

2012. Approaches to functional, structural and security

SOA testing. In Performance and Dependability in

Service Computing: Concepts, Techniques and

Research Directions, Valeria Cardellini, Emiliano

Casalicchio, Kalinka Regina Lucas Jaquie Castelo

Branco, Julio Cezar Estrella, Francisco Josè Mona-co

(eds.). Hershey, PA, USA: IGI Global, pp. 381-401.

Bucchiarone, A.; Melgratti, H., Severoni, F., 2007. Testing

Service Composition. In Proceedings of the 8th

Argentine Symposium on Software Engineering

(ASSE).

Bartolini, C., Bertolino, A., Marchetti, E., Polini, A., 2008.

Towards Automated WSDL Based Testing of Web

Services. In Proceedings of the 6th International

Conference on Service-Oriented Computing. Volume

5364 of LNCS, pp. 524-529.

Dong, W., 2009. Testing WSDL_based Web service

automatically. In Proceedings of the WRI World

Congress on Software Engineering. pp. 521-5.

Noikajana, S., Suwannasart, T. An improved test case

generation method for Web service testing from

WSDL-S and OCL with pair-wise testing technique.

Proceeding of the 33rd Annual IEEE International

Computer Software and Applications Conference,

2009, p 115-23.

Bai, X., Dong, W., Tsai, W.-T., Chen, Y., 2005. WSDL-

based automatic test case generation for Web Services

testing. In Proceedings of the IEEE International

Workshop on Service-Oriented System Engineering. pp.

215-220.

Lopez, M., Ferreiro, H., Francisco, M.A., Castro, L.M.,

2013. Automatic Generation of Test Models for Web

Services Using WSDL and OCL. In Proceedings of the

11th International Conference on Service-Oriented

Computing (ICSOC). pp. 483-490.

Masood, T., Nadeem, A., Ali, S., 2013. An automated

approach to regression testing of Web services based on

WSDL operation changes. In Proceeding of the IEEE

9th International Conference on Emerging

Technologies (ICET). pp. 1-5.

TASSA: A Testing as a Service Framework for Web Service Compositions

García-Fanjul J., J. Tuya, de la Riva Cl., 2006. Generating

Test Cases Specifications for BPEL Compositions of

Web Services Using SPIN. In International Workshop

on Web Services Modelling and Testing. pp. 83-94.

Hou, S.-S., Zhang, L., Lan, Q., Mei, H. Sun, J.-S., 2009

Generating effective test sequences for BPEL testing.

In Proceeding of QSIC’09. pp. 331-340.

Yuan, Y., Li, Z. Sun, W., 2006. A graph-search based

approach to BPEL4WS test generation. In Proceeding

of ICSEA. pp. 14-22.

Cao, T.-D., Felix, P., Castanet, R. Berrada, I., 2010 Online

testing framework for web services. In Proceeding of

ICST. pp. 363-372.

Karam M., H. Safa, H. Artail., 2007. An abstract workflow-

based framework for testing composed web services. In

Proc. of Int. Conf. on Computer Systems and

Applications. pp. 901–908.

Li Z. J., Tan H. F., Liu H. H., Zhu J., Mitsumori N. M.,

2008. Business-process-driven gray-box SOA testing.

In IBM Systems Journal 47. pp. 457-472.

Zhu H. Zhang Y., 2012. Collaborative Testing of Web

Services. In IEEE Transactions on Services Computing,

vol. 5, no. 1, pp. 116-130.

AMARETTO 2016 - International Workshop on domAin speciﬁc Model-based AppRoaches to vEriﬁcaTion and validaTiOn
