Protocol Adapter: A Reusable Solution to Interoperability and

Integration Issues in mHealth Data-collection Systems

Alexandru Serbanati, Marcello Morena and Laura Lancia

Consorzio Roma Ricerche, Via Giacomo Peroni 130, Rome, Italy

Keywords: Medical Device, Data Collection, Interoperability, mHealth, Machine-to-Machine, Bluetooth.

Abstract: Healthcare has been changing in the last years due to several inputs, the main ones being moving from

assistive to preventive care and the introduction of patient-centric care models. In support to this tendency,

the number of consumer mobile applications for remote healthcare delivery is rapidly increasing and the use

of mobile medical sensor devices is also following. Standardization in the domain of data collection for

mHealth is still moving its first steps and, as a consequence, those who aim at developing remote healthcare

solutions must face significant problems related to the heterogeneity of sensor devices. In general, issues

related to low interoperability and low code-reusability of data collection software in mHeatlh severely limit

further developments in this sector. These issues have been addressed thanks to the Protocol Adapter which

provides a single, uniform interface for both the collection of rich data and the management of medical

devices. This article gives an overview of this component and its development process in order to provide a

better understanding of its value when integrated in mHealth applications. After an introduction to the state

of the art, the requirements for the data collection in mHealth systems are discussed. The design phase is

then described along with the final architectural solution and the features of this free, open source

implementation for Android are discussed. Finally, future works on the Protocol Adapter are discussed in

the hope to attract the interest of device producers and of mHealth developers.

1 INTRODUCTION

In a context where the patient base is growing along

with the rising of the population average age,

prevention and management of (multiple,

coexisting) chronical diseases has an increased

importance in the proposed healthcare models. As a

result, in many countries worldwide, cost-

effectiveness has been one of the main drivers in the

changes that are still undergoing in this sector

(Health and Human Services, 2011).

Another trend in this field is the focus that has

been placed on patient-centric approaches aiming at

moving the treatment context from the hospital

recovery to locations more comfortable for the

patients (Fass, 2007, and Eurobarometer, 2007).

Even WHO in its 2016-2026 roadmap envisions a

shift toward “outpatient and ambulatory care” in an

effort of reorienting the model of care (WHO, 2015).

Like in many other domains, ICT supported

these changes in many ways and, as a result, new

models for care delivery have been developed. It has

been demonstrated that “ICT-based services for

domiciliary care improve quality of life for older

people and carers, access to qualified long-term care,

and the integration of health and social care

services” (Carretero et al, 2012).

1.1 Problem Statement and Objectives

The solutions envisaged by mHealth aim to leverage

the connectivity and processing capabilities of

mobile devices to provide the relevant carer figures

with fresh and complete clinical data collected from

patients without imposing their presence in the clinic

for a reduced stress and increased comfort of the

same. To this purpose, a great variety of medical

devices that sense different clinical parameters and

communicate with different communication

protocols are available on the market. Medical

devices in the context of this paper are intended

sensor devices that can sense clinical parameters and

which are small-sized and ergonomic in order to

enable patients to wear or transport them easily.

To integrate such heterogeneous devices in

mHealth applications, often the only solution is to

550

Serbanati, A., Morena, M. and Lancia, L.

Protocol Adapter: A Reusable Solution to Interoperability and Integration Issues in mHealth Data-collection Systems.

DOI: 10.5220/0005845605500560

In Proceedings of the 9th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2016) - Volume 5: HEALTHINF, pages 550-560

ISBN: 978-989-758-170-0

develop vertical, device-specific modules for the

management of the connection and of the data

collection, increasing the architecture complexity

and reducing the part of the application that could be

re-used.

This paper describes the design of a framework

for data-collection to be used in mHealth mobile

platforms that aims at avoiding these issues by

providing a public, well-defined, well-documented

and reusable interface for interacting with medical

devices.

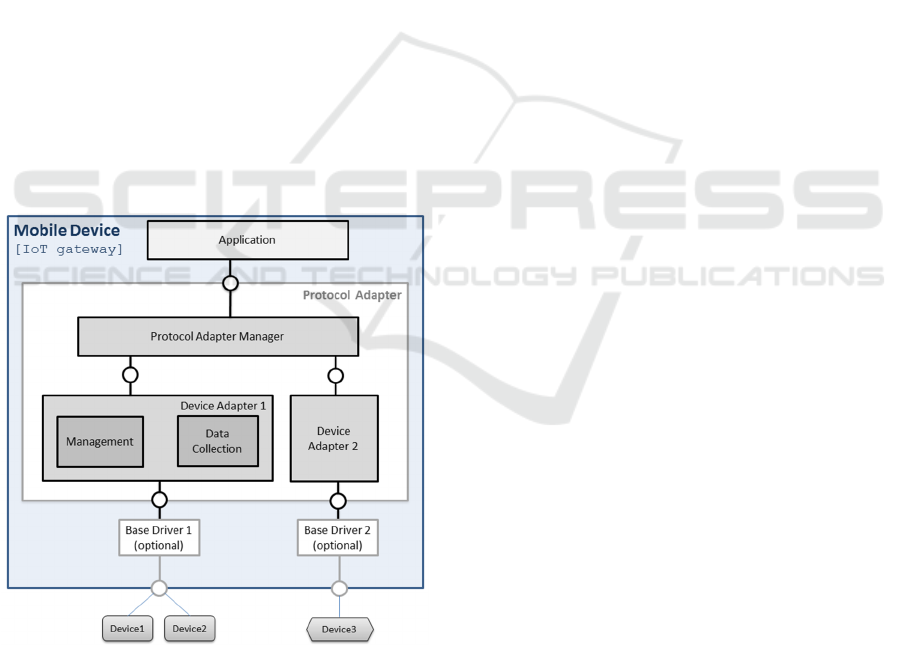

The result is the Protocol Adapter (PA), a

modular and extendable software architecture that

provides a single management and data collection

interface for several, heterogeneous medical devices.

In this way, connectivity aspects are separated from

business logic and GUI design so that

implementation efforts can concentrate on these

aspects rather than on integrating the communication

with medical devices.

1.2 Structure of the Paper

In the following chapters the design process is

described and the resulting architecture of the PA is

discussed. In Chapter 2 an overview of the state of

the art that was taken as starting point is described: a

brief overview of the reference architectures used in

mHealth is provided in order to understand the role

and importance of sensor medical devices in the “big

picture”. In Chapter 3 the requirements are discussed

and in Chapter 4 the analysis and design phases are

addressed. In Chapter 5 the resulting architecture

and its implementation in Android are described. In

Chapter 6 possible future work topics will be

introduced and a brief highlight of the most

important achievements completes the article.

The suggested audience is mainly ICT

professionals, i.e. developers, software analysts and

designers, system architects, etc.

2 BACKGROUND AND STATE OF

THE ART

Under the drivers of scalability, domain-wide

coherence, interoperability and the appeal of

increasing development efficiency, the need for an

open and widely accepted architecture for mHealth

was identified long ago (Estrin and Sim, 2010).

Despite the fact that standardization efforts are

still to bear fruit, when analysing mHealth

applications, common architectural solutions can be

identified and scientific and industrial effort is

invested in this field.

2.1 Architectural Reference for

mHealth

In (GSMA, 2012) a good overview of the

architectural characteristics of mHealth applications

is provided. It is also interesting to note that

similarities exist with the reference architecture for

mobile cloud computing (Dinh et al., 2013). Both

foresee the presence of a mobile device that acts as

sink and processor for the raw data coming from the

sensor and, at the same time, as an Internet gateway

for the sensors device.

The Communication Model of mHealth

applications can be viewed as a specialization of the

Internet of Things (IoT) one. In Figure 1 the

components of the model, based on and extended

from the Communication Model from the IoT-A

project (Walewski, 2011) are shown for reference

and divided by the base platform they run on.

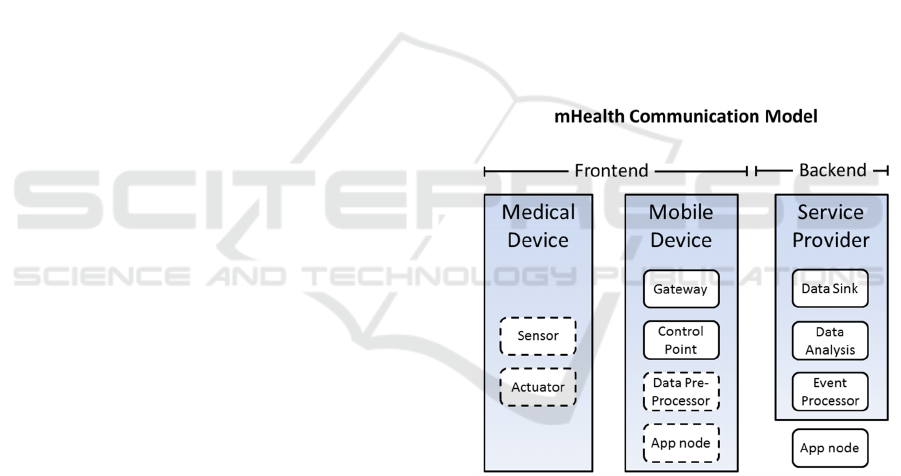

Figure 1: mHealth communication model components.

Dashed lines represent optional components.

It is important to note that other conventions

exist. One relevant example is the term gateway:

from the initial meaning related to protocol

adaptation at network (NWK) layer level, the

concept evolved to include security, management,

data aggregation and even application-specific

features (ITU-T, 2014). In the mHealth context

however, all these functionalities are provided by the

mobile device, which indeed is often called gateway.

With the evolution of the capabilities of such

devices into smartphones, the mobile devices also

came to host application-level software in order to

Protocol Adapter: A Reusable Solution to Interoperability and Integration Issues in mHealth Data-collection Systems

551

enable the interaction between the distributed

mHealth application and the user.

The data collection flow usually has the

following steps in mHealth systems:

1. raw data is collected by the means of sensors

embedded in medical devices (also called

sensor devices sometimes);

2. the raw data is forwarded (generally)

wirelessly to the gateway device, e.g. a

mobile or a smartphone;

3. the data can be pre-processed locally and can

be displayed for the user’s benefit on the

display of the mobile (if the mobile is also an

application node),

4. the collected data is then sent by the gateway

over the Internet to a data sink in the

backend;

5. the data is filtered, aggregated and/or stored;

6. the resulting information is made available to

users over the web/private network as

services;

7. finally, an event processor notifies users that

subscribed to specific events or clinical alerts.

The users of mHealth systems range from

patients and care personnel (i.e. medical staff,

relatives of the patient or informal carers) to other

ICT systems of the healthcare ICT environment in a

machine-to-machine (M2M) point of view.

The information flow for control and

management functions will not be investigated since

it is very specific to the examined application.

2.2 Peripheral Connections

While many technologies and standards exist for

connecting medical devices to the mobile devices,

generally data exchange happens either through a

Wireless Personal Area Network (WPAN), or

through a Wireless Local Area Network (WLAN).

At the moment of writing this paper, almost all

mobile devices are equipped with different versions

of Bluetooth and Wi-Fi interfaces for what concerns

WPAN and WLAN respectively.

An overview of the available communication

technologies and relative standardization activities

can be found in (mHISS, 2013). The majority of the

medical devices used in mHealth solutions uses

Bluetooth technology though for communication.

When designing medical sensor devices, the choice

between using Bluetooth or Wi-Fi is based on the

bandwidth and range requirements of the medical

sensor device. If the Bluetooth technology can

satisfy them, then it is preferable to use it instead of

the Wi-Fi.

The reasons behind this choice are that 1.)

Bluetooth power consumption is much lower (Lee et

al., 2007) than Wi-Fi for peer-to-peer connections,

2) Wi-Fi either needs a network infrastructure which

Bluetooth doesn’t or 3) in ad-hoc mode, Wi-Fi

interaction is less user-friendly than the Bluetooth

one, which was designed for this specific scenario

with usability in mind.

Moreover, one of the main drawbacks of

Bluetooth, its low speed compared to Wi-Fi, is no

more an issue since v3.0 and later implementations

can also include the High Speed (HS) optional

feature which enables handover to the alternate Wi-

Fi MAC/PHY in order to achieve high data rates

(Bluetooth SIG, 2009).

3 SYSTEM REQUIREMENTS

The PA development was based on requirements

that resulted from a refinement process that

consisted in three steps.

The starting point was obviously the business

goal described in the project charter: to design a

software component for mobile platforms that would

enable mobile application developers to easily

integrate the communication and the management of

the vast majority of mobile medical devices

available today off-the-shelf. A first discussion on

these requirements led to implications on the

architectural constraints related to scalability.

Licensing policy was also taken into account and

open source release was decided in accord with

company policies and in order to achieve the favour

initial distribution and take-up.

In a second step, stakeholder requirements were

gathered. For the above reasons, in the PA project,

users are of two types: developers and medical

personnel (as well as patients). While one could

argue that the end users eventually are the patients

and the medical personnel, but we thought that it

was right to include the developers too since they

will be the first users of the results of the project

both when integrating the PA implementation for

collecting medical data and when they would use the

PA architecture to extend existing implementations.

In fact in the requirement elicitation process, use

case scenarios were developed for both categories.

The PA was developed in the frame of the FI-

STAR project, as one of the components of the

platform frontend. As such, the PA development

team could leverage the use case models and

generally the requirements documentation of the

pilots of the FI-STAR project in order to derive

SmartMedDev 2016 - Special Session on Smart Medical Devices - From Lab to Clinical Practice

552

functional requirements. In particular, six pilots used

medical devices and their documentation helped a

lot in getting a good understanding of the usage

context.

In the following we provide a brief, narrative

outline of the system requirements, highlighting the

requirements that were identified during the later

stages.

3.1 Functional Requirements

Starting from the previously described business goal

statement, functional requirements for the PA were

initially derived from existing FI-STAR pilot

documentation. Since this project is centred on this

topic, a reference model for communication

interoperability based on the work from Tolk (Tolk

et al., 2007) was adopted. Figure 2 shows where the

PA impacted for the achievement of communication

interoperability.

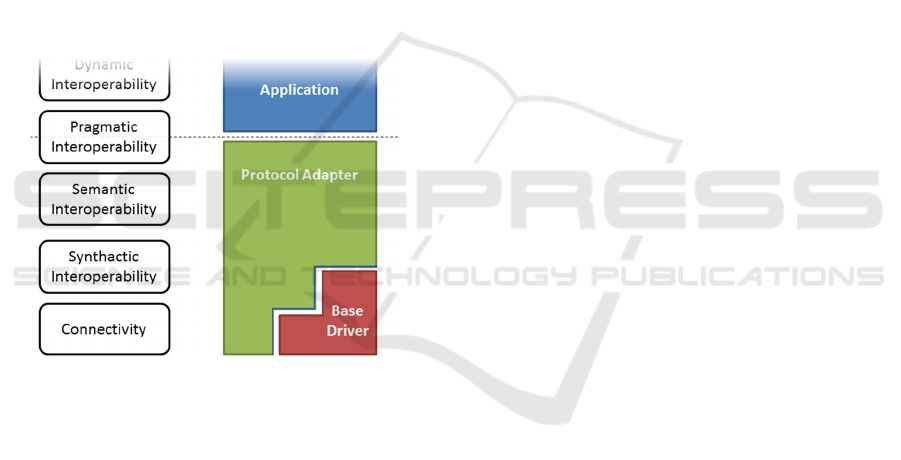

Figure 2: Interoperability reference model and impact of

the Protocol Adapter.

As the aforementioned use case models and

medical requirements were too loosely defined,

further work towards the definition of the more

technical functional requirements was necessary.

An initial set of 32 portable medical devices that

measured 11 clinically relevant variables (SpO2,

respiratory rate, spirometry, heart rate, blood

pressure, pulse, body temperature, ECG, weight,

acceleration, blood glucose level) was collected

thanks to the support of about 15 partner

organizations.

While the ultimate aim is to support all the (types

of) devices from the aforementioned set, only a

subset was chosen for actual employment in the FI-

STAR pilots, based on the requirements of the

clinical partners. The PA architecture had to

mandatorily support these devices as a high priority

requirement.

The identified functional requirements were:

 to support (also with implementations) all

device types used by FI-STAR pilots;

 to support all interaction patterns between the

mobile and the medical device;

 to collect clinical data from all devices used

in the use cases;

 to support the largest number of device

models on the market;

 to provide the clinical data in a single format;

 to provide information about the status of

medical device;

 to manage the connection with the medical

device.

As we believe that this technical details might be

interesting for the reading audience, the relevant

ones will be detailed in the following.

3.1.1 Interaction Patterns

Medical sensor devices are very heterogeneous for

what concerns the way they operate. The difference

regard:

 the operations that need to be performed in

order to establish a communication channel

(such as Bluetooth pairing or physical

attachment);

 the sequence of operations that establish the

communication channel itself: whether the

mobile or the medical device is the initiator,

i.e. which one initiates the communication;

 the role of the devices: related to which is the

server and which the client; please note that

this is not necessary related to the initiator

role;

 the duration of the connection: some devices

maintain it until the application decides to

terminate it, others automatically cut it off as

soon as they have sent the data;

 the necessity to perform a setup before

operation: more complex devices need to be

provided with operational parameters upon

connection in order to start operating;

 the need to send a command in order to start

data acquisition; this command can also

include information about the measurements

to be performed;

 the way devices send the data: some devices

send data automatically and immediately

after performing the measurement, while

others send the data only after the proper

command is received.

All of these differences have to be taken into

Protocol Adapter: A Reusable Solution to Interoperability and Integration Issues in mHealth Data-collection Systems

553

account. Moreover, information about the status of

the device must be provided to the application.

3.1.2 Data Collection

Data collection, i.e. the process by which the values

measured by the medical sensor devices are

collected by the mobile devices, can use several

different communication technologies as well as

different protocols. The main concern, derived

directly from the business goal, is that the Protocol

Adapter must be able to integrate all these options to

collect data.

This requirement set is also related to the

available implementation options: while the design

drives the implementation, when designing it is

important to know what are the implementations

constraints. In our case, we had to deal with the fact

that many medical devices used (sometimes

proprietary) protocols for which closed libraries

existed. These protocols – and the relative libraries –

reach different levels of the communication stack.

The initial set of devices used different

communication solutions at PHY/MAC layer level:

Bluetooth, audio jack, and Wi-Fi. However, even in

the Bluetooth device set, different Bluetooth Profiles

were used: Health Device Profile (HDP) (Bluetooth

SIG, 2012), Smart Bluetooth (Bluetooth SIG, 2010),

or open and closed protocols over SPP. Moreover, it

was decided to keep the most generic approach

possible in order to be able to support all kind of

existing devices and to make it possible to easily

provide support even to future ones.

3.1.3 Data Provision

All the previously illustrated differences have

implications on the syntactic and semantic level. The

following requirements were gathered with the help

of the developers of the pilots and are related to the

medical needs of the pilot use cases:

 the data has to be provided with a uniform

syntax and semantics, despite differences in

the single device protocol,

 the data has to be provided as soon as it

arrives,

 the data has to be as rich as possible: no

information has to be omitted and, moreover,

contextual information that regards the device

should be sent along with the measurement.

3.2 Non-functional Requirements

Some constraints derived mainly from the high level

goals, e.g. from the project charter:

 mHealth architecture compliant: the PA had

obviously to comply with the aforementioned

mHealth architecture;

 FI-WARE Protocol Adapter architecture

compliant: as part of the Future Internet

programme, the PA was initially supposed to

implement the interfaces of the Protocol

Adapter component of the Internet of Things

Services Enablement (FI-WARE, 2015) FI-

WARE chapter;

 the component had to be easily extensible in

the future in order to support new

technologies, maintaining at the same time

backward compatibility;

 M2M and IoT readiness: while the current

mHealth architecture is slightly influenced by

the IoT one, current architectures appear to

be centralised and the M2M approach is only

considered in the backend part. The PA team

expects that this situation will evolve and that

data will be eventually provided directly “at

source”, i.e. from the mobile device, allowing

the user to really be in control of his data.

3.2.1 External Interface

For the PA, the external interface was the interface

for communicating with the application that needed

to collect the data. Such applications can be either

local or remote or, in some cases, a local application

will use the data but will also forward it to the

backend. So, no assumption could be made on

whether the consumer of the information was local,

as in the case of the gateway pre-processing the data,

or remote, i.e. in the backend environment.

Another non-functional requirement related to

the external interface was the need to reduce

complexity and increase the possibility to reuse both

knowledge and code in order to increase

development efficiency. This was both a business

goal and a developers’ need.

3.2.2 Deployment Requirements

Different operating systems have different

architectures, resulting in different resources that can

be used, different security restrictions, different way

of integrating components and communicating with

them, different best practices, and so on.

Also, both the PA implementations and the

applications that are going to use them must use the

APIs and resources provided by such platforms (i.e.

operating systems) or on APIs provided by vendors

SmartMedDev 2016 - Special Session on Smart Medical Devices - From Lab to Clinical Practice

554

which, in turn, run on the lower layers of the OS.

3.2.3 Performance and Other Requirements

The PA is meant to mediate and simplify

interactions with external devices connected to the

mobile device where the application and the PA

itself run. When integrating the PA to collect data

from a medical device, it will not degrade

significantly the performance of the system when

compared to a system directly integrating the

medical device control into the application itself.

This means for example that the PA will have to be

able to manage fast data flows as in the case of

ECG sensors. This kind of performance can also be

impacted by the number of functionalities that can

be accessed through the PA compared to the number

of functionalities provided by the device.

It was also flagged as important that product

vendors also needed to be able to extend the PA with

their own software that could be closed source or

generally subject to different licensing policies

compared to the PA.

4 DESIGN AND ARCHITECTURE

In first stance, the initial (i.e. the broadest) set of

device models and the sequences needed for their

use were considered. To this purpose, since the

interaction had to be carried out programmatically,

their development kits and protocol documentation

was analysed. Interaction models were abstracted

from this information. Several different use cases

(and models) requiring different sequences of

interaction were identified. All were taken into

account except that of a device that was designed to

communicate only with a proprietary app in order to

send the collected data directly to a third party,

predefined Internet server. It was found that several

models would be needed for representing these

device types and yet different models had subsets of

common features.

Indeed we found out that it was better to abstract

characteristics than to use monolithic models. These

characteristics are related to connection roles and

modes as well as to operational requirements. In the

following a list of such characteristics is provided:

 the device acts as a connection initiator;

 the device supports external configuration:

four behaviours were identified

(configuration supported only at startup,

supported at runtime, supported both at

startup and runtime, not supported);

 the device supports external commands;

 the device can be detected programmatically

prior to connection;

 the device needs pairing (or other previous

setup) prior to connection;

 the device can be disconnected

programmatically;

 the development kit provides a reliable way

to know if the device is connected and

operating.

For what concerns data collection and

interoperability, it was clear that several protocols

were used by the devices on the market. The

individual syntax and semantics had thus to be

abstracted by the PA in order to provide a single

external interface for managing the data collection

from medical sensor devices.

The use of such protocols had to be supported at

different levels of the communication stack and they

guaranteed different levels of interoperability. Some

protocols were only documented, while some

devices provided data collection features through

APIs. Thus, the resulting data representation varied

from one device type to another.

The HDP device type was considered as single

type on par with device models for the purpose of

this analysis because the reference Personal Health

Device standard (i.e. the IEEE11073 standard

family) directly provides pragmatic interoperability

for all the compatible device models. Indeed

implementations of the PA that cover HDP already

have a large pool of compatible device that are

supported.

Finally, the analysis also resulted in the rejection

of some requirements. For instance, the requirement

to provide a component that implemented the FI-

WARE Protocol Adapter interface had to be dropped

because it was conflicting with the best practices for

development on mobile devices. In particular, using

NGSI-9/10 Context Management specifications

(Open Mobile Alliance, 2012) over REST

connections could not be fulfilled because

workarounds for the fact that mobile devices had

dynamic network addresses would severely impact

on the device batteries.

4.1 Notes about Architecture Design

When designing an abstract model that could

represent all types of devices, the right level of

abstraction had to be found. Emphasis was thus put

on providing a high level model with relatively few

and generic functionalities that could be easily

understood and mastered.

Protocol Adapter: A Reusable Solution to Interoperability and Integration Issues in mHealth Data-collection Systems

555

In order to understand at what level of the

interoperability stack would the PA be placed, the

available APIs and the documentation of

communication protocols was analysed. Contextual

information and descriptions of the measurements

was available and could be provided along with the

raw values communicated by the medical devices.

Moreover, the sequence of operations needed for the

proper operation of devices changed from one type

of devices to another and trying to automate this part

would increase the complexity of the PA interface.

For these reasons it was decided against trying to

provide fully-fledged pragmatic interoperability.

It was thus decided that the PA would only

provide descriptive information to the upper layers

(i.e. the application) about the device types and their

characteristics. While this information is not

sufficient to operate all devices and it is not meant to

replace the knowledge about the operation of more

complex devices, it helps in avoiding the misuse of

the PA. We take as granted that, if a developer has to

use a device that requires the sending of a command

to start the acquisition of data, this is known to the

developer.

The devices were characterized by: the ID of the

device, their serial number, the model name,

manufacturer name, the physical address of the

device and a collection of the attached sensors to the

device represented using the Sensor Model.

The sensors, in turn, were characterized by: the

name of the sensor, the name of the property

measured by the sensor and the measurement unit of

said property.

The Device and Sensor Models are meant to be

used together to describe the devices and their

sensors.

After the device model was defined, the internal

architecture of the PA had to be designed. In order to

have a single interface towards the application and

to allow third parties to expand the PA support

independently, device specific functionalities were

separated: a specific component called Device

Adapter (DA) would manage low-level, device

specific functionalities while a higher level

component, the Protocol Adapter Manager (PAM),

would provide the single point of interface with the

application and DA-management functionalities.

The implementations of the DA are required to

be able to recognize the devices that they could

manage and provide protocol adaptation for a given

type of sensor medical devices.

Moreover, in order not to limit the development

possibilities, it was also chosen to allow in principle

the existence of more DAs able to manage the same

types of devices and even to allow their

implementations to coexist on the same mobile

device: the user (human user or application) will

then have to decide which implementation should

manage which device.

The communication requirements of the devices

were analysed and a set of message types was

defined for what concerns the interaction of the

PAM with both the application and the DAs. The

majority of interactions that could be started by the

application resulted in an asynchronous feedback

from the device because the device had to perform

some physical measurement (in some cases even

with the user’s implication) and a synchronous

response could not be guaranteed. However, some

management interactions between the PAM and the

DA which don’t depend on the medical devices

could be carried out synchronously.

For what concerns the collection of data, this has

to be translated from the original format to a single

common format. In this way, applications will

receive the data structured in a uniform way despite

the different device source, the different

measurement types, the different formats that are

provided in input and so on. In turn, this will allow

developers both to use only one interpretation

routine for all the devices they used and also to reuse

existing code over different projects.

For this reason, an Observation Model based on

the information types returned by the considered

devices was defined in order to provide an uniform

information model. In the design, M2M

requirements were kept into account along with the

previous experience that the team had in the field of

data collection and IoT. This impacted for example

on the data collected from devices that provided

measurements continuously, such as for example

electrocardiographs. It was decided that in the event

in which the medical device sent streams of data,

this had to be grouped in packets as an internal

mechanism of the DA, while the PAM should not

support data streaming. One of the main reasons for

this choice was that such type of data is not

generally supported in M2M frameworks where data

is represented as a static, albeit possibly complex,

resource.

The model was meant to represent in a well-

known format every possible measurement carried

out by every possible device. It includes the name of

the property which the measurement refers to, the

measurement unit, the time of the measurement, the

duration of the measurement and a collection of raw

samples of the measured value.

SmartMedDev 2016 - Special Session on Smart Medical Devices - From Lab to Clinical Practice

556

4.2 Resulting Architecture

Based upon the previously described analysis and

design, the architecture of the Protocol Adapter is

shown in Figure 3. The PAM provides an interface

to the application above and manages from an

operational and communication point of view any

number of DAs below it.

In more detail, the DA must establish (or allow

the medical sensor device to establish) a

communication channel. If needed, it then must use

this channel to send the configuration or specific

commands needed for bringing the device to an

operational status. Finally, it will provide protocol

adaptation between the device specific formats and

the single PAM format, for which it actually acts as

an abstraction layer. If vendor drivers are available

for a given device, DA designers can use them to

ease the development process.

The PAM on the other hand must discover all the

DA instances available on the system upon start and

afterwards it must manage their life cycle. It must

provide all the collected data to the application,

handling all the measurements and the events

generated by the DA. In the other way, it also has to

route the application device commands and

management inquiries to the right DA.

Figure 3: Protocol Adapter Architecture.

Also, Device, Sensor and Observation logical

models were used to represent characteristics and

functionalities of the managed devices, integrated

sensors and collected data. These models are used

together to coherently pass knowledge above these

concepts from one component to another.

5 ANDROID IMPLEMENTATION

To respect the requisites of flexibility and

expandability, it has been chosen to implement the

PA as a collection of separate Android applications

communicating via Inter Process Communication

(IPC) mechanism (Google, 2015a).

5.1 Components and Interfaces

In particular, the PA Android implementation

consists of a certain number of DA applications and

one PAM application, each of them deployed

through a specific .apk. In the following part of this

chapter DA and PAM will be used with the meaning

of implementations, i.e. Android applications, unless

explicitly stated that they are meant as models.

The two crucial design decisions about the

Android implementation were: what IPC mechanism

to choose amongst the ones offered by Android and

how to implement the discovery phase.

The choice of the right IPC mechanisms was

based on two development requirements. In first

stance, reliable communication channels between

the PAM and DAs and between the PAM and third

party applications was needed. In second stance, it

was necessary to package all the software needed for

the establishment of said channels inside a library, in

order to make the integration of the PA as simple as

possible for third party developers. In the end we

chose Android Interface Definition Languages

(AIDL). In this way, the Java implementations of the

Device, Sensor and Observation models, called

respectively DeviceDescription, SensorDescription

and Observation, could be packaged along with the

AIDL interfaces and the Capabilities class used to

represent DA properties and distributed as a library.

Also this allowed to have a reliable return value for

the methods that needed one.

This method is used so that, after a successful

binding to services, Android applications can invoke

methods of remote objects (belonging to other

Android applications) as if they were local.

At this point, two kinds of channels existed: one

that enabled the communication of the DAs with the

PAM, and the channel between the third party

application and PAM. Since we wanted bidirectional

communication for each channel, using AIDL we

created a total of four Java interfaces, two for each

channel. Every time a service is bound to, depending

on the kind of the channel, two objects

Protocol Adapter: A Reusable Solution to Interoperability and Integration Issues in mHealth Data-collection Systems

557

implementing the related interfaces are exchanged

between the application that implements the service

and the application that is bounding to it. This

allows a bidirectional communication that is carried

on in the most natural way for Java software: simply

invoking methods on objects.

Finally, the DAs and the PAM were

implemented as Android Services because, being

them software modules designed to run in the

background without a direct user interaction and to

offer APIs to third party applications, the Service

paradigm was the most appropriated.

5.2 Discovery Implementation

The discovery feature was implemented with

another Android IPC mechanism that is more

common and more lightweight than AIDL, yet less

powerful and less reliable: the Intent system

(Google, 2015b). When using Intents to send

messages between applications, there has to be a

software component inside the receiving application

called Broadcast Receiver. This component must

declare what types of Intents it is interested into and

is invoked every time that a suitable Intent is

dispatched in the system by a sender application.

However, using this facility, the sender application

can never know if the Intent has been successfully

delivered and it is impossible for the receiving

application to acknowledge or directly reply to the

received message.

In the PA, every DA implements a Broadcast

Receiver that obtains all the discovery Intents

generated by the PAM and sends back a reply Intent

(which the PAM has a Broadcast Receiver for) to

notify its presence on the system. Moreover, the DA

sends, together with the reply Intent, an object called

Capabilities; this object contains all the relevant

information about the DA itself that the PAM needs

to know in order to properly handle it.

5.3 Operation

The application binds to the Manager using facilities

included in the library and establish the bidirectional

communication channel. The PAM, upon the start,

performs the discovery process to retrieve

information about all the DAs available on the

system. Once this phase is done, the PAM activates

all the DAs that it needs by binding to their related

services and establishing a bidirectional

communication channel with every one of them. At

this point, the third party application gets notified

that the initialization phase is over. From now on,

devices that are initiators can spontaneously connect

and send data, while devices that are not initiators

can be connected to (upon request of the third party

application) and triggered to send data. At a certain

point, all types of devices will eventually be

connected. When this happens, the third party

application gets notified and receives all the details

of the newly connected device via a

DeviceDescription object. Every time a device sends

new data, this is forwarded to the third party

application encapsulated in an Observation object.

These operations continue until the third party

application is bound to the PAM. When the third

party application decides to terminate the bound

with the PAM, it will be shut down gracefully

together with all the active DAs, releasing all the

connected devices in the process.

The descriptive models of devices, sensors and

observations are implemented as java classes called

respectively DeviceDescription, SensorDescription

and Observation. They provide a well-known

structure that could be used to encapsulate

information forwarded to the PAM or to the

application.

6 CONCLUSIONS AND WAY

FORWARD

The PA is a free, open source component that

succeeds in bridging the interoperability gap that

exists at the low level in the mHealth

communication domain. The development process

and the resulting components with their features

have been presented in this paper, along with their

Android implementation, in the hope to raise the

interest of two stakeholders that the authors believe

to be essential to the success of the PA: the mHealth

application developers and device manufacturers.

The Android version of the PA source is

available at https://github.com/theIoTLab/ along

with DAs for HDP devices and for the Zephyr

BioHarness 3 device. Other DAs have been

developed but could not be published due to

licensing issues.

6.1 Further Developments

EHealth is a domain that is rapidly growing,

continuously providing new solutions and

integration with traditional healthcare. To keep the

pace, the PA will need to adequate to major

reference architectures, standards and best practices.

SmartMedDev 2016 - Special Session on Smart Medical Devices - From Lab to Clinical Practice

558

For this reason, while the PA is already a FI-

STAR component, we would also like to integrate

the PA in the FI-WARE architecture as a native

Generic Enabler.

Another development thread is related to

supporting new device models and device types. For

example, the development of an Android DA

implementation for Smart Bluetooth is under

evaluation.

Last but not least, we think that the security

aspect of the interaction with the devices should be

improved. Currently, for example, there is no way

for the gateway (or for the application running on

the gateway) to authenticate the medical device.

Unfortunately, this cannot be implemented on the

PA side only, because it also requires support from

the medical devices. Yet, we believe these features

to be critical from a long term perspective since they

are required for securely implementing the support

of mHealth actuators.

ACKNOWLEDGEMENTS

The research on the Protocol Adapter was funded in

the frame of the FP7 FI-PPP Phase II project Future

Internet Social and Technological Alignment in

Healthcare (FI-STAR) under grant no. 604691.

REFERENCES

Bangash, J. I., Abdullah, A. H., Anisi, M. H., and Khan,

A. W., 2014. A survey of routing protocols in wireless

body sensor networks. In Sensors vol.14, n. 1, pp.

1322-1357. MDPI.

Bluetooth SIG, 2012. Health Device Profile Specification.

Available online from

https://developer.bluetooth.org/TechnologyOverview/

Pages/HDP.aspx.

Bluetooth SIG, 2009. Bluetooth High Speed Technology,

available online at https://www.bluetooth.org/en-

us/specification/adopted-specifications.

Bluetooth SIG, 2010. Bluetooth Smart (Low Energy)

Technology. Available online at

https://developer.bluetooth.org/TechnologyOverview/

Pages/BLE.aspx.

Carretero, S., Stewart, J., Centeno, C., Barbabella, F.,

Schmidt, A., Lamontagne-Godwin, F., Lamura, G.,

2012. Can Technology-based Services support Long-

term Care Challenges in Home Care? Analysis of

evidence from social innovation good practices across

the EU CARICT Project Summary Report.

Publications Office of the European Union.

Dinh, H. T., Lee, C., Niyato, D., and Wang, P., 2013. A

survey of mobile cloud computing: architecture,

applications, and approaches. In Wireless

communications and mobile computing, vol. 13, n. 18,

pp. 1587-1611. Wiley Online Library.

Estrin D, and Sim, I., 2010. Open mHealth architecture: an

engine for health care innovation. In Science, vol. 330,

n. 6005, pp.759–760.

Eurobarometer, Special, 2007. Health and long-term care

in the European Union." Special Eurobarometer 283.

Fass, L., 2007. Patient-centric healthcare, IET.

FI-WARE, 2015. Internet of Things Services_Enablement.

Available online at

http://forge.fiware.org/plugins/mediawiki/wiki/fiware/

index.php/Internet_of_Things_(IoT)_Services_Enable

ment.

Fricker, S. A., Thuemmler, C., Mival, O, 2013. Technical

Requirements and Architecture Report including Open

Call Requirements. EC FP7 FI-STAR (604691)

project deliverable D1.1.

Google, 2015a. Bound Services, Developer’s

documentation, available online at

http://developer.android.com/guide/components/bound

-services.html#Creating.

Google, 2015b. Intents and Intent Filters, Developer’s

documentation, available online at

http://developer.android.com/guide/components/intent

s-filters.html.

GSMA, 2012. Connected Mobile Health Devices: A

Reference Architecture.

ITU-T, 2013. Common requirements and capabilities of a

gateway for Internet of things applications,

Recommendation ITU-T Y.2067. In Global

Information Infrastructure, Internet Protocol Aspects

And Next-Generation Networks, ITU.

Lee, J. S., Su, Y. W., and Shen, C. C., 2007. A

comparative study of wireless protocols: Bluetooth,

UWB, ZigBee, and Wi-Fi. In Industrial Electronics

Society, 2007. IECON 2007. 33rd Annual Conference

of the IEEE, pp. 46-51. IEEE.

mHIMSS, 2013. mHIMSS Roadmap: Standards and

Interoperability. Available online at

http://www.himss.org/ResourceLibrary/genResourceD

etailPDF.aspx?ItemNumber=21293.

Open Mobile Alliance (OMA), 2012. NGSI Context

Management, Version 1.0.

Schweitzer, J., and Synowiec, C., 2012. The economics of

eHealth and mHealth. In Journal of health

communication, vol. 17, n. sup1, pp. 73-81. Taylor &

Francis.

Walewski, J.W., (ed.), 2011. Initial Architectural

Reference Model for IoT. EC FP7 IoT-A (257521),

project Deliverable Document D1.2.

World Health Organization (WHO), 2015. Reorienting the

model of care, In WHO global strategy on people-

centred and integrated health services, WHO Press.

Tolk, A., Diallo, S., Turnitsa C., 2007. Applying the levels

of conceptual interoperability model in support of

integratability, interoperability, and composability for

system-of-systems engineering. In Journal of

Systemics, Cybernetics and Informatics, vol 17, n. 5,

pp. 65-74.

Protocol Adapter: A Reusable Solution to Interoperability and Integration Issues in mHealth Data-collection Systems

559

U.S. Department of Health and Human Services, March

2011, 2011 Report to Congress: National Strategy for

Quality Improvement in Health Care. Available online

at http://www.ahrq.gov/workingforquality/nqs/

nqs2011annlrpt.htm.

SmartMedDev 2016 - Special Session on Smart Medical Devices - From Lab to Clinical Practice

560
