Cassandra for Internet of Things: An Experimental Evaluation

André Duarte

Polytechnic Institute of Coimbra, ISEC, Rua Pedro Nunes, 3030-199, Coimbra, Portugal

Jorge Bernardino

Informatics, Polytechnic Institute of Coimbra, ISEC, Rua Pedro Nunes, 3030-199, Coimbra, Portugal

CISUC – Centre of Informatics and Systems of the University of Coimbra, University of Coimbra, 3030-290, Coimbra,

Portugal

Keywords: Internet of Things (IoT), Cassandra, NoSQL.

Abstract: The proliferation of the Internet of Things (IoT) increases the amount of data that is being produced.

Therefore it is extremely important to find the best possible storage engine to process these huge amounts of

data. With the intent of discovering which database engine better supports the characteristics of an IoT

system it is essential to analyse the existing databases and test them in a practical context. With this

objective we decided to use one of the most popular databases, Cassandra, to evaluate it on an IoT

environment. We evaluate the querying processing time of Cassandra using queries of an IoT real time

environment and comparing it with different types of data architectures. The main focus of this work is to

investigate if Cassandra can provide good performance in an IoT system.

1 INTRODUCTION

Nowadays the world is evolving and producing large

amounts of data due to the growth of Internet of

Things (IoT). This constant and fast evolution leads

developers to pursuit the best possible solutions to

handle large amounts of data. Even though the need

for intelligent data mining tools is extremely

important, we also need to pay attention to the way

this data is stored and which type of engine better

fits the needs of an IoT system.

To the best of our knowledge, a perfect solution

for the Internet of Things data layer does not exists.

With this in mind we aim to find out the best

possible solution for this type of environment.

Therefore an investigation was conducted to

understand which database would be the most

suitable to provide a production ready environment.

It is important to keep in mind that, generally

speaking, these kind of systems need to handle large

amounts of data, real time insertion of records and

huge data diversity.

The database will be used in an Internet of

Things environment that intends to gather data from

a city and process it in order to find events that are

considered dangerous. The system collects data from

sensors and provides alerts to each subscribed

application. It is important to understand that this

system will act as a demonstrator for the data layer.

In (van der Veen et al., 2012) it is discussed that

scaling systems that deal with sensors is becoming

gradually difficult due to the amount of sensors and

clients that extract data from them. Therefore it is

significant to not only pay attention to the frequency

of the data, but also to the huge volume that it will

obtain.

According to (Abramova et al., 2014a; 2014b;

2014c; Barata et al., 2015) Cassandra seems to have

a clear advantage in terms of the characteristics

necessary to implement this system because it

provides good writes speeds without sacrificing

performance. Furthermore, Cassandra system was

designed to run on cheap commodity hardware and

handle high write throughput while not sacrificing

read efficiency (Lakshman and Malik, 2010).

Additionally the decision of choosing Cassandra is a

result of its popularity and market share (DB-

Engines Ranking, 2015). With all of this in mind,

Cassandra seems to be a solid choice for this use

case.

In addition to storing data, every system needs to

provide it in order to query and filter later. It is

Duarte, A. and Bernardino, J.

Cassandra for Internet of Things: An Experimental Evaluation.

DOI: 10.5220/0005846400490056

In Proceedings of the International Conference on Internet of Things and Big Data (IoTBD 2016), pages 49-56

ISBN: 978-989-758-183-0

important to keep in mind that systems included in

the IoT context tend to be stream oriented, rather

than batch. For this reason, the database to be chosen

needs to accept data in streams, or at least support a

high rate of data insertion, and have the necessary

mechanisms to withstand this.

We aim to test which architecture for the data

layer would best suit the needs of an IoT platform in

terms of querying performance, without sacrificing

the write performance. There were two relevant

ways in terms of implementation. First, a single

table with all the data, which would then be filtered

and dealt with when needed. A second approach is

multiple tables for each specific application that

sends events.

From a theoretical standpoint it seems that the

best way of organizing our data is through the

creation of a table per application. This will result in

smaller tables which, in comparison to a centralized

table that stores everything are a lot faster because

they have much less records. In a nutshell, we aim to

understand which data architecture will have the best

performance while querying the data.

The remainder of this paper is structured as

follows. Section 2 gathers background on important

concepts such as the IoT concept and the description

of Cassandra. Section 3 describes Cassandra and its

general characteristics. Section 4 defines the setup

on which the tests were made. Section 5 presents the

performance tests that were made. Finally, section 6

presents our main conclusions and suggests future

work.

2 BACKGROUND

This section aims to present the necessary

background on Internet of Things and Databases.

2.1 Internet of Things

According to (Friess and Vermesan, 2013) the

Internet of Things (IoT) “is a concept and a

paradigm that considers pervasive presence in the

environment of a variety of things/objects that

through wireless and wired connections and unique

addressing schemes are able to interact with each

other and cooperate with other things/objects to

create new applications/services and reach common

goals.” IoT is a concept reflecting a connected set of

anyone, anything, anytime, anyplace, any service,

and any network (Islam et al., 2015). The IoT is a

megatrend in next-generation technologies that can

impact the whole business spectrum and can be

thought of as the interconnection of uniquely

identifiable smart objects and devices within today’s

Internet infrastructure with extended benefits.

Benefits typically include the advanced connectivity

of these devices, systems, and services that goes

beyond machine-to-machine (M2M) scenarios

(Höller et al., 2014). The IoT provides appropriate

solutions for a wide range of applications such as

smart cities, waste management, emergency

services, logistics, retails, industrial control, and

health care. The Internet of Things extends even

beyond communications and new services, it will

allow for a future where, with everything connected,

people can feel more integrated with the world and

let IoT do the day-to-day recurring tasks for them.

The IoT provides a new paradigm that will shape

the world and create a new conception of the

Internet and how people interact with it, due to the

constant interconnectivity between people and the

world (Jara et al., 2014). It will also provide the

necessary resources for the creation of new

applications and data driven platforms that will,

hopefully, improve the citizen’s quality of life. This

new way of reinventing the Internet will not only

provide endless possibilities to improve the overall

interaction between humans and machines but also

create new challenges, which need to be tackled, to

cities themselves.

In short, Internet of Things is successfully

thriving in the current world, therefore intelligent

systems will continue to emerge alongside it.

2.2 Databases

A database can be treated as a related set of

information, which allows the developer to access

the data via queries that intend to express his/her

needs regarding that set of data in that specific

timeframe, either by using simple statements or

complex filtering to enhance the granularity of the

search. For this data to be queried it needs to be

inserted during the time that the database is in place.

Nowadays there are many types of databases,

however in this paper we will focus on Cassandra.

Usually databases are divided in two main classes -

SQL and NoSQL databases (Abramova et al., 2015):

 SQL databases – these are the traditional

relational databases that intend to store data in a

structured way. Famous SQL engines are:

MySQL, MS SQL Server and Oracle (DB-

Engines Ranking, 2015);

 NoSQL databases – NoSQL “is used to refer to

the databases that attempt to solve the problems

of scalability and availability against that of

IoTBD 2016 - International Conference on Internet of Things and Big Data

atomicity or consistency” (Vaish, 2013). NoSQL

databases are divided in four main groups

according to each use case and architecture, these

groups are:

 Key-Value databases – These are the simplest

NoSQL databases, which are based in a key-

value organization that allows the developers to

make CRUD (Create, Read, Update, and Delete)

operations only with a key. The type of storage is

BLOB (Binary Large Object) and the data

structure is not organized in any fashion.

According to (Redmond, Wilson and Carter,

2012) these databases have a very good

performance, although aren’t good for complex

querying and aggregation. Examples of these

databases are: Memcached (Memcached, 2015),

Couchbase (Couchbase, 2015) and DynamoDB

(DynamoDB, 2015);

 Document databases – As the name implies this

type of database stores and retrieves document

like files, which can be XML, JSON amongst

others. According to (Redmond, Wilson and

Carter, 2012) a document is a hash with a unique

ID which has more values related to it. Examples

of these databases are: MongoDB (MongoDB,

2015) and CouchDB (CouchDB, 2015);

 Column Family databases – These databases

store data um column families which are tables

with columns that are frequently accessed

together. According to (Redmond, Wilson and

Carter, 2012) a columnar structure “is about

midway between relational and key-value”.

Databases of this type are: HBase (HBase, 2015)

and Cassandra;

 Graph databases – According to (Robinson,

Webber and Eifrem, 2013), graph databases “are

normally optimized for transactional

performance, and engineered with transactional

integrity and operational availability in mind”.

Famous databases of this type include (DB-

Engines Ranking, 2015): Neo4j (Neo4j, 2015),

OrientDB (OrientDB, 2015) and Titan (Titan,

2015).

In our case we opted for NoSQL databases because

they seem the more appropriate fit for systems in the

IoT paradigm. On the NoSQL databases we have

opted for Cassandra, the next section will serve to

explain our choice while introducing important

topics related to Cassandra.

3 CASSANDRA DATABASE

Cassandra is a distributed storage system that

manages large amounts of data across servers

(Lakshman and Malik, 2010). Still according to this

author Cassandra uses a combination of well-known

procedures that grant scalability and availability.

In this section we will start by introducing

Cassandra’s data model and, later on, we will

explain Cassandra’s architecture.

The data model of Cassandra provides a high

processing speed when writing the data, this is due

to the indexing. Cassandra indexes data by key,

which is a unique representation of the row that

contains the data. Each row contains columns, which

are attributes and finally these columns make up a

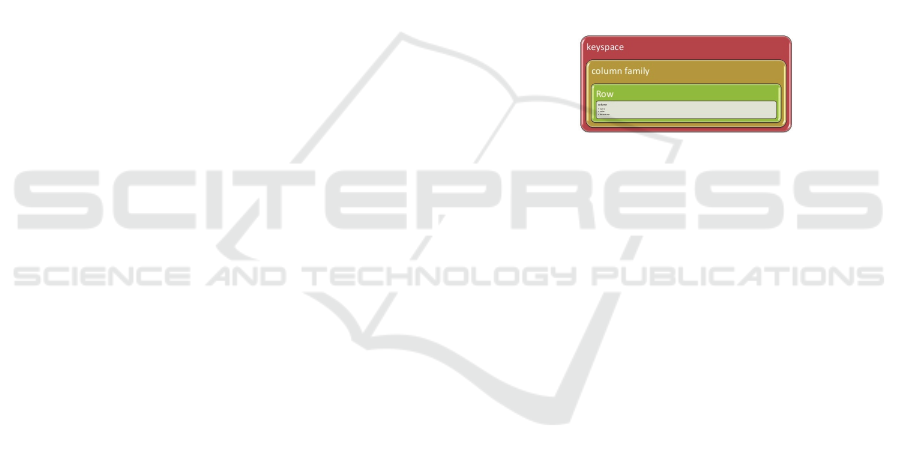

column family. Figure 1 illustrates the data model,

which is composed by rows, column families and

keyspaces.

Figure 1: Cassandra's Data Model (Charsyam, 2011).

Furthermore we shall address the two important

concepts that make up the data representation in

Cassandra, which are the column families and the

keyspaces.

 Column Family – A column family is a container

for a group of rows (Hewitt, 2011). Column

families are not defined, which means that the

structure can be changed at any desired time, this

improves the system’s readiness to change and

adapt during time;

 Keyspace – In Cassandra the keyspace is the

equivalent to a database in the relational

paradigm. The keyspace contains the column

families which make up the full database. The

keyspaces contain attributes that can be tuned to

enhance the overall performance of the database,

these attributes are: (1) replication factor, which

refers to the number of physical copies of the

data. For example if the replication factor is set

to two data will be replicated twice; (2) replica

placement strategy, this attribute is used for

defining the strategy of how data is placed in the

cluster. The possibilities to define the replicas

are, Simple Strategy which is most used when

we have a single group of nodes in the cluster

and Network Topology Strategy which is more

used when the cluster is working across multiple

Cassandra for Internet of Things: An Experimental Evaluation

machines providing a way of managing the

replicas in all the machines.

Cassandra uses a peer-to-peer architecture, which

means that all nodes within a cluster can receive a

request and respond to it (Strickland, 2014). This

provides better availability when the database is

online. Also, this provides redundancy, which help

to keep the data safe and horizontal scalability. In

Figure 2 we can observe the Cassandra peer-to-peer

architecture.

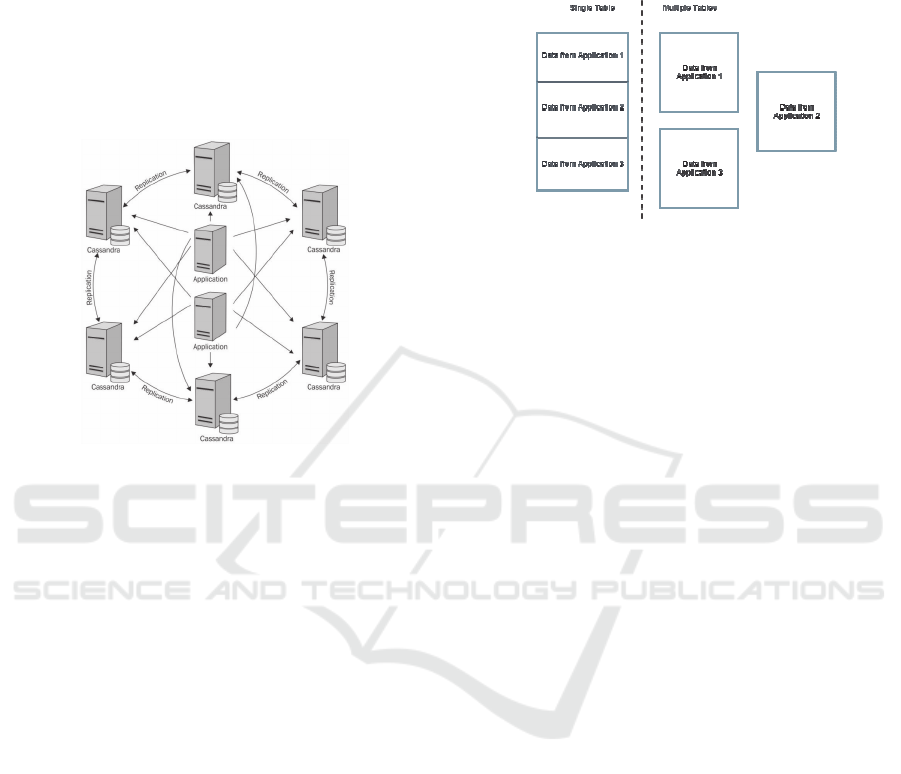

Figure 2: Cassandra Architecture (Strickland, 2014).

Furthermore, this architecture provides high

availability to the database, which means that the

system does not have a large downtime period,

providing constant access to the data.

4 EXPERIMENTAL SETUP

The experiments that will be made will allow to

learn which approach is better when storing data in

the IoT. As mentioned in section 1 we have decided

that there were two ways to organize the database

that would be relevant in terms of implementation. A

single table with all the data, which would then be

filtered and dealt with when needed, or multiple

tables for each specific application that sends events.

From a theoretical standpoint it seems that the

best way of organizing our data is through the

creation of a table per application. This will result in

smaller tables which, in comparison to a centralized

table that stores everything is considerable faster

because they have significantly less records.

Figure 3

illustrates the two different approaches.

The experimental setup was created with the

following characteristics: (1) The operating system

was Ubuntu 14.04 LTS 64bit; (2) The machine had a

dual core, Core i5 480m with 6GB of RAM and an

HDD; (3) The database ran in a single node to

understand the minimum possible requirements

when running the system; (4) The dataset used

contained environmental data.

Figure 3: Data layer possible architectures.

We have decided not to use a benchmark tool

because we wished to approximate the tests made

with a real world scenario. Also, with this approach

we guarantee that the performances we see are more

accurate and can be replicated in a production

environment.

The chosen queries intend to illustrate regular

situations during the usage of the system, which

reflect the better approaches to the problem, keeping

in mind that attention to the write speed is also

needed. To analyse them, different queries will be

created, matching the needs while the system is in

place. These queries may vary from time to time,

although some of them will be a recurrent task that

needs to be performed. Additionally, it is important

to keep in mind that these queries are to be

performed in an IoT system, which generates alerts

with the data that comes from the sensors scattered

around a city. These alerts are filterable and

searchable throughout the lifecycle of the system.

In the experiments we have three queries types:

Q1: Alert selection from a specific type – This

query is performed to provide the number of

alerts of each type (e.g. Number of ‘warning’

alerts);

Q2: Alert selection for a submitted rule – This

query will be used to see how many alerts were

raised by a submitted rule (e.g. how many

alerts were generated by rule X);

Q3: Alert selection in a range of time – This query

serves to select a type of alerts (e.g. ‘warning’,

‘critical’) in a period of time.

These queries give a broad perspective of the system

in terms of querying performance.

To query the database we use the Cassandra

CQL shell, to record the times we have enabled

tracing which allow us to have a detailed view of the

IoTBD 2016 - International Conference on Internet of Things and Big Data

query and created indexes to allow filtering to

happen.

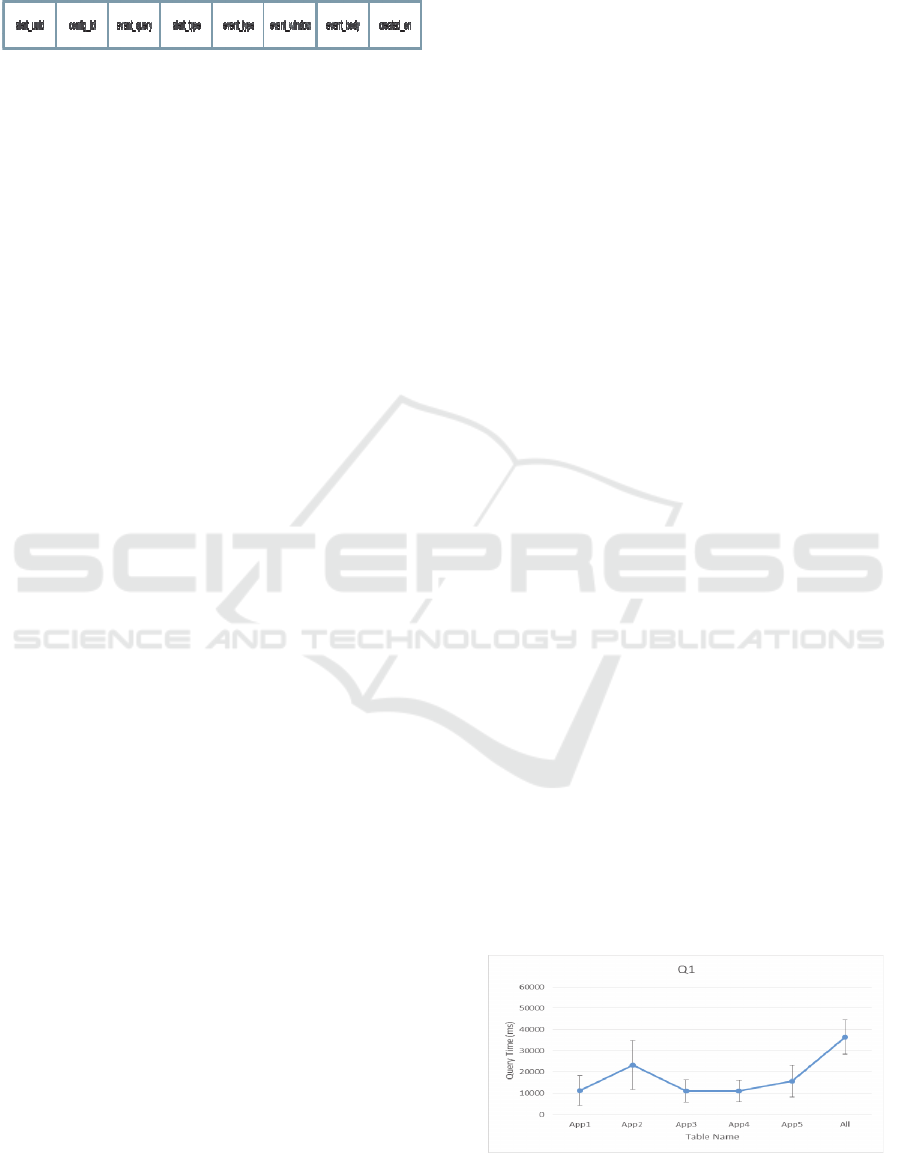

Figure 4: Row prototype.

Figure 4 shows the row prototype which is

composed by the following columns:

 alert_uuid – This field is of the type UUID, it

represents the universal id of the alert to keep

each alert unique;

 config_id – This field is of the type UUID, it

represents the application id which created this

alert;

 event_query – This field is of type TEXT and it

represent the rule needed to fire the alert;

 alert_type – This field is of the type VARCHAR

and represents the type of alert which was

generated (i.e. Critical, Warning);

 event_type – This field is of the type VARCHAR

and represents the type of event to be processed

(i.e. Environment, Traffic);

 event_window – This field is of the type TEXT

and represents the event window which triggered

the alert;

 event_body – This field is of the type TEXT and

represent the full event which triggered the alert;

 created_on – This field is of the type

TIMESTAMP and it represents the timestamp on

which the alert was triggered.

On the next section we will present the results of the

experiments.

5 EVALUATION

In this section we show the experimental evaluation

for query processing time. Each chart contains, in

the Y axis, the “Query Time (ms)” which represents

the time the queries took to be processed. In the X

axis, we have “Table Name” which represents the

table where the query was made. The tables are

divided by configuration and each represents an

application. The “Table Name” axis uses the

following notation:

 App1-App5: correspond to applications with data

that comes from environmental sensors. Each of

these applications have 100.000 records;

 All: corresponds to the single table containing all

the information. This table will have 500.000

records.

The values presented in the experiments were

obtained by executing the same query five times and

then calculating the average value. Also, the first

three queries of each run were discarded due to the

possibility of cold boots. In the figures the dots

represent the average value of the query speed and

the error bars represent the standard deviation to that

value. For a better approximation of a real system,

the queries were made in no specific order. This has

to do with the Cassandra reading architecture which

is faster if the table is in memory.

In the next sections we will show the values

obtained during the experiments and present a

summary of the values obtained.

5.1 Querying an Alert of a Specific

Type (Q1)

In the experiment we use this query to select all the

alerts of type ‘warning’ from the applications. Using

the CQL language the query looks like this:

SELECT * FROM query_performance.alerts_

<config_id> WHERE alert_type =

<alert_type>;

For the table with all of the data the query used was:

SELECT * FROM query_performance.alerts_

full WHERE config_id = <config_id> AND

alert_type = <alert_type> ALLOW

FILTERING;

This a very simple query, since it only lists the alerts

of type “warning” that were generated by the

application. However it is expected to see an

enormous change in terms of performance, due to

the amount of data in the “All” table. Figure 5 shows

the performance for Q1.

When analysing the results of Q1, shown on

Figure 5, we can conclude that the separate tables

were, in general, the best choice. Although in the

second application we saw a little deviation from the

average value, this is related with the reading

architecture of Cassandra which is faster if the table

is in memory.

Figure 5: Execution of Query 1.

Cassandra for Internet of Things: An Experimental Evaluation

As explained before, we have tried to make

queries to different tables in order to provide results

which are useful for people who want to know if this

database is a liable option for a production system.

5.2 Querying an Alert for a Rule (Q2)

This query intends to list every alert for a specific

rule created by the user. The query, using the CQL

language, will look like this:

SELECT * FROM query_performance.alerts_

<config_id> WHERE event_query=<rule>;

For the full table the query looks like this:

SELECT * FROM query_performance.alerts_

full WHERE config_id = <config_id> AND

event_query=<rule> ALLOW FILTERING;

The query on the full table could not be completed

because the operation timed out. The operation

quitted when filtering the data with the where clause,

this is due to the amount of data it needed to filter.

We have tried to change the environment settings for

Cassandra to try to overcome this situation, but the

error persisted. This led to the removal of this query

from the charts. Due to this problem, the comparison

was made only between the applications.

Furthermore, we can conclude that this query cannot

be made in a production environment because the

system cannot be stuck waiting for the query to end.

On a real world system, and because IoT systems

require near real time responses, it is impossible to

implement this query because of the error it kept

raising. Figure 6 shows the performance for Q2.

With the results of the execution of Q2, seen, we

conclude that every application has similar

performances when dealing with this query. The

main conclusion to draw from this experiment is that

the table with all the data could not be queried

because it kept raising an out of time error. This is

due to the amount of data which is stored in that

table which Cassandra cannot filter.

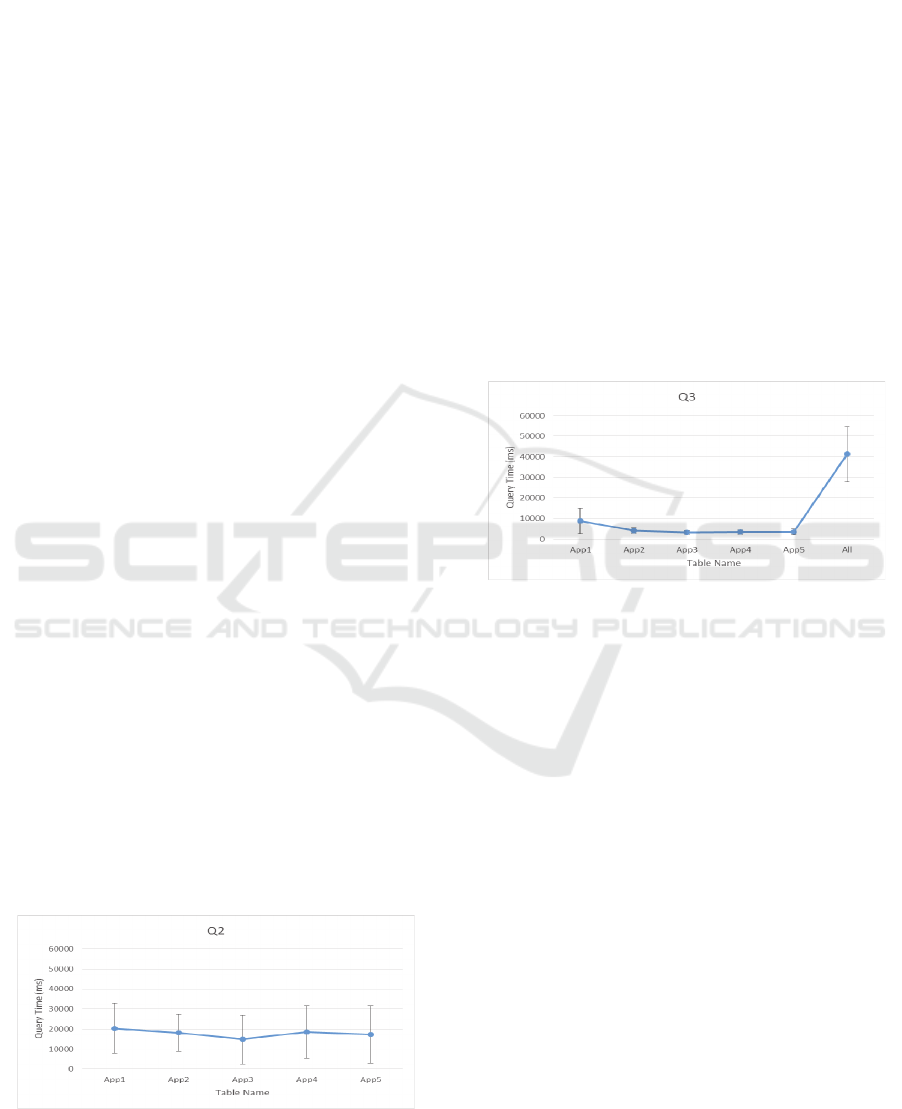

Figure 6: Execution of Query 2.

5.3 Querying an Alert on a Time Range

(Q3)

This query selects all the alerts of each application in

a time range. In the real system this query is

important because it delivers a time based approach

to the data. Using the CQL language the query looks

like this:

SELECT * FROM query_performance.alerts_

<config_id> WHERE created_on <=

<timestamp> AND config_id = <config_id>

ALLOW FILTERING;

The query made on the table with all of the

information will look like this:

SELECT * FROM query_performance.alerts_

full WHERE created_on <= <timestamp>

AND config_id = <config_id> ALLOW

FILTERING;

Figure 7: Execution of Query 3.

Figure 7 shows the processing execution time for

Q3.

The query Q3, had comparable performance

across all of the separate tables, the standard

deviation on the first application is higher, due to

discrepancy between the performances of when the

table is in memory and needs to be loaded to

memory. We can also see that the average time for

the table with all the data is much higher than the

others, once again proving that an architecture where

the data is separated is better.

5.4 Results Summary

The results show that, as expected, the single table

had the worst performance. This is due to the

amount of data that Cassandra has to filter, which

cannot be placed in memory all at once. Although

the results of the “All” table were not five times

worse we conclude that the best implementation is

with separate tables which not only give a better

performance, but also provide a better overall data

separation.

IoTBD 2016 - International Conference on Internet of Things and Big Data

The performance changes between the first two

applications are a little bit different, this might be

due to the size of the string that is being searched.

The main differences are between the “All” table,

which was finished on Q1 but not on Q2. This is due

to the fact that, on these tables, data is sequentially

organized which means that if the query results are

not on the first records, Cassandra cannot load all

the data to memory and initiate the filtering process.

The average query processing time in Q3 is

smaller than on the others, this is related to the fact

that the dataset is not heterogeneous enough in terms

of dates because the values of the applications were

recorded on a single day. Also, filtering is made by

primary key because in Cassandra to make a time

range query the column with the date needs to be on

the primary key of the table.

In short, we think that these queries, although

very straightforward, give a quick and simple

performance overview to a data layer architecture in

the IoT.

6 CONCLUSIONS AND FUTURE

WORK

To the best of our knowledge, a complete solution

for the IoT data layer does not exist. With the intent

to find a suitable and workable solution we have

tested two different architectures for the data layer,

which provide two different approaches when

dealing with data. For this we have evaluated the

NoSQL database Cassandra, which have been

applied in an Internet of Things platform. The

queries that were made gave us, not only an initial

perspective of how Cassandra will handle the system

workloads, but also will provide knowledge for

whoever wants to have an idea of how Cassandra

handles data in the IoT environment.

To run the tests we have tried to make constant

changes to the query order to enhance the credibility

of the results, this was done because the system will

not have a constant pattern of querying, when

deployed. This has a great impact in terms of query

performance because, as we have seen before, if a

table is queried twice in a row the second time it will

be in memory. Additionally, it is important to refer

that the tests were made on a personal computer,

which makes the RAM management more difficult,

due to other processes that might be running at the

same time.

The results show that the single table had the

worst performance. From this, we conclude that the

best implementation is with separate tables, which

not only give a better performance, but also provide

a better data independence. In the IoT, data is

produced continuously by each application, which

means that distinct tables would also be a good

choice, providing an independent way for each

application to store its data and be able to scale

without sacrificing performance.

In summary, from this work we can conclude

that Cassandra can be used on an IoT platform as the

main database system because it contains the

necessary characteristics to handle the overall

requirements of these platforms.

The dataset used could be larger and more

heterogeneous, although the results have shown

differences between the two approaches.

Nevertheless, tests with larger datasets and with a

bigger variety of data are needed in order to

understand if scalability is an issue.

As future work we suggest that similar tests can

be made with sharding, which is a horizontal

division of data that improves the overall

performance of the queries. The main goal is to

divide the applications by shard, providing a similar

approach to the separate tables we have seen. We

also would like to distribute the system, testing it for

better availability.

ACKNOWLEDGEMENTS

This work was partially financed by national funding

via the Foundation for Science and Technology and

by the European Regional Development Fund

(FEDER), through the COMPETE 2020 –

Operational Program for Competitiveness and

Internationalization (POCI).

This work was also made possible with the help

of Ubiwhere, Lda, which provided the dataset and

useful inputs in discussions.

REFERENCES

Abramova, V. and Bernardino, J. (2013). NoSQL

databases. Proceedings of the International C*

Conference on Computer Science and Software

Engineering - C3S2E '13, pp. 14-22.

Abramova, V., Bernardino, J. and Furtado, P. (2014a).

Evaluating Cassandra Scalability with YCSB.

International Conference on Database and Expert

Systems Applications, DEXA 2014, pp.199-207.

Abramova, V., Bernardino, J. and Furtado, P. (2014b).

Testing Cloud Benchmark Scalability with Cassandra.

2014 IEEE World Congress on Services.

Cassandra for Internet of Things: An Experimental Evaluation

Abramova, V., Bernardino, J. and Furtado, P. (2014c).

Which NoSQL Database? A Performance Overview.

Open Journal of Databases (OJDB), Vol 1. Issue 2,

pp.17-24.

Abramova, M., Bernardino, J. and Furtado, P. (2015).

SQL or NoSQL? Performance and scalability

evaluation. Int. Journal of Business Process

Integration and Management, Vol. 7 (4), pp. 314-321.

Barata, M., Bernardino, J. and Furtado, P. (2015).

Cassandra: what it does and what it does not and

benchmarking. Int. Journal of Business Process

Integration and Management, Vol. 7 (4), pp. 364-371.

Charsyam - Cassandra Data Model -

https://charsyam.wordpress.com/tag/cassandra-data-

model/ [online] Available at: [Accessed 08-01-2015]

Couchbase.com, (2015). Couchbase. Available at:

http://www.couchbase.com/ [Accessed 25 Sep. 2015].

Couchdb.apache.org, (2015). Apache CouchDB. [online]

Available at: http://couchdb.apache.org/ [Accessed 25

Sep. 2015]

DataStax, (2014). ALLOW FILTERING explained.

[online] Available at: http://www.datastax.com/

dev/blog/allow-filtering-explained-2 [Accessed 5 Jul.

2015].

DB-Engines Ranking [online] http://db-

engines.com/en/ranking (Accessed 22 April of 2015)

Docs.aws.amazon.com, (2015). What Is Amazon

DynamoDB? - Amazon DynamoDB. Available at:

http://docs.aws.amazon.com/amazondynamodb/latest/

developerguide/Introduction.html [Ac. 25 Sep. 2015].

Docs.datastax.com, (2015). Apache Cassandra™ 2.0.

[online] Available at:

http://docs.datastax.com/en/cassandra/2.0/cassandra/ar

chitecture/architectureDataDistributeReplication_c.ht

ml [Accessed 25 Oct. 2015].

DZone, (2015). DZone Database. [online] Available at:

https://dzone.com/articles/introduction-apache-

cassandras [Accessed 21 Jul. 2015].

Hbase.apache.org, (2015). Apache HBase – Apache

HBase™ Home. [online] Available at:

http://hbase.apache.org/ [Accessed 25 Sep. 2015].

Hewitt, E. (2011). Cassandra The definitive guide.

Beijing. O’Reilly.

Höller, J., Tsiatsis, V., Mulligan, C., Karnouskos, S.

Avesand, S. and Boyle D., From Machine-to-Machine

to the Internet of Things: Introduction to a New Age of

Intelligence. Amsterdam, The Netherlands: Elsevier,

2014.

Islam, S. M.; Kwak D., Kabir H., Hossain, M., Kyung-Sup

Kwak, "The Internet of Things for Health Care: A

Comprehensive Survey," in Access, IEEE , vol.3, no.,

pp.678-708, 2015

Jara, A. J.; Genoud, D.; Bocchi, Y., "Big Data in Smart

Cities: From Poisson to Human Dynamics," Advanced

Information Networking and Applications Workshops

(WAINA), 2014 28th International Conference on ,,

pp.785- 790, 13-16 May 2014

Lakshman, A. and Malik, P. (2010). Cassandra. SIGOPS

Oper. Syst. Rev., 44(2), p.35.

Memcached.org, (2015). memcached - a distributed

memory object caching system. [online] Available at:

http://memcached.org/ [Accessed 25 Sep. 2015].

MongoDB, (2015). MongoDB. [online] Available at:

http://mongodb.com [Accessed 25 Sep. 2015].

Neo4j Graph Database, (2015). Neo4j, the World's

Leading Graph Database

. [online] Available at:

http://neo4j.com [Accessed 25 Sep. 2015].

OrientDB Multi-Model NoSQL Database, (2015).

OrientDB - OrientDB Multi-Model NoSQL Database.

Available at: http://orientdb.com/orientdb/ [Accessed

25 Sep. 2015].

P. Friess and O. Vermesan, Internet of Things:

Converging Technologies for Smart Environments and

Integrated Ecosystems. Aalborg, Denmark: River

Publishers, 2013.

Redmond, E., Wilson, J. and Carter, J. (2012). Seven

databases in seven weeks. Dallas, Tex.: Pragmatic

Bookshelf.

Robinson, I., Webber, J. and Eifrem, E. (2013). Graph

databases. Sebastopol, Calif.: O'Reilly Media.

Strickland, R. (2014). Cassandra high availability.

Birmingham. Packt Publishing.

Thinkaurelius.github.io, (2015). Titan: Distributed Graph

Database. [online] Available at:

http://thinkaurelius.github.io/titan/ [25 Sep. 2015].

Vaish, G. (2013). Getting started with NoSQL.

Birmingham: Packt Publishing.

van der Veen, J. S.; van der Waaij, B.; Meijer, R.J.,

"Sensor Data Storage Performance: SQL or NoSQL,

Physical or Virtual," Cloud Computing (CLOUD),

2012 IEEE 5th Int. Conference, pp.431- 438

Welsh, M., Culler, D., Brewer, E.: SEDA: an architecture

for well-conditioned, scalable internet services. In:

Proc. of ACM Symposium on Operating Systems

Principles (SOSP 2001), pp. 230–243.

IoTBD 2016 - International Conference on Internet of Things and Big Data
