Interest-Point-Based Landmark Computation for Agents’ Spatial

Description Coordination

J. I. Olszewska

School of Computing and Technology, University of Gloucestershire, The Park, Cheltenham, GL50 2RH, U.K.

Keywords:

Qualitative Spatial Reasoning, Object Detection, Local Feature Descriptors, Feature Extraction, Visual Scene

Understanding, Automated Image Annotation, Robotics, Autonomic Agents.

Abstract:

In applications involving multiple conversational agents, each of these agents has its own view of a visual

scene, and thus all the agents must establish common visual landmarks in order to coordinate their space

understanding and to coherently share generated spatial descriptions of this scene. Whereas natural language

processing approaches contribute to deﬁne the common ground through dialogues between these agents, we

propose in this paper a computer-vision system to determine the object of reference for both agents efﬁciently

and automatically. Our approach consists in processing each agent’s view by computing the related, visual

interest points, and then by matching them in order to extract the salient and meaningful landmark. Our

approach has been successfully tested on real-world data, and its performance and design allow its use for

embedded robotic system communication.

1 INTRODUCTION

Communication between agents about space is of

prime importance for actions requiring spatial coor-

dination of intelligent agents such as robots operating

in rescue activities or in assistive aid.

In these joint actions, the conversational agents,

i.e. the speaker and the hearer, should reach a shared

understanding of the scene they observe and/or evolve

in. For this purpose, they usually acquire knowledge

about this scene as well as its objects (Olszewska,

2011), and generate qualitative spatial descriptions of

the scene, by using semantic concepts such as “to the

right”, “at two oclock” (Olszewska and McCluskey,

2011) or “above” (Olszewska, 2013). However, no-

tions involving spatial relations require the deﬁnition

of a reference object in the scene. Hence, the agents

must adopt a common ground in order to coordi-

nate their spatial descriptions of the scene (Ma et al.,

2012).

Such common reference could be of different na-

ture (Anacta et al., 2014) in a discourse describing and

interpreting visual scenes such as presented in Fig. 1.

Indeed, the reference could be deﬁned by some third

object, leading to a relative reference (e.g. the palm

tree), distinct form the reference and related objects

(e.g. the speaker and the hearer, respectively). The

reference could also be the object itself, i.e. intrin-

sic reference (e.g. the coffee table). On the other

hand, the reference could refers to some global ref-

erence point, set as an extrinsic reference (e.g. the

North). Hence, the scene could be grounded by in-

ferred or explicit reference to these speciﬁc objects

(Levinson, 2003). For example, the sofa may be“to

the right of the coffee table”, “behind the coffee ta-

ble”, or “North of the coffee table”. This leads to

a situated conversation as the agents have now a vi-

sual common ground, while objects of the scene may

be described from different perspectives correspond-

ing to each agent’s view of the 3D scene (Olszewska,

2015a).

In Natural Language Processing, methods are usu-

ally setting visual landmarks through dialogue be-

tween agents (Jurafsky and Martin, 2000). However,

this latter step is a limitation for effectively coordi-

nating spatial descriptions between dialogue partners,

in case one agent is human and the other one is a

non-human agent as for applications involving robots

(Summers-Stay et al., 2014).

Cognitive approaches such as (Zhanga et al.,

2014) focus on the analysis of the visual scene in or-

der to identify objects which attract human agents’

attention, leading to a fast deﬁnition of reference ob-

jects. This quantitative study highlights that select-

ing as a reference object salient objects visible in all

agents’ views could positively impact on the land-

566

Olszewska, J.

Interest-Point-Based Landmark Computation for Agents’ Spatial Description Coordination.

DOI: 10.5220/0005847705660569

In Proceedings of the 8th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2016) - Volume 2, pages 566-569

ISBN: 978-989-758-172-4

 2016 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved

(a)

(b)

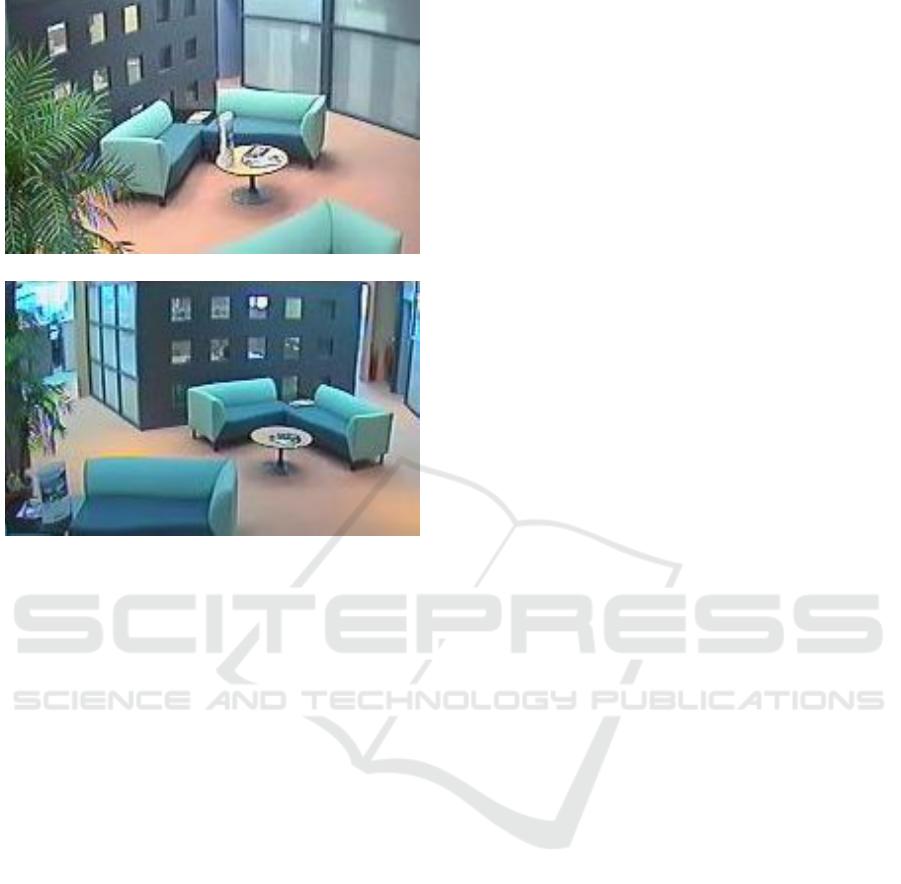

Figure 1: CANDELA dataset image of the studied vi-

sual scene observed from (a) a speaker’s viewpoint; (b) a

hearer’s viewpoint.

mark deﬁnition effectiveness, while works such as

(Watson et al., 2004) demonstrate that intrinsic refer-

ences are the most widely adopted type of references

among agents.

On the other hand, in Computer Vision, meth-

ods such as presented in (Alsuqayhi and Olszewska,

2013), (Bhat and Olszewska, 2014), (Olszewska,

2015b), have proven to be efﬁcient for automatic an-

notation of visual scenes and for automated scene un-

derstanding.

Hence, in this work, we propose to use a

computer-vision approach to automatically identify

common visual landmarks in order to allow the au-

tomated coordination of spatial descriptions between

any type of agent, i.e. human/non-human one.

Our method does not imply constraints on the ge-

ometrical properties of visual landmarks (see Fig. 3).

The contribution of this paper thus consists in the

automatic deﬁnition of visual landmarks by process-

ing the visual feature descriptors of agents’ different

views of the same scene in order to extract common-

ground, reference objects between these two agents.

The paper is structured as follows. In Section

2, we present our approach to compute visual land-

marks in an automated way. The performance of our

computer-vision approach successfully tested for dif-

ferent types of agents in real-world, indoor situations

are reported and discussed in Section 3. Conclusions

are drawn up in Section 4.

2 PROPOSED APPROACH

To automatically extract the common landmark

for coordinating spatial descriptions of multi-view

scenes, we propose the following approach involving

computer-vision based techniques (see Fig. 2) as ex-

plained in Sections 2.1-2.2.

2.1 Detecting Objects of Interest

Firstly, each view is processed separately in order

to extract the visual information. Hence, an interest

point detector (Alqaisi et al., 2012) is applied to the

speaker’s and hearer’s views such as Figs. 1(a) and

(b), respectively.

Once the interest points have been detected in

each of the view of the scene, a candidate landmark

object (e.g. the coffee table) is matched with each

view to determine the potential objects of reference,

i.e. the objects of interests, as illustrated in Fig. 3(a)

and Fig. 3(b), respectively. This process is involv-

ing the automatic labeling method as described in (Ol-

szewska, 2012).

2.2 Computing Visual Landmarks

Next, the objects which have been detected in the dif-

ferent views are matched with each other in order to

set the common the landmark as displayed in Fig.

3(c).

All the matching computations we performed

rely on the computation of the Hausdorff distance

(A,B) deﬁned as follows:

(A,B) = max



(A,B),d

(B,A)



, (1)

where d

(A,B) is the directed Hausdorff distance

from A to B deﬁned as

(A,B) = max

a∈A

min

b∈B

(a,b), (2)

with d

(a,b), the Minkowski-form distance based on

the L

norm, and deﬁned as

(a,b) =



∑

− b

)



1/P

, (3)

and involve the embedded matching algorithm (Algo-

rithm 1) (Alqaisi et al., 2012) where A and B are the

two ﬁnite sets of SIFT local descriptors, detected in

Interest-Point-Based Landmark Computation for Agents’ Spatial Description Coordination

567

Figure 2: Architecture of the proposed automated computation of visual landmarks for coordinating spatial descriptions in

discourse between agents.

Algorithm 1: Embedded Matching.

Given A

′

= A,B

′

= B,M = ∅,

for all a

∈ A

′

for all b

∈ B

′

repeat

) = min

b∈B

′

,b)

∧ d

) = min

a∈A

′

,a)

∧ d

) ≤ d

(A,B)

∧ d

) ≤ d

(A,B)

then

) ⊂ M

∧ A

′

= A\{a

} ∧ B

′

= B\{b

}

end if

until A

′

6= ∅ ∨ B

′

6= ∅

end for

return M

each view and and where M is the doubly matched

feature set.

The object similarity measure d

(A,B) is then de-

ﬁned as follows

(A,B) =

#A+#B

, (4)

3 EXPERIMENTS

We carried out two types of experiments to vali-

date our system. In the ﬁrst experiment, we used

a publicly-available dataset called CANDELA which

contains images showing the same indoor scene cap-

tured from different point of views (Fig. 1) by two

different cameras. This conﬁguration maps the set-

up consisting of two cameras, each connected to a

MatLab-equipped PC, with one modeling the speaker

agent and the other one the hearer agent. Processing

the image sent by the speaker and the one acquired by

the hearer leads to compute common landmarks based

on matching the detected interest points in each view

with a candidate object of reference and with each

other. To test our approach in this case, matching has

been performed repeatedly on different views of the

dataset and for different objects of interest (Fig. 3).

It is worth noting that changes in landmark objects’

poses due to the different views have a major impact

on this matching process. Experimental results have

been compared with ground truth data obtained by

two human agents looking each at a different view.

Our automatic system shows excellent performance,

achieving 94% of accuracy, and is thus promising to

be embedded in an autonomous process.

In the second experiment, the set-up is composed

of a speaker agent modeled by a camera Arducam

acquiring the view 1 pinned to an Arduino board

connected to a Bluetooth TTL transceiver module.

The hearer agent consists of a webcam recording the

view 2 and linked to a PC running MatLab soft-

ware processing the images of the different views and

connected with a Bluetooth master module in order

to communicate with the agent 1. As long as the

Bluetooth connection is operating properly, the accu-

racy of the system setting the common landmark is

of 92% as assessed by comparing the matching re-

sults with two humans agents looking at each of the

views recorded by the different cameras. These re-

sults are excellent compared to other approaches such

as (Summers-Stay et al., 2014), and could be fur-

ther improved by adding some image pre-processing

techniques to cope with light variations in the cap-

ICAART 2016 - 8th International Conference on Agents and Artiﬁcial Intelligence

568

(a) (b)

(c)

(d) (e)

(f)

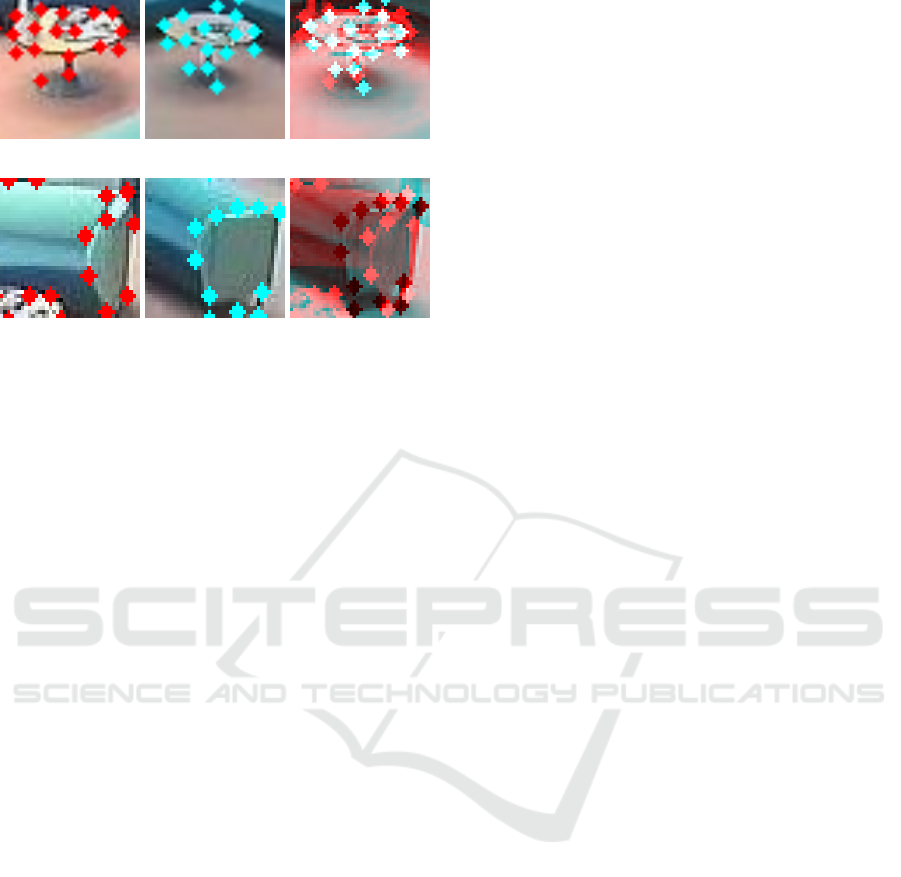

Figure 3: Computing visual landmark: (1st column) detect-

ing interest points in the ﬁrst view; (2nd column) detecting

interest points in the second view; (3rd column) matching

both views’ interest points.

tured images, especially those acquired by the mobile

speaker agent compared to the static hearer agent.

4 CONCLUSIONS

This paper presents an automatic and accurate method

to objectively deﬁne common visual landmarks in or-

der to coordinate spatial descriptions generated by

different agents, each with a different view of the

same scene. Hence, the common ground is computed

by detecting interest points in all the agents’ views

and by applying the Hausdorff-enhanced matching of

these points in order to extract the common salient

object visible in both agents’ views. Our approach

is a new application of computer-vision local feature

descriptor computation in context on agent commu-

nication systems. This new automated process could

be successfully integrated in robotic applications as

demonstrated.

REFERENCES

Alqaisi, T., Gledhill, D., and Olszewska, J. I. (2012). Em-

bedded double matching of local descriptors for a fast

automatic recognition of real-world objects. In Pro-

ceedings of the IEEE International Conference on Im-

age Processing (ICIP’12), pages 2385–2388.

Alsuqayhi, A. and Olszewska, J. I. (2013). Efﬁcient opti-

cal character recognition system for automatic soccer

player’s identiﬁcation. In Proceedings of the IAPR In-

ternational Conference on Computer Analysis of Im-

ages and Patterns Workshop (CAIP’13), pages 139–

150.

Anacta, V. J. A., Schwering, A., and Li, R. (2014). Deter-

mining hierarchy of landmarks in spatial descriptions.

In Proceedings of the International Conference on Ge-

ographic Information Science (GIScience’14).

Bhat, M. and Olszewska, J. I. (2014). DALES: Auto-

mated tool for detection, annotation, labelling and

segmentation of multiple objects in multi-camera

video streams. In Proceedings of the ACL Inter-

national Conference on Computational Linguistics

(COLING’14), pages 87–94.

Jurafsky, D. and Martin, J. H. (2000). Dialogue and conver-

sational agents, chapter 19, pages 719–761. Prentice

Hall.

Levinson, S. C. (2003). Space in Language and Cognition:

Explorations in Cognitive Diversity, chapter 5. Cam-

bridge Press University.

Ma, Y., Raux, A., Ramachandran, D., and Gupta, R. (2012).

Landmark-based location belief tracking in a spoken

dialog system. In Proceedings of the Annual Meeting

of the Special Interest Group on Discourse and Dia-

logue (SIGDIAL’12), pages 169–178.

Olszewska, J. I. (2011). Spatio-Temporal Visual Ontology.

In Proceedings of the 1st EPSRC/BMVA Workshop on

Vision and Language (VL’11).

Olszewska, J. I. (2012). A new approach for automatic ob-

ject labeling. In Proceedings of the 2nd EPSRC/BMVA

Workshop on Vision and Language (VL’12).

Olszewska, J. I. (2013). Clock-modeled ternary spatial re-

lations for visual scene analysis. In Proceedings of

the ACL International Conference on Computational

Semantics Workshop, pages 20–30.

Olszewska, J. I. (2015a). 3D Spatial reasoning using the

clock model. Research and Development in Intelligent

Systems XXXII, Springer, pages 147–154.

Olszewska, J. I. (2015b). “Where is my cup?” - Fully auto-

matic detection and recognition of textureless objects

in real-world images. Lectures Notes in Computer Sci-

ence, Springer, 9256:501–512.

Olszewska, J. I. and McCluskey, T. L. (2011). Ontology-

coupled active contours for dynamic video scene un-

derstanding. In Proceedings of the IEEE International

Conference on Intelligent Engineering Systems, pages

369–374.

Summers-Stay, D., Cassidy, T., and Voss, C. R. (2014).

Joint navigation in commander/robot teams: Dia-

log and task performance when vision is bandwidth-

limited. In Proceedings of the ACL International Con-

ference on Computational Linguistics, pages 9–16.

Watson, M. E., Pickering, M. J., and Branigan, H. P. (2004).

Alignment of reference frames in dialogue. In Pro-

ceedings of the Annual Conference of the Cognitive

Science Society.

Zhanga, X., Lia, Q.-Q., Fang, Z.-X., Lu, S.-W., and Shaw,

S.-L. (2014). An assessment method for landmark

recognition time in real scenes. Journal of Environ-

mental Psychology, 40:206–217.

Interest-Point-Based Landmark Computation for Agents’ Spatial Description Coordination

569
