3D Building Reconstruction using Stereo Camera and Edge Detection

Konstantinos Bacharidis

, Lemonia Ragia

, Marios Politis

Konstantia Moirogiorgou

and Michalis Zervakis

School of Electronic and Computer Engineering, Technical University of Crete, Kounoupidiana, Chania, Greece

School of Environmental Engineering, Technical University of Crete, Kounoupidiana,Chania, Greece

Keywords: Surveying, 3D Building Reconstruction, Stereo Camera Geometry, Image Processing, Edge Detection.

Abstract: Three dimensional geo-referenced data for buildings are very important for many applications like cadastre,

urban and regional planning, environmental issues, archaeology, architecture, tourism and energy. The

acquisition and update of existing databases is time consuming and involves specialized equipment and heavy

post processing of the raw data. In this study we propose a system for urban area data based on stereo cameras

for the reconstruction of the 3D space and subsequent matching with limited geodetic measurements. The

proposed stereo system along with image processing algorithms for edge detection and characteristic point

matching in the two cameras allows for the reconstruction of the 3D scene in camera coordinates. The

matching with the available geodetic data allows for the mapping of the entire scene on the word coordinates

and the reconstruction of real world distance and angle measurements.

1 INTRODUCTION

3D spatial data of buildings are very important in

recent years for many different applications. In the

cadastre and cartography domain, 3D reconstruction

of buildings has become a valuable task. For some it

is essential to obtain data of mainly handmade

objects, such as in environmental management, urban

and regional planning, population urbanization,

infrastructure, energy, archaeology communication

and tourism need the data of cities. More important,

managers and city planners must have historical and

updated object/building data at the same time.

A very simple method to acquire building data is

the computer-aided manual surveying using an

electronic distancing meter (Petzold et al., 2004). In

this method only distances between two surfaces can

be measured. Buildings data have been traditionally

acquired with geodetic techniques using the special

equipment such as total station. The reflectorless

tacheometry is a method based on measuring of

geometric dimensions. Although this method is

widely used, well established and proved to be

accurate, it does have some important disadvantages

(Petzold et al., 2004) and every point being measured

must be visible from the total station. Laser-scanning

is based on measuring distances across every pointing

direction to create the point cloud. This method

rapidly captures shapes of buildings with high

resolution, but its basic disadvantage is the heavy

post-processing of results. Photogrammetry is a well-

established method and aerial images have been

excessively used for 3D building reconstruction

(Gülch et al., 1998) (Fischer et al., 1998). An

approach that characterizes a large number of

methodologies and techniques for 3D automatic

reconstruction of buildings is given by Haala and

Kada (Haala and Kada 2010). This study verifies the

difficulties to automatically interpret 3D city models

to systems without manual intervention. In recent

years the detection and reconstruction of 3D

geometric model of an urban area with complex

buildings is based on aerial LIDAR (Light Detection

and Ranging) data (Brenner, 2005) (Elaksher and

Bethel, 2002).

In order to deal with inefficiencies of individual

modalities of data acquisition, several studies explore

the combination of sources. A 3D building

reconstruction method that integrates the aerial image

analysis with information from large-scale 2D

Geographic Information System (GIS) databases and

domain knowledge is described by Suveg and

Vosselman (Suveg and Vosselman, 2004). The use of

aerial images and the exploitation from existing 2D

GIS data is also presented (Pasko and Gruber, 1996).

The idea for using geodetic techniques combined with

Bacharidis, K., Ragia, L., Politis, M., Moirogiorgou, K. and Zervakis, M.

3D Building Reconstruction using Stereo Camera and Edge Detection.

DOI: 10.5220/0005852707150724

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 4: VISAPP, pages 715-724

ISBN: 978-989-758-175-5

715

images of uncalibrated camera of historic buildings

for restoration in archeology is explored in (Ragia et

al., 2015). The idea of using images from Flickr and

Picasa to build accurate 3D models for archaeological

monuments is presented in (Hadjiprocopis et al.,

2014). Especially in the archaeology another

approach depicts a 5D multimedia digital model using

the 3D model in different time frames (Doulamis et

al., 2015). 3D reconstruction from a single image

combined with geometrical and topological

constraints is further discussed in (Verma et al.,

2006).

The method we develop in this paper is towards

semi-automatic 3D reconstruction of a building with

the geo reference. Although there are a lot of semi-

automatic systems for building data acquisition, there

are still open problems concerning data gathering,

database update and maintain and management of the

spatial data. Data sharing and reusing of available

spatial information is not always useful because of the

alteration or different interpretation of data. In many

spatial databases there are inconsistencies about the

location of the buildings. Some objects are

represented discrete, other appear as lists of

individual points on the ground and for some other

datasets there is a lack of information about the

thematic area.

A list of the main reasons for inadequate or

incomplete building data where additional

information is needed includes the following.

• Planners who are interested in the traffic system

measure only the façade of buildings while the

engineers who work for cadastre are interested in

acquiring the whole parcels, the buildings and all

other objects included in a private parcel like

garage and place for sport activities.

• For regional and urban planners the surveying of

geometric data plays a dominant role and before

modelling or making any decision buildings must

be surveyed, in whole or in part of the scene.

• For architectural applications, in many cases the

data of the outside of building are available but the

architects are interested only in the inside part of

the building.

• Maintenance, renovation and change of the usage

of a building needs complete 3D reconstruction of

a building and sometimes additional geometric

information in a bigger scale is required.

• Buildings with extensive alteration need an

extensive mapping from many views and for

many detailed parts.

• Environmental problems on coastal areas like

flooding, dampness and subsidence can create

structural damage of the buildings and new data

have to be acquired.

• Different interpretation by the surveyor generate

different plans, especially with buildings

constructed in an unusual way.

• Restoration of historical building needs an

extensive data acquisition of all elements.

• Some errors in the existing data may exist; some

measurements may be random.

The proposed approach is an attempt to

automatically derive the structural and

dimensionality information of a building structure

through the matching of its 3D reconstructed

coordinates with the real world coordinate system.

The building’s structural information extracted via

image contour estimation techniques provides the

points belonging to its skeleton and specifies distance

measures that can be specified in actual word

dimensions.

The paper is organized as follows. Section 2

describes the stereo layout approach with its

characteristics, advantages and limitations for 3D

reconstruction of the viewed scene. Moreover, the

relation between the 3D metric coordinate system and

the 3D physical world system is defined. A discussion

on structural information loss due to 3D

reconstruction issues along with proposed solutions is

presented in Section 3. Finally, the experimental

system layout and results are presented in Section 4.

2 STEREO LAYOUT

AND 3D RECONSTRUCTION

2.1 Camera Layout & Coordinate

System Relations

The key concept for a successful 3D reconstruction of

a scene is the derivation of the scene’s depth

information. To achieve this target a stereo camera

layout can be used, which provides the required

relation between the 3D world and 2D coordinate

systems allowing the estimation of depth information

for the viewing scene.

In order to derive the depth information we need

to estimate the parameters expressing the relation

between the physical and the image plane systems.

Essentially, what we need to estimate is first the

relation between the 3D world and the 3D camera

systems and then, the mapping parameters between

the 3D camera and the 2D image plane coordinate

systems. The first set, referred to as extrinsic

parameters, consists of the estimation of a Rotation

RGB-SpectralImaging 2016 - Special Session on RBG and Spectral Imaging for Civil/Survey Engineering, Cultural, Environmental,

Industrial Applications

716

matrix and a translation vector, whereas the latter,

referred to as intrinsic parameters, requires the

estimation of the internal camera characteristics such

as the focal length. The overall relation between the

world and image coordinate systems is expressed as:

xPX=⋅

(1)

with

()

,,,1

xxyd=

being the homogenous image

coordinates with d denoting the disparity and

()

,,,1

wwww

Xxyz=

being the homogeneous 3D

world coordinates of the point

. The operator P

denotes the projection matrix containing the

extrinsic and intrinsic parameters describing the

relation between the coordinate systems:

[]

PfyRT





=⋅





where [R | T] is a matrix denoting the extrinsic

parameters of the system, f denoting the camera’s

focal length and (x

, y

) being the centre coordinates

of the recorder picture, defining the intrinsic

characteristics.

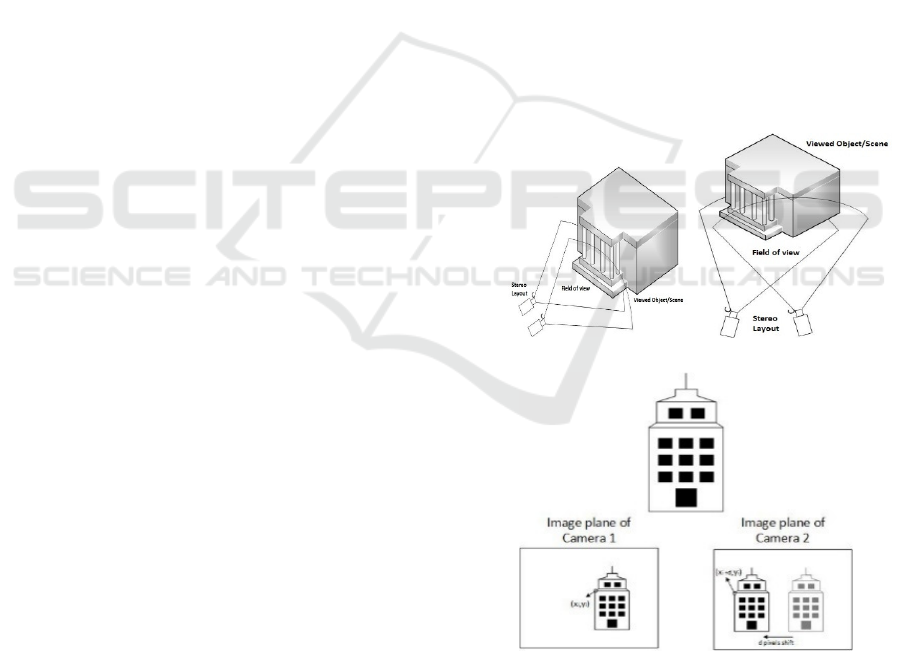

The stereo layout for each camera and a 3D world

point based on eq. (1) defines the following relations

for the two (right and left) cameras:

and

left left w right right w

xPX x PX=⋅ = ⋅

(2)

All parameters required for the relation derivation

can be estimated either by using a camera calibration

process (Zhang, 2000) or an uncalibrated approach

(Hartley and Zisserman, 2003), (Hartley, 1997),

where the projection matrices are estimated through

point correspondences. The first approach provides

more accurate estimates but is more complicated,

whereas the second is simple and exploits known

reference points but it may fail in cases whether not

significant variations exist between the images of the

two cameras.

In the proposed approach we adopt the calibrated

methodology, since the appropriate estimation of both

intrinsic and extrinsic system parameters lead to more

accurate 3D reconstructions. More specifically, these

calibrated parameters allow to efficiently reverse

distortions introduced during the recording and

mapping processes. The calibration is performed

through the use of a planar surface, such as a

chessboard, which serves as a reference coordinate

system. The mapping process aims to assign the

camera centers to the reference coordinate system by

estimating the rotation and translation that minimizes

the squared distances (Zhang, 2000) between the

point correspondences using the direct linear

transformation (DLT) algorithm (Bouguet, 2013).

The estimation complexity is further increased

depending on the stereo layout used, i.e. a non-

convergent/parallel layout or a convergent one with

the camera pair being rotated at a certain angle (see

Fig 1.a, b). The simplest case used at the feasibility

study of the proposed method is the parallel stereo

layout. In such cases, the common image regions

depicted at each image plane are associated through

only a translation shift in the x-axis. By performing

a matching process, through either the use of simple

block matching methods (e.g. (Karathanasis et al.,

1996), (Zhang, 2001) or more elaborate ones such as

variational approaches (e.g. (Rallim, 2011), we can

estimate this translation map known as disparity map.

The disparity refers to the distance between two

corresponding points in the left and right image stereo

pair (see Fig 1.c):

( , ) ( , )

left i i right i i

xxyxxdy=+

(3)

with d being the disparity estimate.

(a) (b)

(c)

Figure 1: Camera Layouts and image plane relation, (a)

Non-convergent/parallel layout, adopted in our approach,

(b) convergent layout and (c) the relation between the image

planes, each viewed region scene on the left image plane is

shifted in the right plane.

3D Building Reconstruction using Stereo Camera and Edge Detection

717

2.2 3D Reconstruction of the Scene

For each point correspondence

left right

x↔

the

relation between them and the corresponding 3D

world point

is expressed through the relations

presented in eq. (2). In order to estimate the depicted

world point we must combine the projection matrices

and incorporate the restrictions between camera and

world points, such as the epipolar constraint. The

method of estimating the corresponding 3D world

point relating two image plane correspondences is

known as triangulation (Hartley and Zisserman,

2003) (see Fig. 2.c). Using the relations presented in

eq. (2) and eq. (3) the homogeneous DLT method (4)

can be applied leading to a linear system

representation of the form

AX⋅=

, whose solution

leads to the estimation of the 3D world point

. The

matrix A contains the projection relations between the

points and the corresponding world point and is

defined as:

3 1

3 2

3 1

3 2

left left

right right

xp p

yp p

xp p

yp p



⋅−



⋅−



⋅−



⋅−





with

left right

being the i- th row vector of the

projection matrices

left right

for the points

() ( )

,, ','

left right

respectively.

The vector corresponding to the world point is

found through the singular value decomposition

(SVD) factorization of the matrix A as UDV

, where

U and V are orthogonal matrices and D is a diagonal

matrix with non-negative entries. The unit singular

vector corresponding to the smallest singular value

provides the solution for the 3D world point

(Hartley and Zisserman, 2003).

This transformation process allows the estimation

of depth information leading to an appropriate

reconstruction of the viewing scene. However, the 3D

world system does not correspond with the actual 3D

world coordinates of the viewing scene. Information

about the scene’s longitude or latitude cannot be

estimated from the stereo layout, e.g. the building’s

width cannot be estimated. In order to do further

knowledge of the viewing scene is required.

For this task we can effectively utilize the

geographical coordinates of known points of the

building, as derived from the use of specialized geo-

reference systems, such as GPS, in combination with

the coordinates estimated from image processing, as

to estimate the missing information. For example, in

the derivation of a building’s contour, we could use

the adjacent point relation in world coordinates in the

form of width or height, to estimate the missing

dimensions of the building. Besides this use,

available points with their world coordinates can be

used as validation for the depth estimation accuracy

or as a means of refining the depth estimate during the

depth estimation process.

2.3 Combining Geo-referencing with

3D Reconstruction

We mentioned earlier that the 3D reconstructed

building can be associated with geo-referenced points

to allow the derivation of the missing dimensionality

information of the structure. This task is essentially a

new mapping process between the estimated metric

3D coordinate system and the 3D physical world

coordinate system. The transformation relation

between these systems is of the form:

Gw w

XRXT

=⋅+

(4)

with

()

,y ,z

Gw Gw Gw Gw

Xx=

is the 3D world geo-

referenced ground point,

()

,y ,z

wwww

Xx=

is the

3D metric world coordinate system, λ is the

transformation parameter and R, T are the rotation

matrix and translation vector required to relate the

coordinate systems.

Given points with known geo-reference

coordinates (at least 8 points), we can estimate the

transformation parameters (λ, R, T) using a least-

squares minimization scheme. The estimated

transformation parameters enable to relate every 3D

metric on the reconstructed points to the

corresponding physical world 3D coordinates.

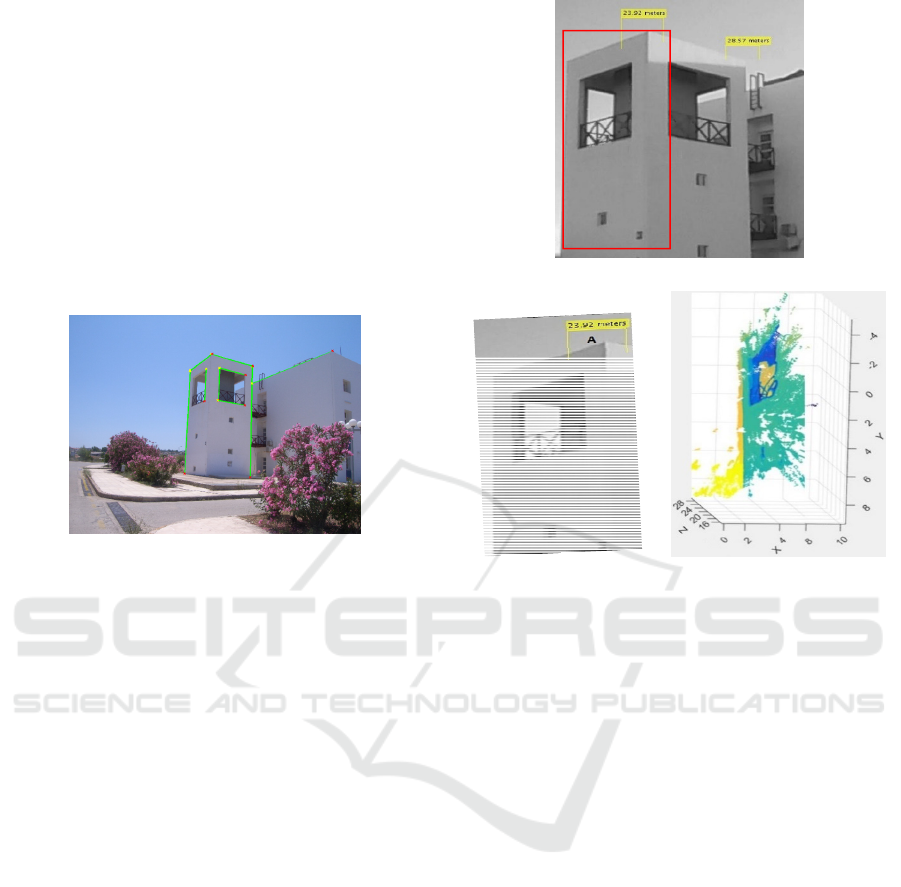

We can use these transformations to estimate the

3D physical coordinates of the building, or to

compute its structural dimensionality information

(width, height, volume). To speed up the estimation

process we isolate the buildings morphological

structure through image processing by extracting its

contour. We can then estimate the 3D physical

coordinates of the points belonging to the building’s

contour and thus, acquiring all the information

needed for estimating the building’s real world

structural morphology. In the following section we

present the method utilized for the extraction of the

building’s contour information using image

processing.

RGB-SpectralImaging 2016 - Special Session on RBG and Spectral Imaging for Civil/Survey Engineering, Cultural, Environmental,

Industrial Applications

718

Expanding the geo-referenced points’ (GPs) role

in the stereo rig, we can skip the utilization of a

reference system in the calibration process

(chessboard pattern). Instead, if an appropriate

number of GPs is known satisfying the requirements

that a) the corresponding points are visible on the

camera planes and b) the geo-referencing is accurate,

then we can set the word coordinate system defined

by these points as our reference system. Towards this

direction we need to employ a point identification

method for locating these points in the camera images

and then use these correspondences to perform the

calibration of the stereo rig.

2.4 3D Reconstruction Ambiguity

and Limitations

The use of a parallel stereo layout, although

simplifying the depth estimation process, provides

partial reconstruction for the structure, i.e. only for

the single view of the structure facing the stereo

layout. To produce a more complete 3D

reconstruction of the entire building, we can initially

use a convergent stereo layout with the cameras being

rotated at a certain angle, thus increasing the viewing

angle of the building’s structure being recorded. The

second, more effective approach is to combine

different viewing positions of the stereo layout, map

them to the same reference system and stitch together

all 3D reconstructions of the building sides to form a

single 3D representation.

If we now consider the case where we use a

convergent layout with the cameras displaying the

viewing object at different angles the reconstruction

accuracy depends on a) whether a calibrated approach

is used or not and b) how the additional distortions

introduced by the layout formation, such as the

keystone distortion, affects the estimation accuracy.

Similar to the parallel stereo rig layout a calibrated

approach will produce more accurate estimates taking

advantage of the impact of the distortions introduced,

allowing for some cases to undo their affect, however

requiring more complicated estimation processes. An

uncalibrated convergent stereo rig, although simpler,

will be prune to projective ambiguity in the

reconstruction process. This is due to the fact that in

the uncalibrated approach the only assumption made

is that all rays back-projecting from the reconstructed

3D point must intersect the image plane leading to

dimensionality deformations in the reconstructed

object. The projective reconstruction reflects

intersection and tangency, however it fails to preserve

the angles, the relative lengths and the volume of the

3D reconstructed object. This projective

reconstruction loss does not happen in the calibrated

approach, since the estimation of the relation between

camera and world coordinate systems, as well as the

epipolar constraint relations, do not alter or deform

the viewing angle between the rays. This enables

preservation of the parallelism, volume, length ratio

as well as of the angles of the reconstructed object,

leading to a similarity reconstruction.

The reconstruction of an uncalibrated approach

can be further strengthened leading to an affine

reconstruction that preserves the volume ratios and

the parallelism of the object. Towards this direction

we can use scene constraints and conditions, such line

parallelism indicating vanishing points, which allow

the estimation of a the epipolar plane lying at infinity

passing through the two camera centers.

Closing this topic, the selection of a calibrated

approach, such as the one deployed in our proposal,

although requiring more complex transformation

systems, will lead to a more detailed reconstruction

for the viewed object/building, preserving the

structural and volumetric characteristics.

3 LINE SEGMENTS

EXTRACTION

The previous section has described the methodology

for derivation of the 3D scene information. Since the

aim of the proposed method is to extract the 3D

morphological characteristics and dimensionality

information of the building present in the viewing

scene, we need to isolate the building from the entire

scene and extract its contour and other linear

structures, so that a relation between the estimated 3D

physical coordinates of the scene and the building’s

estimated structure can be derived.

This section addresses techniques to locate and

measure straight line segments belonging to a

building’s main structure. The main idea is to locate

several straight line segments that exist in the image

edge map. It is noted that this process mainly focuses

on the extraction of line segments that lie on the

building’s main structure (along its horizontal width

and vertical height), while more complex and detailed

objects (such as bars, rails, small windows and signs,

etc.) are not taken into account in our implementation.

The basic steps of the algorithm are outlined below,

with a further explanation on the utility of each step.

• Image color segmentation through K-Means.

• Automatic image Thresholding and conversion

to binary image.

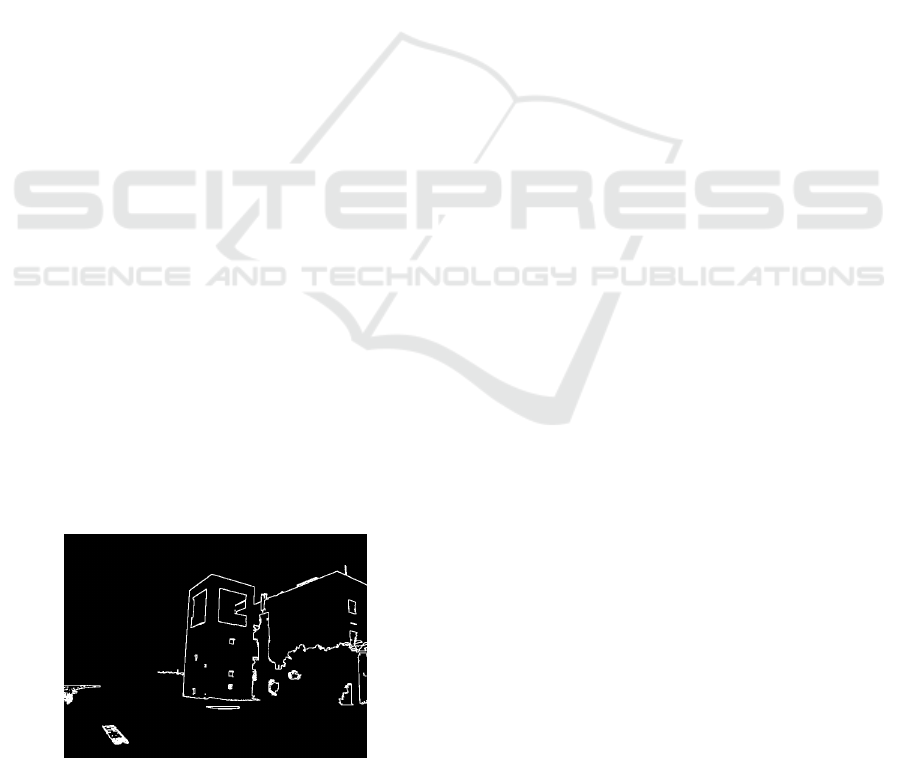

• Edge Detection

3D Building Reconstruction using Stereo Camera and Edge Detection

719

• Edge Linking

• Straight line fitting using the Hough Transform

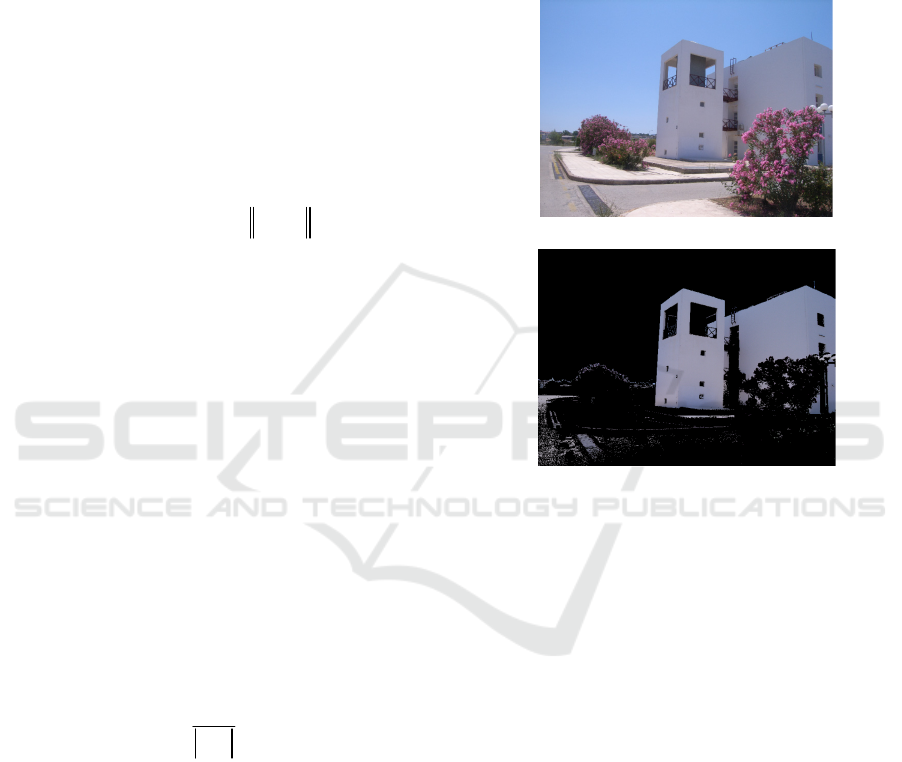

3.1 Image Color Segmentation

Given the RGB image of the target building, we

firstly convert it to the corresponding HSV (Hue-

Value-Saturation) model and then extract only the

Hue and Value channels prior to applying our

Segmentation scheme. The method used for the color

segmentation is the K-Means Clustering (Lloyd,

1982). This iterative method is employed to partition

all of the image’s pixels p= [p

, p

… p

] into k

clusters C= [C

, C

… C

], where obviously k≤n. The

clustering is achieved through the minimization of the

following value:

i1pC

arg min p

=∈

−



(5)

where μ

is the mean of the points that belong to C

As the equation above states, the K-Means

clustering method firstly calculates each pixel’s

Euclidean distance from the mean value of the cluster

it belongs to. This mean value is often called the

cluster center or the cluster centroid value. Then it

proceeds with calculating the sum of these distances

for each cluster separately and minimizing the total

distance metric for each cluster. The minimization

procedure runs iteratively (MacKay, 2003).

At the first iteration, k random pixels are assigned

as cluster means

, μ

(t=0)

=[μ

, μ

, …, μ

], thus creating the

initial clusters. Then, the squared distance of each

pixel from all the mean values is computed and each

pixel is enlisted to the cluster whose mean value is the

nearest. In the next step, the new mean values are

estimated from the current clusters through the

equation

(t)

(t 1)

(t)

∈

μ=



The whole process terminates when the classification

of the pixels to new clusters no longer changes.

When the method is terminated, each pixel will

have obtained a label corresponding to the cluster that

has been assigned to. In this way we can segment the

image into several color-dependent clusters. In our

algorithm, we choose k=7 (number of distinctive

colors in the image) and repeat the whole process

three times to avoid local minima. The building’s

pixels will have acquired the same integer

value(label) by the segmentation technique and by

setting to 0 all the pixels’ values in the initial image

that have obtained a different label we efficiently

isolate the building. Thus, the color difference of the

building from the rest of the image’s objects is

modeled through difference in intensity of the cluster

representing the building and the rest of the clusters.

The initial RGB image as well as the image with the

isolated building are depicted in the figure below (see

Fig. 2).

(a)

(b)

Figure 2: Image color segmentation using k-means method.

(a) A picture of a building in Technical University of Crete

in its original RGB form. (b) The image of the cluster

containing the building, after the k-means method has been

applied, having isolated up to a degree the building from

other objects like vegetation, the sky etc.

3.2 Image Thresholding

In order to compute a global threshold to convert the

building-cluster image to a binary image, Otsu’s

technique is used (Otsu, 1979). This method is based

on the idea that the pixels of the image are initially

divided into various intensity levels and tries to

classify the pixels into only two regions (black and

white) as efficiently as possible with a single global

threshold. In other words, Otsu’s method criterion is

the maximization of the distinctiveness between

“light” and “dark” areas in the image. Assuming an

initial threshold value the pixels are divided into two

classes. The possibilities for a pixel p to belong to one

of the two classes are ω

(κ) and ω

(κ) and they

depend on the chosen threshold value κ, as different

κ values will result in different pairs of classes. For L

initial intensity levels the following equations apply:

RGB-SpectralImaging 2016 - Special Session on RBG and Spectral Imaging for Civil/Survey Engineering, Cultural, Environmental,

Industrial Applications

720

() () 1 ωκ+ωκ=

(6)

11 2 2 L

() () () ()ωκ

κ+ω κ

κ=

(7)

where μ

is the total mean value over all of the L

intensity values and μ

, μ

are the mean values of the

two classes. Moreover:

222

w1122

() () () () ()σκ=ωκσκ+ωκσκ

(8)

22 2

() ()

σ=σ κ+σκ

(9)

The factor σ

(κ)

is the intra-class standard

deviation whereas the term σ

is the total standard

deviation for the whole image without a threshold. As

Otsu has proved:

[]

222

12 1 2

() ()

() () () ()

σκ=σ−σ κ

=ω κω κ

κ−

(10)

so that minimizing the intra-class standard deviation

is equivalent to maximizing σ

, as σ

remains

constant.

Specifically, for all the possible threshold values

the algorithm computes the σ

(κ

) values according

to eq.(10). The optimum threshold value κ

corresponds to the minimum of all the different

(κ

) values. Once the threshold has been computed,

we are able to effectively convert our intensity image

to a binary image.

As a last step of this stage, we remove from the

binary image all connected components that have

fewer than 5000 pixels by means of area opening, in

order to further isolate the building from various

“noisy” structures.

3.3 Edge Detection

In our implementation, the Canny method is used for

edge detection. This method is effective against noise

and is likely to detect weak edges. Its effectiveness

lies on the fact that it uses two thresholds, a low

Figure 3: Binary edge image after Canny edge detector is

applied. For viewing purposes, the edges have dilated using

a 9x9 block of 1s.

threshold to detect strong edges and a high threshold

for weak edges. The weak edges are included in the

output image only if they are connected to strong

edges. The low and high threshold values selected in

this algorithm are 0.022 and 0.126 respectively.

Moreover, the standard deviation σ of the Gaussian

filter applied by the Canny detector is 1.65. The

resulting edge map is depicted in Fig. 3.

3.4 Edge Linking

A common step after the binary edge image has been

computed is edge linking. The objective is to fill gaps

that might exist between edge segments and link edge

pixels into straight edges. The implementation is

based on the idea of indirectly connecting the

endpoints of two close edge segments by placing a

certain structuring element in between those points.

The structure used is a small disk. If the endpoints of

two edge segments are close enough to each other,

then the two disks placed at each one will overlap.

Then an image thinning follows, resulting in a line at

the overlapping point and thus linking the two

previously unlinked endpoints. In addition, if there is

no other endpoint near enough, the thinning will

result in the disk’s erosion. In our implementation, the

radius of the disk is 3 pixels.

To locate endpoints of edges we set up a lookup

table by passing all possible 3 x 3 neighborhoods to a

certain function, one at a time. This function tests

whether the center pixel of the neighborhood is an

endpoint. In order for this to happen, the center pixel

must be 1 and the number of transitions between 0

and 1 along the neighborhood’s perimeter must be

two.

Line Modelling with Hough Transform:

In order to locate straight line segments on a binary

image or an edge map, the Hough Transform

technique is employed. It is a powerful method that

finds shapes whose curve is expressed by an analytic

function, for instance, a line. A line is expressed by

the equation:

ymxc =+

(11)

However, because the m value of vertical lines is

infinity, a more convenient and computationally

reasonable approach is used (Duda and Hart, 1972).

Thus, the line is expressed in polar coordinates as:

xcos ysin

=θ+θ

(12)

where ρ is the distance from the origin of the plane to

the line and θ is the angle between the horizontal x-

3D Building Reconstruction using Stereo Camera and Edge Detection

721

axis and ρ. Following this approach, a line in the (x,

y) plane corresponds to a single point in the (θ, ρ)

plane.

In our implementation, we extract peaks with

integer values greater than the ceiling integer of the

30% of the maximum value of the accumulator

matrix. The lines illustrated in Figure 4 have θ values

in the ranges [-2˚, 5˚], [175˚, 185˚], [-70˚, -85˚], [50˚,

55˚] and [65˚, 70˚ ]. It is noted that some of the lines

illustrated are produced by merging smaller line

segments associated with the same Hough transform

bin. Merged lines shorter than 150 pixels are

discarded.

Figure 4: Lines belonging to the main structure of the target

building and detected using the Hough transform. The

yellow and red asterisks correspond to a line’s beginning

and end points respectively.

4 RESULTS AND

EXPERIMENTAL SET-UP

The proposed system consists of a stereo rig of CCD

Cameras, in a non-convergent/parallel layout

formation (see Fig 1. a) with baseline distance of 5.6

cm, simulating the human visual system layout. The

intrinsic and extrinsic parameters of the system are

computed through the multi-view calibration process

described above. The triangulation procedure

described in section 2.2 allows the 3D reconstruction

of the building, as illustrated in Fig 5.b.

In our case of study, three GP points on the

building’s rooftop (marked blue in Fig 5.a) with

known geo-referenced physical coordinates are

initially used for evaluating the physical dimensions

of depth estimates. Notice that with the addition of 8

more GPs and by solving the linear equation system

defined by the relations described in eq. (3) we end

up with the transformation parameters relating the 3D

real world coordinate system with the 3D metric

based reconstructed building system.

We can observe from figure 5 that the depth map

can be efficiently reconstructed, as long as we have

(a)

(b)

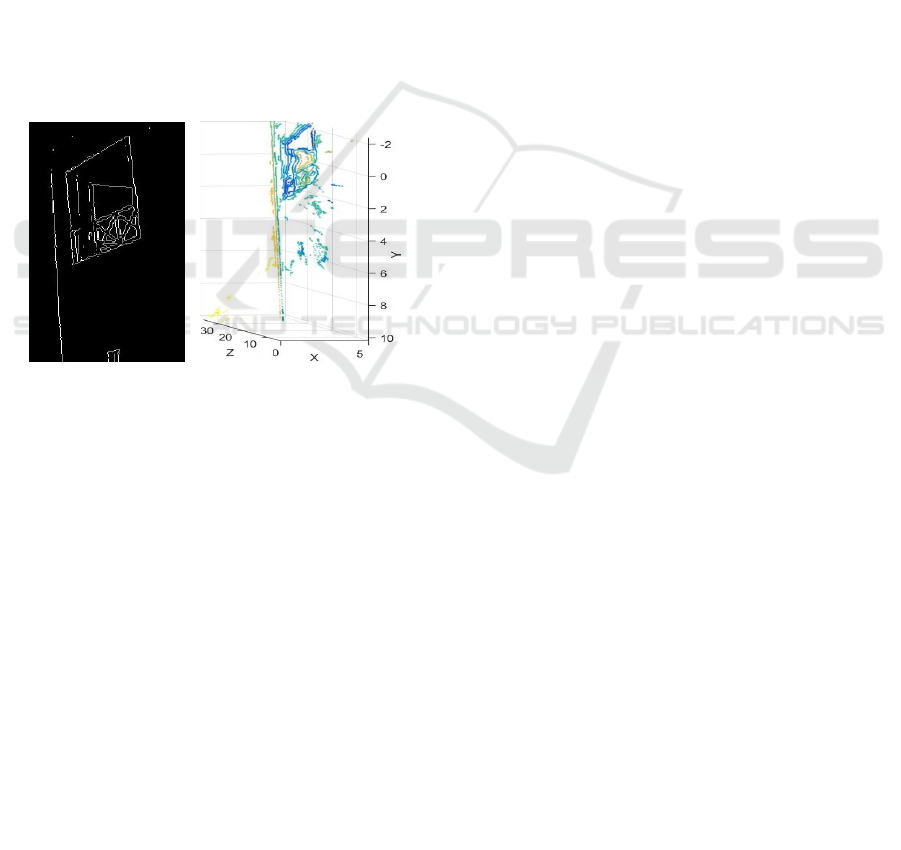

Figure 5: (a) The viewed scene with blue points indicating

those with known Geo-referenced coordinates used as

validation for the derived depth map and the corresponding

depth estimates (yellow boxes) based on the 3D metric

coordinates, (b) A 3D reconstruction of the left side of the

building using the triangulation approach. Different colours

indicate homogeneous regions at different depth.

many corner points available. As far as length

estimation between pairs of points of scene is

concerned, we consider the two circled corner points

of Figure 5 (a). The calibrated stereo layout leads to a

deviation error of 0.73 (5.38 – 4. 65) m or 13.57%.

We have used the known Geo-reference coordinates

of the building’s edges (blue points in Fig.5a) as a

validation for the depth estimates. The calculated

depth difference between points A and B based on our

depth estimates marked with yellow boxes in Fig 6.a

is 3.65m whereas, the corresponding difference based

on their Geo-reference coordinates is 5.38m. The

depth deviation can be further reduced with the

addition of pre-processing and post- processing steps

prior and posterior the depth derivation process.

Illumination invariance and image enhancement prior

the camera calibration stage can improve the

estimation of the stereo layout characteristics and

relations by removing shadowing and uneven

illumination or noise effects, leading eventually to

better depth estimates. As a post –processing

RGB-SpectralImaging 2016 - Special Session on RBG and Spectral Imaging for Civil/Survey Engineering, Cultural, Environmental,

Industrial Applications

722

measure, we can incorporate scene constraints and

conditions. For example, 3D line parallelism and

point intersection conditions or ground truth point

employment can serve as constraints and

homography estimation boundaries, reducing the

reconstruction ambiguity (Hartley and Zisserman,

2003).

Following the proposed procedure, we extract the

building structure through the use of edge detection,

contour extraction and line structure estimation

methodology (see Fig. 6.a). We can now isolate the

points belonging to the building structure and contour

(see Fig 6.b, red box). Finally, by associating the

points belonging to the building’s contour with their

3D world coordinates, we can derive all necessary

information required to estimate the building’s real

world dimensionality (width, height and length). In

addition, using the Geo-referencing system we can

Geo-reference the building’s whole structure, its

location and volume in the real world physical

system.

(a) (b)

Figure 6: (a) Isolated structure of the building (red box)

using line segment method and (b) isolated 3D

reconstruction of the points belonging to the structure.

5 CONCLUSIONS

We propose an approach for automatic extraction the

structural and geometrical information of buildings.

The ultimate task is to provide the entire scene and its

buildings in a georeferenced form and achieve a

correspondence of its feature measurements with the

real world. The proposed approach exploits a stereo

camera system in association with appropriate image

processing tools, which enable an initial

reconstruction of the scene mapped on the camera

coordinates. Subsequently, we use a limited number

of geodetic measurements as reference in order to

map the scene onto word coordinates. An important

issue in our methodology is the successful 3D

reconstruction and the estimation of depth. Our future

aim is to further improve our estimation with the

application of pre-processing and post-processing

methodologies that will reduce both the scene and

estimation dependent deviation effects that lead to

reconstruction ambiguities. The isolation of specific

building structures from the scene can facilitate this

estimation process. Overall, it is demonstrated that

the use of stereo camera enables the relation between

the 3D georeferenced system and the camera

coordinated system, so that depth information can be

extracted.

REFERENCES

Doulamis, A., Doulamis, N., Ioannidis, C., Chrysouli, C.,

Grammalidis, N., Dimitropoulos, K., Potsiou, C.,

Stathopoulou, E., K., Ioannides, M., 2015. 5D

Modelling: An Efficient Approach for Creating

Spatiotemporal Predictive 3D Maps of Large-Scale

Cultural Resources. ISPRS Annals of Photogrammetry,

Remote Sensing and Spatial Information Sciences, 1,

pp. 61-68.

Hadjiprocopis A., Ioannides, M., Wenzel, K., Rothermel,

M., Johnsons, P., S., Fritsch, D., Doulamis, A.,

Protopapadakis, E., Kyriakaki, G., Makantasis, K.,

Weinlinger, G., Klein, M., Fellner, D., Stork, A.,

Santos, P., 2014. 4D reconstruction of the past: the

image retrieval and 3D model construction pipeline.

In Second International Conference on Remote Sensing

and Geoinformation of the Environment

(RSCy2014) International Society for Optics and

Photonics, pp. 922916-922916.

Moore, R., Lopes, J., 1999. Paper templates. In

TEMPLATE’06, 1st International Conference on

Template Production. SCITEPRESS.

Smith, J., 1998. The book, The publishing company.

London, 2

edition.

Petzold, F., Bartels, H., Donath, D., 2004. New techniques

in building surveying. Proceedings of the ICCCBE-X,

pp 156.

Gülch, E., Müller, H., Labe, T. and Ragia, L., 1998. On the

performance of semi-automatic building

extraction. International Archives of Photogrammetry

and Remote Sensing, 32, pp. 331-338.

Fischer, A., Kolbe, T. H., Lang, F., Cremers, A. B.,

Förstner, W., Plümer, L. and Steinhage, V., 1998.

Extracting buildings from aerial images using

hierarchical aggregation in 2D and 3D. Computer

Vision and Image Understanding, 72(2), pp. 185-203.

Haala, N., Kada, M., 2010. An update on automatic 3D

building reconstruction. ISPRS Journal of

Photogrammetry and Remote Sensing, 65(6), pp. 570-

580.

Suveg, I., and Vosselman, G., 2004. Reconstruction of 3D

building models from aerial images and maps. ISPRS

3D Building Reconstruction using Stereo Camera and Edge Detection

723

Journal of Photogrammetry and remote sensing, 58(3),

pp. 202-224.

Pasko, M. Gruber, M., 1996. Fussion of 2D GIS Data and

aerial images for 3D building reconstruction.

International Archives of Photogrammetry and Remote

Sensing, vol. XXXI, Part B3, pp. 257-260.

Ragia, L., Sarri, F., Mania, K., 2015. 3D Reconstruction and

Visualization of Alternatives for Restoration of Historic

Buildings – A new Approach. Proceedings of the 1

International Conference on Geographical Information

Systems Theory, Applications and Management,

Barcelona, Spain, 28-30 April, pp. 94-102.

Brenner, C., 2005. Building reconstruction from images and

laser scanning. International Journal of Applied Earth

Observation and Geoinformation, 6(3), pp. 187-198.

Verma, V., Kumar, R. and Hsu, S., 2006. 3D building

detection and modeling from aerial LIDAR data.

In Computer Vision and Pattern Recognition, IEEE

Computer Society Conference on Vol. 2, pp. 2213-

2220.

Elaksher, A. F., and Bethel, J. S., 2002. Reconstructing 3D

buildings from LIDAR data. International Archives Of

Photogrammetry Remote Sensing and Spatial

Information Sciences, 34(3/A), pp. 102-107.

Zhang, Z., 2000. A flexible new technique for camera

calibration. IEEE Transactions on Pattern Analysis and

Machine Intelligence. vol. 22(11), pp. 1330-1334.

Hartley, R., Zisserman, A., 2003. Multiple View Geometry

in Computer Vision. Cambridge University Press.

Hartley, R., 1997. In Defense of the Eight-Point Algorithm.

IEEE® Transactions on Pattern Analysis and Machine

Intelligence, v.19 n.6.

Bouguet, J., 2013. Camera calibration toolbox for

MATLAB.

http://www.vision.caltech.edu/bouguetj/calib_doc/

Karathanasis, J., D. Kalivas, D., and J. Vlontzos, J., 1996.

Disparity estimation using block matching and dynamic

programming. IEEE Conference Electronics, Circuits

and Systems, pp.728 -731.

Zhang, L., 2001. Hierarchical block-based disparity

estimation using mean absolute difference and dynamic

programming. Proceedings International Workshop Very

Low Bit-Rate Video Coding (VLBV01), pp.114 -117.

Rallim, J., 2011. PhD thesis, Fusion and regularization of

image information in variational correspondence

methods, Universidad de Granada. Departamento de

Arquitectura y Tecnologa de Computadores,

http://hera.ugr.es/tesisugr/20702371.pdf

Lloyd, S. P. (1957). "Least square quantization in PCM".

Bell Telephone Laboratories Paper.

Lloyd., S. P. (1982). "Least squares quantization in PCM",

IEEE Transactions on Information Theory 28 (2): 129–

137.

MacKay, David (2003). "Chapter 20. An Example

Inference Task: Clustering" Information Theory,

Inference and Learning Algorithms. Cambridge

University Press. pp. 284–292.

Nobuyuki Otsu (1979). "A threshold selection method from

gray-level histograms". IEEE Trans. Sys., Man., Cyber.

9 (1): 62–66.

Duda, R. O. and P. E. Hart, "Use of the Hough

Transformation to Detect Lines and Curves in

Pictures," Comm. ACM, Vol. 15, pp. 11–15 (January,

1972)

RGB-SpectralImaging 2016 - Special Session on RBG and Spectral Imaging for Civil/Survey Engineering, Cultural, Environmental,

Industrial Applications

724
