Crack Identiﬁcation Via User Feedback, Convolutional Neural Networks

and Laser Scanners for Tunnel Infrastructures

Eftychios Protopapadakis

, Konstantinos Makantasis

, George Kopsiaftis

, Nikolaos Doulamis

and Angelos Amditis

Technical University of Crete, Kounoupidiana, 73100, Chania, Greece

National Technical University of Athens, 9 Iroon Polytechneiou, 15780, Athens, Greece

Institute of Communication and Computer Systems(ICCS), Zografou 157 80, Athens, Greece

Keywords:

Convolutional Neural Networks, User Feedback, Crack Detection, Laser Scanners.

Abstract:

In this paper, a deep learning approach synergetically to a laser scanning process are employed for the visual

detection and accurate description of concrete defects in tunnels. Analysis is performed over raw RGB im-

ages; Convolutional Neural Network serves as the crack detector, during the inspection. In case of a positive

detection, the tunnel’s cross-section morphology is assessed via 3D point clouds, created by a laser scanner,

allowing the identiﬁcation of deformations in the compartment. The proposed approach, in contrast to the

existing ones, emphasizes on applicability (easy initialization, no preprocessing of the input data) and pro-

vides a holistic assessment of the structure; reconstructed 3D model allows the fast identiﬁcation of structural

divergence from the original design, alerting the engineers for possible dangers.

1 INTRODUCTION

Nowadays, tunnel inspection, for structural evalua-

tion, is mainly performed through tunnel-wide visual

observations by inspectors; a human has to identify

structural defects, rate them and then, based on their

severity, categorize the liner. Generally, the empirical

evaluation can be incomplete mainly due to fatigue,

experience, adverse working conditions, or other rea-

sons; it is therefore, unreliable.

Automated approaches for the visual inspection

(VI) could deal with most of the aforementioned is-

sues, assuming that they have adequate detection abil-

ities. These methods exploit, mainly, image process-

ing and machine learning techniques. Automated ap-

proaches have been applied in various cases including

roads, bridges, fatigues, and sewer-pipes (Pynn et al.,

1999; Kim and Haas, 2000; Tung et al., 2002; Sinha

and Fieguth, 2006).

Current research, in robotics and relevant sec-

tors, presents a variety of sophisticated and reliable

components, needed in automated systems. Such

components can perform quick and robust inspec-

tion/assessment, in general transportation and tun-

nel infrastructures. However, what is still missing is

a holistic approach integrating all these components

into a system.

Related work on VI can be divided in two cat-

egories: (a) The conventional paradigm and (b)

the deep learning approach. In the conventional

paradigm, we have to construct complex handcrafted

features and, then, train the classiﬁer(s). However,

there is a great variety in defect types, making difﬁcult

the feature construction/selection task (Halfawy and

Hengmeechai, 2014). Deep learning models (Hinton

and Salakhutdinov, 2006; Hinton et al., 2006) are a

class of machines that can learn a hierarchy of fea-

tures by building complex, high-level features from

low-level ones, automating the process of feature con-

struction for the problem at hand.

The work presented in this paper, involves a VI

mechanism using both Convolutional Neural Net-

works (CNNs) and laser scanners. Such a computer

vision scheme is easy to integrate with any robotic

part, facilitating the creation of an actual and inde-

pendent robotic inspector. The CNN is applied for

the crack identiﬁcation, given an RGB image. In case

of defect detection, the laser scanner is activated, pro-

viding with an detailed 3D model of the investigated

cross section.

Protopapadakis, E., Makantasis, K., Kopsiaftis, G., Doulamis, N. and Amditis, A.

Crack Identiﬁcation Via User Feedback, Convolutional Neural Networks and Laser Scanners for Tunnel Infrastructures.

DOI: 10.5220/0005853007250734

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 4: VISAPP, pages 725-734

ISBN: 978-989-758-175-5

725

1.1 Related Work

Intensity features and Support Vector Machines

(SVMs) for crack detections on tunnel surfaces where

used in (Liu et al., 2002). Color properties, differ-

ent non-RGB color spaces and various learning al-

gorithms are also investigated in (Son et al., 2012).

Edge detection techniques are applied in (Abdel-

Qader et al., 2003) for detecting concrete defects.

Edge detection (i.e. Sobel and Laplacian operators)

and graph based search algorithms are also utilized in

(Yu et al., 2007) to extract crack information.

An image mosaic technology for detecting tun-

nels surface defects was further extended in (Mo-

hanty and Wang, 2012). A pothole detection sys-

tem (Koch and Brilakis, 2011), based on histogram

shape-based thresholding and low level texture fea-

tures, has been used in asphalt pavement images.

A concrete spalling measurement system for post-

earthquake safety assessments, using template match-

ing techniques and morphological operations, has

been proposed by (German et al., 2012).

Histograms of Oriented Gradient features and

SVMs are utilized in the work of (Halfawy and Heng-

meechai, 2014), to support automated detection and

classiﬁcation of pipe defects. Shape-based ﬁltering is

exploited in the work of (Jahanshahi et al., 2013) for

crack detection and quantiﬁcation. The constructed

features are fed as input to ANN or SVM classiﬁers in

order to discriminate crack from non-crack patterns.

The work of (Makantasis et al., 2015) exploit a

CNN to hierarchically construct high-level features,

describing the defects, and a Multi-Layer Perceptron

(MLP) that carries out the defect detection task. Such

an approach offers an automated feature extraction,

adaptability to the defect type(s), and has no need for

special set-up for the image acquisition. Nevertheless,

there is a major drawback regarding the applicability

in real life scenarios: resources spend for data anno-

tation. Data annotation is a time consuming job that

requires a human expert; it is therefore prone to seg-

mentation errors.

The approach of (Makantasis et al., 2015)

has been further enriched by (Protopapadakis and

Doulamis, 2015); they incorporated a prior, image

processing, detection mechanism, facilitating the ini-

tialization phase. Such mechanism stands as a sim-

ple detector and is only used at the beginning of the

inspection. Possible defects are annotated and then

validated by an expert; after validating few samples,

the required training dataset for the deep learning ap-

proach has been formed. From this point onwards, a

CNN is trained and, then, utilized for the rest of the

inspection process.

Regarding the laser scanning technology, an in-

creasing interest takes place in the last few years, due

to the very high density of the acquired data. Moni-

toring tunnel deformations is a crucial and recent laser

scanning application, since it is related to the tunnel

stability and safety. A number of studies and papers

concerns tunnel geometry inspection.

The work of (Han et al., 2013) proposed the light

detection and ranging (LiDAR) technique and the

minimum-distance projection (MDP) to collect de-

tailed 3D spatial data in a fast and automatic manner,

while avoiding the 3D to 2D proﬁle projection step to

reduce the associated uncertainties. (Peji

c, 2013) pro-

posed a methodology to optimize the scanning param-

eters, scans registration, the georeferencing approach

and the survey control network design.

(Arg

uelles-Fraga et al., 2013) tried to incorporate

several scanning factors, such as tunnel dimensions,

scan density, footprint size, incidence angle and scan-

ner location in scanning circular cross-section tunnels

in order to achieve the pre-determined accuracy spec-

iﬁcations while minimizing the working time. (Nut-

tens et al., 2014) used a laser scanner to observe dif-

ferences of the average radius values during the sta-

bilization phase of a newly built circular train tun-

nel in Belgium. The results of a systematic monitor-

ing could be valuable to the construction engineers

to test and validate the theoretical models. (Monser-

rat and Crosetto, 2008) utilized laser scanner datasets

and least square method to match 3D surfaces.

1.2 Our Contribution

Existing approaches suggest favourably towards CNN

suitability, for VI processes in tunnels. However,

there is no consensus regarding the CNN topology

and the input data format. Additionally, a rational

approach would be the synergy among different VI

approaches in order to mitigate individual drawbacks.

Our work utilizes the same detection mechanism,

as in (Protopapadakis and Doulamis, 2015). How-

ever, the CNN detector is directly utilized over raw

data. Rather than changing the image space, using a

low level feature extraction (Makantasis et al., 2015),

we directly utilize raw image patches. Doing so pre-

serves the adverse effects from wrong feature selec-

tion and simpliﬁes the process; both conceptually and

practically.

Also, the usage of a laser scanner results in a

holistic approach for the VI. Rather than detecting a

crack on a plane, we reconstruct the entire cross sec-

tion. Such an approach provides further information

regarding the status of the infrastructure. The time re-

quired for the 3D reconstruction is minimized, since

RGB-SpectralImaging 2016 - Special Session on RBG and Spectral Imaging for Civil/Survey Engineering, Cultural, Environmental,

Industrial Applications

726

we reconstruct only the areas with possible defects,

rather than the entire infrastructure.

The created 3D point clouds support the engi-

neers’ effort for a detailed assessment. At ﬁrst, recre-

ated cross sections are compared to the original ones,

as deﬁned in the construction blueprints. Therefore

we are able to prevent deterioration or collapsing, sav-

ing human lives. Secondly, the 3D models can be

stored for future reference, creating a history log for

the infrastructure. This kind of information is cru-

cial to any structural monitoring system and is easily

accessible, since the point clouds are using standard

formats.

2 PROCESSING CHALLENGES

Ideally, the VI approach should have equivalent abili-

ties to human eye inspection. The process should not

be affected by angle and distance from the tunnel sur-

faces, neither from luminosity conditions. Proximity

sensors, advanced navigation, and lighting equipment

facilitate the acquisition process but cannot guaran-

tee ideal conditions, nor bypass man made occlusions

(e.g. wires).

Yet, even if we achieve ideal conditions, the defect

types make the problem increasingly difﬁcult for the

detection mechanism. The term ”defect” can be inter-

preted in many ways; deformations, cracks, surface

disintegration, and other defects are widely known

and commonly appear.

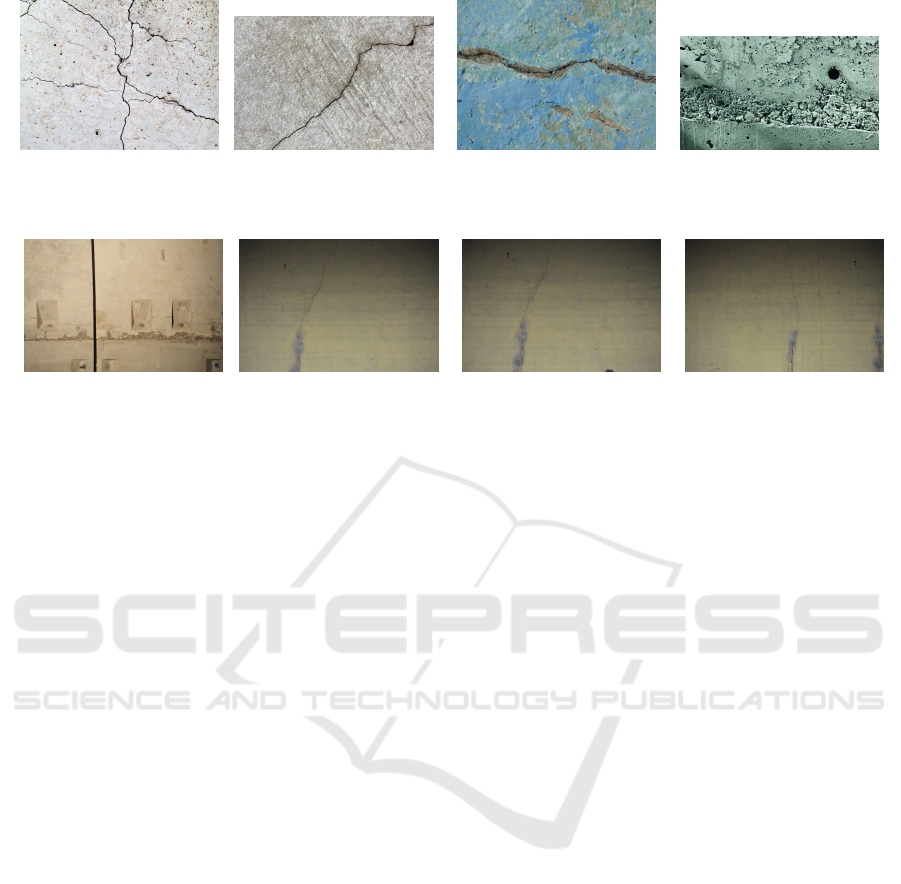

Cracks is a common defect; there are structural

failure cracks, random cracks, crazing cracks, shrink-

age cracks and map-cracking among many others.

Cracks can be described as curved lines of various

lengths and widths. Change in texture, width variance

and discontinuities are, also expected. They appear,

primary, as a result of surface disintegration. in more

severe cases, they result as severe errors in construc-

tion.

Disintegration of the surface is generally caused

by three types of distress: (a) dusting, due to carbon-

ation of the surface by unventilated heaters or by ap-

plying water during ﬁnishing, (b) ravelling or spalling

at joints, when pieces of concrete from the joint edges

are dislodged and, (c) breaking of pieces from the sur-

face of the concrete, generally caused by delamina-

tions and blistering.

Other defects include discolouration of the con-

crete, small voids (bugholes) in the surface of vertical

concrete placements, and honeycombing, which is the

presence of large voids in concrete. Figure 1 illus-

trates some of the described defects. Such a variety in

defect types hinders the feature extraction process; it

is difﬁcult to construct appropriate descriptors.

Fortunately, aforementioned defects have some-

thing in common; crack appearance. Cracks appear

in concrete usually as secondary symptoms of other

defects. As such, the identiﬁcation of a crack should

be the ﬁrst step, prior to an extensive analysis in the

surrounding area, using laser scanners.

3 IMAGE ANALYSIS

CNNs can be used as hierarchical computer vision

(CV) schemes, among many other algorithms(e.g.

(Doulamis, 2014; Doulamis and Matsatsinis, 2012)),

in order to make the recognition process just-in-

time, and thus signiﬁcantly reduce the time and effort

needed for visual inspections. Nevertheless, CNN ini-

tialization requires a lot of resources and time. A sec-

ondary image processing mechanism could save valu-

able resources (Protopapadakis and Doulamis, 2015).

The detection of defects can be seen as an image

segmentation problem, which entails to the classiﬁca-

tion of each one of the pixels in the image into one

of two classes: defects (cracks) class and non-defects

class. Such a task requires the description of pixels by

a set of highly discriminative features that fuse visual

and spatial information. CNN is responsible for the

creation of such features.

At ﬁrst grayscale image patches are created over

RGB tunnel’s surfaces images. These patches consist

the CNN’s input. Through a hierarchical construction

process, complex, high-level features are created for

each patch. These features are fed to a MLP that con-

ducts the classiﬁcation task. As such, visual and spa-

tial information about a speciﬁc pixel, located in the

center of each patch, is related to its neighbour pixels.

Concretely, in order to classify a pixel p

, located

at (x, y) point on image plane, we use a square patch

of size s × s centered at pixel p

. If we denote as

the class label of the pixel at location (x, y) and

as b

the patch centered at pixel p

, then, we can

form a dataset D = {(b

, l

)} for x = 1, 2, ··· , w and

y = 1, 2, ··· , h.

These matrices are fed as input into the CNN.

Then, the CNN hierarchically builds complex, high-

level features that encode visual and spatial character-

istics of pixel p

. The output of the CNN is sequen-

tially connected with the MLP. Therefore, obtained

features are used as input by the MLP classiﬁer, which

is responsible for detecting the defects.

Crack Identiﬁcation Via User Feedback, Convolutional Neural Networks and Laser Scanners for Tunnel Infrastructures

727

(a) (b) (c) (d)

Figure 1: Illustration of various concrete defect types in tunnel investigation: (a) map cracking, (b) shrinkage crack, (c)

ﬂanking and (d) honeycomb.

Figure 2: Illustration of various images acquired and require further investigation.

3.1 Model Initialization

The crack detection is based solely on the CNN. Yet,

in order to facilitate the data set creation, we employ

an image processing technique. Such technique ex-

ploit: the intensity of pixels and their spatial relations,

morphological operations and ﬁltering schemes. Ad-

ditionally, we perform simple shape analysis on de-

tection results. Such an approach does not require an-

notated data. Yet, it has low generalization ability and

it has to be ﬁne tuned for a speciﬁc dataset; there are

many parameters in the operators.

The data set creation mechanism needs only a few

images, which are easily obtained (usually at ﬁrst few

meters, after the tunnels entrance). If there is photo-

graphic material, for the speciﬁc infrastructure, from

previous examinations, few pictures will be selected

at random. After the image gathering is complete, the

image annotation process is performed.

Shape properties describe the ratio length to width

for the detected edges. Further, we are looking for

curves. Regarding intensity, pixels corresponding to

cracks are expected to be darker than their neighbour-

ing pixels. Thus, based on cracks characteristics our

approach consists of the following steps: (a) Lines

enhancing, (b) Noise removal, (c) Straight lines re-

moval, (e) Shape ﬁltering, and (f) Morphological re-

construction.

Line enhancement occurs by comparing the inten-

sity of the speciﬁc pixel to its neighbours. Such an

approach result in ”salt and pepper” noise. The next

step focuses on noise removal, exploiting a traditional

median ﬁlter. Straight lines, is something common,

and correspond to man made crafts (e.g. wiring) are

located according to Hough transform by threshold-

ing the detected outputs.

Shape ﬁltering using appropriate moments is an-

other crucial step. By locating minimum enclosing

circles we are able to exclude symmetrical areas. Fi-

nally, we perform a classical morphological operation

called ”opening by reconstruction”. Reconstruction

starts from a set of starting pixels and then grows in

ﬂood-ﬁll fashion to include complete connected com-

ponents. A step by step illustration of the image pro-

cessing approach is shown in ﬁg. 4.

3.2 Deep Learning Defect Recognition

In this section, for the sake of completeness, we

brieﬂy describe the notion of CNNs. CNNs apply

trainable ﬁlters and pooling operations on their input

resulting in a hierarchy of increasingly complex fea-

tures. Convolutional layers consist of a rectangular

grid of neurons (ﬁlters), each of which takes inputs

from rectangular sections of the previous layer.

Each convolution layer is followed by a pooling

layer that subsamples block-wise the output of the

precedent convolutional layer and produces a scalar

output for each block. Formally, if we denote the k-

th output of a given convolutional layer as h

whose

ﬁlters are determined by the weights W

and bias b

then the h

is obtained as:

i j

= g((W

∗ x)

i j

+ b

) (1)

where x stands for the input of the convolutional layer

and indices i and j correspond to the location of the

input where the ﬁlter is applied. Star symbol (*)

stands for the convolution operator and g(·) is a non-

linear function. Max pooling layers simply take some

k × k region and output the maximum value in that

region.

RGB-SpectralImaging 2016 - Special Session on RBG and Spectral Imaging for Civil/Survey Engineering, Cultural, Environmental,

Industrial Applications

728

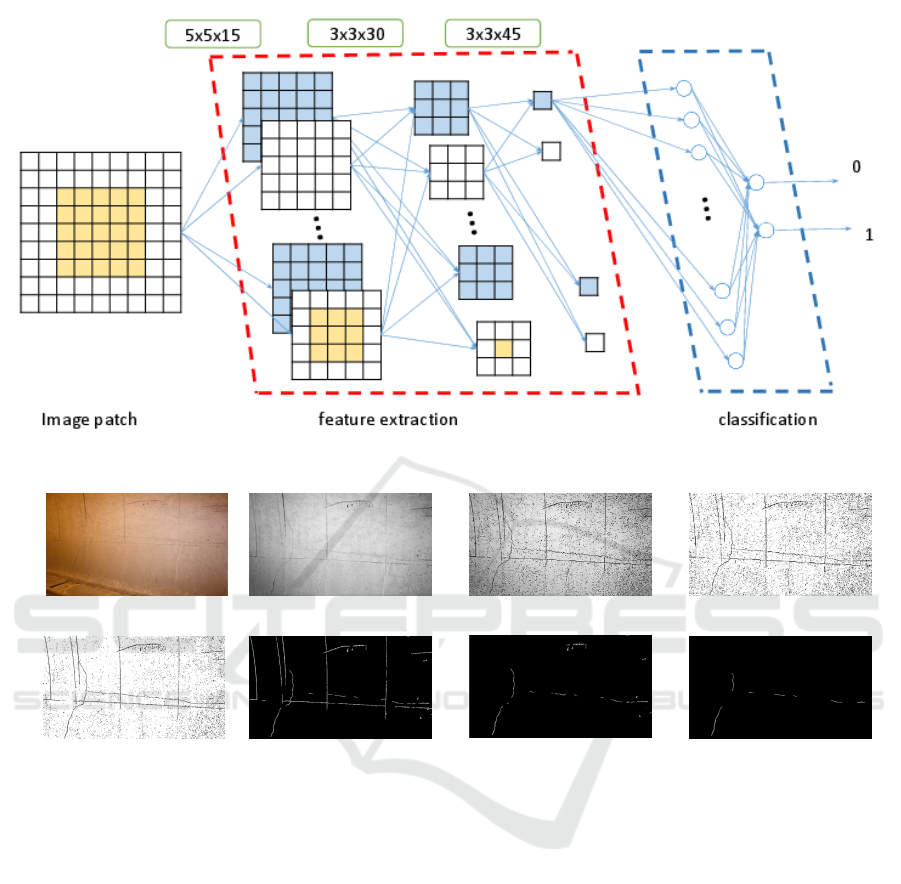

Figure 3: Proposed CNN illustration. Every image patch of size 9 × 9 is convolved with 15 kernels of size 5 × 5 at ﬁrst, then

30 convolution kernels of size 3 × 3 are used. The ﬁnal convolution layer uses, also, 45 kernels of size 3 ×3.

(a) (b) (c) (d)

(e) (f)

(g)

(h)

Figure 4: Step by step illustration of the proposed image processing approach; (a) original image, (b) grayscale (c) enhanced

lines, (d) binary image , (e) noise removal, (f) area ﬁltered, (g) straight lines removal and (h) ﬁnal, annotated image.

Max pooling layers introduce scale invariance to

the constructed features, which is a very important

property for object detection/recognition tasks, where

scale variability problems may occur.

However, as pointed in (Makantasis et al., 2015),

for the problem of tunnel defects detection, we in-

volve CNNs to construct features that encode spatio-

visual information, which indicates the presence or

absence of a defect to a speciﬁc pixel. Thus, scale

invariance, which is addressed through the use of a

Gaussian pyramid, does not consist a signiﬁcant prop-

erty for our learning model. Due to this fact, we do

not involve pooling layers into our CNN architecture.

4 GEOMETRY INSPECTION

The tunnel inspection method presented in the current

paper, is performed using not only photogrammetric

equipment but also a laser scanner. In general, laser

scanners provide a number of useful functionalities

for modelling and monitoring tunnels. However, sev-

eral aspects should be considered while planning the

scan of a tunnel to ensure the requirement accuracy

and reliability of the measurements, together with a

cost effective approach to tunnel surveying:

• Laser scanner speciﬁcations: quality and resolu-

tion, connectivity options, even portability, in case

the device is attached on a moving vehicle (e.g.

robotic system).

• Laser scanner accuracy: it is a feature that should

Crack Identiﬁcation Via User Feedback, Convolutional Neural Networks and Laser Scanners for Tunnel Infrastructures

729

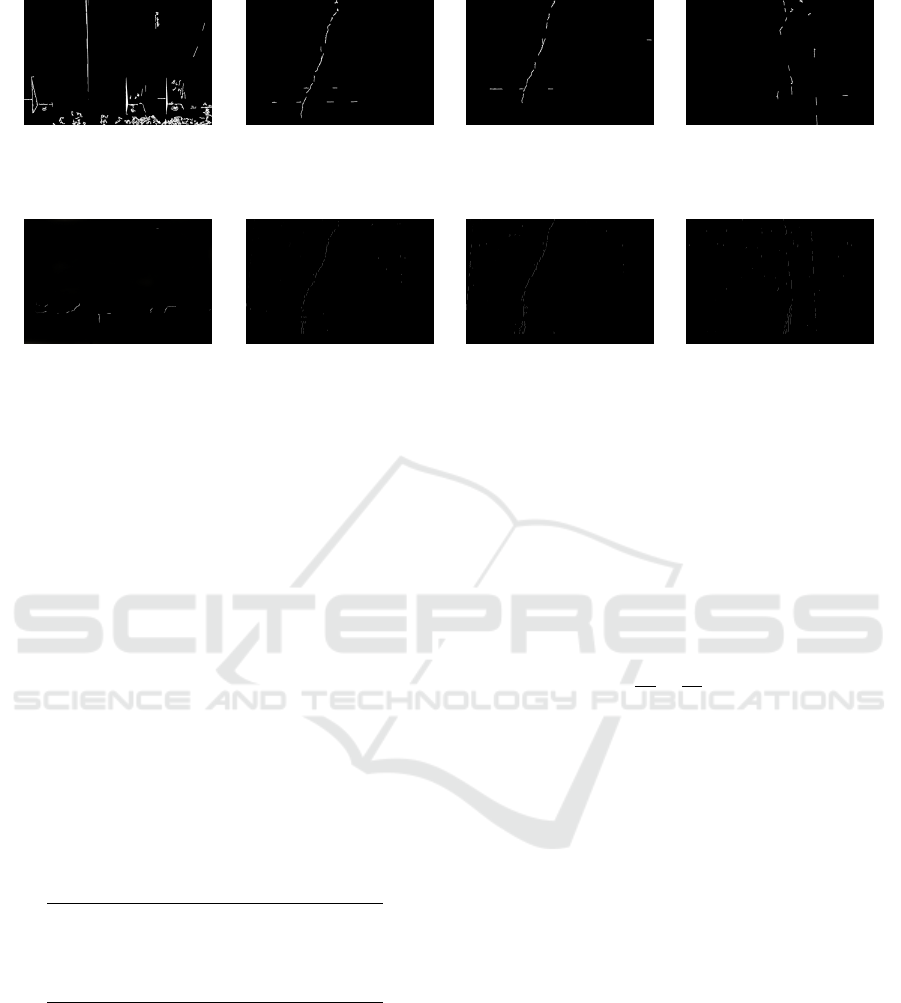

Figure 5: Illustration of crack identiﬁcation ground truth annotations based on image processing techniques. Such an approach

results in many false positive annotations; areas close to the actual cracks are, also, considered as cracks. Areas with signiﬁcant

variation in intensity, texture, or entropy are also faulty classiﬁed as cracks.

Figure 6: Illustration of crack identiﬁcation using CNN. In contrast to the image processing approach, outputs are much

reﬁned. The ground truth annotations are limited to the actual cracked regions. A few misclassiﬁed pixels may appear at the

crack borders.

be considered separately, since it deﬁnes the dis-

tinctive ability of the scanner and the objects and

features of the tunnel surface which can be de-

tected.

• Tunnel dimensions: tunnels total length and width

should always be considered in the optimal design

of the survey control network.

• Scan time requirements: the relation between res-

olution/quality and scan duration should be exam-

ined, since a time consuming scan could increase

exponentially the overall time requirements of the

tunnel inspection procedure.

In the current project the FARO

 Laser Scan-

ner Focus

X 130 was used, a mid-range instru-

ment with panoramic architecture, which uses phase

shift technology to measure distance. Table 1 con-

tains some signiﬁcant technical features of the spe-

ciﬁc laser scanner.

Table 1: FARO Focus

speciﬁcations.

Distance accuracy up to ±2mm

Range 0.6 m up to 130 m

Noise reduction up to 50%

Field of view 360

◦

× 305

◦

It is obvious from the absolute values of the dis-

tance accuracy, that the Focus

is not suitable for

the detection of small-sized features of the tunnel sur-

face (e.g. cracks). However, the device could be used

to detect features which exceed the minimum value

of 2 mm, or possible deformations of the tunnel cross

section. In the following section a method for the ex-

traction of the tunnel geometry from a point cloud is

presented, along with the results from several experi-

mental scans.

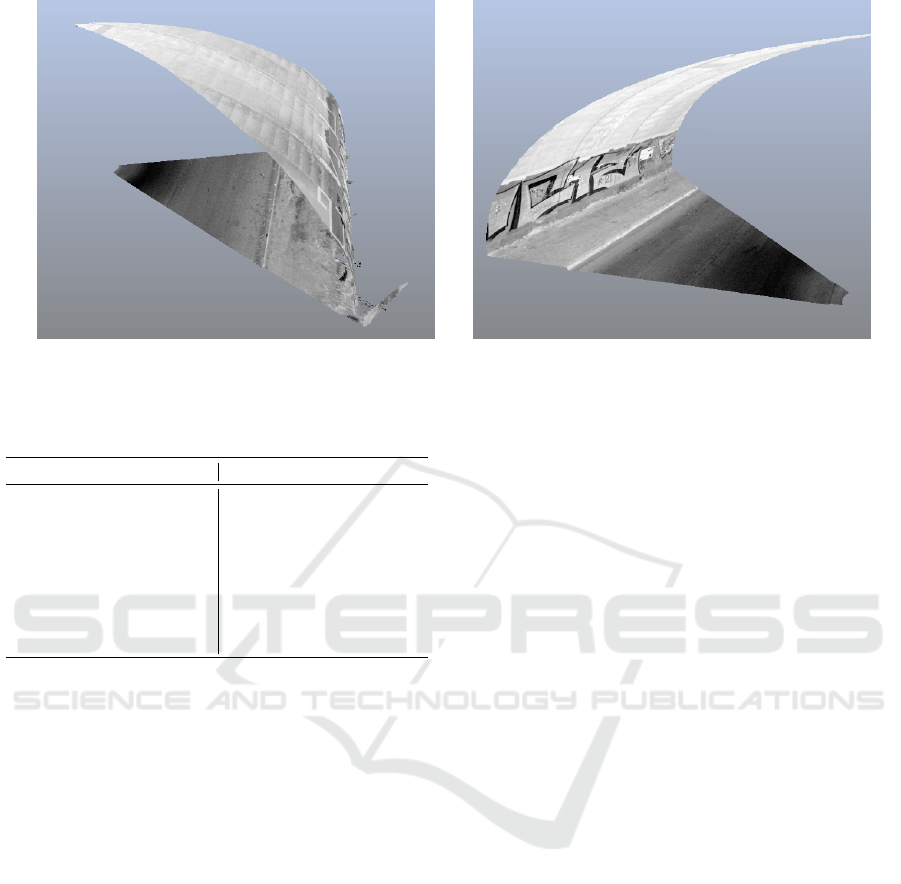

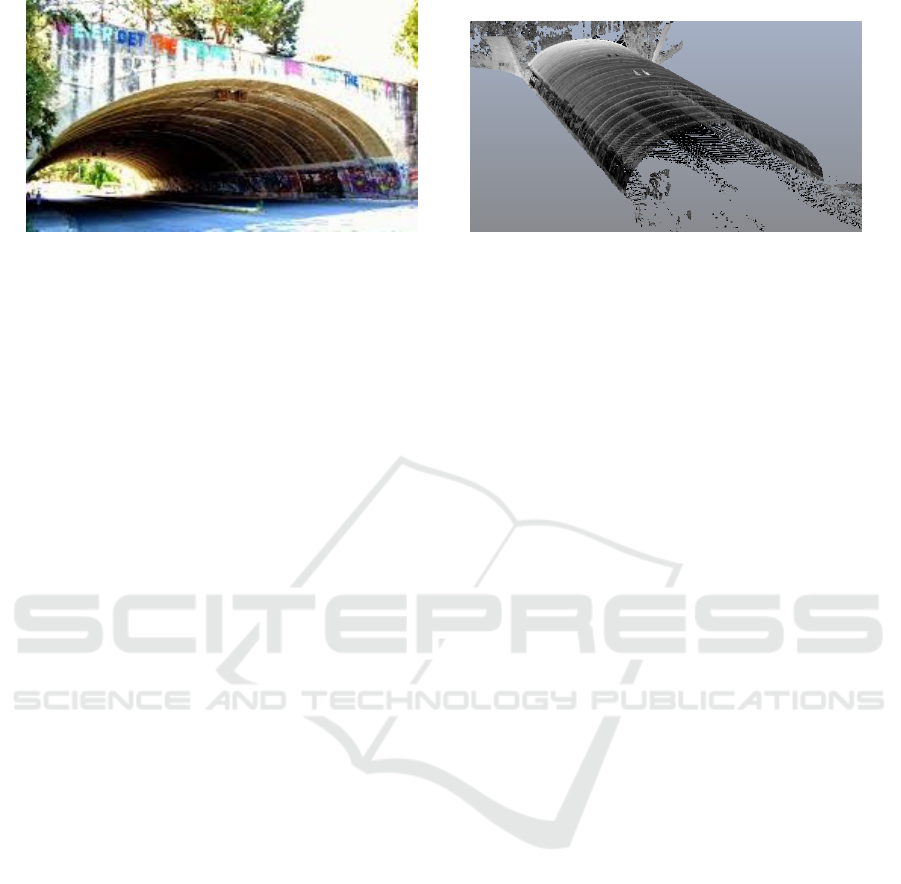

4.1 Tunnel Geometry and Point Clouds

In order to derive the geometry of the tunnel cross

section, a surface of known equation is presupposed.

Usually, the inner surface of a tunnel has a quadratic

form, e.g. circle, parabola, or an assembly of circular

arcs. In this paper, each scan, i.e. one half of the

tunnel cross section, is treated as a part of an elliptic

cylinder, which has a cross section of the following

form:

= 1 (2)

A nonlinear least-squares solver is utilized to solve

the surface ﬁtting problem of the general form

max

k f (x)k

=min

( f

(x)

+ f

(x)

+ ... + f

(x)

)

(3)

where x represents the vector of the unknown vari-

ables. It should be noted that since the laser scan-

ner is not located at the centre of the elliptic cylinder,

the translation and rotation parameters should also be

calculated. Therefore, a total number of eight param-

eters are calculated with the nonlinear least-squares

algorithm, including three rotation parameters, three

translation parameters and the two parameters of the

ellipsis. The trust-region-reﬂective method (Coleman

and Li, 1996; Coleman and Li, 1994) implemented in

matlab environment is used as a minimization algo-

rithm.

An initial surface estimation is performed to cal-

culate outliers. Speciﬁcally, measured points that are

not in close proximity to the surface, based on a

user speciﬁed threshold, are excluded from the cal-

culations. The parameter value estimation procedure

is applied once again, based on the corrected point

RGB-SpectralImaging 2016 - Special Session on RBG and Spectral Imaging for Civil/Survey Engineering, Cultural, Environmental,

Industrial Applications

730

(a) (b)

Figure 7: Aspect of the experimental tunnel (a) and a rough 3D model (b).

dataset. Features of the tunnel, of considerable size

compared to the distinctive ability of the laser scan-

ner, are detected as the discrepancy between the cal-

culated geometric surface and the measured points.

Temporal changes in the calculated surface parame-

ters could be used as an indication of tunnel defor-

mations, and provide structural engineers with mea-

suring results regarding the extend of these deforma-

tions.

5 SYSTEM EVALUATION

The proposed system was developed on a conven-

tional laptop with quad-core CPU, 8GB RAM, us-

ing Theano library (Bastien et al., 2012) in Python.

The CNN is compared against the image processing

approach, described in sec. 5.1. Compatibility with

robotic parts has been also veriﬁed using YARP (Fitz-

patrick et al., 2008).

All the images originate from Metsovo motorway

tunnel in Greece, which is a 3.5km long twin tunnel.

In a distance of 20m parallel and north to this bore,

runs the ventilation tunnel. The main tunnel suffered

a signiﬁcant deformation due to water inﬂow. Image

data were captured at this part of the tunnel, using a

hand held DSLR camera. Figure 2 illustrates various

tunnel images during data acquisition process. Re-

gions depicting defects, for each of the captured im-

ages, were manually annotated, by experts(i.e. about

100 images).

Proposed approach is applied on the raw image

data and its performance is evaluated in regard to the

ground truth data. The unbalanced nature of classes

would deteriorate the performance of the system; de-

fects span very few areas. As such, we truncate the

non-defects class to contain the same number of sam-

ples as the class that represents defects. The ﬁnal

dataset that is used for training and testing, is created

by concatenating the elements of the two classes.

5.1 Crack Detection using Image

Processing Techniques

The image processing technique is similar to the

work of (Protopapadakis and Doulamis, 2015). Line

enhancement is performed on 13 × 13 windows by

thresholding the 0.99% of the mean intensity value.

Then, areas spanning less than 550 pixels are consid-

ered noise and, thus, excluded. Hough transform dis-

tance and angle resolution were set to 5 pixels and 0

radians respectively. Finally, areas of defects should

span at least 30% of the minimum enclosing circle.

An indicative result of the annotated images can be

found in ﬁg. 5.

5.2 Crack Detection using CNN

The input of the CNN are patches of dimensions s ×s.

The parameter s determines the number of neighbours

of each pixel that will be taken into consideration dur-

ing classiﬁcation task. During experimentation pro-

cess we set the parameter s to be equal to 9, in order

to take into consideration the closest 24 neighbours of

each pixel.

The value of s can be increased. Yet, an increase

in s value results in an increase of computational cost.

In our case, setting the parameter s to a value greater

than 9, resulted in no further performance’s improve-

ment; value of s over 13 resulted in worse classiﬁca-

tion accuracy.

Having estimate the value s, we can proceed with

the CNN architecture design. The ﬁrst layer of the

proposed CNN is a convolutional layer with C

= 15

trainable ﬁlters of dimensions 5 × 5. This layer de-

livers C

matrices of dimensions 5 × 5 (during con-

volution we do not take into consideration the border

of the patch). Due to the fact that we do not employ

a max pooling layer, the output of the ﬁrst convolu-

tional layer is fed to the second convolutional layer

(30 kernels of size 3 × 3). Then, the third layer (45

Crack Identiﬁcation Via User Feedback, Convolutional Neural Networks and Laser Scanners for Tunnel Infrastructures

731

(a) (b)

Figure 8: A more detailed 3D model cross section of the inspected tunnel for left (a) and right (b) side respectively.

Table 2: Metrics for quatnitative performance evaluation.

Metric Formula

Sensitivity - (TPR) TPR = TP / P

Speciﬁcity - (SPC) SPC = TN / N

Precision - (PPV) PPV = TP / (TP + FP)

Neg. predictive value - (NPV) NPV = TN / (TN + FN)

False pos. rate - (FPR) FPR = FP / N

False discovery rate - (FDR) FDR = 1 - PPV

Miss Rate - (FNR) FNR = FN / P

Accuracy - (ACC) ACC = (TP + TN) / (P + N)

F1 score - (F1) F1 = 2 TP / (2 TP + FP + FN)

kernels of size 3 × 3) creates the input vectors for the

MLP. An indicative result of the annotated images via

CNN can be found in ﬁg. 6.

5.3 Performance Evaluation

In this paper we have two possible classes; cracks

or non-cracks, named positive (P) and negative (N)

class, respectively. Given the outputs, we form the

confusion table, which is a 2 × 2 matrix that reports

the number of false positives (FP), false negatives

(FN), true positives (T P), and true negatives (T N).

Given these values we are able to calculate various

performance metrics regarding the defect detection

performance.

Calculated metrics formulation is shown in table

2. Metrics of special interest are: Sensitivity (pro-

portional to T P) and miss rate (proportional to FN),

which are both strongly connected to crack detection.

5.4 Experimental Scans in Tunnels

The aspects of sec.4 are examined in a relatively

small-sized test tunnel, located at the campus of the

National and Kapodistrian University of Athens. The

tunnel has a total length of approximately 60 m, and

10 m width. The cross section shape of the tunnel ap-

proximates a semicircle, and the texture of the inner

surface is characterized by regular patterns, due to the

construction process. Several rough edges and sur-

faces which exceed 2 mm, are also present and could

be used as surface features to be detected with a laser

scanner.

Several scans were performed with different com-

binations of quality, resolution, vertical and horizon-

tal range. Figure 7 illustrates an aspect of the tunnel,

as well as a rough 3D depiction, created by the point

cloud. In both scans, in terms of the Focus

param-

eters, the resolution was 1/4 and the quality 4x (i.e.

122 kpt/s).

A number of more detailed scans with higher res-

olution and quality were performed, in order to col-

lect datasets of several tunnel cross sections. Figure 8

presents the results of a cross-sectional scan, with res-

olution 1/1 and quality 3x (i.e. 244 kpt/s). The ver-

tical scan range was from −62.5

◦

to 90

◦

, while the

horizontal range was from 180

◦

to 230

◦

. It should be

noted that two independent scans are required to scan

a complete cross-section of the tunnel.

6 CONCLUSIONS

In this paper, we point the suitability for deep learning

architectures for the tunnel defect inspection problem.

The proposed approach employed both a CNN and a

laser scanner in a holistic assessment scheme, signif-

icantly extending the capabilities of a deep learning

approach.

RGB-SpectralImaging 2016 - Special Session on RBG and Spectral Imaging for Civil/Survey Engineering, Cultural, Environmental,

Industrial Applications

732

Table 3: Performance evaluation score for both CNN and image processing approaches.

Average scores ACC TPR SPC NPV PPV FNR FPR F1

CNN 0.8684 0.8981 0.8387 0.8919 0.8481 0.1019 0.1613 0.8722

Image Processing 0.6337 0.5866 0.6808 0.6284 0.6495 0.4134 0.3192 0.6112

The system evaluates raw images through the

CNN detector. In case of a positive identiﬁcation of a

crack the laser scanner is used to provide further de-

tails via a method to exploit point clouds, provided by

terrestrial scanners.

The proposed method is based on the parametriza-

tion of the tunnel surface, using a nonlinear minimiza-

tion solver and could be employed to detect possible

deformations or features of considerable size.

Future work may involve CNN topology opti-

mization schemes, for further performance improve-

ment, or hardware implementation to improve detec-

tion times. Additionally, different geometric surfaces

can be investigated, in order to achieve better approx-

imation of the inner tunnel surfaces.

ACKNOWLEDGEMENTS

The research leading to these results has received

funding from the EC FP7 project ROBO-SPECT

(Contract N.611145). Authors wish to thank all part-

ners within the ROBO-SPECT consortium.

REFERENCES

Abdel-Qader, I., Abudayyeh, O., and Kelly, M. E. (2003).

Analysis of edge-detection techniques for crack iden-

tiﬁcation in bridges. Journal of Computing in Civil

Engineering, 17(4):255–263.

Arg

uelles-Fraga, R., Ord

nez, C., Garc

ıa-Cort

es, S., and

Roca-Pardi

nas, J. (2013). Measurement planning for

circular cross-section tunnels using terrestrial laser

scanning. Automation in Construction, 31:1–9.

Bastien, F., Lamblin, P., Pascanu, R., Bergstra, J., Good-

fellow, I., Bergeron, A., Bouchard, N., Warde-Farley,

D., and Bengio, Y. (2012). Theano: new features and

speed improvements. arXiv:1211.5590 [cs]. arXiv:

1211.5590.

Coleman, T. and Li, Y. (1994). On the convergence of

reﬂective newton methods for large-scale nonlinear

minimization subject to bounds vol. 67. Ithaca, NY,

USA: Cornell University.

Coleman, T. F. and Li, Y. (1996). An interior trust region ap-

proach for nonlinear minimization subject to bounds.

SIAM Journal on optimization, 6(2):418–445.

Doulamis, A. (2014). Event-driven video adaptation: A

powerful tool for industrial video supervision. Mul-

timedia Tools and Applications, 69(2):339–358.

Doulamis, A. and Matsatsinis, N. (2012). Visual under-

standing industrial workﬂows under uncertainty on

distributed service oriented architectures. Future Gen-

eration Computer Systems, 28(3):605–617.

Fitzpatrick, P., Metta, G., and Natale, L. (2008). Towards

long-lived robot genes. Robotics and Autonomous

Systems, 56(1):29–45.

German, S., Brilakis, I., and DesRoches, R. (2012). Rapid

entropy-based detection and properties measurement

of concrete spalling with machine vision for post-

earthquake safety assessments. Advanced Engineer-

ing Informatics, 26(4):846–858.

Halfawy, M. R. and Hengmeechai, J. (2014). Automated de-

fect detection in sewer closed circuit television images

using histograms of oriented gradients and support

vector machine. Automation in Construction, 38:1–

13.

Han, J.-Y., Guo, J., and Jiang, Y.-S. (2013). Monitoring tun-

nel deformations by means of multi-epoch dispersed

3d lidar point clouds: An improved approach. Tun-

nelling and Underground Space Technology, 38:385–

389.

Hinton, G. E., Osindero, S., and Teh, Y.-W. (2006). A

Fast Learning Algorithm for Deep Belief Nets. Neural

Computation, 18(7):1527–1554.

Hinton, G. E. and Salakhutdinov, R. R. (2006). Reduc-

ing the Dimensionality of Data with Neural Networks.

Science, 313(5786):504–507.

Jahanshahi, M. R., Masri, S. F., Padgett, C. W., and

Sukhatme, G. S. (2013). An innovative methodology

for detection and quantiﬁcation of cracks through in-

corporation of depth perception. Machine Vision and

Applications, 24(2):227–241.

Kim, Y.-S. and Haas, C. T. (2000). A model for automation

of infrastructure maintenance using representational

forms. Automation in Construction, 10(1):57–68.

Koch, C. and Brilakis, I. (2011). Pothole detection in as-

phalt pavement images. Advanced Engineering Infor-

matics, 25(3):507–515.

Liu, Z., Suandi, S. A., Ohashi, T., and Ejima, T. (2002).

Tunnel crack detection and classiﬁcation system based

on image processing. In Electronic Imaging 2002,

pages 145–152. International Society for Optics and

Photonics.

Makantasis, K., Protopapadakis, E., Doulamis, A. D.,

Doulamis, N. D., and Loupos, C. (2015). Deep Con-

volutional Neural Networks for Efﬁcient Vision Based

Tunnel Inspection. Cluj-Napoca, Romania.

Mohanty, A. and Wang, T. T. (2012). Image mosaicking of

a section of a tunnel lining and the detection of cracks

through the frequency histogram of connected ele-

ments concept. volume 8335, pages 83351P–83351P–

Crack Identiﬁcation Via User Feedback, Convolutional Neural Networks and Laser Scanners for Tunnel Infrastructures

733

Monserrat, O. and Crosetto, M. (2008). Deformation mea-

surement using terrestrial laser scanning data and least

squares 3d surface matching. ISPRS Journal of Pho-

togrammetry and Remote Sensing, 63(1):142–154.

Nuttens, T., Stal, C., De Backer, H., Schotte, K., Van Bo-

gaert, P., and De Wulf, A. (2014). Methodology for

the ovalization monitoring of newly built circular train

tunnels based on laser scanning: Liefkenshoek rail

link (belgium). Automation in Construction, 43:1–9.

Peji

c, M. (2013). Design and optimisation of laser scan-

ning for tunnels geometry inspection. Tunnelling and

Underground Space Technology, 37:199–206.

Protopapadakis, E. and Doulamis, N. (2015). Image

Based Approaches for Tunnels Defects Recognition

via Robotic Inspectors. In Bebis, G., Boyle, R.,

Parvin, B., Koracin, D., Pavlidis, I., Feris, R., Mc-

Graw, T., Elendt, M., Kopper, R., Ragan, E., Ye, Z.,

and Weber, G., editors, Advances in Visual Comput-

ing, number 9474 in Lecture Notes in Computer Sci-

ence, pages 706–716. Springer International Publish-

ing. DOI: 10.1007/978-3-319-27857-5 63.

Pynn, J., Wright, A., and Lodge, R. (1999). Automatic iden-

tiﬁcation of cracks in road surfaces. In Image Process-

ing and Its Applications, 1999. Seventh International

Conference on (Conf. Publ. No. 465), volume 2, pages

671–675 vol.2.

Sinha, S. K. and Fieguth, P. W. (2006). Automated detection

of cracks in buried concrete pipe images. Automation

in Construction, 15(1):58–72.

Son, H., Kim, C., and Kim, C. (2012). Automated Color

ModelBased Concrete Detection in Construction-

Site Images by Using Machine Learning Algo-

rithms. Journal of Computing in Civil Engineering,

26(3):421–433.

Tung, P.-C., Hwang, Y.-R., and Wu, M.-C. (2002). The

development of a mobile manipulator imaging system

for bridge crack inspection. Automation in Construc-

tion, 11(6):717–729.

Yu, S.-N., Jang, J.-H., and Han, C.-S. (2007). Auto inspec-

tion system using a mobile robot for detecting con-

crete cracks in a tunnel. Automation in Construction,

16(3):255–261.

RGB-SpectralImaging 2016 - Special Session on RBG and Spectral Imaging for Civil/Survey Engineering, Cultural, Environmental,

Industrial Applications

734
