Content based Image Retrieval Databases Classiﬁcation with Brain

Event Related Potential

Rodrigo Prior Bechelli

Centro Universit´ario da FEI, Av. Humberto de A. C. Branco, 3972, 09850-901, S˜ao Bernardo do Campo, S˜ao Paulo, Brazil

Keywords:

Brain Computer Interface, BCI, Content Based Image Retrieval, CBIR, Electroencephalography, EEG.

Abstract:

This paper evaluates and compile information related to Electroencephalography (EEG) used as a pattern to

classify a Content Based Image Retrieval (CBIR) system based on an Event Related Potential (ERP) as an

input data vector to classify an image database. The Rapid Serial Visual Presentation (RSVP) is used as a

method to present multiple images to obtain a series of P300 brain response and specify the duality of target

or non- target images (oddball paradigm).

1 INTRODUCTION

The research ﬁeld of Content Based Image Retrieval

(CBIR) proposes methods to search across a high vol-

ume of image or data ﬁles. Over the last few decades

it has increased exponentially (Liu et al., 2007) and

even with the most advanced technology we have still

not bridged the gaps between what we search and the

conceptual idea behind what we are trying to search

(Deserno et al., 2009).

One initiative to connect these gaps is to un-

derstand how we process these ideas using acqui-

sition methods based on brain activity to possibly

achieve better query results. Based on that proposi-

tion, this work explores a Brain Computer Interface

(BCI) based on brain Event Related Potential (ERP)

(Farwell and Donchin, 1988) using P300 component

captured via Electroencephalography (EEG) signals

applied recently by authors over CBIR queries.

2 OBJECTIVES

• Evaluate the actual classiﬁcation methods of ap-

plying EEG signals to an image database;

• Evaluate and compare the methods of feature vec-

tor extraction from EEG signals to apply in an im-

age database;

• Query an image database classiﬁed via EEG sig-

nals and evaluate its results with a CBIR method-

ology.

3 STATE OF THE ART

The following authors, Wang et al. (2009); Khosla

et al. (2011); Uˇs´cumli´c et al. (2011); Healy and

Smeaton (2011); Uˇs´cumli´c et al. (2013); Mohedano

et al. (2014) were compared to map the state of the

art of applying EEG over CBIR and speciﬁcally de-

ﬁne a path of research based on: acquisition hard-

ware, Rapid Serial Visual Presentation (RSVP), im-

age database, tested subjects, preprocessing, process-

ing and classiﬁcation. With this map it is possible to

evaluate, in a future work, all the requirements to cre-

ate a simulation environment.

To capture the brain signals, EEG acquisition was

applied and all researched authors adopted the 10-

20 protocol to distribute the electrodes on the scalp.

Also, all the authors proposed the method of Event

Related Potential (ERP) (Sutton et al., 1965) to trig-

ger the P300 brain response and specify the dual-

ity of target or non-target images (oddball paradigm)

(Donchin et al., 1978; Donchin and Arbel, 2009).

3.1 Acquisition Hardware and

Environment

The acquisition hardware details and environment to

capture the EEG signals, for example a Faraday cage

environment, are not described in all references, but

the ones that exposes it are detailed in Table 1.

Bechelli, R.

Content based Image Retrieval Databases Classiﬁcation with Brain Event Related Potential.

In Doctoral Consortium (DCBIOSTEC 2016), pages 3-8

Table 1: Hardware and Environment.

Hardware

64-channel BioSemi ActiveTwo system in an

extended 10-20 montage at a sampling rate of

2048Hz (Wang et al., 2009)

no description (Khosla et al., 2011)

no description (Uˇs´cumli´c et al., 2011)

16 channel KT88-1016 EEG system with a

left mastoid reference and the chin as ground.

Ag/AgCl electrodes were used with a 10-20

placement. Digitized at 100Hzand subsequently

band-passed from 0.1Hz to 20Hz (Healy and

Smeaton, 2011)

64-channel BioSemi ActiveTwo system in an

extended 10-20 montage at a sampling rate of

2048Hz. Calibrated via electrooculographic

(EOG) activity (Uˇs´cumli´c et al., 2013)

31 channel BCI with a sample rate of 1kHz was

used to capture the brain reaction of the users

during the image presentation. The electrodes

were located according to the 10-20 system dis-

tribution (in a Faraday Cage) (Mohedano et al.,

2014)

3.2 Rapid Serial Visual Presentation

(RSVP)

To evaluate several images for each one of the sub-

jects, the Rapid Serial Visual Presentation (RSVP)

was used. This method consist in presenting several

images to the subject in a controlled environment and

frequency such as in a ﬂash mode. The sequence of

ﬂashes contains several images while it is required to

the subject to identify a target in a series of non target

images (Mohedano et al., 2014).

Over the series of articles researched the same

method is applied with some variation as presented

in Table 2.

Khosla et al. (2011) described a possible issue on

dissimilar image sequences that have different colors,

scales and textures. These differences could trigger a

”false alarm” P300 signal based on the surprise. They

also propose a preprocessing method of feature ex-

traction and a distance model between images to eval-

uate the image database.

3.3 Image Database

In order to compare the results in CBIR environment a

image database must be used to evaluate the resulting

queries. As long as there are trusted image databases

Table 2: Rapid Serial Visual Presentation (RSVP).

RSVP Method Details

240px x 240px image size, 62 objects database

randomly partitioned in two, with 1000 images

as 10 blocks of 100 images each presented at

6Hz (Wang et al., 2009)

256px x 256px image size, presented at 10Hz

and results presented in 50 images screen with

10 images/row (Khosla et al., 2011)

220 image sequences with 20 target images pre-

sented at 4Hz (Uˇs´cumli´c et al., 2011)

Target images were inserted into blocks of 100

non-target presented at 10Hz. Total of 4.800 im-

ages with 60 target randomly distributed (Healy

and Smeaton, 2011)

20 images per object (eg. ”dog”, ”eagle” etc)

with 10 categories. 10% targets. Subjects sat

at 60cm from screen with images occupying ap-

proximate 6

x 4

of their visual ﬁeld and were

instructed to silently count images of a speciﬁed

object (Uˇs´cumli´c et al., 2013)

22 images selected with a single object and lim-

ited complexity background. With 192 window

of each image presented at 5Hz zoomed and

centered at screen. Subjects were instructed to

count the number of windows containing a part

of the object (Mohedano et al., 2014)

Table 3: Image Database.

Image Databases

Caltech 101 dataset (3798 images) and 62 object

from Caltech and Satellite imagery with ”Heli-

pad” 1051 targets (Wang et al., 2009)

no description (Khosla et al., 2011)

Custom database with 1382 images annotated

using features based on human vision Colored

Pattern Appearance Model (CPAM) and Edge-

based features (Uˇs´cumli´c et al., 2011)

Amsterdam Library of Object Images (ALOI)

with 1000 objects with 4800 images with a num-

ber of different camera angles/lighting condi-

tions (Healy and Smeaton, 2011)

Caltech dataset (Uˇs´cumli´c et al., 2013)

Berkeley Segmentation Dataset and Benchmark

(BSDB) (Mohedano et al., 2014)

available for research the studied papers are compared

by this deﬁnition in Table 3.

DCBIOSTEC 2016 - Doctoral Consortium on Biomedical Engineering Systems and Technologies

3.4 Tested Subjects

All the articles used primary data collected in sessions

of EEG and RSPV following the methods already de-

scribed. The total number of subjects in each experi-

ment is relevant in order to compare the volume of in-

formation captured. The details for each experiment

are described in Table 4.

Table 4: Subjects.

Subjects and Details

4 undergraduate and graduate students, staff and

faculty that were not digital media analysts, but

were familiar with EEG work (Wang et al.,

2009)

no description (Khosla et al., 2011)

1 subject for database classiﬁcation. Retrieval

stage was made with synthetic data that emulates

EEG decoding with error rates of 30% and 60%

(Uˇs´cumli´c et al., 2011)

8 postgraduate and staff population on campus,

5 males and 3 females were recruited with an av-

erage age of 27.5 years with standard deviation

of 4.5 years. (Healy and Smeaton, 2011)

15 subjects with normal or corrected-to-normal

vision. There was no speciﬁc criteria for recruit-

ing the subjects (Uˇs´cumli´c et al., 2013)

5 subjects between 21 and 32 years old (Mo-

hedano et al., 2014)

As detailed by Uˇs´cumli´c et al. (2013), the EEG

data captured from the subjects in a live demonstra-

tion and in a pubic space, presented at a high noise

environment. All the other papers are, implicitly, con-

ducted in a laboratory environment.

3.5 Software

None of the articles expose the BCI software plat-

form used to develop the test, acquiring and process-

ing EEG data. This result is expected as long as some

of the acquisition hardware already come with its own

software packages.

4 PROCESSING DATA

All the researched work employ a method of classiﬁ-

cation based on EEG data and a method to propagate

the extracted features for the remaining target images

of the database. In this section it will be pointed the

described methods in each evaluated papers and the

exploration of each method will be evaluated in fu-

ture works.

4.1 EEG Processing

Once EEG data is acquired, RSVP must be processed

in order to obtain the ERP signals and generate a se-

ries of features that can be propagate to the additional

unclassiﬁed images and detailed in Table 5.

Table 5: EEG Processing.

EEG Processing Algorithms

Apply a method to detect in real time the P300

signal using Fisher Linear Discriminator using a

window of 100ms (Wang et al., 2009)

no description (Khosla et al., 2011)

Gaussian classiﬁer with no additional details

(Uˇs´cumli´c et al., 2011)

Support Vector Machine (SVM) (Healy and

Smeaton, 2011)

Use a two step method applying a Canonical

Variate Analysis (CVA) initially and a Gaussian

Classiﬁer over the most discriminant features

(Uˇs´cumli´c et al., 2013)

Support Vector Machine (SVM) with Radial Ba-

sis Function (RBF) kernel classiﬁer with nor-

malized feature vector with zero mean and unit

standard deviation across each feature compo-

nent (Mohedano et al., 2014)

Additionally to selected articles in Table 5, Tong

and Chang (2001) worked with linear kernel and au-

thors evaluatedthe effect of a reduced number of EEG

channels applying a Sequential Forward Feature Se-

lection (SFFS) and Somol et al. (1999) tried to ﬁnd

subsets between the determined classes of images.

4.2 Image Database Processing

Khosla et al. (2011) implemented some level of pro-

cessing at the image database. It was highlighted the

need to normalize images at color, background and

texture of images in order to reduce the false positive

levels of P300 signals in EEG capture. First is im-

plemented a color conversion from RGB to HSV and

implement Euclidean distance calculation over image

histogram. Once calculated images are ordered and

clustered.

The state of the art compared six articles that ap-

ply the same technique: ERP, P300, RSVP and CBIR.

Even with the same basic structure and dealing with

the same challenges these papers presented a level of

Content based Image Retrieval Databases Classiﬁcation with Brain Event Related Potential

variance in the features that were evaluated. But it

also possible to detect some level of concordance in

the image database: Caltech image database (Wang

et al., 2009; Uˇs´cumli´c et al., 2013). In RSVP it is

not possible to have the same description in all arti-

cles but there is possible to verify a trend in image

size and frequency rates. In EEG Processing it is also

possible to identify to use of Support Vector Machine

(SVM) (Healy and Smeaton, 2011; Mohedano et al.,

2014) and Gaussian Classiﬁer (Uˇs´cumli´c et al., 2011,

2013).

5 METHODOLOGY AND

EXPECTED OUTCOME

A RSVP protocol test were develop to use Caltech

101 dataset (Fei-Fei et al., 2007) to be preprocessed

as described in section 3. This database have 9.144

images, classiﬁed in 102 categories. For this test 57

categories were adopted with total of 3.436 images.

Images were preprocessed to ﬁt 300px height and

300px width.

The RSVP test were developed to work on a com-

puter screen of 1024x768px resolution (but also work

with some variation of this resolution). It starts with

5s of black image presentation and after this time the

images were centered in a black background and pre-

sented sequentially at 4Hz frequency.

In this stage, the consumer product Emotiv-

EPOC+ (Emotiv, 2011) was used to capture EEG

signals. This device is composed of 14 electrodes

(AF3, F7, F3, FC5, T7, P7, O1, O2, P8, T8, FC6,

F4, F8, AF4), with acquisition rate of 128Hz. It is

known that this device partially cover occipital and

parietal electrodes, important regions to acquire Vi-

sual Evoked Potential (VEP) as previously reported

by Duffy et al. (1999). But recent research suc-

cessfully employed the Emotiv-EPOC+ in order to

capture P300 responses as proposed by Ekanayake

(2010).

A build script was developed with Python

(Oliphant, 2007; P´erez and Granger, 2007; Gram-

fort et al., 2013) program language to interface a

test RSVP application with OpenViBE (Renard et al.,

2010) platform.

The test process ﬂow described as follow:

1. Subject basic information was obtained during an

initial interview to verify any medical or physio-

logical restriction;

2. Subject read and sign an informed consent;

3. Subject is prepared for EEG acquisition equip-

ment;

4. Test is built speciﬁcally for the subject following

expected requirements:

(a) Subject Name;

(b) Subject Born Date;

(d) Image category choose for test (e.g: ”dog”);

(e) Number of targets in RSVP test (default value

30);

(f) Minimum number of non-targets between each

target (default value 6);

(g) Maximum number of non-targets between each

target (default value 20);

(h) Total number of sessions per subject (default

value 4);

(i) RSVP Frequency Rate in Hz (default value 4).

5. The test consist in 4 sessions of 2min with a range

of 400 to 600 images with 30 target images;

With this information it is expected to use a clas-

siﬁcation method for the acquired feature vectors of

target and no-target images in order to tag the image

database.

Once the image database is tagged it will be pos-

sible to evaluate results achieved using a BCI clas-

siﬁcation system against a manual classiﬁcation of a

CBIR.

6 STAGE OF THE RESEARCH

The python software that build the RSVP protocol

integrated with OpenViBE were developed an tested

with a subset of Caltech 101 dataset.

In order to validate the entire pipeline, EEG data

were acquired using Emotiv- EPOC+ from 6 under-

graduate and graduate students volunteers between 22

and 40 years old. All subjects have a certain level

of knowledge of the tests, but none of them work di-

rectly with this research. Tests were conducted in the

university usability laboratory.

At this stage, the analysis of the collected data was

started. In Figure 1 is possible to evaluate the average

of EEG signal of the evoked potentials from a single

subject of 120 presented target images along all four

sessions.

Evaluating the results in Figure 1, the P300 sig-

nal is expected to be displayed in time window from

250ms to 450ms, showing expected responses for this

scenario (Duvinage et al., 2012).

From the same subject, in Figure 2, it is possible

to identify the expected activation areas at 300ms in

electrodes O1, O2, P8 and P7.

DCBIOSTEC 2016 - Doctoral Consortium on Biomedical Engineering Systems and Technologies

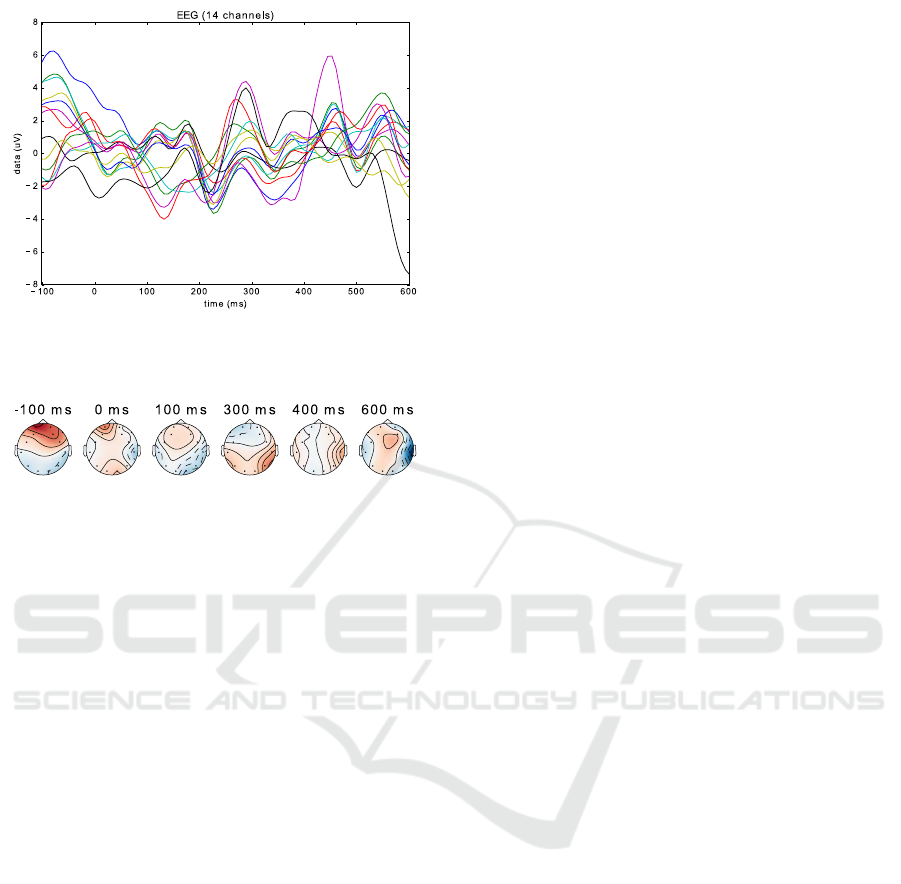

Figure 1: P300 analysis from a single subject. Average from

120 target images (30 target images from all sessions).

Figure 2: Topographic map of evoked potentials from Fig-

ure 1.

None of this data was cleaned from additional ar-

tifacts, for example, eye movement electromyography

signals or invalidation of time window epochs. At this

stage it necessary to evaluate a preprocessing algo-

rithm that better suit the research purpose.

ACKNOWLEDGEMENTS

This study was produced with FEI, CAPES and

FAPESP funding.

REFERENCES

Deserno, T. M., Antani, S., and Long, R. (2009). Ontology

of gaps in content-based image retrieval. Journal of

digital imaging, 22(2):202–15.

Donchin, E. and Arbel, Y. (2009). P300 based brain

computer interfaces: A progress report. In Lecture

Notes in Computer Science (including subseries Lec-

ture Notes in Artiﬁcial Intelligence and Lecture Notes

in Bioinformatics), volume 5638 LNAI, pages 724–

731.

Donchin, E., Ritter, W., and McCallum, C. (1978). Cogni-

tive psychophysiology: The endogenous components

of the ERP.

Duffy, F. H., Iyer, V. G., and Surwillo, W. W. (1999).

Eletroencefalograﬁa Cl´ınica e Mapeamento Cerebral

Topogr´aﬁco: Tecnologia e Pr´atica. Revinter Ltda, 1

edition.

Duvinage, M., Castermans, T., Dutoit, T., Petieau, M.,

Hoellinger, T., Saedeleer, C., Seetharaman, K., and

Cheron, G. (2012). A P300-based quantitative com-

parison between the emotiv epoc headset and a med-

ical EEG device. Proceedings of the 9th IASTED In-

ternational Conference on Biomedical Engineering,

BioMed 2012, pages 37–42.

Ekanayake, H. (2010). P300 and Emotiv EPOC: Does

Emotiv EPOC capture real EEG? Web publication

http://neurofeedback. visaduma. info/ . .., page 16.

Emotiv, S. (2011). EMOTIV EPOC: Brain Computer Inter-

face & Scientiﬁc Contextual EEG.

Farwell, L. a. and Donchin, E. (1988). Talking Off the Top

of Your Head. electroencephalography and clinical

Neurophysiology, 70(6):510–523.

Fei-Fei, L., Fergus, R., and Perona, P. (2007). Learning gen-

erative visual models from few training examples: An

incremental Bayesian approach tested on 101 object

categories. Computer Vision and Image Understand-

ing, 106(1):59–70.

Gramfort, A., Luessi, M., Larson, E., Engemann, D. A.,

Strohmeier, D., Brodbeck, C., Goj, R., Jas, M.,

Brooks, T., Parkkonen, L., and H¨am¨al¨ainen, M.

(2013). MEG and EEG data analysis with MNE-

Python. Frontiers in Neuroscience, (7 DEC).

Healy, G. and Smeaton, A. (2011). Optimising the number

of channels in EEG-augmented image search. Pro-

ceedings of the 25th BCS Conference on . .., pages

1–6.

Khosla, D., Bhattacharyya, R., Tasinga, P., and Hu-

ber, D. J. (2011). Optimal Detection of Objects

in Images and Videos Using Electroencephalography

(EEG) Deepak. In Kadar, I., editor, SPIE Defense,

Security, and Sensing, pages 80501C–80501C–11. In-

ternational Society for Optics and Photonics.

Liu, Y., Zhang, D., Lu, G., and Ma, W. Y. (2007). A sur-

vey of content-based image retrieval with high-level

semantics. Pattern Recognition, 40:262–282.

Mohedano, E., Healy, G., McGuinness, K., Gir´o-i Nieto,

X., O’Connor, N. E., and Smeaton, A. F. (2014). Ob-

ject Segmentation in Images using EEG Signals. In

Proceedings of the ACM International Conference on

Multimedia - MM ’14, pages 417–426, New York,

New York, USA. ACM Press.

Oliphant, T. E. (2007). SciPy: Open source scientiﬁc tools

for Python. Computing in Science and Engineering,

9:10–20.

P´erez, F. and Granger, B. E. (2007). IPython: A system for

interactive scientiﬁc computing. Computing in Sci-

ence and Engineering, 9(3):21–29.

Renard, Y., Lotte, F., Gibert, G., Congedo, M., Maby, E.,

Delannoy, V., Bertrand, O., and L´ecuyer, A. (2010).

OpenViBE: An Open-Source Software Platform to

Design, Test, and Use Brain–Computer Interfaces in

Real and Virtual Environments.

Somol, P., Pudil, P., Novoviˇcov´a, J., and Pacl´ık, P. (1999).

Adaptive ﬂoating search methods in feature selection.

Pattern Recognition Letters, 20(11-13):1157–1163.

Content based Image Retrieval Databases Classiﬁcation with Brain Event Related Potential

Sutton, S., Braren, M., Zubin, J., and John, E. R. (1965).

Evoked-potential correlates of stimulus uncertainty.

Science (New York, N.Y.), 150(700):1187–1188.

Tong, S. and Chang, E. (2001). Support vector machine

active learning for image retrieval. Proceedings of

the ninth ACM international conference on Multime-

dia MULTIMEDIA 01, 54(C):107.

Uˇs´cumli´c, M., Chavarriaga, R., and Mill´an, J. d. R. (2011).

On coupling Computer Vision and Single trial detec-

tion of ERP under RSVP. International Journal of

Bioelectromagnetism, 13(3):133–135.

Uˇs´cumli´c, M., Chavarriaga, R., and Mill´an, J. D. R. (2013).

An iterative framework for EEG-based image search:

robust retrieval with weak classiﬁers. PloS one,

8(8):e72018.

Wang, J., Pohlmeyer, E., Hanna, B., Jiang, Y., Sajda, P.,

Chang, S., and Jun Wang, Eric Pohlmeyer, Barbara

Hanna, Yu-gang Jiang, Paul Sajda, S.-f. C. (2009).

Brain State Decoding for Rapid Image Retrieval. In

Proceedings of the seventeen ACM international con-

ference on Multimedia, pages 945–954.

DCBIOSTEC 2016 - Doctoral Consortium on Biomedical Engineering Systems and Technologies
