Automatic Refactoring of Single and Multiple-view UML Models

using Artificial Intelligence Algorithms

Abdulrahman Baqais and Mohammad Alshayeb

Department of Information Science and Technology, King Fahd University of Petroleum & Mineralsy,

KFUBM Blvd., Dhahran, Saudi Arabia

1 INTRODUCTION

Refactoring tends to improve the internal structure

of the software while preserving its

behaviour(Fowler and Beck, 1999). This process

attempts to reduce the complexity of the software

and cut its maintaince cost(Mens and Tourwe, 2004)

promoting its quality status(Alshayeb, 2009).

1.1 Research Problem

The majority of articles that discuss software

refactoring are focusing on software code (Fowler

and Beck, 1999, O'Keeffe and Cinnéide, 2008,

Alkhalid et al., 2011b). Recently, a slight increase in

the interest of refactoring at the design level

emerged(Misbhauddin and Alshayeb, 2015).

Different methods have been applied to refactor

UML diagrams namely: pattern-based (Song et al.,

2002a), formal rules (Massoni et al., 2005) and

graph transformation (Mens, 2006).

Refactoring UML diagrams is favorable since

designing activity precedes coding and as such

abnormalities, ill-structure or potential bugs can be

detected and corrected early (Sunyé et al., 2001).

Each UML diagram has different design smells and

requires different refactoring operations.

Refactoring UML design smells for each diagram

manually exhibits some drawbacks such as: it’s

costly in terms of cost and time and it requires

domain experts. Automating the refactoring process

surely will save time and cost and will help software

practioners to improve their designs.

Most of the other refactoring approaches are carried

out on single instances of UML diagrams (Ghannem

et al., 2011, Issa, 2007). In this research, we are

extending the field by applying AI refactoring on a

multiple-view UML model and comparing the

results with individual UML diagrams. This will

show the advantages of adopting multiple-view

refactoring.

The overall aim of this research is to “refactor UML

models by providing the user with a set of AI

techniques, that utilize software metrics and

refactoring operations, to produce refactoring

sequences that improve quality”.

1.2 Research Motivation

Most of the recent articles in the literature focus on

source-code level refactoring, this research seeks the

developemnt of applying AI refactoring at the design

level to various UML diagrams. It sets itself apart

from other works by including a multiple-view UML

model (Misbhauddin, 2012) (A novel model

proposed by a PhD student) and refactor it along

with a detailed comparison between UML diagrams

refactoring and multiple-view UML refactoring

utilizing different AI algorithms. A multiple-view

UML model unifies two UML views: Structural and

Behavioural.

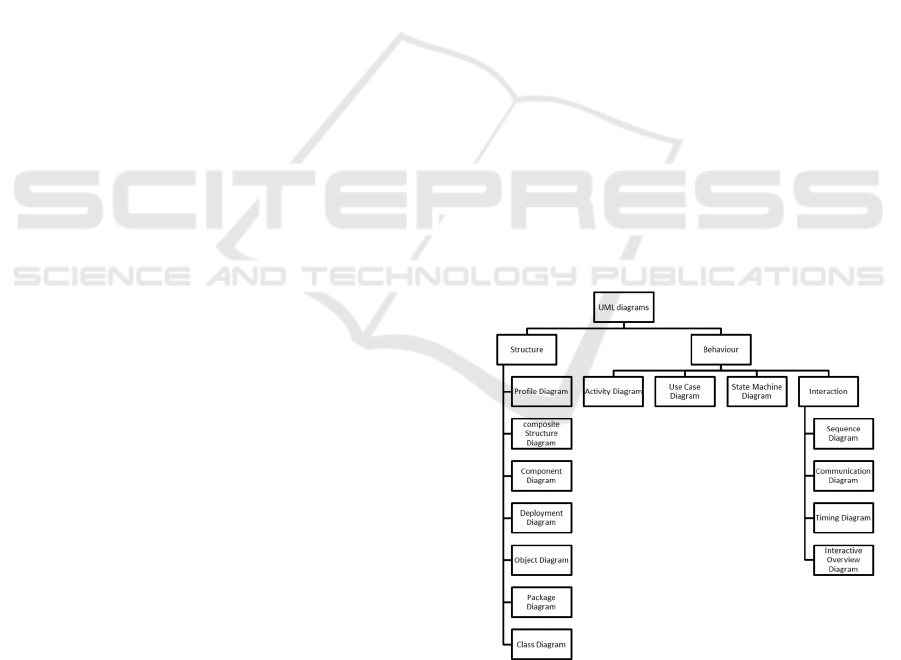

Figure 1: UML Views and Diagrams.

A recent thoroughly systematic review published in

Empirical Software Engineering Journal emphasizes

the need to pursue further research on UML Model

Refactoring: “The results of this review indicated

that UML model refactoring is a highly active area

Baqais, A. and Alshayeb, M.

Automatic Refactoring of Single and Multiple-view UML Models using Artiﬁcial Intelligence Algorithms.

In Doctoral Consortium (DCMODELSWARD 2016), pages 3-8

of research. Quite a few quality techniques and

approaches have been proposed in this area, but it

still has some important issues and limitations to be

addressed in future work” (Misbhauddin and

Alshayeb, 2015).

1.3 Multiple-View Model

The multiple-View model proposed by Misbhauddin

(Misbhauddin, 2012) combines three diagrams: class

diagram, sequence diagram and use case diagrams.

Each diagram represented one view as illustrated in

Figure 1. Misbhauddin extended the metamodel of

these three diagrams to form one model named an

integrated model. Then, he ran some experiments to

show that the integrated model can reveal some

hidden smells of each diagram that was not clear

when refactoring each diagram individually.

2 OUTLINE OF OBJECTIVES

In this section, we discuss the research objective and

the research questions.

2.1 Research Objectives

The main objective of this research is to:

“automatically refactor UML models using

a set of Artificial Intelligence techniques, that are

guided by software metrics, in order to apply

refactoring operations that lead to quality

improvement”. To achieve the main objective, the

following sub-objectives are proposed:

1. Evaluate various AI algorithms that can be used

for software refactoring at UML model level.

2. Apply AI algorithms to refactor the individual

UML models and the multiple-view UML

model.

3. Evaluate and compare the quality impro-

vement/degradation of the refactored UML

models.

In this research, we aim to provide answers to the

following research questions:

1. Which AI algorithms are effective in

refactoring UML models?

2. Is refactoring a multiple-view UML model

different from refactoring a single-view UML

model using AI?

3. Does refactoring a multiple-view UML model,

using the proposed approach, yield better

quality than refactoring a single-view model?

Research question (RQ) 1 is concerned with the

process, techniques and approaches that facilitate

refactoring at model level. Three UML diagrams are

selected: class diagram, use case diagram and

sequence diagram. These diagrams are the ones

used by (Misbhauddin, 2012) to construct a

multiple-view UML model. Figure 2 shows the

popularity of these three diagrams using Google

Trend.

Metaheuristic-based refactoring or generally a

search-based algorithm received an increasing

interest recently and it’s applied extensively on

software code by a premier research groups such as:

Search-Based Software Engineering (SBSE). We

anticipated the same technique can generate fruitful

advantages if it is applied to the different UML

models such as sequence and use case diagram.

RQ 2 is concerned with employing AI techniques to

refactor multiple-view UML model.

RQ 3 is measuring the impact of those techniques on

improving the model quality. It is worth noting that

software metrics may conflict with each other, thus,

improving one metric may lead to degrading the

values of the other metric (for example coupling and

cohesion). This issue is far clearer for multiple-view

model refactoring.

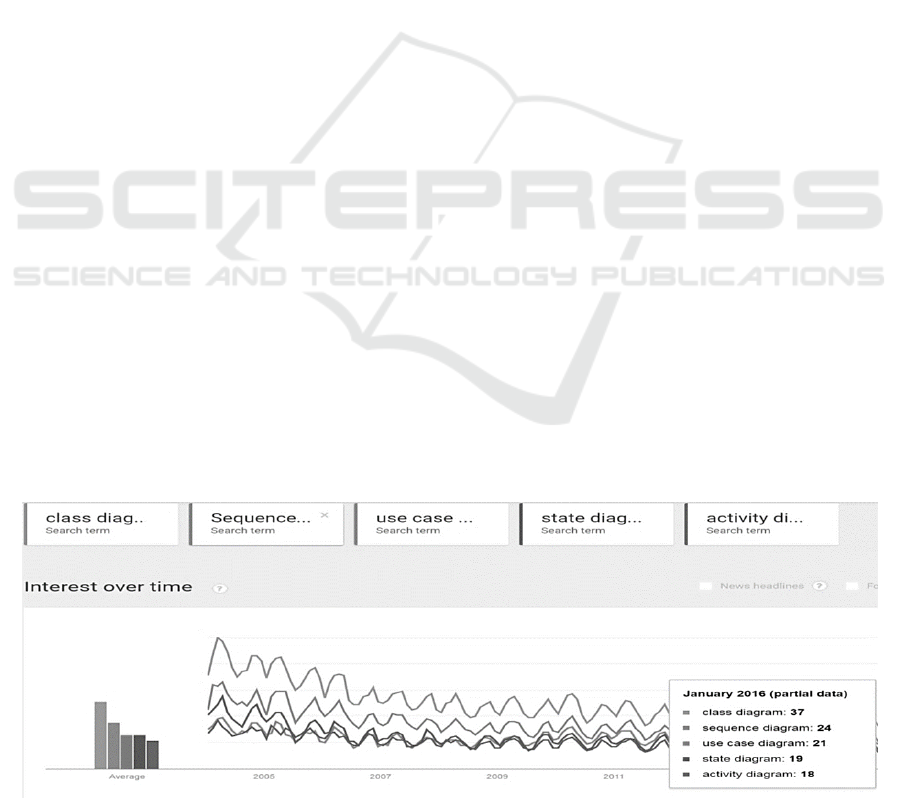

Figure 2: Interest of some UML over time.

DCMODELSWARD 2016 - Doctoral Consortium on Model-Driven Engineering and Software Development

3 STATE OF THE ART

Refactoring is defined by Opdyke, as “program

restructuring transformation that supports the design,

evolution, and reuse of object-oriented application

framework” (Opdyke, 1992). Fowler, who wrote the

classic reference in code refactoring, defined it as “a

change made to the internal structure of software to

make it easier to understand and cheaper to modify

without changing its observable behavior” (Fowler

and Beck, 1999).

Model Refactoring is performed to satisfy

specific design qualities. There are some reasons

that urge decision makers to work on model

refactoring (Song et al., 2002b): to meet design

goals, to address deficiencies uncovered by design

analyses and to explore alternative designs. The first

to start refactoring UML diagrams was Sunye et al.

(Sunyé et al., 2001).

Some papers addressed refactoring use case

diagrams (Rui and Butler, 2003, Yu et al., 2004,

Khan and El-Attar, 2014).

Some works targeted the refactoring of a

sequence diagram such as: (Ren et al., 2003, Liu et

al., 2006, Dae-Kyoo, 2008).

Most of the refactoring activities are presented in

Fowler Catalogue (Fowler and Beck, 1999, Fowler

et al., 2004, Fowler, 2013). However, these

operations are addressing ill-code structure. El-Attar

and Miller (El-Attar and Miller, 2010) proposed a

comprehensive list of refactoring activities

addressing ill-structured use case diagram; they

referred to this list as anti-patterns (El-Attar and

Miller, 2010). Other works include the ones by

cortellessa et al. (Cortellessa et al., 2010) and Llano

et al. (Llano and Pooley, 2009).

Alkhalid et al. (Alkhalid et al., 2011a) applied

clustering algorithms for software refactoring. Their

work, however, was focused on two conflicted

metrics only: Coupling and Cohesion.

Search-based refactoring at code level was

investigated by O’Keefee and Mel Ó Cinnéide

(O'Keeffe and Cinnéide, 2008). They compared

several techniques on five programs in which four of

them are open-source. Jensen and Cheng (Jensen

and Cheng, 2010) applied Genetic Programming to

aid for automated refactoring. Koc et al. (Koc et al.,

2012) proposed Artificial Bee Colony (ABC)

optimization for automating refactoring and

compared it with several other techniques.

Mel Ó Cinnéide et al. (Mel et al., 2012) used AI

for automated refactoring focusing on cohesion

metrics only. Kessentini et al. (Kessentini et al.,

2011) implemented a genetic algorithm to detect bad

smells.

3.1 A Summary of the Previous Work

Issues

The articles mentioned in this section suffer from

some issues that we would like to address in our

research:

• Most of them are targeting code refactoring

(Alkhalid et al., 2010, Koc et al., 2012,

O'Keeffe and Cinnéide, 2008), while our focus

is towards refactoring UML models.

• None of them is targeting a multiple-view

UML diagram.

• None of them is comparing multiple-view of

UML with a single view, while in our research

both single-view UML and multiple-view

UML models are refactored and compared

using the same research settings.

4 METHODOLOGY

Our Methodology is based on the following phases:

1. Refactoring Set-up: This step involves three

components: operations, algorithms and quality

metrics.

2. Automation: This involves the implementation

of AI algorithms, tuning the parameters and

validating the results using quality metrics.

Tuning the parameters usually will be done by

running the experiments several times and

record the results until a satisfied value of the

quality metric is reached. Some algorithms such

as Simulated Annealing have been applied in

software refactoring, so we might tune the

parameters to similar values for comparison

purpose. For each AI algorithm, an objective

function will be specified that needs to be

maximized (or minimized). The objective

function represents a quality metric that we

need it to be optimized. Basically, we will work

on one objective function that addresses one or

combined quality metrics.

3. Empirical Analysis.

We are going to use different quality metrics to

evaluate the refactored diagram. For multiple-view

UML model, we may propose new metrics if we

find that the existing metric are not suitable to

measure the multiple-view UML model quality.

Figure 3 summarizes our research cycle:

Automatic Refactoring of Single and Multiple-view UML Models using Artiﬁcial Intelligence Algorithms

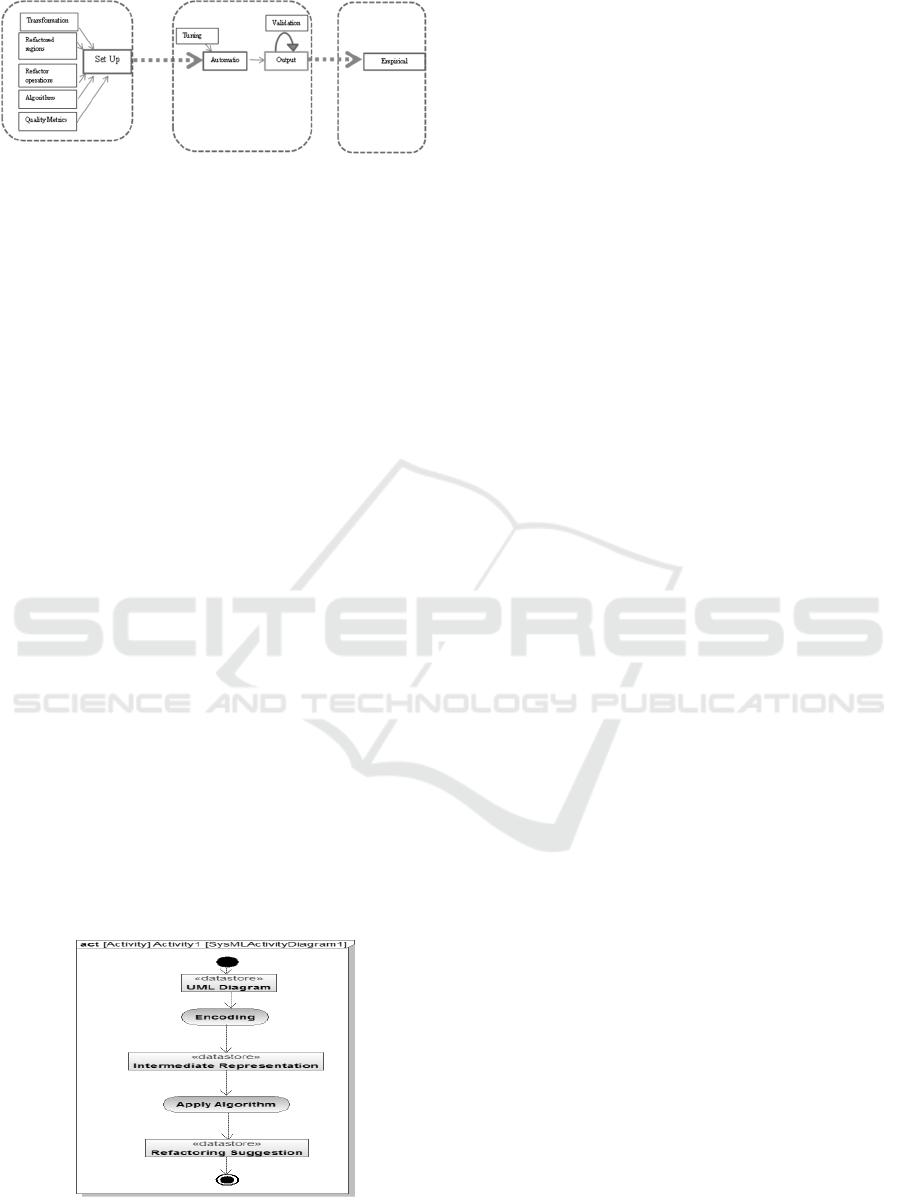

Figure 3: The experiment steps of our PhD Thesis.

4.1 Individual Diagram Refactoring

Process

In this part, we will describe with sufficient details

all the processes, operations and tasks required to

produce our results. The description here can be

used as a reference for all four diagrams, since the

flow chart of the four diagrams is similar.

1. The first phase involves preparing the data,

which in this part, is the UML diagram. The

data will be either: senior students’ projects,

published data or commercial models. There is

the possibility that some data is not clean and

needs some preprocessing.

2. Transforming the UML diagram to an

intermediate representation of the model. This is

to facilitate implementing the algorithms.

3. In order to apply algorithms to the refactoring

problem, we must map it to a suite of AI

algorithms. Sometimes, it is not obvious how

the problem can be encoded to be tackled by the

algorithm.

4. Producing a refactoring decision is the most

important phase and the core job of this

research. The same process is applicable for all

selected UML diagrams. In addition, since the

multiple-view UML model is not fully studied

in the literature and hence, we presume that all

steps may need some adjustments, as we may

find very few multiple-view UML models

available.

Figure 4: An activity diagram showing our proposed

solution.

4.2 Validation

As discussed earlier, refactoring aims to improve the

software artifact code or model. In order to ensure

that the refactoring operation has successfully

improved the artifact, a set of quality metrics are

measured. If the refactoring operation leads to

optimize the values of these metrics, then the

refactoring operation is considered valid.

Use case diagrams depict the functionality of the

system. Two types of metrics were investigated in

the literature: size complexity and effort estimation.

Effort estimation was investigated in the literature.

We opt to propose refactoring operations that

improves the size complexity. Sequence diagram

involves sending messages between classes.

Reducing the number of communication between

different classes lead to better understanding of the

system and reduce the overhead. Hence, we selected

refactoring operations that impacts on the cohesion

and coupling of the sequence diagrams. There are

many metrics designed to class diagrams. CK

metrics is known to be the most popular to capture

its quality. So, we are going to use them. For

multiple-view model, we might propose new metrics

or choose one of the above metrics and compare the

effectiveness of refactoring operations to multiple-

view with the single-view diagrams.

5 STAGE OF THE RESEARCH

Currently, we have accomplished half of the PhD

work. We automatically refactored use case and

sequence diagrams. We applied three search-based

algorithms: Hill climbing, Late-Acceptance Hill

Climbing and Simulated Annealing to refactor two

use case models using two complexity metrics. We

also refactored sequence diagram in order to

improve its cohesion and coupling metrics. We

compared a k-mean clustering algorithm with a

hybridized algorithm named KSA that hybridize k-

mean and SA algorithms together. We are going to

continue with refactoring class diagram and

multiple-view UML diagram. At the end of this

research, the following deliverables are expected:

• A comprehensive review of software

refactoring detections and operations focusing

mainly on search-based techniques.

• Conclusion on the appropriateness of a set of

AI algorithms for refactoring of use case,

sequence, class and multiple-view diagrams.

DCMODELSWARD 2016 - Doctoral Consortium on Model-Driven Engineering and Software Development

• A detailed report showing the performance of

various AI algorithms in refactoring UML

diagrams and setting a comparison framework

among these algorithms using statistical

techniques.

• New metrics, if necessary, which are applicable

to measure the quality of the multiple-view

model.

6 CONTRIBUTION

There are some issues in AI-based software

refactoring: the selection of techniques, the suitable

metrics, the model transformation approaches and

the application on the multiple-view UML models.

Leveraging the power of AI for refactoring is

promising. Studying the applicability of various AI

techniques over a set of different UML diagrams

will surely enrich the domain. Testing our approach

on different views of UML including the multiple-

view model will add another dimension to the

Model-driven refactoring literature. In addition, our

techniques are extendable and scalable by

implementing on other UML diagrams or models,

and by improving the applied AI algorithms via

operator and parameter tuning.

In summary, the major contributions of this

research to the model-based literature are outlined

below:

• Contribution 1: Refactoring the multiple-view

UML model:

• Contribution 2: Comparison between

refactoring UML models and multiple-view

UML model

6.1 Limitations

At this stage, we are not able to anticipate all types

and instances of limitations in our research.

However, the following limitations emerged from

our work so far. Knowing these limitations at an

early stage, we are trying to mitigate their effects on

the validity of our research:

• Data is an issue in the field of software

engineering. Many authors rely on a generated

UML from an available source code (Ghannem

et al., 2013, Ghannem et al., 2011), others rely

on published data (Song et al., 2002b). Al-

Dallal (AlDallal, 2014) reported the issue of

the absence of repository for model refactoring.

To mitigate this effect, we have collected data

from three different sources. These sources

are: open source, senior projects of students

and real-world case studies (either free or

commercial).

• Metrics is one of our research tools to validate

the results. There is some controversy on how

these metrics reflect what they measure

precisely and to which degree they are valid.

To mitigate the effect of this limitation, we rely

on the wide adoption of these metrics by many

authors in the domain.

• Some of the Artificial Intelligence techniques

do not show explicitly the steps on how the

software is refactored. To mitigate that, an

analysis with a brief description of the

algorithm and its running steps is going to be

provided.

• In running our experiments, we are relying on

our implementations of the algorithms. We are

going to run extensive testing to ensure the

correctness of their implementation.

ACKNOWLEDGEMENT

The authors would like to thank KFUPM for

support.

REFERENCES

Aldallal, J. 2014. Identifiying Refactoring opportunities in

object-oriented code: a systematic literature review.

Information and software technology.

Alkhalid, A., Alshayeb, M. & Mahmoud, S. 2010.

Software Refactoring at the function level using new

adaptive k-nearest neighbor algorithm. Advances in

engineering software, 41, 1160-1178.

Alkhalid, A., Alshayeb, M. & Mahmoud, s. A. 2011a.

Software refactoring at the class level using clustering

techniques [online]. [accessed].

Alkhalid, A., Alshayeb, M. & Mahmoud, s. A. 2011b.

Software refactoring at the package level using

clustering techniques. IET software, 5, 276-284.

Alshayeb, M. 2009. Empirical investigation of refactoring

effect on software quality. Information and software

technology, 51, 1319-1326.

Cortellessa, V., Marco, A. D., Eramo, R., Pierantonio, A.

& Trubiani, C. 2010. Digging into UML models to

remove performance antipatterns. Proceedings of the

2010 icse workshop on quantitative stochastic models

in the verification and design of software systems.

Cape town, south africa: acm.

Dae-kyoo, K. Year. Software quality improvement via

pattern-based model refactoring. In: high assurance

systems engineering symposium, 2008. Hase 2008.

11th ieee, 3-5 dec. 2008 2008. 293-302.

Automatic Refactoring of Single and Multiple-view UML Models using Artiﬁcial Intelligence Algorithms

El-attar, M. & Miller, J. 2010. Improving the quality of

use case models using Antipatterns. Software &

systems modeling, 9, 141-160.

Fowler, M. 2013. Catalog of Refactorings [online].

Available: http://www.refactoring.com/catalog/

[accessed 21-oct-2014 2014].

Fowler, M. & beck, k. 1999. Refactoring: improving the

design of existing code, reading, ma, addison-wesley

professional.

Fowler, S. W., Lawrence, T. B. & Morse, E. A. 2004.

Virtually embedded ties. Journal of management, 30,

647-666.

Ghannem, A., Boussaidi, G. E. & Kessentini, M. 2013.

Model refactoring using interactive genetic algorithm.

In: ruhe, g. & zhang, y. (eds.) Search based software

engineering. Springer berlin heidelberg.

Ghannem, A., Kessentini, M. & el Boussaidi, G. Year.

Detecting model refactoring opportunities using

heuristic search. In, 2011 2011. Riverton, nj, usa: ibm

corp., 175-187.

Issa, A. A. 2007. Utilising refactoring to restructure use-

case models. Lecture notes in engineering and

computer science.

Jensen, A. C. & Cheng, B. H. C. Year. On the use of

genetic programming for automated refactoring and

the introduction of design patterns. In, 2010 2010.

New york, ny, usa: acm, 1341-1348.

Kessentini, M., Kessentini, W., Sahraoui, H., Boukadoum,

M. & Ouni, A. Year. Design defects detection and

correction by example. In: 2011 IEEE 19th

international conference on program comprehension

(icpc), 2011/06// 2011. 81-90.

Khan, Y. & El-Attar, M. 2014. Using model

transformation to refactor use case models based on

antipatterns. Information systems frontiers, 1-34.

Koc, E., Ersoy, N., Andac, A., Camlidere, Z. S., Cereci, i.

& Kilic, H. 2012. An empirical study about search-

based refactoring using alternative multiple and

population-based search techniques. In: gelenbe, e.,

lent, r. & Sakellari, g. (eds.) Computer and

information sciences ii. Springer London.

Liu, H., Ma, Z., Zhang, L. & Shao, W. Year. Detecting

duplications in sequence diagrams based on suffix

trees. In: software engineering conference, 2006.

Apsec 2006. 13th asia pacific, 2006. IEEE, 269-276.

Llano, M. T. & Pooley, R. Year. UML specification and

correction of object-oriented anti-patterns. In:

software engineering advances, 2009. Icsea'09. Fourth

international conference on, 2009. IEEE, 39-44.

Massoni, T., Gheyi, R. & Borba, P. Year. Formal

refactoring for uml class diagrams. In, 2005 2005.

152-167.

Mel, #211, Cinn, #233, Ide, Tratt, L., Harman, M.,

Counsell, S. & Moghadam, I. H. 2012. Experimental

assessment of software metrics using automated

refactoring.

Proceedings of the Acm-IEEE

international symposium on empirical software

engineering and measurement. Lund, sweden: Acm.

Mens, T. 2006. On the use of graph transformations for

model refactoring. In: lämmel, r., saraiva, j. & visser,

j. (eds.) Generative and transformational techniques

in software engineering. Springer berlin heidelberg.

Mens, T. & Tourwe, T. 2004. A survey of software

refactoring. IEEE transactions on software

engineering, 30, 126-139.

Misbhauddin, M. 2012. Toward an integarted metamodel

based approach for software refactoring.

Misbhauddin, M. & Alshayeb, M. 2015. Uml model

refactoring: a systematic literature review. Empirical

softw. Engg., 20, 206-251.

O'keeffe, M. & Cinnéide, m. Ó. 2008. Search-based

refactoring: an empirical study. Journal of software

Maintenance and evolution: research and practice, 20,

345-364.

Opdyke, w. F. 1992. Refactoring object-oriented

frameworks.

Ren, S., Rui, K. & Butler, G. 2003. Refactoring the

scenario specification: a message sequence chart

approach. In: konstantas, d., léonard, m., pigneur, y. &

patel, s. (eds.) Object-oriented information systems.

Springer berlin heidelberg.

Rui, K. & Butler, g. 2003. Refactoring Use case models:

the metamodel. Proceedings of the 26th australasian

computer science conference - volume 16. Adelaide,

australia: australian computer society, inc.

Song, E., France, R. B., Kim, D.-K. & Ghosh, S. Year.

Using roles for pattern-based model refactoring. In:

proceedings of the workshop on critical systems

development with uml (csduml'02), 2002a.

Song, E., France, R. B., kim, D.-k. & Ghosh, S. Year.

Using roles for pattern-based model refactoring. In,

2002 2002b.

Sunyé, G., Pollet, D., Traon, Y. L. & Jézéquel, J.-M. 2001.

Refactoring uml models. In: gogolla, m. & kobryn, c.

(eds.)

≪≫

uml 2001 — the unified modeling language.

Modeling languages, concepts, and tools. Springer

berlin heidelberg.

Yu, W., Jun, L. & Butler, G. Year. Refactoring use case

models on episodes. In: automated software

engineering, 2004. Proceedings. 19th international

conference on, 20-24 sept. 2004 2004. 328-335.

DCMODELSWARD 2016 - Doctoral Consortium on Model-Driven Engineering and Software Development
