Fast Sequence Component Analysis for Attack Detection in Smart Grid

Jordan Landford

, Rich Meier

, Richard Barella

, Scott Wallace

, Xinghui Zhao

Eduardo Cotilla-Sanchez

and Robert B. Bass

Maseeh College of Engineering and Computer Science, Portland State University, Portland, U.S.A.

School of Electrical Engineering & Computer Science, Oregon State University, Corvallis, U.S.A.

School of Engineering and Computer Science, Washington State University Vancouver, Vancouver, U.S.A.

Keywords:

Spooﬁng, Phasor Measurement Unit (PMU), Synchrophasors, Correlation, Event Detection, Machine

Learning, Support Vector Machine (SVM).

Abstract:

Modern power systems have begun integrating synchrophasor technologies into part of daily operations. Given

the amount of solutions offered and the maturity rate of application development it is not a matter of “if” but

a matter of “when” in regards to these technologies becoming ubiquitous in control centers around the world.

While the beneﬁts are numerous, the functionality of operator-level applications can easily be nulliﬁed by

injection of deceptive data signals disguised as genuine measurements. Such deceptive action is a common

precursor to nefarious, often malicious activity. A correlation coefﬁcient characterization and machine learning

methodology are proposed to detect and identify injection of spoofed data signals. The proposed method uti-

lizes statistical relationships intrinsic to power system parameters, which are quantiﬁed and presented. Several

spooﬁng schemes have been developed to qualitatively and quantitatively demonstrate detection capabilities.

1 INTRODUCTION

Phadke and Thorp’s 1988 invention, the phasor mea-

surement unit or PMU, provides power systems op-

erators with near real-time measurements of Stein-

metz’s current and voltage phasors, thereby permit-

ting improved wide-area monitoring, control and pro-

tection of power systems(Phadke, 2002; Steinmetz,

1893; De La Ree et al., 2010). Imperative when us-

ing PMUs for any of these purposes is to ensure data

integrity. Data integrity may be compromised ran-

domly, as data drops or clock drifts, or maliciously

via data injection.

We propose that disruptions to data integrity may

be detected by monitoring correlation values between

phasor measurements from multiple adjacent PMUs.

In previous work, we show that a matrix of correla-

tion values between a cluster of PMUs can quickly

reveal data corruption, particularly data drops and

GPS clock drift(Meier et al., 2014). These kinds of

events result in rapid decorrelation between the af-

ﬂicted PMU and all others, observable as the appear-

ance of a row and column of very low correlation val-

ues. The parameters at electrically-close PMUs are

normally highly correlated; ﬂuctuations in voltage,

phase and frequency are not single-bus behaviours,

as adjacent buses will experience similar effects in a

well-correlated manner.

Both data drops and drifts result in very rapid

decorrelation. Less likely to be detected would be

spooﬁng attacks whereby vectors of “typical” PMU

data are somehow injected in place of a PMU’s actual

output data stream. Carefully-chosen vectors could

be used to disguise an attack that would otherwise al-

ter PMU data measurements, thereby providing the

attackers with cover while conducting a malicious at-

tack at a substation. By leveraging historic archived

PMU data, we believe we can characterize the distri-

bution of correlation values during normal operation

with enough ﬁdelity to identify many potential spoof-

ing strategies.

In order to mount a successful attack, vectors of

“typical” data, which we refer to as “spoofed” data,

must be injected in place of the actual data stream in

order to not raise alarms to the attack. It is reason-

able to assume an attacker could generate a represen-

tative vector of positive sequence voltage data, given

its propensity to be within ±10% of 1.0 p.u. Gener-

ating a convincing pair of vectors, however, would be

less likely, particularly if the parameters are weakly-

correlated. By monitoring correlation values of sev-

eral parameters between multiple electrically close

Landford, J., Meier, R., Barella, R., Wallace, S., Zhao, X., Cotilla-Sanchez, E. and Bass, R.

Fast Sequence Component Analysis for Attack Detection in Smart Grid.

In Proceedings of the 5th International Conference on Smart Cities and Green ICT Systems (SMARTGREENS 2016), pages 225-232

ISBN: 978-989-758-184-7

225

PMUs, attempts to inject false data may be detected.

Data-driven attacks have been suggested in the related

literature (Kim et al., 2014; Kim et al., 2015).

In this paper, we propose an approach to detect

spoofed signals from PMU data streams by monitor-

ing the change of correlation values between PMUs.

The data used in this study are collected by Bon-

neville Power Administration in their wide-area mon-

itoring system. We ﬁrst examine intra-PMU and inter-

PMU correlations to identify useful features for de-

tecting spoofed signals. These features are then used

to train a set of two-class Support Vector Machines

(SVMs) for detecting speciﬁc types of spoofs. The

experimental results on a separate testing data set

show that this approach is accurate in detecting dif-

ferent types of spoof attacks.

The remainder of the paper is organized as fol-

lows. Section 2 presents background and related re-

search work on spoof attacks and detection. In Sec-

tion 3, we analyze the correlation values of our PMU

dataset for the purpose of identifying useful features.

In Section 4, we describe the feasibility of using PMU

data correlation to detect spoofed signals, and the

details of our Support Vector Machines. Section 5

presents our evaluation metrics, as well as experimen-

tal results. Finally, in Section 6 we conclude the paper

and present future directions of this research.

2 BACKGROUND

Attacks wherein spoofed data are injected into a

SCADA system to disguise an attack have been doc-

umented, most notoriously Stuxnet(Langner, 2011;

Kushner, 2013; Chen and Abu-Nimeh, 2011).

Stuxnet was a computer worm designed to be inﬂicted

upon on industrial equipment, speciﬁcally Siemens

PLCs (programmable logic controllers). The intent

of Stuxnet was to physically destroy a speciﬁc target,

in this case thousands of Iranian uranium centrifuges.

Stuxnet was a sophisticated multi-modal attack for

which spooﬁng was used to mask malicious activities.

Speciﬁcally, Stuxnet periodically varied the mechan-

ical frequency of the centrifuges while concurrently

masking these changes by producing spoofed process

control signals. As such, the PLCs would not shut

down because they could not observe the abnormal

behaviour.

One lesson of Stuxnet is that physical infras-

tructure may come under the control of malware.

Even isolated industrial systems are vulnerable to

physical attack, and sensor spooﬁng is a means

by which such an attack may be masked. Other

critical cyber-physical systems are also susceptible

to attack, notably Global Navigation Satellite Sys-

tems (GNSS), a susceptibility that has been known

for over twelve years(Warner and Johnston, 2002;

Humphreys, 2009). A spooﬁng detection method for

GNSS has been developed by Magiera and Katul-

ski based on measurements of phase delay(Magiera

and Katulski, 2013). Similar to our own approach

with PMUs, Psiaki et al., use cross-correlation of en-

crypted signals between two GNSS receivers to de-

tect spooﬁng of publicly-known signals(Psiaki et al.,

2013).

Other vulnerable cyber-physical systems include

vehicular ad hoc network, and of course, electrical

power systems(Petit et al., 2011). PMUs are be-

coming critical data sources for multiple power sys-

tems functions, providing measurements for state es-

timators, initiating remedial action schema, and es-

timating voltage-stability margins(Vu et al., 1999).

Threat potential has been demonstrated by Jiang, et

al., whereby they maximize the difference between

the PMU’s receiver GPS clock offset before and after

an attack(Jiang et al., 2013a). And, Zhang, et al. in-

vestigated the consequences of an attack on the time

stamps of data collected within a smart grid wide-area

network(Zhang et al., 2011). Threats to PMUs have

been summarized by Shepard, et al.(Shepard et al.,

2012).

Machine learning techniques have proved to be ef-

fective in detecting security attacks in cyber-physical

systems (Mitchell et al., 2013) (Amor et al., 2004), in-

cluding smart grid (Kher et al., 2012). However, to the

best of our knowledge, there is no previous work on

detecting spoofed signals injected in real PMU data

streams. This paper presents an approach in this di-

rection.

3 METHODOLOGY

We use PMU data from ten electrically-close PMUs

from Bonneville Power Administration’s 500 kV

PMU network. These data were recorded at 60 frames

per second.

3.1 Intra-PMU Parameter Correlation

PMUs measure phasors of line voltages and line cur-

rents for all voltages (A, B, C) and currents (A, B,

C, N). From these are derived a number of other pa-

rameters, including magnitude and phase angle for

the positive, negative and zero sequence voltages and

currents; frequency; and rate of change of frequency

(ROCOF); among others(IEEE, 2006). Some of these

parameters show moderate correlation between each

SMARTGREENS 2016 - 5th International Conference on Smart Cities and Green ICT Systems

226

Table 1: Mean and standard deviation, µ (σ), of correlation between intra-PMU parameters. |V

|, |V

−

| and |V

| are the

positive, negative and zero sequence voltage magnitudes. φ

, φ

−

and φ

are the positive, negative and zero sequence voltage

phase angles. f and ROCOF are the system frequency and its rate of change.

−

| φ

−

| φ

f ROCOF

| -0.06 -0.02 0.07 0.07 -0.03 0.32 0.17

(0.49) (0.34) (0.47) (0.36) (0.48) (0.25) (0.19)

-0.03 0.72 -0.03 0.82 0.00 0.00

(0.42) (0.44) (0.43) (0.41) (0.40) (0.09)

−

| -0.06 0.06 0.03 -0.11 0.01

(0.40) (0.30) (0.43) (0.32) (0.18)

−

0.11 0.67 0.04 -0.01

(0.40) (0.42) (0.37) (0.12)

| 0.04 -0.02 0.01

(0.42) (0.27) (0.16)

0.02 0.02

(0.39) (0.11)

f 0.52

(0.09)

other, but most do not.

We use the Pearson correlation coefﬁcient (r) to quan-

tify the degree of correlation between PMU param-

eters. Intra-PMU parameters that are weakly corre-

lated can be used to detect spooﬁng attempts using the

method described in this paper. Monitoring multiple,

poorly correlated PMU parameters makes it more dif-

ﬁcult for the attackers to provide convincing spoofed

data sets. Table 1 shows the mean and standard devi-

ation of correlation values between PMU parameters

from a single PMU. Correlation values were calcu-

lated for each time step using a one second wide slid-

ing window. The mean and standard deviation were

then calculated using 59 seconds of data.

Most, but not all of the intra-PMU correlation r

values are near zero, though with wide standard devi-

ations. We observe modest correlation between the

phase angles of the sequence components, 0.7 and

above. We observe weak correlation, with small stan-

dard deviations, between the voltage angles and fre-

quency, as well as between the voltage magnitudes

and the rate of change of frequency. The weakest

correlation, with very little deviation, we observe be-

tween the voltage angles and the rate of change of

frequency. Correlations between pairs of intra-PMU

parameters as a function of time are illustrated in Fig-

ure 1. The weakly correlated parameters with narrow

standard deviations are the best candidates for use in

detecting spooﬁng attempts, if the correlation of these

parameters between adjacent PMUs is strong.

3.2 Inter-PMU Correlation

To quantify the degree of correlation between parame-

ters of nearby PMUs, we again use the Pearson corre-

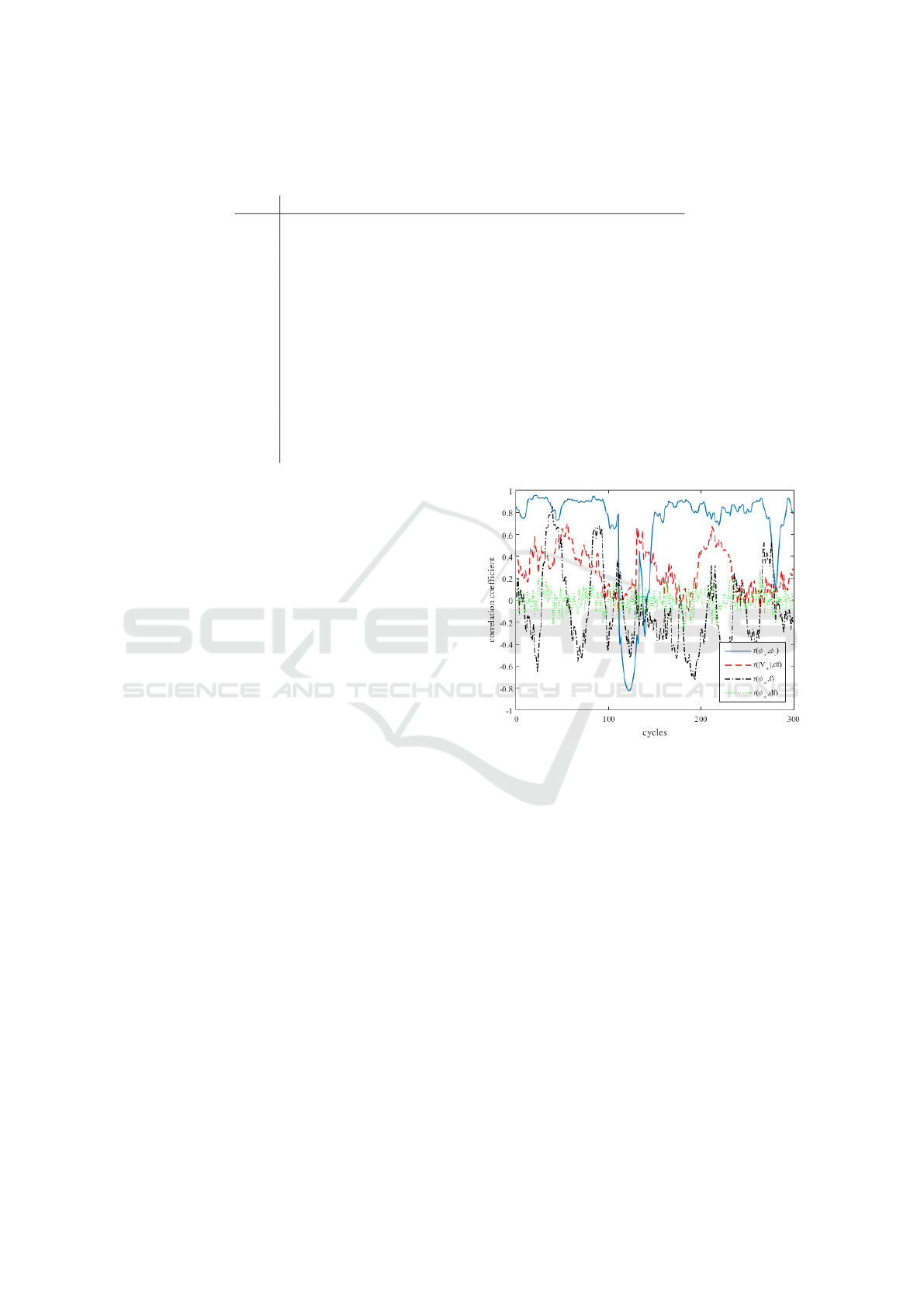

Figure 1: Plot of sliding window intra-PMU correlation val-

ues. High correlation is observed between sequence phase

angles, such as φ

and φ

−

. Low correlation, with wide de-

viation is observed between |V

| and ROCOF as well as

between and φ

and f . Low correlation and low deviation

is observed between φ

and ROCOF.

lation. For example, given PMUs numbered 1,2 .. ., p

we develop





vectors of correlation values between

the positive sequence voltage magnitude R

i j

(|V

|) for

every pair of PMUs i < j. This is repeated for the

−

|, |V

|, φ

, φ

−

, φ

, f and ROCOF data. These

correlation values ﬂuctuate with time, since the cor-

relation is performed using data windows of a ﬁxed

length. For this work, we examined windows of 1, 2,

5 and 10 seconds in length.

We found that the correlation vectors r(|V

|),

r(φ

) and r( f ) are good candidates for detecting

spooﬁng attacks, as these consistently exhibit mod-

erate to high correlation values over wide ranges of

time. The r(φ

) correlation values are exceptionally

high, near 1.0 under normal circumstances. On the

Fast Sequence Component Analysis for Attack Detection in Smart Grid

227

other hand, r(|V

−

|), r(|V

|), r(φ

−

) and r(φ

) do not

exhibit consistent moderate correlation. ROCOF cor-

relation between PMUs is very poor, likely due to the

fact that it is the second derivative of the positive se-

quence phase angle, and hence more susceptible to

noise.

3.3 Modeling a Spooﬁng Event

Our spoofed data set was derived by recording 30 sec-

onds (1800 cycles) of PMU data from one of our ten

PMU sites, then playing back these data in a modiﬁed

form to generate the ﬁnal 30 seconds of a complete

minute. We considered the following spoof playback

schemes:

• S1: Mirroring in which the initial 30 seconds of

data are played back in reverse to produce the ﬁnal

30 seconds of data.

• S2: Polynomial Fit in which a 3

degree polyno-

mial is ﬁt to the initial 30 seconds of data. This

polynomial is combined with a noise proﬁle to

generate the ﬁnal 30 seconds of data.

• S3: Time Dilation in which we record a full 60

seconds of data from the spoofed PMU, but re-

sample the ﬁnal 30 seconds of data so the signal

appears stretched over time. For this spoof, we ex-

plored various rates of time dilation ranging from

very slow (a factor of 2 slower than real-time) to

near real time (a factor of 8/7 slower than real-

time). Recent studies challenging the security of

GPS hardware for PMUs detail the feasibility of

this type of spooﬁng approach (Jiang et al., 2013b;

Zhang et al., 2013; Bonebrake and ONeil, 2014).

Each spooﬁng approach above guarantees signal

continuity for all parameters at the instance spooﬁng

is initiated, and correlation for a brief time after that

transition. All ten of the monitored PMU sites are

electrically close, showing strong correlation between

their frequency measurements.

4 SPOOF DETECTION VIA

SUPPORT VECTOR MACHINES

To illustrate the feasibility of using correlation to de-

tect spoof attacks, we have carried out an initial anal-

ysis on real PMU data to investigate the impact of

an example spoof attack, mirroring spoof. Figure 2

shows the impact of data injection (S1: Mirroring

Spoof) upon the correlation of frequency measure-

ments between PMUs. Correlation of frequency mea-

surements between all PMUs is greater than 0.5 prior

to the spooﬁng event at 1800 cycles, as shown by the

yellow-red and blue-green gradient curves on the left

side of the Figure. The color gradients indicate the

electrical distance between each pair of PMUs; PMUs

that are electrically close show higher correlation.

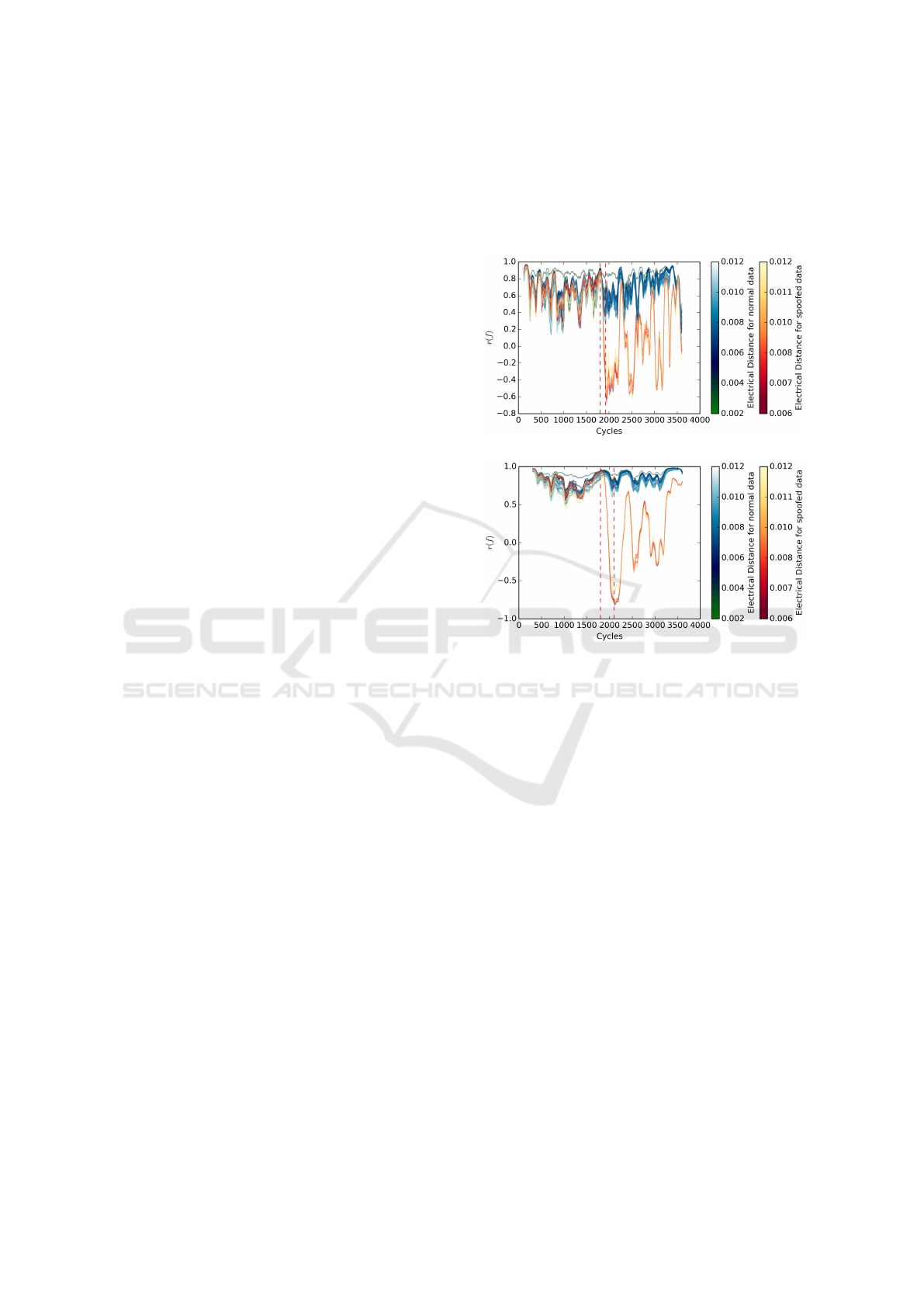

(a) 120 cycle (2 seconds) window size

(b) 300 cycle (5 seconds) window size

Figure 2: Plot of the Pearson correlation coefﬁcient of fre-

quency r( f ) using a window size of (a) 120 cycles and

(b) 300 cycles. The spoofed signal affects correlation with

nine other PMUs, results in nine deviating correlation plots,

shown as yellow-red curves. These deviate markedly from

correlation plots between non-spoofed PMUs, blue-green.

4.1 Support Vector Machines

Although the initial analysis on PMU data shows the

potentials of detecting the spooﬁng attack by moni-

toring correlations between PMU pairs, simply mon-

itoring one signal correlation (such as the frequency

correlation r( f )) may not guarantee a timely identi-

ﬁcation of a spoof across all types of spoofs. Rather,

we expect that robustly identifying spoofed signals re-

quires a careful examination of historical correlation

values. Bonneville Power Administration’s current

installed PMU base contains over 40 devices gener-

ating roughly 1.2 TB of data each month. The chal-

lenges associated with storing, accessing, and pro-

cessing this information in a timely manner will only

increase as the installation base expands. Therefore,

manual analysis on PMU correlation is not feasible.

To address these challenges, we use two-class

SMARTGREENS 2016 - 5th International Conference on Smart Cities and Green ICT Systems

228

Support Vector Machines (SVM) (Cortes and Vap-

nik, 1995) to learn a relationship that differentiates

spoofed PMU data from normal, untainted, PMU

data. A two-class SVM takes as input a set of train-

ing examples x

, i = 1 . . . n, and their associated labels

∈ {−1, 1}. In our case, the labels indicate that an

example is either normal or spoofed, and each exam-

ple is deﬁned by an m-dimensional vector of features.

For our problem, these features are correlations be-

tween signals measured by two PMUs. Based on the

previous discussion, we considered two possible fea-

tures sets. The set of three features includes positive

sequence voltage magnitude and phase-angle correla-

tions (r

i, j

{V +}, and r

i, j

{φ

}) as well as frequency

correlation (r

i, j

{ f }). The set of ﬁve features adds

negative and zero -sequence phase angle correlations

i, j

{φ

−

} and r

i, j

{φ

}) to the three feature set. All

correlations are computed on a trailing 300-cycle win-

dow for all pairs of PMUs, i < j.

For a given set of examples, described by their

feature vectors x

x, training the support vector machine

solves the optimization problem:

min

w,b,ξ

w +C

∑

i=1

subject to y

φ(x

) + b) ≥ 1 − ξ

≥ 0, i = 1, . . . , l

(1)

Where ξ

are non-negative slack variables that al-

low a soft margin (one in which some instances are

incorrectly classiﬁed). The function φ transforms the

input vector x

into a higher dimensional space, C is a

regularization parameter, and the pair w

w, b deﬁnes the

hyper-plane that will serve as a classiﬁer between the

class labels {−1, 1}. Equation 1 is easy to interpret,

but for efﬁciency, it is the dual form of this equation

that is typically solved. Although not presented here,

the dual form makes use of a kernel function, Equa-

tion 2, that deﬁnes the shape of the decision boundary

given a set of support vectors x

K(x

, x

) ≡ φ(x

)

φ(x

) (2)

We leverage the Python library sci-kit learn for

a Support Vector Machine implementation based on

libsvm(Pedregosa et al., 2011; Chang and Lin, 2011).

4.2 Training and Testing Data

Using the correlation features described above, we

constructed a set of examples for each spoof described

in Section 3.3 by applying the spooﬁng procedure to

the last 30 seconds of one selected PMU signal on

each of 14 different minutes of data. This approach

generates roughly 2 · 10

examples from the 14 min-

utes of data and the 45 PMU pairs i < j. Exam-

ples are “Spoofed” in the last half of each minute if

i is the spoofed PMU, and are “Normal” otherwise.

This approach yields approximately 5 times as many

“Normal” examples as “Spoofed” examples. Given

the 14 minutes of data, we use 11 minutes (roughly

1.6 · 10

examples) for training the SVM, and 3 min-

utes (roughly 4.5 · 10

examples) for testing. Dur-

ing training, all correlations features are standardized

(normalized to 0 mean and standard deviation of 1).

The normalization transforms from the training fea-

tures are saved so they can later be used to transform

testing data prior to being classiﬁed.

4.3 Parameter Selection and Training

During training, we used the RBF kernel parameter-

ized by the scalar value γ:

K(x

, x

) = exp(−γ||x

− x

) (3)

We then split the 11 training minutes into two sets

(8 and 3 minutes respectively) and performed a grid

search over the C, γ parameter space by training on

the former set and testing on the later. We performed

this search for both the three feature data and the

ﬁve feature data using the mirroring spoof (S1). In

both cases, we observed high performance (F1 > .95)

across a wide range of parameter settings. However,

we observed faster training times and marginally im-

proved F1 scores when using ﬁve features instead of

three. Thus, in subsequent sections, our results are

constructed using ﬁve feature training/testing data and

a RBF-SVM using the parameters C = 1.0, γ = 0.2.

Simultaneous to our exploration of feature set size

and SVM-parameter settings, we also explored two

methods of labeling the training data. Recall that each

minute of data contains a spoof in the ﬁnal 30 sec-

onds and that the Support Vector Machines take, as

input, correlations between signals from pairs of dif-

ferent PMUs. Because the correlations are computed

on a trailing 300-cycle window, when the spoof be-

gins, the correlation window contains 299 cycles of

non-spoofed data, and only 1 cycle of spoofed data.

Intuitively, it seems that trying to identify the spoof

when the correlation window is dominated by nor-

mal data would lead to a substantially higher False

Discovery Rate (FDR), an undesirable outcome in a

real operating situation. To mitigate this effect, we

labeled the training data as Spoofed when the cor-

relation window contains a majority of spoofed data,

and as Normal otherwise (we call this training conﬁg-

uration late timing). In testing, however, data is la-

beled as Spoofed when the correlations window con-

Fast Sequence Component Analysis for Attack Detection in Smart Grid

229

tains one or more elements of spoofed data as this is

the moment when the spoof actually begins (we call

this early timing). Thus, our late timing training strat-

egy would be expected to trade off an improvement in

False Discovery Rate for a potentially slower latency

in recognizing the spoof when compared to an early

timing training strategy

5 EVALUATION

To evaluate our approach, experiments have been car-

ried out using our traning and testing datasets, as de-

scrived in Section 4.2. The performance measures we

used in the evaluation and experimental results are

presented in the following sections.

5.1 Performance Measures

Once trained, the support vector machine will be

tested using a new set of labeled data x

, y

. Perfor-

mance on this test set will be assessed with four met-

rics:

• Sensitivity: measures the ability to correctly de-

tect spoofed signals and is calculated as the num-

ber of true positives (spoofed examples identi-

ﬁed as such) divided by the number of total posi-

tives (the total number of spoofed examples which

is the sum of true positives and false negatives).

Sensitivity ranges from 0% to 100% with an ideal

classiﬁer measuring 100% sensitivity.

• False Discovery Rate: measures the propensity

to spuriously identify a spoof. This value is calcu-

lated as the number of false positives (normal ex-

amples identiﬁed as spoofs) divided by the num-

ber of detected spoofs (false positives plus true

positives). False Discovery Rate is equivalent to

(1-Precision). FDR ranges from 0% to 100%; an

ideal classiﬁer has 0% FDR.

• F1: measures performance as a single value when

classes are not equally prevalent. It is the har-

monic mean of Sensitivity and Precision. F1 score

ranges from 0.0 to 1.0, higher values are better.

We used the same 8/3 split of the training set to examine

impact of training with early vs. late timing in an effort

to conﬁrm the intuition described above. Contrary to our

expectation, the initial validation showed improved perfor-

mance in terms of F1, Sensitivity and Latency, with little

cost to False Discovery Rate. However, after training on

the full 11 minutes, we did observe a severe rise in FDR

when testing on the reserved 4 minutes of test data thereby

justifying the choice of late timing training.

• Latency: measures how long it takes to consis-

tently identify a spoof once it has begun. In this

study, we measure latency as the number of cy-

cles after the spoof begins but before the clas-

siﬁer correctly identiﬁes a string of 30 consecu-

tive cycles as spoofed. Lower values are better.

Note that while our experiments are performed

on archived PMU data, our approach supports use

with streaming data with the same latency charac-

teristics described here.

5.2 Spoof-speciﬁc Classiﬁcation Results

Table 2 illustrates the performance of our SVM classi-

ﬁers where each classiﬁer is trained on a distinct type

of spoof. For completeness, in the ﬁrst three columns

we show the total count of True Positives (Spoofed

data detected as such), False Positives (Normal data

detected as a Spoof) and False Negatives (Spoofed

data detected as Normal). From these raw data, we

also show summary statistics: Latency, Sensitivity,

False Discovery Rate and F1 score described in Sec-

tion 5.1.

The table illustrates that the Spoof-speciﬁc classi-

ﬁers all perform very well identifying over 77% of the

spoofed correlations while maintaining a low False

Discovery Rate. Note from a functional perspective,

these tests are likely to be overly stringent: a per-

fect test score can only be obtained by correctly clas-

sifying each of the momentary correlations. Higher

Sensitivity helps to ensure that the spoof will be de-

tected reasonably early, which, in a real-world setting

is likely to be the most salient goal.

Our latency measurements indicate that all SVMs

are able to detect their respective event types within 4

seconds (240 cycles), and often much more quickly.

This is particularly impressive given that the correla-

tion windows are 300 cycles long, so a 240-cycle la-

tency indicates the event can be detected even before

the correlation window is ﬁlled with spoofed data.

Figure 3 illustrates the classiﬁer’s performance on

two typical spoofed signals. Figure 3a shows the Mir-

roring Spoof (S1), while Figure 3b shows a Time Di-

lation Spoof (S3.7). The green lines toward the top of

each plot show correlations between pairs of normally

operating PMUs. Recall that for each correlation fea-

ture, mean and standard deviations were obtained dur-

ing training to scale the features prior to learning and

classiﬁcation; thus values are not bounded by [−1, 1].

Halfway through the minute, at Cycle 1800, the spoof

begins.

For the Mirroring Spoof (S1), we see relatively

rapid decorrelation of the spoofed signal’s frequency

(yellow and blue lines diverging from the cluster at

SMARTGREENS 2016 - 5th International Conference on Smart Cities and Green ICT Systems

230

Table 2: SVM Performance When Trained on Speciﬁc Spoof Types. Spoof: + Normal: −.

Spoof Type True+ False+ False− Latency Sensitivity FDR F1

S1; Mirroring 40749 105 7905 [68, 148] 83.75% 0.26% 0.911

S2; Polynomial 39194 26 9460 [4, 204] 80.56% 0.07% 0.892

S3.1; Dilation x2 42163 301 6491 [120, 209] 86.66% 0.71% 0.926

S3.2; Dilation x3/2 41077 793 7577 [144, 223] 84.43% 1.89% 0.908

S3.3; Dilation x4/3 39602 870 9052 [154, 226] 81.40% 2.15% 0.889

S3.4; Dilation x5/4 39666 900 8988 [157, 214] 81.53% 2.22% 0.889

S3.5; Dilation x6/5 39054 1102 9600 [154, 213] 80.27% 2.74% 0.879

S3.6; Dilation x7/8 38138 654 10516 [134, 223] 78.39% 1.69% 0.872

S3.7; Dilation x8/9 37601 520 11053 [130, 217] 77.28% 1.36% 0.867

approximately 1800 cycles). The decorrelation hap-

pens much more slowly for the Time Dilation Spoof

(S3.7). For both spoofs, there are signiﬁcant periods

during which the frequency correlation values for the

spoofed signal are well within the range exhibited for

normally operating pairs of PMUs. For example, one

such region occurs in both plots between cycles 2700

and 3200. Finally, note that although the frequency

correlation in Figure 3b is slow to reach maximum

decorrelation, a period of early detection still occurs

before the correlation window ﬁlls with spoofed data

at cycle 2100.

6 CONCLUSION

With digital and communication technologies being

integrated in modern electrical grids, data integrity of

these smart grid systems have become increasingly

critical. Spoof attacks may result in severe power out-

ages in large areas. In this paper, we have proposed

a novel approach for addressing the challenge of de-

tecting spoofed data from phasor measurement units

(PMUs) on the smart grid. Our approach uses ma-

chine learning techniques and correlation coefﬁcients

between measurement parameters of electrically close

PMUs and, because of the short latency times for de-

tection, is capable of supporting streaming data and

real-time spoof detection in a live setting. Two-class

support vector machines (SVMs) are trained using

both normal and spoofed PMU data. Nine spoofed

data models are derived using three different spoof-

ing playback schemes. The SVMs are evaluated us-

ing PMU data collected from Bonneville Power Ad-

ministration’s extensive PMU network. Experimental

results show the SVMs can effectively detect spoofed

signals; against the nine spoof data sets, results show

high sensitivities and F1 scores while concurrently

demonstrating low false discovery rates and reason-

able latencies.

For future work, we are generalizing this approach to

use one-class learning for detecting spoof signals that

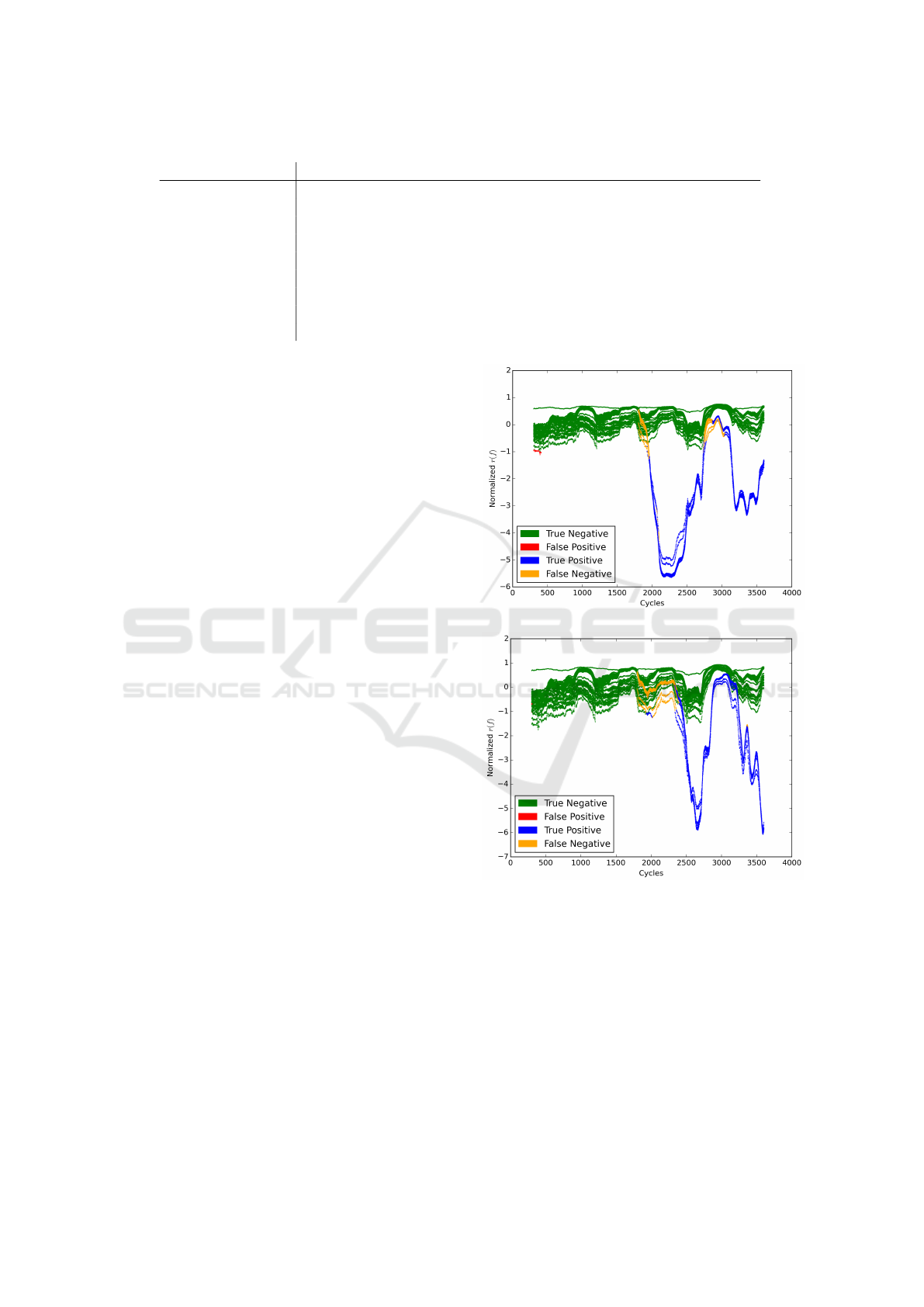

(a) Mirroring (S1): Normalized Frequency Correlation

(b) Time Dilation x8/9 (S3.7): Normalized Frequency

Correlation

Figure 3: Frequency Correlations for all pairs of PMUs

prior to and during two distinct spoofs.

have not been seen before. In addition, we are investi-

gating online learning approaches to efﬁciently detect

spoof attacks in PMU streams in real time.

Fast Sequence Component Analysis for Attack Detection in Smart Grid

231

ACKNOWLEDGMENTS

This research is supported by student scholarships

from Oregon BEST and the Bonneville Power Ad-

ministration. We thank both Portland General Electric

and the Bonneville Power Administration for provid-

ing PMU data.

REFERENCES

Amor, N. B., Benferhat, S., and Elouedi, Z. (2004). Naive

bayes vs decision trees in intrusion detection systems.

In Proc. ACM Symp. Appl. Comput., pages 420–424.

ACM.

Bonebrake, C. and ONeil, L. (2014). Attacks on GPS time

reliability. IEEE Security Privacy, 12(3):82–84.

Chang, C.-C. and Lin, C.-J. (2011). Libsvm: A library for

support vector machines. ACM Trans. Intelligent Syst.

and Technol., 2(3):27.

Chen, T. and Abu-Nimeh, S. (2011). Lessons from stuxnet.

Computer, 44(4):91–93.

Cortes, C. and Vapnik, V. (1995). Support-vector networks.

Mach. Learn., 20(3):273–297.

De La Ree, J., Centeno, V., Thorp, J., and Phadke, A.

(2010). Synchronized phasor measurement applica-

tions in power systems. IEEE Trans. Smart Grid,

1(1):20–27.

Humphreys, T. (2009). Assessing the spooﬁng threat. GPS

World, 20(1):28–38.

IEEE (2006). IEEE standard for synchrophasors for power

syst. IEEE Std C37.118-2005, pages 1–57.

Jiang, X., Zhang, J., Harding, B., Makela, J., and

Dominguez-Garcia, A. (2013a). Spooﬁng gps re-

ceiver clock offset of phasor measurement units. IEEE

Trans. Power Syst., 28(3):3253–3262.

Jiang, X., Zhang, J., Harding, B. J., Makela, J. J., and

Dominguez-Garcia, A. D. (2013b). Spooﬁng GPS re-

ceiver clock offset of phasor measurement units. IEEE

Trans. Power Syst., 28(3):3253–3262.

Kher, S., Nutt, V., Dasgupta, D., Ali, H., and Mixon, P.

(2012). A detection model for anomalies in smart grid

with sensor network. In Future of Instrumentation Int.

Workshop, 2012, pages 1–4. IEEE.

Kim, J., Tong, L., and Thomas, R. J. (2014). Data framing

attack on state estimation. IEEE J. Sel. Areas Com-

mun., 32(7).

Kim, J., Tong, L., and Thomas, R. J. (2015). Subspace

method for data attack on state estimation: Data-

driven approach. IEEE Trans. Signal Process., 63(5).

Kushner, D. (2013). The real story of stuxnet. IEEE Spectr.,

50(3):48–53.

Langner, R. (2011). Stuxnet: Dissecting a cyberwarfare

weapon. IEEE Security Privacy, 9(3):49–51.

Magiera, J. and Katulski, R. (2013). Accuracy of differen-

tial phase delay estimation for gps spooﬁng detection.

In 36th Int. Conf. Telecommun. and Signal Process.,

pages 695–699.

Meier, R., Histand, M., Landford, J., McCamish, B., Chiu,

D., Bass, R., and Cotilla-Sanchez, E. (2014). Man-

aging PMU data sets with bitmap indexes. In IEEE

Conf. on Technol. for Sustain., Portland, OR.

Mitchell, R., Chen, I., et al. (2013). Effect of intrusion de-

tection and response on reliability of cyber physical

systems. IEEE Trans. Rel., 62(1):199–210.

Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,

Thirion, B., Grisel, O., Blondel, M., Prettenhofer, P.,

Weiss, R., Dubourg, V., Vanderplas, J., Passos, A.,

Cournapeau, D., Brucher, M., Perrot, M., and Duch-

esnay, E. (2011). Scikit-learn: Machine learning in

Python. J. Mach. Learn. Res., 12:2825–2830.

Petit, J., Feiri, M., and Kargl, F. (2011). Spoofed data de-

tection in vanets using dynamic thresholds. In IEEE

Vehicular Networking Conf., pages 25–32.

Phadke, A. (2002). Synchronized phasor measurements-a

historical overview. In IEEE PES Asia Paciﬁc Trans-

mission and Distribution Conf. and Exhibition, vol-

ume 1, pages 476–479 vol.1.

Psiaki, M., O’Hanlon, B., Bhatti, J., Shepard, D., and

Humphreys, T. (2013). Gps spooﬁng detection via

dual-receiver correlation of military signals. IEEE

Trans. Aerosp. Electron. Syst., 49(4):2250–2267.

Shepard, D., Humphreys, T., and Fansler, A. (2012). Evalu-

ation of the vulnerability of phasor measurement units

to gps spooﬁng attacks. In Int. Conf. Critical Infras-

tructure Protection, Washington, DC, USA.

Steinmetz, C. P. (1893). Complex quantities and their use

in electrical engineering. In Proc. American Institute

of Electrical Engineers, pages 33–74, Chicago, IL.

Vu, K., Begovic, M., Novosel, D., and Saha, M. (1999). Use

of local measurements to estimate voltage-stability

margin. IEEE Trans. Power Syst., 14(3):1029–1035.

Warner, J. and Johnston, R. (2002). A simple demonstration

that the global positioning system (gps) is vulnerable

to spooﬁng. J. Security Admin., 25:19–28.

Zhang, Z., Gong, S., Li, H., Pei, C., Zeng, Q., and Jin, M.

(2011). Time stamp attack on wide area monitoring

system in smart grid. In Comput. Res. Repository.

Zhang, Z., S.Gong, A.D.Dimitrovski, and H.Li (2013).

Time synchronization attack in smart grid: Impact and

analysis. IEEE Trans. Smart Grid, 4(1):87–98.

SMARTGREENS 2016 - 5th International Conference on Smart Cities and Green ICT Systems

232
