Towards Auditing of Cloud Provider Chains using CloudTrust Protocol

Thomas R

ubsamen, Dirk H

olscher and Christoph Reich

Institute for Cloud Computing and IT Security, Furtwangen University, Robert-Gerwig-Platz 1, Furtwangen, Germany

Keywords:

Cloud Computing, Audit, Federated Cloud, Security, Digital Evidence.

Abstract:

Although cloud computing can be considered mainstream today, there is still a lack of trust in cloud providers,

when it comes to the processing of private or sensitive data. This lack of trust is rooted in the lack of trans-

parency of the provider’s data handling practices, security controls and their technical infrastructures. This

problem worsens when cloud services are not only provisioned by a single cloud provider, but a combination

of several independent providers. The main contributions of this paper are: we propose an approach to auto-

mated auditing of cloud provider chains with the goal of providing evidence-based assurance about the correct

handling of data according to pre-deﬁned policies. We also introduce the concepts of individual and delegated

audits, discuss policy distribution and applicability aspects and propose a lifecycle model. Our previous work

on automated cloud auditing and Cloud Security Alliance’s (CSA) CloudTrust Protocol form the basis for the

proposed system for provider chain auditing.

1 INTRODUCTION

An important problem that is commonly associated

with the use of cloud services is the loss of con-

trol about who is processing data, how it is used and

whether or not it is shared with third parties. A pos-

sible approach to mitigate this problem is to provide

additional information to stakeholders (cloud users,

cloud auditors). That information can be obtained as

a part of regular cloud audits where evidentiary infor-

mation about data processing is collected and com-

pared against agreed-upon policies (such as terms of

service or privacy policies). This way, what happens

in the cloud becomes more transparent to the user,

which could lead to improved trust in the cloud by

providing additional information on data processing

in a cloud service. Therefore, a system for automated

audits is needed that provides meaningful evidence

and shows how and where data is processed.

With lacking transparency comes low trust (Kn-

ode, 2009). Low trust in the cloud (especially in

the security and privacy of data) hinders the growth

of cloud computing as a business (Cloud Security

Alliance, 2013). Customers are less likely willing

to move their business applications into the cloud

when they have no chance evaluating, whether or not

their data is processed according to company poli-

cies. Transparency is not just showing cloud con-

sumers how and where data is processed, it is also

important to know by whom the consumer’s data is

processed. However, transparently showing by whom

the data might be processed is not common practice

today. Furthermore, cloud providers can incorporate

services provided by Nth-level providers into their

own, which makes it even harder for the auditor to

follow where the consumer’s data is currently being

stored.

It makes sense for Software as a Service (SaaS)

providers to utilize a third-party Infrastructure as a

Service (IaaS) provider for service hosting. We con-

sider such cloud provider chains to become increas-

ingly important to look at, when a complete picture

about data processing in a particular service should be

provided. Most importantly, the compliance with data

processing and privacy policies of all involved parties

needs to be assessed. For instance, in some situations

a cloud provider might be forced to transfer consumer

data from one cloud provider to another, or from one

geographic location to another for load-balancing or

cost optimization. In such a case, the new provider

has to ensure that all policies are covered just as much

as the others in the chain have to.

Cloud auditing is becoming increasingly impor-

tant for certiﬁcation (e.g., FedRAMP (FedRAMP,

2015), ISO27001 (ISO, 2013) with the proposed

ISO27017 (ISO, 2015) and ISO27018 (ISO, 2014)).

However, the required audit is still largely a manual

process. In this paper, we propose an extension to

our previous work see (R

ubsamen and Reich, 2013;

ubsamen et al., 2015)) on automated, evidence-

Rübsamen, T., Hölscher, D. and Reich, C.

Towards Auditing of Cloud Provider Chains using CloudTrust Protocol.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 1, pages 83-94

ISBN: 978-989-758-182-3

based cloud auditing, that provides improved trans-

parency to cloud stakeholders about data process-

ing in the cloud. The extension introduces the con-

cept of cloud provider chains, data processing and

privacy policies with an extended scope on all in-

volved providers, and audit evidence exchange. The

main contribution of this paper introduces the concept

adapting CSA CloudTrust Protocol (CTP) (Cloud Se-

curity Alliance, 2015) for the use in inter-provider ex-

change of evidence during cloud audits.

Using the introduced CTP extension, additionally

generated evidence (i.e., information not speciﬁed in

the original CTP) will be used to enhance CTP re-

ports. Furthermore the extension enables auditing of

third-party contractors within provider chains to show

that each statement made by the provider, with respect

to the users established policies (e.g., data location,

service availability), is fulﬁlled.

This paper is organized as follows: In the next

Section 2 related work is presented. Section 3 in-

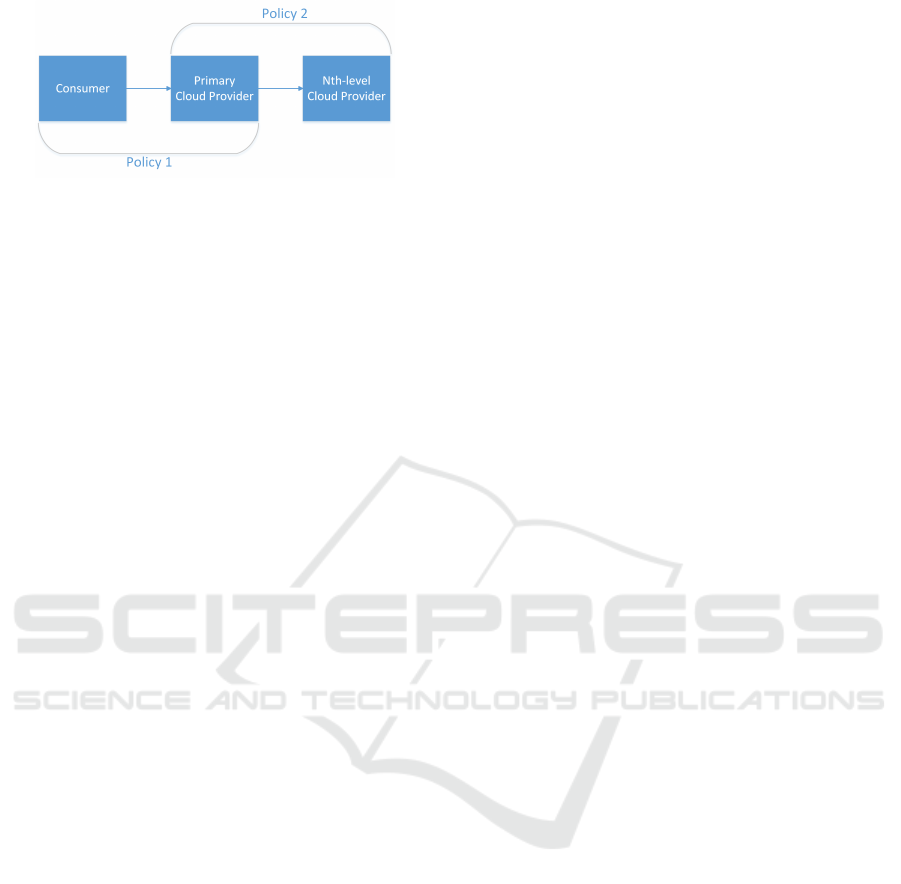

troduces the concept of service provision chains and

discusses the scopes and applicability of policies. In

Section 4 two approaches towards cloud auditing are

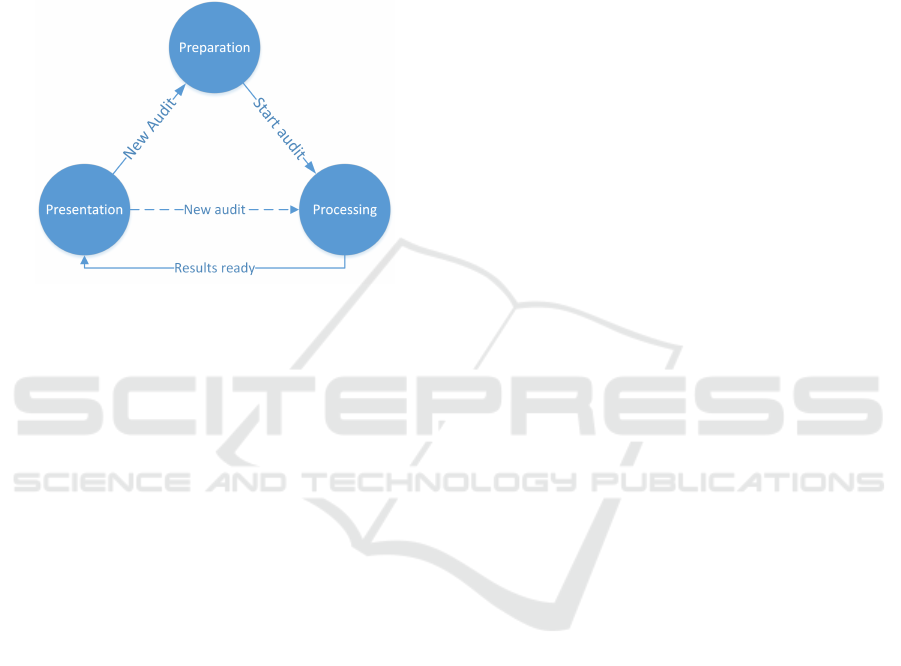

introduced. After that, we propose a lifecycle model

for delegated auditing of cloud provider chains in

Section 5. Next, we focus on data exchange pat-

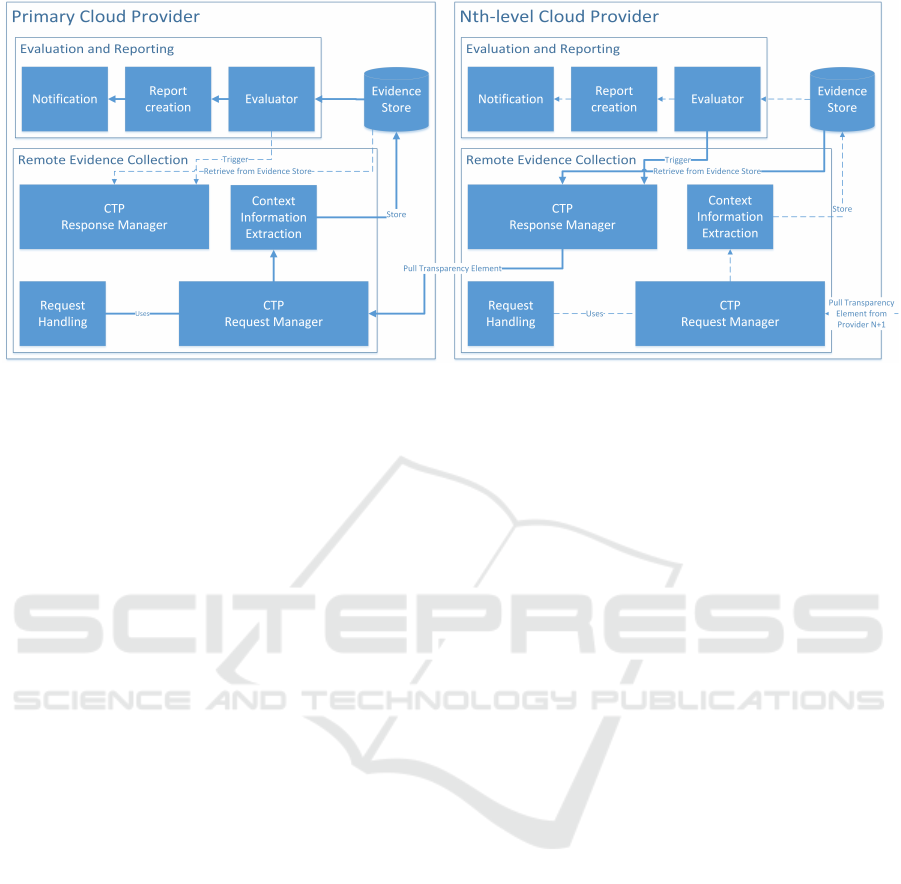

terns (Section 6) that are used in Section 7, where

we present our proposed system. Following that, sec-

tion 8 evaluates the presented results using a scenario

description and a discussion of the threat model. In

Section 9 we conclude this paper.

2 RELATED WORK

Security and privacy auditing are increasingly impor-

tant topics in cloud auditing. They demonstrate that

security controls are put in place by the provider and

also that they are functioning correctly (i.e., data pro-

tection mechanisms are working correctly and effec-

tively). There are some projects working on the ar-

chitectural and interface level regarding the automa-

tion of security audits, such as the Security Audit

as a Service (SAaaS) project (Doelitzscher et al.,

2012; Doelitzscher et al., 2013). SAaaS is specif-

ically designed to detect incidents in the cloud and

thereby consider the dynamic nature of such ecosys-

tems, where resources are rapidly provisioned and re-

moved. However, SAaaS does not address provider

chain setups or treat gathered data as evidence.

ABTiCI (Agent-Based Trust in Cloud Infrastruc-

ture) describes a system used for monitoring (Saleh,

2014). All relevant parts of a cloud infrastructure

are monitored to be able to detect and verify unau-

thorized access. Integrity checks are done at boot-

time, using Trusted Platform Module (TPM) boot or

at runtime. Monitoring hardware and software con-

ﬁgurations allow the system to detect changes at run-

time. The aforementioned system is similar to our ap-

proach. Instead of using agents we utilize CTP. Fur-

thermore, our approach relies on evidence collection

through audits with pull and trigger mechanisms.

A centralized trust model is introduced by Rizvi

et al. (Rizvi et al., 2014). Trust between consumer

and provider is established by using an independent

third-party auditor. With the adoption of a third-party

auditing system, consumers are able to create baseline

evaluation for providers they have never worked with

to generate initial trust. The model acts as a feed-

back mechanism providing valuable insight into the

providers processes. After initial trust was generated

the third-party auditor continues to obtain trust values

for the consumer. We see initial trust in the provider

as a given factor and focus on obtaining trust values

based on evidence within a multi-provider scenario.

A completely different approach is proposed by

Gonzales et al., where the authors introduce an ar-

chitecture for the measurement of integrity and conﬁ-

dentiality of a cloud provider (Gonzales et al., 2015).

Their approach is based on best practices and secu-

rity metrics. It uses trust zones to delineate resources

(physical, logical or virtual) within multi-tenant IaaS

infrastructures. Such a zone is used to separate in-

terests. Sensitive business data is located in a Gold

Zone, non-business partners are located in a less privi-

leged zone and can’t access the Gold Zone. The focus

in this work lies in the separation of concerns. Trust

is generated using best practices and security metrics.

There is no provider auditing involved, but everything

is estimated based on metric values. Whereas, in our

approach metrics can be used to collect additional in-

formation but the focus lies in evidence collection.

The DMTF is also working on cloud auditing with

the Cloud Audit Data Federation (CADF) working

group. They focus on developing standardized in-

terfaces and data formats to enable cloud security

auditing (Distributed Management Task Force, Inc.

(DMTF), 2014). A similar project is the Cloud Se-

curity Alliance’s Cloud Trust Protocol (CTP), which

deﬁnes an interface for enabling cloud users to “gen-

erate conﬁdence that everything that is claimed to be

happening in the cloud is indeed happening as de-

scribed, . . . , and nothing else” (Cloud Security Al-

liance, 2015), which indicates an additional focus on

providing additional transparency of cloud services.

The latter two projects, however, do not elaborate on

how the interfaces should be implemented nor do they

describe explicitly focus on privacy and accountabil-

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

ity. We use CTP as a basis and propose its extension

and use in our proposed auditing system to enable au-

tomated auditing of cloud provider chains.

There are approaches that deal with checking

compliance with data location policies. The princi-

ple of location transparency of data in the cloud (i.e.,

a user does not know in which server, data center or

even country a speciﬁc data object is stored) is con-

trary to data locality requirements some cloud con-

sumers have to fulﬁll (e.g., a legal obligation to en-

sure a certain geographic storage location). Massonet

et al. propose a system that exposes infrastructure-

level location monitoring information to the cloud

consumer (Massonet et al., 2011). We use data loca-

tion as an use case for the demonstration of our sys-

tem.

A crucial part of cloud auditing is the collection

of data on which an audit can be based upon. That

data can be produced on all architectural layers of the

cloud (e.g., on the bare-metal, in a VM, in a subsys-

tem). Several approaches to addressing the unique

requirements of cloud logging have been proposed.

For instance, Marty presents a logging framework

and guidelines for IaaS and SaaS logging (Marty,

2011). We have also previously discussed the differ-

ent sources of data that can be used as evidence dur-

ing audits. (R

ubsamen and Reich, 2013). We demon-

strate, how such data can be collected and more im-

portantly used for auditing in a multi-provider sce-

nario.

The CloudTrust Protocol (Cloud Security Al-

liance, 2015) establishes a mechanism that allows

users to audit a CSP. An auditor can choose from a set

of transparency elements for instance: geographic lo-

cation of data objects and afﬁrmation or results of lat-

est vulnerability assessments. CTP has 23 pre-deﬁned

transparency elements and supports user-speciﬁed el-

ements on which cloud consumer and provider agreed

on. The purpose of the CTP is to transparently pro-

vide the user with important information about the

cloud to show that processing is done as promised.

By providing information about the inner-workings

of the cloud service (with respect to the transparency

elements), trust between the cloud provider and the

consumer is supposed to be strengthened. If a con-

sumer can trust his provider he is more likely willing

to move sensible business processes into the cloud.

There are two main problems the protocol tries to

solve:

• Restoration of control and freedom of choice at

the cloud consumer by enabling him to speciﬁ-

cally request information on conﬁgurations, vul-

nerabilities and data integrity.

• The provision of a standardized process, which

enables providers to generate and expose ad-

ditional information with respect to the trans-

parency elements.

CTP needs to be beneﬁcial for both cloud

providers and consumers. Providers won’t invest into

structural changes of their services if the expected

payoff is small. For this reason the protocol can be

adjusted to the trust needs of consumers as well as

operational circumstances of the provider. Only the

request/response process and the associated data for-

mats are speciﬁed, whereas there are no additional re-

strictions put on the actual implementation of the in-

formation gathering process.

Communication handling in CTP is done by two

managers. The auditor is using CTP’s Request Man-

ager whereas the provider is using the Response Man-

ager. These two architectural components are respon-

sible for communication, tracking pending requests,

CTP translation into service speciﬁc API calls and

data conversion into CTP format. The data format

for reporting is based on XML (used in an extended

form in the proposed system) for the 2.0 version, re-

spectively JSON for the currently proposed version

3.0 of CTP. In general CTP’s protocol design follows

the RESTful paradigm.

3 CLOUD SERVICE PROVISION

CHAINS

In this chapter, we describe complex cloud service

provision scenarios. We thereby focus on use cases

where multiple cloud service providers are involved

in the provision of a single cloud service (as perceived

by the cloud consumer). In these use cases, the agree-

ment on data processing and privacy policies, that ap-

ply on the whole service provider chain, can quickly

become a difﬁcult problem. Therefore, the auditing of

compliance with such policies along the chain, both

increases in complexity and difﬁculty.

In the following discussion of the different scopes

of policy applicability, we assume the following deﬁ-

nitions:

Cloud Consumer

We use the deﬁnition provided by NIST where a

cloud consumer is ”a person or organization that

maintains a business relationship with, and uses

service from, Cloud Providers” (Liu et al., 2011).

Cloud Service Provider

We use to the deﬁnition provided by NIST where a

cloud provider is ”a person, organization, or entity

responsible for making a service available to inter-

ested parties” (Liu et al., 2011). Furthermore, we

Towards Auditing of Cloud Provider Chains using CloudTrust Protocol

Figure 1: Audit Policy Scopes.

deﬁne the provider facing the consumer as the pri-

mary provider and each succeeding provider who

interacts with the primary provider is deﬁned as a

Nth-level provider.

Cloud Service Provider Chain

A Cloud Service Provider Chain is characterized

by at least two cloud service providers being part

of providing a service by composing their individ-

ually offered services.

In the following, we describe three different

scopes of policy applicability as depicted in Figure 1.

In that scenario we assume a cloud service (provided

by a primary cloud provider) that is provided to a

service consumer, while utilizing an additional third-

party service (provided by the sub-provider on the Nth

level).

Scope A: Cloud Consumer / Primary Cloud

Provider. In a typical cloud use case, a consumer

uses the services provided by a single cloud service

provider to accomplish a given task. The details

of the service usage are governed by terms of ser-

vice agreements, privacy polices etc. In this most

common scenario, the cloud consumer and the cloud

provider agree on these terms before any service is

provisioned. Typically, this happens during a regis-

tration or contract agreement phase. With respect to

data ﬂow between the consumer and the provider, this

means that data processing is performed by the cloud

provider in compliance with the agreed-upon policies

(see Policy 1 in Figure 1). Personal data that is dis-

closed by the cloud consumer to the cloud provider as

part of regular service use is processed by the cloud

provider according to the limits deﬁned in the policy.

Scope B: Primary Cloud Provider / Nth-level

Cloud Provider. Similar to the approach described

in Scope A, there may be similar agreements between

cloud providers. For instance, the primary cloud

provider may require resources from the sub-provider,

e.g., to extend its own service offering, to address

peak loads in service usage or to outsource internal

processes such as backups. In this case, the primary

cloud provider (as depicted in Figure 1) becomes a

cloud consumer itself. The integration of cloud ser-

vices provided by a sub-provider in cloud services

provided by the primary cloud provider is governed

by a contractual agreement between the two providers

(see Policy 2 in Figure 1).

Scope C: Cloud Consumer / Nth-level Cloud

Provider. In case of a cloud scenario, where mul-

tiple service providers are involved in the provision-

ing of a single service, the cloud consumer may not

necessarily be aware of this. Since the cloud con-

sumer has only contact with its immediate provider

(primary cloud provider in Figure 1), he might not

necessarily be aware, that the primary cloud provider

is using an additional external service. A typical ex-

ample for such a scenario is a SaaS provider hosting

its services on resources provided by an infrastructure

provider, or a SaaS provider that integrates another

SaaS provider’s service for data processing. Addi-

tionally, a silent change of the supplementary service

provider can be imagined, when the primary provider

switches to another service (e.g., uses another infras-

tructure provider for cost efﬁciency reasons). In this

case, the restrictions that governs the policy agree-

ment between the cloud consumer and the primary

cloud provider (i.e., Policy 1) must also apply to the

sub-provider, if data owned by the cloud consumer is

transferred between them. This is the case, when ei-

ther: i) similar policies policy rules exist in Policy 1

and 2, where the rules deﬁned in Policy 2 are at least

as strict as equivalent rules deﬁned in Policy 1 (in this

case, a matching of whether or not rules from policy

1 and 2 are compatible needs to be performed), or ii)

the downstream provider accepts rules from policy 1

directly.

4 AUDITING CLOUD PROVIDER

CHAINS

In this chapter, we illustrate different variations of au-

diting cloud provider chains. We thereby focus on

traditional individual audits and delegated provider

audits. Furthermore, we present several information

delivery patterns.

4.1 Individual Provider Audits

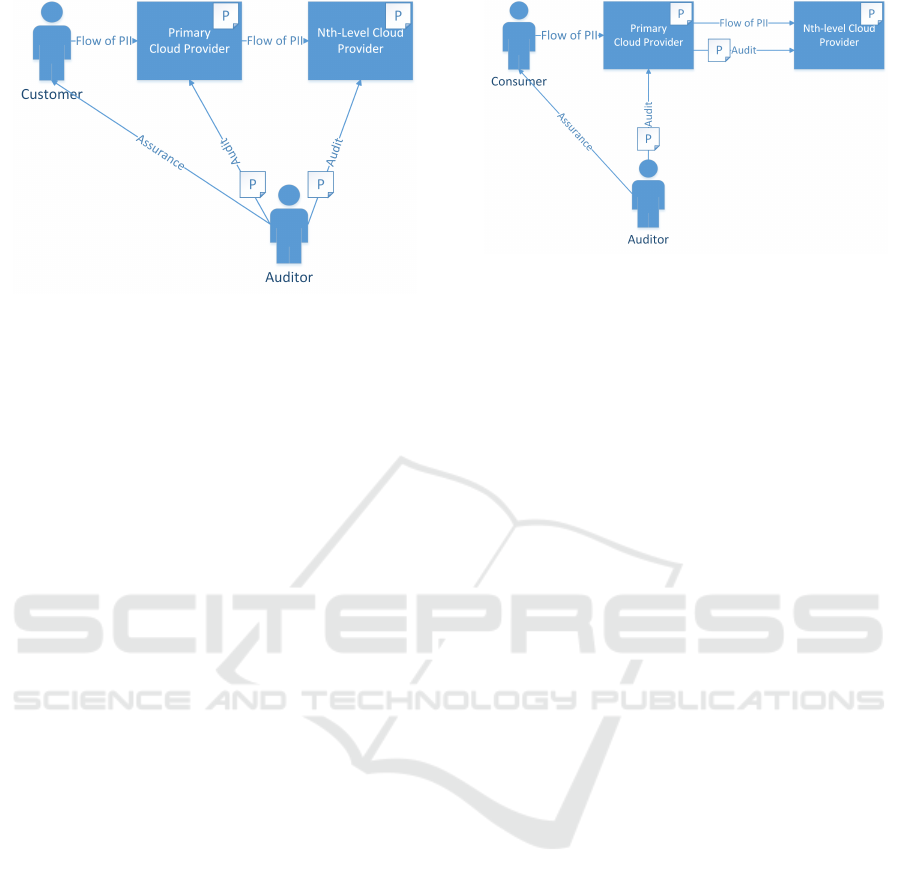

Figure 2 describes the process of auditing individual

providers in a service provision chain. All policies

will be distributed to each provider (as seen in Fig-

ure 2). Policy distribution can either be:

1. Manual policy evaluation: This approach is based

on the speciﬁed policy documents (e.g., terms

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

Figure 2: Individual Audit.

of service in human-readable form) given by the

provider. The auditor manually maps statements

of such documents to information requests for the

providers (e.g., asking for speciﬁc process docu-

mentation or monitoring data and audit logs).

2. Deploying machine-readable policies: In this ap-

proach the auditor deploys a machine-readable

policy document (XML, JSON) onto the provider.

The provider will then automatically audit the

tasks speciﬁed within the document. The audi-

tor can request the results for the audited policy

rules to verify if everything is fulﬁlled. The policy

needs to be deployed to each involved provider.

Within this approach new policies can easily be

added and deployed for automated auditing.

The audit results are used to assure the consumer

that policy and rule compliance is given or not. As

previously described, a service provision chain con-

tains at least one provider. In this case, two providers

- a primary and a 2nd-level provider. To audit the ser-

vice as a whole, it is necessary to audit each provider

separately and then aggregate the results to form a

complete picture of the service from an audit perspec-

tive. This means, that regarding data handling poli-

cies (e.g., location restrictions, access control etc.),

each provider that holds data is audited. The same

is true for the auditing of security and privacy con-

trols that are put in place at the providers. Obvi-

ously, the consumer-facing provider has to transpar-

ently disclose all his sub-providers and notify auditors

about every sub-provider his data was stored at and

where his data is currently stored. Even though not

every provider will get the consumer’s data, the audit-

ing process gains more complexity with an increasing

number of Nth-level providers. Requests must be sent

to each provider separately and each provider will de-

liver audit reports to the auditor.

Figure 3: Delegated Audit.

4.2 Delegated Provider Audits

An alternative to individual audits are what we call

delegated audits, where the auditor only interfaces

with the primary service provider that in turn takes

over the auditing of its sub-provider(s). Therefore the

auditor only has to audit the primary service provider

to obtain policy compliance results of all involved ser-

vice providers. This allows less inﬂuential stakehold-

ers such as the cloud consumer to act as an auditor to-

wards the primary provider while not having the same

rights towards the Nth-level provider(s). Whereas

the individual audit scenario is an example of how

chain audits could be performed with more inﬂuen-

tial stakeholders, such as data protection authorities.

Figure 3 depicts the delegated provider audit scenario.

Every audit request is sent to the primary provider

who will then extract CTP calls from a previously

deployed policy document (machine-readable docu-

ment deployed by the auditor). Since the primary

provider is acting as a mediator he has to delegate

requests and communication. Existing problems re-

garding policy compliance is of major concern for the

primary provider because complaints will always be

addressed to him, even if he is not responsible for a

failed audit. For the case a given audit response did

not satisfy policy compliance the consumer will con-

tact the primary provider with a complaint (e.g, data

was transferred outside valid location). On the other

hand the consumer’s payoff can be much higher due

to the centralized structure using a mediator ensuing

low complexity for the auditor. Therefore, he can al-

ways rely on the data controller to forward his request

to the data holding sub-provider without the need of

adaption (send requests to different entities, use dif-

ferent API-calls).

Towards Auditing of Cloud Provider Chains using CloudTrust Protocol

5 AUDIT LIFECYCLE IN

DELEGATED PROVIDER

AUDITS

In the following section the audit system lifecycle is

described. Figure 4 illustrates the three phases: i)

Preparation, ii) Processing and iii) Presentation. In

the following, we describe each phase in more detail:

Figure 4: System Lifecycle.

5.1 Preparation Phase

The ﬁrst phase of the lifecycle is the Preparation

Phase in which the system is prepared. The most im-

portant task during the Preparation Phase is resource

identiﬁer distribution, which is required for request

handling.

Request handling is done using unique resource

identiﬁers (URI), which are used to identify any kind

of resource that is part of an audit. A URI unambigu-

ously identiﬁes an object within a provider’s domain.

In our approach, each provider has its own namespace

in which identiﬁers can be assigned arbitrarily.

The preparation process Policy adding allows the

auditor to create new rules based on already existing

policies. For instance, he can specify a new data loca-

tion rule to ensure that his data will not leave his coun-

tries jurisdiction. Newly added rules are written into a

machine-readable audit policy that describes evidence

that is to be collected, and checks that are to be per-

formed during the audit. From the new rule, auditable

elements are derived, that an automated audit process

provides all necessary information to enable the pos-

sibility of policy compliance assessing. Auditable el-

ements include for example the location of data, logs

and conﬁgurations.

The Policy mapping process, maps each new

added rule or policy to transparency elements and as-

sociated requests. If a newly added rule cannot be

mapped to an already existing transparency element

a new element needs to be created. The mapping is

done based on the speciﬁed policies. For this reason

the policy adding process is limited to already deﬁned

policies and the associated rules within the contract.

During the mapping each non-standard policy (i.e., a

policy that requires a transparency element that is not

part of CTP) will receive an URI and all necessary

data sources needed to answer a request. The map-

ping process generates URIs and deﬁnes all auditable

attributes for an element.

The preparation process Policy distribution prop-

agates the resource identiﬁers throughout the system.

Each sub-provider sends his resource identiﬁers to the

primary provider. Afterwards, when all identiﬁers are

known by the primary provider, he will forward them

to the auditor.

5.2 Processing Phase

With the end of the Preparation Phase the second life-

cycle phase starts. In Processing Phase all elements

will be collected. For instance, all essential infor-

mation for the inquired elements are retrieved from

the evidence store and written into a CTP response.

A policy evaluation is done to determine the policy

compliance. All information, collected for one ele-

ment are written into a response and sent back to the

requesting entity.

5.3 Presentation

The last phase in the lifecycle is the Presentation

Phase. Within this phase the auditor will be presented

with the audit results. Thereby, each requested ele-

ment will be presented to him containing the name

of the policy rule as well as its achieved compliance

state.

The lifecycle is complete, when the results were

presented to the auditor. After this the lifecycle can

continue with Preparation Phase again. Returning

to the Preparation Phase is necessary if new poli-

cies/rules were added or in a continuous auditing sce-

nario, where policy compliance is audited in short in-

tervals or event-driven (e.g., on new or changed pol-

icy, on infrastructure change or on custom triggers

deﬁned by the auditor). During the new cycle only

newly generated URIs will be distributed.

6 AUDIT INFORMATION

EXCHANGE

In this section two information exchange patterns are

described that are used for different purposes in our

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

proposed system. Obtaining information as well as

providing information can be a difﬁcult task depend-

ing on how timely data is needed. Therefore, we spec-

ify a pull pattern (see Section 6.1) for non-critical in-

formation (e.g., evidence used during infrequent au-

dits) and a push pattern (see Section 6.2) for critical

information (evidence used during continuous audits).

6.1 Data Requests (Pull)

Within a pull scenario audit results (transparency ele-

ments request results) are only delivered, if there is an

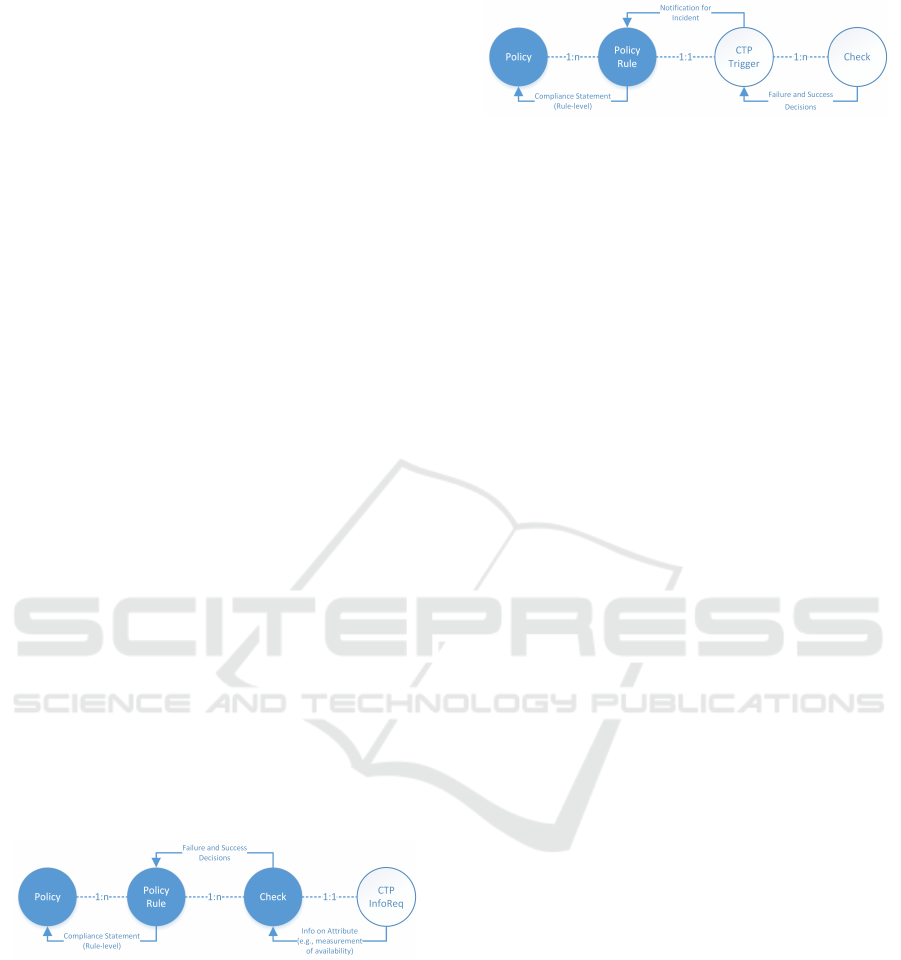

existing pull request for an element. Figure 5 shows

the individual data request sequence. The shown ﬁg-

ure does not imply the use of a pull mechanism, but

can be used with one. For each pending request its

corresponding data is pulled form a database. Pulled

information will run through a compliance check af-

terwards, to verify if a requested policy with its cor-

responding rule is fulﬁlled. This means, that audit

data request results are only delivered to the auditor

if there is an existing request. When a request for

transparency elements arrives the data is pulled from

a database (evidence store) and will then go through a

validity check to ascertain if a policy is fulﬁlled or not.

The auditor will not necessarily receive critical infor-

mation in a timely manner, unless he requested the

data during the incidents occurrence, which is highly

unlikely. Also, choosing the right request interval can

quickly become a scalability issue. Polling for new

data in relatively short intervals can introduce load

problems at the auditing system. This issue is a com-

mon problem with pull / polling mechanisms. How-

ever, reasonable and usually quite common interval

choices such as hourly, daily, weekly and monthly re-

ports do not introduce such problems.

Figure 5: Individual Audit Data Requests.

6.2 Triggered Notiﬁcation (Push)

Critical information that quickly needs to be pro-

cessed (e.g., forwarded to an analysis tool or pre-

sented to an auditor) like security breaches or integrity

violations are time-critical and therefore cannot rely

on transport via pull mechanism. Immediate notiﬁ-

cations are necessary to avoid data control depriva-

tion. Push mechanisms promise a more reactive and

rapid way of transporting critical data. Push mech-

anisms are typically associated with an event-driven

Figure 6: Triggered Audit Data Exchange.

approach, where an event is ﬁred when a condition is

met. Such an event could be the occurrence of a data

relocation. Such an event needs to be audited if there

are policy rules limiting allowed geographical loca-

tions. Figure 6 shows the push notiﬁcation process.

An auditor can specify the severity of an occurrence

called trigger, to ensure that only signiﬁcant informa-

tion are pushed. A conﬁgured trigger will only trigger

when the condition set by the auditor is fulﬁlled. After

the occurrence an incident notiﬁcation will be pushed

to the auditor. There is no need to deﬁne a trigger for

all possible auditable elements. Therefore, it is not

feasible to send a notiﬁcation for every small change

in the system. If a breach occurred or a vulnerability

was found during the audit, a notiﬁcation is pushed

and countermeasures can be taken faster which will

immensely reduce reaction time.

7 EXTENDING CLOUDTRUST

PROTOCOL FOR PROVIDER

CHAIN AUDITING

In our approach, we leverage CTP as a means for ev-

idence exchange between cloud providers in complex

cloud auditing scenarios. Additional functions and

components are located above the protocol (as seen

in Figure 7) and are responsible to exchange requests

and responses with the CTP. This structure enables

us to utilize the beneﬁts of CTP out of the protocol’s

operational area without changing the protocol itself.

Although the operational structure of CTP remains

unchanged some optimisations for audit reports are

required to be able to transfer additional information

e.g. more detailed user access lists. In this case, the

additional information would give the auditor not only

authorized users but also since when they have autho-

rization and who authorized user permissions.

Figure 7 illustrates the systems architecture in a

two provider scenario. Within the ﬁgure it is assumed,

that the Preparation Phase did end and all for the au-

dit request necessary policies and rules were already

mapped and distributed. Incoming transparency ele-

ment requests will directly go to the Remote Evidence

Collection component. In the following paragraph the

system components of our proposed approach are de-

scribed:

Towards Auditing of Cloud Provider Chains using CloudTrust Protocol

Figure 7: Multi-Provider Audit System Architecture.

Remote Evidence Collection

• Request Handling: Every incoming audit re-

quest will arrive at the Request handler of the pri-

mary provider. A decision is made which resource

identiﬁer should be used based on current data lo-

cation (Nth-level provider, primary provider). The

resource identiﬁers are used to set up CTP-calls.

Therefore, it will forward each request to the CTP

Request Manager. Each request is processed sep-

arately to guarantee that context information or

states do not get mixed up.

• CTP Request Manager: The Request Manager,

sends each given request to the CTP Response

Manager of a Nth-level provider(solid line in Fig-

ure 7 between both providers) using a pull pattern

(see Section 6.1). Inter-provider communication

is initiated by the Request Manager.

• Context Information Extraction: An incom-

ing CTP-response contains the general response

(speciﬁed in (Cloud Security Alliance, 2015)) as

well as the corresponding context information and

the compliance state for the requested element.

The context information are extracted from the

response and securely stored inside the evidence

store. The remaining information which are used

for report creation are stored as well for the audit

report creation.

• CTP Response Manager: After receiving a re-

quest the Response Manger pulls data from the

evidence store if the Nth-level provider is not able

to determine the compliance state of his own or

receives the data from the Evaluator. Obtained

results are packed into a CTP-response and sent

back to the primary providers CTP Request Man-

ager. In case a trigger is ﬁred the Response Man-

ager will push the response immediately to the

primary providers CTP Request Manager even in

the absence of an audit request for the triggered

element. A primary provider might be a Nth-

level provider of another provider and thus needs

a Response Manager. Requests for context infor-

mation are send from the auditor to the primary

providers Response Manager. Like a normal re-

sponse the Manager pulls the context information

for the requested object from the evidence store

and writes them into a CTP-Response.

Evidence Store: The Evidence Store is a database

containing all audit results (including context infor-

mation) for the primary and its Nth-level providers.

Each participating provider has its own evidence store

where his achieved audit results are stored and can be

pulled from by pending requests. The main purpose

of the evidence store is to provide audit evidence and

to make them accessible to the auditor. If no data was

relocated to a Nth-level provider, a response will be

generated from audit entries for the primary provider

located in the evidence store.

Evaluation and Reporting

• Evaluator: The Evaluator runs policy compli-

ance checks on all obtained results used for report

creation. Achieved results can get one of three

possible compliance states depending on the level

of fulﬁllment:

– State 1 Successful: The results obtained from

the database fulﬁlls the policy.

– State 2 Partially: A policy is partially fulﬁlled.

– State 3 Failed: No records for this policy were

found or the given results were unsatisfying.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

Conﬁgured triggers (see Section 6.2) are ﬁred if a

compliance check for a request failed or a devia-

tion from the trigger speciﬁcation is identiﬁed.

• Report Creation: The stored content (state, CTP

transparency elements results) is used to create the

ﬁnal report. The report can be of different types,

for instance a representation of the results on a

web dashboard or in a auto-generated document.

• Notiﬁcation: An audit can take some time to ﬁn-

ish. This largely depends on the size and scope of

the audit. Therefore, asynchronous mechanisms

are required to present audit results. An auditor

can be notiﬁed via mail when his audit is ﬁnished

and his audit report is available.

Implementation of each above described part is

mandatory for every provider. It is possible that a pri-

mary provider is a Nth-level provider in a different

audit-chain, whereas a Nth-level provider might be a

primary provider in another audit chain.

8 EVALUATION

In the following Section, we evaluate our proposed

approach towards auditing cloud provider chains. We

split the evaluation in two parts: i) a functional

evaluation using a ﬁctitious cloud scenario with two

providers involved in the service provision, and ii) a

security analysis of the proposed approach.

8.1 Functional Analysis by Scenario

For the functional look at our proposed solution, we

assume the following scenario (as depicted in Fig-

ure 1):

• Cloud provider 1 (CSP1) is a SaaS provider (and

primary cloud provider) that hosts on the virtual

resources provided by CSP2.

• Cloud provider 2 (CSP2) is an IaaS provider (and

Nth-level cloud provider) with a data center in

Germany and in Russia.

• A Cloud consumer (CC) uses the service provided

by CSP1.

• CC and CSP1 agree that CC’s data must not leave

Germany.

• The auditor checks the compliance with the data

location requirement on behalf of CC.

In this case the consumer may believe that his data

is located within CSP1’s datacenter in Germany. Due

to CSP1 not having actual computing resources by

its own, the data is actually located in CSP2’s data

centers, either in Germany, Russia or both. However,

CSP1 is still obligated to adhere to the data locality re-

striction. CSP2 enables CSP1 to audit policy compli-

ance by offering access to our tools for automated au-

diting. CSP1 establishes regular audits and evidence

collection that is focused on data location. The au-

ditor now audits the provider chain with CSP1 as a

starting point. CSP1 also runs our audit tool. Its main

user is the auditor acting on behalf of the consumer.

The communication between the audit tools is imple-

mented using CTP as described in Section 7. Both

providers use the audit tool to collect information re-

quired for the audits. In the following, the request /

response process for this scenario is described:

1. CSP1 is forwarding the audit to CSP2, requesting

audit results regarding data location if the data is

pulled or waiting till the data was moved which

would cause the trigger to ﬁre. For most elements

it may be sufﬁcient to list their state in a report but

there are elements where immediate notiﬁcation is

indispensable. Such elements require CTPs trig-

ger mechanism as described in Sections 6.2 and 7.

In this case the data location request does not need

a trigger.

2. At a later point, after the trigger has ﬁred or the

information was pulled, the response arrives at

CSP1’s Request Manager.

3. After receiving the response, CSP1 begins to ex-

tract all context information from the response

and stores it in the evidence store. This step is nec-

essary to ensure that the audit trail remains avail-

able and protected for either archival purposes

(e.g., required by law) or re-use at a later point

in time to claim remediation. This way, an auditor

that feels the need to further investigate a state-

ment made by any of the providers, can retrieve

stored evidence from the evidence store.

4. The remaining information (state, CTP response)

are used to create the ﬁnal audit report. The ﬁnal

report for the element contains the policies name

as well as the compliance state. The policy com-

pliance check showed that the policy is partially

fulﬁlled. Such an outcome would mean, that the

data left Germany at one time.

5. Now the auditor has the possibility to request con-

text information. To access the evidence store

CTP is used and each request requesting con-

text information is sent directly to the Response

Manager. The Evidence Store will then create

a standardized report containing context informa-

tion, about where the data is currently being stored

(city, state, data center) and where it had been

(country code), and send it back to the auditor.

Towards Auditing of Cloud Provider Chains using CloudTrust Protocol

With the additional information the auditor can

validate how severe the policy breach was. There-

fore, network efﬁciency in multi-tenant environ-

ments is required to satisfy each tenants expecta-

tions.

8.2 Threat Model

It is important to consider the security of the proposed

system to achieve conﬁdence in the acquired audit re-

sults. Therefore we perform a security analysis of our

proposed approach to cloud provider chain auditing.

We follow a simple methodology of deﬁning threat

scenarios, categorizing them using the STRIDE (Mi-

crosoft Developer Network, 2014) threat model and

proposing mitigation strategies for each of the iden-

tiﬁed threats. The mitigation of the threat cate-

gories will be discussed in more detail in section 8.3.

STRIDE categorizes threats as follows:

• Spooﬁng Identity

• Tampering with Data

• Repudiation

• Information disclosure

• Denial of Service

• Elevation of Privilege

We have identiﬁed the following major threats to

the evidence transfer and processing in multi-provider

audits:

• Unauthorized access (S,I): Using our system ex-

poses valuable information such as internal log-

ging, infrastructure design etc. to external enti-

ties in an automated way. A malicious external

user may steal or otherwise illegitimately gain ac-

cess to the API that is used for data exchange

between the providers. While there is no direct

access to consumer data provided by our system,

transferred information usually contains metadata

about a consumer’s system/data properties. The

given responses has the potential to expose poten-

tially sensitive metadata. Such information may

include but is not limited to data regarding conﬁg-

uration, access control lists and installed software

from which vulnerabilities and attack vectors can

be deferred. Another potential adversary is a ma-

licious insider at a cloud provider. He can poten-

tially gain access evidence data by directly attack-

ing the evidence store or by intercepting commu-

nication between the system components on the

internal network.

• Data leakage (I): Audit trail data may intention-

ally or unintentionally become available. By

collecting audit trails from the various evidence

sources into the evidence store, a new data source

becomes available. Security mechanisms of the

evidence store may fail, which could lead to data

leakage.

• Eavesdropping, (I): A malicious external user

may try to eavesdrop on audit information while

it is being transmitted either to the auditor (au-

dit result including audit trails), between cloud

providers (information on transparency elements)

or internally at a cloud provider (raw data ﬂowing

between evidence source and evidence store).

• Denial of Service (D): Denial of Service attacks

have unfortunately become a very common type

of attack against networked computer systems,

that’s in many cases trivial to carry out. Exter-

nal adversaries attack either the system directly by

exploiting ﬂaws in the implementation or by gen-

erating bogus load with the goal of shutting the

service down completely.

• Audit trail manipulation (T,R,I): The data gener-

ated by our system is supposed to be used dur-

ing automated audits. The results of these audits

should be dependable and believable. An adver-

sary may manipulate audit trail data at various

points in the system. For instance, a malicious in-

sider may manipulate the results that are returned

by the API. Preserving the integrity of the audit

data is therefore of utmost importance.

8.3 Security Analysis by Scenario

Some of the aforementioned threats can be mitigated

by implementing appropriate security controls. In the

following we present, how the threat categories are

addressed in our system:

In order to mitigate the risk of spoofed identities

and unauthorized access, we use strong authentication

mechanisms based on user and system identiﬁcation

using certiﬁcates. This way simple brute force attacks

against our publicly available API in order to guess

access credentials can be prevented.

Risks of information disclosure and tamper-

ing/manipulation (i.e., data integrity) are typically ad-

dressed by introducing data encryption and hashing

schemes. We encrypt data at rest (e.g., while it is

stored in the evidence store) and in transit (e.g., while

it is transmitted between providers and/or the audi-

tor or between system components). To have a full

protection against data leakage, ideally there is also

encryption of data during processing. While not the

focus of this paper, more details on the data at rest

and in transit encryption as well as the integrity pro-

tection implementation in our system can be found

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

in (R

ubsamen et al., 2015). However, this currently

severely limits the usefulness, processing options and

processing performance (Lopez et al., 2014).

Denial of Service risks can only be addressed by

considering the software and the environment it runs

in. Directed attacks on the application level can be

mitigated using application level ﬁrewalls, code au-

dits and security checks, whereas network-based at-

tacks typically require the capability to ﬁlter mali-

cious trafﬁc upstream.

9 CONCLUSIONS

In this paper we introduced a system which allows

automated auditing of provider chains. We dis-

cussed two different types of chain audits: i) indi-

vidual provider audits where the auditor has to audit

each Nth-level provider separately and ii) delegated

provider audits where the primary cloud provider acts

as an mediator. Our proposed system focuses on

the latter approach. We consider the main goal of

our cloud audit system to strengthen trust and trans-

parency in cloud services. This could lead to an even

better adoption of cloud computing. We also dis-

cussed the applicability of data handling and privacy

policies and how they apply in complex scenarios

where multiple providers share a cloud consumer’s

data. In the latter part of this paper, we focused on the

architectural integration of the CloudTrust Protocol in

the evidence collection and transport of our audit sys-

tem. Finally, we concluded this paper with an eval-

uation of our proposed approach. We evaluated the

functional soundness by demonstrating an audit sce-

nario that involves a cloud consumer using a service

that is intransparently provided by two different cloud

providers. Additionally, we evaluated our approach

by deﬁning a threat model using threat scenarios and

addressing those threats.

In our future work, we focus on even more com-

plex service provision scenarios, where even more

layers of service providers are involved. We will also

put special focus on ensuring the scalability of our ap-

proach. Another interesting topic emerges, when any

of the cloud providers is considered untrustworthy.

This can be the case when a malicious insider tries

to intrude in our system. We consider ensuring the in-

tegrity of evidence in the whole chain of providers to

be a major challenge.

ACKNOWLEDGEMENTS

This work has been partly funded from the Euro-

pean Commission’s Seventh Framework Programme

(FP7/2007-2013), grant agreement 317550, Cloud

Accountability Project - http://www.a4cloud.eu/ -

(A4CLOUD).

REFERENCES

Cloud Security Alliance (2013). The notorious

nine - cloud computing top threats in 2013.

https://downloads.cloudsecurityalliance.org/initiatives

/top threats/The Notorious Nine Cloud Computing

Top Threats in 2013.pdf.

Cloud Security Alliance (2015). Cloud Trust Protocol.

https://cloudsecurityalliance.org/research/ctp.

Distributed Management Task Force, Inc. (DMTF)

(2014). Cloud auditing data federation (cadf) -

data format and interface deﬁnitions speciﬁcation.

http://www.dmtf.org/sites/default/ﬁles/standards/docu

ments/DSP0262 1.0.0.pdf.

Doelitzscher, F., Reich, C., Knahl, M., Passfall, A., and

Clarke, N. (2012). An Agent Based Business Aware

Incident Detection System for Cloud Environments.

Journal of Cloud Computing: Advances, Systems and

Applications, 1(1):9.

Doelitzscher, F., R

ubsamen, T., Karbe, T., Reich, C., and

Clarke, N. (2013). Sun behind clouds - on automatic

cloud security audits and a cloud audit policy lan-

guage. International Journal On Advances in Net-

works and Services, 6(1 & 2).

FedRAMP (2015). Federal Risk and Authorization Pro-

gram. http://www.fedramp.gov.

Gonzales, D., Kaplan, J., Saltzman, E., Winkelman, Z., and

Woods, D. (2015). Cloud-trust - a security assessment

model for infrastructure as a service (iaas) clouds.

Cloud Computing, IEEE Transactions on, PP(99):1–

ISO (2013). ISO27001:2013 - Information technol-

ogy – Security techniques – Information se-

curity management systems – Requirements.

http://www.iso.org/iso/catalogue

detail?csnumber=54

534.

ISO (2014). ISO/IEC FDIS 27018 - Information tech-

nology – Security techniques – Code of practice

for protection of personally identiﬁable information

(PII) in public clouds acting as PII processors.

http://www.iso.org/iso/catalogue detail.htm?csnum

ber=61498.

ISO (2015). ISO/IEC FDIS 27017 - Informa-

tion technology – Security techniques – Code

of practice for information security controls

based on ISO/IEC 27002 for cloud services.

http://www.iso.org/iso/catalogue detail?csnumber=43

757.

Knode, R. (2009). Digital trust in the cloud.

http://assets1.csc.com/cloud/downloads/Digital Trust

in the Cloud.pdf.

Liu, F., Tong, J., Mao, J., Bohn, R., Messina,

J., Badger, L., and Leaf, D. (2011). Nist

Towards Auditing of Cloud Provider Chains using CloudTrust Protocol

cloud computing reference architecture.

http://www.nist.gov/customcf/get pdf.cfm?pub id=90

9505.

Lopez, J., R

ubsamen, T., and Westhoff, D. (2014). Privacy-

friendly cloud audits with somewhat homomorphic

and searchable encryption. In Innovations for Com-

munity Services (I4CS), 2014 14th International Con-

ference on, pages 95–103.

Marty, R. (2011). Cloud application logging for foren-

sics. In Proceedings of the 2011 ACM Symposium on

Applied Computing, SAC ’11, pages 178–184, New

York, NY, USA. ACM.

Massonet, P., Naqvi, S., Ponsard, C., Latanicki, J., Rochw-

erger, B., and Villari, M. (2011). A monitoring and

audit logging architecture for data location compli-

ance in federated cloud infrastructures. In Parallel

and Distributed Processing Workshops and Phd Fo-

rum (IPDPSW), 2011 IEEE International Symposium

on, pages 1510–1517.

Microsoft Developer Network (2014). The Stride

Threat Model. https://msdn.microsoft.com/en-

US/library/ee823878(v=cs.20).aspx.

Rizvi, S., Ryoo, J., Liu, Y., Zazworsky, D., and Cappeta, A.

(2014). A centralized trust model approach for cloud

computing. In Wireless and Optical Communication

Conference (WOCC), 2014 23rd, pages 1–6.

ubsamen, T., Pulls, T., and Reich, C. (2015). Secure

Evidence Collection and Storage for Cloud Account-

ability Audits. In CLOSER 2015 - Proceedings of

the 5th International Conference on Cloud Comput-

ing and Services Science, Lisbon, Portugal, May 20 -

22, 2015. to appear.

ubsamen, T. and Reich, C. (2013). Supporting cloud ac-

countability by collecting evidence using audit agents.

In Cloud Computing Technology and Science (Cloud-

Com), 2013 IEEE 5th International Conference on,

volume 1, pages 185–190.

Saleh, M. (2014). Construction of agent-based trust in

cloud infrastructure. In Utility and Cloud Comput-

ing (UCC), 2014 IEEE/ACM 7th International Con-

ference on, pages 941–946.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science
