HTL Model: A Model for Extracting and Visualizing Medical Events

from Narrative Text in Electronic Health Records

Eddie Paul Hernández

, Alexandra Pomares Quimbaya

and Oscar Mauricio Muñoz

1,2

Pontificia Universidad Javeriana, Bogotá, Colombia

Hospital Universitario San Ignacio, Bogotá, Colombia

Keywords: Text Mining, Clinical Practice Guidelines, Medical Events, Temporal Expressions,

Electronic Health Records.

Abstract: Electronic health records contain important information of a patient and it may serve as source to analyze

and audit the process of diagnosis and treatment of a specific clinical condition. This information is

registered in narrative text, which generates a limitation to identify medical events like doctor appointments,

medications, treatments, surgical procedures, etc. As it is difficult to identify medical events in electronic

health records, it is not easy to find a point of comparison between this electronic information with

recommendations given by clinical practice guidelines. Such guides correspond to recommendations

systematically developed to assist health professionals in taking appropriate decisions with respect to

illness. This article presents “Health Text Line Model HTL”, a model for extraction, structuring and

viewing medical events from narrative text in electronic health records. The HTL model was implemented

in a framework that integrates the aforementioned processes to identify and timing medical events. HTL

was validated in a general hospital giving good results on precision and recall.

1 INTRODUCTION

With the undeniable progress of information science

and the expansion of its use in other areas of

knowledge or even in some situations of our lives,

we can find a large amount of data produced and

stored on a daily basis. Discovering relationships,

patterns and knowledge in these large volumes of

data is being investigated and has become a great

challenge (Oboler et al., 2011). One of the biggest

challenges is text mining, which consists of applying

a set of techniques to extract relevant and unknown

information from large volumes of textual

information, usually in unstructured natural

language (Bentham and Hand, 2012).

Although there are many advances in the health

area, there are still many unexplored fields and

unsolved problems. One of these problems is given

by the information contained in electronic health

records (EHRs) due to limitations of applications,

tools and models to improve the structuring, analysis

and visualization of this information (Bentham and

Hand, 2012). This problem is caused by a possible

inaccuracy when studying the information recorded

in these EHRs, because records are usually written

in natural language (Laguna and Zaldumbide, 2007).

Therefore, the analysis of textual content in EHRs is

expensive in terms of time, and limited when we

want to identify medical events, because usually the

information from EHRs is stored in an unstructured

or narrative text. Due to the limitation of identifying

medical events (appointments, medical prescription,

treatments, surgical procedures, etc.), it is very

difficult to compare the information recorded in the

EHRs with treatment guidelines. The

recommendations given by clinical practice

Guidelines are syntheses of best available evidence

that support decision making by clinicians,

managers, and policy makers (Gagliardi et al.,

2011).To solve these problems, it is presented the

“HTL Health Text Line” model, a model for

extracting, structuring and visualizing of medical

events from narrative text recorded in EHRs. This

model helps health professionals to evaluate

adherence to clinical practice guidelines, giving

clinicians tools to audit and feedback as a good

strategy to improve professional practice, either on

its own or as a key component of multifaceted

quality improvement interventions (Ivers et al.,

2012). HTL is based on a model that uses techniques

of natural language processing techniques, timing of

events and text mining. HTL has three major

Hernández, E., Quimbaya, A. and Muñoz, O.

HTL Model: A Model for Extracting and Visualizing Medical Events from Narrative Text in Electronic Health Records.

In Proceedings of the International Conference on Information and Communication Technologies for Ageing Well and e-Health (ICT4AWE 2016), pages 107-114

ISBN: 978-989-758-180-9

107

processes (Extraction, Structure and Display). The

extraction process is responsible for obtaining facts

from the EHR and timing of medical events

(corresponding to the structuring of medical events),

this process is applied once the information has been

collected from medical records, and later there is the

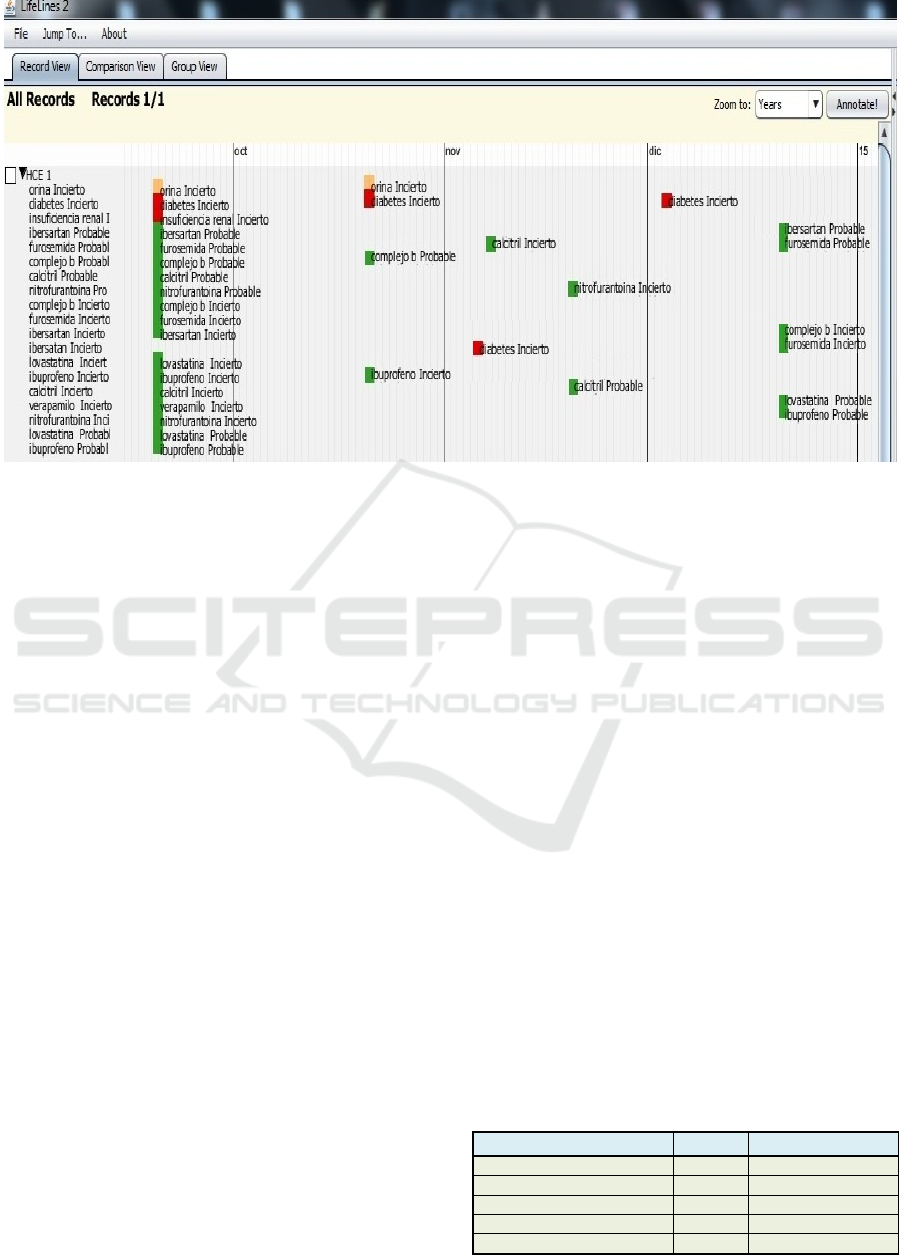

visualization process that allows medical events to

be represented as a timeline of EHRs.

This article presents in Section 2 an analysis and

classification of related works for structuring and

viewing of narrative text. Section 3 presents an

overview of the “Health Text Line Model HTL” for

extraction and structuring of medical events from

narrative text in EHRs. Section 4 describes the

functionality of the model through an HTL

Framework. Later, in Section 5 the model is

validated through a case study and Section 6

addresses the conclusions and future work.

2 STATE OF THE ART

The processing of unstructured or narrative text to

extract knowledge applies robust analytical

techniques used in Natural Language Processing

(NLP) (Mani et al 2005), Information Extraction

(IE) (Kianmehr et al., 2009), Sentiment Analysis

(SA) (Jeonghee et al., 2003), extraction of temporal

information or events (TIE) ( Cheng et al, 2007).,

such as annotation of entities, regular expressions,

automatic generation of summaries, event extraction,

textual polarity, clusters, time expressions or

temporal relationships. Although significant efforts

have been made in the notation, representation and

knowledge extraction from narrative texts, in recent

years it has increased the interest in the extraction of

temporal information in the medical domain (Clark

et al., 2011). Considering EHRs contain an

overwhelming amount of information stored in

narrative text (Savova et al., 2010), to organize this

information in a temporal way will lead to, for

example, determine whether a drug has been

prescribed, if a patient has had some disease

symptoms or when an lab test, assessment or

treatment is scheduled. Jindal and Roth proposed

three tasks to do: Removal of (a) events, (b)

temporary expressions and (c) temporal

relationships. They use clinical reports (unstructured

data) to automatically annotate medical events.

Denny et al. developed a system to extract, from

EHRs, the clinical concepts, dates to identify the

status of colon and rectal cancer, in order to save

time and effort in analyzing the medical records of

patients with this pathology. Liu et al. built a

framework to extract patients who had been exposed

to drugs. They identified if a patient had any

exposure to the drug warfarin when being admitted

to the hospital. Ferro et al., Mani et al. and Zhou et

al. scored narrative temporal expressions in EHRs.

HeidelTime and SUTime extracted and normalized

time expressions through rules, patterns and regular

expressions (Strötgen and Gertz, 2012). Although

there are studies that focus on these aspects (Savova

et al., 2011), it is important to consider the

identification of medical events and temporal

relationships. This aspect is reflected in TimeML,

which provides an annotation scheme for identifying

and orienting events on a timeline (Pustejovsky et

al., 2003). The Framework TimeML denotes the

aspects mentioned above supported by: TIMEX3,

EVENT and TLINK (Sauri et al, 2005); TIIMEX3 is

mainly used to make explicit temporal expressions,

such as times, dates, duration, etc. EVENT identifies

events and TLINK tag is used to represent temporal

relationships between events or between an event

and a temporary expression.

One of the most influential works in the

identification of medical events and their relationship to

time expressions shows an automatic system to extract

events and the relationship of these using an natural

language processing architecture. Its scores reach 90%

for extracting temporal expressions and 87% for

extracting clinical events (Kovacevic et al., 2013).

There are different approaches and works for the

extraction and structuring of medical events that

have been supported for decision-making and

analysis of information in EHRs. However, there are

some limitations that should be considered to

improve or ensure a complete chronology of events

of a medical patient. The criteria and aspects

evaluated are: Entity types, temporary expressions

identification, medical events, occurrence and

temporal relationships as defined below:

i) Entity Types: indicates whether the work takes

into account the following medical institutions:

drugs, diseases, lab tests, medical dosage units.

ii) Time Expressions: indicates whether the

project studies in depth adverbs of time and

time units.

iii) Medical Events: indicates whether the project

gives importance to medical events. A medical

event can be defined as anything that is

clinically important and which can also be

assigned to a timeline.

iv) Occurrence: indicates whether the project

considers this criterion to describe if an event

actually occurred; that is, the level of

uncertainty of the medical event.

ICT4AWE 2016 - 2nd International Conference on Information and Communication Technologies for Ageing Well and e-Health

108

Table 1: Related Works.

PAPERS Entity types Time expressions Mediical events Occurrence

Temporal

relations

(Kovacevic et al., 2013) X X X ?

(Denny et al., 2010) X X ?

(Jindal and Roth, 2013) X X X

(Savova et al., 2011) X X X ? X

(Wenzina and Kaiser, 2013) X X

(Sun et al., 2013) X X X

(Raghavan et al., 2012) X X X

(Uzuner et al., 2013) X X X X

(Sauri et al., 2012) X X X

(Reeves et al., 2012) X X

v) Temporal Relations: indicates whether the

project takes into account if there is a temporary link

between two events. The possible events can be:

change dosage schedule changes of drugs and / or

changes in the characteristics of the tests.

The "X" symbol indicates that the investigation

contains the criteria of the table. The symbol "?"

Indicates that the investigation does not specify the

criteria, but it may have used it. In conclusion, there

is no project containing all the criteria and some of

them have limitations; for this reason we proposed

HTL Model (Health Text Line).

3 HTL HEALTH TEXT LINE

HTL (Health Text Line) is a model that identifies

medical events associated with medications, diseases

and tests from the narrative texts contained in EHRs.

HTL is based on narrative text analysis to identify

the medical event and the time when it occurred, to

establish the level of certainty of that event.

Additionally, it is a model that uses text mining

techniques and natural language processing as: Stop

words, Tokenization, Splitter, Part of speech (POS),

Named Entity Extraction, Gazetteer, among others.

The model also takes into account the most relevant

criteria for knowledge extraction or removal,

structuring and viewing medical events: entity types,

temporary expressions, medical events, occurrence,

temporal relations and event display.

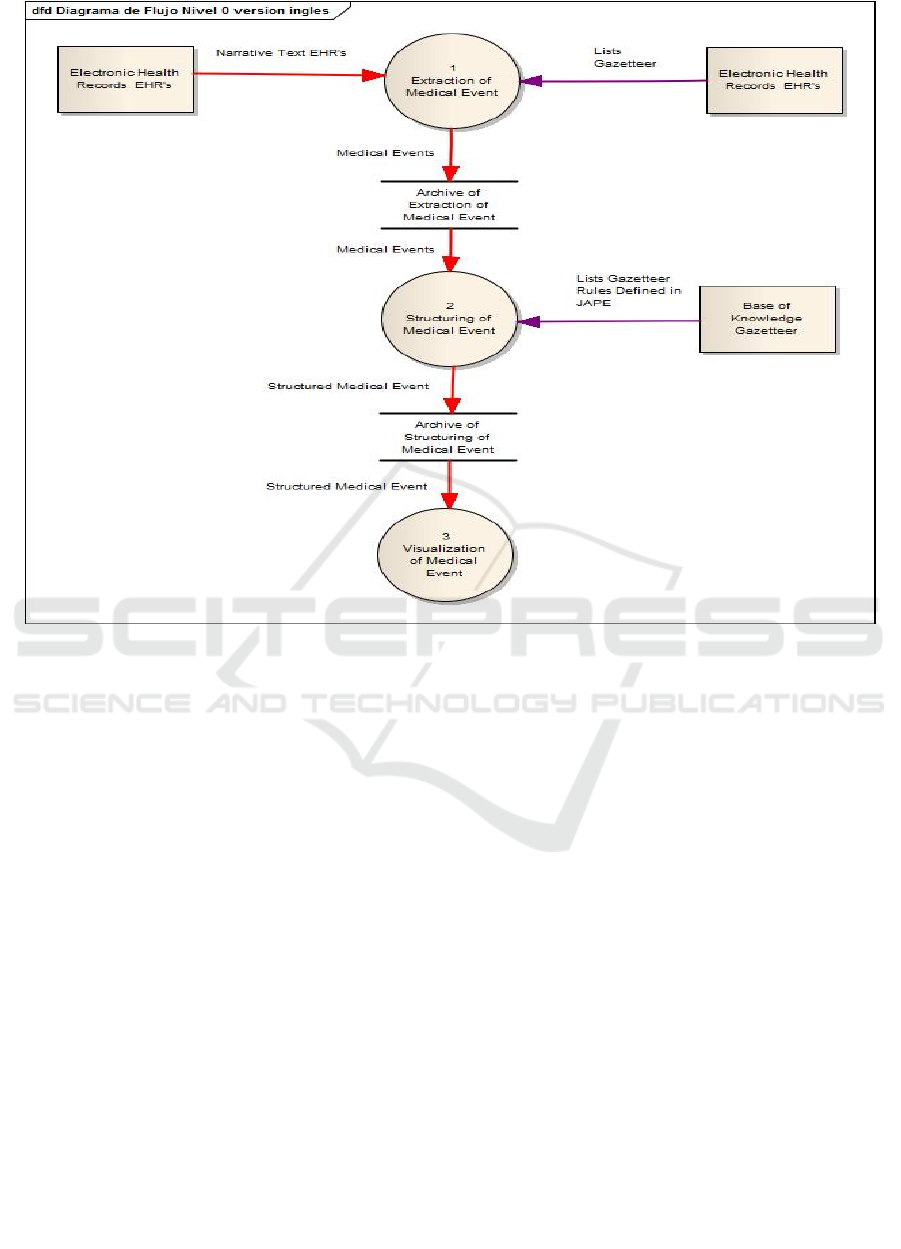

HTL is composed by three processes (see Figure

1). The first process is the Extraction of medical

event, which consists of a set of threads, methods

and techniques to prepare the narrative texts of

EHRs for major operations of knowledge discovery.

This process allows the identification of entities

(Medication, Test and disease) and medical events.

The second process is the structuring of medical

events, which is in charge of structuring the events

and sub-events with their respective medical

context; by identifying grammatical connectors,

tenses and regular expressions. The third process is

the visualization of medical events, whose input is

obtained as a result of the above two processes and

allowing initiating the visualization of the patient’s

lifeline.

3.1 Extraction Process

The extraction process is divided into four

subprocesses. It has entries (Narrative text HCE and

knowledge base Gazetter) and the result of this

process is stored in a repository called repository of

Extraction of Medical Event). The subprocess that

establishes the extraction process includes:

3.1.1 Stop Words

A method or filter process, which main objective is

to eliminate the words that provide little information

or not represent any important content (Paass G et

al.,2005).

3.1.2 Tokenization

Tokenization divides the text into simple tokens,

such as numbers, punctuation and words of different

types. (Paass G et al., 2005).

HTL Model: A Model for Extracting and Visualizing Medical Events from Narrative Text in Electronic Health Records

109

Figure 1: Model Extraction, Structuring and Visualization of Medical Events.

3.1.3 Splitter

The Splitter is a cascade of finite-state transducers

that segments the text into sentences. The divider

uses a list of abbreviations gazetteer to help

distinguish a new paragraph. Each phrase is annotated

with the type 'Sentence' (Paass G et al., 2005).

3.1.4 Part of Speech (POS)

It is the process of assigning (or tag) to each of the

words in a text their grammatical category. This

process can be executed in accordance with the

definition of the word or the context in which it

appears (Paass G et al., 2005).

3.2 Structuring Process

The structuring process consists of three

subprocesses: recognition of the organization,

identification of subevents and identification of

context). It takes the information from the repository

of Extraction of Medical Event and Knowledge Base

Gazetter to generate a repository of Structuring of

Medical Event. The subprocesses included are:

3.2.1 Entity Recognition

This process is responsible for identifying the entity

where the medical event comes from. It relies on the

various gazetteers lists of entities that conforms the

base of knowledge. The lists of entities are: diseases,

lab test, medical units, drug, adverbs of time,

connector’s grammar, verbs and time units.

3.2.2 Identification of Subevents

This is the process for identifying subevents (dosage

changes, changes of medication schedules and / or

changes in the lab tests characteristics)

corresponding to one entity and a medical event.

This process consists of the following steps:

i) Identification of Grammatical Connectors:

This process is responsible for identifying the

different grammatical connectors that exist on

EHRs, which set the pattern for an event split

in sub-events.

ii) Recognition of Verbs and Tenses: Process

responsible for identifying from a list of verbs,

the verbs commonly used in EHRs. Verbs in

ICT4AWE 2016 - 2nd International Conference on Information and Communication Technologies for Ageing Well and e-Health

110

past, present and future due to the need to

recognize whether the sub-events occur in the

past, or are a current event or are an event that

will happen in the future.

iii) Identification of Regular Expressions: A

process supported by a set of rules or patterns

defined in JAPE (Java Annotation Patterns

Engine).

3.2.3 Context Identification

Process supported by defined characteristics as

Quantum (entity, characteristic of quantity, time

characteristic and adverb of time), which can

identify the context of a medical subevent in EHRs.

The steps for making the identification process of

the context and Quantum characteristics are

described below:

i) Extraction of Adverb of Time: Process

responsible for identifying the different adverbs

of time that exist in the EHRs, to be applied to

the sub-events (complement the process

initiated by the identification of verbs and

verbal tenses).

ii) Characteristic Identification Associated to

Quantity: Process responsible for identifying

the characteristics associated with an amount

(dosage or intensity) of an entity in a sub-event

that means, the change of the quantity unit in

an entity

iii) Identification of Time Characteristics: The

process responsible for identifying the

characteristics associated with time (days, day,

night, fasting, month, week) of an entity in a

sub-event, whether an entity changes the unit

of time.

iv) Occurrence Identification or Medical Event

Uncertainty: The process classifies the level

of uncertainty of the medical event in Medical

probable event and

Medical uncertain Event; it

can identify whether a medical event has a high

probability of occurrence or not (see Figure 2).

• Medical Probable Event: It is identified

when there is an important probability of

occurrence of a medical event; although there

is some uncertainty about the date of the

medical attention, there is an approach about

the reference date. Using the previous EHRs.

• Medical Uncertain Event: It is identified

when there is very little certainty of the

occurrence of a medical event; unlike the

probable date there is a very high level of

uncertainty (impossibility of identification

relate to the reference date).

3.3 Visualization Process

This process of the model HTL is aimed at

displaying medical events that have been previously

extracted and structured. It allows health

professionals to have a point of comparison between

that recorded in the EHRs and clinical practice

guidelines. The visualization process consists of

three threads: Align, Rank and Filter. The lifeline

was made by the University of Maryland and the

Institute for Advanced Computer Studies (UMIACS)

(Plaisant, et al., 1998). The subprocesses that

integrate the Visualization process are:

3.3.1 Align

Process that allows aligning all EHRs for a specific

event type (for example diabetes).

3.3.2 Rank

Process that classifies EHRs depending on the

number of occurrences of a particular event. For

example, the number of surgeries to a patient or the

number of abnormal results in taking blood pressure.

It can also be ordered considering the judgment of

the medical specialist, the most relevant or important

events of this classification.

3.3.3 Filter

Interactive process that allows health professionals

to filter EHRs to find temporal patterns of medical

events. For example, high glucose, diabetes or

ibuprofen, headache. That is, the process of filtering

enables searching for particular sequences of events,

including both the presence and absence of events.

4 IMPLEMENTATION

To perform the validation of the strategy proposed

by the HTL model, a software tool that follows each

of its phases and processes was implemented. This

software tool is called HTL Framework, a software

that allows the extraction of medical events,

structuring of medical events and visualization of

medical events from the narrative text in EHRs.

As it can be seen in Figure 2, the identification of

medical events takes into account whether the

occurrence of these events are uncertain or probable.

These are placed in the lifeline depending on the

HTL Model: A Model for Extracting and Visualizing Medical Events from Narrative Text in Electronic Health Records

111

Figure 2: Lifeline2.

date calculated in the extraction process. Besides,

medical events are represented by the type of entity

by a specific color:

A Software Engineering process was used to

implement the HTL framework applying the Agile

Model Driven Development (AMDD) (Scott et al.,

2008). The development of the Framework was

made using the programming language Java JDK7.1.

5 VALIDATION

This evaluation and validation is performed through

a case study applied to the narrative of EHRs. These

EHRs stored information of diagnosis, treatment and

monitoring of patients in a general hospital. In the

study case functionality tests were performed

comparing the results generated manually against all

HTL generated results (response). To perform this

task the metrics precision and recall were measured.

5.1 Precision Metric

The precision metric (P) is defined as the proportion

of relevant retrieved events among all retrieved

events.

5.2 Recall Metric

The Recall metric (R) is defined as the proportion of

the relevant events that were recovered from all the

relevant events available.

5.3 Results Analysis

Three initial iterations were performed to the model

formed of a set of 40 EHRs. These EHRs were

randomly selected in a period of one year.

When performing the iterations with the three

initial data sets, there were able to obtain

percentages of 81% and 72% related to the

identification of entities and medical events.

Although these data are satisfactory, it was

necessary to optimize the rules and refine the

knowledge base to increase the percentage of

metrics. The results of the precision and recall

metrics obtained by the model for the set of

evaluation are shown below in Table 2.

The values of accuracy and recall criteria for

identification of Temporal Expressions and Medical

Events were compared with the works that achieved

better results in the analysis accomplished in the

literature, Tang et al., Raghavan et al. and Kovacevic

et al. HTL yields better results when identifying

temporal expressions and the narrative of EHRs.

Table 2: Accuracy and Recall of HTL.

Criteria P (%) R (%)

Type of Entity 96% 93%

Temporal Expressions 94% 92%

Clinical Events 92% 89%

Occurrence 85% 82%

Temporal Relations 84% 80%

ICT4AWE 2016 - 2nd International Conference on Information and Communication Technologies for Ageing Well and e-Health

112

It is concluded that the results of accuracy and

completeness to identify medical events are

satisfactory for refining the knowledge base and

optimizing the rules. However, not closer to 100%

accuracy values are reached due to the failure to

identify certain entities within the narrative were

misspelled, and therefore did not belong to the

knowledge base.

6 CONCLUSIONS AND FUTURE

WORK

There is a wide range of benefits in the different

areas of application of text mining, from a greater

understanding of customer needs until the discovery

of fraud in banks. A clear example is the many

advances in the health area and more specifically in

the study of the information recorded in EHRs.

However, there are still limitations in identifying

medical events because usually the information from

EHRs is stored in an unstructured or narrative text,

which leads to the loss of much potentially

important information. From the analysis realized of

the related literature it was established that although

there are different approaches and works for

structuring and visualization of medical events from

EHRs, there are still some limitations that should be

considered to improve or ensure a complete

chronology of events of a medical patient record.

HTL is a model that identifies medical events

associated with medications, diseases and tests from

the narrative contained in electronic health records.

It is based on the analysis of narrative text to

identify the medical event and the time at which it

occurred. HTL includes the extraction, structuring

and visualization process of medical events which

are of vital importance when performing tasks or

procedures of medical reasoning. Likewise, in the

process of viewing it creates a lifeline easier to

understand for health professionals to have a point

of comparison between what is recorded in the

EHRs and clinical practice guidelines. The strategy

proposed by the HTL model, was implemented in a

Framework. HTL gives to the health professional a

tool to evaluate the occurrence of some medical

events.

The model and framework were validated

through a case applied to the narrative text of EHRs

of a general university hospital. In the study case,

functional tests were performed using the precision

and recall metrics, which returned values of 94%,

92%, 92% and 89% respectively for the

identification of temporal expressions and medical

events. These values exceeded the digits obtained by

others research. It is important to stand out that HTL

model results can be strategically used to more

easily understand and analyze the overall structure

for EHRs, due to the benefits in delivering structured

information and its visual display on a lifeline. By

understanding and exploiting this lifeline, the time

can be reduced, improve accuracy in the results of

medical research and thus discover unknown

information.

As future work HTL could be used and validated

with other health professionals (nutritionists,

veterinarians, and psychologists), although they do

not use EHRs yet, they store information in narrative

form. In addition, it would be created a module in

the framework to allow users the option of create

and modify regular expressions or patterns

contemplate by HTL in order to increase the

accuracy of the model and narrative analysis of

EHRs.

ACKNOWLEDGEMENTS

This work is part of the projects funded by Hospital

Universitario San Ignacio and Pontificia Universidad

Javeriana for improving the analysis of electronic

health records.

REFERENCES

Oboler, A., Welsh, K., Cruz, L. (2012). The danger of big

data: Social media as computational social science.

Scopus.

Bentham, J., Hand, D. (2012). Data mining from a patient

safety database: The lessons learned Data Mining and

Knowledge Discovery. Scopus.

Laguna, J., Zaldumbide, Y. (2007). Documentación

clínica: Aspectos Legales y fuente de información para

las bases de datos hospitalarias. Revista Española de

Cardiología suplementos.

Gagliardi, R., Brouwers, C., Palda, V., Lemieux-Charles,

L., and Grimshaw, J. (2011). How can we improve

guideline use? A conceptual framework of im-

plementability. Implementation Science : IS, 6(1), 26.

Ivers, N., Jamtvedt, G., Flottorp, S., Young, J., Odgaard-

Jensen, J., French, S., Johansen, M. (2012). Audit and

feedback: Effects on professional practice and

healthcare outcomes. Cochrane Database of

Systematic Reviews 2012, (6), 1–227.

Mani, I., Pustejovsky, J., Gaizauskas, R. (2005). The

language of time: a reader. Oxford University Press.

Kianmehr, K., Gao, S., Attari, J., Rahman, M. M.,

Akomeah, K., Alhajj, R., Rokne, J., and Barker, K.

HTL Model: A Model for Extracting and Visualizing Medical Events from Narrative Text in Electronic Health Records

113

(2009). Text summarization techniques: SVM versus

neural networks. In Proceedings of the 11th

International Conference on Information Integration

and Web-based Applications & Services, iiWAS ’09,

pages 487–491, New York, NY, USA. ACM.

Jeonghee, Yi., Tetsuya, N., Razvan, B., and Wayne, N.

(2003). Sentiment analyzer: Extracting sentiments

about a given topic using natural language processing

techniques. In Proceedings of the IEEE International

Conference on Data Mining (ICDM).

Cheng, Y., Asahara, M., Matsumoto, Y. (2007).

NAIST.japan: temporal relation identification using

dependency parsed tree. Proceedings of the 4th.

International Workshop on Semantic Evaluations.

Association for Computational Linguistics.

Clark, K., Sharma, D., Chute, C. (2011). Application of a

temporal reasoning framework tool in analysis of

medical device adverse events. AMIA Annual

Symposium Proceedings. American Medical

Informatics Association,

Savova, K., Masanz, J., Ogren, P., Sunghwan, J., Karin,

S., Chute, C. (2010). Clinical text analysis and

knowledge extraction system (ctakes): architecture,

component evaluation and applications. Journal of the

American Medical Informatics Association.

Sun, W., Rumshisky, A., Uzuner, Ö. (2013). Evaluating

Temporal Relations in Clinical Text: 2012 i2b2

Challenge Overview. J Am Med Inform Assoc.

Jindal, P., Roth, D. (2013). Extraction of events and

temporal expressions from clinical narratives, Journal

of Biomedical Informatics, 46, p.S13-S19.

Kovacevic, A., Dehghan, A., Filannino, M., Keane, J.,

Nenadic, G. (2013). Combining rules and machine

learning for extraction of temporal expressions and

events from clinical narratives. J Am Med Inform

Assoc.

Denny, J., Peterson, J., Choma, N. (2010). Extracting

timing and status descriptors for colonoscopy testing

from EHRs. J Am Med Inform Assoc.

Liu, M., Jiang, M., Kawai, V. (2011). Modelling drug

exposure data in EHRs: an application to warfarin.

AMIA Annual Symposium Proceedings. American

Medical Informatics Association.

Mani, I., Wilson, G., Sundheim, B., and Ferro, L. (2001).

Guidelines for Annotating Temporal Information. In

Proceedings of HLT 2001, 1st International Conference

on Human Language Technology Research, J. Allan,

ed., Morgan Kaufmann, San Francisco.

Raghavan, P., Fosler, E., Lai, A. (2012). Inter-annotator

reliability of medical events, coreferences and

temporal relations in clinical narratives by annotators

with varying levels of clinical expertise. In: AMIA

Annual Symposium Proceedings, p. 1366. American

Medical Informatics Association.

Uzuner, Ö. Stubbs, A., Sun, W. (2013). Chronology of

your health events: Approaches to extracting temporal

relations from medical narratives. Journal of

biomedical informatics.

Wenzina, R., Kaiser, K. (2013). Identifying Condition-

Action Sentences Using a Heuristic-based Information

Extraction Method. Proc. Jt. Int. Work.

KR4HC/ProHealth

Reeves, R., Ong, F., Matheny, M., Denny, J., Aronsky, D.,

Gobbel, G., Montella, D., Speroff, T., Brown S.

(2013). Detecting temporal expressions in medical

narratives. Int J Med Inform.

Sun, W., Rumshisky, A., Uzuner, Ö. (2012). Evaluating

Temporal Relations in Clinical Text: 2012 i2b2

Challenge Overview. J Am Med Inform Association.

Ferro, L. (2001). Instruction Manual for the Annotation of

Temporal Expressions. MITRE Technical Report

MTR 01W0000046. McLean, Virginia: The MITRE

Corporation.

Strötgen, J., Gertz, M. (2012). Multilingual and cross-

domain temporal tagging. Lang Resour Eval.

Chang, A., Manning, C. (2012). SUTIME: a library for

recognizing and normalizing time expressions. In: 8th

International conference on language resources and

evaluation (LREC 2012).

Pustejovsky, J., Castaño, J., Ingria, R., Saurí, R.,

Gaizauskas, R., Setzer, A., and Katz, G. (2003).

TimeML: Robust Specification of Event and Temporal

Expressions in Text. IWCS-5, Fifth International

Workshop on Computational Semantics.

Sauri, R., Littman, J., Knippen, B. (2005).TimeML

annotation guidelines, V.1.2.1. Available at:

http://www.timeml.org/timeMLdocs/AnnGuide14.pdf.

Chen, E., Hripcsak, G., Xu, H., Markatou, M., Friedman,

C. (2007). Automated Acquisition of Disease-Drug

Knowledge from Biomedical and Clinical Documents:

An Initial Study. J Am Med Inform Assoc.

Meystre, S., Savova, G., Kipper-Schuler, K. (2008).

Extracting information from textual documents in the

electronic health record: a review of recent research.

Yearb Med Inform. 35:128–44.

Savova, G., Chapman, W., Zheng, J., Crowley, R. (2011).

Anaphoric relations in the clinical narrative: corpus

creation. JAMIA; 18(4): 459-465.

Paass, G., Hotho, A., Nurnberger, A. (2005). A brief

survey of text mining. IEEE,

Plaisant, C., Mushlin, R., Snyder, A., Li, J., Heller, D.,

Shneiderman, B. (1998). LifeLines Using visualization

to enhance navigation and analysis of patient records.

Proc. AMIA Fall Symposium.

Scott, A. (2008). Agile Model Driven Development

(AMDD).The Key to Scaling Agile Software

Development.

ICT4AWE 2016 - 2nd International Conference on Information and Communication Technologies for Ageing Well and e-Health

114
