Process Mining Monitoring for Map Reduce Applications in the Cloud

Federico Chesani, Anna Ciampolini, Daniela Loreti and Paola Mello

DISI - Department of Computer Science and Engineering, University of Bologna, Viale del Risorgimento 2, Bologna, Italy

Keywords:

Business Process Management, Map Reduce, Monitoring, Cloud Computing, Autonomic System.

Abstract:

The adoption of mobile devices and sensors, and the Internet of Things trend, are making available a huge

quantity of information that needs to be analyzed. Distributed architectures, such as Map Reduce, are indeed

providing technical answers to the challenge of processing these big data. Due to the distributed nature of

these solutions, it can be difﬁcult to guarantee the Quality of Service: e.g., it might be not possible to ensure

that processing tasks are performed within a temporal deadline, due to speciﬁcities of the infrastructure or pro-

cessed data itself. However, relaying on cloud infrastructures, distributed applications for data processing can

easily be provided with additional resources, such as the dynamic provisioning of computational nodes. In this

paper, we focus on the step of monitoring Map Reduce applications, to detect situations where resources are

needed to meet the deadlines. To this end, we exploit some techniques and tools developed in the research ﬁeld

of Business Process Management: in particular, we focus on declarative languages and tools for monitoring

the execution of business process. We introduce a distributed architecture where a logic-based monitor is able

to detect possible delays, and trigger recovery actions such as the dynamic provisioning of further resources.

1 INTRODUCTION

The exponential increase in the use of mobile devices,

the wide-spread employment of sensors across vari-

ous domains and, in general, the trending evolution

towards an “Internet of everything”, is constantly cre-

ating large volumes of data that must be processed to

extract knowledge. This pressing need for fast anal-

ysis of large amount of data calls the attention of the

research community and fosters new challenges in the

big data research area (Chen et al., 2014b). Since

data-intensive applications are usually costly in terms

of CPU and memory utilization, a lot of work has

been done to simplify the distribution of computa-

tional load among several physical or virtual nodes

and take advantage of parallelism.

Map Reduce programming model (Dean and Ghe-

mawat, 2008) has gained signiﬁcant attraction for

this purpose. The programs implemented according

to this model can be automatically split into smaller

tasks, parallelized and easily executed on a distributed

infrastructure. Furthermore, data-intensive applica-

tions requires a high degree of elasticity in resource

provisioning, especially if we deal with deadline con-

strained applications. Therefore, most of the cur-

rent platforms for Map Reduce and distributed com-

putation in general (Apache Hadoop, 2015; Apache

Spark, 2015) allow to scale the infrastructure at exe-

cution time.

If we assume that the performance of the over-

all computing architecture is stable and a minimum

Quality of Service (QoS) is guaranteed, Map Reduce

parallelization model makes relatively simple to esti-

mate a job execution time by on-line checking the ex-

ecution time of each task in which the application has

been split – as suggested in the work (Mattess et al.,

2013). This estimation can be compared to the dead-

line and used to predict the need for scaling the archi-

tecture.

Nevertheless, the initial assumptions are not al-

ways satisﬁed and the execution time can differ from

what is expected depending on either architectural

factors (e.g., the variability in the performance of the

machines involved in the computation or the ﬂuctua-

tion of the bandwidth between the nodes), or domain-

speciﬁc factors (e.g., a task is slowed down due to the

input data content or location). This unpredictable be-

havior could be run-time corrected if the execution re-

layed on an elastic set of computational resources as

that provided by cloud computing systems. Offering

“the illusion of inﬁnite computing resources available

on demand” (Armbrust et al., 2009), cloud computing

is the ideal enabler for tasks characterized by a large

and variable need for computational power.

Cloud computing is indeed knowing a wide suc-

cess in a plethora of different applicative domains,

Chesani, F., Ciampolini, A., Loreti, D. and Mello, P.

Process Mining Monitoring for Map Reduce Applications in the Cloud.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 1, pages 95-105

ISBN: 978-989-758-182-3

thanks to the maturity of standards and implemen-

tations. Usually, the cloud is the preferred choice

for applications that must comply to a set of contract

terms and functional and non-functional requirements

speciﬁed by a service level agreement (SLA). The

complexity of the resulting overall system, as well

as the dynamism and ﬂexibility of the involved pro-

cesses, often require an on-line operational support

checking compliance. Such monitor should detect

when the overall system deviates from the expected

behavior, and raise an alert notiﬁcation immediately,

possibly suggesting/executing speciﬁc recovery ac-

tions. This run-time monitoring/veriﬁcation aspect –

i.e., the capability of determining during the execu-

tion if the system exhibits some particular behavior,

possibly compliance with the process model we have

in mind – is still matter of an intense research effort in

the emergent Process Mining area. As pointed out in

(Van Der Aalst et al., 2012), applying Process Min-

ing techniques in such an online setting creates ad-

ditional challenges in terms of computing power and

data quality.

Starting point for Process Mining is an event log.

We assume that in the architecture going to be ana-

lyzed it is possible to sequentially record events. Each

event refers to an activity (i.e., a well-deﬁned step in

some process/task) and it is related to a particular pro-

cess instance. Note that, in case of a distributed com-

putation, we also need extra information such as, for

instance, the resource/node executing, initiating and

ﬁnishing the process/task, the timestamp of the event,

or other data elements.

While, in an cloud architecture, several tools ex-

ist for performing a generic, low-level monitoring

task (Ceilometer, 2015; Amazon Cloud Watch, 2015),

we also advocate the use of an application-/process-

oriented monitoring tool in the context of Process

Mining in order to run-time check the conformance of

the overall system. Essentially, the goal of this work

is to apply the well-known Process Mining techniques

to the monitoring of complex distributed applications,

such as Map Reduce in a cloud environment.

Since Map Reduce applications typically oper-

ate in dynamic, complex and interconnected environ-

ments demanding high ﬂexibility, a detailed and com-

plete description of their behavior seems to be very

difﬁcult, while the elicitation of the (minimal) set

of behavioral constraints/properties that must be re-

spected to correctly execute the process (and that can-

not be directly incorporated at design time into the

system) can be more realistic and useful. Therefore,

in this context, we will adopt a veriﬁcation framework

based on constraints, called MOBUCON EC (Monitor-

ing business constraints with Event Calculus (Montali

et al., 2013b)), able to dynamically monitor streams

of events characterizing the process executions (i.e.,

running cases) and check whether the constraints of

interest are currently satisﬁed or not. MOBUCON is

an extension of the constraint-based Declare language

(Pesic and van der Aalst, 2006) and is data aware.

This allows us to specify properties of the system

to be monitored involving time constraints and task

data. The Event Calculus (EC) formalization has been

proven a successful choice for dealing with runtime

veriﬁcation and monitoring, thanks to its high expres-

siveness and the existence of reactive, incremental

reasoners (Montali et al., 2013b).

This work presents an on-line monitoring system

to check the compliance of each node of a distributed

infrastructure for data processing running on a cloud

environment. The resulting information is used for

taking scaling decisions and dynamically recovering

from critical situations with a best effort approach (by

means of an underlying previously implemented in-

frastructure layer). This could be considered as a ﬁrst

step towards a Map Reduce engine with autonomic

features either in run-time detecting undesired task

behaviors, or in handling such events with dynamic

provisioning of computational resources in a cloud

scenario.

The paper is organized as follows. In Section 2,

after introducing the applicative scenario based on the

Map Reduce model, we present the overall architec-

ture, describing the main components and their rela-

tionships. A special emphasis is given to the monitor-

ing block, based on declarative constraints. Section

3 presents the use case scenario, based on the exe-

cution of a well-known benchmark over the popular

Map Reduce platform Hadoop. This section also in-

cludes the experimental results demonstrating the po-

tential of our approach. Related work and Conclu-

sions follow.

2 SYSTEM CONTEXT AND

SPECIFICATIONS

In this section, we propose a framework architecture

to online detect user-deﬁned critical situations in a

Map Reduce environment and autonomously react by

providing or removing resources according to high-

level rules deﬁnable in declarative language.

2.1 Applicative Scenario

Map Reduce is a programming model able to sim-

plify the complexity of parallelization. Following this

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

approach, the input data-set is partitioned into an ar-

bitrary number of parts, each exclusively processed

by a different computing task, the mapper. Each

mapper produces intermediate results (in the form of

key/value pairs) that are collected and processed by

other tasks, called reducers, in charge of calculating

the ﬁnal results by merging the values associated to

the same key. The most important feature of MapRe-

duce is that programs implemented according to this

model are intrinsically parallelizable.

In this scenario, the estimation of the execution

time can be crucial to check deadline or detect bottle-

necks but the time to execute each mapper or reducer

task can vary depending on different factors – e.g., the

content of the block of input data analyzed, the perfor-

mance of the machine on which the task is executed,

the location of the input data (local to the task or on

another machine), the bandwidth between the phys-

ical nodes of the distributed infrastructure. For this

reason, the prediction of the execution time for Map

Reduce applications is not a trivial task.

Since elasticity is so crucial in the data-intensive

scenario, all the main platforms that implement the

Map Reduce model offer application scale-up/-down

as a feature, making relatively simple to add (or re-

move) computational nodes to the distributed infras-

tructure while performing a data-intensive analysis.

2.2 Framework Architecture

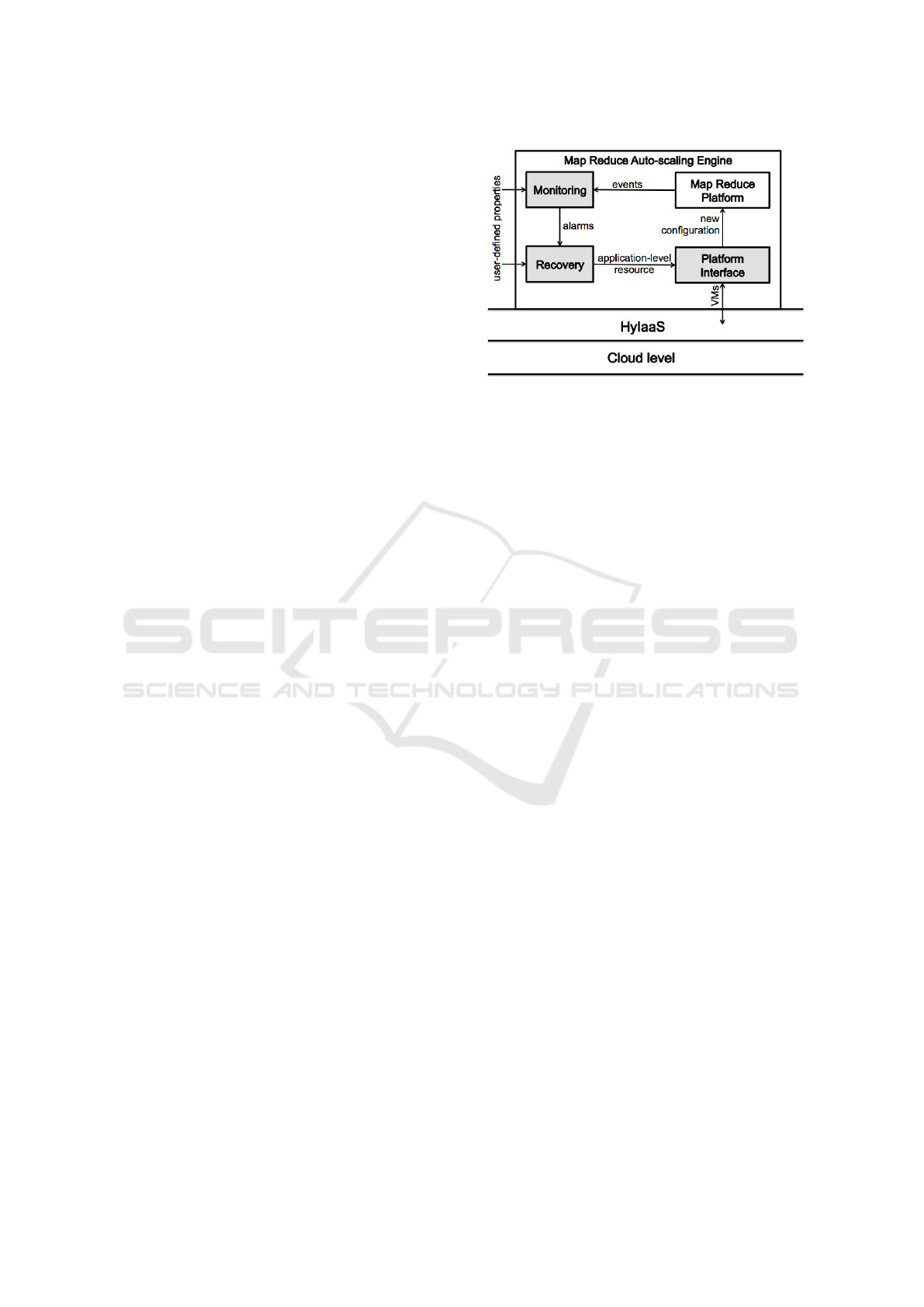

The main component of the proposed architecture is

Map Reduce Auto-scaling Engine. This application-

level software consists of three main subcomponents

(grey blocks in Figure 1): the Monitoring, Recov-

ery and Platform Interface. These elements interacts

with the Map Reduce platform to detect and react to

anomalous sequences of events in the execution ﬂow.

The Monitoring component takes as input a high-

level speciﬁcation of the system properties describ-

ing the expected behavior of a Map Reduce work-

ﬂow and the on-line sequence of events from the Map

Reduce platform’s log. Given these input data, the

Monitoring component is able to rise alerts whenever

the execution ﬂow violates user-deﬁned constraints.

The alarms are evaluated by the Recovery compo-

nent in order to estimate how many computational

nodes must be provisioned (or de-provisioned) to face

the critical condition according to user-deﬁned rules

taken as input.

Finally, the Platform Interface is in charge of

translating the requests for new Map Reduce nodes

into virtual machine (VM) provisioning requests to

the infrastructure manager. The Platform Interface is

also responsible for the installation of Map Reduce-

Figure 1: Framework architecture.

speciﬁc software on the newly provided virtual ma-

chines (VMs). The output of this subcomponent is a

new conﬁguration of the computing cluster with a dif-

ferent number of working nodes.

As shown in Figure 1, Map Reduce Auto-scaling

Engine relays on a lower level component called Hy-

brid Infrastructure as a Service (HyIaaS) for the provi-

sioning of VMs (Loreti and Ciampolini, 2015). This

layer encapsulates the cloud functionality and inter-

acts with different infrastructures to realize a hybrid

cloud: if the resources of a private (company-owned)

on-premise cloud are no longer enough, HyIaaS redi-

rects the scale-up request to an off-premise public

cloud. Therefore, thanks to HyIaaS, the resulting

cluster of VMs for Map Reduce computation can be

composed by VMs physically deployed on different

clouds. Further details about HyIaaS can be found in

(Loreti and Ciampolini, 2015).

The hybrid nature of the resulting cluster is often

very useful (especially if the on-premise cloud has

limited capacity) but can also further exacerbate the

problem of Map Reduce performance prediction. If

part of the computing nodes is available through a

higher latency, the execution time can be substantially

afﬂicted by the allocation of the tasks and the amount

of information they trade with each other. Despite the

complexity of the scenario, we want the monitoring

system to offer a simple interface for the elicitation of

the properties to be respected. Nonetheless, it should

be able to rapidly identify critical situations. To this

end, we apply the MOBUCON framework to the mon-

itoring component and beneﬁt from the application of

well-known Process Mining techniques to our envi-

ronment.

Process Mining Monitoring for Map Reduce Applications in the Cloud

2.3 Monitoring the System Execution

w.r.t. Declarative Constraints

Monitoring complex processes such as Map Reduce

approaches in dynamic and hybrid clouds has two

fundamental requirements: on one hand, there is the

need of a language expressive enough to capture the

complexity of the process and to represent the key

properties that should be monitored. Of course, for

practical applications, such language should come al-

ready equipped with sound algorithms and reasoning

tools. On the other hand, any monitor must produce

results in a timely fashion, being the analysis carried

out on the ﬂy, typically during the system execution.

Declarative languages are one of the solutions

proposed in the ﬁeld of Business Process Manage-

ment to answer the above requirements. In particu-

lar, they have been adopted to model business rules

and loosely-structured processes, mediating between

support and ﬂexibility.

Among the many proposals, we focused on the

Declare language (Pesic and van der Aalst, 2006), a

graphical, declarative language for the speciﬁcation

of activities and constraints. The Declare language

has been extended with temporal deadlines and data-

aware constructs in (Montali et al., 2013b; Montali

et al., 2013a), where also the MOBUCON tool has

been presented, together with some ﬁgures about its

performances in a run-time context.

Declare is a graphical language focused on activ-

ities (representing atomic units of work), and con-

straints, which model expectations about the (non)

execution of activities. Constraints range from classi-

cal sequence patterns to loose relations, prohibitions

and cardinality constraints. They are grouped into

four families: (i) existence constraints, used to con-

strain the number of times an activity must/can be ex-

ecuted; (ii) choice constraints, requiring the execution

of some activities selecting them among a set of avail-

able alternatives; (iii) relation constraints, expecting

the execution of some activity when some other activ-

ity has been executed; (iv) negation constraints, for-

bidding the execution of some activity when some

other activity has been executed. Tab. 1 shows few

simple Declare constraints.

The Declare language provides a number of ad-

vantages: being inherently declarative and open, it

supports the modeler in the elicitation of the (min-

imal) set of behavioral constraints that must be re-

spected by the process execution. Acceptable execu-

tion courses are not explicitly enumerated, but rather,

they are implicitly deﬁned by the execution traces that

comply with all the constraints. In this sense, Declare

is indeed a notable example of ﬂexibility by design.

Table 1: Some Declare constraints.

1..∗

Absence The target activity a cannot

be executed

Existence Activity b must be exe-

cuted at least once

a •−−−I b

Response Every time the source ac-

tivity a is executed, the target activity

b must be executed after a

a −−−I• b

Precedence Every time the source

activity b is executed, a must have

been executed before

a •−−−Ik b

Negation response Every time the

source activity a is executed, b can-

not be executed afterwards

Moreover, Declare (and its extensions) supports tem-

poral deadlines and data-aware constraints, thus mak-

ing it a powerful modeling tool. The MOBUCON tool

fully supports the Declare language; moreover, being

based on a Java implementation of the EC formal-

ism (Kowalski and Sergot, 1986), it provides a further

level of adaptability: the system modeler can directly

exploit the EC – as in (Bragaglia et al., 2012) – or the

Java layer underneath for a fully customizable moni-

toring. Finally, MOBUCON and the extended Declare

support both atomic and non-atomic activities.

3 USE CASE SCENARIO

The architecture shown in Figure 1 has been imple-

mented and analyzed using a testbed framework. In

particular, a simulation approach has been adopted to

create speciﬁc situations, and to verify the run-time

behavior of the whole architecture. To this end, syn-

thetic data has been generated, with the aim of stress-

ing the Map Reduce implementation.

3.1 Testbed Architecture and Data

The Map Reduce model is implemented and sup-

ported by several platforms. In this work we opted

for Apache Hadoop (Apache Hadoop, 2015), one of

the most used and popular frameworks for distributed

computing. Hadoop is an open source implemen-

tation consisting of two components: Hadoop Dis-

tributed File System (HDFS) and Map Reduce Run-

time. The input ﬁles for Map Reduce jobs are split

into ﬁxed size blocks (default is 64 MB) and stored in

HDFS. Map Reduce runtime follows a master-worker

architecture. The master (Job-Tracker) assigns tasks

to the worker nodes. Each worker node runs a Task-

Tracker daemon that manages the currently assigned

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

task. Each worker node can have up to a predeﬁned

number of mappers and reducers simultaneously run-

ning. This concurrent execution is controlled through

the concept of slot: a virtual container that can host a

running task. The user can specify the number s

slots for each worker w. This number should reﬂect

the maximum number of processes that the worker

can concurrently run (e.g., on a dual core with hyper-

threading s

is suggested to be 4). The Job-Tracker

will assign to each worker a number n

of tasks to be

concurrently executed, such that the relation n

≤ s

is always guaranteed.

We deﬁne S as the total number of slots in the

MapReduce platform:

S =

∑

(1)

The value in Eq. 1 also addresses the total number

of tasks that the platform can concurrently execute.

For the sake of simplicity, we start focusing only

on map phase deadlines because all the map tasks usu-

ally operates on similar volumes of data and we can

assume that in a normal execution they will require

similar amount of time – as also suggested by (Matt-

ess et al., 2013). The deadline t

for each mapper can

be evaluated as:

· S

(2)

Where D

is the deadline for the execution of the

map phase and M is the total number of mapper to be

launched. Conversely, the amount of data processed

by the reduce phase is unknown until all the mappers

have completed, thus complicating the estimation of

a deadline for each reducer.

Our Hadoop testbed is composed of 4 VMs: 1

master and 3 worker nodes. Each VM has 2 VCPUs,

4GB RAM and 20GB disk. At the cloud level we

use 5 physical machines, each one with a Intel Core

Duo CPU (3.06 GHz), 4GB RAM and 225GB HDD.

Since a dual core machine (without hyperthreading)

can concurrently execute at most two tasks, we as-

signed two slots to each worker. Our Map Reduce

platform can therefore execute up to six concurrent

tasks (S = 6).

As for the task type, we opted for a word count

job, often used as a benchmark for assessing perfor-

mances of a Map Reduce implementation. In our sce-

nario we prepared a collection of 20 input ﬁles of

5MB each. Consequently, Hadoop Map Reduce Run-

time launches M = 20 mappers to analyze the input

data. In this testbed, we would like to complete the

map phase in D

= 200 seconds, so every map task

should not exceed one minute execution.

According to the default Hadoop conﬁguration,

the output of all these mappers is analyzed by a sin-

gle reducer. In order to emulate the critical condition

of some tasks showing an anomalous behavior, we ar-

tiﬁcially modiﬁed 8 input ﬁles, so has to simulate a

dramatic increase of the time required to complete the

task. The mappers analyzing these blocks resulted to

be 6 times slower than the normal ones.

Note that, as other MapReduce platforms, Hadoop

has a fault tolerance mechanism to detect the slow

tasks and relaunch them from the beginning on other

– possibly more performing – workers. This solu-

tion is useful in case the problem is caused by ar-

chitectural factors (poor performance or bandwidth

saturation on the original worker), but is likely to be

counter-productive when the execution slow down is

related to the content of the data blocks involved. In

that case indeed, the problem will occur again on the

new worker. The only way to speed up the compu-

tation is by assigning to the newly provided workers

other pending tasks in the queue, thus to increase the

value of S for the MapReduce platform.

3.2 Properties to be Monitored

In this work we mainly focus on time-constrained data

insight: the aim is to identify as soon as possible the

critical situation of the Map Reduce execution going

to complete after a predeﬁned deadline. Practically

speaking, this correspond to situations where the total

execution time of the Map Reduce is expected to stay

within some (business-related) deadline: e.g., banks

and ﬁnancial bodies require to perform analyses of

ﬁnancial transactions during night hours, and to pro-

vide outcomes at the next work shift.

The MOBUCON framework already provides a

model of activities execution, where a number of

properties to be monitored are already directly sup-

ported. In particular, a support for non-atomic ac-

tivities execution is proposed within the MOBUCON

framework, where for each start of execution of a spe-

ciﬁc ID, a subsequent end of execution (with same ID)

is expected. This feature has been particularly use-

ful during the veriﬁcation of our testbed, to identify a

number of exceptions and worker faults due to prob-

lems and issues not directly related to the Map Re-

duce approach. For example, during our experiments

we ignored fault events generated by power shortages

of some of the PC composing the cloud. The out-of-

the-box support offered by MOBUCON was exploited

to identify these situations and rule them out.

To detect problematic mappers, we decided to

monitor a very simple Declare property between the

start and the end of the elaboration of each mapper.

Process Mining Monitoring for Map Reduce Applications in the Cloud

Map start

(0..60)

•−−−−−I Map end

Figure 2: Declare Response constraint, with a metric tem-

poral deadline.

Declare augmented with metric temporal deadlines as

in (Montali et al., 2013b) was exploited to this end,

and the constraint shown in Figure 2 illustrates the

Response constraint we speciﬁed in MOBUCON. It

simply states that after an event Map start, a corre-

sponding event Map end should be observed, within

zero and 60 seconds

. Notice that MOBUCON cor-

relates different events on the basis of the case: i.e.,

it requires that every observed event belongs to a spe-

ciﬁc case, identiﬁed by a single case ID. To fulﬁll such

requirement, we fed the MOBUCON monitor with the

events logged by the Hadoop stack, and exploited the

Map identiﬁer (assigned by Hadoop to each mapper)

as a case ID. This automatically ensures that each

Map start event is indeed matched with the corre-

sponding Map end event.

The constraint shown in Figure 2 allows us to de-

tect mappers that are taking too much time to compute

their task. The deadline set to 60 seconds has been

chosen on the basis of the total completion time we

want to respect while analyzing the simulation data.

Naturally, some knowledge about the application do-

main is required to properly set such deadline. Map-

pers that violate the deadline are those that, unfortu-

nately, were assigned a long task. This indeed would

not be a problem for a single mapper. However, it

could become a problem if a considerable number of

mappers gets stuck on long tasks, as this might un-

dermine the completion of the whole bunch of data

within a certain deadline. Note that, if the user doesn’t

have any knowledge of the volume of data to be pro-

cessed – and consequently, the number of map tasks

to be launched is not known a priori –, this method-

ology allow him to still detect anomalies in the data

that can require additional resources to speed up the

computation. For example, the deadline for each map

task can be computed at execution time by taking into

account the average completion time for each com-

pleted mapper. The same approach can be used for

the runtime estimation of the reduce phase deadline

compliance.

Besides supporting the monitoring of Declare

constraints, MOBUCON supports also the deﬁnition

of user-speciﬁc properties. We exploited this fea-

ture and expressed a further property by means of

MOBUCON accepts deadlines at different time units. In

this paper we opted for expressing the time unit in terms

of seconds, although depending on the application domain

minutes or milliseconds might be better choices.

the EC language. The property, that we named

long execution maps, aims to capture all the mappers

that have already violated the deadline, and that are

still active (i.e., a start event has been seen for that

mapper, and no end event has yet been observed).

Such deﬁnition is given in terms of an EC axiom:

initiates(

deadline expired(A, ID),

status(i(ID, long execution maps), too long),

) ←

holds at(status(i(ID, waiting task), pend), T ),

holds at(status(i(ID, A), active), T ).

We do not provide here all the details about the ax-

iom – the interested reader can refer to (Kowalski and

Sergot, 1986) for an introduction to EC. Intuitively,

the axiom speciﬁes that at any time instant T , the

happening of the event deadline expired(A, ID) ini-

tiates the property long execution maps with value

too long for the mapper ID, if that mapper was still

active and there was a constraint waiting task still not

fulﬁlled. The waiting task constraint is indeed the re-

sponse constraint we discussed in Figure 2.

With the long execution maps property we can

determine within the MOBUCON monitor which are

the mappers that got stuck on some task. However, to

establish if a problem occur to the overall system, we

should aggregate this information, and consider for

each time instant how many mappers are stuck w.r.t.

the total number of available mappers. Exploiting the

MOBUCON feature of supporting also a healthiness

function, we provided the following function:

System health = 1 −

#long execution maps

#total maps available

(3)

In other words, the system health is expressed as

the fraction of mappers that are not busy with a long

task, over the total number of launched mappers. The

lower the value, the higher the risk that the overall

Hadoop framework gets stuck and violates some busi-

ness deadline. In order to make the health function

more responsive, we can deﬁne a window of map task

to be considered in the computation of system health.

3.3 The Output from MOBUCON

Monitor

In Figure 3, we show what happens when we analyze

a word count execution on the Hadoop architecture

described in Section 3.1, with respect to the proper-

ties discussed in Section 3.2. Note that, as we focus

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

100

Figure 3: The output of the MOBUCON monitor for the execution of word count job on the given testbed.

on the performance of the system when data-speciﬁc

factors slow down the computation, the declarative se-

mantic employed and the results of the following eval-

uation are independent from the speciﬁc MapReduce-

encoded problem (e.g., word count, terasort, inverted

index etc.).

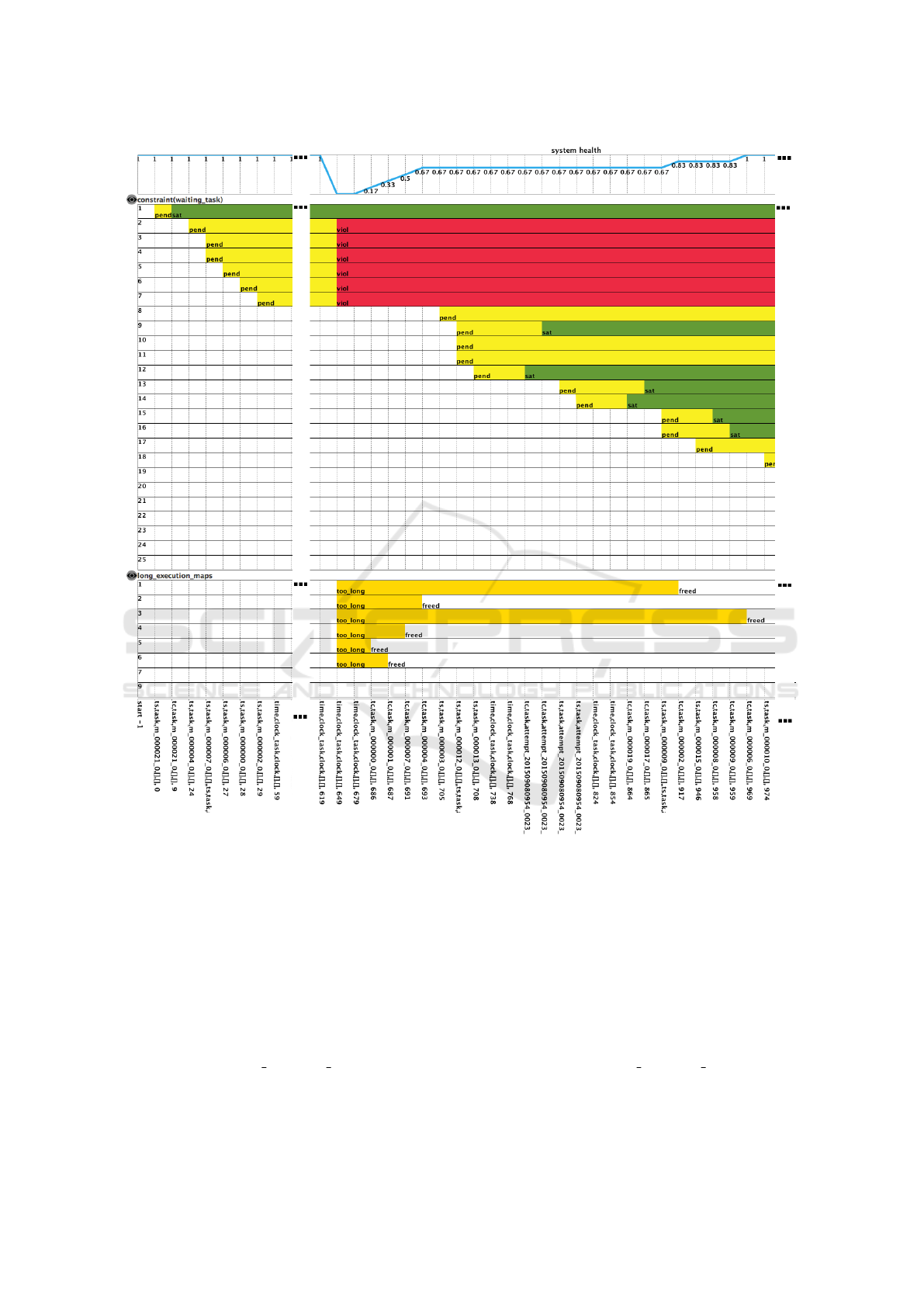

Figure 3 is composed of four strips, representing

the evolution of different properties during the exe-

cution. From top to bottom of the ﬁgure we have:

the health function, graphical representation of the

Declare constraint, long execution maps property and

description of the events occurred in each time inter-

val. In the latter in particular (bottom part of Figure

3), the observed events has starting labels ts or tc to

represent the start and the completion of a task, re-

spectively. There are also a number of events starting

with the label time: these events represent the ticking

of a reference clock, used by MOBUCON to establish

when deadlines are expired.

The health function on top of Figure 3 is the one

deﬁned in Eq. 3: indeed, the system healthiness dra-

matically decreased when six over seven of the ﬁrst

mappers launched in our testbed got stuck in a long

execution task. The long execution maps strip (third

strip from the top in Figure 3) further clariﬁes the in-

tervals during which the long map tasks exceed their

Process Mining Monitoring for Map Reduce Applications in the Cloud

101

Figure 4: Output of the MOBUCON monitor subsequent to Figure 3.

time deadline.

Finally, the Declare response constraint strip (sec-

ond strip from the top in Figure 3) shows the status

of each mapper: when the mapper is executing, the

status is named pending and it is indicated with a yel-

low bar. As soon as there is information about the

violation of a deadline (because of a tick event from

the reference clock), the horizontal bar representing

the status switched from pending to violated, and the

color is changed from bright yellow to red. Notice

that once violated (red color), the response constraint

remains as such: indeed, this is a consequence of

the Declare semantics where no compensation mech-

anisms are considered.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

102

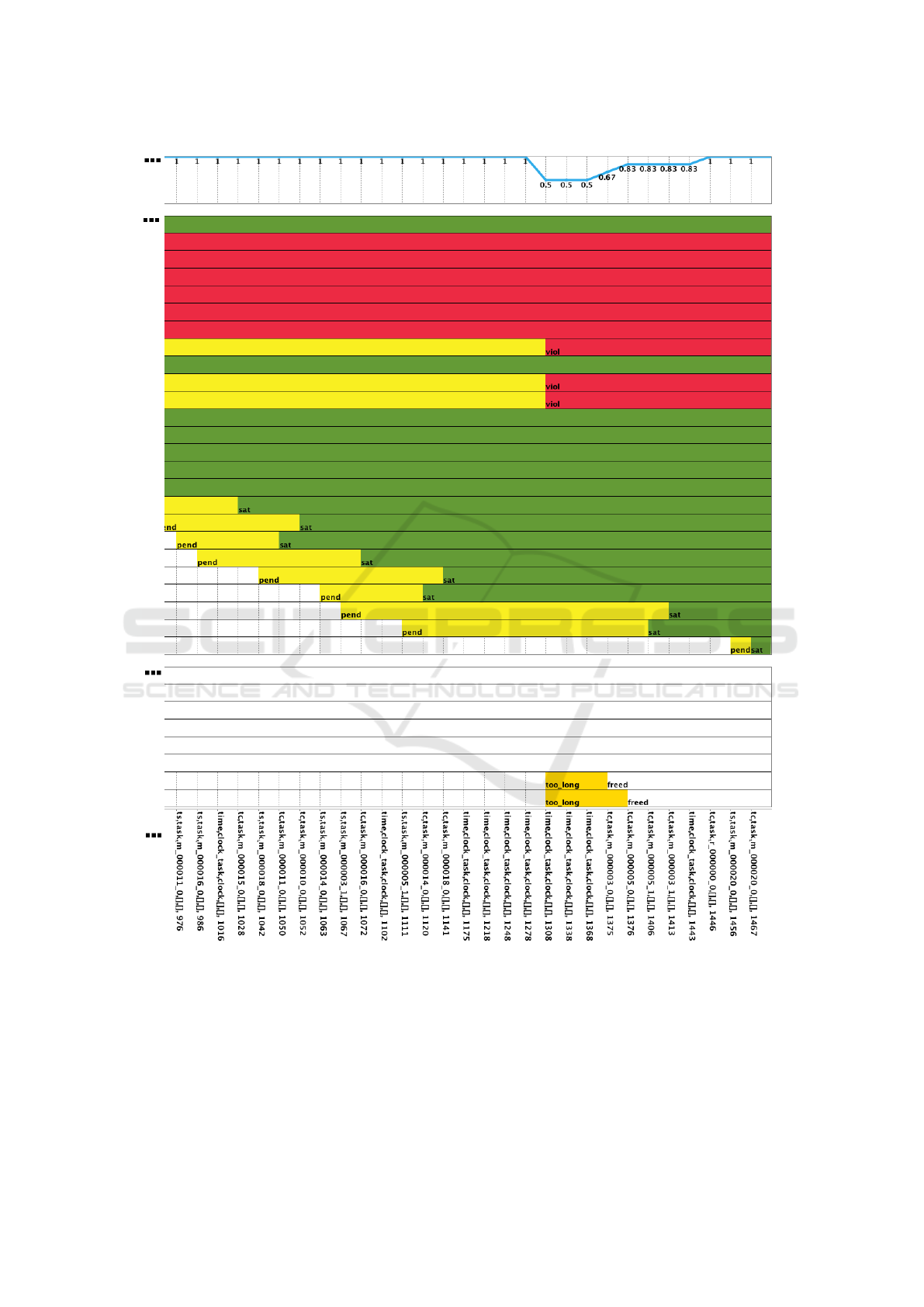

For reasons of space, we provide in Figure 4 the

evolution of our test (subsequent to what shown in

Figure 3). As expected, the total number of mapper

violating the deadline constraint is 8, as we provided

8 modiﬁed ﬁles in the input dataset. MOBUCON is

therefore able to suddenly and efﬁciently identify any

anomaly in the Hadoop execution (according to sim-

ple user-deﬁned constraints).

The health function values in the output of

MOBUCON monitor can be used to determine when

a recovery action is needed. The intervention can be

dynamically triggered by a simple threshold mecha-

nism over the health function or by a more complex

user-deﬁned policy (e.g., implementing an hysteresis

cycle), possibly speciﬁed with a declarative approach.

Once the number of additional Hadoop workers

needed is determined, Map Reduce Auto-scaling En-

gine relays on HyIaaS for the provisioning of VMs

over a single public cloud or federated hybrid envi-

ronment.

During the evaluation depicted in Figure 3 and 4,

85 events are processed by the MOBUCON monitor

in 285 milliseconds (worst case over 10 evaluations).

Thanks to the high expressiveness of the adopted

declarative language, the user can deﬁne complex

constraints, thus increasing the computational cost of

the runtime monitoring. We are aware that, under this

condition, the system can suffer a penalty in the exe-

cution time and the described method can show lim-

its when dealing with fast monitored tasks (i.e., the

time between task start and task end events is too

short for the Monitoring component to evaluate the

compliance). Nevertheless, in the envisioned MapRe-

duce scenario, the average duration time is in general

higher than the time required by MOBUCON to check

the constraints. Furthermore, since the recovery ac-

tion to provide additional workers is intrinsically time

consuming (tens of minutes), the Monitoring compo-

nent is not requested to be responsive in the order of

sub-seconds. Therefore, we can state that the time to

detect anomalies shown in Figure 3 and 4 is accept-

able for the envisioned scenario.

4 RELATED WORK

Cloud computing is currently used for a wide and het-

erogeneous range of tasks. It is particularly useful as

elastic provider of virtual resources, able to contribute

to heavy computing tasks.

Data-intensive applications are an example of re-

source demanding tasks. A widely adopted pro-

gramming model for this scenario is MapReduce

(Dean and Ghemawat, 2008), whose execution can

be supported by platforms such as Hadoop (Apache

Hadoop, 2015), possibly in a cloud computing infras-

tructure. We tested our system with MapReduce ap-

plications, choosing Hadoop as execution engine.

Recently, a lot of work has focused on cloud

computing for the execution of big data applications:

as pointed out in (Collins, 2014), the relationship

between big data and the cloud is very tight, be-

cause collecting and analyzing huge and variable vol-

umes of data require infrastructures able to dynam-

ically adapt their size and their computing power

to the application needs. The work (Chen et al.,

2014a) presents an accurate model for optimal re-

source provisioning useful to operate MapReduce ap-

plications in public clouds. Similarly, (Palanisamy

et al., 2015) deals with optimizing the allocation of

VMs executing MapReduce jobs in order to mini-

mize the infrastructure cost in a cloud datacenter. In

the same single-cloud scenario, the work (Rizvandi

et al., 2013) focuses on the automatic estimation of

MapReduce conﬁguration parameters, while (Verma

et al., 2011) proposes a resource allocation algorithm

able to estimate the amount of resources required to

meet MapReduce-speciﬁc performance goals. How-

ever, these models were not intended to address the

challenges of the hybrid cloud scenario, which is a

possible target environment for the provisioning of

additional VMs in our system thanks to the underly-

ing HyIaaS layer.

More similarly to our approach, cloud bursting

techniques has been adopted for scaling MapReduce

applications in the work(Mattess et al., 2013), which

presents an online provisioning policy to meet a dead-

line for the Map phase. Differently from our ap-

proach, (Mattess et al., 2013) focuses on the predic-

tion of the execution time for the Map phase with

a traditional approach to monitoring, which intro-

duces complexity in the implementation and tuning,

whereas our solution can beneﬁt from a simple enun-

ciation of the system properties relaying on Declare

language.

Also the work presented in (Kailasam et al., 2014)

deals with cloud monitoring/management for big data

applications. It proposes an extension of the MapRe-

duce model to avoid the shortcomings of high laten-

cies in inter-cloud data transfer: the computation in-

side the on-premise cloud follows the batch MapRe-

duce model, while in the public cloud a stream pro-

cessing platform called Storm is used. The resulting

system shows signiﬁcant beneﬁts. Differently from

(Kailasam et al., 2014), we chose to keep complete

transparency and uniformity with respect to the allo-

cation of the working nodes and their conﬁguration.

As regards the use of EC for veriﬁcation and mon-

Process Mining Monitoring for Map Reduce Applications in the Cloud

103

itoring, several examples can be found in letterature

in different application domains but we are not aware

of any work applying it to the monitoring of MapRe-

duce jobs in a cloud environment. EC has been used

in various ﬁelds to verify the compliance of a sys-

tem to user-deﬁned behavioral properties. For exam-

ple, (Spanoudakis and Mahbub, 2006), (Farrel et al.,

2005) exploit ad-hoc event processing algorithms to

manipulate events and ﬂuents, written in JAVA. Dif-

ferently from MOBUCON they do not have an under-

lying formal basis, and they cannot take advantage of

the expressiveness and computational power of logic

programming.

Several authors – (Giannakopoulou and Havelund,

2001), (Bauer et al., 2011) – have investigated the use

of temporal logics – Linear Temporal Logic (LTL)

in particular – as a declarative language for specify-

ing properties to be veriﬁed at runtime. Neverthe-

less, these approaches lack the support of quantitative

time constraints, non-atomic activities with identiﬁer-

based correlation, and data-aware conditions. These

characteristics – supported by MOBUCON – are in-

stead very important in our application domain.

5 CONCLUSIONS

This work present a framework architecture that en-

capsulates an application level platform for data-

processing. The system lends the Map Reduce in-

frastructure the ability to autonomously check the

execution, detecting bottlenecks and constraint vio-

lations through Business Process Management tech-

niques with a best effort approach.

Focusing on activities and constraints, the use of

Declare language has shown signiﬁcant advantages

in the monitoring system implementation and cus-

tomization.

Although this work represents just a ﬁrst step to-

wards an auto-scaling engine for Map Reduce, its

declarative approach to the monitoring issue shows

promising results, both regarding the reactivity to crit-

ical conditions and the simpliﬁcation in monitoring

constraint deﬁnition.

For the future, we plan to employ the deﬁned

framework architecture to test various diagnosis and

recovery policies and verify the efﬁcacy of the over-

all auto-scaling engine in a wider scenario (i.e., with

a higher number of Map Reduce workers involved).

Finally, particular attention will be given to the

hybrid cloud scenario, where the HyIaaS component

is employed to transparently perform VM provision-

ing either on an on-premise internal or an off-premise

public cloud. In case of a hybrid deploy, several ad-

ditional constraints will need to be taken into account

(e.g., the limited inter-cloud bandwidth), thus further

complicating the implemented monitoring and recov-

ery policies. Nevertheless, we believe that a declara-

tive approach to the problem can contribute to signif-

icantly simplify the implementation of the solution.

REFERENCES

Amazon Cloud Watch (2015). Amazon cloud monitor

system. https://aws.amazon.com/it/cloudwatch/. Web

Page, last visited in Dec. 2015.

Apache Hadoop (2015). Apache software foundation.

https://hadoop.apache.org/. Web Page, last visited in

Dec. 2015.

Apache Spark (2015). Apache software foundation.

http://spark.apache.org. Web Page, last visited in

Dec. 2015.

Armbrust, M., Fox, O., and R., G. (2009). Above the

clouds: A berkeley view of cloud computing. Techni-

cal report, Electrical Engineering and Computer Sci-

ences University of California at Berkeley.

Bauer, A., Leucker, M., and Schallhart, C. (2011). Runtime

veriﬁcation for ltl and tltl. ACM Trans. Softw. Eng.

Methodol., 20(4):14:1–14:64.

Bragaglia, S., Chesani, F., Mello, P., Montali, M., and Tor-

roni, P. (2012). Reactive event calculus for monitoring

global computing applications. In Logic Programs,

Norms and Action. Springer.

Ceilometer, O. (2015). the openstack monitoring module.

https://wiki.openstack.org/wiki/ceilometer.

Chen, K., Powers, J., Guo, S., and Tian, F. (2014a). Cresp:

Towards optimal resource provisioning for mapreduce

computing in public clouds. Parallel and Distributed

Systems, IEEE Transactions on, 25(6):1403–1412.

Chen, M., Mao, S., and Liu, Y. (2014b). Big data: A

survey. Mobile Networks and Applications, Volume

19(2):171–209.

Collins, E. (2014). Intersection of the cloud and big data.

Cloud Computing, IEEE, 1(1):84–85.

Dean, J. and Ghemawat, S. (2008). Mapreduce: Simpli-

ﬁed data processing on large clusters. Commun. ACM,

51(1):107–113.

Farrel, A., Sergot, M., Sall

e, M., and Bartolini, C. (2005).

Using the event calculus for tracking the normative

state of contracts. International Journal of Coopera-

tive Information Systems, 14(02n03):99–129.

Giannakopoulou, D. and Havelund, K. (2001). Automata-

based veriﬁcation of temporal properties on running

programs. In Automated Software Engineering, 2001.

(ASE 2001). Proceedings. 16th Annual International

Conference on, pages 412–416.

Kailasam, S., Dhawalia, P., Balaji, S., Iyer, G., and Dha-

ranipragada, J. (2014). Extending mapreduce across

clouds with bstream. Cloud Computing, IEEE Trans-

actions on, 2(3):362–376.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

104

Kowalski, R. A. and Sergot, M. J. (1986). A Logic-Based

Calculus of Events. New Generation Computing.

Loreti, D. and Ciampolini, A. (2015). A hybrid cloud in-

frastructure fo big data applications. In Proceedings

of IEEE International Conferences on High Perfor-

mance Computing and Communications.

Mattess, M., Calheiros, R., and Buyya, R. (2013). Scaling

mapreduce applications across hybrid clouds to meet

soft deadlines. In Advanced Information Networking

and Applications (AINA), 2013 IEEE 27th Interna-

tional Conference on, pages 629–636.

Montali, M., Chesani, F., Mello, P., and Maggi, F. M.

(2013a). Towards data-aware constraints in declare.

In Shin, S. Y. and Maldonado, J. C., editors, Proceed-

ings of the 28th Annual ACM Symposium on Applied

Computing, SAC ’13, Coimbra, Portugal, March 18-

22, 2013, pages 1391–1396. ACM.

Montali, M., Maggi, F. M., Chesani, F., Mello, P., and

van der Aalst, W. M. P. (2013b). Monitoring busi-

ness constraints with the event calculus. ACM TIST,

5(1):17.

Palanisamy, B., Singh, A., and Liu, L. (2015). Cost-

effective resource provisioning for mapreduce in a

cloud. Parallel and Distributed Systems, IEEE Trans-

actions on, 26(5):1265–1279.

Pesic, M. and van der Aalst, W. M. P. (2006). A Declar-

ative Approach for Flexible Business Processes Man-

agement.

Rizvandi, N. B., Taheri, J., Moraveji, R., and Zomaya,

A. Y. (2013). A study on using uncertain time se-

ries matching algorithms for mapreduce applications.

Concurrency and Computation: Practice and Experi-

ence, 25(12):1699–1718.

Spanoudakis, G. and Mahbub, K. (2006). Non-intrusive

monitoring of service-based systems. Interna-

tional Journal of Cooperative Information Systems,

15(03):325–358.

Van Der Aalst, W., Adriansyah, A., de Medeiros, A. K. A.,

and Arcieri, F. (2012). Process mining manifesto. In

Business Process Management Workshops. Springer

Berlin Heidelberg.

Verma, A., Cherkasova, L., and Campbell, R. H. (2011). Re-

source Provisioning Framework for MapReduce Jobs

with Performance Goals, volume 7049 of Lecture

Notes in Computer Science, pages 165–186. Springer

Berlin Heidelberg.

Process Mining Monitoring for Map Reduce Applications in the Cloud

105
