A Metadata-based Architecture for Identification and Discovery of

Services in SOA

Aluizio Haendchen Filho

, Hercules Antonio do Prado

and Edilson Ferneda

University College of Brusque - UNIFEBE, Brusque, Brazil

Catholic University of Brasília, Brasília, Brazil

Keywords: Resource-Oriented Model, SOA, Service Discovery, Metadata, Case-based Reasoning.

Abstract: An approach for resource identification, management, and service discovery in SOA is presented. The

approach emphasizes an architectural model that allows representation, description, and identification of

services, and is explored as a metadata repository. It is focused not only on Web Services, but also in all

services existing in big companies’ applications, including currently developed services and legacy system

services, highlighting the importance of reusing fine granularity services. The model includes discovery

procedures to find and retrieve candidates for services composition and reuse. These procedures adopt a

Case-Based Reasoning approach, in which the services are considered as cases kept and indexed in a reposi-

tory. Case matching is carried out by means of text mining techniques that allow finding the most appropri-

ate service candidate with the desired requirements for a particular task.

1 INTRODUCTION

Service-Oriented Architecture (SOA) remains as the

best option available for system integration and

leverage of legacy systems (Lewis et al., 2010).

Technologies to implement SOA will certainly

evolve to address emerging needs, but its basic con-

cepts will remain.

The ability to compose applications and process-

es, as well as to assemble new functionalities from

existing services is regarded as one of the most im-

portant benefits of SOA. Large and medium sized

organizations can eventually have hundreds and

even thousands of fine-grained procedures distribut-

ed across business applications.

Web Services and SOA are part of the solution

for services composition and reuse, but applicability

has been marked by difficulties in applying technical

solutions. A large scale dissemination of SOA

strongly depends on the coarse-grained services that

are constructed and exposed to specific interfaces.

Web services usually provide coarse-grained func-

tionality such as customer lookup, as opposed to

finer grained functionality such as customer address

lookup (Lewis & Smith, 2007). Finer-grained opera-

tions result in large number of calls and increased

network traffic, whereas coarse-grained operations

may need to transmit unnecessary information (Fu-

jita & Mejri, 2006). In order to design effective

coarse-grained services, the fine-grained services

and all other services need to be better described,

represented and exposed to modelers, developers,

and business technical analysts.

A metadata repository is vital to a company’s

ability to prosper in a service-oriented environment,

but it must be built having specific business needs in

mind to support business and technical users. More-

over, it must be built on a technologically sound

architecture that will support future growth as appli-

cations evolve into business intelligence solutions.

Additionally, mechanisms to facilitate the discovery

of services are essential to enable the reuse and

composition of new services (Marco, 2000).

A structural model and an infrastructure com-

posed by a metadata repository for resource man-

agement and services discovering in SOA are pre-

sented, including techniques and tools for the identi-

fication and specification of services. The structural

model is composed by a set of meta-classes that

allow the representation and description of services

and service components from different types and

granularities for composition and reuse. The archi-

tecture and infrastructure model can be employed

during various stages of the software development

lifecycle. This allows designing and building of new

tasks by a choreography of fine-grained services into

298

Filho, A., Prado, H. and Ferneda, E.

A Metadata-based Architecture for Identiﬁcation and Discovery of Services in SOA.

In Proceedings of the 18th International Conference on Enterprise Information Systems (ICEIS 2016) - Volume 2, pages 298-305

ISBN: 978-989-758-187-8

composite business services. Discovery mechanisms

use data mining techniques to allow finding the most

appropriate service candidate with the desired re-

quirements for a particular task or composition. The

proposal was built over MIDAS (Haendchen Filho

& Vasconcelos, 2015), a platform that uses SOA for

development of distributed applications. This work

extends the contribution of Haendchen Filho et al.

(2015) by introducing the service discovery using

tf×idf technique (Leskovec et al., 2014).

2 SERVICES CLASSIFICATION

Classification helps to determine composition and

layering, as well as to coordinate the construction of

interdependent services based on hierarchy. The

identification of business functions to be provided as

services is a basic precondition for a detailed speci-

fication and implementation of services in SOA. For

an effective SOA realization it is important that the

service portfolio takes into account the correct ser-

vice granularity. It helps not only in easing main-

tainability, but also in effective governance of the

service portfolios (Saroh & Sahu, 2014).

Services are offered at different layers with a de-

finitive granularity degree. Service granularity refers

to service size and the scope of functionality that a

service exposes. The service granularity can be

quantified as a combination of the number of com-

ponents/services composed by means of a given

operation. The service should have the right granu-

larity to accomplish a business work unit in a single

interaction. Usually three categories of granularities

are referred: services of coarse, medium, or fine

granularity. The problem of determining the optimal

service granularity is relevant since an increasingly

number of applications has been built by assembling

internal and external services (Manouvrier, 2008).

Since most organizations have overlaping and re-

dundancy both in business functionality and in data

(e.g., Accounts Management) across different Lines

of Business, it is essential to have a portfolio of

business services which could be reused across mul-

tiple places.

A service would be regarded as coarse-grain if

the size of exchanged messages grows and some-

times might carry more than needed data. On the

other hand, if the service is fine-grained, then it can

be excessively invoked, which introduces quality

concerns and services outflow. A balance is hence

required between level of abstraction, likelihood of

change, complexity of the service, and the desired

level of cohesion and coupling. High level business

process functionality is externalized for large-

grained services. Smaller-grained services help to

realize the higher level of services. They are identi-

fied by examining the existing legacy functionality

and deciding how to create adaptors and wrappers.

(Arsanjani et al., 2014).

Four different kinds of services are considered in

the proposed platform: (i) services developed in the

containers that use the internal service-oriented

interfaces; (ii) legacy application services encapsu-

lated in wrapper components; (iii) external web

services of interest also encapsulated in wrapper

components; and (iv) internal web services available

for external applications or stakeholders such as

customers and suppliers. The first three are de-

scribed and shown in the internal structure of plat-

form services, while the latter is represented in the

internal UDDI registry.

3 THE RESOURCE-ORIENTED

ARCHITECTURE

MIDAS architecture is composed by a Front-End

Server (FES) and interconnected containers. Both

FES and containers includes the Resource-Oriented

Model (ROM) that is implemented by Catalog agent.

A resource description is a metadata representation

that makes possible for a human or software agent to

discover service and provider entities (Bhuvaneswari

& Sujatha, 2011). An important aspect of SOA is the

extensive use of metadata (W3C, 2004). Resources

are represented by meta-classes along with methods

to manipulate and retrieve information about them.

The proposed model provides meta-classes for de-

fining different types of resources that may be found

in an infrastructure environment.

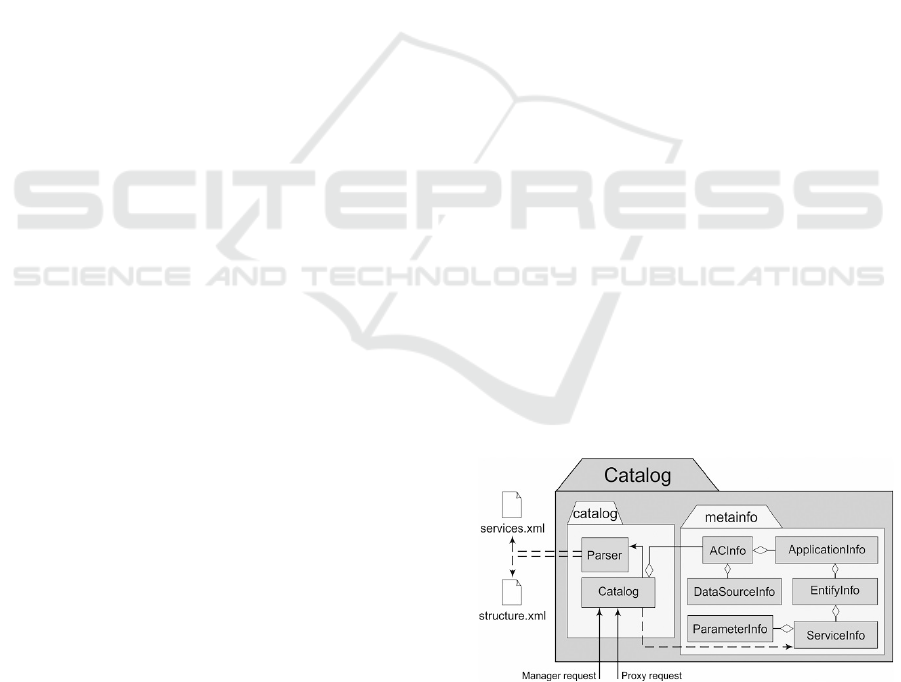

Figure 1: ROM and the metadata repository architecture.

Figure 1 shows the internal structure of Catalog

agent placed in a container. It is composed by cata-

log and metainfo packages. In order to ease the ap-

plication of the proposed infrastructure, the meta-

A Metadata-based Architecture for Identiﬁcation and Discovery of Services in SOA

299

classes in the metainfo package are categorized in

six major high-level classes: ACInfo, ApplicationIn-

fo, EntityInfo, ServiceInfo, ParameterInfo, and

DataSource info. These classes encapsulate infor-

mation about elements of the structure and have a set

of methods in order to obtain information about any

element. The most important concerns that have

been addressed in this model are the infrastructure

management of resources, their internal organiza-

tion, structure, classification and identification.

The resources representation and description are

stored in two XML files: structure.xml and ser-

vices.xml. In the structure.xml file, elements are

arranged in a hierarchical parent/child entity set. In

the services.xml file, the services are stored by name.

These files enable two access modes: via the root

structure or by direct access to the service. The first

mode may be used in service discovery tasks. The

second ensures efficiency, since service information

can be quickly obtained using the service name as

index, without traversing the structure.

Resources management and handling are per-

formed by Catalog and Parser classes. The Catalog

class receives requests which may be: (i) a message

for resource structure updating; (ii) a resource struc-

ture loading is received when an AC is initialized;

and (iii) a service location message is received to

check if the service requested is available or not.

The Parser class performs procedures for handling

XML files, according to the Document Object Mod-

el (W3C, n.d.), in order to store and retrieve infor-

mation.

3.1 Metadata Repository

SOA demands for a systematic identification of the

information system functions to be implemented as

services. Metadata publishing consists of making

data element definitions and structures available to

people and other systems. Metadata registries are

frequently large and complex structures and require

navigation, visualization, and searching tools.

The metadata is relevant because it fosters in-

teroperability by requiring increased precision in the

documentation of services. It also provides the se-

mantic layer between the technical specification and

the business analysts and developers. In simple

terms, metadata translates the technical terminology

used in IT systems in comprehensive terms for busi-

ness analysts and modelers can understand (Marco,

2000).

The resource structure is described in the metain-

fo package, where each element is represented by a

meta-class implemented as an entity. Each entity

encapsulates information about the elements of the

resource structure and provides a set of methods to

retrieve information about the entity.

The ACInfo metaclass is the root of an aggregat-

ed class hierarchy representing the container re-

source structure. It keeps information about the

container, such as its IP address, registration date,

and data gathering statistics and metrics for QoS

report. ApplicationInfo metaclass encapsulates in-

formation about each application hosted in AC, such

as agents, components, and services. The EntityInfo

metaclass includes information about entities de-

ployed in applications, such as business definition

about the purpose of this entity, list of attributes, and

operations, especially for reading and writing data

meaningful to the company.

ServiceInfo metaclass provides detailed infor-

mation of service, and its attributes compose the

service descriptors that are used for services discov-

ery. The services descriptors are: (i) Name, contain-

ing a representative name of the service, (ii) Type,

referring to service classification, (iii) Return, which

describes the data returning after the service execu-

tion, (iv) Description, that presents a summarized

description on what the service does, (v) Keywords,

containing significant words or expressions regard-

ing the service functionality, (vi) Implementation,

specifying how the service is available (ex. Java

service, Web service, wrapper component), and (vii)

Classification, described in the sub-topic Services

Classification.

Information about services interfaces and the re-

quired parameters are provided by the ParameterInfo

metaclass, which specifies the name, data type and

additional parameters information. Input and output

parameters of services must be specified and trans-

ferred into a formal interface definition. During this

process a complete signature of operations (includ-

ing e. g., data types, input and output parameters of

service invocations) and the SOA standards ex-

pected to be used must be selected and defined.

DataSourceInfo metaclass provides information

on the database tables. This description allows con-

figuration of database drivers, as well as generic and

specific services that can be used for manipulating

data in database tables. One way to promote the

reuse of legacy application functionality is to encap-

sulate their procedures in wrapper components.

Databases, libraries, services, and other content

sources can be wrapped in components (Sletten,

2009). In a shared information environment, it is

highly relevant to allow access to metadata that

describe a data source, regardless of the device and

format in which it is stored.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

300

3.2 Consolidate Resources

Representation

FES Catalog agent performs the procedures for

management and handling of the global resource

structure. The responsibilities of Catalog agent in

FES are different from the ones in the container. For

example, since FES does not manipulate resources,

there is no need to have the XML description of the

resource structure. On the server, it only consoli-

dates the representations of the resources allocated

in containers, keeping them in cache memory and

serialized files. The representation maintained in

FES is a description of the consolidated hierarchy of

resources that reflects the representation of all plat-

form elements in a given moment.

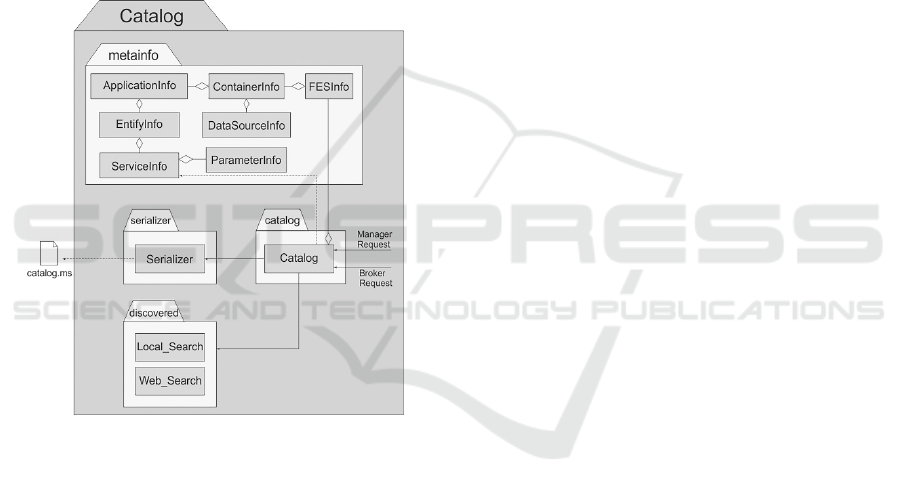

Figure 2: The FES Catalog agent.

Figure 2 shows its internal structure, which con-

sists of three packages: catalog, metainfo, discoverer

and serializer. All service requests are received by

the Catalog agent through a single gateway. Re-

quests for services visualization and discovery are

forwarded from Manager to the Catalog. The Cata-

log class receives three message types: (i) a new

container register or update is received when an AC

wants to self-register on the platform or update its

resource structure. In this case it sends all the ele-

ments of the resources structure encapsulated as

parameters; (ii) for remote services location, re-

quests are directed to the FES; Catalog agent is re-

sponsible for informing if the service is available or

not; and (iii) services discovering requests.

The features of the consolidated structure are

kept in cache memory and maintained in a serialized

file. This procedure is carried out with the collabora-

tion of a Serializer class, which is part of the Catalog

internal structure. It performs all procedures related

to the persistence of the resource structure. The data

structures are consolidated and stored in serialized

files and the representations are kept in cache

memory. This increases efficiency, since quick ser-

vice information can be obtained using the service

name as an index, without traversing the structure.

The representation structure and content of me-

tainfo package is completely similar to that de-

scribed in the AC Catalog. The only difference is

that FES meta-classes contain information about the

overall structure of resources available in all con-

tainers. The discoverer package contains the classes

responsible for services discovery. These procedures

are performed by means of GUIs wizards available

in the Manager agent. The Local_Search class per-

forms procedures related to internal service discov-

ery; it has a set of intra-classes which perform dif-

ferent discovery tasks. Internal service discovery is

the process in which a user or application developer

queries the central registry to learn about services

location and specifications. The Web_Search class

performs tasks related to the discovery of external

web services in UDDI repositories.

4 SERVICES IDENTIFICATION

Services identification is a key component of most

distributed systems and service oriented architec-

tures. It is used to search services descriptions meet-

ing certain functional or semantic criteria. There are

two main user groups: business users and technical

users. The first group typically has a business back-

ground and it gets needed information from metada-

ta that enables them to identify and locate infor-

mation about entities, services, databases tables, and

attributes. Technical users may play many roles

within an organization. They may be programmers,

developers, system modelers, or senior analysts.

Services identification procedures are primarily

intended for developers’ support, to facilitate the

process of finding an appropriate service for a par-

ticular task.

The service identification process consists of a

combination of top-down and bottom-up techniques

of domain decomposition and existing asset analysis.

In the top-down view, a blueprint of business use

cases provides the specification for business ser-

vices. This top-down process consists of decomposi-

tion of the business domain into its functional areas

and subsystems, including the entities (Arsanjani et

A Metadata-based Architecture for Identiﬁcation and Discovery of Services in SOA

301

al., 2014). In the bottom-up approach, the analyst

departs from a service identifying the provider enti-

ty, where application and container it are located.

The idea is to reach a context view from a service.

In order to reuse a service, clients need to know

much more than a simple service name or the ad-

dress of the service provider. Developers need to see

a service as an interface, including methods that they

will invoke in order to execute the service and their

necessary parameters. The lookup service can be

seen as a directory service, where services are found

and viewed. There are two main reuse possibilities:

(i) the service meets 100% of the requested specifi-

cation or (ii) it is possible to reuse the ready imple-

mentation performing the necessary adjustments.

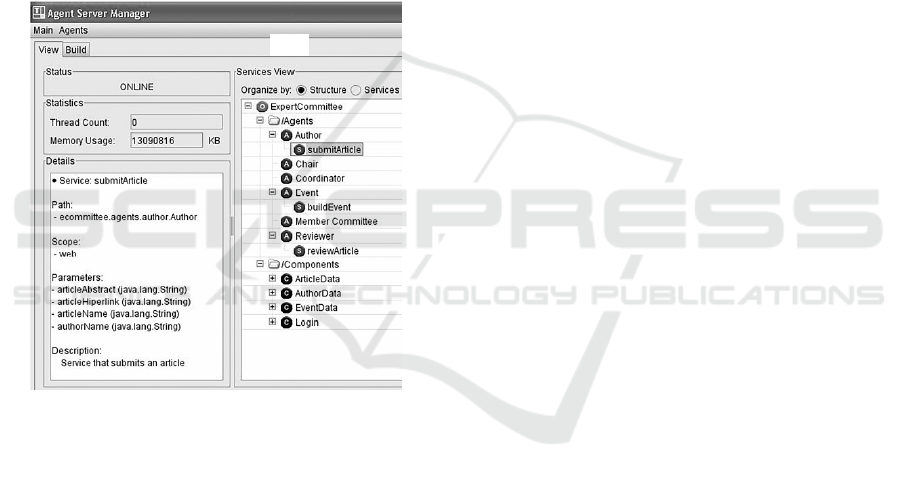

Figure 3 shows a GUI wizard for service identifica-

tion

Figure 3: GUI wizard and the View perspective.

In the right side of the window, the Services

View panel shows the resources organized by struc-

ture. The hierarchy is navigable and shows an agent-

based application called Expert Committee for man-

agement of submissions and article reviews in a

conference or workshop. Software agents have been

introduced to assist the organizing committee in

their responsibilities, which can be automated. The

metadata contained in the repository can be viewed

in the navigable hierarchy. In the left side of the

window, the Details panel shows specifications of

the selected service. The example presents the speci-

fication of the submitArticle service. The descriptors

specifications include: (i) the service name (the

entity type that provides the service); (ii) the path

(URL) where the service is allocated; (iii) the scope

informing if the service is local (in the container) or

remote; (iv) name and type of the parameters; (v) a

brief description of the service functionality; (vi) a

return informing if any data type returns to the caller

service; (vii) the keywords related to the service; and

(viii) implementation, informing if the service is:

implemented in Java, a Web service, or a legacy

service encapsulated as a service in a component.

The service identification or discovery presents

an important limitation when the amount of services

increases. It is common to have hundreds or even

thousands of services in an organization catalog.

5 SERVICES DISCOVERY

The increasing amount of web services currently

available in the web has been targeted by a huge

research effort aiming at reuse. Usually, they apply

some Artificial Intelligent techniques like Case-

Based Reasoning (CBR) and Ontologies. For exam-

ple, Limthanmaphon and Zhang (2013) propose a

solution to deal with coarse-grained services in

which the composition is part of the service repre-

sentation. Osman et al. (2006) present cases in a

frame structure that is mapped to ontologies in order

to enable a semantic retrieval of cases. Henni and

Atmani (2012) apply CBR approach for service

representation and retrieval. The grouping of ser-

vices sharing similar functional requirements led

ElBitar et al. (2014) to the notion of ‘services com-

munity’, in which the communities are identified

and then a local search is performed to find a more

adequate case. Each proposal has its merit in finding

services by matching some requirement description

in a web repository.

5.1 Proposed Approach

A CBR model is usually applied to solve problems

by reusing solutions already defined for similar

situations (Kolodner, 1993). For this, problems are

represented as contextualized cases, keeping the

information related to the circumstances in which

the problem situation was considered partial or total-

ly solved. A case is characterized by a set of de-

scriptors for a problem situation associated with the

respective solution.

In our approach, we argue that keeping local ex-

perience of services already used may largely enrich

the information conveyed by the standard represen-

tation of service in WSDL format. For example,

instead of searching in the open web repository we

propose the creation of a local repository in which

services already known by the developers can be

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

302

kept along with the information over its previous

use. For this, the services must be represented by the

standard information brought by WSDL representa-

tion plus a description related to the specific use of

this service. This approach brings the need for eval-

uating similarity among the textual descriptions

related to the narrative on the experience of the ser-

vice use. Therefore, our proposal is a two-level re-

cover. Firstly, CBR techniques are applied in order

to recover the set of cases similar to the require-

ments description. Secondly, the cases are searched

on the basis of their description, by applying a text

mining procedure to find the nearest-neighbor case.

The process starts with a description of a service

required by a developer. This description includes a

functional account of the service representing the

developer experience, beyond the usual descriptors

like name and parameters. The system searches for a

service in CB, guided by a given description, and

then it retrieves a list of the best matching services.

If a service satisfies the developer necessity, than it

is applied. Otherwise, the alternatives are: (i) to

search in the Web, (ii) to adapt a case from the re-

trieved case list, or (iii) to develop a new solution. In

any case, the case base must be updated.

The CB structure includes the following de-

scriptors: Name, Modifier, Parameters, Return, Ser-

vice Description, and Keywords. However, for pur-

pose of recovery cases, Modifier is not considered

since it does not reflect a property that might be of

interest in a specific search.

For similarity computation, we applied the ag-

gregate degree of match from the CBR shell ReMind

(Cognitive Systems, 1992). Considering that there

are different types of descriptors (eg, free text for

Description and a word for Return), the similarity

function had to be adapted. Similarity for Name

similarity is calculated by the Levenshtein distance.

For Parameters, Return, and Keywords, Hamming

distance was adopted. For Description similarity,

two options were implemented: (i) a combination of

co-occurrence of words and Hamming distance and

(ii) tf×idf (Leskovec et al., 2014) technique.

The Levenshtein distance between two features f

and f

is defined as the minimum number of inser-

tions, deletions, and substitutions required to make

. The distance based on tf×idf for Description is

calculated by means of a word matrix in which each

service takes one row and each word from the De-

scription argument takes one column. Each cell for a

service/word receives the corresponding tf×idf calcu-

lated as the frequency for each word (here called

term) in the argument of the service relative to its

occurrences in the complete set of services. The

Hamming distance between two features f

and f

0 for f

or 1, otherwise. Each distance is normal-

ized for the interval [0,1].

5.2 Example of Application using

Levenshtein Distance

Consider the case base shown in Table 1. Over this

case base, a developer is looking for a service de-

fined by the arguments Arg = {Address, String,

String, “Recover address from Postal Office”, “ZIP,

Address”}. The Name, Return, Description, Key-

words and Implementation descriptors are stored in

the ServiceInfo meta-class, while the Parameter

descriptor is stored in the ParameterInfo meta-class.

The results of similarity computation are shown

in Table 2. The better adjusted case for the require-

ments specified in Arg is case 4. However, it is pos-

sible to have other cases that can be close to the

requirements. So, the developer can ask to receive

the cases until the k

position in the matching rank-

ing. In the example, for k=3, cases 4 and 7 would be

submitted to the developer scrutiny in order to

choose the most adequate case.

5.3 Example of Application using

Tf×Idf

An example is the option Arg = {ControlledVocabu-

lary, String, Boolean, “Need a controlled vocabulary

for consistent communication for users natives in the

English vocabulary”, “Controlled Vocabulary, Eng-

lish Language”}. Table 3 shows that service 8 is the

most similar to the specification given by the user.

The distances from each vector to Arg are highlight-

ed in black.

6 RELATED WORKS

This work is based on four main pillars: (i) SOA, (ii)

a SOA-based middleware, (iii) the concept of ROM,

and (iv) the intelligent services discovery encapsu-

lated in the resource model. There are studies ad-

dressing each of the topics presented, none of them

bringing together all of them into a single architec-

ture.

WSA (W3C, 2004) includes the ROM in its ref-

erence architecture as part of a wider architecture.

The resource model focuses on the features relevant

to the concept of resource, disregarding the resource

role in the context of web services. It takes the view

that resources are a concept that underpins much of

A Metadata-based Architecture for Identiﬁcation and Discovery of Services in SOA

303

Table 1: Case Base of Services.

# Name Parameter Return Description Keywords

1 validate

Password

String Boolean Checks a password for security issues

Password, Security,

Method1, Method2

calculateCD Integer Integer

Applies an 10-Module algorithm to generate

a check digit

Check digit, mod 10,

Luhn Algorithm

calculateCD Integer Integer

Applies an 11-Module algorithm to generate

a check digit

Check digit, mod 11,

Verhoeff Algorithm

4 Retrieve

Address

String String Retrieves the address for a given ZIP code

ZIP, Address

retrieval

5 Currency

Converter

[Real, String,

String]

Real Convert values between two currencies

Converter,

Currencies

6 Metric

Converter

[Real, String,

String]

Real Convert values between two metrics Converter, Metrics

7 getAuthor

Data

Integer Hashmap

Retrieves data from a table using the

ResultSet object of Java library

ResultSet

Activate

Controlled

Vocabularies

String Boolean

Activate a controlled vocabulary according

the language specified. A controlled

vocabulary helps in keeping a consistent

corporative communication

Controlled

vocabulary,

Corporative terms

Table 2: Distances/normalized distances from Arg features (using Levenshtein distance).

Name Parameters Return Description Keywords

∑

d Nd d Nd d Nd d Nd d Nd

1 24 0,63 1 0,33 1 1 8 0,47 6 0,86 3,29

2 18 0,47 1 0,33 1 1 10 0,59 7 1,00 3,40

3 18 0,47 1 0,33 1 1 10 0,59 7 1,00 3,40

4 8 0,21 1 0,33 0 0 7 0,41 1 0,14 1,10

5 24 0,63 3 1,00 1 1 9 0,53 4 0,57 3,73

6 22 0,58 3 1,00 1 1 9 0,53 4 0,57 3,68

7 20 0,53 1 0,33 1 1 12 0,71 3 0,43 2,99

8 38 1,00 0 0,00 1 1 17 1,00 6 0,86 3,86

Table 3: Distances/normalized distances from Arg features (using tf×idf distance).

Name Parameters Return Description Keywords

∑

d Nd d Nd d Nd d Nd d Nd

1 36 0,97 0 0 0 0 4,14 0,82 6 1 2,79

2 31 0,84 1 1 1 1 4,79 0,94 5 0,83 4,62

3 31 0,84 1 1 1 1 5,07 1,00 5 0,83 4,67

4 34 0,92 0 0 1 1 3,95 0,78 5 0,83 3,53

5 37 1,00 1 1 1 1 3,84 0,76 4 0,67 4,42

6 35 0,95 1 1 1 1 3,84 0,76 4 0,67 4,37

7 33 0,89 1 1 1 1 4,39 0,87 3 0,50 4,26

8 8 0,22 0 0 0 0 3,76 0,74 2 0,33 1,29

the web and much of web services. A discovery

service enables agents to retrieve web service-

related resource descriptions, and is used to publish

and search for descriptions meeting certain function-

al or semantic criteria.

The main difference between our and WSA

models is that the latter considers Web service as the

most important resource for its purposes and UDDI

registry as the target for the discovery service. For

composition and reuse, we consider other finer-

grained services as well as atomic services using

service-oriented interfaces. Our main motivation is

the difficulty of WSDL to describe complex busi-

ness services typically formed by fine-grained ser-

vices composition. The structural model enables all

the resource types to be defined and exposed in the

architecture for composition and reusing.

Our resource model is part of a wider architec-

ture and has been validated and used to demonstrate

case studies. In these prototypes the applicability of

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

304

the presented mode has been confirmed. Regarding

the intelligent service discovery, Limthanmaphon

and Zhang (2013) proposed a service discovery

process that adopts fine-grained services as cases,

including the relations of dependency between them.

Osman et al. (2006) also present a CBR proposal for

services discovery using ontology to structure the

cases representation. ElBitar et al. (2014) discuss the

semantic-based approaches, focusing on CBR mod-

els. They propose the concept of “community ser-

vice” to represent the group of Web services func-

tionally similar. These approaches use Web as an

information source. They try to overcome the limita-

tion of the syntactic discovery based on UDDIs. No

concern with respect to the local experience in ap-

plying the services is emphasized.

7 CONCLUSIONS

It is presented two contributions: (i) an architectural

model for a metadata repository for SOA, that ena-

bles the discovery of different types of services for

composition and reuse; (ii) a CBR system in which

case matching is carried out by means of text mining

techniques, allowing one to find the most appropri-

ate service candidate with the desired requirements

for a particular task or composition. There are only a

few papers exploring architectural models for

metadata repository in the context of services identi-

fication and discovery in SOA. CBR has been al-

ready used in some approaches to services discov-

ery, but we have no knowledge of adoption of text

mining techniques as a support for case matching,

such as is presented in this paper.

REFERENCES

Arsanjani, A., Zhang, L.-J., Ellis, M., Allam, A., Channa-

basavaiah, K., 2014. Design an SOA solution using a

reference architecture. Improve your development

process using the SOA solution stack. IBM Develop-

perWorks.

Bhuvaneswari, N. S., Sujatha, S., 2011. Integrating SOA

and Web Services. River Publishers.

Cognitive Systems, 1992. ReMind Developer´s Reference

Manual, Cognitive Systems.

ElBitar, I., Belouadha, F.-Z., Roudies, O., 2014. A CBR

based approach for web service automatic discovery.

Journal of Theoretical and Applied Information Tech-

nology, 62(1):237-247.

Fujita, H., Mejri, M. (Eds.), 2006. New trends in software

methodologies, Tools and Techniques. Proceedings of

the Fifth SoMeT_06. Frontiers in Artificial Intelligence

and Applications, 147.

Haendchen Filho, A., Vasconcelos, C., 2015. Develop-

ment Of Intelligent Enterprise Applications Using

Multi-Agent Systems. Australian Journal of Basic and

Applied Sciences, 9(11):444-450.

Haendchen Filho, A., Prado, H. A., Ferneda, E., 2015. A

Resource-Oriented Model for Services Management

and Discovering in SOA. IEEE International Confer-

ence on Services Computing (SCC).

Henni, F., Atmani, B., 2012. Dynamic Web Service Com-

position: Use of Case Based Reasoning and AI Plan-

ning. 4th International Conference on Web and Infor-

mation, p. 22-29.

Kolodner, J. L., 1993. Case-Based Reasoning. San Fran-

cisco, CA: Morgan Kaufmann.

Leskovec, J., Rajaraman, A., Ullman, J., 2014. Mining of

massive datasets. 2

ed, Cambridge University Press.

Lewis, G. A., Smith, D. B., 2007. Four pillars of Service-

Oriented Architecture. CrossTalk: The Journal of De-

fense Software Engineering, p. 10-13.

Lewis, G. A., Smith, D. B., Kontogiannis, K., 2010. A

Research Agenda for Service-Oriented Architecture

(SOA): Maintenance and Evolution of Service-

Oriented Systems. Technical Note, CMU/SEI-2010-

TN-003. Carnegie Mellon University.

Limthanmaphon, B., Zhang, Y., 2013. Web Service com-

position with Case-Based Reasoning. 14th Australian

Database Conference, 17:201-208.

Manouvrier, B., 2008. Integration applicative EAI, B2B,

BPM et SOA. ISTE Ltd / John Wiley & Sons, Inc.

Marco, D., 2000. Building and Managing the Meta Data

Repository: A Full Lifecycle Guide. John Wiley and

Soons Inc.

Osman, T., Thakker, D., Al-Dabass, D., 2006. Semantic-

driven matchmaking of Web Services using Case-

Based Reasoning. IEEE Int. Conf. on Web Services.

Saroh, M., Sahu, S., 2014. Review on “Service Granulari-

ty In Service Oriented Architecture”. International

Journal of Research in Engineering and Technology.

3(7):449-455.

Sletten, B., 2009. Resource-Oriented Architecture: The

Rest of REST. InfoQ. Retrieved January 2015 from

http://www.infoq.com/articles/roa-rest-of-rest.

World Wide Web Consortium [W3C], 2004. Web Services

Architecture, W3C Working Group Note 11.

World Wide Web Consortium [W3C], n.d. W3C Docu-

ment Object Model (DOM). XML DOM Tutorial.

A Metadata-based Architecture for Identiﬁcation and Discovery of Services in SOA

305
